D-Link DAP-1316-ES User manual

DAP-1316-ES
User Manual
Wireless N300 POE Bridge
Version 1.0 | 09/29/2014

iD-Link DAP-1316-ES User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any
person or organization of such revisions or changes.
Manual Revisions
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United
States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of
their respective companies.
Copyright © 2014 by D-Link Corporation.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission
from D-Link Systems, Inc.
This purpose of this product is to create a constant network connection for your devices. As such, it does not have a standby
mode or use a power management mode. If you wish to power down this product, please simply unplug it from the power
outlet.
Revision Date Description
10 September 29, 2014 • Initial release
Preface

iiD-Link DAP-1316-ES User Manual
Table of Contents
Introduction....................................................................... 1
Package Contents......................................................................... 1
System Requirements................................................................. 2
Introduction ................................................................................... 3
Features.................................................................................... 3
What is a POE Bridge? ......................................................... 4
Hardware Overview..................................................................... 5
Front/Top ................................................................................. 5
Side and Bottom ................................................................... 6
Wireless Installation Factors ..................................................... 7
Setting Up Your DAP-1316-ES...........................................8
Web-based Conguration......................................................... 9
Home Screen........................................................................10
Wi-Fi Settings .......................................................................12
Maintenance ................................................................................13
Admin .....................................................................................13
System ....................................................................................14
Upgrade .................................................................................15
Connect to a Wireless Network .............................................16

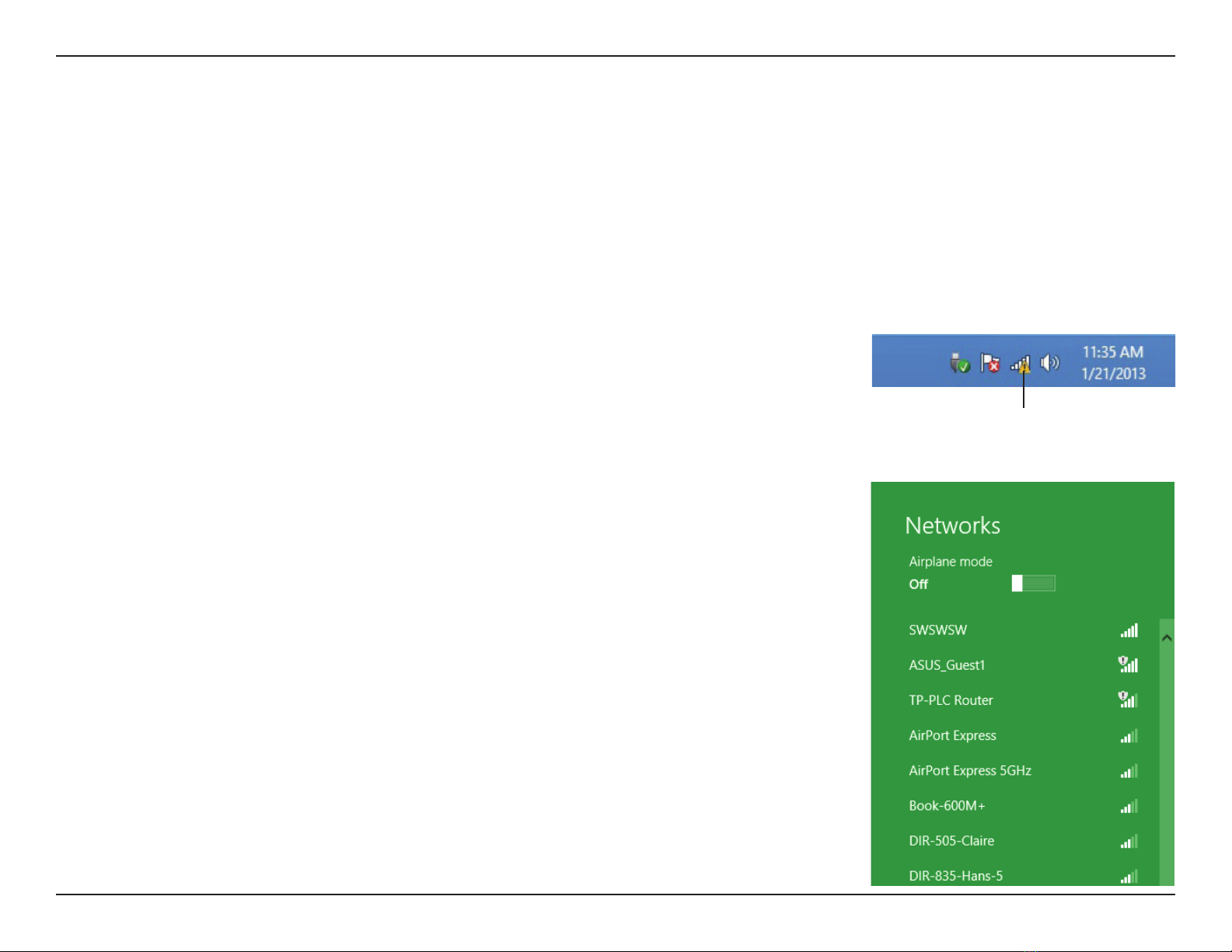

Windows® 8...........................................................................16
WPA/WPA2 .......................................................................16
Windows® 7...........................................................................18
WPA/WPA2 .......................................................................18
Windows Vista®....................................................................21
WPA/WPA2 .......................................................................22
Windows® XP........................................................................24
WPA/WPA2 .......................................................................25
Troubleshooting ..............................................................27
Wireless Basics .................................................................29
Tips...................................................................................................30
Technical Specications ..................................................31
GPL Code Statement........................................................32
Safety Statements ...........................................................47
Table of Contents

1D-Link DAP-1316-ES User Manual
Section 1 - Product Overview
Introduction
Package Contents
DAP-1316-ES Wireless N300 POE Bridge
If any of the above items are missing from your package, please contact your reseller.

2D-Link DAP-1316-ES User Manual
Section 1 - Product Overview
Network Requirements
• A wireless router with an active Internet connection.
• IEEE 802.11n, 802.11g, or 802.11b wireless clients/devices
Web-based Conguration
Utility Requirements
Computer or Mobile Device with the following:
• A Windows®, Macintosh, Android, or Linux-based operating
system
• Wireless adapter or Wi-Fi functionality
Browser Requirements:
• Internet Explorer 7 or later
• Firefox 12.0 or later
• Safari 4 or later
• Google Chrome 20.0 or later
System Requirements

3D-Link DAP-1316-ES User Manual
Section 1 - Product Overview
Introduction
Features
IEEE803.3af PSE feature to power on PD device
The DAP-1316-ES Wireless n300 POE Bridge is an 802.11b/g/n Wi-Fi PSE Bridge designed with AP/client mode and IEEE803.3af
PSE feature to power on PD device.
High-speed Wireless Performance With Wireless N Technology
Thanks to the latest Wireless N technology, the DAP-1316-ES provides a wireless connection at up to 300 Mbps* with other
802.11n wireless devices. This capability allows users to participate in real-time activities online, such as video streaming, online
gaming, and real-time audio with smooth performance.
Simple Setup
You can quickly and easily connect the DAP-1316-ES to an uplink router by pressingWPS button and manage the administrative
settings.
Compatibility
The DAP-1316-ES is still fully compatible with the IEEE 802.11g/b standards, so it can still connect with your older 802.11g/b
devices.
Latest Wireless Network Security and Encryption
Supports wireless security features to provide secure connection between DAP-1316-ES and uplink router. Support for WPA/
WPA2 standards ensure that you’ll be able to use the best possible encryption methods with your compatible wireless devices.
* Maximum wireless signal rate derived from IEEE Standard 802.11n and 802.11g specications. Actual data throughput will vary. Network conditions and environmental factors,
including volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental conditions will adversely
aect wireless signal range.

4D-Link DAP-1316-ES User Manual
Section 1 - Product Overview

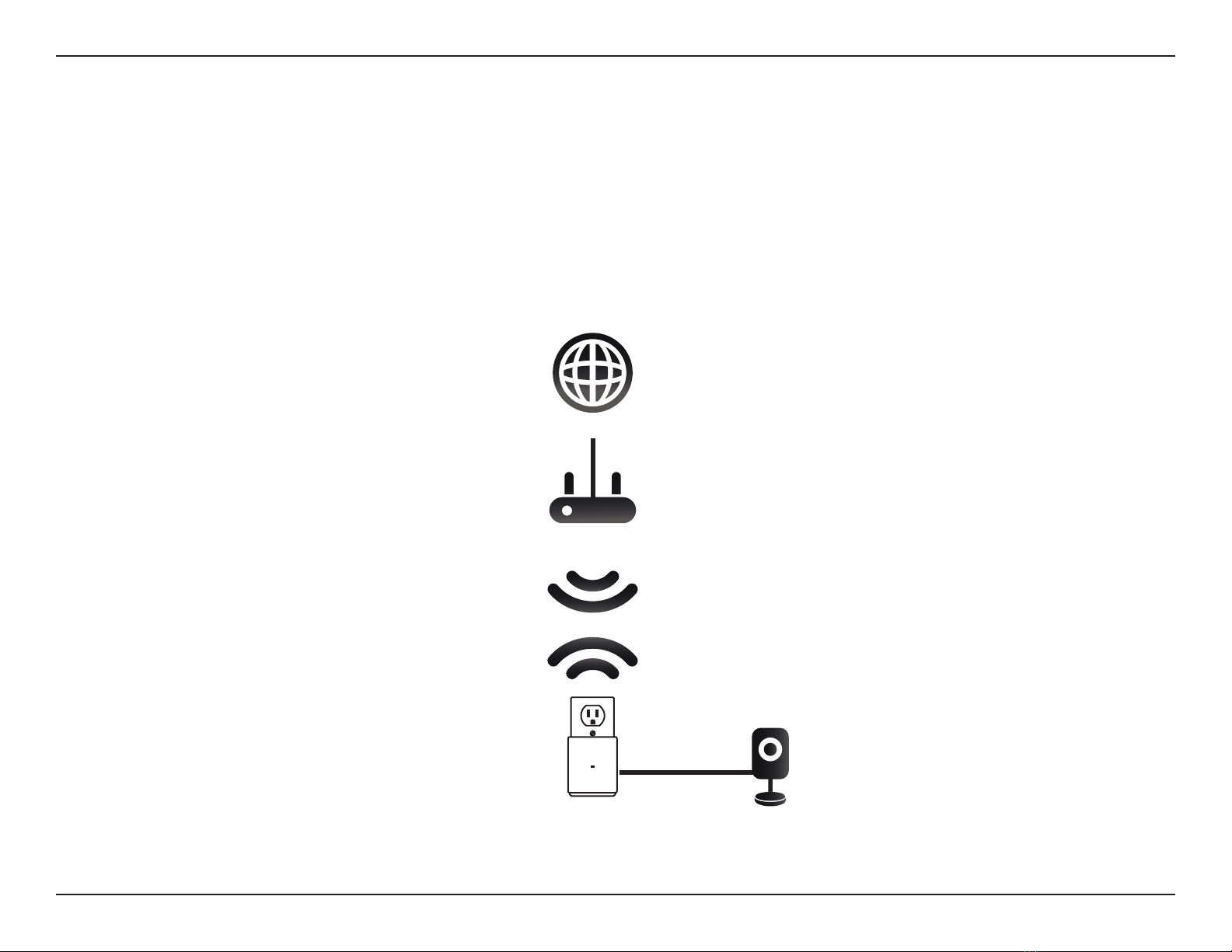

What is a POE Bridge?
The DAP-1316-ES acts as a client and connect to uplink router for internet access and supports IEEE802.3af PoE feature to power
on PD device. You can quick setup uplink connection by using WPS button or you can congure DAP-1316-ES wirelessly by
connect to default SSID and password (management only, will disable downlink after setup completely).
Camera
Wireless Router
Internet
DAP-1316-ES

5D-Link DAP-1316-ES User Manual
Section 1 - Product Overview

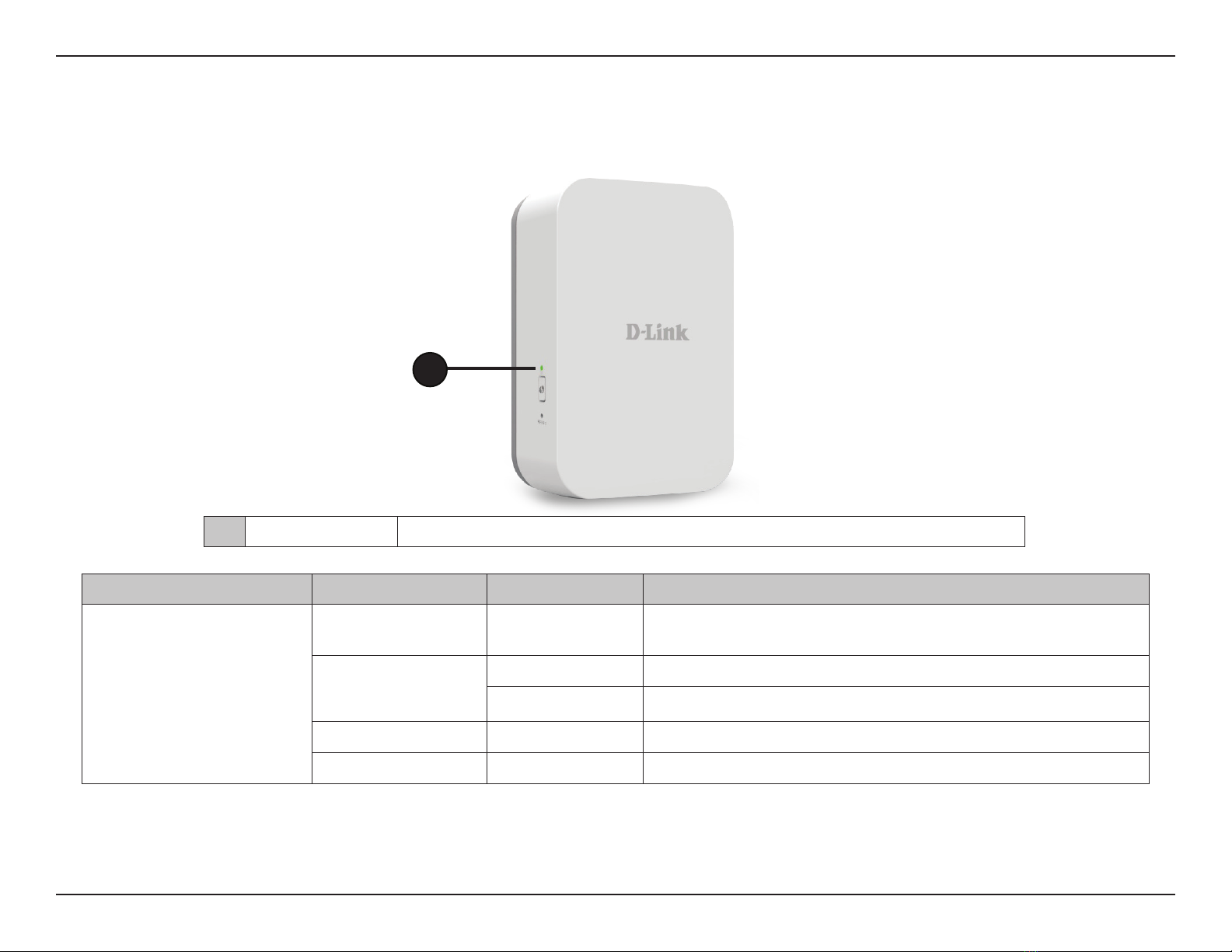

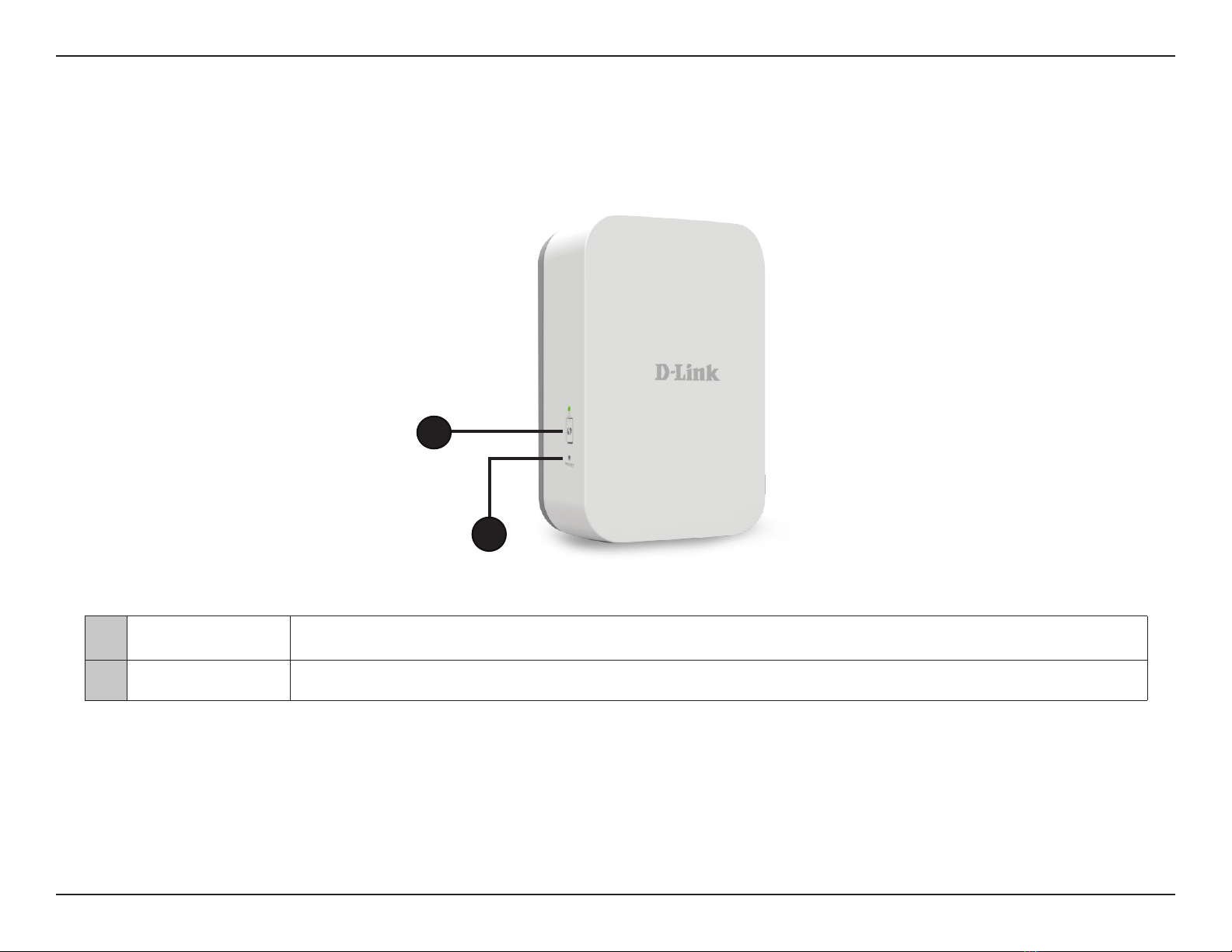

Hardware Overview
Front/Top
LED Indicator Color Status Description
Power/Status
Red Solid • Power on process
• During FW upgrade
Green
Blinking • During WPS processing
Solid • The uplink is establish and IP is not provisioned.
Orange Blinking • The uplink is not establish and IP is not provisioned.
None O • The device is power o.
1
1LED Indicator This indicates the current status of the DAP-1316-ES, as detailed in the table below.

6D-Link DAP-1316-ES User Manual
Section 1 - Product Overview
Hardware Overview
Side and Bottom
1WPS Button Pressing the WPS button for 1 second allows you to connect with Wi-Fi clients using Wi-Fi Protected Setup.
2Reset Button Pressing the reset button will reset the DAP-1316-ES to the factory default settings.
1
2

7D-Link DAP-1316-ES User Manual
Section 2 - Conguration
Wireless Installation Factors
The Wireless N300 POE Bridge lets you connect to uplink router wirelessly and provide IEEE802.3af feature to power ron PD
device. Keep in mind, however, that the number, thickness, and location of walls, ceilings, or other objects that the wireless
signals must pass through, may limit the range. Typical ranges vary depending on the types of materials and background RF
(radio frequency) noise in your home or business. The key to maximizing wireless range is to follow these basic guidelines:
1. Keep the number of walls and ceilings between the PoE bridge and uplink router to a minimum - each wall or ceiling can reduce
your range by up to 98 feet (30 meters). Position your devices so that the number of walls or ceilings is minimized.
2. Be aware of the direct line between network devices. At a 45-degree angle, a wall that is 0.5 meters thick (1.5 feet) appears to be
almost 1 meter (3 feet) thick. At a 2-degree angle it can appear over 14 meters (45 feet) thick! Position devices so that the signal
will travel straight through a wall or ceiling (instead of at an angle) for better reception.
3. Building materials make a dierence. A solid metal door or aluminum studs may have a negative eect on range. Try to position
access points, wireless routers, and computers so that the signal passes through drywall or open doorways. Materials and objects
such as glass, steel, metal, walls with insulation, water (sh tanks), mirrors, le cabinets, brick, and concrete can degrade your
wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF noise.
5. If you are using 2.4 GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home security systems), your
wireless connection may degrade dramatically or drop completely. Make sure your 2.4 GHz phone base is as far away from your
wireless devices as possible. The base transmits a signal even if the phone in not in use.

8D-Link DAP-1316-ES User Manual
Section 2 - Conguration
Setting Up Your DAP-1316-ES

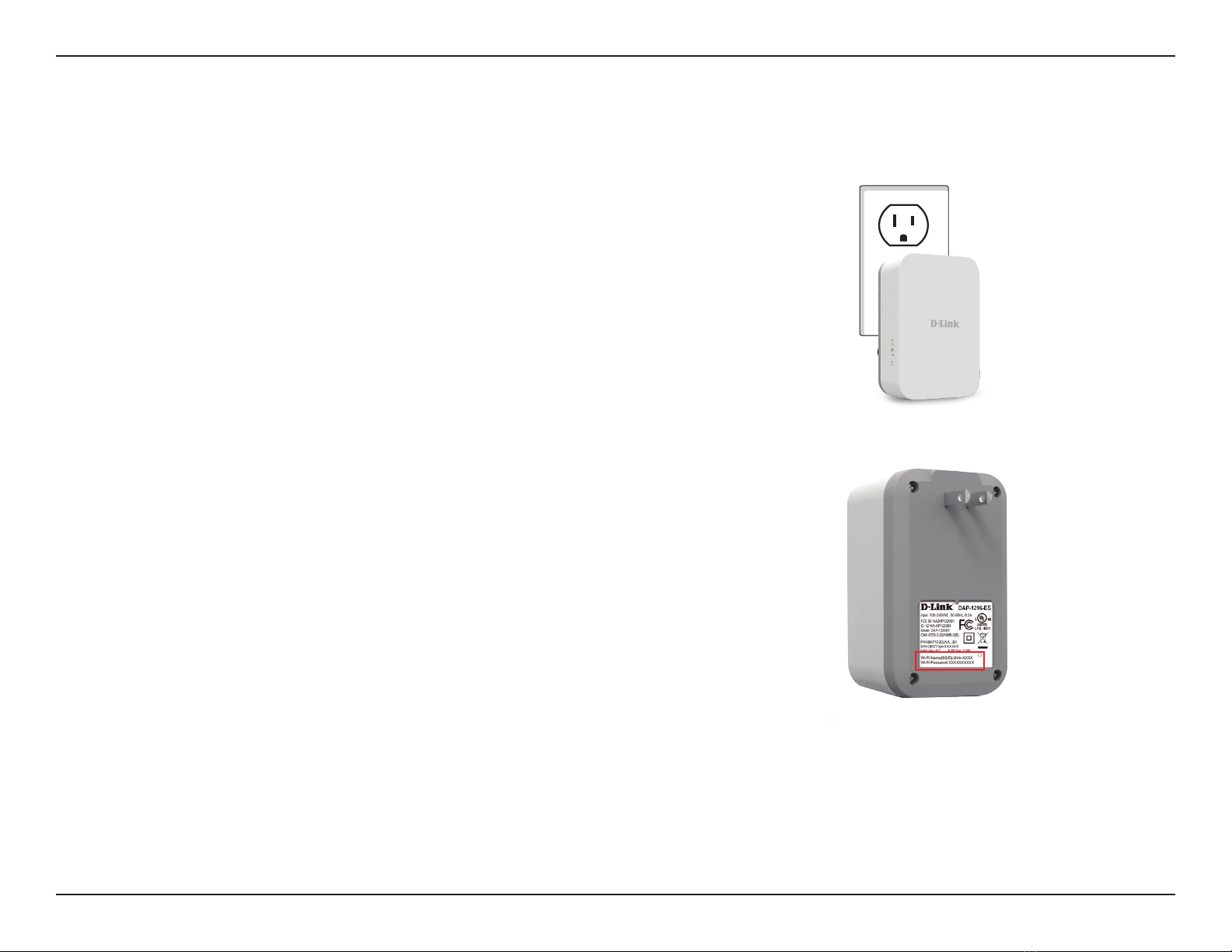

Plug in the DAP-1316-ES to a power outlet. Verify that the power
LED is blinking orange before continuing.
Outlet
Ethernet
Locate theWi-Fi name (SSID) and password for your DAP-1316-ES
device.These details are printed on the specication sticker on the
backside of the device. Using your computer or mobile device’s
Wi-Fi connection utility, connect to the SSID of your DAP-1316-ES
and enter the password. If you are unsure of how to connect to a
wireless network, please refer to“Connect to a Wireless Network”
on page 32, or consult your device’s user manual. Once connected,
you are ready to begin the setup process.

9D-Link DAP-1316-ES User Manual
Section 2 - Conguration
Web-based Conguration

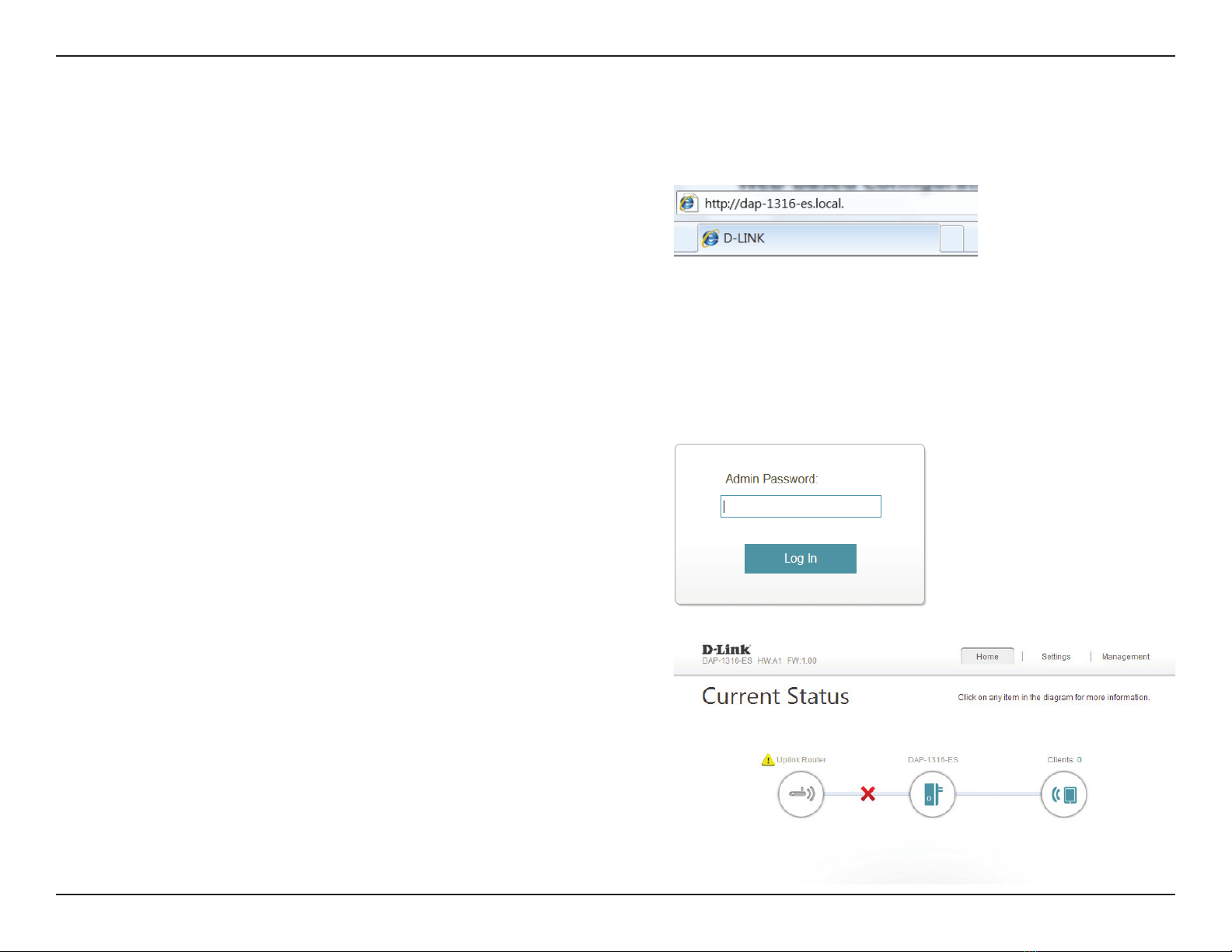

Enter yourpassword.Bydefault,Admin isselectedas the username
and cannot be changed, and by default, the password is blank.
To access the conguration utility for the DAP-13-16-ES on your PC,
rst connect to the DAP-1316-ES wirelessly using the Wi-Fi name
(SSID) and password located on yourWi-Fi Conguration Card.Then
open a web browser and enter http://dap-1316-es.local. in the
address bar. You can also use the IP address http://192.168.0.60.
The conguration interface will open, and you can congure
the various settings for the DAP-1316-ES. If you have not yet
congured and uplink network, the home screen will show that
there is no connection between the DAP-1316-ES and the uplink
router.

10D-Link DAP-1316-ES User Manual
Section 3 - Web-based Conguration

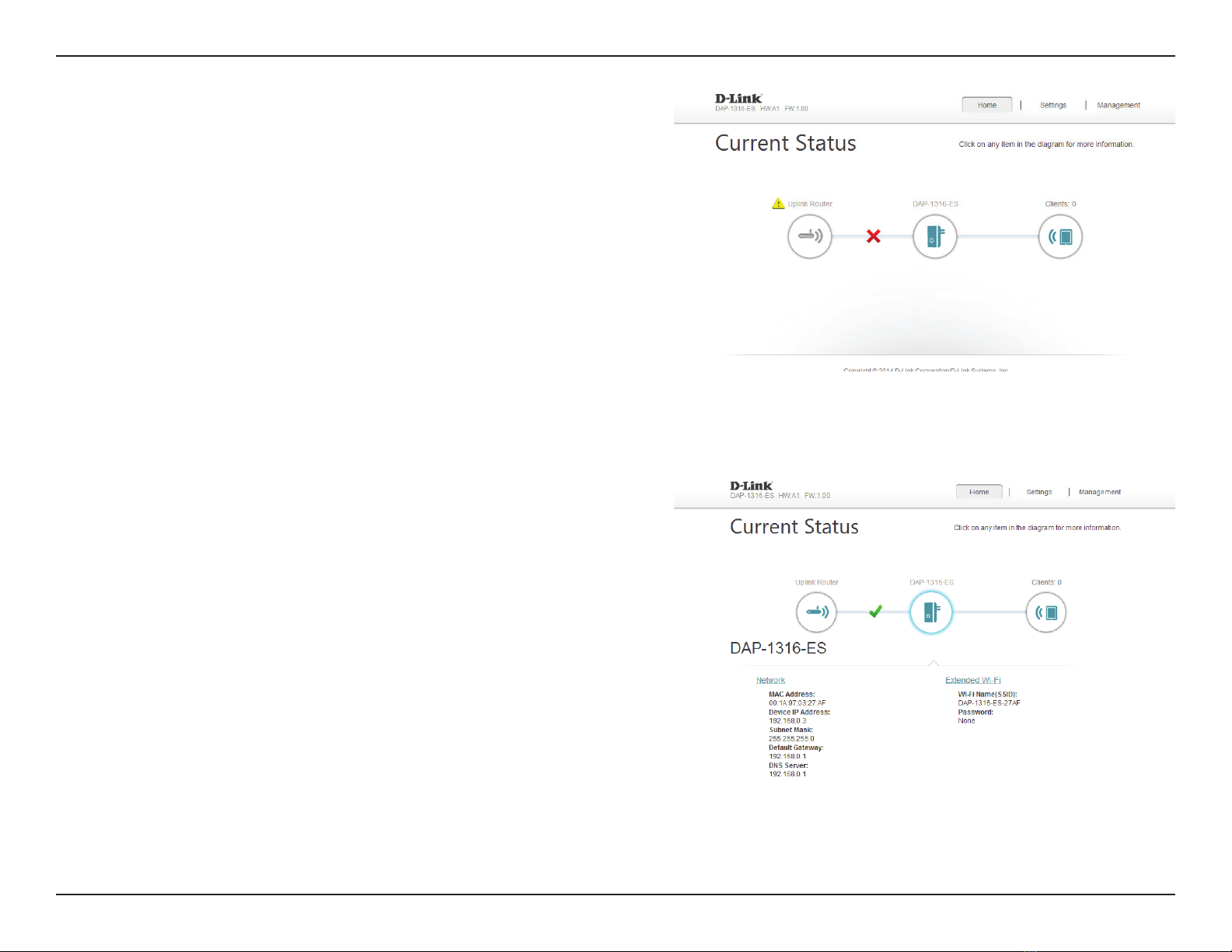

Home Screen

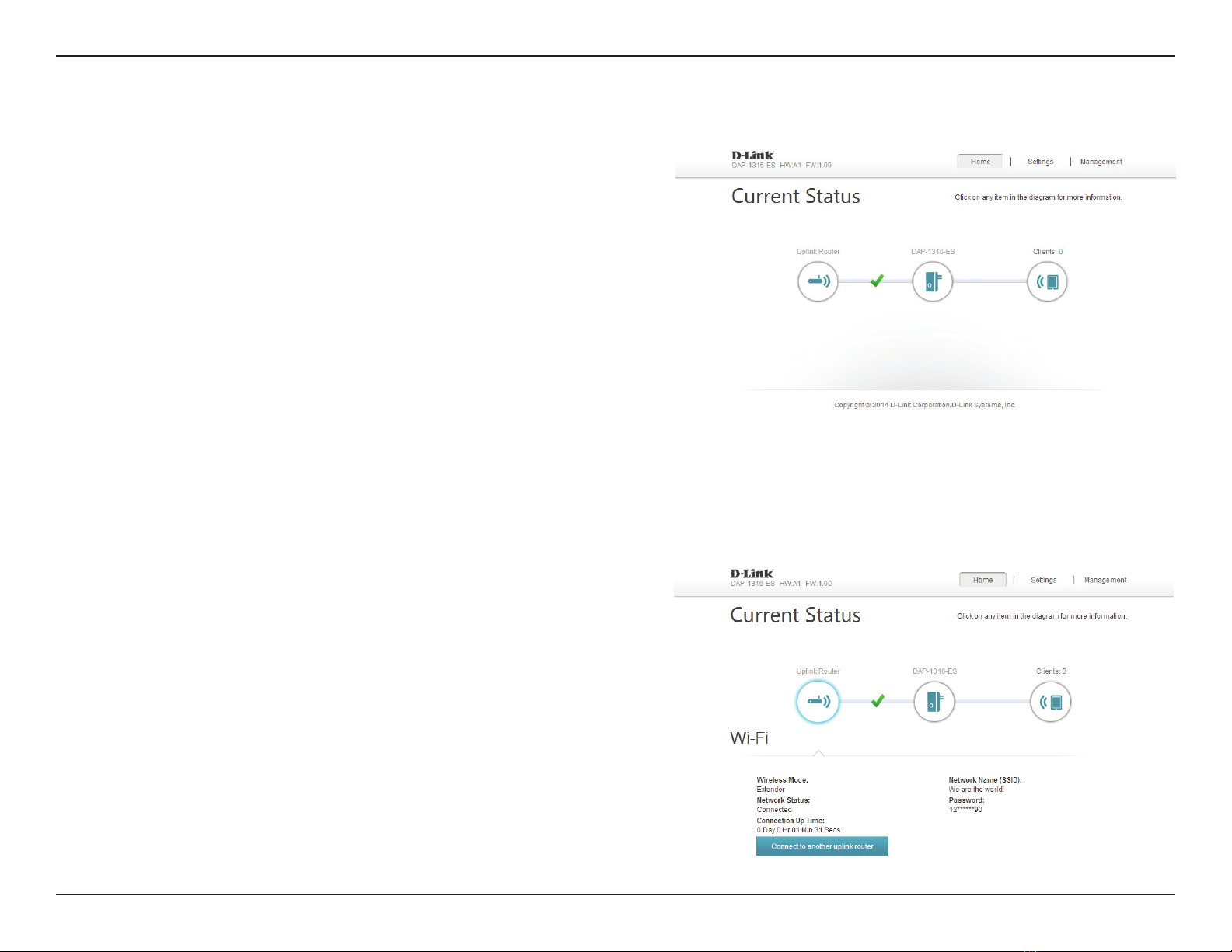

The home screen gives a summary of the current status of devices
connected to the DAP-1316-ES. A green check between devices
indicates that there is an active connection. A red cross indicates
that there is no connection present, or there is a connection error.
At any time, you can click on the device images on the home
screen to view the current status of each device.

11D-Link DAP-1316-ES User Manual
Section 3 - Web-based Conguration
If there is no connection between the DAP-1316-ES and the uplink
router, you can click on the uplink router icon to search for an
available uplink router.
You can view the details of both the uplink router network and
the extendedWi-Fi network by clicking on the DAP-1316-ES icon.

12D-Link DAP-1316-ES User Manual
Section 3 - Web-based Conguration

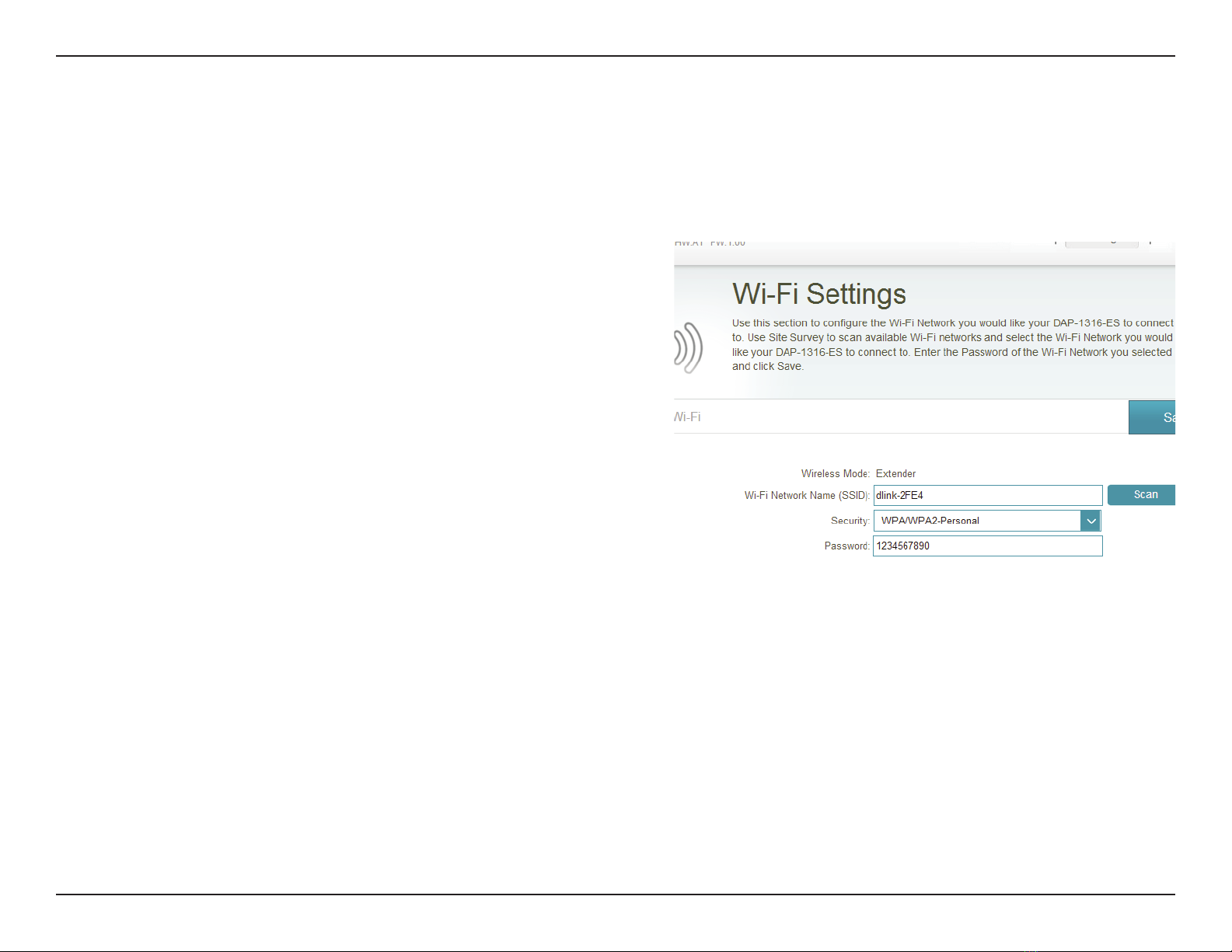

Wi-Fi Settings
This is set to Repeater mode and cannot be changed.
Click Scan to scan for available wireless networks and select
the one you want to use the DAP-1316-ES to extend.
You can also type in the name (SSID) of the wireless network.
Select the security method that is being used by the wireless
network that you have selected: WEP, WPA/WPA2, or None.
If you selected WEP or WPA/WPA2, you will be required to
enter the password or security key for the network you are
attempting to join.
You can also useWPS to connect your wireless devices to the
DAP-1316-ES’s extended network. For further information
on how to do this, please refer to “Connecting a Wireless
Client” on page 31.
Click Save to save the settings and return to the home page.
Wireless
Mode:
Wi-Fi Network
Name (SSID):
Security:
Password:
This page lets you congure the Wi-Fi settings to connect your DAP-1316-ES to another wireless network. To access this page,
click on the Settings drop-down menu at the top of the page, and select Wi-Fi.

13D-Link DAP-1316-ES User Manual
Section 3 - Web-based Conguration

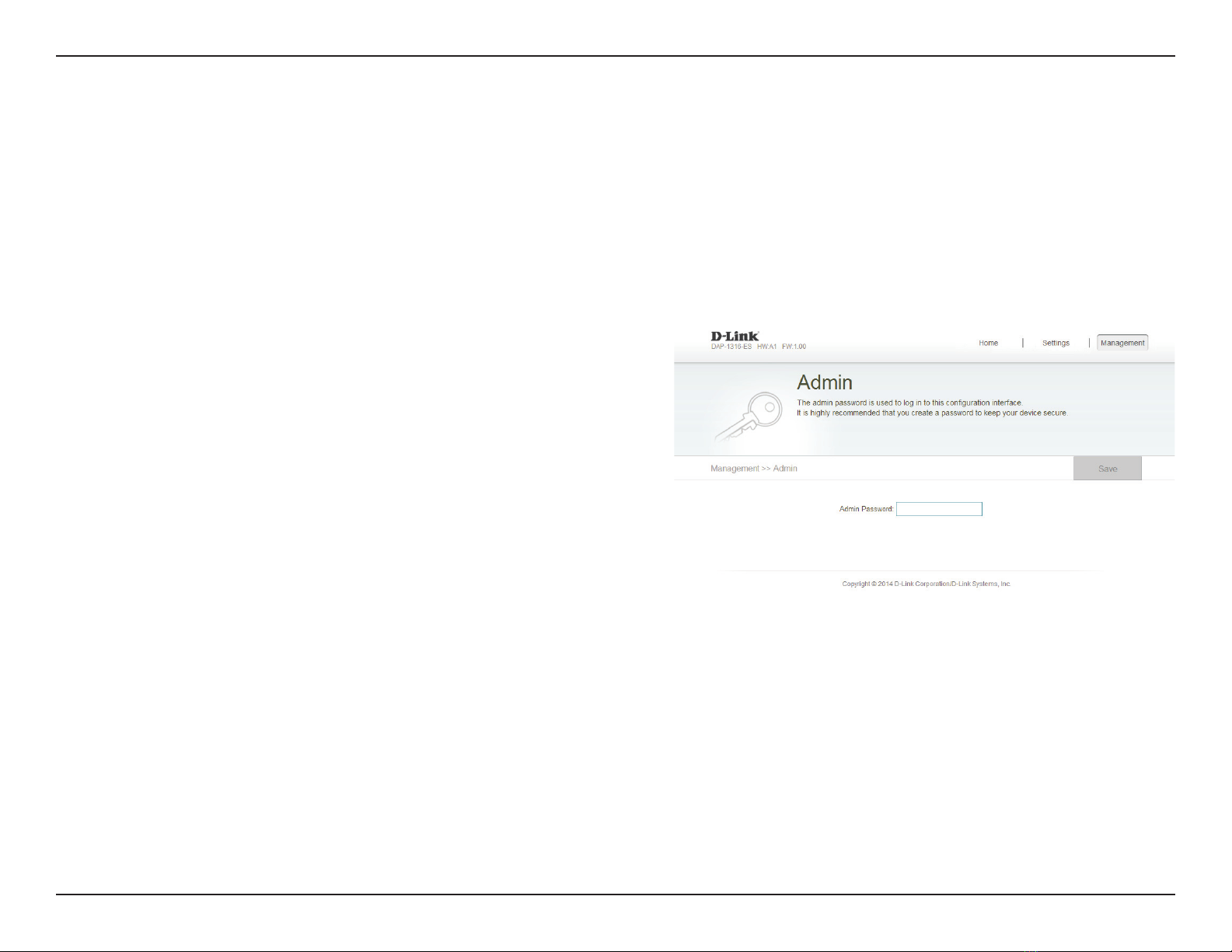

This page will allow you to set a new password for the administrator account used to congure the DAP-1316-ES. You can also
enable graphical authentication (CAPTCHA) on this page. To access this page, click on the Management drop down menu at
the top of the page, and select Admin. Click Save at any time to save the changes you have made on this page.
Enter the Admin password.Admin
Password:
Maintenance
Admin

14D-Link DAP-1316-ES User Manual
Section 3 - Web-based Conguration
Save the system settings onto a le to the local hard drive.
You will then see a le dialog where you can select a location
and le name for the settings.
Load the system settings from a le on the local hard drive.
Restore the system settings to factory default settings. This
will erase all currently stored settings.
Click Reboot to reboot the DAP-1316-ES.
Save Settings
To Local Hard
Drive:
Load Settings
From Local
Hard Drive:
Restore
to Factory
Default
Settings:
Reboot the
Device:
System
This page allows you to save or restore your system conguration, reset or reboot the DAP-1316-ES. To access this page, click
on the Management drop down menu at the top of the page, and select System. Click Save at any time to save the changes
you have made on this page.

15D-Link DAP-1316-ES User Manual
Section 3 - Web-based Conguration
Upgrade
This section displays the currently installed rmware version,
as well as the date on which the current rmware version
was released.
Click Select File to locate the rmware le on your local
device and perform a manual rmware upgrade.
Firmware
Information:
Upgrade
Firmware:
Firmware and language upgrades may be provided for the DAP-1316-ES in future.You can check for and upgrade your rmware
and language pack on this page. To access this page, click on the Management drop down menu at the top of the page, and
select Upgrade. Click Save at any time to save the changes you have made on this page.

16D-Link DAP-1316-ES User Manual
Section 4 - Connecting a Wireless Client
Windows® 8
WPA/WPA2
It is recommended to enable wireless security (WPA/WPA2) on your wireless router or access point before conguring your
wireless adapter. If you are joining an existing network, you will need to know the security key (Wi-Fi password) being used.
To join an existing network, locate the wireless network icon in the taskbar, next to the
time display.
Wireless Icon
Clicking on this icon will display a list of wireless networks which are within connecting
proximity of your computer. Select the desired network by clicking on the network name.
Connect to a Wireless Network

17D-Link DAP-1316-ES User Manual
Section 4 - Connecting a Wireless Client
You will then be prompted to enter the network security key (Wi-Fi password) for
the wireless network. Enter the password into the box and click Next.
If you wish to use Wi-Fi Protected Setup (WPS) to connect to the router, you can also
press the WPS button on your router at this point to enable the WPS function.
When you have established a successful connection with a wireless network, the word
Connected will appear next to the name of the network to which you are connected.
