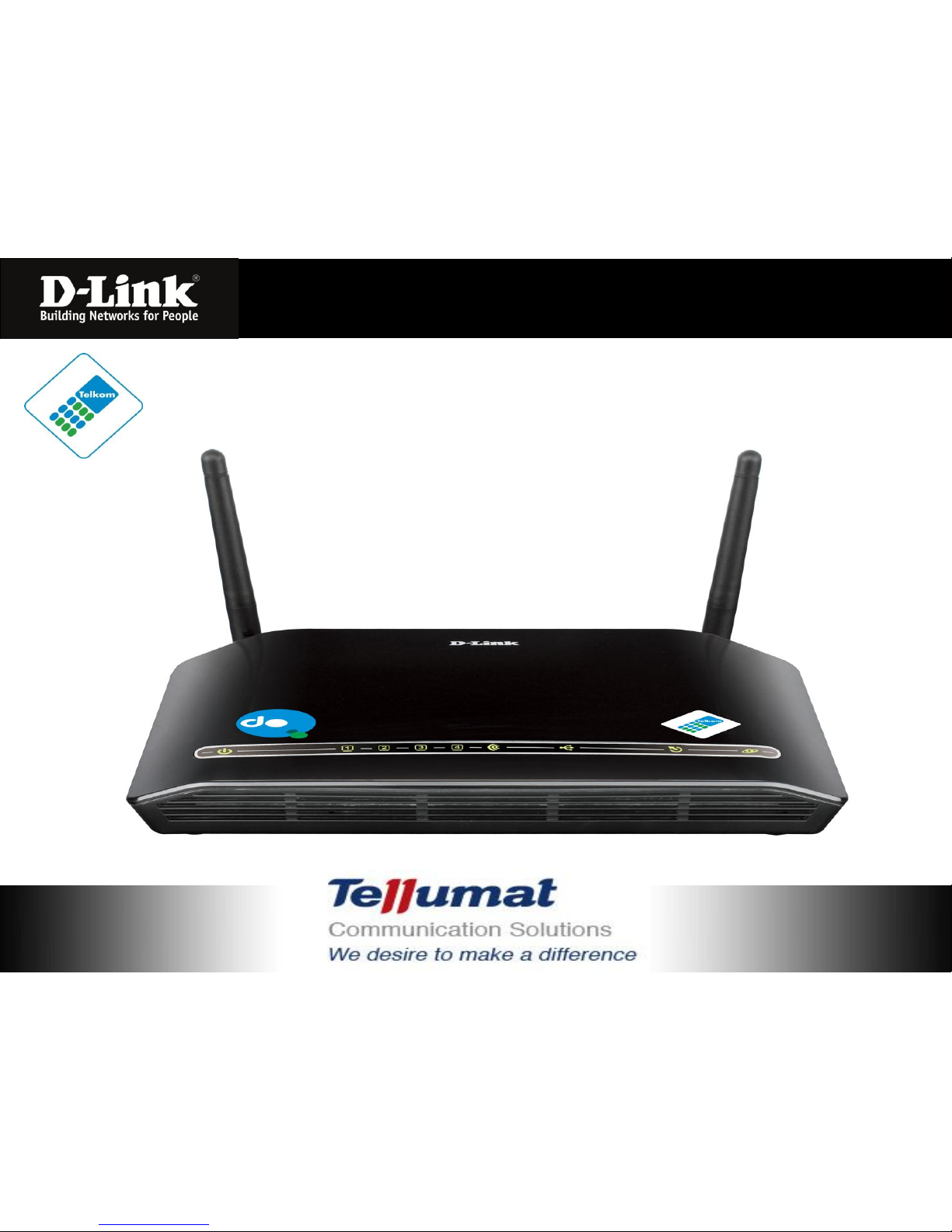

D-Link DSL-2750U Manual

DSL-2750U Storage
Setup

POWER UP
your Business

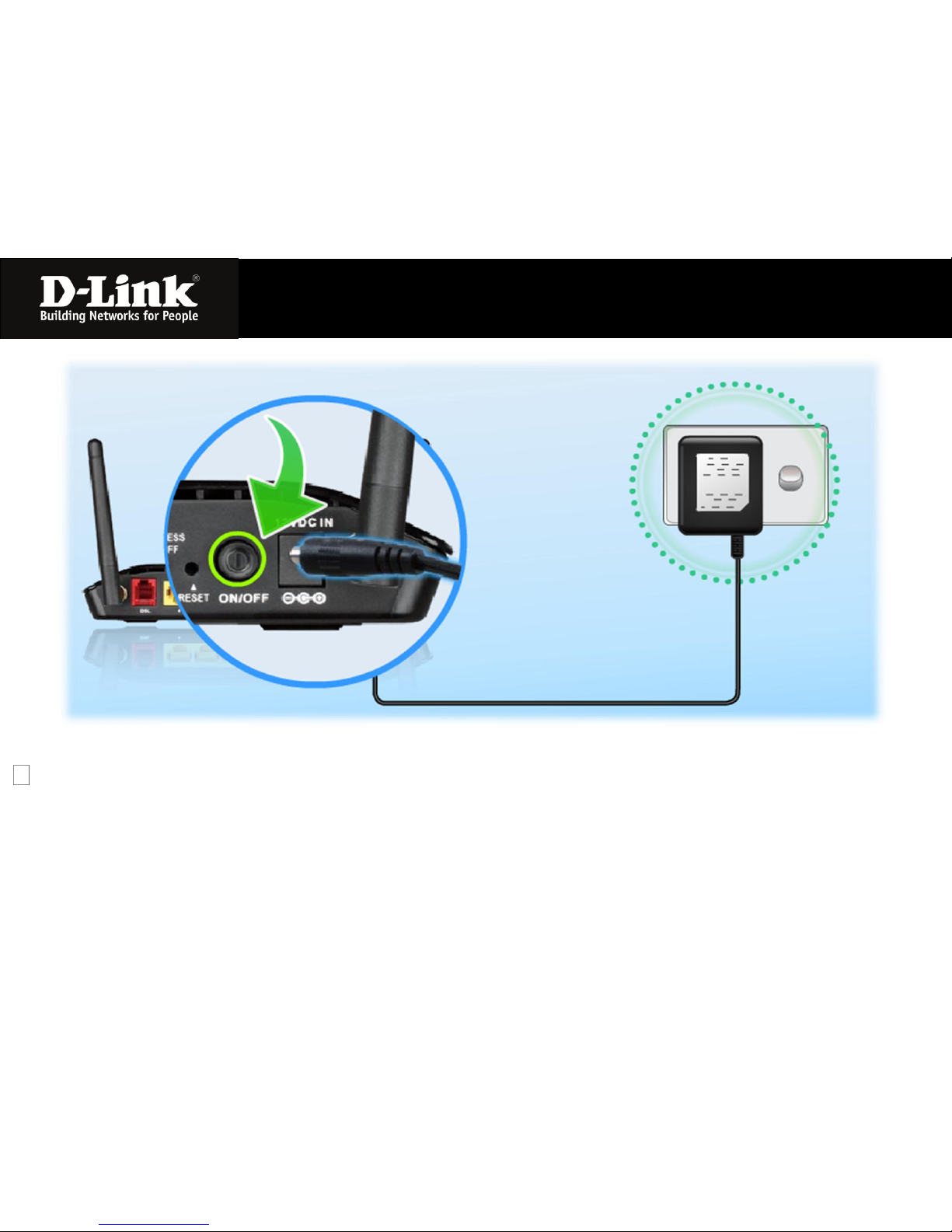

Power Adapter Connection
Plug the 3-Pin Power Supply/ Lightning Protection unit into the wall
outlet and then connect the other end of it (12VDC IN)

LAN CONNECTION
POWER UP
your Business

POWER UP
your Business

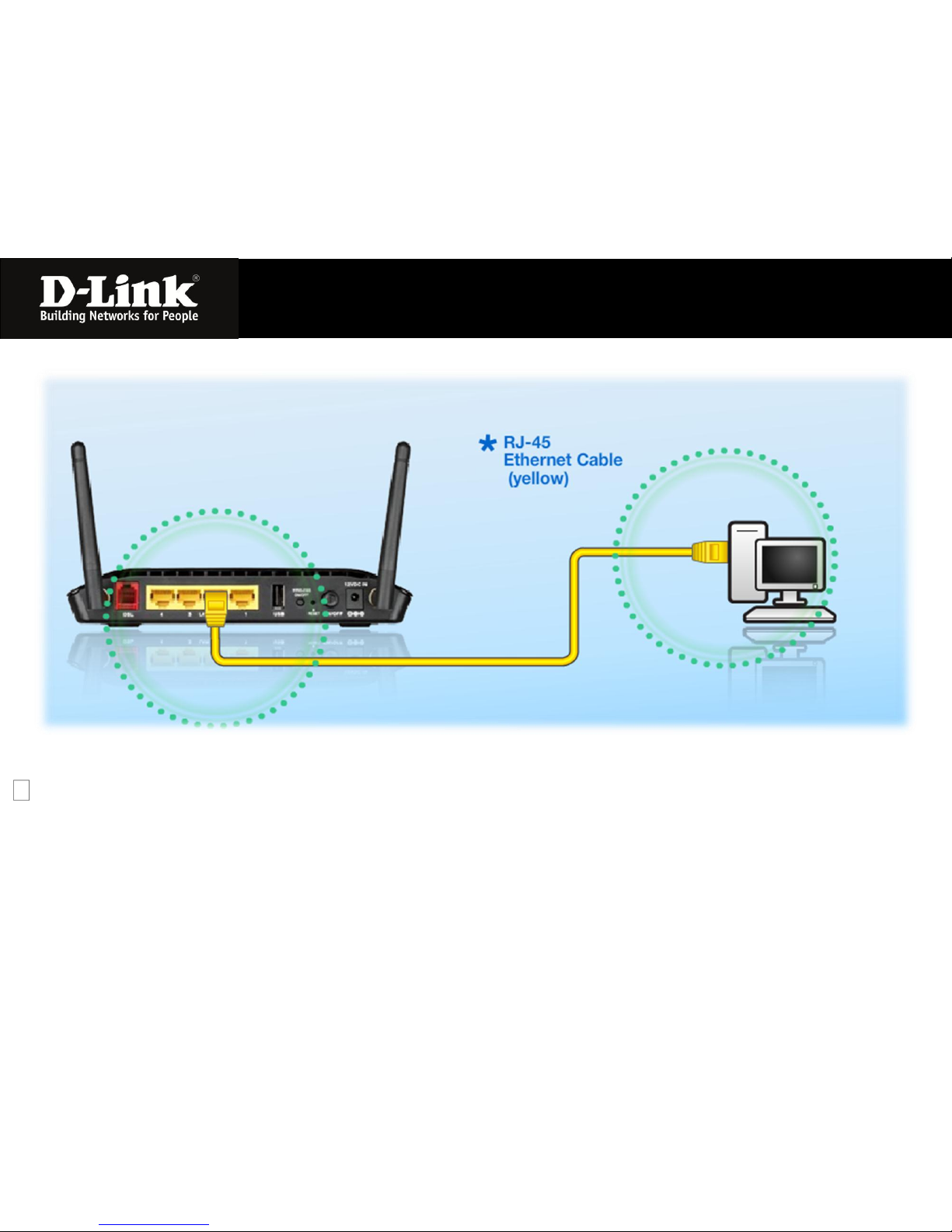

LAN Connection
Connect the Ethernet LAN Cable to any (yellow) port on the Router
and connect the other end to the LAN port of the PC

CONNECTING TO THE
UNIT VIA WEB GUI
POWER UP
your Business

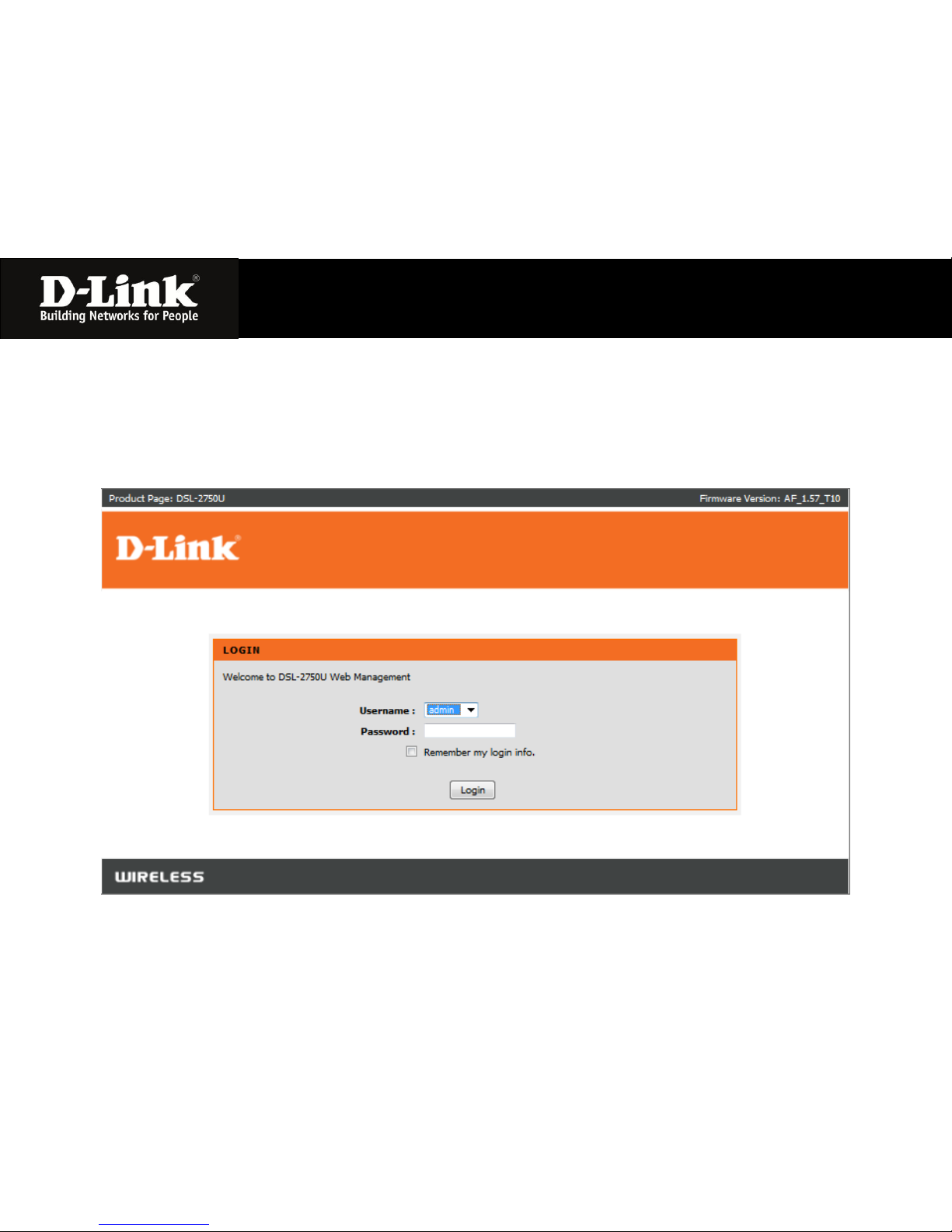

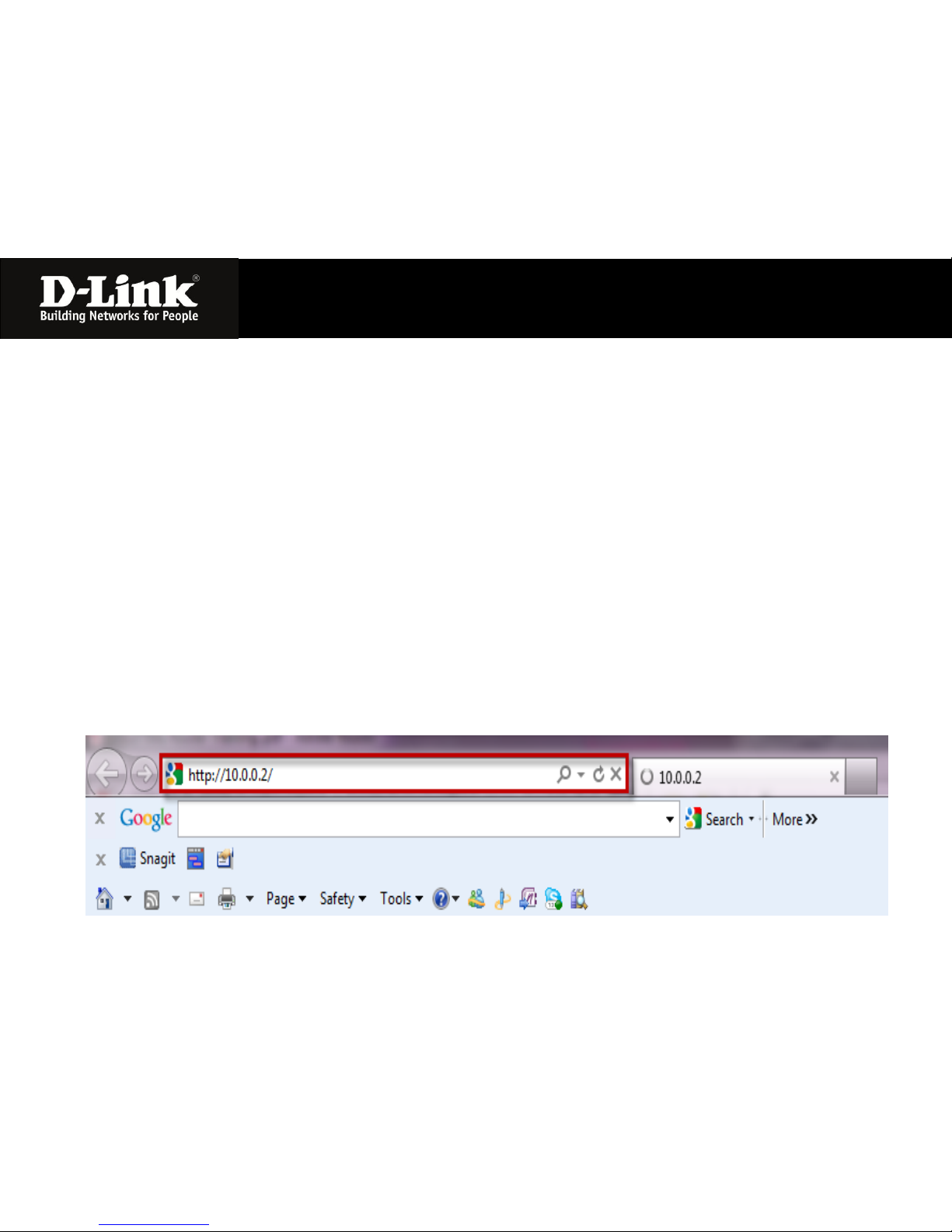

How to login to Unit using the Web GUI
1. Go to your Internet Explorer or Default Browser.
2. In your URL field, type the Default IP (10.0.0.2) of router.
3. A login page will appear and you will be prompted for a
Username and Password these are both “admin”
Connecting to the unit via Web GUI

Username: admin
Password: admin
Connecting to the unit via Web GUI

Storage
Setup
POWER UP
your Business
Setting up a USB external hard drive or flash
drive as a shared storage facility.

Notes:
· FAT 32 devices are limited to 32GB maximum and the file can’t be greater than 4GB,
· The below setup was done with an 1TB NTFS Mass Storage (the external drive should
however be self powered by the power supply that came with the external drive).
· Please make sure the unit is on the latest firmware. You can download the firmware
at ftp.dlinktech.co.za . If you are still unsure as to which firmware to download,
then simply e-mail your query to [e-mail] or call the D-Link Africa
offices on [phone]/3
Setup:

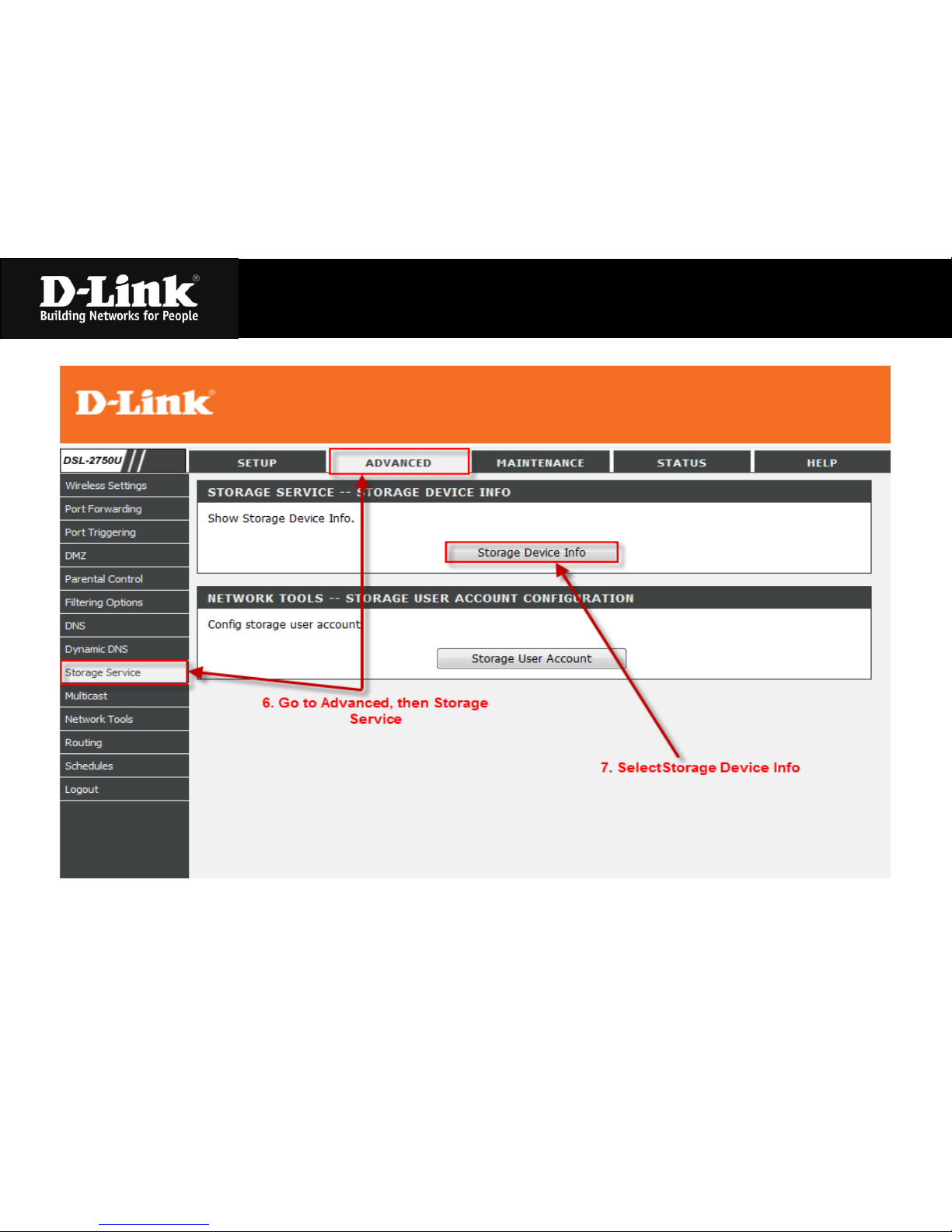

· Go To Advanced, then Storage Service,
· Select Storage Device Info,

Note the volumeName of the stoage device.

Enter a username, e.g. Andre and a password, e.g. 12345 which will be used
when accessing the storage device from another location. Enter the volume
name as noted Storage Device Info and enter this into volumeName.

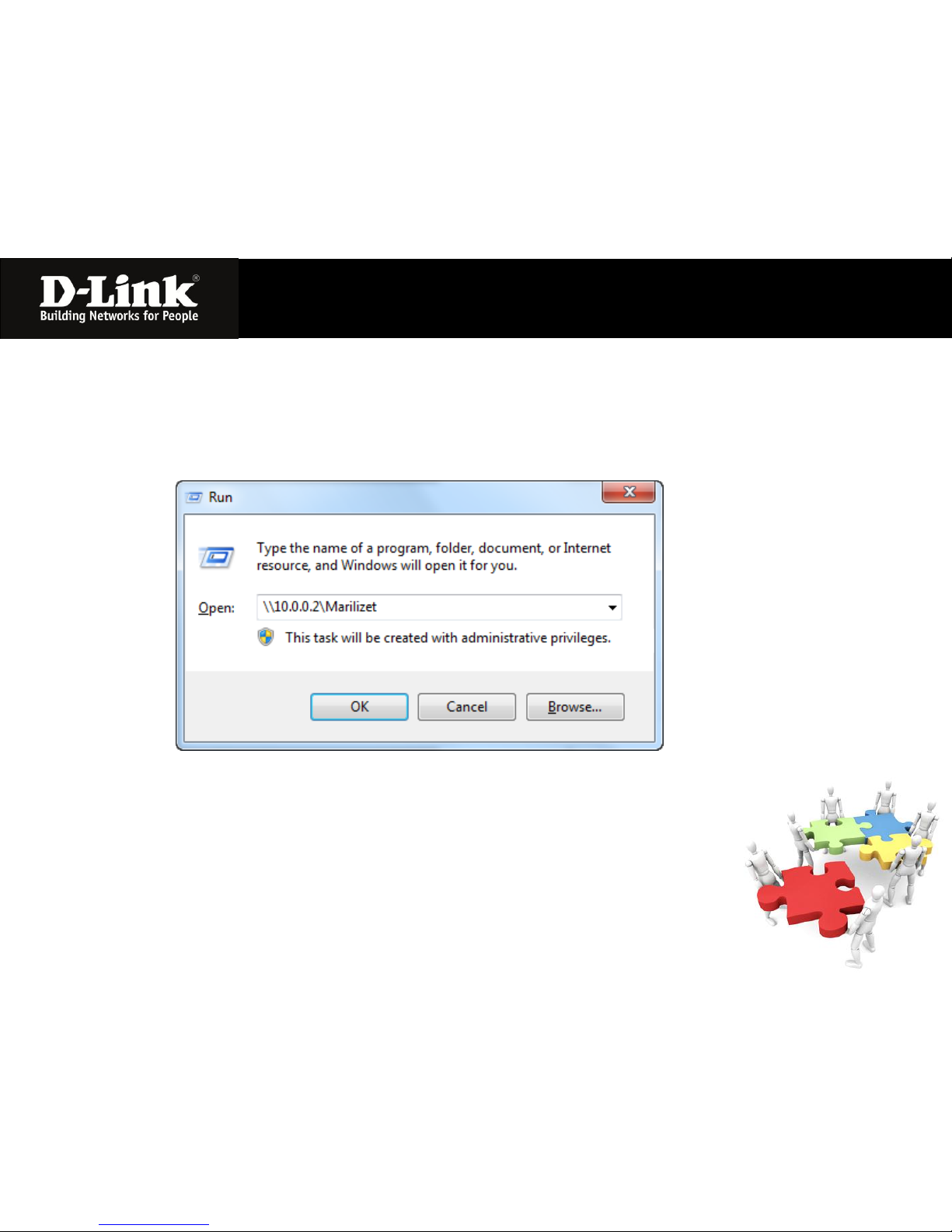

· Open the RUN command and enter the following details,
· In this example it will be the following \\10.0.0.2\Marilizet

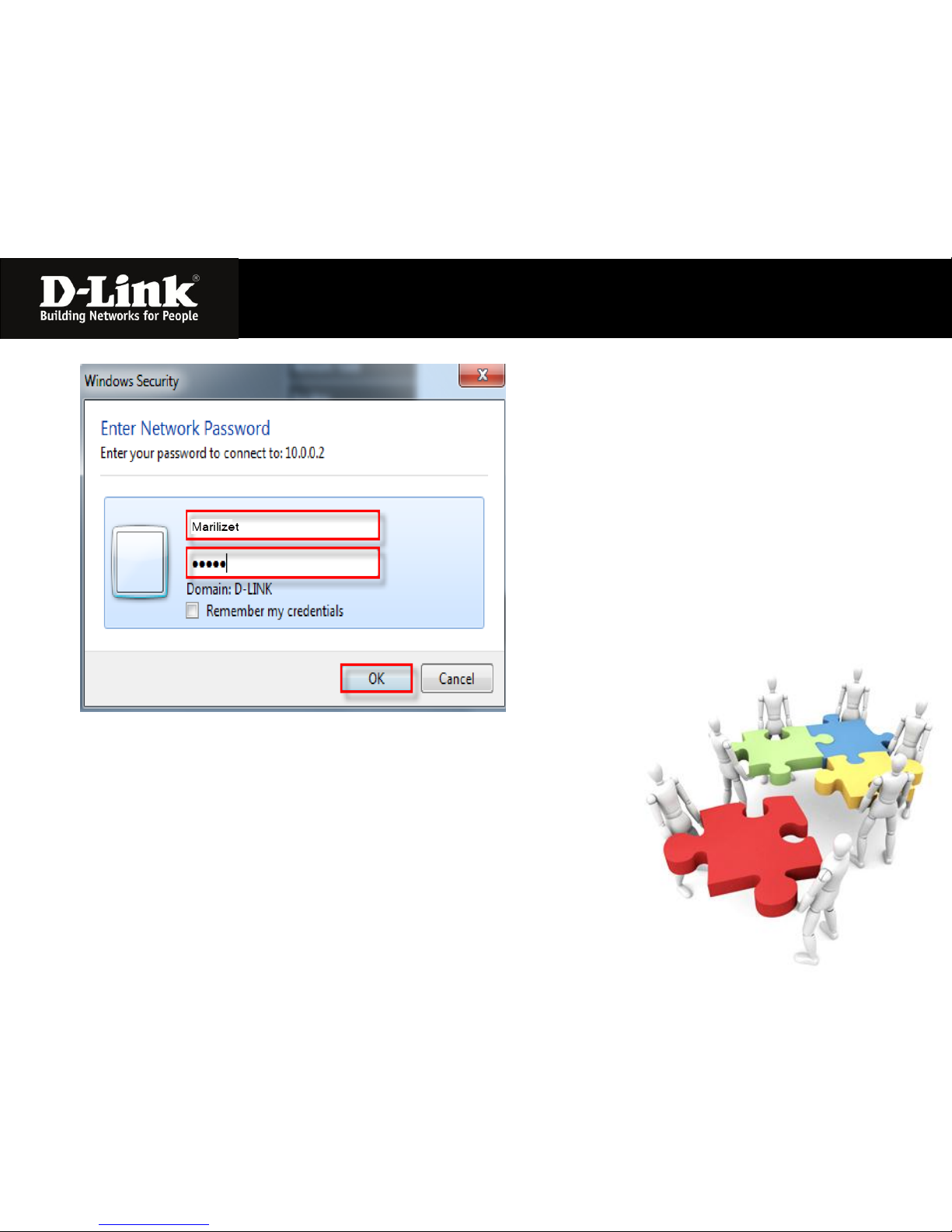

· Insert the Username and Password you selected and Click OK.

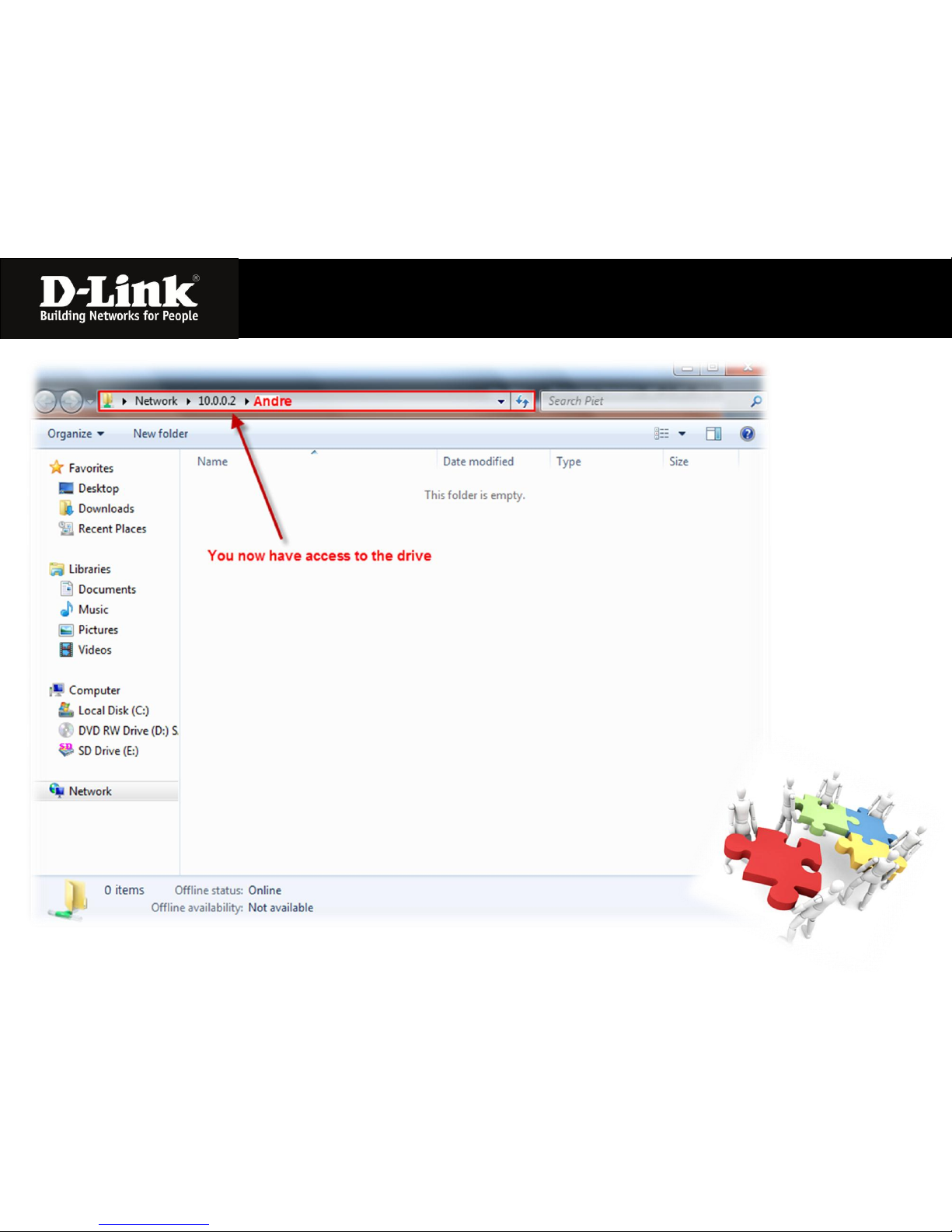

· You should now have access to the hard drive,
