D-Link ShareCenter DNS-315 User manual
USER MANUAL
ShareCenter TM DNS-315
VERSION 1.1
iD-Link ShareCenter DNS-315 User Manual
Table of Contents
Table of Contents
Product Overview ........................................................2
Connecting the DNS-315 and Getting Started ........ 13
Connecting the DNS-315 and Getting Started ........ 14
Installation ..................................................................19
iiD-Link ShareCenter DNS-315 User Manual
Table of Contents
Conguration ............................................................. 54
iiiD-Link ShareCenter DNS-315 User Manual
Table of Contents
ivD-Link ShareCenter DNS-315 User Manual
Table of Contents
1D-Link ShareCenter DNS-315 User Manual
The D-Link DNS-315 1-Bay Network Storage, when used with an internal SATA drive, enables you to share documents, les,
and digital media such as music, photos, and video with everyone on the home or oce network. Remotely accessing les
through the Internet is also possible with the built-in FTP server, and Web File server protocols. Whether you are allowing
access locally or over the Internet, keep data safe by only giving rights to specic users or groups. When conguring the DNS-
315, you can create users and groups and assign them to folders with either read or read/write permissions. This is ideal for an
oce environment with employee-specic sensitive data or for the home where you can ensure your children will only have
access to age appropriate material. The DNS-315 will be available to any computer (PC, MAC, or Linux-based) on your network,
without the need to install any software on the computer.
Back up your music, photo, and video collections to the DNS-315 for safekeeping. Then, enjoy the benets of the built-in UPnP
AV media server as you stream digital content to compatible media players2 (such as those found in D-Link’s MediaLounge
product line). This feature is highly convenient as it allows you to turn o a computer that would normally be needed for the
same function.
Introduction
1 Hard Drive not included.
2 D-Link cannot guarentee full compatibility or proper playback with all codecs. Playback capability depends on the codec support of the UPnP-AV media player.
2D-Link ShareCenter DNS-315 User Manual
Product Overview
• D-Link ShareCenter™ DNS-315
• CD-ROM with Manual and Software
• Quick Installation Guide
• 12V/ 2A Output Power Adapter
• Cat5 Ethernet Cable
• 6 x Screws
Package Contents
Note: Using a power supply with a dierent voltage than the one included with the ShareCenter™ will cause damage and void the warranty for this
product.
If any of the above items are missing, please contact your reseller.
3D-Link ShareCenter DNS-315 User Manual
System Requirements
For best results, the following minimum requirements are recommended on any system used to congure and use the
ShareCenter™:
• Computer with: 1Ghz processor / 512 MB RAM / 200 MB available space / CD-ROM drive
• Internet Explorer version 7, Mozilla Firefox 3 or Apple Safari 4 and above
• Windows® XP (with Service Pack 2) or Vista™ or Windows 7™
• 3.5” SATA Hard Drive(s)
Operating System Compatibility
The DNS-315 is compatible with the following operating system:
Windows®
• Windows XP
• Windows Vista
• Windows 7
Mac® OS X®
• Leopard®
• Snow Leapard®
• Lion®
For the highest performance and reliability, always install the latest updates and service packs. For Windows© computers,
go to the Start menu and select Windows Update. For Mac computers, go to the Apple menu and select Software Update.
Disk Drive Format
The DNS-315 drive is preformatted as a single EXT4 partition for compatibility with all Windows operating systems via SAMBA.
4D-Link ShareCenter DNS-315 User Manual
Features
• Equipped one 10/100/1000 Mbps auto-
MDIX Gigabit Ethernet LAN port
• Embedded one hot-swappable SATA II 3.5” HDD
interface, support 3TB HDD or larger volume
• Equipped Ultra Cooler with FAN speed control
• Support Real time clock (RTC),NTFS
• Network Protocols
-DHCP Client or Static IP
-NTP Server
-DHCP Client or Static IP
-Windows 7, Vista x32/64 PnP-X/LLTD
-Dynamic DNS
-Bonjour
-UPnP Port Forwarding
•Network File Services
-Supports Windows XP/ Vista/ 7, Mac OS X 10.5, Linux
-CIFS/SMB for Windows and Mac OS X
-NFSv2/v3 for Linux and UNIX
-HTTP and HTTP/S for web browsers
-AFP3.1 for Mac OS X
•File System
-EXT4 for internal HDD
-FAT32, NTFS for USB external Storage
•File System Management
-Unicode Support for both Samba and FTP server
-File sharing: Windows/ Mac/ Linux
•FTP server
-FTP over explicit SSL/ TLS mode (FTPES)
-FTP bandwidth and connection control
- FTP support FXP
•Download Management
-HTTP/FTP schedule download
-Peer to peer download support
•Disk Management
-HDD S.M.A.R.T test
-Scandisk
-Reformat HDD: EXT4
-Support Advanced Format HDD
•Power Management
-Power Saving (Disk idle spin-down)
-Automatic power recovery
-Schedule power on/o
-Smart FAN Control
•Folder Management
-Share Folder Level Permission
-Public Folder
-Supports ISO Mount
The ShareCenter™ is designed for easy installation and allows remote access to important data via LAN or WAN. This ShareCenter™
supports up to 1 SATA hard drive and includes the product features listed below:
5D-Link ShareCenter DNS-315 User Manual
•Remote File Sharing
-Web File Sever
-FTP Server
-WebDAV
•User/Group Management
-User/group assignment for Network sharing and FTP
server
-Quota for user and group
-Users can assign to multiple Groups
-Batch User Creation/ Import Users
•Backup Management
-Schedule Backup from PC to NAS
-Apple Time Machine support
-Remote network backup (Rsync, Remote Snapshot)
-Cloud Backup (Amazon S3)
-USB Backups (External storage and digital camera)
-USB Copy Button
•System Management
-Support Storage Utility
-OS support: Windows XP, Vista, 7 and Mac OS X
-Two access modes supported: Open (Share) mode and
Account (User) mode, no setup necessary in open mode
-Support Conguration le save/load
-System status
-Network Recycle bin
-System/FTP Log (Syslog Client)
-Email/ SMS notications
•USB port support:
-External Storage device
-Printer server
-MTP/PTP
•Media Streaming
-UPnP AV server:
-DLNA Certicated
-Support PS3/Xbox 360
-Support UPnP AV le > 4GB
-D-Link new Media Player (including Boxee) compatible
- iTunes Server
•Windows Applications
- Yahoo Widget support
•Web Browsers Supported
- Internet Explorer 7+
- Mozilla Firefox 3+
-Apple Safari 4+
-Google Chrome3+
-Opera 10+
6D-Link ShareCenter DNS-315 User Manual
Hardware Overview

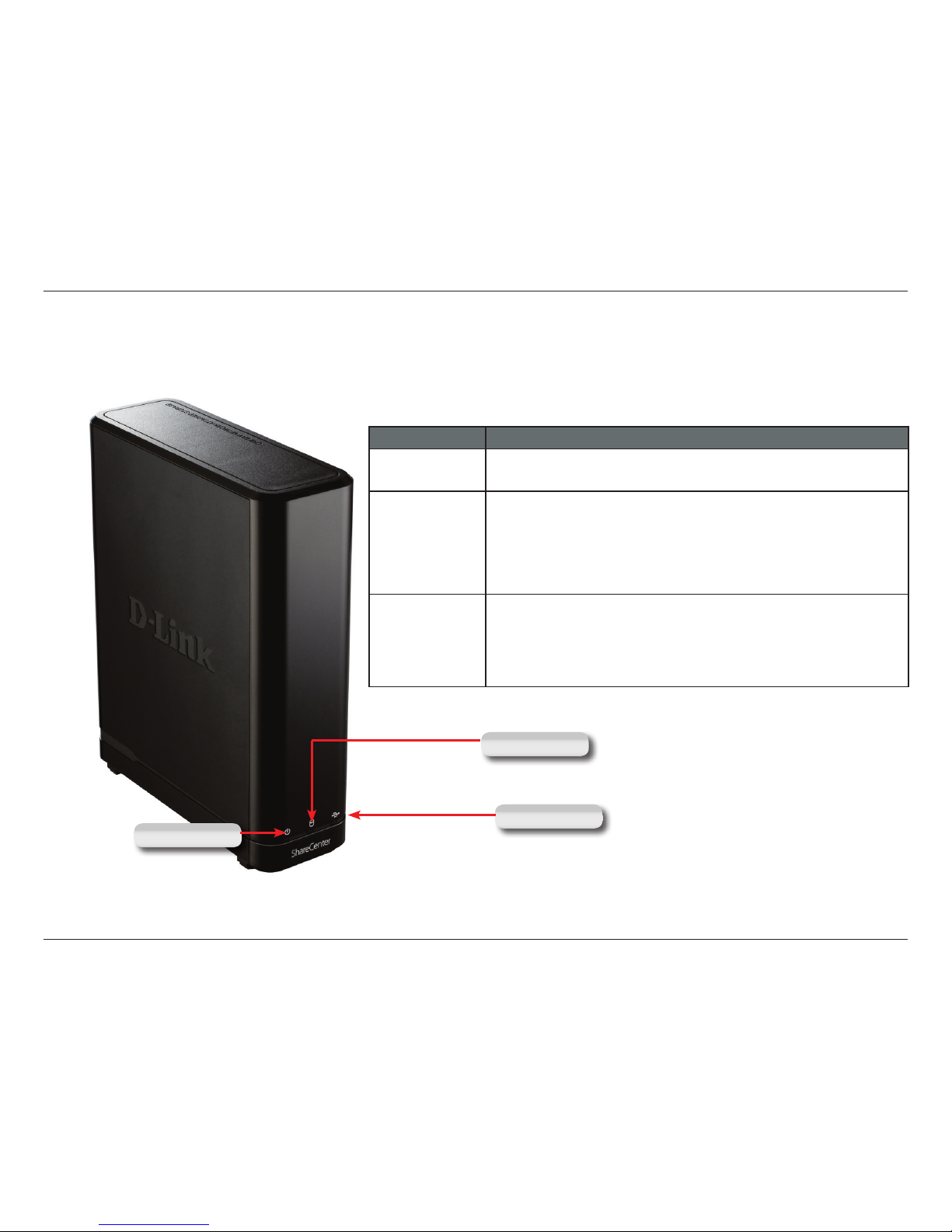

Front Panel
Power LED
HDD LED
USB LED
COMPONENT DESCRIPTION
Power LED This WHITE light illuminates when
the device is powered on.
HDD LED This WHITE light will be solid when the drive
is connected but inactive. The WHITE light will
blink when the drive is being accessed. It will
illuminate AMBER if free drive capacity is less than
5%. It will illuminate RED if the drive fails.
USB LED This WHITE light will illuminate when a USB Storage
device is inserted into the USB port. When there’s
trac this light will blink. It will illuminate AMBER
if it fails to mount the USB storage device.
7D-Link ShareCenter DNS-315 User Manual

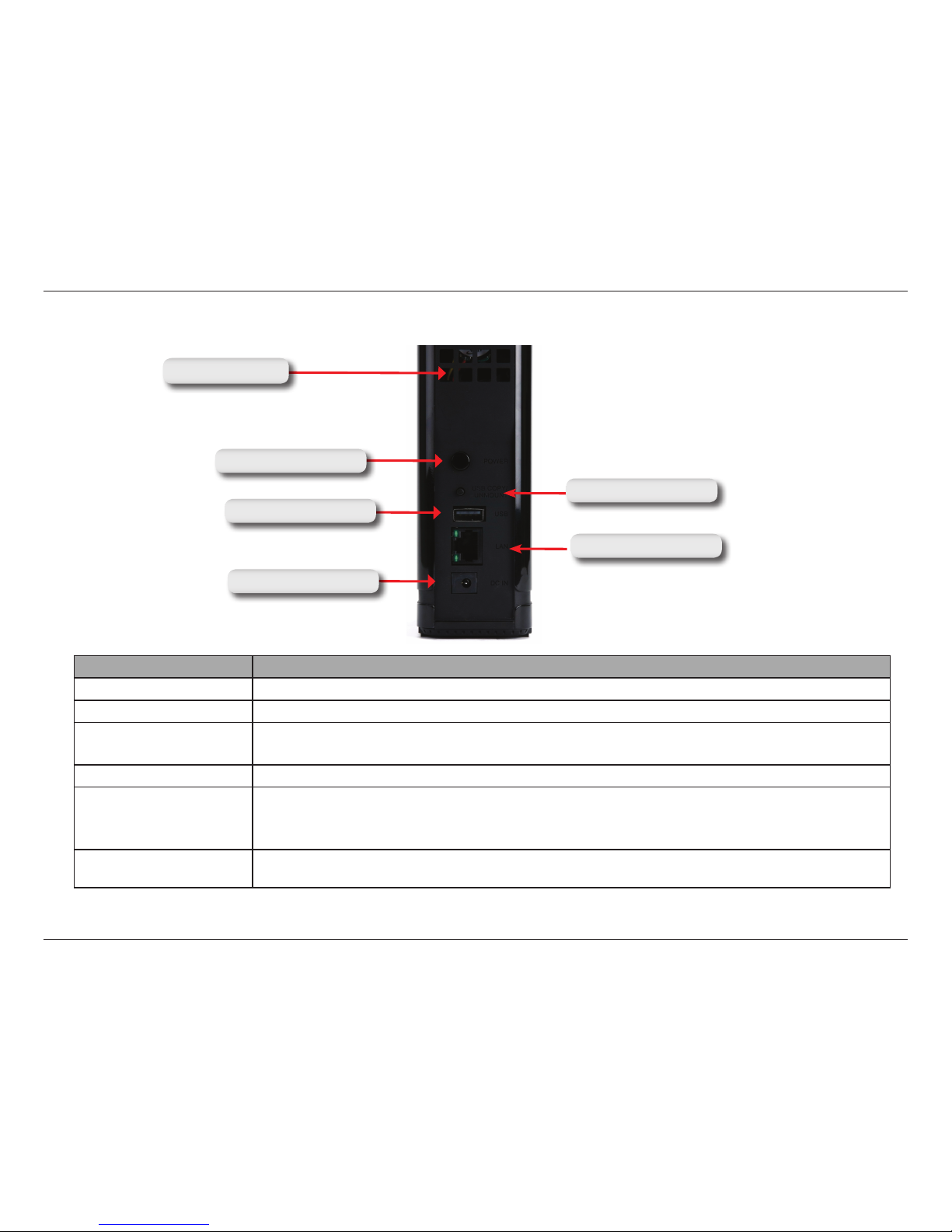

Rear Panel (Connections)
Cooling Fan
COMPONENT DESCRIPTION
Cooling Fan The cooling fan is used to cool the hard drive.
Power Button Press this button to power on the DNS-315
USB Button Copy/
Unmount
Click this button to copy data from your USB storage device. Click
it again for 5 seconds to unmount the USB storage device.
USB Port Use this port to attach a USB device
Gigabit Ethernet Port Use the Gigabit Ethernet Port to connect the ShareCenter to the local
network. The port is equipped with both a LINK/Trac (R) and Speed LED
(L) to indicate connectivity and trac respectively to the local LAN
Power Receptacle Connect the supplied power cord to the back socket
Power Receptacle
Power Button
USB Port
Gigabit Ethernet Port
USB Copy/Unmount
8D-Link ShareCenter DNS-315 User Manual
Bottom Panel (Connections)

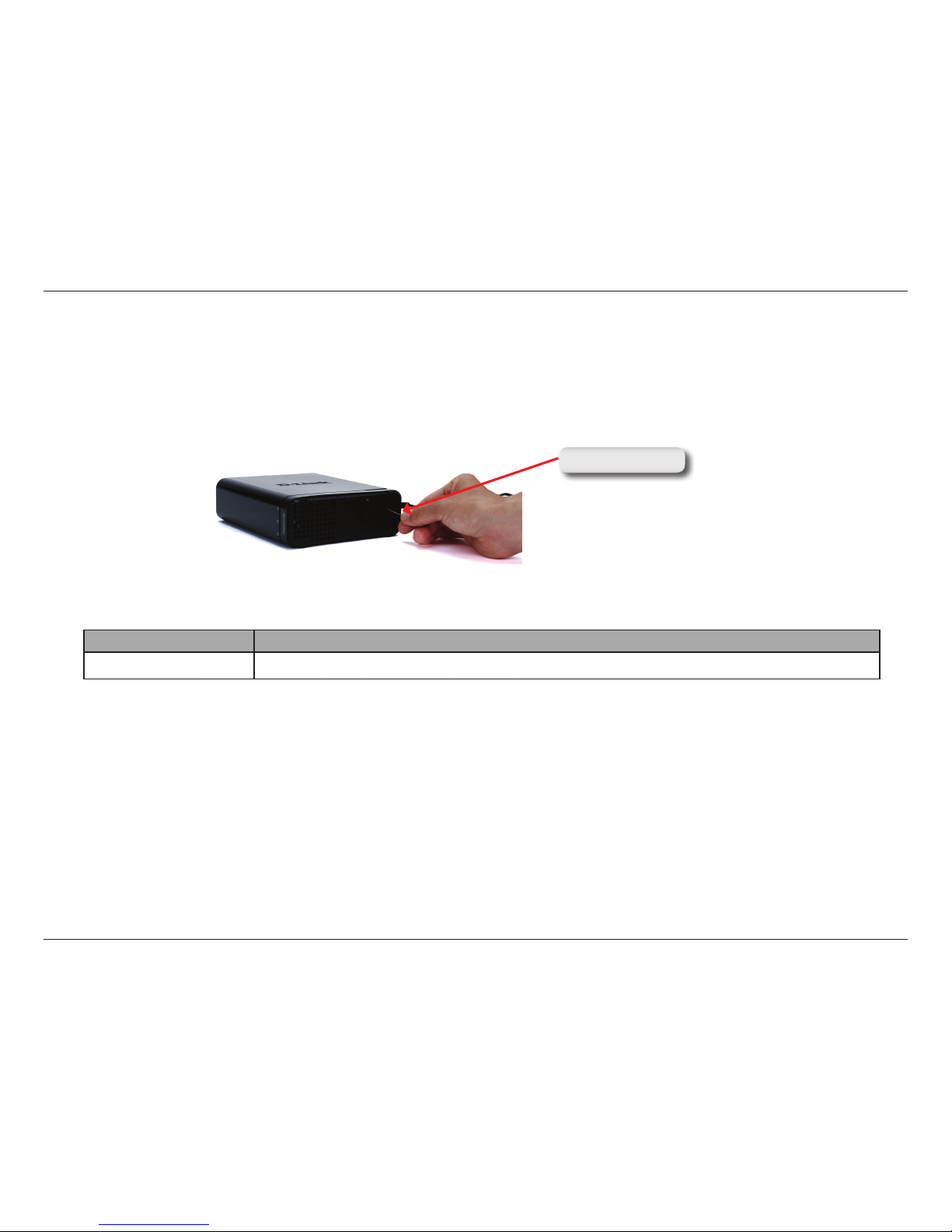

Reset Button
Note about Power Button & Reset Button
Use the Power Button to safely power up and power down the DNS-315 to avoid data loss or data damage to the drive. Use
the Reset Button and the Power button together to Repair the hard drive on the DNS-315.
COMPONENT DESCRIPTION
Reset Button Press and hold the button for over 5 seconds to reset the DNS-315.
9D-Link ShareCenter DNS-315 User Manual
LED Notications
When all lights are inactive the system is powered down. When the Power LED is ickering white, the DNS-315 is
powered on.
10D-Link ShareCenter DNS-315 User Manual
LED Notications

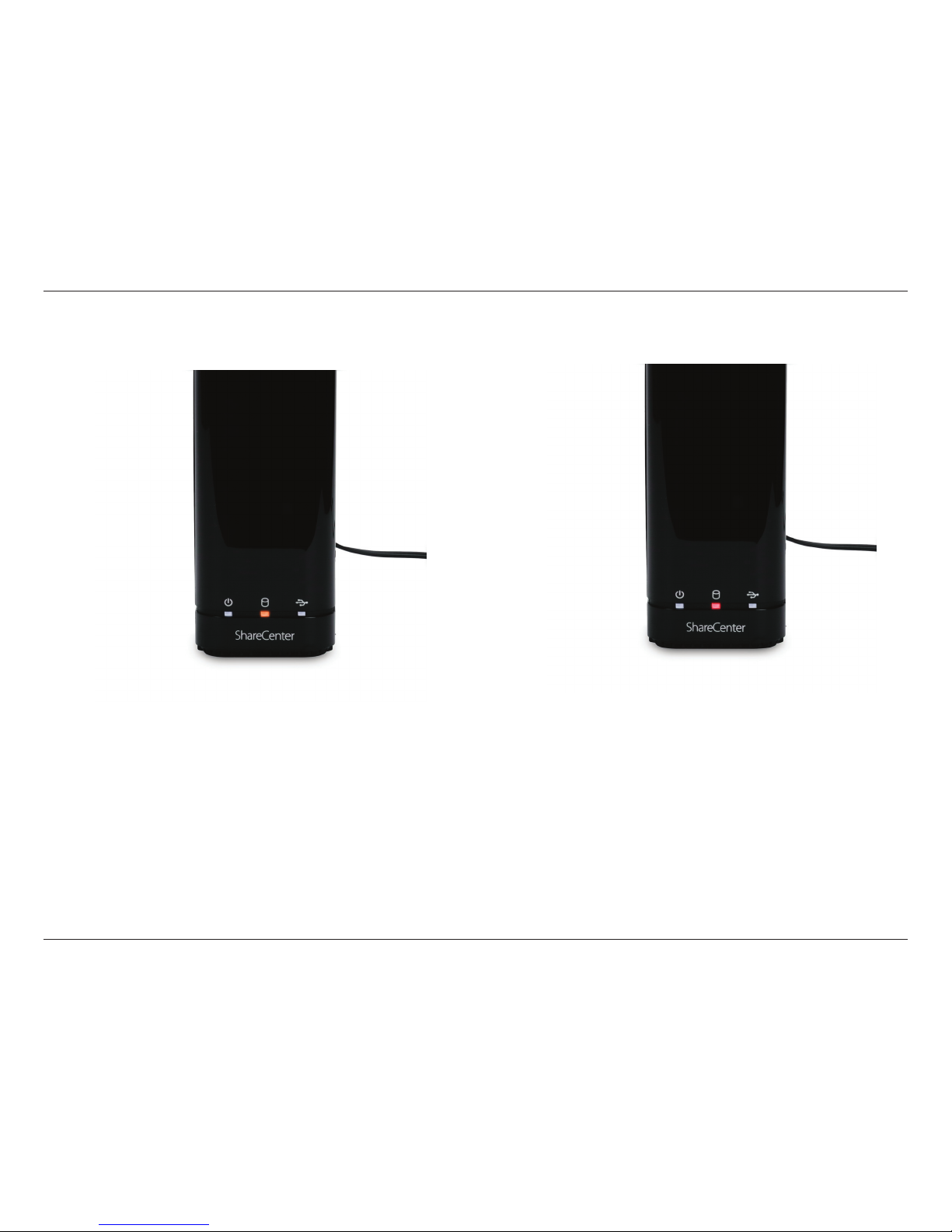

When the HDD LED is amber, the free HDD capacity is
less than 5% it is in use.
When the HDD LED is red then the HDD fails.
11D-Link ShareCenter DNS-315 User Manual

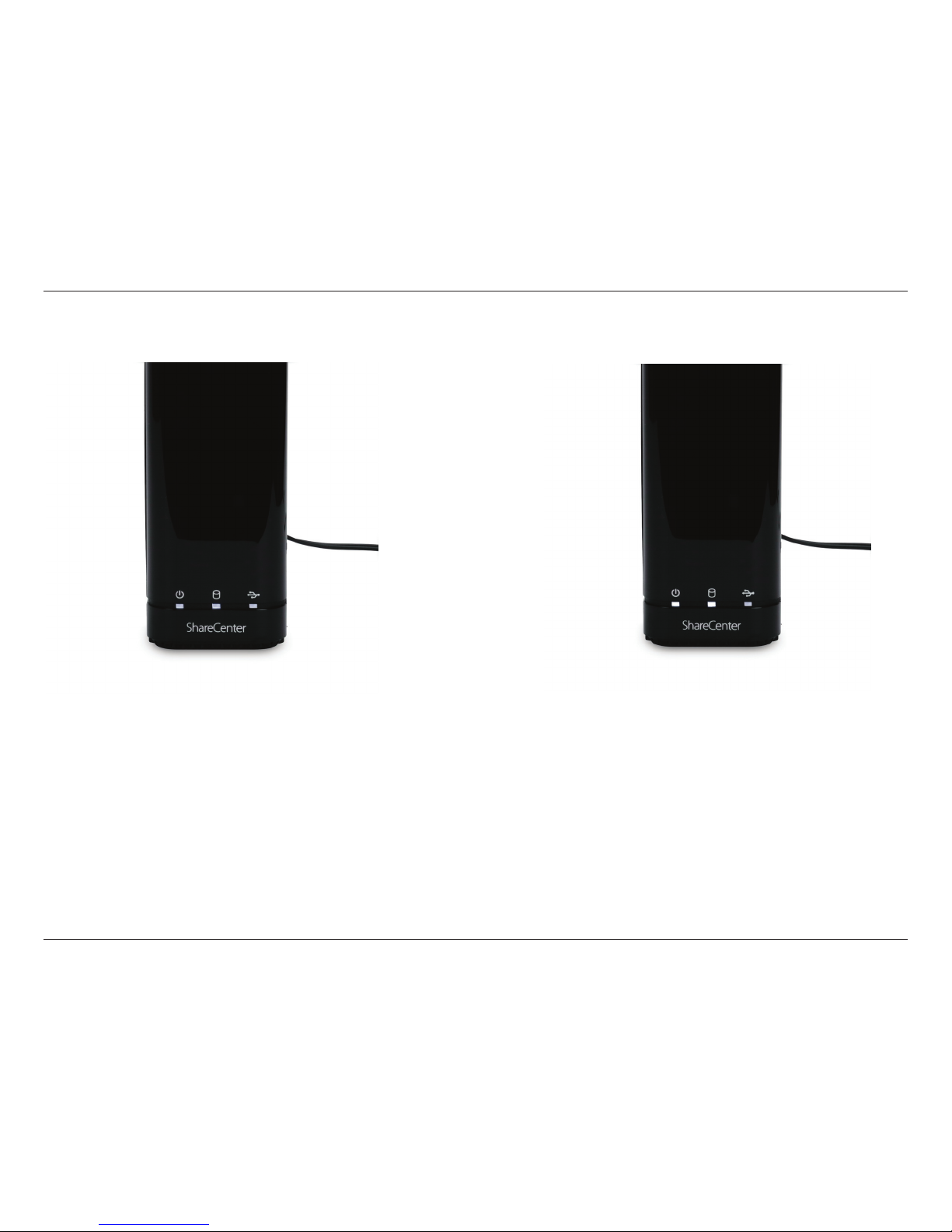

LED Notications

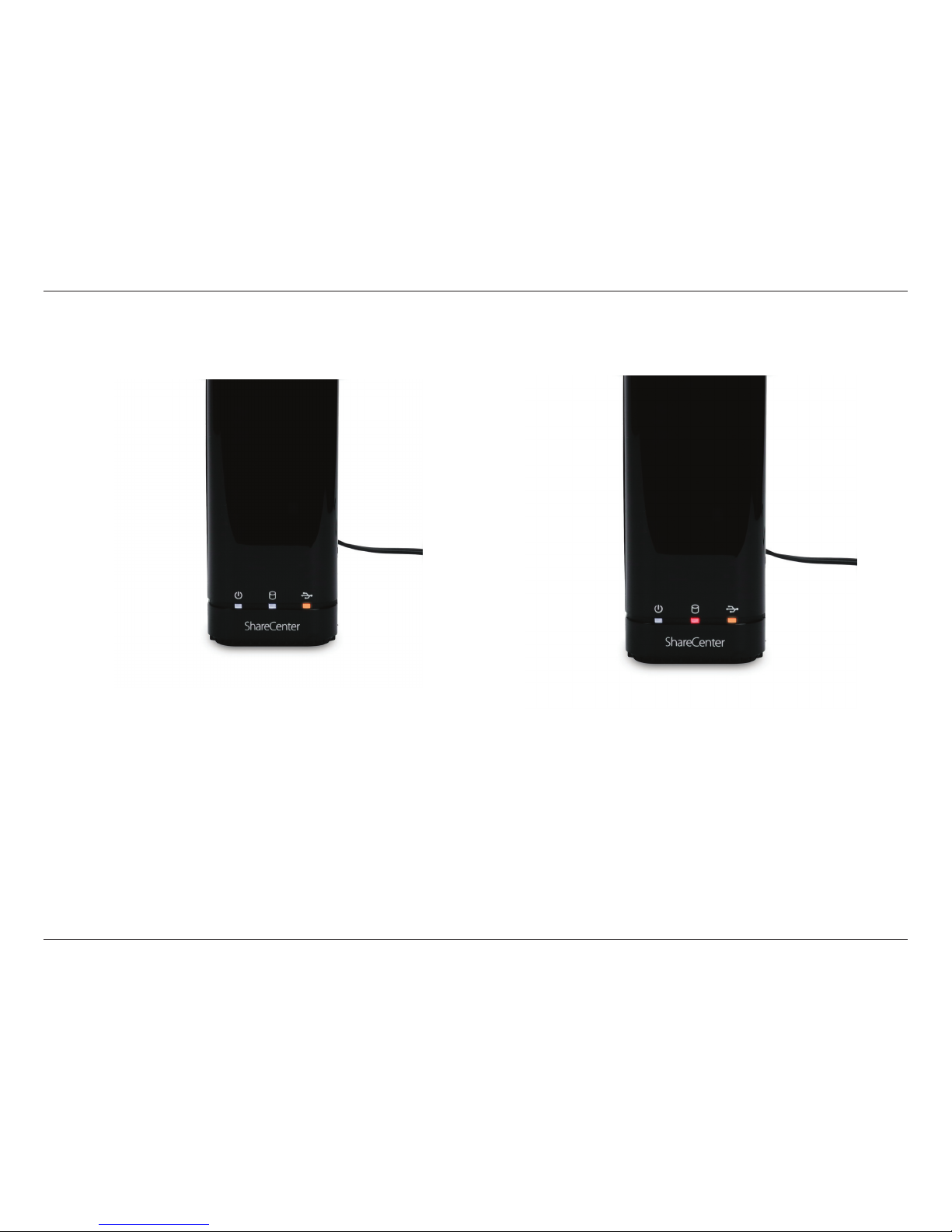

When the USB LED is amber, that means the USB storage is
installed but failed to mount the device
When the HDD LED is red but the USB LED is orange,
it means that data is not being transferred to the HDD
correctly. Check the USB Flash drive. Make sure the device
is installed correctly.
12D-Link ShareCenter DNS-315 User Manual
Handling Precautions
The DNS-315 must be handled with care and precaution during unpacking and installation. Drives may be damaged by rough
handling, shock, or vibration. Always observe the following precautions when unpacking and installing your DNS-315.
• Do not drop or jolt the DNS-315
• Do not move the drive during activity. Secure it tightly with the screws provided.
• Do not use this product as a portable drive.
• To allow proper ventilation, do not block any of the drive enclosure’s air slots.
13D-Link ShareCenter DNS-315 User Manual
Connecting the DNS-315 and Getting Started
This chapter provides instructions for connecting the drive to your network and installing the ShareCenter software. It includes
the following topics:
• Connecting the DNS-315
• Getting Started with the ShareCenter Setup Wizard
Connecting the DNS-315
To connect the DNS-315:
• Depending on your region, if required, change the power adapters as follows:
14D-Link ShareCenter DNS-315 User Manual
Connecting the DNS-315 and Getting Started

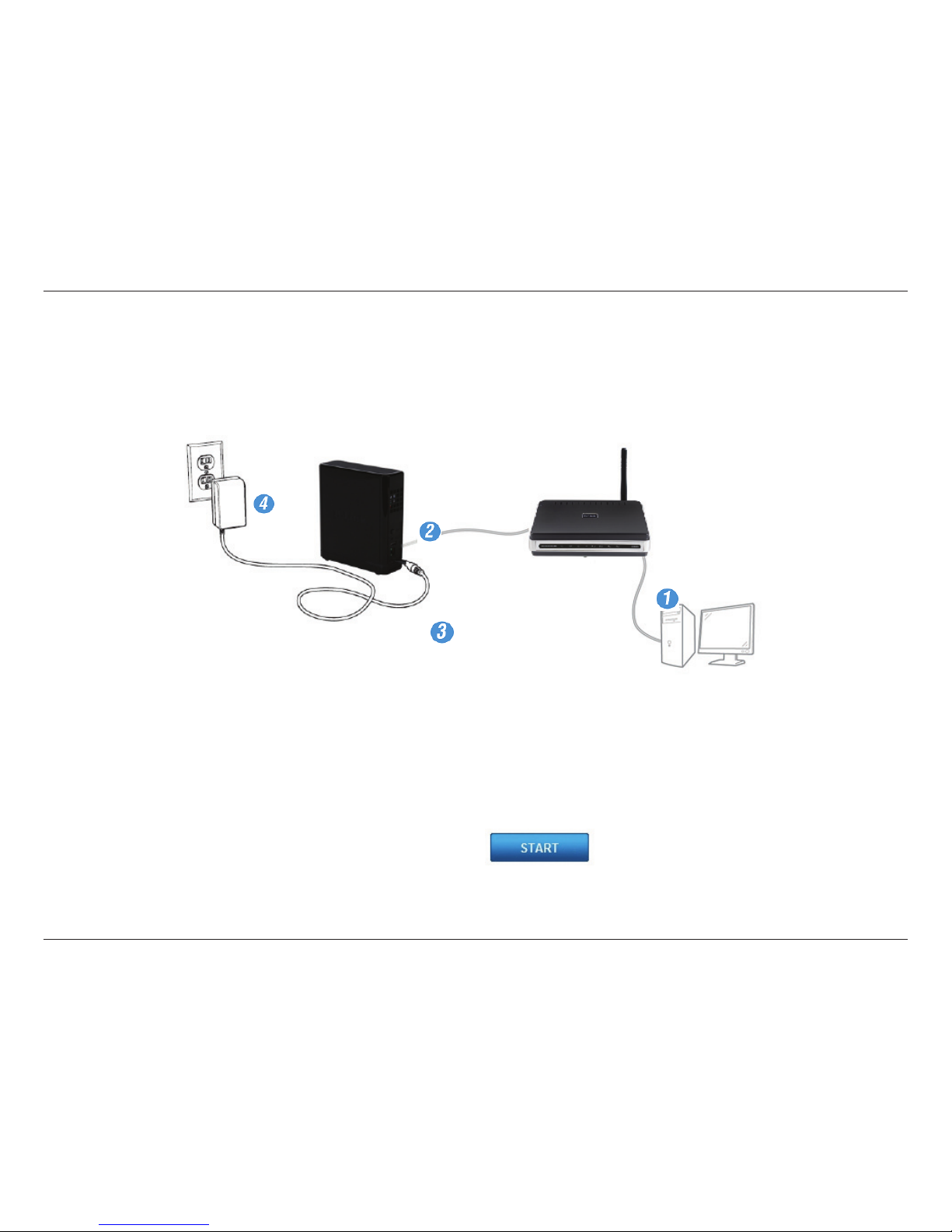

• Connnect the devices accordingly
1. Connect your computer to the router (using an Ethernet Cat5 cable).
2. Connect the DNS-315 to the router (using an Ethernet Cat5 cable).
3. Connect the Power cord to the DNS-315.
4. Plug the socket into the wall unit.
To run the Storage Utility or the ShareCenter Setup wizard insert the ShareCenter™ CD into your CD-ROM drive:
The auto-run feature starts the program. Click “Start” to begin.
The ShareCenter Setup wizard provides a Welcome screen. Follow the instructions carefully.
15D-Link ShareCenter DNS-315 User Manual
Installing a Hard Drive in the DNS-315

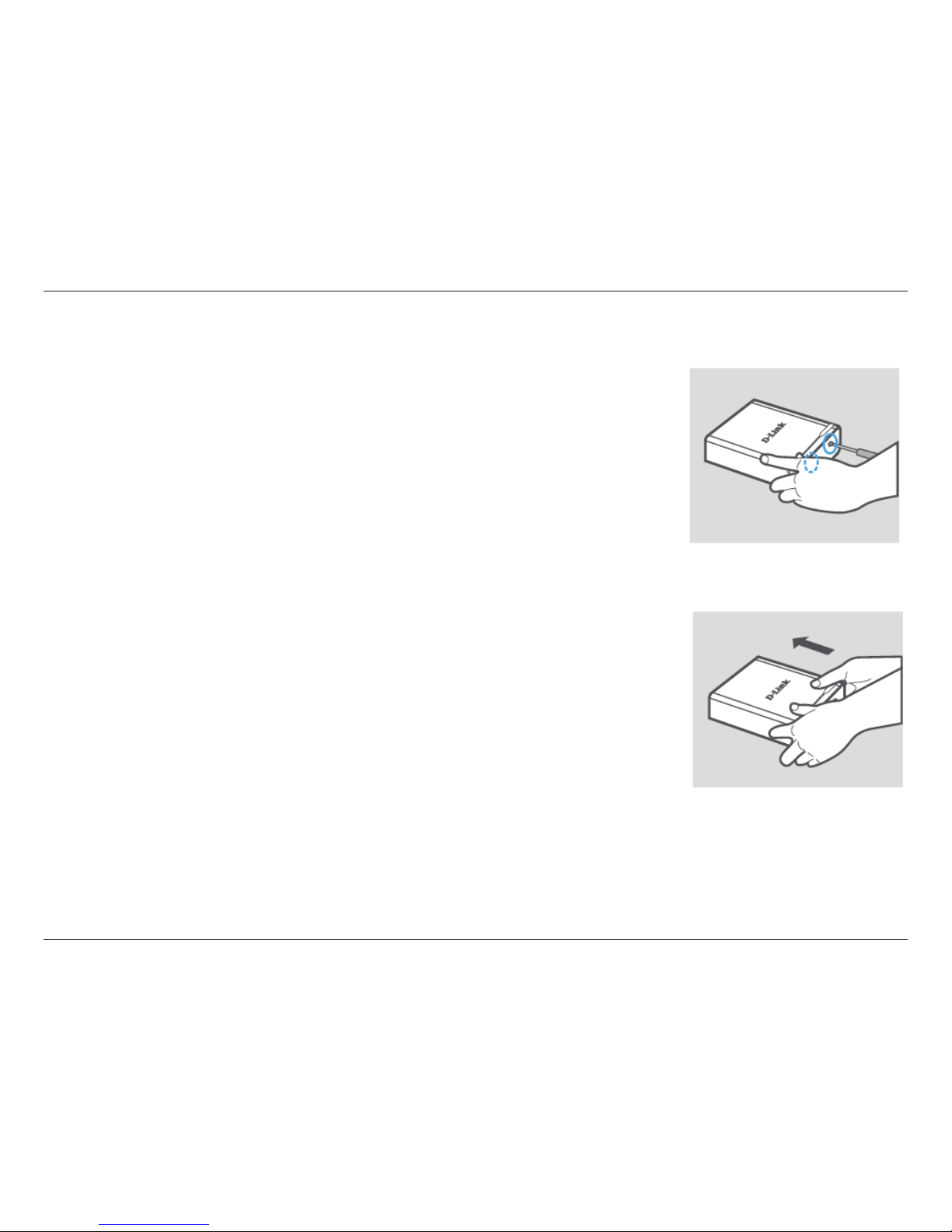

Step 1: Unscrew the two screws at the bottom of the DNS-315.
Step 2: Slide the cover away from you until it unhooks from the base.
Note about Installing a new hard drive
Please power o the DNS-315 before removing the cover
Other manuals for ShareCenter DNS-315
2
Table of contents
Other D-Link Network Hardware manuals
D-Link
D-Link MYDLINK DNR-322L User manual
D-Link
D-Link mydlink DNR-312L User manual
D-Link
D-Link mydlink DNR-312L User manual
D-Link
D-Link GO-PLK-200 User manual
D-Link
D-Link DSH-G200 User manual
D-Link
D-Link ShareCenter Pulse DNS-320 User manual
D-Link
D-Link MYDLINK DNR-322L User manual
D-Link
D-Link ShareCenter DNS-315 User manual
D-Link
D-Link DSL-6300V User manual
D-Link
D-Link SharePort DIR-825 User manual
D-Link
D-Link ShareCenter DNS-340L User manual
D-Link
D-Link DNR-326 User manual
D-Link
D-Link D DES-6509 DES-6509 User manual
D-Link
D-Link AirPlus XtremeG Ethernet-to-Wireless Bridge... User manual
D-Link
D-Link ShareCenter Quattro DNS-345 User manual
D-Link
D-Link DWL-2700AP - AirPremier Outdoor Wireless Access... User manual
D-Link
D-Link DES-1252 - Web Smart Switch User manual
D-Link
D-Link DIR-615 - Wireless N Router User manual
D-Link
D-Link COVR-3902 Dimensions
D-Link
D-Link DAP-1316-ES User manual
Popular Network Hardware manuals by other brands
B-G Instruments
B-G Instruments DataPlot CB1224 manual
Seon Mobile Surveillance
Seon Mobile Surveillance Smart-Reach Setup guide
Matrix
Matrix Simado GDT11 System manual
AT&T
AT&T AC8200 installation guide
Infolock
Infolock INSIGHT DLP SENSOR 0310S Hardware installation guide
Infoblox
Infoblox Trinzic TE-2205 installation guide
