Better wireless coverage
for your home
Firewall protection for
your network
Parental controls to supervise
Internet activity
WIRELESS N CARDBUS NETWORK KIT
UPGRADE YOUR NETWORK
The D-Link® Wireless N Cardbus Network Kit (DKT-360) provides a better wireless signal for your network than existing wireless 802.11g technology.1
Upgrading your wireless home network to Wireless N provides an excellent solution for sharing an Internet connection and les such as video, music, photos,
and documents. D-Link Wireless N products use Intelligent Antenna technology to transmit multiple streams of data which enable you to receive wireless
signals in the farthest corners of your home. Not only does the D-Link Wireless N technology extend your wireless range, it also works with your existing
802.11g and 802.11b wireless devices.
DKT-360
WIRELESS N NETWORK KIT FEATURES
+ IEEE 802.11n (draft), 802.11g, and 802.11b
Compliant
+ Supports Secure Wireless Encryption Using
WEP, WPA™, or WPA2™
+ 1-Year Limited Warranty2
WIRELESS N ROUTER FEATURES
+ Dual Active Firewalls - SPI and NAT
+ Advanced Parental Controls
+ 4-Port 10/100 Switch
+ UPnP™ Support
+ Includes Quick Router Setup Wizard for Easy
Installation
NOTEBOOK ADAPTER FEATURES
+ Draft 802.11n Technology for Sustained Signal
Rates at Farther Distances
+ Works with Windows® Zero Conguration
Utility
+ 32-bit Cardbus Interface
+ Includes Quick Adapter Setup Wizard for Easy
Installation
Delivering great wireless performance, network security, and coverage, the D-Link Wireless N Cardbus Network Kit (DKT-360) is ideal for upgrading your
wireless home network.

TECHNICAL SPECIFICATIONS
MINIMUM SYSTEM REQUIREMENTS
+ Computer with:
- Windows Vista
™
3, Windows® XP SP2,
Windows® 2000 SP4, or Mac OS® X (v10.4)4
- Internet Explorer v6 or Mozilla Firefox v1.5
- CD-ROM Drive
- Network Interface Card
+ For Internet Access:
- Cable or DSL Modem
- Subscription with an Internet Service Provider
(ISP)
PACKAGE CONTENTS
Wireless N Router (DIR-615)
+ 2 Detachable Antennas
+ CAT5 Ethernet Cable
+ Power Adapter
+ CD-ROM5 with
- Installation Wizard
- Product Documentation
RangeBooster N® 650 Cardbus Adapter (DWA-645)
+ CD-ROM5 with
- Drivers
- Product Documentation
DKT-360 - KIT
SECURITY
+ 64/128-bit WEP (Wired Equivalent Privacy)
+ Wi-Fi
®
Protected Access (WPA™, WPA2™)
DIMENSIONS
+ Packaging (WxDxH): 8.1” x 10.9” x 2.6”
CERTIFICATIONS
+ FCC Class B
+ CE
WEIGHT
Packaging: 2.7 lbs
WARRANTY
1-Year Limited
2
DIR-615 - ROUTER
STANDARDS
+ IEEE 802.11n (draft)
+ IEEE 802.11g
+ IEEE 802.11b
+ IEEE 802.3
+ IEEE 802.3u
INTERFACE TYPE
+ 4 10/100 LAN Ports
+ 1 10/100 WAN Port
ANTENNA TYPE
2 External Reversed SMA Antennas
ADVANCED FIREWALL FEATURES
+ Network Address Translation (NAT)
+ Stateful Packet Inspection (SPI)
+ VPN Pass-through / Multi-sessions PPTP / L2TP / IPSec
DEVICE MANAGEMENT
Internet Explorer
®
v6 or Later; Mozilla Firefox
®
v1.5 or Later; or
other Java-enabled Browsers
LEDs
+ Power
+ Status
+ WAN
+ WLAN (Wireless Connection)
+ LAN (10/100)
DIMENSIONS
Item (WxDxH): 4.6” x 7.6” x 1.2”
WEIGHT
Item: 0.7 lbs
DWA-645 - CARDBUS ADAPTER
STANDARDS
+ IEEE 802.11n (draft)
+ IEEE 802.11g
+ IEEE 802.11b
INTERFACE
32-bit Cardbus
LEDs
+ Link
+ Activity
DIMENSIONS
Item (WxDxH): 2.1” x 4.7” x 0.3”
WEIGHT
Item: 0.1 lbs
1 Maximum wireless signal rate derived from IEEE Standard 802.11g and draft 802.11n specications. Actual data throughput will vary. Network conditions and environmental factors,
including volume of network trafc, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely affect
wireless signal range. Wireless range and speed rates are D-Link RELATIVE performance measurements based on the wireless range and speed rates of a standard 802.11g MIMO
product from D-Link.
2 1-Year Limited Warranty available only in the USA and Canada.
3 Computer must adhere to Microsoft’s recommended System Requirements.
4 The software included with this product is not Mac-compatible.
5 Latest software and documentation are available at http://support.dlink.com.
This product is based on IEEE draft 802.11n specications and is not guaranteed to be forward compatible with future versions of IEEE 802.11n specications. Compatibility with draft
802.11n devices from other manufacturers is not guaranteed. All references to speed and range, are for comparison purposes only. Product specications, size, and shape are subject
to change without notice, and actual product appearance may differ from that depicted herein.
©2007 D-Link Corporation/D-Link Systems, Inc. All rights reserved. D-Link, the D-Link logo, and RangeBooster N are registered trademarks of D-Link Corporation or its
subsidiaries in the United States and other countries. Windows Vista is either a registered trademark or trademark of Microsoft Corporation in the United States and/
or other countries. Windows is a registered trademark of Microsoft Corporation in the United States and other countries. Other trademarks or registered trademarks
are the property of their respective owners.
DKT-360
WHAT THIS PRODUCT DOES
Create a wireless network to share high-speed
Internet access with computers, game consoles,
and media players from greater distances around
your home. Connect the network adapter to your
cardbus enabled notebook to enable a faster
wireless connection and superior reception.1
BENEFITS OF A WIRELESS N
CARDBUS NETWORK KIT
The router in DKT-360 uses 802.11n draft
technology with multiple external antennas to
maximize the speed and range of your wireless
signal to signicantly outperform 802.11g MIMO
devices.1 The antennas on the Wireless N Router
make use of your home’s environment by bouncing
multiple wireless signals off walls and ceilings to
work around obstructions and help eliminate dead
spots.

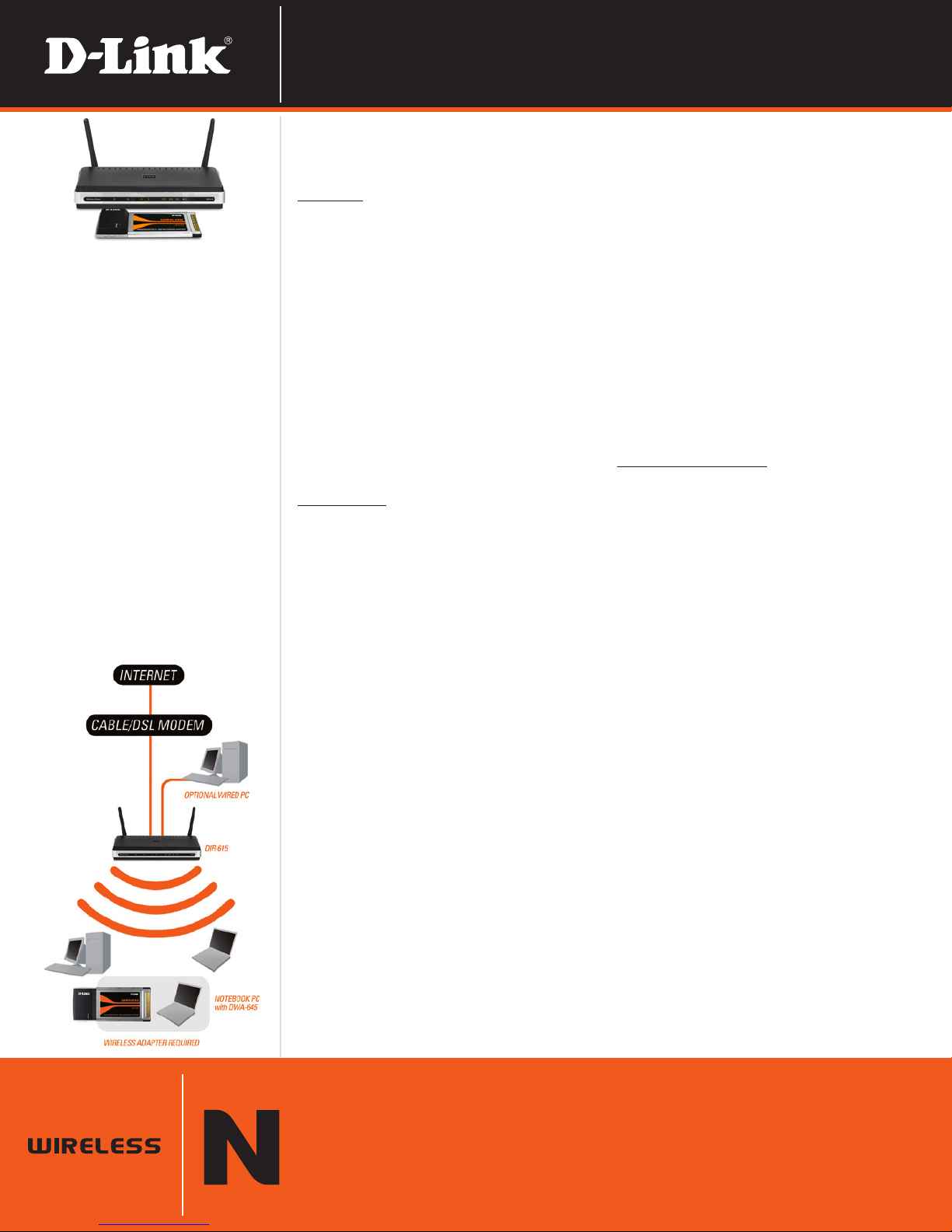

YOUR NETWORK SETUP
