D-Link DI-102 - Load Balancing Device User manual

2
DI-102 User’s Manual
D-Link Systems, Inc.
Table of Contents
Package Contents ............................................................................ 3
Introduction ..................................................................................... 4
Connections ..................................................................................... 5
LEDs ................................................................................................ 6
Using the Configuration Menu ......................................................... 7
Contacting Technical Support ........................................................ 12
Warranty ...................................................................................... 13
Registration ................................................................................... 17
Table of Contents

3
DI-102 User’s Manual
D-Link Systems, Inc.
Package Contents
 D-Link StreamEngine™ DI-102
Internet/VoIP Accelerator
 Power Adapter-5.0V DC, 2A
 Manual, QIG and Warranty on CD
 Ethernet Cable Straight-through
Note: Using a power supply with a different voltage than the one included with the
DI-102 will cause damage and void the warranty for this product.
If any of the above items are missing, please contact your reseller.
 Computers with Windows, Macintosh, or Linux-based operating systems with
installed Ethernet Adapters
 NAT Router with Ethernet WAN Port
 Broadband Modem with Internet Connection
Package Contents
Minimum System Requirements

4
DI-102 User’s Manual
D-Link Systems, Inc.
Introduction
Introduction
The Internet/VoIP Accelerator offers the fastest time-to-market and the highest
flexibility compared with competitive solutions due to its unique easy integration path.
Also, the Internet/VoIP Accelerator is the only TCP offload solution that enables an OS
independent implementation mode.
Quality of Service (QoS) refers to the ability of a network to classify different types
of traffic on a network, which ensure that bandwidth dependant real time applications
are given priority so that they are not interrupted. QoS technologies provide the
elemental building blocks that will be used for future business applications in campus,
WAN, and service provider networks.

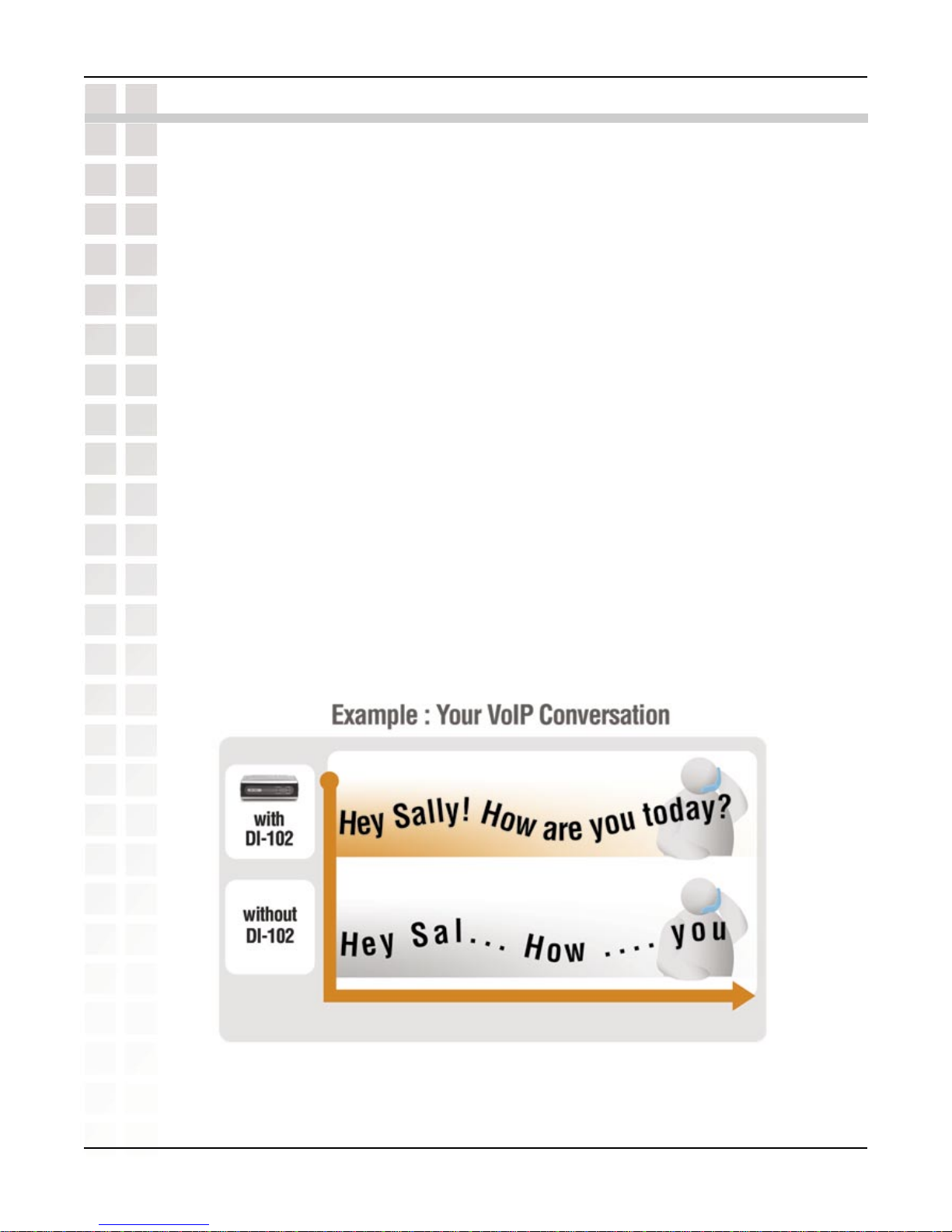

For instance the example below shows how the DI-102 ensures QoS for VoIP traffic.

5
DI-102 User’s Manual
D-Link Systems, Inc.

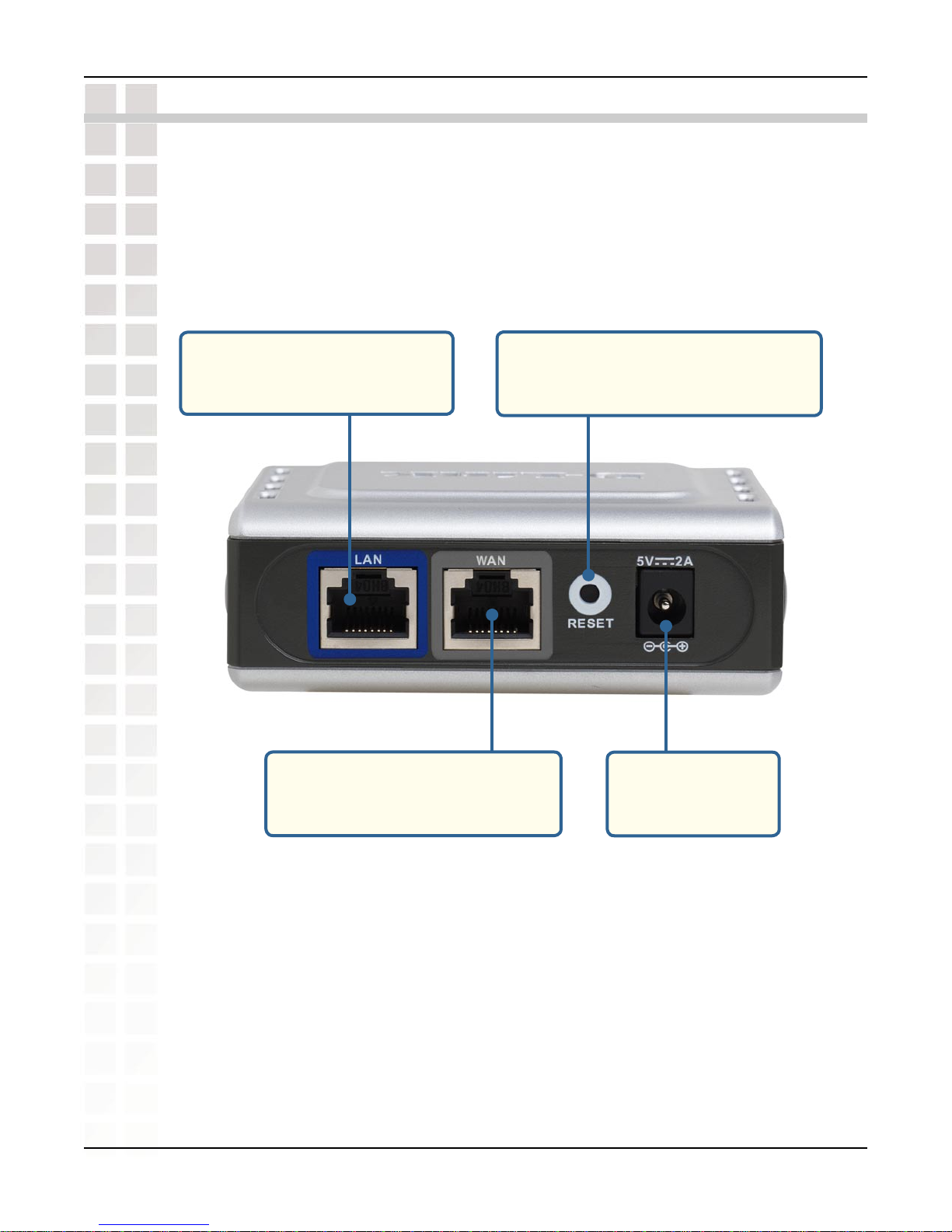

Connections
Auto MDI/MDIX LAN
Connects to the WAN port of
your router.
Auto MDI/MDIX WAN
Connects to your Ethernet enabled
Cable or DSL modem.
Reset Button
Restores the Internet/VoIP Accelerator
to its original factory settings.
Power Receptor
Connect the power
adapter.
Connections

6
DI-102 User’s Manual
D-Link Systems, Inc.

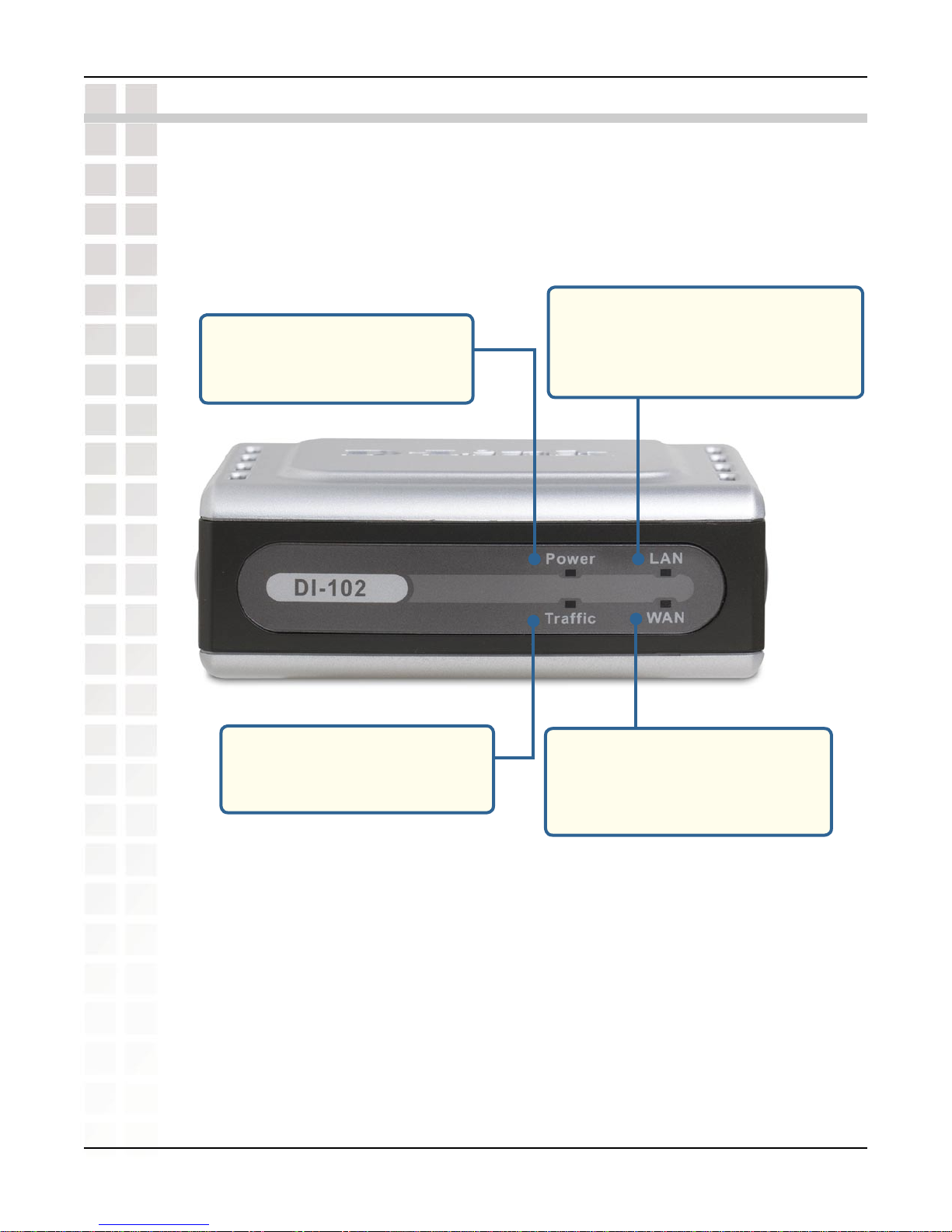

LEDs
LEDs
Power
A solid light indicates a proper
connection to the power supply.
Traffic
This LED blinks when traffic is
being classified and prioritized.
LAN
A solid light indicates a connection
to the WAN port of your router. This
LED blinks during data transmission.
WAN
A solid light indicates connection
on the WAN port. This LED blinks
during data transmission.

7
DI-102 User’s Manual
D-Link Systems, Inc.

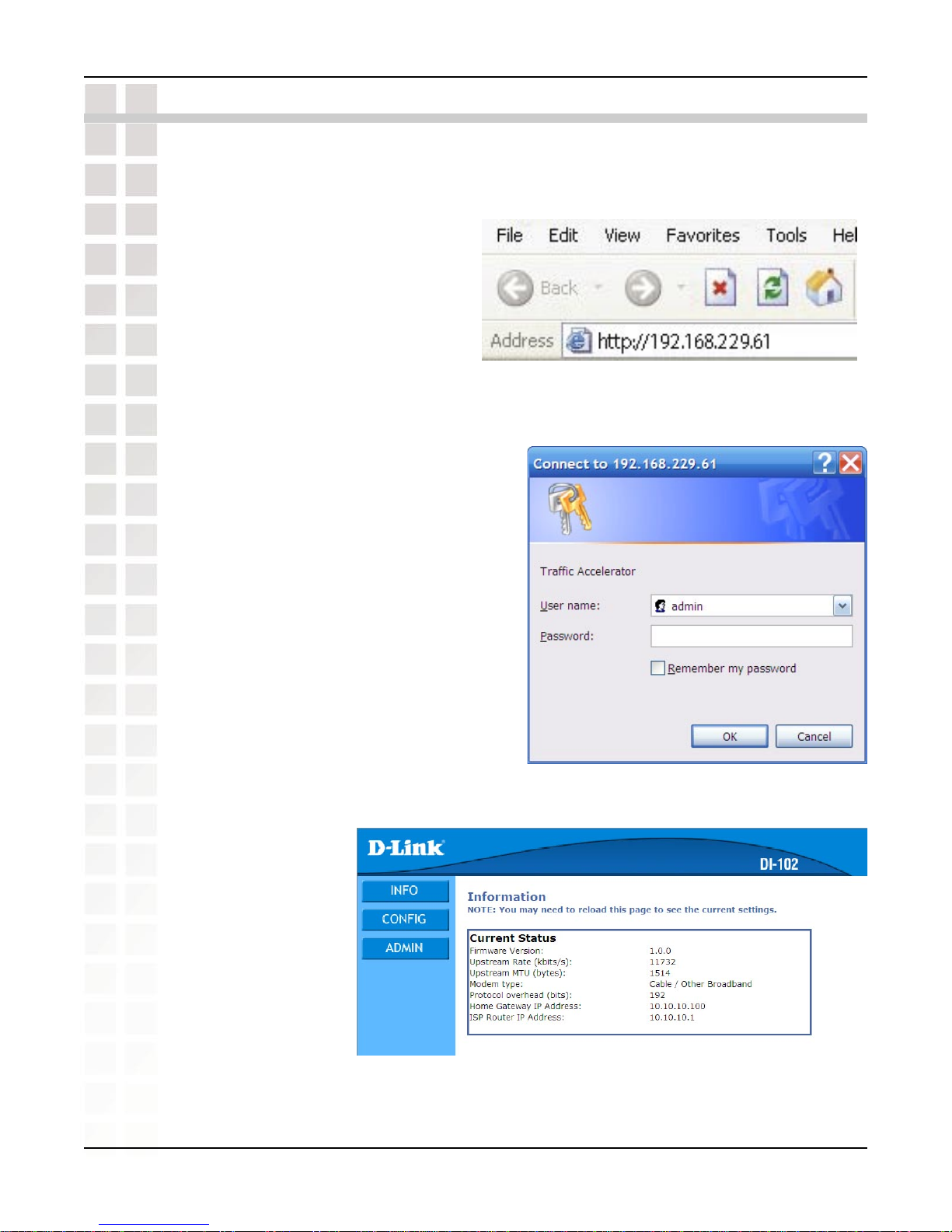

Using the Configuration Menu
Whenever you want to configure the DI-102, you can access the Configuration Menu
by opening the web-browser and typing in the IP Address of the DI-102.
 Open the web browser.
 Type the IP Address (http://192.168.229.61).
 Type admin in the User name field.
 Leave the Password blank.
 Click OK.
INFO
This screen shows the current status of the DI-102.
Using the Configuration Menu

8
DI-102 User’s Manual
D-Link Systems, Inc.
Using the Configuration Menu

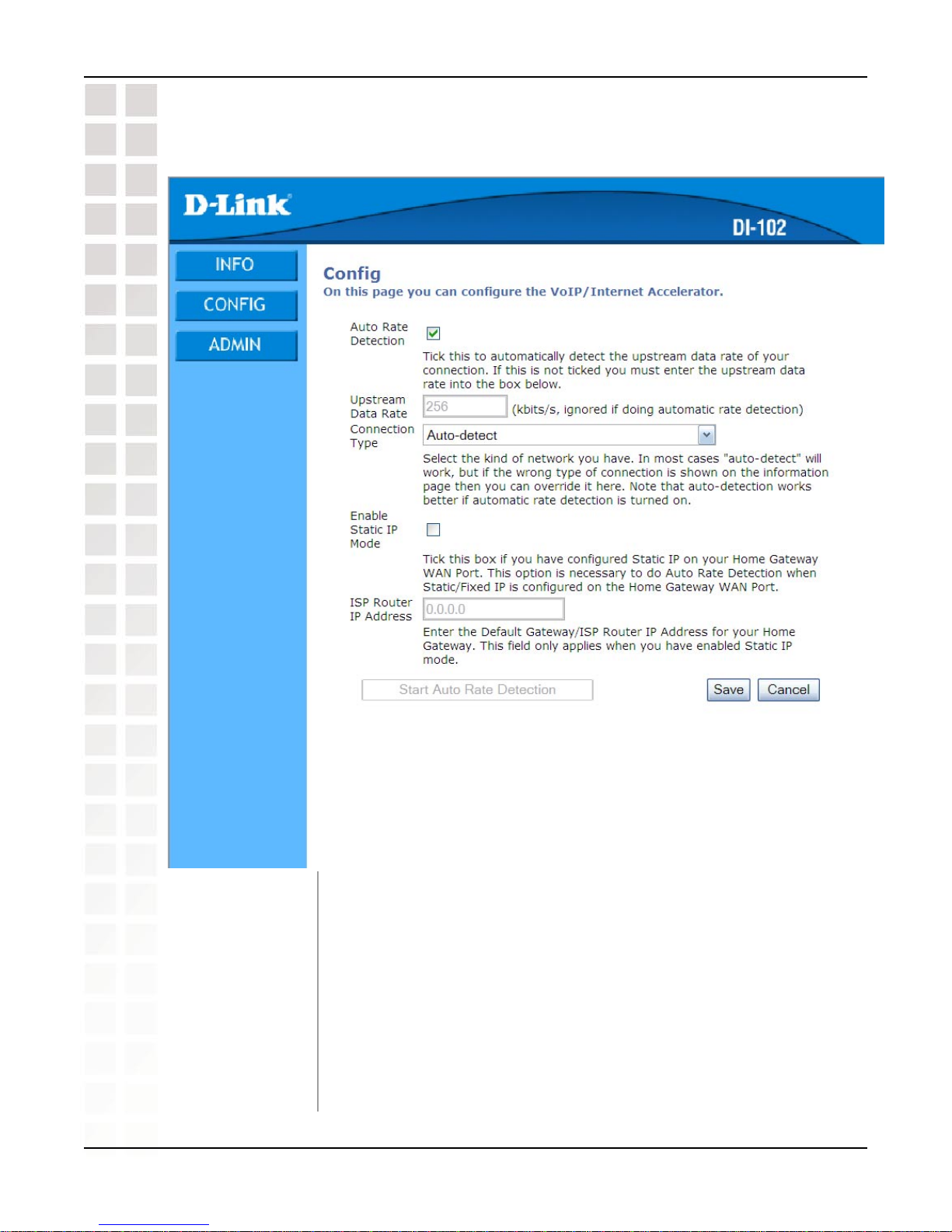

Configuration
This allows the DI-102 to automatically detect the upstream data rate
of your Internet connection. If this box is unchecked, you will need
to specify this value in the Upstream Data Rate field.
Enter the upload speed of you Internet connection. This information
should be provided to you by your ISP. If you are unsure of what
this value should be, please check the Auto Rate Detection box
or contact your ISP.
Auto Rate
Detection:
Upstream Data
Rate:

9
DI-102 User’s Manual
D-Link Systems, Inc.
Using the Configuration Menu
Configuration (continued)
Choose either Auto-detect, xDSL modem, or Cable modem /
other broadband connection.
Check this box when you have configured a Static IP address on
the WAN interface of your router. Auto Rate Detection may not
work properly if you router has a Static IP configured on the WAN
interface and this option is not selected.
Enter the default gateway IP address that your ISP has assigned
you. This option is only necessary when Static IP Mode has been
enabled on the DI-102. If you are unsure of what this value should
be, please contact your ISP.
Once you have configured the DI-102 for Static IP Mode, entered
the ISP Router IP Address, and saved these settings, you will
need to click this button in order for the DI-102 to detect the upload
speed of your Internet connection.
Connection Type:
Enable Static IP
Mode:
ISP Router IP
Address:
Start Auto Rate
Detection:

10
DI-102 User’s Manual
D-Link Systems, Inc.
Using the Configuration Menu

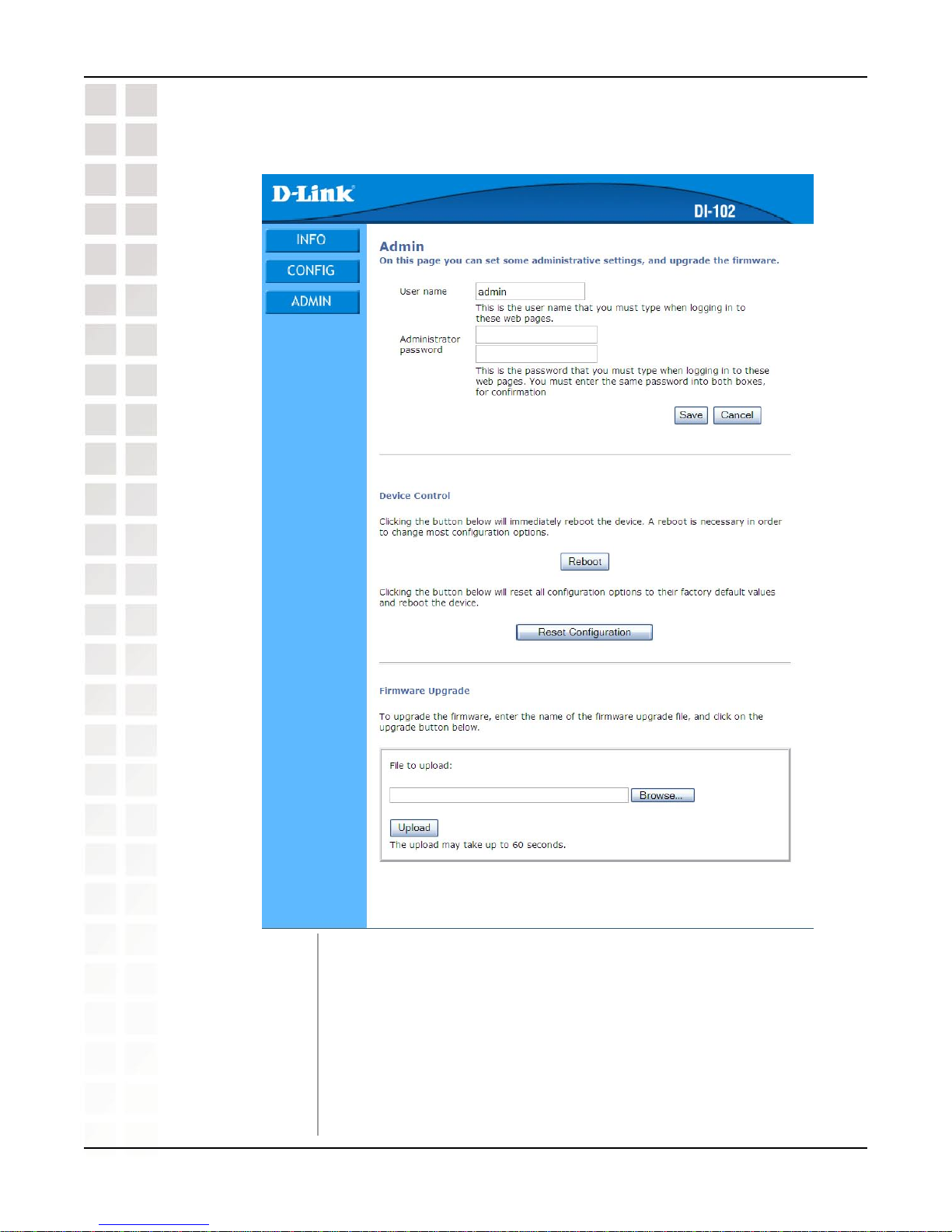

Admin
Enter the user name that will be used to login to the DI-102. By
default the user name is admin
Enter the password that will be used to login the DI-102. By default
there is no password configured.
User name:
Administrator
Password:
