DES-1210-08P Firmware Release Notes
1
These release notes include important information about D-Link switch firmware revisions. Please
verify that these release notes are correct for your switch:
-If you are installing a new switch, please check the hardware version on the device label;
make sure that your switch meets the system requirement of this firmware version. Please
refer to Revision History and System Requirement for detailed firmware and hardware
matrix.
-If the switch is powered on, you can check the hardware version by typing “show switch”
command via Telnet or by checking the device information page on the web graphic user
interface.
-If you plan to upgrade to the new firmware release, please refer to the Upgrade Instructions
for the correct firmware upgrade procedure.
For more detailed information regarding our switch products, please refer to Related
Documentation.
You can also download the switch firmware, D-View modules and technical documentation from
http://tsd.dlink.com.tw.
Content:
Revision History and System Requirement: ........................................................................2
Upgrade Instructions: .....................................................................................................2
Upgrade using CLI (via Telnet)................................................................................... 2
Upgrade using Web-UI.............................................................................................. 3
New Features:................................................................................................................3
Changes in MIB & D-View Modules: ..................................................................................7
Changes in Command Line Interface:..............................................................................10
Problem Fixed:.............................................................................................................11
Known Issues: ............................................................................................................. 12
Related Documentation: ................................................................................................ 13
Firmware Version:
2.03.B016
Boot Code Version:
1.00.005
MIB Version:
2.01.001
D-View Module Version:
2.0.1.0
Published:
Aug. 26, 2014

DES-1210-08P Firmware Release Notes
2
Revision History and System Requirement:
Firmware Version
Date
Model
Hardware Version
Runtime: v2.03.B016
Boot: 1.00.005
26-Aug.-14
DES-1210-08P
A1
Runtime: v2.03.B015
Boot: 1.00.005
11-Feb.-14
DES-1210-08P
A1
Runtime: v2.03.B014
Boot: 1.00.005
25-Oct.-13
DES-1210-08P
A1
Runtime: v2.03.B013
Boot: 1.00.005
25-Oct.-13
DES-1210-08P
A1
Runtime: v2.03.001
Boot: 1.00.005
21- Aug.-12
DES-1210-08P
A1
Runtime: v2.02.002
Boot: 1.00.005
21- Aug.-12
DES-1210-08P
A1
Runtime: v2.01.002
Boot: 1.00.004
22-Feb.-11
DES-1210-08P
A1
Runtime: v2.00.011
Boot: 1.00.004
13-Sep.-10
DES-1210-08P
A1
Upgrade Instructions:
D-Link Smart Switches support firmware upgrade via TFTP server. You can download the firmware
from D-Link web site http://tsd.dlink.com.tw, and copy the downloaded firmware to the TFTP
server folder. Please make sure that the TFTP server is accessible from the switch via networks.
Upgrade using CLI (via Telnet)
1. Make sure the network connection between the switch and PC is active.
2. Use software that supports telnet, for example, HyperTerminal or Telnet command in Microsoft
Windows, to connect to the switch. If you are using Telnet command, type the command followed
by the switch IP address, eg. telnet 10.90.90.90.
3. The logon prompt will appear.
The switch will prompt the user to enter his/her username and password. It should be noted that
upon the initial connection, both the default user name and password are admin.
To upgrade the switch firmware, execute the following command:
Command
Function
download{firmware_fromTFTP
tftp://ip-address/filename | cfg_fromTFTP
Download firmware file from the TFTP
server to the switch.

DES-1210-08P Firmware Release Notes
3
tftp://ip-address/filename}
When completing firmware upgrade, the following messages will pop up.
Device will reboot after firmware upgraded successfully
Image upgraded successfully
4. Execute the following command to check the firmware version and switch’s information.
Command
Function
show switch
Display the information of current
firmware and boot version.
Example:
1. DES-1210-08P:
Command: download firmware_fromTFTP tftp://10.90.90.91 DGS-1210-48 A1
1_00_011.hex
Device will reboot after firmware upgraded successfully
Image upgraded successfully
2. DES-1210-08P:
Command: show switch
DGS-1210-48> show switch
System name :
System Contact :
System Location :
System up time : 0 days, 1 hrs, 8 min, 36 secs
System Time : 01/01/2009 01:58:42
System hardware version : A1
System firmware version : 2.00.011
System boot version : 1.00.004
System Protocol version : 2.001.004
System serial number : LABDES1252008
MAC Address : 00-01-02-03-04-05
Upgrade using Web-UI
1. Connect a workstation installed with java SE runtime environment to any switch port of the
device.
2. Open the web browser from the workstation and enter the IP address of the switch. The
switch’s default IP address is 10.90.90.90.
3. Enter administrator’s password when prompted. The password is admin by default.

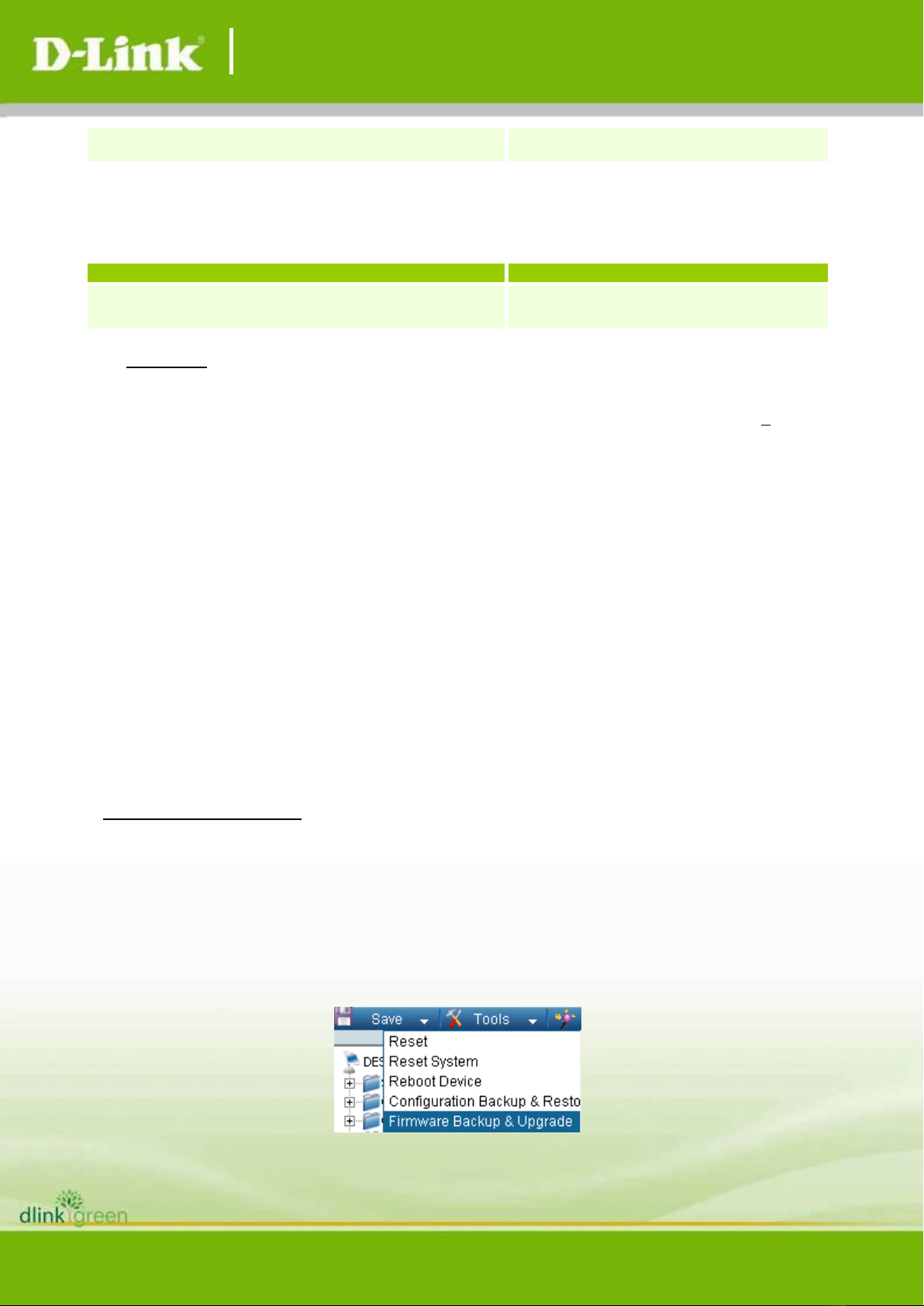

4. To update switch's firmware or configuration file, select Tools > Firmware Backup &
Upgrade from the banner.
v

DES-1210-08P Firmware Release Notes
4
5. Two methods can be selected : HTTP or TFTP

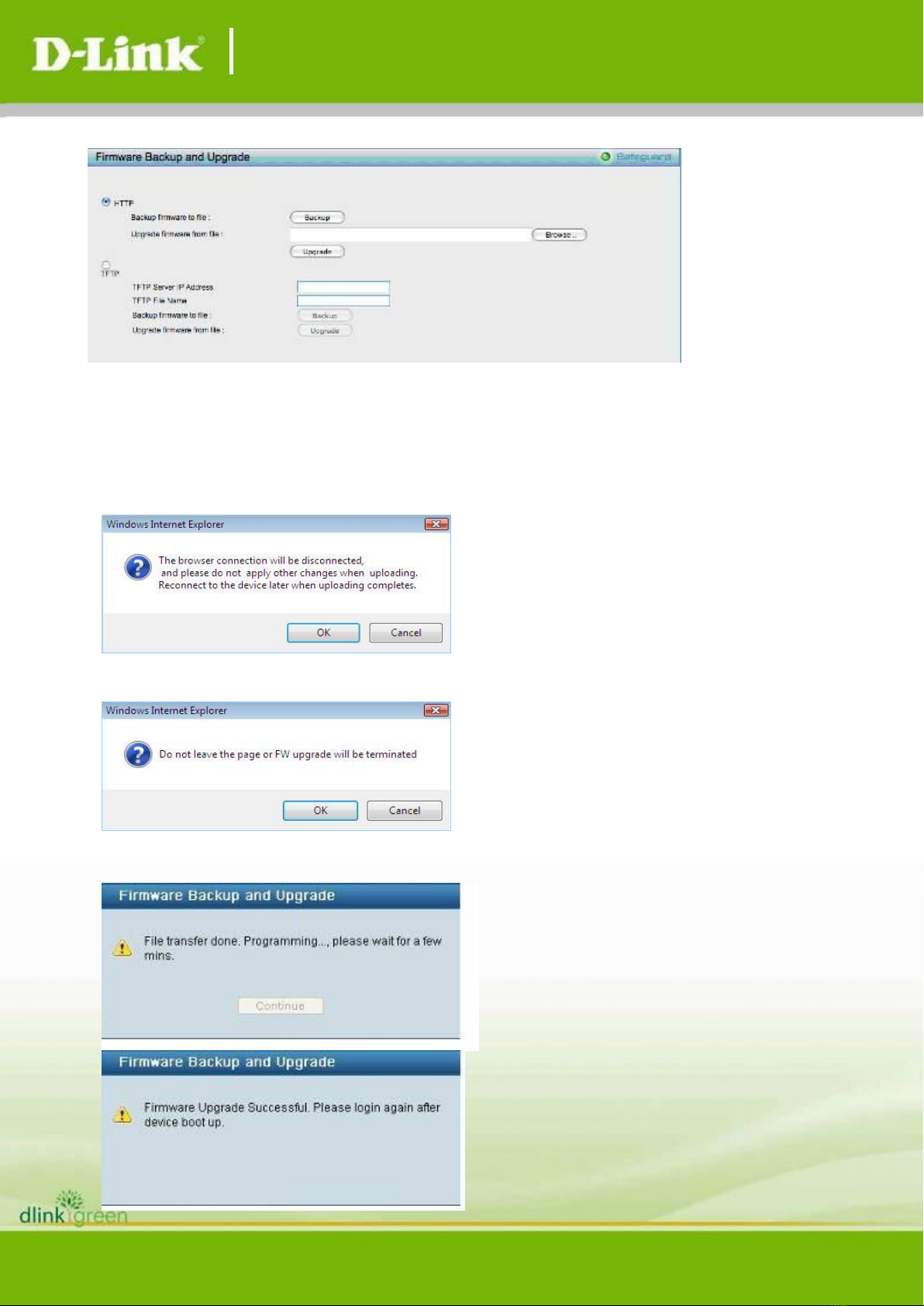

6. Select HTTP to upgrade the firmware to or from your local drive of PC.
a. Click Browse to browse your inventories for a saved firmware file
b. Click Upgrade after selecting the firmware file you want to restore
c. Click OK to continue with firmware upgrade
d. Click OK to continue with firmware upgrade
e. Wait until the “Firmware Upgrade Successful”message pops up and login again after device
boots up.

DES-1210-08P Firmware Release Notes
5
7. Select TFTP to upgrade the firmware to or from a remote TFTP server.
a. Enter the name of the firmware file located on the TFTP server
b. Click Upgrade after selecting the firmware file you want to restore
c. Click OK to continue with firmware upgrade
d. Wait until the firmware upgrade ends and login again after device boots up.
Upgrade using SmartConsole Utility
1. Connect a workstation installed with java SE runtime environment to any switch port of the
device
2. Execute SmartConsole Utility

DES-1210-08P Firmware Release Notes
6

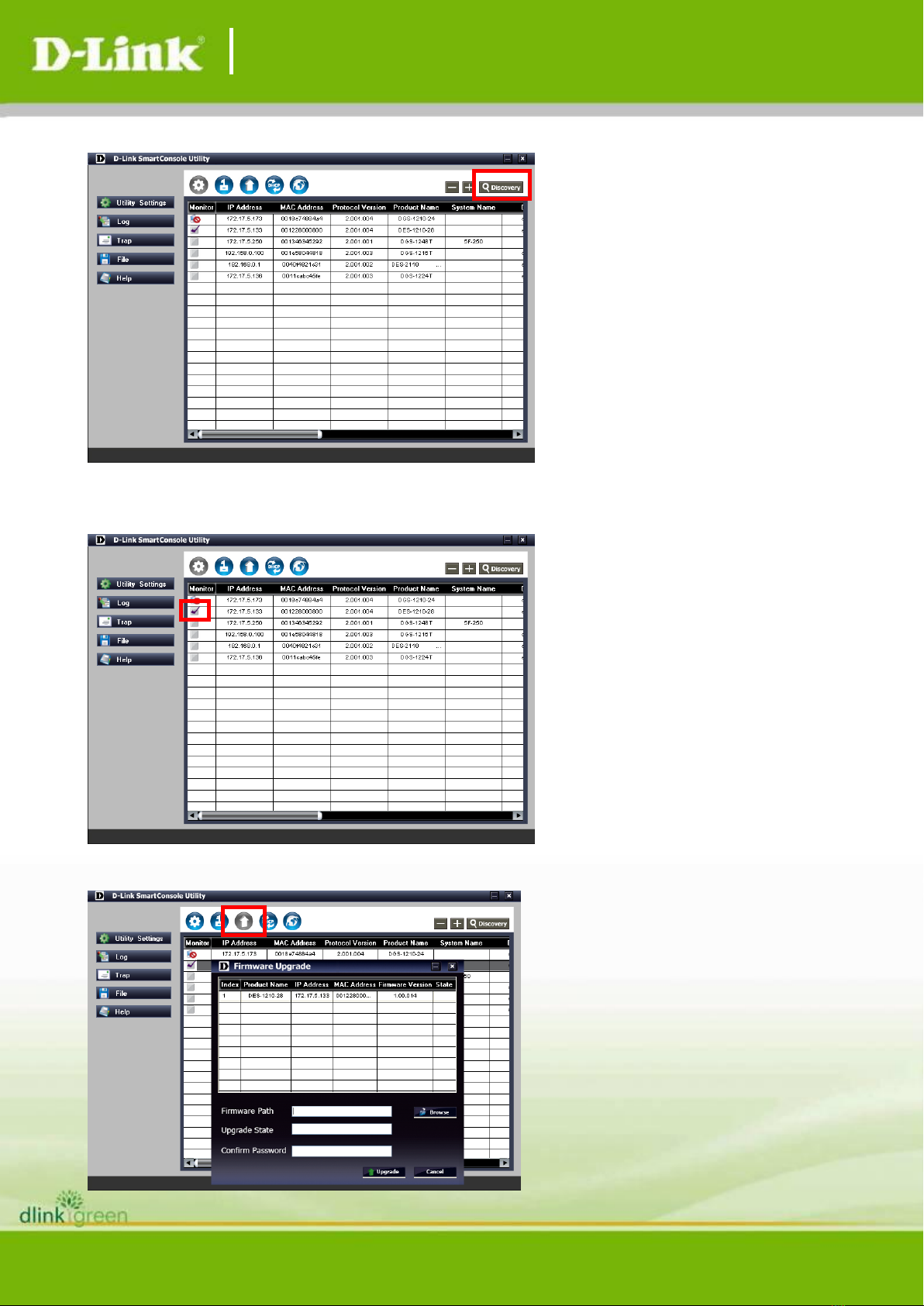

3. Click Discovery button to search target switch
4. Single click the icon of Monitor column to choose the target switch
5. Click Firmware Upgrade button

DES-1210-08P Firmware Release Notes
7

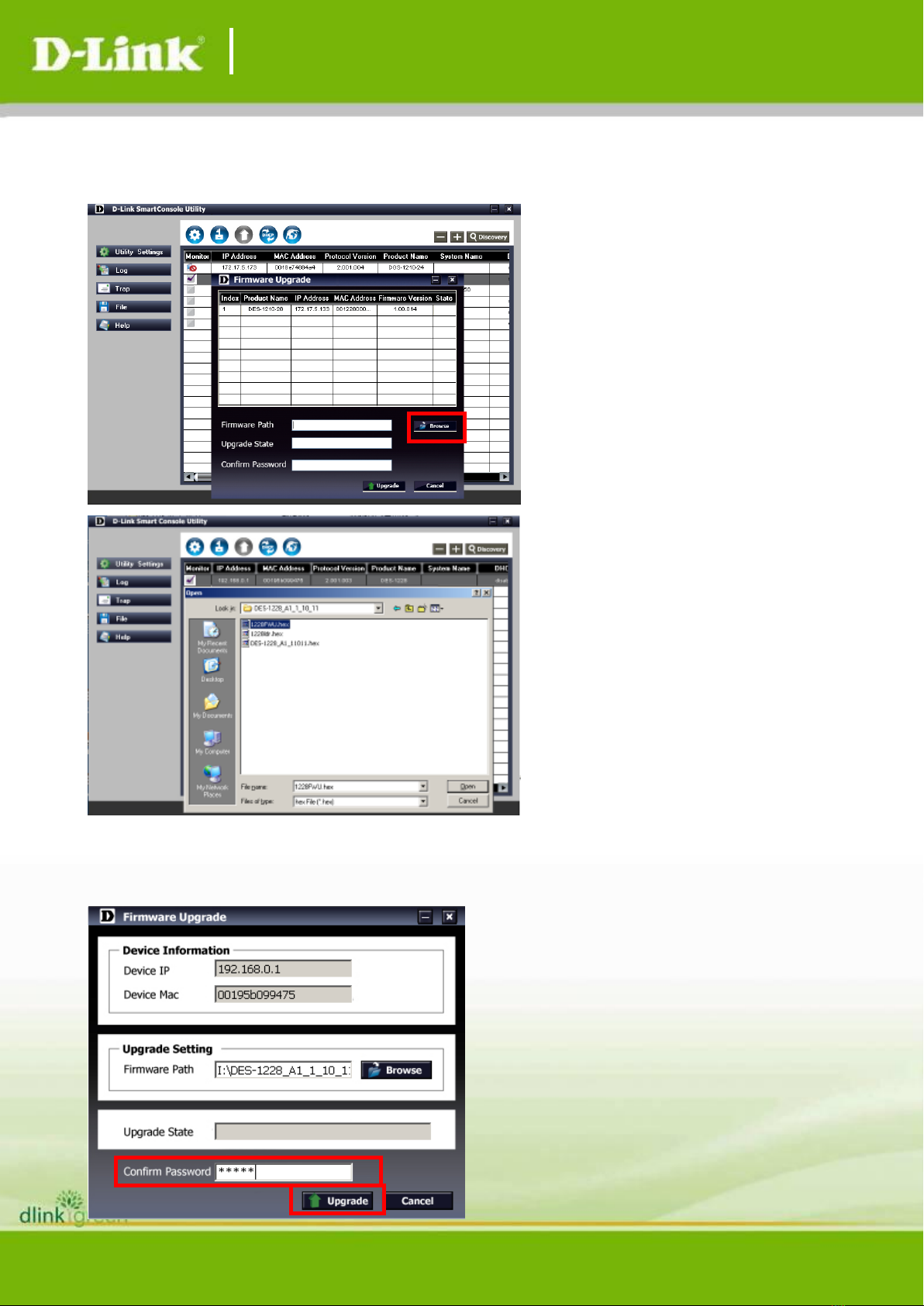

6. Click Browse button and select the firmware file (Model name_HW ver._FW ver. .hex) on your
local hard drive.
7. Enter password and click “Upgrade”button to start firmware upgrade. The default password is
“admin”.

DES-1210-08P Firmware Release Notes
8

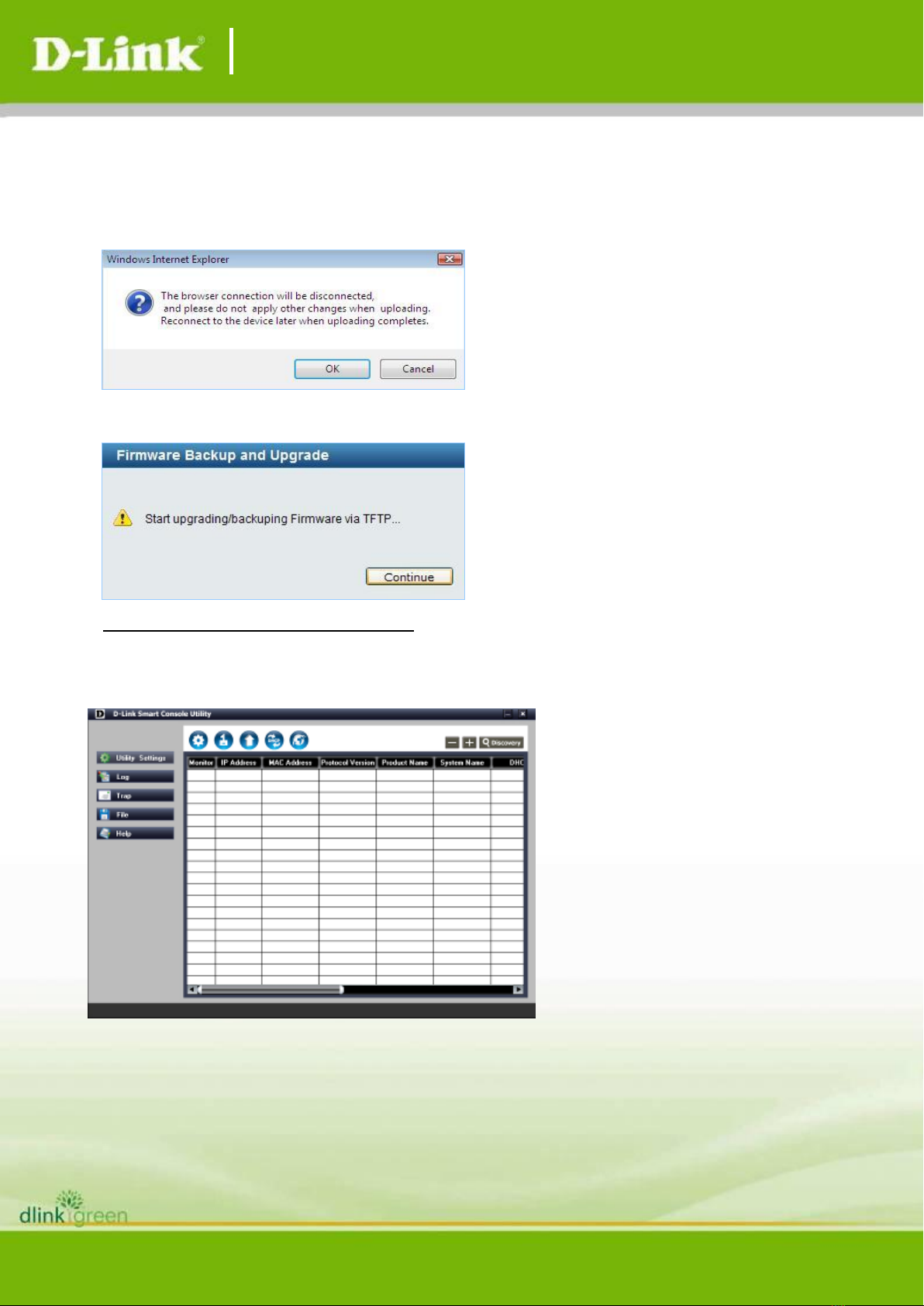

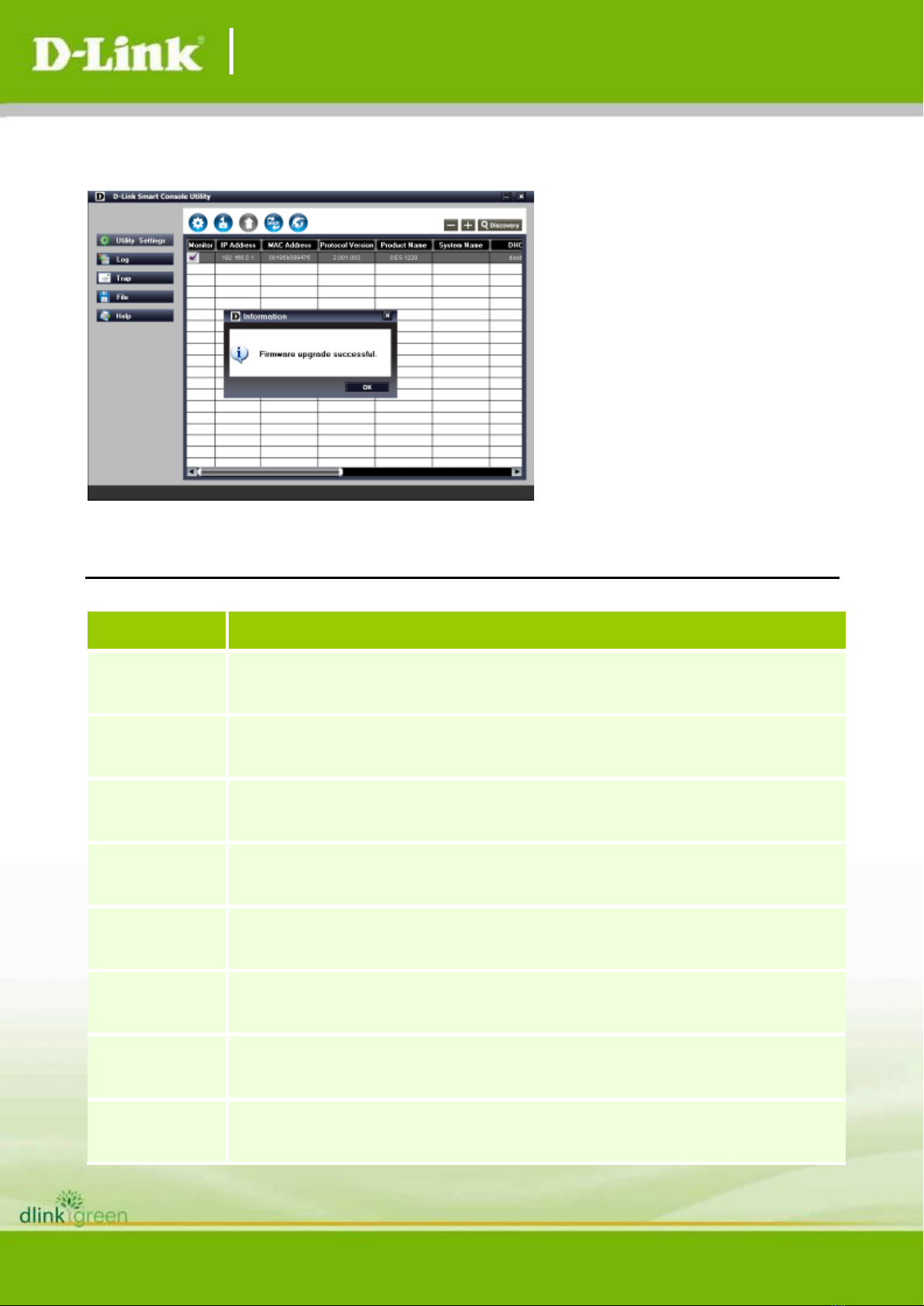

8. Once the message popped up, click “OK”button to complete the firmware upgrade
New Features:
Firmware
Version
New Features
V2.03.B016
NA
V2.03.B015
NA
V2.03.B014
NA
V2.03.B013
NA
V2.03.001
Fix 802.1x server shared secret weak encryption issue and HTTP file system security issue (An
European customer feedbacks issue.
V2.02.002
Fix the ASV WEB display bug that default OUI: 28-10-7B cannot be displayed in summary table
while corresponding packet is sent.
V2.01.002
Enhanced Auto Surveillance VLAN
Add Portuguese to Multi-Language
V2.00.011
First Release

DES-1210-08P Firmware Release Notes
9
Changes of MIB & D-View Module:
The new features of MIB file are also included in the corresponding D-View module. Please
download the D-View module from http://tsd.dlink.com.tw. For detailed changes of MIB content,
please refer to the modification history in each MIB file.
Firmware
Version
MIB File
New Features
V2.03.B016
DES-1210-08P_AX_2_01_001.mib
NA
V2.03.B015
DES-1210-08P_AX_2_01_001.mib
NA
V2.03.B014
DES-1210-08P_AX_2_01_001.mib
NA
V2.03.B013
DES-1210-08P_AX_2_01_001.mib
NA
V2.03.001
DES-1210-08P_AX_2_01_001.mib
NA
V2.02.002
DES-1210-08P_AX_2_01_001.mib
NA
V2.01.002
DES-1210-08P_AX_2_01_001.mib
Enhanced Auto Surveillance VLAN to V1.2
V2.00.011
DES-1210-08P_AX_2_00_004.mib
First Release
Firmware
Version
D-View Module File
New Features
V2.03.B016
DV_DES-1210-08P_V2.0.1.0_FW_v2.01.002.exe
NA
V2.03.B015
DV_DES-1210-08P_V2.0.1.0_FW_v2.01.002.exe
NA
V2.03.B014
DV_DES-1210-08P_V2.0.1.0_FW_v2.01.002.exe
NA
V2.03.001
DV_DES-1210-08P_V2.0.1.0_FW_v2.01.002.exe
NA

DES-1210-08P Firmware Release Notes
10
V2.03.B013
DV_DES-1210-08P_V2.0.1.0_FW_v2.01.002.exe
NA
V2.02.002
DV_DES-1210-08P_V2.0.1.0_FW_v2.01.002.exe
NA
V2.01.002
DV_DES-1210-08P_V2.0.1.0_FW_v2.01.002.exe
Enhanced Auto Surveillance
VLAN to V1.2
V2.0.0.11
DV_DES-1210-08P_V2.0.0.11_FW_v2.00.011.exe
First Release
Changes of Command Line Interface:
The section below only shows command line changes that may bring backward compatibility
issues with configuration settings for previous version of firmware.
Any new feature commands that do not have backward compatibility issues are not included in the
below section.
Firmware
Version
Changes
V2.03.B016
NA
V2.03.B015
NA
V2.03.B014
NA
V2.03.B013
NA
V2.03.001
NA
V2.02.002
NA
V2.01.002
NA
V2.00.011
NA

DES-1210-08P Firmware Release Notes
11
Problem Fixed:
Firmware
Version
Problems Fixed
V2.03.B016
1. Security Vulnerabilities Addressed: OpenSSL 0.9.8x does not properly restrict processing of
ChangeCipherSpec messages, which allows man-in-the-middle attackers to trigger use of a
zero-length master key in certain OpenSSL-to-OpenSSL communications, and consequently hijack
sessions or obtain sensitive information, via a crafted TLS handshake, aka the "CCS Injection"
vulnerability.
Reference: CVE-2014-0224
http://web.nvd.nist.gov/view/vuln/detail?vulnId=CVE-2014-0224
https://www.openssl.org/news/secadv_20140605.txt
Solution: Updated code to fix vulnerability
V2.03.B015
1. [DI20140530000002-Japan] Wrong Sys up time / same as DI20140205000006.
2. [DRU20140523000001-Russia] DGS-1210 snmp port speed issue.
V2.03.B014
1. [DI20140205000006-Japan]Fixed system up time issue.
2. [DRU20131101000002-Russia]Fix telnet issue that DUT with reboot during telnet
session.
V2.03.B013

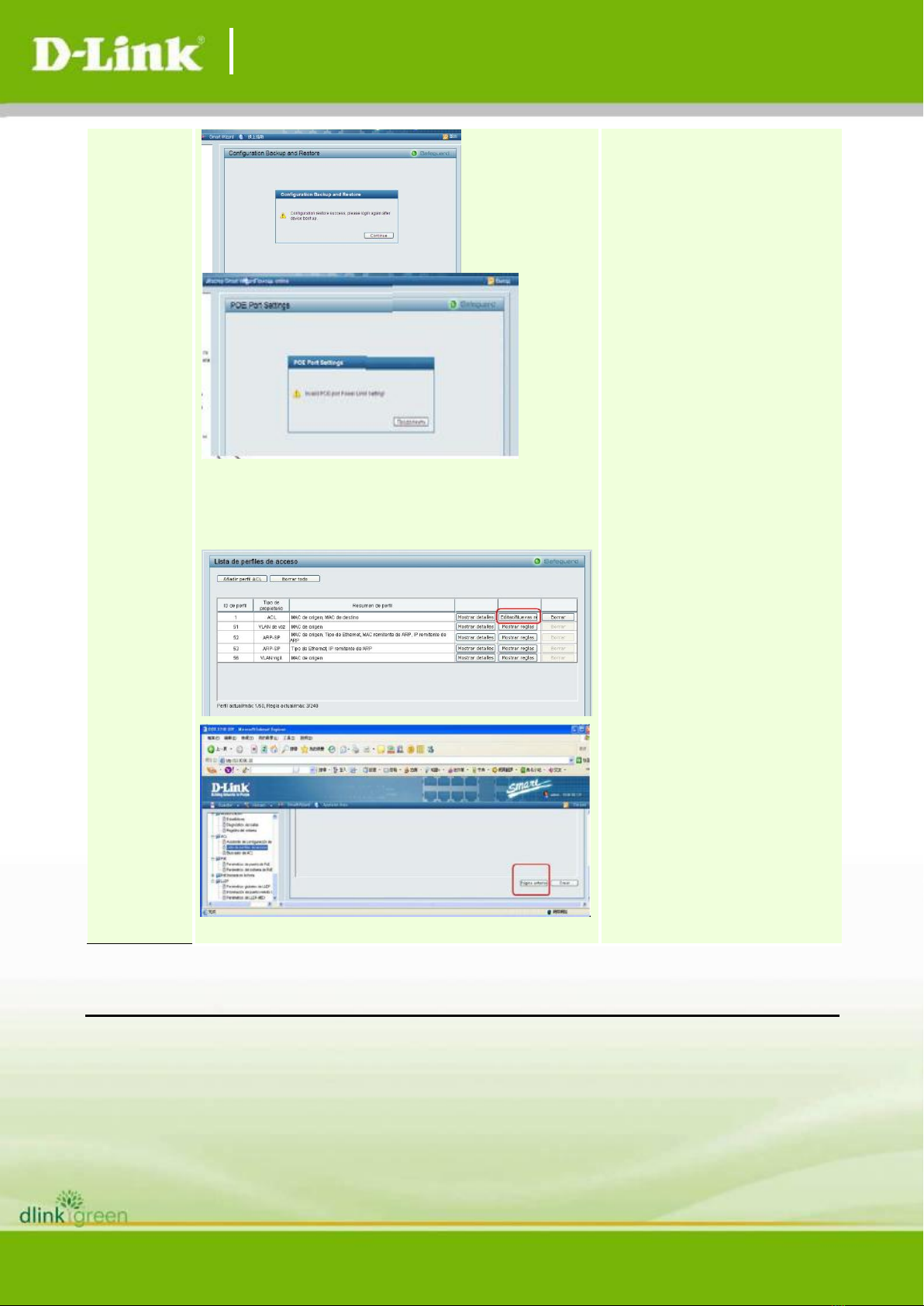

1. [ Support Request ] Fix Ping / Login Failure issue in SmartSW series.
Note: After confirm with D-LINK Shan, this issue can not find out the correct
D-track no. and will keep asking the result for the latest firmware.
2. [DEUR20131008000003-Central Europe] Fixed not able to set STP external
cost on Port 9&10 in LAG
3. [DI20130913000003-Japan] Customer has a question about SNMP v1 trap
about Enterprice OID and agent-Address.
4. [DI20131017000001-Japan] SNMP trap overlapping.
V2.03.001
Fix 802.1x server shared secret weak encryption issue and HTTP file system security issue (An European
customer feedbacks issue.
V2.02.002
Fix the ASV WEB display bug that default OUI: 28-10-7B cannot be displayed in summary table while
corresponding packet is sent.
V2.01.002
Fixed warning messages --Warning 13: Table "dlinklldpRemOrgDefInfoTable" and
Row "lldpRemOrgDefInfoEntry" should have same name prefix-- while MIB file
compilation.
V2.00.011
First Release
* D-Link tracking number is enclosed in ()

DES-1210-08P Firmware Release Notes
12
Known Issues:
Firmware
Version
Issues
Workaround
V2.01.002
None
V2.01.002

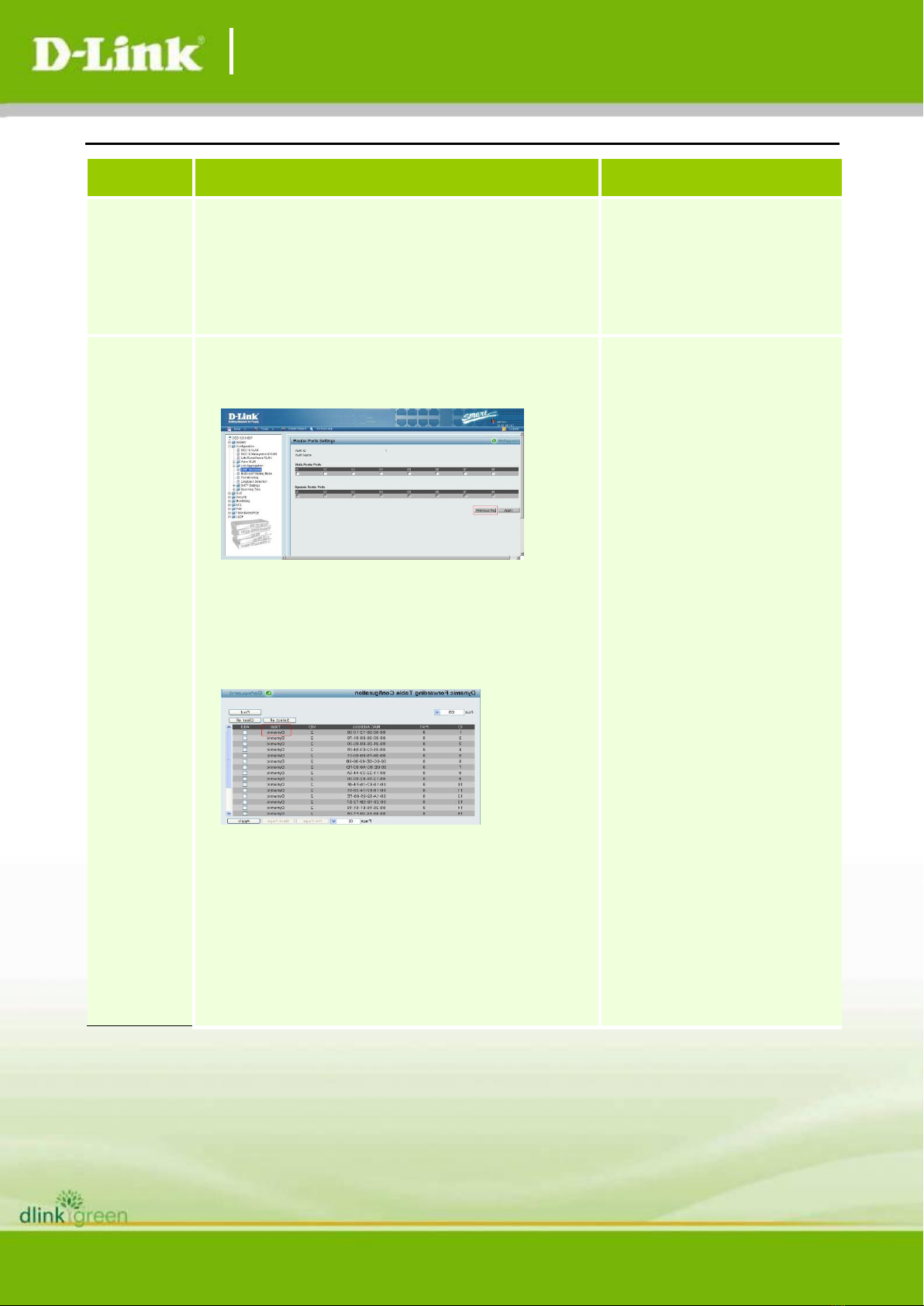

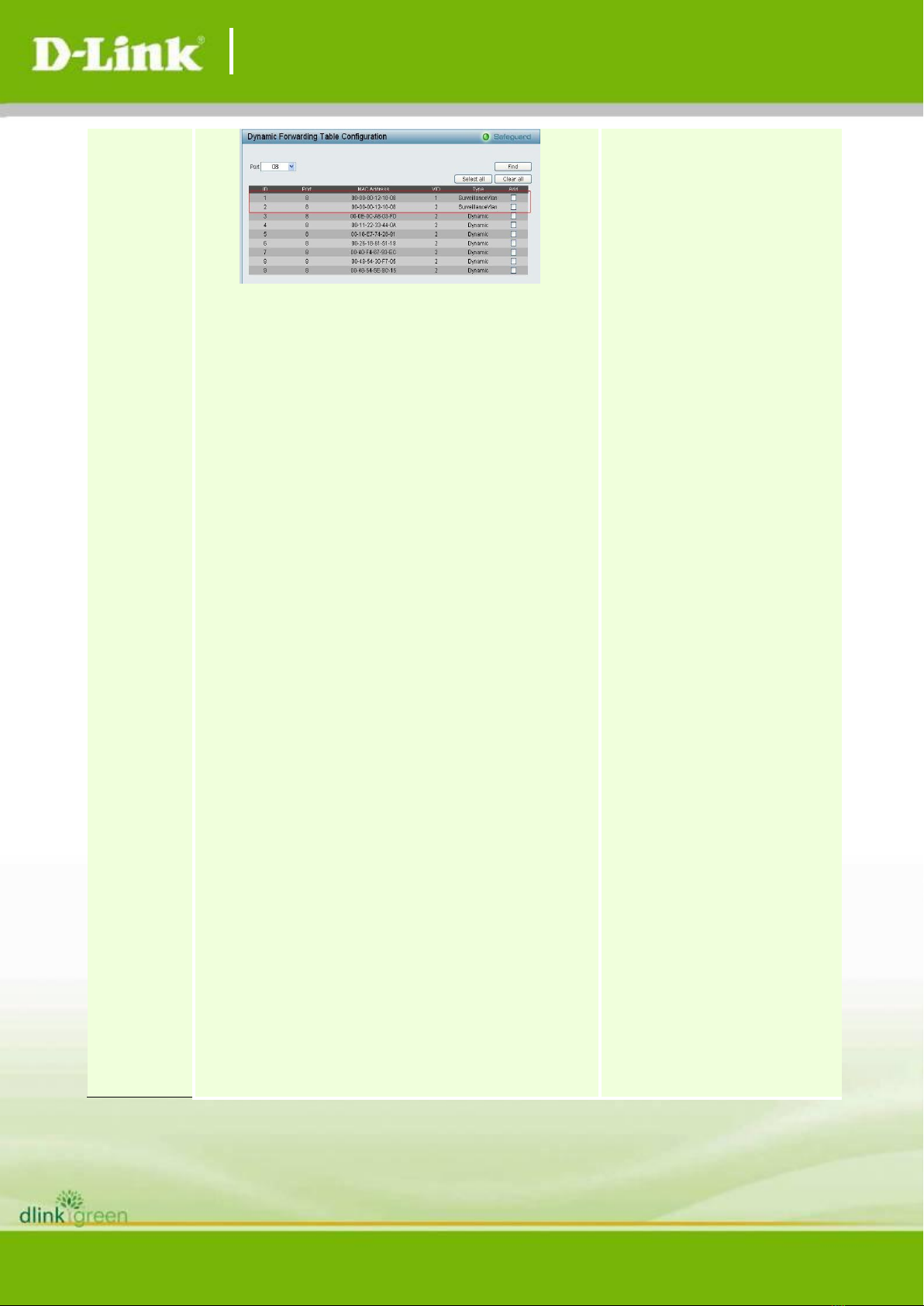

1. We find the IGMP Settings page GUI display
error via Google Brower v9.0.597.94 and and
Safari 5.03
2. When we transmit MAC address to DUT
learning then we add this MAC address to ASV
OUI list, We find the DUT Dynamic forwarding
table display this meet OUI MAC type still keep
in "dynamic".
3. We find the Dynamic Forward table display the
same MAC address (meet OUI) in be removed
VLAN interface by ASV, when we transmit meet
OUI MAC to the DUT via unplug and plug
interface.

DES-1210-08P Firmware Release Notes
13

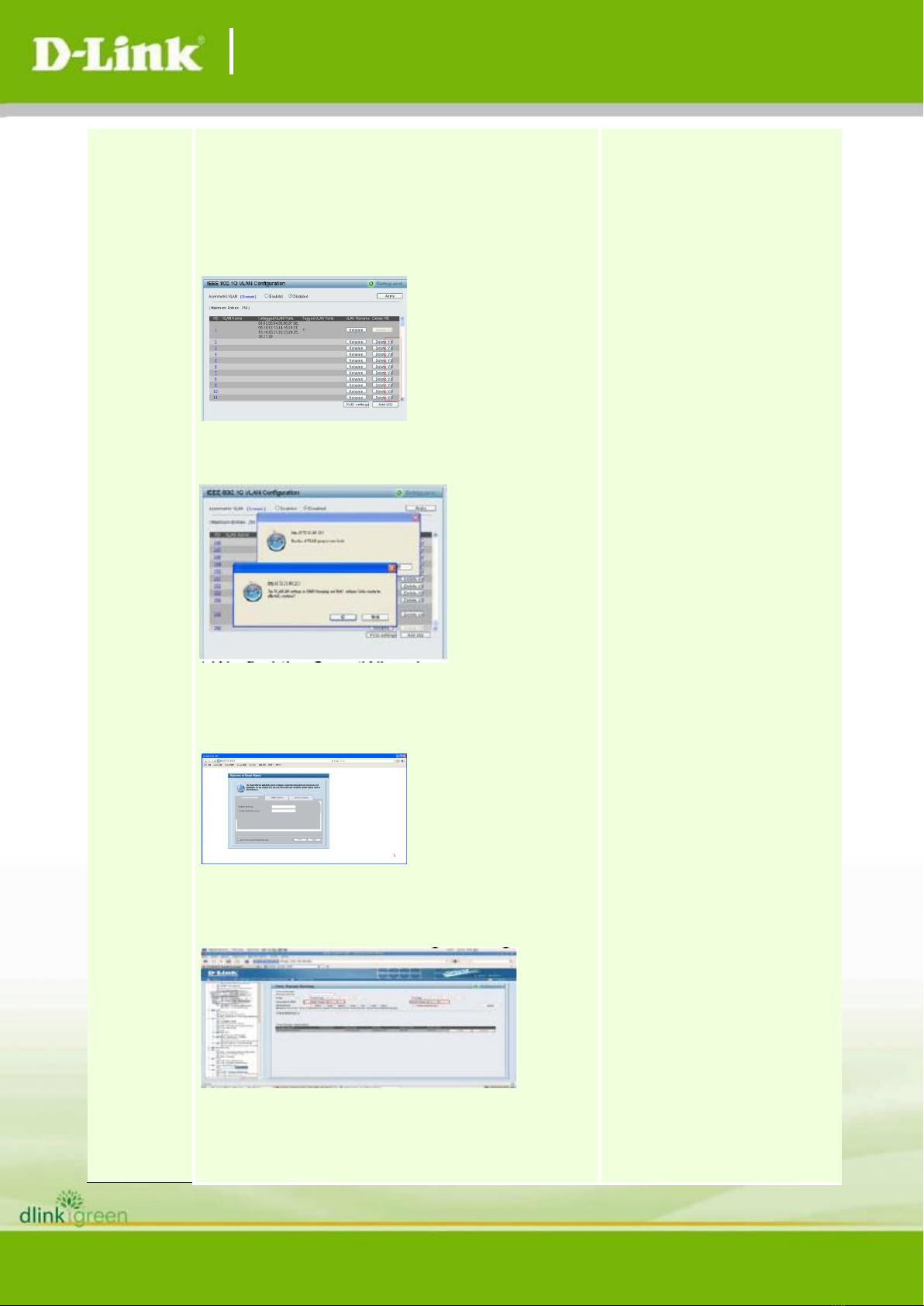

4. We can not add OUI "00-00-00" to ASV
user-defined MAC list.
5. 1. Set port security MAX learning address to 1.
2. Use Smartbit transmit Unicast packets from
port2 to port3 via 64 bytes. (Port2 SA MAC:
00-00-00-00-00-02/ Port3 SA
MAC:00-00-00-00-00-03) (Please learning
MAC address first)
3. Use Smartbit transmit 1000 broadcast
packets to port3 of the DUT via 64 bytes.
(Port3 SA MAC: 00-00-00-00-00-02)
We find Port2 or Port3 of the DUT in forwarding
table doesn't exist. (Port2 SA MAC:
00-00-00-00-00-02 and Port3 SA
MAC:00-00-00-00-00-03).
6. When we set Port1 of the DUT Port Security
Max learning MAC address is 1 and Enable ASV
Function then transmit 100 meet ASV OUI
different MAC address to Port1 of the DUT. We
find the DUT just can learning one MAC
address.
Follow D-Link Functional Spec, Port Security
and ASV learning table must be independ, ASV
Learning MAC address will not be effect by port
security settings.
7. When we follow below test step, we find the
ASV auto detect Function error.
1. Enable ASV Funciton (use default VID 4094)
2. Create User-Defind OUI
(00-00-00-00-00-01)
3. Transmit meet ASV (default D-Link OUI)
7000 different MAC address to Port2 of the
DUT.
4. Then Stop transmit and use User-Defind OUI
(00-00-00-00-00-01) MAC address transmit to
Port1 of the DUT.
5. We find the Port1 cannot dynamic join to
ASV Untag member.

DES-1210-08P Firmware Release Notes
14
V2.00.011
DES-1210-08P
1. Connect DUT with 5m cable, and unplug cable then
testing Cable length immediately, we found the cable
length is not correct for about 3 seconds.(should be
N/A, but show >140 instead)
2.
* We find the VLAN settings page display error via
Safari and Google Brower latest version.
* We find the the VLAN settings page over VLAN
maximum groups warning display error via Safari latest
version.
*We find the SmartWizard page display error via
Safari latest version.
*We find the PoE Time Range settings page display
error via Firefox in Linux.
3.
*We find D-Link provide Multi-Language wording list
does not include some Functional (Firmware and
Configuration) warning message.
None

DES-1210-08P Firmware Release Notes
15
*We find some Multi-Language wording length too long
that will cause GUI display abnormally.
Related Documentation:
-DES-1210-08P Series User Manual
-DES-1210-08P Series Getting Started Guide
