DLM-3500 Quick Installation Guide 1
1.Introduction
1.1 Preface
This Quick Installation Guide provides instructions and reference material for getting started with the
DLM-3500. The Guide will illustrate how to install the DLM-3500 and configure its basic settings.
1.2 Package Contents
DLM-3500 x 1
CD-ROM x 1
Quick Installation Guide x 1
Console Cable x 1
Ethernet Cable (Crossover) x 1
Switching US Power Adapter x 1
Power Translator (for EU/UK/AU only) x 1

DLM-3500 Quick Installation Guide 2
1.3 System Overview
1.3.1 Hardware Introduction

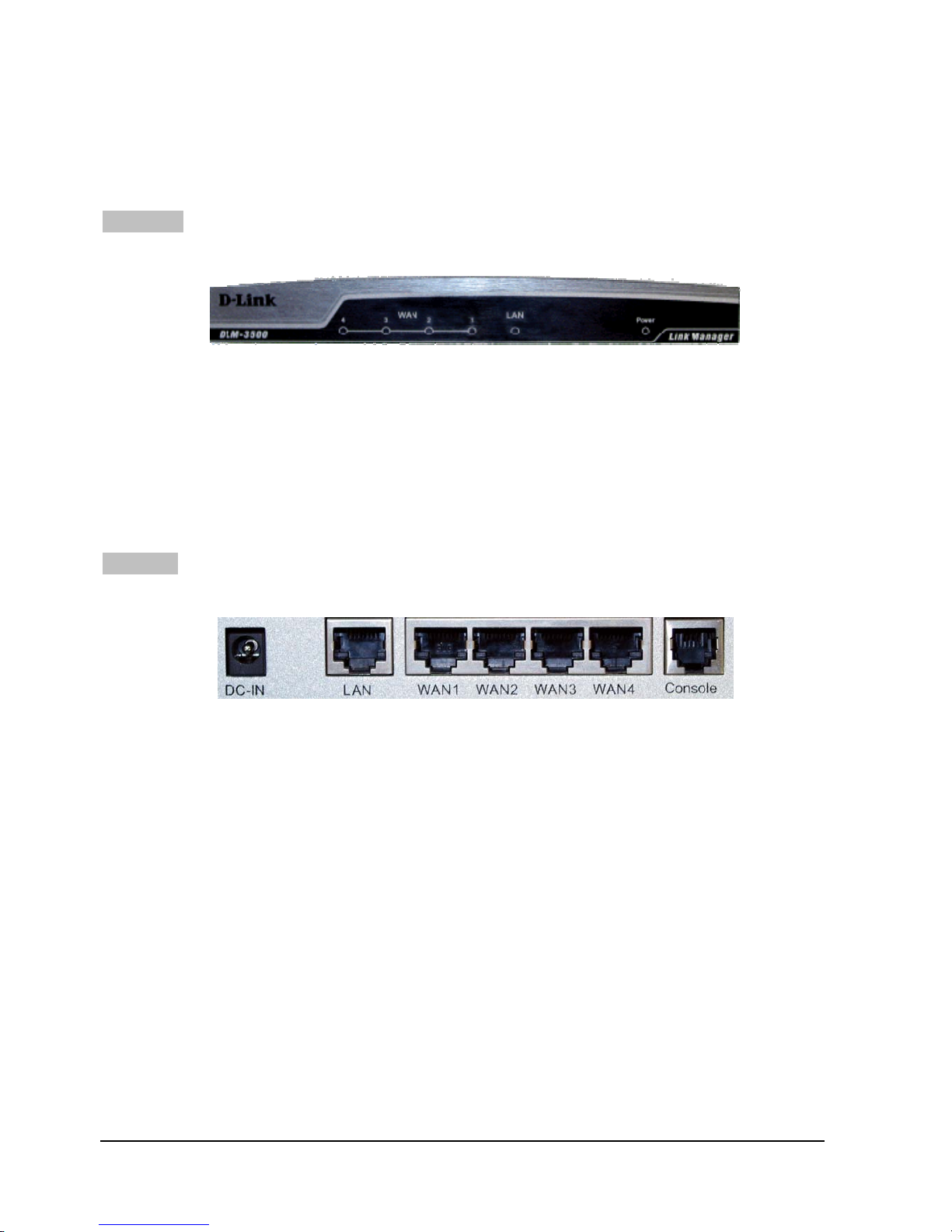

Front Panel
LED’s:
1. WAN1/WAN2/WAN3/WAN4: OFF indicates the line is not connected, and ON indicates the line is
connected.
2. LAN: OFF indicates the line is not connected, and ON indicates the line is connected.
3. Power: ON indicates that power is on and OFF indicates that power is off.
Rear Panel
DC-IN: The power cord attaches here.
LAN: The LAN port is connected to internal private network for users access Internet. Default LAN port IP is
192.168.0.1. By connecting to LAN port, user could access the web management interface to configure DLM-3500.
WAN1/WAN2/WAN3/WAN4: The four WAN ports are connected to a network which is not managed by the
DLM-3500 system, and this port can be used to connect the ATU-Router of ADSL, the port of Cable Modem, or the
Switch or Hub on the LAN of a company. Default WAN1/WAN2/WAN3/WAN4 port IPs are 192.168.1.1, 192.168.2.1,
192.168.3.1 and 192.168.4.1 respectively. Example in next chapter leads you to configure WAN ports to correspond
to your network environment.
Console Port: The system can be configured via HyperTerminal. The terminal’s configuration must be 9600bps, 8,
N, 1, flow control - none.

DLM-3500 Quick Installation Guide 3
1.3.2 Hardware Installation
1. Connect the power cord to the power socket on the rear panel. The Power LED will light up.
2. Connect an Ethernet cable to the WAN1 Port on the rear panel. Connect the other end of the Ethernet
cable to the WAN connection of Internet.
3. Connect an cross-over Ethernet cable to LAN Port on the rear panel. The LAN port is referred to as
Private LAN and the administrator can enter the web management interface to perform
configurations via this Private LAN. Connect the other end of the Ethernet cable to a client’s PC.
Attention: Usually, a straight RJ-45 can be applied if the DLM-3500 is connected to a hub/computer
which supports automatic crossover.

DLM-3500 Quick Installation Guide 4
2.GettingStarted
While getting started with DLM-3500, you may encounter with complicated settings which may hinder your
progress. This chapter serves to explain the basic functionalities of DLM-3500 and how to operate and
configure the system.It will also cover related subjects in network structures and hardware installation which
will help you during your setup of DLM-3500.
2.1 Preparation
Before you get started, there are few things you need to know:
1. The position of the DLM-3500 LAN Port: It has five network interfaces and the last port is LAN Port which
is marked on the machine.
2. The default IP address for LAN interface is 192.168.0.1
3. Your IP addresses for computers in the LAN should be changed to 192.168.0.2 (or 192.168.0.x) and
subnet mask 255.255.255.0 in order to avoid conflicts with the default LAN port.
4. Check your network environment carefully before installing DLM-3500. A well-designed network
environment with the necessary information such as your network structure, IP addresses, and network
segments information will help you complete the setup of DLM-3500 parameters.
5. DLM-3500 uses a web-based management user interface (Web-based UI). Due to internal design
constraints, you have to use Microsoft Internet Explorer 6.0 (IE 6.0), or higher to access the Web-based
UI. A screen resolution of 800x600 or higher is recommended.

DLM-3500 Quick Installation Guide 5
2.2 Access to the Web-based UI
The Web-based UI enables you to easily perform every configuration task. Follow the steps below to access
the Web-based UI.
1. Connect your PC Ethernet LAN interface to LAN port of DLM-3500 with a cross-over cable, which is in
standard packing. The default management LAN port of DLM-3500 is LAN port.
2. After powering on DLM-3500, the LED of LAN port will turn on. This indicates that it is on-line.

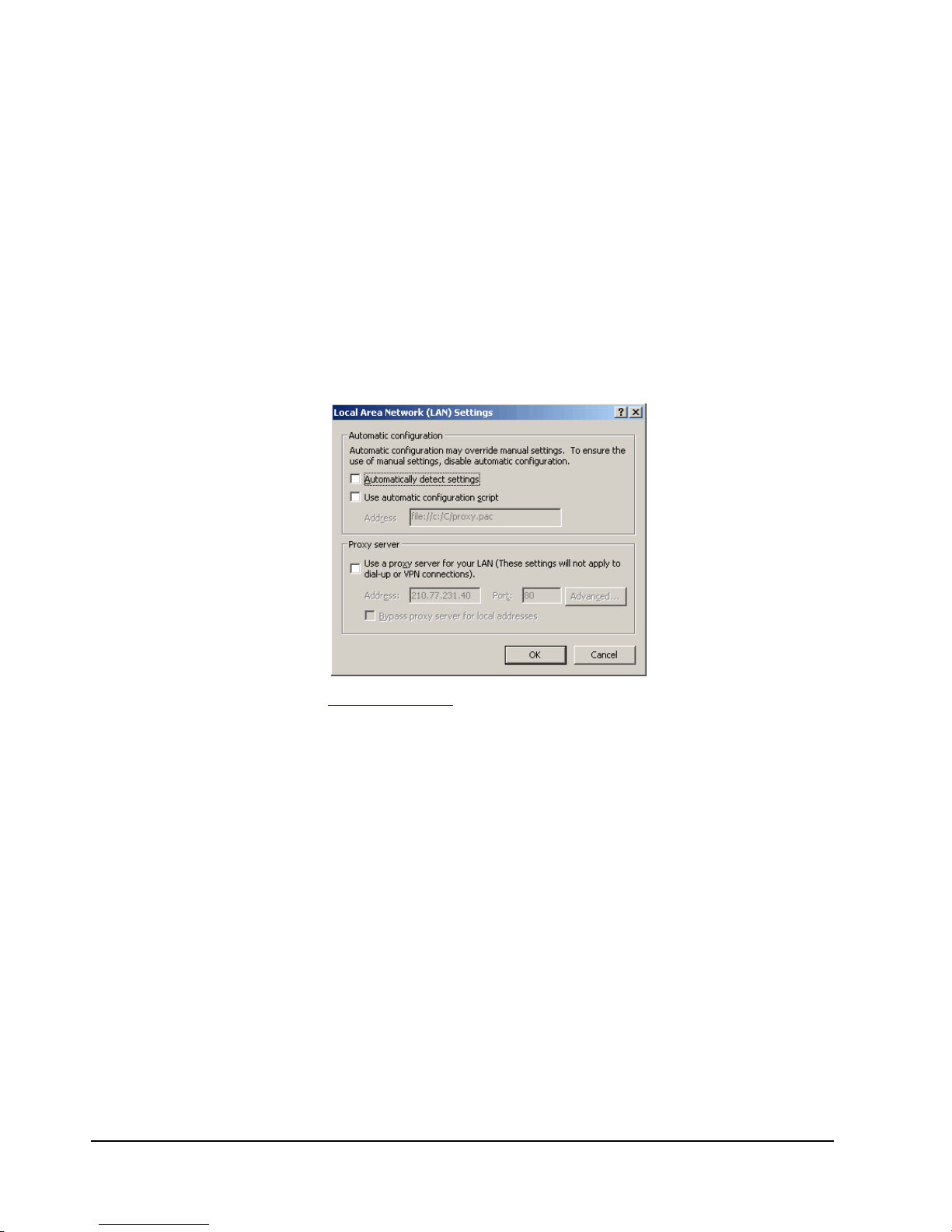

3. Check that the proxy setting of your IE browser is turned off, no proxy server is required in order to
access DLM-3500’s Web-based UI. Open IE, select Internet Option on the menu bar of Tools, click the
Connection tab, and then click LAN settings to open Local Area Network Settings dialog box, under
Proxy server, make sure proxy server is not selected.
4.
5. In the URL filed of IE, type in http://192.168.0.1 to access the Web-based UI.
6. DLM-3500 provides two types of user accounts:
admin – Has privileges to monitor and modify system parameters.
monitor – Has privileges to monitor only.
DLM-3500 allows up to 1 administrator and 1 monitor to access concurrently.
Default password for admin and monitor are “admin” and “monitor”, respectively. We strongly recommend
you to modify the passwords at the first time you log into the web-based UI.

DLM-3500 Quick Installation Guide 6
2.3 DLM-3500 Web-based UI Overview

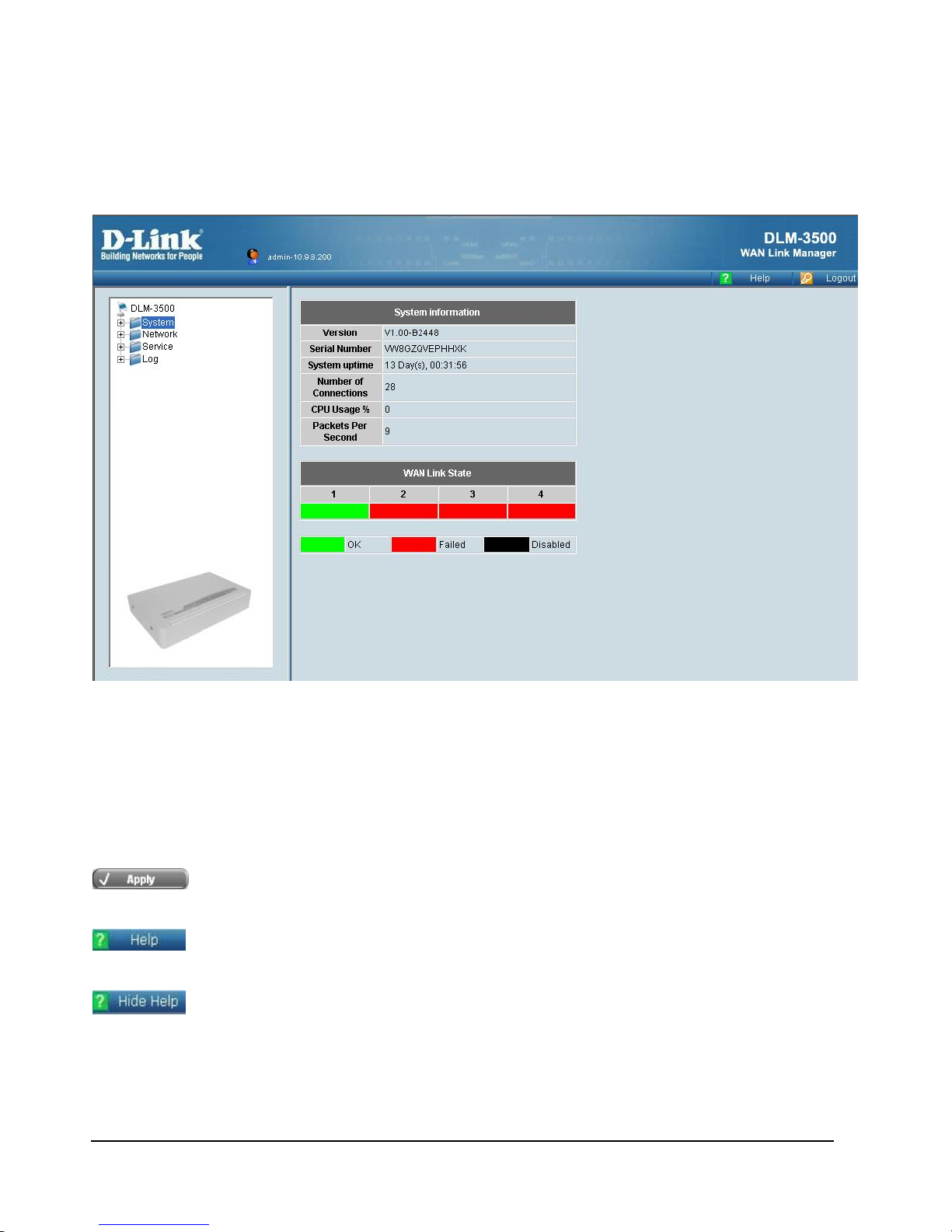

After logged in, you will be able to start configuring or monitoring DLM-3500 through the Web-based UI.
In order to help you to familiar with the basic operations, the explanations are as follows:
The Web-based UI tasks are grouped into four categories. The categories are located at the upper left-hand
corner of Web-based UI task bar. The four categories are:
System
Network
Service
Log
On the first stage,you can login as Administrator in the Web-based UI and modify the Administrator or
Monitor password by performing the following:(1)Click System and select Administration on task bar,(2)
enter your new admin password or monitor password, after the system confirmation, using the new
password next time you log in.
Password Recovery
If you forget your administrator password, use a Terminal (VT-100 compatible) to establish the connection
between PC RS-232 series port and DLM-3500 Console interface, execute system reset to default.
Before you log into serial console, please complete following setting: Bits per second: 9600, Data bits: 8,
Parity: None, Stop bits: 8, Flow control: None. The serial console and Web-based UI use the same
username and password pairs. By default, the password of “admin” is “admin”, and the password of
“monitor” is “monitor”. If the password is changed via the Web-based UI, it will also be changed in the serial
console. In case you lose your password, you can use the username “reset” and password
“DLM-3500_dlink” to log into serial console and reset the system to default.
Open the IE browser to access the Web-based UI
Please Note: Please remember the changed password; otherwise it is not possible to access the DLM-3500
management interface.

DLM-3500 Quick Installation Guide 7
2.4 Quick Set up a basic network with DLM-3500
This section describes the operations and arrangement of Web Based UI, the following figure displays the
operating menu of DLM-3500 Web-based UI system.
2.4.1 DLM-3500 Operating Menu
The task bar of operating menu contains four categories, which are System, Network, Service, Log, each
category has these own menu. Select the “Logout” from up right corner to exit the system. Apply,
Help/Hide Help buttons are displayed on the operating menu, the functions are as described below:
After modifying the parameters of specific menu page, click this button to save your changes
to memory, the old settings will also be saved.
Click the Help button to display the on-line help of the current page, the on-line help
information will automatically swap when you change the function page or language.
Click Hide Help to hide the on-line help information.

DLM-3500 Quick Installation Guide 8
Please Note: The Apply button here is active only on certain pages, any parameters modified without click
Apply will not be saved to the memory. Remember to click Apply when you are ready to move to the next
page menu or logout.

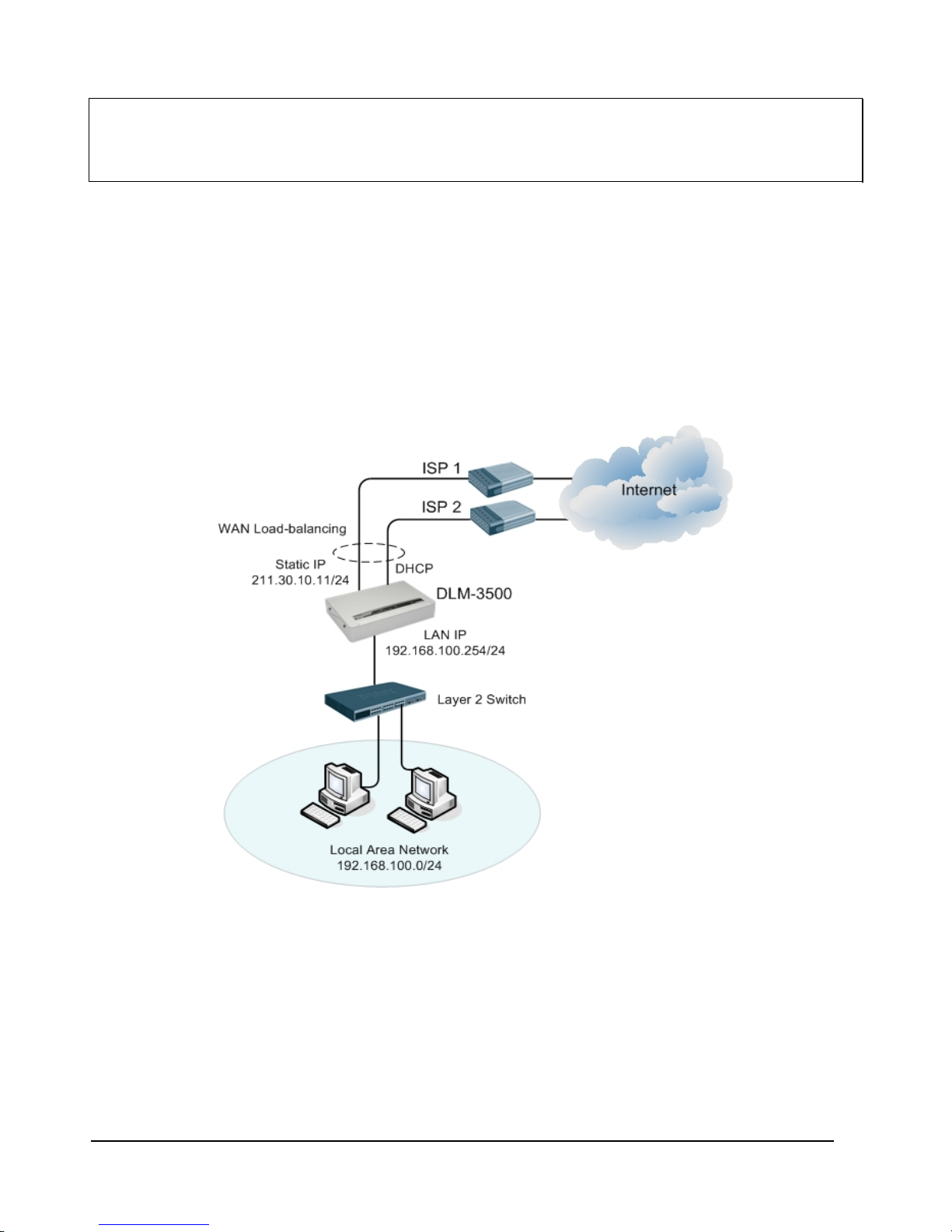

2.4.2 Network Scenario
In this section, we will walk you through a simple example to configure DLM-3500 step by step. The network
architecture in this example is illustrated as below. DLM-3500 is running outbound load-balancing on WAN 1
and WAN 2 interface with two last mile connection from ISP 1 and ISP 2. WAN 1 uses static IP address
assigned by ISP 1 and ISP 2 will use automatically IP address assigned by ISP 2.
2.4.3 Configuring Your WAN Interface

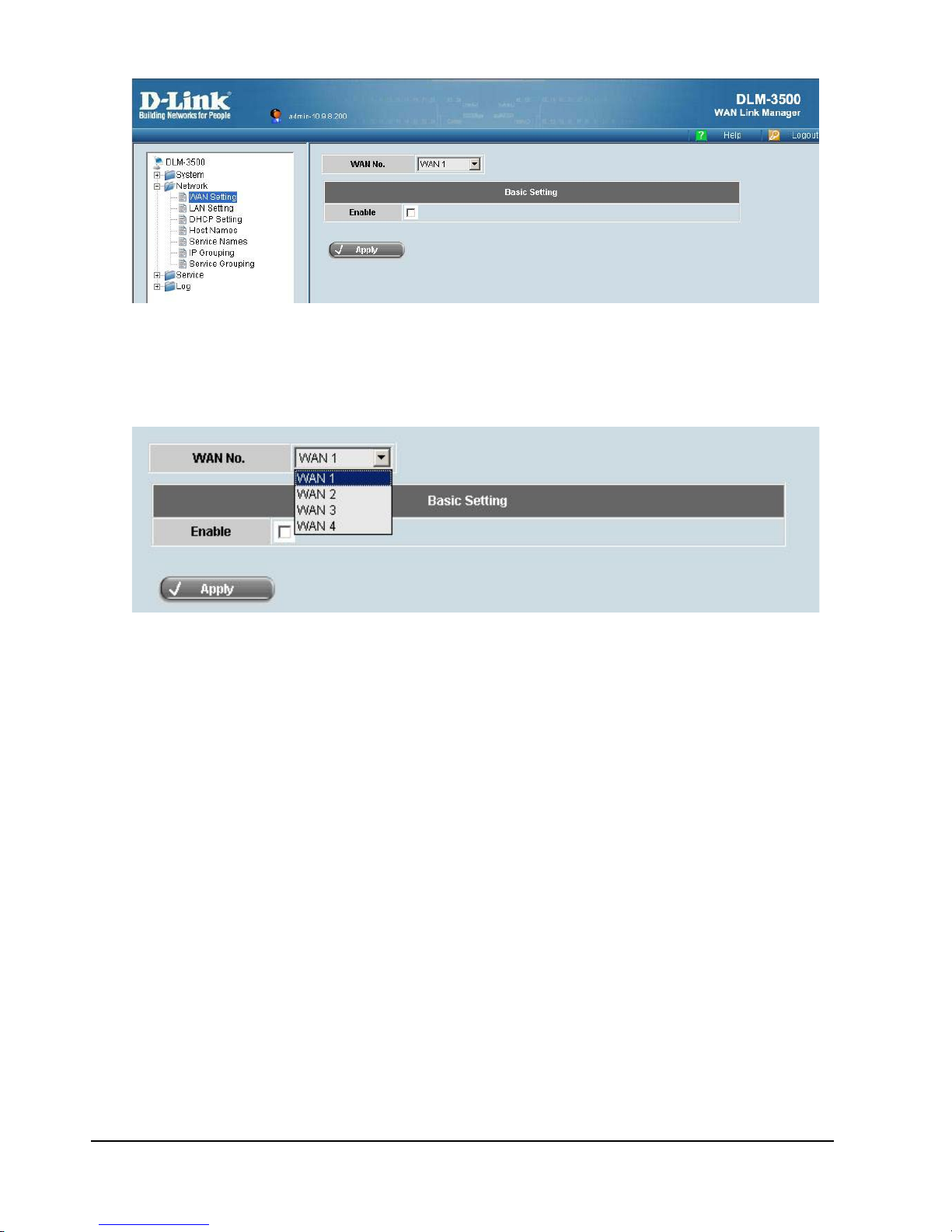

Click on the [Network] -> [WAN Setting] in menu, you will see the page for WAN setting. Before configuring
your WAN setting, make sure you know the gateway, public IPs from your ISP. Information like this should
have been given to you when first applied for a WAN connection with your ISP. They are essential to make
your WAN connection work properly.

DLM-3500 Quick Installation Guide 9

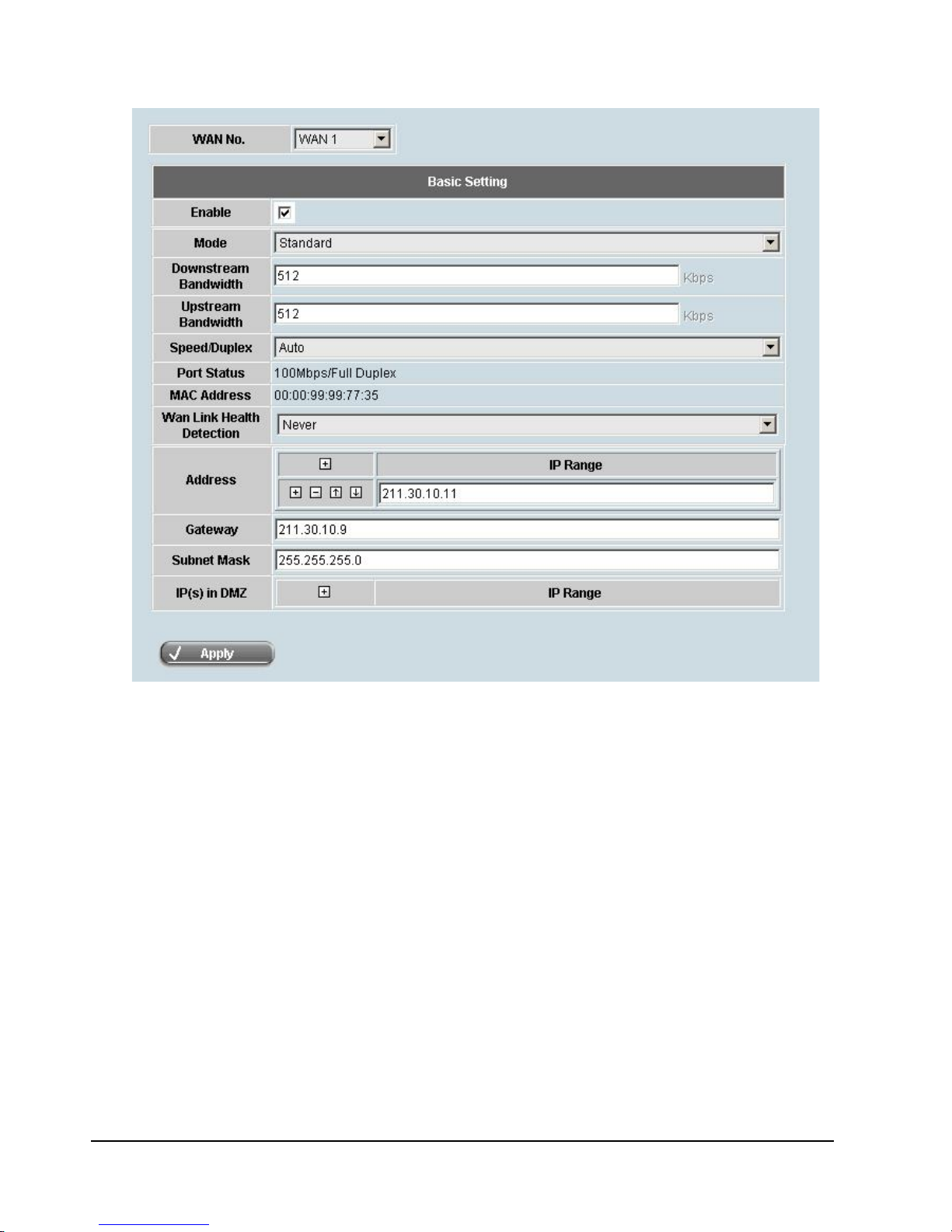

After you see the [WAN Setting] page, the procedure for configuring WAN settings is listed below:
1. Select the number of WAN links you want to configure. If you have multiple links, you can only edit one
WAN link at a time.
2. In the [Basic Setting] table, tick the checkbox next to “Enable” to activate the WAN link.
3. Select your WAN mode in the second field. Several options are available in this dropdown list. The WAN
type depends on how your ISP allocates the WAN link to you.In this example, we assume you are given a
single public IP from your ISP, so you need to configure your WAN mode as “Standard”.
4. In the thrid and fourth field, fill in your upstream and downstream bandwidth limits of your WAN link.
5. In the fifth field, you can set it manually or system can get it automatically.
5. In this example, we assumes you have a healthy WAN and stop monitoring ICMP and TCP packets, so we
configure it as “Never”. (For further information about “WAN Link Health Detection”, please refer to
the User’s Manual)
6. Fill in your IP Address to WAN1 of DLM-3500 in the ninth field. In this example, it is 211.30.10.11
7. Fill in the gateway’s IP address in the tenth field. In this example, it is 211.30.10.9.
8. Fill in the subnet mask in the eleventh field. In this example, it is 255.255.255.0.

DLM-3500 Quick Installation Guide 10

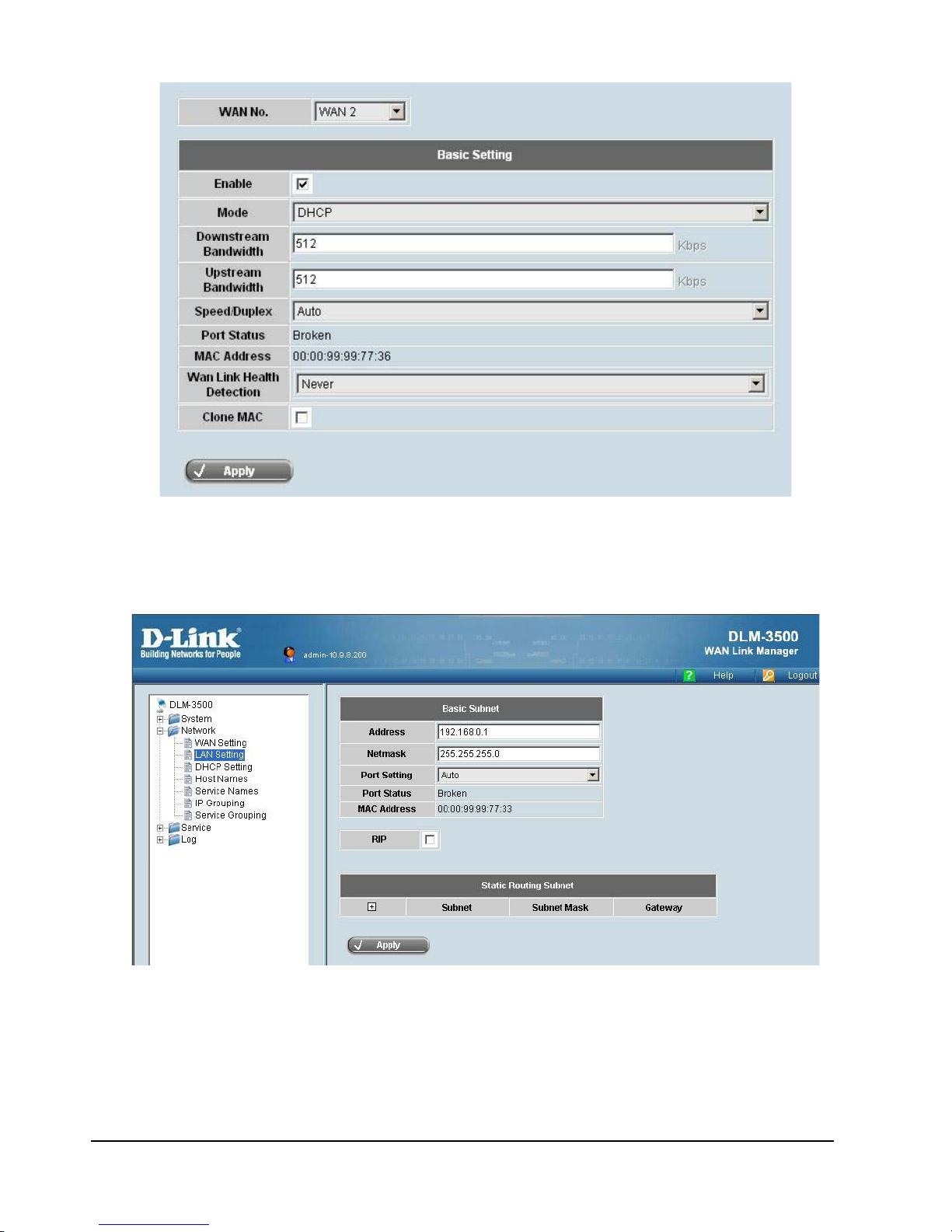

10. Select “WAN 2” in the first field [WAN No.] and tick the checkbox next to “Enable” to activate the WAN
link.
11. Select your WAN mode in the second field. In this example, we assume you are given a IP from a DHCP
server, so you need to configure your WAN mode as “DHCP”.
12. Fill in your upstream and downstream bandwidth limits of WAN link 2.
13. Config [Speed/Duplex] as “Auto” and [Wan Link Health Detection] as “Never”. (we assumes you
have a healthy WAN and stop monitoring ICMP and TCP packets)

DLM-3500 Quick Installation Guide 11
14. Press [Apply] to update all the parameters you have just entered.
2.4.4 Configuring Your LAN Interface
Default LAN port IP of DLM-3500 is 192.168.0.1. You can see the default configuration of LAN port at
[Network] -> [LAN Setting]. According to your current LAN environment, you can configure the LAN setting
of DLM-3500. The procedure is listed as below:
1. Fill in the LAN port IP in the first field of [Basic Subnet] table. In this example, it is 192.168.100.254.

DLM-3500 Quick Installation Guide 12
2. Fill in the netmask in the second field. In this example, it is 255.255.255.0.
3. In the third field, you can set it manually or system can get it automatically.
4. Press [Apply] to update all the parameters you have just entered.
5. We assume you connect DLM-3500 directly to access the web management interface by a certain IP
192.168.0.X. After applying new LAN setting, you could not access the web management interface since
the different subnet. You should re-access it using IP such as 192.168.100.X. The IP of DLM-3500 web
management interface now is 192.168.100.254.
2.4.5 DHCP Settings

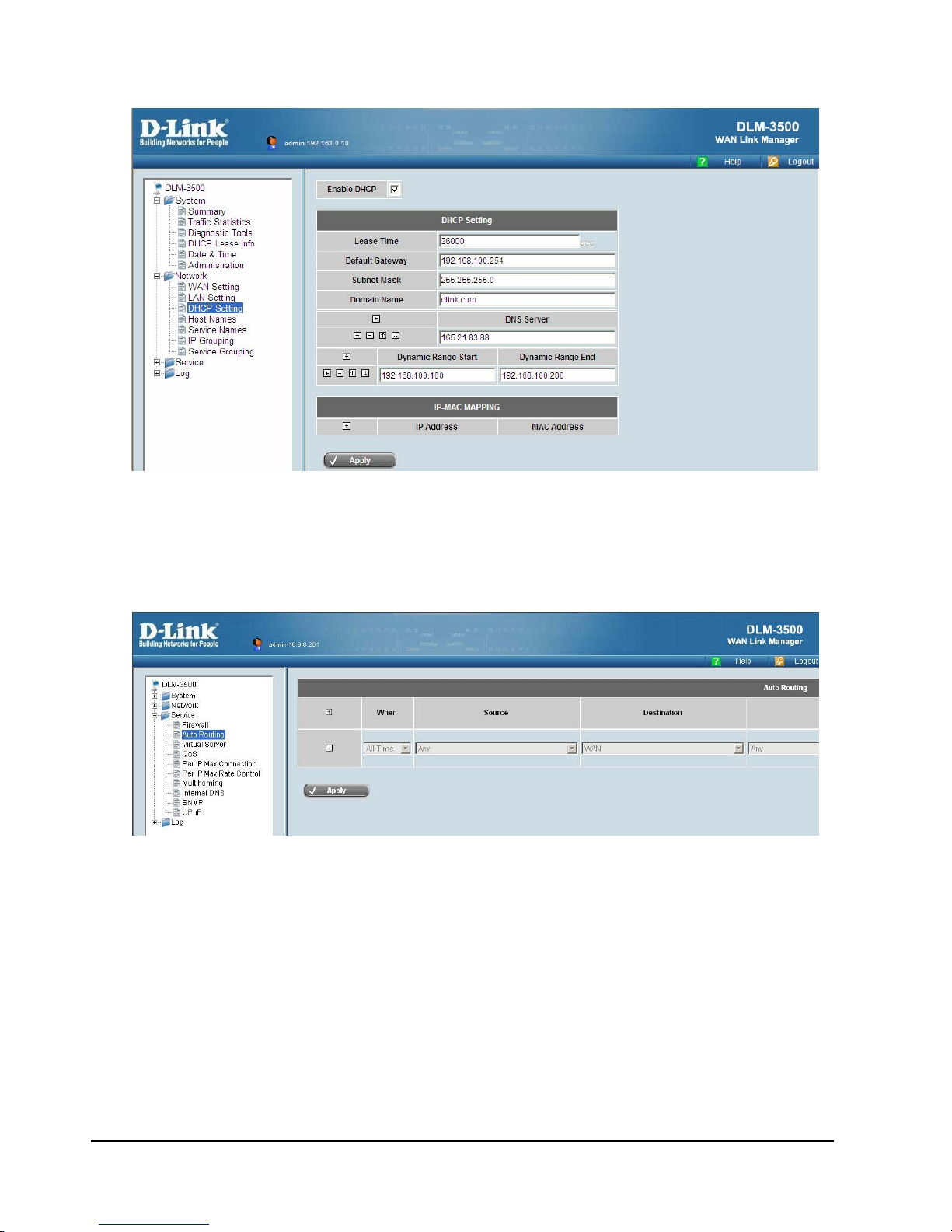

DHCP server may be enabled at Network -> DHCP setting.
1. Fill in the Lease Time in seconds for DHCP client. In this example, it is 36000.
2. Fill in the Default Gateway that the DHCP clients will use. In this example, it default gateway is the LAN
port of DLM-3500.
3. Fill in the Subnet Mask that the DHCP clients will use.
4. Fill in the Domain Name that the DHCP clients will use, this field is optional.
5. Fill in the DNS Server’s IP address that DHCP clients will use in the [DNS Server] filed. Please note that
the DNS server must be set properly to LAN user to go to Internet successfully.
6. Administrator can specify the DHCP pool range that the DHCP clients will use by filling the Dynamic
Range Start and Dynamic Range End field.

DLM-3500 Quick Installation Guide 13
7. Press [Apply] to update all the parameters you have just entered.
2.4.6 WAN Out Load Balancing Configuration
The following configuration is about load balancing with two wan links. In this example, algorithm “Run
Robin” is employed to do load balancing with WAN 1 and WAN 2. Click on the [Service] -> [Auto Routing]
in menu, you could see the [Auto Routing] page and the procedure for configuration is listed below:

DLM-3500 Quick Installation Guide 14

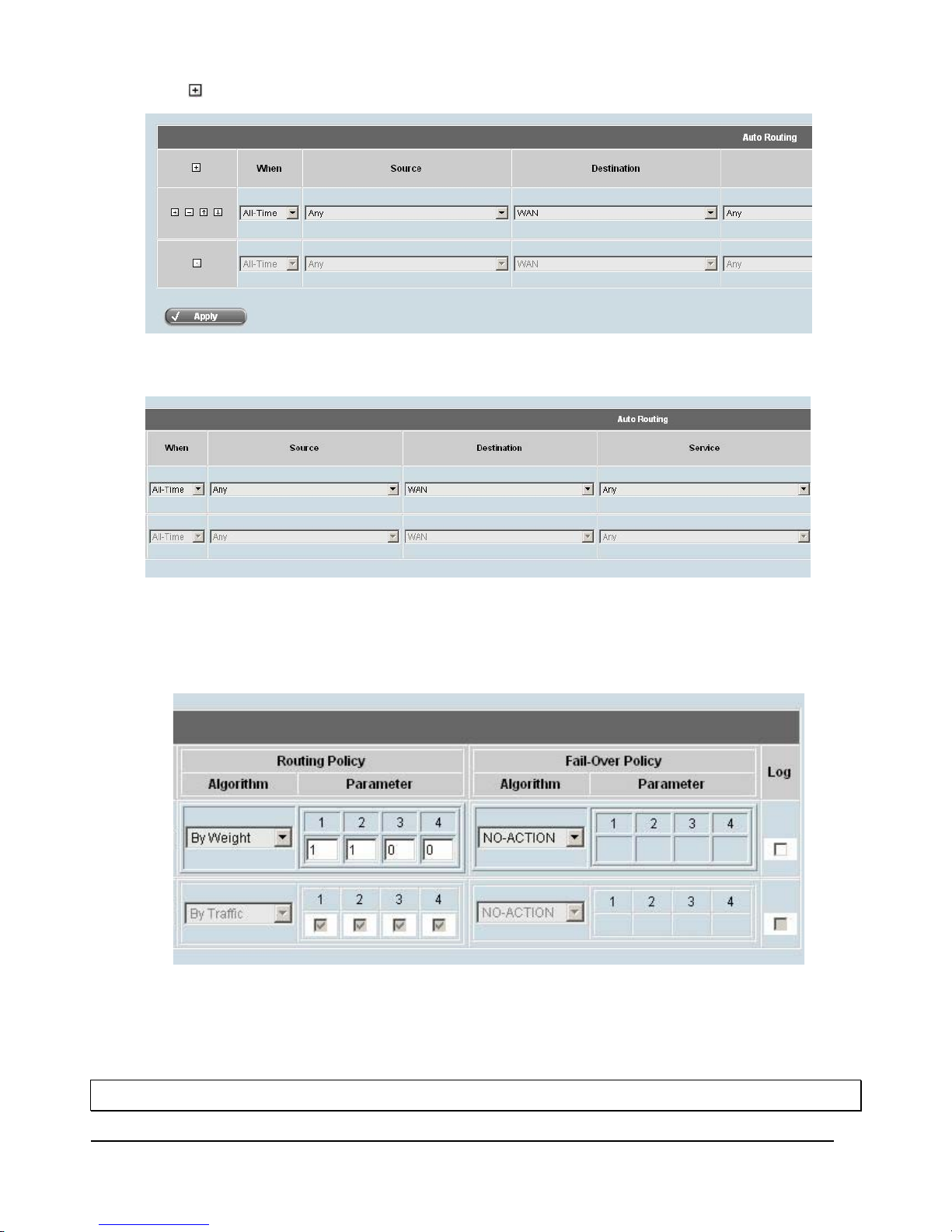

1. Click button to create new configuration.
2. Configuration of filter includes “When”, “Source”, “Destination” and “Service”. In this example, we
configure [When] as “All-Time”, [Source] as “Any”, [Destination] as “WAN” and [Service] as “Any”.
3. In [Routing Policy] field, it includes two sub-fields [Algorithm] and [Parameter]. In this example,
we do load balancing with WAN 1 and WAN 2 in algorithm “Run Robin”. So we configure
[Algorithm] as “By Weight”, then set weight of WAN 1 and WAN 2 as “1” in [Parameter].
4. Press [Apply] to update all the parameters you have just entered.
So far, we have only mentioned the basic operations of the Web-based UI and how to basically integrate
DLM-3500 into your present network environment with simple outbound WAN Load-balancing.
For further information, please refer to the User’s Manual of DLM-3500
