D-Link AC1200 User manual

Version 2.0 | 7/18/14
User Manual
DIR-850L
Wireless AC1200
Dual Band Gigabit Cloud Router

iD-Link DIR-850L User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any
person or organization of such revisions or changes.
Manual Revisions
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link. All other third-party marks mentioned herein
may be trademarks of their respective owners. This publication may not be reproduced, in whole or in part, without prior
express written permission from D-Link Systems, Inc.
© 2014 D-Link. All Rights Reserved.
Revision Date Description
1.0 April 19, 2013 • Initial release for revision A1
2.0 July 18, 2014 • Revision B1
Preface

iiD-Link DIR-850L User Manual
Table of Contents
Preface................................................................................. i
Manual Revisions........................................................................... i
Trademarks ...................................................................................... i
Product Overview.............................................................. 1
Package Contents......................................................................... 1
Minimum Requirements............................................................ 2
Introduction ................................................................................... 3
Hardware Overview..................................................................... 4
Connections ........................................................................... 4
LEDs........................................................................................... 5
Installation ......................................................................... 6
Before you Begin........................................................................... 6
Wireless Installation Considerations...................................... 7
Manual Setup................................................................................. 8
Conguration...................................................................11
Setup Wizard ................................................................................12
QRS Mobile App..........................................................................19
Web-based Conguration Utility..........................................24
Home.......................................................................................25
Internet..............................................................................25
DIR-850L............................................................................26
Connected Clients .........................................................27
USB Device .......................................................................28
Settings ..................................................................................29
Wizard ................................................................................29
Internet..............................................................................29
Dynamic IP (DCHP)..................................................30
Static IP ........................................................................31
PPPoE............................................................................32
PPTP..............................................................................33
L2TP ..............................................................................35
DS-Lite..........................................................................37
IPv6................................................................................38
Auto Detection .........................................................39
Static IPv6 ...................................................................40
Auto Conguration .................................................42
PPPoE............................................................................43
IPv6 in IPv4 Tunnel...................................................45
6 to 4.............................................................................47
6rd .................................................................................48
Local Connectivity Only.........................................50
Wireless..............................................................................51
Guest Zone.................................................................53
Network.............................................................................54
SharePort ..........................................................................56
Create User.................................................................57
mydlink..............................................................................58
Advanced...............................................................................59
QoS Engine.......................................................................59
Firewall Settings.............................................................60
IPv4/IPv6 Rules ...............................................................62
Table of Contents

iiiD-Link DIR-850L User Manual
Table of Contents
Port Forwarding .............................................................63
Virtual Server...................................................................64
Website Filter...................................................................65
Static Routes....................................................................66
IPv6 .....................................................................................67
Dynamic DNS ..................................................................68
IPv6 Host .....................................................................69
Management........................................................................70
Time & Schedule ............................................................70
Time ..............................................................................70
Schedule .....................................................................71
System Log.......................................................................72
Admin.................................................................................73
System ...............................................................................74
Upgrade ............................................................................75
Statistics ............................................................................76
Using the mydlink SharePort™ App ...............................77
Using the mydlink SharePort™ App for iOS Devices......77
mydlink SharePort™ for iOS Devices in a Local
Network..................................................................................80
Main Menu ............................................................................83
Documents............................................................................84
Pictures...................................................................................86
Videos .....................................................................................88
Music .......................................................................................90
Folders ....................................................................................93
Favorites.................................................................................96
Using the mydlink SharePort™ app for Android™...........97
mydlink SharePort™ for Android in a Local
Network............................................................................... 100
Main Menu ......................................................................... 102
Documents......................................................................... 103
Pictures................................................................................ 105
Videos .................................................................................. 107
Music .................................................................................... 109
Folders ................................................................................. 112
Favorites.............................................................................. 116
Using SharePort with a Web Browser for Local Access117
Music .................................................................................... 120
Pictures................................................................................ 121
Videos .................................................................................. 122
Documents......................................................................... 123
Connect a Wireless Client to your Router ....................124
WPS Button................................................................................ 124
Windows® 8................................................................................ 125
WPA/WPA2 ......................................................................... 125
Windows® 7................................................................................ 127
WPA/WPA2 ......................................................................... 127
WPS....................................................................................... 130
Windows Vista®......................................................................... 134
WPA/WPA2 ......................................................................... 135
Troubleshooting ............................................................137
Wireless Basics ...............................................................141
What is Wireless?...................................................................... 142
Tips................................................................................................ 144

ivD-Link DIR-850L User Manual
Table of Contents
Wireless Modes......................................................................... 145
Networking Basics.........................................................146
Check your IP address............................................................ 146
Statically Assign an IP address............................................ 147
Wireless Security ......................................................... 148
What is WPA? ................................................................ 148
Technical Specications ................................................149
Contacting Technical Support ......................................150
GPL Code Statement......................................................151
Warranty.........................................................................163
Registration ...................................................................170

1D-Link DIR-850L User Manual
Section 1 - Product Overview
Product Overview

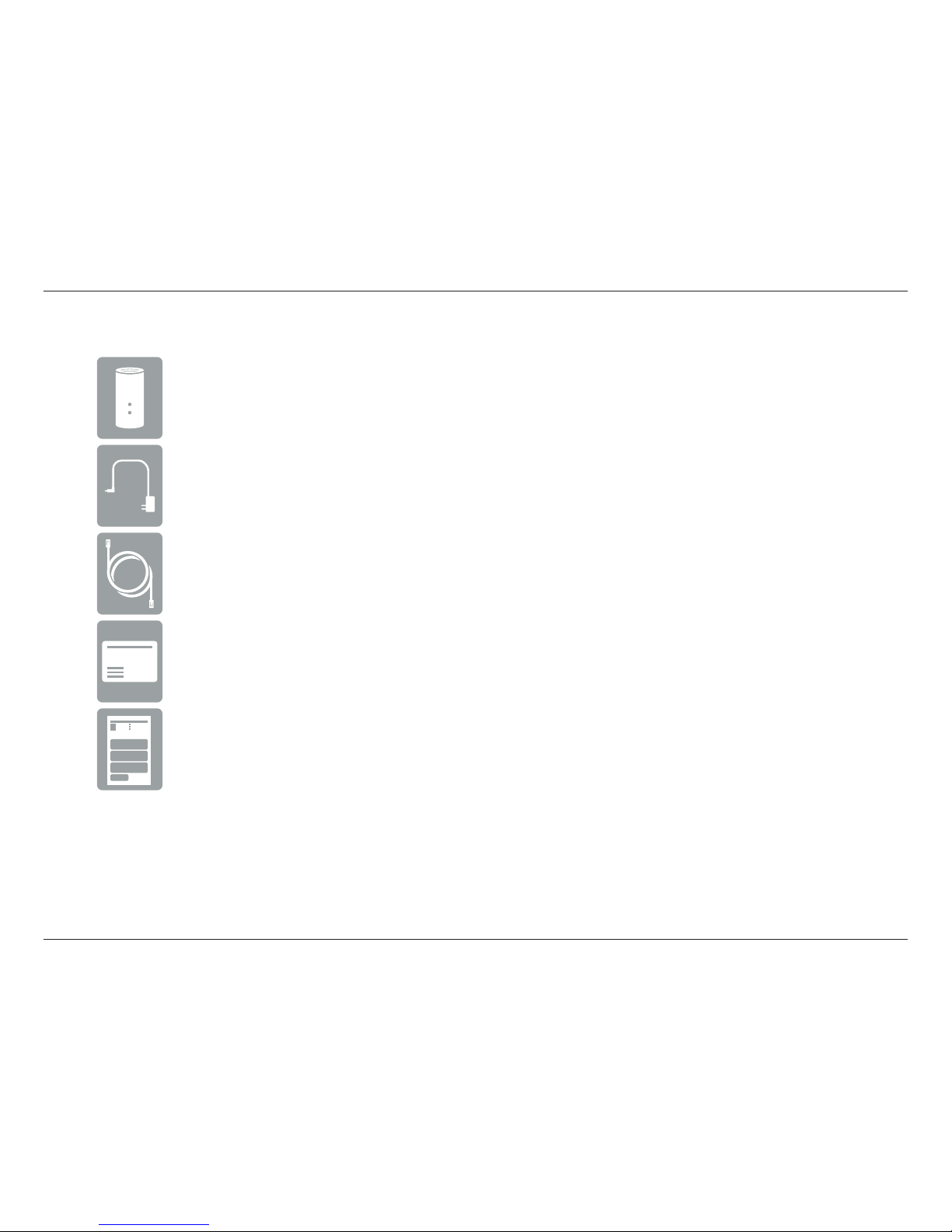

Package Contents
Note: Using a power supply with a dierent voltage rating than the one included with the DIR-850L will cause damage and void the warranty
for this product.
If any of the above items are missing, please contact your reseller.
DIR-850L Dual Band Gigabit Cloud Router
Power Adapter
Ethernet Cable
Wi-Fi Conguration Card
Quick Install Guide

2D-Link DIR-850L User Manual
Section 1 - Product Overview
Network Requirements • An Ethernet-based broadband modem
Web-based Conguration
Utility Requirements
Computer with the following:
• Windows® or Mac OS®X operating system
• An installed Ethernet adapter or wireless adapter
Browser Requirements:
• Internet Explorer® 7 or higher
• Mozilla® Firefox®
• Google Chrome™
• Safari® 5 or higher
Windows®Users: Make sure you have the latest version of Java installed. Visit
www.java.com to download the latest version.
mydlink Requirements For mydlink and mydlink app requirements refer to:
http://www.mydlink.com
QRS Mobile Requirements
For requirements refer to QRS Mobile page at:
• iTunes Store (App Store > Utilities > D-Link Systems)
• Google Play (Click link to www.dlink.com/qrsmobileapp)
Minimum Requirements

3D-Link DIR-850L User Manual
Section 1 - Product Overview
Introduction
The DIR-850L Wireless AC1200 Dual Band Cloud Router provides revolutionary Gigabit 802.11ac wireless speed - up to 1200Mbps -
for awless HD video streaming to multiple devices.
The DIR-850L supports a host of cloud features including QRS Mobile, which allows you to set up and congure the router
using a mobile app. You can set up your router right from anywhere, no PC required.
The DIR-850L is also mydlink-enabled, which gives you access to your home network no matter where you are. Now you can
monitor and manage your home network right from your laptop, iPhone®, iPad®, or Android™ device. mydlink-enabled routers
can be congured to send an e-mail to keep you informed anywhere, anytime when new devices are connecting to your
network or unauthorized connections are attempted. Monitor websites that are being visited in real-time, with recent browser
history displayed on the mydlink™ Lite app, which is a useful tool for parents.
With SharePort Mobile, wirelessly access your media on your iPhone, iPad or Android device from any connected USB drive.
Best of all, the apps for network management and le access are free.
* Maximum wireless signal rate derived from IEEE Standard 802.11ac, 802.11a, 802.11g, and 802.11n specications. Actual data throughput will vary. Network conditions and
environmental factors, including volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental
conditions will adversely aect wireless signal range.

4D-Link DIR-850L User Manual
Section 1 - Product Overview

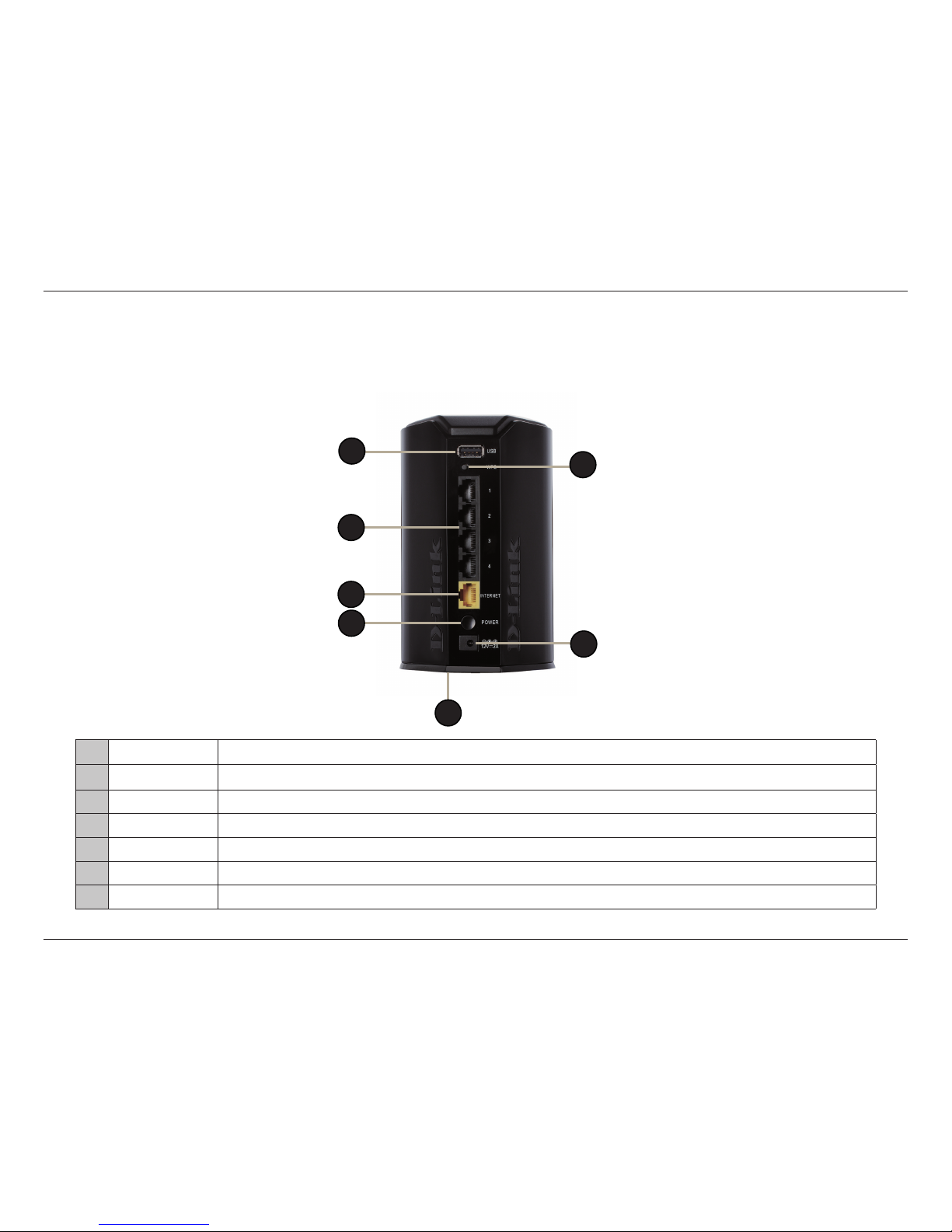

Hardware Overview
Connections
1 USB Port Connect a USB ash drive to share content throughout your network.
2 WPS Button Press to start the WPS process. The Power LED will start to blink.
3 LAN Ports (1-4) Connect Ethernet devices such as computers, switches, storage (NAS) devices, and video game consoles.
4 Internet Port Connect your broadband modem to this port using an Ethernet cable.
5 Power Button Press the power button to power the router on and o.
6 Power Port Connect the supplied power adapter to this port.
7 Reset Button Press and hold the reset button with a paper clip for about six seconds to reset the router to the factory default settings.
12
3
4
5
6
7

5D-Link DIR-850L User Manual
Section 1 - Product Overview

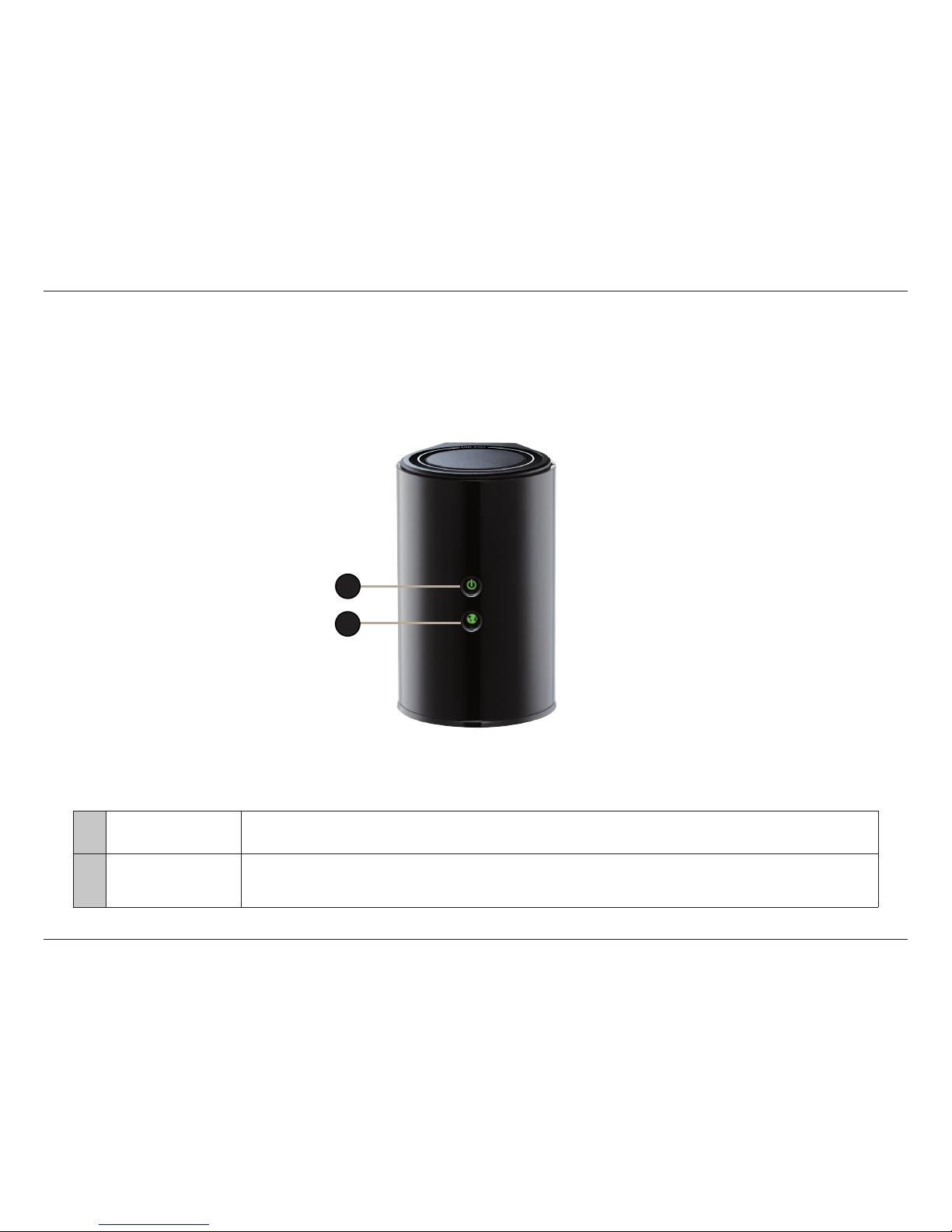

Hardware Overview
LEDs
1 Power LED A solid green light indicates a proper connection to the power supply. Thelight will besolid orangeduringboot-up
and will blink green during the WPS process.
2 Internet LED
A solid green light indicates a connection to the Internet port. If the LED is orange, the connection is good but
the router cannot connect to the Internet. If this LED is blinking orange, this indicates that the “on demand”
connection type is set and the Internet connection is idle.
1
2

6D-Link DIR-850L User Manual
Section 2 - Installation
Before you Begin
Installation
This section will walk you through the installation process. Placement of the router is very important. Do not place the router
in an enclosed area such as a closet, cabinet, or in the attic or garage.
• Users with DSL providers - If you are using a PPPoE connection, you will need your PPPoE user name and password.
If you do not have this information, contact your ISP (Internet Service Provider). Do not proceed until you have this
information. Also, make sure you disable or uninstall any PPPoE software such asWinPoET, BroadJump, or EnterNet
300 from your computer or you will not be able to connect to the Internet.
• Users with Cable providers - Make sure you unplug the power to your modem. In some cases, you may need to turn
it o for up to ve minutes.
•Advanced Users - If your ISP provided you with a modem/router combo, you will need to set it to “bridge” mode
so the DIR-850L can work properly. For details, contact your ISP or refer to the user manual for your modem/router
device.

7D-Link DIR-850L User Manual
Section 2 - Installation
Wireless Installation Considerations
The D-Link wireless router lets you access your network using a wireless connection from virtually anywhere within the operating
range of your wireless network. Keep in mind that the number, thickness and location of walls, ceilings, or other objects that the
wireless signals must pass through may limit the range.Typical ranges vary depending on the types of materials and background
RF (radio frequency) noise in your home or business. The key to maximizing wireless range is to follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link router and other network devices to a minimum -
each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your devices so that
the number of walls or ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (0.5 meters), at a 45-degree
angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick!
Position devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for better
reception.
3. Building materials make a dierence. A solid metal door or aluminum studs may have a negative eect on range.
Try to position access points, wireless routers, and computers so that the signal passes through drywall or open
doorways. Materials and objects such as glass, steel, metal, walls with insulation, water (sh tanks), mirrors, le
cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF
noise.
5. If you are using 2.4 GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home security
systems), your wireless connection may degrade dramatically or drop completely. Make sure your 2.4 GHz phone
base is as far away from your wireless devices as possible. The base transmits a signal even if the phone is not
in use.

8D-Link DIR-850L User Manual
Section 2 - Installation

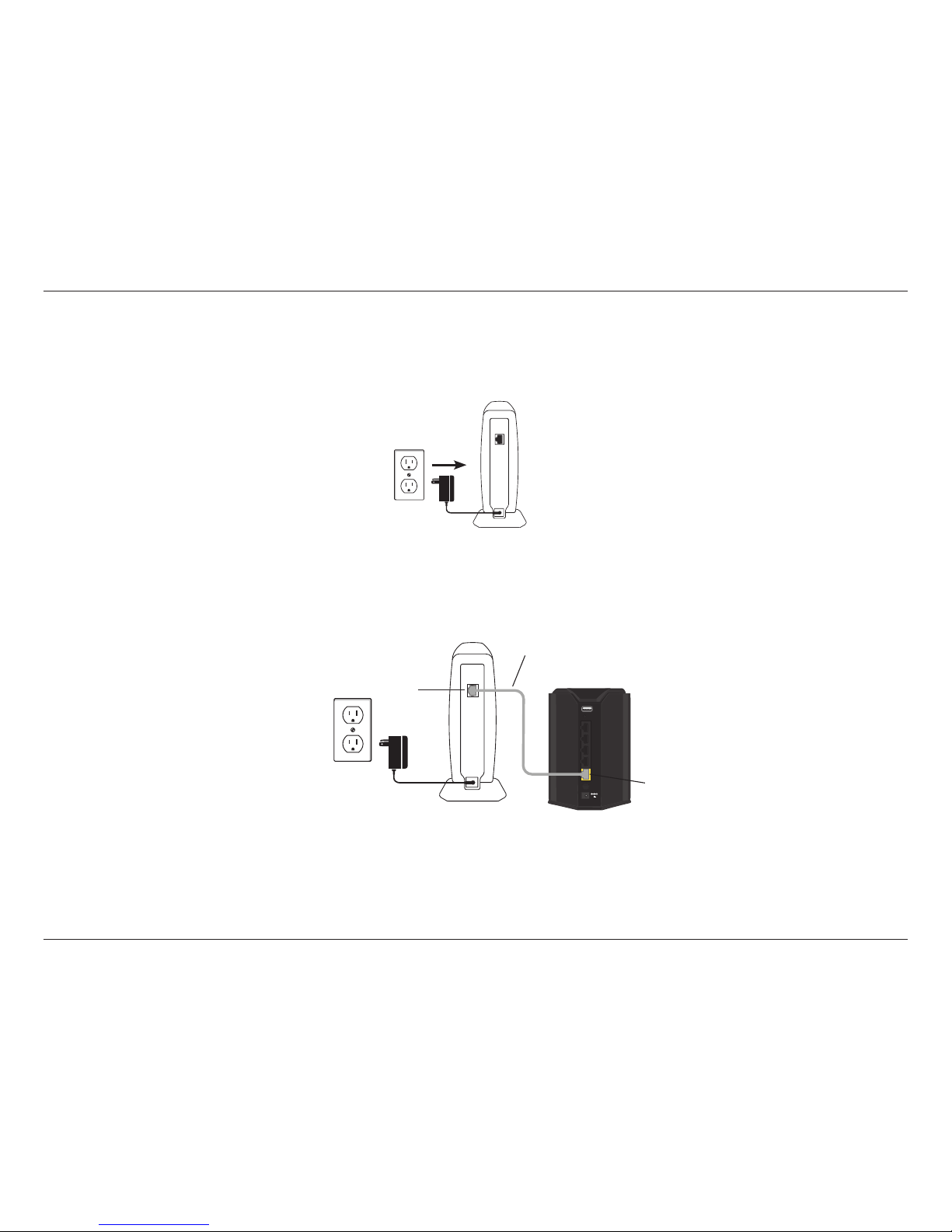

1. Turn o and unplug the power to your cable or DSL modem. This is required.
Manual Setup
2. Connect an Ethernet cable from the Internet port of the router to the Ethernet port on your cable or DSL modem.
Modem
12V
2A
USB
WPS
1
2
3
LAN
4
INTERNET
POWER
DIR-850L
Internet Port (yellow)
Ethernet Cable
Modem
Ethernet Port

9D-Link DIR-850L User Manual
Section 2 - Installation

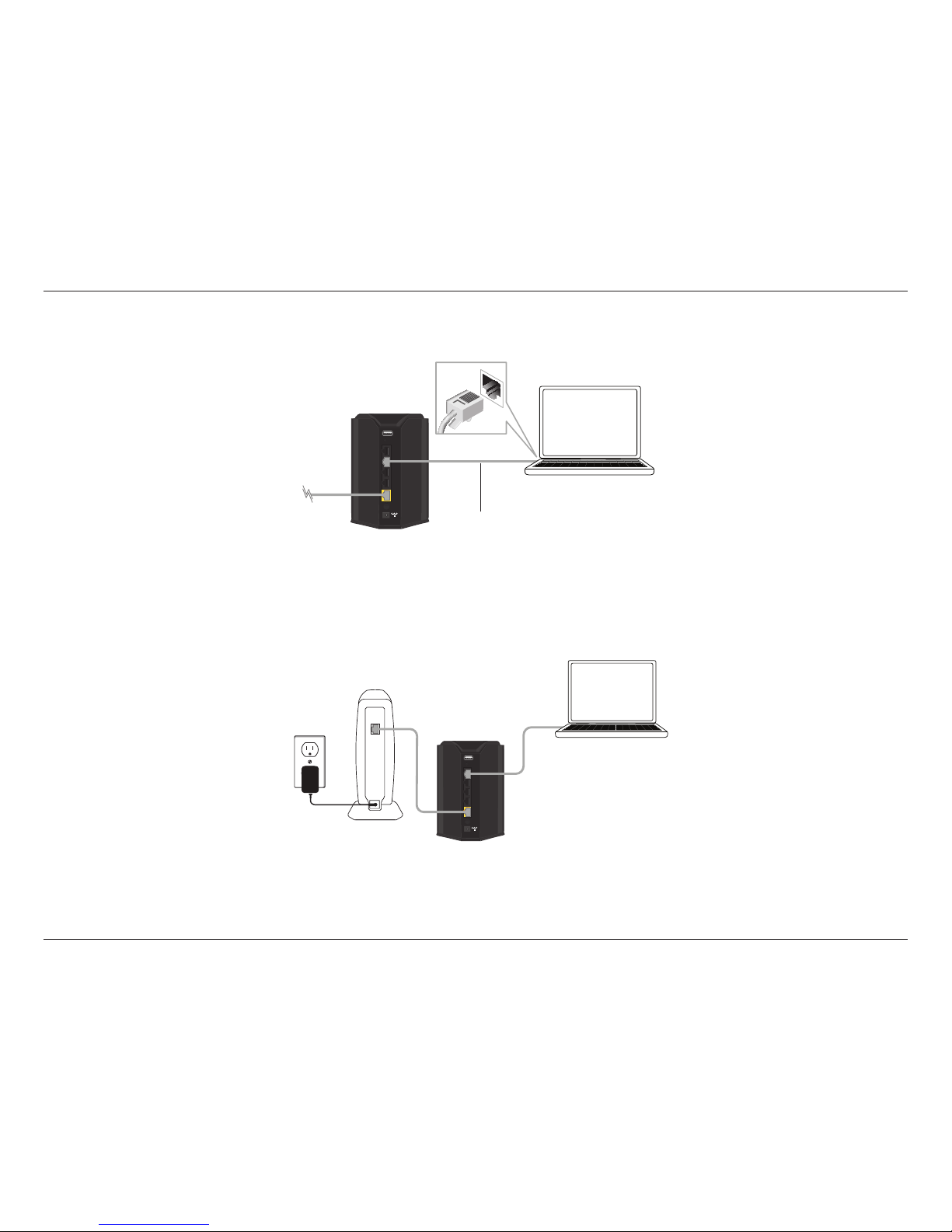

4. Plug the power back into your cable or DSL modem and wait for about one minute before continuing.
DIR-850L
Computer
Modem
Computer
3. Connect another Ethernet cable from the Ethernet port on your computer to one of the LAN ports on the router.
12V
2A
USB
WPS
1
2
3
LAN
4
INTERNET
POWER
Ethernet Cable
12V
2A
USB
WPS
1
2
3
LAN
4
INTERNET
POWER
DIR-850L

10D-Link DIR-850L User Manual
Section 2 - Installation

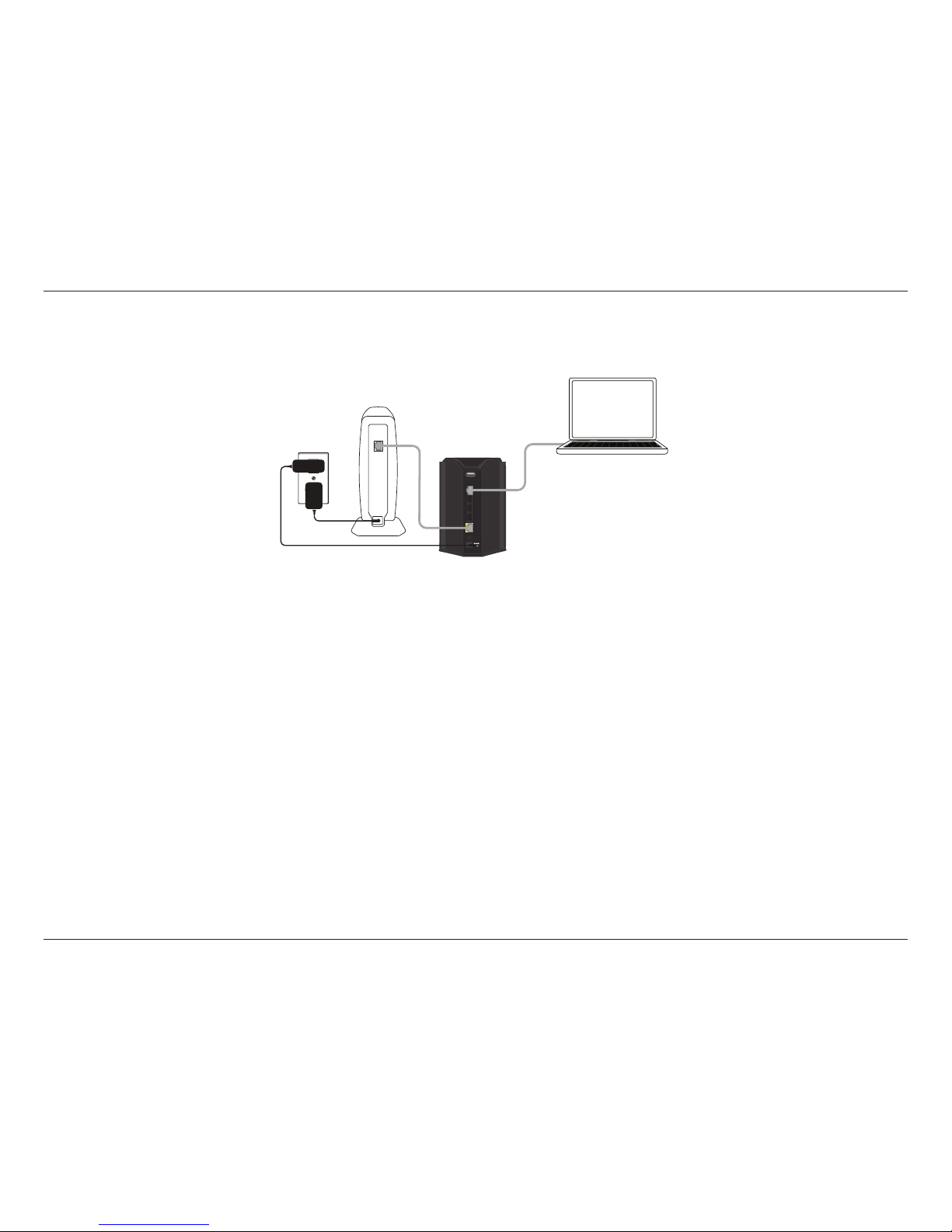

5. Plug the power adapter into your router and connect to an available power outlet or surge protector. If the
Power LED does not light up, press the Power button on the back of the router.
6. After the router has powered up, verify that the Power (green) and Internet (green or orange) LEDs are both lit.
Proceed with router conguration.
12V
2A
USB
WPS
1
2
3
LAN
4
INTERNET
POWER
Modem
DIR-850L
Computer

11D-Link DIR-850L User Manual
Section 3 - Conguration
There are several dierent ways you can congure your router to connect to the Internet and connect to your clients:
• D-Link Setup Wizard - This wizard will launch when you log into the router for the rst time. Refer to page 12.
• QRS Mobile App - Use your iPhone, iPad, iPod Touch, or Android device to congure your router. Refer to page 19.
• Manual Setup - Log into the router and manually congure your router. Refer to page 24
Conguration

12D-Link DIR-850L User Manual
Section 3 - Conguration

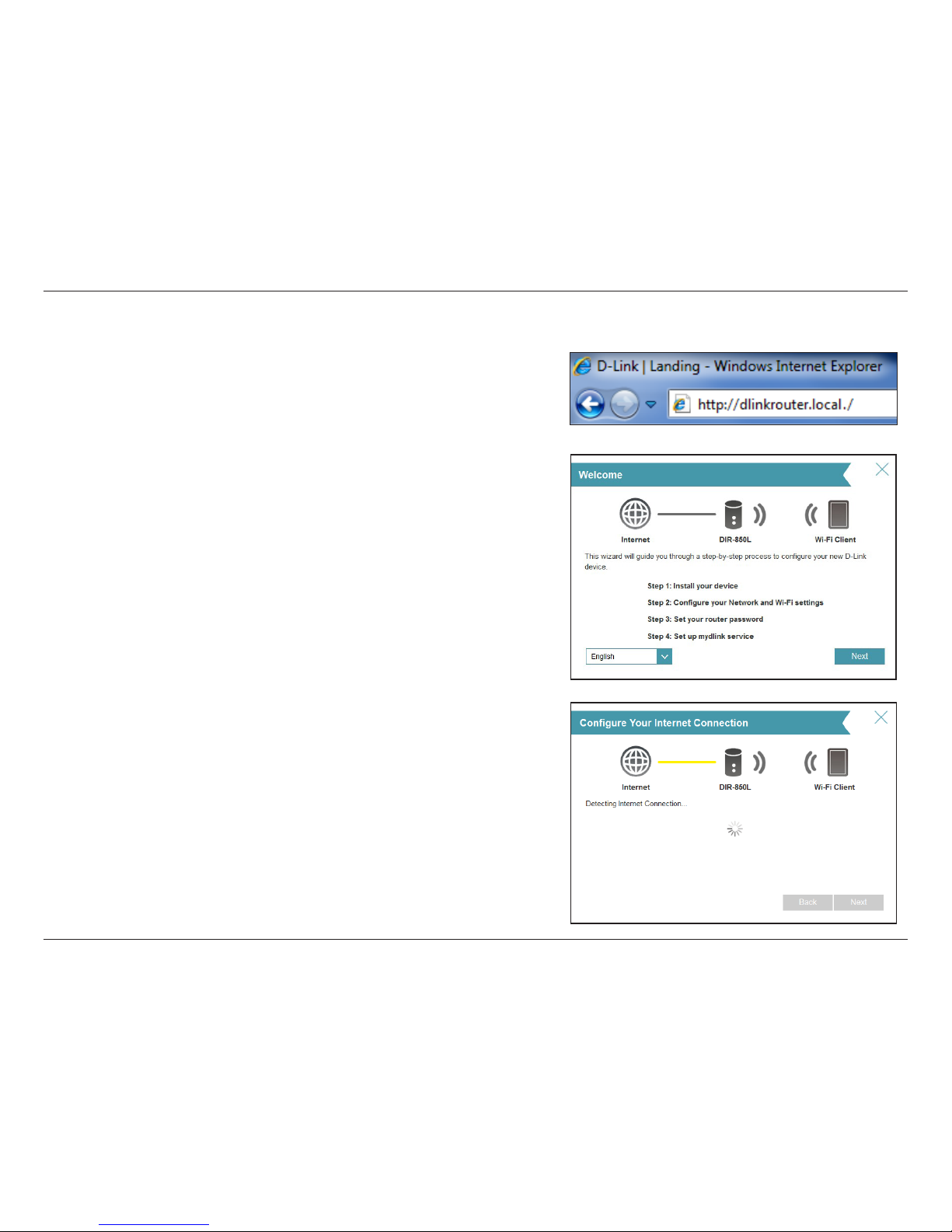

The wizard will guide you through a step-by-step process to congure
your new D-Link router and connect to the Internet. When the welcome
screen appears, click Next to continue.
Setup Wizard
If this is your rst time installing the router, open your web browser (e.g.,
Internet Explorer, Chrome, Firefox, or Safari).This will automatically launch
the Setup Wizard. If the wizard does not start automatically, you can enter
http://dlinkrouter.local./ or the IP address of the router (192.168.0.1).
Wait a few moments while your router detects your Internet connection
type.

13D-Link DIR-850L User Manual
Section 3 - Conguration

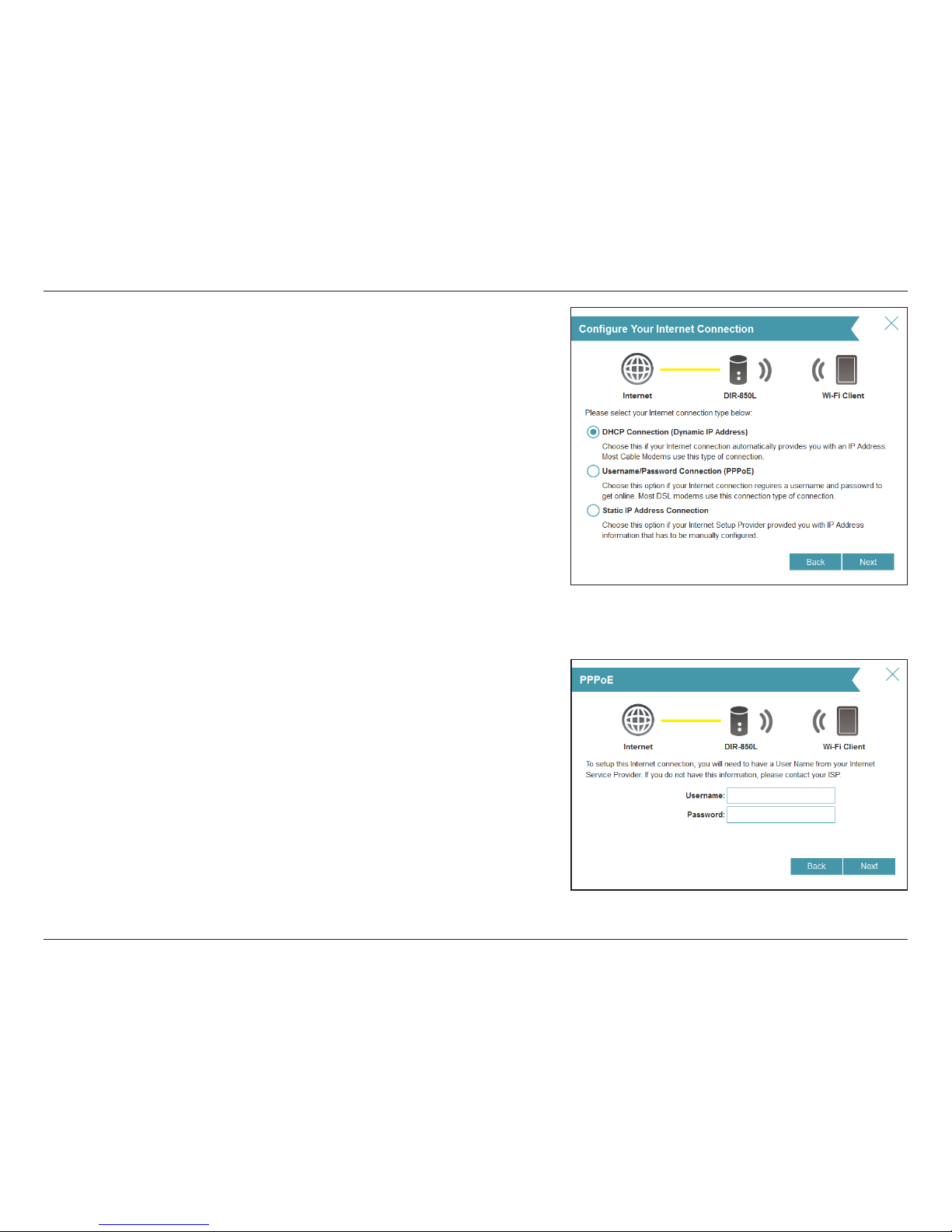

If the router does not detect the type of Internet connection you have,
you will see a list of connection types. Select your Internet connection
type. This information can be obtained from your ISP (Internet Service
Provider).
Select DHCP Connection (Dynamic IP Address) if your Internet
connection automatically provides you with an IP address. This option
is commonly used for cable modem services.
Click Next to continue.
If the router detected PPPoE or you selected Username/Password
Connection (PPPoE), enter your PPPoE username and password supplied
by your ISP.
Click Next to continue.
Note: Make sure you remove your PPPoE software from your computer. The
software is no longer needed and will not work through a router.

14D-Link DIR-850L User Manual
Section 3 - Conguration

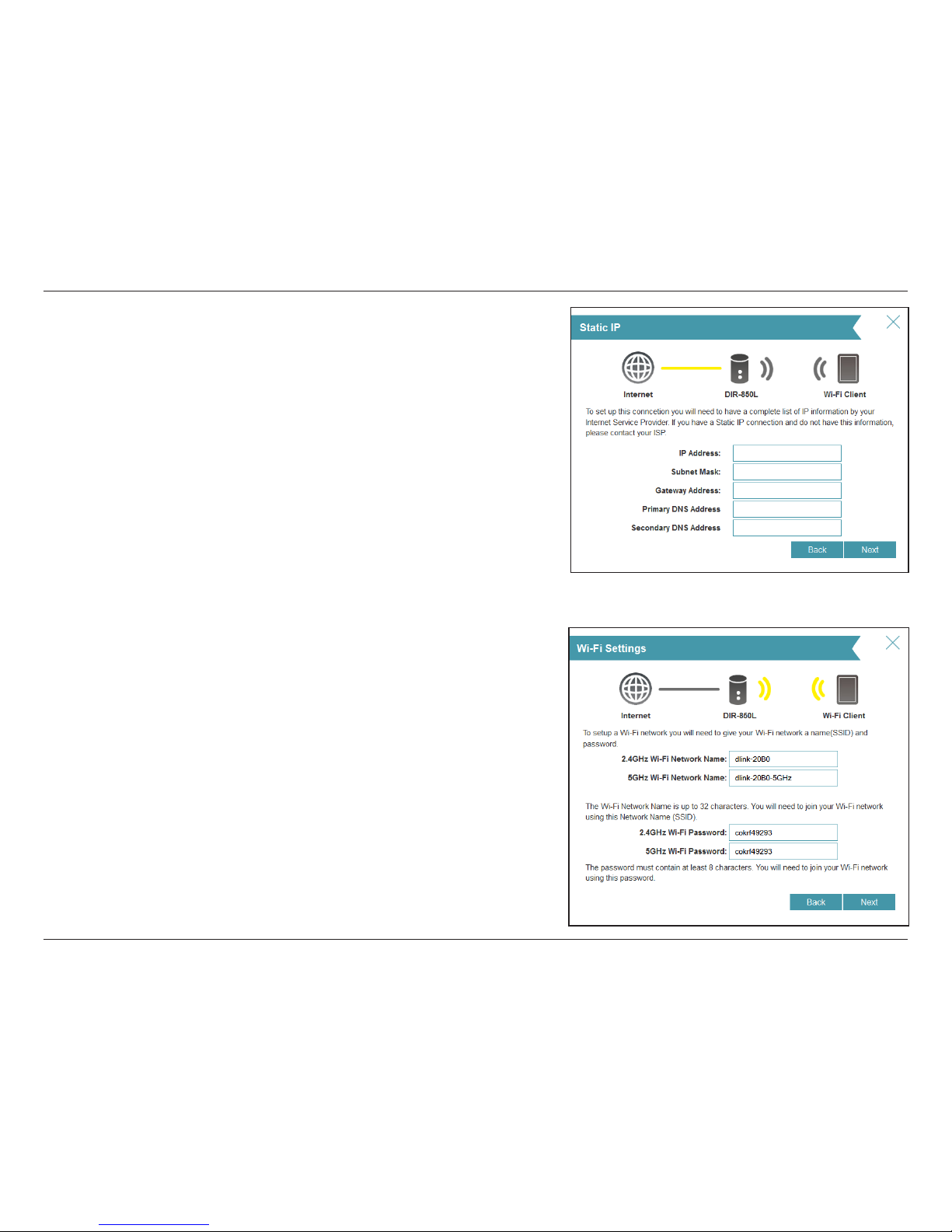

If the router detected or you selected Static IP Adddress Connection,
enter the IP information and DNS settings supplied by your ISP.
Click Next to continue.
For both the 2.4GHz and 5GHz bands, create aWi-Fi network name (SSID)
using up to 32 characters.
Create aWi-Fi password (between 8-63 characters).Your wireless devices
will need to have this passphrase or key entered to be able to connect
to your wireless network.
Click Next to continue.

15D-Link DIR-850L User Manual
Section 3 - Conguration

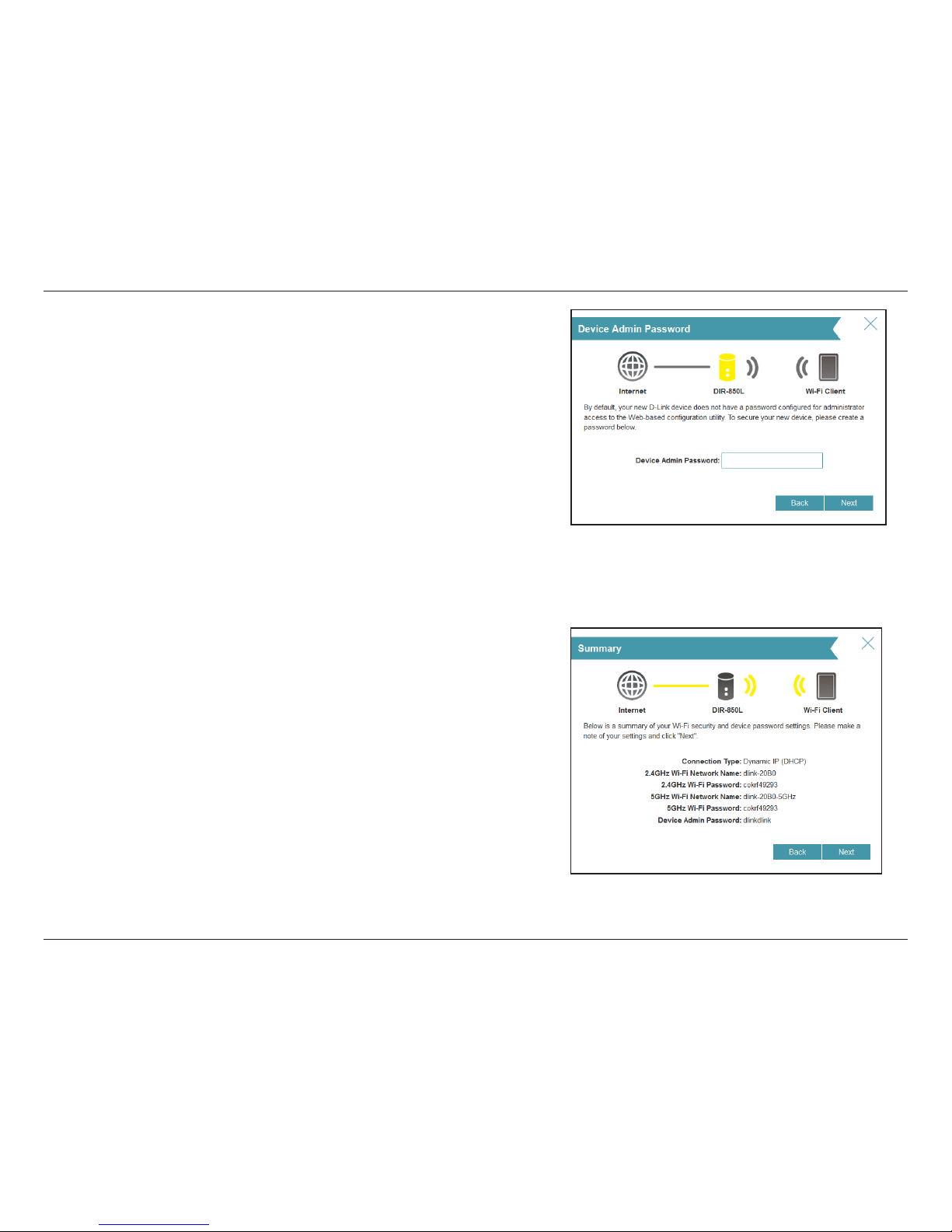

In order to secure your DIR-850L, enter a new Admin Password.You will
be prompted for this password every time you want to use the router’s
web conguration utility.
Click Next to continue.
The Summary window will display your settings. Click Back if you nd it
necessary to make changes. When the settings are correct, make a note
of the of them so you can congure your Wi-Fi devices.
Click Next to continue.
