D-Link AirPlus DWL-G730AP User manual

D-Link AirPlus G Wireless Pocket Router/AP
Quick Installation Guide+
Руководство по быстрой установке+
Guía de Instalación Rápida+
Guia de Instalação Rápida+
快速安裝指南+
Petunjuk Pemasangan Cepat+
DWL-G730AP

This product can be set up using any
current web browser, i.e., Internet
Explorer 6 or Netscape Navigator 6.2.3.
5V 1.2A DC Power Adapter
Before You Begin
Check Your Package Contents
DWL-G730AP Wireless Pocket Router/AP
CD-ROM with Manual
Ethernet (CAT5 UTP) Cable
If any of the above items are missing, please contact your reseller.
Using a power supply
with a different voltage
ratingwilldamageandvoid
the warranty of this product.
©2004 D-Link Systems, Inc. All rights reserved. Trademarks or registered trademarks are the property of their respective holders.
Software and specications subject to change without notice. DWL-G730AP.08162004
D-Link Travel Case
The default IP address for the DWL-G730AP is 192.168.0.30 with a Subnet Mask of
255.255.255.0. You will need to assign your computer a Static IP address within the same
range as the DWL-G730AP’s IP address for the purpose of conguring the DWL-G730AP.
USB Power Cable
DWL-G730AP
D-Link AirPlus™G
Wireless Pocket
Router/AP

3

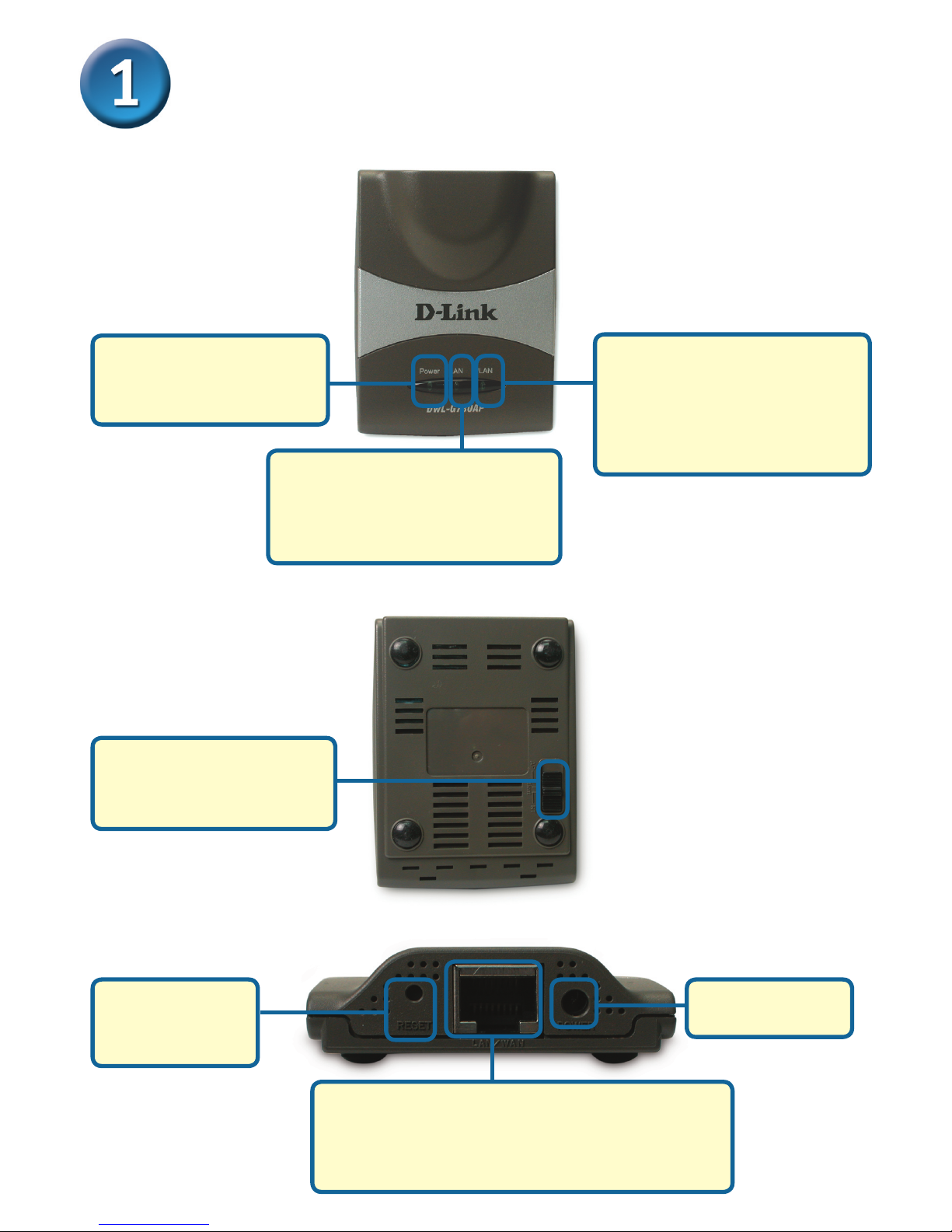

Hardware Overview
Mode Selection Switch:
Used to select AP, client,
or router mode.
LAN Port
This is the connection for Ethernet cables to
your Ethernet-enabled device. When in Router
mode, this port functions as a WAN port.
Receptor for
Power Adapter
Power LED: Solid
indicates a connection to
a good power source.
Top Panel
Bottom Panel
Rear Panel
LAN LED: Solid indicates an
Ethernet connection. Blinking
indicates activity on the
Ethernet network.
WLAN LED: A solid light
indicates that the wireless
segment is ready. This LED
blinks during wireless data
transmission.
Reset Button:
Used to restore
default settings.

4
Installation Overview
The DWL-G730AP offers three different operation modes:
AP (Access Point Mode): In this mode, the DWL-G730AP functions as an access point.
Client (Client Mode): When Client mode is selected, the DWL-G730AP as a wireless
client.

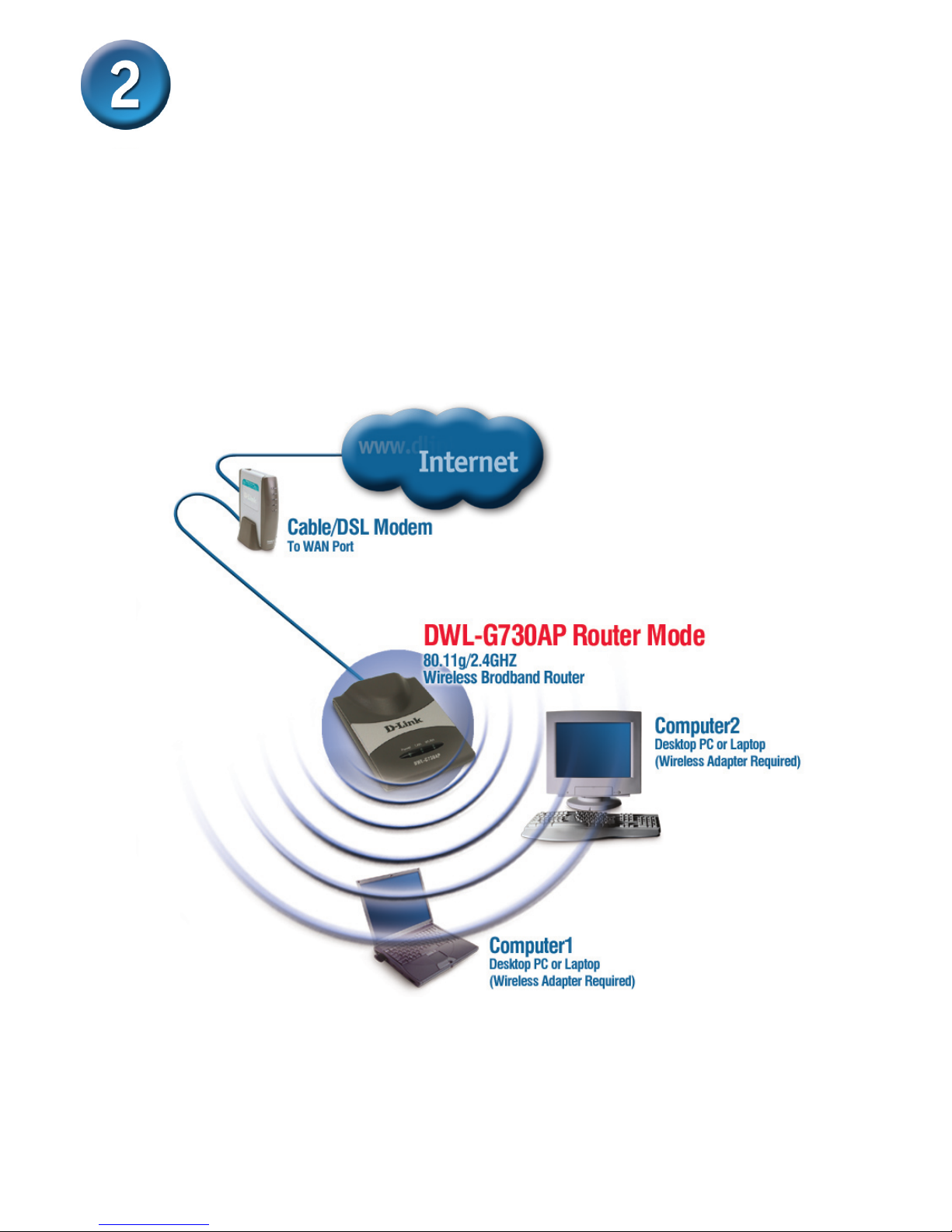

RT (Router Mode): The DWL-G730AP functions as a router when this mode is selected.

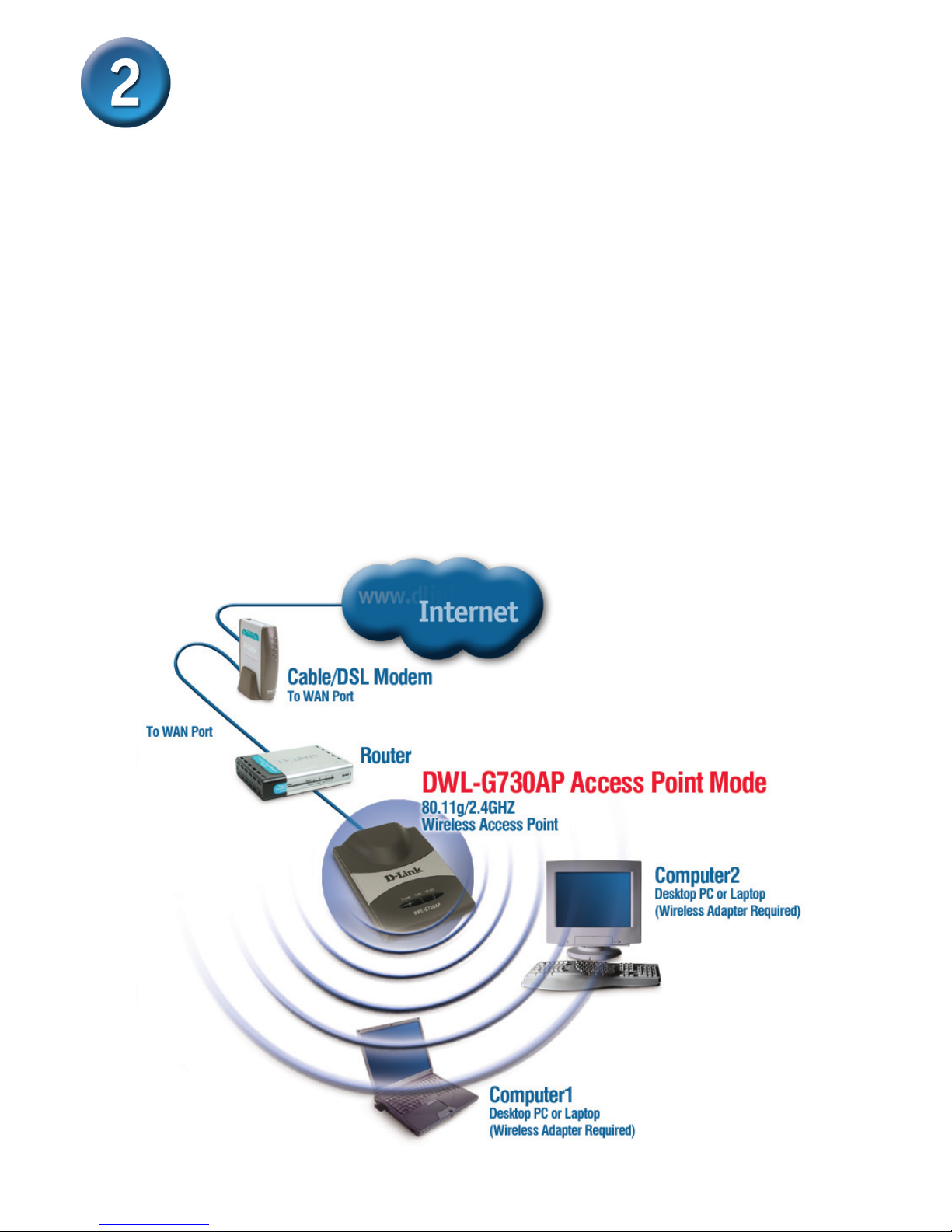

AP - Access Point Mode
When the Mode Selection Switch on the bottom of the DWL-G730AP is set to AP,
the unit is in Access Point Mode. The diagram below illustrates a typical access
point conguration.
Note: D-Link® AirPlus G wireless devices are pre-congured to connect together,
right out of the box, using their default settings.

5
Installation Overview (continued)

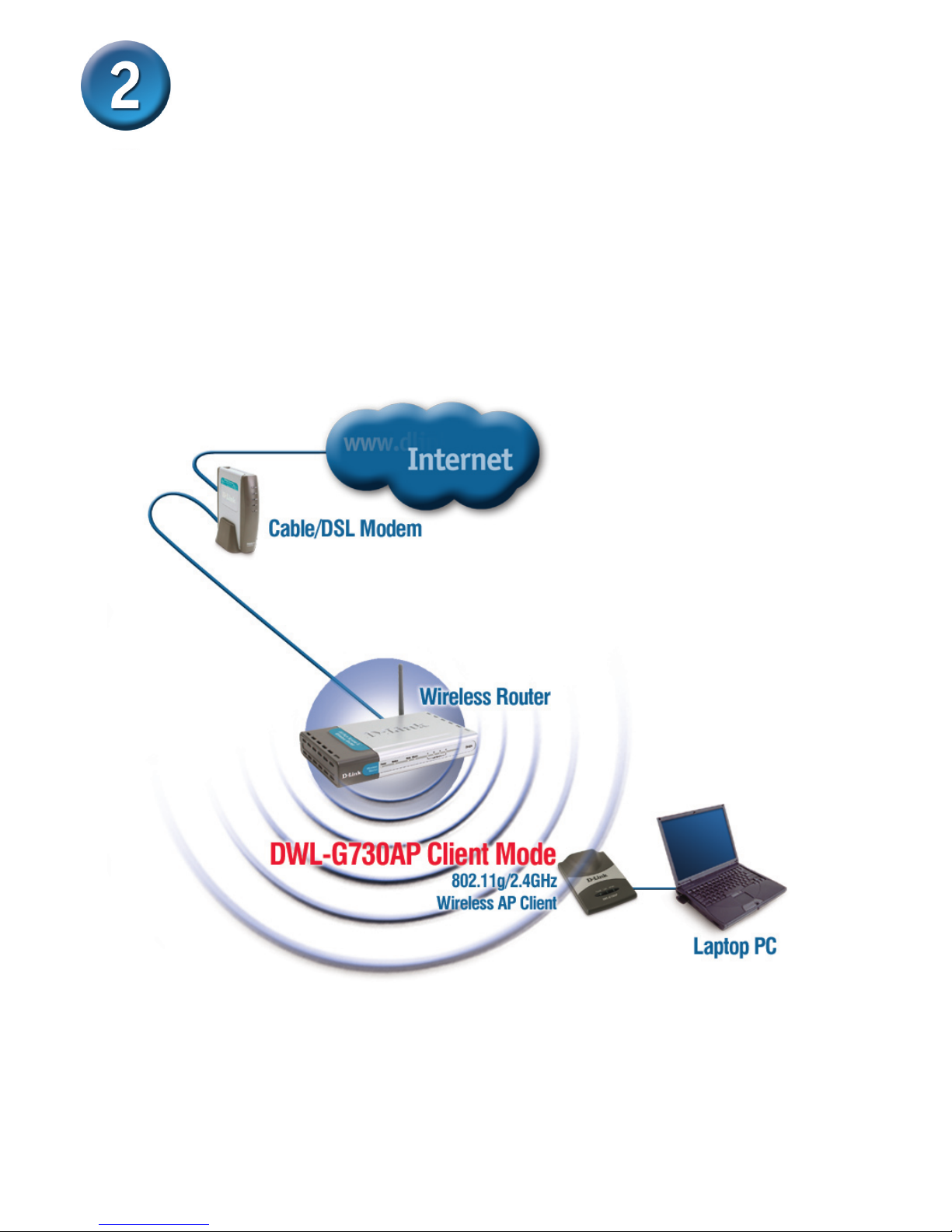

Client - Client Mode
When the Mode Selection Switch on the bottom of the DWL-G730AP is set to
Client, the unit is in Client Mode. The diagram below illustrates a typical client
conguration.
Note: D-Link® AirPlus G wireless devices are pre-congured to connect together,
right out of the box, using their default settings.

6
Installation Overview (continued)
RT - Router Mode
When the Mode Selection Switch on the bottom of the DWL-G730AP is set to
RT, the unit is in Router Mode. The diagram below illustrates a typical router
conguration.
Note: D-Link® AirPlus G wireless devices are pre-congured to connect together,
right out of the box, using their default settings.

7

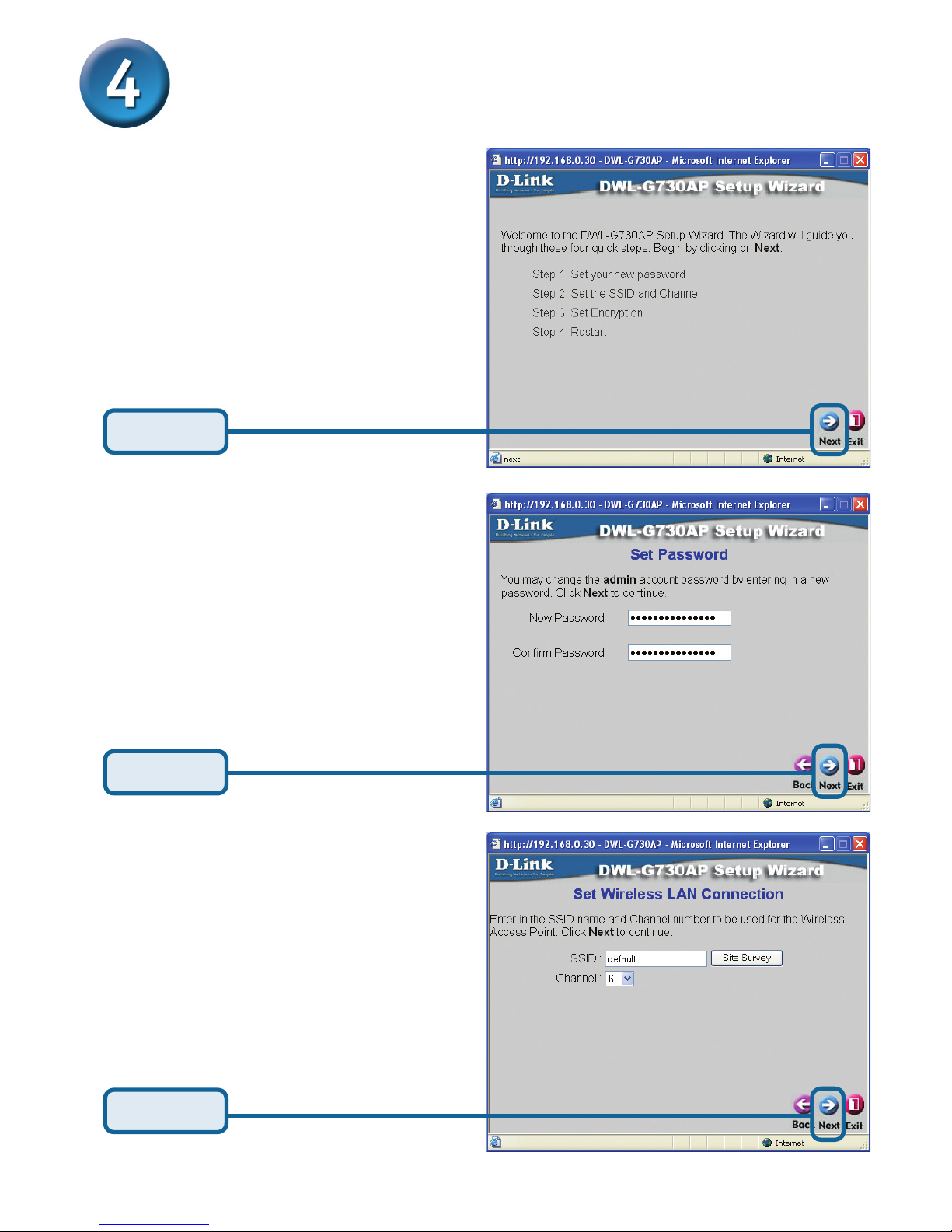

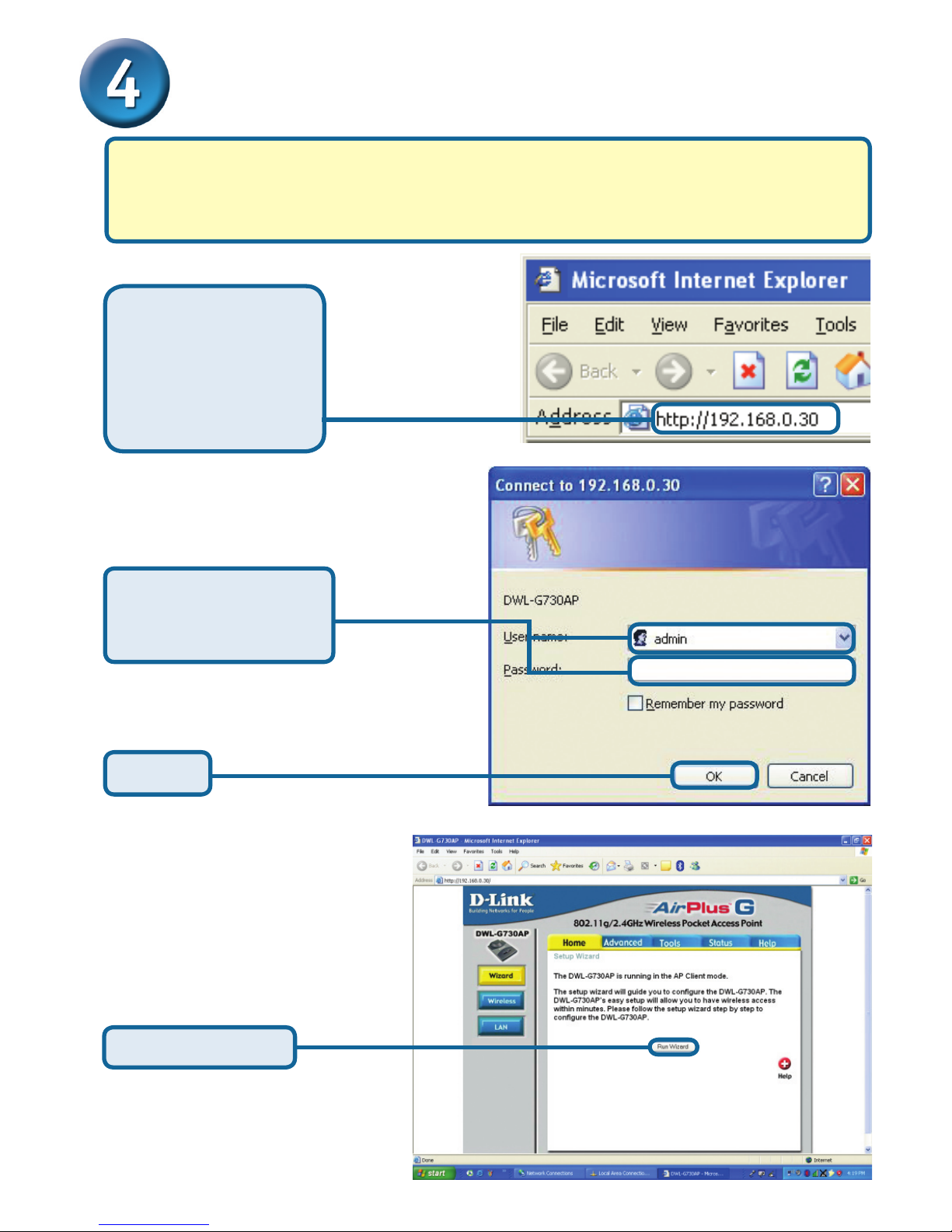

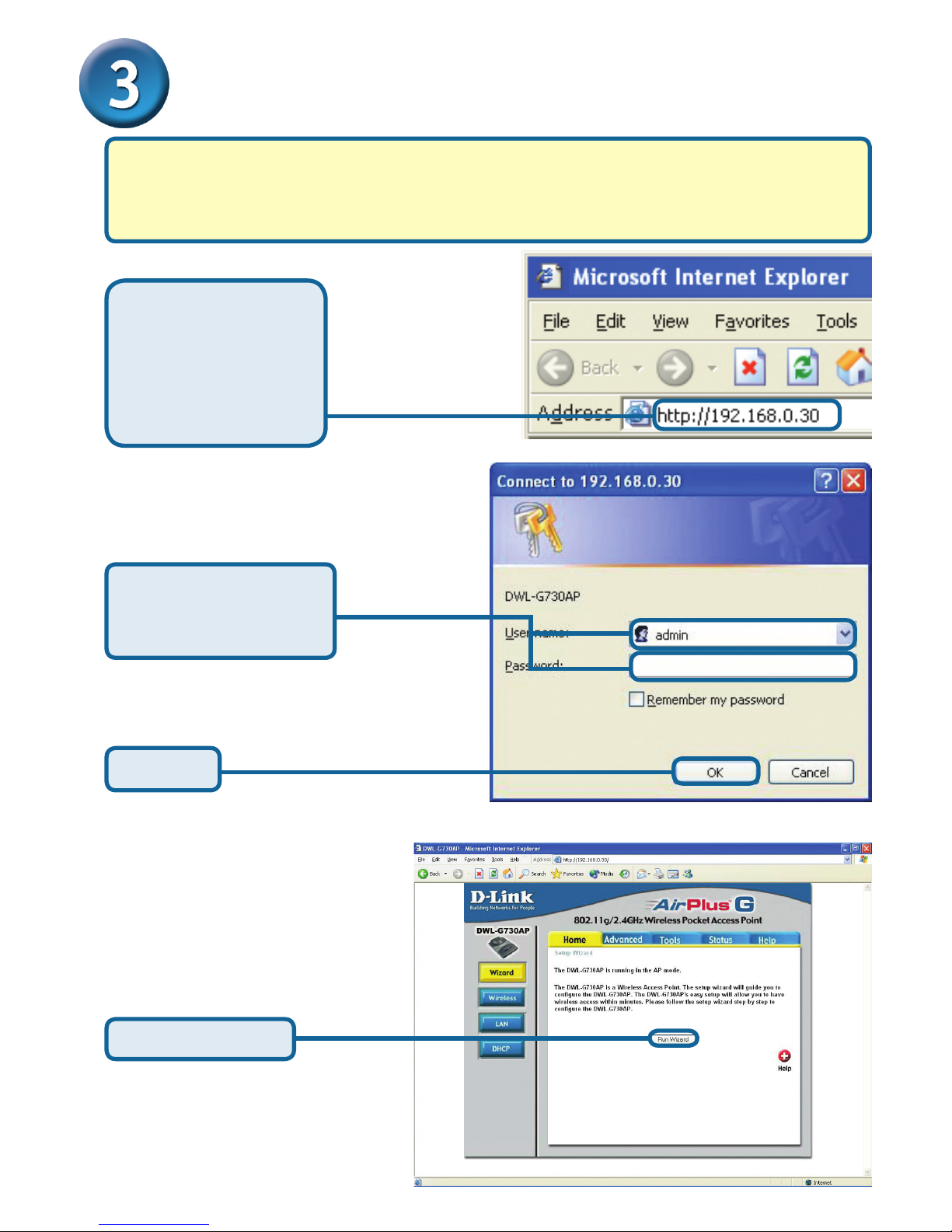

AP Mode - Using the Setup Wizard

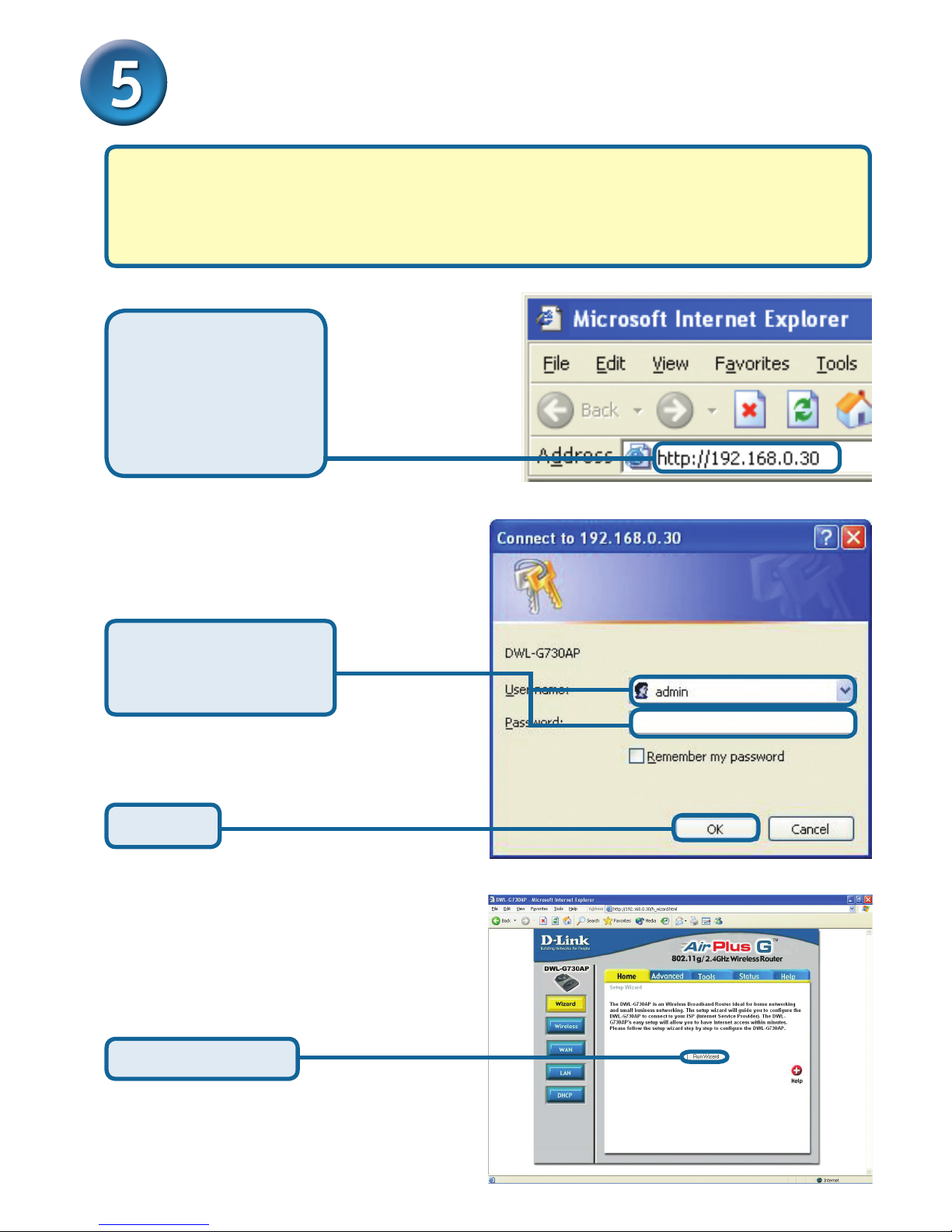

Once you have logged in, the
Home screen will appear.
Click Run Wizard
The logon pop-up screen
will appear.
Type admin for the
username and leave the
password eld blank.
Click OK
To congure the DWL-G730AP in AP Mode, you will need to connect a PC directly to
the DWL-G730AP using a standard Ethernet cable. You will need to assign the network
adapter connecting to the DWL-G730AP an IP address in the range of 192.168.0.x.
O p e n y o u r W e b
browser and type
http://192.168.0.30
into the URL address
box. Then press the
Enter or Return key.

8

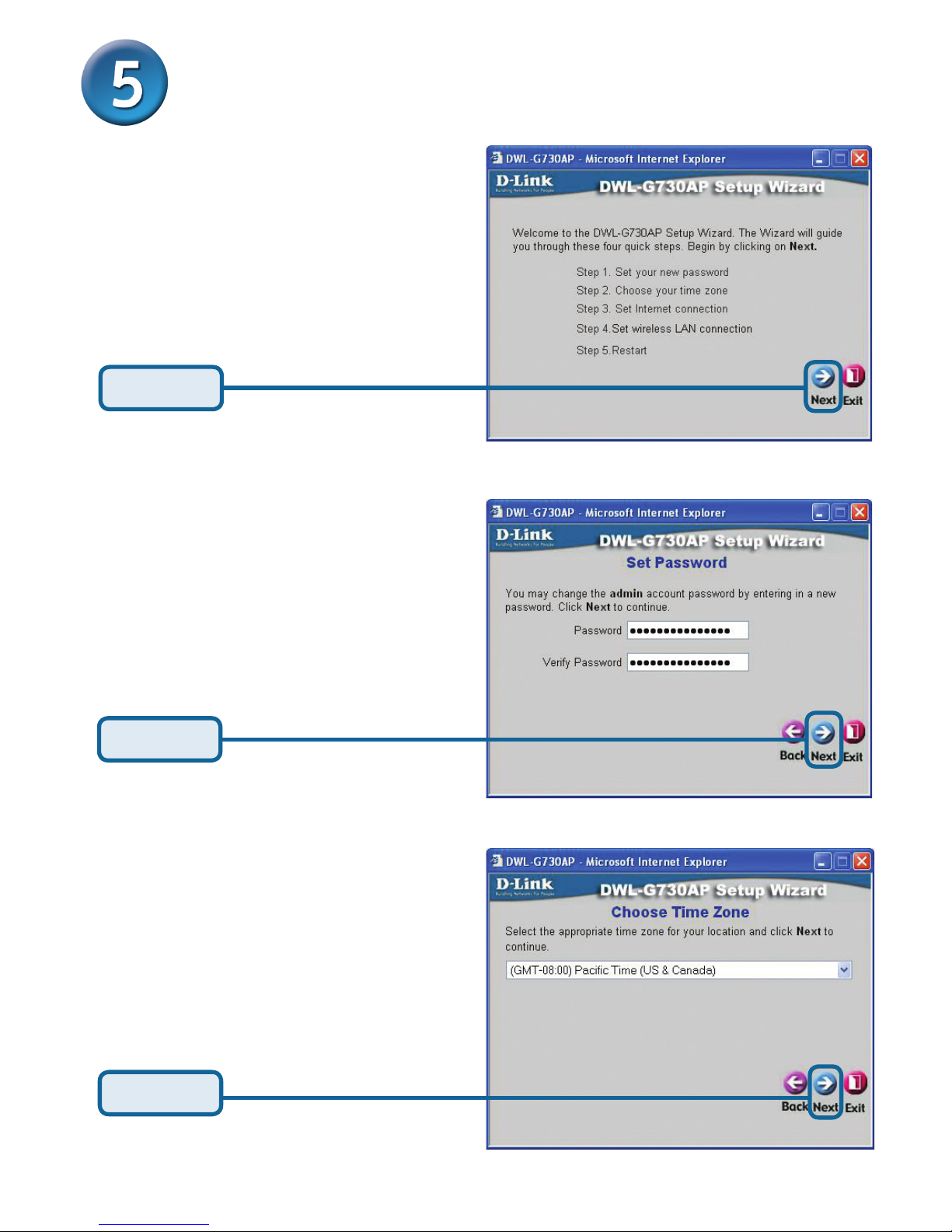

Click Next

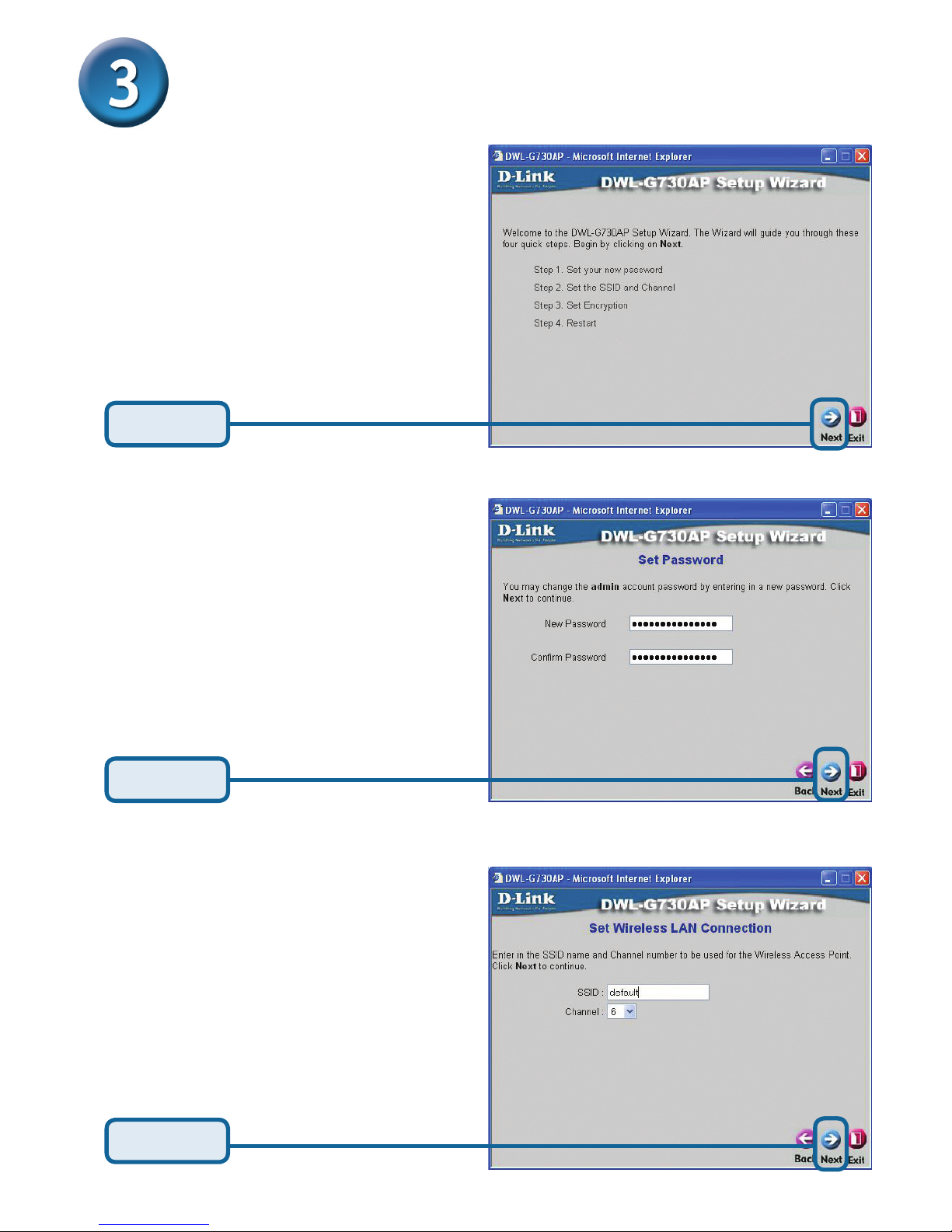

Set up your new password.
You have the option to
establish a password.
Set Your Wireless LAN
Connection.
By default the DWL-G730AP
SSID is set to ‘default’ with a
Channel setting of ‘6’.
Click Next
AP Mode - Using The Setup Wizard
(continued)
You will see the following screens.
Click Next

9

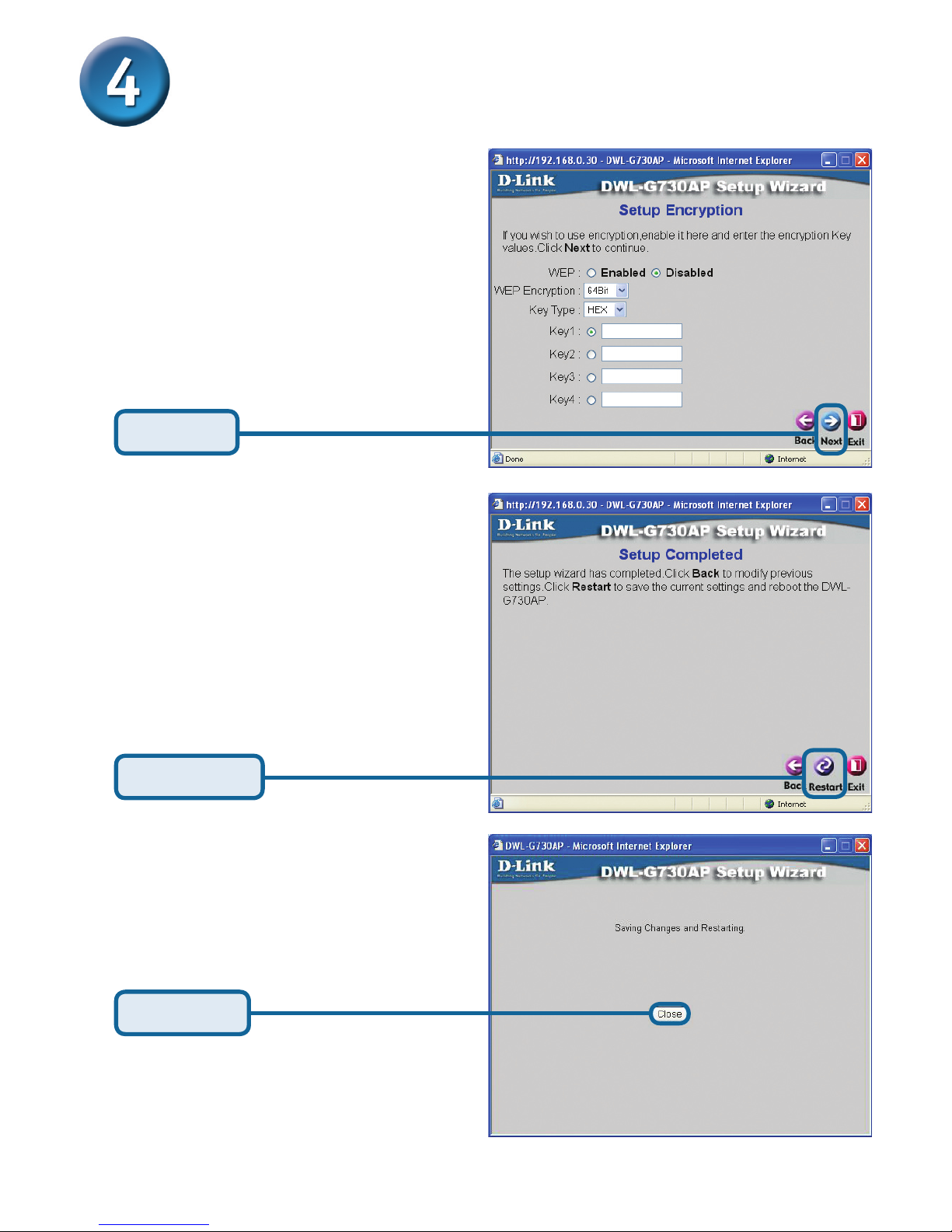

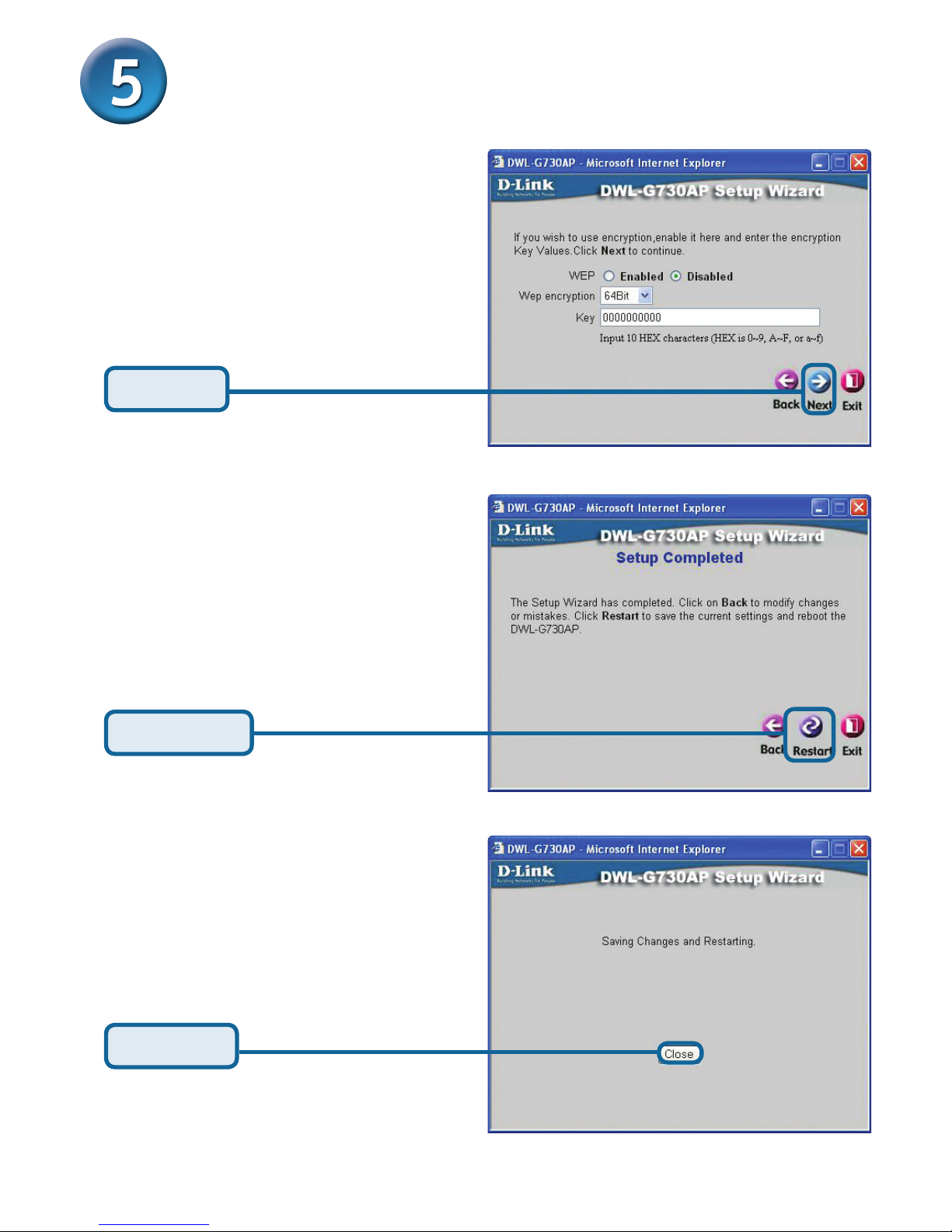

Encryption
The DWL-G730AP is capable of
two levels of wireless encryption
64-bit and 128-bit. By default
encryption is disabled. You
can change the encryption
settings for more secure wireless
communication.
Click Next
Click Restart
AP Mode - Using The Setup Wizard
(continued)
Click Close
The AP Setup Wizard is complete! You will be returned to the Home tab. Please close
all web browser windows.

10
Client Mode - Using the Setup Wizard
Once you have logged in, the
Home screen will appear.
Click Run Wizard
Open your Web
browser and type
http://192.168.0.30
into the URL address
box. Then press the
Enter or Return key.
The logon pop-up screen
will appear.
Type admin for the
username and leave the
password eld blank.
Click OK
To congure the DWL-G730AP in Client Mode, you will need to connect a PC directly to
the DWL-G730AP using a standard Ethernet cable. You will need to assign the network
adapter connecting to the DWL-G730AP an IP address in the range of 192.168.0.x.

11
Client Mode - Using the Setup Wizard
(continued)
Click Next
Set up your new password.
You have the option to
establish a password.
Set Your Wireless LAN
Connection.
Type in your network’s SSID or
click on the Site Survey button
to see the available SSID’s.
Select the Channel setting of
your network.
Click Next
You will see the following screens.
Click Next

12
Client Mode - Using the Setup Wizard
(continued)
Encryption
The DWL-G730AP is capable of
two levels of wireless encryption
64-bit and 128-bit. By default
encryption is disabled. You
can change the encryption
settings for more secure wireless
communication.
Click Next
Click Restart
Click Close
The Client Setup Wizard is complete! You will be returned to the Home tab. Please close
all web browser windows.

13
Router Mode - Using the Setup Wizard
Once you have logged in, the
Home screen will appear.
Click Run Wizard
To congure the DWL-G730AP in Router mode, you must be connected to the
router via a wireless network adapter. The LAN Port on the unit functions as a WAN
port when the DWL-G730AP is operating in Router mode. To run the setup wizard,
establish a wireless connection with the DWL-G730AP and follow the steps below.
Open your Web
browser and type
http://192.168.0.30
into the URL address
box. Then press the
Enter or Return key.
The logon pop-up screen will appear.
Type admin for the
username and leave the
password eld blank.
Click OK

14
Router Mode - Using the Setup Wizard
(continued)
Click Next
Set up your new password.
You have the option to
establish a password.
Choose Your Time Zone.
Select the appropriate time
zone for your location.
Click Next
You will see the following screens.
Click Next

15
Router Mode - Using the Setup Wizard
(continued)

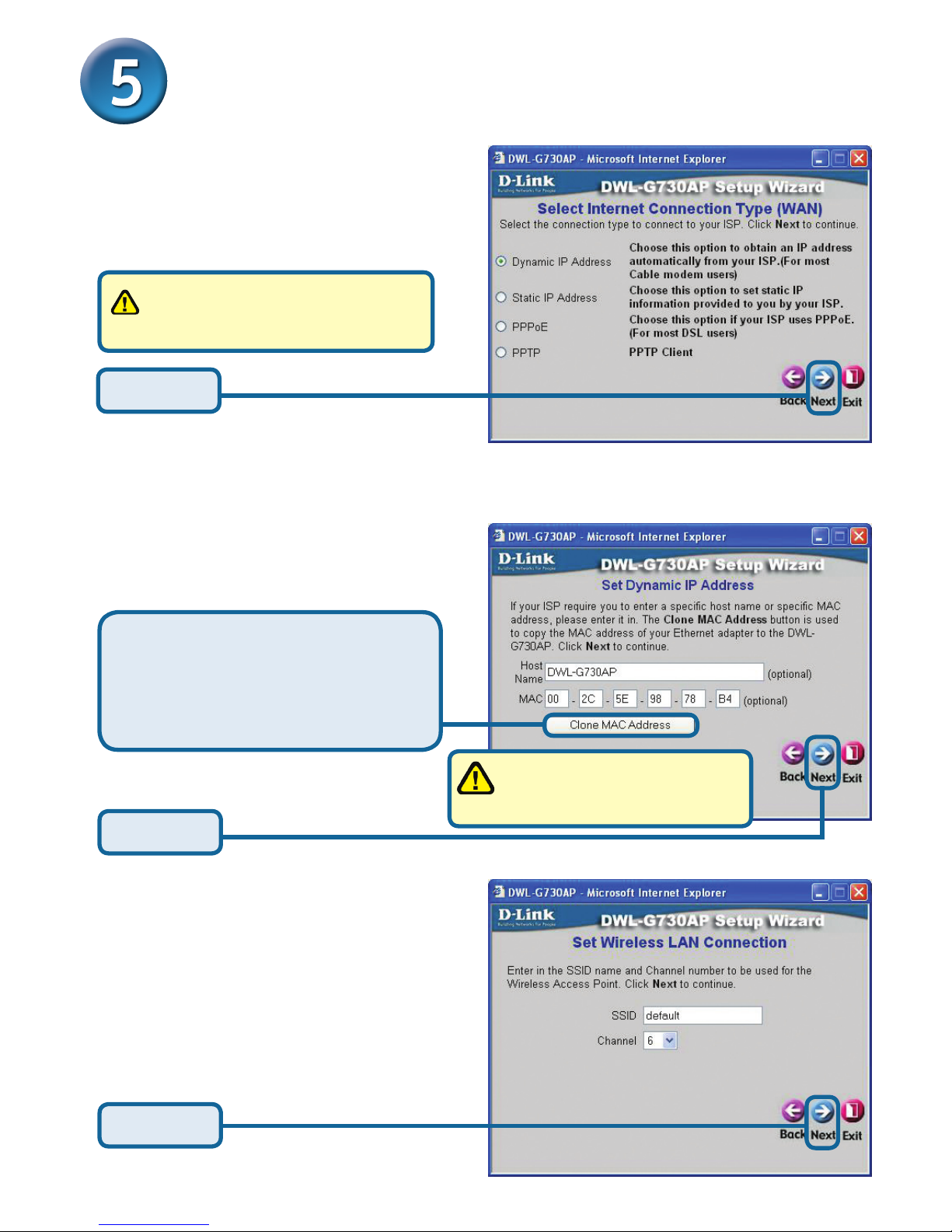

If you selected Dynamic IP
Address, this screen will appear:
(Used mainly for Cable Internet
service.)
The Clone MACAddress button will
automatically copy the MAC address
of the network adapter in your
computer. You can also manually
type in the MAC address.
Select your Internet Connection.
You will be prompted to select the
type of Internet connection for your
router.
If you are unsure of which setting to
select, please contact your Internet
Service Provider.
This setup should be done on
the computer that is registered
on the ISP’s network.
Click Next
Click Next
Set Your Wireless LAN
Connection.
By default the DWL-G730AP
SSID is set to default with a
Channel setting of ‘6’.
Click Next

16
Router Mode - Using the Setup Wizard
(continued)
Encryption
The DWL-G730AP is capable of
two levels of wireless encryption
64-bit and 128-bit. By default
encryption is disabled. You
can change the encryption
settings for more secure wireless
communication.
Click Next
Click Restart
Click Close
The Router Setup Wizard is complete! You will be returned to the Home tab. Please
close all web browser windows.

17
Technical Support
You can nd software updates and user documentation on the D-Link website.
Tech Support for customers in
Australia:
Tel: [phone]
24/7(24Hrs, 7days a week) technical support
http://www.dlink.com.au
e-mail: [email protected]
India:
Tel: [phone]
9.00 AM to 9.00 PM. All days
http://www.dlink.co.in/support/productsupport.aspx
Indonesia, Malaysia, Singapore and Thailand:
Tel: [phone] (Indonesia)
Tel: [phone] (Malaysia)
Tel: [phone] (Singapore)
Tel: [phone] (Thailand)
24/7, for English Support Only
http://www.dlink.com.sg/support/
e-mail: [email protected]
Korea:
Tel: [phone]
Monday to Friday 9:00am to 6:00pm
http://www.d-link.co.kr
e-mail: [email protected]
New Zealand:
Tel: [phone]
24/7(24Hrs, 7days a week) technical support
http://www.dlink.co.nz
e-mail: [email protected]

18
Technical Support
You can nd software updates and user documentation on the D-Link website.
Tech Support for customers in
Egypt:
Tel: [phone] or [phone]
Sunday to Thursday 9:00am to 5:00pm
http://support.dlink-me.com
Email: [email protected]
Iran:
Te: +98-21-88880918,19
Saturday to Thursday 9:00am to 5:00pm
http://support.dlink-me.com
Email : [email protected] & [email protected]
Israel:
Magshimim 20 St., Matalon center,
Petach Tikva, Israel 49348
Consumer support line: 03-9212886
Business support line: 03-9212608
Pakistan:
Tel: [phone] or [phone]
Monday to Friday 10:00am to 6:00pm
http://support.dlink-me.com
E-mail: [email protected]
South Africa and Sub Sahara Region:
Tel: [phone]
08600 DLINK (for South Africa only)
Monday to Friday 8:30am to 9:00pm South Africa Time
http://www.d-link.co.za
Turkey:
Tel: [phone]
Monday to Friday 9:00am to 6:00pm
http://www.dlink.com.tr
e-mail: [email protected]
e-mail: [email protected]
U.A.E and North Africa:
Tel: [phone] (U.A.E)
Sunday to Thursday 9.00AM to 6.00PM GMT+4
Web: http://www.dlink-me.com
E-mail: [email protected]
Saudi ARABIA (KSA):
Telephone : [phone]
Facsimile : [phone]
e-mail: [email protected]
Saturday to Wednesday 9.30AM to 6.30PM
Thursdays 9.30AM to 2.00 PM

19
Notes

Данное устройство может быть
настроено с помощью любого Web-
браузера, например, Internet Explorer 6
или Netscape Navigator 6.2.3.
Адаптер питания
постоянного тока 5В

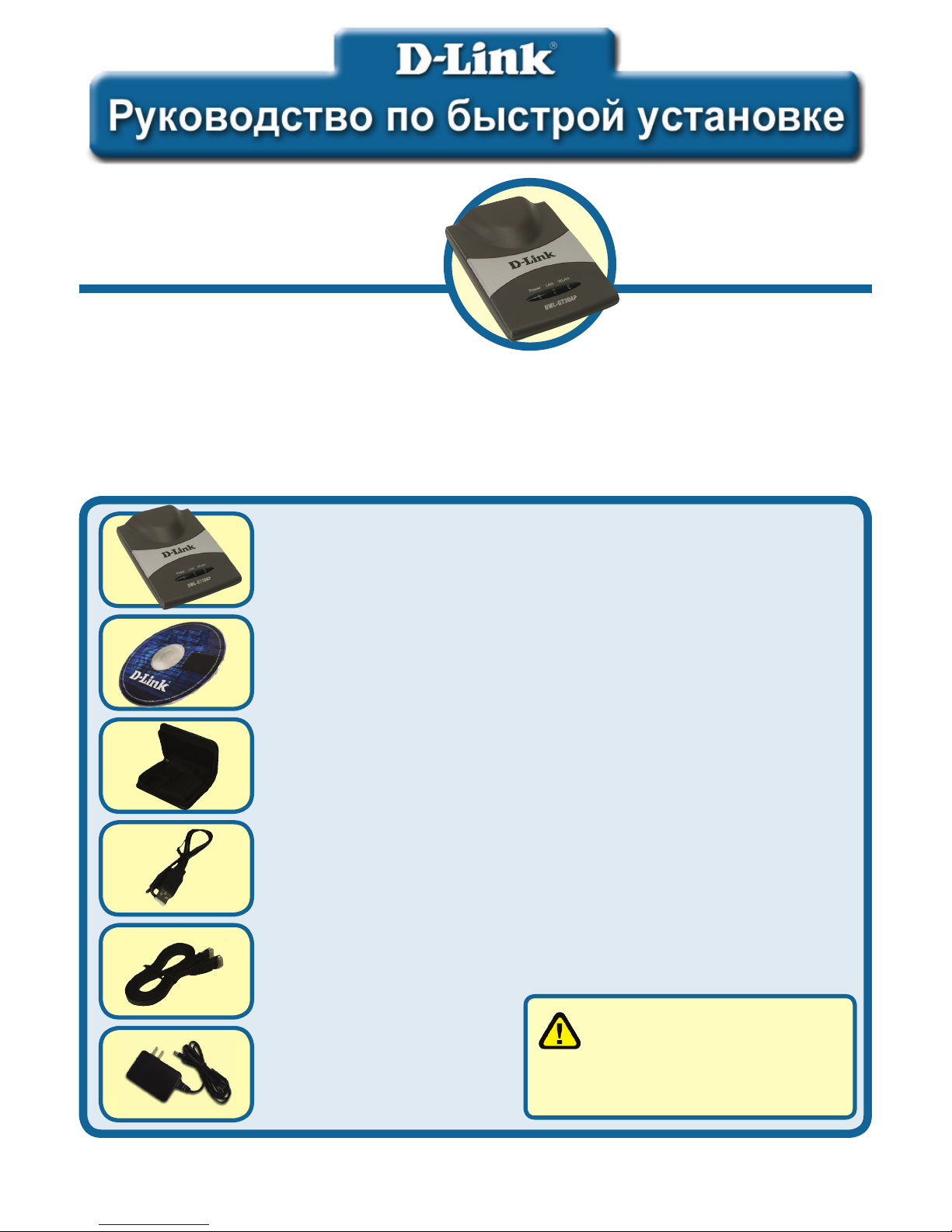

Прежде чем начать
Проверьте содержимое комплекта
DWL-G730AP Портативный беспроводной
маршрутизатор/ТД
CD-ROM с Руководством пользователя
Кабель Ethernet (UTP категории 5)
Если что-либо из перечисленного отсутствует, обратитесь к вашему поставщику.
Использование источника
питания с другим
напряжением питания
может привести к выходу из строя
устройства и потере гарантии.
©2004 D-Link Systems, Inc. Все права защищены. Торговые марки или зарегистрированные торговые марки являются собственностью
их владельцев. Программное обеспечение и спецификации могут изменяться без уведомления.
Сумка для переноса D-Link
По умолчанию IP-адрес DWL-G730AP равен 192.168.0.30, маска подсети равна
255.255.255.0. Для того чтобы настроить DWL-G730AP, необходимо назначить
компьютеру статический IP-адрес из того же диапазона, что IP-адрес DWL-G730AP.
Кабель USB
DWL-G730AP
D-LinkAirPlus™G
Портативный беспроводной
маршрутизатор/ТД
