D-Link DIR-456U User manual

iD-Link DIR-456U User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to
notify any person or organization of such revisions or changes.
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in
the United States or other countries. All other company or product names mentioned herein are trademarks or
registered trademarks of their respective companies.
Copyright © 2010 by D-Link Systems, Inc.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written
permission from D-Link Systems, Inc.
Preface

iiD-Link DIR-456U User Manual
Table of Contents
Preface...........................................................................i
Trademarks .............................................................. i
Product Overview ........................................................ 1
Package Contents ...................................................1
System Requirements .............................................1
Introduction ..............................................................2
Hardware Overview ................................................. 3
Rear Panel .........................................................3
Front Panel ........................................................4
LEDs ..................................................................5
Installation ....................................................................6
Connect to Your Network ........................................6
Connect a Telephone ..............................................7
Wireless Installation Considerations ........................ 8
Conguration ............................................................... 9
Web-based Conguration Utility .............................. 9
Setup Wizard ......................................................... 10

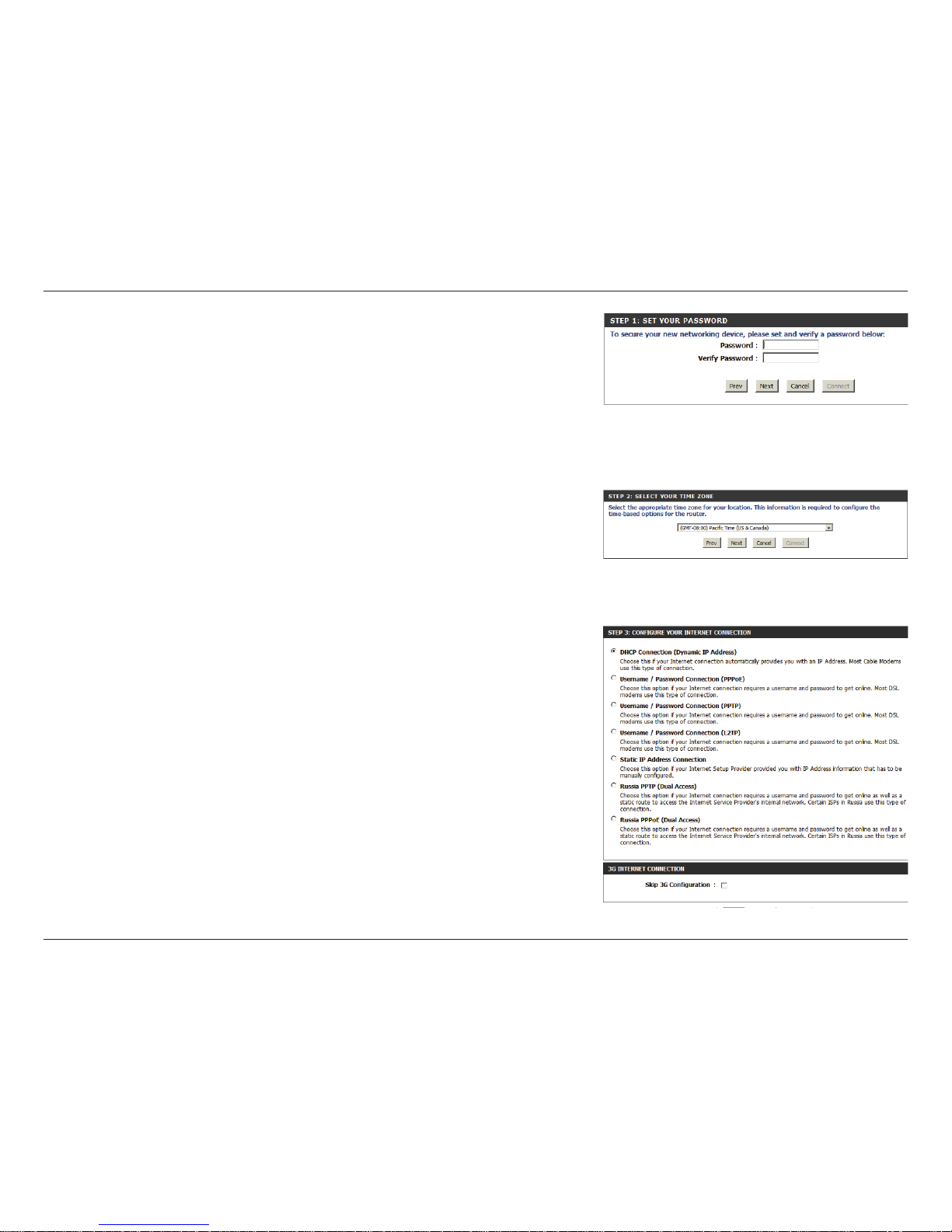

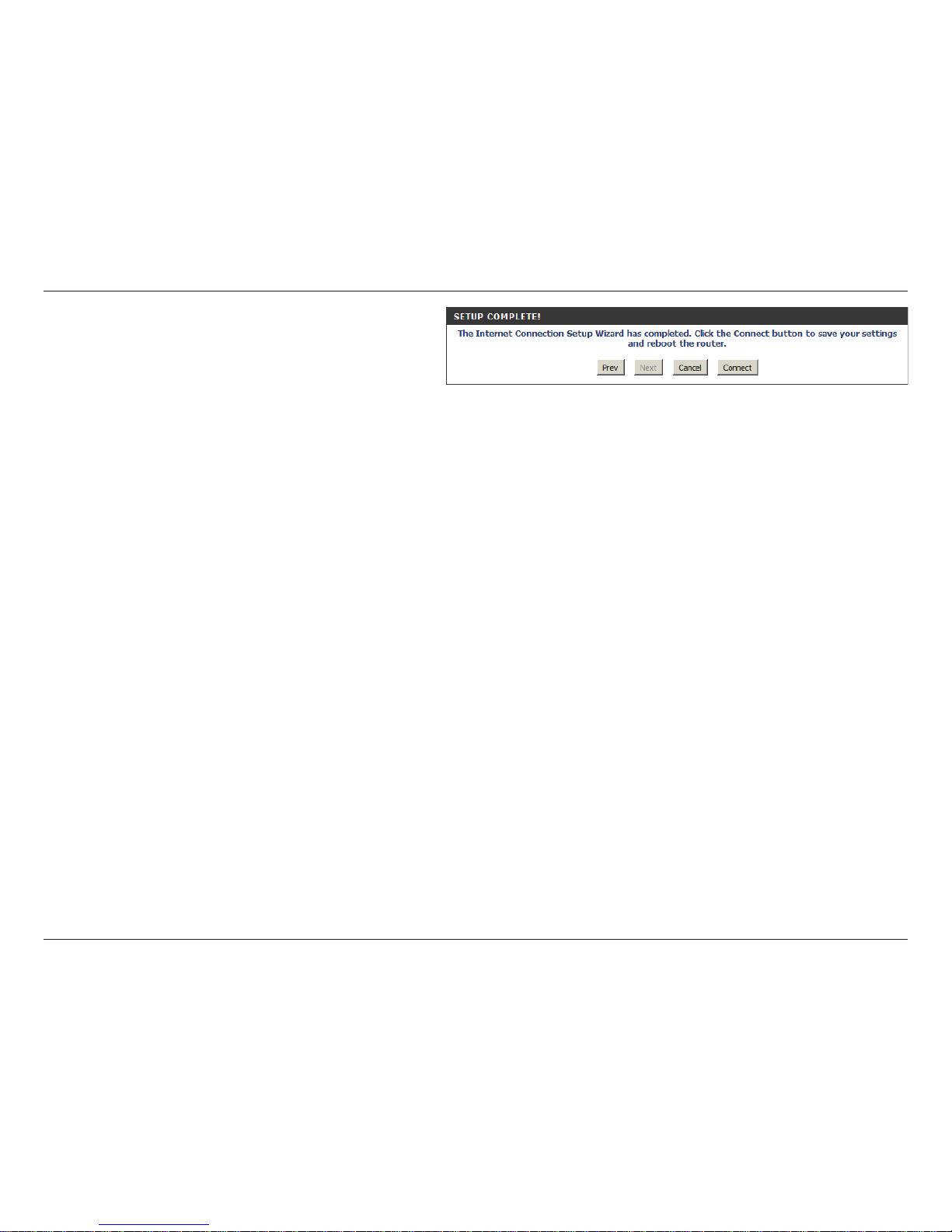

Internet Connection Setup Wizard ...................10

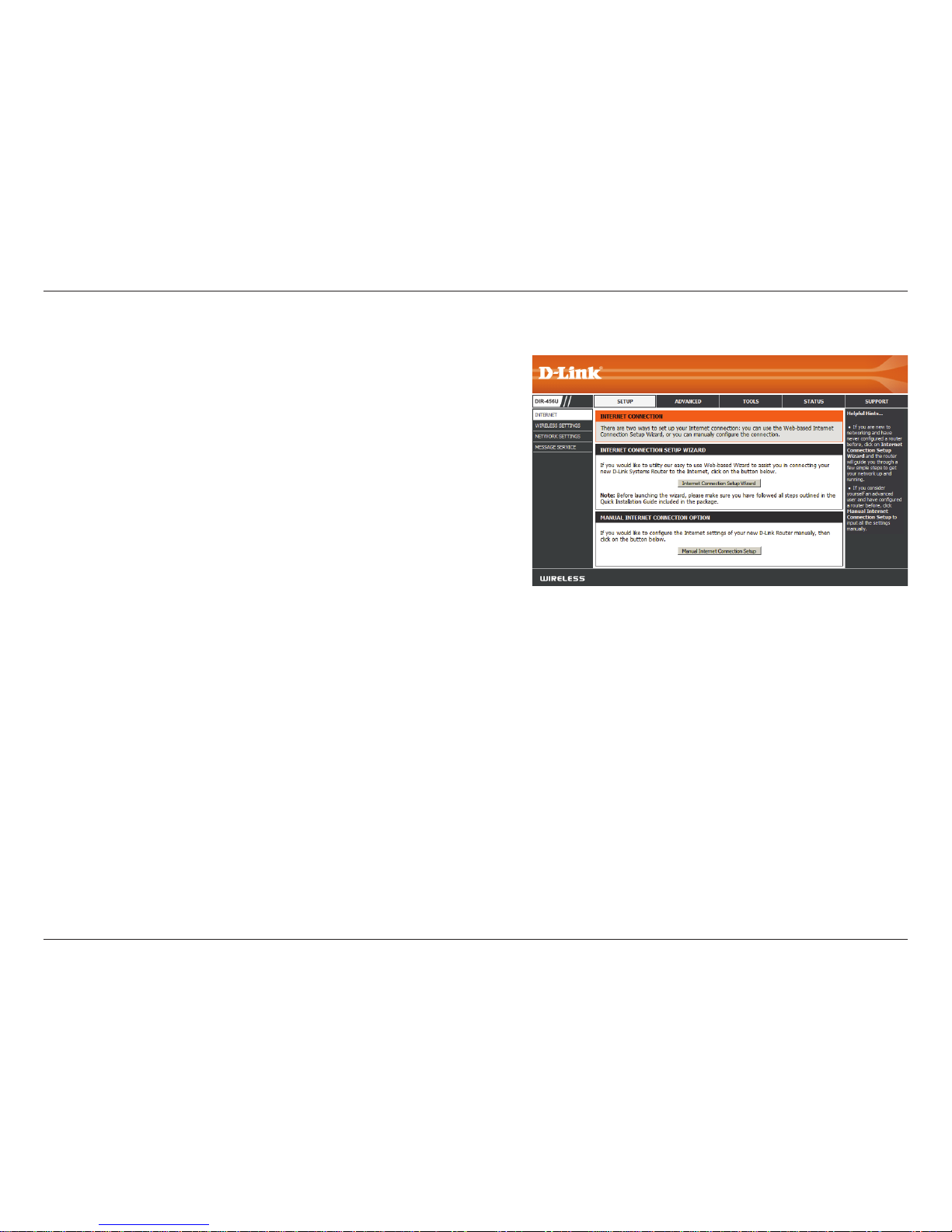

Manual Internet Connection Setup ..................14

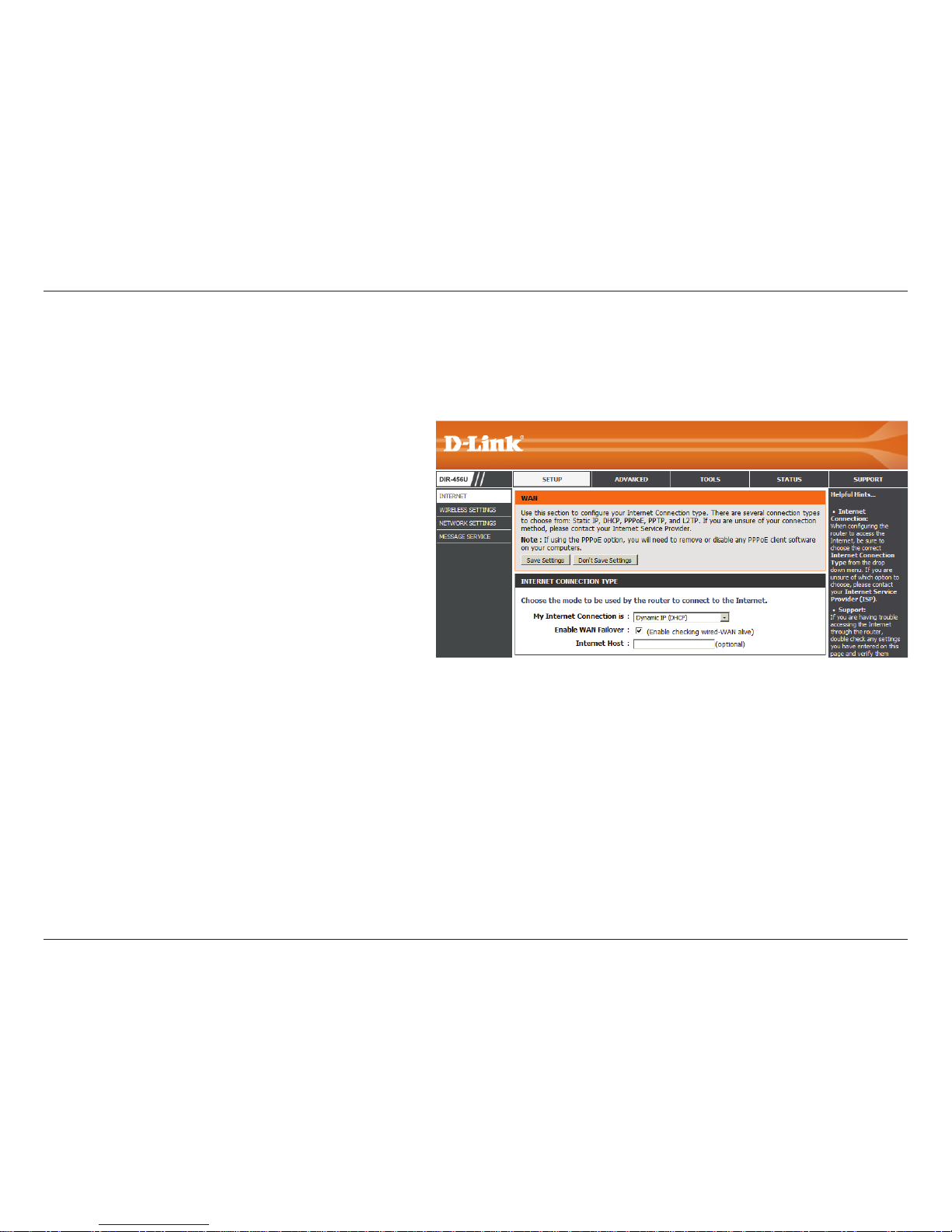

Internet Connection ......................................... 15
Internet Connection Type ................................15

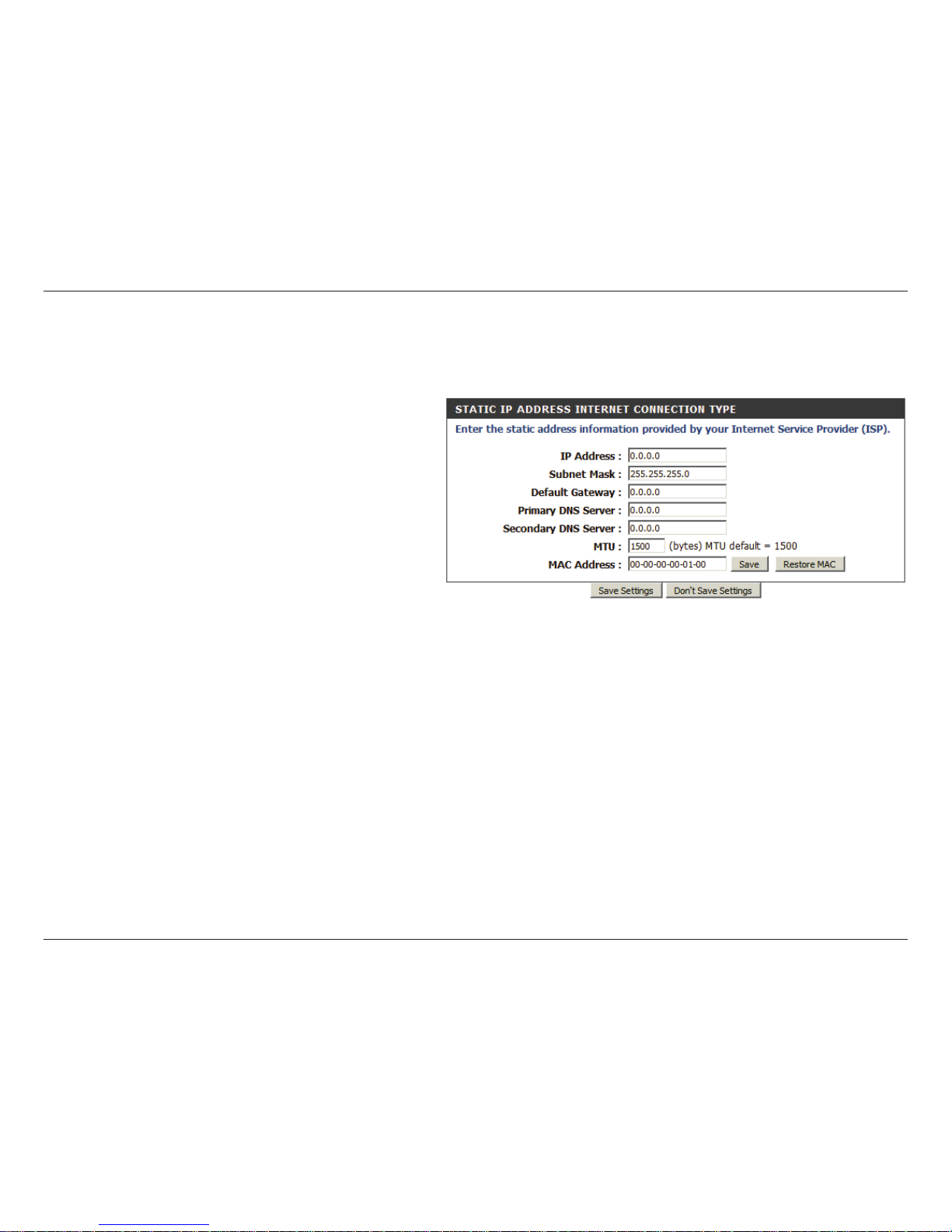

Static IP ........................................................... 16
Dynamic IP (DHCP) .........................................17
PPPoE .............................................................18
PPTP ...............................................................19
L2TP ................................................................20
Russia PPTP (Dual Access) ............................ 21
Russia PPPoE (Dual Access) ..........................23
3G Internet .......................................................25
Wireless Settings .............................................26
Network Settings ..............................................28
Router Settings ............................................28
DHCP Server Settings .................................29
DHCP Reservations .....................................30
Message Service .............................................31
Virtual Server ...................................................33
Routing ............................................................ 34
Application Rules .............................................35
QoS Engine ..................................................... 36
Network Filter ...................................................37
Website Filter ...................................................38
Firewall Settings ..............................................39
Advanced Wireless ..........................................41
Wi-Fi Protected Setup ......................................43
Advanced Network ...........................................45
Call Setting ...................................................... 47
Admin ...............................................................48
Time .................................................................49
Email Settings ..................................................50
System .............................................................51
Table of Contents

iiiD-Link DIR-456U User Manual
Table of Contents
Firmware ..........................................................52
Dynamic DNS ..................................................53
System Check ..................................................54
Schedules ........................................................55
Device Information ...........................................56
Logs .................................................................57
Statistics ..........................................................58
Internet Sessions .............................................59
Wireless ...........................................................60
Support ............................................................61
Wireless Security.......................................................62
What is WEP? .......................................................62
Congure WEP ......................................................63
What is WPA? .......................................................64
Congure WPA-PSK .............................................65
Congure WPA (RADIUS) .....................................66
Using Windows® 7 and WPS for Wireless
Conguration .........................................................67
Connecting to a Wireless Network
Using Windows® 7 ................................................. 71
Connecting to a Wireless Network Using Windows
Vista® .................................................................... 74
Connecting to a Wireless Network ........................76
Using Windows® XP ............................................... 76
Troubleshooting ........................................................ 78
Wireless Basics ......................................................... 80
What is Wireless? ..................................................81
Tips ........................................................................83
Wireless Modes ..................................................... 84
Networking Basics .................................................... 85
Check your IP address ..........................................85
Statically Assign an IP address .............................86
Technical Specications........................................... 87

1D-Link DIR-456U User Manual
Section 1 - Product Overview
• D-Link DIR-456U Mobile Router
• Power Adapter
• Ethernet Cable
• RJ-11 Telephone Cable
• Manual and Warranty on CD
System Requirements
• A compatible (U)SIM card with service*
• Computers with Windows®, Macintosh®, or Linux-based operating systems with an installed Ethernet
adapter
• Internet Explorer Version 6.0 or Netscape Navigator™ Version 6.0 and above (for conguration)
*Subject to services and service terms available from your carrier.
Product Overview
Package Contents
Note: Using a power supply with a different voltage rating than the one included with the DIR-456U will cause damage and
void the warranty for this product.

2D-Link DIR-456U User Manual
Section 1 - Product Overview

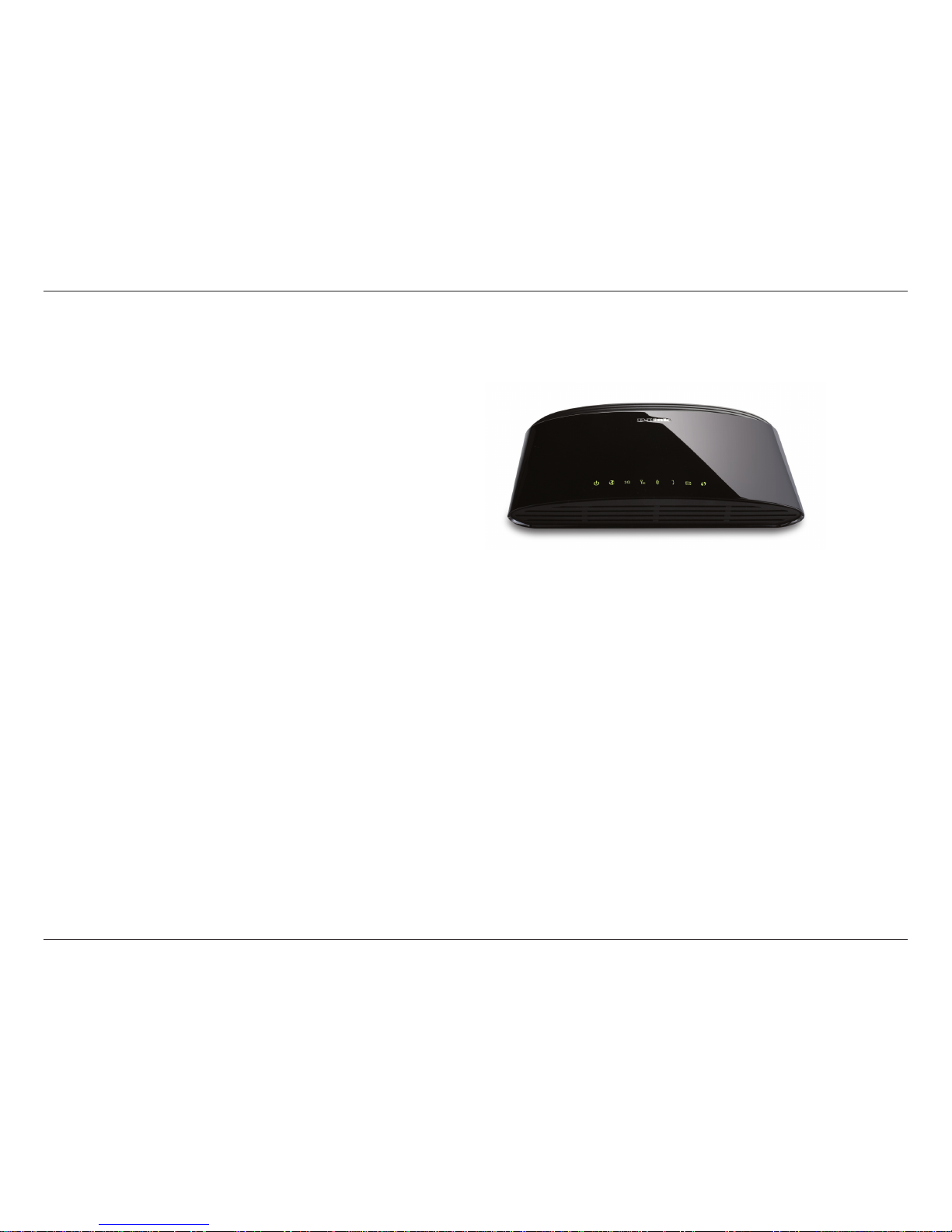

Introduction
DIR-456U allows users to access worldwide mobile broadband networks. Once connected, users can transfer data,
stream media, send SMS messages, and make mobile phone calls. Simply insert your UMTS/HSUPA SIM card,
and share your 3.5G Internet connection through a secure 802.11n wireless network or using any of the four 10/100
Ethernet ports.
While accessing your 3.5G Internet connection, you will still have the ability to answer incoming mobile calls and
respond to SMS messages. An RJ-11 jack allows you to attach a standard analog phone for high-quality mobile
calls over a GSM network. Enjoy the comfort and convenience of your favorite ofce phone anywhere you go.
Keep your wireless network safe with WPA/WPA2 wireless encryption. The DIR-456U utilizes dual-active rewalls
(SPI and NAT) to prevent potential attacks across the Internet.
DIR-456U can be installed quickly and easily almost anywhere. This router is great for situations where an impromptu
wireless network must be set up, or wherever conventional network access is unavailable. The DIR-456U can even
be installed in buses, trains, or boats, allowing passengers to check e-mail or chat online while commuting.

3D-Link DIR-456U User Manual
Section 1 - Product Overview
Hardware Overview

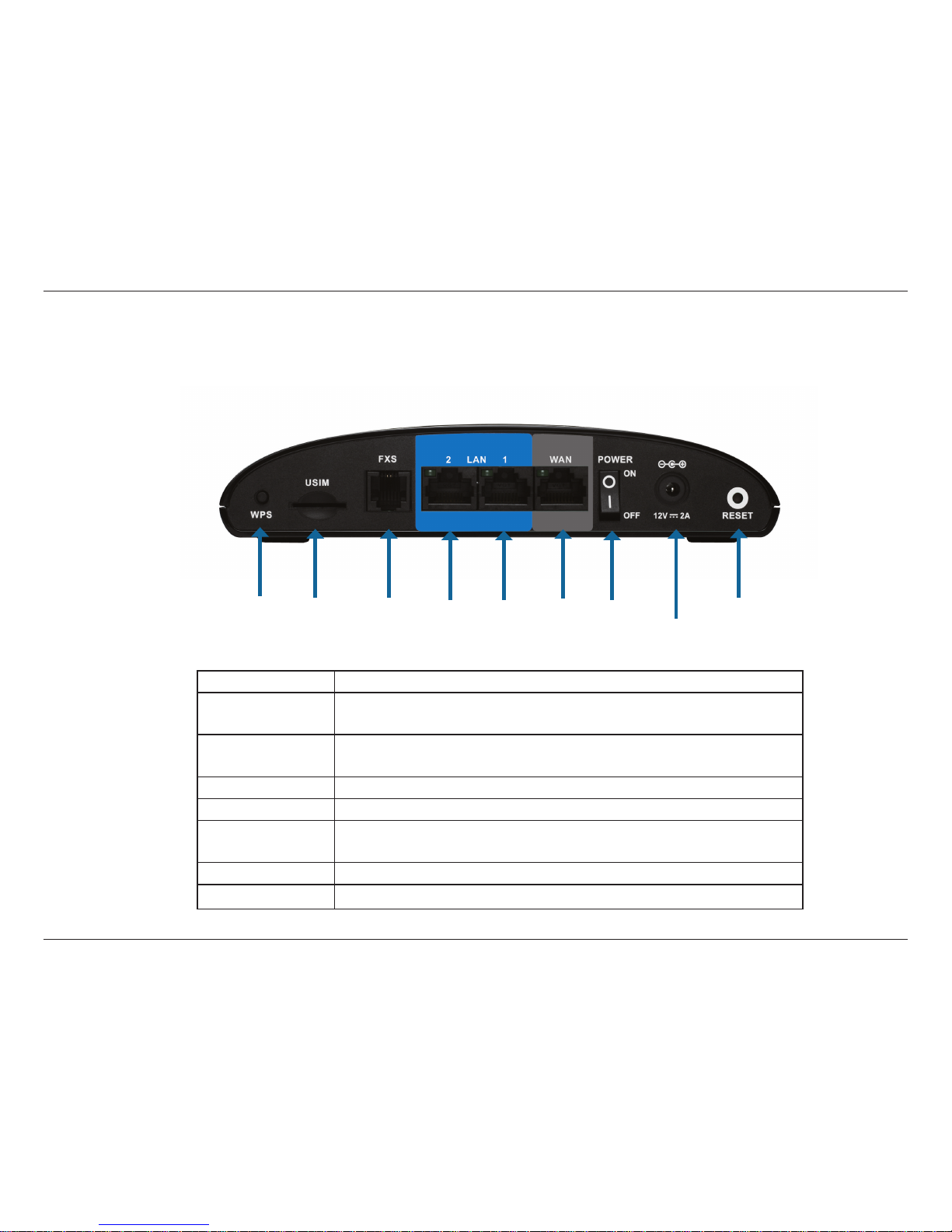

Rear Panel
WPS USIM FXS LAN2 LAN1 WAN Power RESET
Port Function
LAN 1-2 (RJ-45) Insert an Ethernet cable connected to a network device such
as a desktop or notebook computer.
WAN (RJ-45) Insert a standard CAT5 Ethernet cable connected to a DSL/
Cable modem or router.
SIM Insert a standard (U)SIM card into this slot.
Power Insert the provided DC power adapter into this socket.
Phone (RJ-11) Insert an RJ-11 telephone cable connected to a standard
landline telephone.
Reset Hold this button down to reset the device.
WPS Press this button to initiate a new WPS connection.
Power
Connector

4D-Link DIR-456U User Manual
Section 1 - Product Overview
Hardware Overview

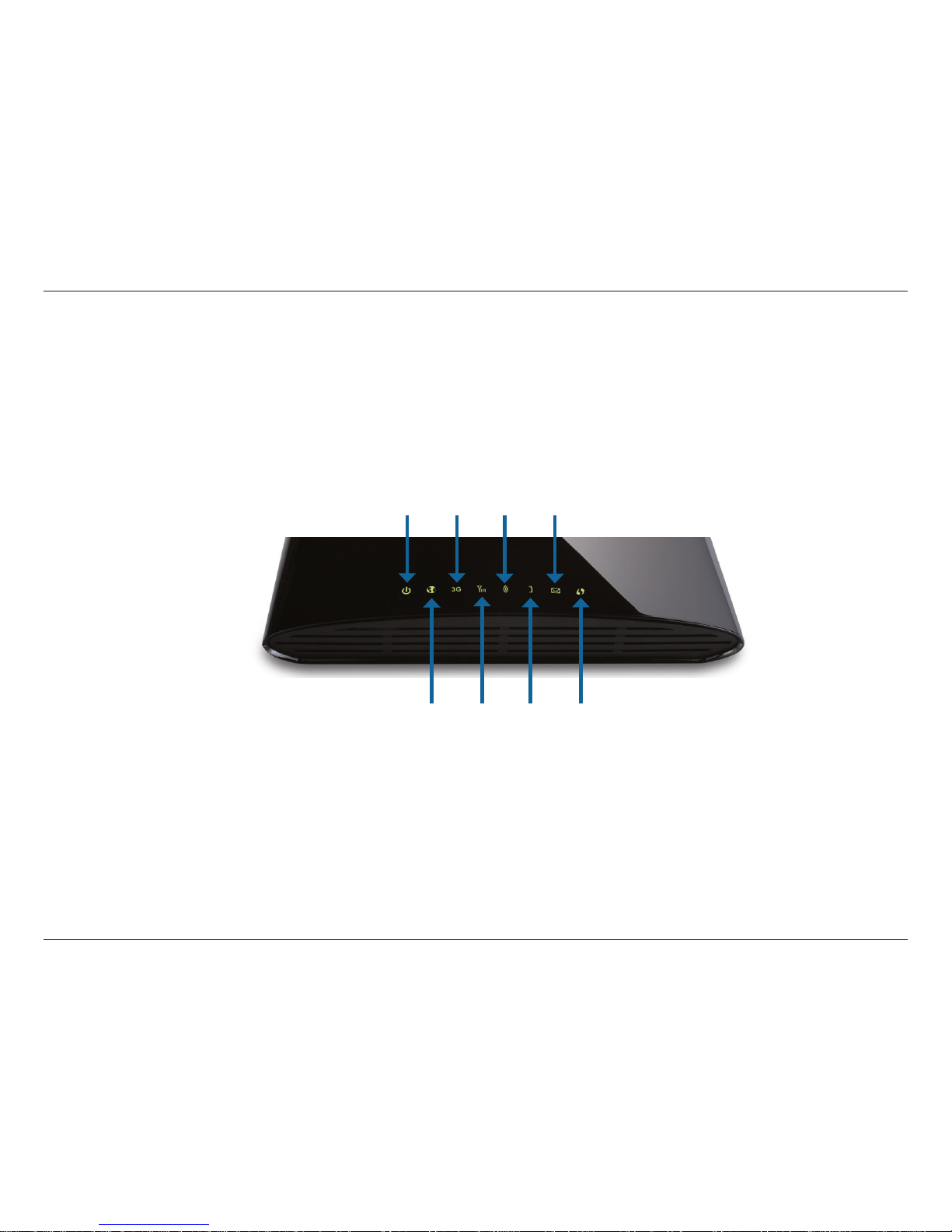

Front Panel
Power 3G WLAN SMS
WAN 3G Signal
Strength
Phone WPS

5D-Link DIR-456U User Manual
Section 1 - Product Overview
LED Name Function
Power On (Green): Orange when booting, then change to solid green
On (Orange): Blinking orange if system fail
WAN Off: without Ethernet cable
On (Green solid): 3G connected dial up success or with Ethernet WAN
On (Orange): 3G Error (PIN code error , SIM fail ) or WAN type fail or system fail error
On (Green blinking) : 3G access enable or Ethernet WAN (backup mode)
3G OFF : WAN disconnect
ON (Orange) : in GPRS/EDGE mode (non3G mode)
ON (Green) : in HSDPA/HSUPA mode (3G mode)
3G Signal
strength
OFF : no signal.
ON (Blinking Orange) : 3G signal is weak
ON (Solid Orange) : Moderate 3G signal
ON (Solid Green) : Strong 3G signal
WLAN On: Wireless on
Off : Wireless off
Blinking: data transmission
Phone On (Green): off hook
Off: on hook
SMS ON (Green): Transmit/receive SMS
WPS (Blue) In Progress: Fast Blinking (Blue)
Success: Blue/On for 300 seconds
Hardware Overview
LEDs

6D-Link DIR-456U User Manual
Section 2 - Installation
Connect to Your Network
Installation
This section will guide you through the installation process. Placement of the router is very important. Do not place the router in an enclosed
area such as a closet, cabinet, or in an attic or garage.
Note: Ensure that your DIR-456U Mobile Router is disconnected and powered off before performing the installation steps below.
1. Insert a standard (U)SIM card into the SIM card slot on the back of the router with the gold contacts facing downwards.
2. Insert your Internet/WAN network cable into the INTERNET port on the back of the router.
Note: The 3.5G connection can also be used as a backup WAN. Once a backup is congured, the router will automatically use 3.5G
for the Internet connection if the Ethernet WAN is not available.
3. Insert the Ethernet cable into the LAN Port 1 on the back panel of the DIR-456U Mobile Router, and an available Ethernet port on the
network adapter in the computer you will use to congure the unit.
Note: The DIR-456U Mobile Router LAN Ports are “Auto-MDI/MDIX.” Therefore, patch or crossover Ethernet cables can be used.
4. Connect the power adapter to the socket on the back panel of your DIR-456U Mobile Router. Plug the other end of the power adapter
into a wall outlet or power strip.
a. The Status LED will light up to indicate that power has been supplied to the router.
b. The LEDs on the front panel will ash on and off as the DIR-456U Mobile Router performs initialization and Internet connection
processes.
c. After a few moments, if a connection has been established, the following LEDs will turn solid green: Power, Status, WAN, WLAN,
and LAN Port 1 (or whichever port(s) your Ethernet cable has been connected to).
Caution! Always unplug/power down the router before installing or removing the SIM card. Never insert or remove the SIM card while
the router is in use.

7D-Link DIR-456U User Manual
Section 2 - Installation

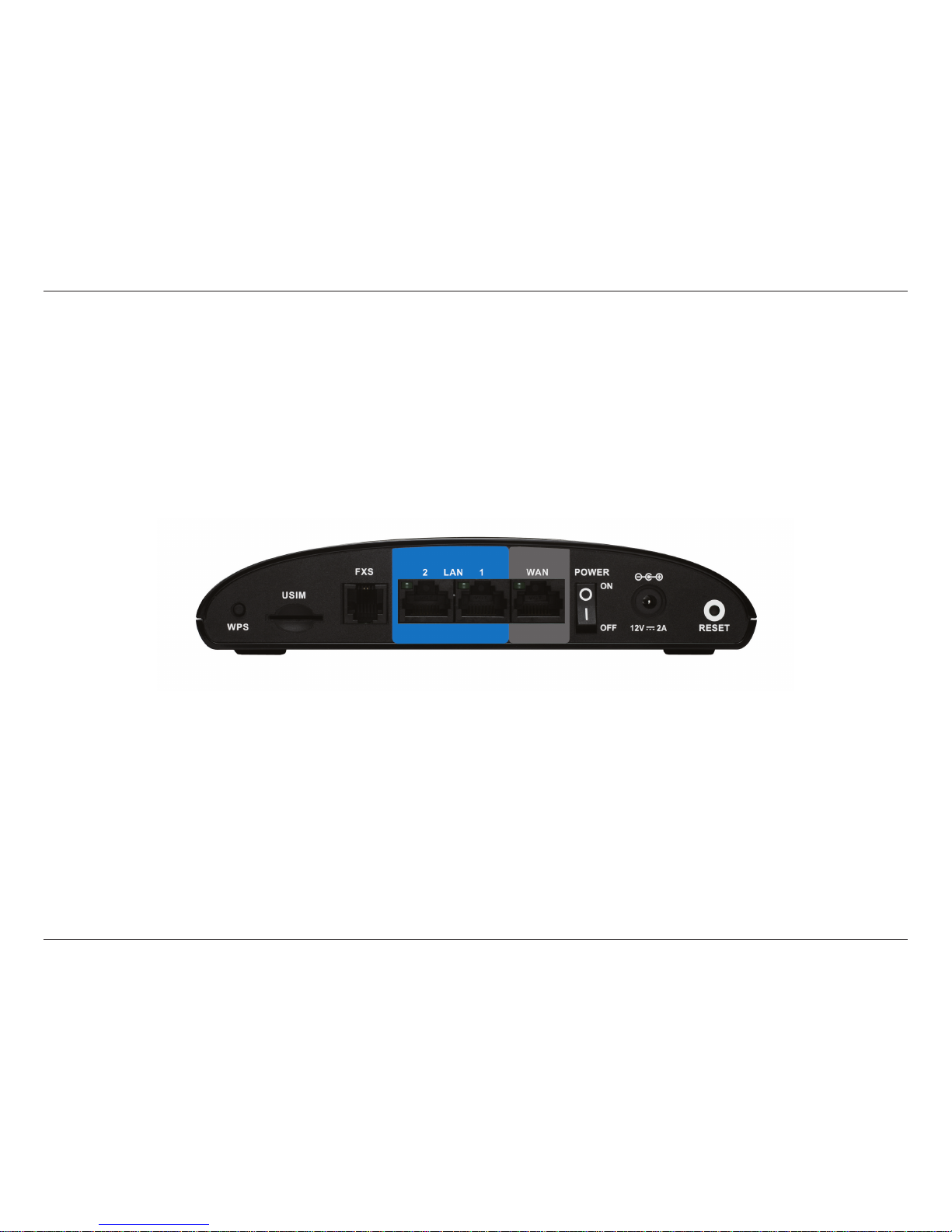

Connect a Telephone
A standard RJ-11 jack on the back of the router allows you to connect a standard analog telephone for voice calls.
Simply plug the phone cable into the jack labeled FXS.
You can then use your handset to dial out as you typically would with a standard landline.
Your attached phone will also ring for any incoming voice calls.

8D-Link DIR-456U User Manual
Section 2 - Installation
Wireless Installation Considerations
The DIR-456U can be accessed using a wireless connection from virtually anywhere within the operating range of your wireless network.
Keep in mind, however, that the quantity, thickness and location of walls, ceilings, or other objects that the wireless signals must pass
through, may limit the range. Ranges vary depending on the types of materials and background RF (radio frequency) noise in your home
or ofce. The key to maximizing the wireless range is to follow these basic guidelines:
1. Minimize the number of walls and ceilings between the D-Link router and other network devices. Each wall or ceiling can
reduce your adapter’s range from 3 to 90 feet (1 to 30 meters).
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (0.5 meters), at a 45-degree angle
appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick. Position devices
so that the signal will travel straight through a wall or ceiling (instead of at an angle) for better reception.
3. Try to position access points, wireless routers, and computers so that the signal passes through open doorways and
drywall. Materials such as glass, metal, brick, insulation, concrete and water can affect wireless performance. Large
objects such as sh tanks, mirrors, le cabinets, metal doors and aluminum studs may also have a negative effect on
range.
4. If you are using 2.4GHz cordless phones, make sure that the 2.4GHz phone base is as far away from your wireless device
as possible. The base transmits a signal even if the phone in not in use. In some cases, cordless phones, X-10 wireless
devices, and electronic equipment such as ceiling fans, uorescent lights, and home security systems may dramatically
degrade wireless connectivity.

9D-Link DIR-456U User Manual
Section 3 - Configuration
Configuration
This section will show you how to congure your new D-Link mobile router using the web-based conguration utility.
Web-based Configuration Utility
To access the conguration utility, open a web-browser such
as Internet Explorer and enter the IP address of the router
(192.168.0.1).
Type Admin and then enter the password. By default, the
password is blank.
If you get a Page Cannot be Displayed error, please refer to
the Troubleshooting section for assistance.

10D-Link DIR-456U User Manual
Section 3 - Configuration
Setup Wizard
The setup wizard guides you through the initial setup of your router.
There are two ways to setup your Internet connection. You can use the
Web-based Internet Connection Setup Wizard or you can manually
congure using the Manual Internet Connection Setup wizard.
Click Internet Connection Setup Wizard to begin.
If you want to enter your settings without running the wizard, click
Manual Internet Connection Setup and skip to page 14.
This wizard will guide you through a step-by-step process to congure
your D-Link router to connect to the Internet.
Click Next to continue.
Internet Connection Setup Wizard

11D-Link DIR-456U User Manual
Section 3 - Configuration
Create a new password and then click Next to continue.
Click Prev to go back to the previous page or click Cancel to close the wizard.
Select your time zone from the drop-down box and then click Next to continue.
Click Prev to go back to the previous page or click Cancel to close the wizard.
Select the Internet connection type. The connection types are explained on the
following page. If you are unsure of the correct connection type, you may have to
contact your Internet Service Provider (ISP).
Click Prev to go back to the previous page or click Cancel to close the wizard.
Note: The DIR-456U supports several kinds of WAN interfaces, allowing you to
assign either a WAN or a WWAN(3.5G) connection as the Backup WAN. If the
Primary WAN is down or unavailable, congure the Backup WAN to Enable, and all
the trafc will be routed through Backup WAN. This feature is called WAN Failover.
You can use WAN Failover if you need redundancy to your Internet connection or
any other network.

12D-Link DIR-456U User Manual
Section 3 - Configuration
Choose this option if your Internet connection uses an IP address that does not change. Your ISP generally
will provide you with this information. See page 16 for information about how to congure this type of
connection.
Choose this if your Internet connection automatically provides you with an IP Address. Most cable modems
use this type of connection. See page 17 for information about how to congure this type of connection.
Choose this option if your Internet connection requires a username and password to connect. Most DSL modems
use this style of connection. See page 18 for information about how to congure this type of connection.
Choose this option if your Internet connection requires Point-to-Point Tunneling Protocol (PPTP). See page
19 for information about how to congure this type of connection.
Choose this option if your Internet connection requires Layer 2 Tunneling Protocol (L2TP). See page 21 for
information about how to congure this type of connection.
To congure a Russian PPTP Internet connection, congure as previously described for PPTP connections.
See page 21 for information about how to congure this type of connection.
Some PPPoE connections use a static IP route to the ISP in addition to the global IP settings for the connection.
This requires an added step to dene IP settings for the physical WAN port. To congure a Russian PPPoE
Internet connection, congure as previously described for PPPoE connections and add the physical WAN
IP settings as instructed by your ISP. See page 23 for information about how to congure this type of
connection.
Select this option if you do not need to congure 3G.
Static IP Address
Connection:
DHCP Connection
(Dynamic IP Address):
Username / Password
Connection (PPPoE):
Username / Password
Connection (PPTP):
Username / Password
Connection (L2TP):
Russia PPTP (Dual
Access):
Russia PPPoE (Dual
Access):
Skip 3G Configuration:
The subsequent conguration pages will differ depending on the selection you make on this page.

13D-Link DIR-456U User Manual
Section 3 - Configuration
You have completed the Setup Wizard.
Click Connect to save your settings.
A popup will appear to conrm your settings.
Click OK to save your settings.

14D-Link DIR-456U User Manual
Section 3 - Configuration
Manual Internet Connection Setup
Click Manual Internet Connection Setup to begin.
If you prefer to congure your router’s Internet connection using the wizard,
click Internet Connection Setup Wizard and refer to page 10.

15D-Link DIR-456U User Manual
Section 3 - Configuration
Several different Internet Connection types can be selected depending upon the specications of your Internet Service Provider (ISP).
Select the Internet Connection
type specied by your Internet
Service Provider (ISP). The
corresponding settings will be
displayed below. Please see the
following pages for details on
how to congure these different
connection types.
When this box is checked, the
selected connection will act as a
backup for the 3.5G connection.
Select this box to enable checking
wired-WAN alive. The router will
test your connection status and
connect to the 3G connection if your WAN connection goes down.
Enter the IP address of the Internet host to be used as the backup connection.
Internet Connection
Internet Connection Type
My Internet Connection is:
Enable WAN Failover:
Internet Host:

16D-Link DIR-456U User Manual
Section 3 - Configuration
Enter the IP address assigned to
your network connection.
Enter the subnet mask.
Enter the default gateway.
Enter the primary DNS server.
Enter the secondary DNS server.
You may need to change the
Maximum Transmission Unit (MTU)
for optimal performance. The default value is 1500.
The default MAC Address is set to the Internet port’s physical interface MAC address on the Broadband Router.
It is not recommended that you change the default MAC address unless required by your ISP. You can use
the Clone Your PC’s MAC Address button to replace the Internet port’s MAC address with the MAC address
of your Ethernet card.
Click Save Settings to save your changes, or click Don’t Save Settings to discard your changes.
IP Address:
Subnet Mask:
Default Gateway:
Primary DNS Server:
Secondary DNS Server:
MTU:
MAC Address:
Choose this Internet connection if your ISP assigns you a static IP address.
Static IP
