D-Link DIR-608 User manual

Version 1.0 | 07/22/2016
DIR-608
User Manual
Wireless N 150 Home Router

iD-Link DIR-608 User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any
person or organization of such revisions or changes.
Manual Revisions
Revision Date Description
1.0 25 July, 2016 DIR-608 Revision A1
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries.
All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.
Copyright © 2016 by D-Link Corporation, Inc.
All rights reserved.This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Corporation,
Inc.
Preface

iiD-Link DIR-608 User Manual
Table of Contents
Preface................................................................................. i
Product Overview.............................................................. 1
Package Contents......................................................................... 1
System Requirements................................................................. 2
Introduction ................................................................................... 3
Features............................................................................................ 4
Hardware Overview..................................................................... 5
LEDs........................................................................................... 5
Back Panel ............................................................................... 6
Choosing an Operation Mode .......................................... 7
Router Mode .................................................................................. 8
Wireless Repeater Mode ............................................................ 9
Installation .......................................................................11
Before You Begin.........................................................................11
Wireless Installation Considerations....................................12
Hardware Setup - Router .........................................................13
Hardware Setup - Wireless Repeater ...................................15
Getting Started................................................................16
Conguration...................................................................17
Web UI Table of Contents ........................................................18
Setup...............................................................................................19
Wizard.....................................................................................20
Local Network......................................................................24
Internet Setup......................................................................27
PPTP.........................................................................................30
L2TP .........................................................................................31
IPV6..........................................................................................33
Wireless ..........................................................................................47
Wireless Basics .....................................................................48
WPS..........................................................................................54
Advanced Wireless .............................................................55
Wireless Repeater ...............................................................57
Wireless Repeater Setup..............................................58
Advanced ......................................................................................60
Access Control List..............................................................61
Port Triggering.....................................................................62
DMZ .........................................................................................64
URL Block...............................................................................65
Dynamic DNS .......................................................................66
Trac Control.......................................................................67
UPnP........................................................................................69
Telnet.......................................................................................70
Virtual Server........................................................................71
IPv6 Filter ...............................................................................72
IPv6 Routing .........................................................................74
Maintenance ................................................................................75
Reboot ....................................................................................76
Firmware Upgrade..............................................................77
Backup/Restore ...................................................................78
Admin .....................................................................................79
Table of Contents

iiiD-Link DIR-608 User Manual
Table of Contents
Time and Date......................................................................80
Status ..............................................................................................81
Device Info ............................................................................82
Active Client Table..............................................................83
Statistics .................................................................................84
IPV6..........................................................................................85
IPV6 Routing Table .............................................................86
Help .................................................................................................87
Connect a Wireless Client to Your Router.......................88
WPS Button...................................................................................88
Windows® 10................................................................................89
Windows® 8...................................................................................91
WPA/WPA2 ............................................................................91
Windows® 7...................................................................................93
WPA/WPA2 ............................................................................93
WPS..........................................................................................95
Windows Vista®............................................................................99
WPA/WPA2 ......................................................................... 100
Troubleshooting ............................................................102
Wireless Basics ...............................................................106
What is Wireless?...................................................................... 107
Tips................................................................................................ 109
Wireless Modes......................................................................... 110
Networking Basics.........................................................111
Check your IP address............................................................ 111
Statically Assign an IP address............................................ 112
Wireless Security ......................................................... 113
What is WPA? ................................................................ 113
Technical Specications ................................................114
Safety Statements .........................................................115

1D-Link DIR-608 User Manual
Section 1 - Product Overview
Product Overview
Note: Using a power supply with a dierent voltage rating than the one included with the DIR-608 will cause damage and void the warranty
for this product.
Package Contents
DIR-608 Wireless N 150 Home Router
Power Adapter
Ethernet Cable
Quick Install Guide
If any of the above items are missing, please contact your reseller.

2D-Link DIR-608 User Manual
Section 1 - Product Overview
Network Requirements
• An Ethernet-based Cable or DSL modem
• IEEE 802.11n, 802.11g or 802.11b wireless clients
• 10/100 Ethernet
Web-based Conguration
Utility Requirements
Computer with the following:
• Windows®, Macintosh, or Linux-based operating system
• An installed Ethernet adapter
Browser Requirements:
• Internet Explorer 10 or higher
• Firefox 28 or higher
• Safari 6.0 or higher
• Chrome 28 or higher
Windows®Users: Make sure you have the latest version of Java
installed. Visit www.java.com to download the latest version.
System Requirements

3D-Link DIR-608 User Manual
Section 1 - Product Overview
Introduction
The DIR-608 Wireless N 150 Home Router is an attractive, high-performance router that makes it easy to share your broadband
Internet connection with all your devices. Simply connect it to your broadband modem, then use the web-based setup wizard
to guide you step-by-step through the conguration process. Whether you’re surng the web on your desktop or relaxing on
the couch with your laptop, the DIR-608 keeps you connected wherever you are in your home.
The DIR-608 creates a high-speed home network with wireless speeds of up to 150 Mbps1for fast le transfers, seamless web
surng, and smooth online gaming. The external antenna increases your wireless coverage so you can avoid dead spots and
get a reliable connection in more places throughout your home. The DIR-608 also has a repeater mode, which allows you to
extend the range of your existing wireless network, letting you reach the farthest corners of your home or small oce.
The DIR-608 has a host of security features, meaning you can access the Internet without fear of your network being
compromised. Wi-Fi Protected Access (WPA) / Wi-Fi Protected Access II (WPA2) encryption secures wireless trac across your
network, preventing unauthorized access and eavesdropping. Meanwhile, the NAT rewall protects your network from attacks
and intrusions via the Internet. No matter whether you are shopping online, doing your banking, or accessing your personal
information, the DIR-608 keeps your data and your network safe.
1Maximum wireless signal rate derived from IEEE Standard 802.11b, 802.11g, and 802.11n specications. Actual data throughput will vary. Network conditions and environmental
factors, including volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental conditions will
adversely aect wireless signal range.

4D-Link DIR-608 User Manual
Section 1 - Product Overview
Features
• Faster Wireless Networking - The DIR-608 provides wireless connection of up to 150 Mbps* for other 802.11n
wireless clients. This capability allows users to participate in real-time activities online, such as video and audio
streaming or online gaming.
• Compatible with 802.11b and 802.11g Devices - The DIR-608 is fully compatible with the IEEE 802.11b and
IEEE 802.11g standards, so it can connect with existing 802.11b and IEEE 802.11g adapters.
• Advanced Firewall Features - The web-based user interface displays a number of advanced network
management features including:
• Content Filtering - Easily applied content ltering based on URL.
• Secure Multiple/Concurrent Sessions - The DIR-608 can pass through VPN sessions. It supports
multiple and concurrent Point to Point Tunneling Protocol (PPTP) sessions, so users behind the
DIR-608 can securely access corporate networks.
• User-friendly SetupWizard -Through its easy-to-use web-based user interface, the DIR-608 lets you control what
information is accessible to those on the wireless network, whether from the Internet or from your company’s
server. Congure your router to your specic settings within minutes.
• IPv6 Ready - Fully compliant with IPv6. The DIR-608 supports a variety of IPv6 connection standards preparing
you for the day when your ISP implements IPv6.
* Maximum wireless signal rate derived from IEEE Standard 802.11b, 802.11g, and 802.11n specications. Actual data throughput will vary. Network conditions and environmental
factors, including volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental conditions will
adversely aect wireless signal range.

5D-Link DIR-608 User Manual
Section 1 - Product Overview
Hardware Overview

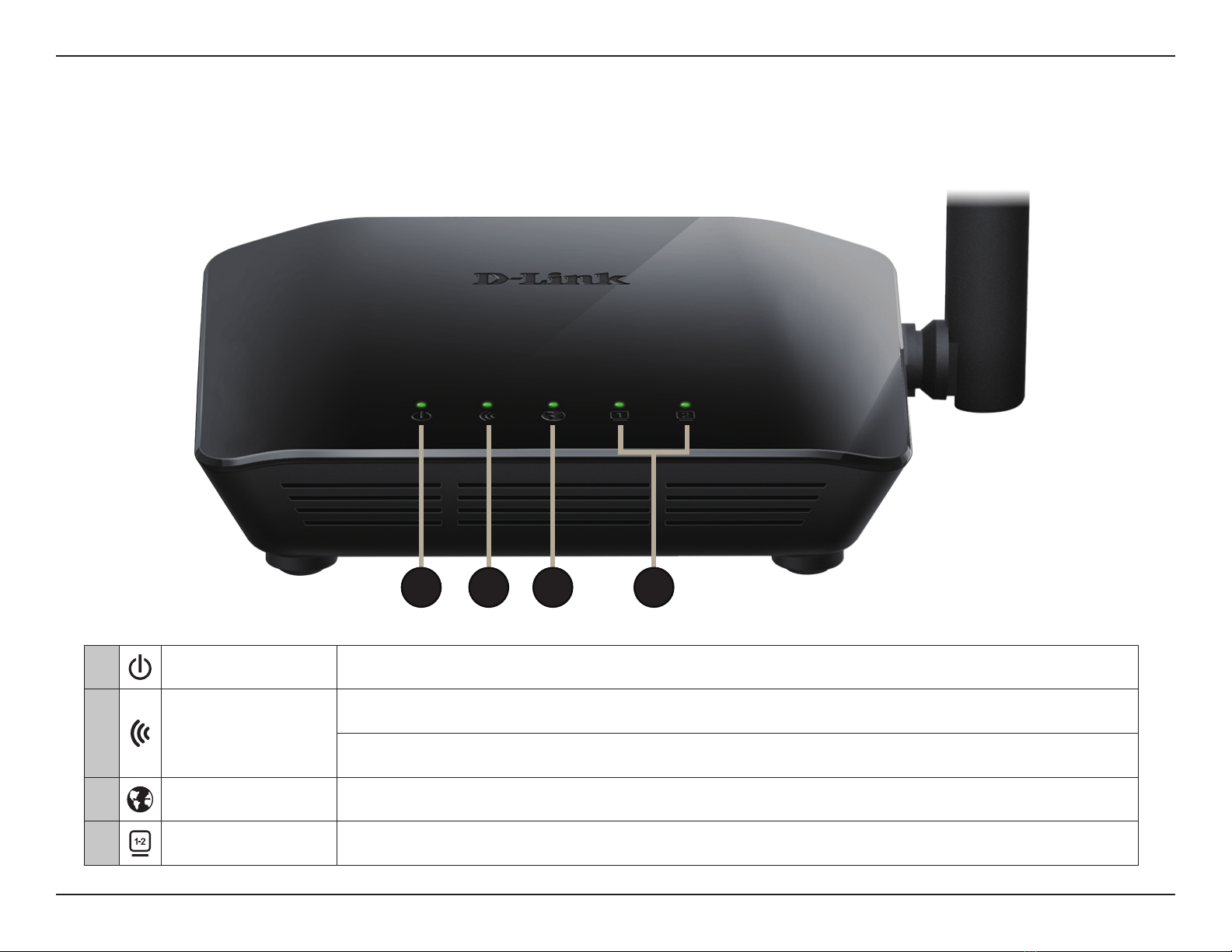

LEDs
1 Power LED The Power LED indicates that the devices is powered on with a proper connection to the power supply.
2Wireless LED
The Wireless LED indicates that the wireless is operating. It blinks during wireless data transmission.
The Wireless LED blinks during the WPS pairing process.
3Internet LED The Internet LED indicates that an Internet link is established. It blinks during data transmission.
4LAN Port LEDs (1-2) The LAN Port LEDs indicate an Ethernet device is connected. They blink during data transmission.
1 2 3 4

6D-Link DIR-608 User Manual
Section 1 - Product Overview
Hardware Overview

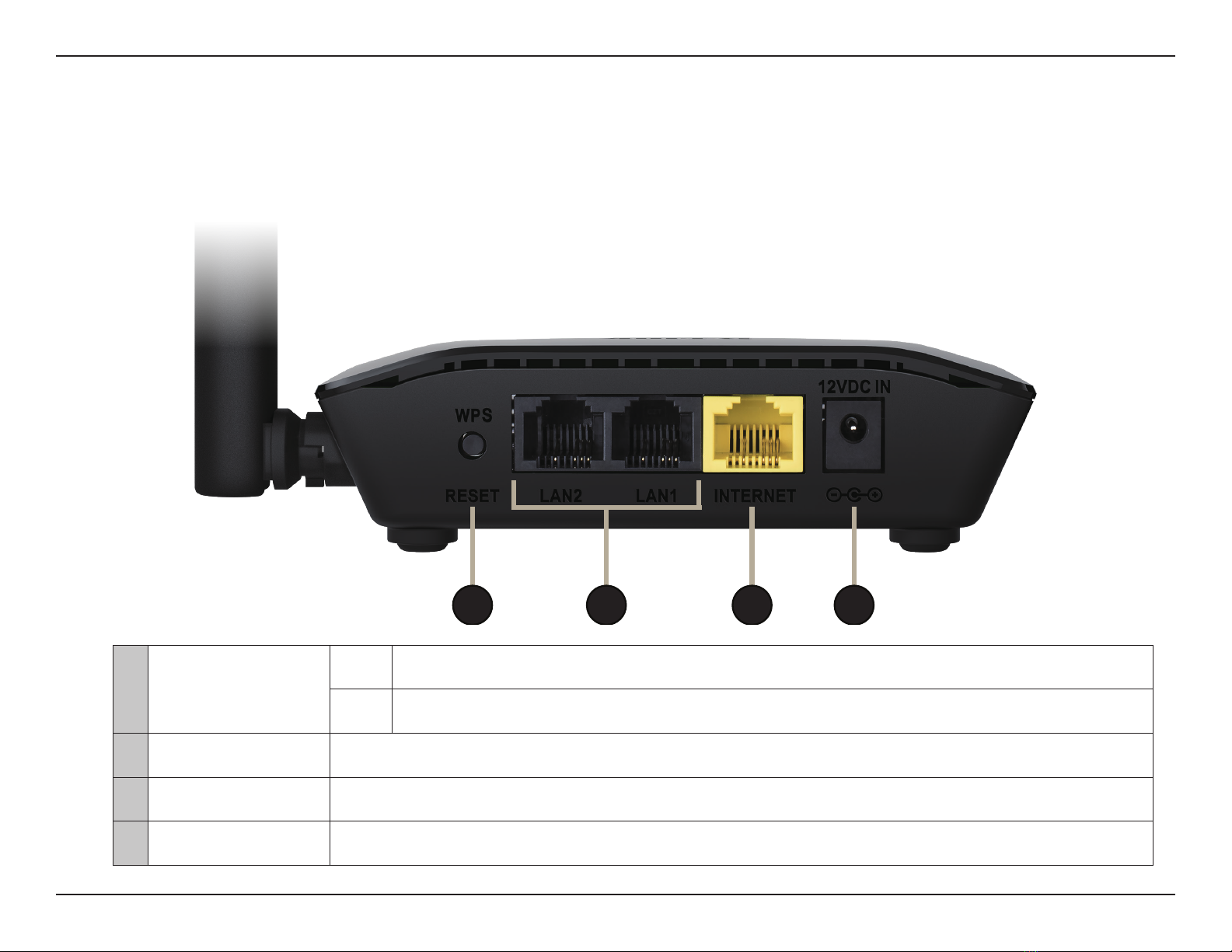

Back Panel
1 Reset & WPS Button
WPS Press and hold for about one second to start the WPS process to automatically connect aWPS client.
Reset To reset the device to its factory default settings, press and hold the reset button for ve seconds.
2 LAN Ports (1-2) Connects to Ethernet devices such as computers, switches, storage (NAS) devices, and game consoles.
3 Internet Port Using an Ethernet cable, connect your broadband modem to this port.
4 Power Connector Connector for the supplied power adapter.
1 2 3 4

7D-Link DIR-608 User Manual
Section 1 - Product Overview
Choosing an Operation Mode
The DIR-608 features two modes of operation, giving you more exibility in how to congure your network. You may select
either Router Mode or Repeater Mode.
• Router Mode shares your Internet connection. This is the factory default setting suitable for most users.
• Repeater Mode extends your existing wireless network.
The following pages contain information about the DIR-608's operation modes to help you determine how you wish to use it
before you begin the installation process.This information includes usage scenarios, cable diagrams, and network conguration
information.

8D-Link DIR-608 User Manual
Section 1 - Product Overview

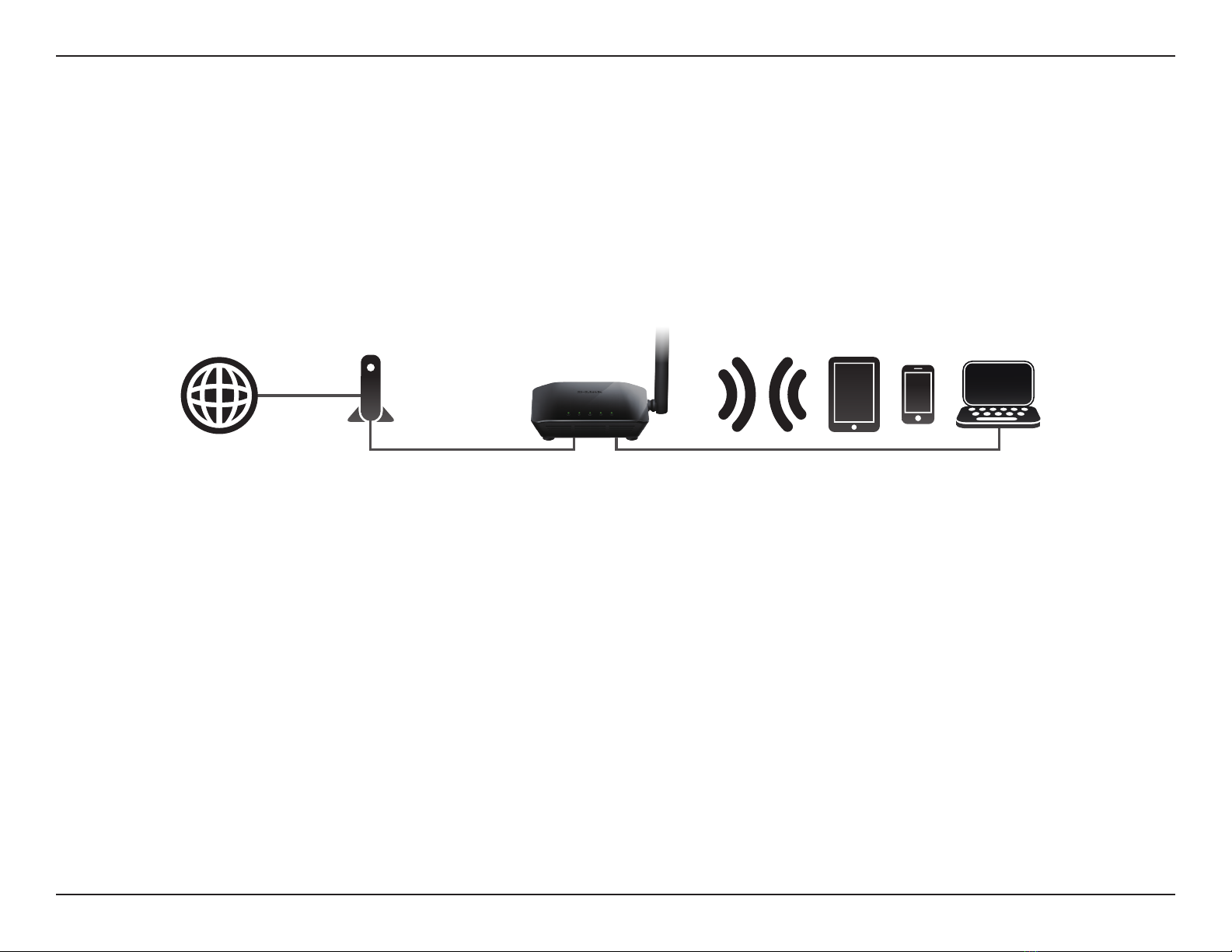

Router Mode
In Router Mode, the DIR-608 Wireless N 150 Home Router operates as the central device of your network. This is the most
common type of installation and is the factory default setting suitable for most users. The DIR-608 connects to your cable
modem, DSL modem, or other Internet source and shares your Internet connection with your wired and wireless devices.
Create a Home Network (Router Mode)
Use this mode for:
• Setting up a network for the rst time.
• Replacing an existing router or network equipment.
• Adding a router to share a broadband connection which was previously connected to a single computer.
Place your DIR-608 near your broadband Internet connection device (e.g. DSL/Cable Modem) and connect to it via Ethernet
cable.
To use your DIR-608 as a Router, refer to Hardware Setup - Router on page 13.
Wired and Wireless DevicesBroadband
Connection Device
(e.g. DSL/Cable Modem)
Internet DIR-608

9D-Link DIR-608 User Manual
Section 1 - Product Overview
Existing Wi-Fi Range Wi-Fi Range with DIR-608

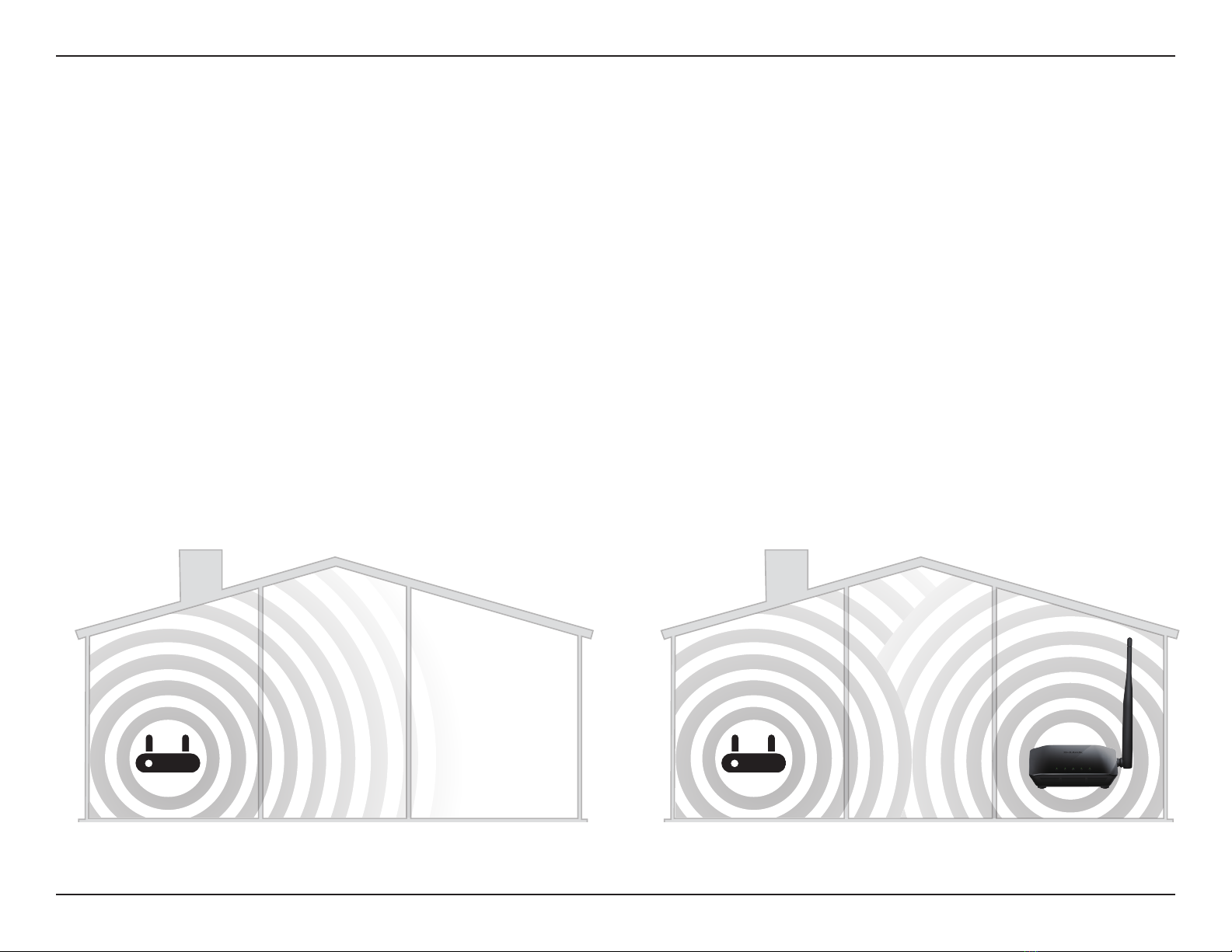

What is a Wireless Repeater?
In Repeater Mode, the DIR-608 works with your existing networking equipment to provide Wi-Fi for parts of your home or
oce that may have poor or no reception. It works as a wireless repeater by connecting to your existing wireless network and
rebroadcasting its signals for your devices to connect to. Using the DIR-608 as a wireless repeater will reduce the total amount
of wireless bandwidth available.
Place the DIR-608 in an area where you wish to get Wi-Fi, but is reachable by your existing wireless signal.
Wireless Repeater Mode

10D-Link DIR-608 User Manual
Section 1 - Product Overview

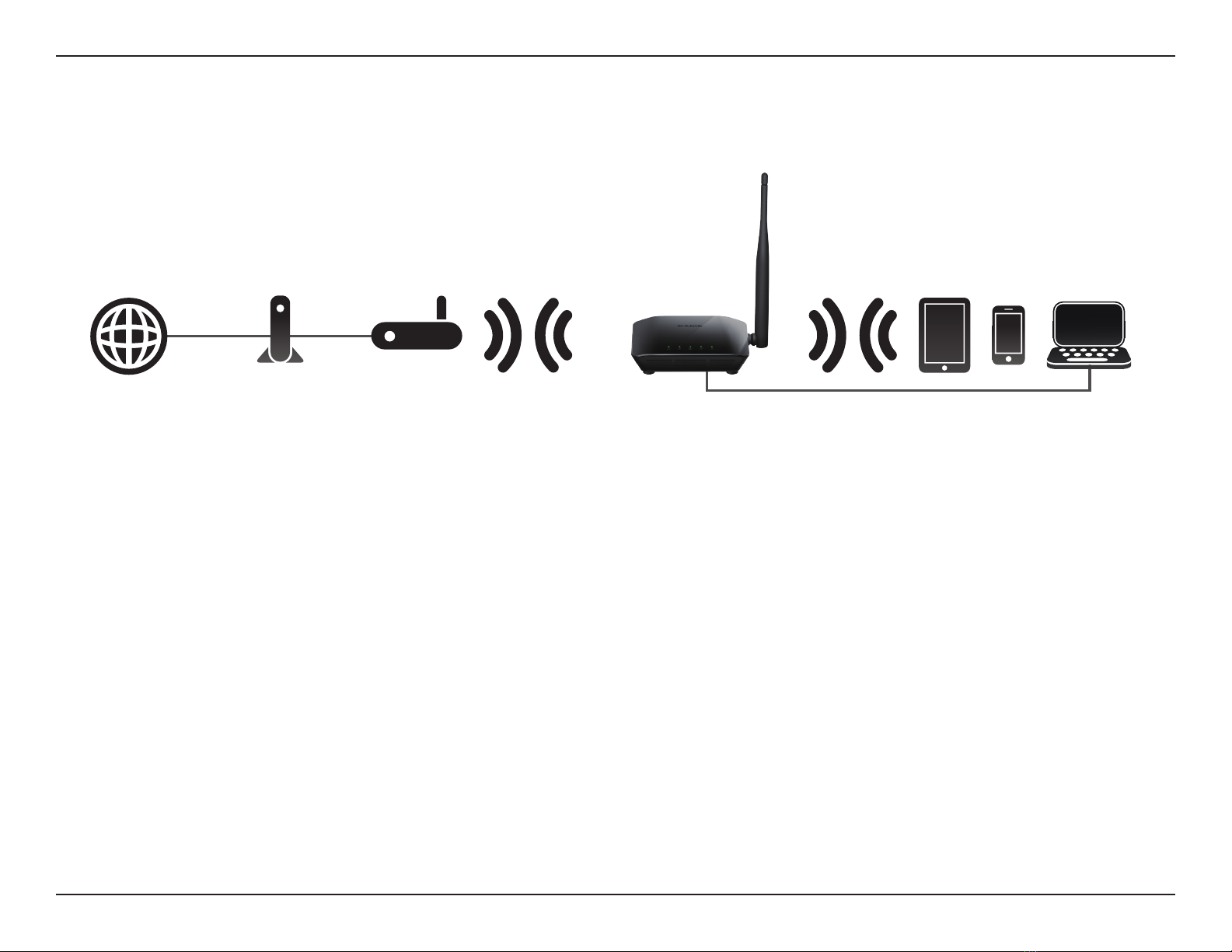

The DIR-608 operates as a Wireless Repeater when it is connected wirelessly to an uplink network.
Wireless Repeater
Use this mode for:
• Extending your current network.
• Bringing Wi-Fi to an area it doesn't currently reach.
• Providing better signal for parts of your home or oce that may have poor reception.
• Connecting wired Ethernet devices which do not have a built-in wireless, such as smart TVs, game consoles, or DVRs.
• Networking areas where cables are impractical.
Note: Extending by Wi-Fi reduces the total available amount of wireless bandwidth available.
To use your DIR-608 as a Wireless Repeater, refer to Hardware Setup - Wireless Repeater on page 15.
Use the DIR-608's Wireless Extender Mode's built-in web UI Setup Wizard to connect to an uplink network.
Wired and Wireless DevicesBroadband
Connection Device
(e.g. DSL/Cable Modem)
Existing
Network
Internet DIR-608

11D-Link DIR-608 User Manual
Section 2 - Installation
Before You Begin
Installation
This section will walk you through the installation process. Placement of the router is very important. Do not place the router
in an enclosed area such as a closet, cabinet, or in the attic or garage.
• Congure the router with the computer that was last connected directly to your Internet connection. Verify that
it is connected to the Internet before connecting additional devices.
• If your ISP provided you with a modem/router combo, you will need to set it to “bridge” mode so the router can
work properly. Please contact your ISP or refer to the user manual for your modem/router device.
• You can only use the Ethernet port on your modem. If you were using the USB connection before using the router,
then you must turn o your modem, disconnect the USB cable and connect an Ethernet cable to the Internet
port on the router, and then turn the modem back on. In some cases, you may need to call your Internet Service
Provider (ISP) to change connection types (USB to Ethernet).
• If connecting to a DSL modem, make sure to have your DSL service information provided by your ISP handy. This
information is likely to include your DSL account's username and password. Your ISP may also supply you with
additional WAN conguration settings which might be necessary to establish a connection.
• If you are connecting a considerable amount of networking equipment, it may be a good idea to take the time
to label each cable or take a picture of your existing setup before making any changes.
• If you have DSL and are connecting via PPPoE, make sure you disable or uninstall any PPPoE software such as
WinPoET, BroadJump, or EnterNet 300 from your computer or you will not be able to connect to the Internet.
• If you are using this device as a wireless repeater, you may need to use trial and error to determine an acceptable
placement location.

12D-Link DIR-608 User Manual
Section 2 - Installation
Wireless Installation Considerations
The D-Link wireless router lets you access your network using a wireless connection from virtually anywhere within the
operating range of your wireless network. Keep in mind, however, that the number, thickness and location of walls, ceilings,
or other objects that the wireless signals must pass through, may limit the range. Typical ranges vary depending on the types
of materials and background RF (radio frequency) noise in your home or business. The key to maximizing wireless range is to
follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link router and other network devices to a minimum -
each wall or ceiling can reduce your adapter’s range from 3 to 90 feet (1 to 30 meters). Position your devices
so that the number of walls or ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet (0.5 meters) thick, at a
45-degree angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters)
thick! Position devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for
better reception.
3. Building materials make a dierence. A solid metal door or aluminum studs may have a negative eect on
range. Try to position access points, wireless routers, and computers so that the signal passes through drywall
or open doorways. Materials and objects such as glass, steel, metal, walls with insulation, water (sh tanks),
mirrors, le cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product away (at least 3 to 6 feet or 1 to 2 meters) from electrical devices or appliances that generate
RF noise.
5. If you are using 2.4 GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home
security systems), your wireless connection may degrade dramatically or drop completely. Make sure your 2.4
GHz phone base is as far away from your wireless devices as possible. The base transmits a signal even if the
phone in not in use.
6. Using the device as a wireless repeater will reduce the total amount of wireless bandwidth available.

13D-Link DIR-608 User Manual
Section 2 - Installation
DIR-608

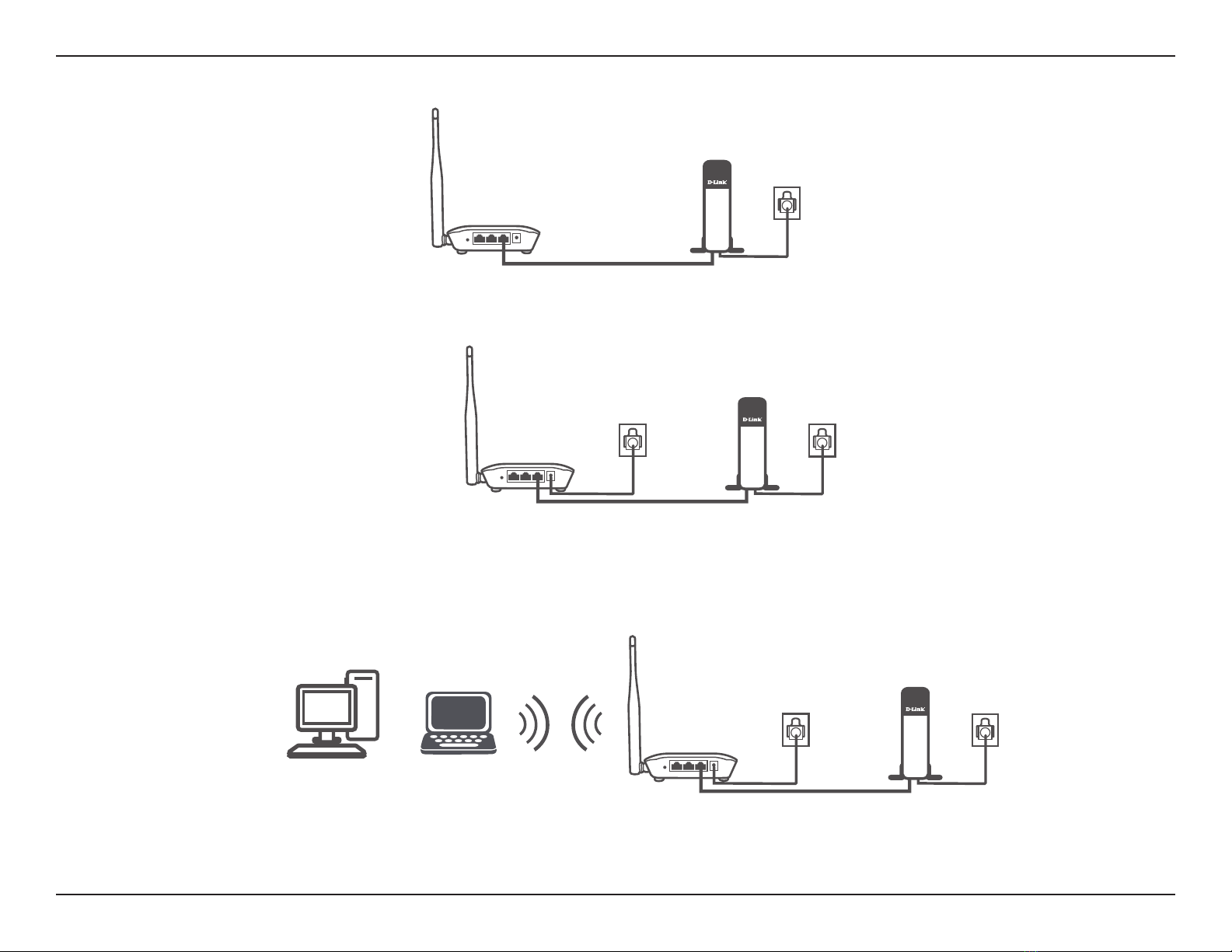

Hardware Setup - Router
1. Position your DIR-608 near your Internet-connected modem and PC. Keep the router in an open area for better wireless
coverage.
2. Turn o and unplug the power and Ethernet cable to your cable or DSL broadband modem. This is required. In some
cases, you may need to turn it o for up to ve minutes.
DIR-608
Modem
Modem
3. Use the included Ethernet cable to connect your modem to the yellow port labeled INTERNET on the router.
Modem
DIR-608

14D-Link DIR-608 User Manual
Section 2 - Installation
4. Turn on or plug your modem back in and wait approximately one minute before proceeding.
6. If you are conguring the DIR-608 from a PC with a wired Ethernet connection, plug one end of an Ethernet cable
into the port labeled 1 on the back of the router, and the other end into the Ethernet port on your computer.
If you are conguring the DIR-608 wirelessly from a PC, connect to the Wi-Fi network printed on the label attached
to the bottom your router.
7. If you are connecting to a broadband service that uses a dynamic connection (not PPPoE), you may be online already.
Try opening a web browser and connecting to a website. If the website does not load, proceed to Getting Started on
page 16.
5. Connect the supplied power adapter to the router and a power outlet, verify the power LED is on and wait approximately
one minute before proceeding.
Modem
DIR-608
Modem
DIR-608
Modem
DIR-608

15D-Link DIR-608 User Manual
Section 2 - Installation

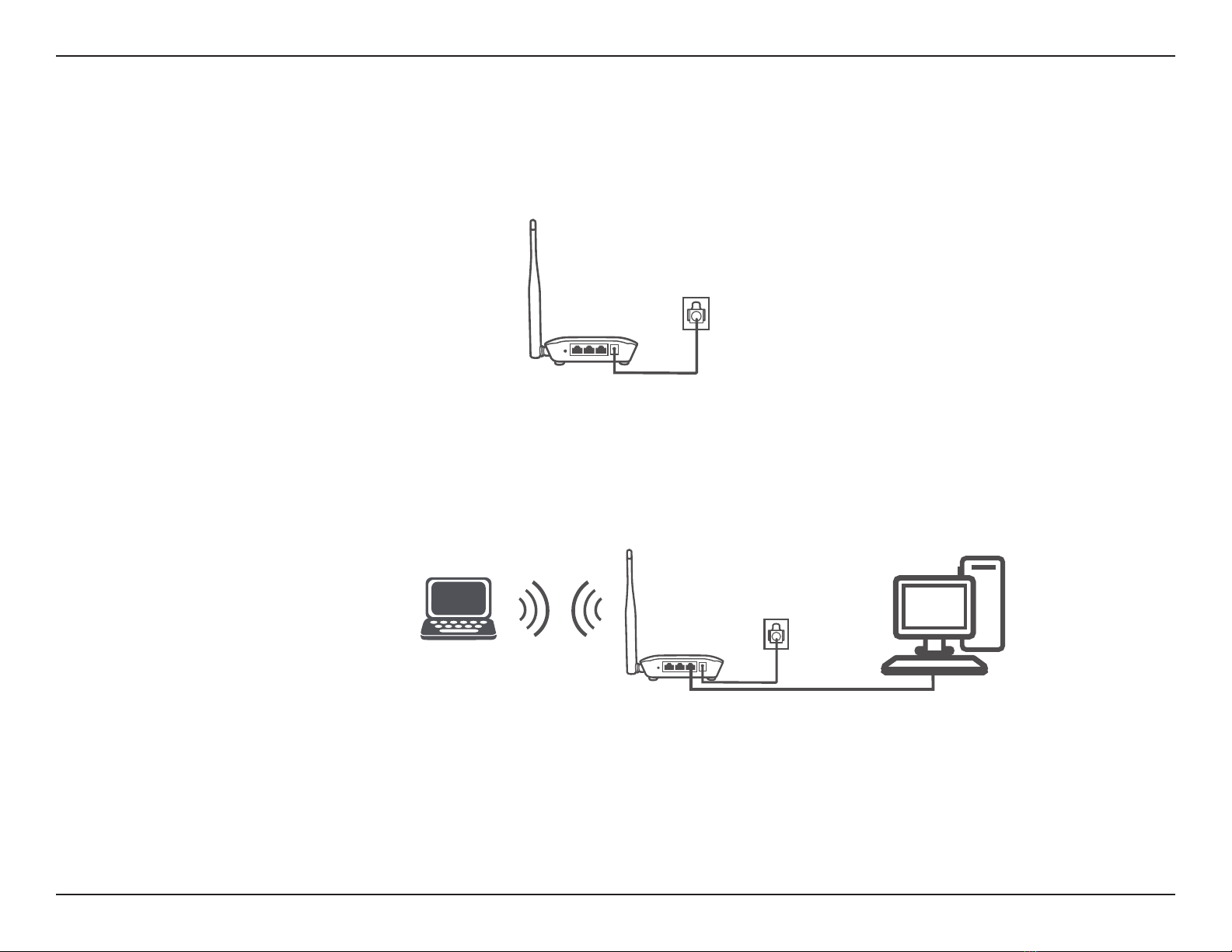

Hardware Setup - Wireless Repeater
1. Position your DIR-608 near where you wish to extend Wi-Fi to. Place it in an open area for better wireless coverage,
but is still within range of your existing wireless network. We recommend using a smartphone or tablet to help gauge
wireless strength. Connect the supplied power adapter to the DIR-608 and a power outlet.
2. If you are conguring the DIR-608 from a PC with a wired Ethernet connection, plug one end of an Ethernet cable
into the port labeled 1 on the back of the router, and the other end into the Ethernet port on your computer.
If you are conguring the DIR-608 wirelessly from a PC, connect to the Wi-Fi network printed on the label attached
to the bottom your router.
3. Proceed to Getting Started on page 16 and then follow the instructions Wireless Repeater Setup on page 58
to complete the installation of your DIR-608 as a wireless repeater.
DIR-608
DIR-608

16D-Link DIR-608 User Manual
Section 3 - Conguration

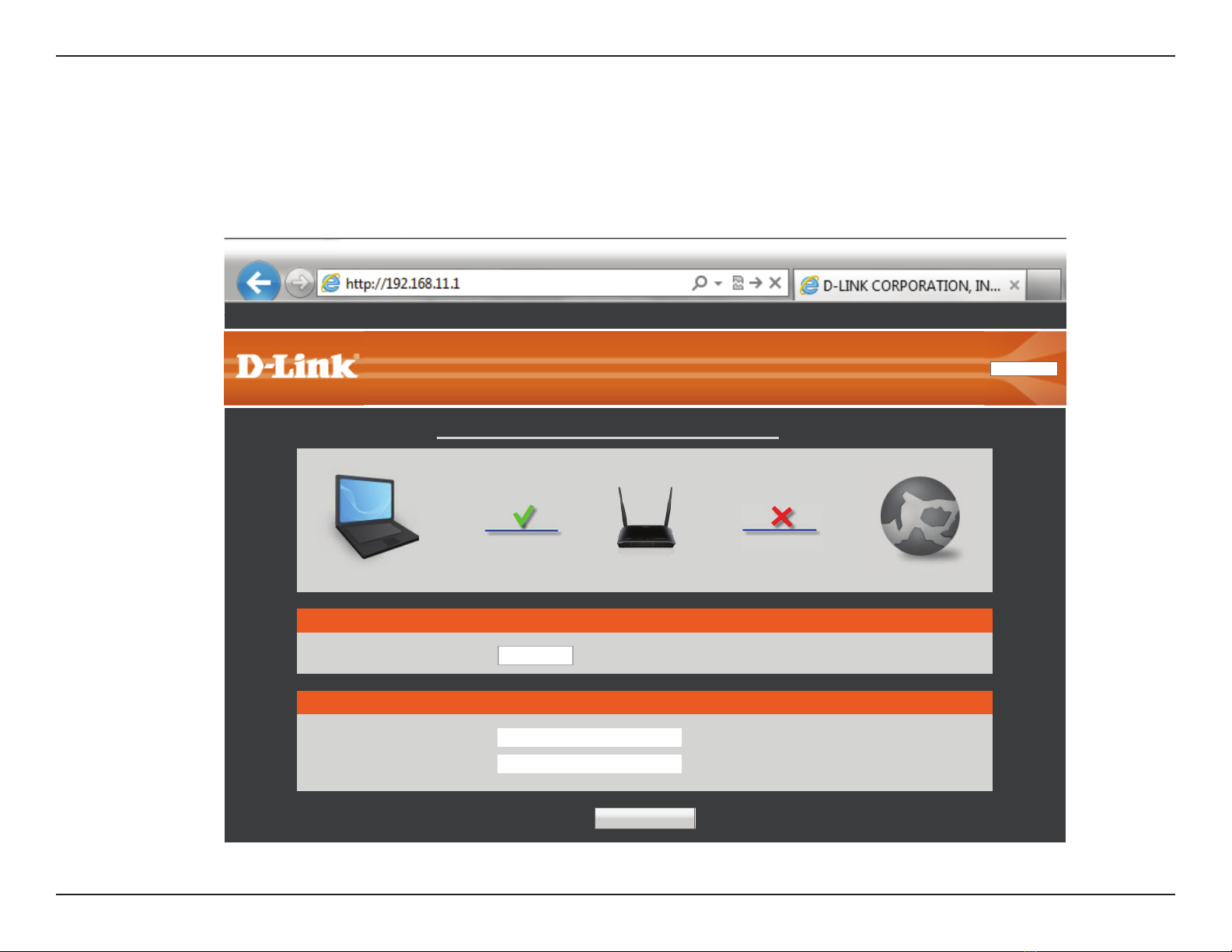

To access the conguration utility, open a web browser such as Internet Explorer and enter http://192.168.11.1 in the address eld. The rst time
you log in, you will be shown this page.
Congure your WAN and Wireless network. Click the Save and Connect button when you are nished.
Note: It is recommended to write down the SSID and security key.
Wireless Setup
SSID: D-Link_DIR-608
Key: (8-63 characters or 64 hex digits)
WAN Setup
Connect type: DHCP ▼
The Wireless tab provides access to congure the wireless networking feature of your DIR-608.
Product Page: DIR-608
English
Select Language ▼
Save and Connect Advanced Network
Settings
LAN IP 192.168.11.1 Internet IP 0.0.0.0 DHCP
InternetRouterClient
Network Map
Getting Started
