D-Link DIR-808L User manual

User Manual
Version 1.0 | July 16, 2013
DIR-808L
Wireless AC600
Dual Band Cloud Router

iD-Link DIR-808L User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any
person or organization of such revisions or changes.
Manual Revisions
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United
States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of
their respective companies.
Copyright © 2013 by D-Link Systems, Inc.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission
from D-Link Systems, Inc.
Preface
Revision Date Description
1.0 July 16, 2013 • Initial release for Revision A1

iiD-Link DIR-808L User Manual
Table of Contents
Preface................................................................................. i
Manual Revisions........................................................................... i
Trademarks ...................................................................................... i
Product Overview.............................................................. 1
Package Contents......................................................................... 1
System Requirements................................................................. 2
Introduction ................................................................................... 3
Hardware Overview..................................................................... 4

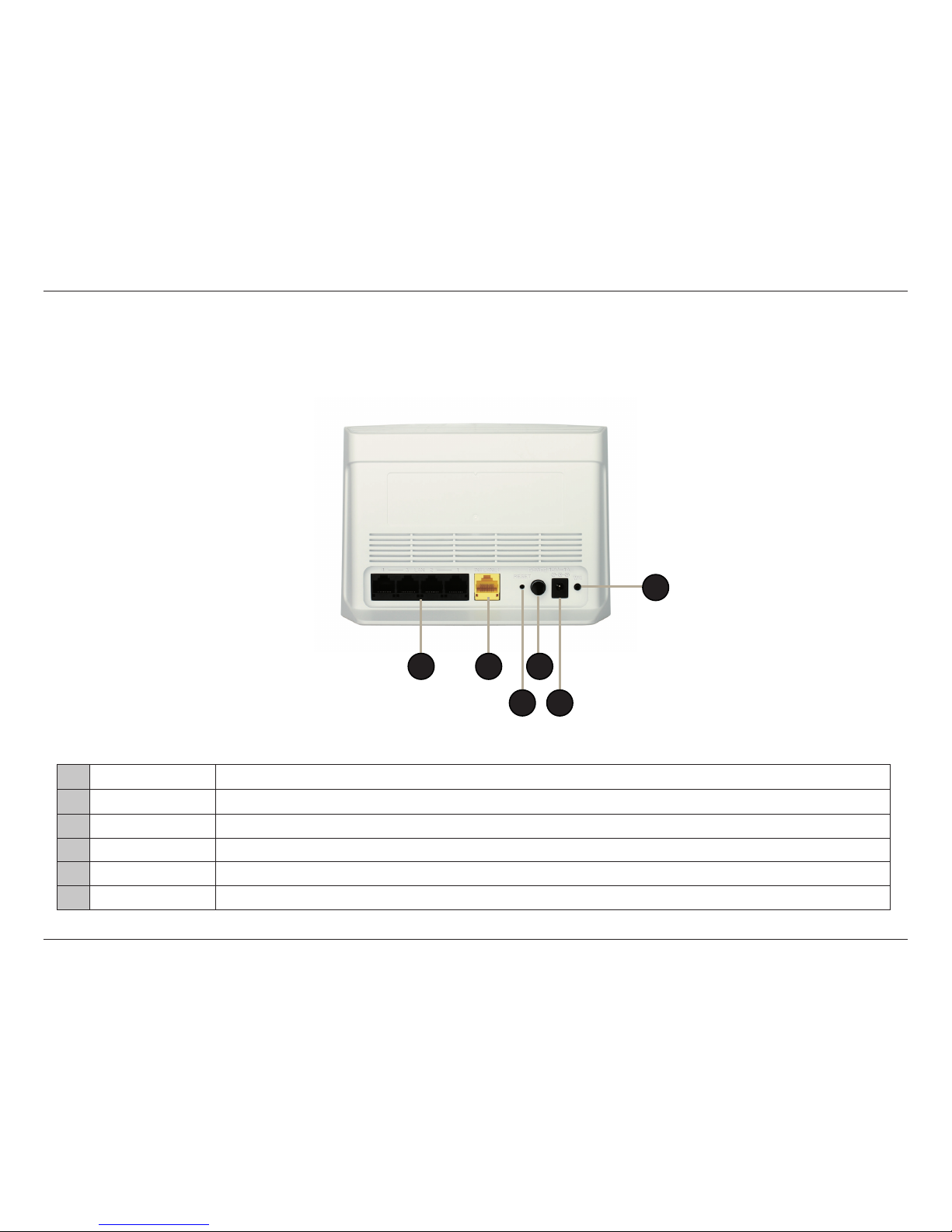

Connections ........................................................................... 4

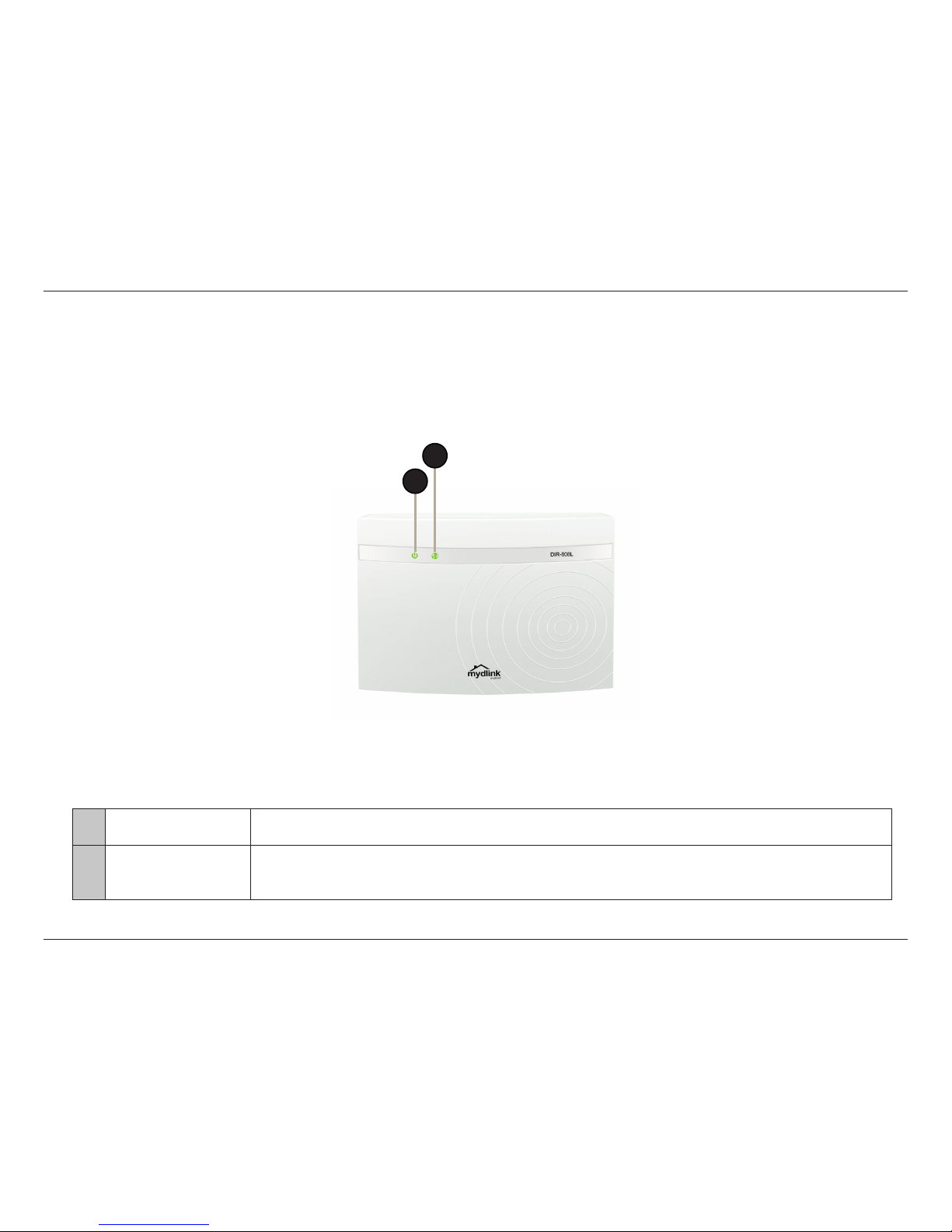

LEDs........................................................................................... 5
Installation ......................................................................... 6
Before you Begin........................................................................... 6
Wireless Installation Considerations...................................... 7

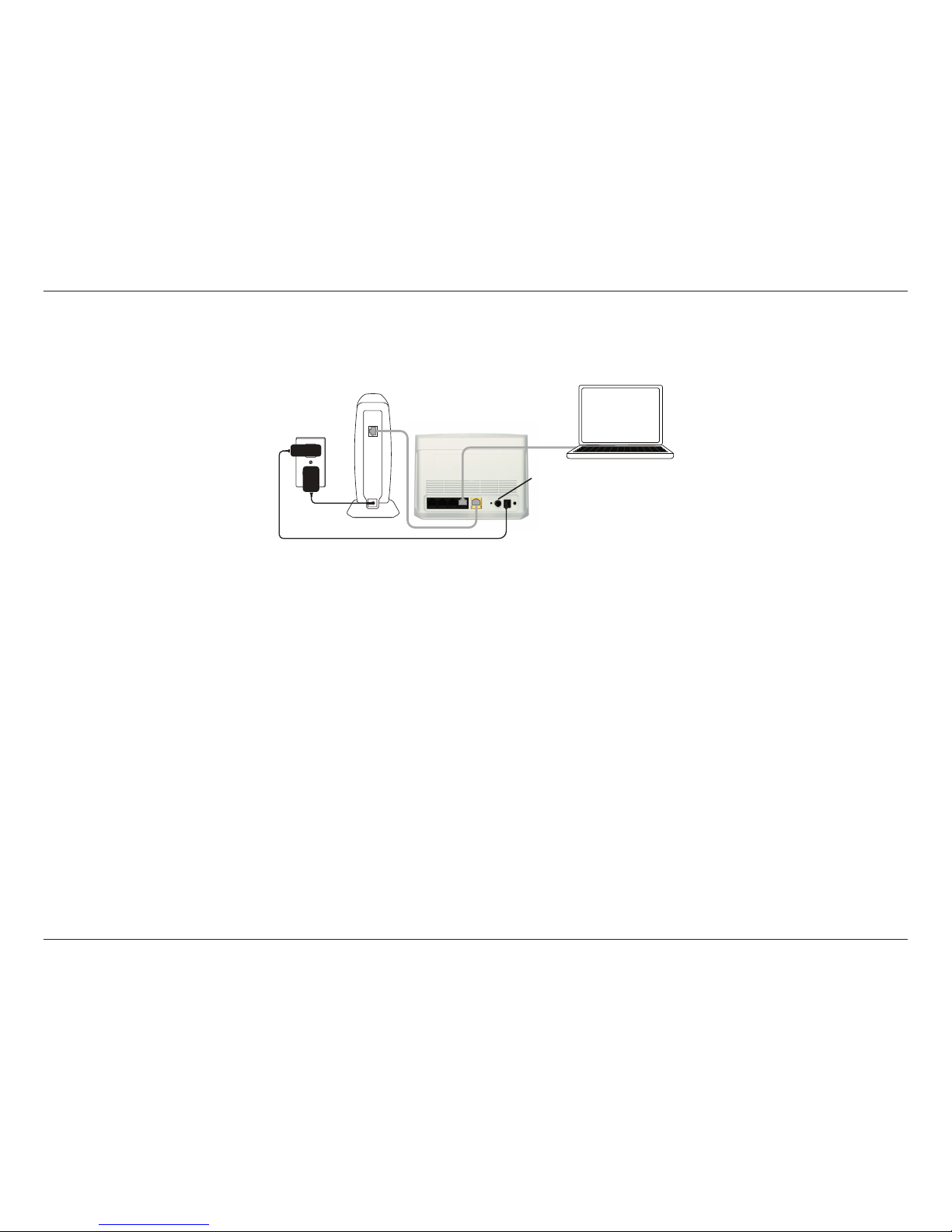

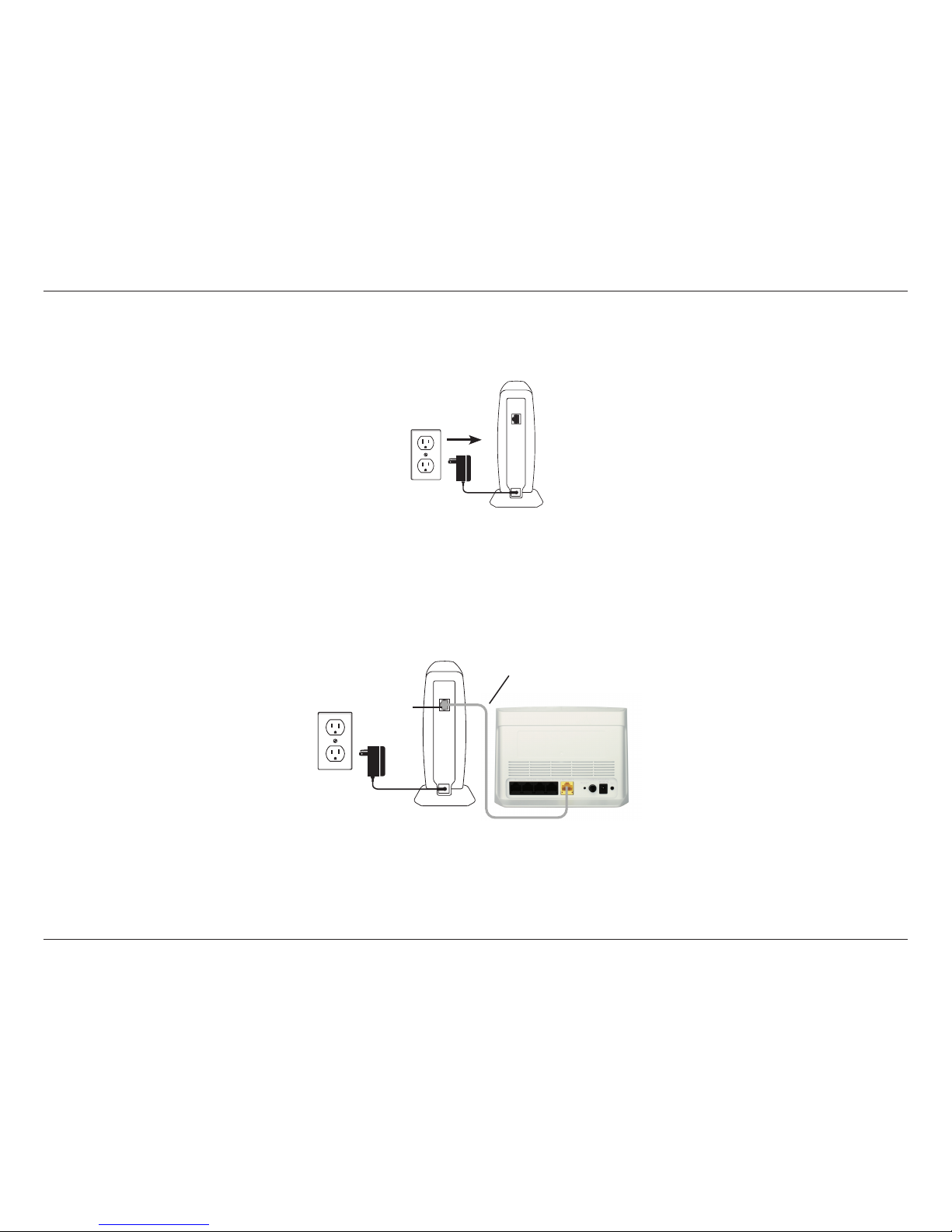

Connect to your Network.......................................................... 8

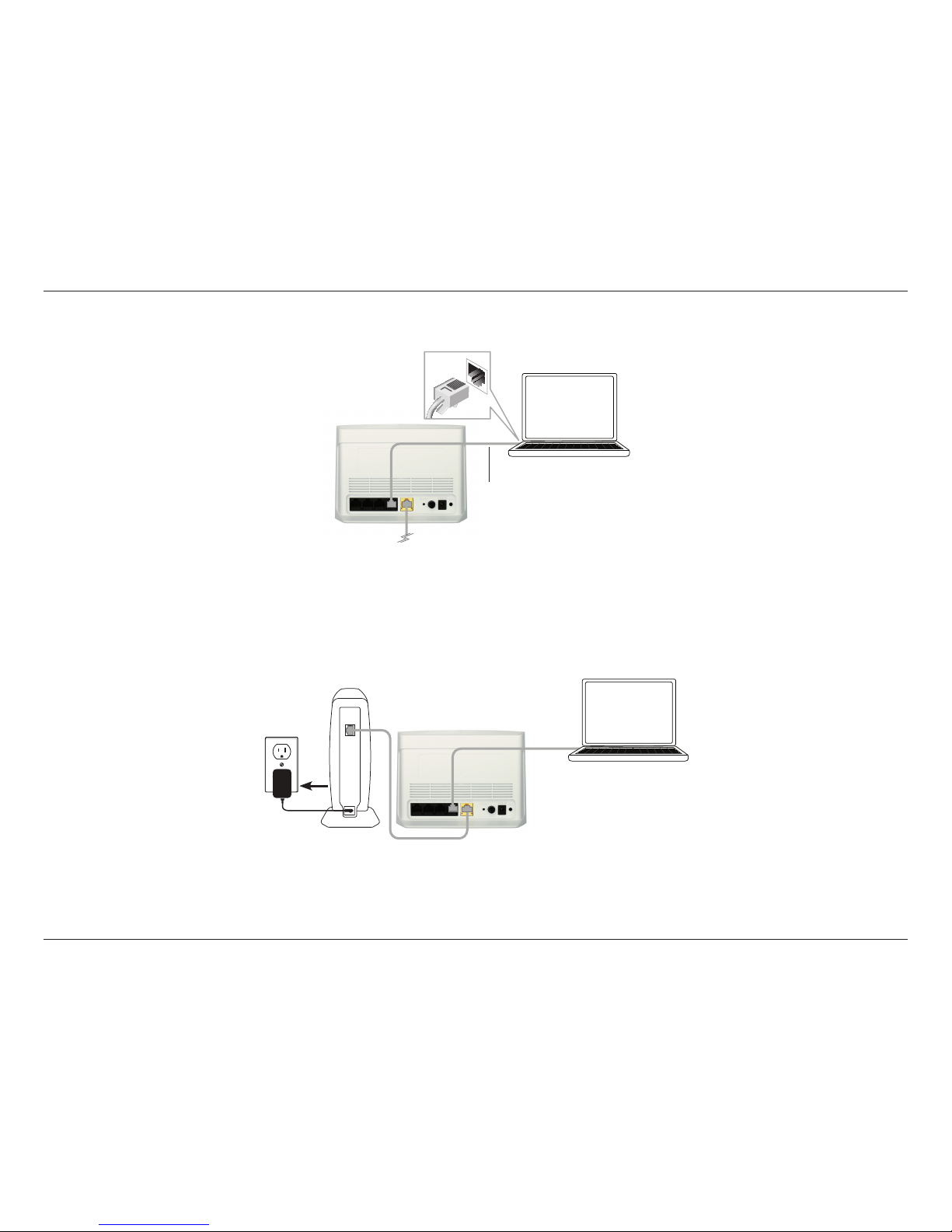

Connect to an Existing Router...............................................11
Conguration...................................................................13

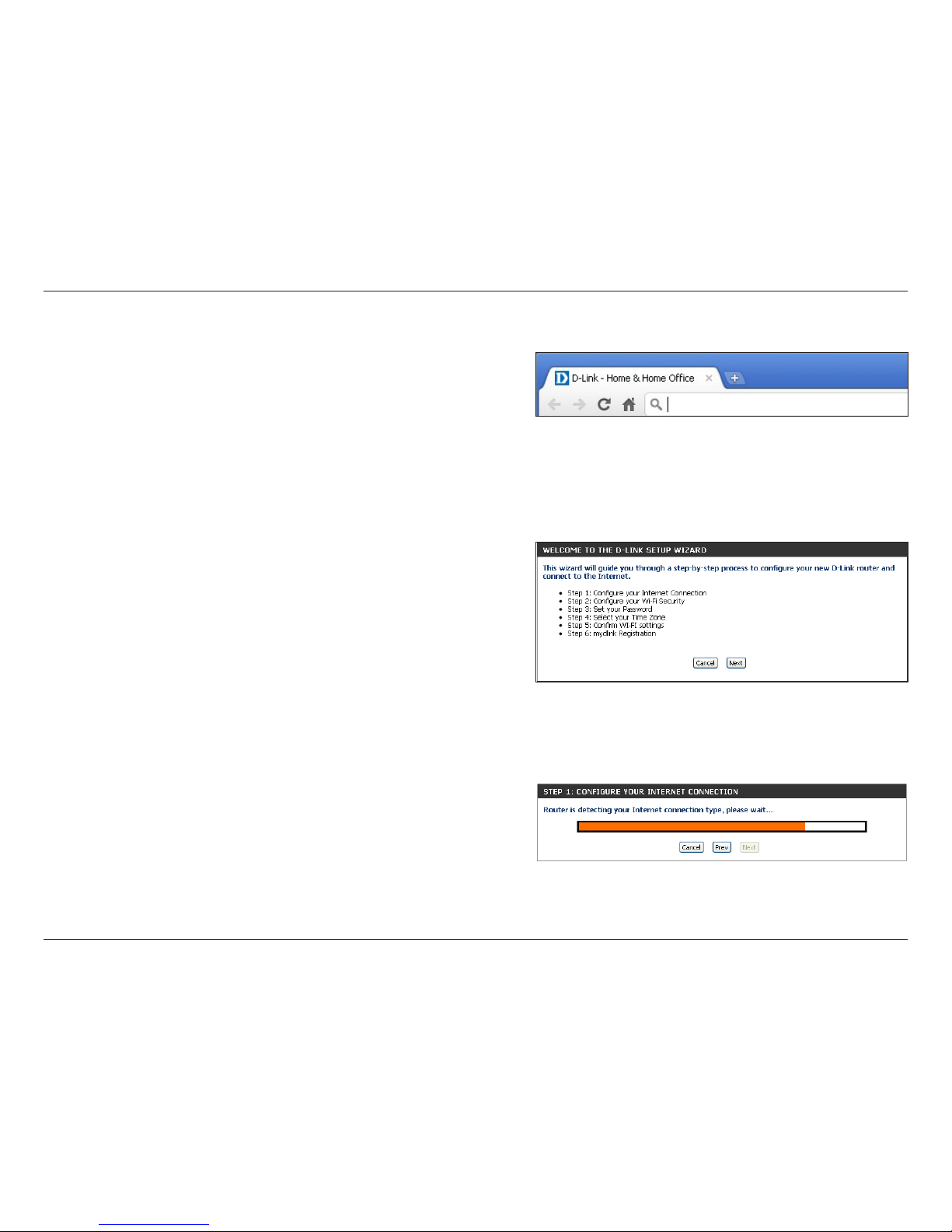

Quick Setup Wizard....................................................................14
QRS Mobile App..........................................................................21
Web-based Conguration Utility..........................................22
Internet Connection Setup .............................................23
Static (assigned by ISP)................................................24
Dynamic (Cable).............................................................25
PPPoE (DSL)......................................................................26
PPTP....................................................................................27
L2TP ....................................................................................29
DS-Lite ...............................................................................31

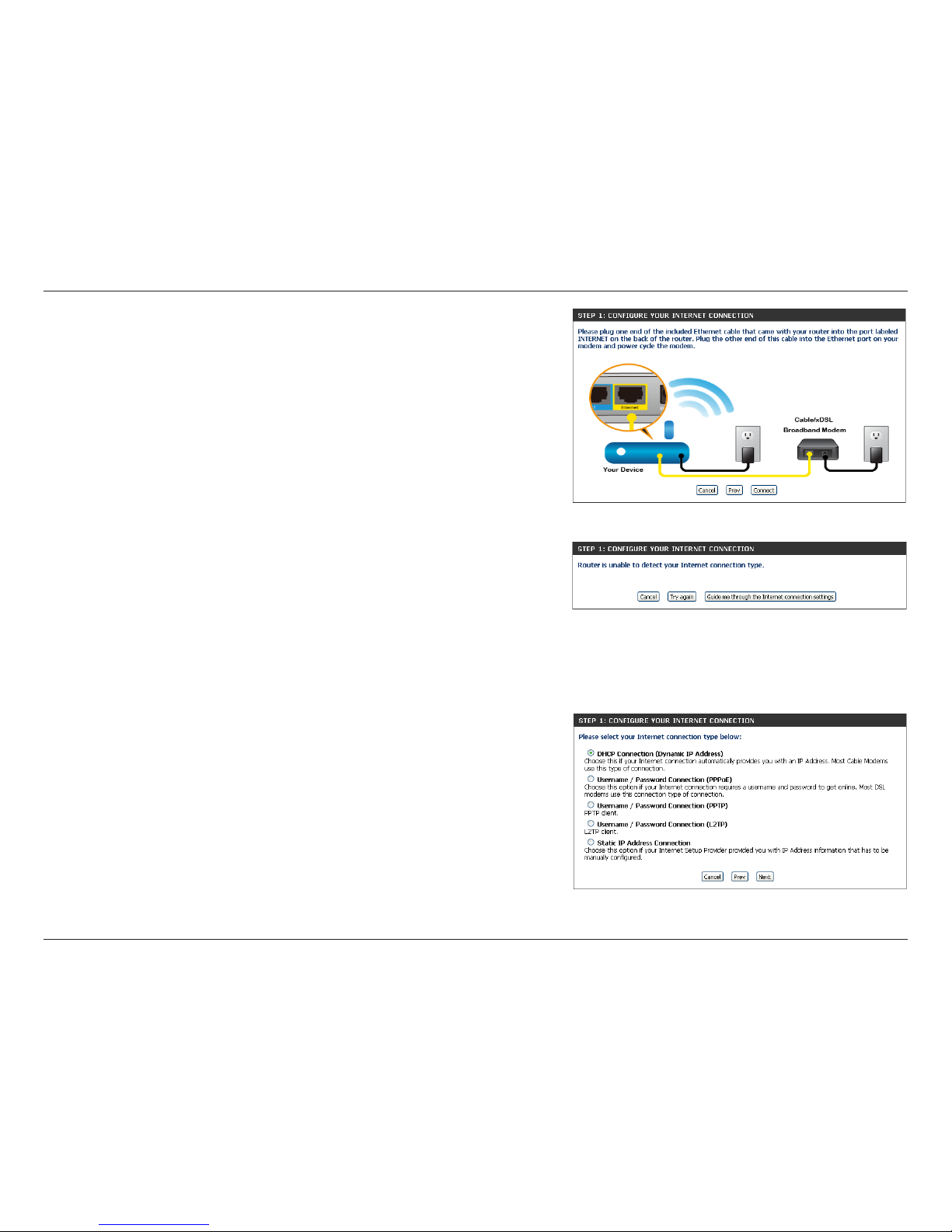

Internet Connection Setup Wizard.......................................32
Wireless Settings.................................................................37
Wireless Network Setup Wizard................................38
Add Wireless Device with WPS Wizard...................40
Manual Wireless Settings ............................................42
802.11n/g (2.4GHz)..................................................42
802.11ac/n/a (5GHz) ...............................................43
Wireless Security .................................................................44
What is WPA? ...................................................................44
WPA/WPA2-Personal (PSK) .........................................45
Congure WPA/WPA2-Enterprise (RADIUS)..........46
Network Settings ................................................................48
Router Settings...............................................................48
DHCP Server Settings...................................................49
DHCP Reservation .........................................................51
IPv6 ..........................................................................................52
IPv6 Internet Connection Setup Wizard ................54
IPv6 Manual Setup.........................................................59
Auto Detection .........................................................59
Static IPv6 ...................................................................60
Autoconguration...................................................61
PPPoE............................................................................62
IPv6 in IPv4 Tunneling............................................64
6 to 4 Tunneling........................................................65
Table of Contents

iiiD-Link DIR-808L User Manual
Table of Contents
6rd .................................................................................66
Local Connectivity ...................................................67
mydlink Settings .................................................................68
Advanced...............................................................................69
Virtual Server...................................................................69
Port Forwarding .............................................................70
Application Rules...........................................................71
QoS Engine.......................................................................72
Network (MAC) Filters ..................................................74
Access Control.................................................................75
Access Control Wizard............................................75
Website Filters.................................................................78
Inbound Filters................................................................79
Firewall Settings.............................................................80
Routing..............................................................................82
Advanced Wireless ........................................................83
Wi-Fi Protected Setup (WPS) .....................................84
WPS Button ................................................................85
Advanced Network Settings......................................86
Guest Zone.......................................................................87
IPv6 Firewall.....................................................................88
IPv6 Routing ....................................................................89
Tools ........................................................................................90
Admin.................................................................................90
Time....................................................................................91
SysLog................................................................................92
Email Settings..................................................................93
System ...............................................................................94
Firmware ...........................................................................95
Language Pack Upgrade.............................................95
Dynamic DNS ..................................................................96
System Check ..................................................................98
Schedules .........................................................................99
Status ................................................................................... 100
Device Info .................................................................... 100
Logs.................................................................................. 101
Statistics ......................................................................... 102
Internet Sessions......................................................... 103
Wireless........................................................................... 104
Routing........................................................................... 105
IPv6 .................................................................................. 106
IPV6 Routing................................................................. 107
Support ............................................................................... 108
Connect a Wireless Client to your Router ....................109
WPS Button................................................................................ 109
Windows® 8................................................................................ 110
Windows® 7................................................................................ 112
WPA/WPA2 ......................................................................... 112
WPS....................................................................................... 115
Windows Vista®......................................................................... 119
WPA/WPA2 ......................................................................... 120
WPS/WCN 2.0 .................................................................... 122
Windows® XP............................................................................. 123
WPA/WPA2 ......................................................................... 124

ivD-Link DIR-808L User Manual
Table of Contents
Troubleshooting ............................................................126
Reset Router/Forgot Password ........................................... 127
Wireless Basics ...............................................................130
What is Wireless?...................................................................... 131
Tips................................................................................................ 133
Wireless Modes......................................................................... 134
Networking Basics.........................................................135
Check your IP address............................................................ 135
Windows® 8 Users............................................................ 135
Windows® 7/Vista® Users............................................... 135
Windows® XP Users......................................................... 135
Statically Assign an IP Address ........................................... 136
Windows® 8 Users ............................................................ 136
Windows® 7/ Vista® Users .............................................. 137
Windows® XP Users......................................................... 138
Technical Specications ................................................139
Contacting Technical Support ......................................140
GPL Code Statement......................................................141
Warranty.........................................................................153
Registration ...................................................................160

1D-Link DIR-808L User Manual
Section 1 - Product Overview
Product Overview
Package Contents
Note: Using a power supply with a dierent voltage rating than the one included with the DIR-808L will cause damage and void the warranty
for this product.
If any of the above items are missing, please contact your reseller.
DIR-808L Wireless AC600 Dual Band Cloud Router
Power Adapter
Ethernet Cable
Wi-Fi Conguration Card
Quick Install Guide

2D-Link DIR-808L User Manual
Section 1 - Product Overview
Network Requirements • An Ethernet-based broadband modem
Web-based Conguration
Utility Requirements
Computer with the following:
• Windows®, Macintosh, or Linux-based operating system
• An installed Ethernet adapter or wireless adapter
Supported Browsers:
• Internet Explorer 7 or higher
• Firefox
• Safari 4 or higher
• Chrome
Windows®Users: Make sure you have the latest version of Java
installed. Visit www.java.com to download the latest version.
mydlink Requirements
• iPhone/iPad/iPod Touch (iOS 3.0 or higher)
• Android device (1.6 or higher)
• Computer with the following browser requirements:
• Internet Explorer 7 or higher
• Firefox
• Safari 5 or higher
• Chrome
iPhone, iPad, and iPod touch are registered trademarks of Apple Inc. Android is a trademark of Google, Inc.
System Requirements

3D-Link DIR-808L User Manual
Section 1 - Product Overview
Introduction
The DIR-808LWireless AC600 Dual Band Cloud Router provides revolutionary wireless speed - up to 150Mbps (802.11n)/433Mbps
(802.11ac) - for awless HD video streaming to multiple devices.
With ground-breaking mydlink Cloud Services, you can monitor your home network from anywhere on your iPhone, iPad,
and Android device. See websites that are being visited, block unwanted devices and receive automatic e-mail alerts when
unauthorized connections are attempted.
* Maximum wireless signal rate derived from IEEE Standard 802.11ac (draft), 802.11a, 802.11g, and 802.11n specications. Actual data throughput will vary. Network conditions
and environmental factors, including volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental
conditions will adversely aect wireless signal range.

4D-Link DIR-808L User Manual
Section 1 - Product Overview
6
Hardware Overview
Connections
1LAN Ports (1-4) Connect Ethernet devices such as computers, media players, and video game consoles.
2Internet Port Connect your broadband modem to this port using an Ethernet cable.
3Reset Button Press and hold the reset button with a paper clip for ten seconds to reset the router to the factory default settings.
4Power Button Press the power button to power on and o.
5Power Port Connect the supplied power adapter.
6WPS Button Press to start the WPS process. The Power LED will start to blink.
4
3
1 2
5

5D-Link DIR-808L User Manual
Section 1 - Product Overview
1Power LED A solid green light indicates a proper connection to the power supply. The light will be solid orange during boot-up
and will blink green during the WPS process.
2Internet LED
A solid green light indicates a connection to the Internet port. If the LED is orange, the connection is good but
the router cannot connect to the Internet. If this LED is blinking orange, this indicates that the “on demand”
connection type is set and the Internet connection is idle.
Hardware Overview
LEDs
2
1

6D-Link DIR-808L User Manual
Section 2 - Installation
Before you Begin
Installation
This section will walk you through the installation process. Placement of the router is very important. Do not place the router
in an enclosed area such as a closet, cabinet, or in the attic or garage.
• Please congure the router with the computer that was last connected directly to your modem.
• Users with DSL providers - If you are using a PPPoE connection, you will need your PPPoE user name and password.
If you do not have this information, contact your Internet provider. Do not proceed until you have this information.
• Users with Cable providers - Make sure you unplug the power to your modem. In some cases, you may need to turn
it o for up to 5 minutes.
•Advanced Users - If your ISP provided you with a modem/router combo, you will need to set it to“bridge”mode so
the DIR-808L router can work properly. Please contact your ISP or refer to the user manual for your modem/router
device.

7D-Link DIR-808L User Manual
Section 2 - Installation
Wireless Installation Considerations
The D-Link wireless router lets you access your network using a wireless connection from virtually anywhere within the
operating range of your wireless network. Keep in mind, however, that the number, thickness and location of walls, ceilings,
or other objects that the wireless signals must pass through, may limit the range. Typical ranges vary depending on the types
of materials and background RF (radio frequency) noise in your home or business. The key to maximizing wireless range is to
follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link router and other network devices to a minimum -
each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your devices so that
the number of walls or ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a 45-degree angle
appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick! Position
devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for better reception.
3. Building Materials make a dierence. A solid metal door or aluminum studs may have a negative eect on range.
Try to position access points, wireless routers, and computers so that the signal passes through drywall or open
doorways. Materials and objects such as glass, steel, metal, walls with insulation, water (sh tanks), mirrors, le
cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF
noise.
5. If you are using 2.4GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home security
systems), your wireless connection may degrade dramatically or drop completely. Make sure your 2.4GHz phone
base is as far away from your wireless devices as possible. The base transmits a signal even if the phone in not
in use.

8D-Link DIR-808L User Manual
Section 2 - Installation
1. Turn o and unplug your DSL or Cable modem. This is required.
Connect to your Network
Modem
2. Connect an Ethernet cable from the Internet port of the router to the Ethernet port on your DSL or Cable modem.
Modem
DIR-808L
Internet Port (yellow)
Ethernet Port
Ethernet Cable

9D-Link DIR-808L User Manual
Section 2 - Installation
4. Plug the power back into your DSL or Cable modem. Please wait about one minute before continuing.
3. Connect another Ethernet cable from the Ethernet port on your computer to one of the LAN ports on the router.
DIR-808L
Computer
Ethernet Cable
Modem DIR-808L
Computer

10D-Link DIR-808L User Manual
Section 2 - Installation
6. After the router has powered up, verify that the power (green) and Internet (orange or green) LEDs are both lit.
Please skip to page 13 to congure your router and use the manual setup procedure to congure your network
and wireless settings. If you did not connect to the Internet, use the D-Link Setup Wizard (refer to page 14).
5. Plug the power adapter into your router and connect to an available power outlet or surge protector. If the
Power LED does not light up, press the Power button on the back of the router.
Modem
Computer
DIR-808L
Power Button

11D-Link DIR-808L User Manual
Section 2 - Installation
Note: It is strongly recommended to replace your existing router with the DIR-808L instead of using both. If your modem is a combo
router, you may want to contact your ISP or manufacturer’s user guide to put the router into Bridge mode, which will ‘turn o’ the
router (NAT) functions.
If you are connecting the DIR-808L router to an existing router to use as a wireless access point and/or switch, you will have
to do the following to the DIR-808L before connecting it to your network:
• Disable UPnP™
• Disable DHCP
• Change the LAN IP address to an available address on your network. The LAN ports on the router cannot accept
a DHCP address from your other router.
To connect to another router, please follow the steps below:
1. Plug the power into the router. Connect one of your computers to the router (LAN port) using an Ethernet cable. Make sure
your IP address on the computer is 192.168.0.xxx (where xxx is between 2 and 254). Please see the Networking Basics
section for more information. If you need to change the settings, write down your existing settings before making any
changes. In most cases, your computer should be set to receive an IP address automatically in which case you will not have
to do anything to your computer.
2. Open a web browser, enter http://192.168.0.1 (or http://dlinkrouter.local./) and press Enter. When the login window
appears, set the user name to Admin and leave the password box empty. Click Log In to continue.
3. Click on Advanced and then click Advanced Network. Uncheck the Enable UPnP checkbox. Click Save Settings to continue.
4. Click Setup and then click Network Settings. Uncheck the Enable DHCP Server checkbox. Click Save Settings to continue.
Connect to an Existing Router

12D-Link DIR-808L User Manual
Section 2 - Installation
5. Under Router Settings, enter an available IP address and the subnet mask of your network. Click Save Settings to save your
settings. Use this new IP address to access the conguration utility of the router in the future. Close the browser and change
your computer’s IP settings back to the original values as in Step 1.
6. Disconnect the Ethernet cable from the router and reconnect your computer to your network.
7. Connect an Ethernet cable in one of the LAN ports of the router and connect it to your other router. Do not plug anything
into the Internet (WAN) port of the D-Link router.
8. You may now use the other 3 LAN ports to connect other Ethernet devices and computers.To congure your wireless network,
open a web browser and enter the IP address you assigned to the router. Refer to the Conguration and Wireless Security
sections for more information on setting up your wireless network.

13D-Link DIR-808L User Manual
Section 2 - Installation
There are several dierent ways you can congure your router to connect to the Internet and connect to your clients:
• QRS Mobile App - Use your iPhone, iPad, or Android device to congure your router. Refer to page 21
• D-Link Setup Wizard - This wizard will launch when you log into the router for the rst time. Refer to page 14.
• Manual Setup - Log into the router and manually congure your router (advanced users only). Refer to page 23.
Conguration

14D-Link DIR-808L User Manual
Section 3 - Conguration
If this is your rst time logging into the router, this wizard will
start automatically.
This wizard is designed to guide you through a step-by-step
process to congure your new D-Link router and connect to the
Internet.
Click Next to continue.
Quick Setup Wizard
If this is your rst time installing the router, launch your web
browser (e.g., Internet Explorer), and you will automatically be
directed to the Setup Wizard screen.
If you have already congured your settings, or if you are asked
to login, and you would like to access the Conguration Utility,
refer to page 22.
Please wait while your router detects your internet connection type.
If the router detects your Internet connection, you may need to enter
your ISP information such as username and password. (See instructions
on page 16 for PPPoE, PPTP and L2TP).

15D-Link DIR-808L User Manual
Section 3 - Conguration
If the router does not detect a valid Ethernet connection from the
Internet port, this screen will appear. Connect your broadband modem
to the Internet port and then click Connect.
If the router detects an Ethernet connection but does not detect the type
of Internet connection you have, this screen will appear. Click Guide me
through the Internet Connection Settings to display a list of connection
types to choose from.
Select your Internet connection type and click Next to continue. You
can select DHCP Connection (Dynamic IP Address) if your Internet
connection automatically provides you with an IP Address. This option
is commonly used for cable modem services. Click Next to continue.
