D-Link DIR-816 User manual

Quick Installation Guide

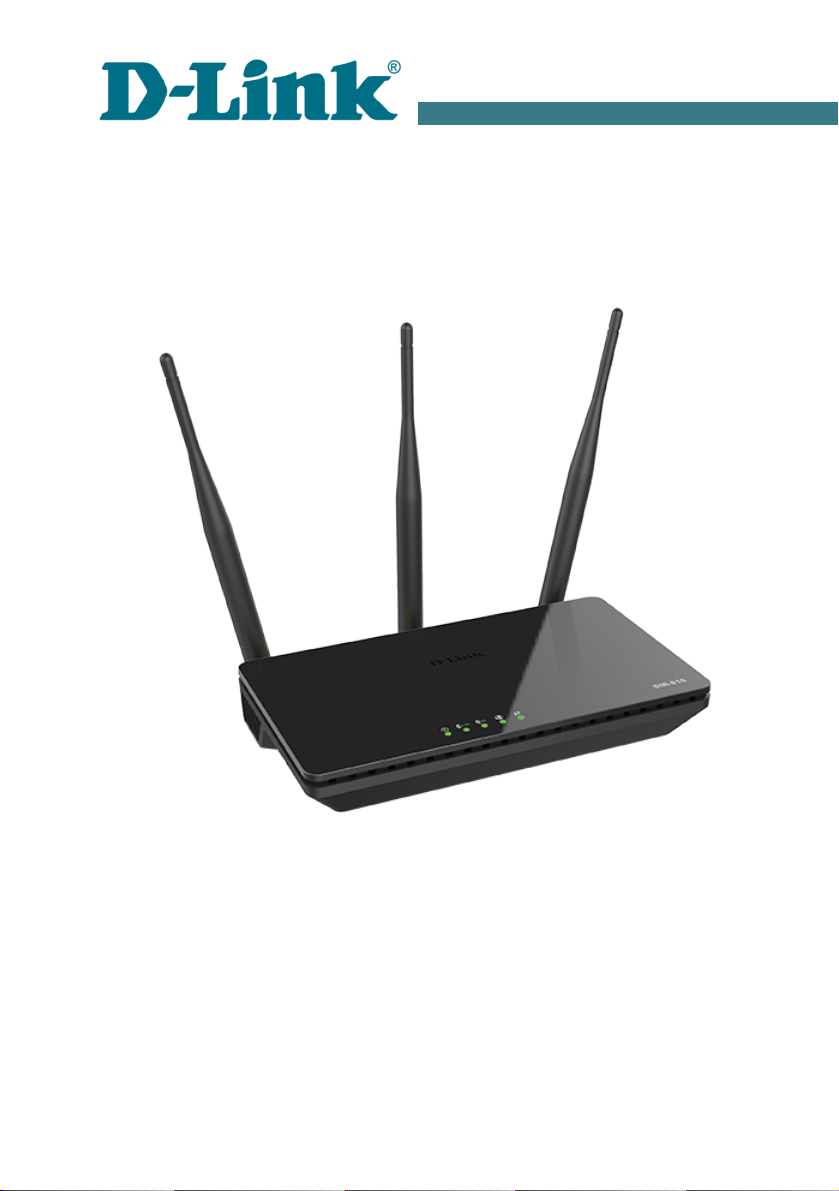

DIR-816
Wireless AC750 Dual Band Router with 3G/ TE
Support and USB Port

DIR-816 Quick Installation Guide
BEFORE YOU BEGIN
Delivery Package
•Router DIR-816
•Power adapter DC 12V/1A
•Ethernet cable
•“Quick Installation Guide” brochure).
If any of the items are missing, please contact your reseller.
The “User Manual” and “Quick Installation Guide” documents are available
on D-Link website see www.dlink.ru).
!Using a power supply with a different voltage rating than the one
included will cause damage and void the warranty for this product.
2

DIR-816 Quick Installation Guide
Default Settings
IP add ess of wi eless oute 192.168.0.1
Use name (login) admin
Passwo d admin
Name of wi eless netwo k (SSID)
2.4GHz DIR-816
5GHz DIR-816-5G
Netwo k key (PSK passwo d)
see WPS PIN on the
barcode label on the
bottom panel of the
device
!
Router DIR-816 with default settings cannot connect to the Internet. To
get started, please set your own password for access to the web-based
interface and change the WLAN name SSID); then, if needed,
configure other settings recommended by your ISP.
3

DIR-816 Quick Installation Guide
System Requirements and Equipment
•A computer with any operating system that supports a web browser.
•A web browser to access the web-based interface of the router:
◦Apple Safari 8 and later
◦Google Chrome 48 and later
◦Microsoft Internet Explorer 10 and later
◦Microsoft Edge 20.10240 and later
◦Mozilla Firefox 44 and later
◦Opera 35 and later.
•A NIC Ethernet or Wi-Fi adapter) to connect to the router.
•An 802.11a, b, g, n, or ac Wi-Fi adapter to create a wireless network.
•A USB modem when it is necessary to connect to the Internet via mobile
operators' networks)1.
!
Your USB modem should be equipped with an active SIM card of your
operator.
Some operators require subscribers to activate their USB modems prior
to using them. Please, refer to connection guidelines provided by your
operator when concluding the agreement or placed on its website.
For some models of LTE USB modems, it is required to disable the PIN
code check on the SIM card prior to connecting the USB modem to the
router.
1 Contact your operator to get information on the service coverage and fees.
4

DIR-816 Quick Installation Guide
CONNECTING TO PC
PC with Ethernet Adapter
1. Make sure that your PC is powered off.
2. Connect an Ethernet cable between any of LAN ports located on the back
panel of the router and the Ethernet port of your PC.
3. To connect via USB modem: connect your USB modem to the USB port2
located on the back panel of the router.
!In some cases you will need to reboot the router after connection of the
USB modem.
4. Connect the power cord to the power connector port on the back panel of
the router, then plug the power adapter into an electrical outlet or power
strip.
5. Turn on the router by pressing the ON/OFF button on its back panel.
6. Turn on your PC and wait until your operating system is completely
loaded.
Now you should configure your PC to obtain an IP address automatically as
DHCP client).
2 It is recommended to use a USB extension cable to connect a USB modem to the
router.
5

DIR-816 Quick Installation Guide
Obtaining P Address Automatically
in OS Windows XP
1. Click the Sta t button and proceed to the Cont ol Panel > Netwo k
and Inte net Connections > Netwo k Connections window.
2. In the Netwo k Connections window, right-click the relevant Local
A ea Connection icon and select the P ope ties line in the menu
displayed.
3. In the Local A ea Connection P ope ties window, on the Gene al
tab, select the Inte net P otocol (TCP/IP) line. Click the P ope ties
button.
6

DIR-816 Quick Installation Guide
4. Select the Obtain an IP add ess automatically and Obtain DNS
se ve add ess automatically radio buttons. Click the OK button.
5. Click the ОК button in the connection properties window.
Now your computer is configured to obtain an IP address automatically.
7

DIR-816 Quick Installation Guide
Obtaining P Address Automatically
in OS Windows 7
1. Click the Sta t button and proceed to the Cont ol Panel window.
2. Select the Netwo k and Sha ing Cente section. If the Control Panel
has the category view the Catego y value is selected from the View by
drop-down list in the top right corner of the window), choose the View
netwo k status and tasks line under the Netwo k and Inte net
section.)
3. In the menu located on the left part of the window, select the Change
adapte settings line.
4. In the opened window, right-click the relevant Local A ea Connection
icon and select the P ope ties line in the menu displayed.
5. In the Local A ea Connection P ope ties window, on the
Netwo king tab, select the Inte net P otocol Ve sion 4 (TCP/IPv4)
line. Click the P ope ties button.
8

DIR-816 Quick Installation Guide
6. Select the Obtain an IP add ess automatically and Obtain DNS
se ve add ess automatically radio buttons. Click the OK button.
7. Click the OK button in the connection properties window.
Now your computer is configured to obtain an IP address automatically.
9

DIR-816 Quick Installation Guide
PC with Wi-Fi Adapter
1. To connect via USB modem: connect your USB modem to the USB port3
located on the back panel of the router.
!In some cases you will need to reboot the router after connection of the
USB modem.
2. Connect the power cord to the power connector port on the back panel of
the router, then plug the power adapter into an electrical outlet or power
strip.
3. Turn on the router by pressing the ON/OFF button on its back panel.
4. Turn on your PC and wait until your operating system is completely
loaded.
5. Turn on your Wi-Fi adapter. As a rule, modern notebooks with built-in
wireless NICs are equipped with a button or switch that turns on/off the
wireless adapter refer to your PC documents). If your PC is equipped
with a pluggable wireless NIC, install the software provided with your
Wi-Fi adapter.
Now you should configure your Wi-Fi adapter.
3 It is recommended to use a USB extension cable to connect a USB modem to the
router.
