D-Link WR830A1 User manual

DC-HSPA+ Mobile Router
DWR-830
User Manual
Version 1.0 | 10/15/2013

D-Link DWR-830 User Manual i
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify
any person or organization of such revisions or changes.
Manual Revisions
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United
States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks
of their respective companies.
Copyright © 2013 by D-Link Corporation, Inc.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission
from D-Link Corporation, Inc.
Revision Date Description
1.0 October 15, 2013 • Initial release
Preface

D-Link DWR-830 User Manual ii
Table of Contents
Preface................................................................................. i
Manual Revisions........................................................................... i
Trademarks ...................................................................................... i
Product Overview.............................................................. 1
Package Contents......................................................................... 1
System Requirements................................................................. 1
Introduction ................................................................................... 2
Hardware Overview..................................................................... 3
Left Side.................................................................................... 3
OLED Display.......................................................................... 4
Installation ......................................................................... 6
Connect to Your Network .......................................................... 6
Insert a microSD Card ................................................................. 6
Driver Installation ......................................................................... 7
Wireless Installation Considerations...................................... 8
Conguration..................................................................... 9
Initial Connection to the Router .............................................9
Connect via USB.................................................................... 9
Connect via Wi-Fi ................................................................10
Web-based Conguration.......................................................12
Conguration Utility..........................................................12
Home ..............................................................................................13
Navigation.............................................................................13
Device Status........................................................................14
Home.......................................................................................15
Wizard.............................................................................................16
Internet...........................................................................................18
Connection ...........................................................................18
Conguration.......................................................................20
IPv4 - PDP Context.........................................................20
IPv4 - Static Setting .......................................................21
IPv4 - 4to6.........................................................................22
IPv6 - PDP Context.........................................................23
IPv6 - Static Setting .......................................................24
IPv6 - DHCPv6 .................................................................25
IPv6 - Tethering...............................................................26
IPv6 - 6to4.........................................................................27
IPv6 - 6rd...........................................................................28
2G/3G Modem .....................................................................29
SIM ...........................................................................................30
PLMN.......................................................................................31
Network .........................................................................................32
Wi-Fi.........................................................................................33
DHCP .......................................................................................34
DHCPv6 ..................................................................................36
NAT...........................................................................................40
NAT 64.....................................................................................42
SMS..................................................................................................43
New Message.......................................................................43
Local ........................................................................................43
Table of Contents

D-Link DWR-830 User Manual iii
Table of Contents
Wi-Fi.................................................................................................44
Basic.........................................................................................44
Wireless Security .................................................................46
Wired Equivalent Privacy (WEP) ...............................46
Wi-Fi Protected Access (WPA)....................................47
WLAN Authentication and Privacy Infrastructure
(WAPI).................................................................................48
Wi-Fi Protected Setup (WPS) .....................................49
MAC Filter ..............................................................................50
Station Lists...........................................................................51
Advanced ......................................................................................52
IPv4 .....................................................................................52
IPv6 .....................................................................................53
RIP.............................................................................................54
LAN IPv6 RA ..........................................................................55
IPv6 Multicast.......................................................................58
Security ..........................................................................................59
Firewall ...................................................................................59
IP Filter ...............................................................................59
IPv6 Filter ..........................................................................60
MAC Filter .........................................................................61
DDOS..................................................................................62
URL Filter...........................................................................63
Application ...................................................................................64
About ......................................................................................64
Conguration.......................................................................65
Firmware Upgrade..............................................................66
Standby Mode .....................................................................67
Password................................................................................68
Date and Time......................................................................69
Language...............................................................................71
System Log............................................................................72
Connecting to a Wireless Network .................................73
Using Windows 8 .......................................................................73
Connecting to a Wireless Network .................................75
Using Windows 7 .......................................................................75
Conguring Wireless Security ........................................77
Using Windows Vista™ ..............................................................80
Conguring Wireless Security ........................................81
Using Windows®XP ....................................................................83
Congure WEP.....................................................................84
Congure WPA-PSK............................................................86
Troubleshooting ..............................................................88
Networking Basics...........................................................90
Check your IP address...............................................................90
Statically Assign an IP address...............................................91
Technical Specications..................................................92
Warnings and Declarations ............................................93

D-Link DWR-830 DC-HSPA+ Mobile Router
D-Link DWR-830 User Manual 1
Section 1 - Product Overview
System Requirements
• A compatible (U)SIM card with mobile data service1
• A computer a with Windows®, Macintosh® , or Linux-based operating systems
• Internet Explorer 8, Firefox 12.0, Chrome 20.0 , or Safari 4.0
1 Subject to services and service terms available from your carrier.
Product Overview

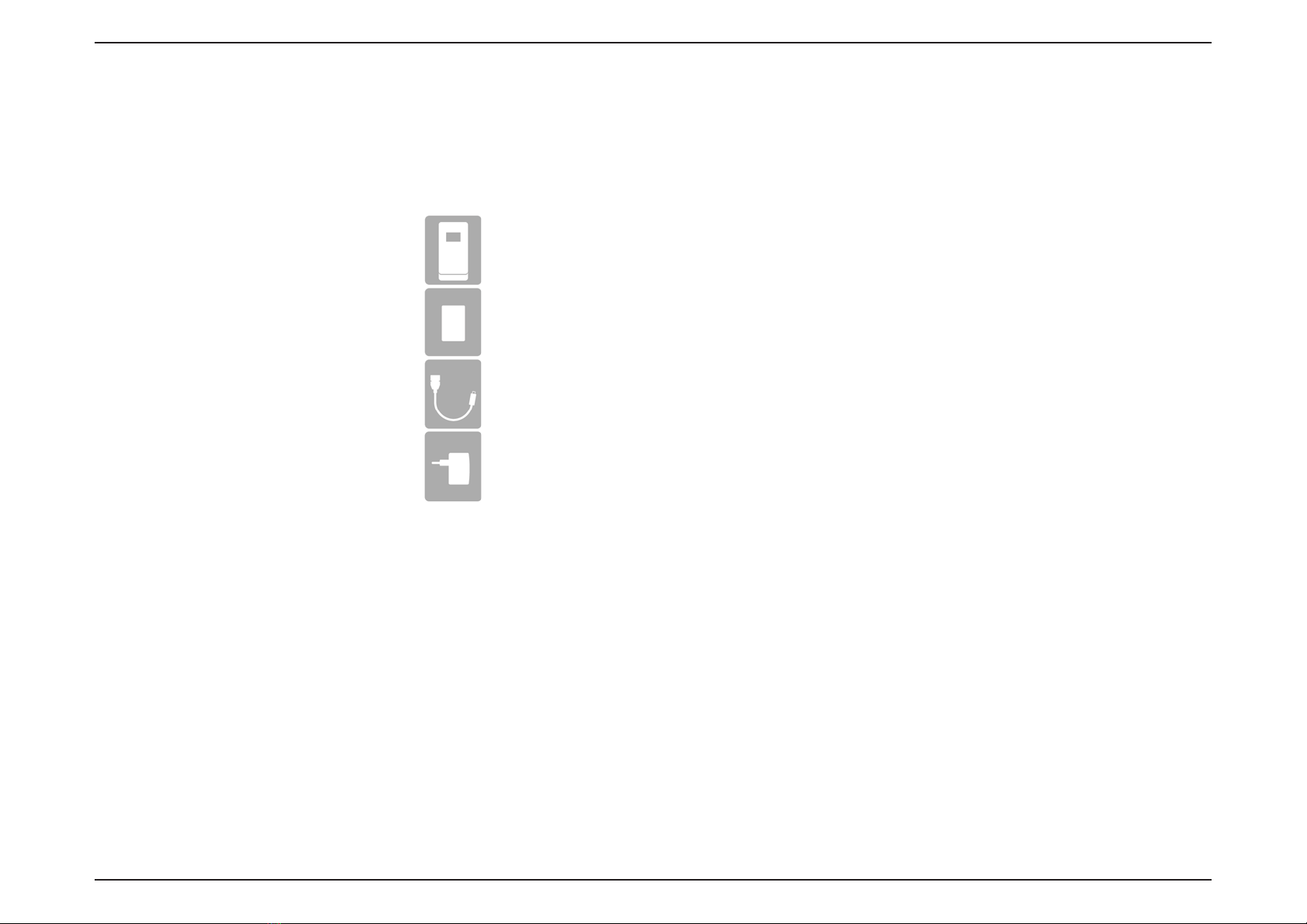

Package Contents
Battery
USB Cable
Power Adapter
If any of the above items are missing from your package, please contact your reseller.

D-Link DWR-830 User Manual
The DWR-830 HSPA+ Mobile Router is small and slim enough to carry around in your purse, bag, or pocket. It features a microSD card slot for optional
The DWR-830 is truly plug and play, with drivers built right into the router so you can connect without the need to install anything. Open a browser,
you can get online with your notebook, smartphone, tablet, or any other wireless device using a single 3G mobile connection. The DWR-830 provides
The HSPA+ Mobile Router lets you share your fast mobile connection over Wi-Fi from a device small enough to t in your pocket. With the DWR-830,
the DWR-830.
The DWR-830 HSPA+ Mobile Router gives you high-speed access to the Internet wherever you are and lets you share it on the go. Using HSPA+
The D-Link DWR-830 HSPA+ Mobile Router lets you share a fast mobile Internet connection with multiple PCs and mobile
2
Section 1 - Product Overview
Introduction
High-Speed Mobile Internet with 3G Connectivity
technology, you can achieve download speeds of up to 21.6 Mbps and upload speeds of up to 5.76 Mbps1. The built-in 3G antenna provides a reliable
connection to your 3G service provider, and a separate Wi-Fi antenna gives extended coverage to the computers and mobile devices connected to
Mobile Internet for All of Your Devices
high-speed Wireless N coverage to give high-speed wireless access to everybody – whether you are with colleagues on a business trip, or travelling
with friends and family.
Built-in Software for Instant Access Anywhere
connect the router, and you can set up your network right from a web interface.This means that notebooks and netbooks without a CD-ROM drive can
connect and get up and running in no time. Once the device is set up, you can simply power it on to start up your portable mobile network, meaning
that you can share your mobile Internet connection without even needing a computer.
Designed forTrue Portability
removable storage (up to 32 GB), allowing you to always have your les and contacts on hand. The built-in 2380 mAh rechargeable Li-Ion battery can
provide up to six hours of mobile usage, meaning that you can share your mobile Internet connection in the car, in the park, or anywhere, and work
or play longer without needing to recharge.
devices wherever you go. It oers 3G HSPA+ compatibility for fast downlink and uplink data rates, so you get the high-speed
upload and download speeds even when you’re on the go. Set up a personal mobile network anywhere, anytime allowing you
and those around you to access the Internet, and share les.
1 All references to speed are for comparison purposes only. Actual speeds will vary depending on a range of factors including mobile network coverage, signal strength, network activity, and environmental conditions.

D-Link DWR-830 User Manual 3
Section 1 - Product Overview
Hardware Overview
Left Side

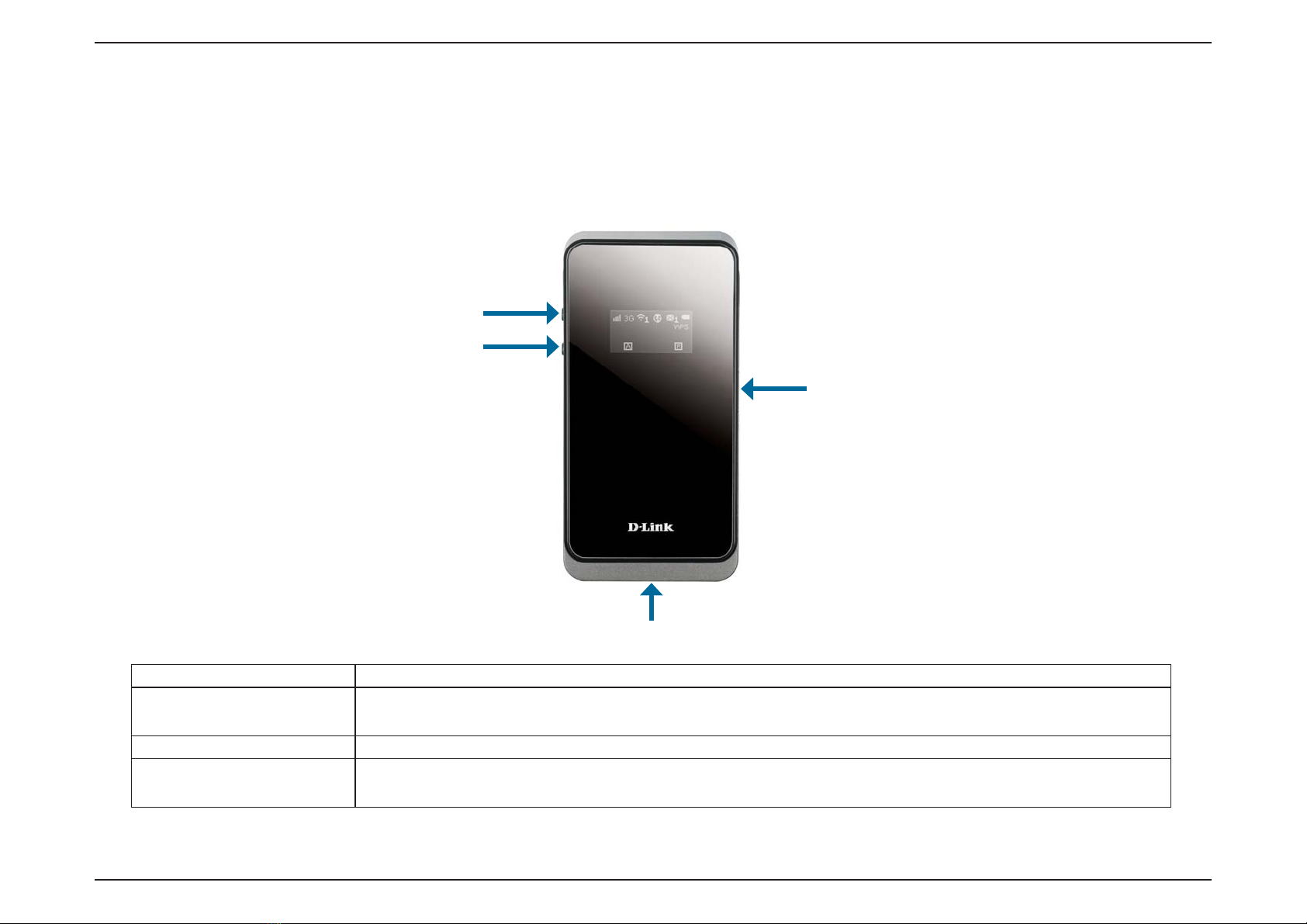

Power Button Press and hold this button for 6 seconds to power on/o the device.
WPS Button Press this button to add new wireless devices quickly and easily using Wi-Fi Protected
Setup (WPS). Press and hold for more than 5 seconds to turn the wireless function on/o.
microSD Card Slot Insert a microSD Card (up to 32GB) to access and share les and media wherever you go.
micro USB Connector Use the included cable to connect to a powered USB port to charge the device, or to
access the conguration utility.
WPS Button
microUSB Port
microSD Card Slot
Power Button

Currently connected to DC-HSPA+ or HSPA+ mobile network
D-Link DWR-830 User Manual
The current status of the DWR-830’s functions including mobile network, Wi-Fi, security, Internet status, signal strength, and battery level will be
4
Section 1 - Product Overview
Hardware Overview
OLED Display

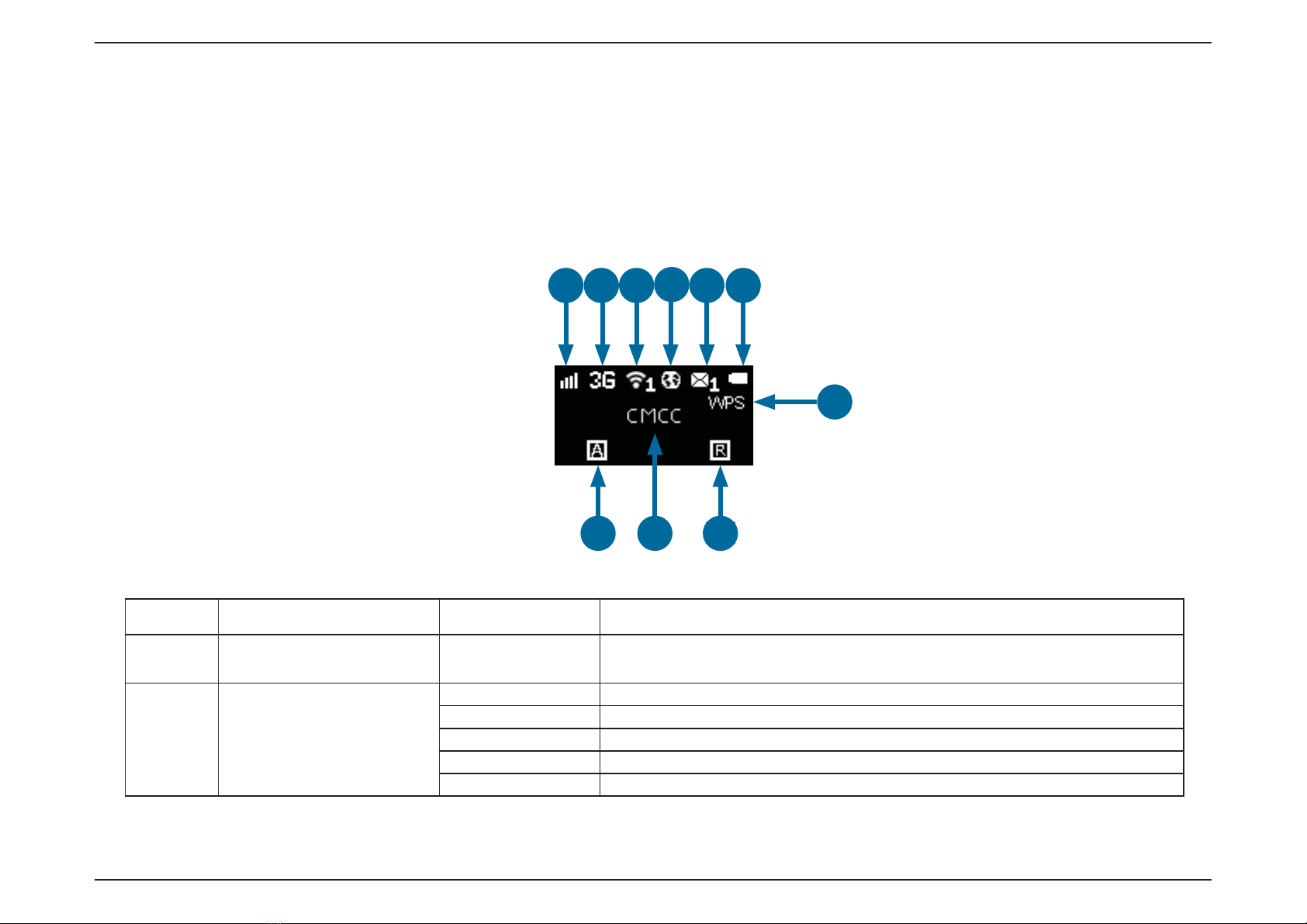

shown on the OLED display. Please refer to the table below for the specic indications which are shown on the display.
1 2 3 45 6
7
810 9
Number Function Icon Indication
1 Network Strength 0-5 Bars Indicates the strength of the current mobile network
connection
2 Network Type
H+
HCurrently connected to HSPA mobile network
3G Currently connected to WCDMA mobile network
2G Currently connected to GPRS/EDGE network
No SIM No SIM card detected in device

D-Link DWR-830 User Manual 5
Section 1 - Product Overview
3 Wi-Fi & Clients
Indicates that the Wi-Fi network is currently tuned on
Number Indicates the number of clients currently connected to the
device by Wi-Fi
4Internet Connection
Status Internet If this icon is displayed, there is an Internet connection present
5 SMS Number There are unread SMS messages in the inbox
6 Battery Status Empty-Full Displays the current battery level. If charging, the animation will
indicate charging status and current battery level
7 Wi-Fi Protected Setup WPS The device is ready for WPS association with wireless clients
8 Connection Method
AThe device is set to connect to the mobile network
automatically
MThe device is set to connect to the mobile network manually
D = On Demand The device will connect to the preferred mobile network when
internet access is required.
9 Operator Name The name of the mobile network operator to which device is
currently connected
10 Roaming R The device is currently roaming on a network other than the
home network

Ensure that your DWR-830 DC-HSPA+ Mobile Router is powered o.
Ensure that your DWR-830 DC-HSPA+ Mobile Router is powered o.
D-Link DWR-830 User Manual 6
Section 2 - Installation
Connect to Your Network
Installation
This section will guide you through the installation process.
1.

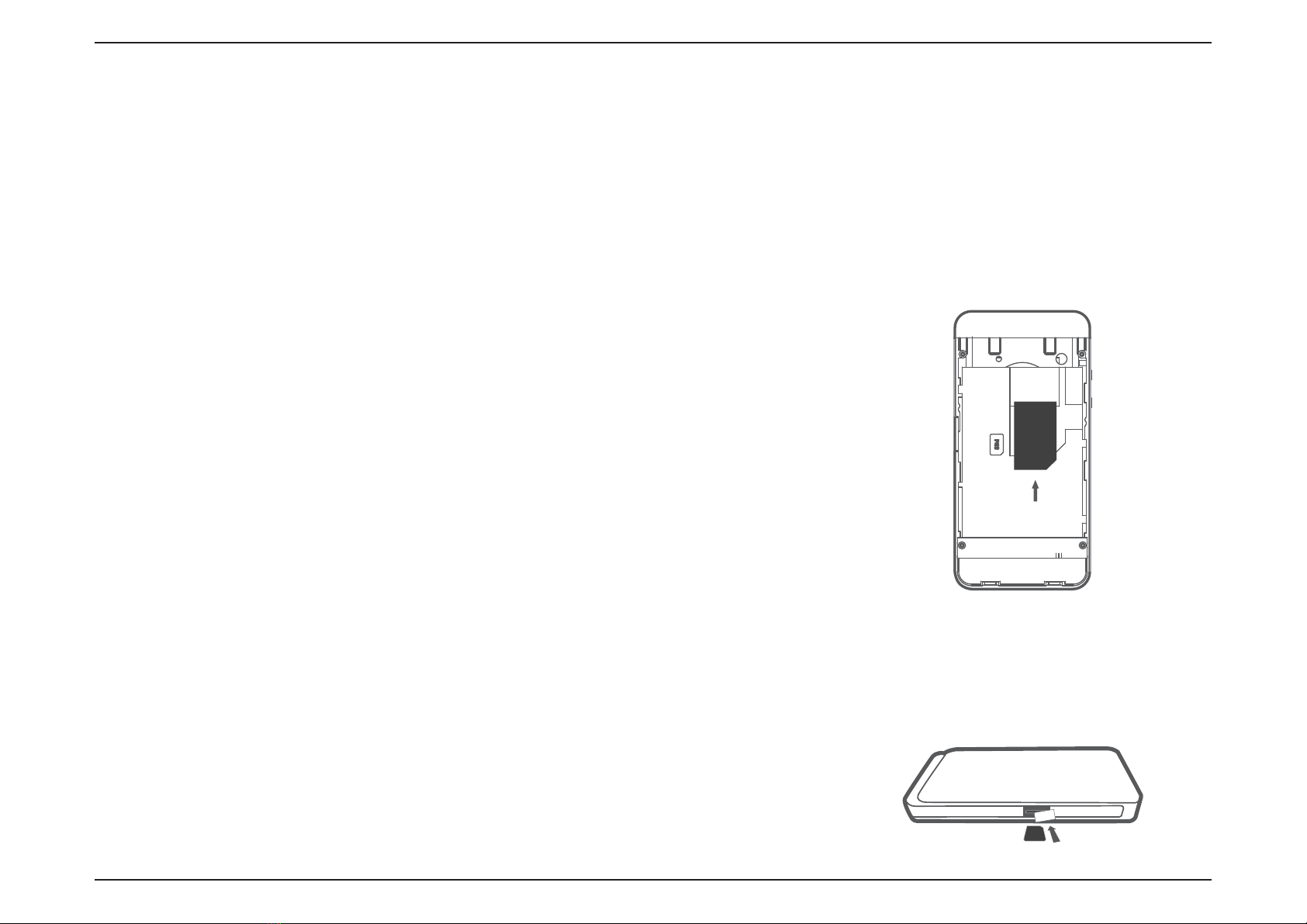

2. Remove the back cover and take out the battery. Slide your (U)SIM card into the slot
provided, ensuring that the alignment is the same as indicated by the logo next to the
slot. The gold contacts on the card should be facing downwards.
Caution: Always unplug and turn o the router before installing or removing the SIM card.
Never insert or remove the SIM card while the router is in use.
3. Press and hold the power button on the side of the router.
a. “D-Link”will be displayed on the screen as the router performs its initialization processes.
b. After a few moments, the OLED display will show the current status of the router’s various
functions. For more details on the OLED display, please refer to“OLED Display”on page 4.
Insert a microSD Card
1.
2. Open the cover of the microSD slot on the side of the router.
3. Insert the microSD card into the slot and push it in until it locks into place.

D-Link DWR-830 User Manual
the DWR-830 using the web conguration utility described in“Conguration Utility”on
When you plug the DWR-830 into your computer, any necessary drivers will immediately
7
Section 2 - Installation
Driver Installation
install (with your permission).
Note: These drivers are Windows-only. Mac and Linux users will still be able to congure
page 12.

D-Link DWR-830 User Manual
The DWR-830 can be accessed using a wireless connection from anywhere within the operating range of its wireless network. Keep in mind that
8
Section 2 - Installation
Wireless Installation Considerations
the quantity, thickness, and location of walls, ceilings, or other objects that the wireless signals must pass through may adversely aect wireless
signals. Ranges vary depending on the types of materials and background RF (radio frequency) noise in your home or oce.The key to maximizing
the wireless range is to follow these basic guidelines:
1. Minimize the number of walls and ceilings between the router and other network devices. Each wall or ceiling can reduce your adapter’s range
from 3 to 90 feet (1 to 30 meters).
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (0.5 meters) appears to be almost 3 feet (1 meter) thick at a
45-degree angle. At a 2-degree angle it appears over 42 feet (14 meters) thick. Position devices so that the signal will travel straight through a
wall or ceiling (instead of at an angle) for better reception.
3. Try to position access points, wireless routers, and computers so that the signal passes through open doorways and drywall. Materials such as
glass, metal, brick, insulation, concrete, and water can aect wireless performance. Large objects such as sh tanks, mirrors, le cabinets, metal
doors, and aluminum studs may also have a negative eect on range.
4. If you are using a 2.4 GHz cordless phone, make sure that the 2.4 GHz phone base is as far away from your wireless device as possible. The base
transmits a signal even if the phone is not in use. In some cases, cordless phones, X-10 wireless devices, and electronic equipment such as ceiling
fans, uorescent lights, and home security systems may dramatically degrade wireless connectivity.

D-Link DWR-830 User Manual
conguration utility. This can be done using the included USB cable, or by connecting wirelessly to the DWR-830. Once you have congured your
9
Section 2 - Installation
Conguration
Initial Connection to the Router
This section will show you how to congure your new D-Link mobile router using the conguration utility that can be obtained through a software
interface or a web-based user interface.
When conguring the router for the rst time, you will need to establish a direct connection with the router in order to access the web-based
router, you will be able to connect using the Wi-Fi settings that you have specied in the conguration process. Ensure that the router is powered
on and has sucient battery power before commencing the setup process.
Connect via USB
To connect to the router via USB, plug the provided micro USB cable into the micro USB port on the bottom of the router, and plug the other end
into an available USB port on your computer.Your router is now ready for conguration, please refer to“Conguration Utility”on page 12 to continue
the setup process.

D-Link DWR-830 User Manual
dlink_DWR-830xxxxDWR-830 will be in the format
10
Section 2 - Installation
Connect via Wi-Fi
Note: The following example uses Windows 7’s built-in wireless connection utility. If you are using a dierent operating system, or a third party
connection utility, the process may be dierent. Please refer to the documentation that came with your operating system or wireless client for
further information on how to connect to a wireless network.

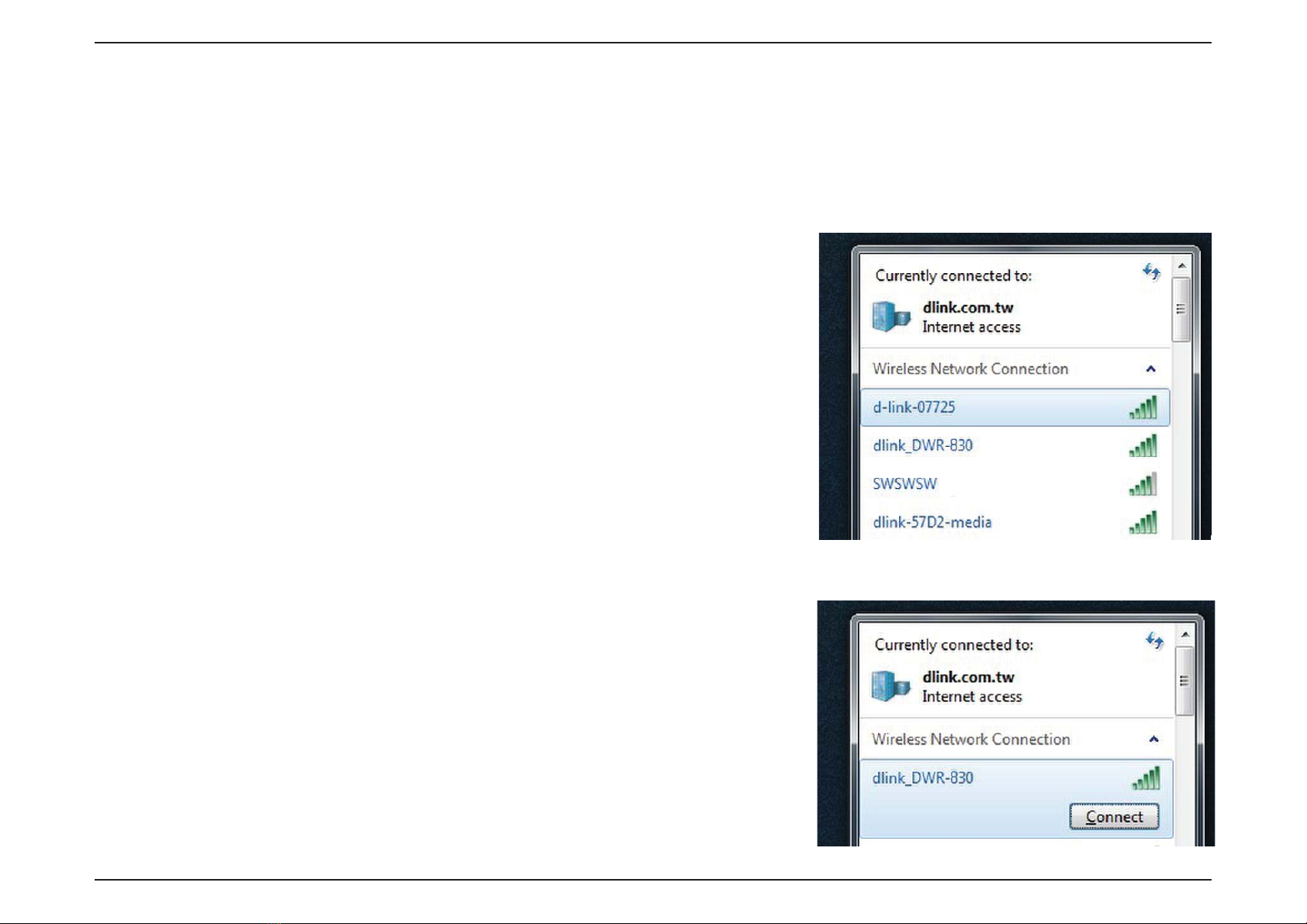

To connect to the router using Wi-Fi, open your operating system’s wireless networking utility
and scan for available networks to connect to. By default, the network name (SSID) of the
, where “xxxx” represents the last four
character’s of the router’s MAC address.
Once you have located this network with your wireless utility, connect to the network using
your wireless networking utility.

D-Link DWR-830 User Manual 11
Section 2 - Installation

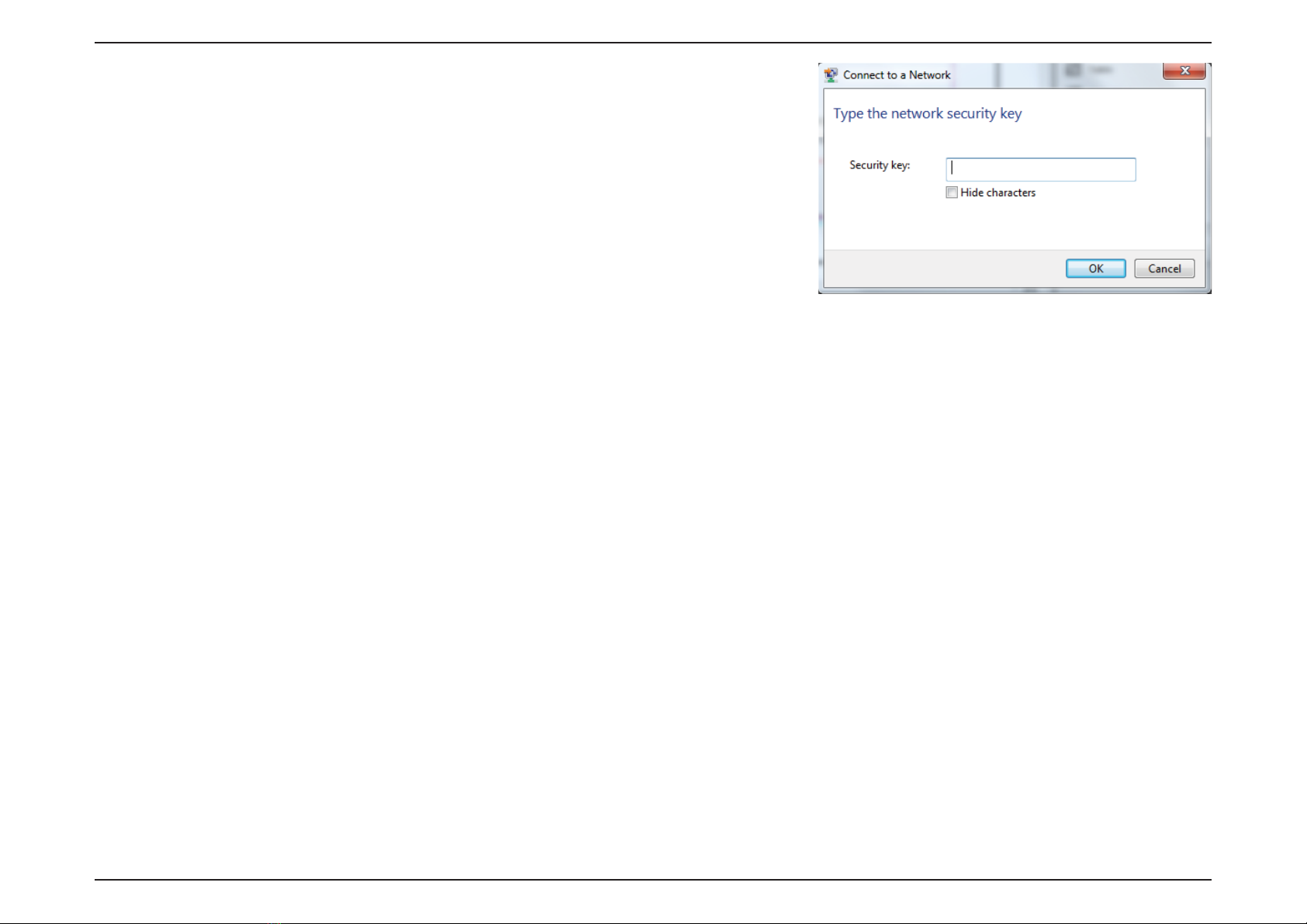

You will then be prompted to enter the network security key for your router. The unique
security key for your router will be displayed on a sticker in the router’s battery bay. Enter
the security key in the box provided and click OK. Your wireless connection utility should
conrm that the connection is successful, and you can move to the next step to continue to
conguration process.

D-Link DWR-830 User Manual 12
Section 3 - Conguration
Web-based Conguration
To access the conguration utility, open a web browser (such as Internet Explorer) and enter
the IP address of the router, which is 192.168.0.1 by default.
Once you have reached the conguration utility through the installed software or your
web browser, you will need to log in. Enter admin as the username, and then enter the
password. By default, the password is blank. You can also select your language from the
drop-down menu.
Click Login to continue.
Conguration Utility

D-Link DWR-830 User Manual 13
Section 3 - Conguration
Home

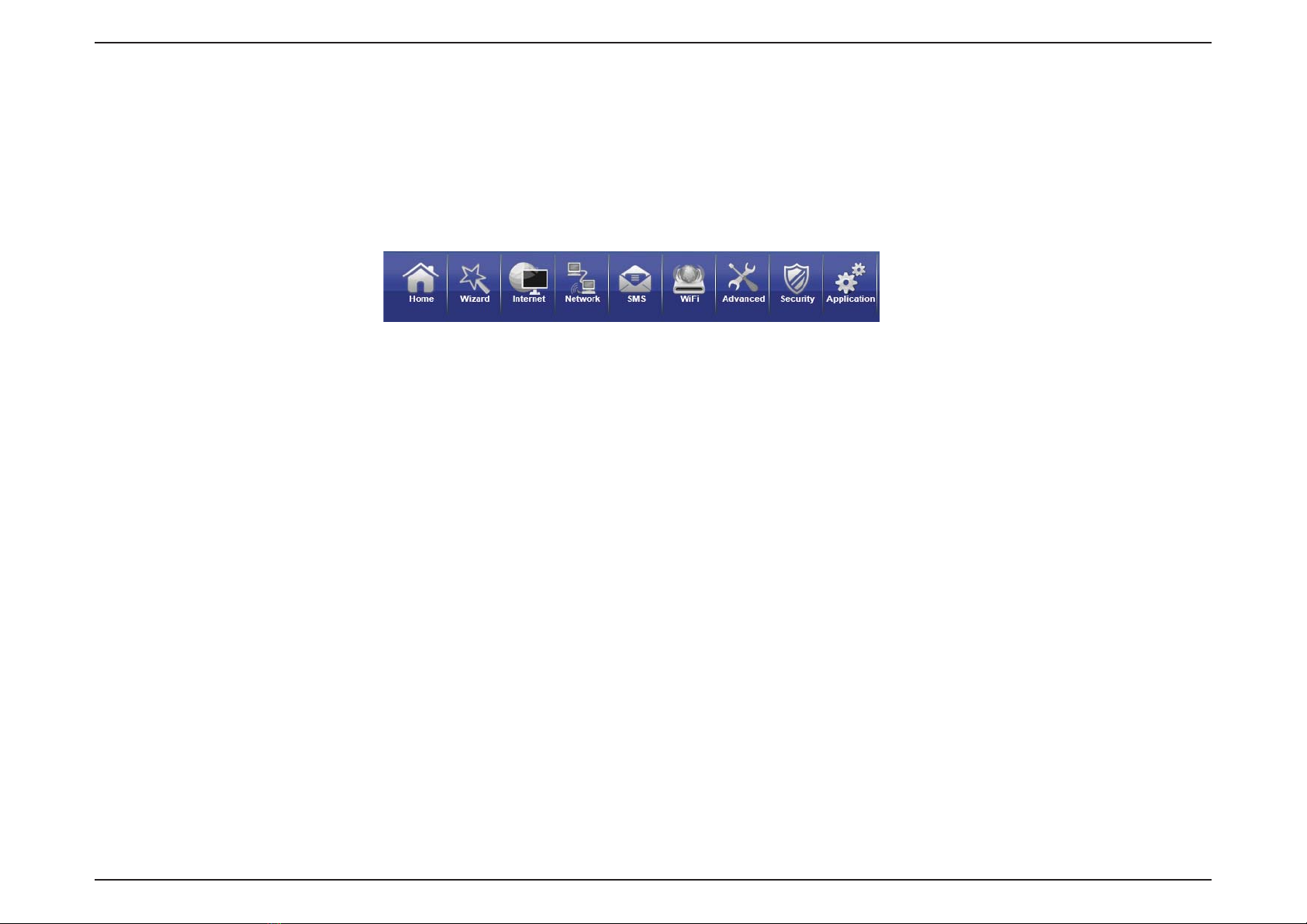

Throughout the interface you will nd a menu bar at the top of the page which includes tabs for easy navigation, and a summary bar in the upper
right corner with a quick view of essential information.
The Home tab will return you the home page, where a summary of the system information is shown.
Click on this tab to start the setup wizard, which will guide you through the basic setup process.
The Internet tab gives you Internet setup and settings options.
The Network tab allows you to congure the network settings for your Local Area Network (LAN).
From the SMS you can view and send SMS messages via your mobile network.
The Wi-Fi allows you to congure your Wi-Fi network, as well as add new devices using WPS.
Use this tab to congure advanced network settings such as routing and IPv6.
The Security tab allows you to congure rewall and security settings to protect your network from WAN-side
intrusions.
From this tab, you can manage the administrative conguration of your router, such as time and date, rmware,
language, and remote management.
Navigation
Home
Wizard:
Internet:
Network:
SMS:
Wi-Fi:
Advanced:
Security:
Application:

D-Link DWR-830 User Manual 14
Section 3 - Conguration

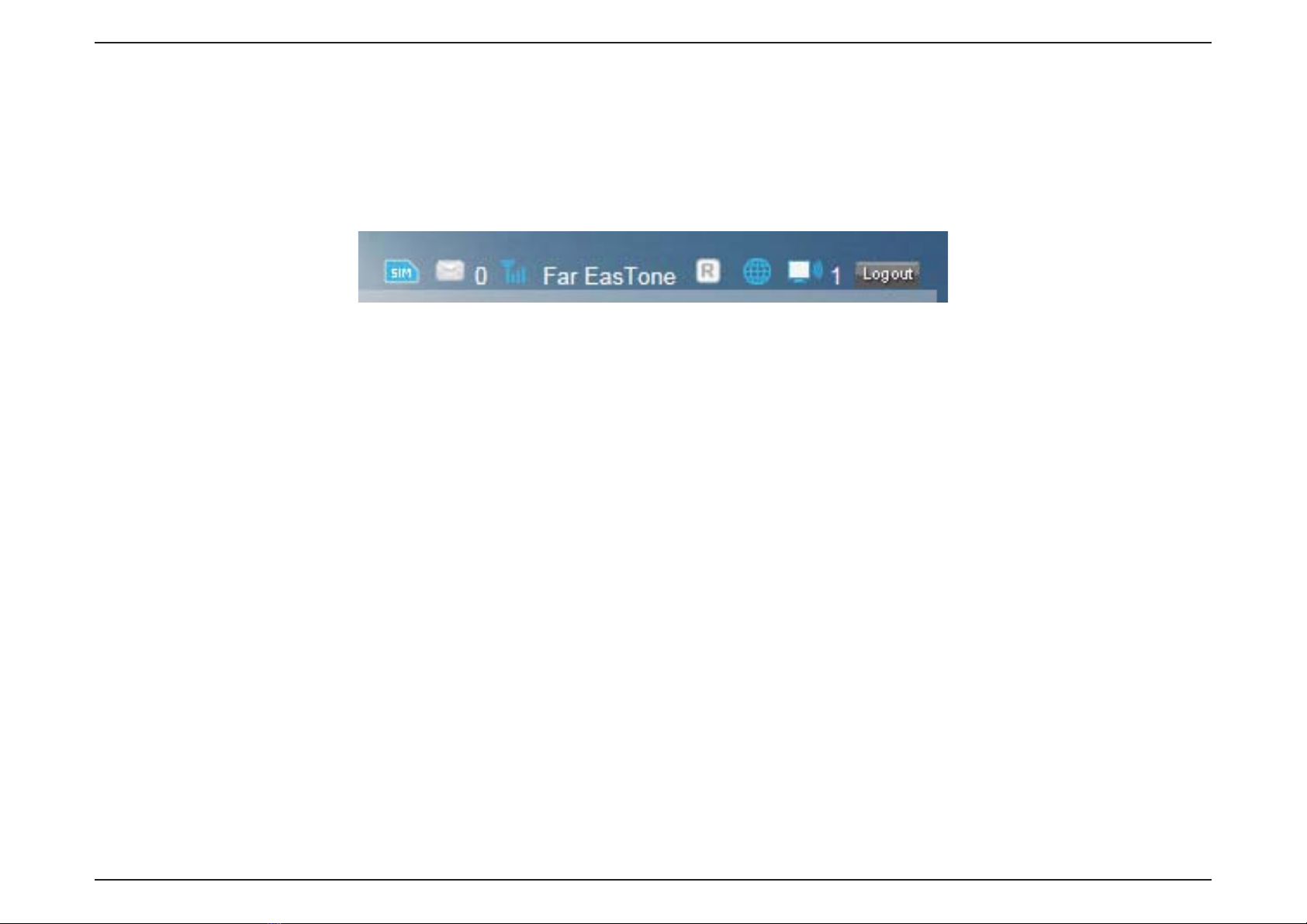

This icon shows whether or not a compatible (U)SIM card has been inserted into the device.
The number to the right of this icon indicates the number of unread messages in the SMS inbox.
Indicates the current strength of the mobile network signal being received.
The name of the mobile network operator to which the device is currently connected.
Indicates that the device is connected to a network other than your service provider’s home network.
Indicates that there is an Internet connection present.
Indicates that the router’s Wi-Fi network is currently active. The number to the right of this icon indicates the number
of wireless clients currently connected to the router’s Wi-Fi network.
Click this button to log out of the conguration interface.
SIM:
SMS:
Signal Strength:
Operator Name:
Roaming:
Internet:
Wi-Fi Network:
Logout:
Device Status
A summary of the device’s current status will be displayed on the information panel at the top of the right-hand side of the navigation bar. The
following is a description of the indications, from left to right.

D-Link DWR-830 User Manual 15
Section 3 - Conguration

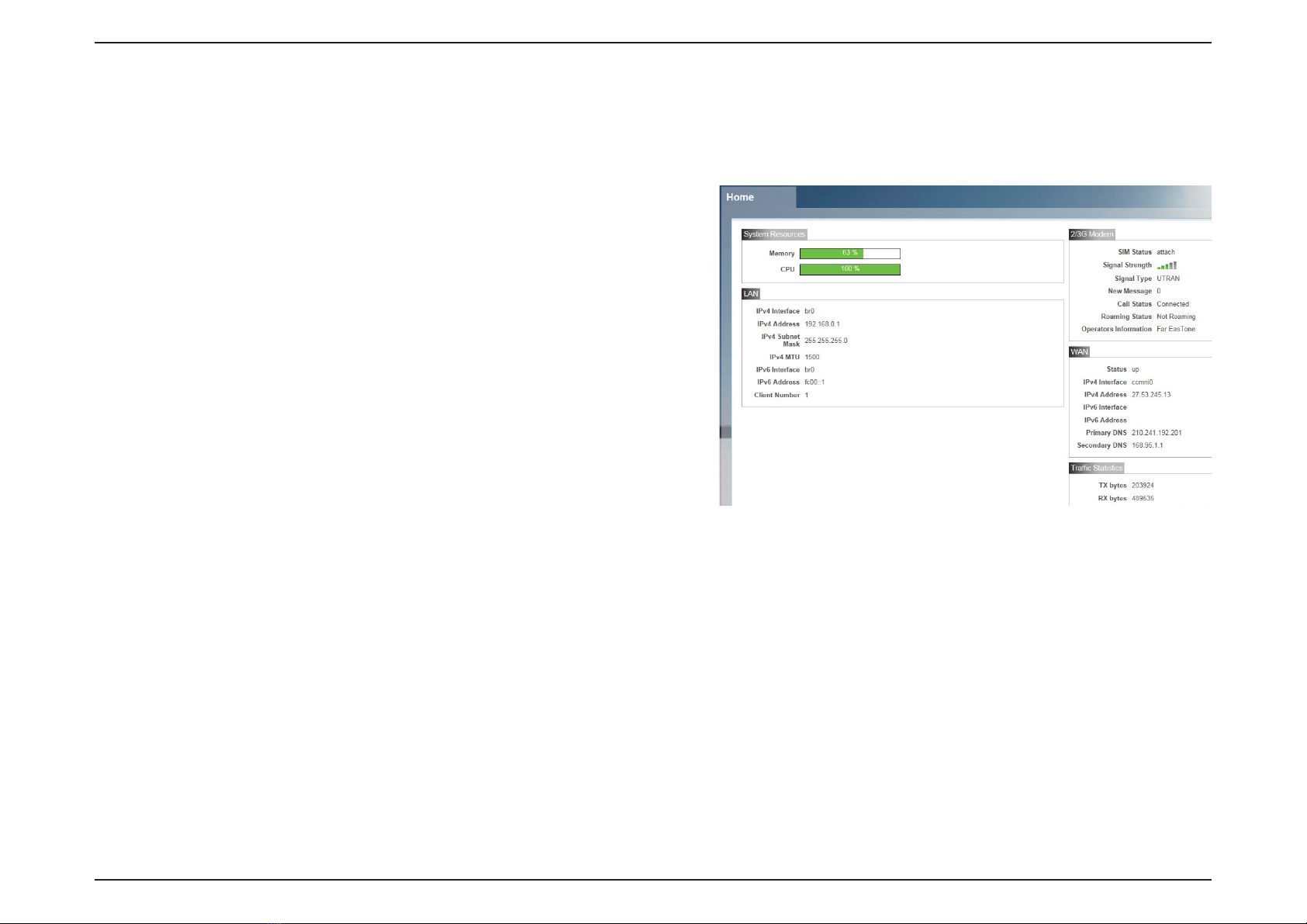

The Home page acts as a dashboard to quickly display your conguration settings and provide a summary of the current status of your network’s
status.
This area displays the percentage of the router’s memory and
CPU currently being used by the system.
This area displays a summary of the current settings for the
router’s LAN.
This area shows the current status of your 2G or 3G mobile
network connection.
This area displays a summary of the router’s current WAN
settings. These details will reect the mobile network
connection which is being received from the service provider.
This area shows the amount of data which has been sent (TX)
and received (RX) over the mobile network. This information
may not reect the amount recorded by your mobile service
provider.
System Resources:
LAN:
2G/3G Modem:
WAN:
Trac Statistics:
Home

D-Link DWR-830 User Manual 16
Section 3 - Conguration
Wizard
The Wizard page will guide you through the steps required to congure the basic settings of your router such as the IP address, network name
(SSID), and password. Click on the Wizard button on the navigation bar to commence the wizard.

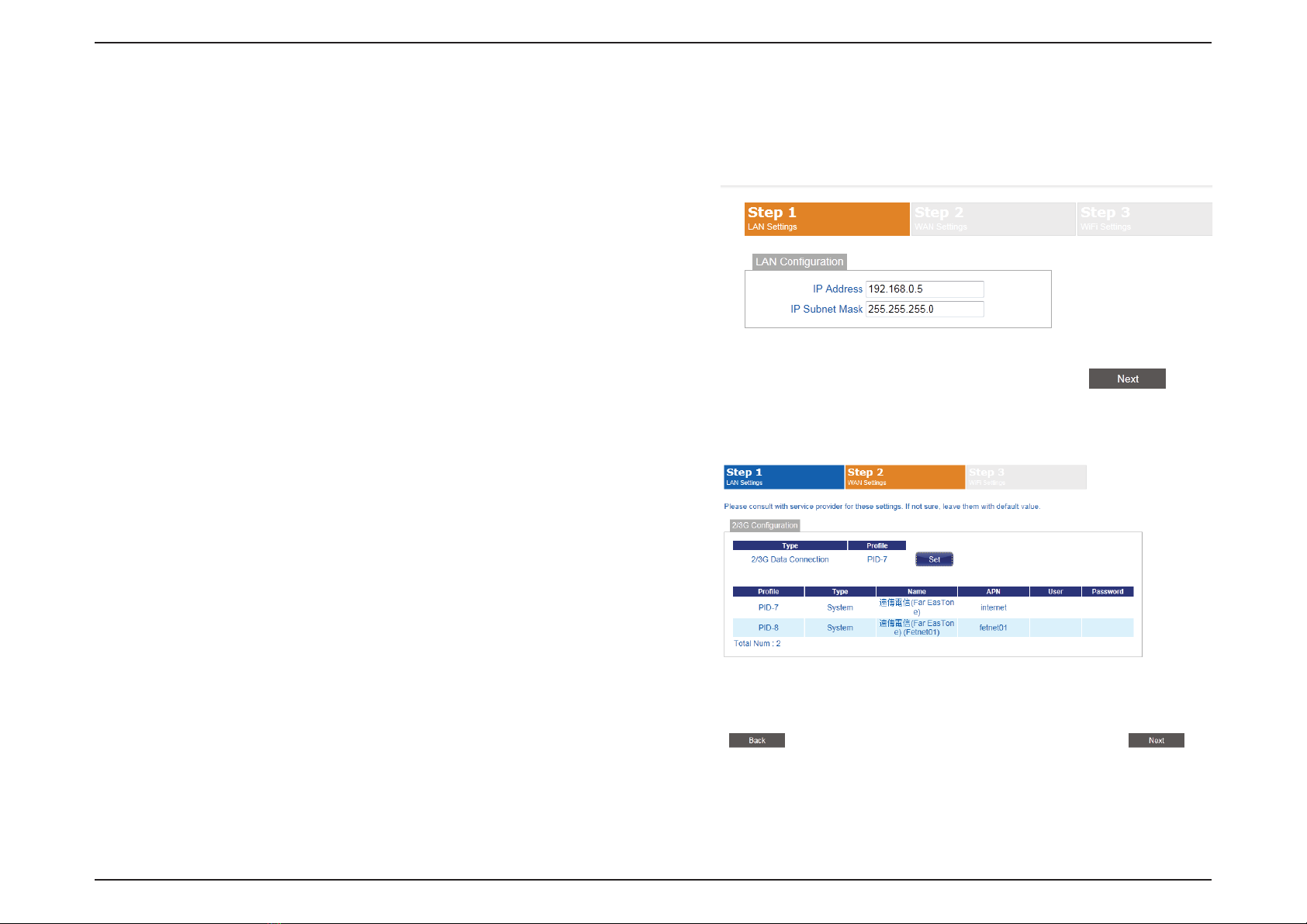

LAN CONFIGURATION
If you wish to change the router’s IP address, enter the new
address here. If you change the IP address from the default,
you will need to enter the new address in your Internet
browser’s address bar in order to access the web-based
conguration utility.
If you wish to change the router’s subnet mask, enter it here.
Click Next to continue.
2/3G CONFIGURATION
If you wish to change the 2G or 3G service provider or
connection type, click on a prole in the list to highlight it,
and click Set to set that prole as the default.
Click Next to continue, or Back to return to the previous step.
IP Address:
IP Subnet Mask:
