D-Link AirPro DWL-A520 User manual

Note: The installation screenshots were taken in Windows XP. For other OS, the
installation procedure will be exactly the same but the screenshots will differ.
Contents of Package:
• D-Link AirPro DWL-A520 5GHz Wireless PCI Adapter
• Printed Quick Installation Guide
• CD with Manual and Drivers
If any of the above items are missing, please contact your reseller.
System Requirements:
• A desktop computer with an available PCI slot
• At least a 300 MHz processor and 32 MB of memory
• An 802.11a Access Point (for Infrastructure Mode) or another 802.11a
wireless adapter (for Ad-Hoc mode)
Installing the DWL-A520
Before you start, make sure to turn off your
computer and unplug the power cord.
Note: To avoid damage caused by static electricity, make sure to properly ground
yourself by first touching a metal part of the computer to discharge any static
electricity before working with the DWL-A520.

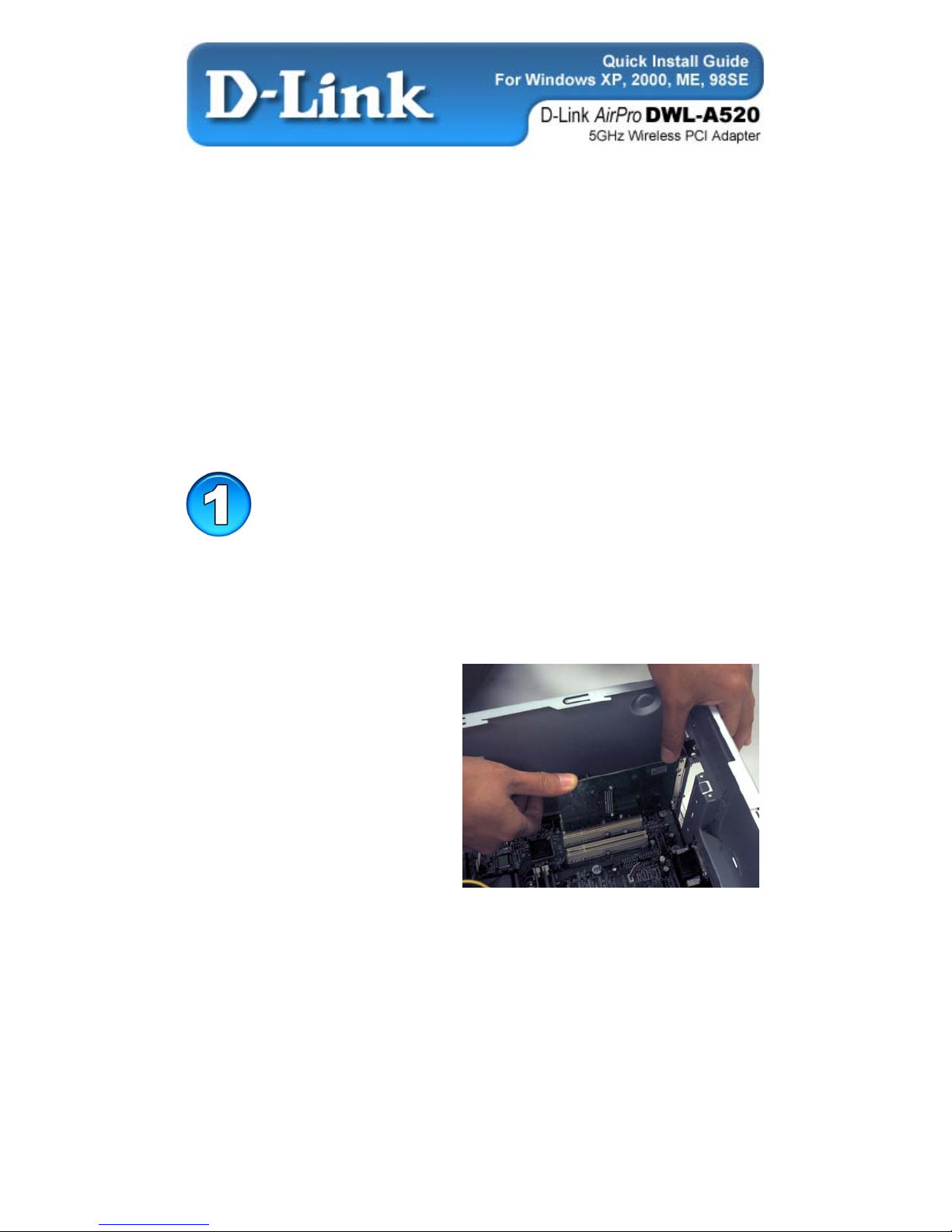

• Remove the back cover of the
computer.
• Install the DWL-A520 carefully
and firmly into an available PCI
slot which is usually “white” or
“cream” colored
• Secure the DWL-A520 with a
screw.
• Attach the Wireless antenna
• Replace the computer’s cover.

Installing the Drivers
• Plug in the power cord and turn on your computer.
• The Found New Hardware
Wizard screen appears.
• Insert the Driver CD into the
CD-ROM drive.
• Close the Autorun screen and
continue with the installation.

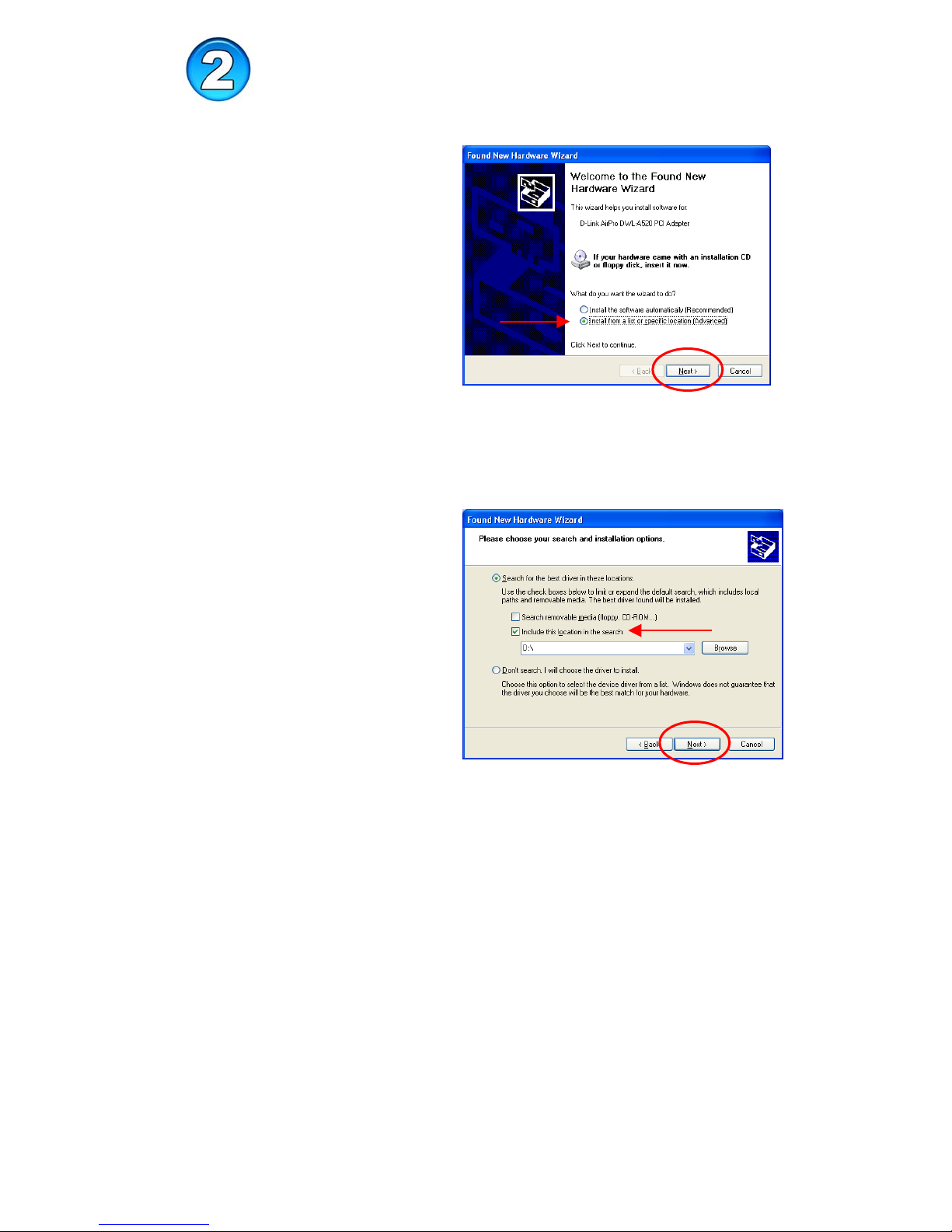

• Select Install from a list or
specific location (Advanced)
• Click Next
Note: If Found New Hardware Wizard does not automatically start, go to Start >
Settings > Control Panel > Add Hardware and follow the instructions to complete
the installation process.
• Select Include this location
in the search
• Select Browse to choose the
CD-ROM drive. In this case,
D:\ represents the CD-ROM
drive.
Note: If you have downloaded the
drivers from the web, select the
location where the drivers were down
loaded and unzipped.
• Click Next

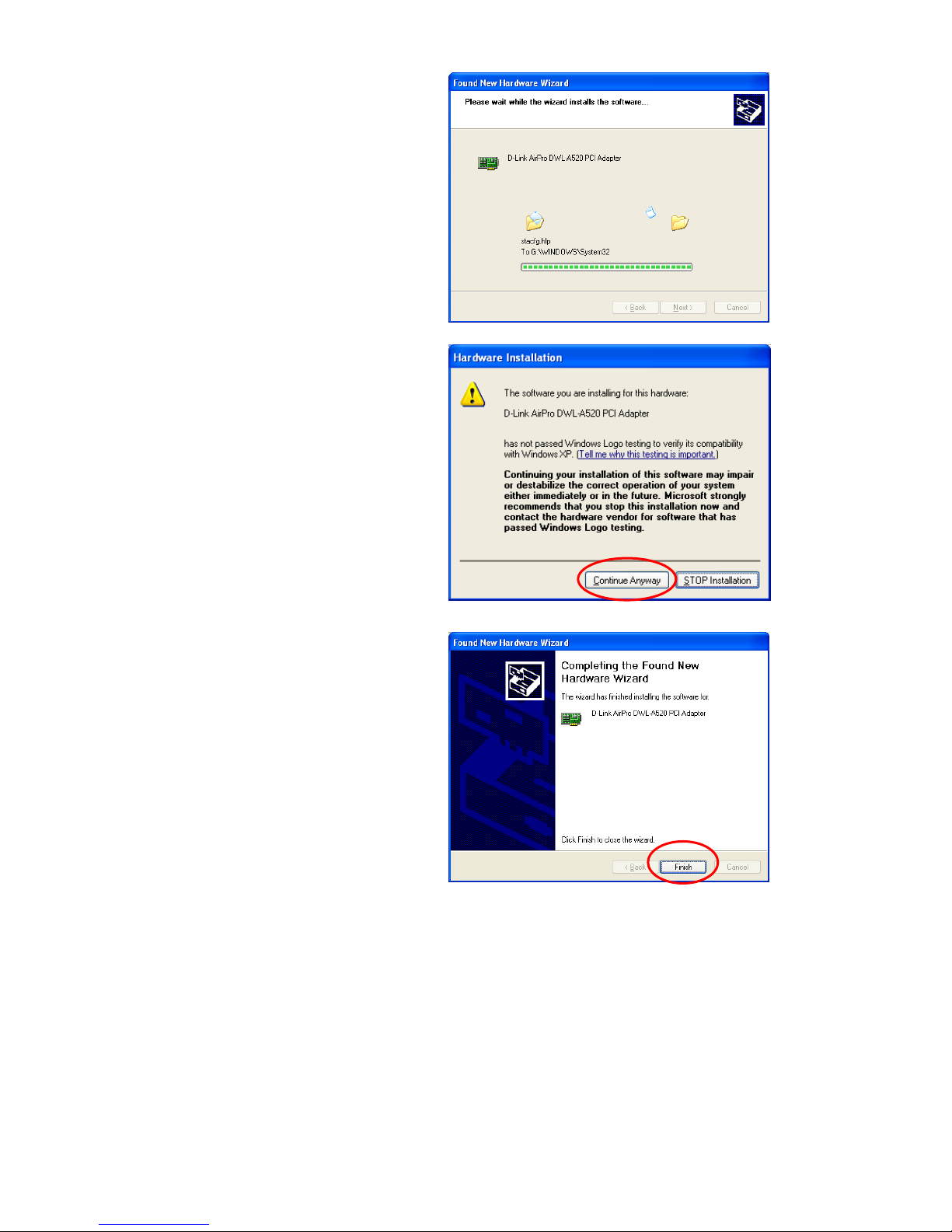

• Please wait while the
drivers are being installed.
• Click on Continue
Anyway.
• (D-Link software is
currently undergoing
Windows Logo testing.
Microsoft certification is
pending.)
• Click Finish to complete
the installation.
• Now attach the antenna to
the DWL-A520.

oes
exe
D-
NOTE: Windows 98SE users will need to download and install wmi9x.exe from the
Once you have the DWL-A520 properly installed, you will see the icon shown
• Right-click on the icon in the task bar.
• Select View Available Wireless
ote: If View Available Wireless Networks
Installing the Configuration Utility

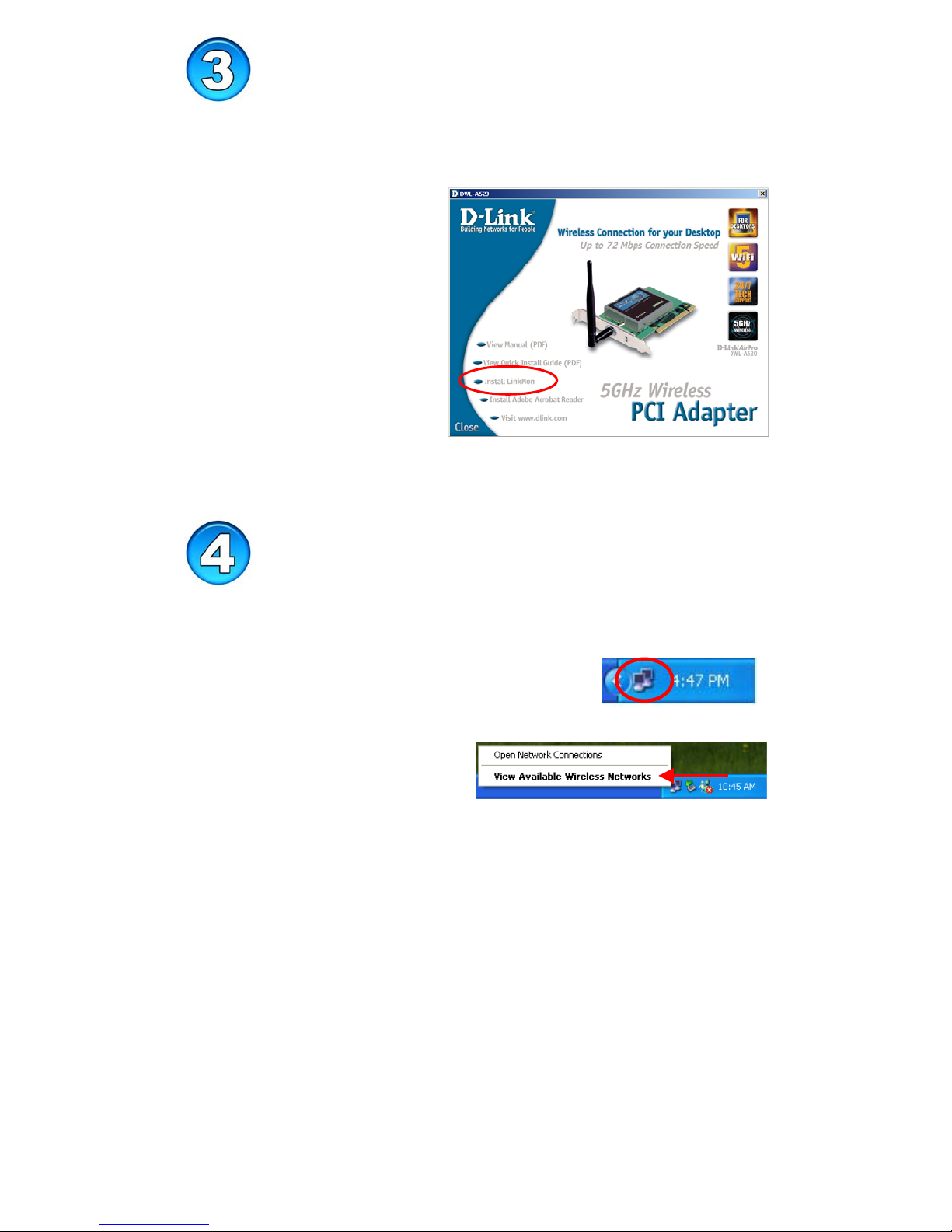

• LinkMon is the Configuration Utility. Insert the Driver CD into the CD-
ROM drive. The Autorun program will prompt showing you the screen
below.
• Click on Install LinkMon
to install the Configuration
Utility.
• If the Autorun program d
not show, go to Start >
Run > type in D:
where D represents the C
ROM drive.
\Setup.
Microsoft website for LinkMon to work properly.
Connecting to the Wireless Network
below.
is not shown, please restart the
Networks
N
computer.

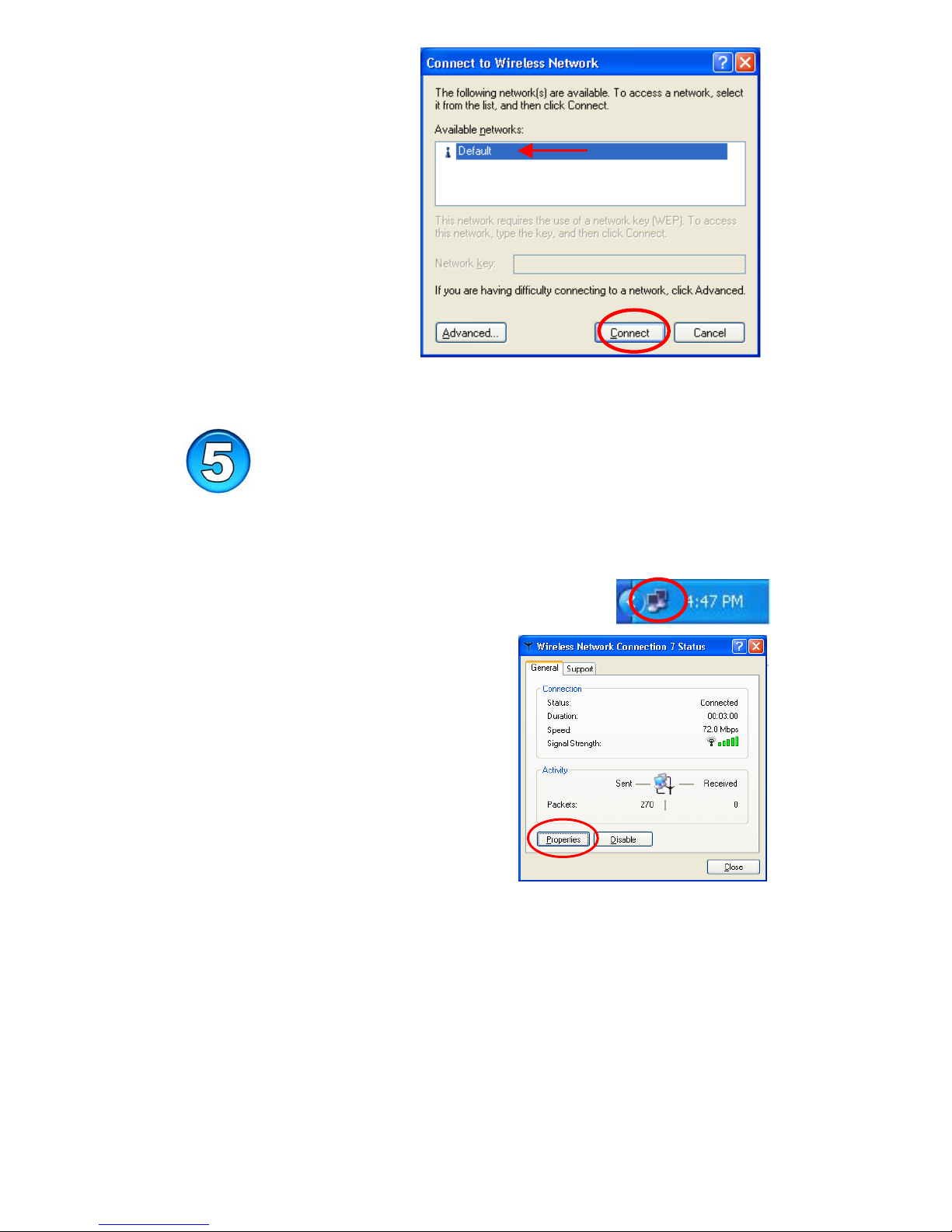

• Select the Wireless
Network. In this case
Default Wireless
Network is selected.
• Click Connect
You have completed the installation of the DWL-A520.
Checking the Wireless Settings
Note: Win XP utilizes the zero config utility as shown. Wireless settings can be
accessed through Control Panel > Network > Properties for Windows 2000. For
Windows 98SE and ME, use the 802.11A Applet in Control Panel.
• Double-click on the icon in the taskbar to see the
status of and information about your connected
network.
• The window appears and displays the
current status of the wireless
connection.

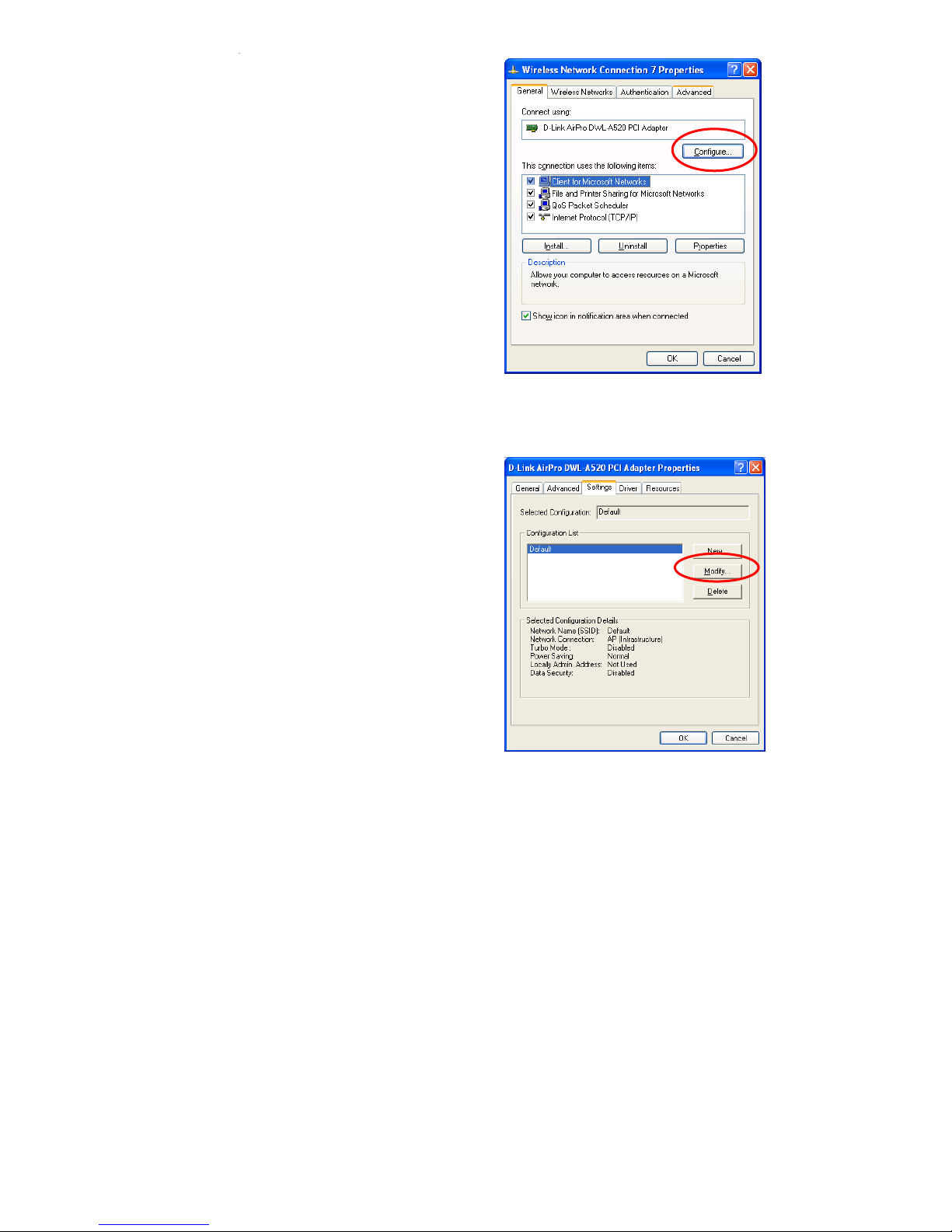

• Select Properties

• Under General tab and select
Configure…
• Select Settings Tab.
• Click on Modify…

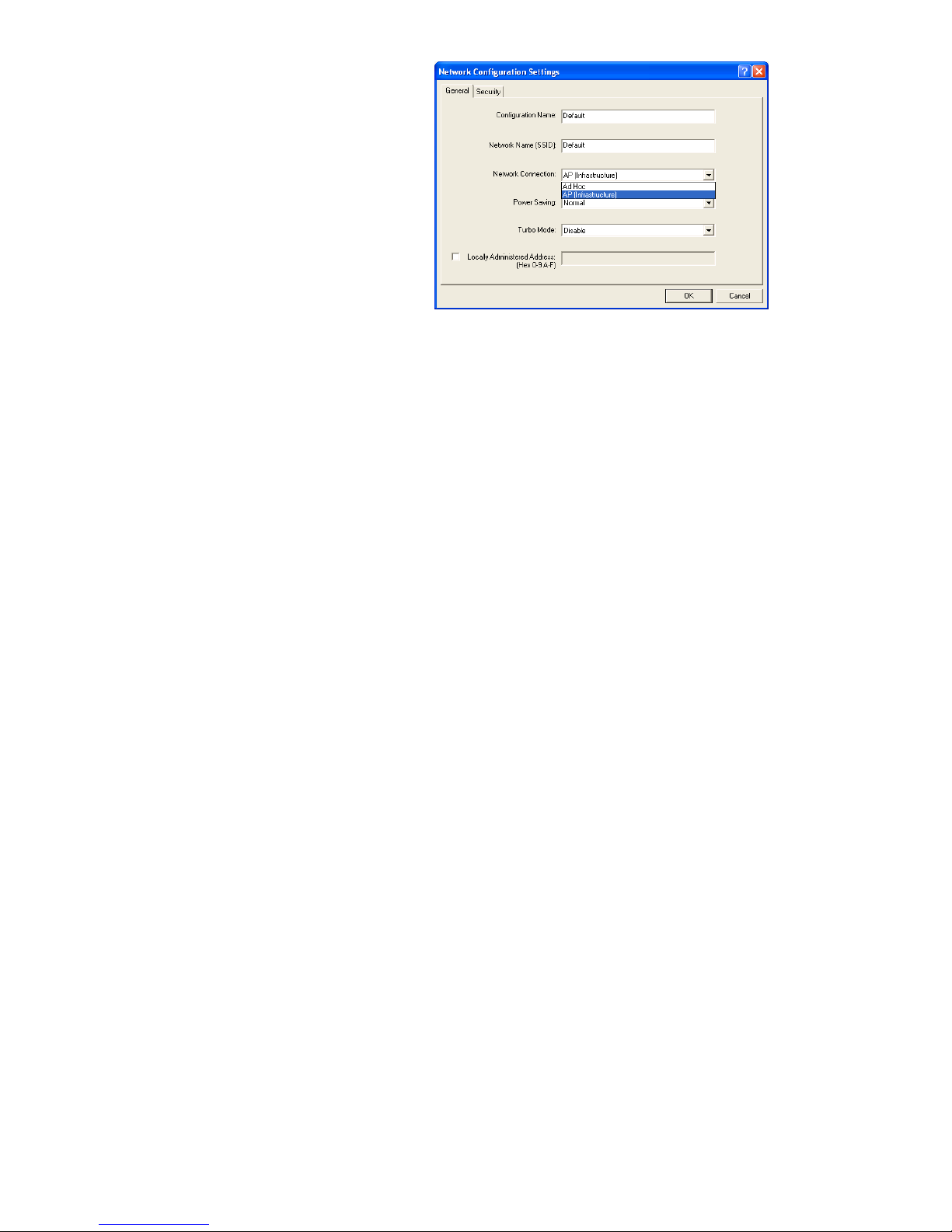

• If necessary, changes
can be made to the
wireless settings.
• The factory default
settings are:
Network Name (SSID) = Default
Network Connection = AP
(Infrastructure)
Power Saving = Normal
TurboMode = Disabled
Please refer to the Troubleshooting and Networking Basics sections in the
manual on the Driver CD for additional information.
