D-Link DFE-538TX User manual

Contents of Package:
• DFE-538TX [Cat. No. 25-3181] 10/100 Fast Ethernet Adapter
• Quick Install Guide
• CD-ROM [CD-DFE538TX], which includes driver software
If any of the above items are missing, please contact your reseller.
Requirements:
• PowerPC-based Macintosh computer with free PCI slot
• Operating System 8.0 or higher
Installation Procedure:
1. Install the DFE-538TX [Cat. No. 25-3181]
2. Install the Drivers
3. Configure the Network Services
Installing the DFE-538TX into the
computer’s PCI slot
• Turn OFF the computer
• Insert the DFE-538TX [Cat. No. 25-3181] into an available PCI slot

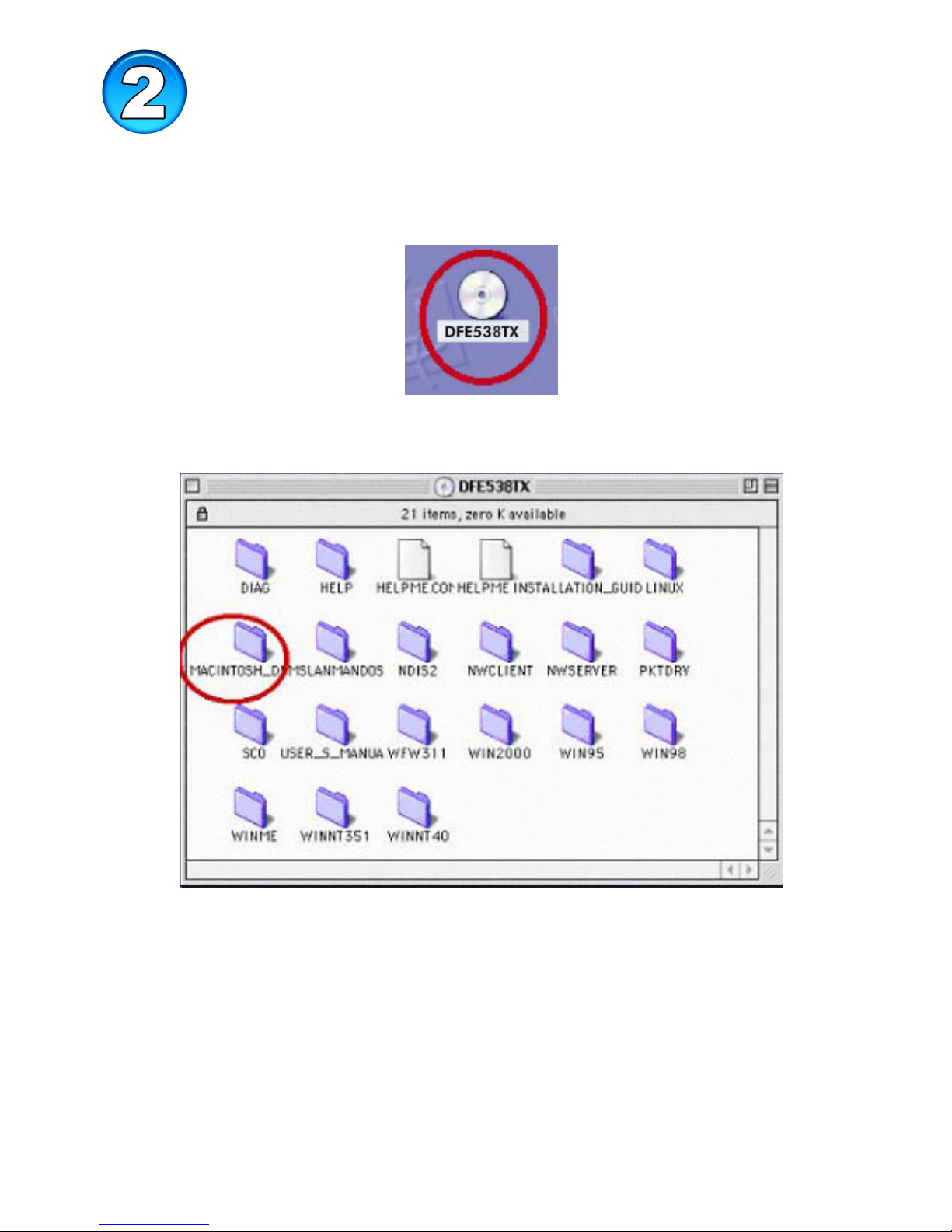

Installing the DFE-538TX Drivers
• Turn ON the computer
• Insert the CD-ROM [CD-DFE538TX]into the Macintosh’s CD-
ROM drive
Double click on the CD-ROM icon on the desktop
Double-click on the Macintosh folder.

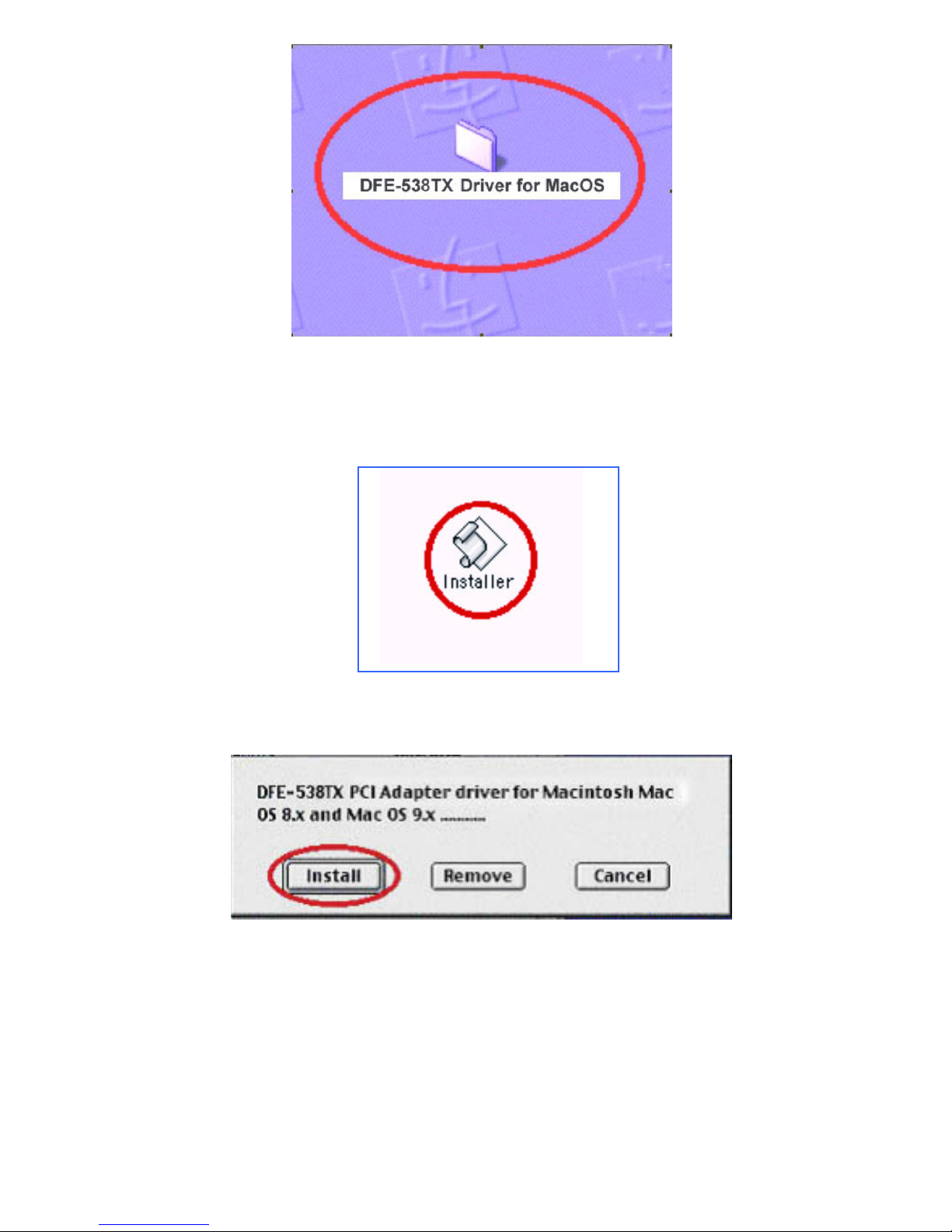

Copy folder “DFE-538TX Driver for Mac OS” to desktop and
Double-click on the folder “DFE-538TX Driver for MacOS”
when it appears on your desktop.
Double-click on the “Installer” icon.
Click “Install” to continue.

Click “OK” to restart the computer.
After the computer restarts,the driver is installed

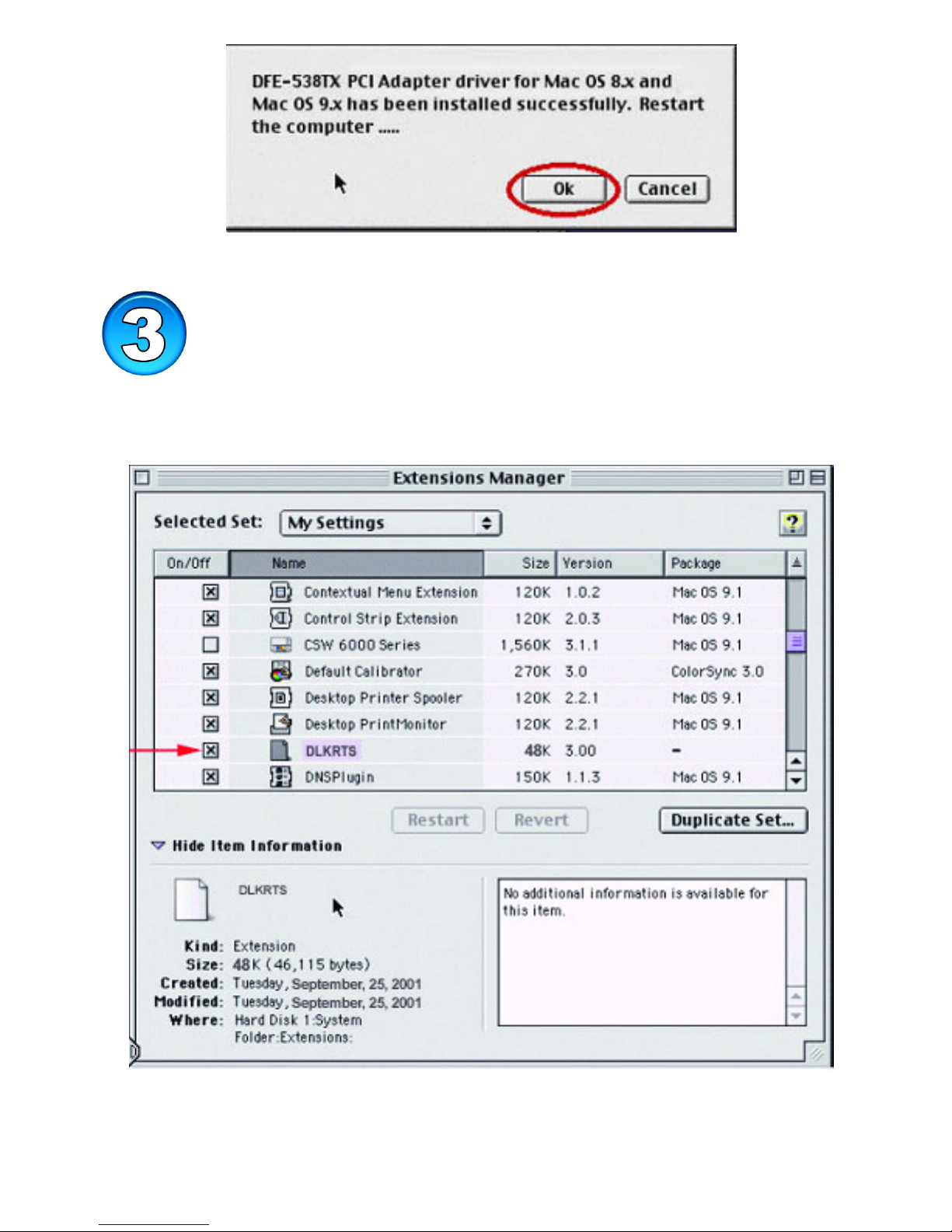

Checking Installation of the DFE-538TX
Drivers
Go to the Apple Menu>Controls Panel>Extensions Manager
Scroll down to find DLKRTS. Make sure that the box to the left is checked.
Before the adapter can be used, you will need to configure network services as
shown in Step 4.

Configuring Network Services
1. Open the Apple menu.
2. Go to Control Panels>AppleTalk control panel.
3. Select Ethernet from the Connect via: list box.
4. Do not choose DLKRTS Ethernet. If you do not see it, go back to the
beginning of this guide and install the drivers again.
5. When the installation is successful, and you have completed this step,
choose “Quit” from the “File” menu.
6. Click “Save” when prompted to save the new settings.
7. Open the Apple menu again.
8. Go to Control Panels>TCP/IP control panel.
9. Select Ethernet from the Connect via: list box.
10. From the Configure: list box, choose “Using DHCP Server” if you are
automatically assigned a “Dynamic IP address.” If you are not
automatically assigned an IP address, choose “Manual” for a “Static IP
address.”
11. Choose “Quit” from the “File” menu.
12. Click “Save” when prompted to save the new settings.
Restart your computer one more time.
Your adapter is now ready to network with other computers.
