D-Link DUB-A2 User manual

1
This Installation Guide includes instructions for:
§Windows XP
§Windows 2000
§Windows Me
§Windows 98/98SE
Installation Guide Contents:
Section 1:Installing the DUB-A2 into your PC
Section 2:Windows XP Driver Installation
Section 3:Windows 2000 Driver Installation
Section 4:Windows Me Driver Installation
Section 5:Windows 98/98SE Driver Installation
Section 6:Hardware Diagram
Section 7:Technical Support
Package Contents:
Verify that your D-Link DUB-A2 package contains the following items. If
any items are missing, please contact your reseller.
§D-Link DUB-A2 Hi-Speed USB 2.0 2-Port PCI Adapter
§This Installation Guide
§CD with Drivers and PDF version of Installation Guide
Minimum System Requirements:
For proper usage, you must have at least the following...
§Pentium 233-MHz or faster or equivalent with 32MB RAM
§One Available PCI Slot on your Motherboard
§Windows XP, 2000, Me, 98, 98 SE
D-Link DUB-A2
USB 2.0 2-Port PCI Adapter
Installation Guide

2
Installing the DUB-A2 into your PC
Opening the case of your computer may compromise the
warranty of your computer. Consult the manufacturer of
your computer before opening the case to ensure that you
adhere to warranty guidelines. In some cases, the DUB-A2
may need to be installed by your computer manufacturer.

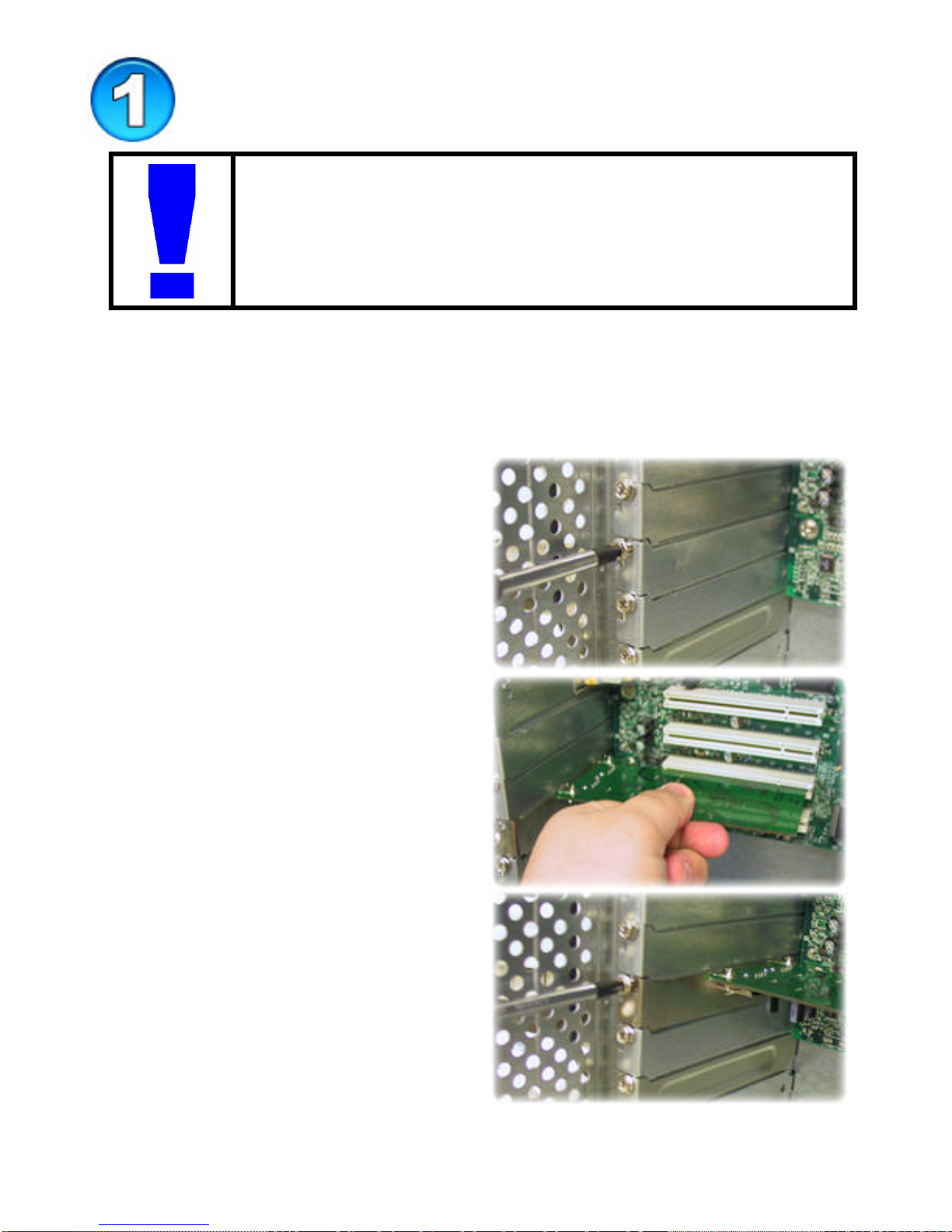

A. Turn off your computer and unplug the power cord.
B. Remove the outer cover of your computer.
(Refer to your computers manual if needed.)
C. Locate an available PCI slot. (usually white or cream colored)
D. Remove the backplate.
(The small piece of metal that
covers the opening for the PCI
card).
E. Insert the DUB-A2 carefully
into the PCI slot.
F. Secure the DUB-A2 with the
screw from the backplate.
G. Replace your computer’s
cover.
H. Plug in the power cordand
turn on your computer.
I. Please refer to the following section that corresponds with the
operating system that you are using.

3
Windows XP Driver Installation

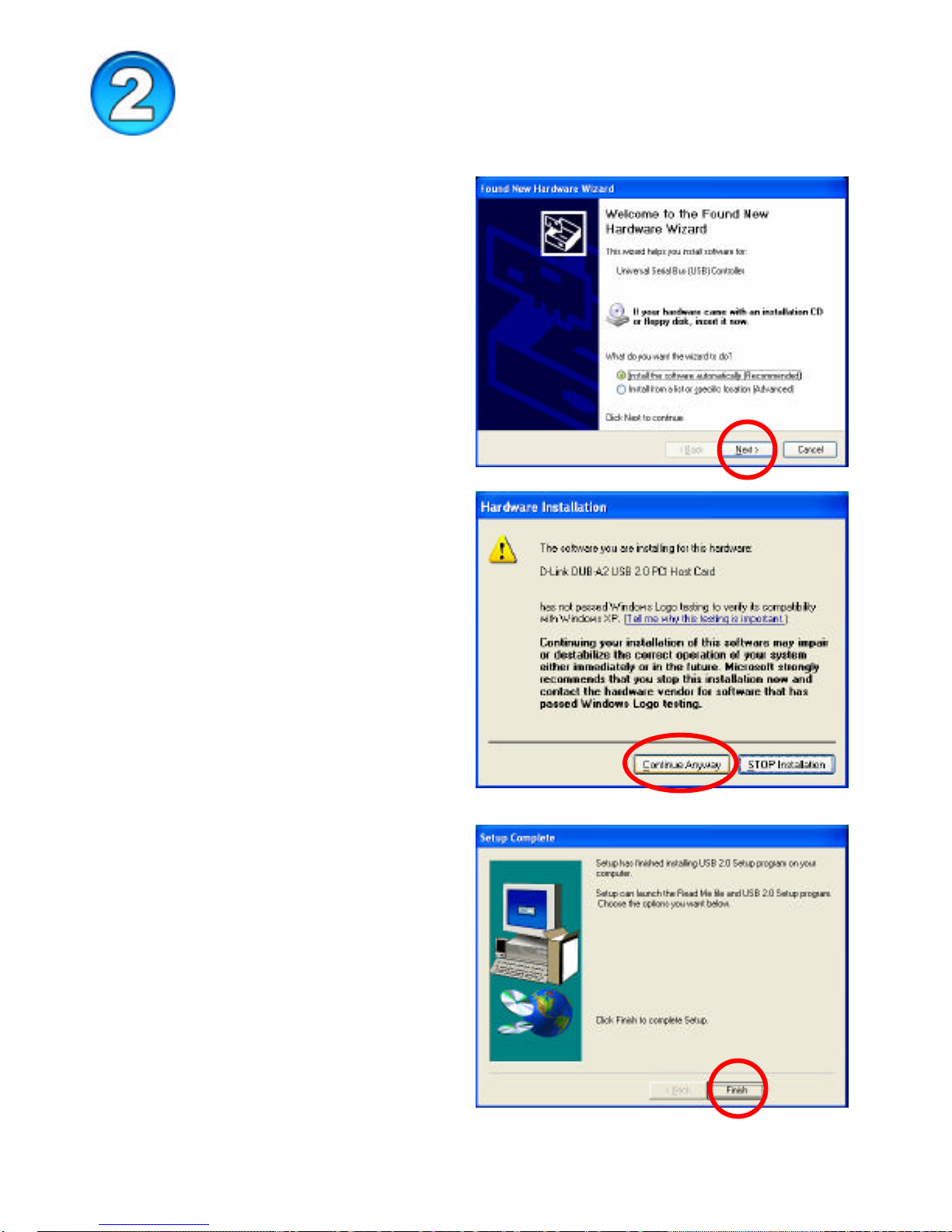

A. Insert the DUB-A2 Driver CD into your CD-ROM drive.
B. Select “Next”.
C. Select “Continue Anyway”.
D. Select “Finish”.
E. Windows will continue to
load drivers for the Root
Hub. Once completed, you
will be able to connect USB
devices to your DUB-A2.

4

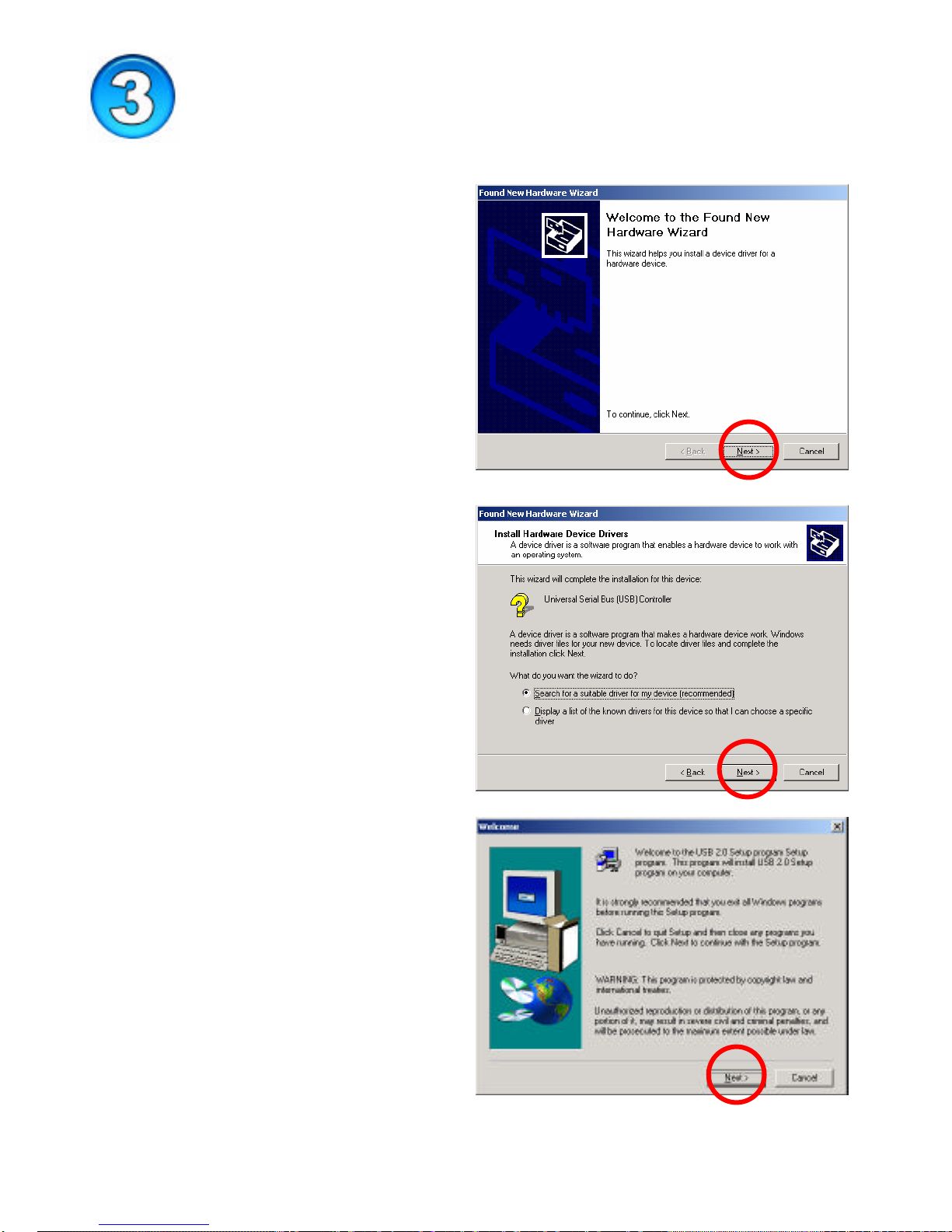

Windows 2000 Driver Installation
A. Insert the DUB-A2 Driver CD into your CD-ROM drive.
B. Select “Next”.
C. Select “Next”.
D. Select “Next”.

5

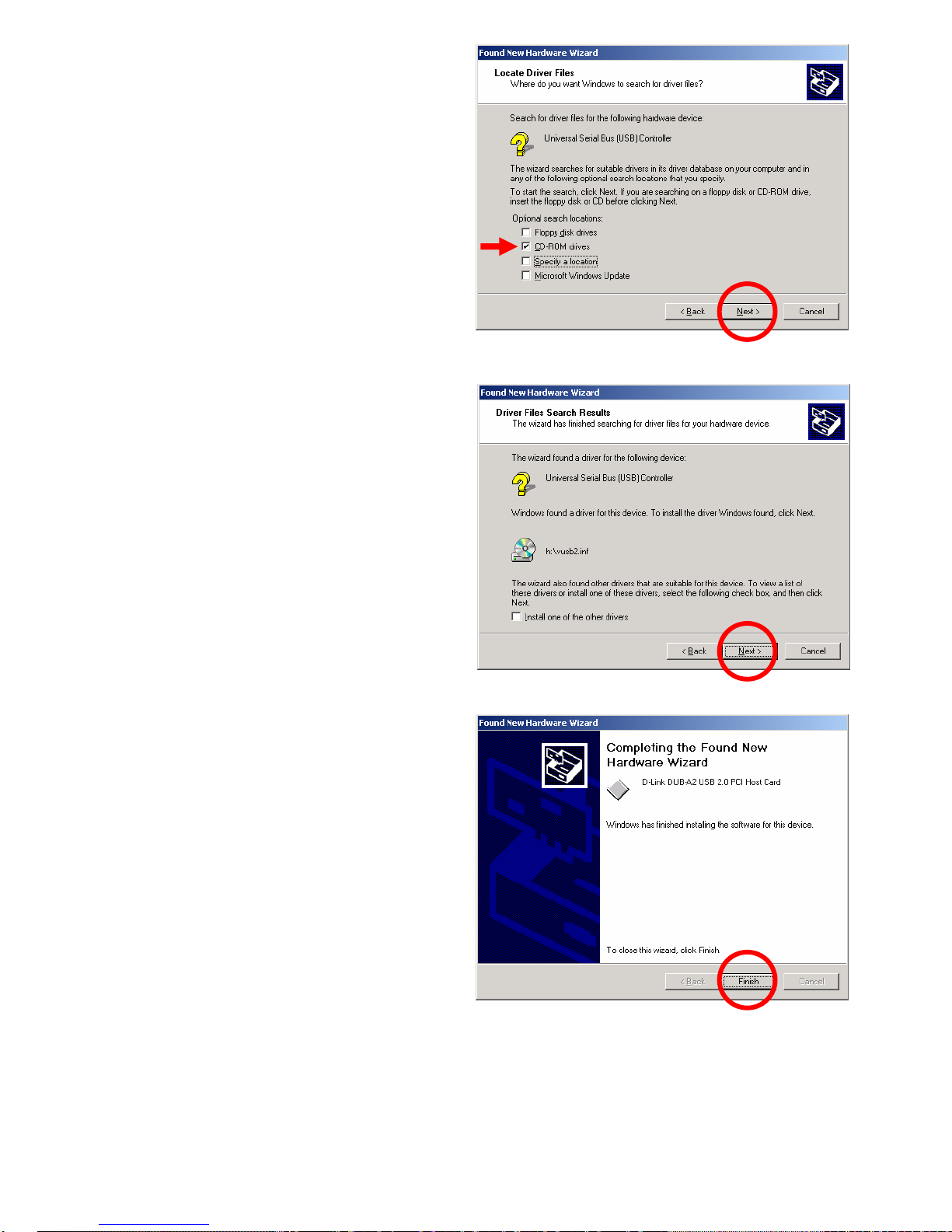

E. Make sure that “CD-ROM
drives” is the only option
selected and click “Next”.
F. Select “Next”.
G. Select “Finish”to complete
the installation.

6
Windows Me Driver Installation
A. Insert the DUB-A2 Driver CD into your CD-ROM drive.

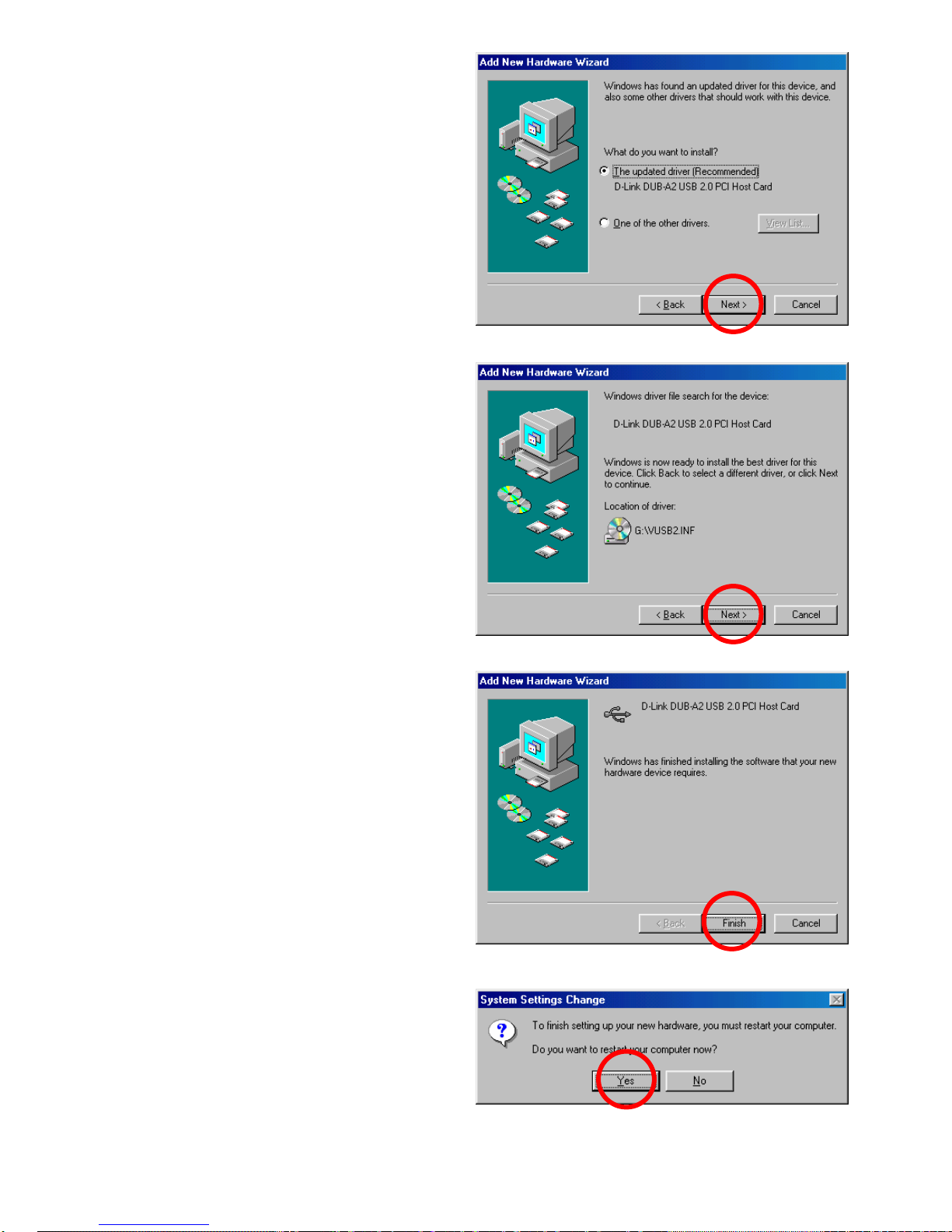

B. Windows will load drivers
built-into the OS and ask you
to restart your computer.
Select “Yes”.

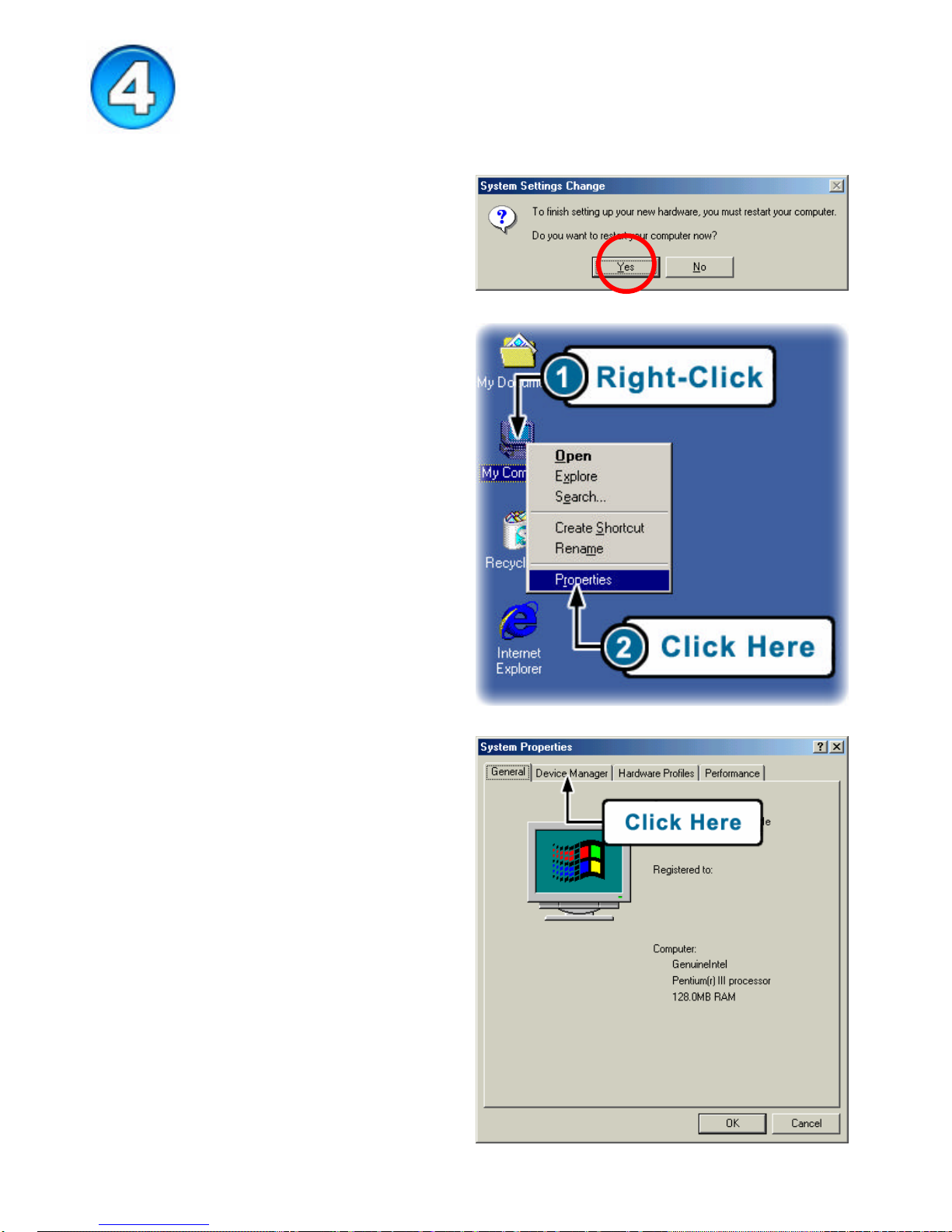

C. (1) Right-click on the My
Computer Icon on the
Windows desktop and (2)
select “Properties”.
D. Select the “Device
Manager”tab.

7

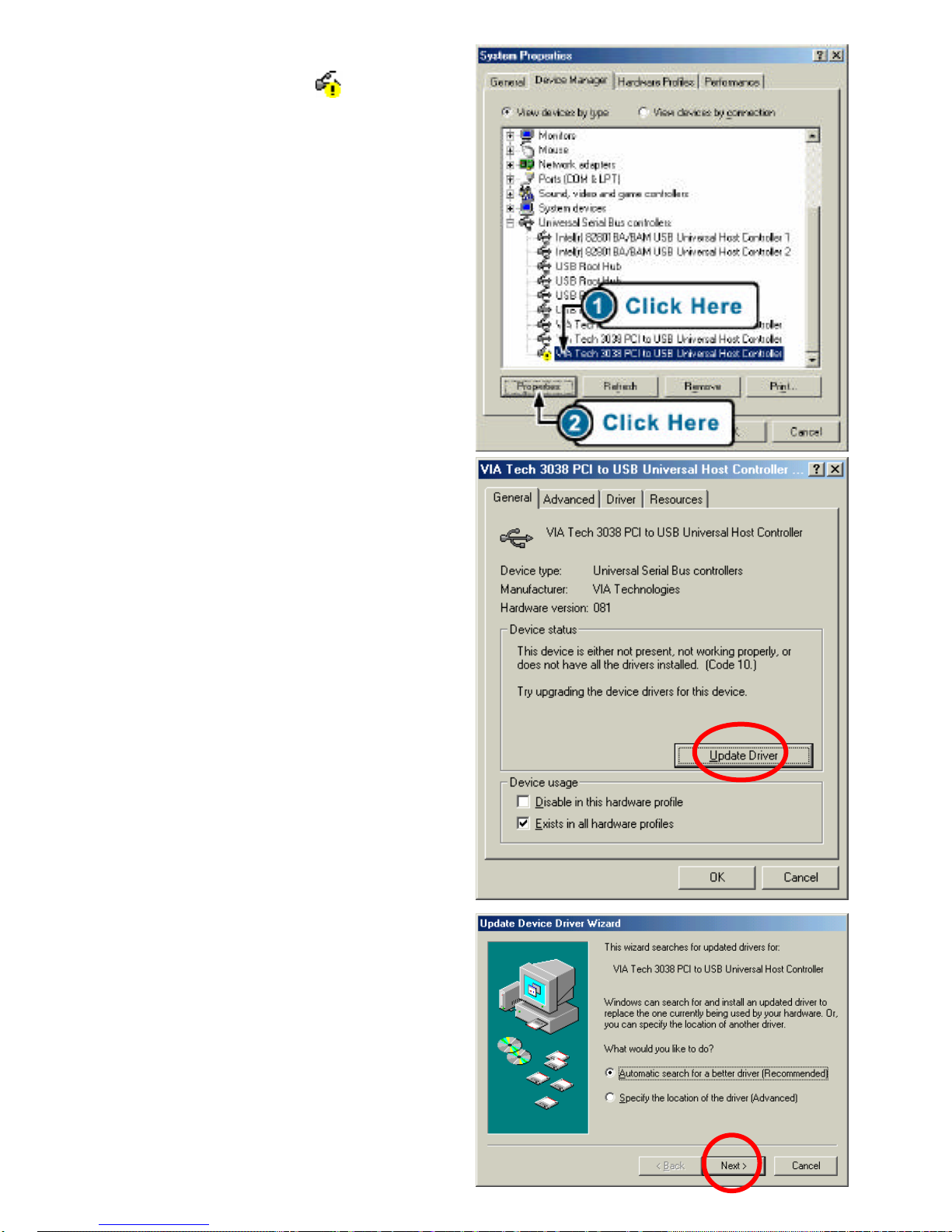

E. (1) Select the “VIA Tech…”
line that shows next to it
and (2) select “Properties”.
F. Select “Update Driver”.
G. Select “Next”.

8
H. Select “Finish”.

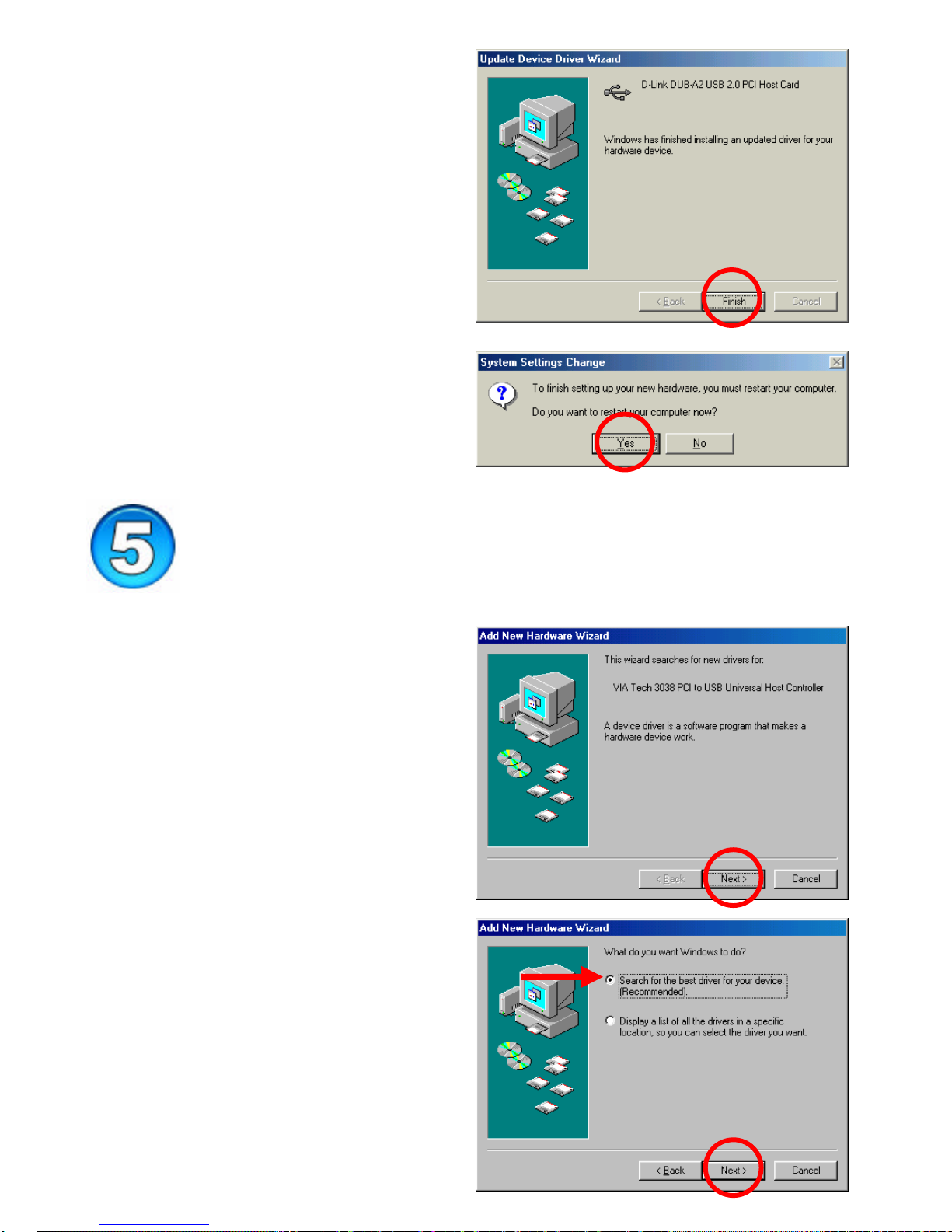

I. Select “Yes” to restart the
computer and complete the
installation.
Windows 98/98SE Driver Installation

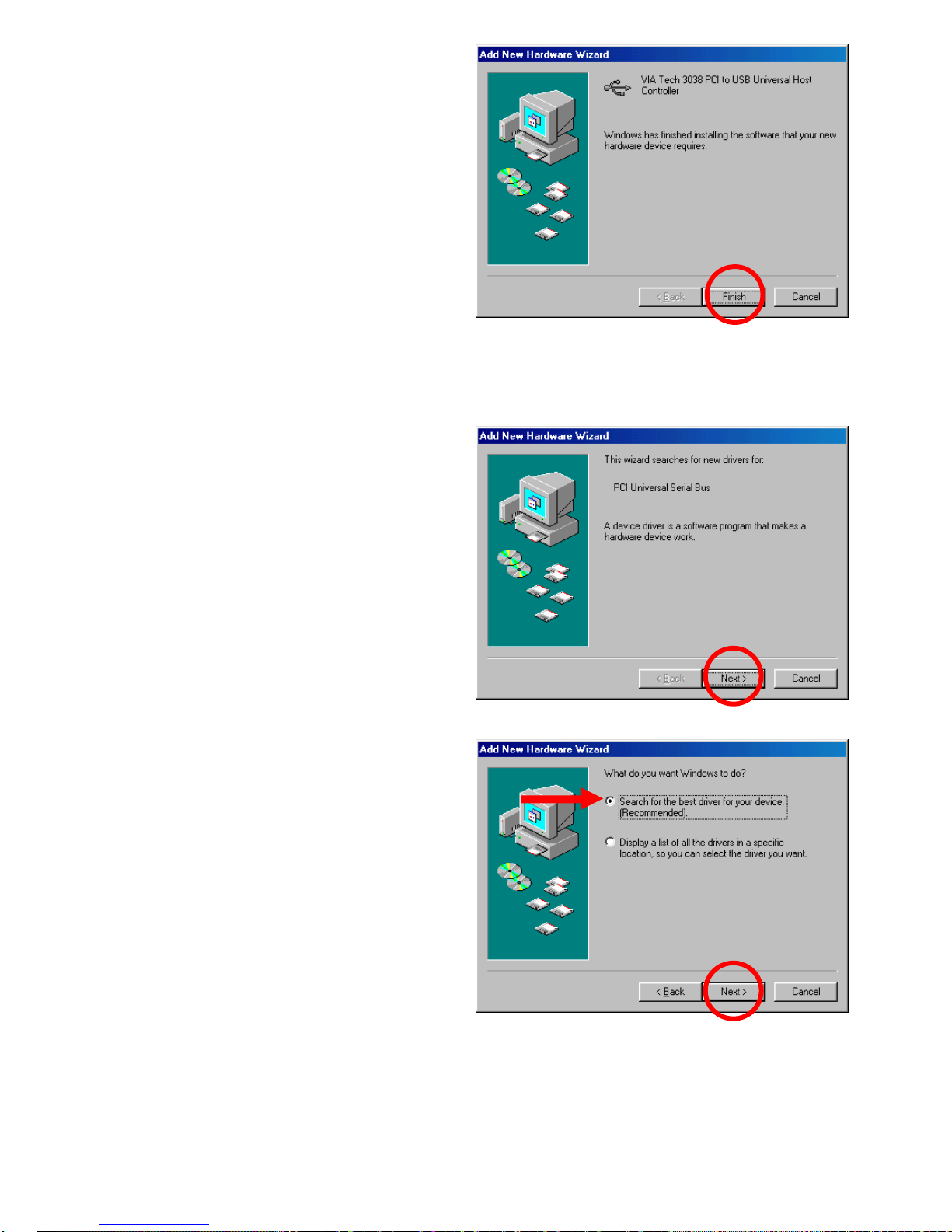

A. Insert the DUB-A2 Driver CD into your CD-ROM drive.
B. Select “Next”.
C. Select “Search for the best
driver from your device”
and click “Next”.

9

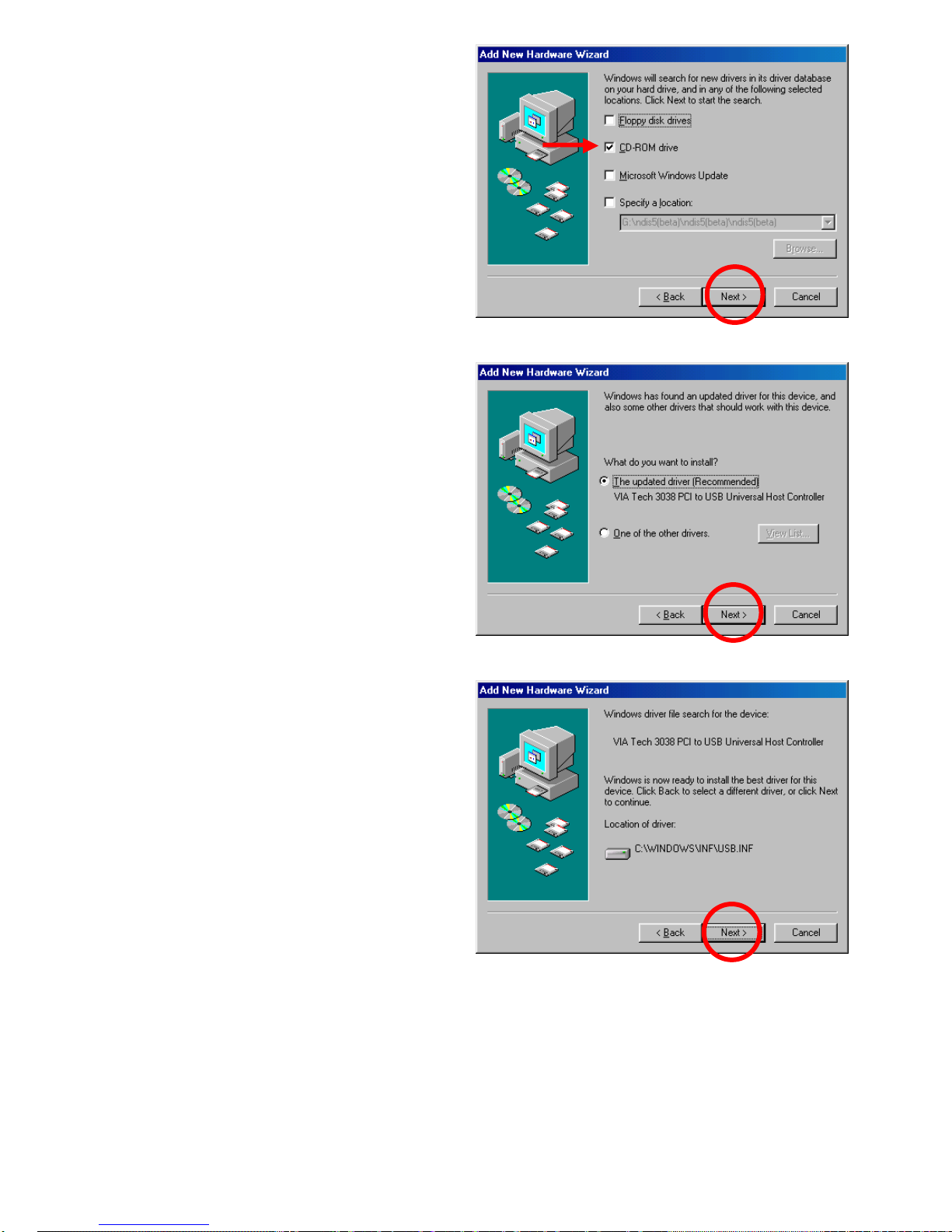

D. Put a check next to “CD-
ROM drive” and uncheck
all other options and select
“Next”.
E. Select “Next”.
F. Select “Next”.
G. If prompted for the Windows 98 CD, insert the Windows 98 CD
into the CD-ROM drive and click “OK”.
H. Specify the correct location of the Windows 98 setup files in the
“Copy files from:” box. If the CD-ROM drive is the “D”drive, then
type “D:\Win98”in the box. Note: Some computers will have these
files in the “C:\Windows\options\cabs\”directory. After typing in
the location, click OK.Windows will copy the necessary files.

10
I. Select “Finish”.
J. Repeat steps B through Ione more time.(Windows 98 requires
that this driver be installed twice in order to support USB 2.)
K. Select “Next”.
L. Select “Next”.

11
M. Select “Next”.
N. Select “Next”.
O. Select “Finish”.
P. Windows may ask you to
restart your computer. Click
“Yes” to restart your
computer to complete the
installation.

12

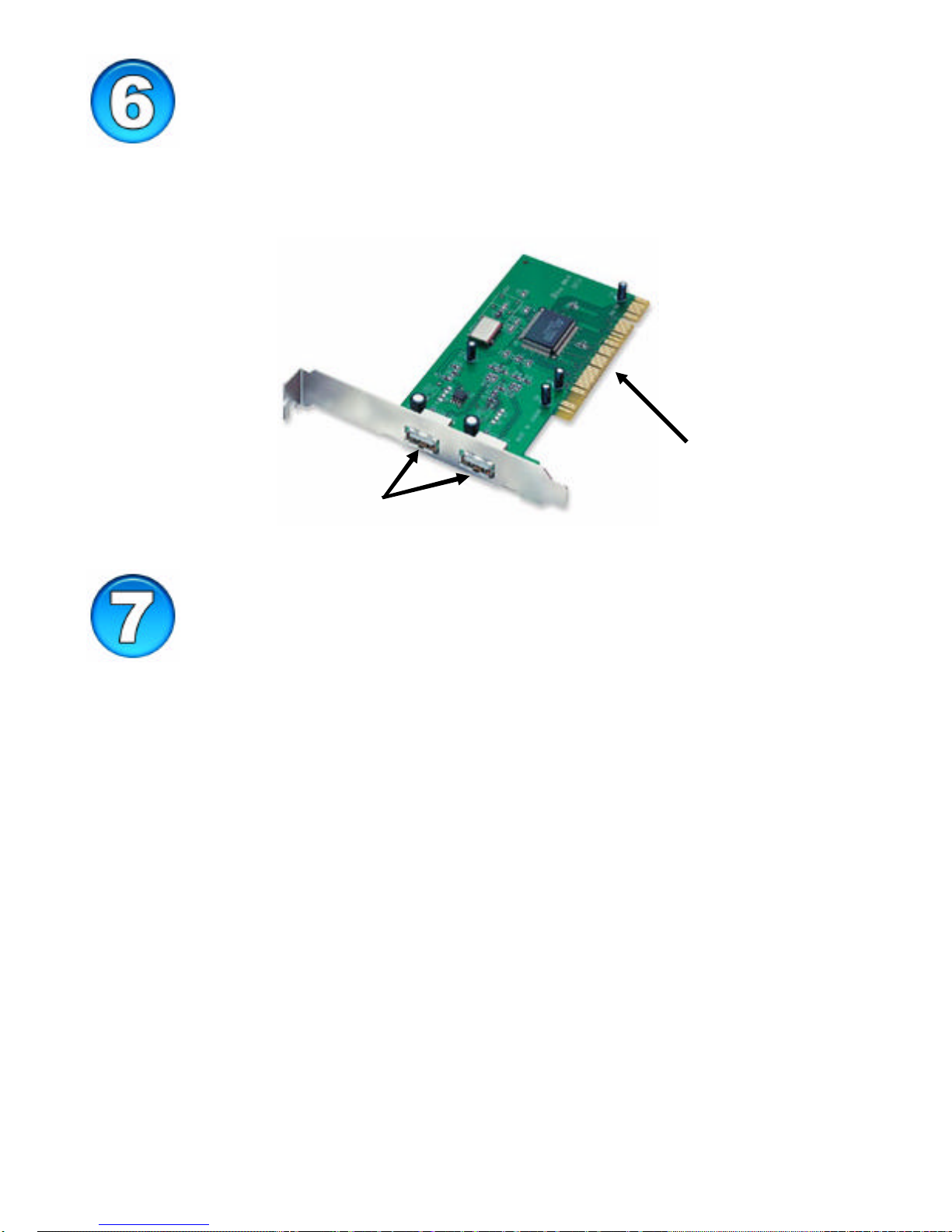

Hardware Diagram
The DUB-A2 is designed to fit into a PCI slot on your computers
motherboard. Refer to the diagram below for feature layout.
Technical Support
D-Link provides free technical support for customers within the United
States during the warranty period. U.S. customers can contact D-Link
Technical Support through our web site, e-mail or by phone.
D-Link Technical Support over Telephone:
§(877)45D-LINK or [phone]
§24 hours a day, seven days a week
D-Link Technical Support over the Internet:
§http://support.dlink.com
§[email protected]
Hi-Speed USB 2.0 Ports PCIInterface
