Package Contents
If any of the above items are missing, please contact your reseller.
System Requirements:
D-Link DP-G310 Wireless USB Print Server
Ethernet Cable
Manual and Warranty on CD
Printed Quick Installation Guide




A computer with an installed Ethernet adapter for initial configuration purposes only
Windows XP/2000, Mac OS with AppleTalk, or Linux
Internet Explorer 6.0, or Netscape Navigator version 7.0 or above, with JavaScript enabled
The printer must support the required Operating System
A computer or a network of computers with wireless capability





Package Contents

4
DP-G310 User’s Manual
D-Link Systems, Inc.
The D-Link DP-G310 Print Server is an 802.11g wireless USB 2.0 high-speed Print Server that can also connect
to your Ethernet/Fast Ethernet network. Now you can locate USB printer services virtually anywhere in your home
or office. The DP-G310 manages the flow of print files from workstations or file servers to connected printers,
delivering print jobs to printers much faster than a file server on a PC. With one USB 2.0 port, the DP-G310 can
connect to almost any printer with a USB port.
The DP-G310 includes easy-to-use software to install on most Windows-based networks. Protocol support for
TCP/IP, NetBEUI, and AppleTalk are provided to ensure seamless connection to major networking operating
systems.
The DP-G310 has a built in Web-based management feature that allows users to easily configure and manage
print queues through TCP/IP. The DP-G310 also supports Telnet as an alternative method to configure the unit.
The DP-G310 improves network printing services in the following ways:
1. The DP-G310 delegates print jobs to the connected USB printer. This provides workload relief to your file
servers and allows the file servers’ full capacity to be used for file access or other direct services to network
users. On peer-to-peer networks, workstations can print directly to the Print Server without increasing the load
of another workstation or server.
2. Because the DP-G310 is very portable and inexpensive compared to a PC-based print server, and the Print
Server connects to your file servers through the network, printers can be deployed to locations of maximum
convenience to users.
Introduction
* Maximum wireless signal rate based on IEEE Standard 802.11g specifications. Actual data throughput will vary.
Network conditions and environmental factors, including volume of network traffic, building materials and construction,
and network overhead lower actual data throughput rate.
The DP-G310 offers extraordinary flexibility, operating with all major network operating systems and protocols:
TCP/IP
UNIX lpr/lpd
Windows NT/2000, Windows 95/98SE/ME, Windows XP
NetWare 5.x NDPS LPR Remote Printing
NetBEUI
Windows 2000/XP, Windows 95/98SE/ME, Microsoft LAN Manager, IBM LAN Server
AppleTalk
MacOS EtherTalk
Windows-based setup and administration software, PS Admin, is supplied with the Print Server, making
configuration and management quick and easy. The Print Server also supports configuration and management
via the Telnet protocol for networks without Windows-compatible systems.
Introduction

5
DP-G310 User’s Manual
D-Link Systems, Inc.

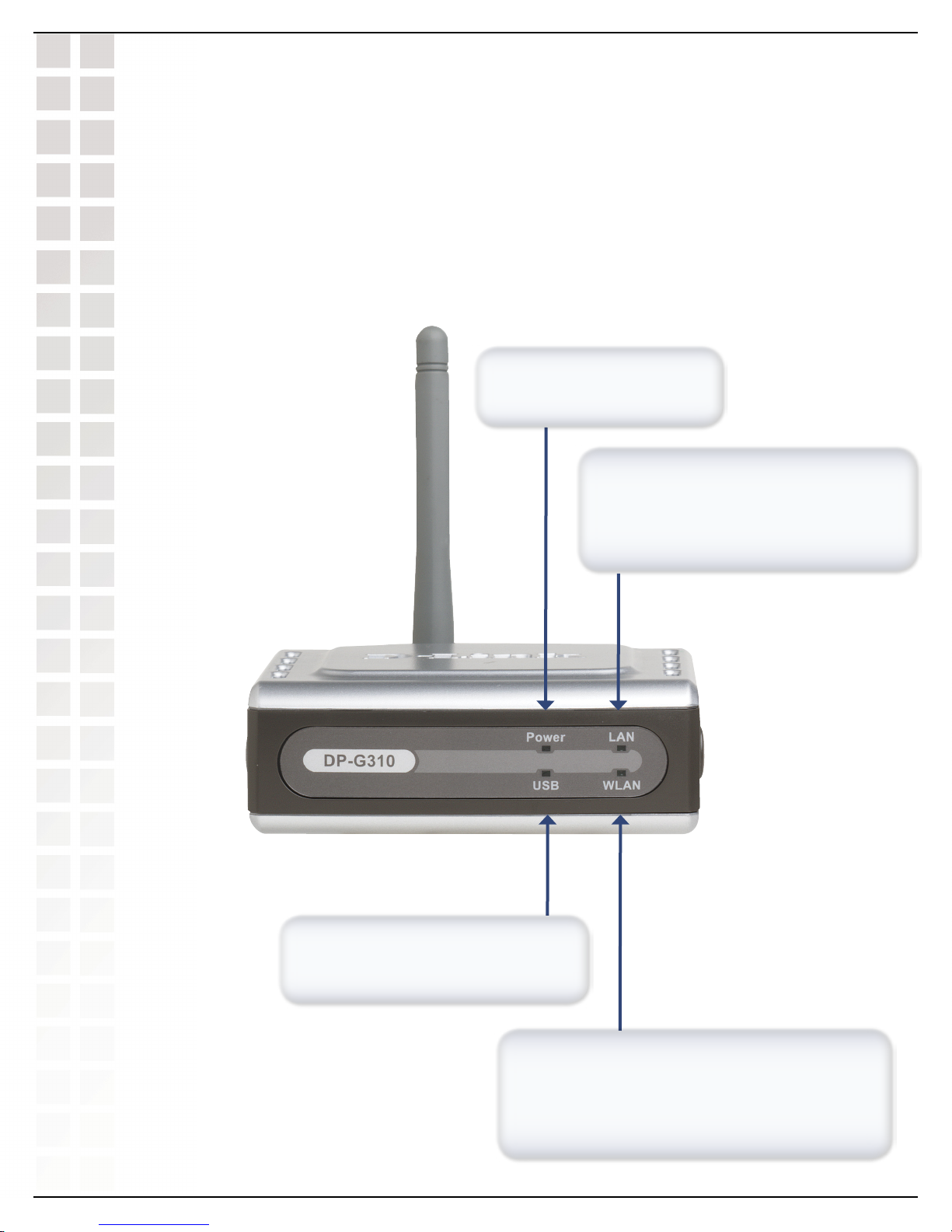

Front Panel LED Indicators
There are two front panel indicators, each holding two separate LEDs (aligned in a vertical position). As shown
below, the first indicator holds the Power and the USB LED. The second indicator holds the Ethernet and WLAN
LED. Upon boot-up, the Power light stays on continuously and all other LEDs light up momentarily one-by-one,
then turn off.
LAN LED
A steadily lit LED indicates proper network
connection; no lit LED indicates an unsuccessful
network connection. A blinking LED indicates
activity (configuration or printing).
USB LED
A steadily lit LED indicates your USB printer
is printing; otherwise, this LED is off.
WLAN LED
A steadily lit LED indicates a proper wireless network
connection; no lit LED indicates an unsuccessful wireless
network connection. A blinking LED indicates activity
(configuration or printing).
Power LED
A steady light indicates a proper
connection to a power source.
Hardware Overview

6
DP-G310 User’s Manual
D-Link Systems, Inc.

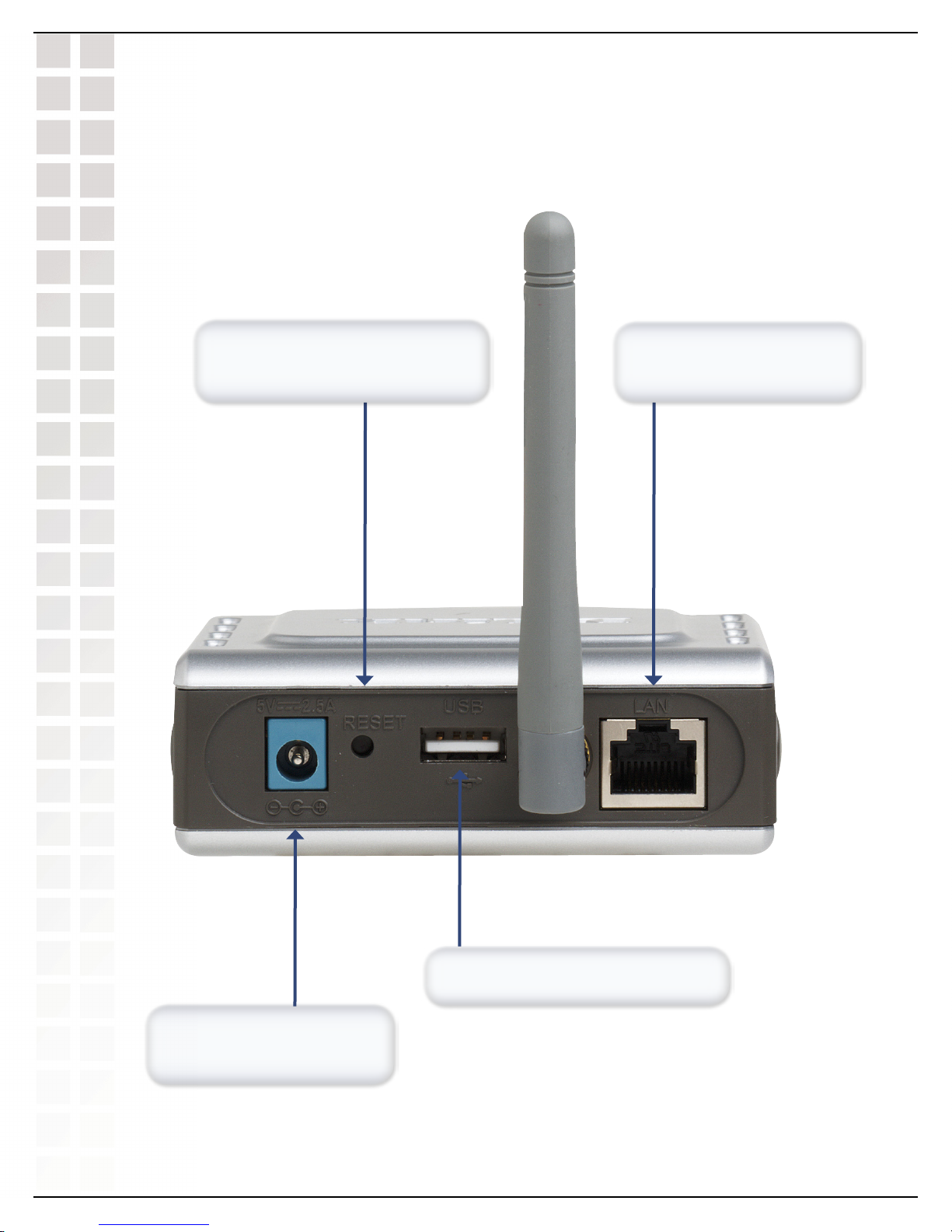

Reset Button
Insert a paper clip to reset the DP-G310
back to the factory default settings.
LAN Port
Connect an Ethernet cable to
your network (router or switch).
Power Receptor
A steady light indicates a proper
connection to a power source.
USB Port
Connect a printer using a USB cable.
Hardware Overview
Rear Panel Connectors

7
DP-G310 User’s Manual
D-Link Systems, Inc.
Wireless Basics
D-Link wireless products are based on industry standards to provide easy-to-use and compatible high-speed
wireless connectivity within your home, business or public access wireless networks. D-Link wireless products
will allow you access to the data you want, when and where you want it. You will be able to enjoy the freedom
that wireless networking brings.
A wireless LAN (WLAN) is a cellular computer network that transmits and receives data with radio signals
instead of wires. WLANs are used increasingly in both home and office environments, and public areas such as
airports, coffee shops and universities. Innovative ways to utilize WLAN technology are helping people to work
and communicate more efficiently. Increased mobility and the absence of cabling and other fixed infrastructure
have proven to be beneficial for many users.
Wireless users can use the same applications they use on a wired network. Wireless adapter cards used on
laptop and desktop systems support the same protocols as Ethernet adapter cards.
People use wireless LAN technology for many different purposes:
Mobility - Productivity increases when people have access to data in any location within the operating range of
the WLAN. Management decisions based on real-time information can significantly improve worker efficiency.
Low Implementation Costs – WLANs are easy to set up, manage, change and relocate. Networks that
frequently change can benefit from WLANs ease of implementation. WLANs can operate in locations where
installation of wiring may be impractical.
Installation and Network Expansion - Installing a WLAN system can be fast and easy and can eliminate the
need to pull cable through walls and ceilings. Wireless technology allows the network to go where wires cannot
go - even outside the home or office.
Scalability – WLANs can be configured in a variety of topologies to meet the needs of specific applications
and installations. Configurations are easily changed and range from peer-to-peer networks suitable for a small
number of users to larger infrastructure networks to accommodate hundreds or thousands of users, depending
on the number of wireless devices deployed.
Inexpensive Solution - Wireless network devices are as competitively priced as conventional Ethernet network
devices.
Standards-Based Technology
Based on the IEEE 802.11g standard, the DP-G310 is interoperable with existing compatible 2.4GHz wireless
technology with data transfer speeds of up to 54Mbps* when used with other D-Link AirPlus G devices.
* Maximum wireless signal rate based on IEEE Standard 802.11g specifications. Actual data throughput will vary.
Network conditions and environmental factors, including volume of network traffic, building materials and construction,
and network overhead lower actual data throughput rate.
Wireless Basics

8
DP-G310 User’s Manual
D-Link Systems, Inc.
Installation Considerations
The D-Link AirPlus G DP-G310 lets you print through your network, using a wireless connection, from virtually
anywhere within its operating range. Keep in mind, however, that the number, thickness and location of walls,
ceilings, or other objects that the wireless signals must pass through, may limit the range. Typical ranges vary
depending on the types of materials and background RF (radio frequency) noise in your home or business. The
key to maximizing wireless range is to follow these basic guidelines:
Keep the number of walls and ceilings between the DP-G310 and other network devices to a minimum -
each wall or ceiling can reduce your D-Link wireless product’s range from 3-90 feet (1-30 meters.) Position
your devices so that the number of walls or ceilings is minimized.
2.
Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a 45-degree
angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters).
Position devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for
better reception.
3.
Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate
extreme RF noise.
5.
Building materials can impede the wireless signal - a solid metal door or aluminum studs may have a
negative effect on range. Try to position wireless devices and computers with wireless adapters so that the
signal passes through drywall or open doorways and not other materials.
4.
Keep the antenna of the DP-G310 in an upright position.
1.
* Maximum wireless signal rate based on IEEE Standard 802.11g specifications. Actual data throughput will vary. Network
conditions and environmental factors, including volume of network traffic, building materials and construction, and network
overhead lower actual data throughput rate.
Wireless Installation Considerations
Wireless Installation Considerations

9
DP-G310 User’s Manual
D-Link Systems, Inc.
Setting up the DP-G310
Installing the Print Server
WARNING: Configuration problems may result if the Print Server is powered up without first establishing its network
connection. Follow this procedure to avoid complications at the configuration stage.
1. Confirm proper operation of your printer before connecting the DP-G310.
2. When you have confirmed proper operation of your USB printer, turn your printer power OFF.
3. Confirm that your network is operating normally.
4. Connect the DP-G310 to your network, using a straight-through CAT5 cable.
6. Switch ON your USB printer.
7. Plug the DC power adapter into the DC 5V power socket on the rear panel of the Print Server.
8. Plug the power adapter into a power outlet. This will supply power to the DP- G310, as it has no
external power switch. The green Power LED on the Print Server’s front panel should illuminate
steadily, and the Print Server’s Self-Test will proceed.
5. While the printer is powered OFF, use the USB printer cable to connect the DP-G310 to your USB
printer.
Setting up the DP-G310

10
DP-G310 User’s Manual
D-Link Systems, Inc.
Getting Started
When the DP-G310 is powered ON, it also automatically performs a Self-Test on each of its major components.
The final result of the Self-Test is signaled by the state of the USB LED indicator following the Self-Test. Preliminary
to the actual component tests, the LED indicators are tested to confirm their steady and flashing operation.
Immediately after power-up, three of the green LEDs should illuminate steadily for several seconds. Then the
USB LED should flash three times. Irregularity of the LED during this LED test may mean there is a problem with
the LED itself.
The actual component tests immediately follow the LED tests. A normal (no fault) result is signaled by a flashing
of the USB LED, followed by a darkened LED.
If the Self-Test routine detects any component error, then following the LED tests the Self-Test will halt and the
LEDs will continuously signal the error according to the following table.
Power ON Self-Test
USB LED Faulty Component
low speed flashing Need to reload firmware
steady ON DRAM error
1 long 2 short
1 long 3 short
1 long 5 short
1 long 6 short
1 long 7 short
1 long 11 short LAN I/O base error
LAN memory error
LAN Controller error
Flash Erase/Program error
Flash Protected
Timer INT error
1 long 18 short USB error
1 long 15 short
1 long 16 short
1 long 17short
Wireless LAN card detect error
Wireless LAN card CIS error
Wireless LAN card I/O error
Self-Test

11
DP-G310 User’s Manual
D-Link Systems, Inc.

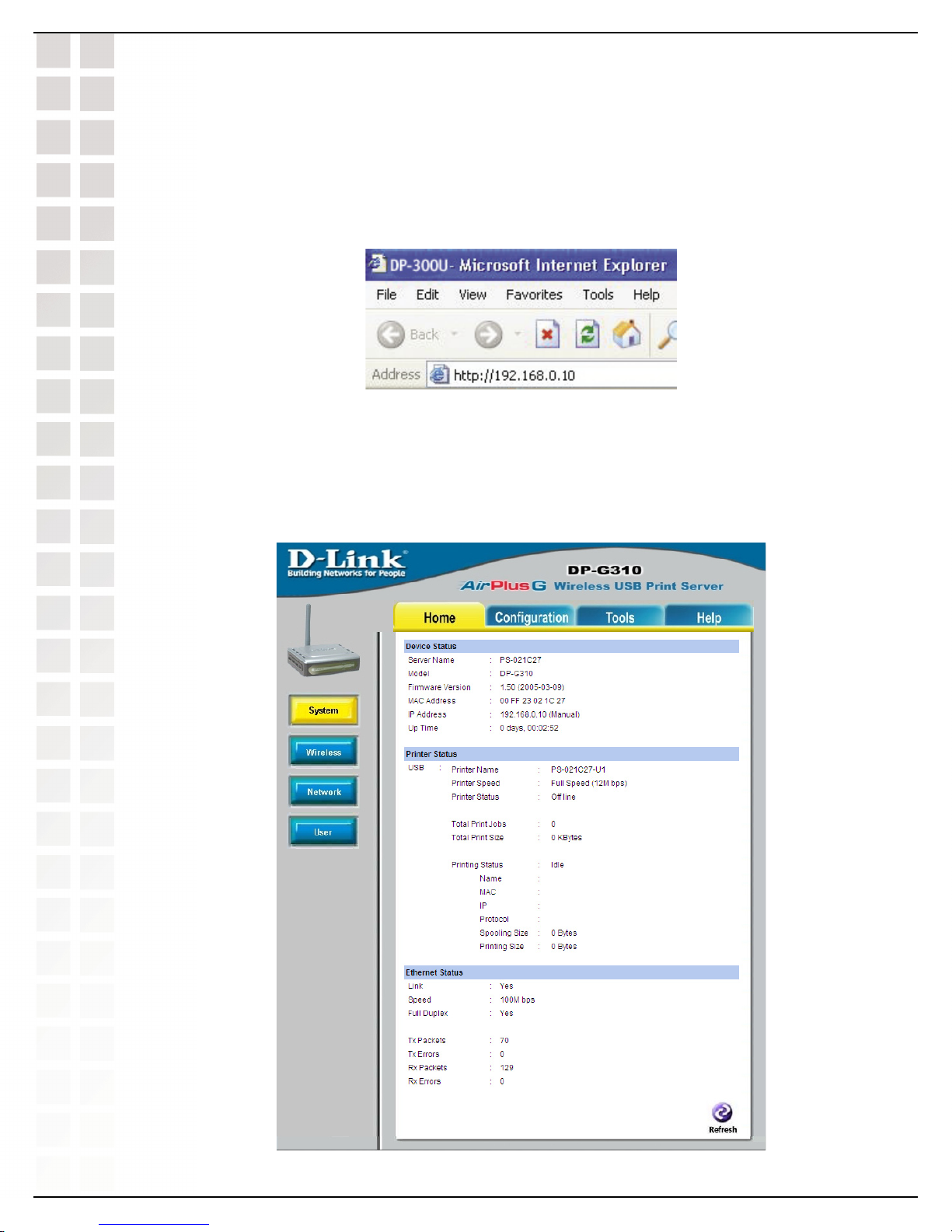

When you enter the default IP address, the main screen of the Print Server’s configuration will appear (see
below). In addition to the product information, you can access and control the Print Server’s configuration through
four links on the top of this main screen: Home, Configuration, Tools, and Help.
Please use an Ethernet connection for the configuration of the DP-G310. Using a CAT5 cable, connect the print
server to the Ethernet-adapter equipped computer in your network that you will be using for configuration. Open
your web browser and type http://192.168.0.10 in the address box, and press Enter. This set of numbers is the
default IP Address of your Print Server. Please note that the PC’s IP Address must correspond with the Print
Server’s IP Address in the same segment for the two devices to communicate.
Using the Web Configuration
Using the Web Configuration

12
DP-G310 User’s Manual
D-Link Systems, Inc.
Device Status: Information about the print server, including the firmware version, MAC/IP address, and the “up
time” can be found in this field.
Printer Status: The items in this field display information about the printer, such as the given name of the printer,
speed, printer status, and the status of your printing tasks, etc.
Ethernet Status: You can monitor the networking status in this field, including the network connection, speed,
and the packets status.

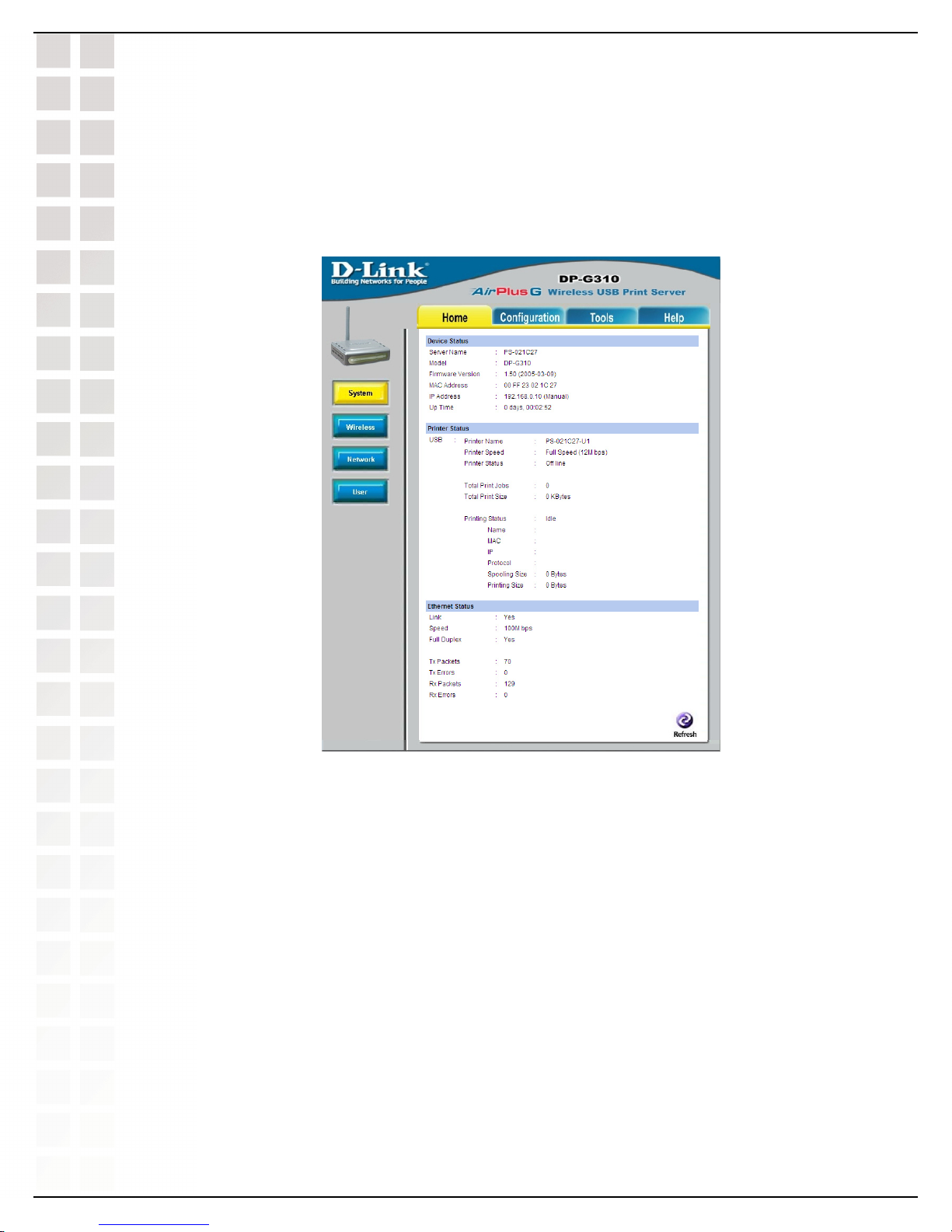

As shown below, the System displays the status of your print server, printer and network. Clicking Refresh will
update the information.
Home > System
Using the Web Configuration (continued)
Using the Web Configuration

13
DP-G310 User’s Manual
D-Link Systems, Inc.
Home > Wireless

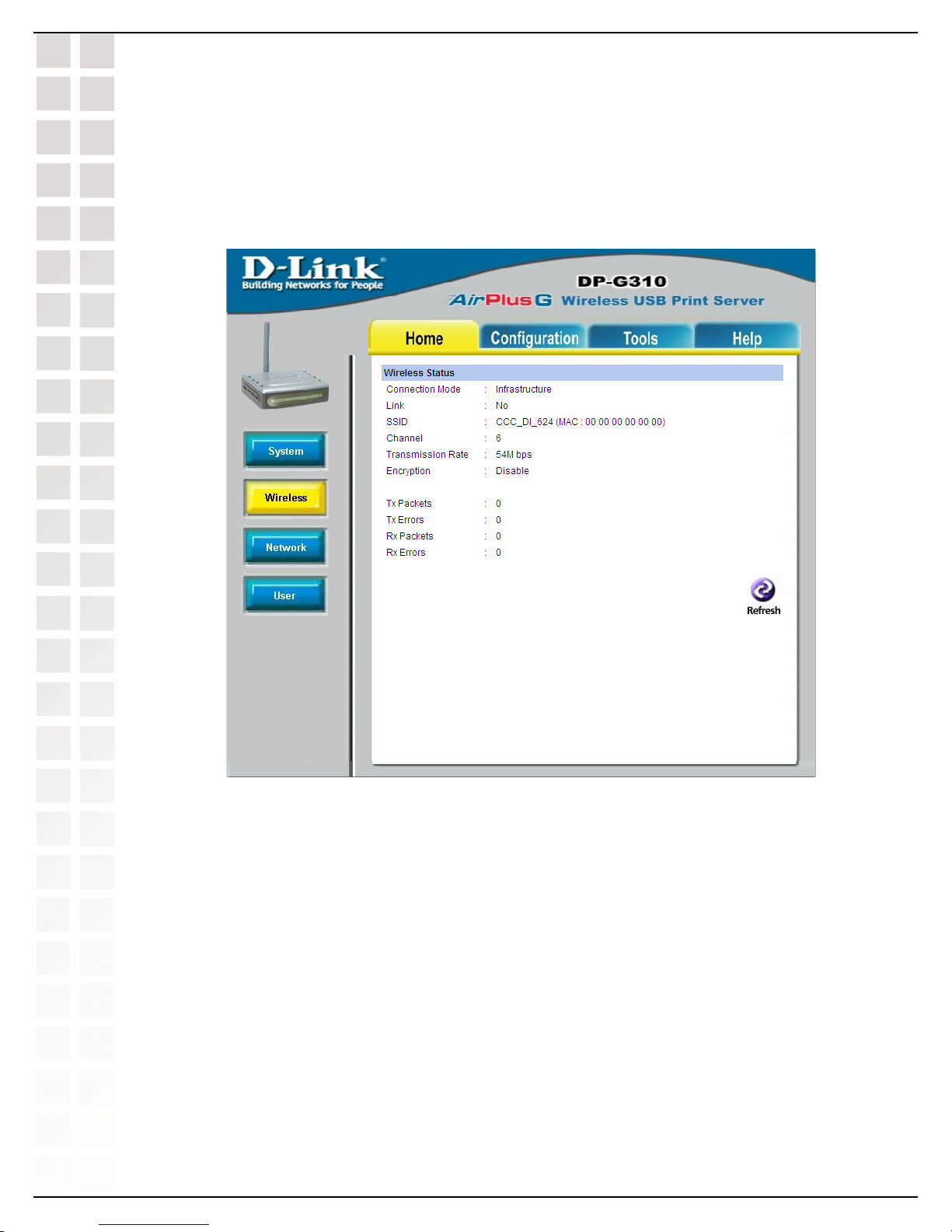

Click the Wireless button in the left column to display information about the wireless LAN. Clicking Refresh will
update the information.
Wireless Status: The items in this field display information about the wireless LAN, such as the connection mode
(Infrastructure or Ad-Hoc), SSID, channel, data transfer rate, WEP encryption, and the packets status.
Using the Web Configuration (continued)
Using the Web Configuration

14
DP-G310 User’s Manual
D-Link Systems, Inc.

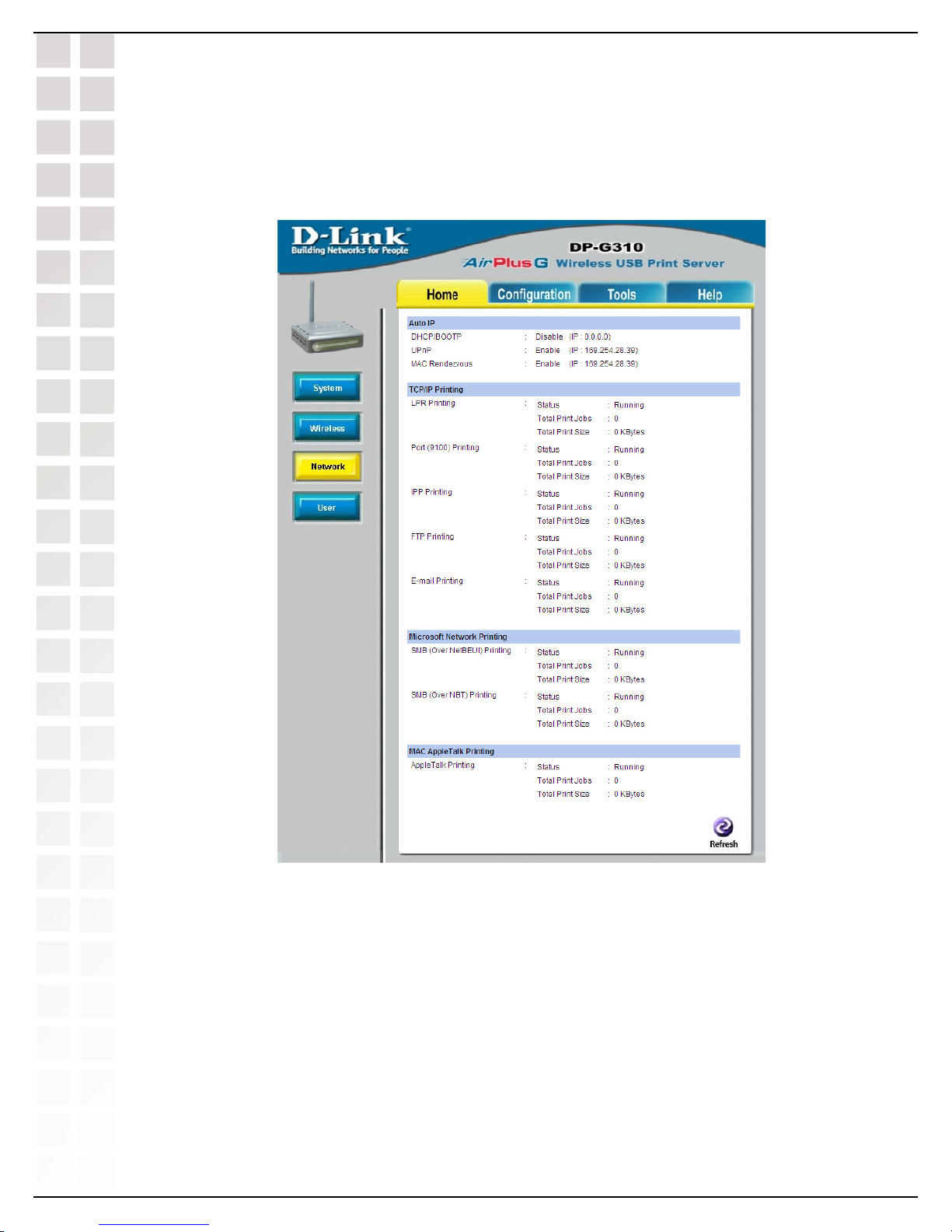

Click the Network button in the left column to display information about the wireless LAN. Clicking Refresh will
update the information.
Home > Network
Auto IP: This field contains the current settings of TCP/IP, including DHCP/BOOTP, UPnP, and MAC Rendezvous.
The items in this field are configured in Configuration > Network > TCP/IP.
TCP/IP Printing: In this field, you can monitor the status of your printing tasks through TCP/IP.
Microsoft Network Printing: In this field, you can monitor the status of your printing tasks through Microsoft
Network.
Mac AppleTalk Printing: In this field, you can monitor the status of your printing tasks through Mac AppleTalk.
Using the Web Configuration (continued)
Using the Web Configuration

15
DP-G310 User’s Manual
D-Link Systems, Inc.

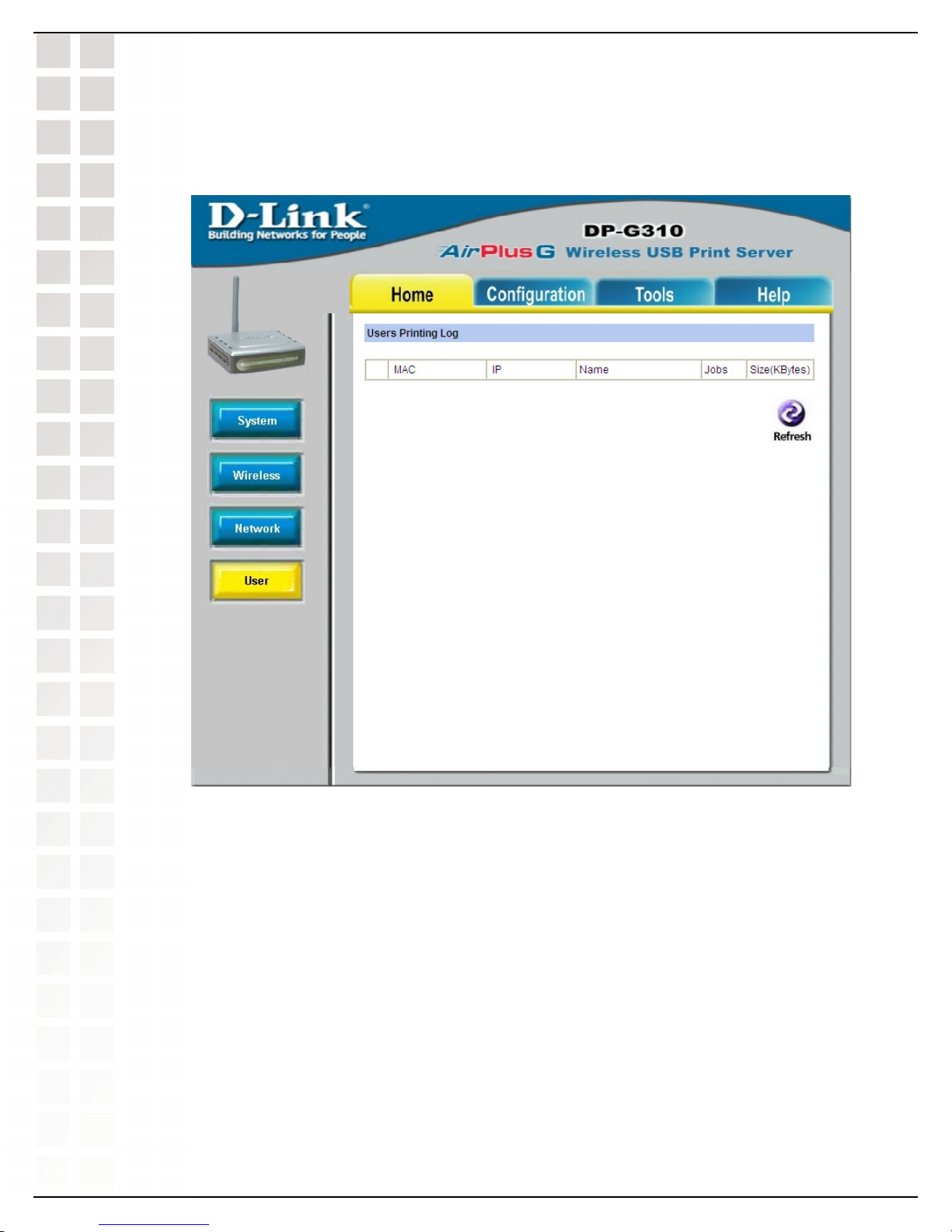

Click the User button in the left column to display the user’s information.
Home > User
Users Printing Log: The items in this field display the user(s) information, which include the user(s) Mac
address, IP address, name, and status of printing tasks.
Using the Web Configuration (continued)
Using the Web Configuration

16
DP-G310 User’s Manual
D-Link Systems, Inc.

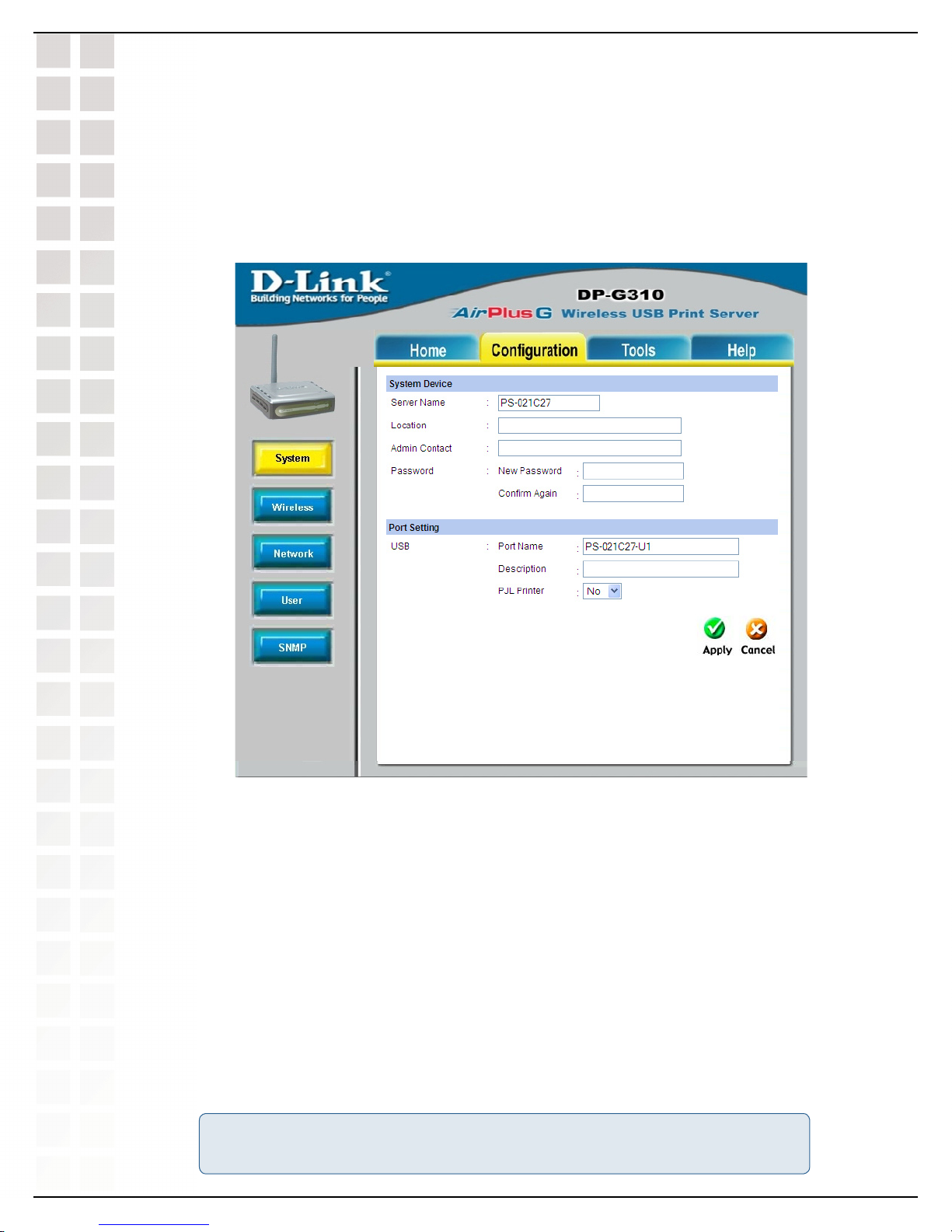

Configuration > System
This option will show you settings required to configure the DP-G310 Print Server. Consult your printers owner
manual for the PJL(Printer Job Language) and print speed supported on your printer. Click the Save button on
the bottom of the configuration page to ensure the settings are updated and saved.
Using the Web Configuration (continued)
Server Name: Assign a name to the print server.
Location (optional): Assign a location for the print server.
Admin contact (optional): Assign the Admin’s contact name for the print server.
Port Settings
In this field, you can assign the Port Name for the print server, and the description for the USB port. It also allows
you to select the PJL Printer setting (Yes or No).
System Device
In this field, you can configure the basic information of your print server.
Password: Enter the Administrator password (3-8 characters). To set up the password, please enter the password
in the New Password box, and then enter the same one again in the Confirm Again box.
NOTE: PJL (Print Job Language) has certain job requirements that must be met to
work correctly. for more information, please refer to your printer’s manual.
Using the Web Configuration

17
DP-G310 User’s Manual
D-Link Systems, Inc.

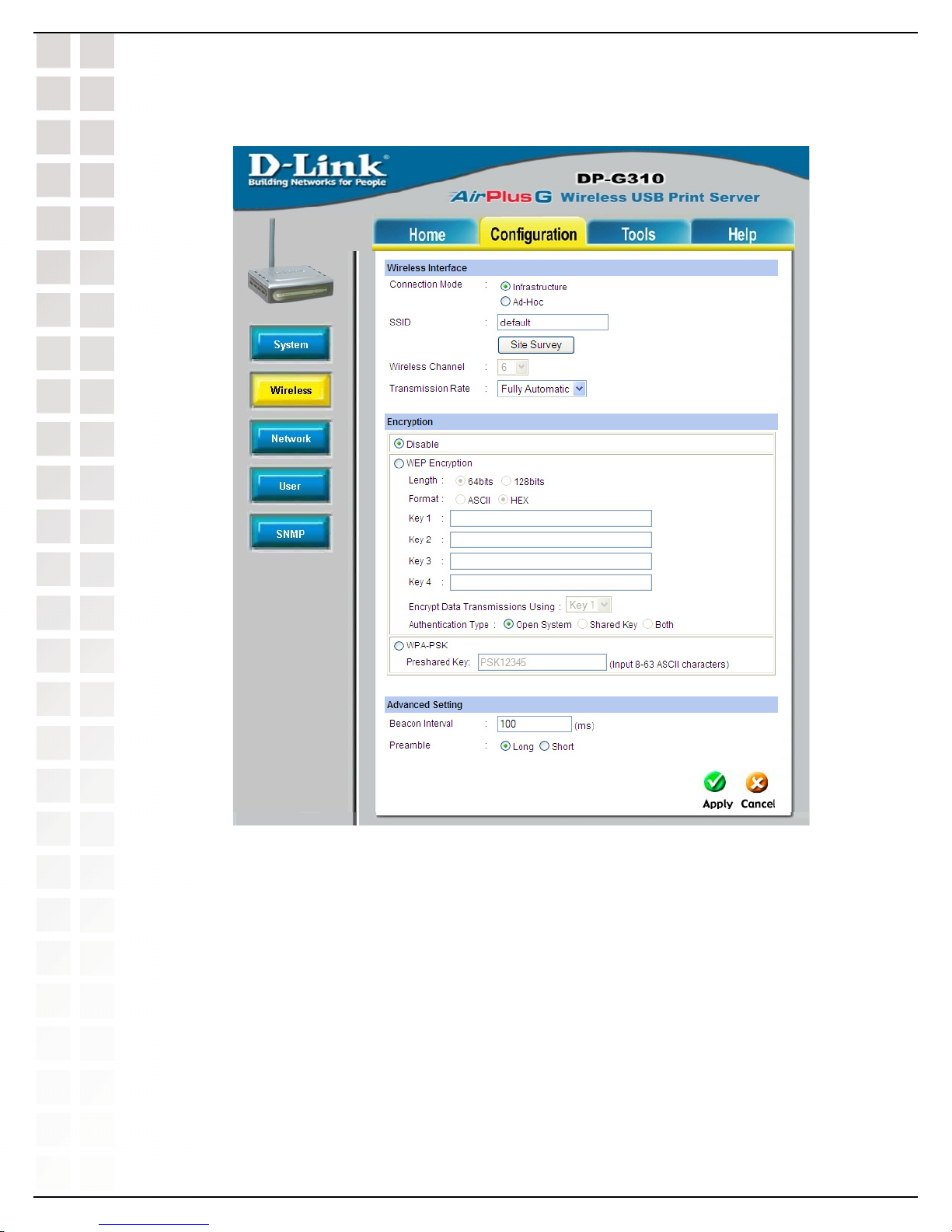

Configuration > Wireless
Using the Web Configuration (continued)
Using the Web Configuration
Connection Mode: Select one of two connection modes:
 Infrastructure (default): Connect to an existing wireless AP or router in a WLAN.
 Ad-Hoc: Connect to wireless clients in the Peer-to-Peer mode.
Wireless Interface
SSID: Assign the SSID in this box. You can manually input the name or select one from the pull-down menu. To
search the available print server within the network, click the Site Survey button.
Wireless Channel: Select the channel from the pull-down menu. The default setting is 6.
Transmission Rate: Select the data transmit rate from the pull-down menu. The default setting is Fully
Automatic.

18
DP-G310 User’s Manual
D-Link Systems, Inc.
Configuration > Wireless (continued)
WEP Encryption
This field allows you to configure the settings of data encryption. Please remember that the WEP key must be set
before the data encryption is enforced.
WEP Encryption: This option allows you to select Disable, 64-bit, or 128-bit for encryption setting.
WEP Key Format: You can decide the network key to be encoded by ASCII (ASCII characters) or HEX
(hexadecimal). 64-bit WEP encryption uses a 10 hexadecimal character key. The WEP encryption key must
match the WEP settings on your AP or wireless router to connect properly.
Then, enter the key(s) for the network in the Key box (1-4).
WPA-PSK: This option allows you to use a WPA-PSK passphrase.
Preshared Key: Enter the WPA-PSK passphrase or key used on your network.
Advanced Setting
Beacon Interval: Enter the number for the beacon interval in milliseconds.
Preamble: This option allows you to set the length of the preamble. Setting options are:
 Long: set to 144 bits
 Short: set to 72 bits.
Authentication Type: You can set the authentication type by selecting the settings: Open System, Shared Key,
and Both.
Using the Web Configuration (continued)
Using the Web Configuration

19
DP-G310 User’s Manual
D-Link Systems, Inc.
Using the Web Configuration (continued)

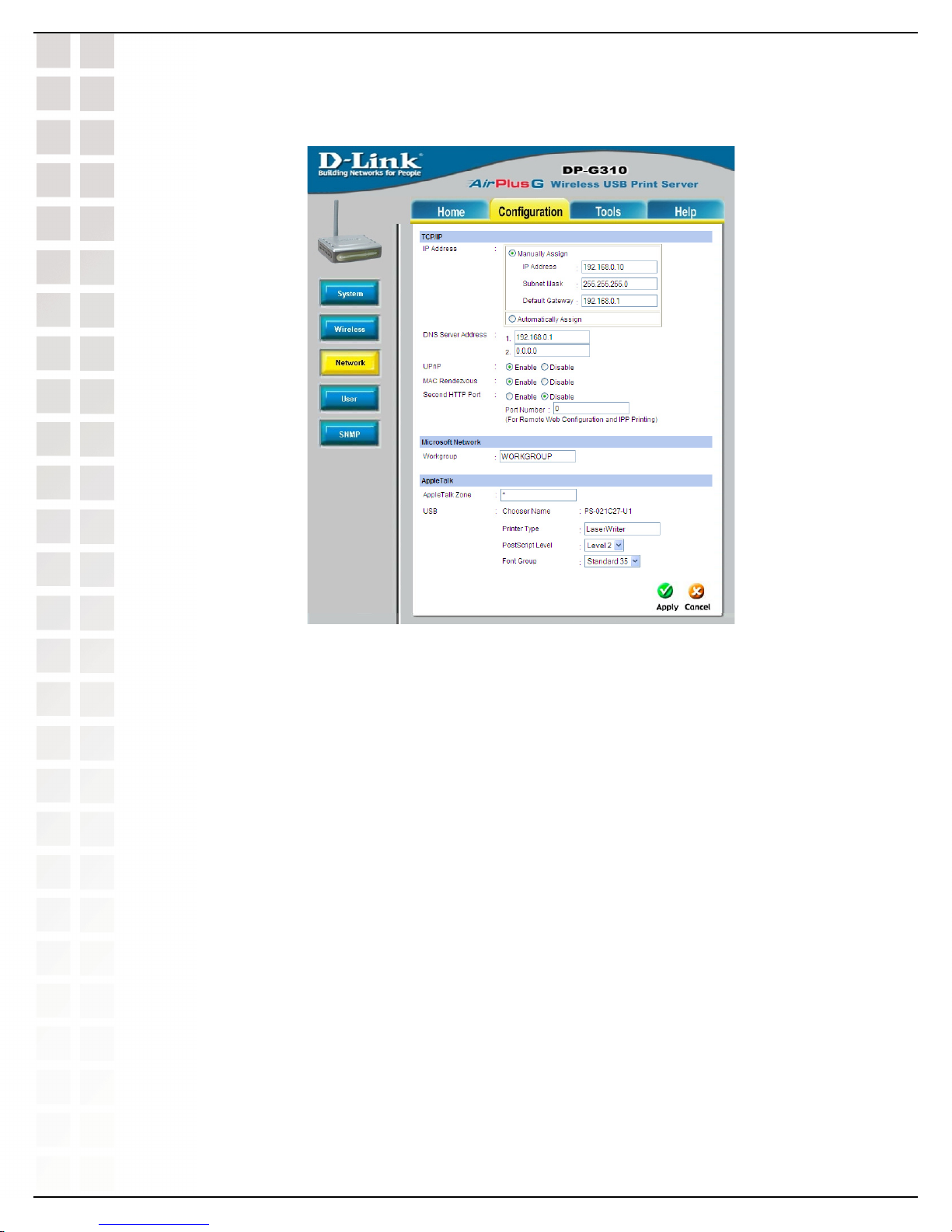

Configuration > Network
Using the Web Configuration
TCP/IP
This field contains three options that allow you to configure the TCP/IP setting:
IP Address: This option allows you to set the IP address manually or automatically. When you choose Manually
Assign, you should enter the related information in the following boxes, including IP Address, Subnet Mask,
and Default Gateway.
UPnP: This option allows you to enable or disable UPnP mode.
MAC Rendezvous: This option allows you to enable or disable MAC Rendezvous mode.
Second HTTP Port: Enter a port. This is used for remote management and IPP Printing.
Microsoft Network
Enter the name of the Workgroup that you want the print server associated with in this field.
AppleTalk
Enter the AppleTalk Zone name in the box. In the following options, enter the related configuration, such as the
printer type.
USB
Chooser Name: Display the print server name.
Printer Type: Enter the printer’s type in this box.
PostScript Level: Select from the pull-down menu (Level 1 or Level 2).
Font Group: Select from the pull-down menu.

20
DP-G310 User’s Manual
D-Link Systems, Inc.

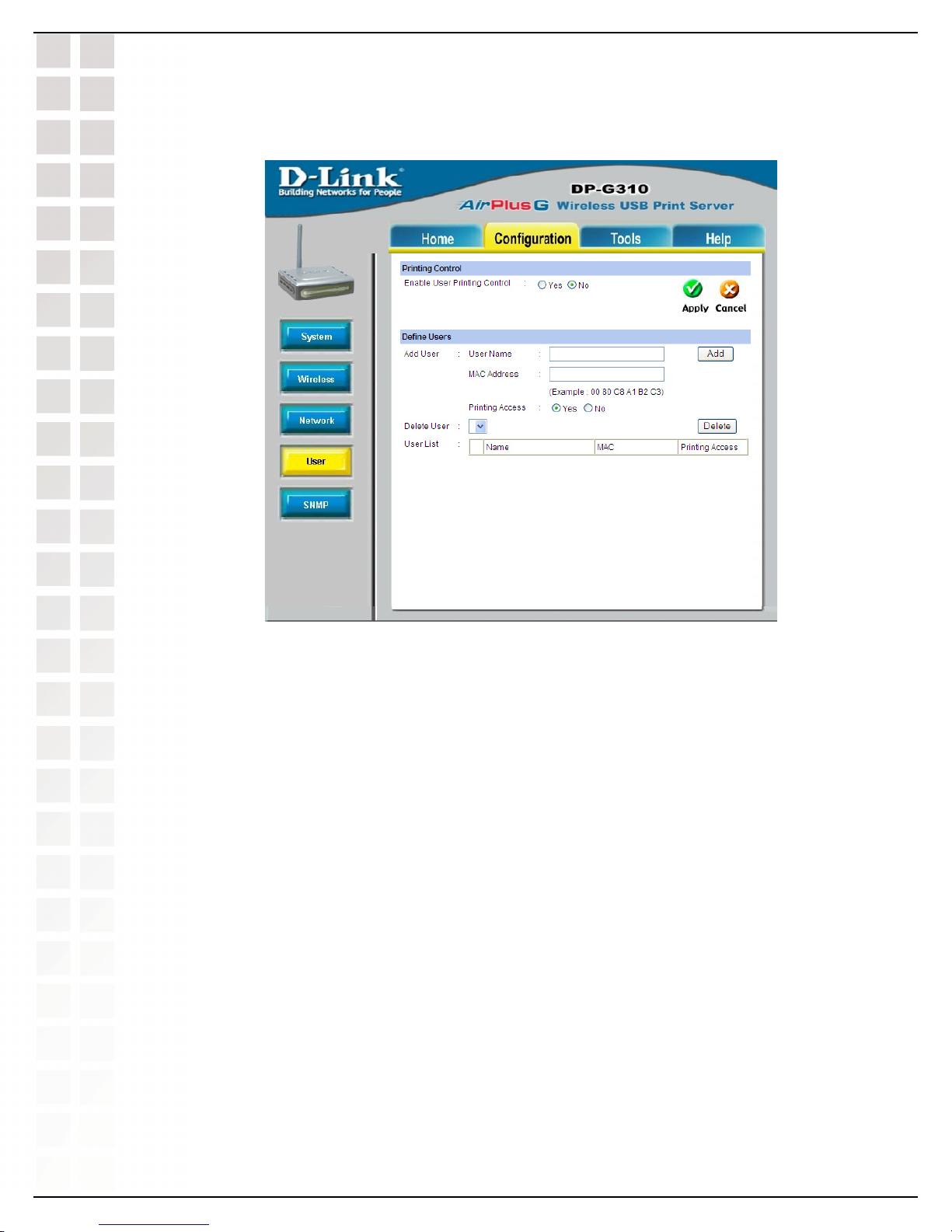

Configuration > User
Printing Control
By configuring the Enable User Printing Control option (Yes or No), the user in the User List is permitted to
access the print server or not.
Define Users
You can add/delete the user(s) to/from the User List. The User List at the bottom of the screen displays the
current defined user and related information for the print server.
Click Apply to save the changes.
Using the Web Configuration (continued)
Using the Web Configuration
