Product Overview
Package Contents
Indoor Camera - DCS-8515LH || HD
Pan & Tilt Wi-Fi
Camera
Power Adapter
Mounting Bracket
Quick InstallationGuide
If any of the above items are missing, please contact your reseller.
Note: Using a power supply with a different voltage rating than the one included with your product will cause damage and void
the warranty for this product.

Section1-ProductOverview
2
MSME Security Kit – Manual (Indoor Camera)
Introduction
The DCS-8515LH HD Pan & Tilt Wi-Fi Camera provides a range of features to help you effectively monitor large
areas of your home or small office at all hours of the day. The pan/tilt function allows the camera to patrol a
wide area, while the built-in IR LEDs provide around the clock surveillance regardless of the lighting conditions.
Extra details are captured in
720p high-definition, 1 megapixel resolution and H.264 compression saves space without sacrificing performance.
Wireless connectivity means there is no need for additional cabling.
System Requirements
Network Requirements
• 802.11n/g wireless network
• An Internet connection
• A router connected to your broadband modem
mydlink™ App Requirements
• iPhone, iPad, Android smartphone or tablet (please refer to the mobile
app's store page to check whether your device is compatible)
• Email account (for mydlink™ service registration)

Section1-ProductOverview
3
MSME Security Kit – Manual (Indoor Camera)
Hardware Overview

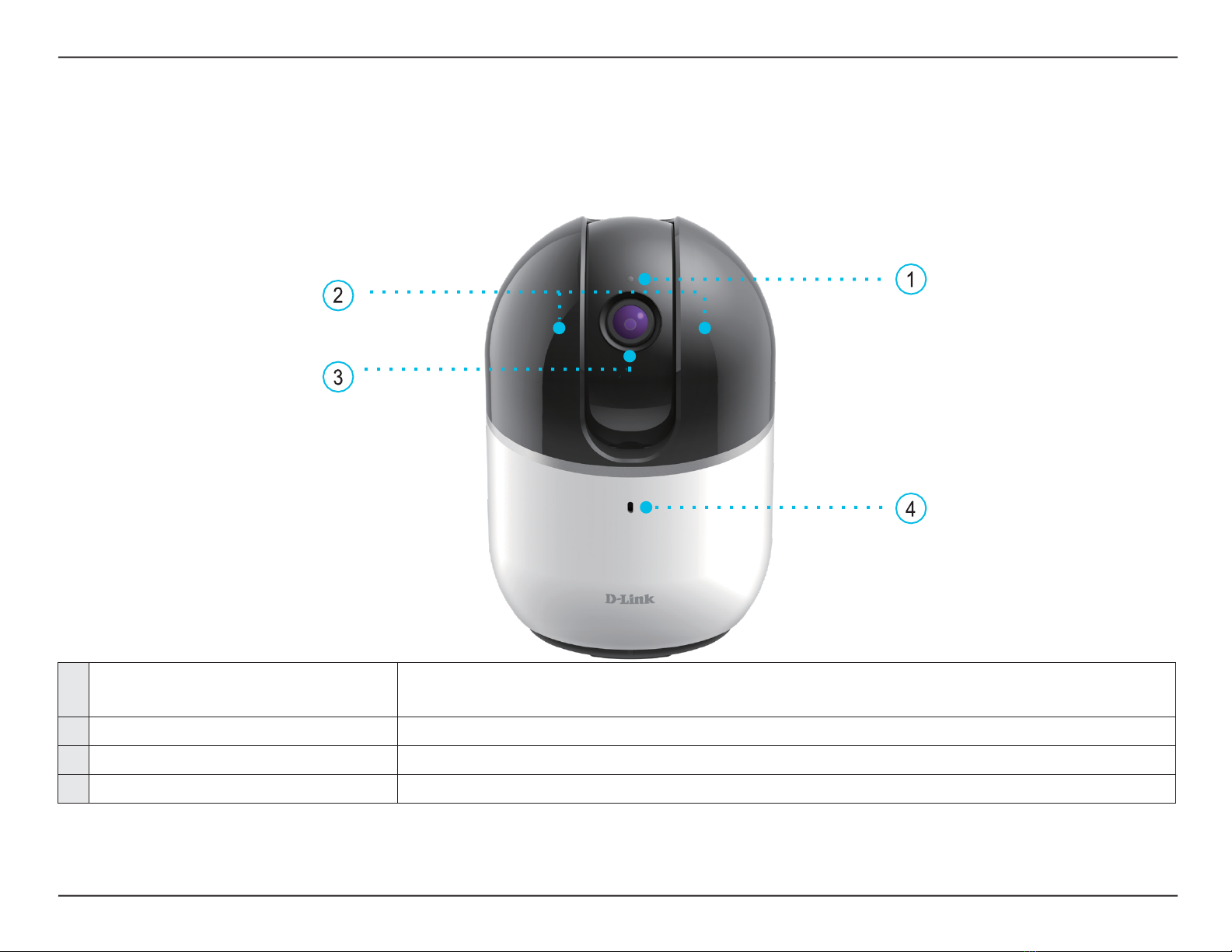

Front
1
Light Sensor
The IR-Cut removable sensor monitors lighting conditions and switches between
color and infrared accordingly.
2
IR LEDs
IR LEDs encircle the camera lens.
3
Camera Lens
Records video of the surrounding area.
4
Microphone
Picks up sound near your camera.

Section1-ProductOverview
4
MSME Security Kit – Manual (Indoor Camera)
Front (TiltedUp)

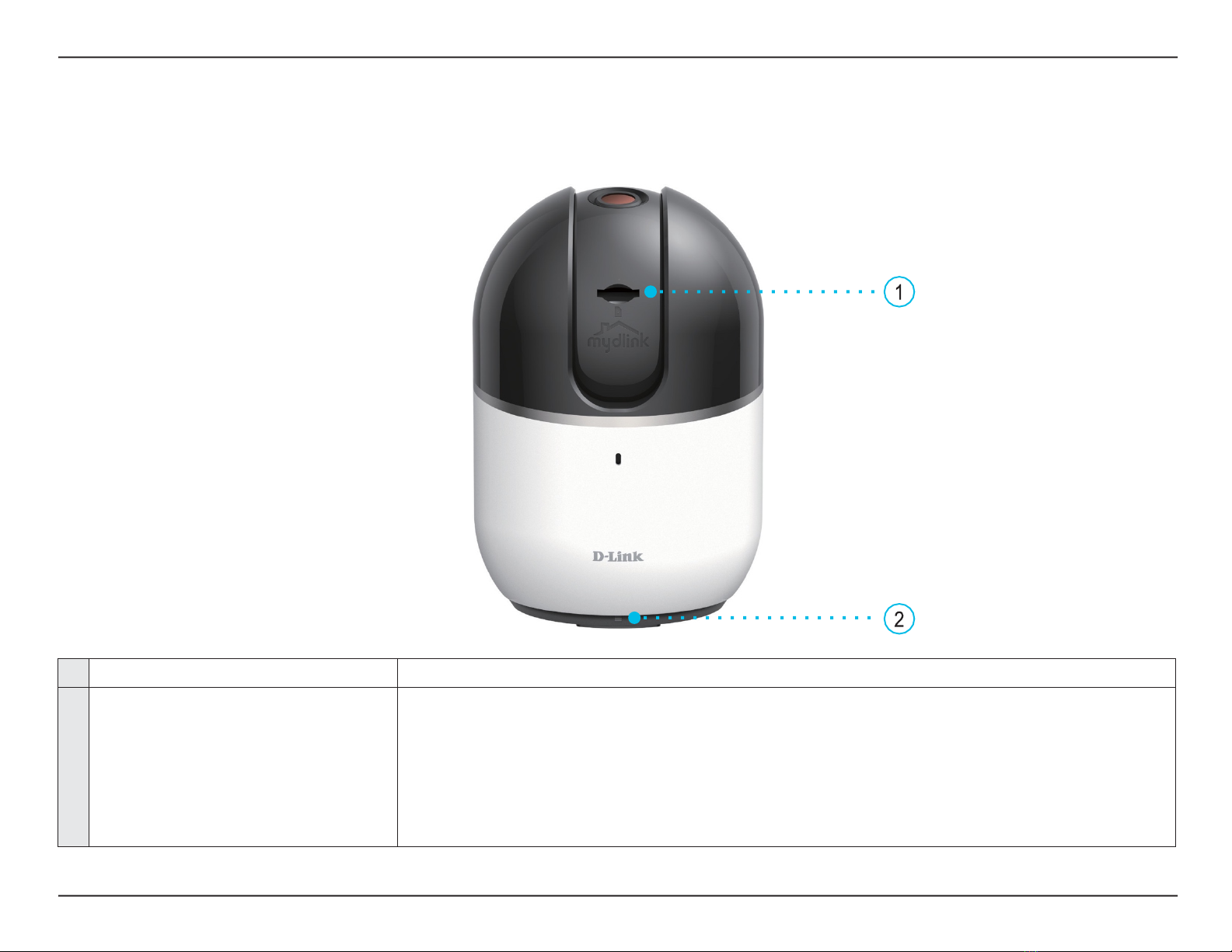

1
microSD CardSlot
Where a microSD card can be inserted.
2
Status LED
Solid Green: Camera has successfully connected to a Wi-Fi network. Setup is
complete.
Flashing Green: Live view active.
Solid Red: Booting up.
Flashing Red: Updating firmware.
Flashing Orange: Bluetooth pairing or offline.

Section1-ProductOverview
5
MSME Security Kit – Manual (Indoor Camera)

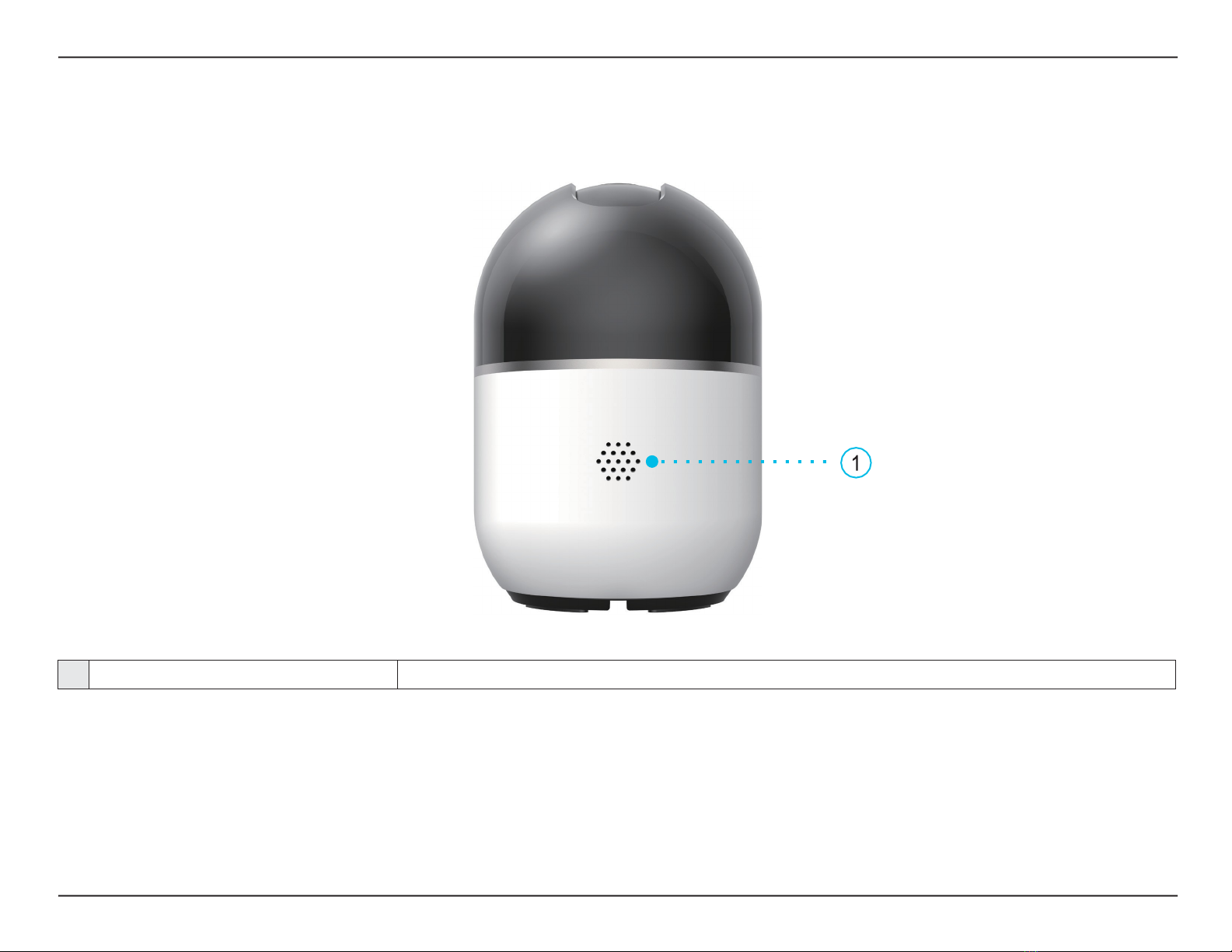

Back
1
Speaker
Provides audio playback for the two-way audio feature.

Section1-ProductOverview
6
MSME Security Kit – Manual (Indoor Camera)

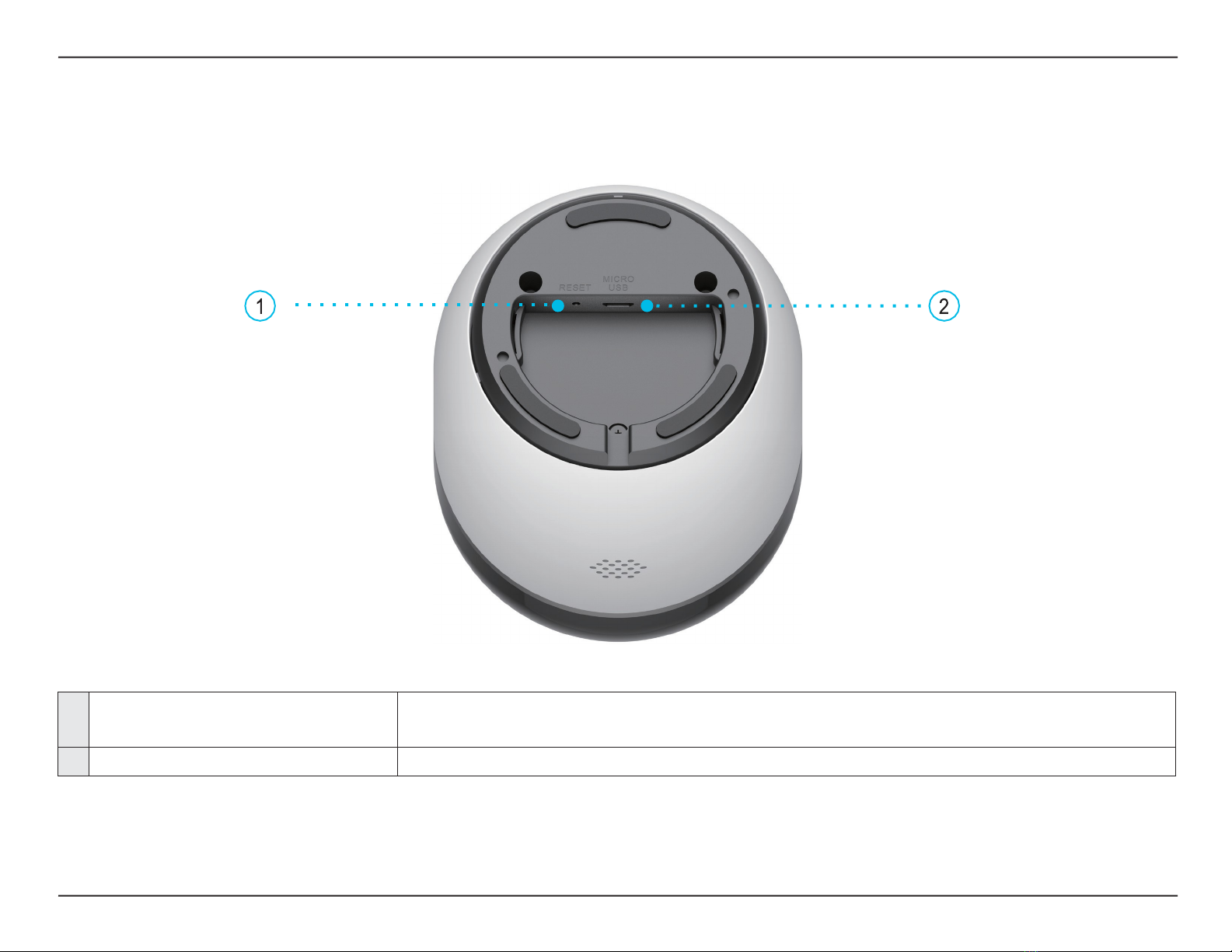

Bottom
1
Reset Button
Holdtherecessedbuttondownforatleast10secondstoresetthecameratofactory
default settings.
2
microUSB PowerPort
Attach your microUSB power adapter to this port to supply power to the device.

Section 2 - Installation
7
MSME Security Kit – Manual (Indoor Camera)
Installation
Safety
Please read all of the safety and operating instructions before using device:
• Do not open the device or attempt to repair it.
• Do not submerge the device in liquid or attempt to clean it with liquids or solvents. To clean the device,
disconnect it from the power outlet and use a damp towel to gently wipe it down.
Before youBegin
Plan the location of your camera:
• Verify that your camera is electrically rated to operate with the power available in your location.
• Connect the camera's power adapter into electrical outlets that are not controlled by a wall switch. This
will help you to avoid accidentally turning off power to the device.
• Be sure to plug the device into a properly grounded electrical outlet in order to help prevent against
electrical shock.
• Make sure that the device is firmly mounted and won't fall off.

Section 2 - Installation
8
MSME Security Kit – Manual (Indoor Camera)
Wireless Installation Considerations
The DCS-8515LH HD Pan & Tilt Wi-Fi Camera lets you view video footage from virtually anywhere within the
operating range of your wireless network. Keep in mind that the number, thickness and location of walls, ceilings,
or other objects that the wireless signals must pass through may limit the range. Typical ranges vary depending on
the types of materials and background RF (radio frequency) noise in your home or business. The key to maximizing
wireless range is to follow these basic guidelines:
1. Keep the number of walls and ceilings between the camera and wireless access point to a minimum - each
wall or ceiling can reduce your camera’s range from 1 to 30 meters (3 to 90 feet). Position your devices so
that the number of walls or ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 0.5 meters (1.5 feet) thick, at a 45-
degree angle appears to be almost 1 meter (3 feet) thick. At a 2-degree angle it looks over 14 meters (42
feet) thick! Position devices so that the signal will travel straight through a wall or ceiling (instead of at an
angle) for better reception.
3. Building materials make a difference. A solid metal door or aluminum studs may have a negative effect on
range. Try to position access points, wireless routers, and cameras so that the signal passes through drywall
or open doorways.
4. Materials and objects such as glass, steel, metal, walls with insulation, water (fish tanks), mirrors, file
cabinets, brick, and concrete will degrade your wireless signal.
5. Keep your product away at least 1 to 2 meters (3 to 6 feet) from electrical devices or appliances that generate
RF noise.

Section 2 - Installation
9
MSME Security Kit – Manual (Indoor Camera)

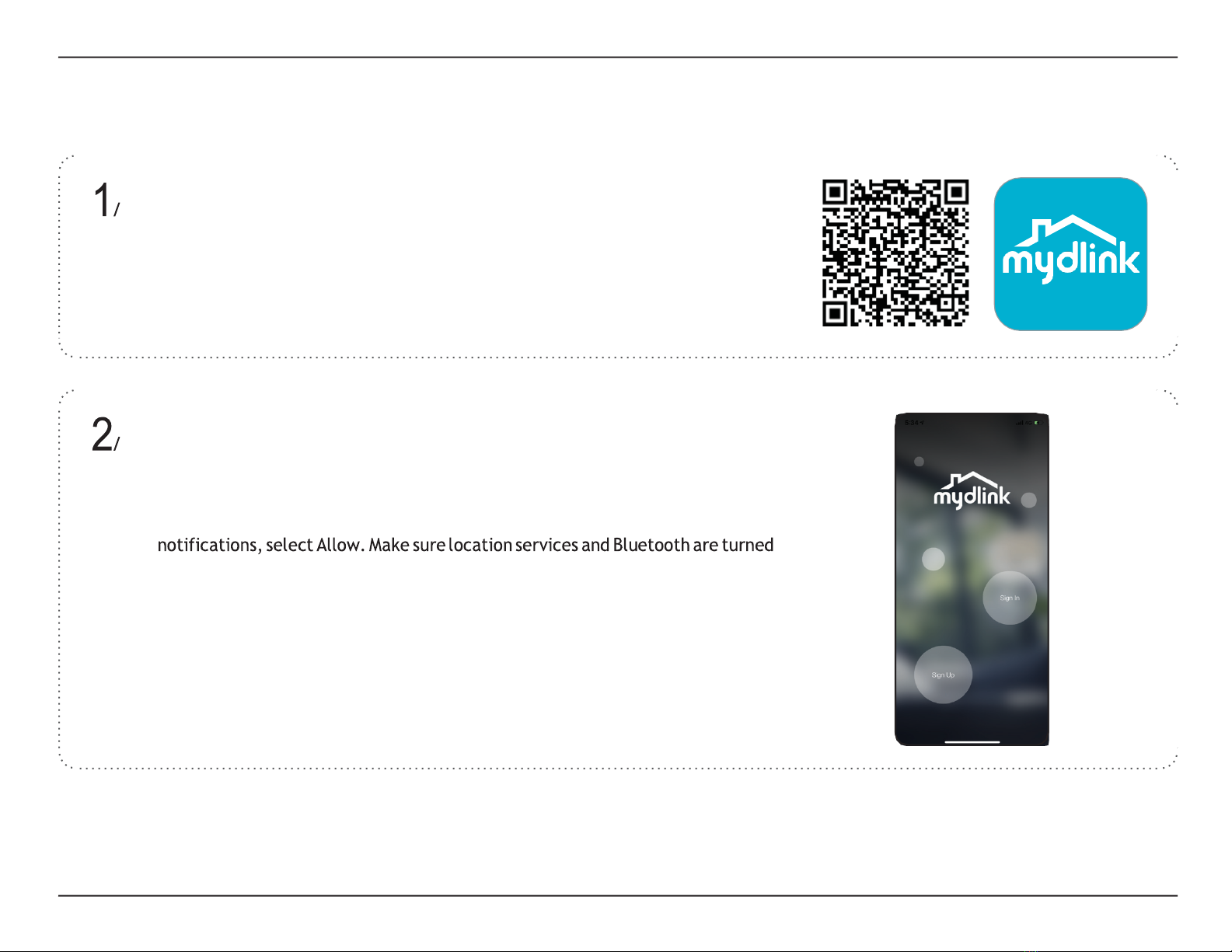

mydlink App Camera Setup
Downloadthe mydlink app from the App Store (iOS) or Google Play
(Android) by scanning the QR code.
Note: Ensurethatyourdeviceis connectedwirelesslyto thenetworkthatthe
DCS-8515LH will be in.
Launch the mydlink appand create a new accountor sign in to your
existing account.
Note:Ifyouareaskedaboutallowingtheapptoaccessyourlocationortosend
on in your phone’s settings.

Section 2 - Installation
10
MSME Security Kit – Manual (Indoor Camera)

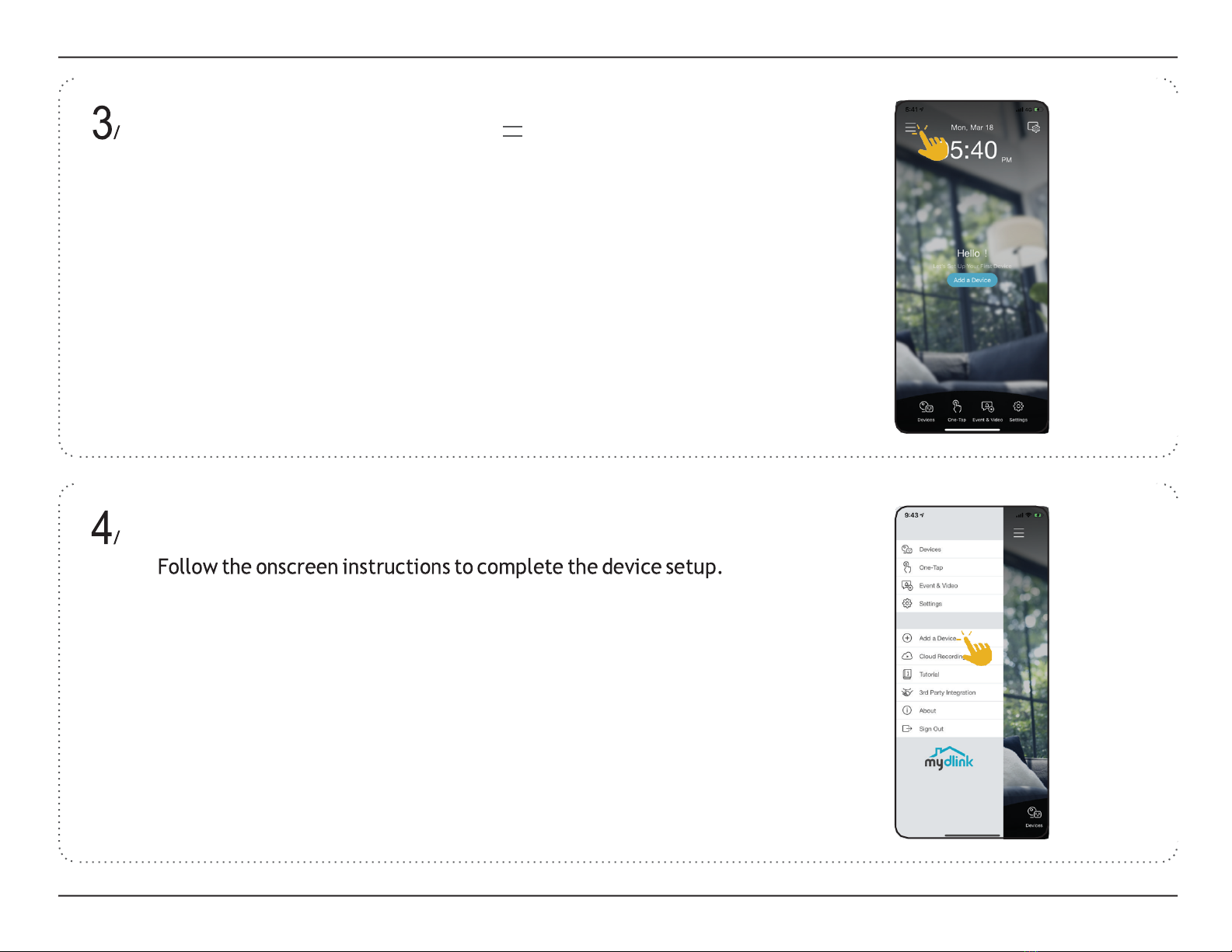

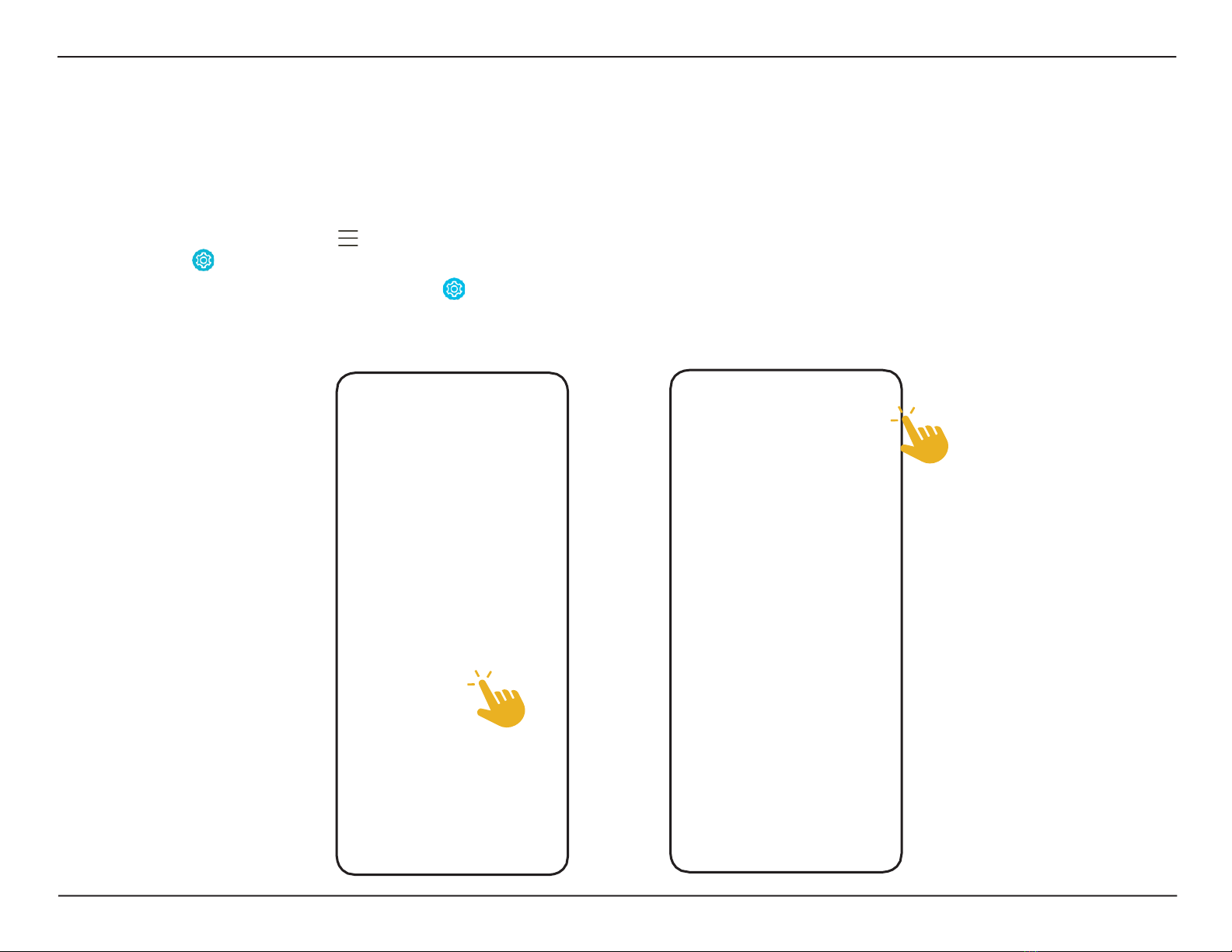

After logging in, tap the Menu button in the top-left corner.
Select Add a Device.

Section 2 - Installation
11
MSME Security Kit – Manual (Indoor Camera)

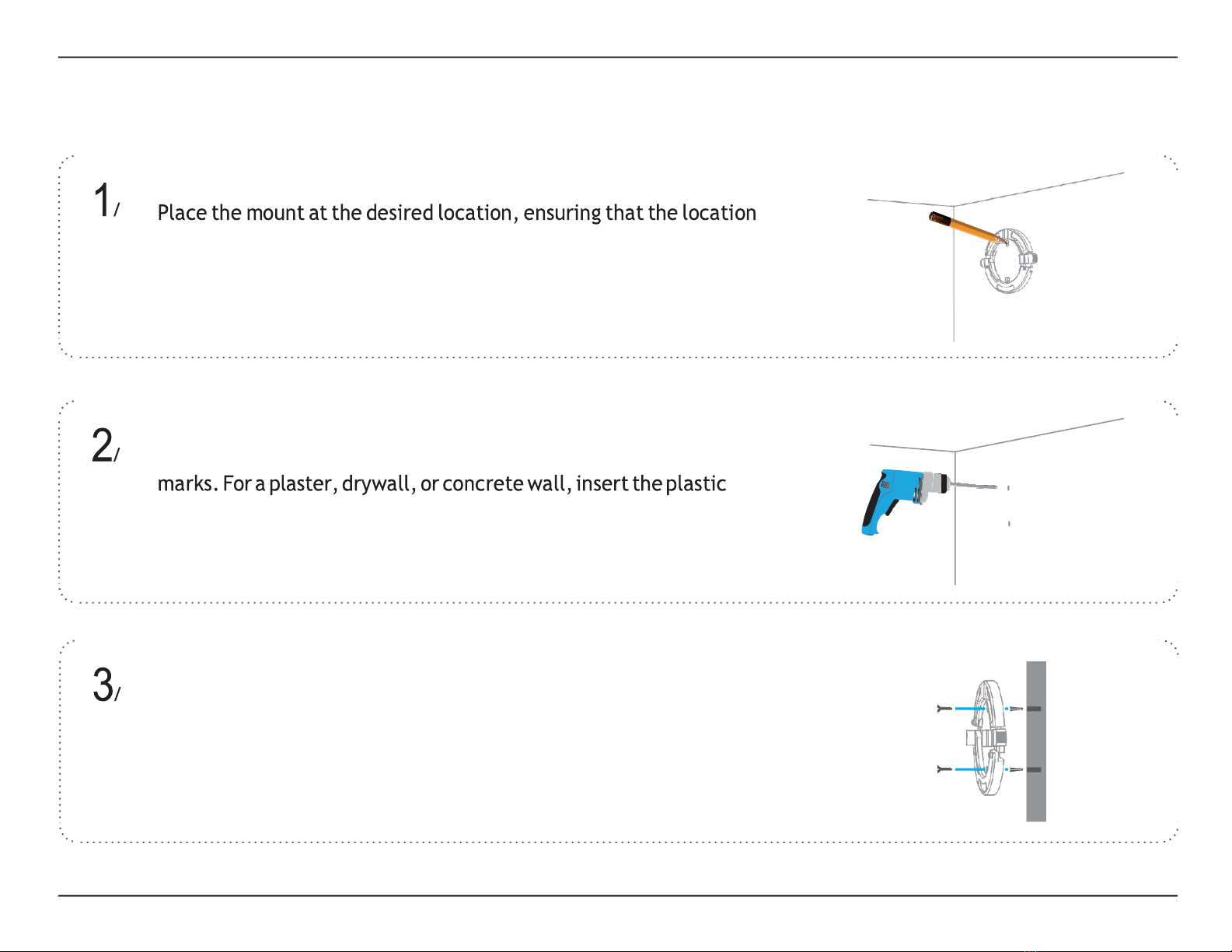

Mounting theCamera
ofthepowercordthreadisalsoatthedesiredlocation.Useapencil
to mark the holes.
Usinga 6 mm drill bit, drill two25mm deep holes over the pencil
anchors to support the screws first.
Place themount over the holesthatare inthewall.Make sure to
alignthemount holeswiththeholesin thewall.Usethesupplied
screws to attach the mount to the surface of the wall.

Section 2 - Installation
12
MSME Security Kit – Manual (Indoor Camera)

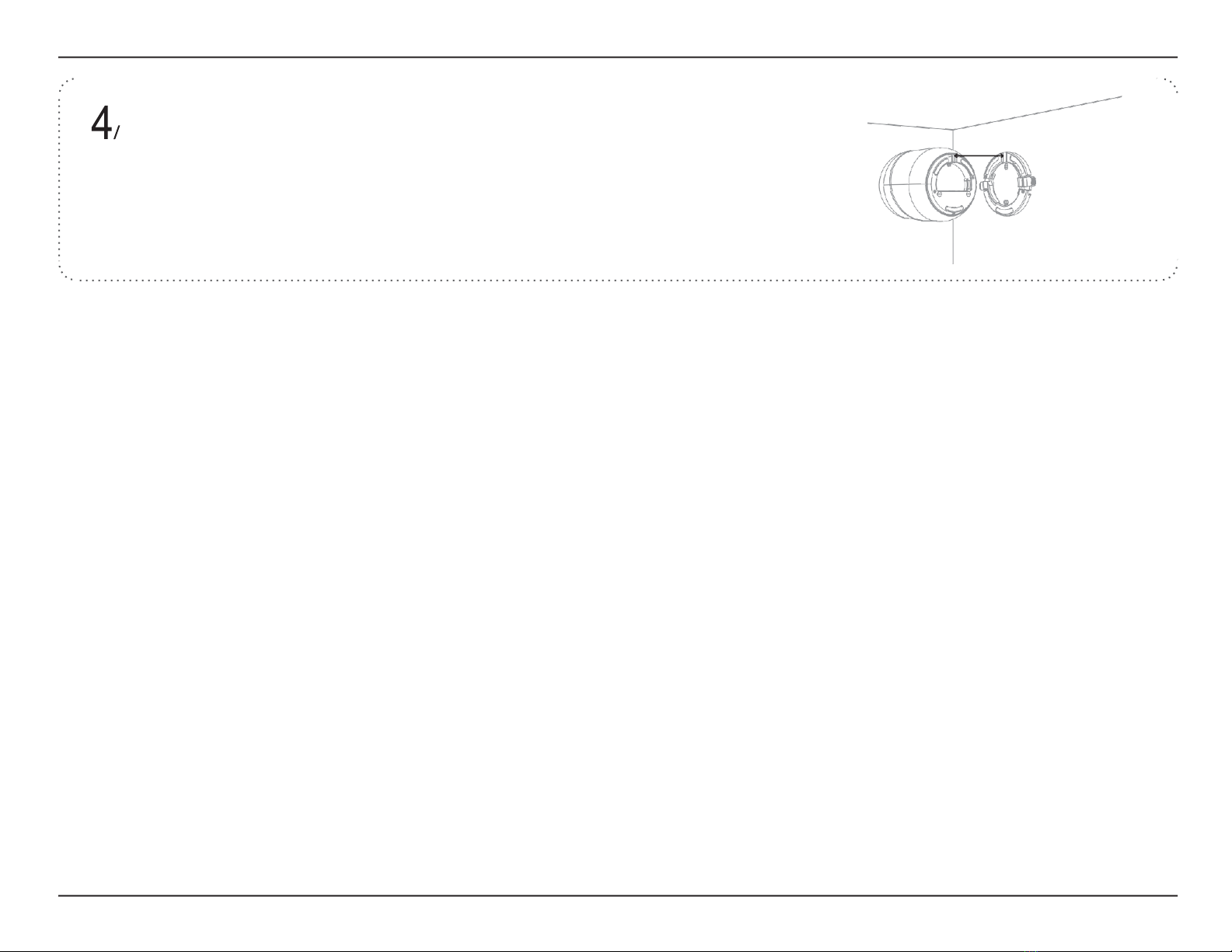

Align thebottomofthecameratothethreadson themount.Ensure
that the camera is securely snapped into place.

Section3-mydlink
13
MSME Security Kit – Manual (Indoor Camera)
Using the mydlink App
ControllingYour Device
Note: Screenshots are representative only. The mydlink app is
constantly being updated and so may appear different.
After setting up your Indoor Camera - DCS-8515LH HD Pan & Tilt Wi-Fi
Camera with a mydlink account in the mydlink app, you will be able to
remotely access your camera through the app. After signing into your
mydlink account, you will see a screen similar to the one on the right.
If you have previously checked the Add to shortcut option while
installing the camera, you will see a quick link to your camera directly
on the home screen. Tap the shortcut link to your camera on the home
screen and by default you will see a live video feed of your camera
on the top half of the app.
To access the settings for your Indoor Camera - DCS-8515LH:
HD Pan &Tilt Wi-Fi Camera, tap > Devices > Camera >
navigatetoyourcameraonthecarousel>
.

Section3-mydlink
14
MSME Security Kit – Manual (Indoor Camera)
Camera Options
On the bottom half of the app you will see control options for your camera.
Tap to toggle the Options menu.
Snapshot
Tap thisbuttontotakea snapshot of the video
stream.
Options Toggle
Tapthisicontoreviewvariouslivevideooptions
such as microphone and video quality.
Recording
Tap this button to enable video stream recording.
Audio
Tap to disableaudio.Tap to enable
audio.
720p
VideoResolution
Tap 720p to use 720p resolution. Tap 480p to
use 480p resolution video.

Section3-mydlink
15
MSME Security Kit – Manual (Indoor Camera)
Hold to Talk
Hold down the to send your voice to the
camera's built-inspeaker.
CameraPresets
Saveandquicklyaccessupto5differentcamera
views.The buttonisyourHomePoint,which
can be set in the Auto Home menu under the
Device settings. To set other viewpoints, tap the
button,thentaptheliveviewscreenanduse
the arrows to set your view preset. Long press
on the buttontosave a snapshotofthat
location.
Point toGo
Use the icon to tap anywhere on the
panoramainordertochangeyourliveview.

Section3-mydlink
16
MSME Security Kit – Manual (Indoor Camera)
To access the device page, either:

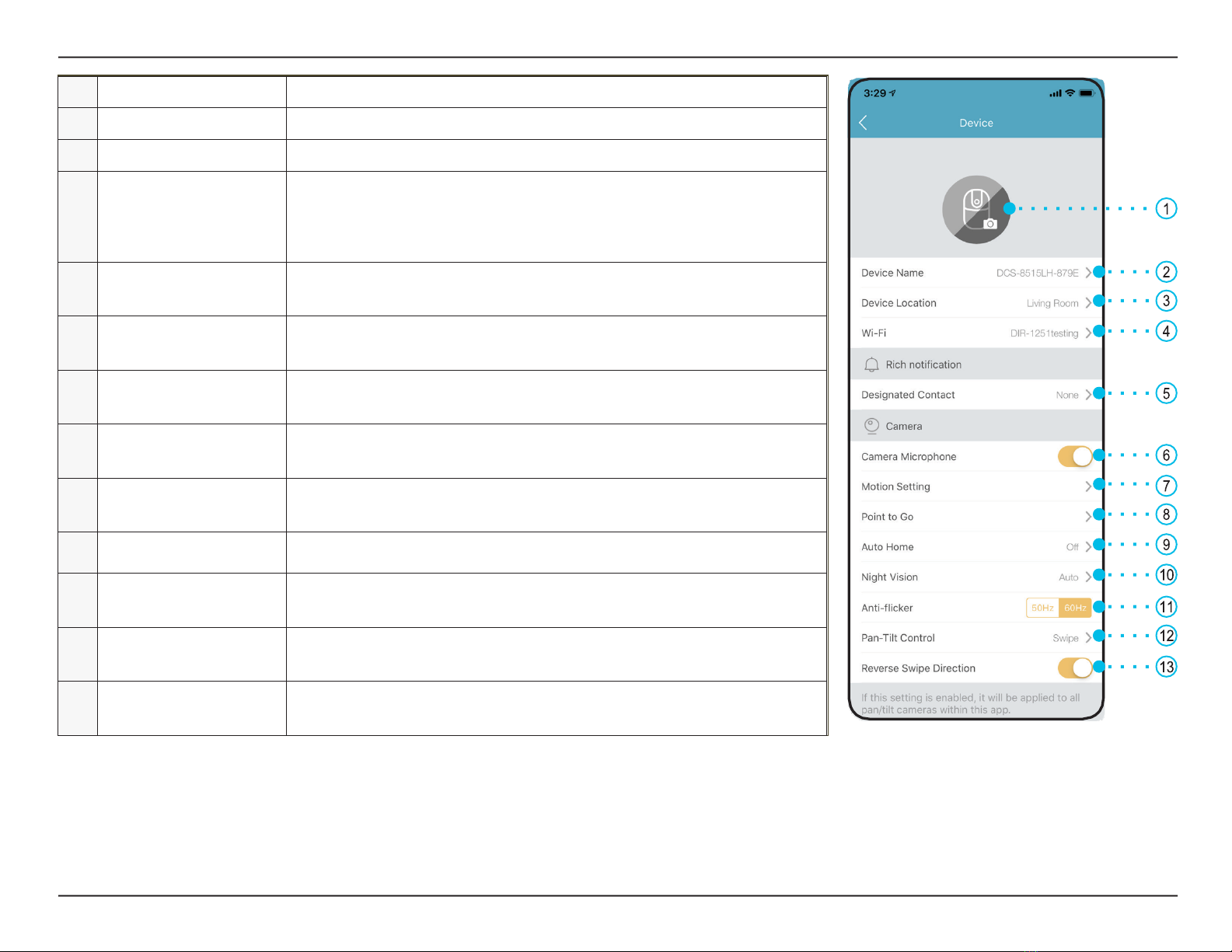

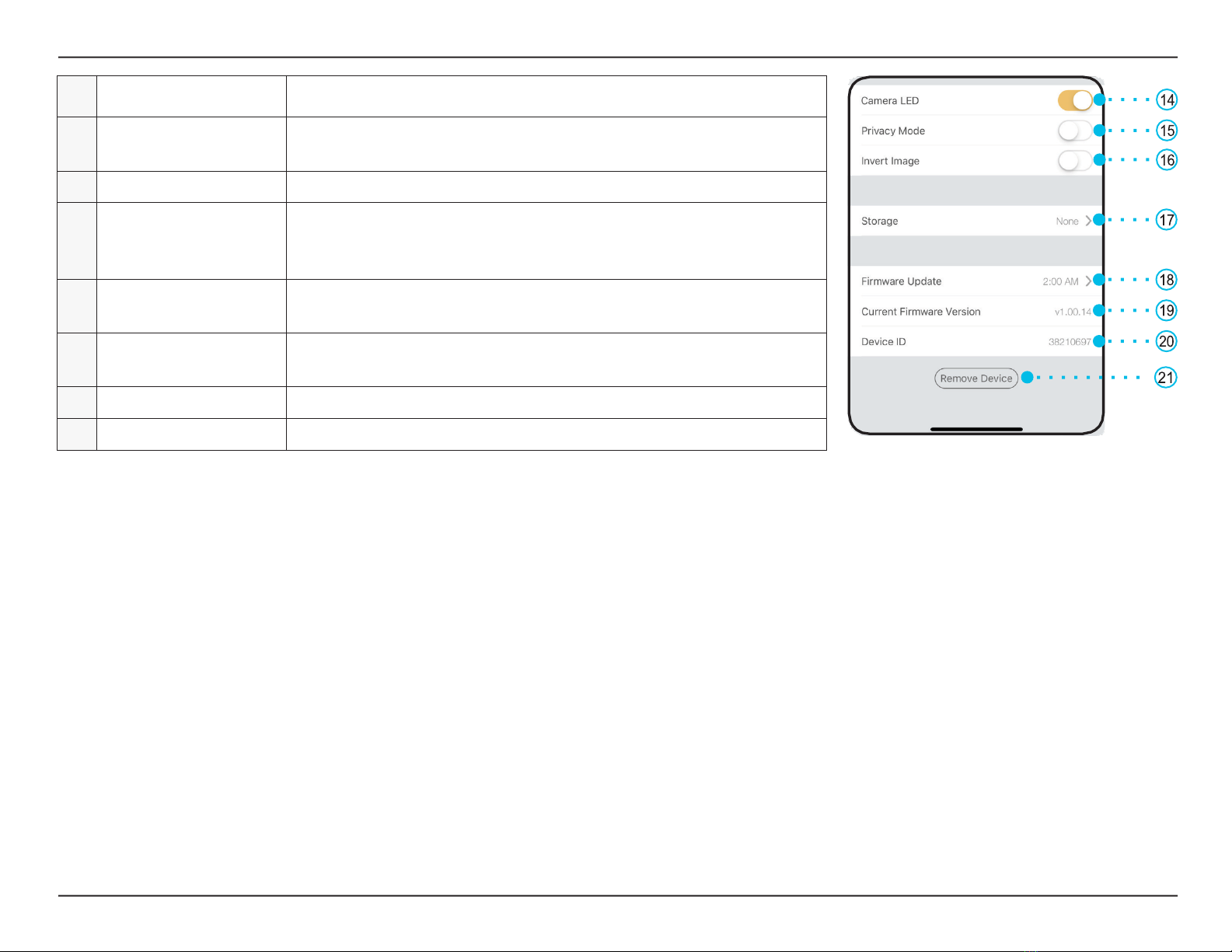

Device
• From the home page, tap > Devices > Camera > navigate to your camera on the
carousel > or
• In the camera control page, tap the button.
The device page contains several options for you to configure your camera.
OR

Section3-mydlink
17
MSME Security Kit – Manual (Indoor Camera)
1
Device Photo
Tap to add a customized photo of this device.
2
Device Name
Tap to change the device’s name.
3
Device Location
Tap to change or add a new location for this device.
4
Wi-Fi
Tap tochangethewirelessnetworkthisdevicewillusetoconnect
to the Internet.
Note:Thenetworkmustbethesameasallyourothermydlink
devices that you wish to use the same account for.
5
Designated Contact
Tap here to add, remove, or edit designated contacts that appear in
the richnotification.
6
Camera Microphone
Tap to enable or disable picking up sound near your camera in live
view andrecordings.
7
Motion Setting
Tap to further configure sensitivity and the active area of motion
detection for the camera.
8
Point toGo
Thisphoto is whatyou willsee when you controlyour viewpoint in the
camera's Point to Go live-view. Tap Rescan to scan a new panorama.
9
Auto Home
Enabletoautomaticallyreturnyourcameratotheset'HomePoint'
after 60 seconds of inactivity.
10
Night Vision
Tap to change night vision detection to On, Off or Auto.
11
Anti-Flicker
Reducesflicker in the video.Tap 50 Hz or 60 Hz dependingon the
frequency of your lights.
12
Pan-Tilt Control
Choose whether to control your camera's Point to Go live-view pan-
tilt control by swiping or tapping on the panaroma.
13
Reverse Swipe
Direction
Tap to reverse the swipe direction.

Section3-mydlink
18
MSME Security Kit – Manual (Indoor Camera)
14
Enable Camera LED
Disabling this will turn off the LED until you turn it back on.
15
Privacy Mode
Tap to enable. Privacy mode will disable the camera feed.
16
Invert Image
Enable this to invert the camera view.
17
Storage
TaptochangevideoclipsstoragelocationfromthemicroSDcardto
the cloud. You can also subscribe to mydlink Cloud from here and
view your current subscription plan.
18
Firmware Update
Showstimeofautofirmwareupdate.Taptoentertheupdatesettings.
Youcan choose themost suitabletime forautomaticupdates.
19
Current Firmware
Version
Thisdisplaystheinstalledversionofthefirmwareonyourdevice.
20
Device ID
Identifies the device for support issues.
21
Remove Device
Tap this button to disconnect this device from your mydlinkaccount.
