D-Link DCS-3220 - SECURICAM Network Camera User manual

Check Your Package Contents
Thesearetheitemsincludedwithyourpurchase:
If any of the below items are missing, please contact your reseller.
BeforeYouBegin
Youmusthaveatleastthefollowing:
• Windows98/Me/2000/XP
• ACD-ROMdrive
• AnavailableEthernetconnection
DCS-3220
This product can be set up
using Internet Explorer 6.x
or above 2-WayAudio/Digital Zoom
Internet Camera
©2004 D-Link Systems, Inc. All rights reserved. Trademarks or registered trademarks are the property of
their respective holders. Software and specifications subject to change without notice. DCS-3220.07292004
DCS-3220 2-Way Audio/Digital Zoom Internet Camera
12V AC Power Adapter
CAT5 Ethernet Cable
CD-ROM with Manual and Software
Camera Stand
Using a power supply
with a different voltage
rating will damage this
productandvoidthewarranty.

2
Hardware Installation
System Requirements
• InternetExplorer6.xorabove
• CPU:1.7GHzorabove
• MemorySize:128MB (256MBrecommended)
• VGAcardresolution:800x600orabove
Note: If using multiple cameras for viewing/recording, the minimum requirements
are a 2.4GHz or above CPU with 512MB memory and a 32MB video card.

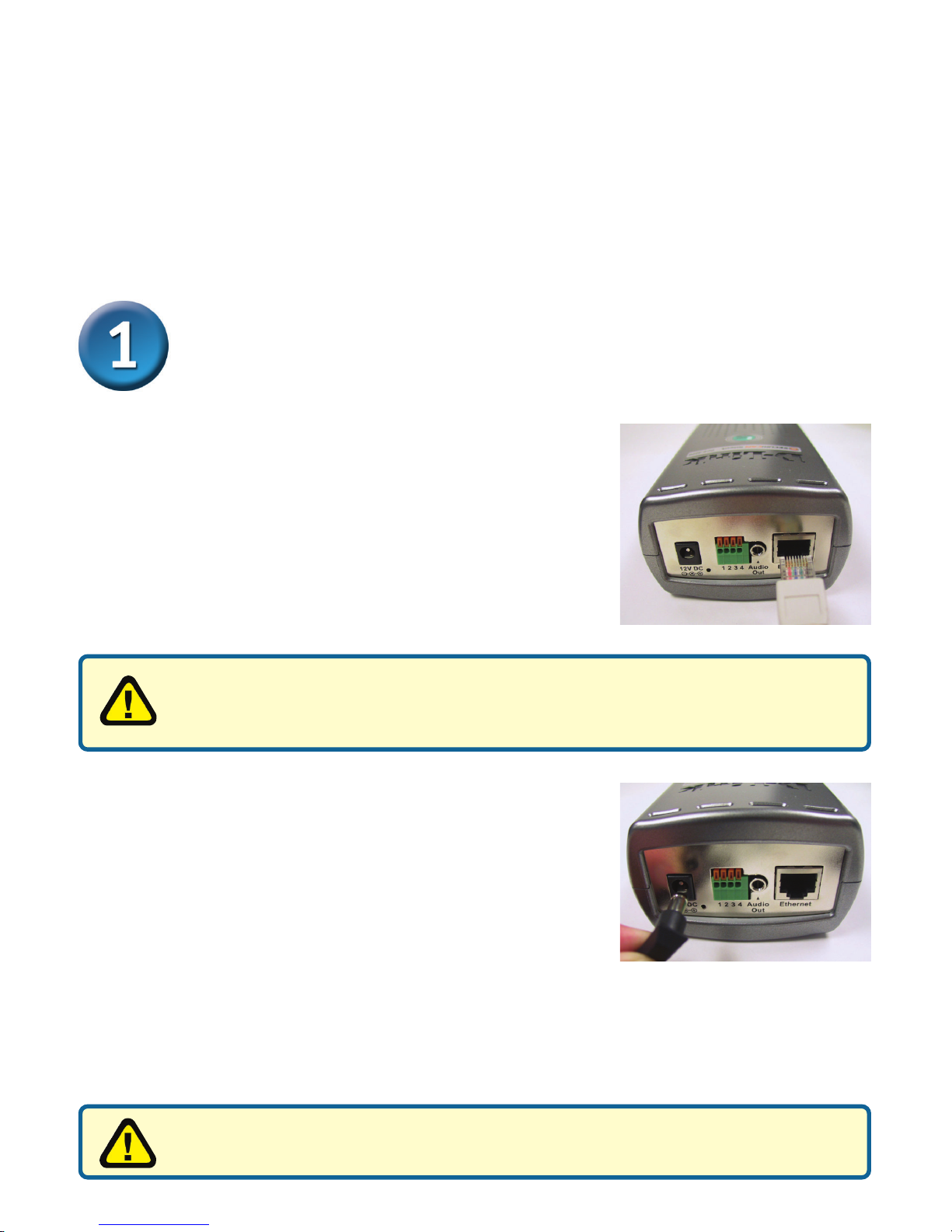

Connect the Ethernet Cable
ConnectanEthernetcabletothenetworkcable connector
locatedonthe Internet Camera’sbackpanel and attachit
to the network.
IfyouconnectthiscameradirectlytoaPC,youwillneedacross-overEthernet
cable. If you plug the camera into a hub or router, you will be able to use the
cableincluded with yourcamera.
When you have a proper connection, the LED (Light Emitting Diode) on the front of the
camera will turn from red to green. The light may blink on and off and your computer may
show an intermittant loss of connectivity if you have it directly connected to the camera.
Thisis normal untilyou have configuredyourcamera.
Attach the External Power Supply
Attachtheexternal powersupplyto theDCpower input
connectorlocated on theInternet Camera’s backpanel
(labeled DC 12V) and connect it to anAC power outlet.
Powersourceis confirmed when the LED Power Indicator on the Internet
Cameraisilluminated.

3
Hardware Installation (continued)

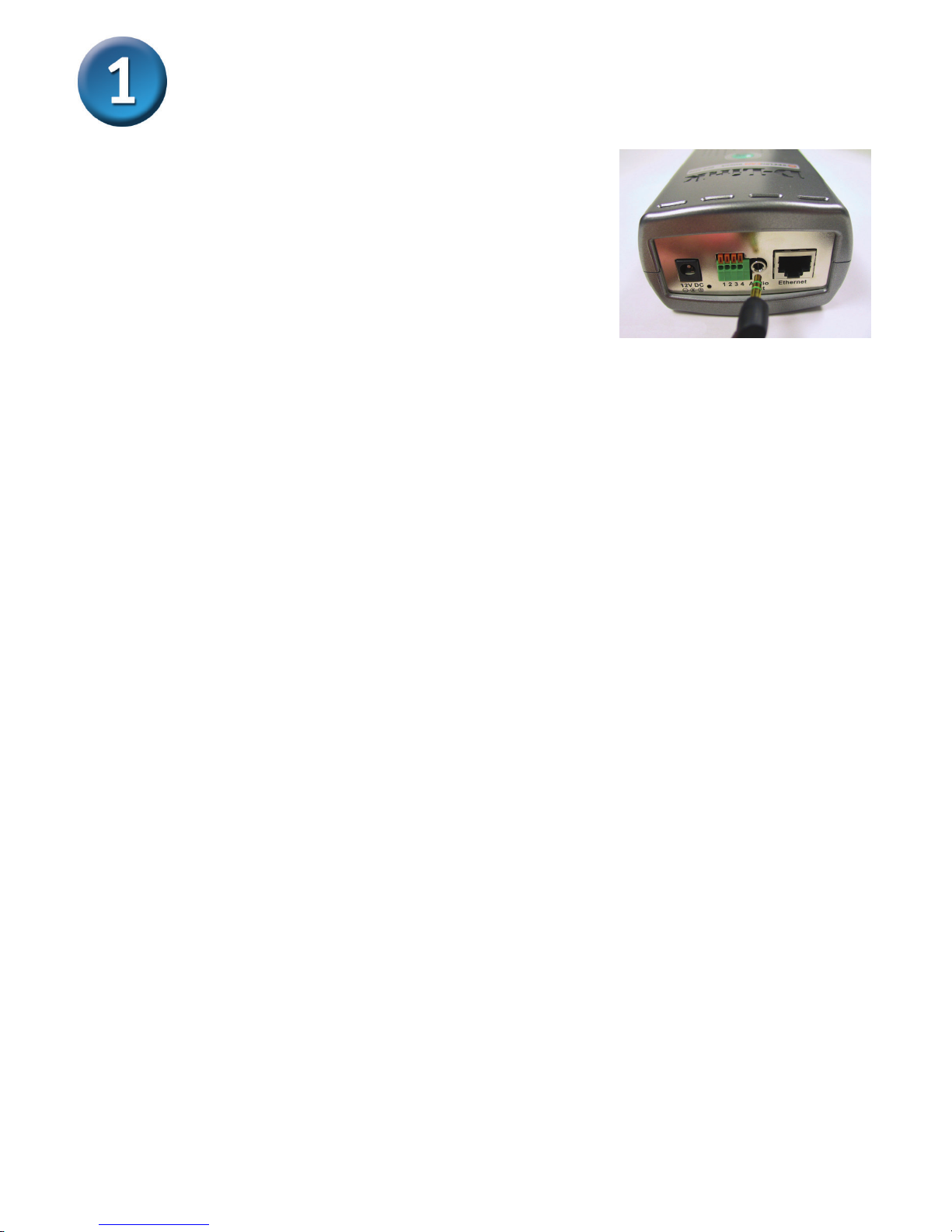

Connect an Audio Cable
Connect your speakers to the audio output jack on the
backofthe InternetCamera.Fordetailsonconfiguringthe
sound settings, please see the manual on the CD-ROM.

4

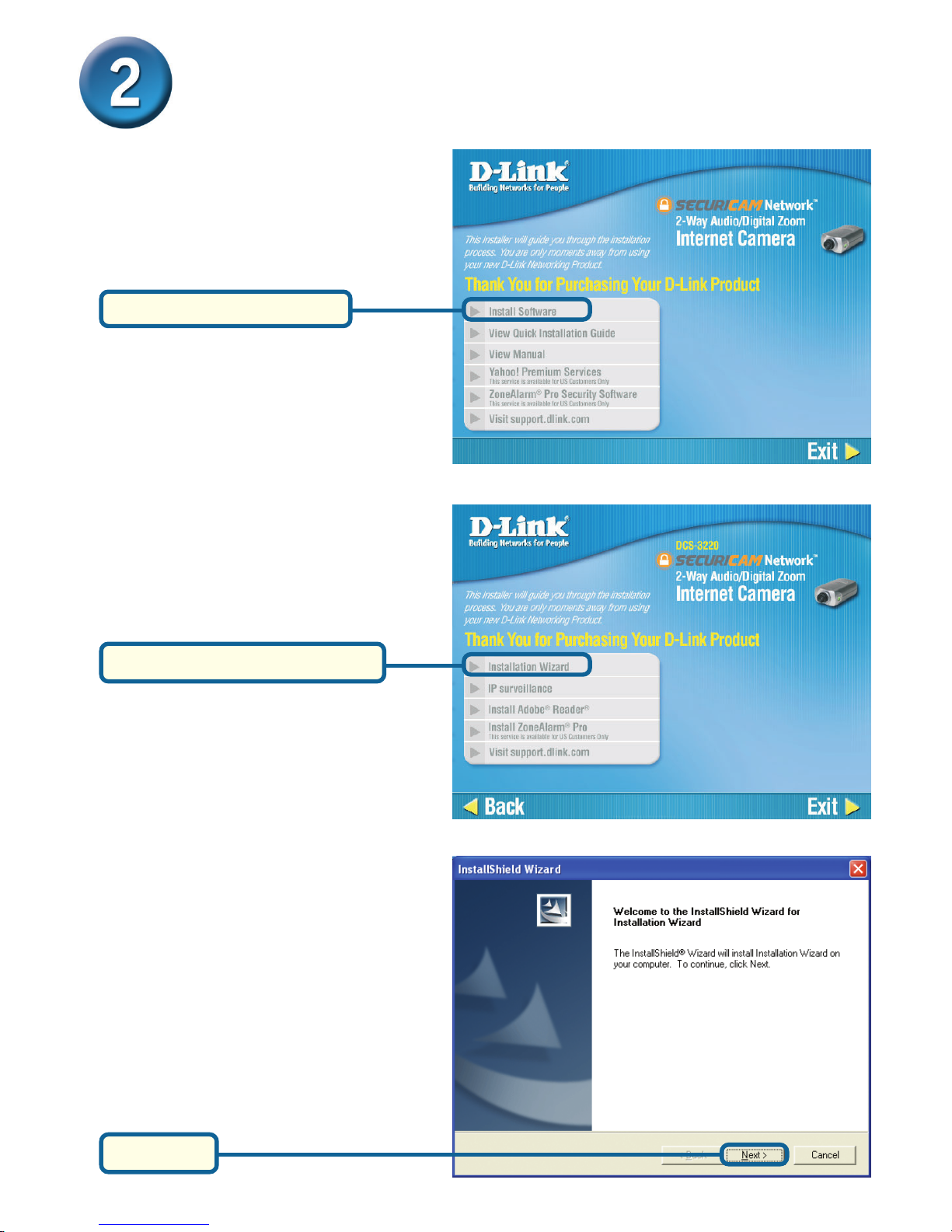

Installing the Installation Wizard
InserttheDCS-3220 CDintothe
CD-ROMdrive.
Click on Install Software
Click on Installation Wizard
Click Next

5

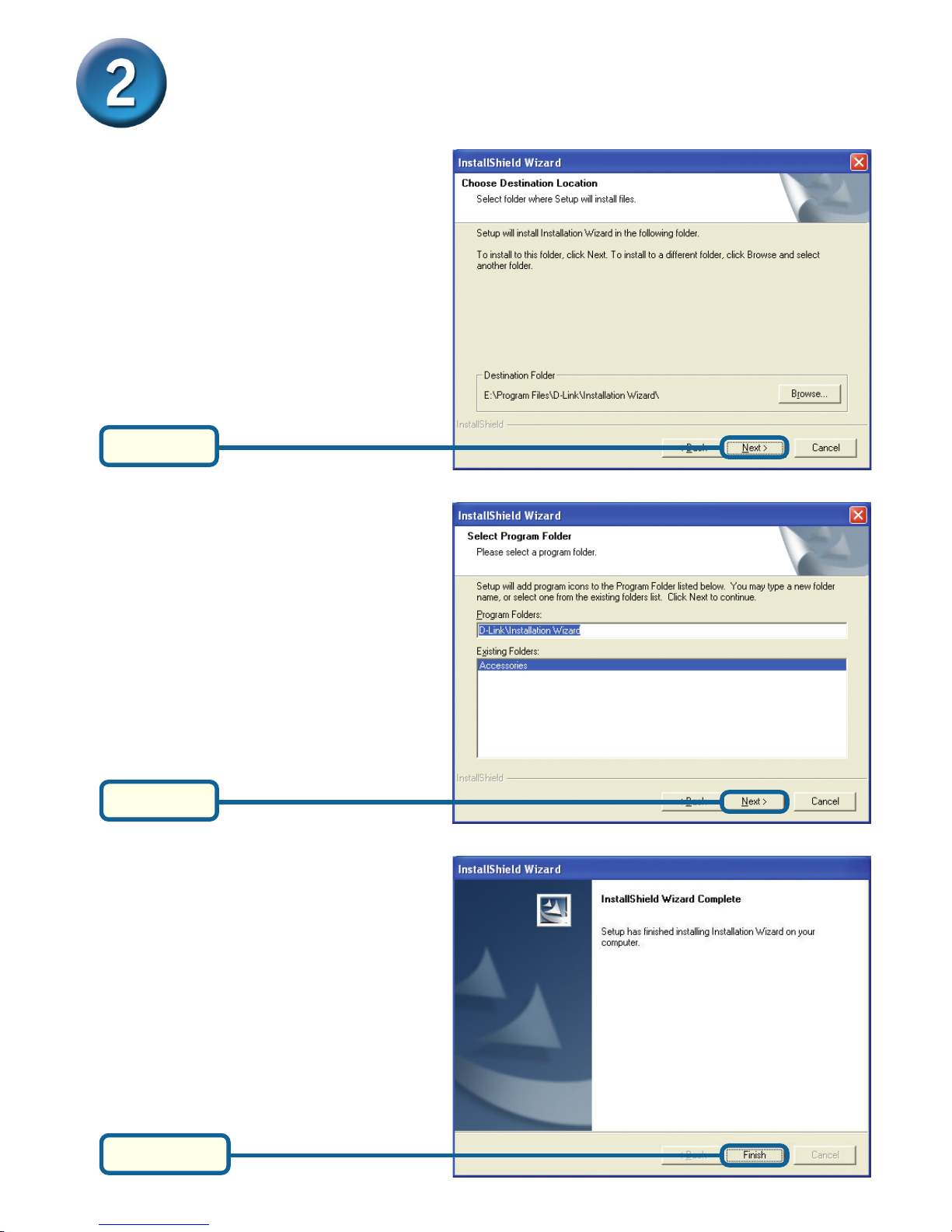

Installing the Installation Wizard
(continued)
Click Next
Click Next
Click Finish

6

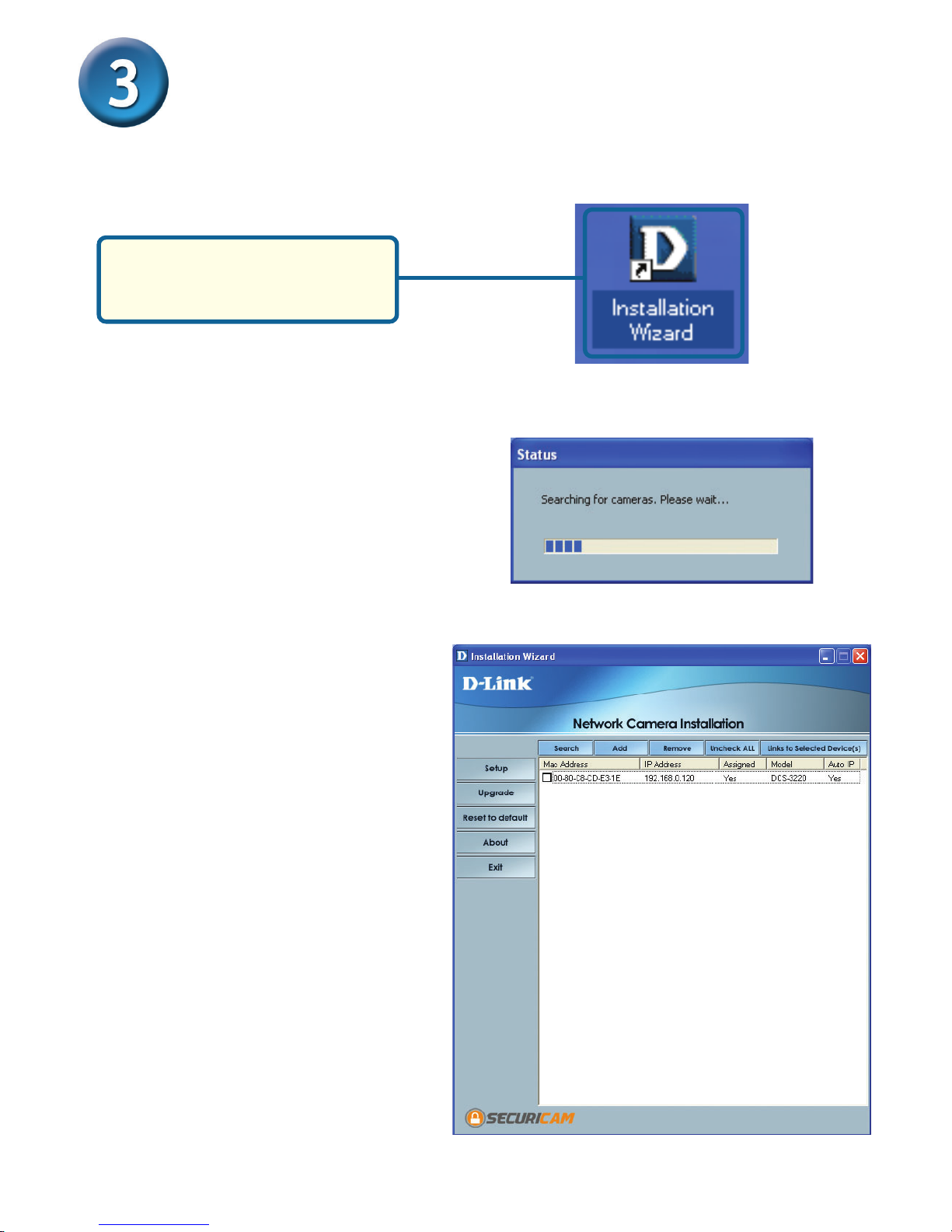

Configuring Your Camera with the
Installation Wizard
DoubleclickontheInstallation
Wizard that was created on
yourdesktop.
Thesoftwarewill search forcameras.
TheInstallationWizardwillappear
andshowtheMACaddressofthe
DCS-3220 and an IP Address
(whichmay or may not becorrect
dependingonwhatyouhaveyour
DCS-3220 connected to). If you
have a DHCP* server on your
network, there will be a valid IP
Addressdisplayedhere,indicated
by a “Yes” under the assigned
column.
*A DHCP server is a device that
supplies IP Addresses to its
clients that are on the same
network.

7

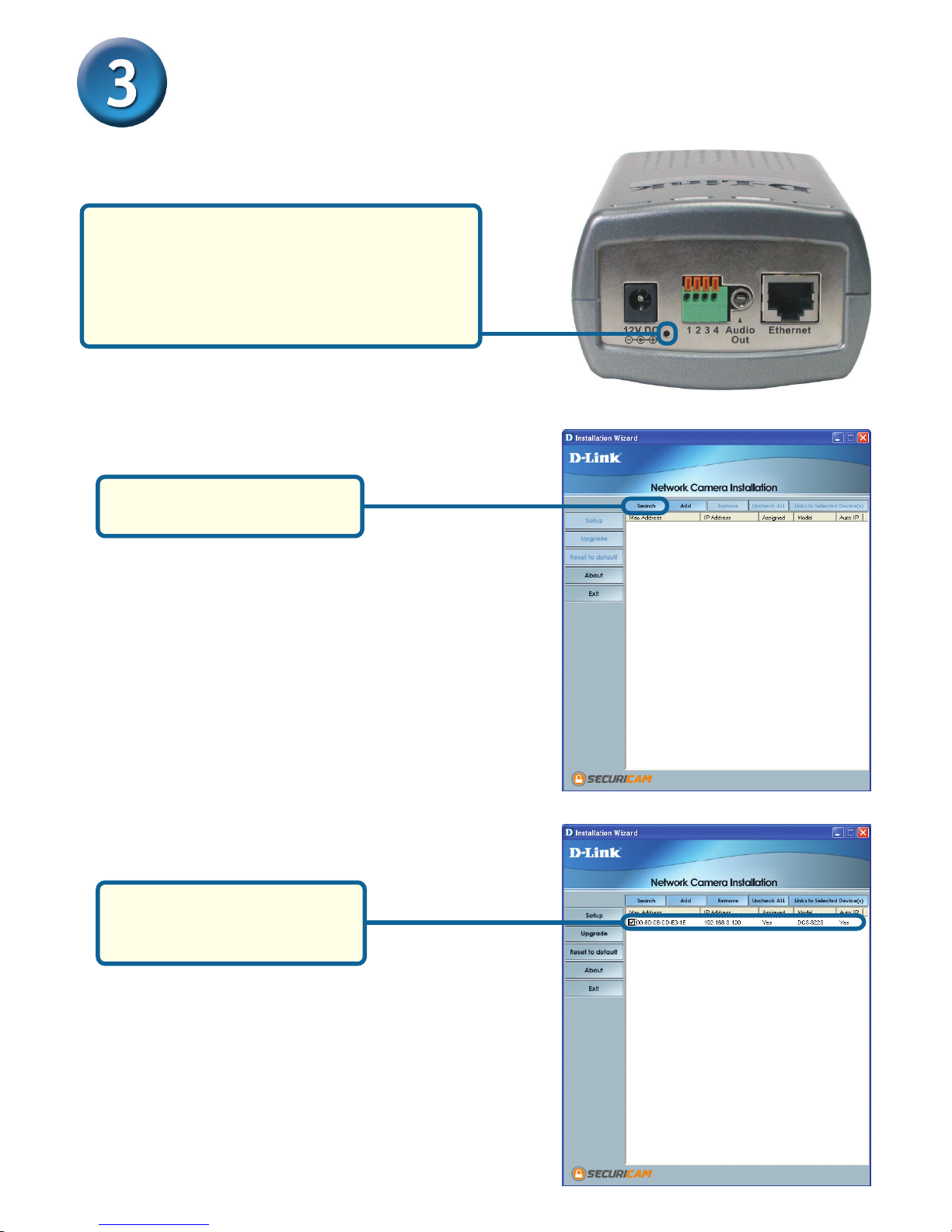

Once the camera appears,
selectthecamerabyplacing
a Checkmark in the box.

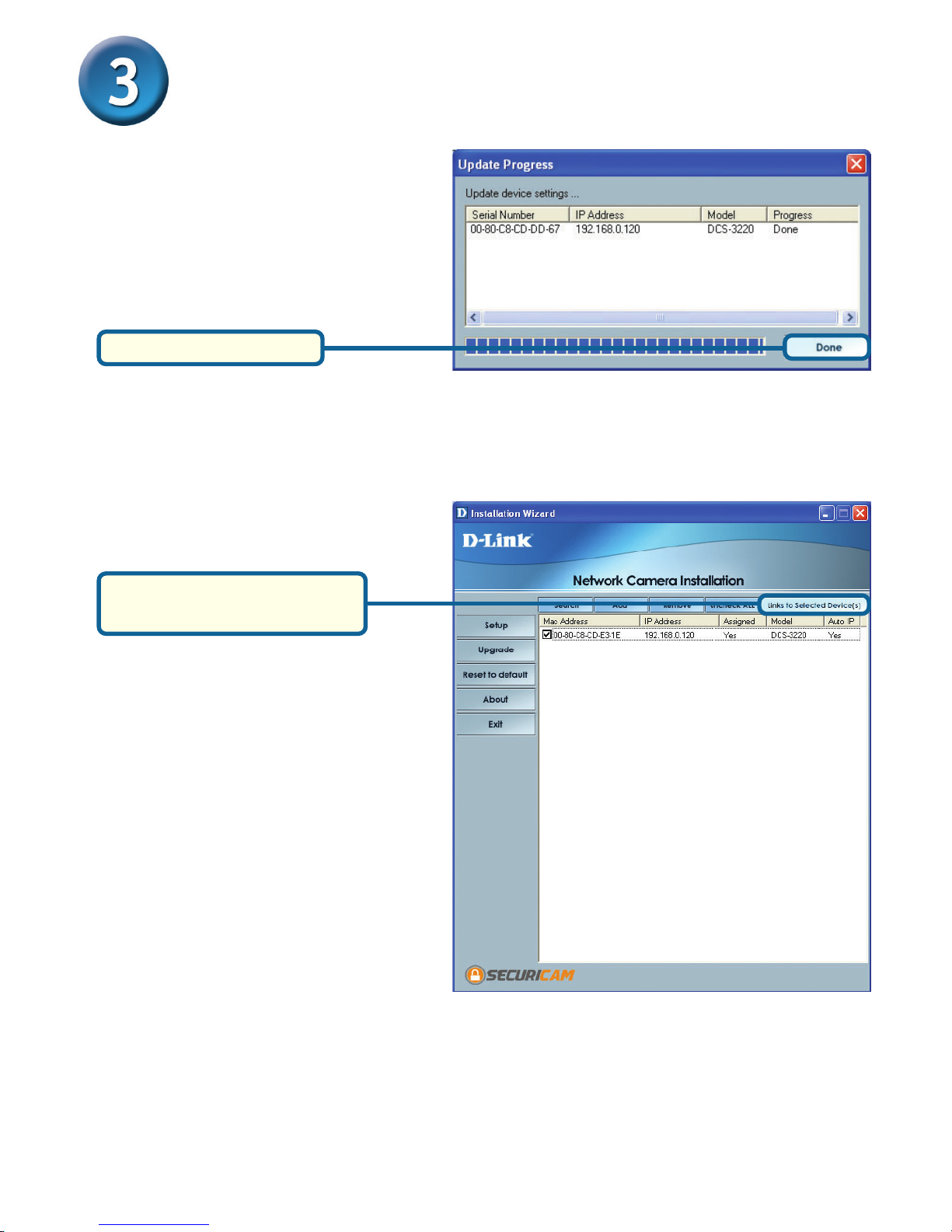

Configuring Your Camera with the
Installation Wizard (continued)
Click Search to refresh the
list of cameras if needed.
If the Installation Wizard does not display
any devices, lightly insert a paper clip into
the reset opening on the unit’s rear panel
until the light starts to cycle (a series of
blinks) twice, then let go.

8

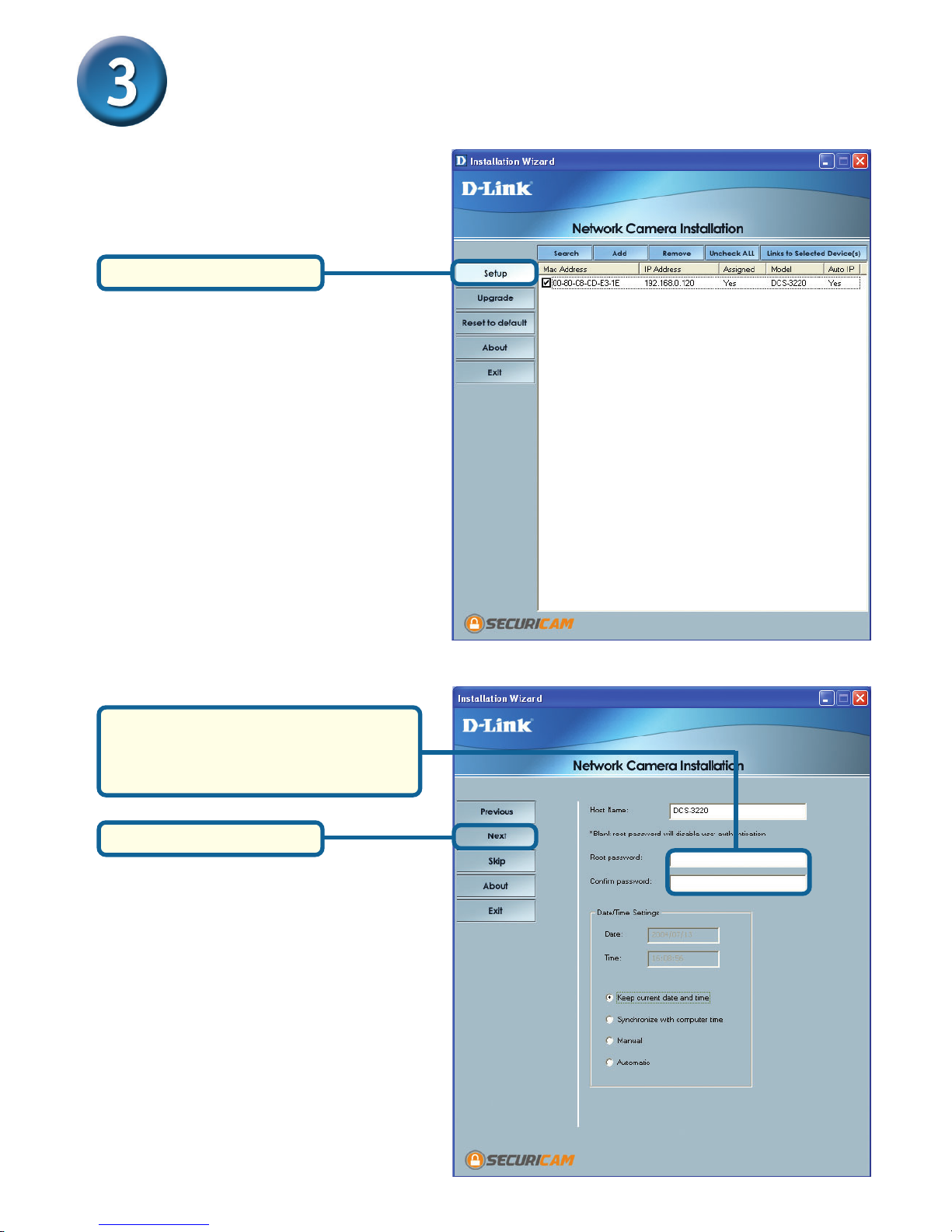

Click the Setup button
Configuring Your Camera with the
Installation Wizard (continued)
Enter an administrative password
intheRoot password andConfirm
passwordfields.
For details on the Date/Time
Settings,pleaserefer totheUser
ManualontheCD-ROM.
Click the Next button

9
Configuring Your Camera with the
Installation Wizard (continued)

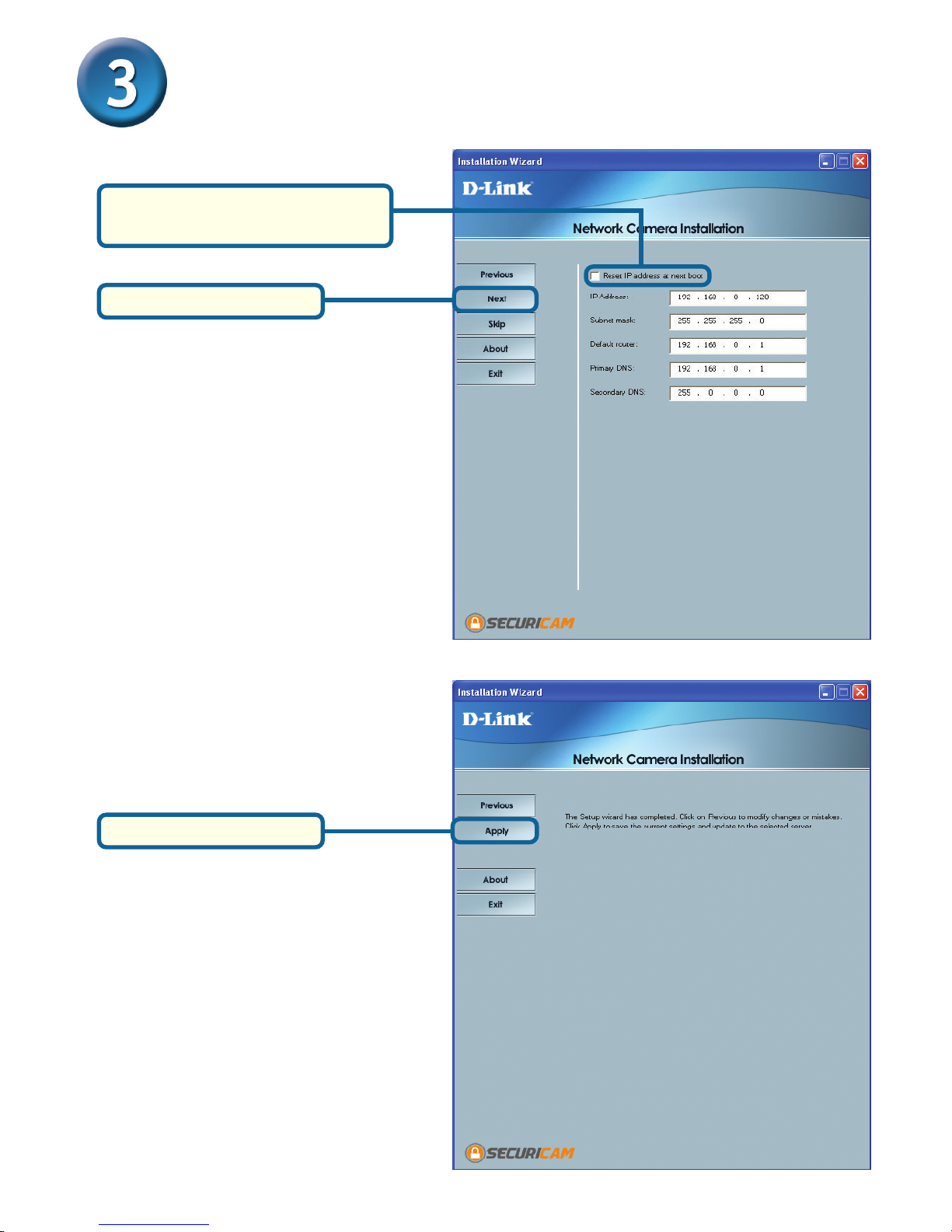

Uncheck the box labeled
ResetIP address at nextboot
If you need to modify the IP
settings,please refer tothe user
manualontheCD-ROM.
Click the Apply button
Click the Next button

10
Configuring Your Camera with the
Installation Wizard (continued)
Click the button labeled
Link to Selected Device(s)
Click the Done button
Afterthesettingshavebeensaved,
theDonebutton will appear.

11

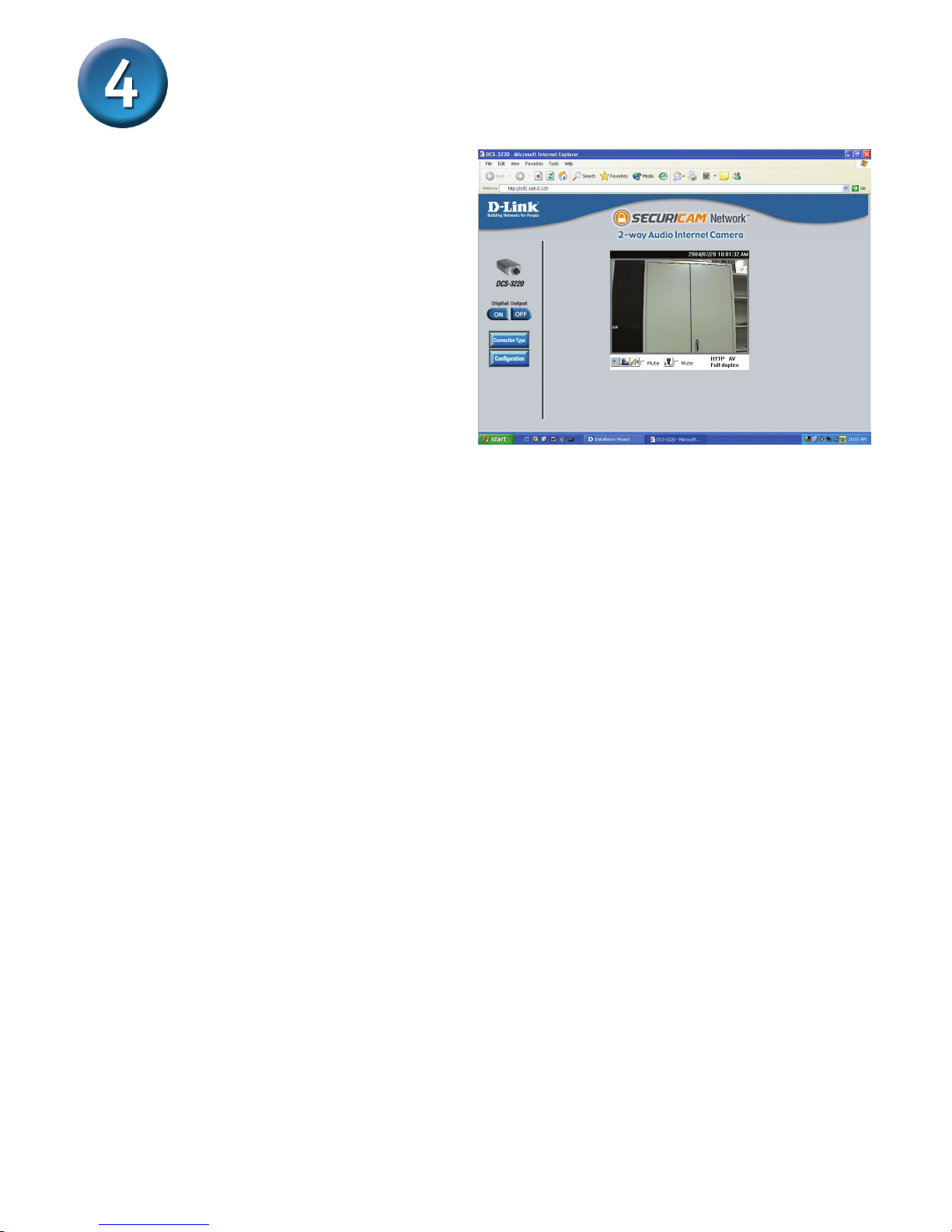

Viewing Your Internet Camera
The installation and configuration of the
DCS-3220 Internet Camera is now complete.
After you click the button
labeledLinktoDevice(s), the
Installation Wizard will
automatically open your web
browser to the IP address of
theDCS-3220,inthisexample
itis:http://192.168.0.120.Your
DCS-3220mayhaveadifferent
IPAddress.

TT
TT
Techniechni
echniechni
echnicalSupportcalSupport
calSupportcalSupport
calSupport
You can find software updates and user documentation on the D-Link website.
D-Link provides free technical support for customers within the United States and
within Canada for the duration of the warranty period on this product.
U.S. and Canadian customers can contact D-LinkTechnical Support through our
website, or by phone.
Tech Support for customers within the United States:
D-Link Technical Support over the Telephone:
[phone]
24 hours a day, seven days a week.
D-Link Technical Support over the Internet:
http://support.dlink.com
email:[email protected]
Tech Support for customers within Canada:
D-Link Technical Support over the Telephone:
[phone]
Monday to Friday 7:30am to 12:00am EST
D-Link Technical Support over the Internet:
http://support.dlink.ca
email:[email protected]
