Section 1: Product Overview
Product Overview
Package Contents
If any of the above items are missing, please contact your reseller.
Quick Installation Guide
Ethernet Cable
CD-ROM with User Manual and Software
SunShield
Extension Adapter
DCS-6517
5 Megapixel H.265 Outdoor Dome Network Camera Alignment Sticker
Mounting Plate
Screws
Side Cover

6D-Link DCS-6517 User Manual
Section 1: Product Overview
Introduction
The DCS-6517 5 Megapixel H.265 Outdoor Network Camera is a professional surveillance and security solution for small, medium, and large
enterprises alike. The DCS-6517 uses a 5-megapixel progressive scan CMOS sensor; this sensor results in low noise and high sensitivity capabilities
ideal for surveillance applications.
The DCS-6517 is equipped stepper motor maintains the iris opening at an optimal level at all times, resulting in superior image clarity, image quality,
and depth of eld.
The DCS-6517 has an IP67-certied weatherproof housing designed for both indoor and outdoor applications. The built-in removable IR-cut lter
and IR LEDs give the DCS-6517 the capability to view up to 20 meters at night. The DCS-6517 also incorporates Power over Ethernet (PoE), allowing
it to be easily installed in a variety of locations without the need for supplemental power cabling. The combination of IP67 housing, IR-cut lter, IR
LEDs and PoE make the DCS-6517 an ideal solution for a high performance, reliable and cost-eective 24-hour surveillance solution with an easy
clutter-free installation.
Computer with Microsoft Windows® 10, 8, 7, or Vista® (for CD-ROM Setup Wizard)
Internet Explorer 11, Firefox 12, Safari 6, or Chrome 20 or higher
Existing 10/100 Ethernet-based network with PoE
A microSD memory card (optional) is required for recording to onboard storage. SDHC Class 6 or above is recommended.
System Requirements

7D-Link DCS-6517 User Manual
Section 1: Product Overview
Remote Zoom & Focus
The remote focus function eliminates the need for manual focusing at the camera position and allows the user to make key adjustments from any
computer. The remote zoom functionality allows the user to make nal adjustments to the zoom from the computer. It provides a convenient way
to ensure that the viewing angle is optimized for the scene and fullls the resolution requirements.
Wide Dynamic Range
Wide Dynamic Range technology neutralizes imperfect lighting, providing clear images with the right amount of contrast even when a subject is
backlit.
Automatic Thermostat Temperature Regulation
The DCS-6517 monitors and automatically regulates its temperature to ensure it can perform at its optimal ability. It balances fan use for a built-
in heater based on a range of preset thermostatic settings. This gives the DCS-6517 the ability to perform in the most demanding environments.
Remote Monitoring Utility
The D-ViewCam application adds enhanced features and functionality for the DCS-6517 and allows administrators to congure and access the
camera from a remote site via the Internet. Other features include recording images to a hard drive, viewing up to 32 cameras on one screen, and
taking snapshots.
IR LEDs for Day and Night Functionality
The built-in infrared LEDs enables night-time viewing of up to 20 meters (66 feet).
Robust Weatherproof and Vandal-resistant Housing
The DCS-6517 housing is compliant with both the IP67 weatherproof and IK-10 vandal-resistant certications, allowing you to rest assured that it
will continue to provide round-the-clock surveillance in the toughest of conditions and locations.
PoE (Power over Ethernet) for Flexible Installation
The DCS-6517 can draw all the power it needs from a PoE switch or PoE injector for a simple and clutter-free installation.
Features

8D-Link DCS-6517 User Manual
Section 1: Product Overview
Hardware Overview
3
1
24
6
5
7
8
10
1
9
10

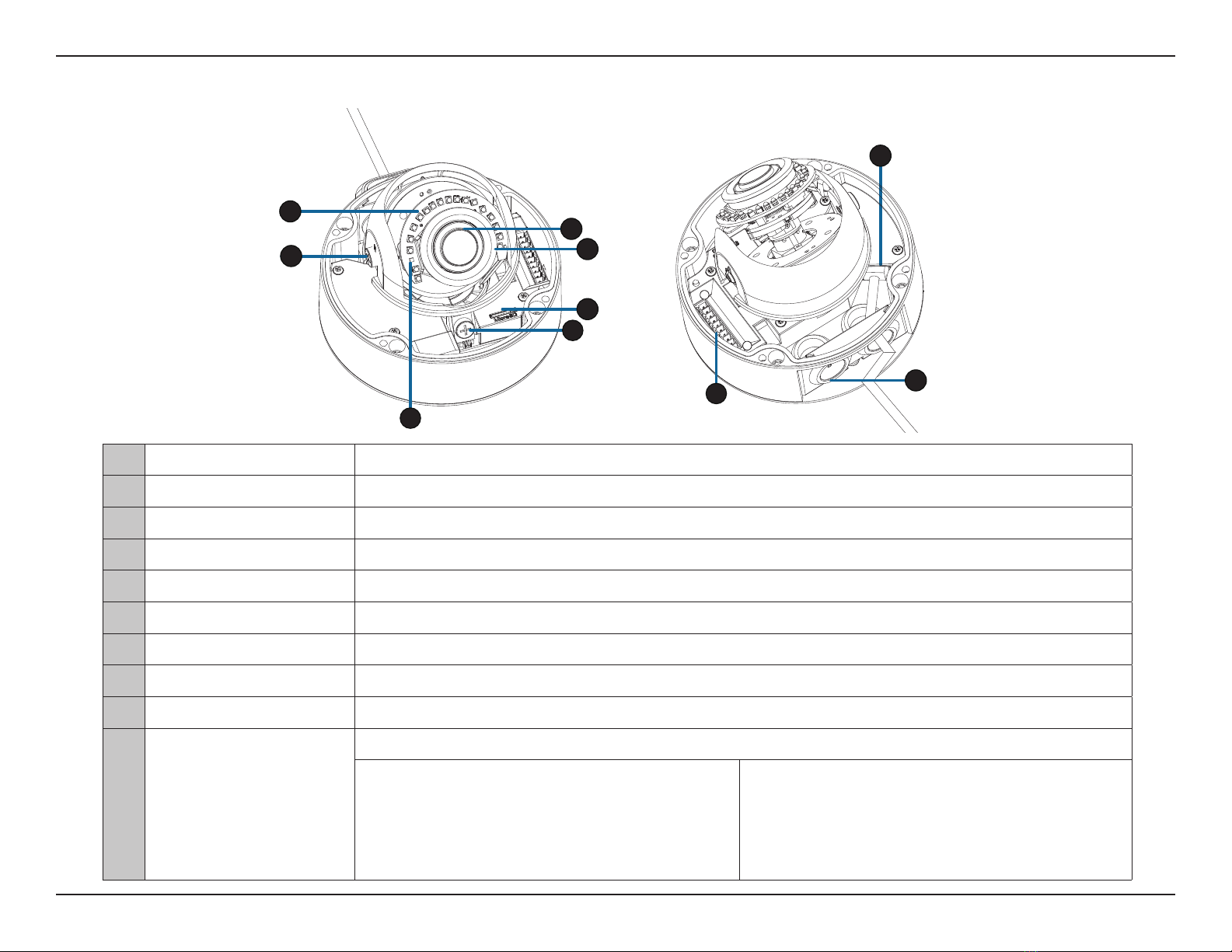

1IR LEDs Provide illumination for low-light environments.
2Tilt Lock Screw Can be loosened to adjust the camera's tilt angle.
3Camera Lens Camera lens to record video of the surrounding area.
4Power/Status LED Indicates the camera's current status.
5Light Sensor Measures lighting conditions and switches between day and night mode accordingly.
6Horizontal Lock Screw Can be loosened to adjust the horizontal rotation of the camera.
7microSD Card Slot Accepts a microSD card for onboard storage of snapshots and video.
8Ethernet Jack Connects to an RJ45 Ethernet port. Can be used with PoE to provide power to the camera.
9Cable Channels Allow cables to exit the camera from the back or side.
10 Cable Harness Port
Connects to the optional cable harness (not included).
1. 12V IN
2. GND
3. AUD IN
4. AUD GND
5. AUD OUT
6. 12V OUT
7. GND
8. RESET
9. DI
10. DO

9D-Link DCS-6517 User Manual
Section 1: Product Overview

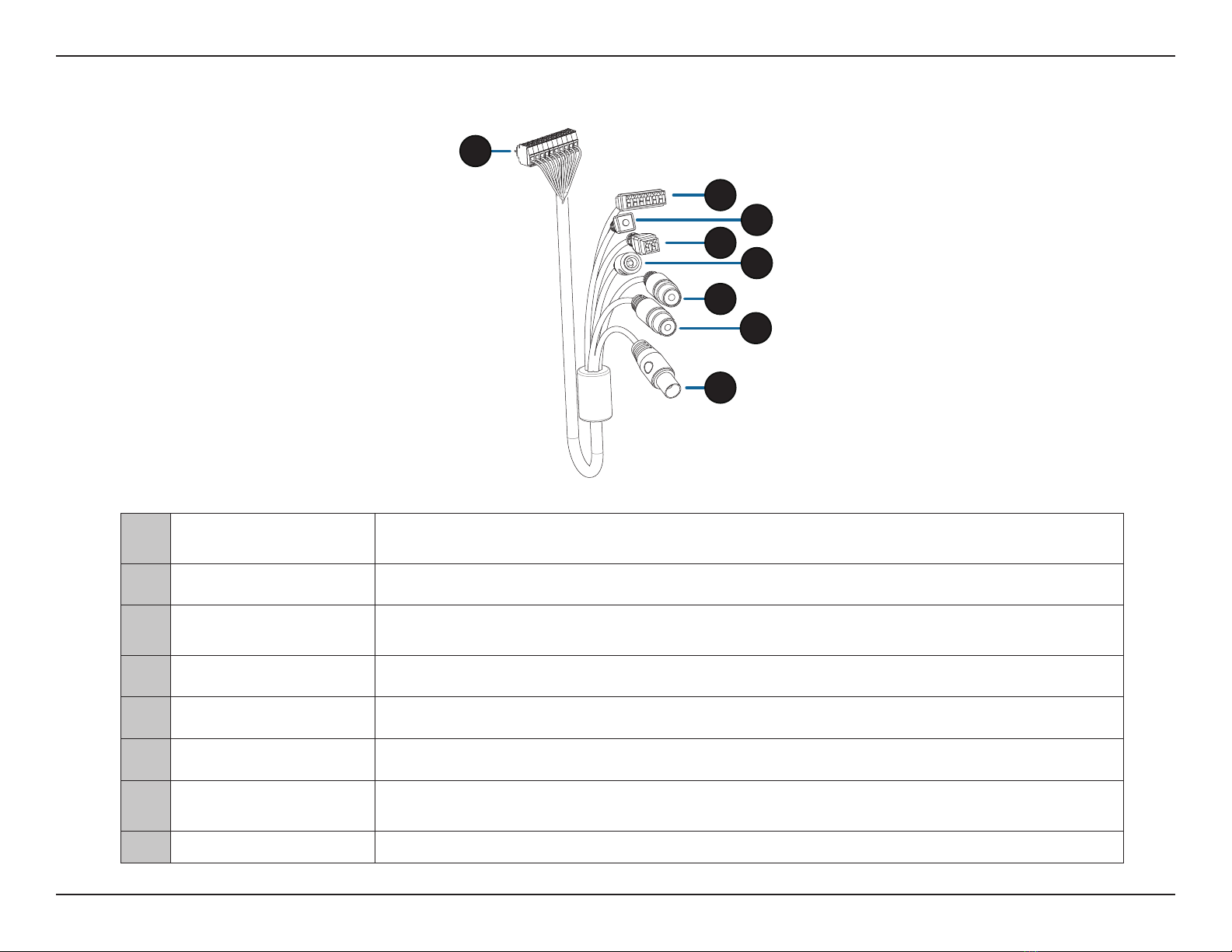

Optional Cable Harness (not included)
11
12
13
14 15
16
17
18
11 Cable Harness
Connector
Connects to the DCS-6517. For more details on connecting the A/V cable, refer to the User
Manual.
12 DI/DO Connector I/O connectors for external devices.
13 Reset Button Press and hold the button for 10 seconds to reset the camera back to the factory default
settings.
14 24 V Power Connector Not supported for the DCS-6517.
15 Power Connector Power connector for a 12 V DC power adapter (not included).
16 Audio Out (Green) Connects to a speaker.
17 Audio In
(Red) Connects to a microphone.
18 BNC Connector Not supported for the DCS-6517.

10D-Link DCS-6517 User Manual
Section 2: Installation
Installation
Connecting the Optional Cable Harness

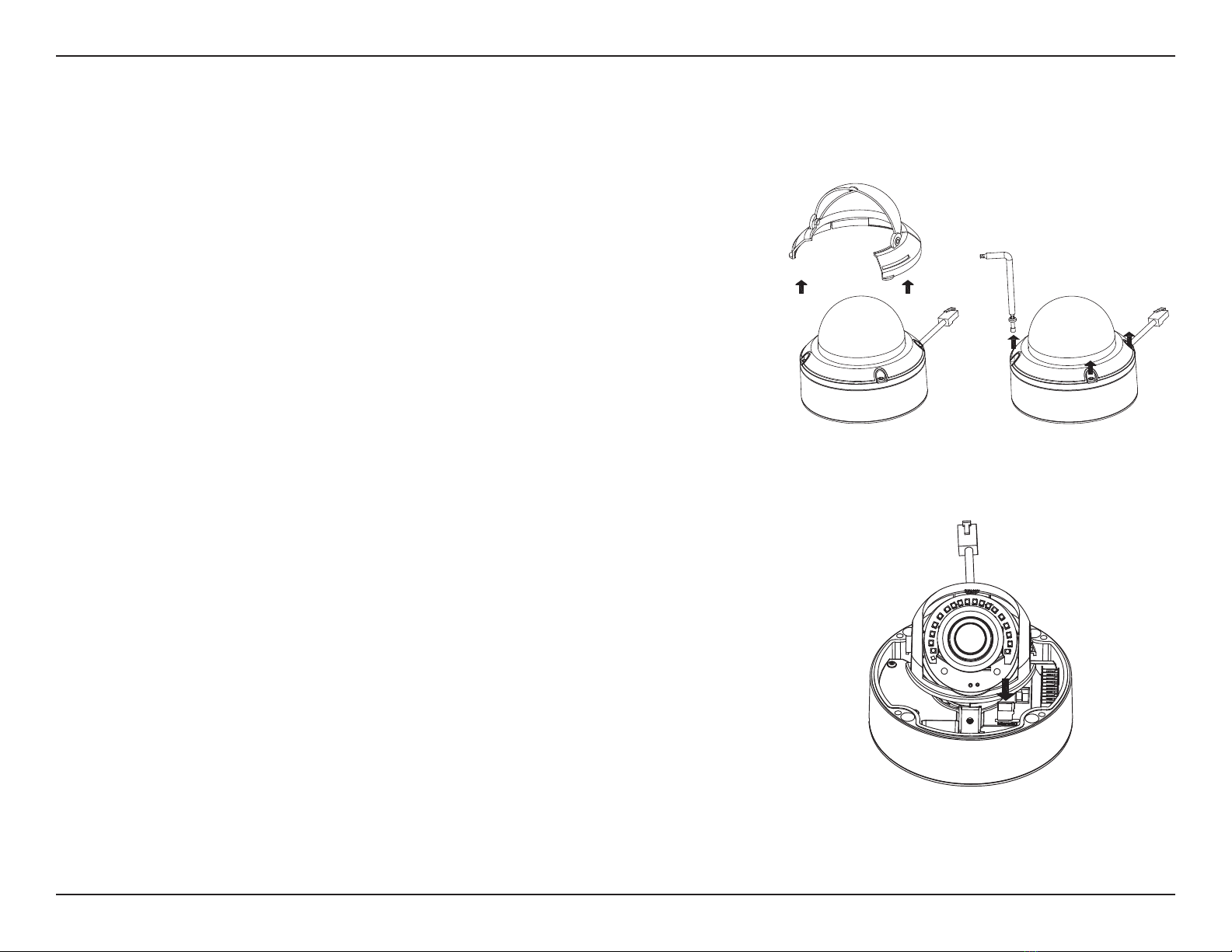

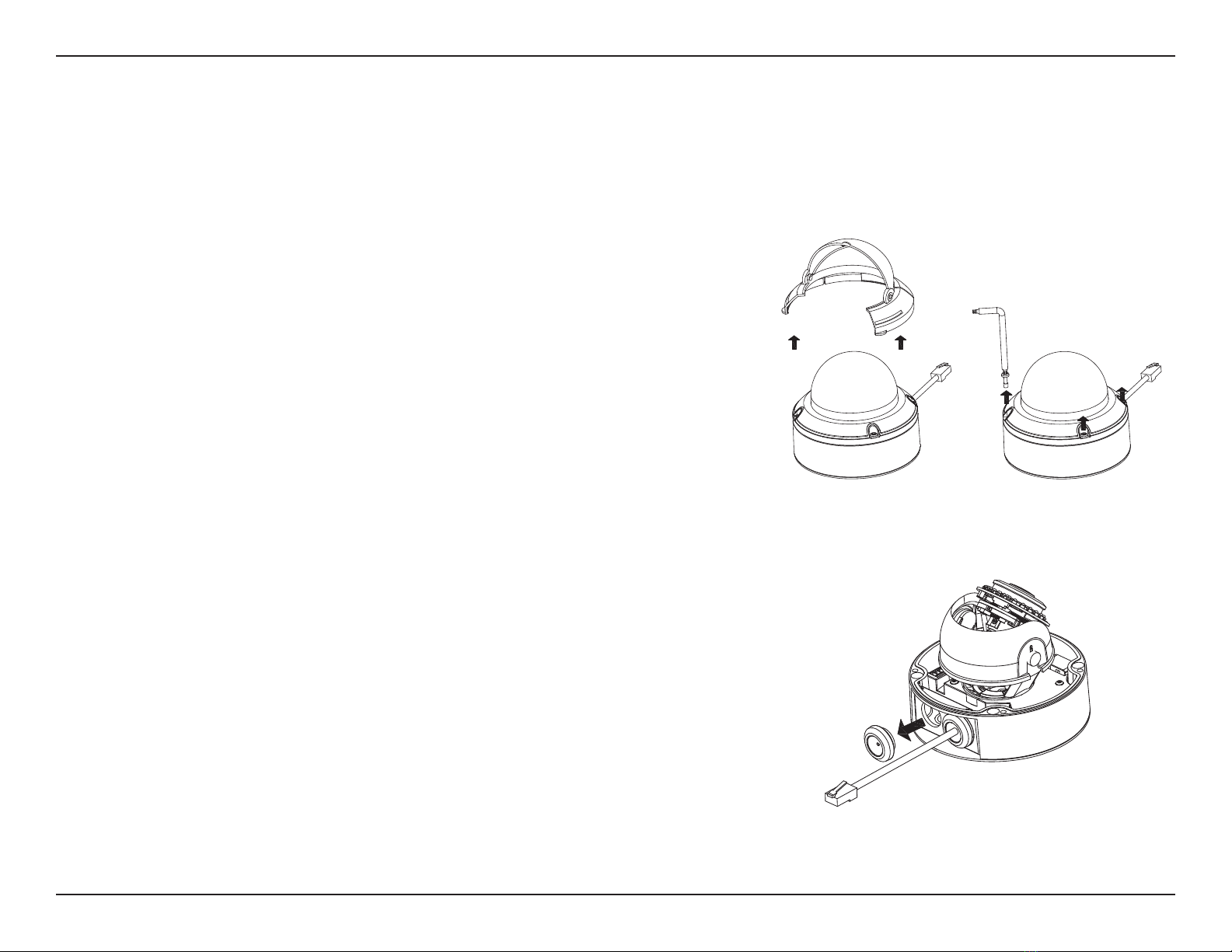

Remove the sun shield by lifting it off of the camera. Use the included security
wrench to remove the 4 screws from the top of the camera, then remove the camera
cover.

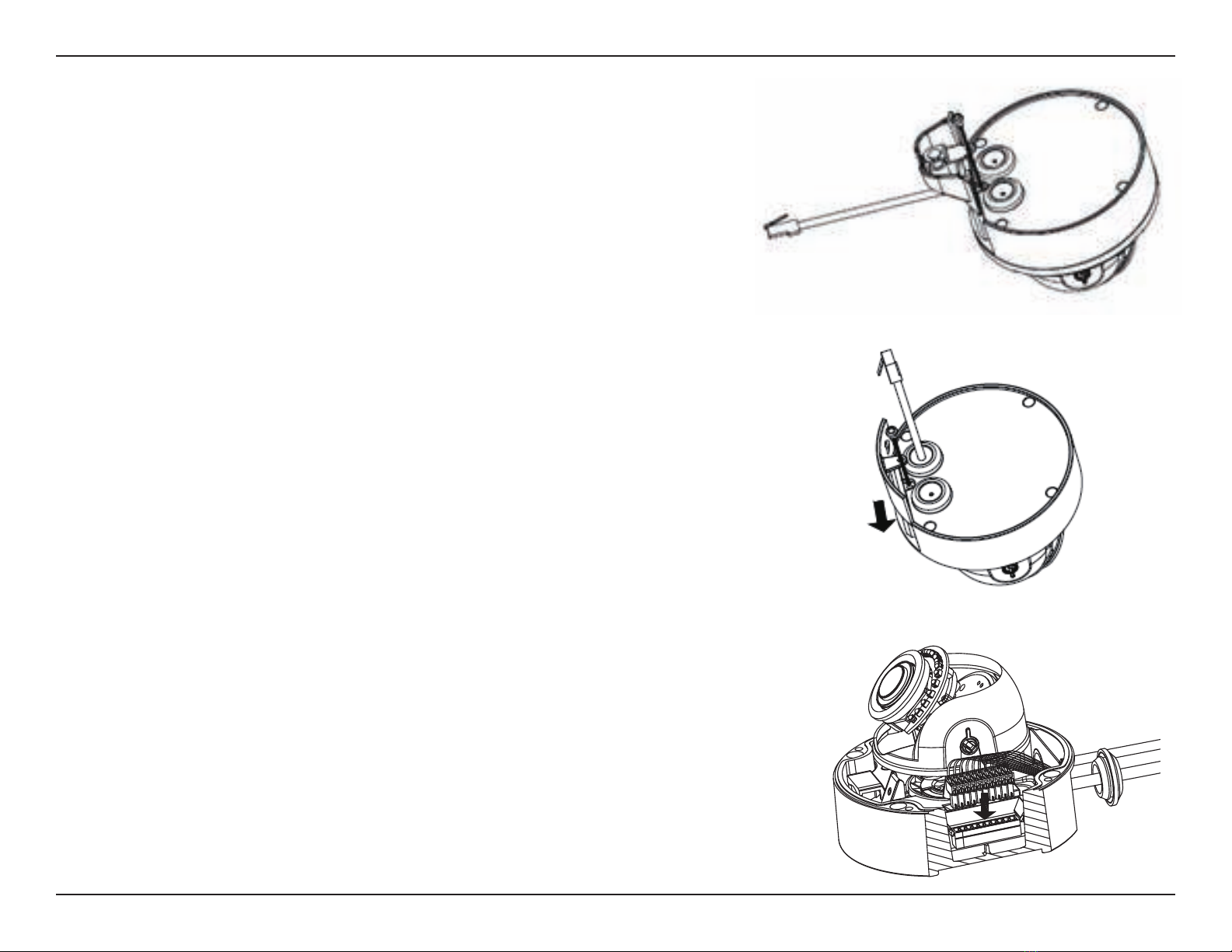

Remove a waterproong plug from the side or bottom of the camera depending on
how you want the cables to exit the camera.

11D-Link DCS-6517 User Manual
Section 2: Installation

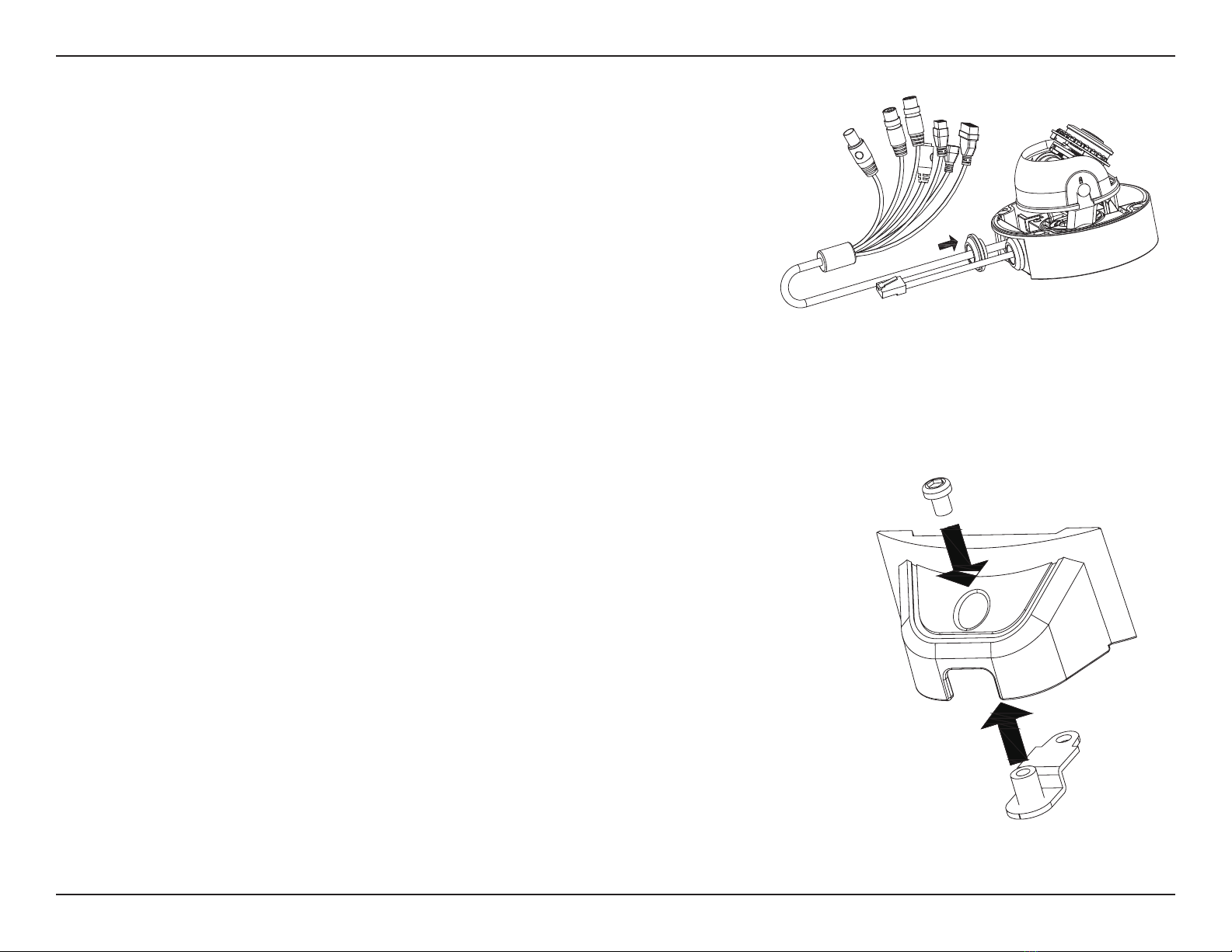

Push the camera connector and cable through the hole, and insert the cable's
waterproong plug.
Make sure the plug is inserted properly to ensure a good seal.
For side cable exit:
Attach the side cover via the provided screws.

12D-Link DCS-6517 User Manual
Section 2: Installation
Slide the cover over the cable ports.
For bottom cable exit:
Attach the protective side cover via the provided screws.
Connect the camera connector to the camera.
Reattach the camera cover using the security wrench to
tighten the 3 screws, and reattach the sun shield.

13D-Link DCS-6517 User Manual
Section 2: Installation
microSD Card Installation
Remove the sun shield by lifting it off of the camera. Use the included security wrench
to remove the 4 screws from the top of the camera, then remove the camera cover.
Insert the microSD card with the gold contacts facing the outside of the camera. To eject the
microSD card, push the card into the slot.
Reattach the camera cover using the security wrench to tighten the 4 screws, and reattach
the sun shield.

14D-Link DCS-6517 User Manual
Section 2: Installation

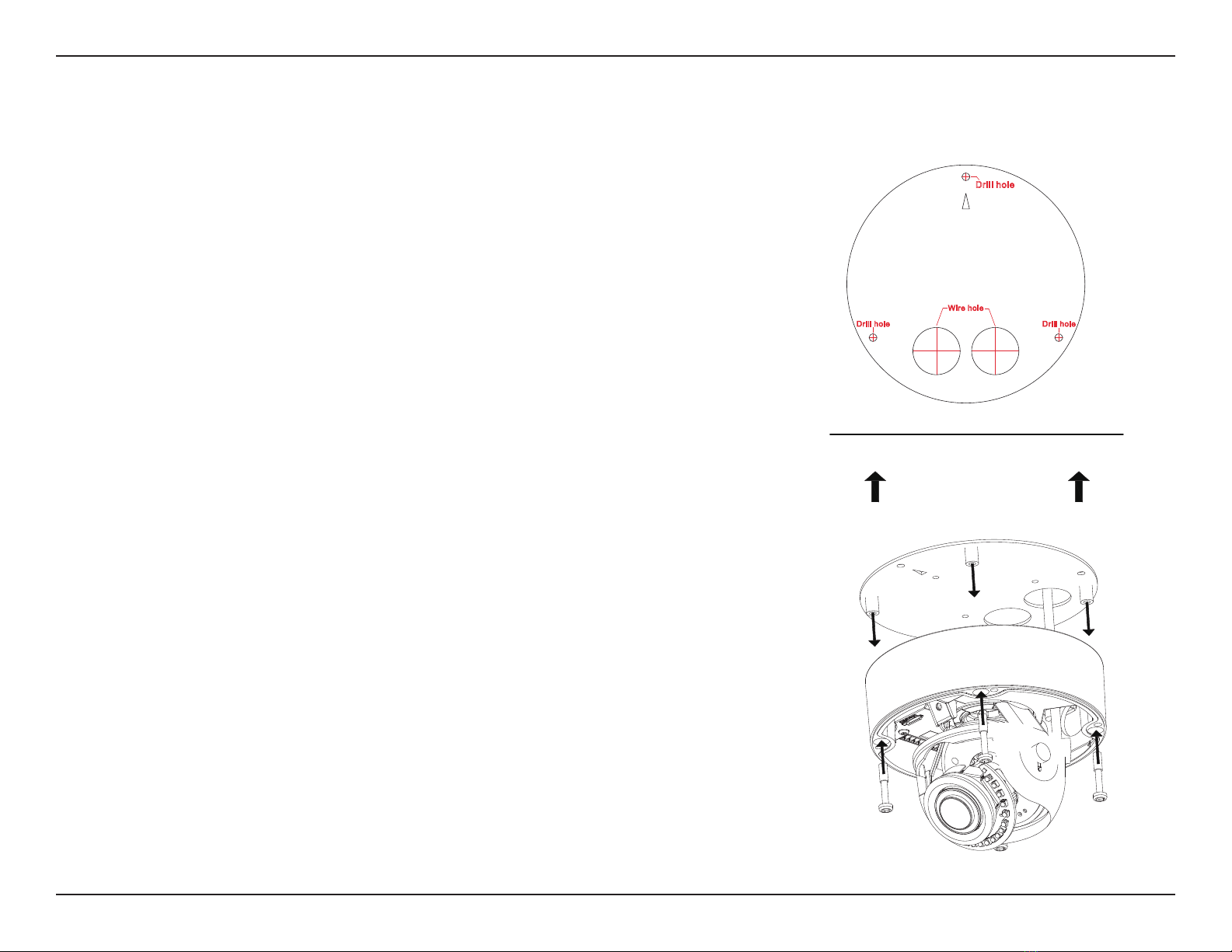

Mounting the Camera on the Ceiling
Locate a suitable position on the ceiling that is capable of supporting the weight of
the camera. Attach the alignment sticker to the ceiling or wall.
Align the mounting plate to the drilled holes in the ceiling surface then tighten the
screws.
Align the camera to the mounting plate and screw the camera body to the plate tightly.
Ceiling
Wire hole
Drill hole
Drill holeDrill hole

15D-Link DCS-6517 User Manual
Section 2: Installation
Adjusting the Camera's Lens

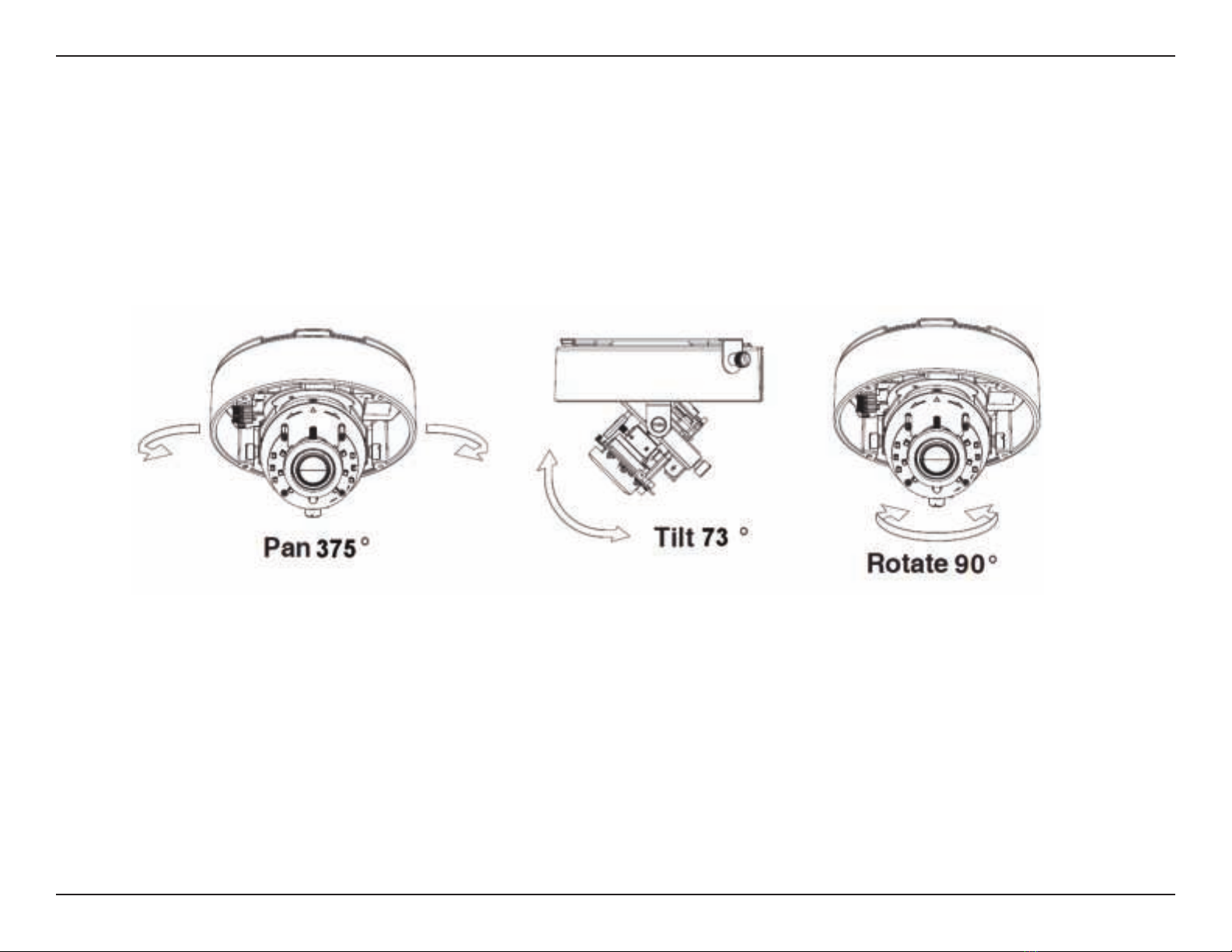

Adjust the Camera’s Lens gimbal; Turn the lens module left and right, up and down and the orientation until the desired position is achieved.
Tighten the pan, tile and the adjustment screw once completed.

16D-Link DCS-6517 User Manual
Section 2: Installation
Installing the Pendant Mount (Optional)

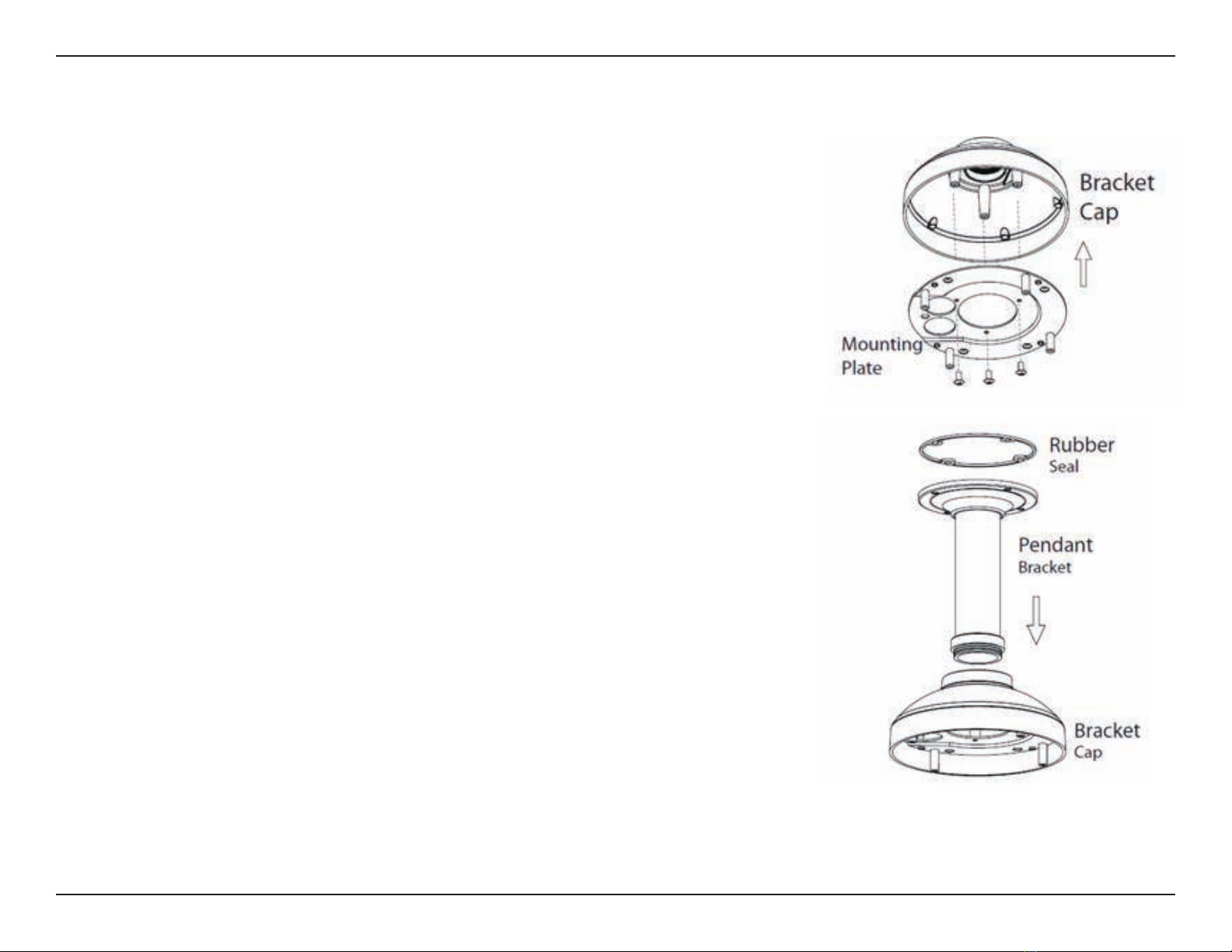

Attach the mounting plate to the bracket cap using the three included screws.
Locate a suitable position on the ceiling for a 34 mm (+2 / -0 mm) hole to be cut. Use the included
template to mark and cut the mounting holes.
Locate a suitable position on the ceiling for a 34 mm (+2 / -0 mm) hole to be cut. Use the included
template to mark and cut the wiring hole.
Drill four 6 mm holes corresponding to the holes in the mounting template and insert the plastic
anchors into these holes.
Place the rubber seal between the pendant bracket and the ceiling to ensure a waterproof seal
between the ceiling and the bracket.
Attach the pendant bracket to the ceiling using the screws provided.
Attach the bracket cap to the bottom of the pendant bracket by rotating the cap counterclockwise to
tighten it into place.
Insert the screw into the base of the pendant bracket at the top of the bracket cap to secure the
bracket cap into place.

17D-Link DCS-6517 User Manual
Section 2: Installation

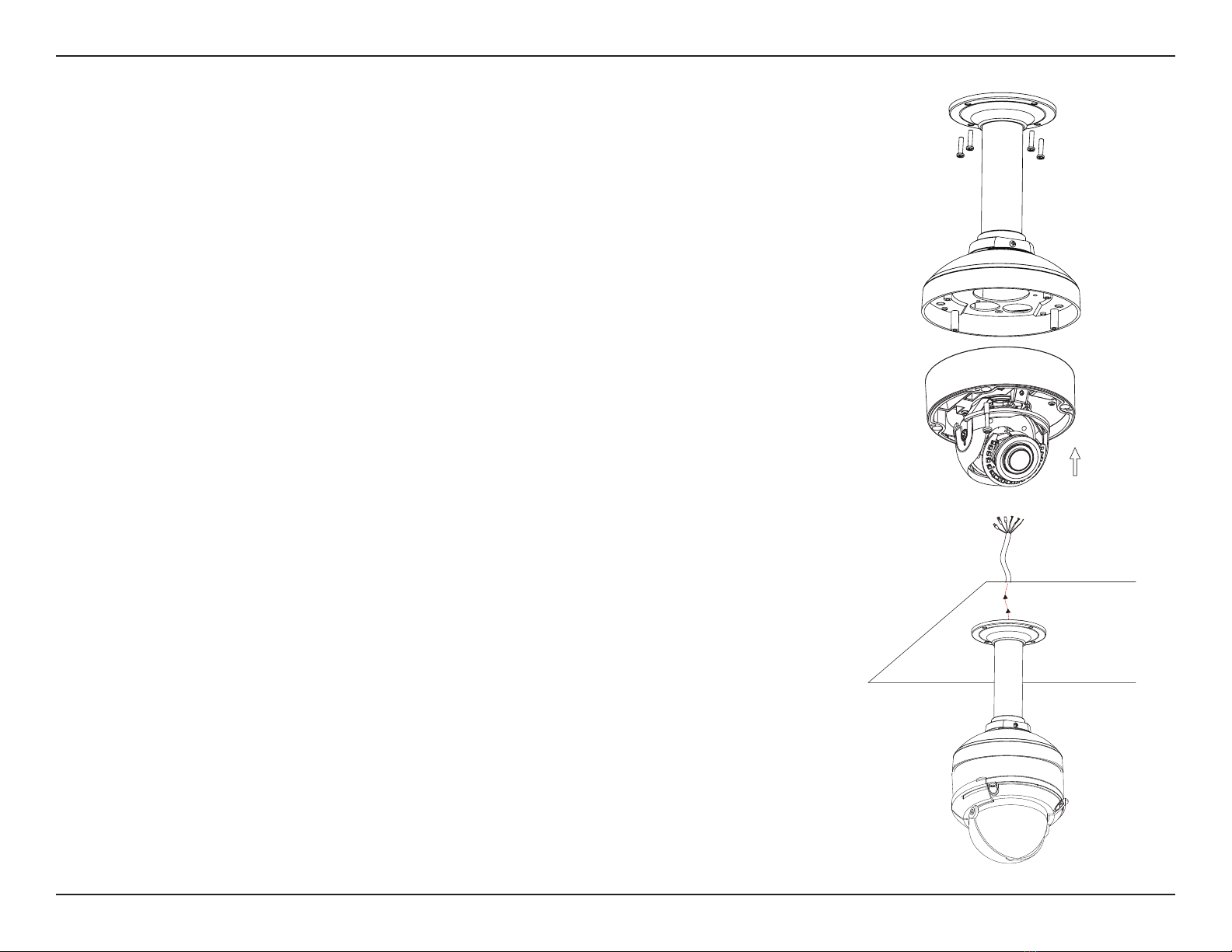

Thread an Ethernet cable and the power cable through the pendant bracket.
Place the camera body onto the bracket cap and attach the dome to the base of the
camera using the four long screws and the security screw.

18D-Link DCS-6517 User Manual
Section 2: Installation
Installing the Right-Angle Mount (Optional)

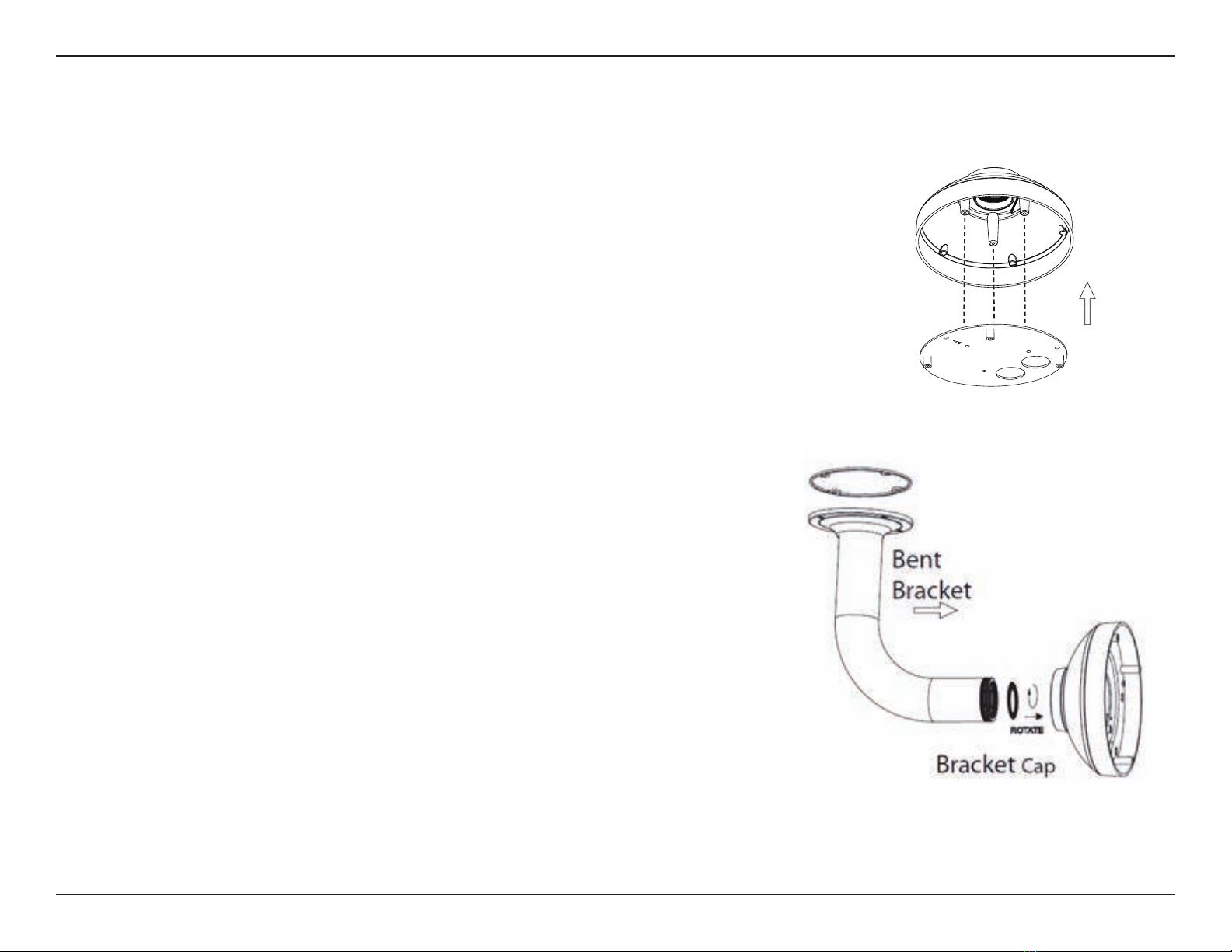

Attach the mounting plate to the bracket cap using the included three screws.
Locate a suitable position on the ceiling for a 34 mm (+2 / -0 mm) hole to be cut. Use
the included template to mark and cut the mounting holes.
Drill four 6 mm holes corresponding to the holes in the mounting template and insert
the plastic anchors into these holes.
Bracket
Cap
Mounting
Plate

19D-Link DCS-6517 User Manual
Section 2: Installation
Place the rubber seal between the right-angle bracket and the ceiling to ensure a
waterproof seal between the ceiling and the bracket.
Attach the right-angle bracket to the ceiling using the screws provided.
Attach the bracket cap to the bottom of the right-angle bracket by rotating the cap
counterclockwise to tighten it into place.
Insert the screw into the base of the right-angle bracket at the top of the bracket cap to
secure the bracket cap into place.

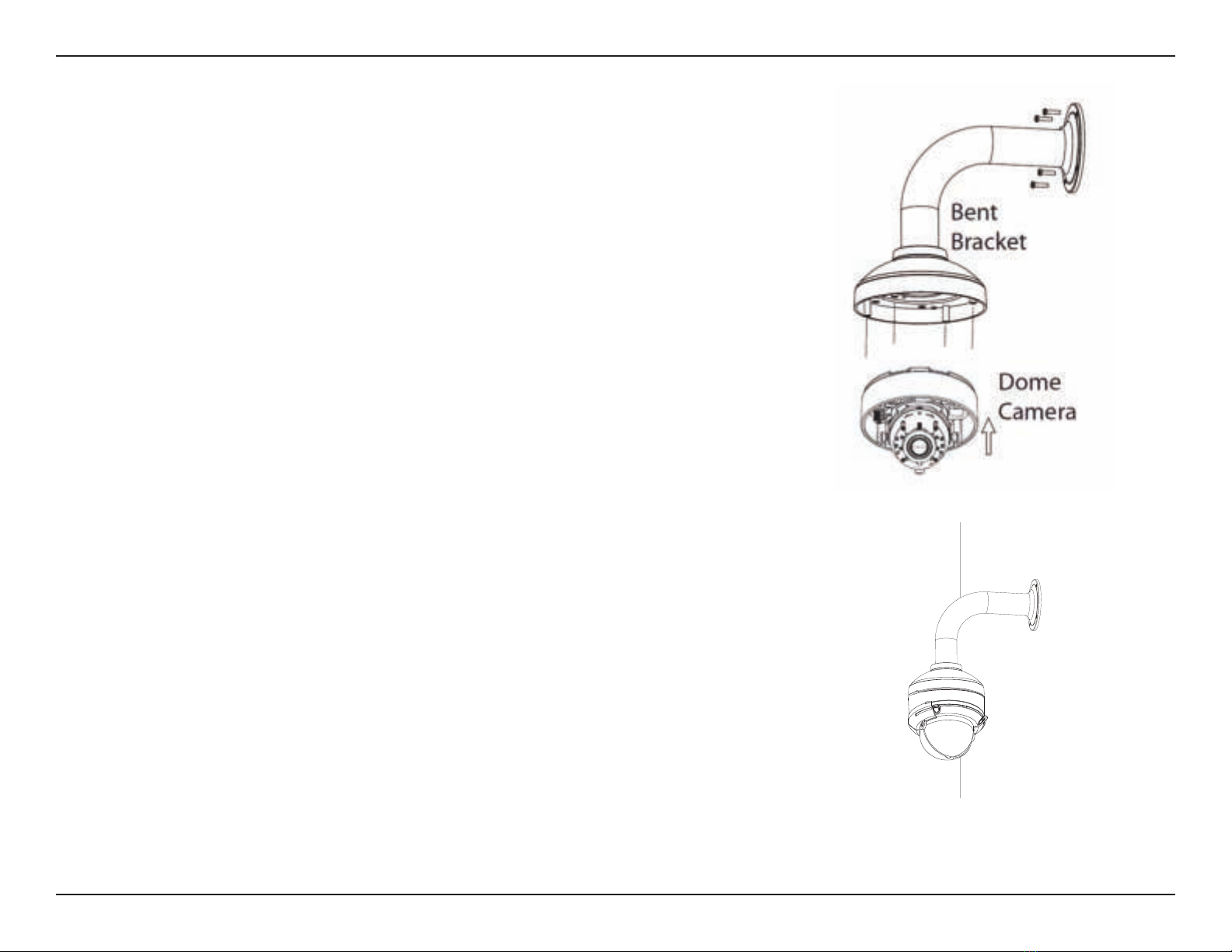

Thread an Ethernet cable and the power cable through the pendant bracket.
Place the camera body onto the bracket cap and attach the dome to the base of the
camera using the three long screws and the security screw.

20D-Link DCS-6517 User Manual
Section 2: Installation
Connecting the Camera

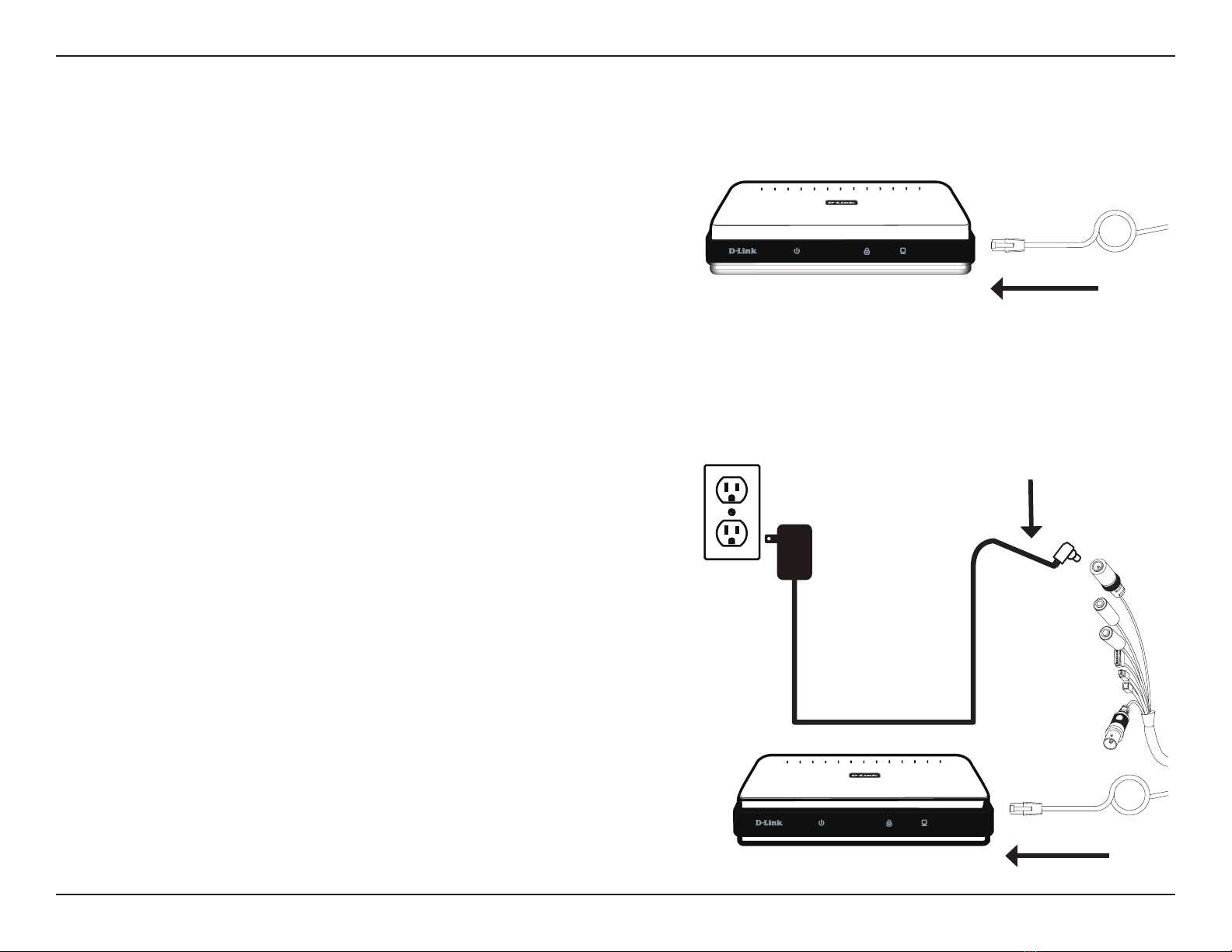

General Connection Using 12 V DC Power Adapter (not included)
Connect the Ethernet cable to your network.
Connect your power adapter to the camera's power connector, then
plug in the power adapter.
Connection with a PoE Switch
Connect the Ethernet cable to your PoE switch or injector. The
Ethernet cable will provide the camera with both power and a network
connection.
If you have the optional cable harness, you can also use the following connection method:
