Preface

4D-Link DCS-3710 User Manual
Product OverviewProduct Overview
If any of the above items are missing, please contact your reseller.
CAT5 Ethernet
Cable
DCS-3710
Network Camera
Camera Stand
Power Adapter
Manual and Wizard
on CD-ROM

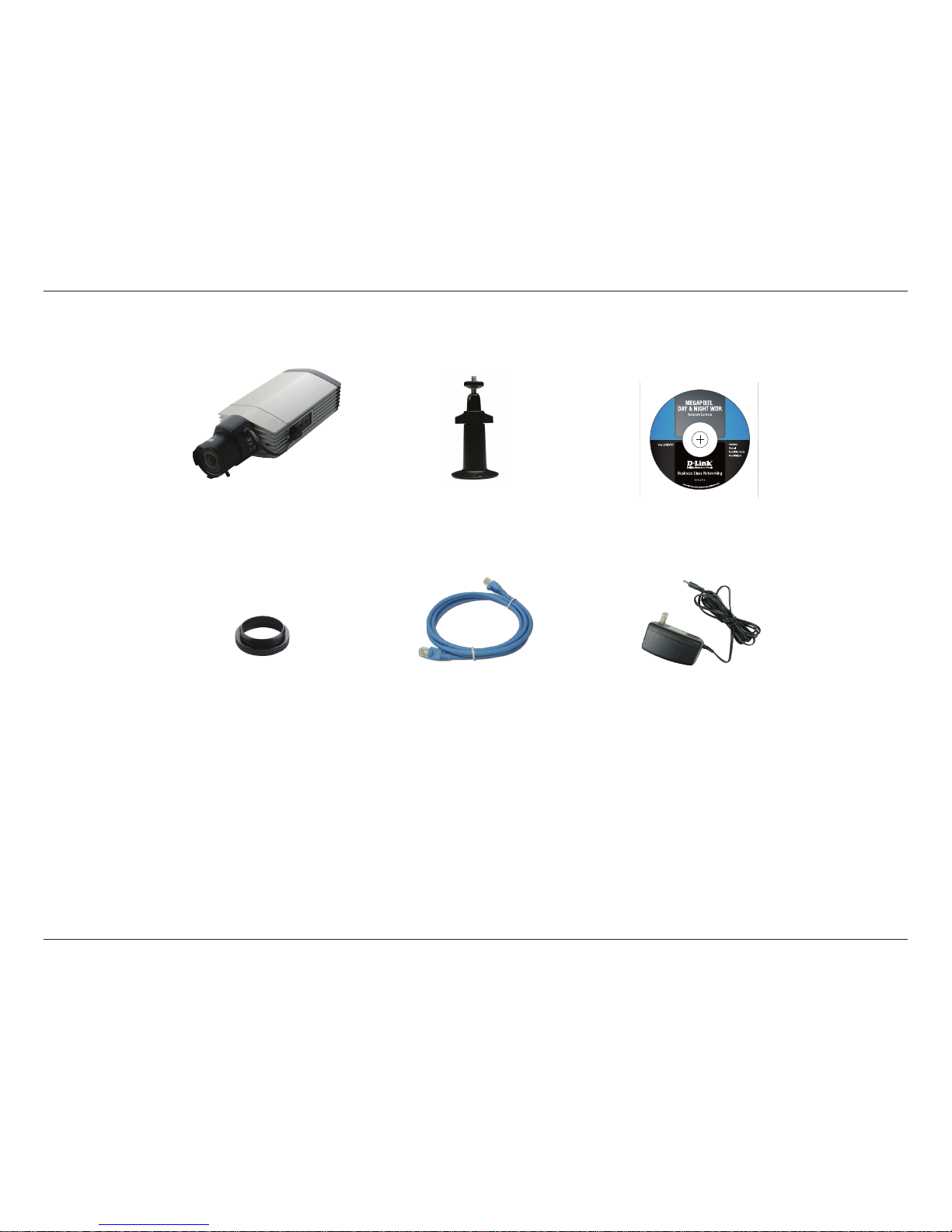

Package Contents
C-CS Mount Adapter
(5mm Ring)

5D-Link DCS-3710 User Manual
Hardware Overview
Hardware Overview
Hardware Overview

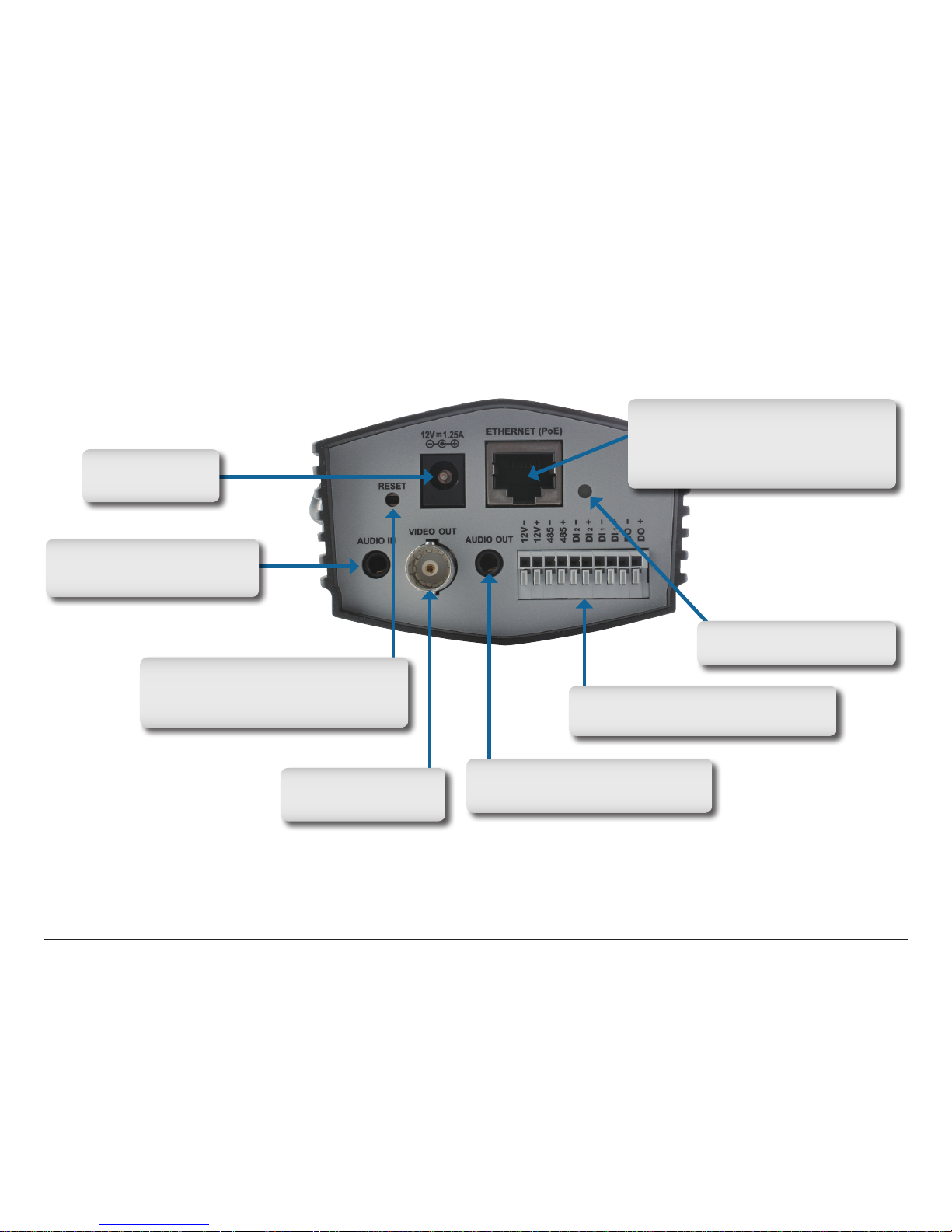

Rear
LED
Power and network indicator
I/O Connector
I/O connectors for external devices
BNC
Video analog output
Reset
Press and hold this button for 5 seconds
to reset the camera
Audio In
External Audio Input connector
DC Power
12V DC
Audio Out
Audio Output for external speakers
Ethernet (PoE)
RJ-45 connector for Ethernet which can
also be used to power the camera using
Power over Ethernet (PoE)

6D-Link DCS-3710 User Manual
Hardware Overview

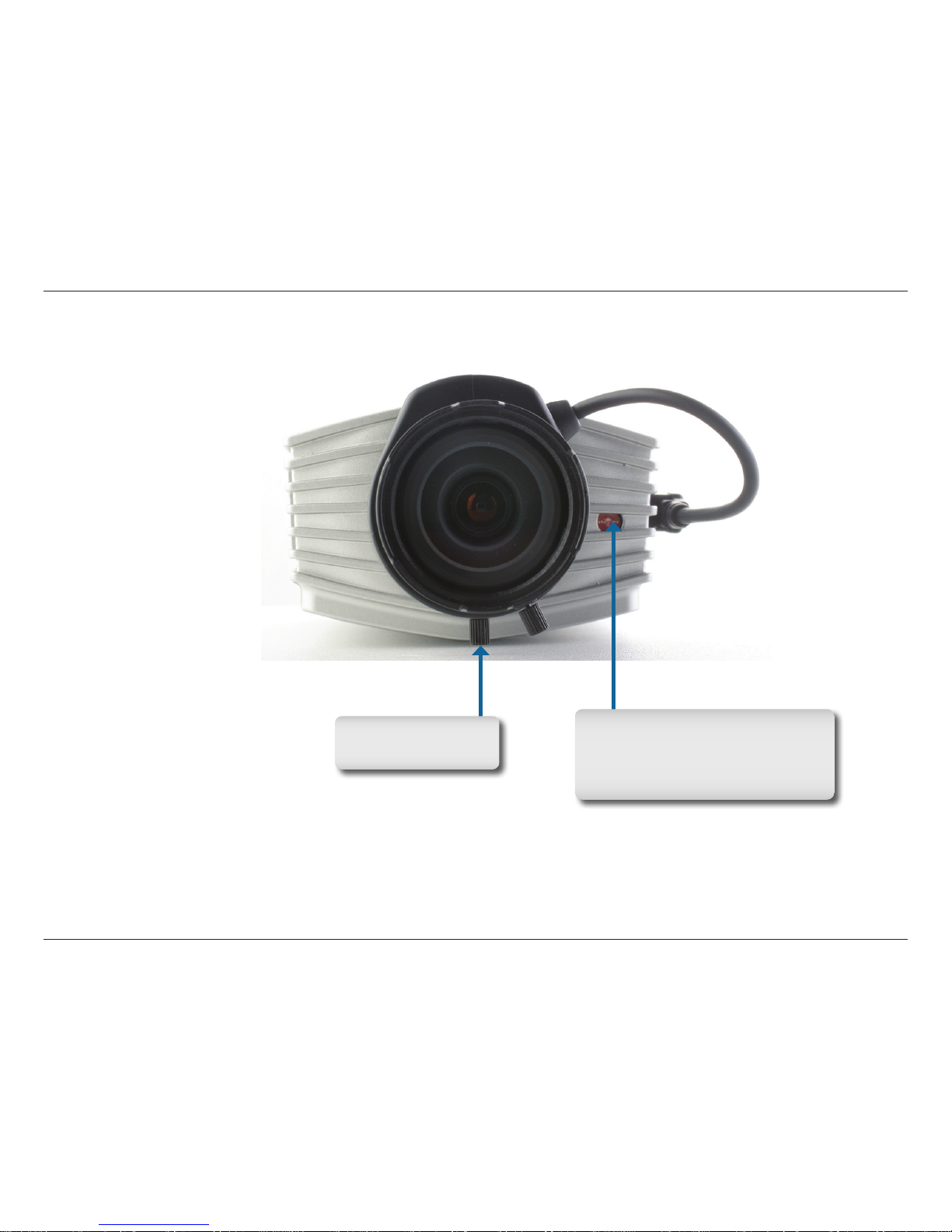

Lens Connector
Connect to a CS mount
ICR Sensor
The IR-Cut Removable sensor judges
lighting conditions and switches from
color to infrared accordingly
Front

7D-Link DCS-3710 User Manual
Hardware Overview

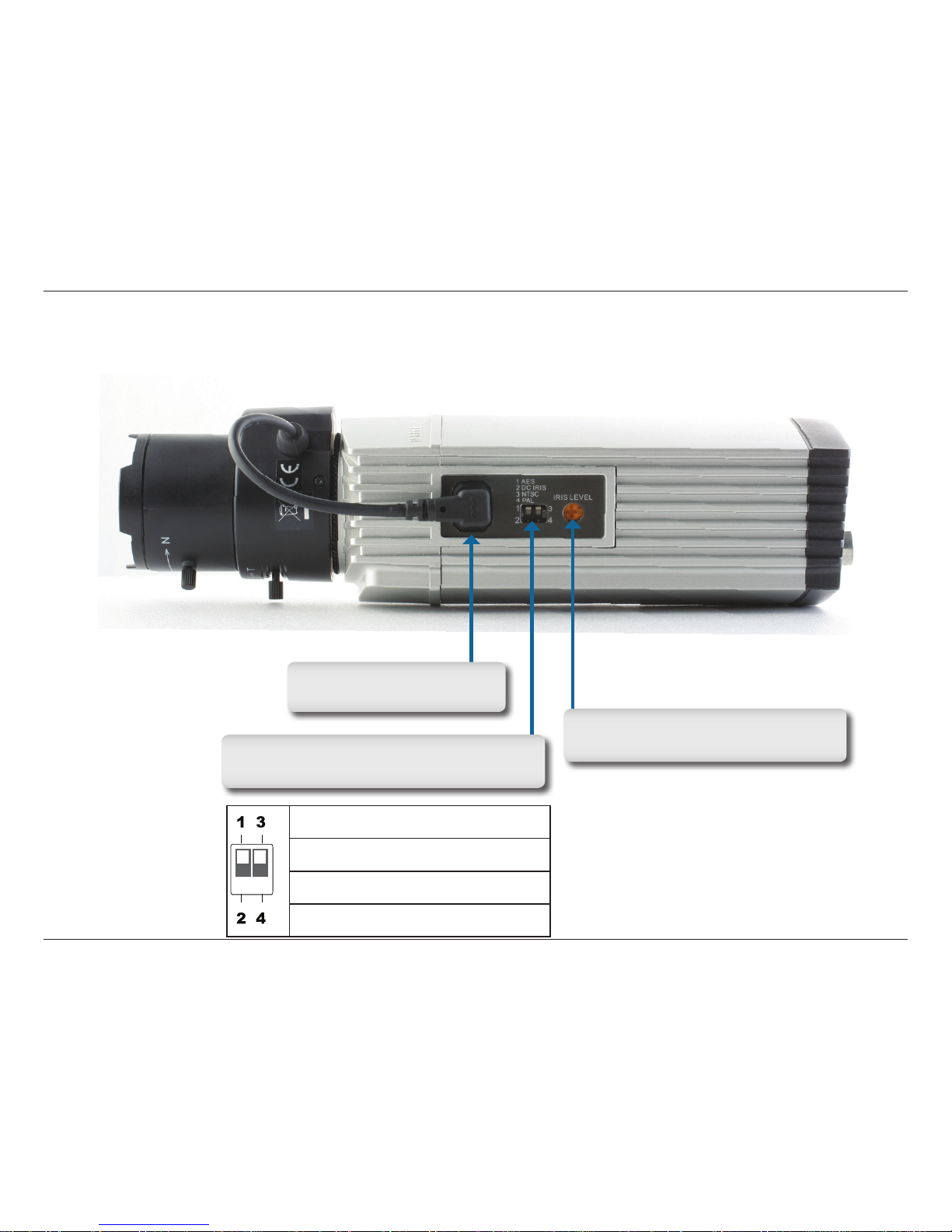

DC-Iris Connector
Connector for DC auto iris lens
DIP Switch
Toggles several different camera options
Iris Level
Can be used to adjust the auto iris
1. AES: Auto Electric Shutter
2. DC IRIS: Use an auto iris (DC drive)
3. NTSC: TV output signal selector
4. PAL: TV output signal selector

8D-Link DCS-3710 User Manual
Hardware Overview

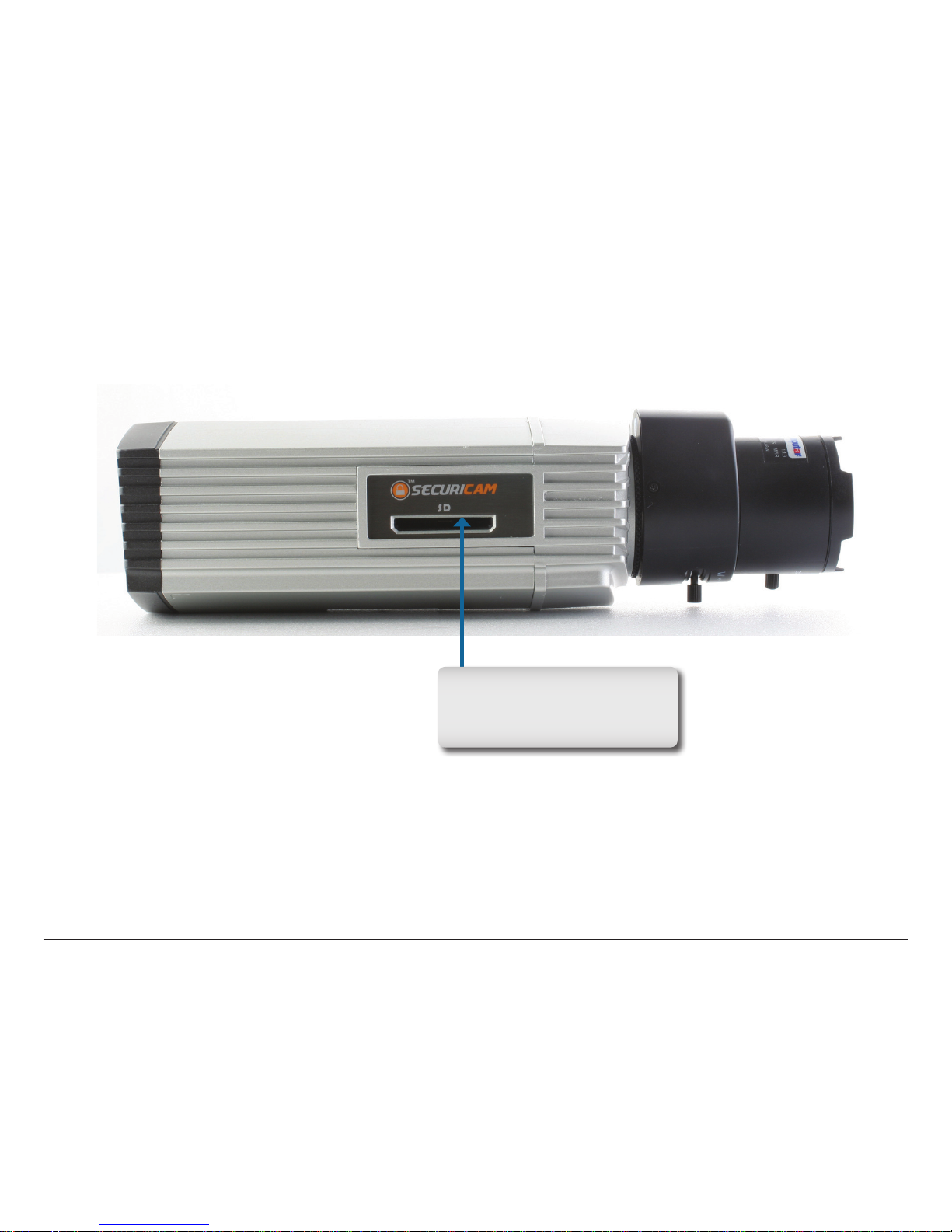

SD Card Slot
Local SD card for storing recorded
images and video

9D-Link DCS-3710 User Manual
Hardware Overview
Conguration with Wizard

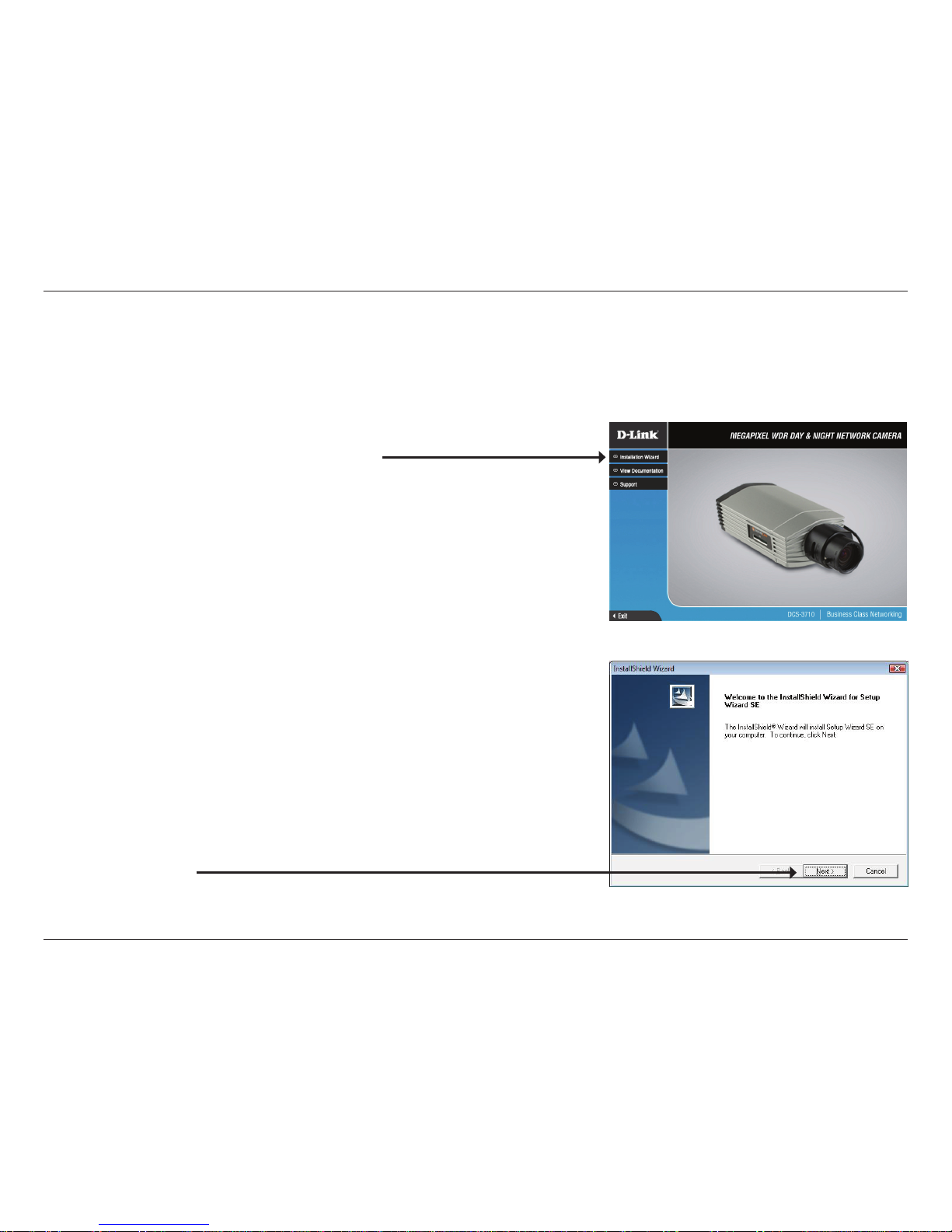

Insert the DCS-3710 CD into your computer's CD-ROM drive to begin the installation. If the Autorun function on your computer is
disabled, or if the D-Link Launcher fails to start automatically, click Start > Run. Type D:\DCS-3710.exe, where D: represents the drive
letter of your CD-ROM drive.
Click Installation Wizard to begin the installation.
After clicking Setup Wizard, the window on the right will
open.
Click Next to continue.

10D-Link DCS-3710 User Manual
Hardware Overview

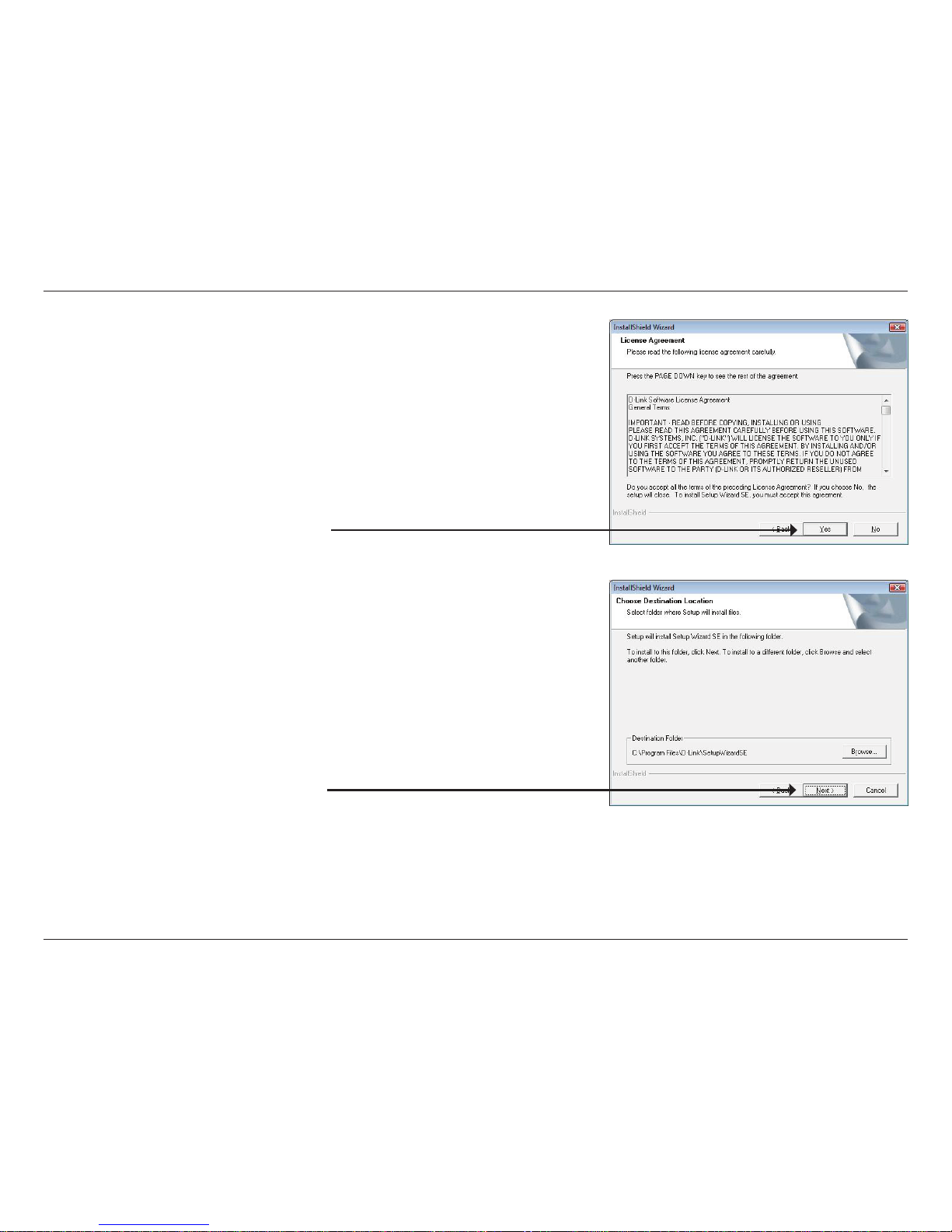

Click Yes to accept the License Agreement.
To start the installation process, click Next.
Note: The installation may take several minutes to nish.

11D-Link DCS-3710 User Manual
Hardware Overview

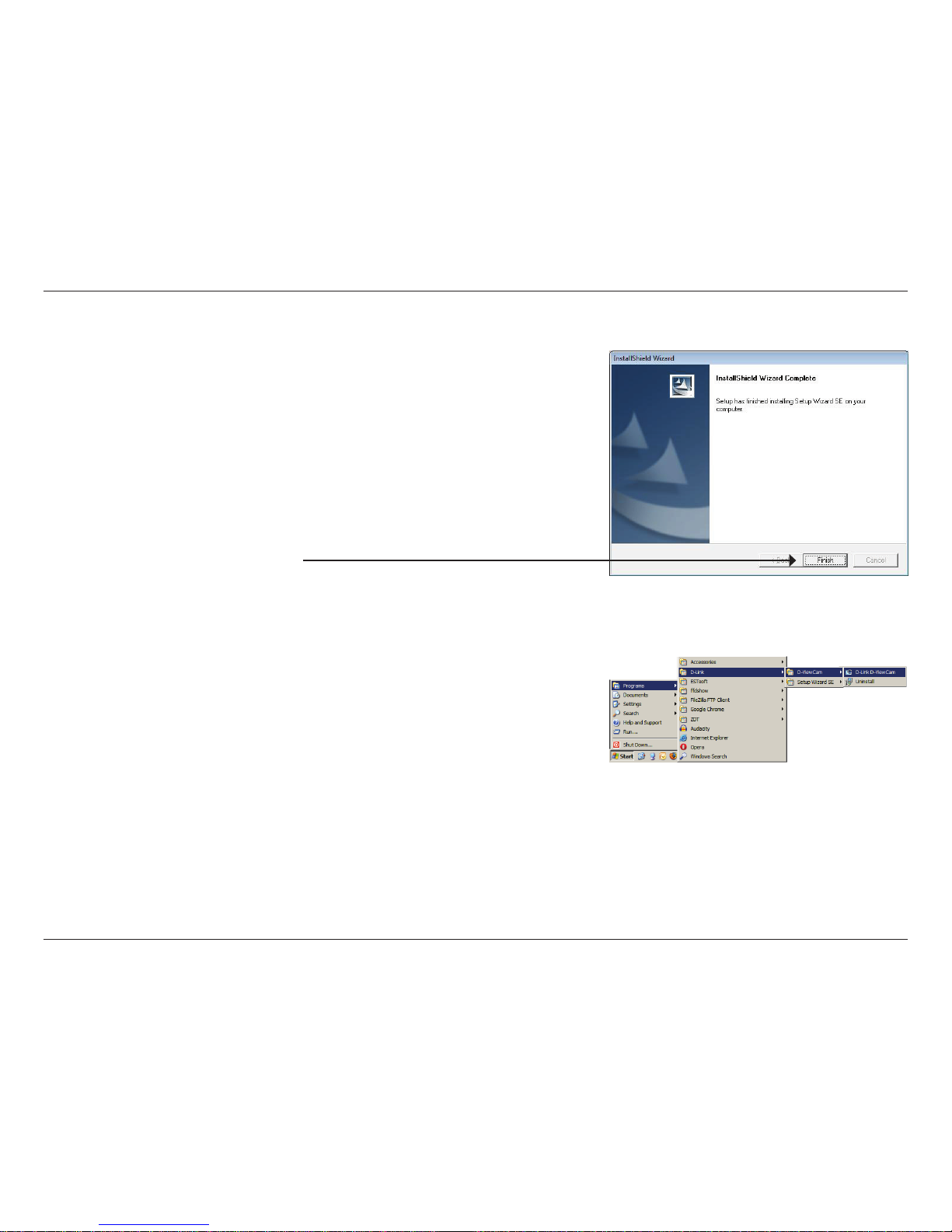

Click Finish to complete the installation.
Click on the D-Link Setup Wizard SE icon that was created in your Windows
Start menu.
Start > D-Link > Setup Wizard SE

12D-Link DCS-3710 User Manual
Hardware Overview

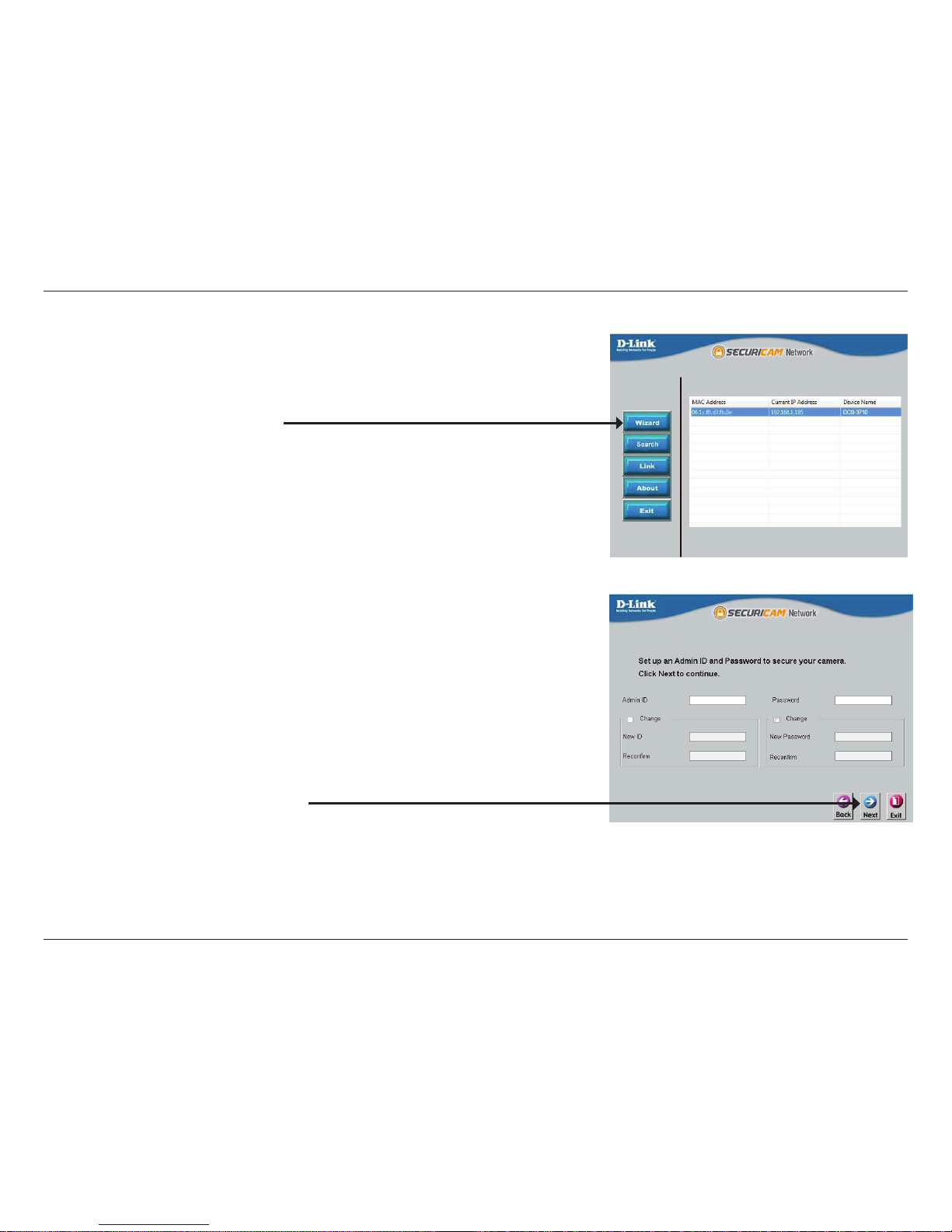

Enter the Admin ID and password. When logging in for the rst time, the default
Admin ID is admin with the password left blank.
Click Next, to proceed to the next page.
The Setup Wizard will appear and display the MAC address and IP address of
your camera(s). If you have a DHCP server on your network, a valid IP Address
will be displayed. If your network does not use a DHCP server, the network
camera's default static IP address 192.168.0.20 will be displayed.
Click the Wizard button to continue.

13D-Link DCS-3710 User Manual
Hardware Overview

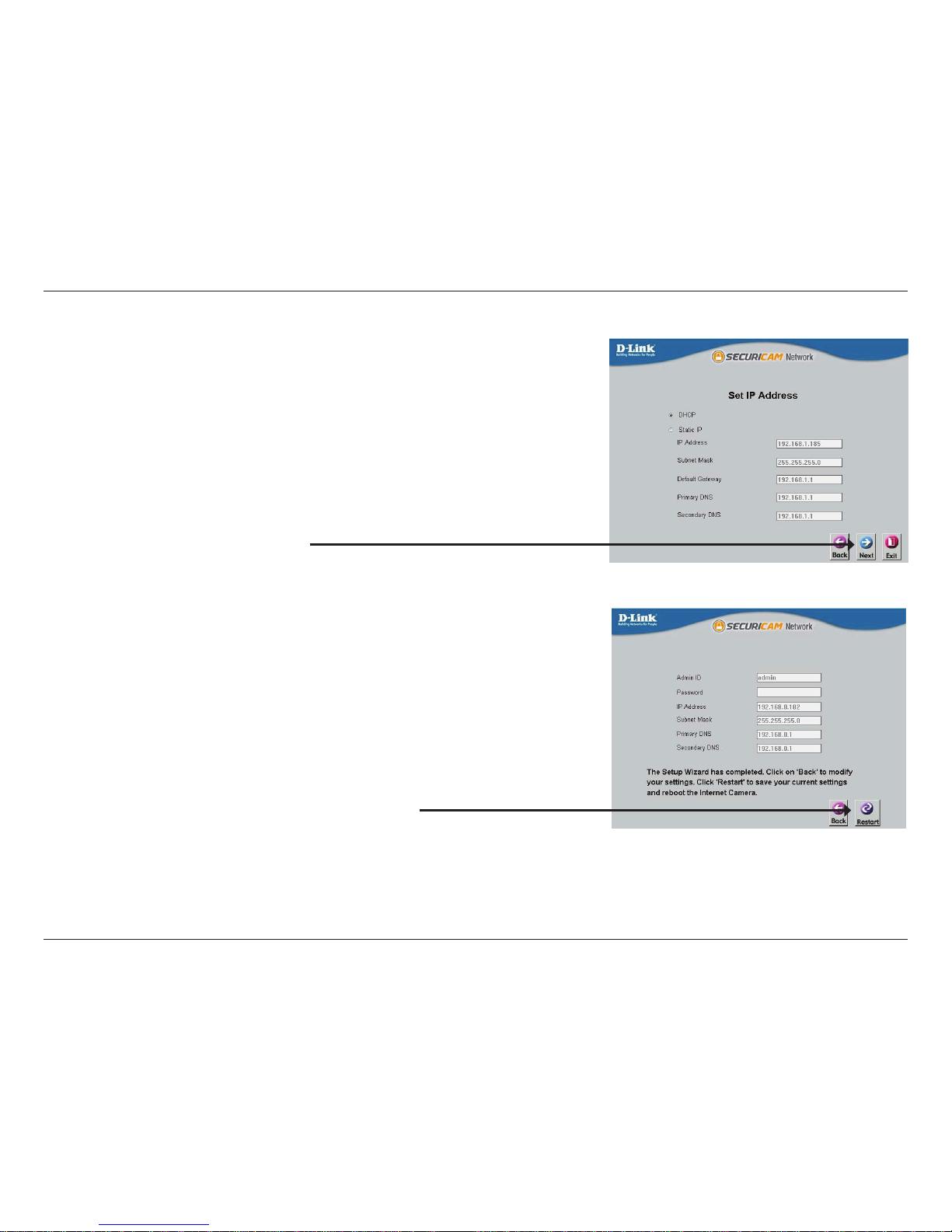

Take a moment to conrm your settings and click Restart.
Select DHCP if your camera obtains an IP address automatically when it boots up.
Select static IP if the camera will use the same IP address each time it is started.
Click Next, to proceed to the next page.

14D-Link DCS-3710 User Manual
Conguration
Web-based Conguration Utility
Conguration

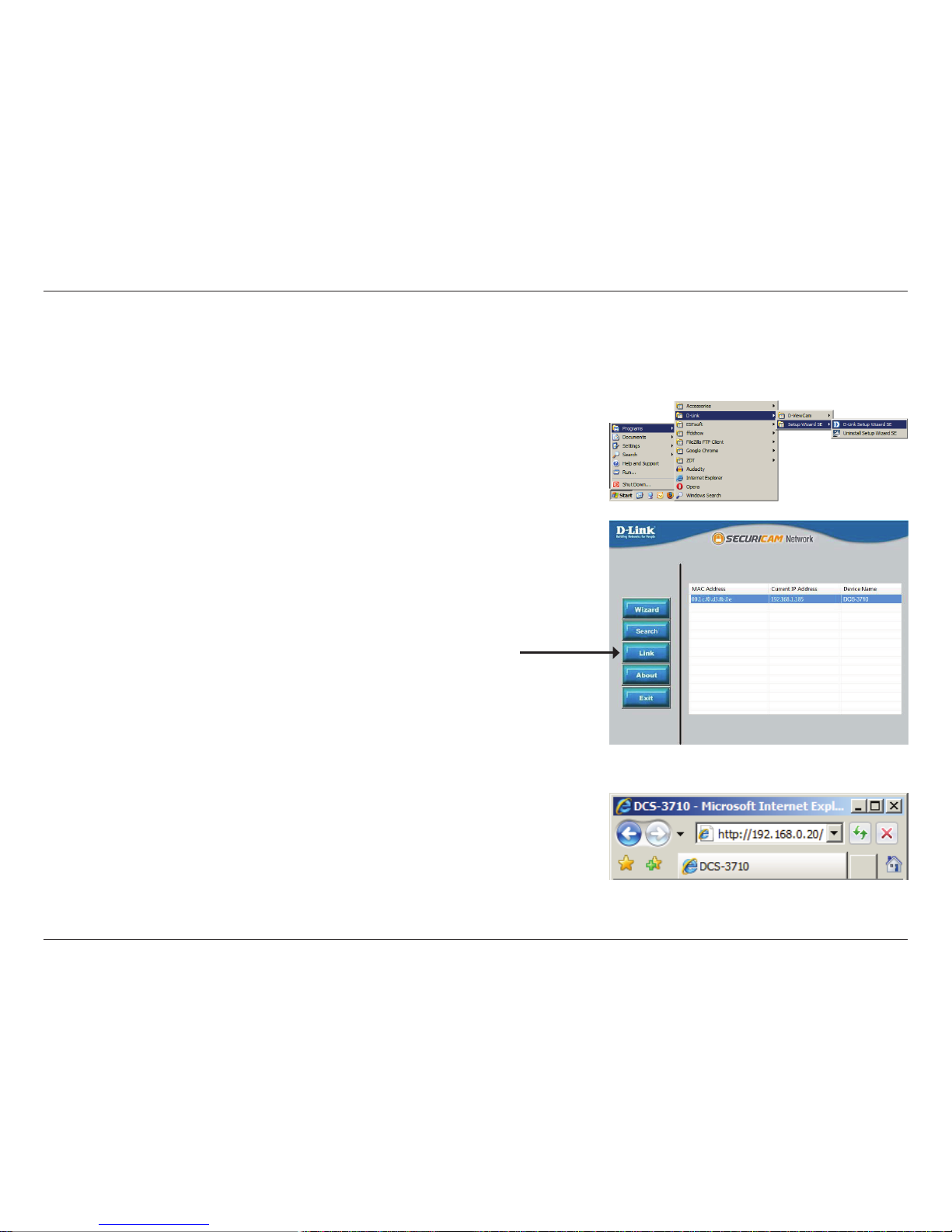

This section explains how to congure your new D-Link Network Camera using the Web-based Conguration Utility.
Click on the D-Link Setup Wizard SE icon that was created in your Windows
Start menu.
Start > D-Link > Setup Wizard SE
Select the camera and click the button labeled "Link" to access the web
conguration.
The Setup Wizard will automatically open your web browser to the IP address of
the camera.
Alternatively, you may manually open a browser and enter the IP address of the
camera: 192.168.0.20

15D-Link DCS-3710 User Manual
Conguration
This section shows your camera’s live video. You can select your video prole and
view or operate the camera. For additional information about web conguration,
please refer to the user manual included on the CD-ROM or the D-Link website.

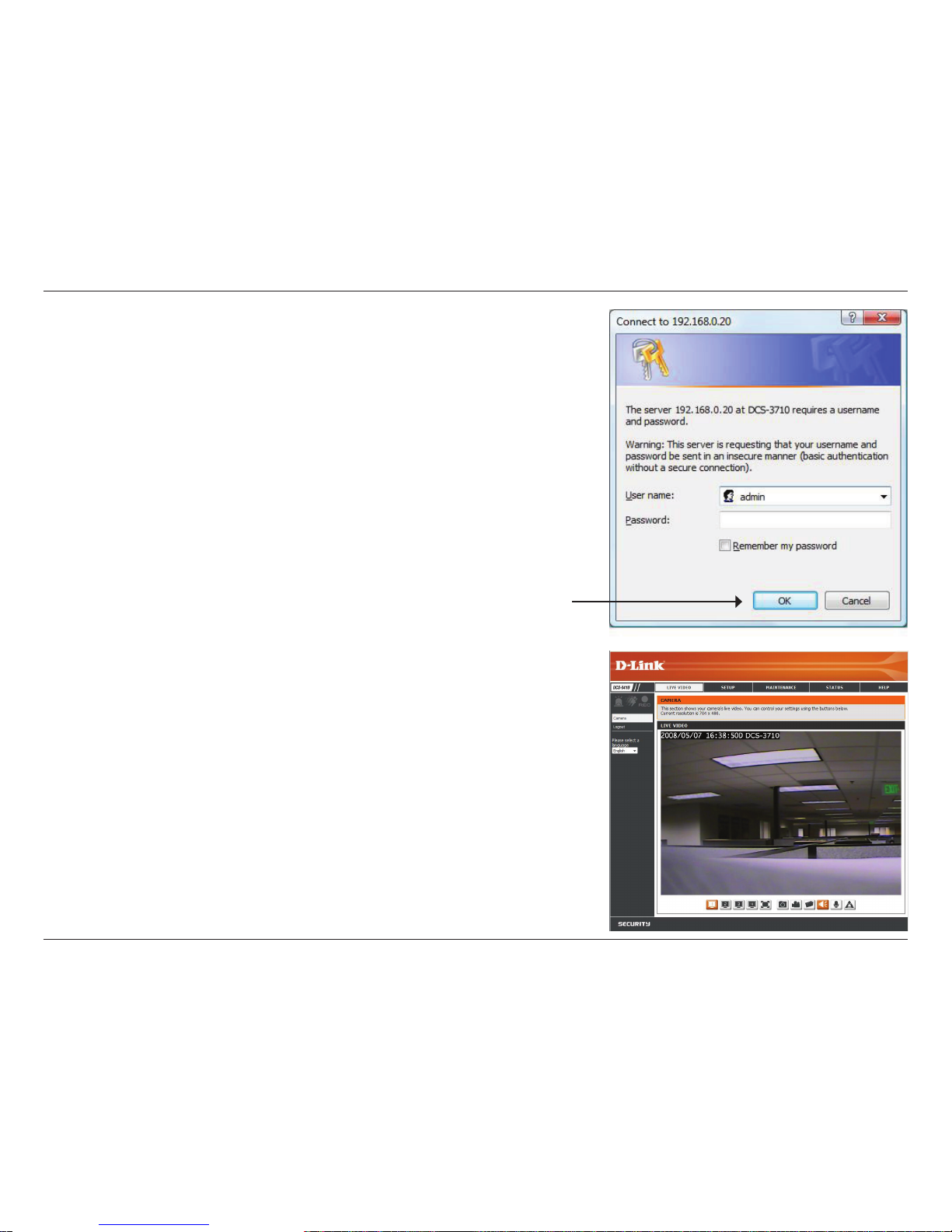

Enter admin as the default username and leave the password blank. Click OK to
continue.

16D-Link DCS-3710 User Manual
Conguration
Live Video

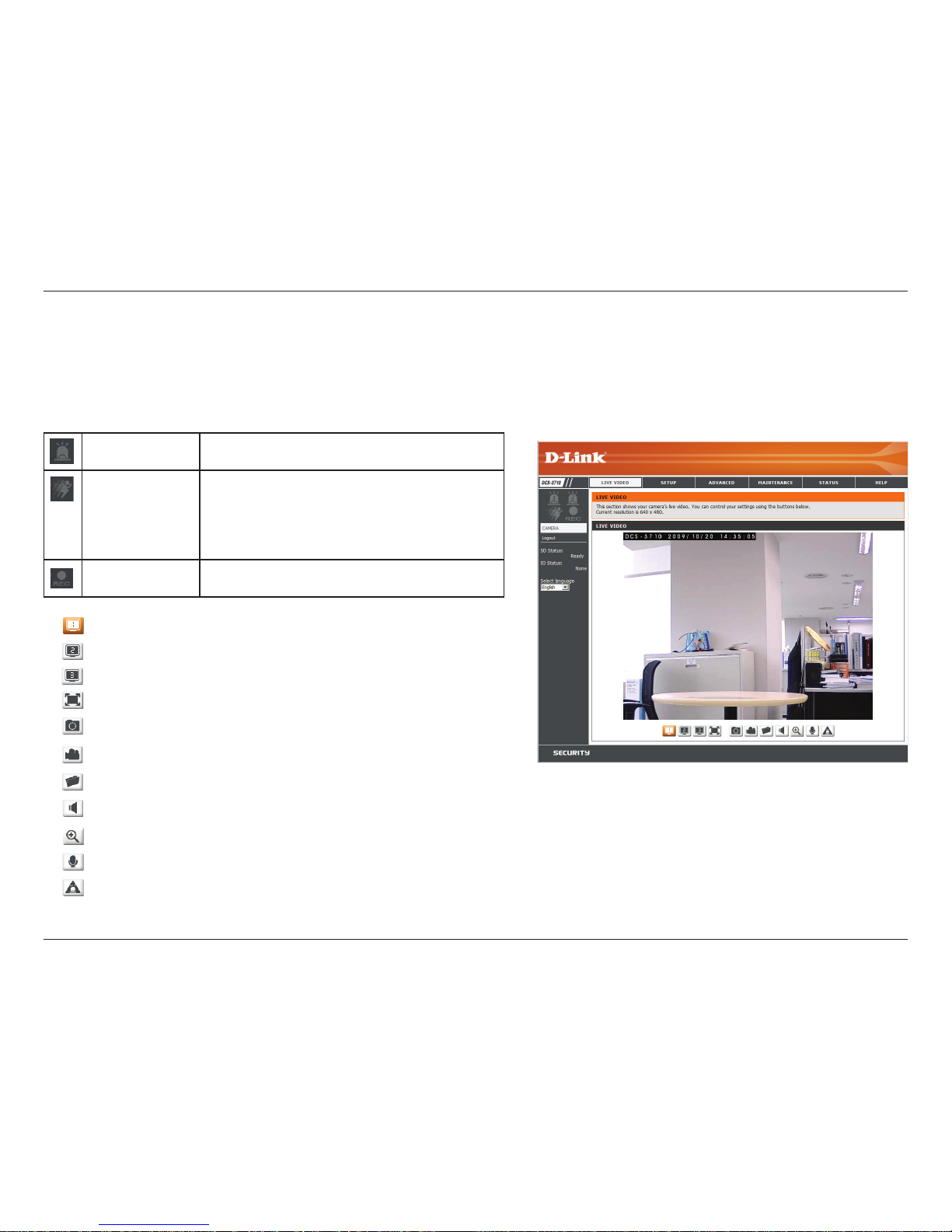

This section shows your camera’s live video. You may select any of the available icons listed below to operate the camera. You may
also select your language using the drop-down menu on the left side of the screen.
You can zoom in and out on the live video image using your mouse. Right-click to zoom out or left-click to zoom in on the image.
Video Prole 1
Video Prole 2
Video Prole 3
Full screen mode
Taking a Snapshot
Recording a Video Clip
Set a Storage Folder
Listen/Stop Listening
Zoom
Talk/Stop Talking
Start/Stop Digital Output
Digital Input
Indicator
This indicator will change color when a digital
input signal is detected.
Motion Trigger
Indicator
This indicator will change color when a trigger
event occurs.
Note: The video motion feature for your
camera must be enabled.
Recording
Indicator
When a recording is in progress, this indicator
will change color.

17D-Link DCS-3710 User Manual
Conguration
Setup
Wizard

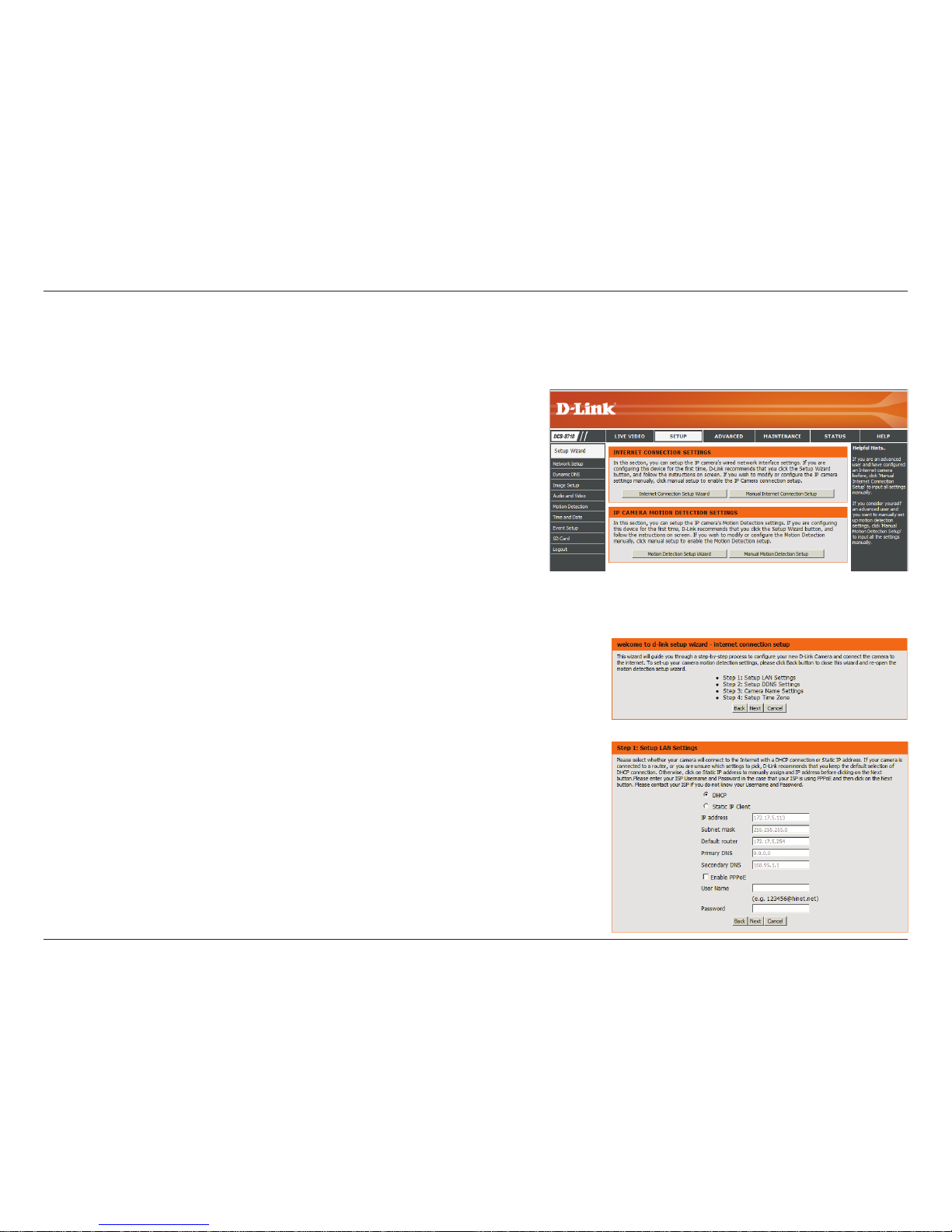

To congure your Network Camera, click Internet Connection
Setup Wizard. Alternatively, you may click Manual Internet
Connection Setup to manually congure your Network Camera and
skip to page 22.
To quickly congure your Network Camera’s motion detection
settings, click Motion Detection Setup Wizard. If you want to
enter your settings without running the wizard, click Manual Motion
Detection Setup and skip to page 27.
Internet Connection Setup Wizard
This wizard will guide you through a step-by-step process to
congure your new D-Link Camera and connect the camera to the
internet. Click Next to continue.
Note: Select DHCP if you are unsure of which settings to choose.
Click Next to continue.

18D-Link DCS-3710 User Manual
Conguration

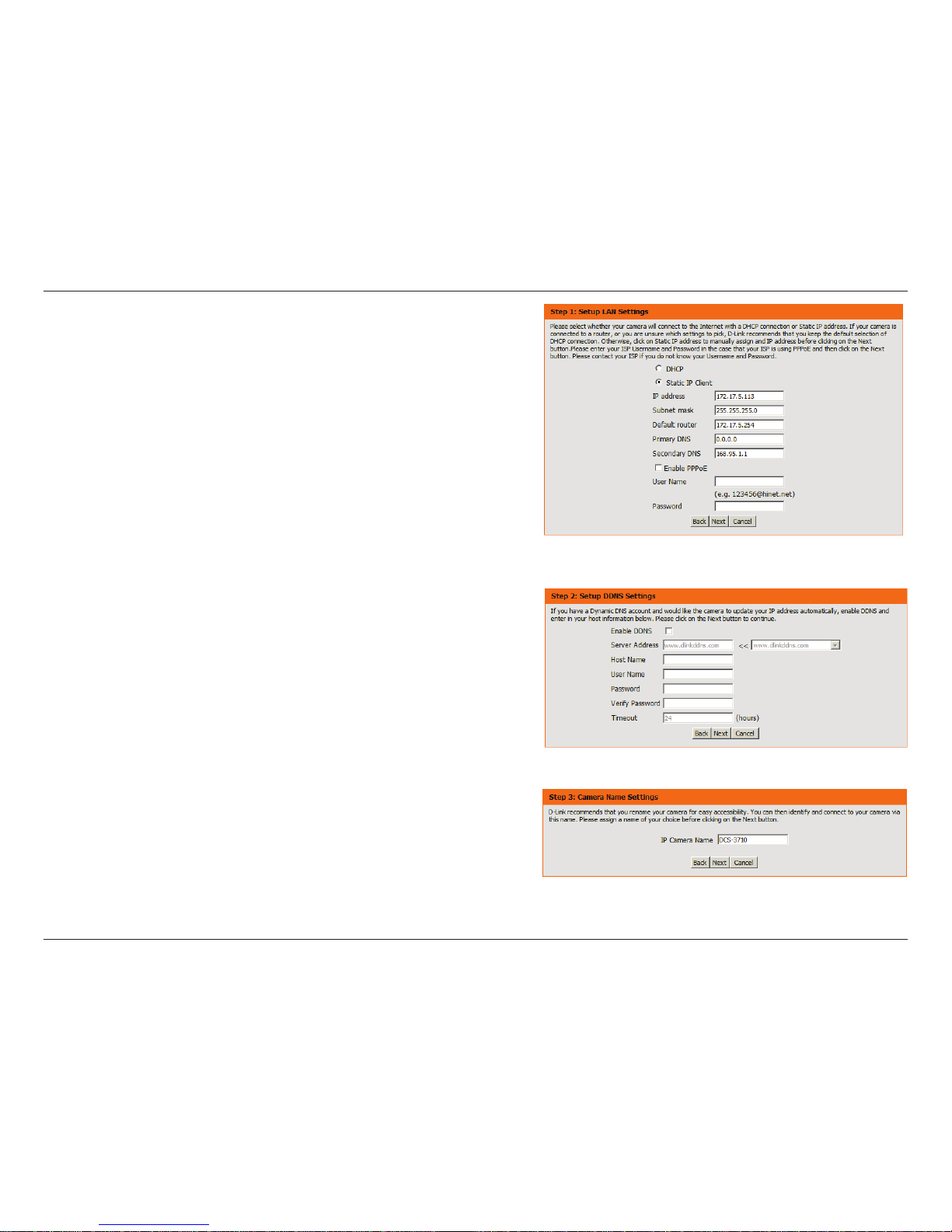

Select Static IP if your Internet Service Provider has provided you with
connection settings, or if you wish to set a static address within your
home network. Enter the correct conguration information and click Next
to continue.
If you are using PPPoE, select Enable PPPoE and enter your user name
and password, otherwise click Next to continue.
If you have a Dynamic DNS account and would like the camera to update
your IP address automatically, Select Enable DDNS and enter your host
information. Click Next to continue.
Enter a name for your camera and click Next to continue.

19D-Link DCS-3710 User Manual
Conguration

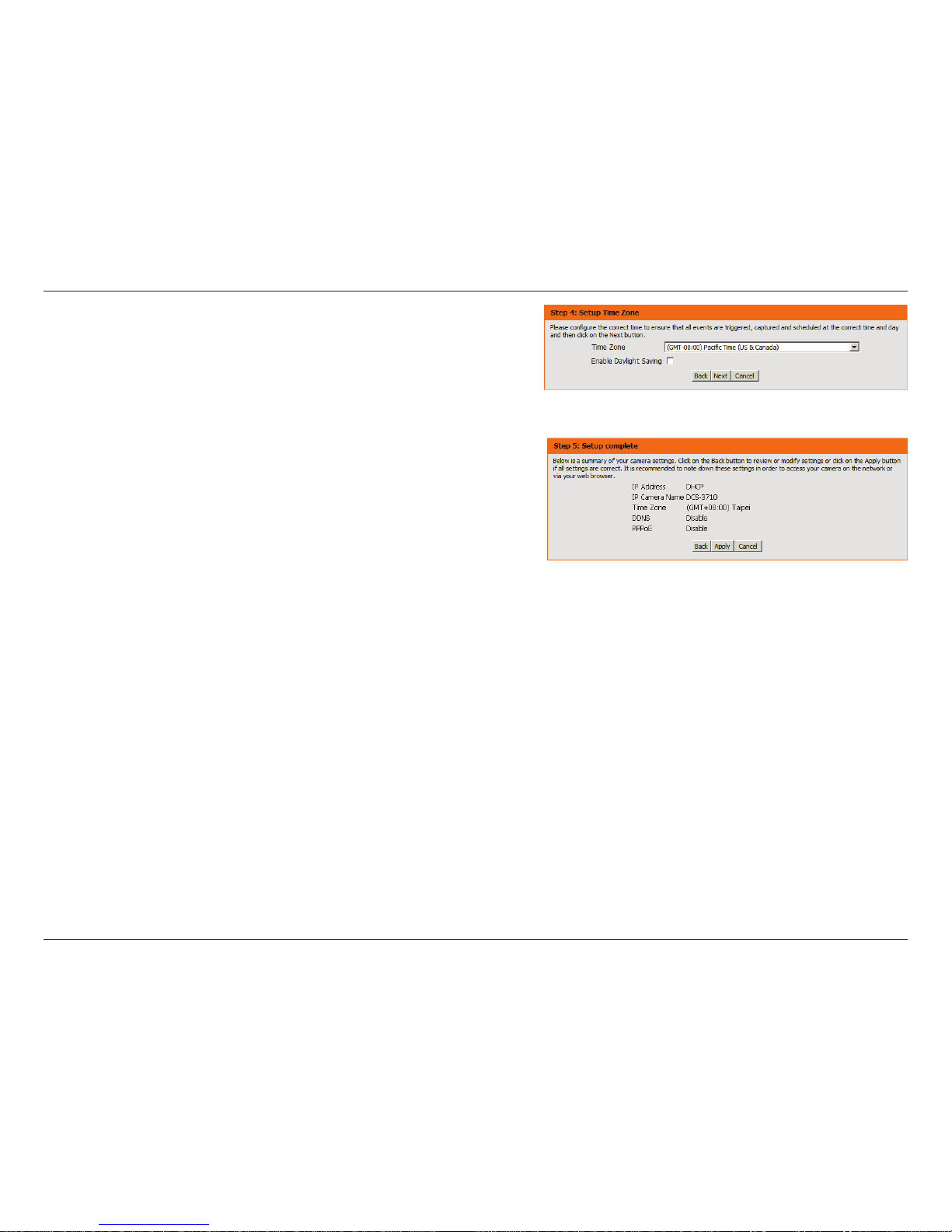

Congure the correct time to ensure that all events will be
triggered as scheduled. Click Next to continue.
If you have selected DHCP, you will see a summary of your
settings, including the camera's IP address. Please write down
all of this information as you will need it in order to access your
camera.
Click Apply to save your settings.

20D-Link DCS-3710 User Manual
Conguration

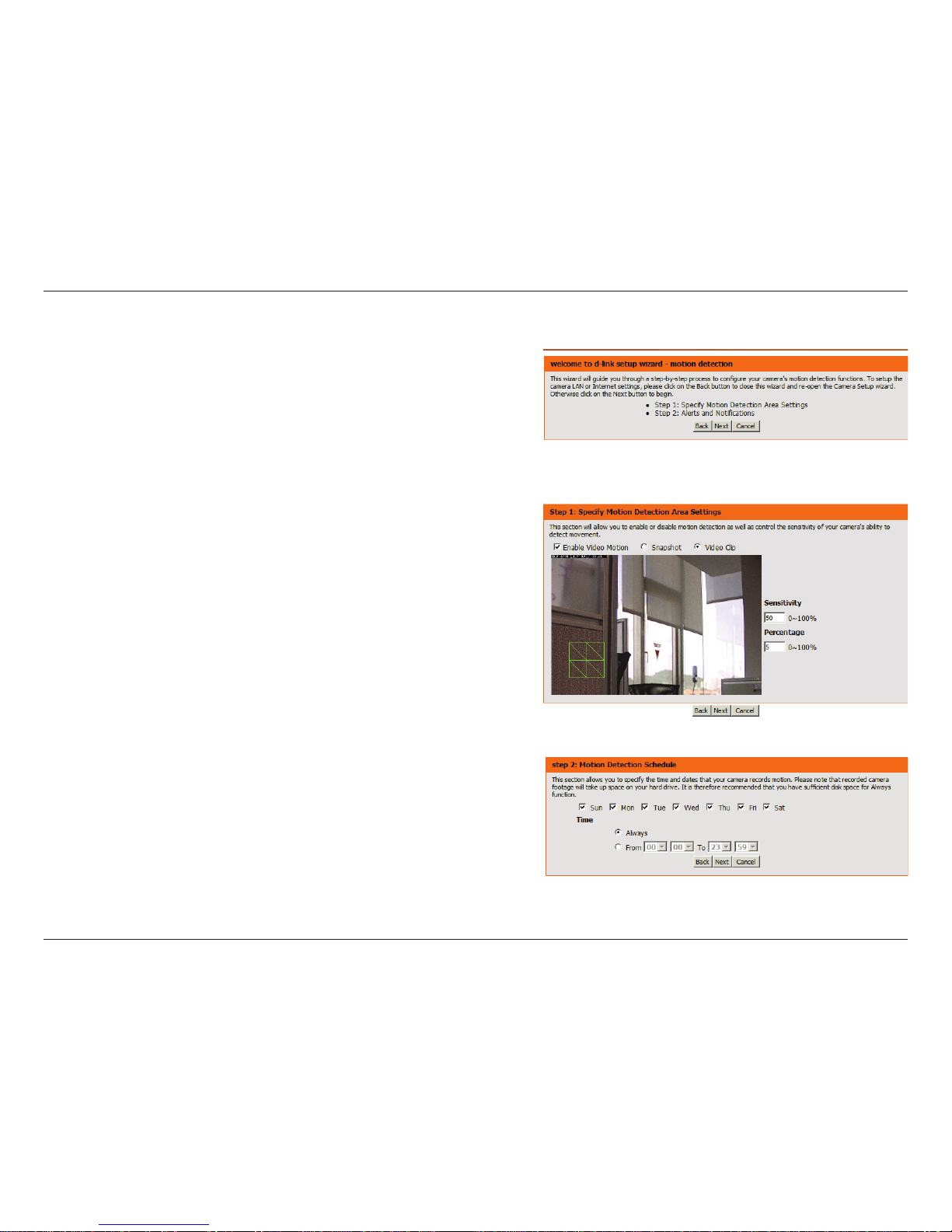

This wizard will guide you through a step-by-step process to congure your
camera's motion detection functions.
Click Next to continue.
Step 1
This step will allow you to enable or disable motion detection, specify the
detection sensitivity, and adjust the camera’s ability to detect movement.
You may specify whether the camera should capture a snapshot or a video
clip when motion is detected.
Please see the Motion Detection section on page 27 for information about
how to congure motion detection.
Step 2
This step allows you to enable motion detection based on a customized
schedule. Specify the day and hours. You may also choose to always
record motion.
Motion Detection Setup Wizard
