D-Link DCS 6513 User manual

User Manual
Version 1.0 | February 25, 2013
DCS-6513
Full HD WDR Day & Night Outdoor Dome Network Camera

2D-Link DCS-6513 User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of
such revisions or changes. Information in this document may become obsolete as our services and websites develop and change.
Manual Revisions
Revision Date Description
1.0 February 25, 2013 DCS-6513 Revision A1 with rmware version 1.00
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries. All
other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.
Copyright © 2013 D-Link Corporation.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Corporation.
Preface

3D-Link DCS-6513 User Manual
Table of Contents
Product Overview......................................................................... 4
Package Contents................................................................. 4
Introduction............................................................................ 5
System Requirements ......................................................... 5
Features.................................................................................... 6
Hardware Overview ............................................................. 7
Front ...................................................................................... 7
Cable Harness..................................................................... 8
Internal ................................................................................. 9
Mounting.......................................................................................10
Concealed Cable Installation..........................................10
Style 1 - Concealed Cable Installation.........................10
Style 2 - Exposed Cable Installation .............................12
Exposed Cable Installation..........................................12
Pendant Mount................................................................15
Wall Mount........................................................................18
Weather Shield Installation.............................................20
Adjusting the lens 3-axis Gimbal ..................................24
Software Installation .........................................................25
D-ViewCam Setup Wizard................................................28
Conguration...............................................................................30
Using the Conguration Interface................................30
Live Video ..............................................................................31
Setup.......................................................................................33
Setup Wizard ....................................................................33
Network Setup.................................................................39
Dynamic DNS ...................................................................42
Image Setup .....................................................................43
Audio and Video..............................................................45
Lens Control......................................................................47
Preset...................................................................................48
Motion Detection ...........................................................50
Time and Date..................................................................51
Event Setup.......................................................................52
SD Card...............................................................................60
Advanced...............................................................................61
Digital Input/Output......................................................61
ICR and IR...........................................................................62
HTTPS..................................................................................63
Access List..........................................................................64
Maintenance.........................................................................65
Device Management .....................................................65
System ................................................................................66
Firmware Upgrade..........................................................67
Status ......................................................................................68
Device Info ........................................................................68
Logs .....................................................................................69
Help......................................................................................70
DI/DO Specications .................................................................71
Technical Specications...........................................................72
Safety Statements ......................................................................75
Contacting Technical Support ...............................................77
Warranty ........................................................................................78
Registration ..................................................................................85

4D-Link DCS-6513 User Manual
Section 1: Product Overview
Product Overview
Package Contents
If any of the above items are missing, please contact your reseller.
Note: Using a power supply with a dierent voltage than the one included with your product will cause damage and void the warranty for this product.
DCS-6513 Full HD WDR Day &
Night Outdoor Dome Network Camera
Power adapter
CD-ROM with User Manual and software
Weather Shield
37mm Screws for Weather Shield
Quick Install Guide
Extension Adapter
Security Wrench
Cable Cover
Rubber Plug

5D-Link DCS-6513 User Manual
Section 1: Product Overview
Introduction
The DCS-6513 Full HDWDR Day & Night Outdoor Dome Network Camera is a professional, vandal-resistant surveillance and security
solution for small, medium, and large enterprises.The DCS-6513 uses a three megapixel progressive scan CMOS sensor; which results
in low noise and high sensitivity with Wide Dynamic Range (WRD) capabilities ideal for surveillance applications.
The DCS-6513 is equipped with a P-iris lens that controls the iris with extreme precision. The built-in stepping motor maintains the
iris opening at an optimal level at all times, resulting in superior image clarity, depth of eld, and image quality. Together with WDR
enhancement, users can identify image details in extreme bright, as well as dark environments.
The DCS-6513 has an IP67 certied weatherproof housing designed for both indoor and outdoor applications.The built-in removable
IR-cut lter and IR LEDs gives the DCS-6513 the capability to view up to 60 feet at night. The DCS-6513 also incorporates Power
over Ethernet (PoE), allowing it to be easily installed in a variety of locations without the need for supplemental power cabling. The
combination of IP67 housing, IR-Cut Filter, IR LEDs, and PoE make the DCS-6513 an ideal solution for a high performance, reliable
and cost-eective 24 hour HD surveillance solution with an easy, clutter-free installation.
• Computer with Windows 8, 7, Vista®, or XP (for CD-ROM Setup Wizard); Mac OS® X or Linux
• PC with 1.3GHz or above; at least 128MB RAM
• Internet Explorer 7 or above, Firefox 3.5 or above, Safari 4, and Chrome 8.0 or above
• Existing 10/100 Ethernet-based network
• An SD memory card (optional) is required for recording to onboard storage. SDHC Class 6 or above is recommended.
• Broadband Internet connection
System Requirements

6D-Link DCS-6513 User Manual
Section 1: Product Overview
P-iris
The P-iris lens in the DCS-6513 solves the long-standing problem of capturing sharp images in various light conditions. The DCS-6513 optimizes the
iris opening under all lighting conditions, resulting in images with better clarity, resolution and depth of eld as well as improved image sharpness and
increased image usability for network video surveillance.
Remote Zoom & Focus
The remote focus function eliminates the need for manual focusing at the camera position and allowing the user to make key adjustments from any
computer. The remote zoom functionality allows the user to make nal adjustments to the zoom from the computer. It provides a convenient way to
ensure that the viewing angle is optimized for the scene and required need for resolution.
Wide Dynamic Range
Wide Dynamic Range technology neutralizes imperfect lighting, providing clear images with the right amount of contrast even when a subject is backlit.
Automatic Thermostat Temperature Regulation
The DCS-6513 monitors and automatically regulates its temperature to ensure optimal performance even in extreme conditions. It balances fan use against
a built in heater based on a range of preset thermostatic settings. This gives the DCS-6513 the ability to perform in the most demanding of environments.
Remote Monitoring Utility
The D-ViewCam application adds enhanced features and functionality for the Network Camera and allows administrators to congure and access the
Network Camera from a remote site via Intranet or Internet. Other features include image monitoring, recording images to a hard drive, viewing up to 32
cameras on one screen, and taking snapshots.
IR LED for Day and Night Functionality
The built-in infrared LEDs enables night time viewing of up to 20 meters (65.6 feet).
Robust Weatherproof and Vandal-resistant Housing
The DCS-6513 housing is compliant with both the IP67 weatherproof and IK10 vandal-resistant certications, allowing you to rest assured that it will
continue to provide round-the-clock surveillance in the toughest of conditions and locations.
PoE (Power over Ethernet) for Flexible Installation
The DCS-6513 can draw all the power it needs from a PoE switch or PoE injector, negating the need for a separate power installation.
Features

7D-Link DCS-6513 User Manual
Section 1: Product Overview

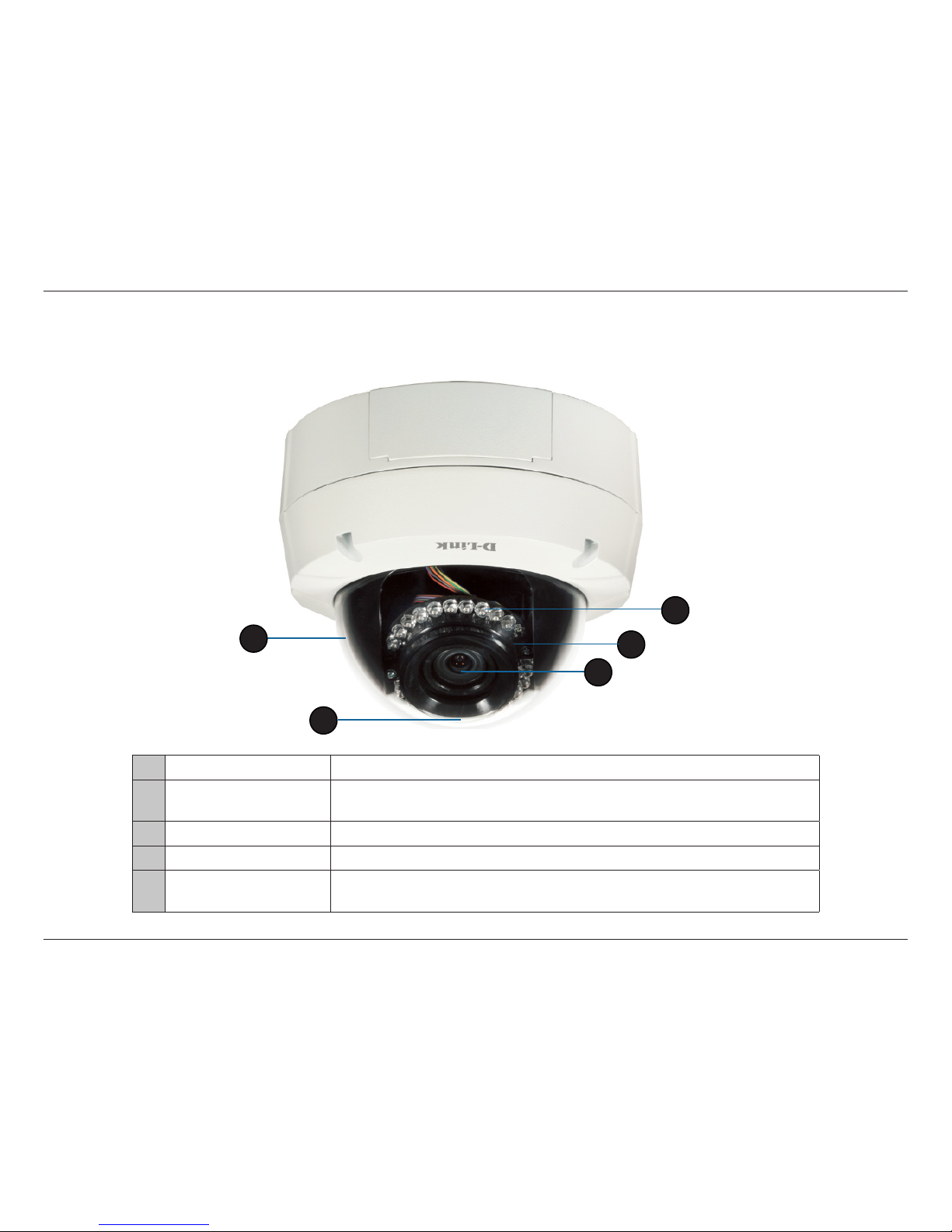

1 Camera Lens Varifocal lens to record video of the surrounding area
2 Light Sensor The light sensor measures the lighting conditions and switches between color
and infrared accordingly
3 IR LEDs Infrared LEDs illuminate the camera's eld of view at night
4 Power/Status LED Indicates the camera's current status
5 Protective Casing The camera is housed in an IP67 certied weatherproof casing, which protects
it against rain and dust. This case is also IK10 certied vandal-resistant.
2
3
5
4
1
Front
Hardware Overview

8D-Link DCS-6513 User Manual
Section 1: Product Overview

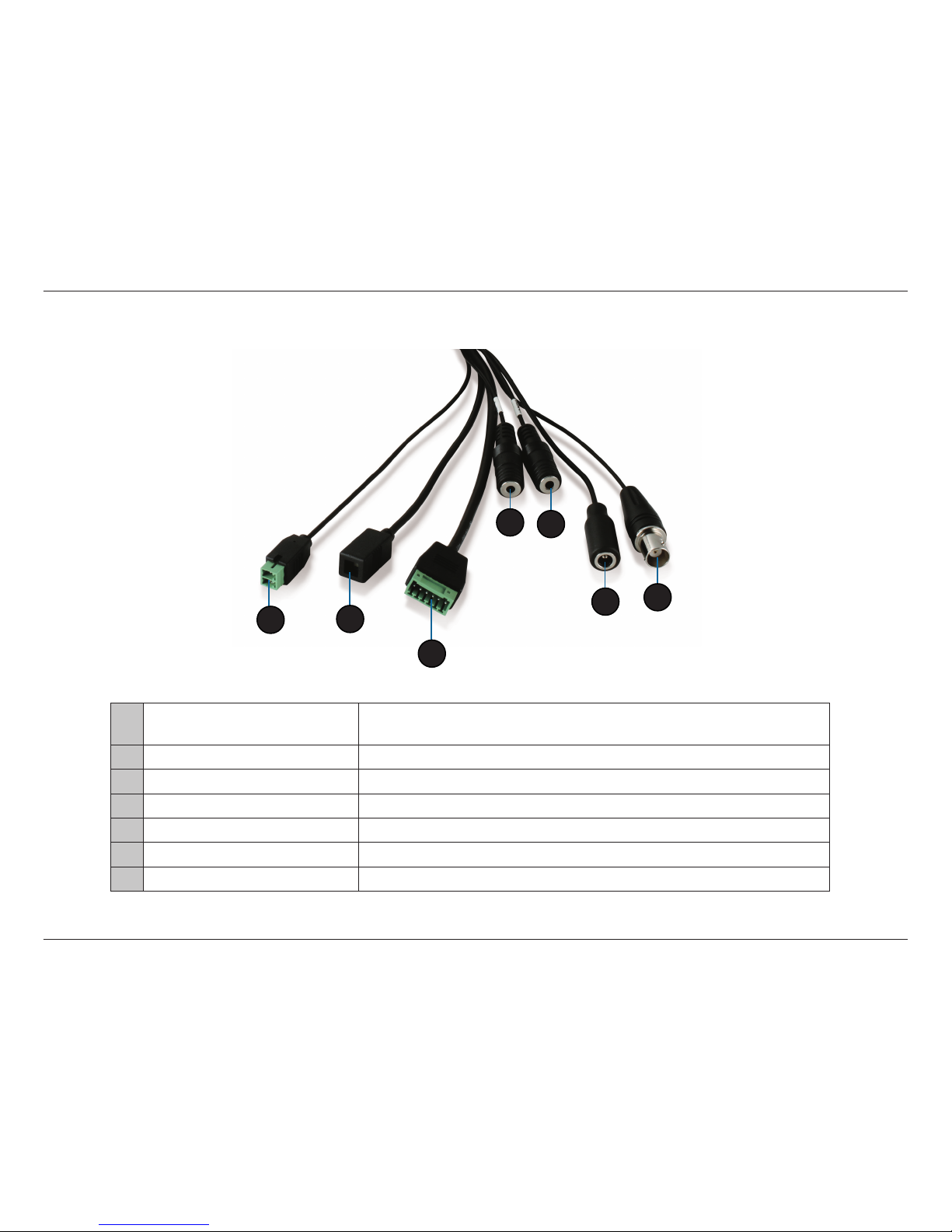

Cable Harness
1 BNC Connector The BNC connector is recommended for use with handheld monitors to
check the Field of View during installation.
2 Power Connector Power connector for the provided 12V DC power adapter.
3 Audio In (A.In) Connects to a microphone.
4 Audio Out (A.Out) Connects to a speaker.
5 DI/DO Connector I/O connectors for external devices. 12V DC output.
6 Reset Button Press and hold the recessed button for ten seconds to reset the camera.
7 24V Power Connector Connects to 24V AC power supply.
21
6
7
43
5

9D-Link DCS-6513 User Manual
Section 1: Product Overview
Internal

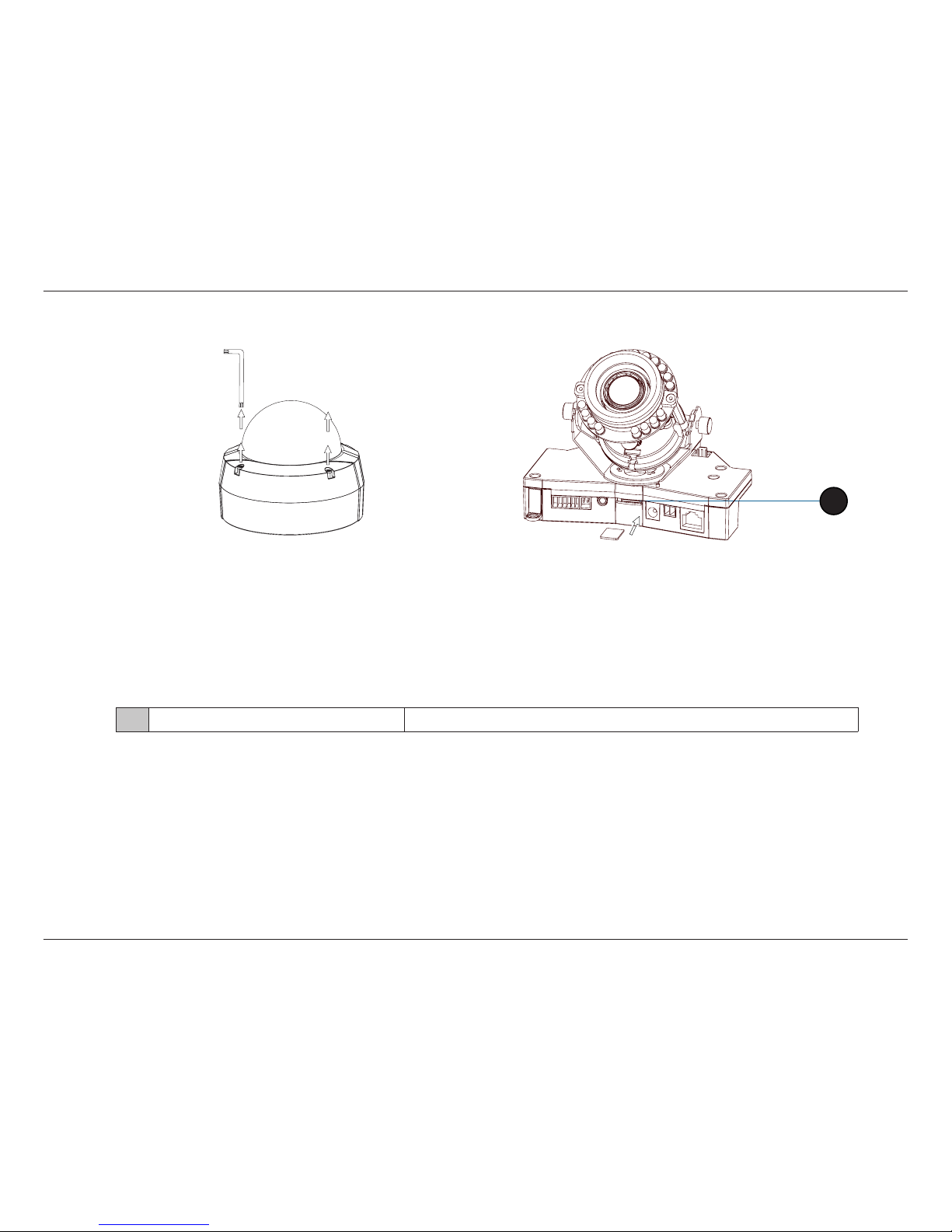

1 SD Card Slot Insert an SD card for local storage of recorded images and video
1

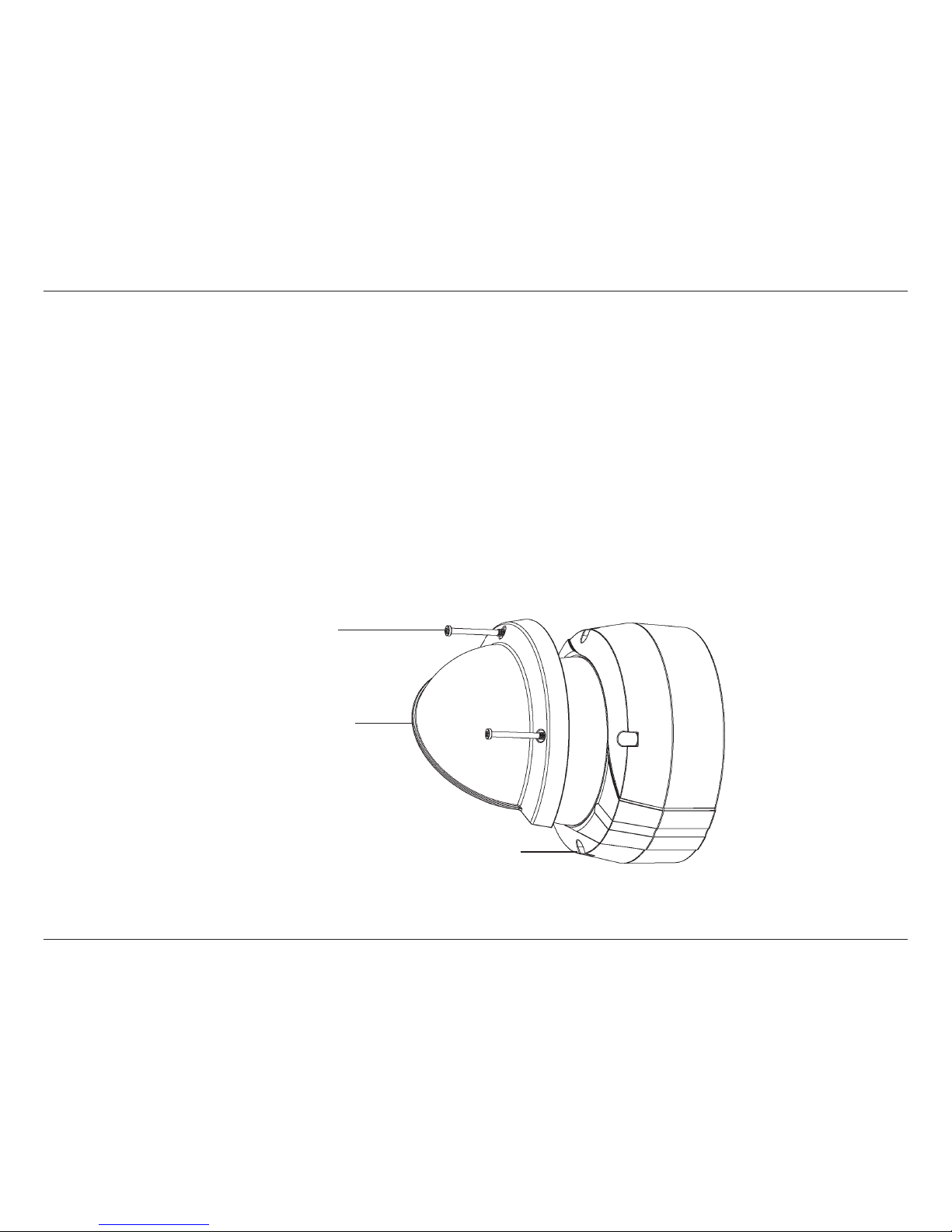

Disassemble the Camera
Open the camera enclosure by
loosening the four screws. Then
lift the dome o the base of the
camera.
Install the SD Card
Push the SD card into the camera
with the gold contacts oriented
towards the base of the camera. To
eject the SD card, push the SD card
into the slot.

10D-Link DCS-6513 User Manual
Section 2: Assembly and Installation
Mounting
Concealed Cable Installation
Style 1 - Concealed Cable Installation
1. Disassemble the camera enclosure (see page 9).
2. Thread the cables through the waterproof plugs at the bottom of the base of the camera.

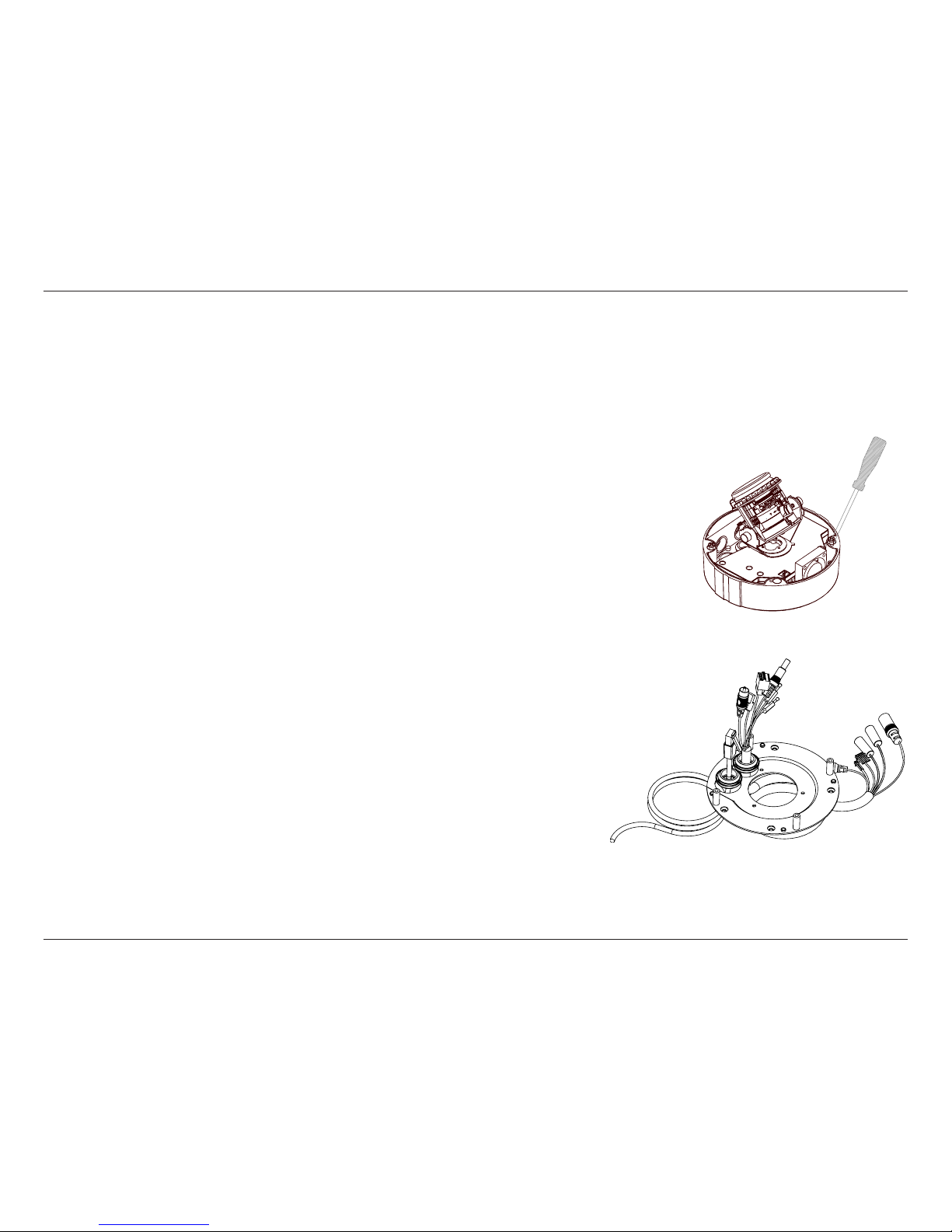

Attach the cables to the corresponding cable connectors. (Figure 2.1)
3. Locate a suitable position on the ceiling for the mounting plate to be installed.
4. Use the mounting template to mark the holes for installation.
5. Cut an access hole in the ceiling for the cables.
6. Drill four separate 6mm holes corresponding to the holes in the mounting template and
insert the plastic anchors into these holes.
7. Attach the surface bracket to the ceiling using the screws provided.

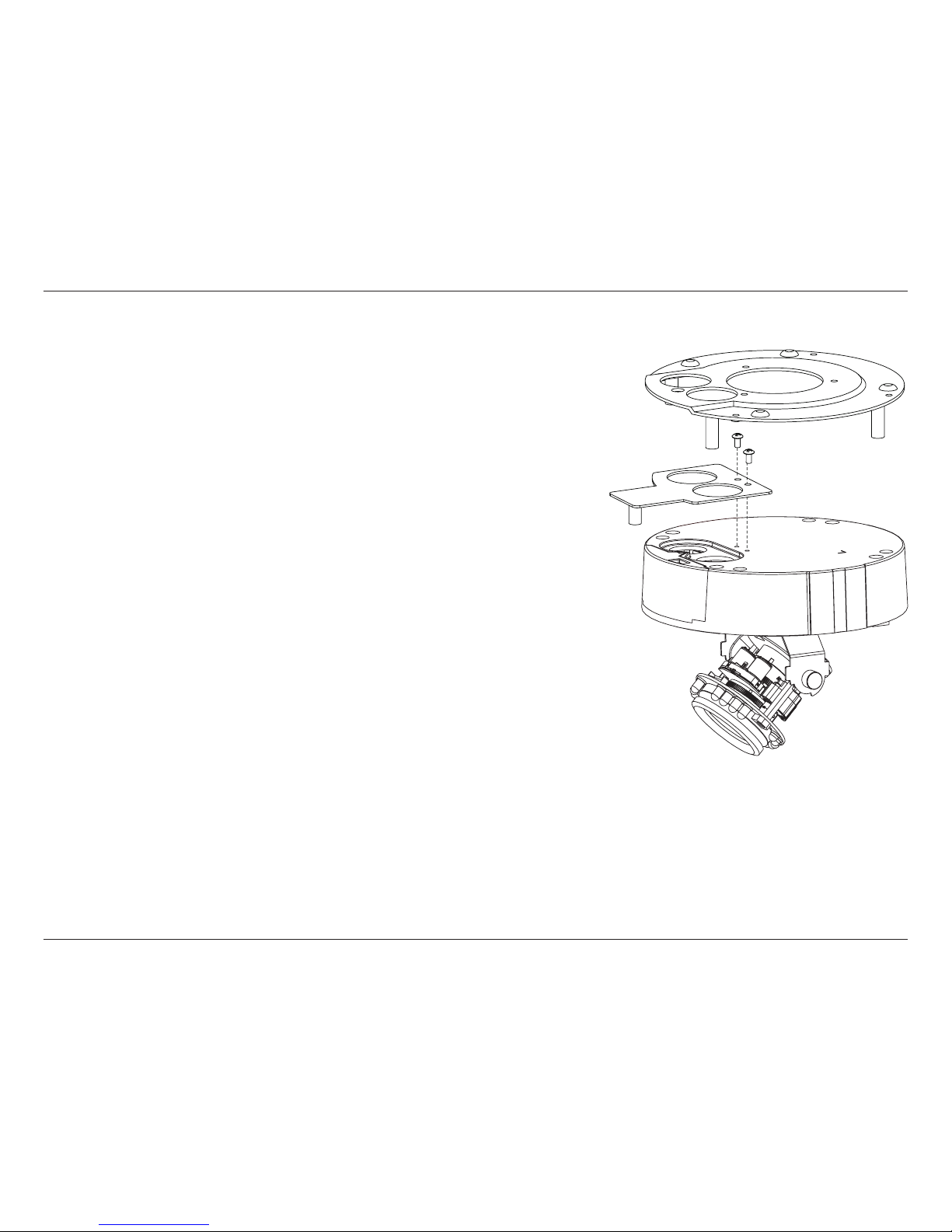

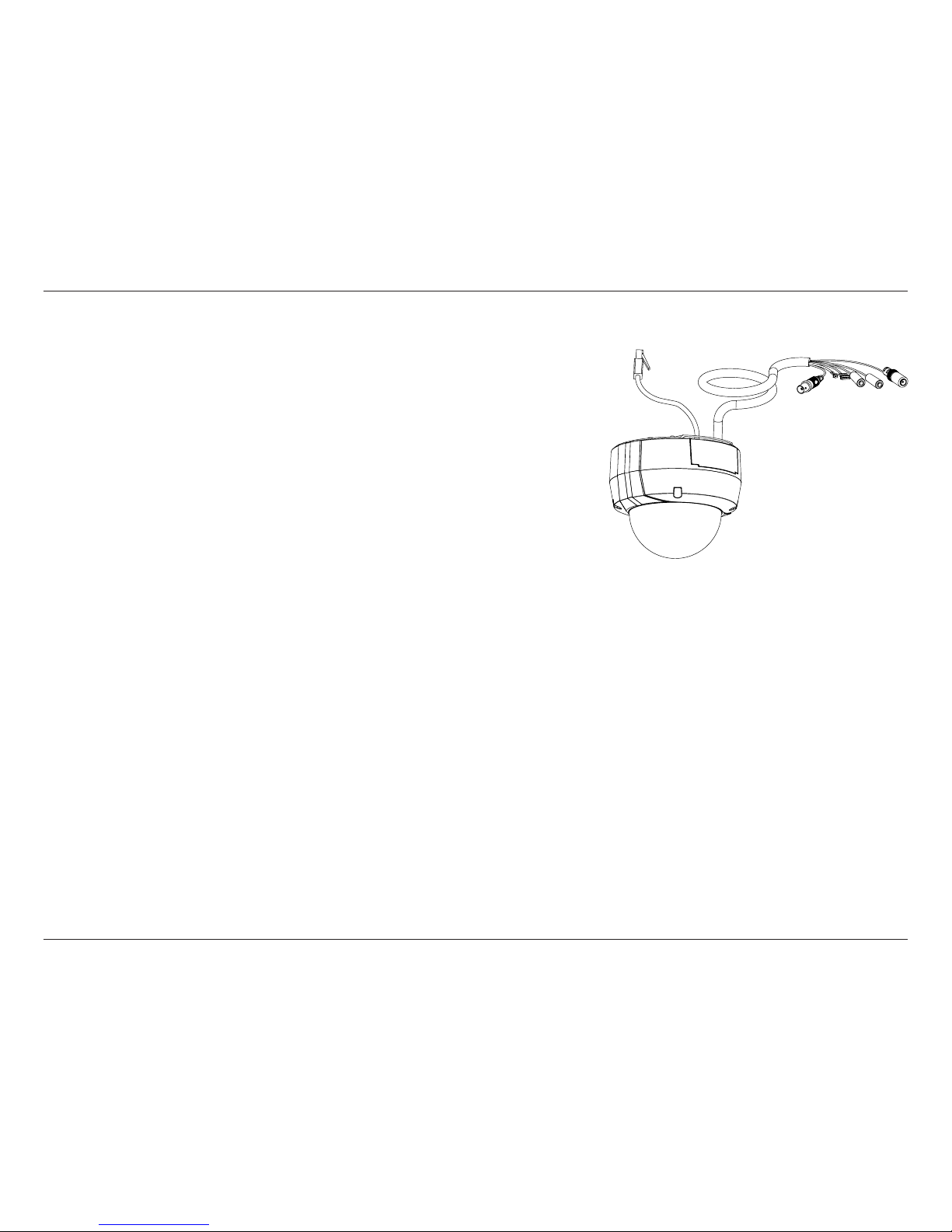

Figure 2.1

11D-Link DCS-6513 User Manual
Section 2: Assembly and Installation
1. Connect the Ethernet cable and the power cable, threading them through the hole in
the ceiling. (Figure 2.2)
2. Push the dome body up over the base of the camera.
3. Attach the dome to the base of the camera using the three long screws and the
provided security screw.
Figure 2.2

12D-Link DCS-6513 User Manual
Section 2: Assembly and Installation
Exposed Cable Installation
Style 2 - Exposed Cable Installation
1. Disassemble the camera enclosure (see page 9).

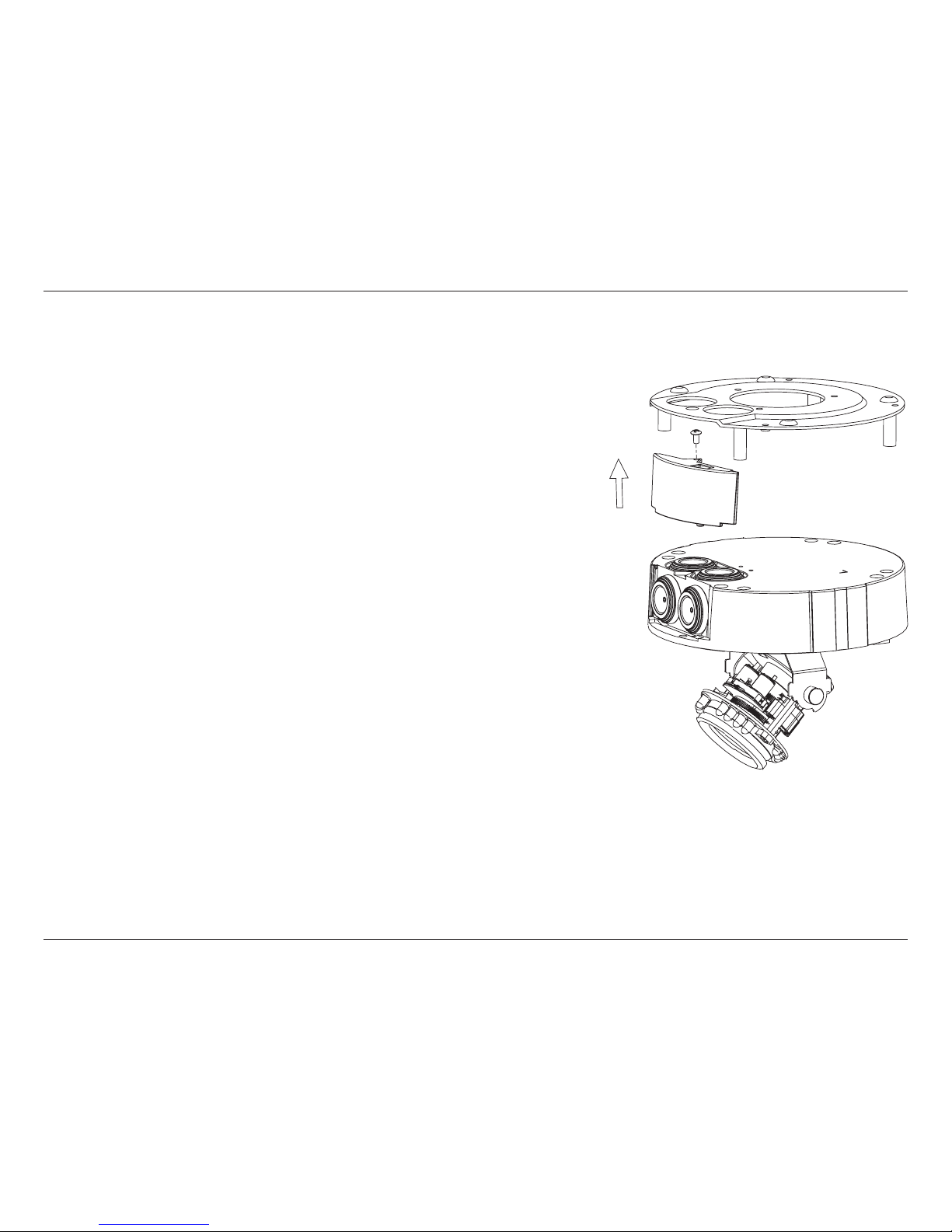

2. Remove the small screw to release the faceplate on the side of the base of the camera.

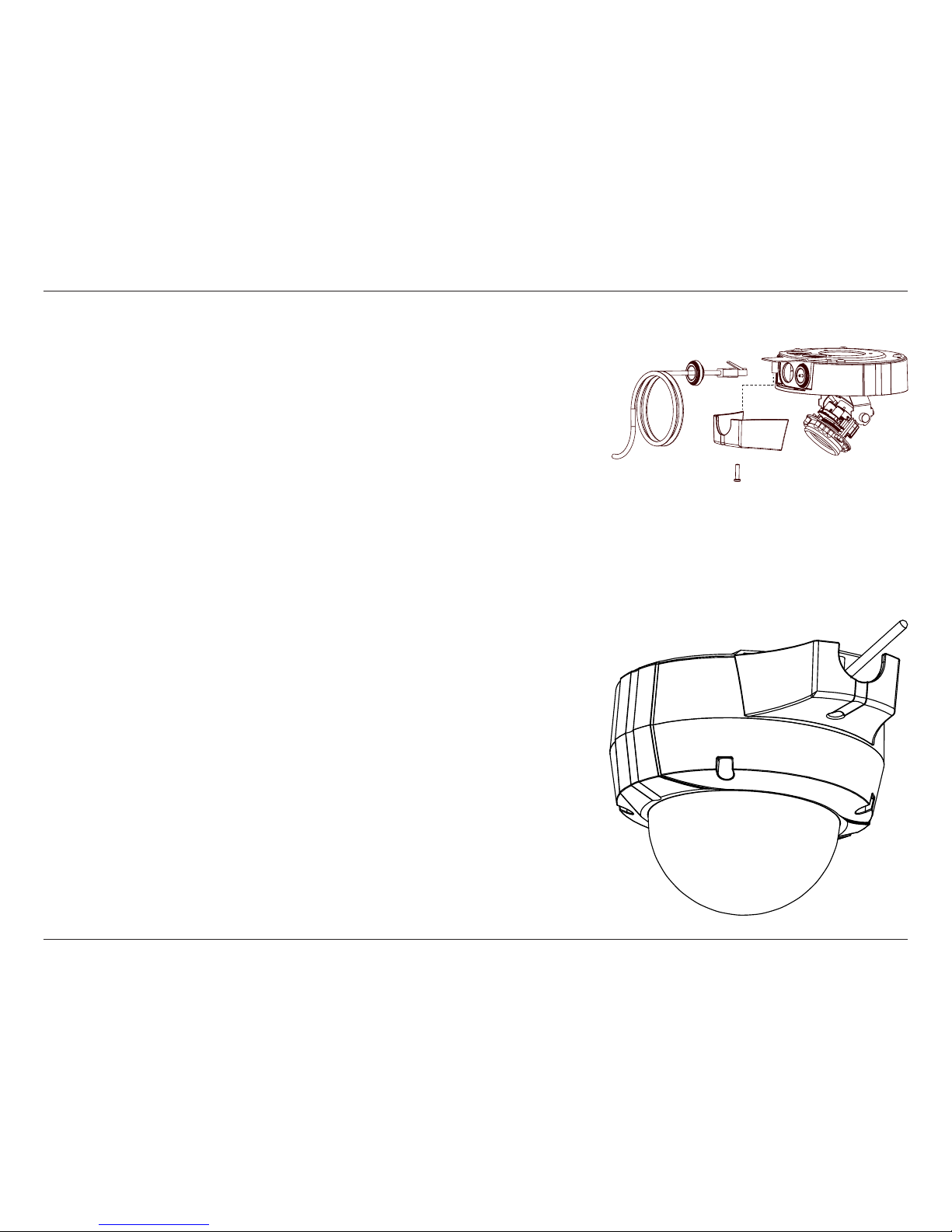

Figure 2.3

13D-Link DCS-6513 User Manual
Section 2: Assembly and Installation
1. Disassemble the camera enclosure (see page 9).
2. Remove the small screw to release the faceplate on the side of the base of the
camera.
3. Thread the cables through the waterproof plugs on the side of the base of the
camera. Attach the cables to the corresponding cable connectors (see page
10).
4. Attach the dual-holed plate to the base of the camera. (Figure 2.4)
Figure 2.4

14D-Link DCS-6513 User Manual
Section 2: Assembly and Installation
1. Place the plastic cable cover onto the dual-holed plate and attach it using
the screw. (Figure 2.5)
2. Locate a suitable position on the ceiling for the mounting plate to be
installed.
3. Use the mounting template to mark the holes for installation.
4. Drill four separate 6mm holes corresponding to the holes in the
mounting template and insert the plastic anchors into these holes.
5. Attach the surface bracket to the ceiling using the screws provided.

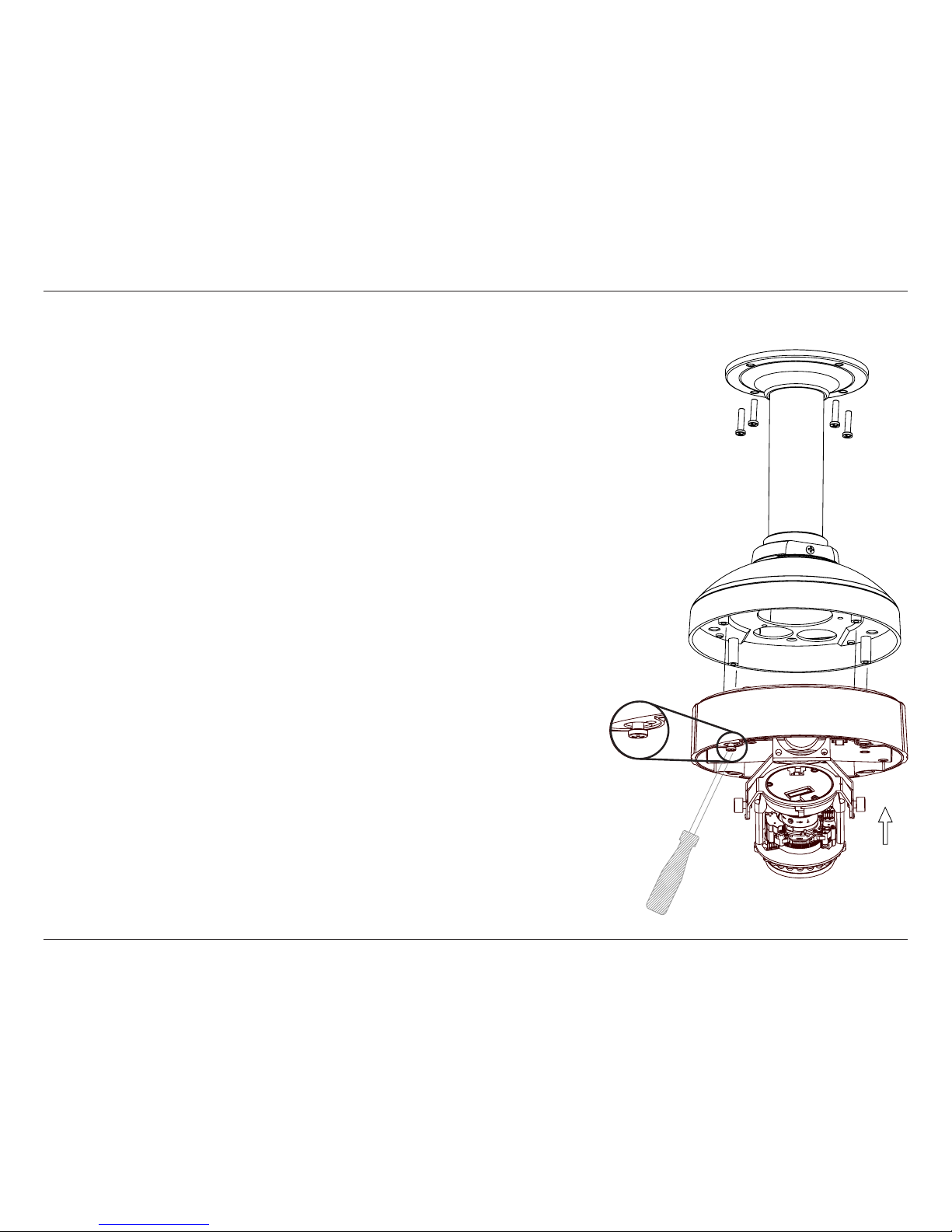

6. Place the dome body onto the base of the camera. (Figure 2.6)
7. Attach the dome to the base of the camera using the three long screws
and the provided security screw.
Figure 2.5
Figure 2.6

15D-Link DCS-6513 User Manual
Section 2: Assembly and Installation
Pendant Mount
Pendant
Bracket
Bracket
Cap
Rubber
Seal
Bracket
Cap
Mounting
Plate
1. Attach the mounting plate to the bracket cap using the three screws as shown in
Figure 3.1.
2. Locate a suitable position on the ceiling for a 34mm (+2 / –0 mm) hole to be cut. A
template is included to aid in marking the mounting hole.
3. Cut a hole in the ceiling according to the template.
4. Drill four separate 6mm holes corresponding to the holes in the mounting template
and insert the plastic anchors into these holes.
5. Place the rubber seal between the pendant bracket and the ceiling to ensure a
waterproof seal between the ceiling and the bracket. (Figure 3.2)
6. Attach the pendant bracket to the ceiling using the screws provided.
7. Attach the bracket cap to the bottom of the pendant bracket by rotating the cap
counterclockwise to tighten it into place.
8. Insert the screw into the base of the pendant bracket at the top of the bracket cap to
secure the bracket cap into place.

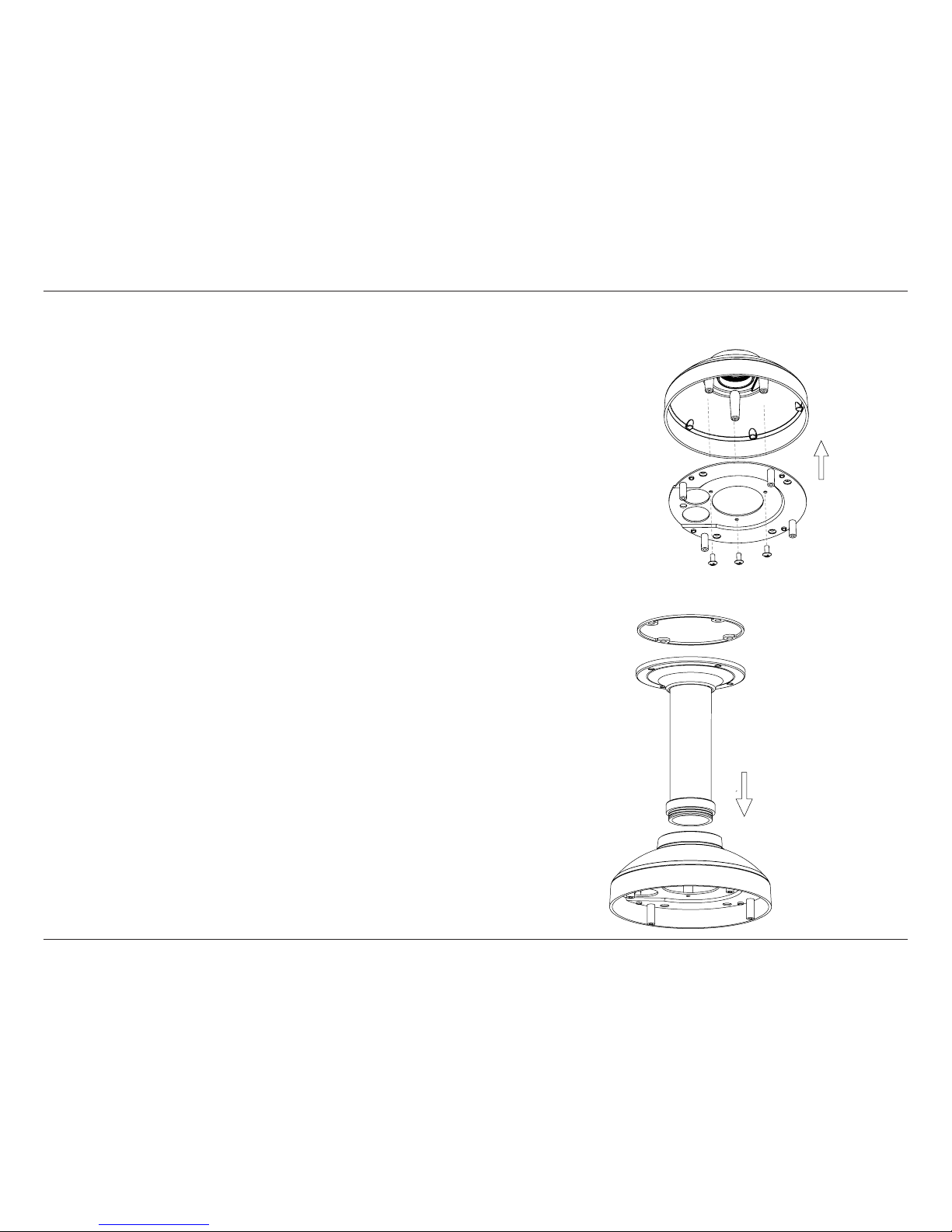

Figure 3.1
Figure 3.2

16D-Link DCS-6513 User Manual
Section 2: Assembly and Installation
1. Connect the Ethernet cable and the power cable, then thread them through the pendant
bracket.

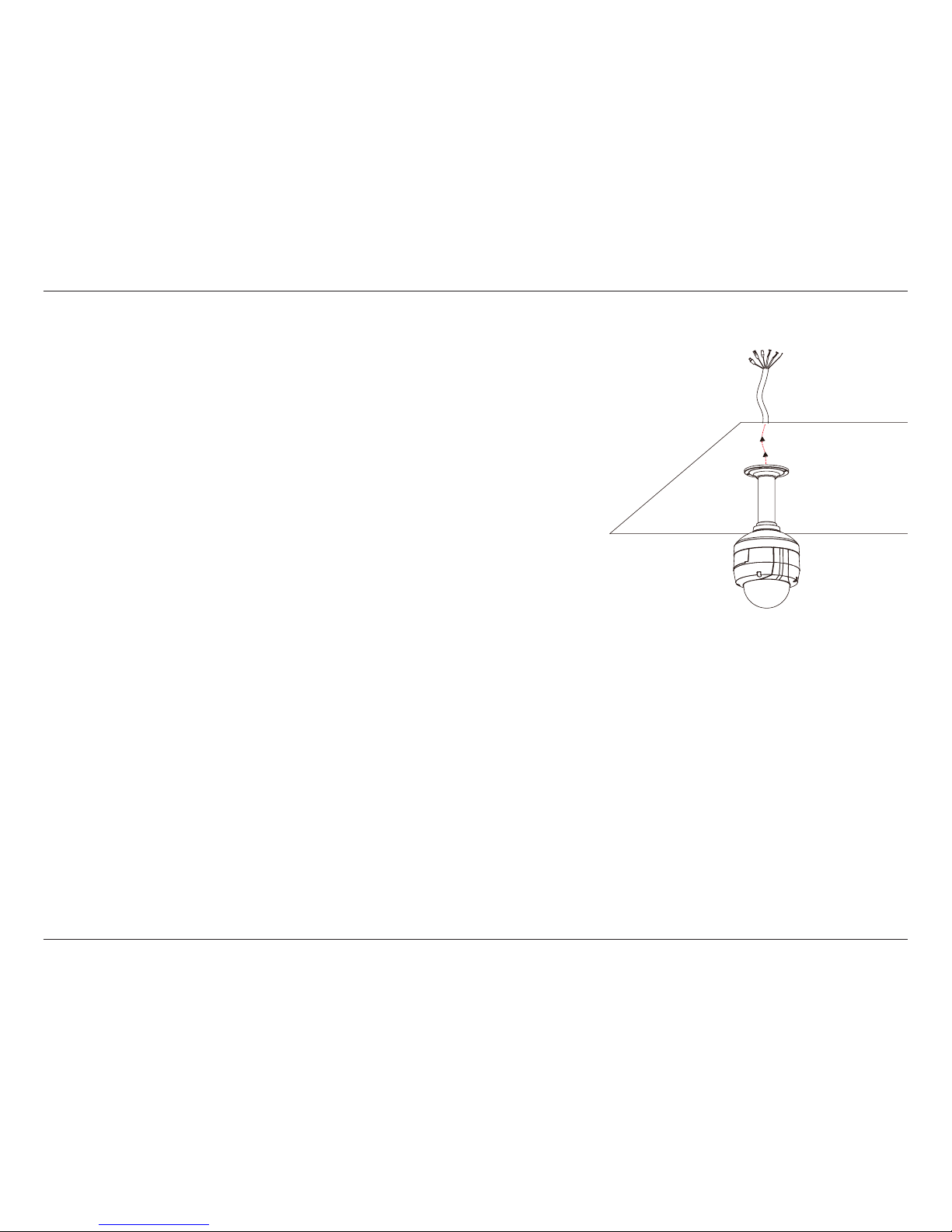

2. Place the dome body onto the base of the camera. (Figure 3.3)
Figure 3.3

17D-Link DCS-6513 User Manual
Section 2: Assembly and Installation
1. Attach the dome to the base of the camera using the three long screws and
the provided security screw.

18D-Link DCS-6513 User Manual
Section 2: Assembly and Installation
Wall Mount
Bracket Cap
Wall Mount
Bracket
Bracket
Cap
Mounting
Plate
1. Attach the mounting plate to the bracket cap using the three screws as shown
in Figure 4.1.
2. Locate a suitable position on the wall for a 34mm (+2 / –0 mm) hole to be cut.
A template is included to aid in marking the mounting hole.
3. Cut a hole in the ceiling according to the template
4. Drill four separate 6mm holes corresponding to the holes in the mounting
template and insert the plastic anchors into these holes.
5. Place the rubber seal between the wall mount bracket and the wall to ensure a
waterproof seal between the wall and the bracket. (Figure 4.2)
6. Attach the wall mount bracket to the wall using the screws provided.
7. Attach the bracket cap to the bottom of the wall mount bracket by rotating
the cap counterclockwise to tighten it into place.
8. Insert the screw into the base of the wall mount bracket at the top of the
bracket cap to secure the bracket cap into place.
9. Connect the Ethernet cable and the power cable and thread them through the
wall mount bracket.

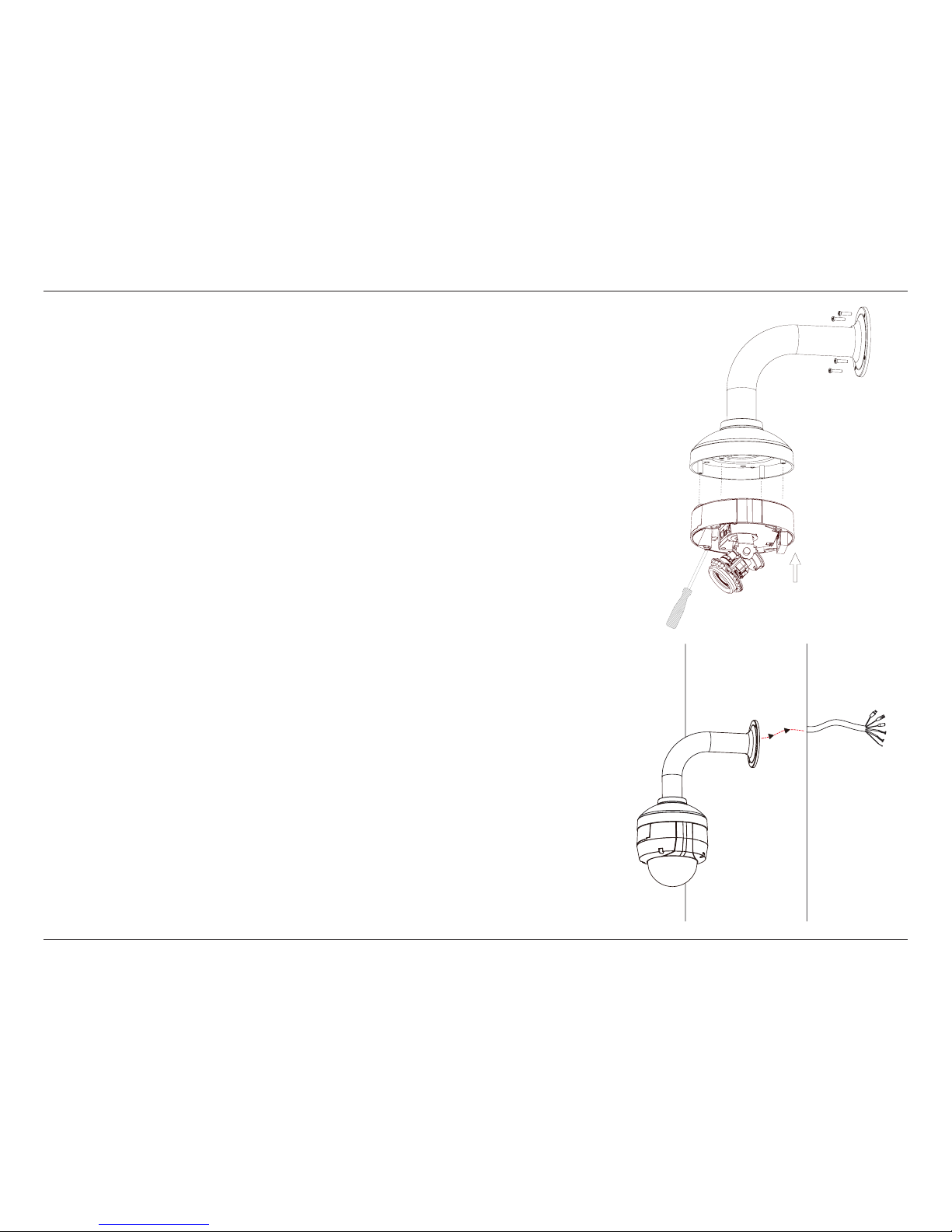

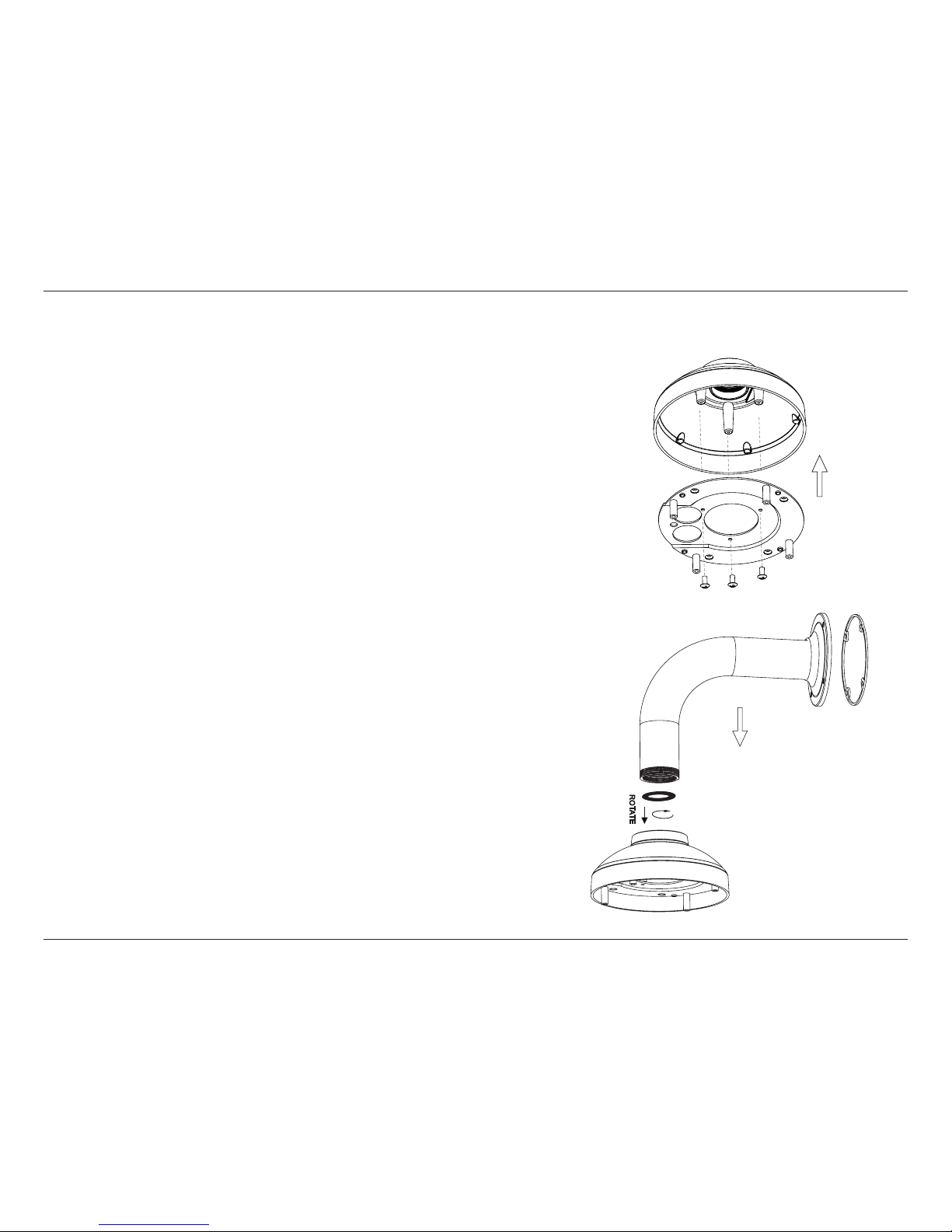

Figure 4.1
Figure 4.2

19D-Link DCS-6513 User Manual
Section 2: Assembly and Installation
Dome
Camera
10. Place the dome body onto the base of the camera. (Figure 4.3)
11. Attach the dome to the base of the camera using the three long screws and the provided
security screw.
Figure 4.3
Figure 4.4
Wall Mount

20D-Link DCS-6513 User Manual
Section 2: Assembly and Installation
The DCS-6513 comes with an optional weather shield to protect your network camera against damage from adverse weather. If you are installing the
DCS-6513 in a location where it will be exposed to harsh weather, it is recommended that you install the weather shield.
The weather shield should be installed before you commence mounting or connecting the camera in its nal location. To install the weather shield, you
will require the 37mm screws which were included in the product package.
Step 1: Using a screwdriver, remove the existing two screws which were pre-installed in the collar of the camera.
Step 2: Place the weather shield over the dome of the camera and align the screw holes with the holes in the collar of the camera.
Step 3: Install the 37mm screws into the existing screw holes so that they hold the weather shield in place.
Weather Shield Installation
Weather Shield
Install 37mm Screws
Remove Existing Screws
