D-Link DCS-4602EV User manual

User Manual
Version 1.00 | 05/06/2015
DCS-4602EV
Vigilance Full HD Outdoor Vandal-Proof PoE Dome Camera

2D-Link DCS-4602EV User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or
organization of such revisions or changes. Information in this document may become obsolete as our services and websites develop and
change.
Manual Revisions
Revision Date Description
1.00 05/06/2015 DCS-4602EV Revision A1 with rmware version 1.00
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other
countries. All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.
Copyright © 2015 D-Link Corporation.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Corporation.
Preface

3D-Link DCS-4602EV User Manual
Table of Contents
Product Overview........................................................ 4
Package Contents................................................................. 4
Introduction............................................................................ 5
System Requirements ......................................................... 5
Features.................................................................................... 6
Hardware Overview ............................................................. 7
Mounting the Camera......................................................... 9
Waterproong Your Installation ................................12
Software Installation......................................................15
Conguration ............................................................18
Using the Conguration Interface................................18
Live Video ..............................................................................20
Setup.......................................................................................22
Setup Wizard ....................................................................22
Network Setup.................................................................27
Dynamic DNS ...................................................................30
Image Setup .....................................................................31
Video ...................................................................................33
Preset...................................................................................35
Motion Detection ...........................................................37
Time and Date..................................................................38
Event Setup.......................................................................39
Advanced...............................................................................46
ICR and IR...........................................................................46
HTTPS..................................................................................47
Access List..........................................................................48
SNMP...................................................................................49
Maintenance.........................................................................51
Device Management .....................................................51
System ................................................................................52
Firmware Upgrade..........................................................53
Status ......................................................................................54
Device Info ........................................................................54
Logs .....................................................................................55
Help......................................................................................56
Technical Specications............................................57
Regulatory Information............................................60

4D-Link DCS-4602EV User Manual
Section 1: Product Overview
Product Overview
Package Contents
If any of the above items are missing, please contact your reseller.
Safety Notice: Installation and servicing should be done by certied technicians so as
to conform to all local codes and prevent voiding your warranty.
DCS-4602EV Vigilance Full HD Outdoor Vandal-Proof PoE Dome Camera
Rubber Power Connector Plug
Mounting Kit
CD-ROM with User Manual and software
Quick Installation Guide
Cable Waterproong Connector

5D-Link DCS-4602EV User Manual
Section 1: Product Overview
Introduction
Congratulations on your purchase of the DCS-4602EV Vigilance Full HD Outdoor Vandal-Proof PoE Dome Camera. The
DCS-4602EV is a professional surveillance and security solution for small, medium, and large enterprises alike.The DCS-4602EV
uses a Full HD progressive scan CMOS sensor; the professional sensor results in low noise and high sensitivity capabilities ideal
for surveillance applications.
The DCS-4602EV is a complete system with a built-in CPU and incorporates a web server, allowing it to transmit excellent real-
time Full HD resolution video for security and outdoor surveillance.
The DCS-4602EV can be accessed remotely, controlled and congured from any PC/Notebook over your local network or through
the Internet via a web browser. The simple installation and intuitive web-based interface oer easy conguration across the
full range of its advanced feature set, including granular control over multiple video streams with dierent congurations and
multicast video streams which helps you manage your network load.
The DCS-4602EV has an IP66 certied weatherproof housing designed for both indoor and outdoor applications. The built-
in removable IR-cut lter and IR LEDs give the DCS-4602EV the capability to view up to 20M at night. The DCS-4602EV
also incorporates Power over Ethernet (PoE), allowing it to be easily installed in a variety of locations without the need for
supplemental power cabling. The combination of IP66 weatherproof housing, IK10 vandal-proof housing, IR-Cut Filter, IR LEDs,
and PoE make the DCS-4602EV an ideal solution for a dependable and cost-eective 24 hour surveillance solution with easy
clutter-free installation.
• Computer with Microsoft Windows® 8, 7, or Vista® (for CD-ROM Setup Wizard), Mac OS or Linux
• Internet Explorer 7, Firefox 20, or Safari 6 or higher
• Existing 10/100 Ethernet-based network with an available 802.3af Power over Ethernet (PoE) port
System Requirements

6D-Link DCS-4602EV User Manual
Section 1: Product Overview
Simple to Maintain
The DCS-4602EV is a stand-alone system with a built-in CPU, requiring no special hardware or software.The DCS-4602EV can be viewed and managed
through most web browsers, including Internet Explorer®, Chrome®, Firefox®, and Safari®.
Supports a Variety of Platforms
With support for TCP/IP networking, HTTP, and other Internet related protocols, the DCS-4602EV can also be integrated easily into other Internet/
Intranet applications because of its standards-based features. The DCS-4602EV works with any 10/100 Ethernet network, making the DCS-4602EV
easy to integrate into your existing network environment.
Advanced Event Management
The DCS-4602EV can be set up to send e-mail notications with snapshots when an event occurs, such as when motion is detected. Events can be
triggered from several sources, such as motion detection and time based events.
IR LEDs for Day and Night Functionality
The built-in infrared LEDs enable night time viewing of up to 20 meters.
IP66 Weatherproof and Vandal-proof Housing
The DCS-4602EV uses an IP66 weatherproof housing, allowing you to rest assured that in the toughest of conditions, it will continue to provide
round-the-clock surveillance.
PoE (Power over Ethernet) for Flexible Installation
The DCS-4602EV can draw all the power it needs from a PoE switch or PoE injector for a simple and clutter-free installation.
Remote Monitoring Utility
The D-ViewCam application adds enhanced features and functionality for the Network Camera and allows administrators to congure and access
the Network Camera from a remote site via Intranet or Internet. Other features include image monitoring, recording images to a hard drive, viewing
up to 32 cameras on one screen, and taking snapshots.
Features

7D-Link DCS-4602EV User Manual
Section 1: Product Overview

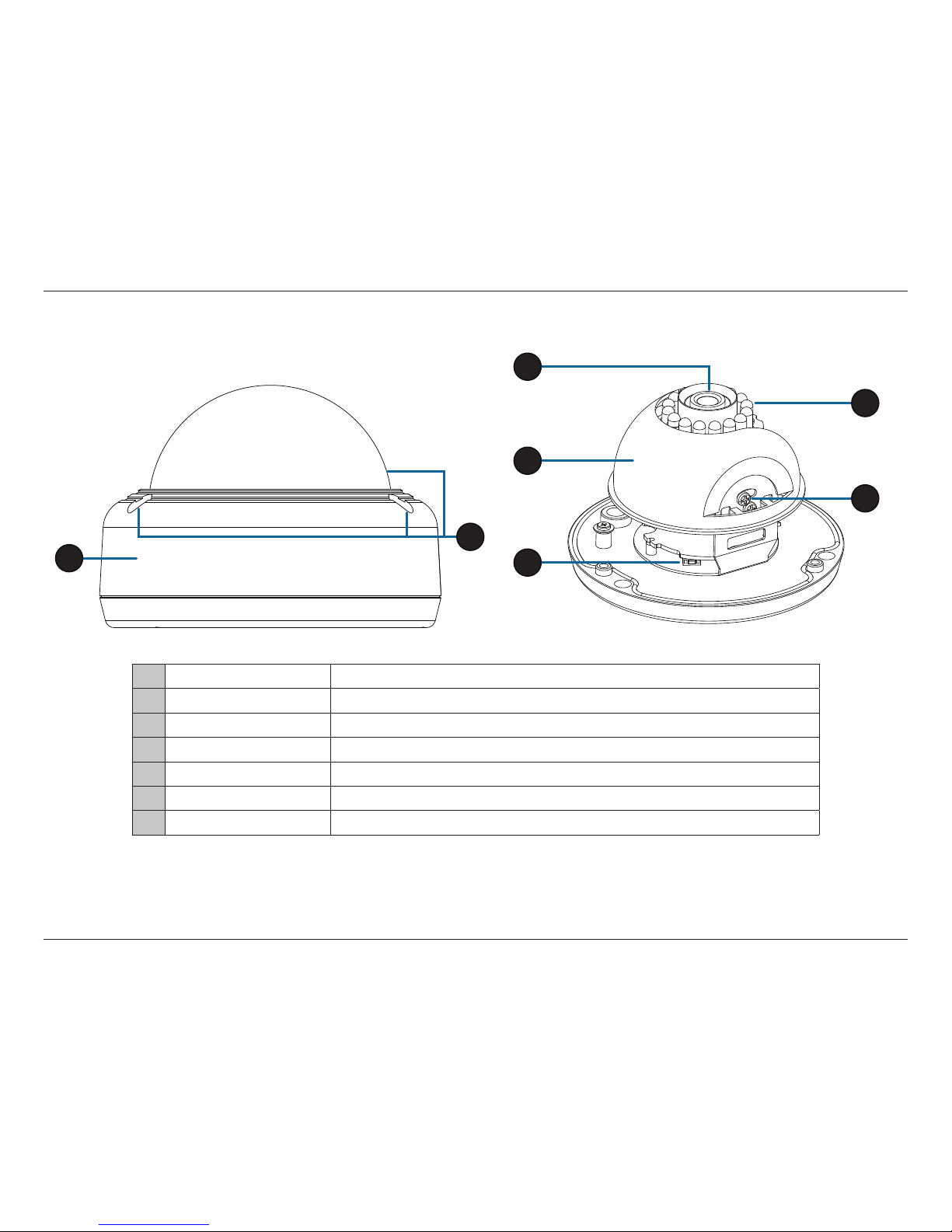

Hardware Overview
1 Protective Cover Fixed lens to record video of the surrounding area
2 Cover Screws The three screws can be removed with the included wrench
3 Camera Lens Fixed lens to record video of the surrounding area
4 Inner Cover Covers the camera components
5 Reset Button Press and hold for 10 seconds to reset camera back to the factory default settings
6 IR LEDs Provide illumination for low-light environments
7 Tilt Adjustment Screw Can be loosened to adjust camera angle
1
2
3
4
5
6
7

8D-Link DCS-4602EV User Manual
Section 1: Product Overview

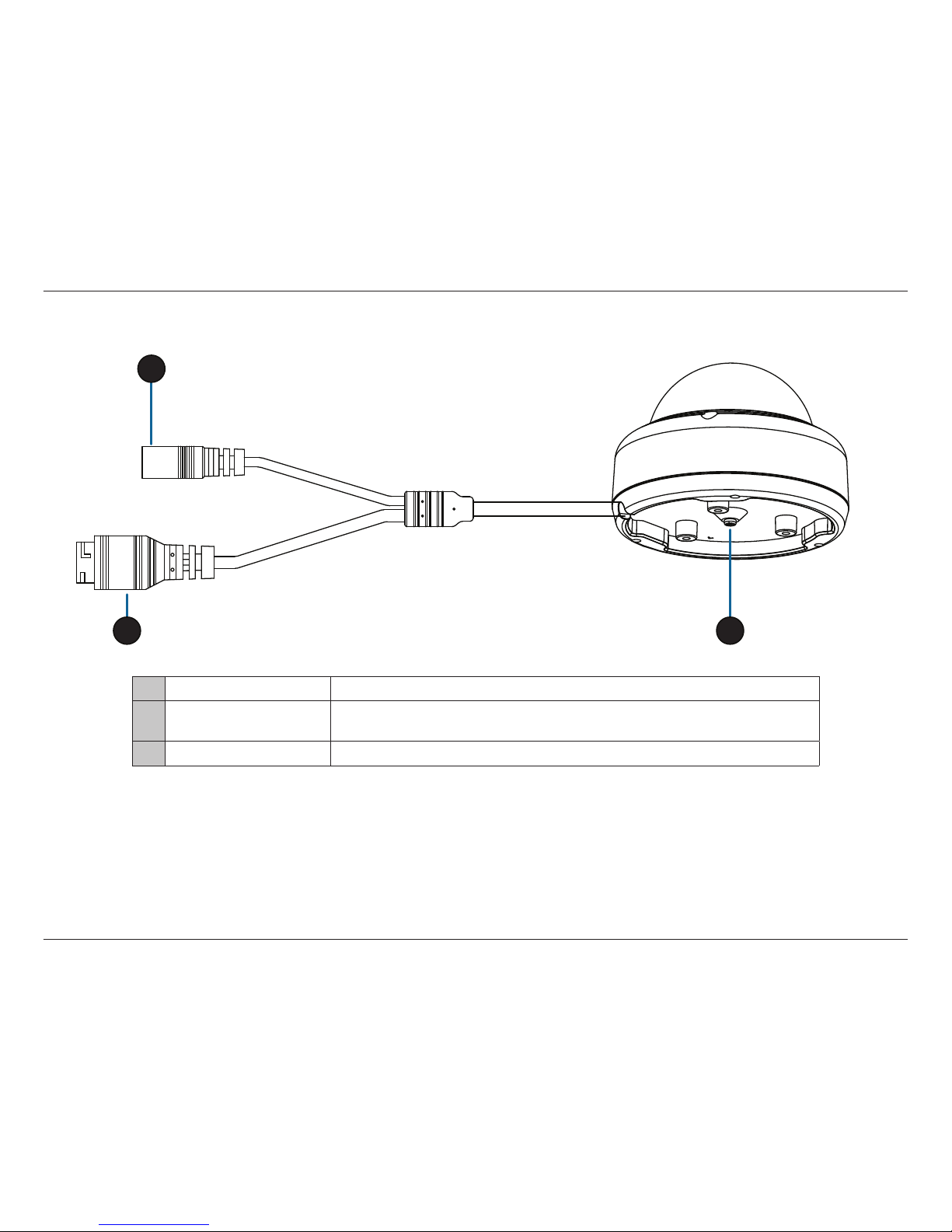

1 Power Connector Connects to an optional 12 V / 1.5 A power adapter (not included)
2 Ethernet Jack RJ-45 connector for Ethernet which can also be used to power the camera using
Power over Ethernet (PoE)
3 Grounding Screw Can be attached to a grounding wire if desired
1
2 3

9D-Link DCS-4602EV User Manual
Section 2: Assembly and Installation
Mounting the Camera
It is highly recommended that you congure and test your camera before mounting it.

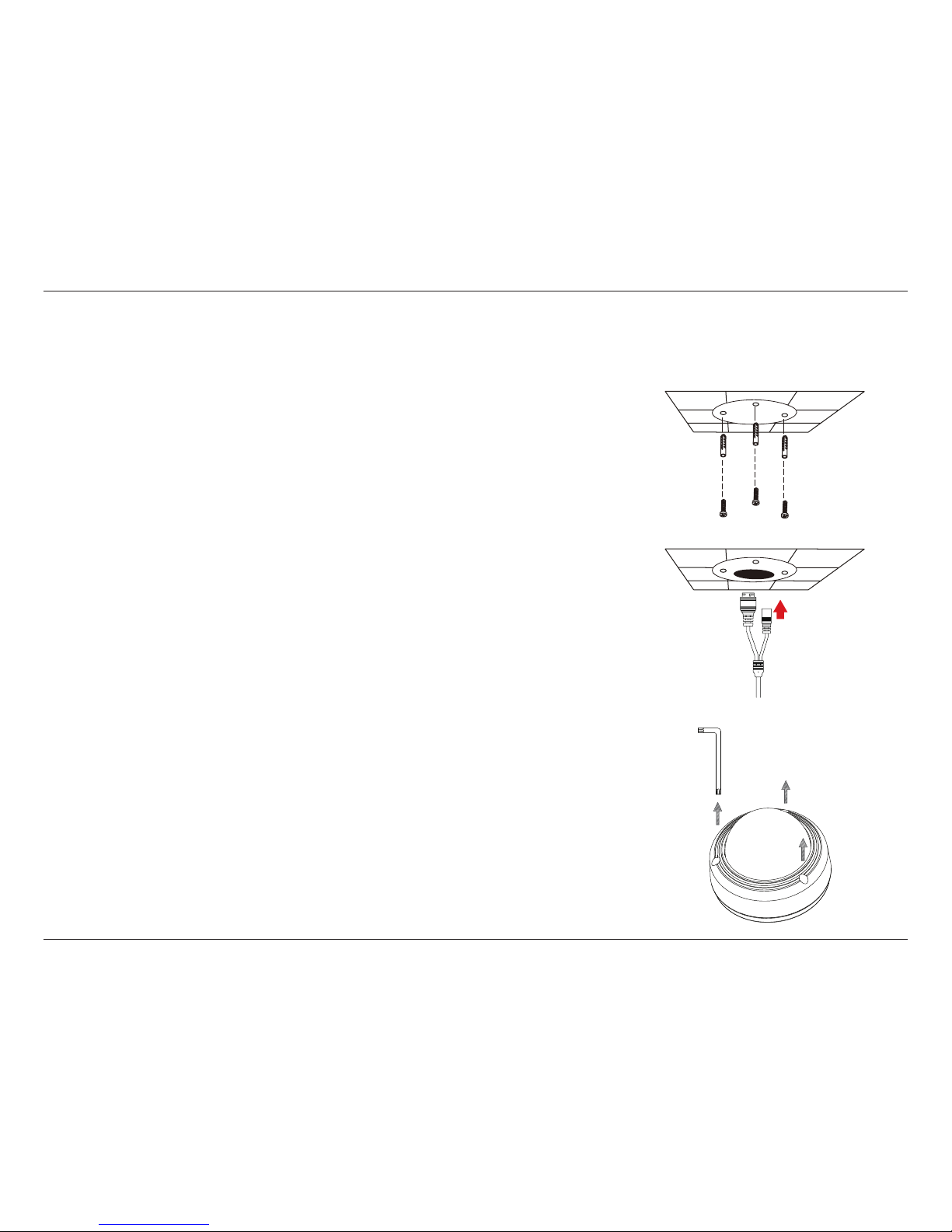

Step 1
Place the mounting sticker where you want to position the camera.
Use a 6 mm drill bit to make the required holes approximately 25 mm deep, then
insert the wall anchors into the holes.
If you are running the camera cables through the wall or ceiling, drill a hole
in the center and pull the cables through the hole.
Step 2
Use the included wrench to loosen the 3 screws on the top of the camera, then
lift the camera cover o.

10D-Link DCS-4602EV User Manual
Section 2: Assembly and Installation
Step 3

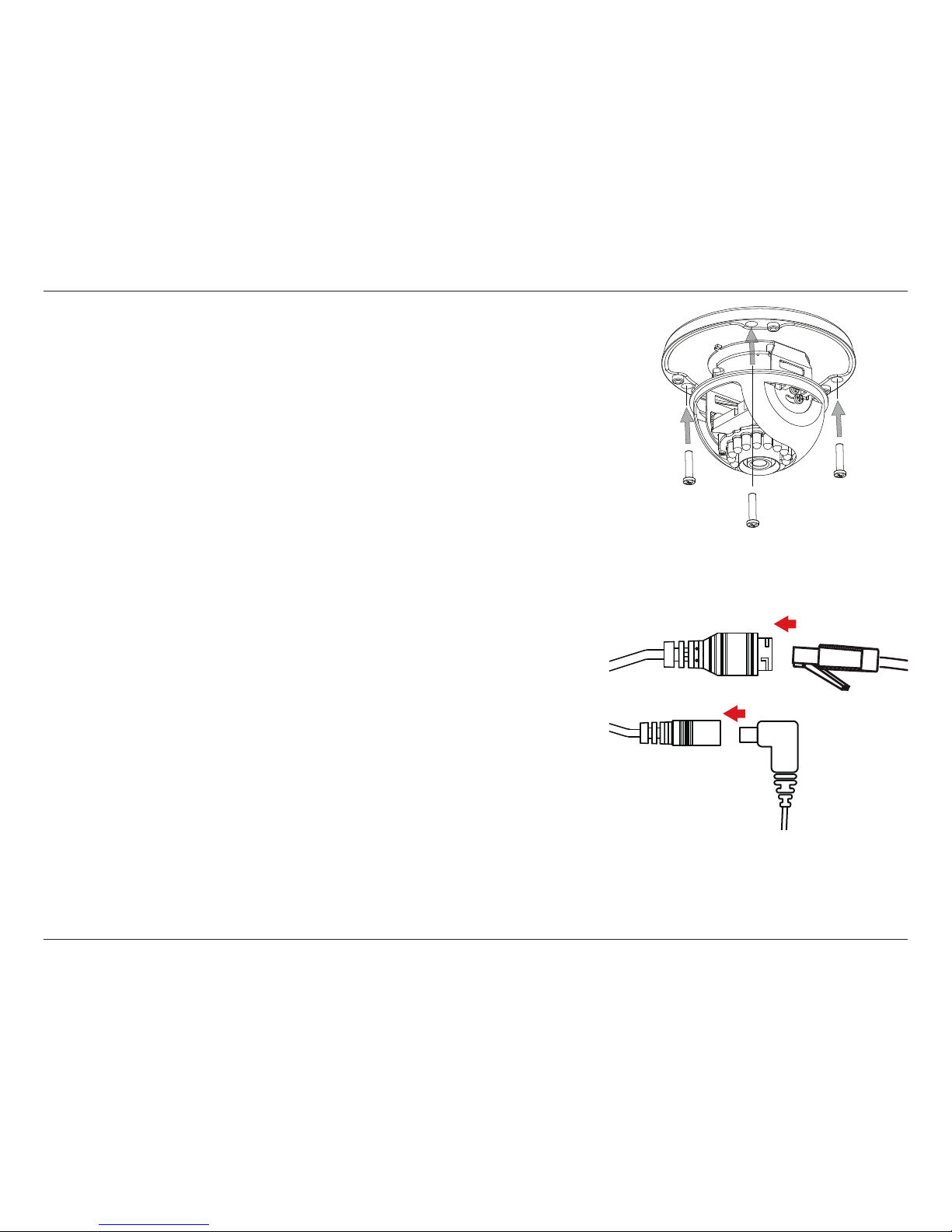

Use the screws provided to mount the camera to the wall or ceiling.
If you are running the camera cables out the side of the camera, guide the
camera cables through the cable channel on the base.
Step 4
Connect the power and Ethernet cables, or just the Ethernet cable if you are using
a PoE connection.

11D-Link DCS-4602EV User Manual
Section 2: Assembly and Installation
If you need to waterproof your installation, please continue to the next page.

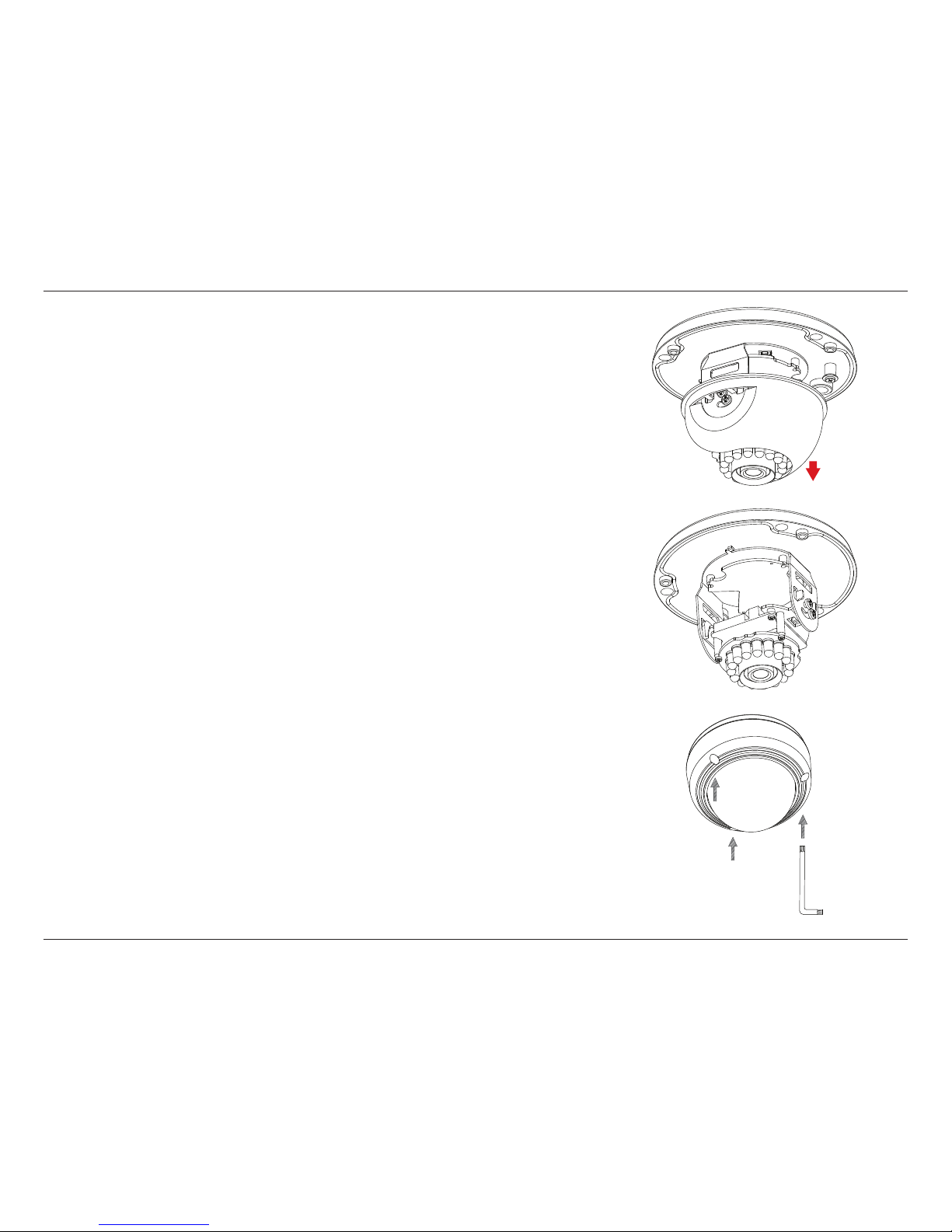

Step 5
To adjust the camera's angle, pull the black inner cover and remove it from the
camera.
Loosen the adjustment screw on the side of the camera, then retighten it after
moving the camera to the desired angle. You can also rotate the camera by
grasping the camera and turning it left or right.
When you are done adjusting the camera's angle, put the inner cover back into
place.
Note:The camera has a limited range of motion. If it stops when you are adjusting
it, do not attempt to rotate or tilt the camera any further in that direction.
Step 6
Reattach the camera cover.

12D-Link DCS-4602EV User Manual
Section 2: Assembly and Installation
Waterproong Your Installation

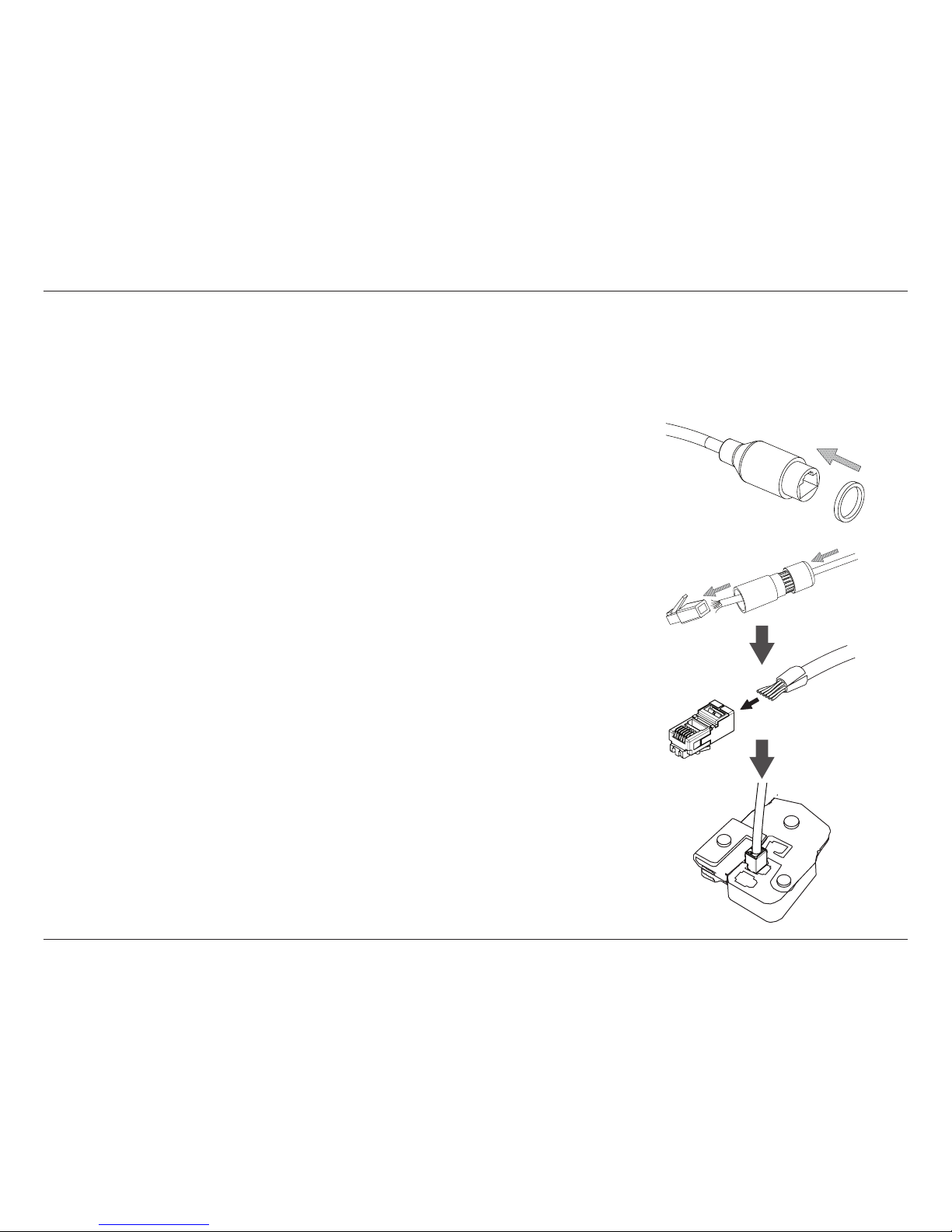

Step 1
Place the washer around the base of the Ethernet connector as shown.
To waterproof your camera installation, follow the instructions below. Round Ethernet cable, a crimping tool, and RJ-45 plugs
are required for this procedure.
Step 2
Thread bare Ethernet cable through the waterproof connector as shown, then
crimp an RJ-45 plug onto the cable.

13D-Link DCS-4602EV User Manual
Section 2: Assembly and Installation

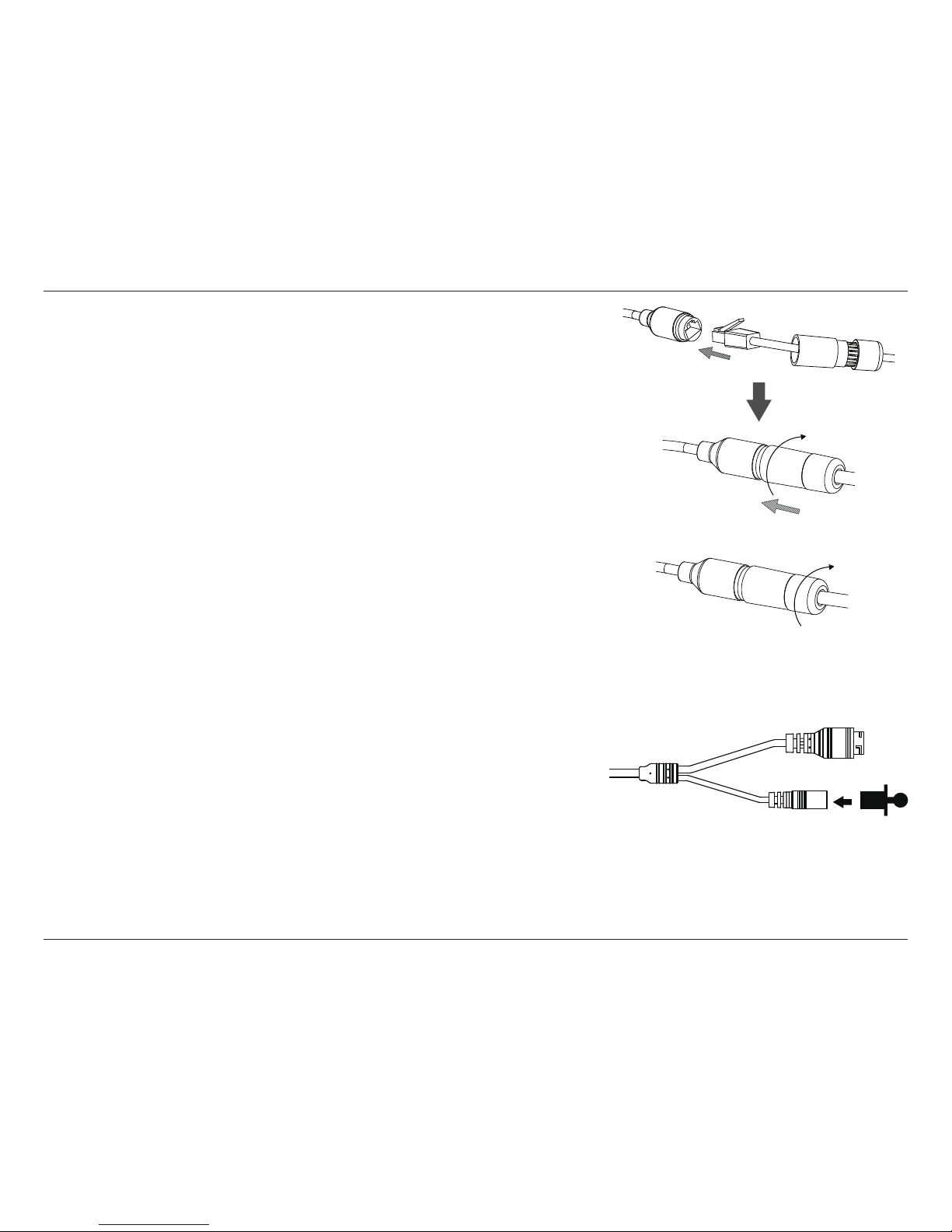

Step 4
Screw the back part of the waterproof connector clockwise until there is a tight
seal around the Ethernet cable.
Step 3
Connect the RJ-45 plug into the Ethernet connector, then screw the waterproof
connector to the Ethernet connector by turning it about a half-turn clockwise.
If you are using PoE to power your camera, use the included rubber power
connector plug to the power connector.

14D-Link DCS-4602EV User Manual
Section 2: Assembly and Installation

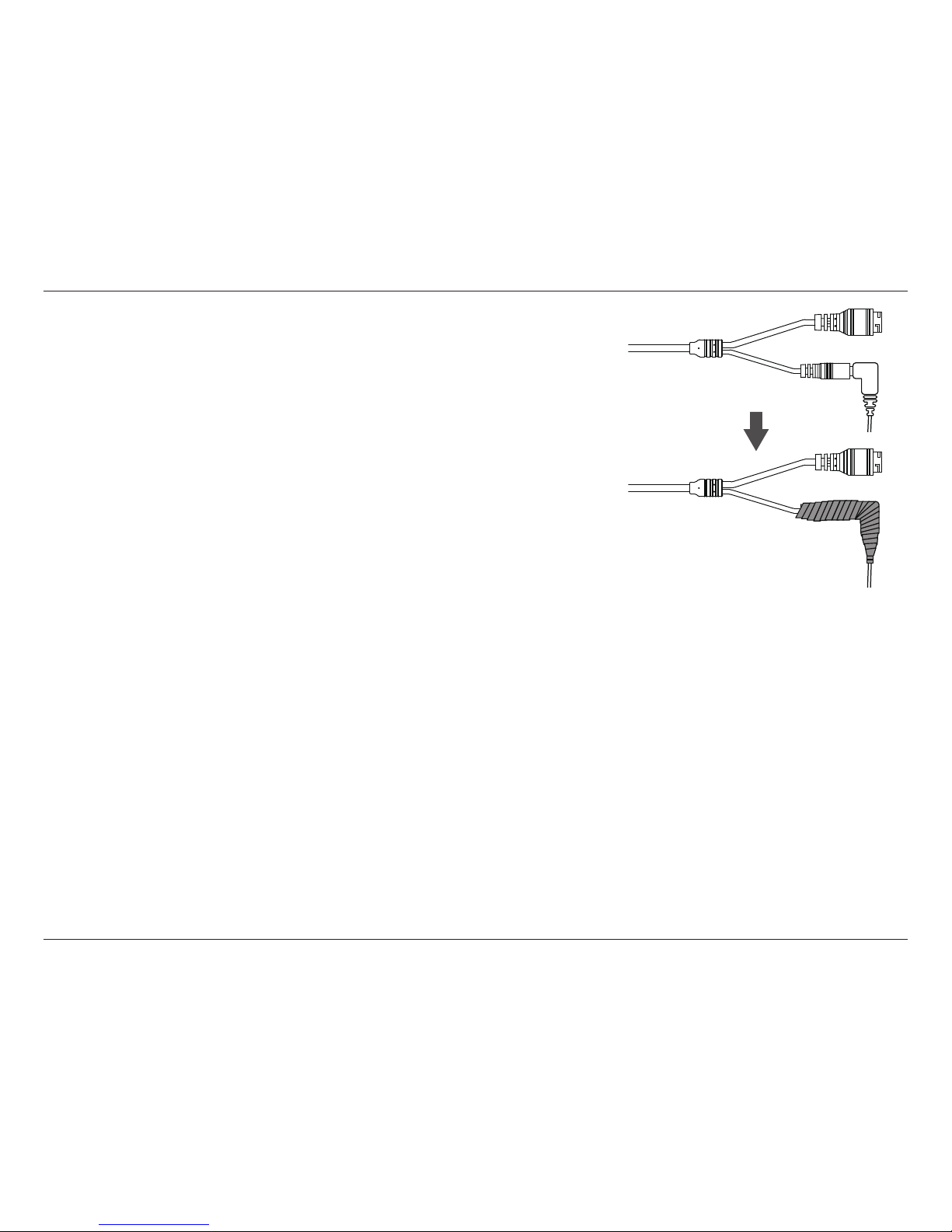

If you are using a power adapter (not included) to power your camera, wind
waterproof tape around the connection in an overlapping manner to cover it.

15D-Link DCS-4602EV User Manual
Section 2: Assembly and Installation
Step 1

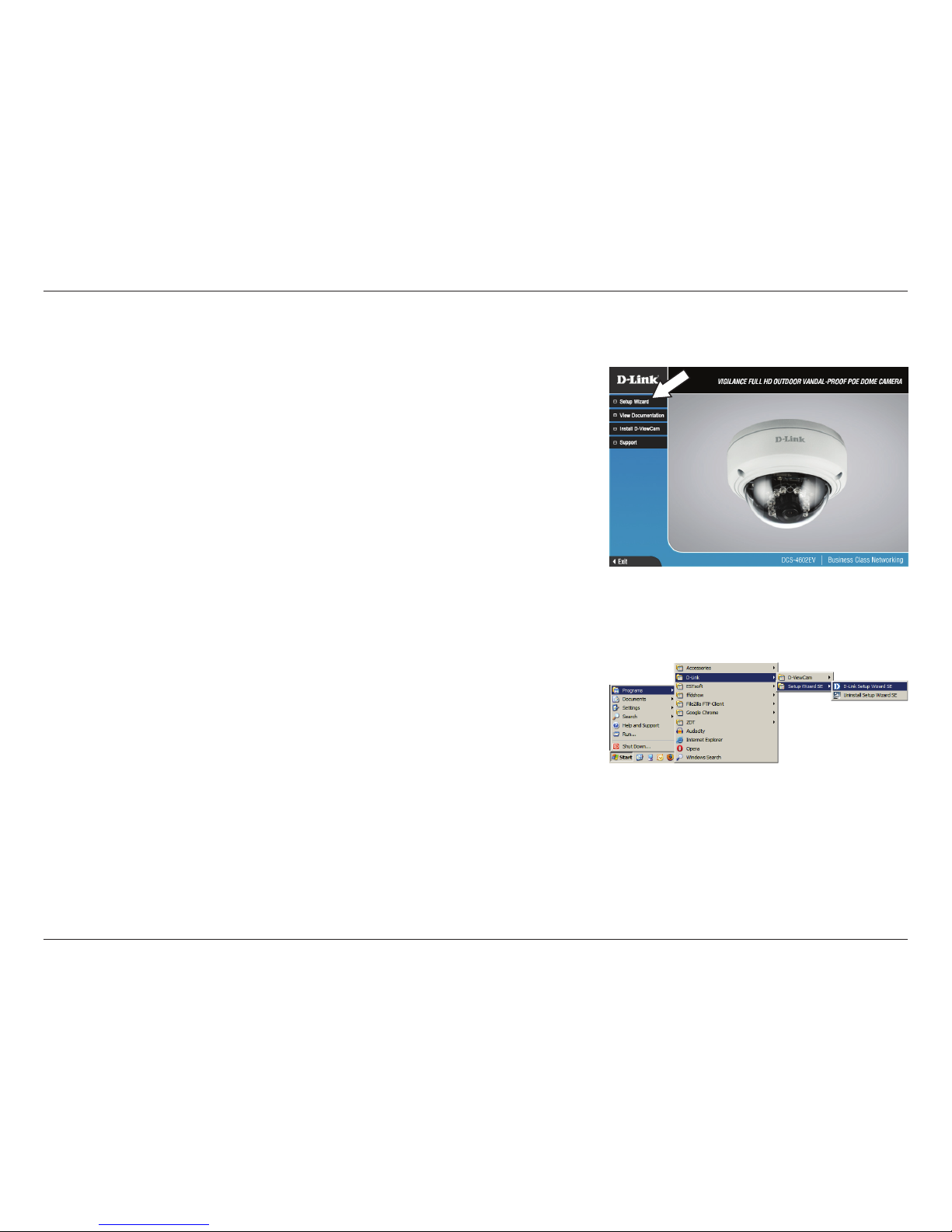

Insert the DCS-4602EV CD into your computer's CD-ROM drive to begin the
installation.
If the Autorun function on your computer is disabled, or if the D-Link Launcher
fails to start automatically, click the Start button and type D:\autorun.exe (where
D: represents the drive letter of your CD-ROM drive) and press Enter.
Step 2

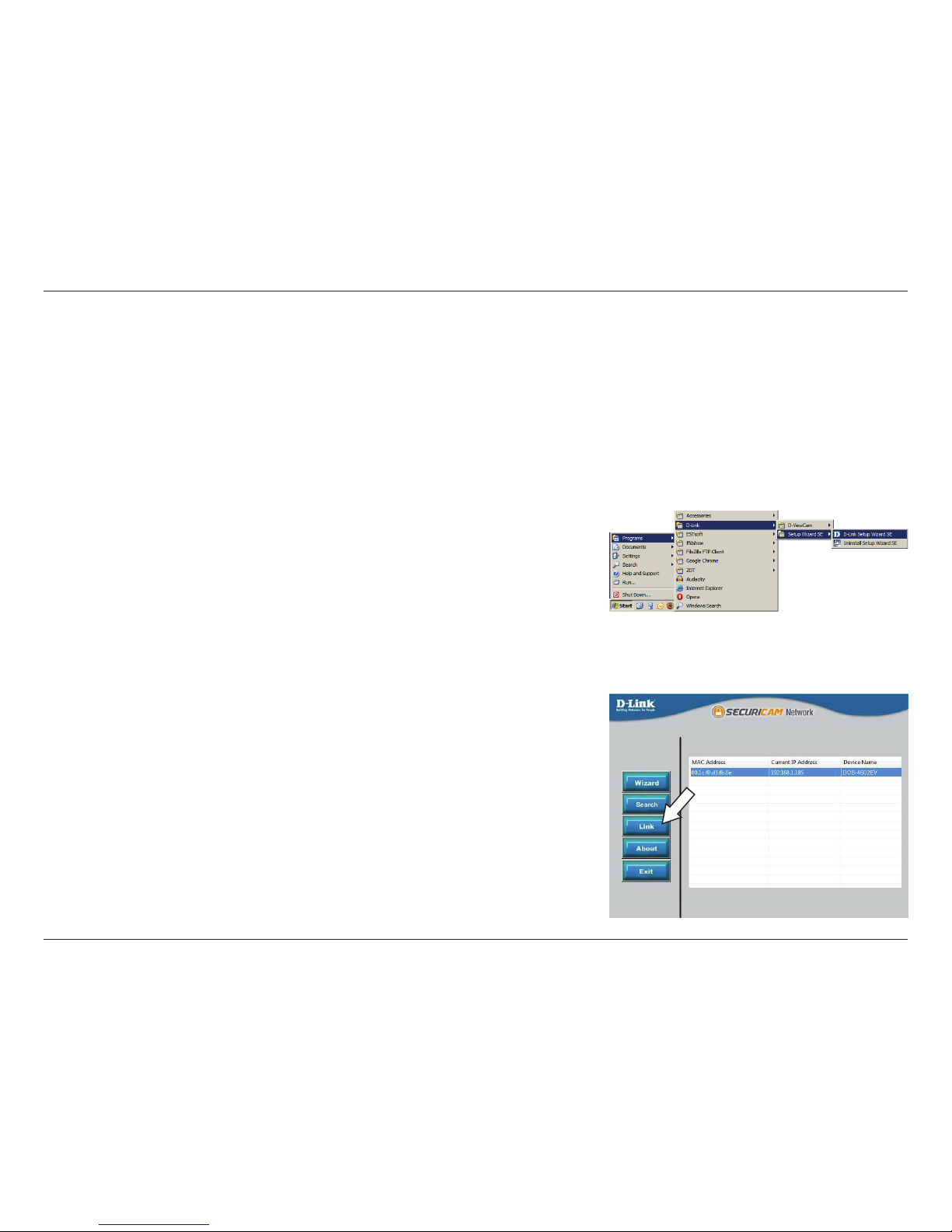

Click on the D-Link Setup Wizard SE icon that was created in your Windows
Start menu (Start > D-Link > Setup Wizard SE).
Software Installation

16D-Link DCS-4602EV User Manual
Section 2: Assembly and Installation
Step 4

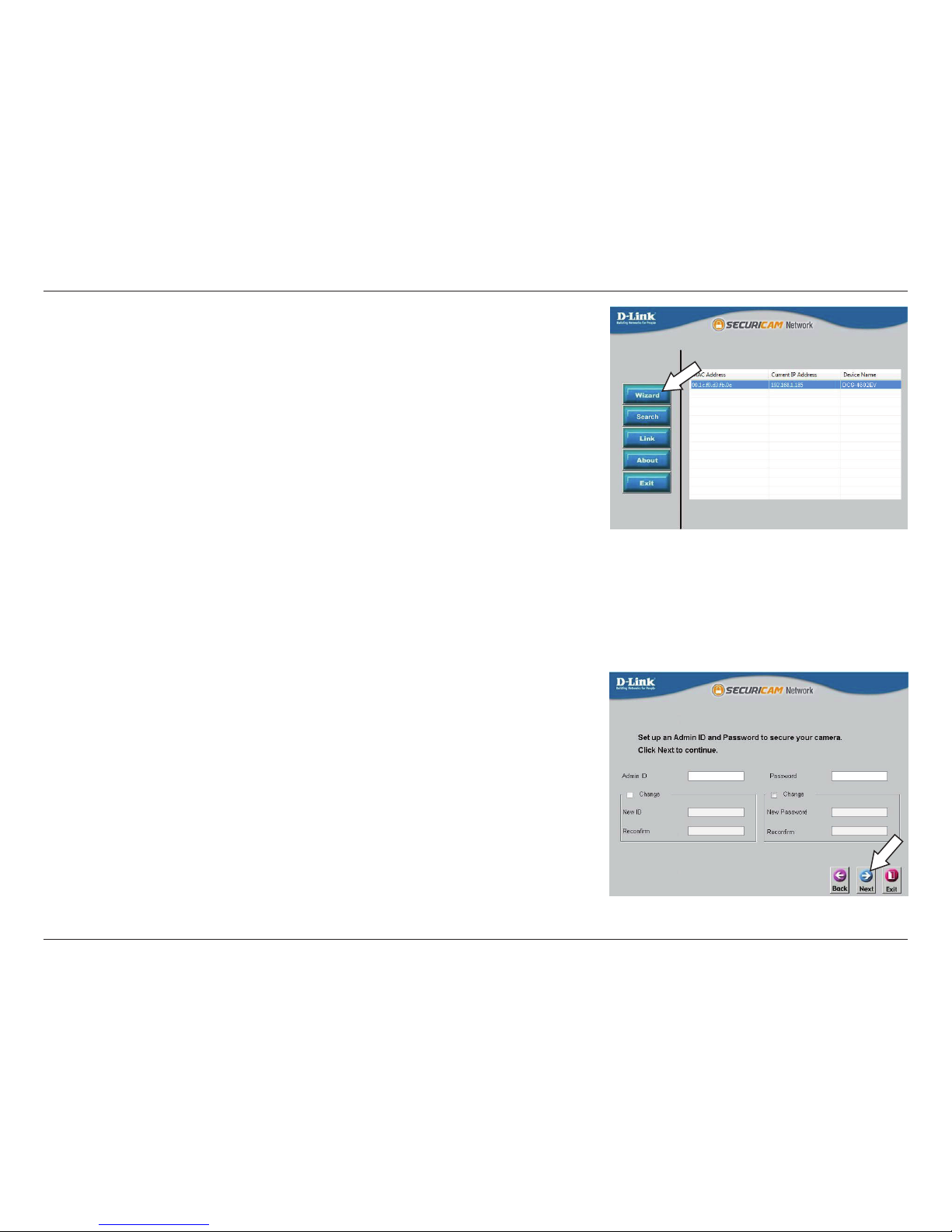

Enter the Admin ID and password. When logging in for the rst time, the default
Admin ID is admin with the password left blank.
Click the checkboxes if you wish to change the admin ID and password for the
camera, and enter the new ID and password you wish to use.
Click Next to continue.
Step 3
The Setup Wizard will appear and display the MAC address and IP address of your
camera(s). If you have a DHCP server on your network, a valid IP Address will be
displayed. If your network does not use a DHCP server, the network camera's
default static IP 192.168.0.20 will be displayed.
Select your camera, then click the Wizard button to continue.

17D-Link DCS-4602EV User Manual
Section 2: Assembly and Installation

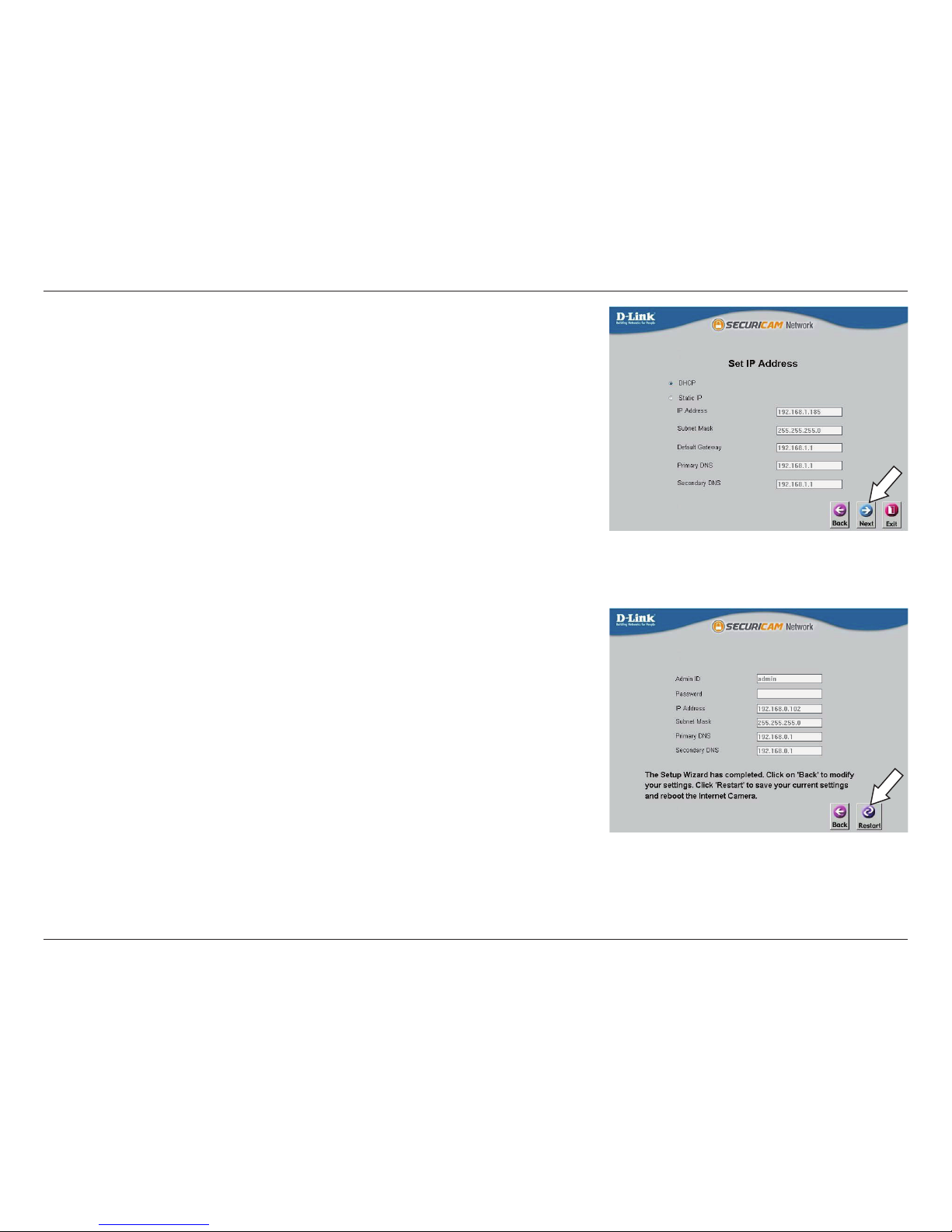

Step 6
Take a moment to conrm your settings and click Restart.
Step 5
Select DHCP if your camera obtains an IP address automatically from a DHCP
server such as a router. Select Static IP if you want to manually enter the IP
settings for the camera.
Click Next to continue.

18D-Link DCS-4602EV User Manual
Section 3: Conguration
Conguration
Using the Conguration Interface
After completing the Camera Installation Wizard, you are ready to use your camera. The camera’s built-in Web conguration
utility is designed to allow you to easily access and congure your DCS-4602EV. At the end of the wizard, click Link, or enter
the IP address of your camera into a web browser, such as Firefox. To log in, use the User name admin and the password you
created in the Installation Wizard. If you did not create a password, the default password is blank. After entering your password,
click OK.
Step 1
Click on the D-Link Setup Wizard SE icon that was created in yourWindows Start
menu (Start > D-Link > Setup Wizard SE).
Step 2
Select the camera and click Link to access the web conguration.
The Setup Wizard will automatically open your web browser to the IP address of
the camera.

19D-Link DCS-4602EV User Manual
Section 3: Conguration

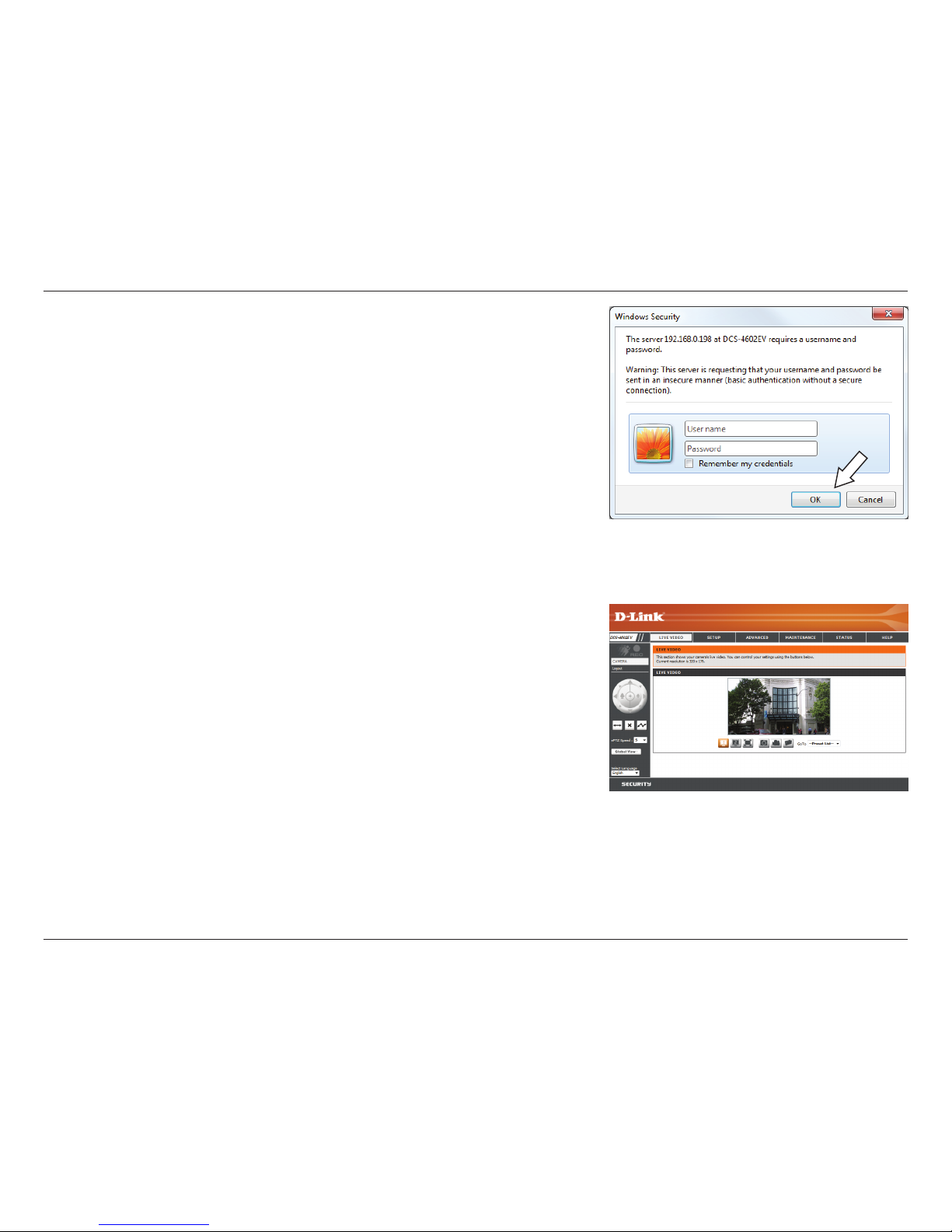

Step 3
Enter admin as the default username and leave the password blank. Click OK to
continue.
Step 4
This section displays your camera’s live video. You can select your video prole
and view or operate the camera.

20D-Link DCS-4602EV User Manual
Section 3: Conguration

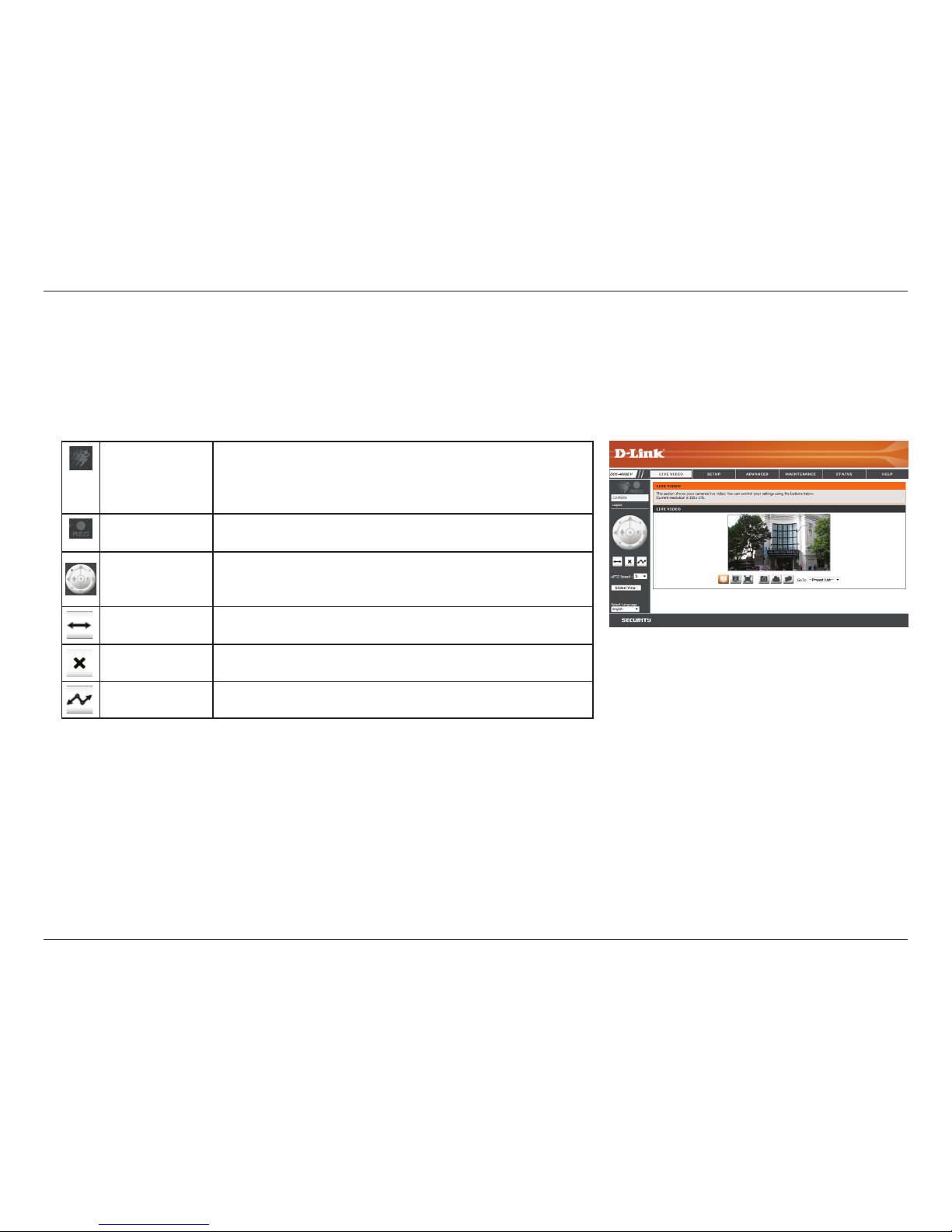

Live Video
This section shows your camera’s live video. You may select any of the available icons listed below to operate the camera. You may also select your
language using the drop-down menu on the left side of the screen.
You can zoom in and out on the live video image using your mouse. Right-click to zoom out or left-click to zoom in on the image.
Motion Trigger
Indicator
This indicator will change color when a trigger event occurs.
Note: The video motion feature for your camera must be
enabled.
Recording
Indicator
When a recording is in progress, this indicator will change
color.
Control Pad
This control pad can be used to electronically pan, tilt, and
zoom (ePTZ) within the camera's predened view area, if one
has been dened.
Auto Pan Starts the automatic panning function. The ROI will pan from
back and forth within the FOV.
Stop Stops the camera ePTZ motion.
Preset Path Starts the camera's motion along the predened path.
