Section 1: Product Overview
Product Overview

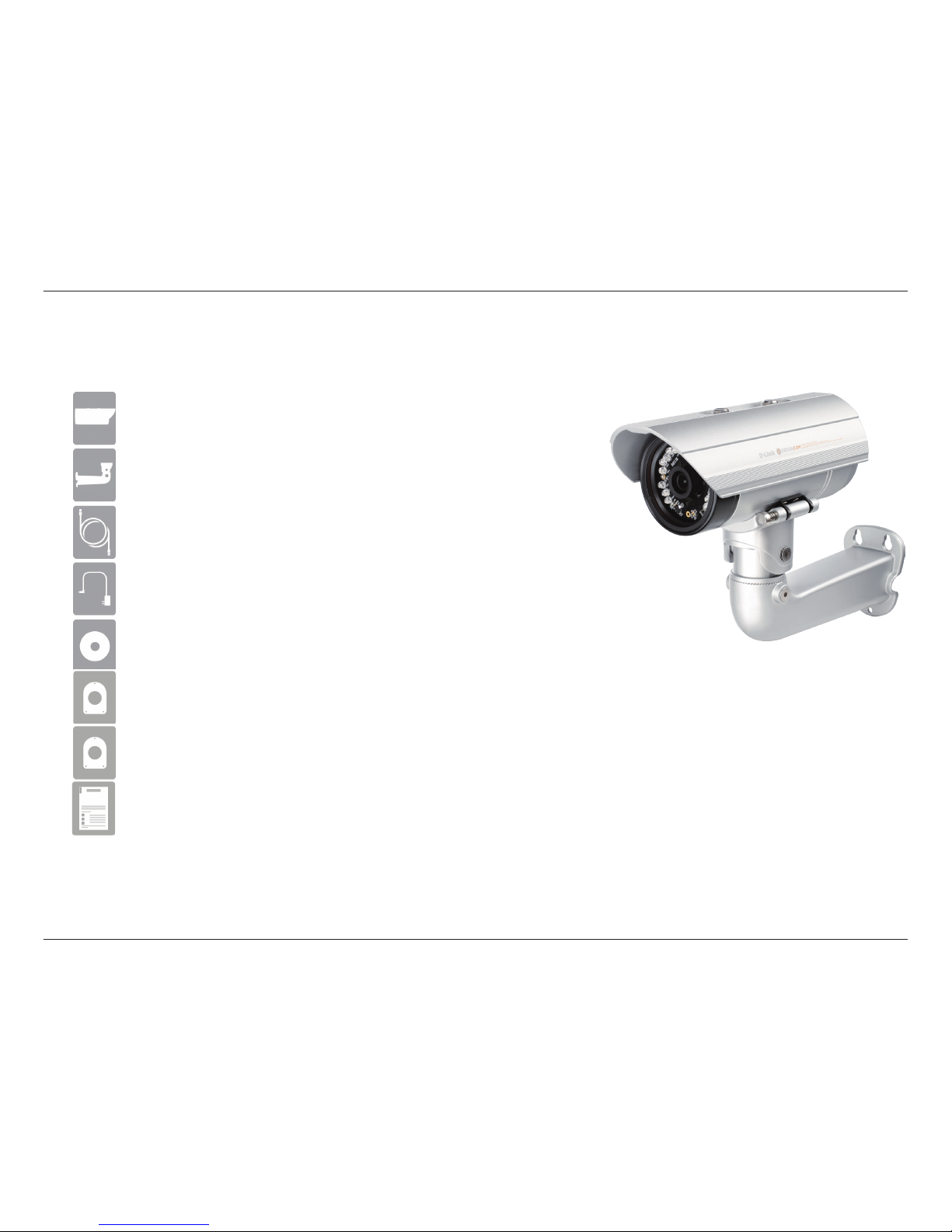

Package Contents
If any of the above items are missing, please contact your reseller.
Note: Using a power supply with a dierent voltage than the one included with your
product will cause damage and void the warranty for this product.
DCS-7413 Full HD Day & Night Outdoor Network Camera
CAT5 Ethernet cable
Power adapter
CD-ROM with User Manual and software
Quick Installation Guide
Mounting Plate
Wire in Bracket and Mounting Shoe
Alignment Sticker and Fixings Kit

5D-Link DCS-7413 User Manual
Section 1: Product Overview
Introduction
Congratulations on your purchase of the DCS-7413 Full HD Day & Night Outdoor Network Camera.The DCS-7413 is a professional
surveillance and security solution for small, medium, and large enterprises alike.The DCS-7413 uses a 2 megapixel progressive
scan CMOS sensor; the professional sensor results in low noise and high sensitivity capabilities ideal for surveillance applications.
The DCS-7413 is a complete system built with an ARM SoC CPU that incorporates a web server, allowing it to transmit excellent
real-time Full HD resolution video quality for security and outdoor surveillance.
The DCS-7413 can be accessed remotely, controlled and congured from any PC/Notebook over your local network or through
the Internet via a web browser. The simple installation and intuitive web-based interface oer easy conguration across the
full range of its advanced feature set, including granular control over multiple video streams with dierent congurations and
multicast video/audio streams which helps you manage your network load.
The DCS-7413 has an IP66 certied weatherproof housing designed for both indoor and outdoor applications. The built-in
removable IR-cut lter and IR LEDs give the DCS-7413 the capability to view up to 30M at night.The DCS-7413 also incorporates
Power over Ethernet (PoE), allowing it to be easily installed in a variety of locations without the need for supplemental power
cabling.The combination of IP66 housing, IR-Cut Filter, IR LEDs and PoE make the DCS-7413 an ideal solution for a dependable
and cost-eective 24 hour surveillance solution with an easy clutter-free installation.
• ComputerwithMicrosoftWindows®7,Vista®,orXP(forCD-ROMSetupWizard),MacOSorLinux
• PCwith1.3GHzorabove;atleast128MBRAM
• InternetExplorer7orabove,Firefox3.5orabove,Safari4andChrome8.0orabove
• Existing10/100Ethernet-basednetwork
• AnSDmemorycard(optional)isrequiredforrecordingtoonboardstorage.SDHCClass6oraboveisrecommended.
• BroadbandInternetconnection
System Requirements

6D-Link DCS-7413 User Manual
Section 1: Product Overview
Simple to Maintain
TheDCS-7413isastand-alonesystemwithabuilt-inCPU,requiringnospecialhardwareorsoftware.TheDCS-7413supportsbothActiveXmode
forInternetExplorerandJavamodeforotherbrowserssuchasChrome®,Firefox®andSafari®.
Supports a Variety of Platforms
Supporting TCP/IP networking, HTTP, and other Internet related protocols. The DCS-7413 can also be integrated easily into other Internet/Intranet
applications because of its standards-based features.The DCS-7413 works with any 10/100 Ethernet network, making the DCS-7413 easy to integrate
into your existing network environment.
Advanced Event Management
The DCS-7413 can be set up to send e-mail notications with snapshots when an event occurs, such as when motion is detected. Events can be
triggered from several sources, such as motion detection, timer based events or digital input based events.
Automatic Thermostat Temperature Regulation
The DCS-7413 monitors and automatically regulates its temperature to ensure it can perform at its optimal ability. It balances fan use against a built
in heater based on a range of preset thermostatic settings. This gives the DCS-7413 the ability to perform in the most demanding of environments.
Remote Monitoring Utility
The D-ViewCam application adds enhanced features and functionality for the Network Camera and allows administrators to congure and access
the Network Camera from a remote site via Intranet or Internet. Other features include image monitoring, recording images to a hard drive, viewing
up to 32 cameras on one screen, and taking snapshots.
IR LED for Day and Night Functionality
The built-in infrared LEDs enables night time viewing of up to 30 meters (98 feet).
IP66 Weatherproof Housing
The DCS-7413 uses an IP66 weatherproof housing, allowing you to rest assured that in the toughest of conditions, it will continue to provide round-
the-clock surveillance.
PoE (Power over Ethernet) for Flexible Installation
The DCS-7413 can draw all the power it needs from a PoE switch or PoE injector for a simple and clutter-free installation.
Features

7D-Link DCS-7413 User Manual
Section 1: Product Overview
Front
Hardware Overview

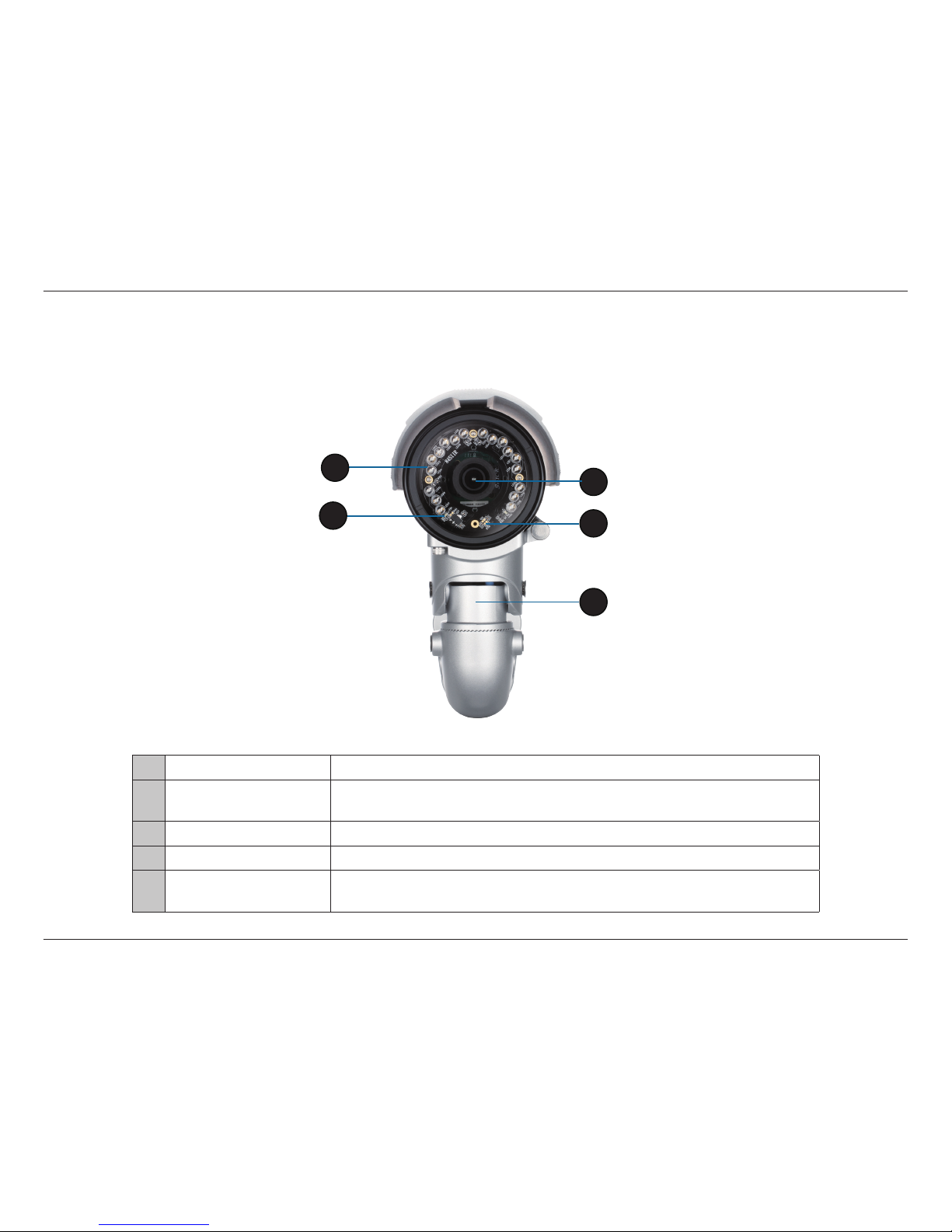

1 Camera Lens Fixed lens to record video of the surrounding area
2 ICR Sensor The IR-Cut Removable sensor measures the lighting conditions and switches
between color and infrared accordingly
3 IR LEDs Infrared LEDs illuminate the camera's eld of view at night
4 Power/Status LED Indicates the camera's current status
5 Weatherproof Casing The camera is housed in an IP66 certied weatherproof casing, which protects
it against rain and dust.
1
2
3
4
5

8D-Link DCS-7413 User Manual
Section 1: Product Overview
Sides

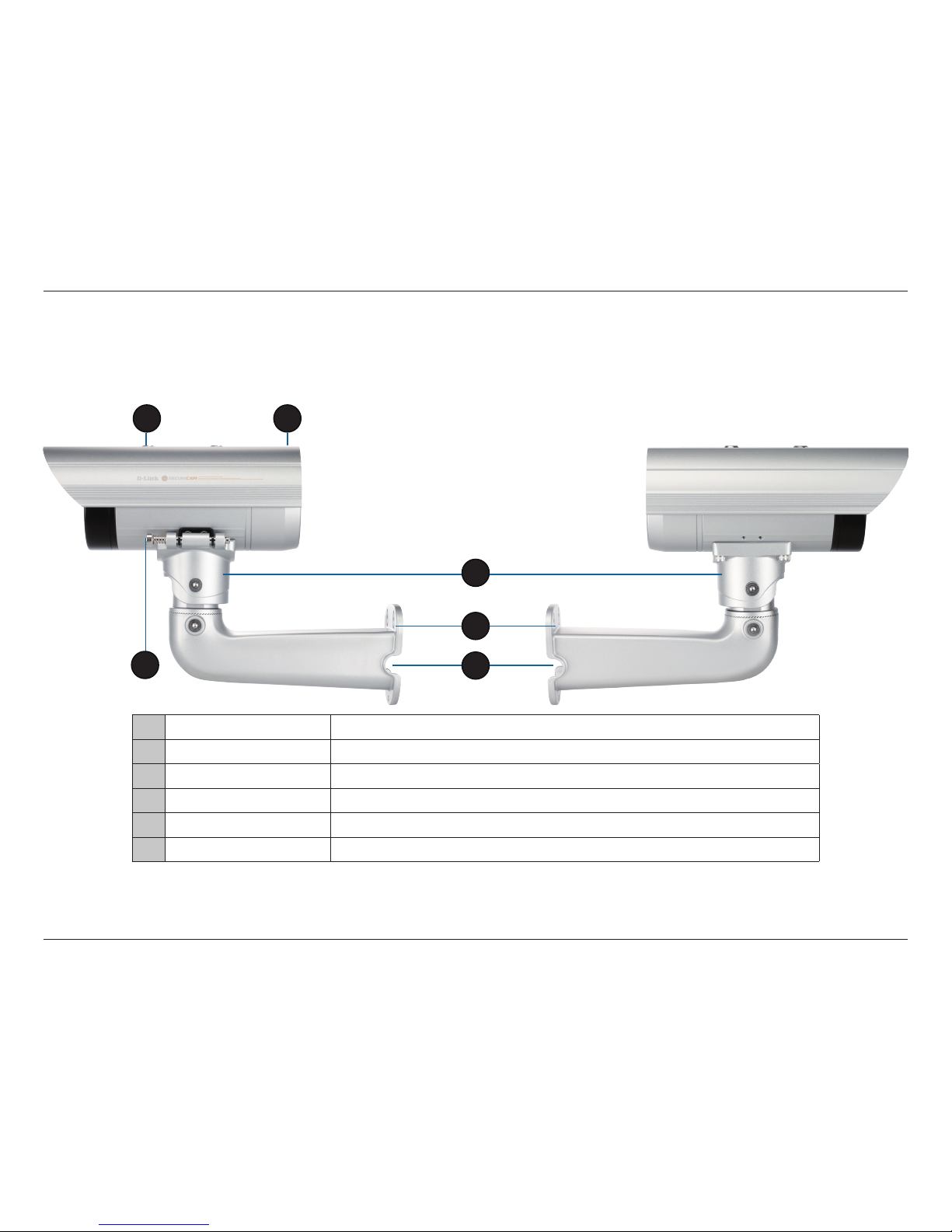

1 Adjustable Top Shield Shields the camera sensor from direct sunlight.
2 Adjustment Screw Allows adjustment of the Top Shield.
3 Camera Shoe Adjustable mounting seat.
4 Wire in Bracket Tightly assembles and protects the cables from outdoor wear and tear.
5 Cable Channel Channel for cable placement.
6 Quick Release Rod Allows the camera to be swiveled into position for easy maintenance.
5
12
3
4
6

9D-Link DCS-7413 User Manual
Section 1: Product Overview

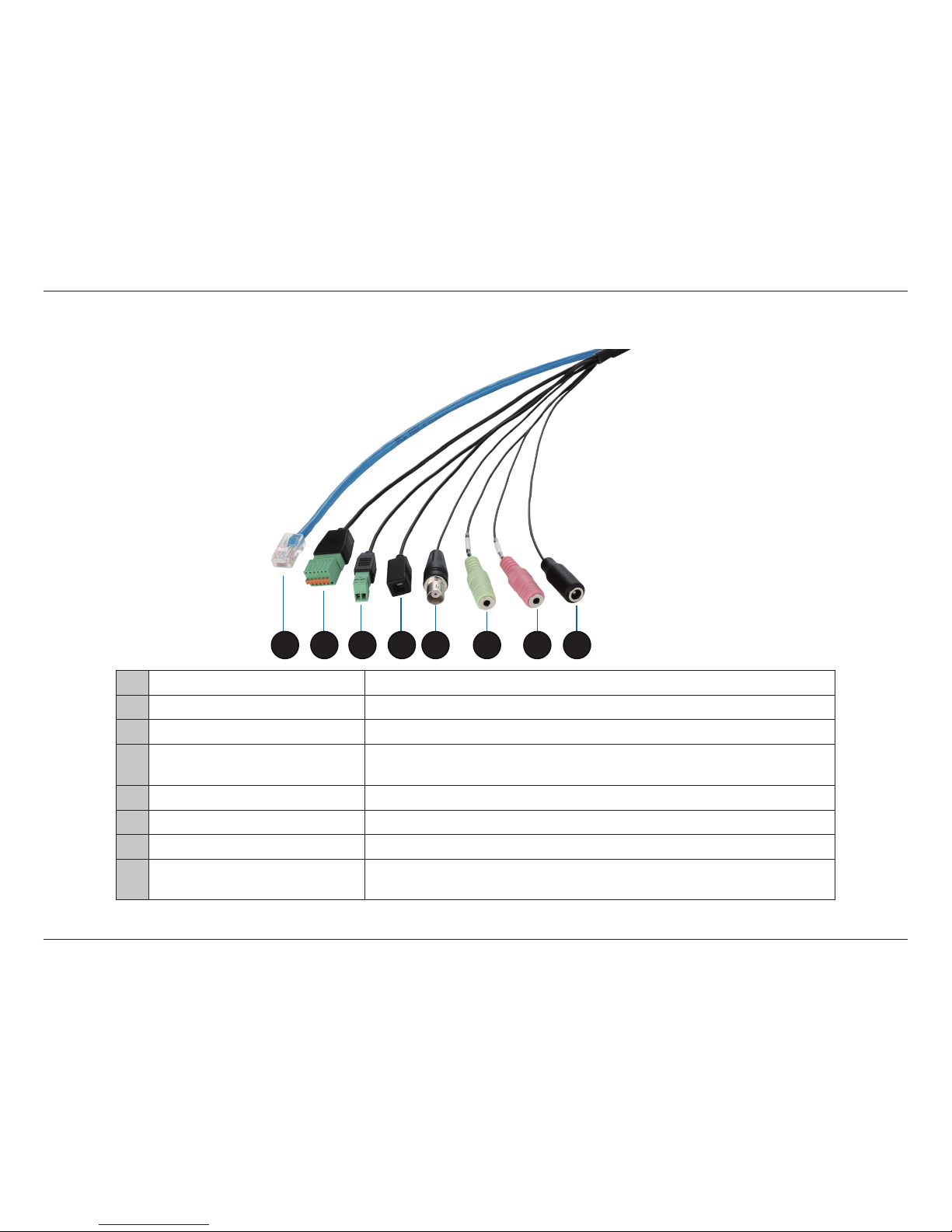

Cable Harness
1 Power Connector Power connector for the provided 12V DC power adapter.
2 Audio In (Red) Connects to a microphone.
3 Audio Out (Green) Connects to a speaker.
4 BNC Connector The BNC connector is recommended for use with handheld monitors to
check the Field of View during installation.
5 Reset Button Press and hold the recessed button for 10 seconds to reset the camera.
6 24 V Power Connector Connects to 24 V AC power supply.
7 DI/DO Connector I/O connectors for external devices. 12V DC output.
8 Ethernet Jack Connects to an RJ45 Ethernet port. Can be replaced with a PoE cable to provide
power to the camera.
1456 3 278

10D-Link DCS-7413 User Manual
Section 1: Product Overview
Internal

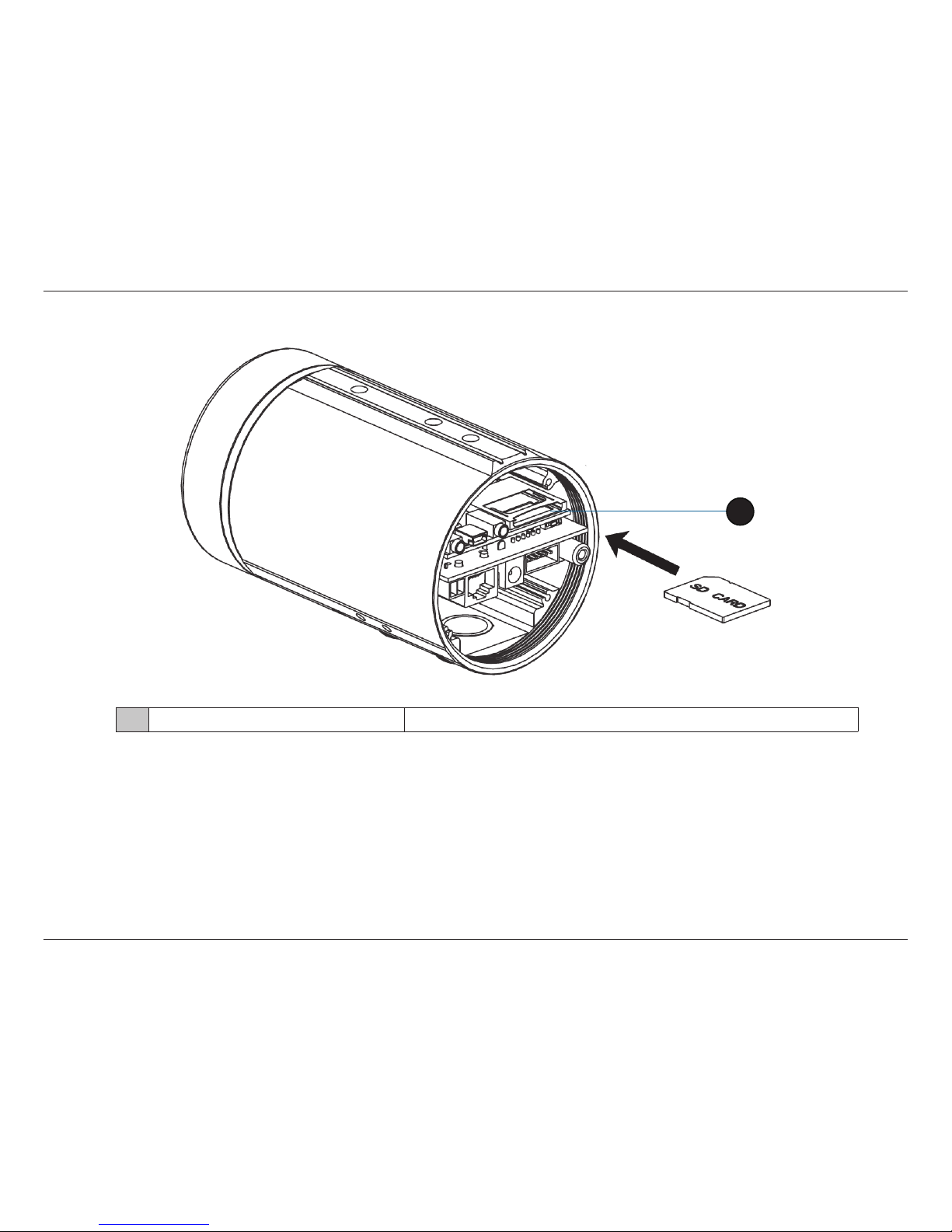

1 SD Card Slot Insert an SD card for Local storage for storing recorded image and video
1
Note: For step-by-step instruction on how to insert an SD card please skip to "Installing an SD Card" on page 11.

11D-Link DCS-7413 User Manual
Section 2: Assembly and Installation
Assembly and Installation

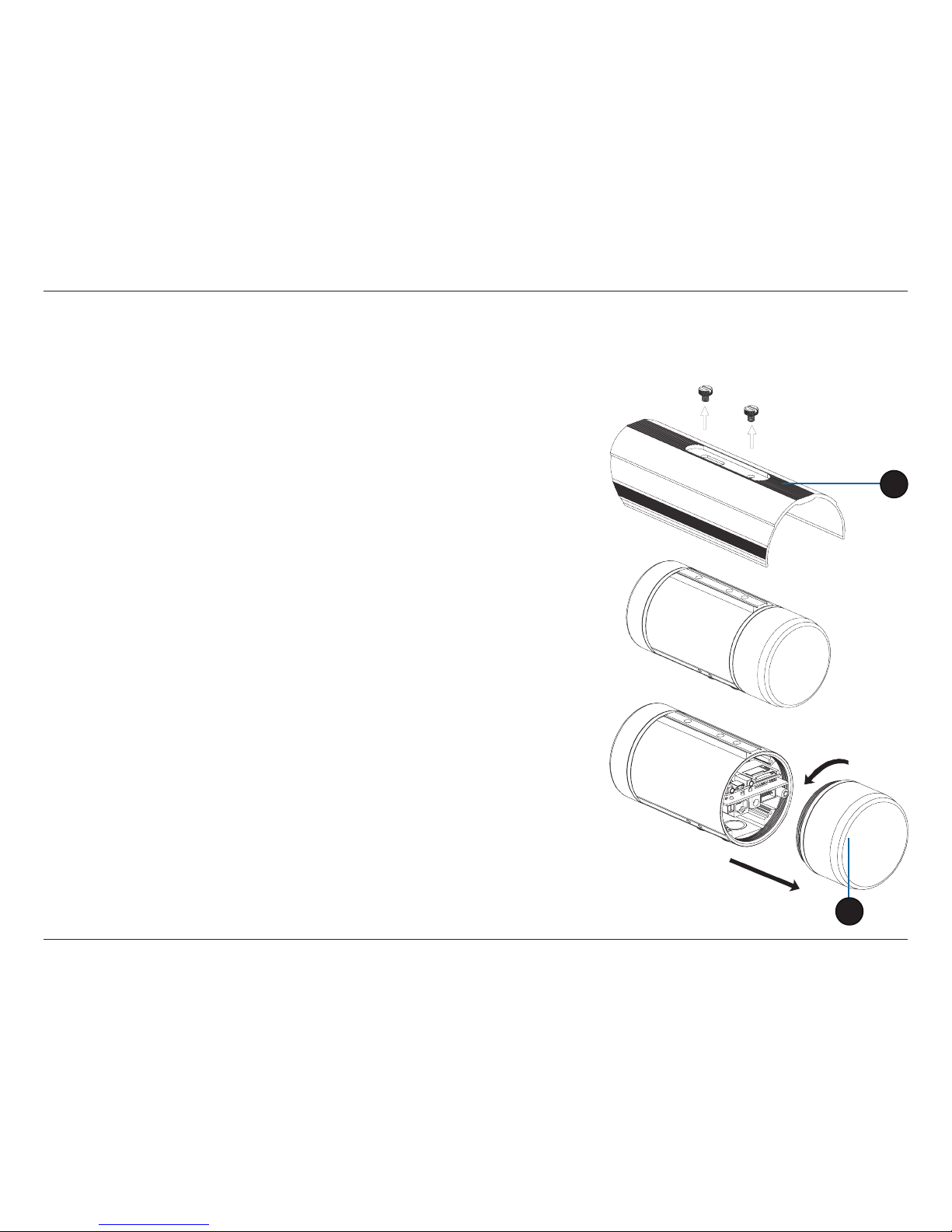

Installing an SD Card
3
Step 1
Place the camera face down on a non-slip at surface.
Step 3
Remove the base of the camera by holding the camera rmly and rotating the base in a counter
clockwise direction.
2
Step 2
Remove the adjustable top shield by removing the two retaining screws.

12D-Link DCS-7413 User Manual
Section 2: Assembly and Installation
5
Step 5

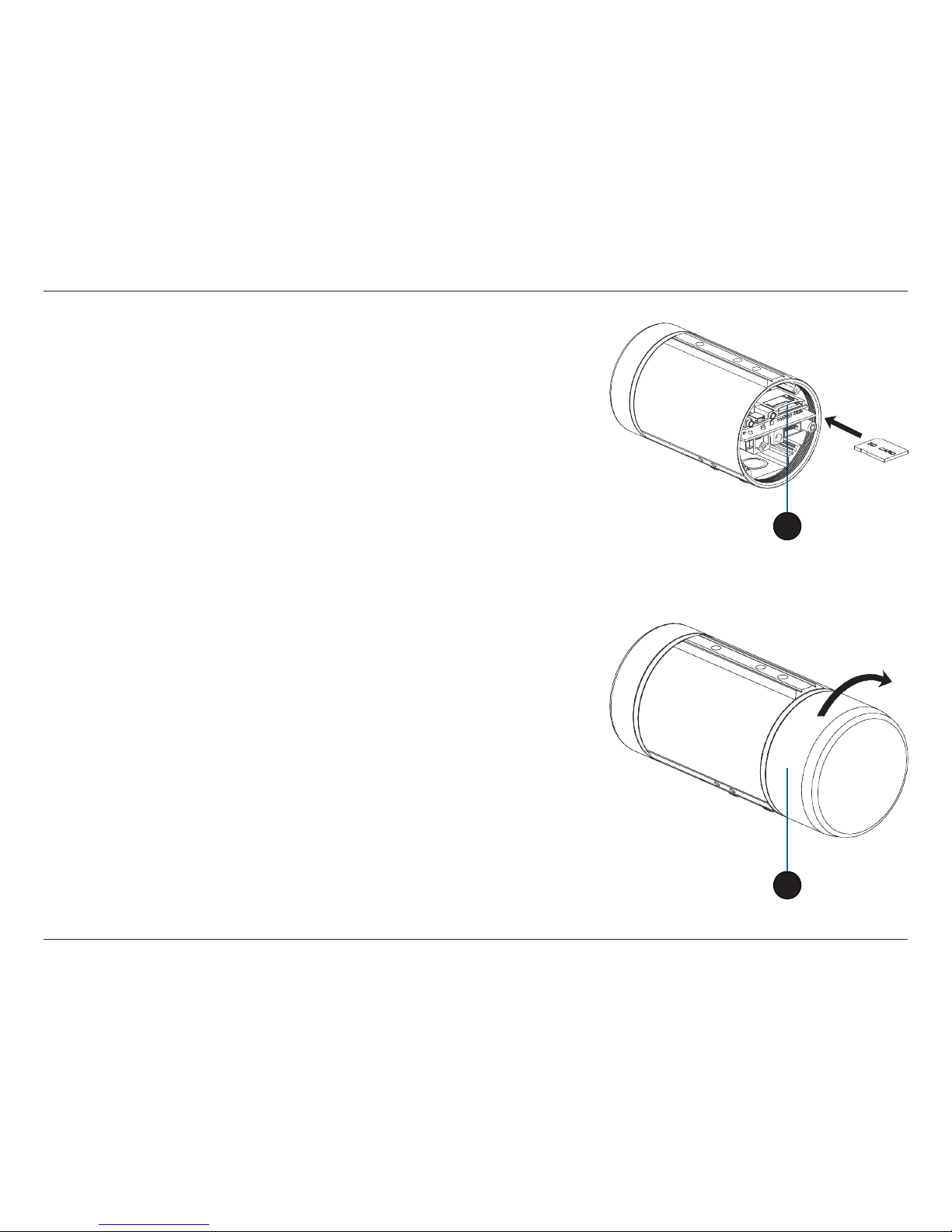

Replace the base of the camera by holding the camera rmly and rotating the base in a clockwise
direction ensuring a tight t.
Note: Users are advised to ensure that the weatherproof seals are secured rmly in place.
4
Step 4
Insert your SD memory card into the slot with the notch oriented to the fore of the camera.

13D-Link DCS-7413 User Manual
Section 2: Assembly and Installation
Mounting the Camera
The DCS-7413 is suitable for mounting to a wall using the camera shoe and wire-in bracket provided.

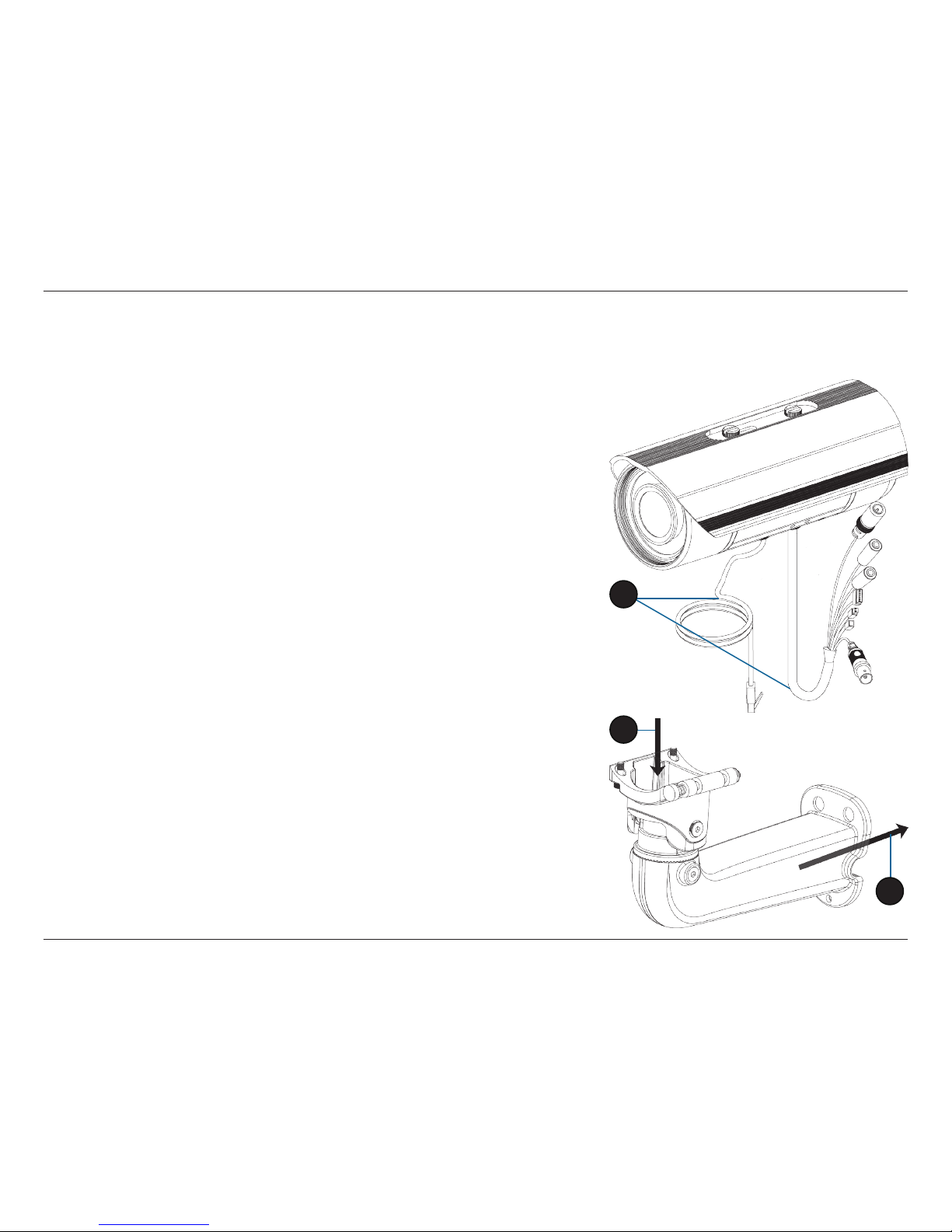

Step 1
Straighten the two sets of cables from the camera side by side.
Step 2
Pass individual cables into the wire-in bracket ensuring the head of each has fully
passed through the bend.
Step 3
Once all the cables are in the wire-in bracket push the cable until you are able to
pull them through the base of the bracket.
Step 4
Attach the camera bracket to the wire-in bracket following the steps outlined in
"Attaching the Camera to the Wire-in Bracket" on page 14.
3
2
1

14D-Link DCS-7413 User Manual
Section 2: Assembly and Installation
Attaching the Camera to the Wire-in Bracket
Step 1

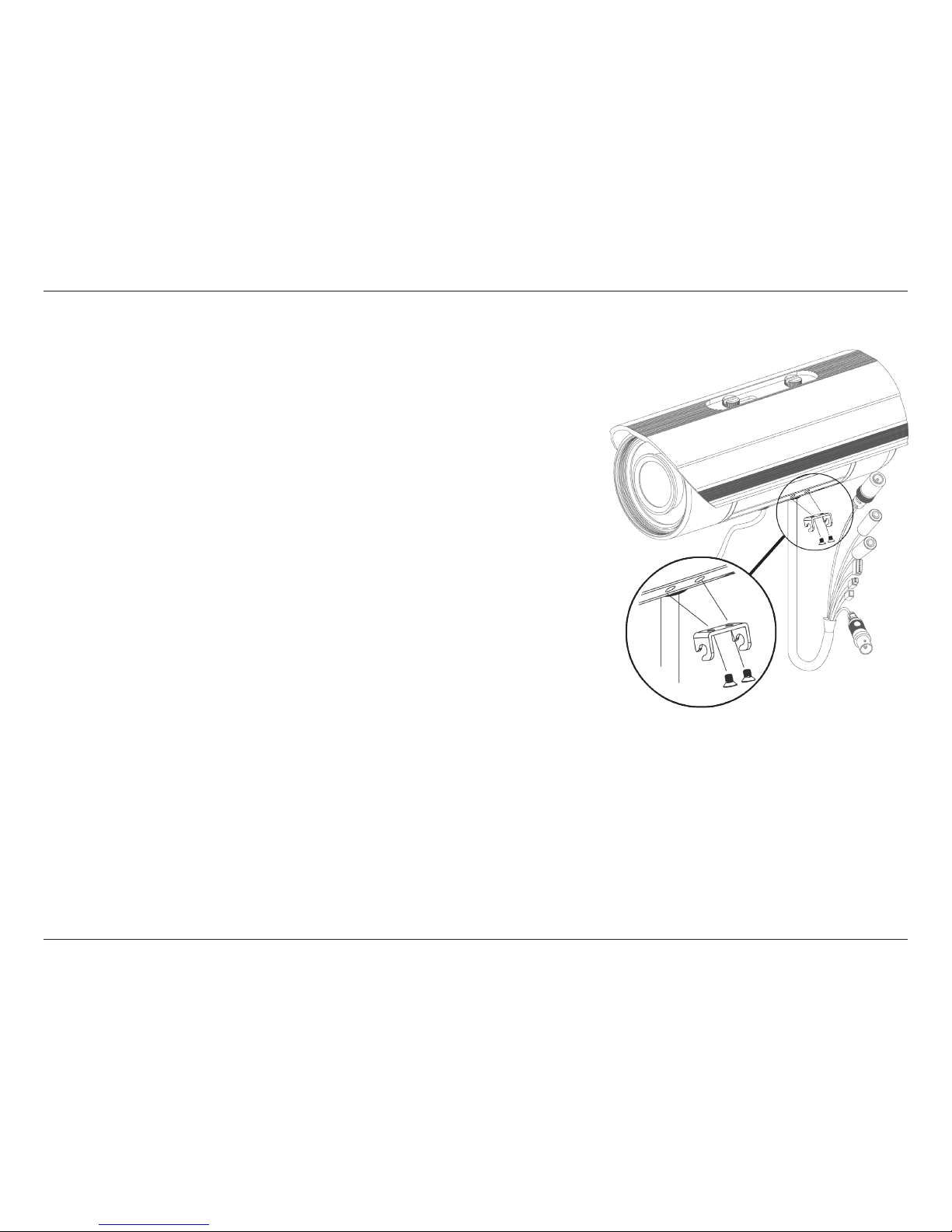

Using the two screws provided attach the quick release retention clip to the
underside of the camera.
Note:
Before attaching the camera to the wire-in bracket, ensure the camera shoe
is oriented correctly for its nal position. For instructions on how to orient the
camera shoe skip to "Orienting the Camera" on page 16.

15D-Link DCS-7413 User Manual
Section 2: Assembly and Installation

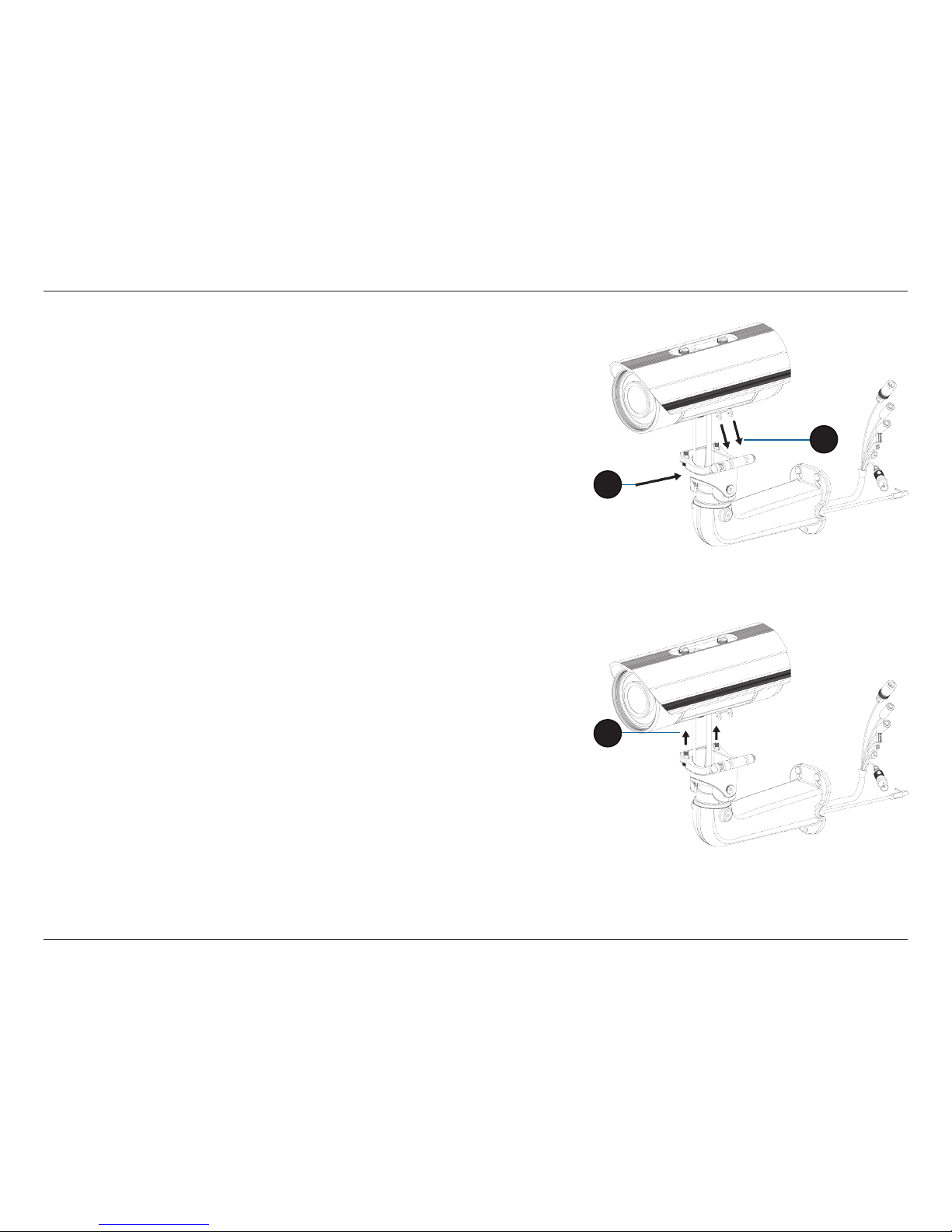

Step 2
Push the quick release rod to reveal the attachment notches.
Step 3
Slot the quick release retention clip over the quick release rod.
Step 4
Allow the quick release rod to return.
3
2
Step 5
Using the Allen Wrench provided, tighten the two remaining xing bolts.
5

16D-Link DCS-7413 User Manual
Section 2: Assembly and Installation
Orienting the Camera

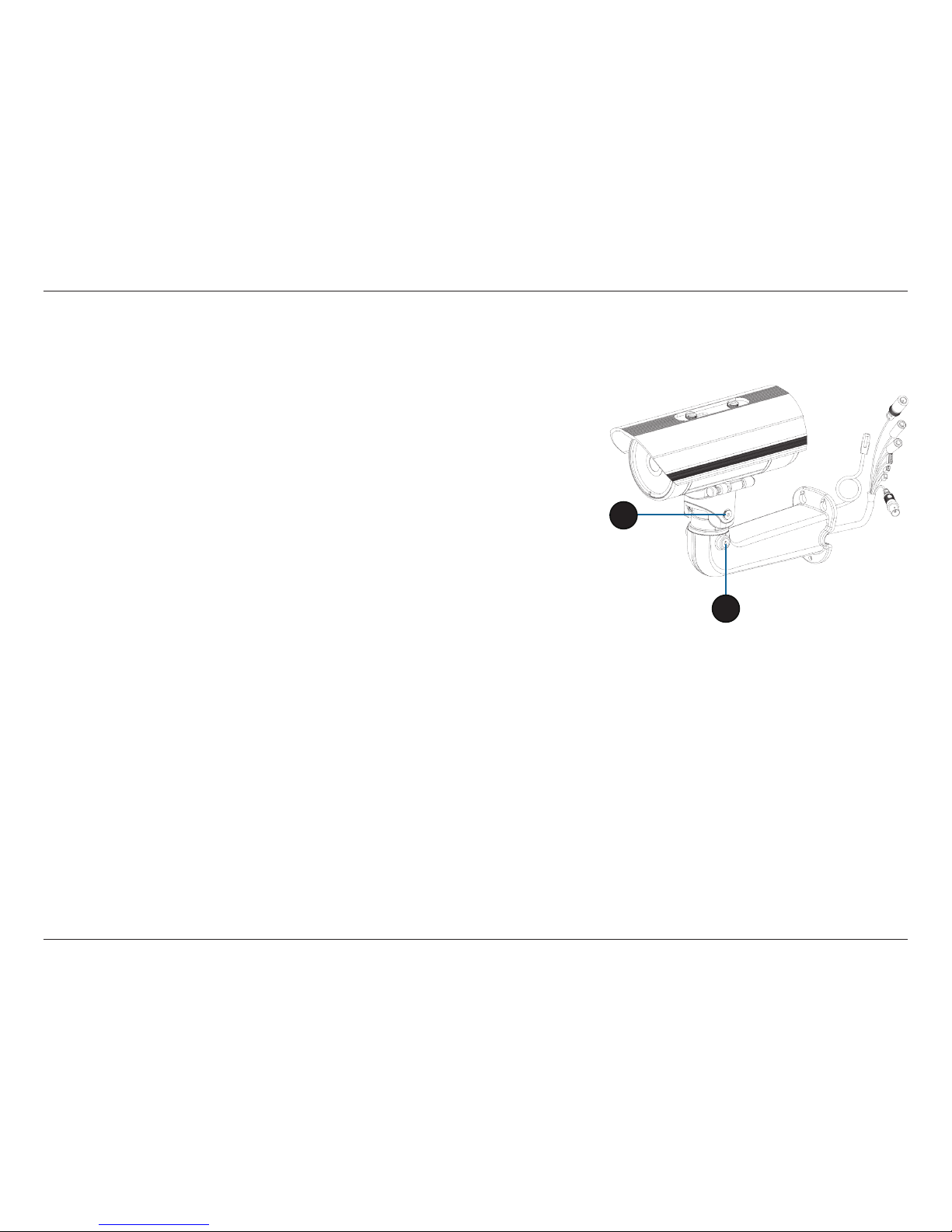

Step 1
Using the AllenWrench provided, loosen the adjusting bolts on both sides of the
camera shoe. This will allow you to adjust the vertical orientation of the camera.
Step 2
Firmly tighten the adjustment bolts on both sides of the camera shoe.
Step 3
Using the Allen Wrench provided, loosen the adjusting bolts on both sides of
the wire-in bracket. This will allow you to adjust the horizontal orientation of
the camera.
Step 4
Firmly tighten the adjustment bolts on both sides of the wire-in bracket.
The DCS-7413 can be adjusted to ensure an optimal viewing position when mounted to a wall by following the steps outlined.
1
3

17D-Link DCS-7413 User Manual
Section 2: Assembly and Installation

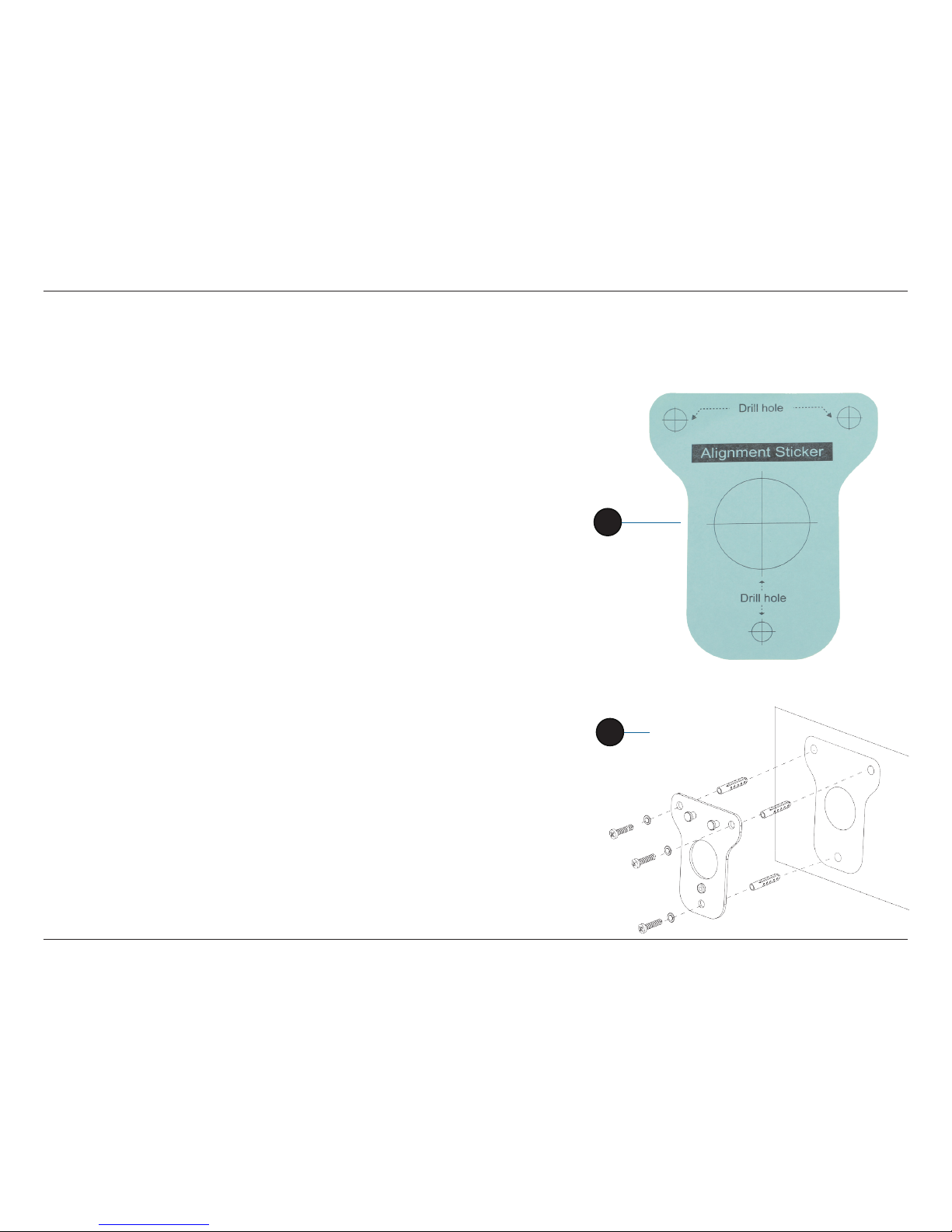

Step 1
Position the Alignment Sticker in the desired location making sure the Camera
and Wire-in-Bracket have sufficient space. Use the dimension diagrams in
"Dimensions" on page 68 for additional reference.
Step 2
Use a 6mm drill bit to make required holes approximately 30mm deep.
Step 3
Remove the Alignment Sticker.
Step 4
Insert wall anchors and ax the mounting plate using the screws provided.
1
4
Deploying the Camera
Note: Before deploying the camera to a xed location, it is recommended that you take a photo from the desired location to
ensure an adequate eld-of-view.

18D-Link DCS-7413 User Manual
Section 2: Assembly and Installation

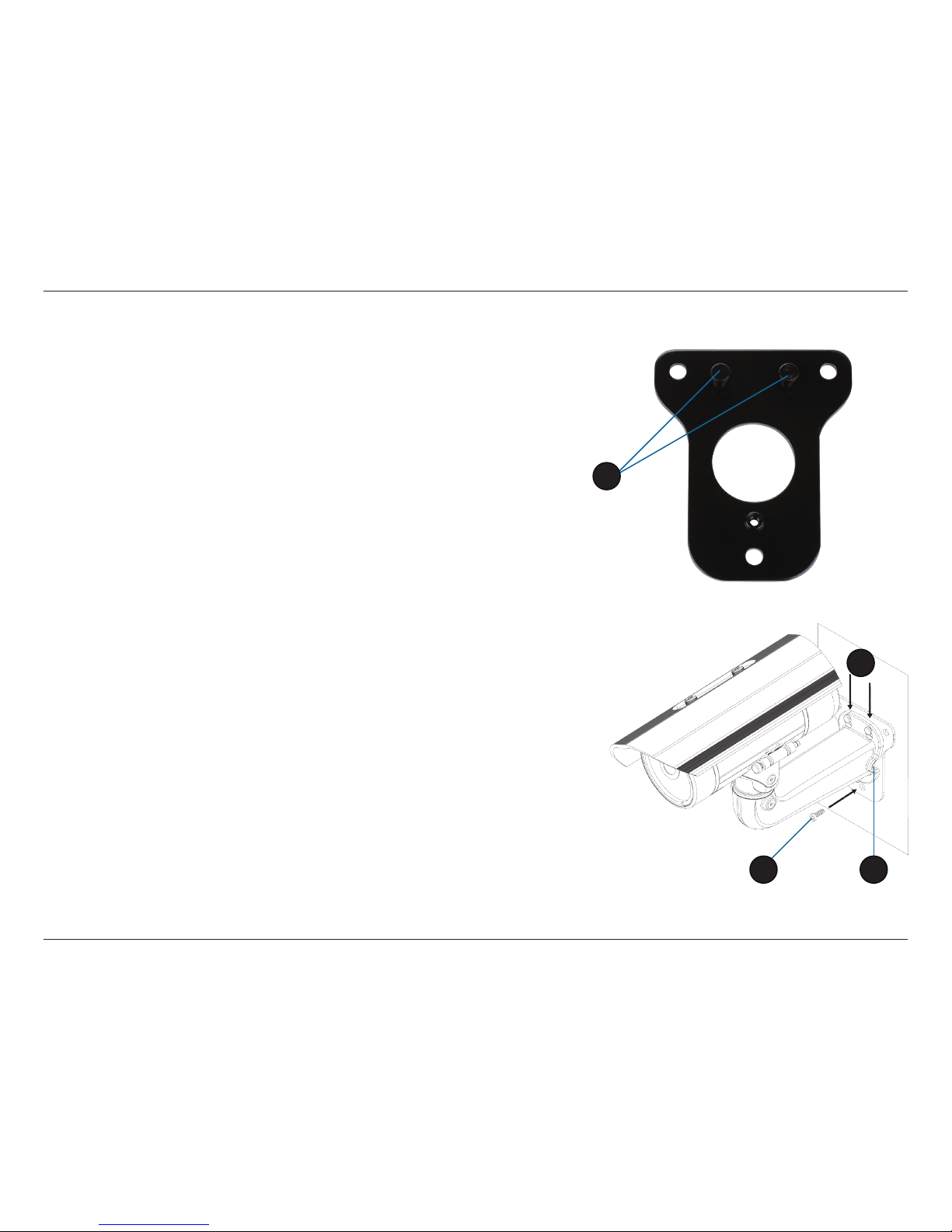

Step 5
Suspend the camera and wire-in bracket from the two lugs on the mounting plate.
Step 6
Fasten the camera rmly to the mounting plate using the screw provided ensuring
clear passage for the cables through the cable channel or via the mounting plate
cut-out.
5
5
66

19D-Link DCS-7413 User Manual
Section 2: Assembly and Installation
Camera Installation Wizard
Step 1
Connect the network camera to a hub via an Ethernet cable.
Step 2
Connect the supplied power cable from the camera to a power outlet.

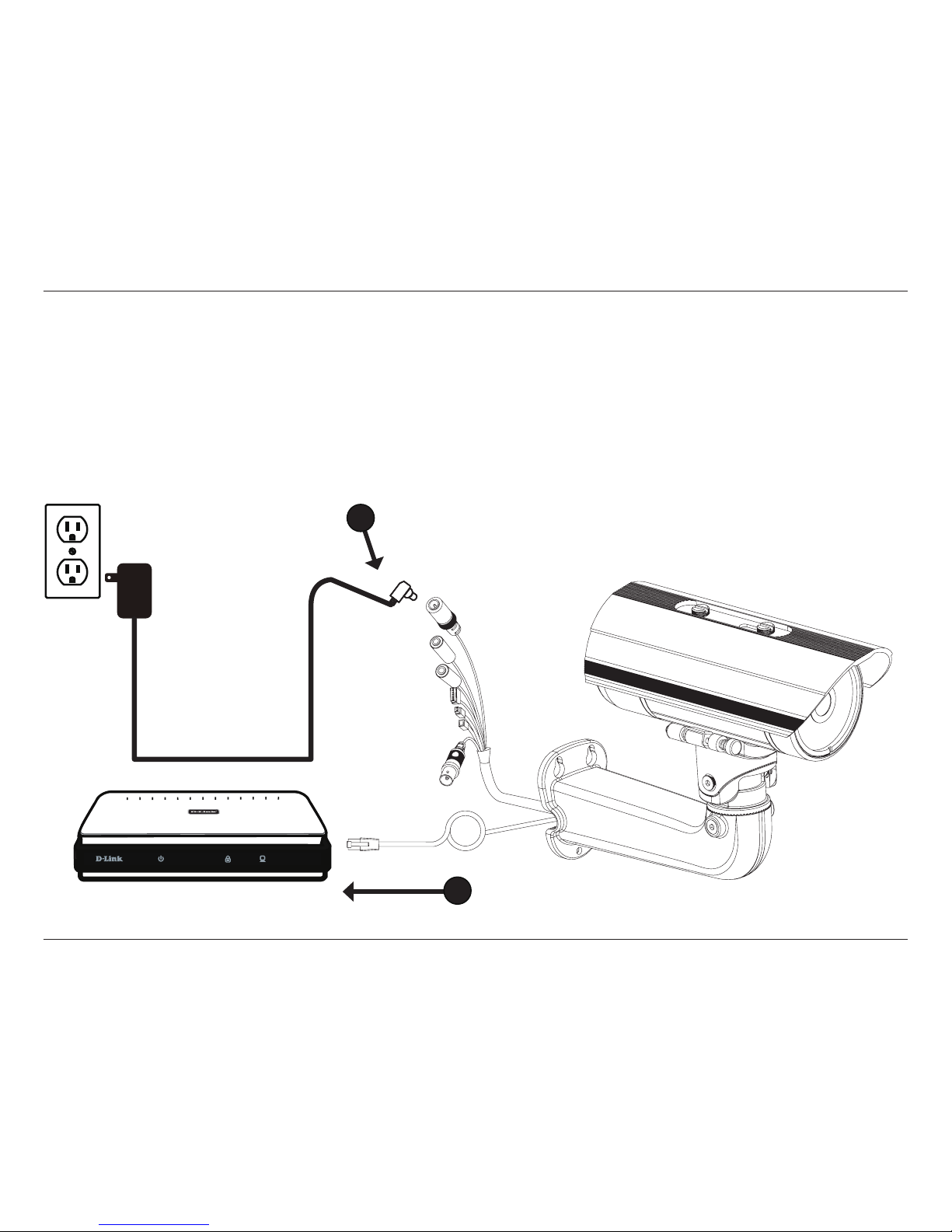

Connection with 12 V DC Power Adapter
2
1

20D-Link DCS-7413 User Manual
Section 2: Assembly and Installation
Step 1
Connect the network camera to a hub via an Ethernet cable.
Step 2
Connect the supplied power cable from the camera to a power source such as your building's emergency power.

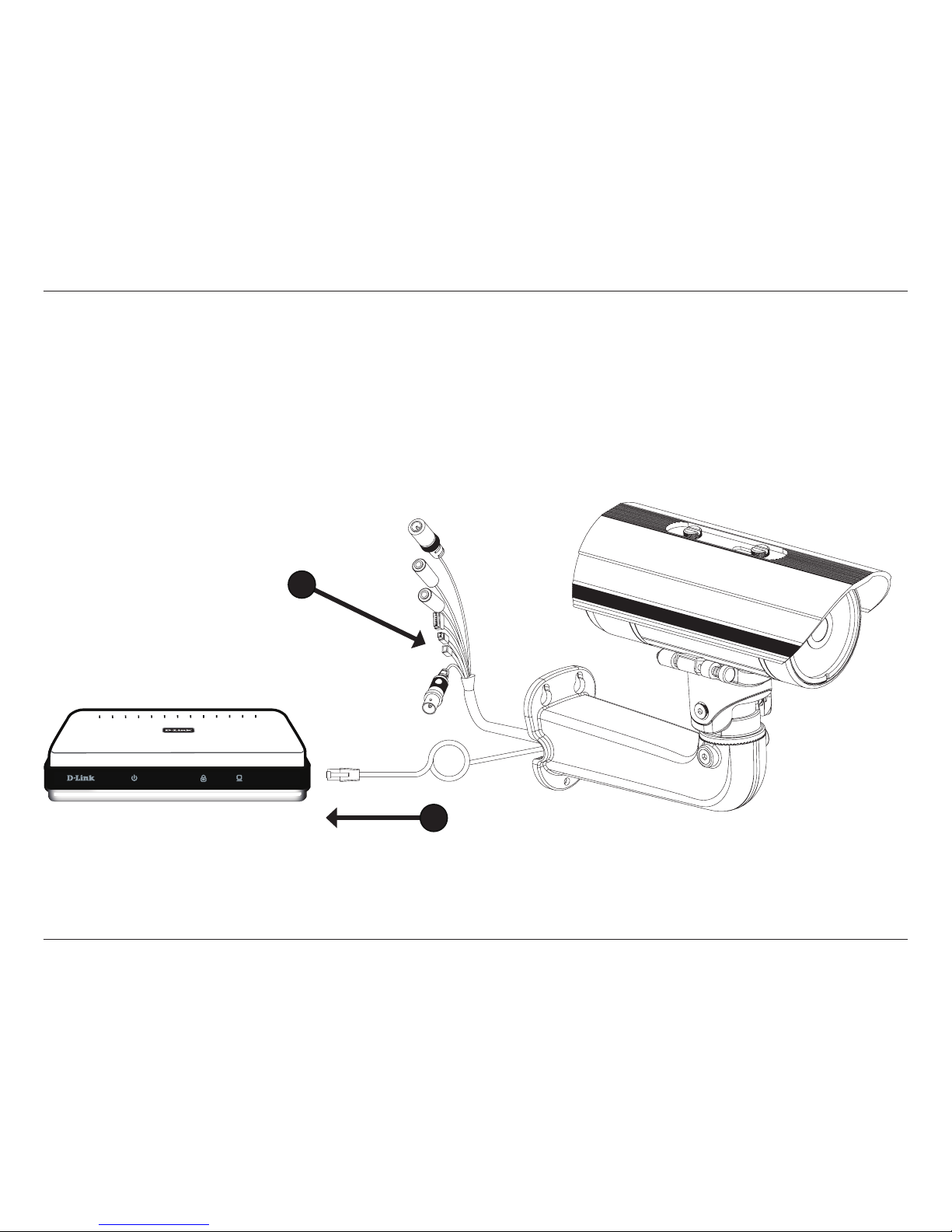

Connection with 24 V AC Power Wiring
1
2
