D-Link DCS-4701E User manual

This document will guide you through the
basic installation process for your new
D-Link Network Camera.
DCS-4701E
Documentation also available on
CD and via the D-Link Website
Quick Installation Guide
Vigilance HD Outdoor PoE Mini Bullet Camera
Quick Installation Guide
Installationsanleitung
Guide d’installation
Guía de instalación
Guida di Installazione
Краткое руководство по установке
Guia de Instalação Rápida
快速安裝指南
Petunjuk Pemasangan Cepat

1
D-Link DCS-4701E Quick Installation Guide 1
ENGLISH
Quick Installation Guide
This installation guide provides basic instructions for installing the Network Camera on
your network. For additional information about how to use the camera, please see the
User Manual which is available on the CD included in this package or from the D-Link
support website.
Package Contents
DCS-4701E Vigilance HD Outdoor PoE Mini Bullet Camera
Cable Waterproong Connector
Rubber Power Connector Plug
Mounting Kit
Manual and Software on CD-ROM
Quick Installation Guide
If any of the above items are missing, please contact your reseller.
Safety Notice:
Installation and servicing should be done by certied technicians so as to conform to all
local codes and prevent voiding your warranty.

2D-Link DCS-4701E Quick Installation Guide
2
ENGLISH

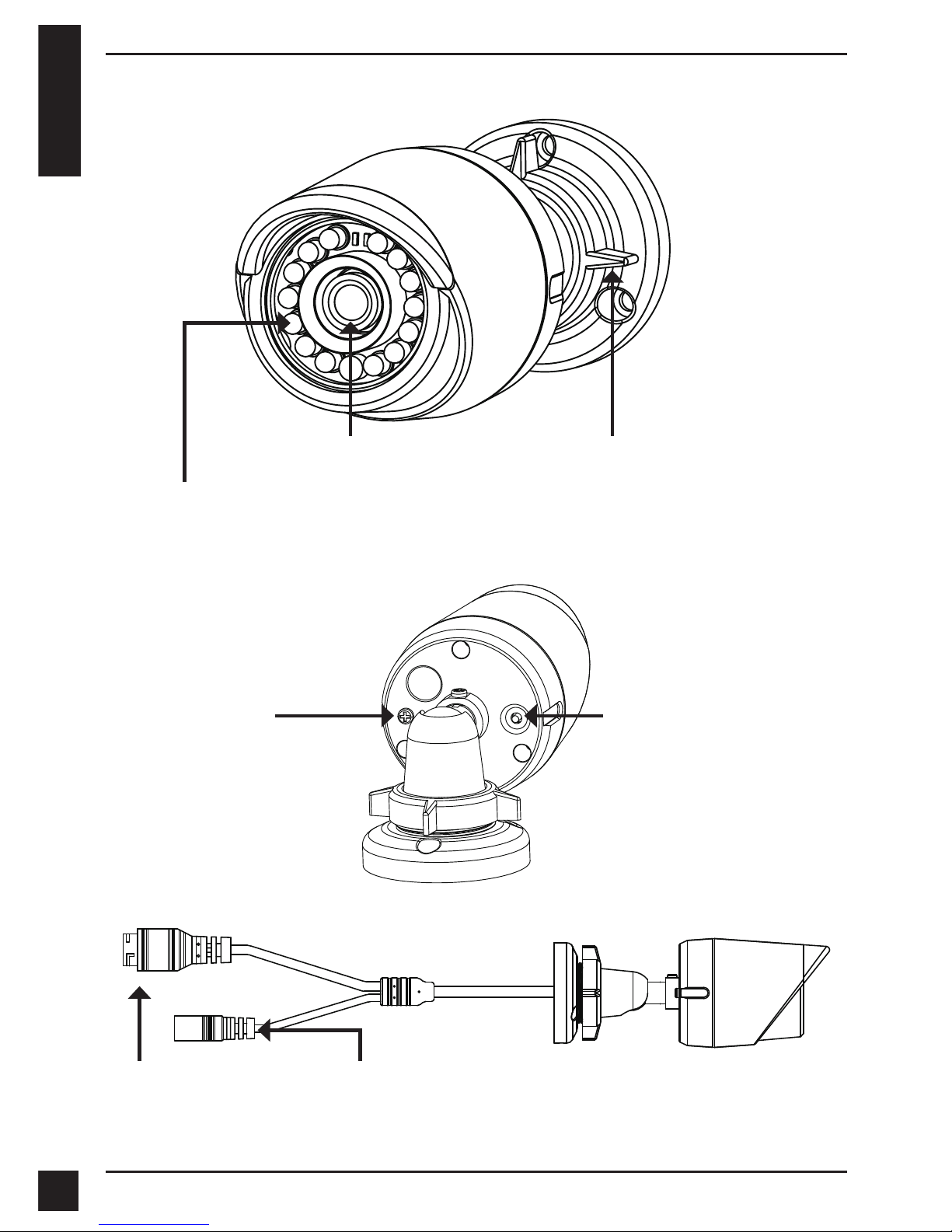

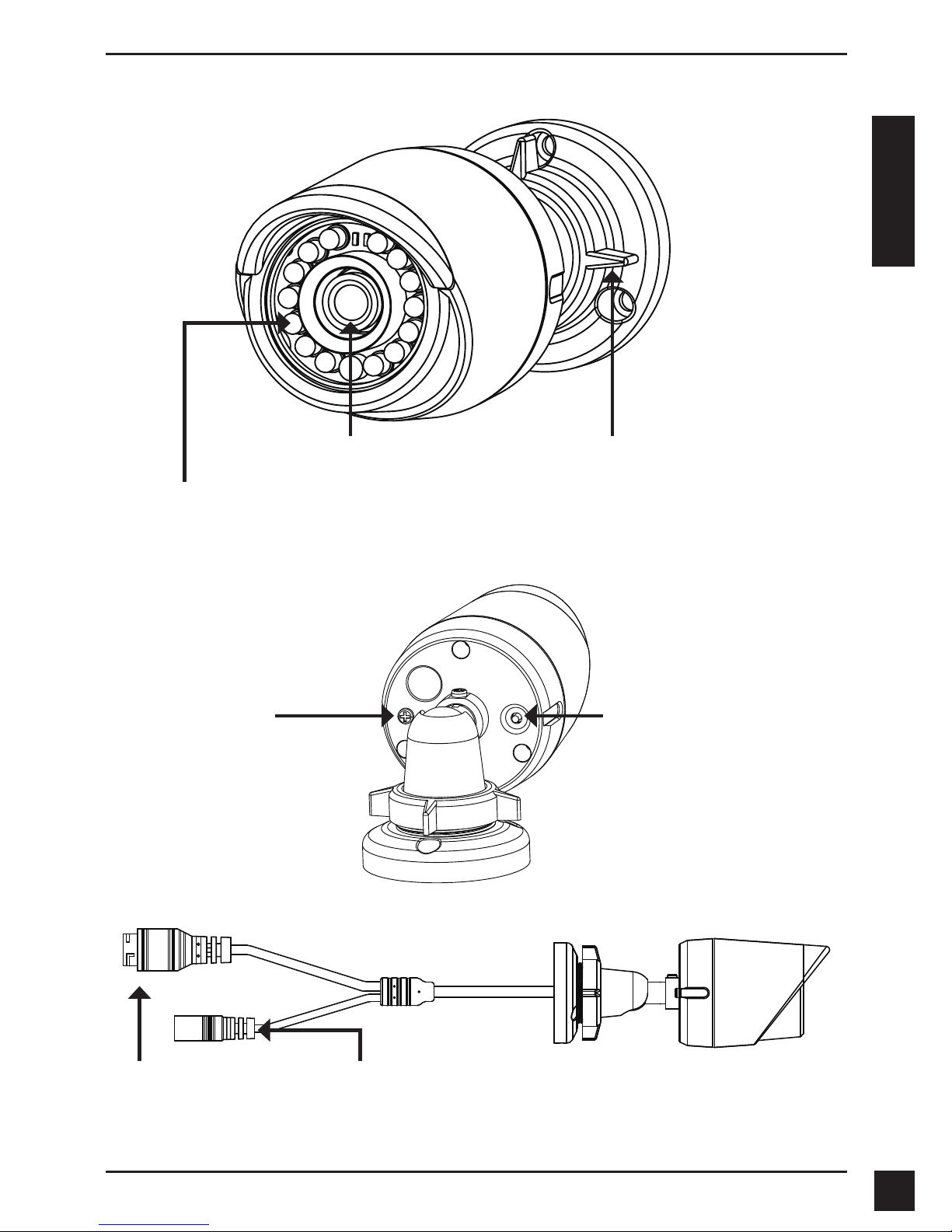

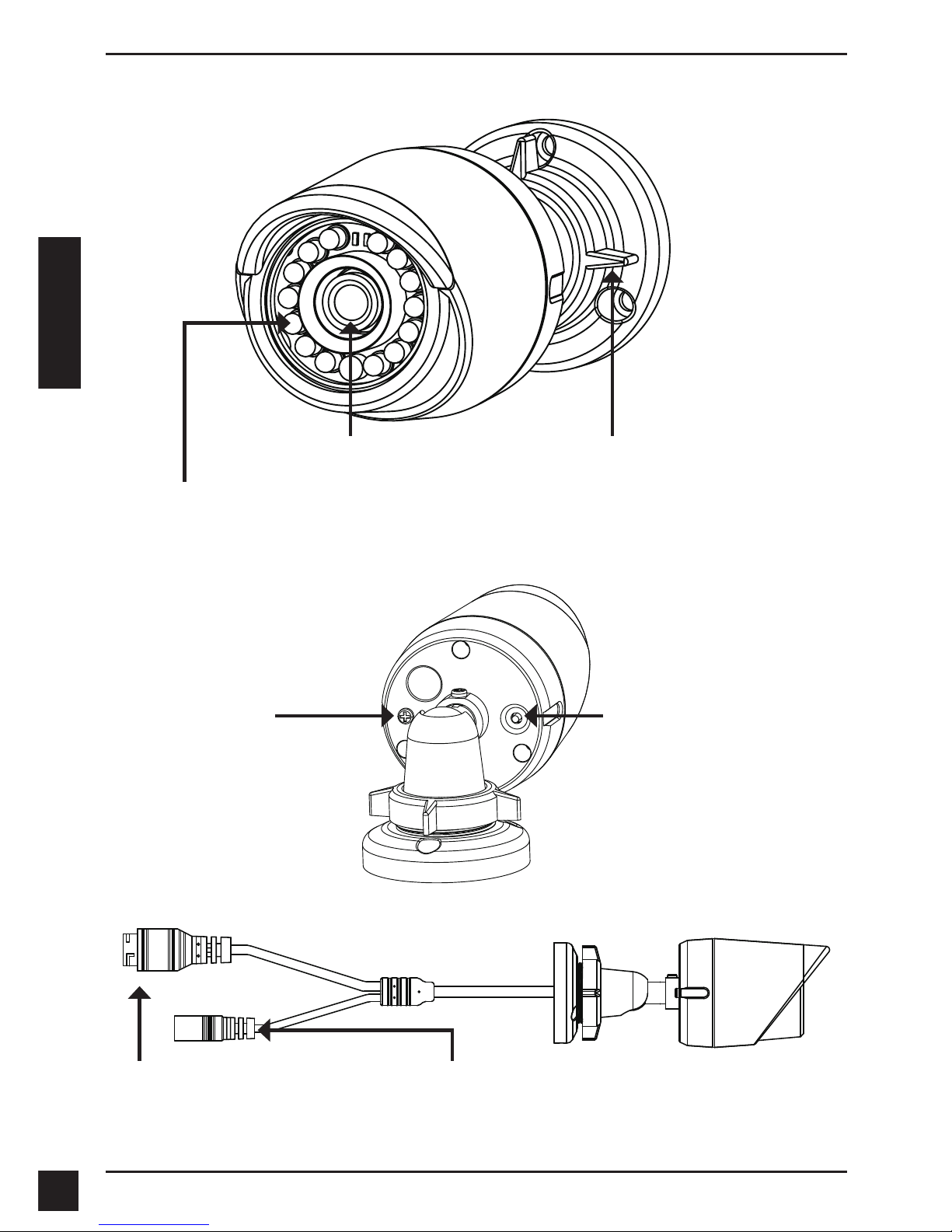

Hardware Overview
Camera Lens
IR LEDs
Provide illumination for low-light
environments
Adjustment Ring
Loosen to adjust camera angle
and tighten to lock camera angle
Reset Button
Press and hold for 10 seconds to
reset camera back to the factory
default settings
Grounding Screw
Can be attached to a
grounding wire if desired
Power Connector
Connects to an optional 12 V / 1.5 A
power adapter (not included)
Ethernet Jack
RJ-45 connector for Ethernet,
can also be used to power
the camera using Power over
Ethernet (PoE)

3
D-Link DCS-4701E Quick Installation Guide 3
ENGLISH

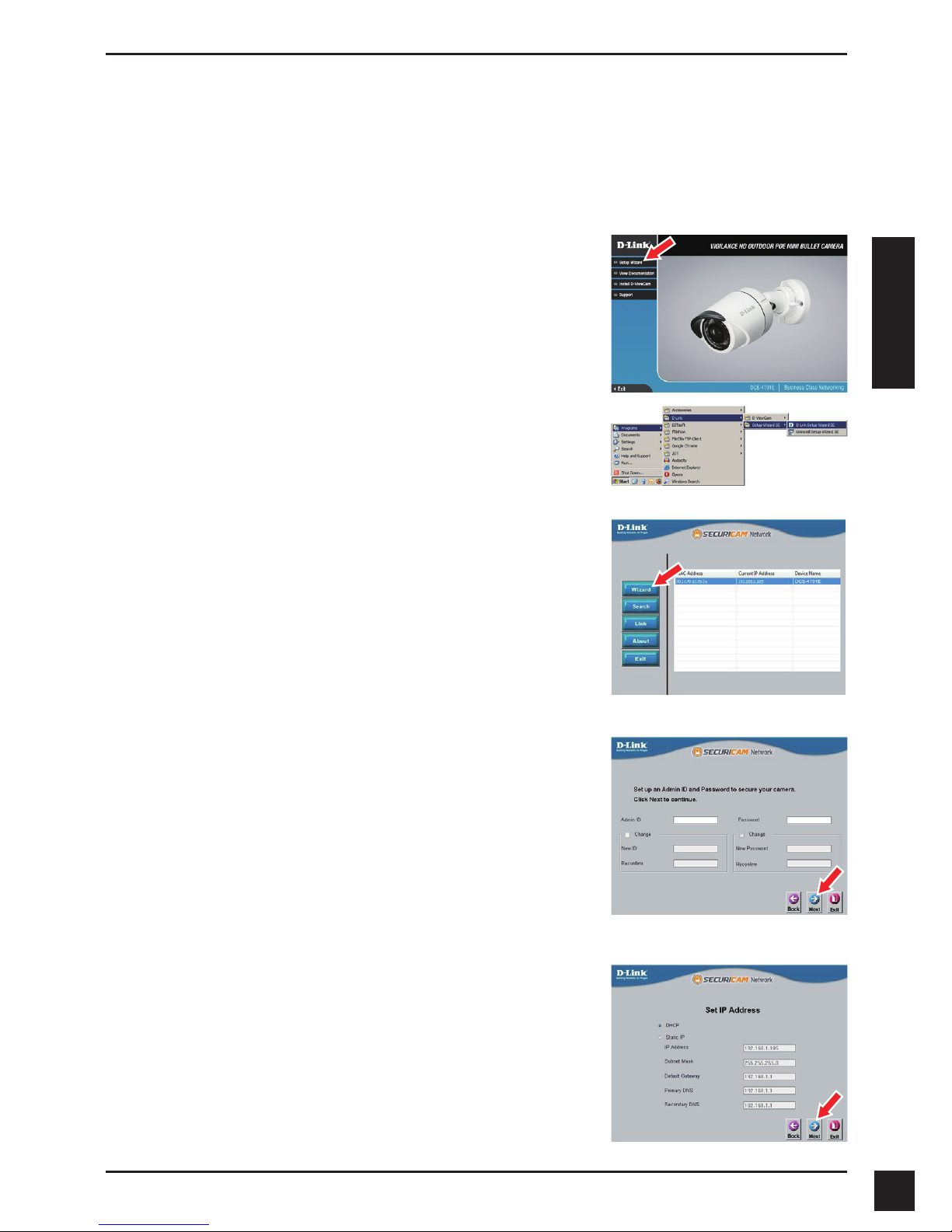

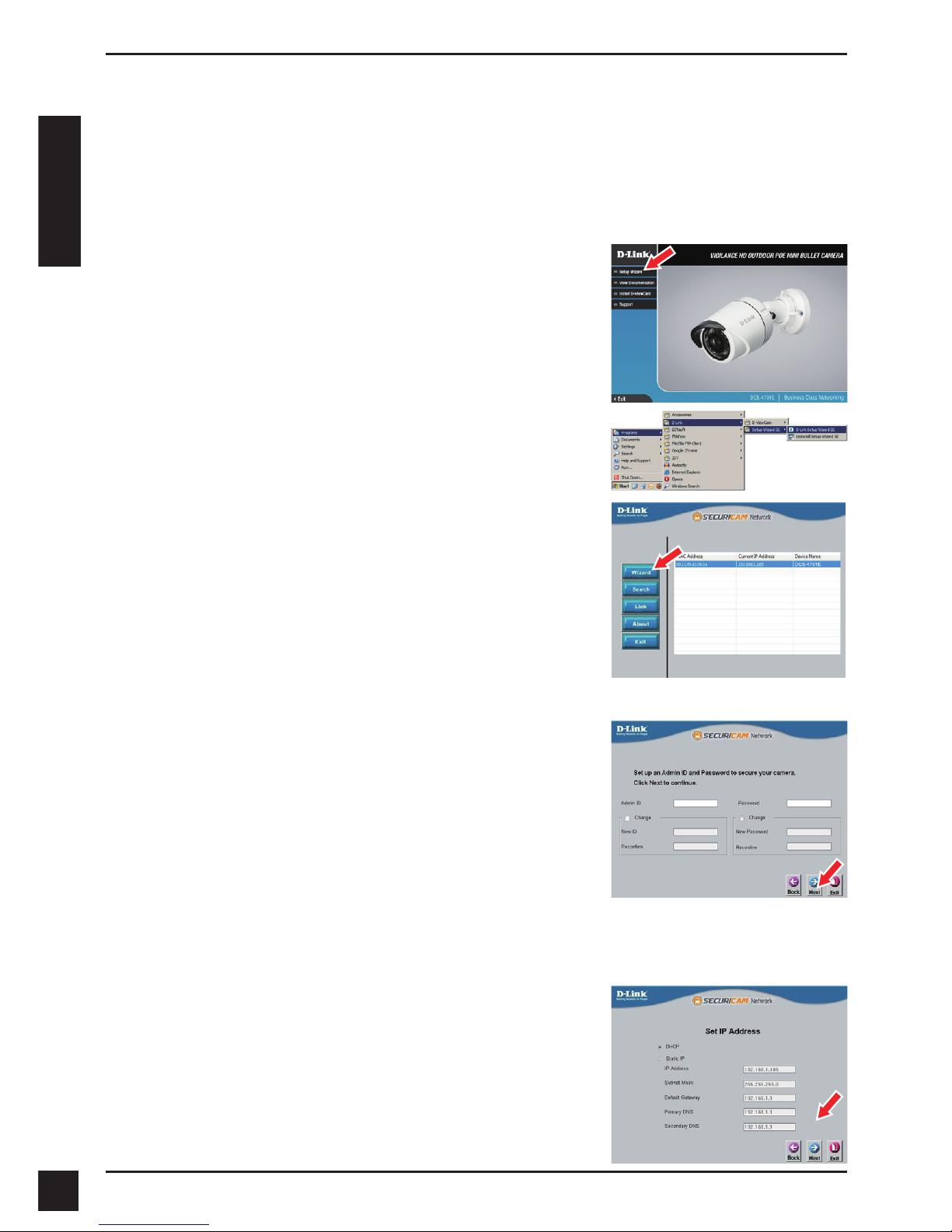

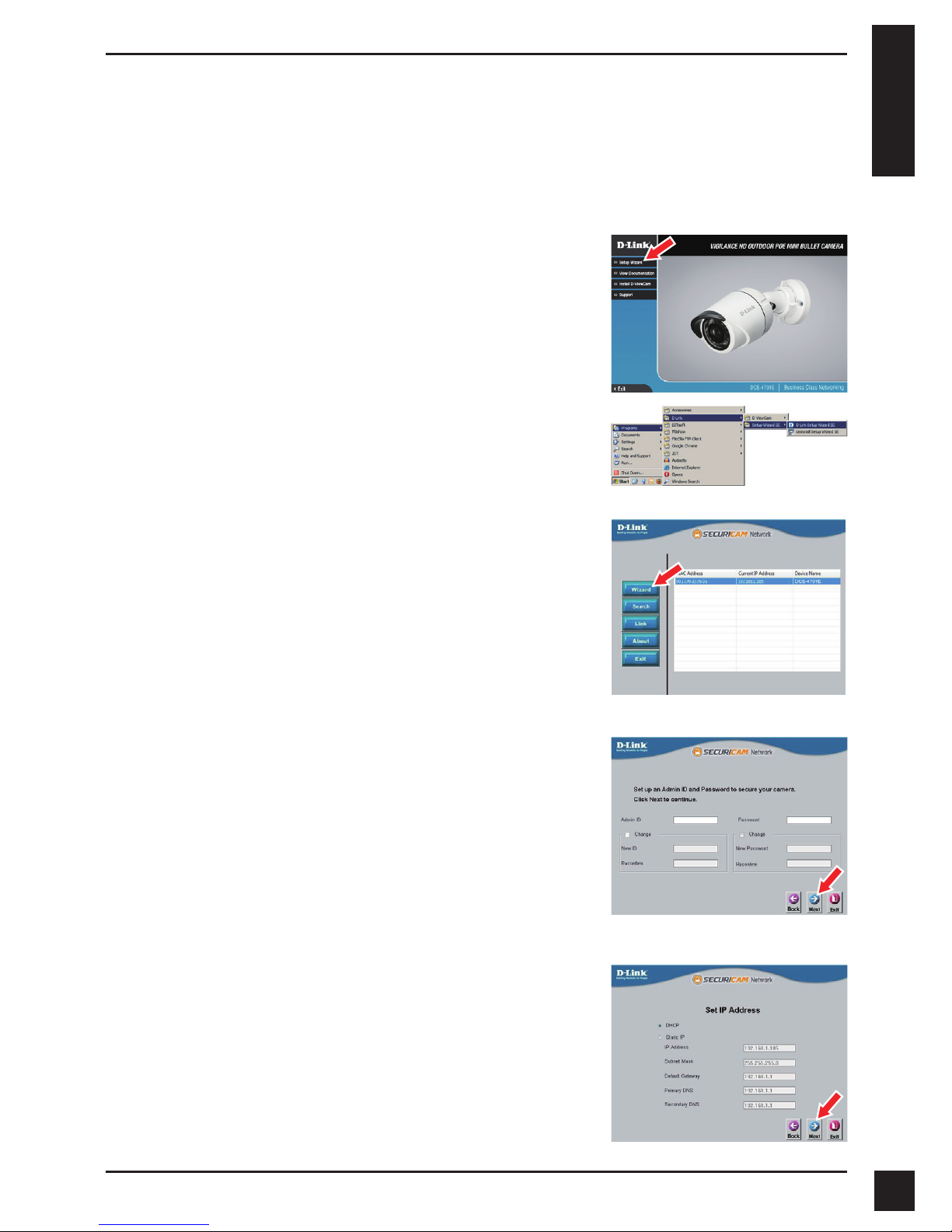

Conguring the Camera
Insert the DCS-4701E CD into your computer's CD-ROM drive to begin the installation.
If the Autorun function on your computer is disabled, or if the D-Link Launcher fails to
start automatically, click Start > Run. Type D:\autorun.exe, where D: represents the
drive letter of your CD-ROM drive.
Click on the D-Link Setup Wizard SE icon that was
created in your Windows Start menu (Start > D-Link >
Setup Wizard SE).
The Setup Wizard will appear and display the MAC
address and IP address of your camera(s). If you have a
DHCP server on your network, a valid IP Address will be
displayed. If your network does not use a DHCP server,
the network camera's default static IP 192.168.0.20 will be
displayed.
Select your camera, then click the Wizard button to
continue.
Click Setup Wizard and follow the instructions to install
the Setup Wizard.
Enter the Admin ID and password. When logging in for
the rst time, the default Admin ID is admin with the
password left blank.
Click the checkboxes if you wish to change the admin ID
and password for the camera, and enter the new ID and
password you wish to use.
Click Next to continue.
Select DHCP if your camera obtains an IP address
automatically from a DHCP server such as a router.
Select Static IP if you want to manually enter the IP
settings for the camera.
Click Next to continue.

4D-Link DCS-4701E Quick Installation Guide
4
ENGLISH

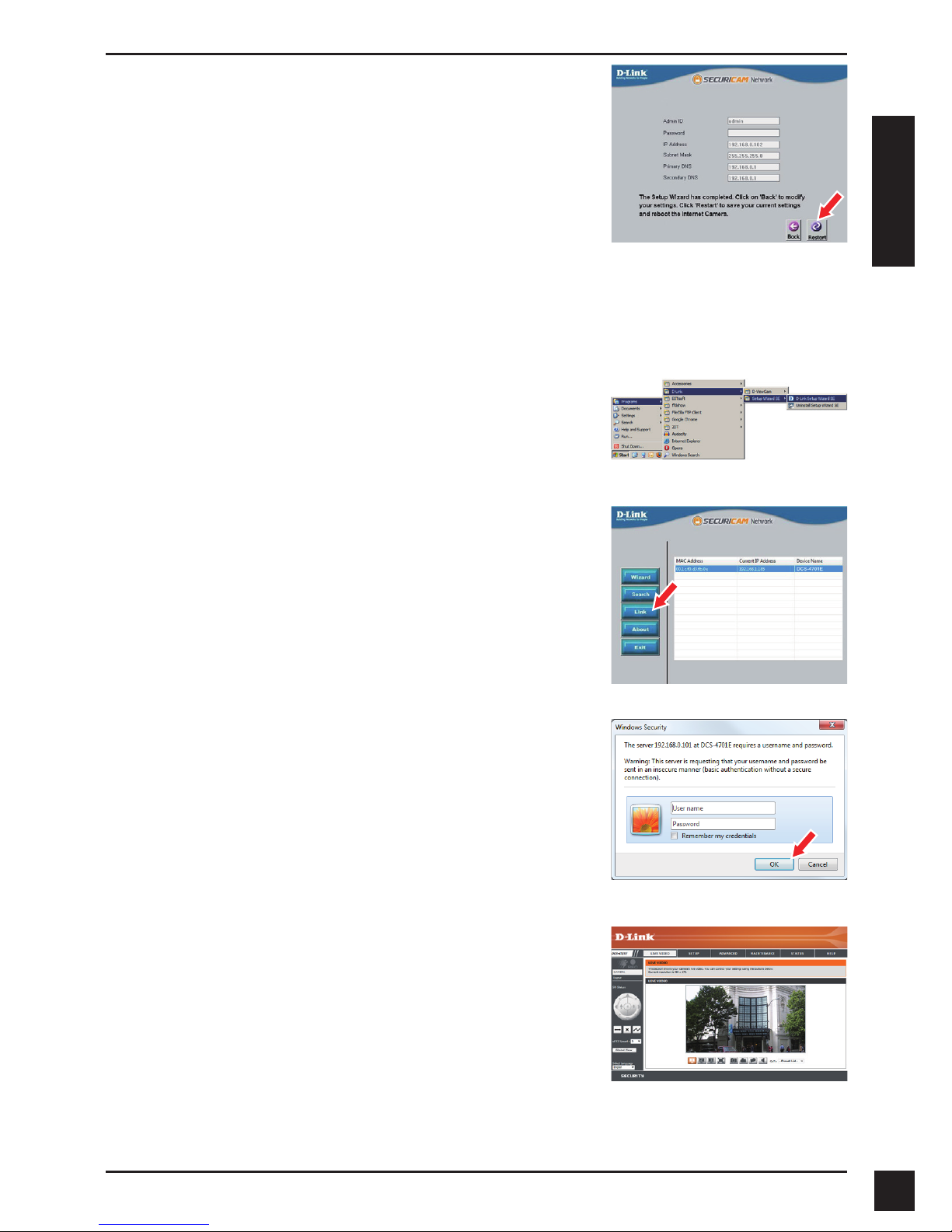

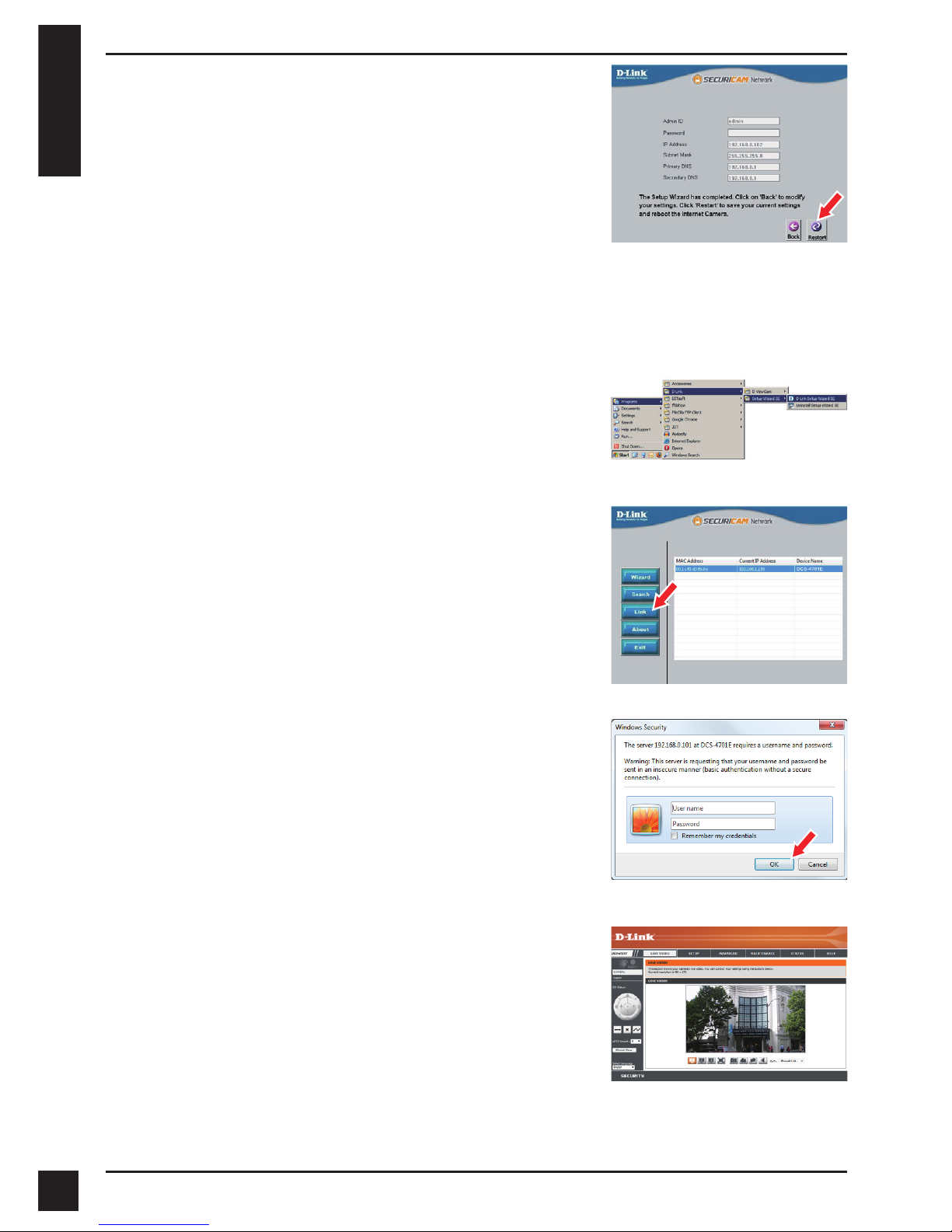

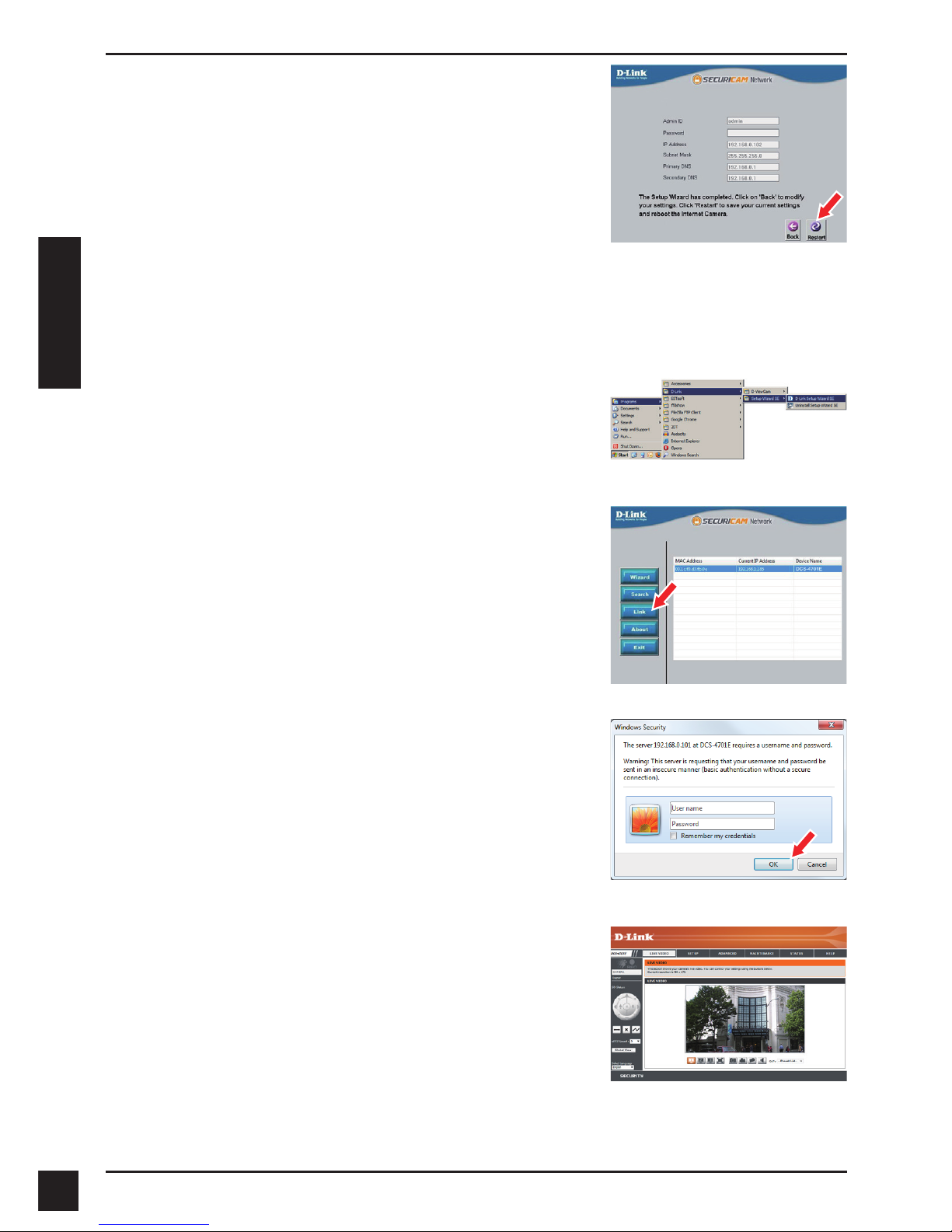

Take a moment to conrm your settings and click Restart.
Viewing Your Camera via Web Browser
Click on the D-Link Setup Wizard SE icon that was
created in your Windows Start menu (Start > D-Link >
Setup Wizard SE).
Select the camera and click Link to access the web
conguration.
The Setup Wizard will automatically open your web
browser to the IP address of the camera.
This section displays your camera’s live video. You can
select your video prole and view or operate the camera.
For additional information about web conguration, please
refer to the user manual included on the CD-ROM or the
D-Link website.
Enter admin as the default username and leave the
password blank. Click OK to continue.

5
D-Link DCS-4701E Quick Installation Guide 5
ENGLISH

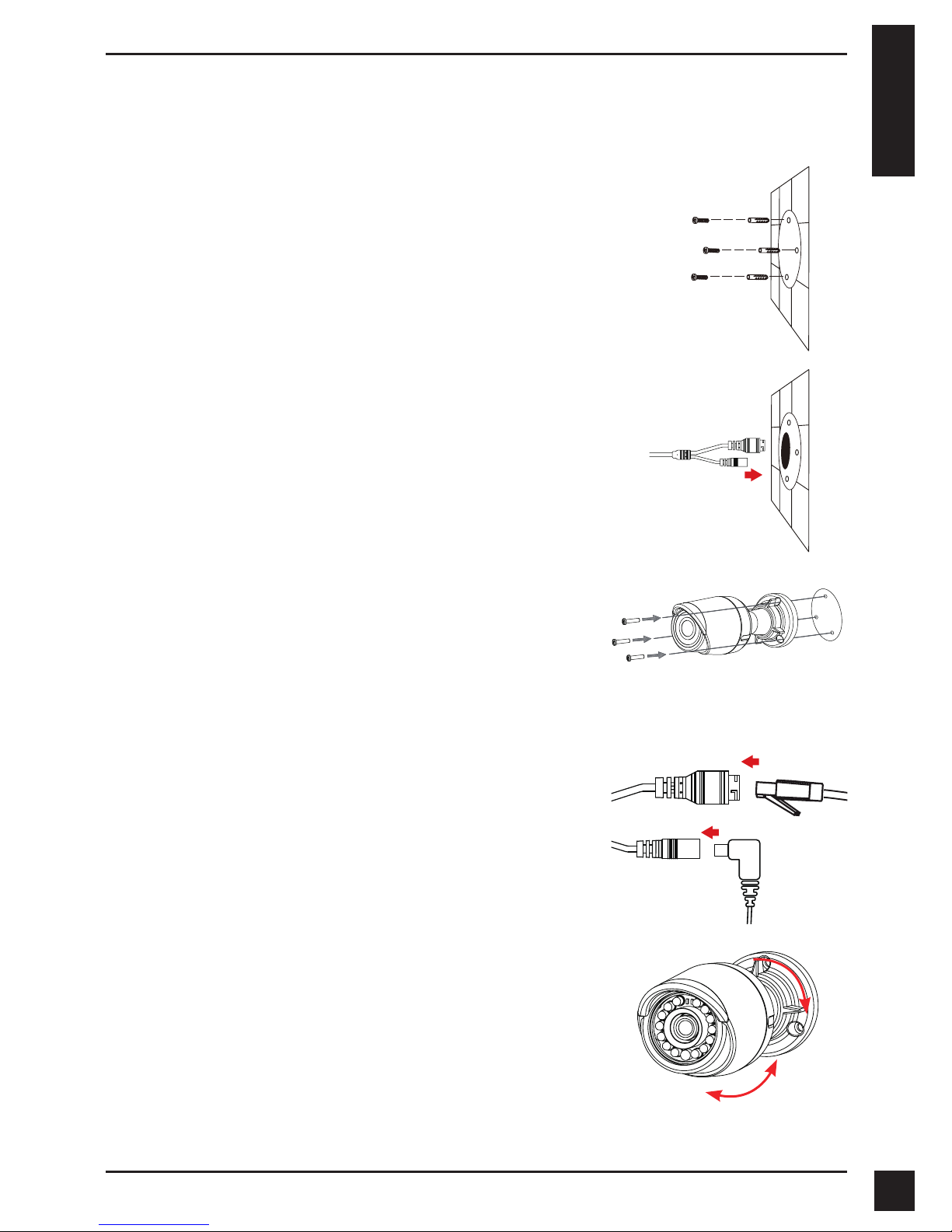

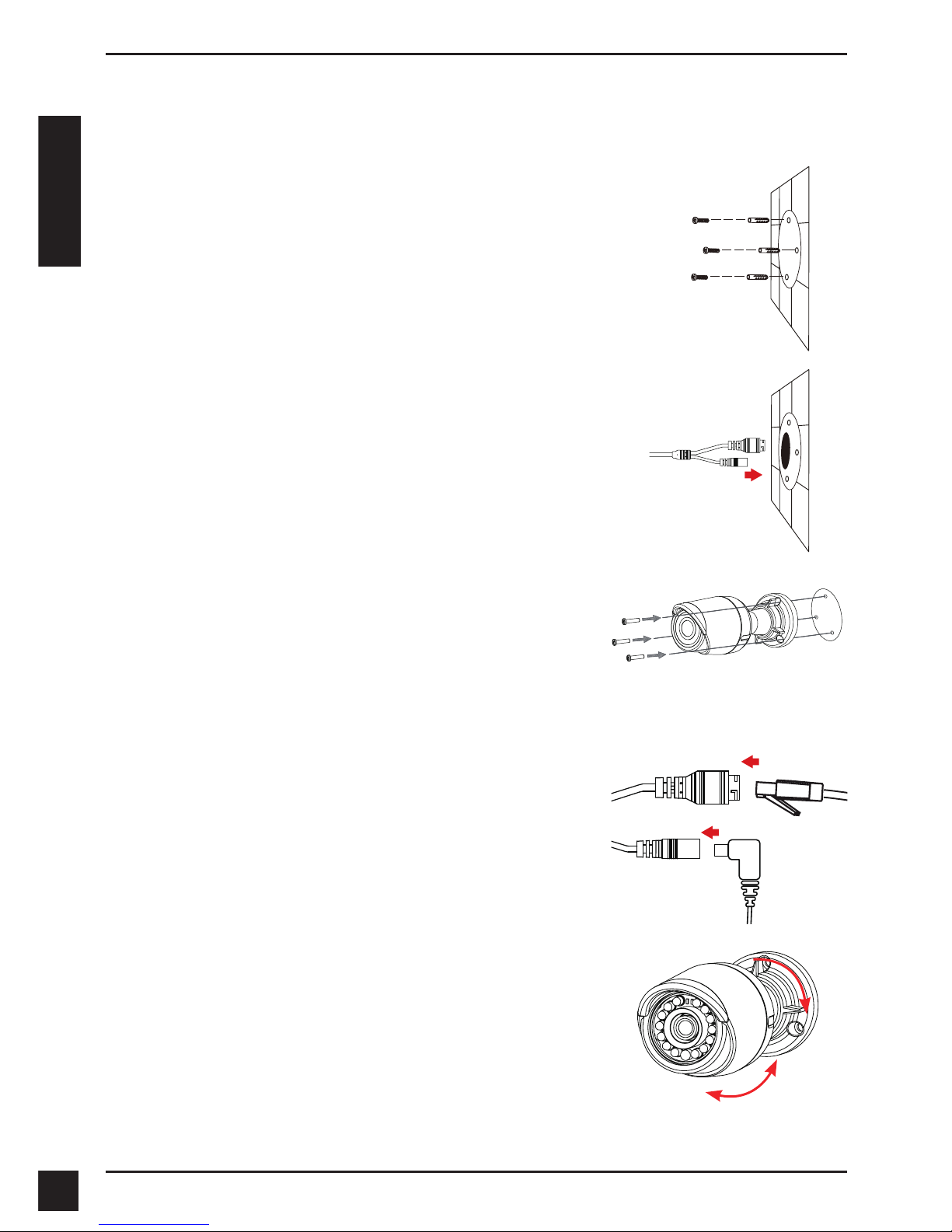

Mounting Instructions
It is highly recommended that you congure and test your camera before mounting it.
If you need to waterproof your installation, please continue to the next page.
Place the mounting sticker where you want to position the
camera. Make sure the camera base will be positioned so
that the cable channel is on the bottom.
Use a 6 mm drill bit to make the required holes
approximately 25 mm deep, then insert the wall anchors
into the holes.
If you are running the camera cables through the wall,
drill a hole in the center and pull the cables through the
hole.
Connect the power and Ethernet cables, or just the
Ethernet cable if you are using a PoE connection.
Use the screws provided to mount the camera to the wall.
If you are running the camera cables out the side of
the camera, guide the camera cables through the cable
channel on the base.
To adjust the camera's angle, turn the adjustment ring
counterclockwise to loosen it, then move the camera to
the desired position and angle. When you are nished,
turn the adjustment ring clockwise to tighten it.

6D-Link DCS-4701E Quick Installation Guide
6
ENGLISH

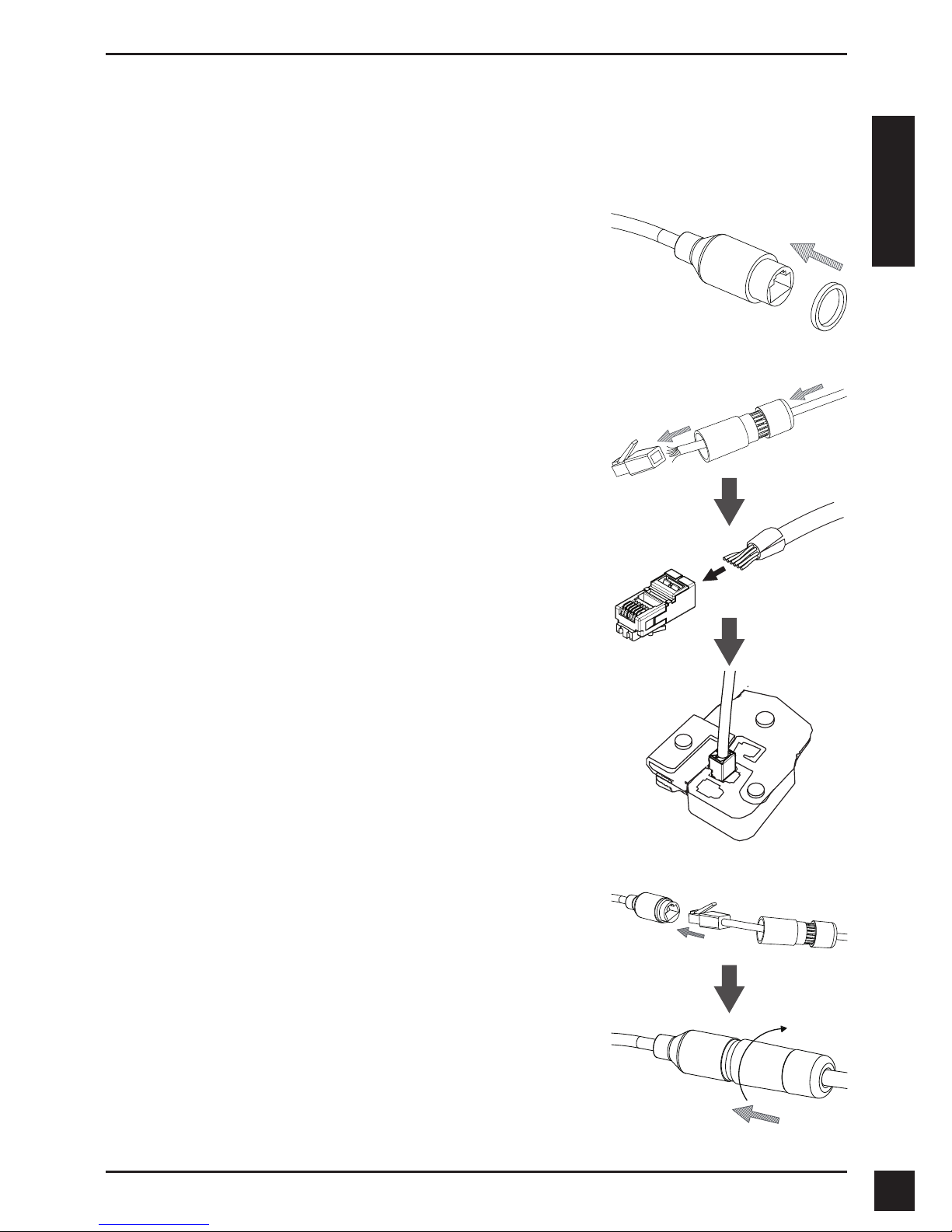

To waterproof your camera installation, follow the instructions below. Round Ethernet
cable, a crimping tool, and RJ-45 plugs are required for this procedure.
Waterproong Your Installation
Place the washer around the base of the Ethernet
connector as shown.
Connect the RJ-45 plug into the Ethernet connector, then
screw the waterproof connector to the Ethernet connector
by turning it about a half-turn clockwise.
Thread bare Ethernet cable through the waterproof
connector as shown, then crimp an RJ-45 plug onto the
cable.

7
D-Link DCS-4701E Quick Installation Guide 7
ENGLISH

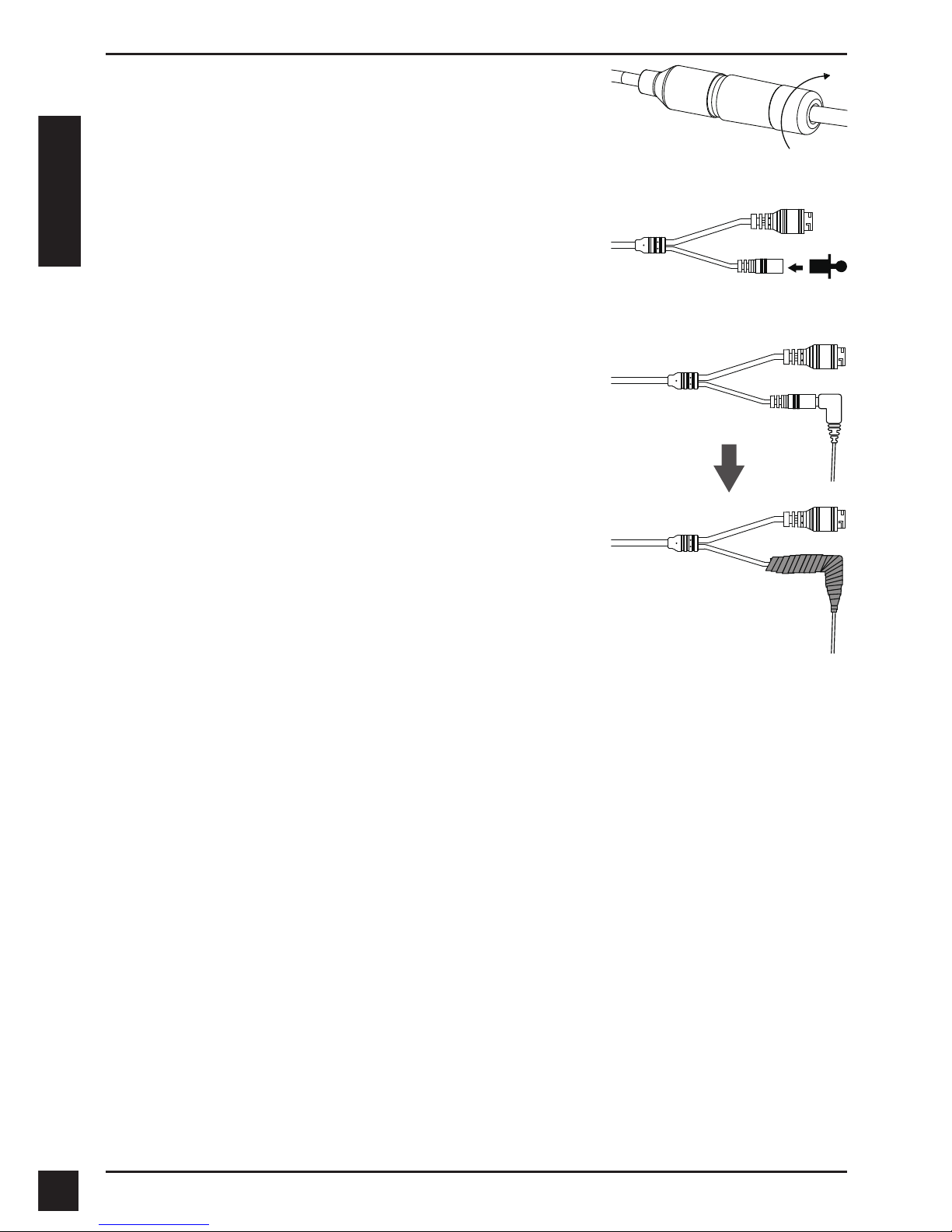

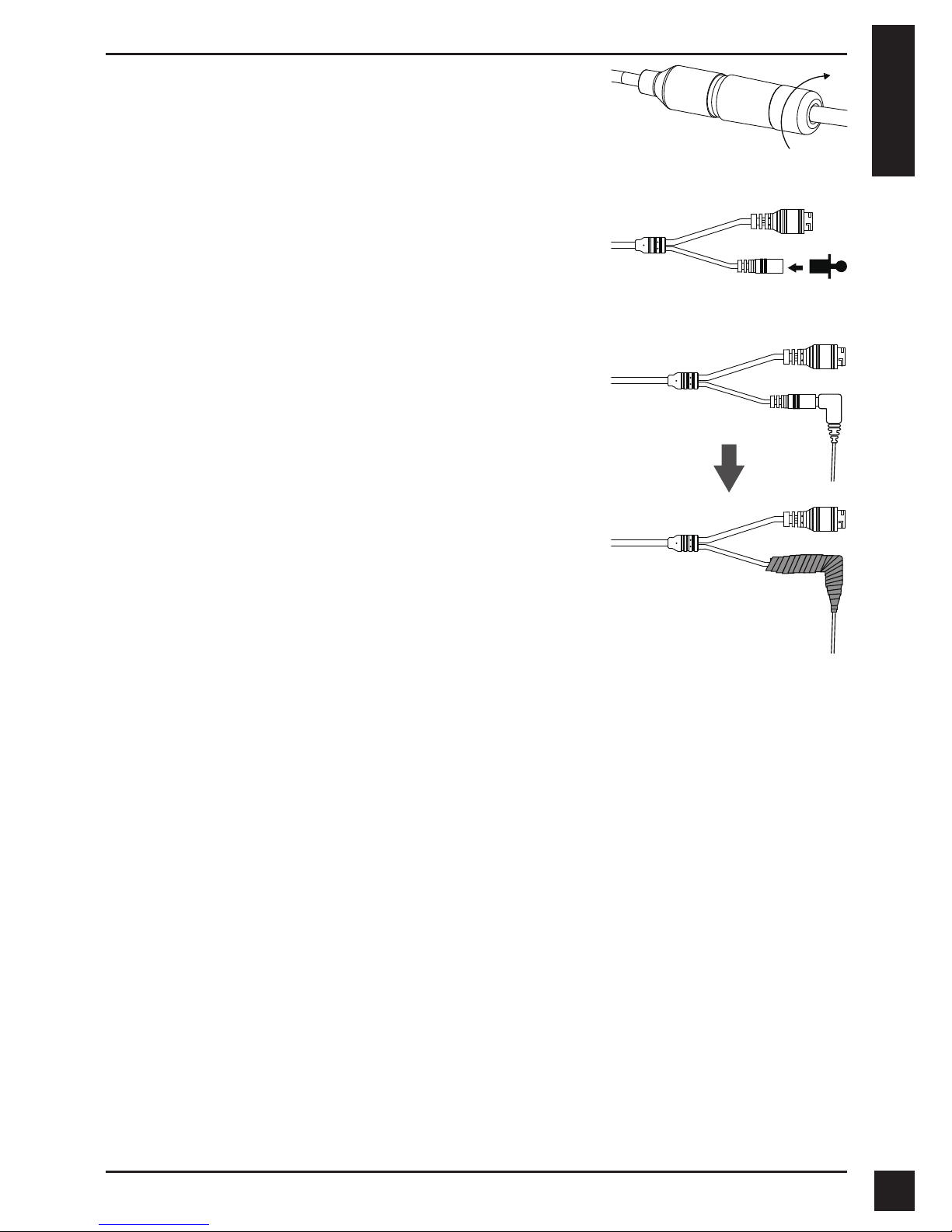

If you are using PoE to power your camera, use the
included rubber power connector plug to the power
connector.
If you are using a power adapter(not included) to
power your camera, wind waterproof tape around the
connection in an overlapping manner to cover it.
Additional Information
Additional help and product information is available online at http://www.dlink.com.
Warranty Information
Please visit http://warranty.dlink.com/ for warranty information for your region.
Screw the back part of the waterproof connector clockwise
until there is a tight seal around the Ethernet cable.

8
8D-Link DCS-4701E Quick Installation Guide
DEUTSCH
Installationsanleitung
Diese Installationsanleitung bietet Ihnen grundlegende Anleitungen zur Installation der
Netzwerkkamera in Ihrem Netzwerk. Zusätzliche Informationen zur Verwendung der
Kamera nden Sie im Benutzerhandbuch, das Ihnen auf der CD, die diesem Paket
beiliegt, oder über die D-Link Support-Website zur Verfügung steht.
Packungsinhalt
DCS-4701E Vigilance HD Outdoor PoE Mini Bullet Camera
Wasserdichter Anschlussstecker
Netzanschlussstecker aus Hartgummi
Montageset
CD-ROM mit Software und Handbuch
Installationsanleitung
Sollte einer der oben aufgeführten Artikel fehlen, wenden Sie sich bitte an Ihren
Fachhändler.
Sicherheitshinweis:
Installation und Wartungsarbeiten sollten nur von zertizierten Technikern
vorgenommen werden, zu jeder Zeit allen örtlich geltenden Richtlinien und
Anforderungen entsprechen sowie verhindern, dass Ihr Garantieanspruch erlischt.
