D-Link DCS-6517 User manual

User Manual
Version 1.10 | 10/16/2015
DCS-6517
5 Megapixel Day & Night Outdoor Dome Network Camera

2D-Link DCS-6517 User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or
organization of such revisions or changes.
Manual Revisions
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other
countries. All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.
Copyright © 2015 by D-Link Corporation.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link
Corporation.
Preface
Revision Date Description
1.0 March 19, 2015 DCS-6517 Revision A1 with rmware version 1.00
1.1 October 16, 2015 Minor updates

3D-Link DCS-6517 User Manual
Table of Contents
Product Overview........................................................ 5
Package Contents ................................................... 5
Introduction.............................................................. 6
System Requirements ............................................. 7
Features .................................................................. 8
Hardware Overview ................................................. 9
Hardware Overview ............................................... 10
Internal............................................................. 10
micro SD card installation...................................... 11
Cable Connectors ............................................ 12
Connectors and DI/DO .................................... 13
Installation..................................................................15
Hardware Installation............................................. 15
Assembly and Installation ................................ 15
Pendant Mount (Optional)............................. 17
Bent Mount (Optional)................................... 20
Cable Connections ................................................ 23
Software Installation .............................................. 24
Setup Wizard ................................................... 24
Web-based Conguration Utility ............................ 29
Adjusting the lens 3-axis angle ........................ 31
Camera Cover and Sunshield.......................... 32
Sunshield ......................................................... 33
Conguration............................................................. 34
Live Video.............................................................. 34
Client Setup ........................................................... 38
Setup ..................................................................... 39
Basic Setup...................................................... 39
Advanced Setup .............................................. 40
System Overview................................................... 41
Audio and Video .............................................. 42
Video Settings............................................... 42
Image Settings.............................................. 45
Audio Settings............................................... 47
Day and Night Settings ................................. 48
Network............................................................ 49
IP Settings..................................................... 49
Port and Access Name Settings ................... 52
Dynamic DNS ............................................... 55
HTTPS .......................................................... 56
Access List.................................................... 58
Advanced Settings........................................ 60
Event Management.......................................... 64
Motion Detection........................................... 64
Tamper Detection ......................................... 65
DI and DO..................................................... 66
Event Settings............................................... 67
Recording ........................................................ 73
Recording Settings........................................ 73
Local Storage................................................ 75
PTZ Control ..................................................... 76

4D-Link DCS-6517 User Manual
Digital PTZ .................................................... 76
System............................................................. 77
User Settings ................................................ 77
Device Settings............................................. 78
Time and Date .............................................. 79
Maintenance ................................................. 80
Parameter List............................................... 82
Logs .............................................................. 83
Appendix A - Technical Specications ................... 84
Technical Specications ........................................ 84

5D-Link DCS-6517 User Manual
Product OverviewProduct Overview
*Depending on your region, a power adapter may not be included.
If any of the above items are missing, please contact your reseller.

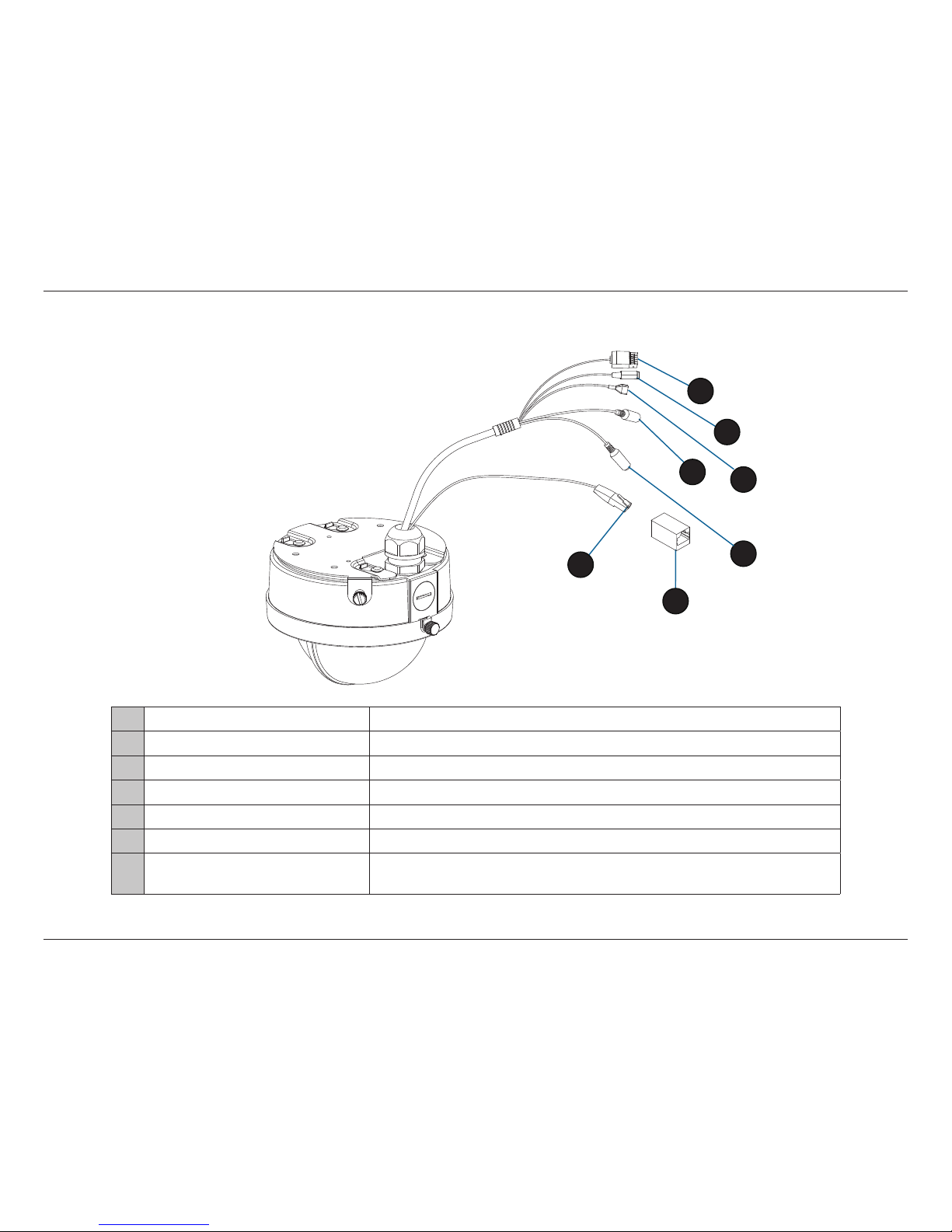

Package Contents
DCS-6517 5 Megapixel Day & Night Outdoor
Dome Network Camera
Power adapter*
CD-ROM with User Manual and software
Sunshield
Screws
Quick Installation Guide
Extension Adapter
Security Wrench
Alignment Sticker
Mounting Adaptor
CAT 5 Ethernet Cable

6D-Link DCS-6517 User Manual
Product Overview
Introduction
D-Link DCS-6517 is an outdoor vandal-proof xed dome camera equipped with industry-leading 5 megapixel resolution and H.264 compression.
The DCS-6517 connects to a network to provide high-quality live video over the Internet. This camera is capable of capturing video in both dark
and light environments thanks to its built-in IR LEDs and IR-cut removable (ICR) lter. The ICR lter can be manually applied via the web, or set to
automatically adjust based on lightning conditions. This feature allows the camera to capture crisp color images during the daytime and detailed
grayscale images at night or in or low-light conditions.
The DCS-6517 is equipped with metal housing certied by IK-10 criterion which protect the camera from damage. The built-in removable IR-cut
lter and IR LEDs give the DCS-6517 the capability to view up to 20 meters at night. The ability to use Power over Ethernet (PoE) also allows it to
be easily installed in a variety of locations without the need for supplemental power cabling. The built-in MicroSD card slot can be used as a local
backup by storing important events on an easily retrievable MicroSD card.
The included D-Link D-ViewCam™ is sophisticated software which allows users to manage up to 32 network cameras, set e-mail alert
notications, create recording schedules, and use motion detection to record directly to a hard drive. D-ViewCam™ also allows users to upload a
oor plan to create a realistic layout of the premises where cameras are located, further simplifying the management process.

7D-Link DCS-6517 User Manual
Product Overview
System Requirements
Network Requirements • An Ethernet-based Network
DCS-6517
Web-based Conguration
Utility Requirements
Computer with the following:
• Windows®, Macintosh, or Linux-based operating system
• An installed Ethernet adapter
Browser Requirements:
• Internet Explorer® 7 and higher
• Mozilla Firefox 19.0 and higher
• Google™ Chrome 25.0 and higher
• Apple Safari 5 and higher
D-ViewCam Conguration
Utility Requirements
Computer with the following:
• Microsoft Windows®, 2000, XP, Vista, 7 or 8
• At least 256 MB of memory (512 MB recommended)
• VGA card resolution: SVGA or XGA (1024x768 or above)
• CPU: 1.7 GHz or above (2.8 GHz plus processor with 512 MB
memory and a 32 MB video card is required for multiple
camera viewing and recording in IP surveillance programs)

8D-Link DCS-6517 User Manual
Product Overview
Features
Flexible Connectivity
The DCS-6517 includes input and output ports for connectivity to external devices such as IR sensors, switches, and alarm relays. The DCS-6517
also incorporates Power over Ethernet (PoE), allowing it to be easily installed in a variety of locations without the need for supplemental power
cabling.
High-Quality Video at HD Resolution
The DCS-6517 provides real-time video feeds at up to 15 fps with 2560x1920 resolution and 30 fps with Full HD resolution. H.264 encoding
ensures that images remain crisp, clear, and vivid without taking up too much network bandwidth.
Weather-proof with Tamper Detection
Designed to be mounted outdoors, the DCS-6517 includes an IP66 certied enclosure which protects against the elements. Anti-tamper features
make this camera suitable for tamper-prone locations such as transportation hubs, schools, or correctional facilities. The electronic tamper
detection system can sense whenever the camera has been redirected, de-focused, blocked, or spray-painted, and respond promptly with a
visible or audible alarm.
Remote Monitoring Utility
The D-ViewCam application adds enhanced features and functionality for the Network Camera and allows administrators to congure and
access the Network Camera from a remote site via Intranet or Internet. Other features include image monitoring, recording images to a hard
drive, viewing up to 32 cameras on one screen, and taking snapshots.

9D-Link DCS-6517 User Manual
Product Overview

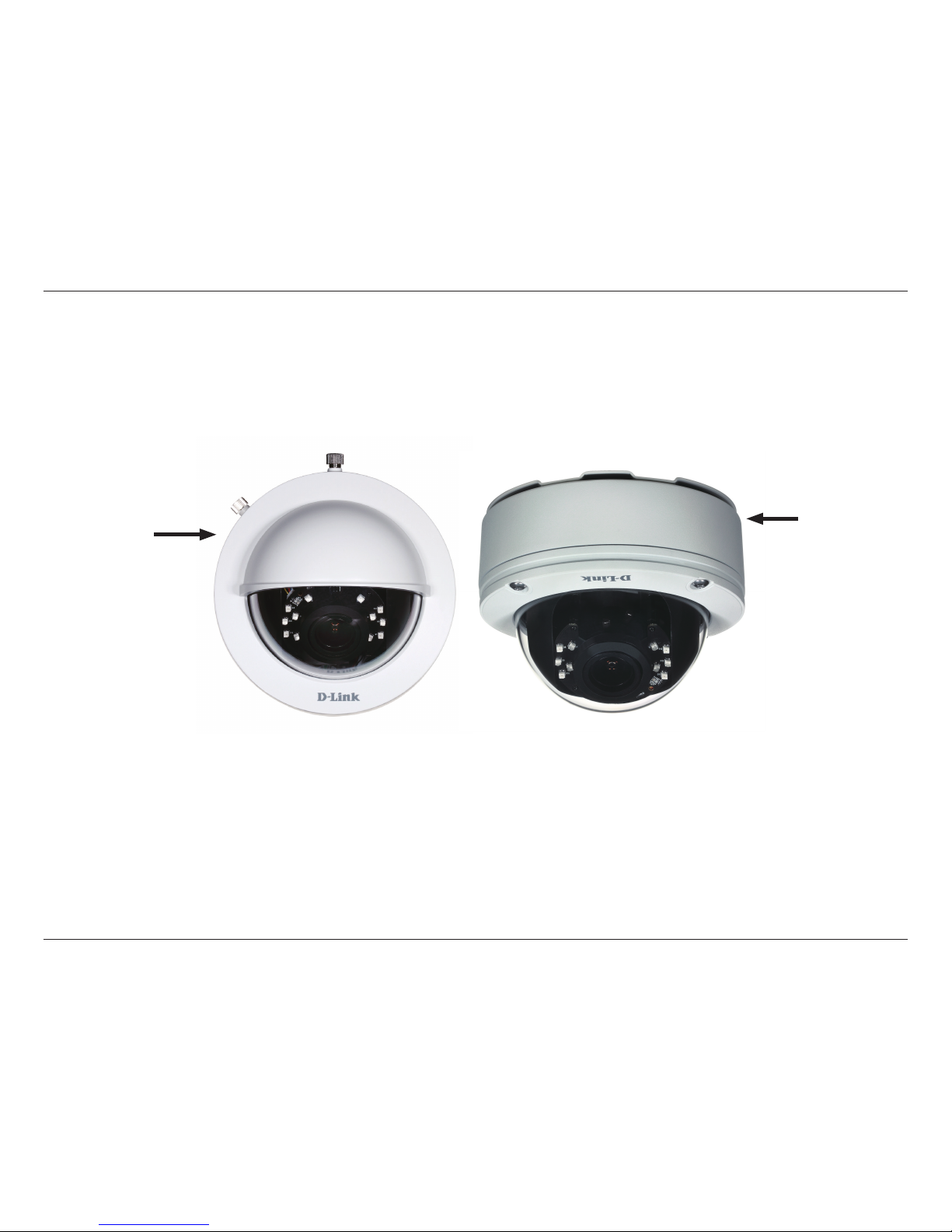

Hardware Overview
The camera is housed in an IP66 certied weatherproof casing, which protects it
against rain and dust. This case is also IK-10 certied vandal-resistant.
Sunshield
(Plastic)
Metal housing

10D-Link DCS-6517 User Manual
Product Overview
Hardware Overview

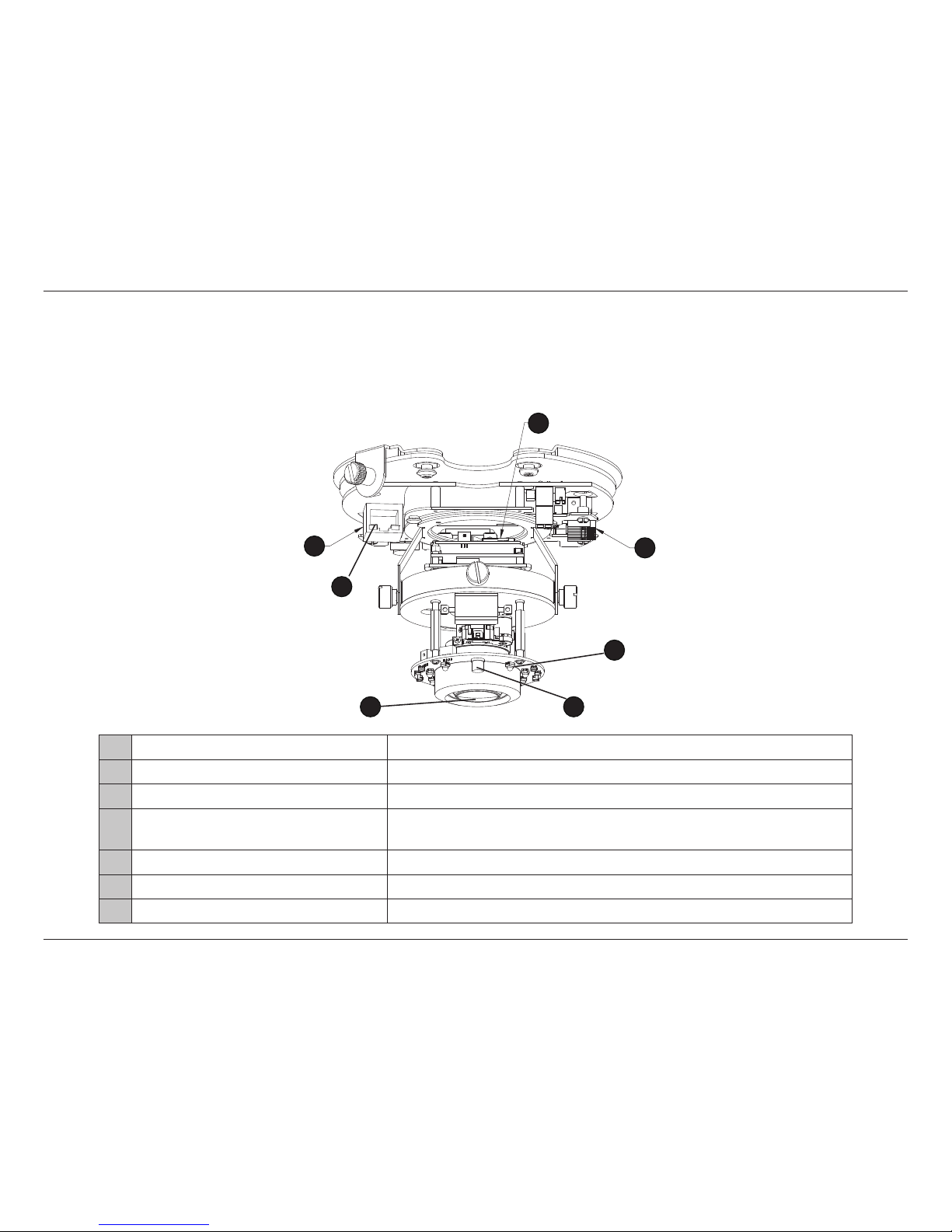

Internal
1 Micro SD Card Slot Insert a Micro SD card for Local storage for storing recorded image and video
2 DI/DO, Audio, Power, connector Internal connector for DI/DO, Audio, and Power connector cable harness
3 Ethernet Cable connector Internal Ethernet cable jack
4Light Sensor The light sensor measures the lighting conditions and switches between
color and infrared accordingly
5Camera Lens Vari-focal lens to record video of the surrounding area
6IR LEDs Infrared LEDS illuminate the camera's eld of view at night
7Power/Status LED indicates the camera's current status
1
32
7
5 4
6

11D-Link DCS-6517 User Manual
Product Overview
micro SD card installation
Install the SD Card
Push the SD card into the camera with the gold contacts oriented towards the base
of the camera. To eject the SD card, push the SD card into the slot.

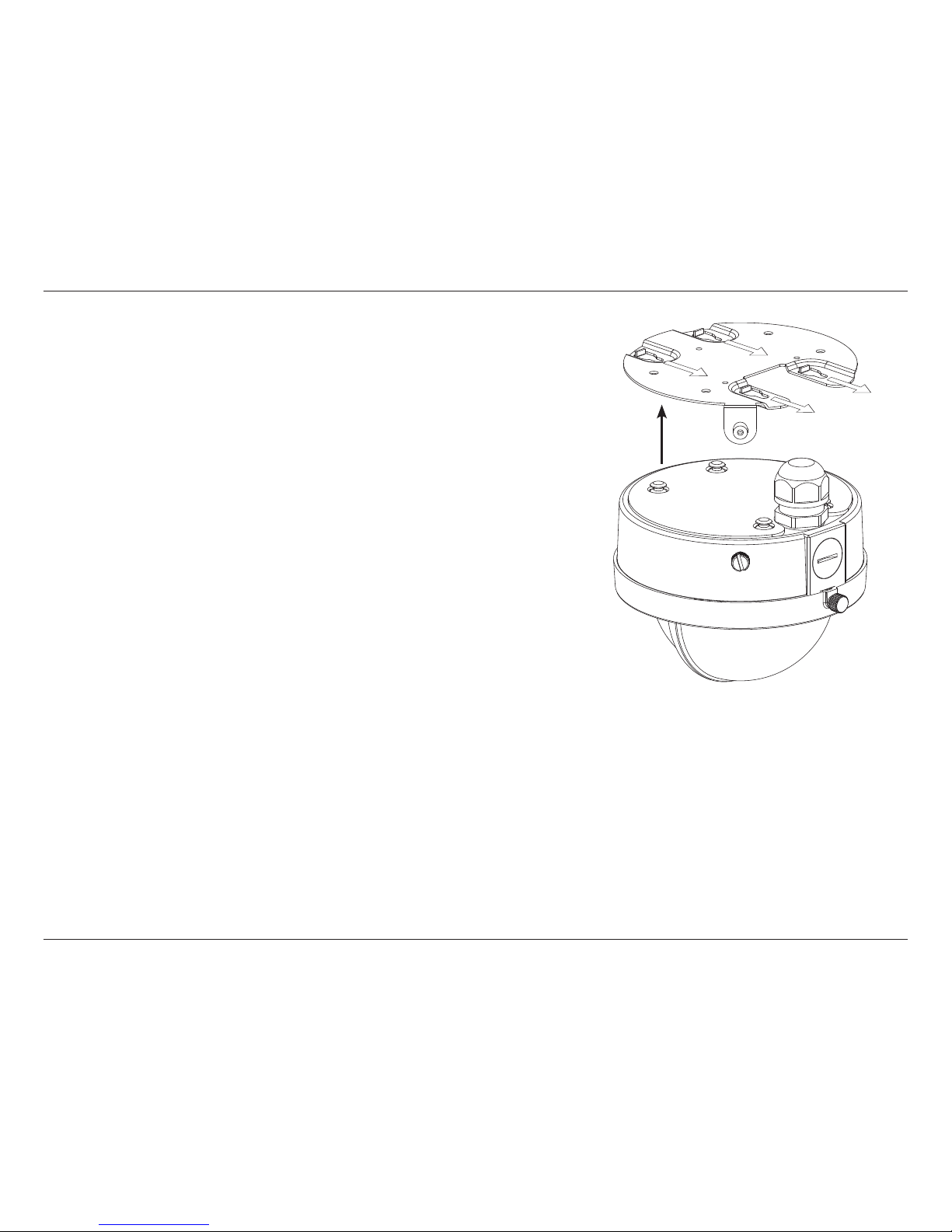

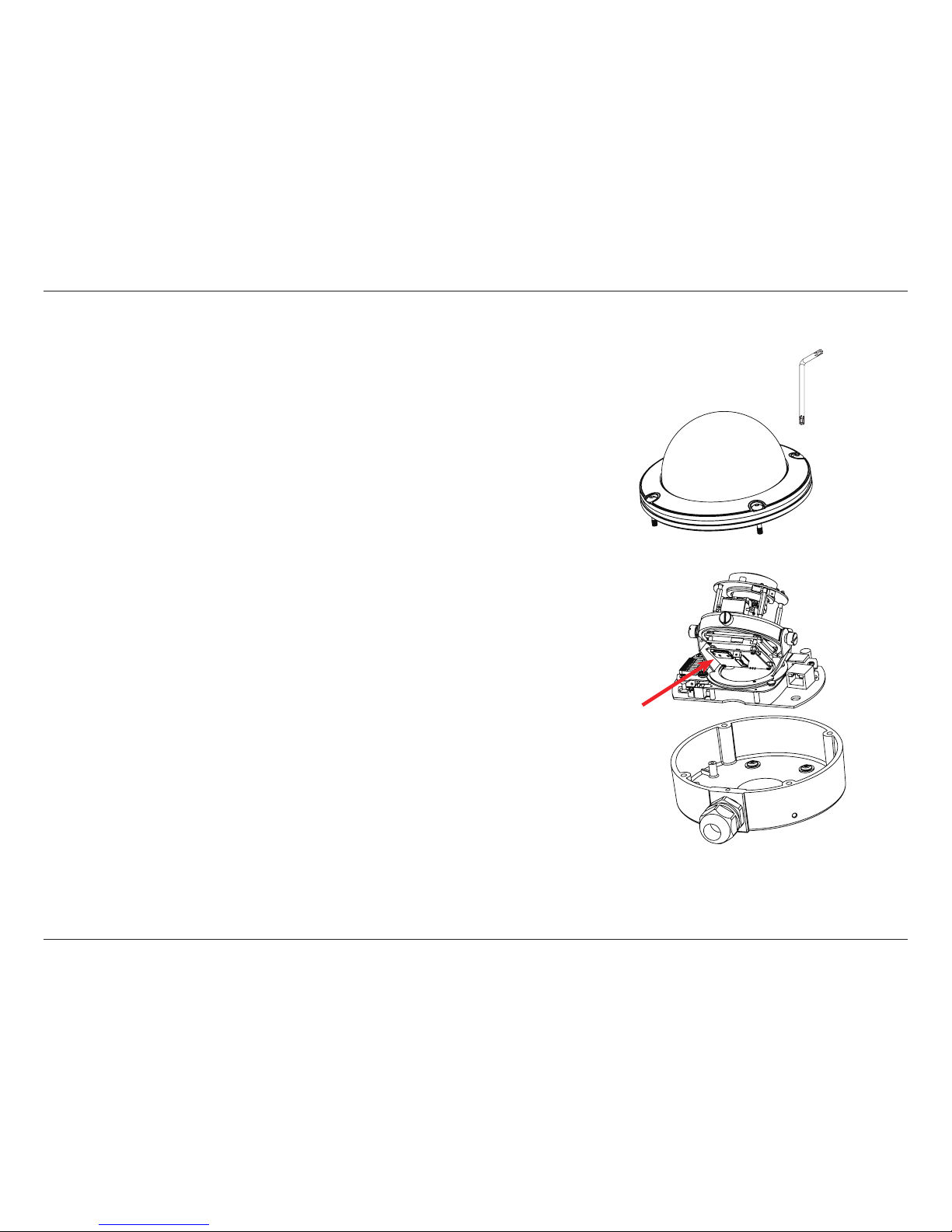

Disassemble the Camera
Open the camera enclosure by loosen the 4 screws. Lift the dome o the base of
the camera.
Micro SD Slot

12D-Link DCS-6517 User Manual
Product Overview

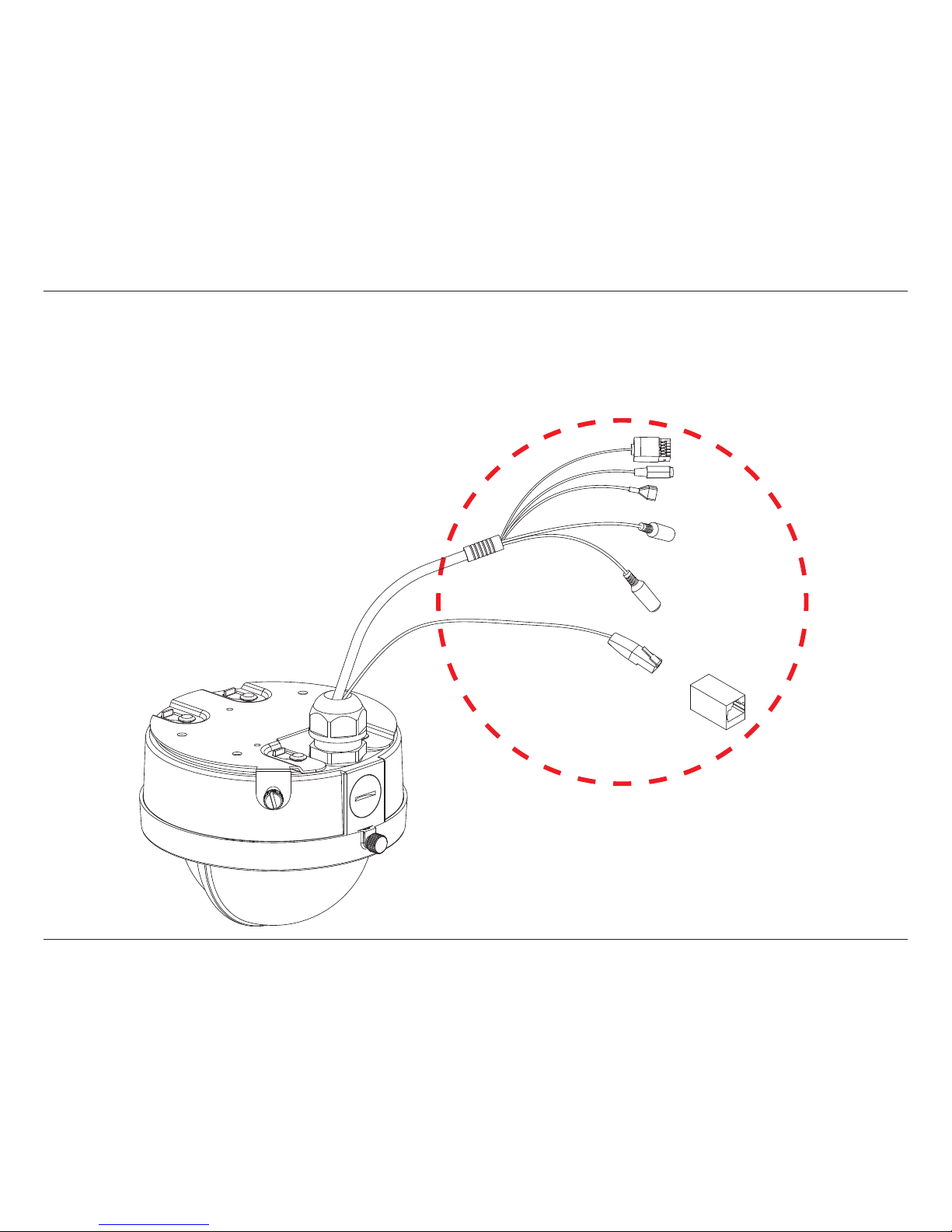

Cable Connectors
1 DI/DO Connector I/O connectors for external devices.
2 Power Connector Power connector for the provided 12 V DC power adapter.
3 Reset Button Press and hold the recessed button for 10 seconds to reset the camera.
4 Audio Out (Green) Connects to a speaker.
5 Audio In (Red) Connects to a microphone.
6RJ-45 Extension Connector The Extension connector for connector the extending Ethernet cable.
7 Ethernet (PoE) RJ-45 connector for Ethernet which can also be used to power the Camera
using PoE
1
4
5
6
3
2
7

13D-Link DCS-6517 User Manual
Product Overview
Connectors and DI/DO

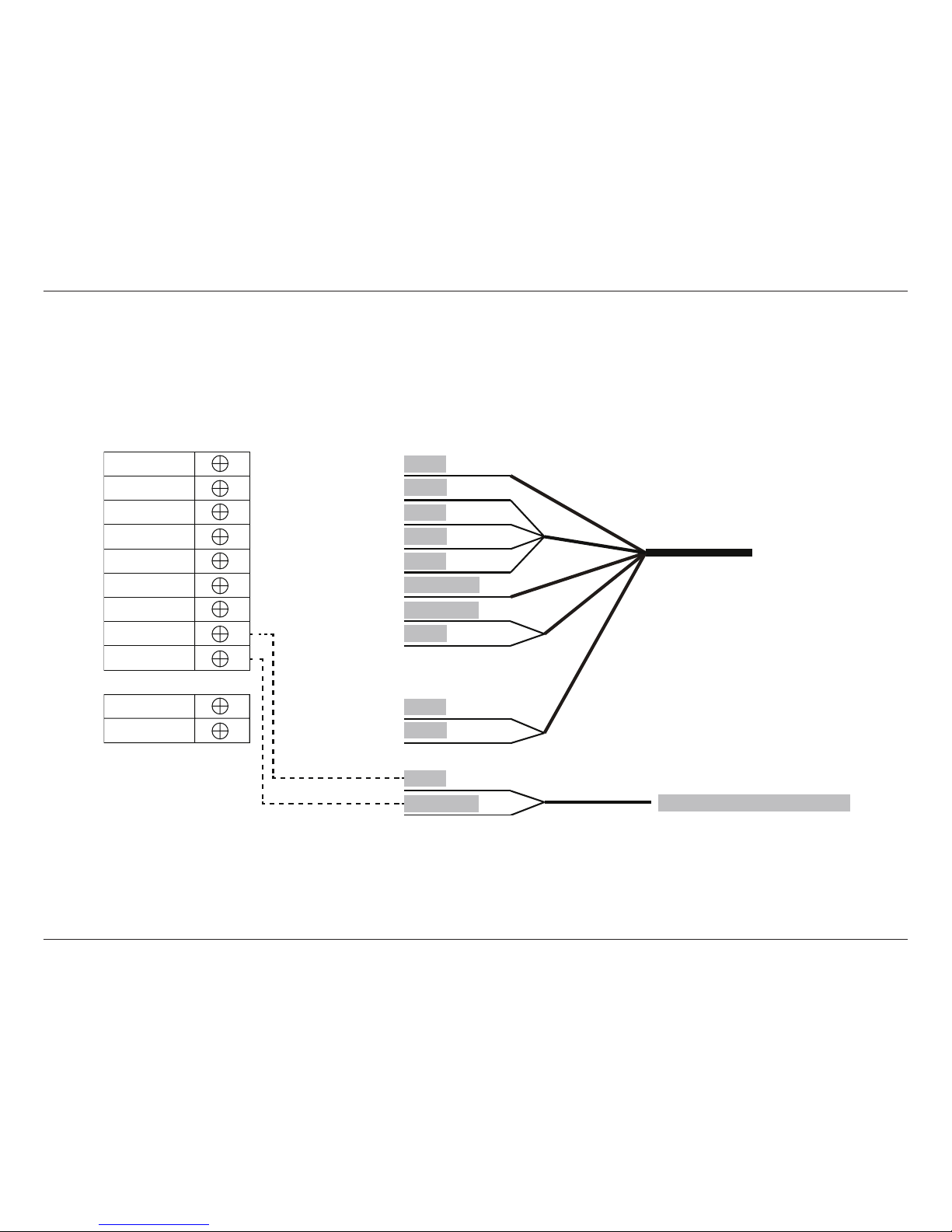

Please follow the diagram below to properly connect the cables to the connector. Please be careful when using 3rd party cables as incorrectly
connecting the connector to the wrong cable may damage the Camera.
Reset
DO-
DO+
DI-
DI+
Audio Out
Audio in
GND
Video out
GND
12V
Reset
DO-
DO+
DI-
DI+
Audio Out
Audio in
GND
GND
12V
GND
Orange
Pink
Blue
Yellow
Green
Red
Yellow
Black
White
Black
Red
BNC connector (Video out)
Video out

14D-Link DCS-6517 User Manual
Product Overview
Note: To prevent the camera's wire connectors from being damaged by water or other elements:
1. When connecting the camera, the unsheathed part of the wire connectors must either be sealed or enclosed in a junction box.
2. The unsheathed part of the wire connectors should be positioned at a downward-facing angle when they extend out of the rear of the
camera, not upward.
The unsheathed part of the wire
connectors must either be sealed
or enclosed in a junction box.

15D-Link DCS-6517 User Manual
InstallationInstallation
Hardware Installation
Assembly and Installation

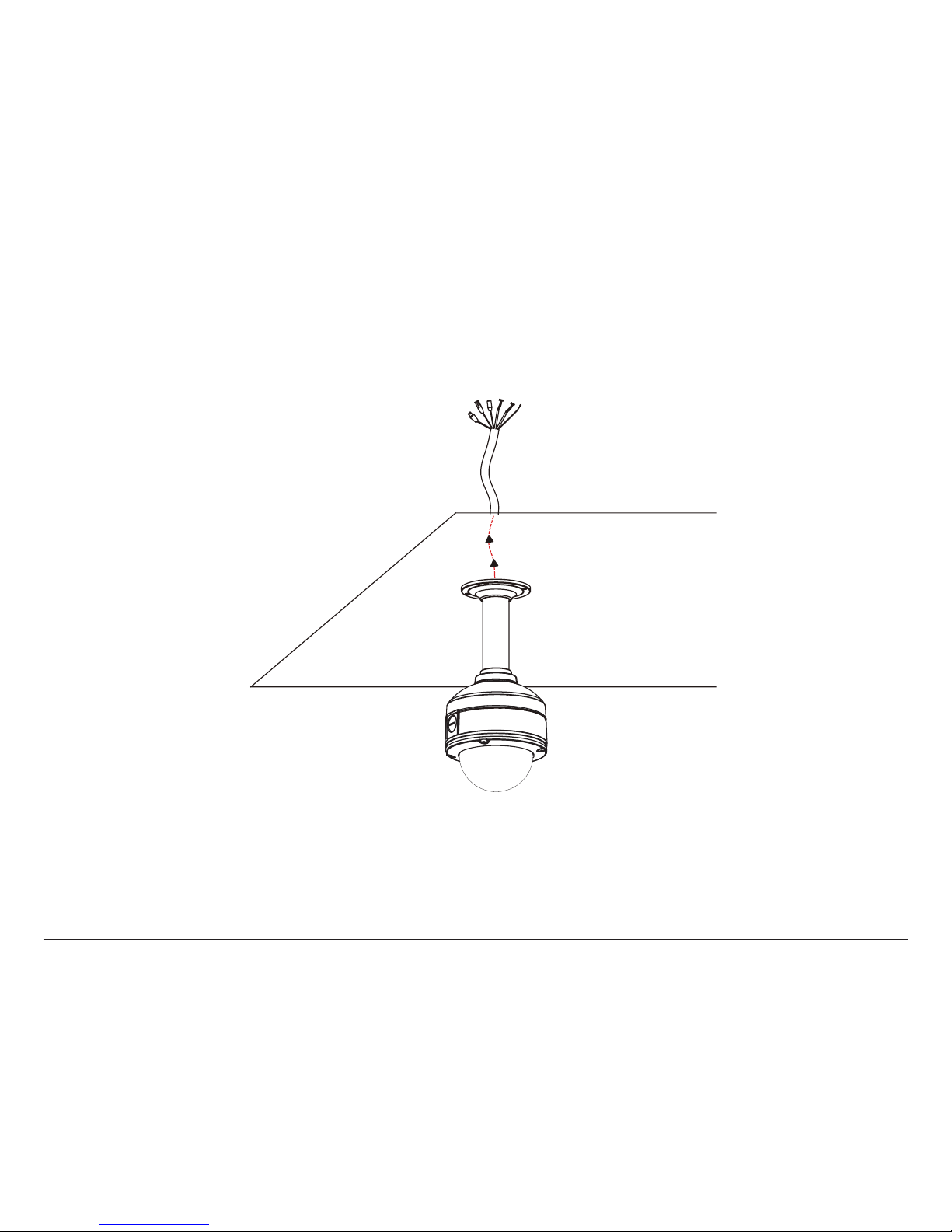

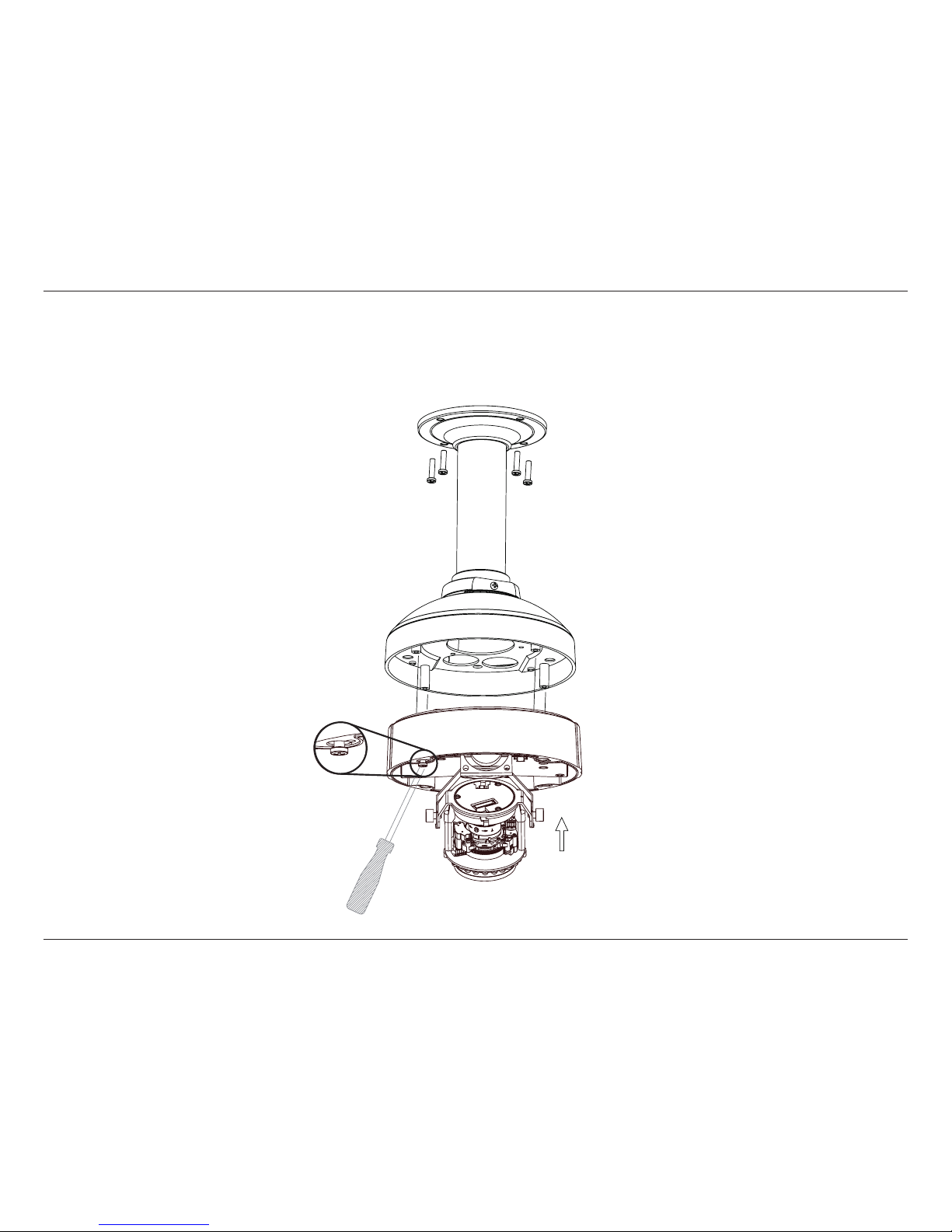

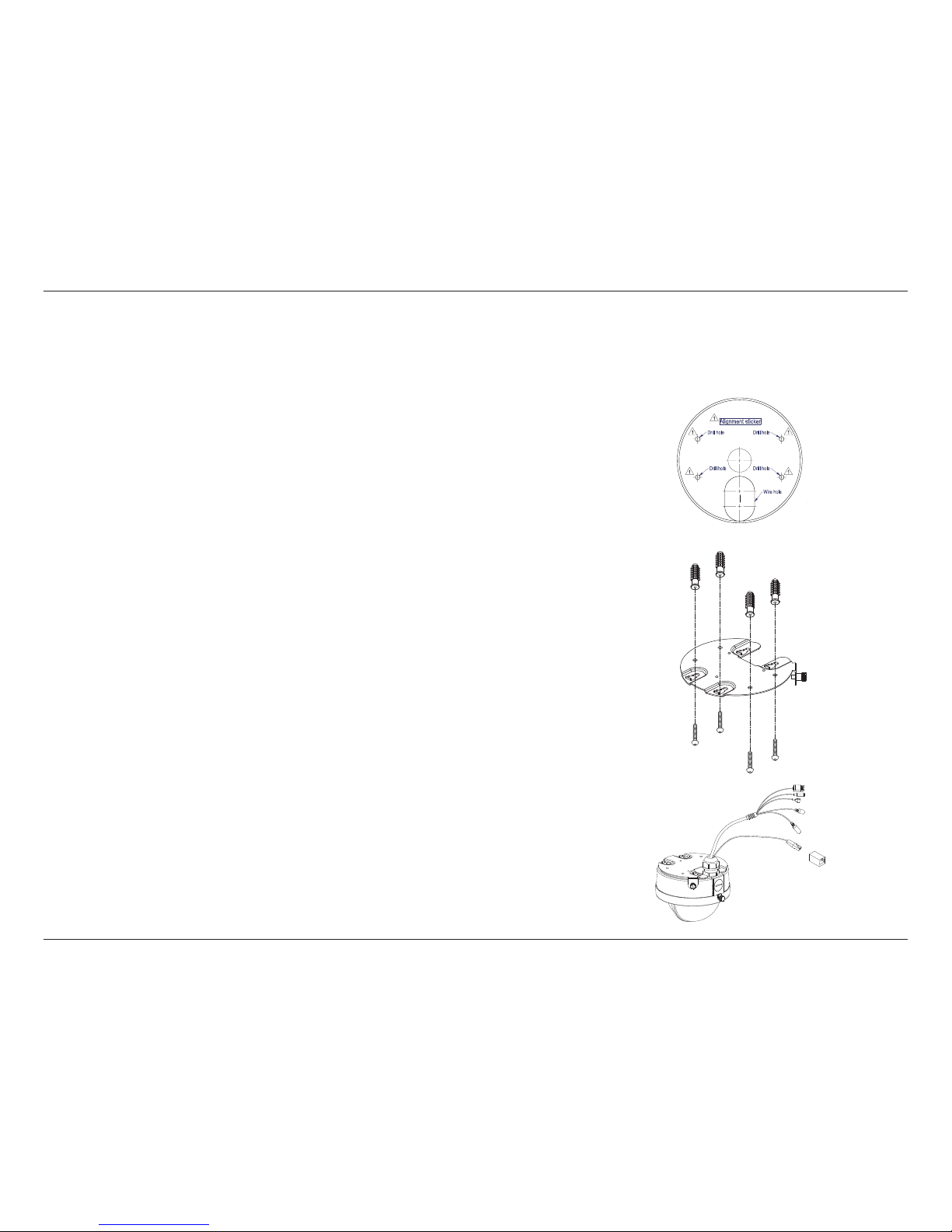

Locate a suitable position on the ceiling which is capable of supporting the weight of the
camera. Attach the alignment sticker to the ceiling or wall.
Drill four separate holes corresponding to the holes in the mounting template and insert
the plastic anchors into four holes. Cut an access hole in the ceiling for the cables.
Thread the cables through the waterproof plugs at the bottom of the base of the camera.
Attach the cables to the corresponding cable connectors. Connect the Camera bottom
Ethernet cable and the other cable, threading them through the hole in the ceiling.
Connect to the Ethernet cable.

16D-Link DCS-6517 User Manual
Installation
Attach the dome up with the mounting template latch, then push forward lock the
latch. Using the bolt for security lock the Camera.

17D-Link DCS-6517 User Manual
Installation
Pendant Mount (Optional)
Height: 201 mm (7.9 inches)
Diameter: 150 mm (5.9 inches)
 Weight: 665 g (1.45 lbs)
Pendant
Bracket
Bracket
Cap
Rubber
Seal
Bracket
Cap
Mounting
Plate
1. Attach the mounting plate to the bracket cap using the three screws.
2. Locate a suitable position on the ceiling for a 34 mm (+2 / –0 mm) hole to be cut. A
template is included to aid in marking the mounting hole.
3. Cut a hole in the ceiling according to the template.
4. Drill four separate 6 mm holes corresponding to the holes in the mounting template
and insert the plastic anchors into these holes.
5. Place the rubber seal between the pendant bracket and the ceiling to ensure a
waterproof seal between the ceiling and the bracket.
6. Attach the pendant bracket to the ceiling using the screws provided.
7. Attach the bracket cap to the bottom of the pendant bracket by rotating the cap
counterclockwise to tighten it into place.
8. Insert the screw into the base of the pendant bracket at the top of the bracket cap to
secure the bracket cap into place.

18D-Link DCS-6517 User Manual
Installation

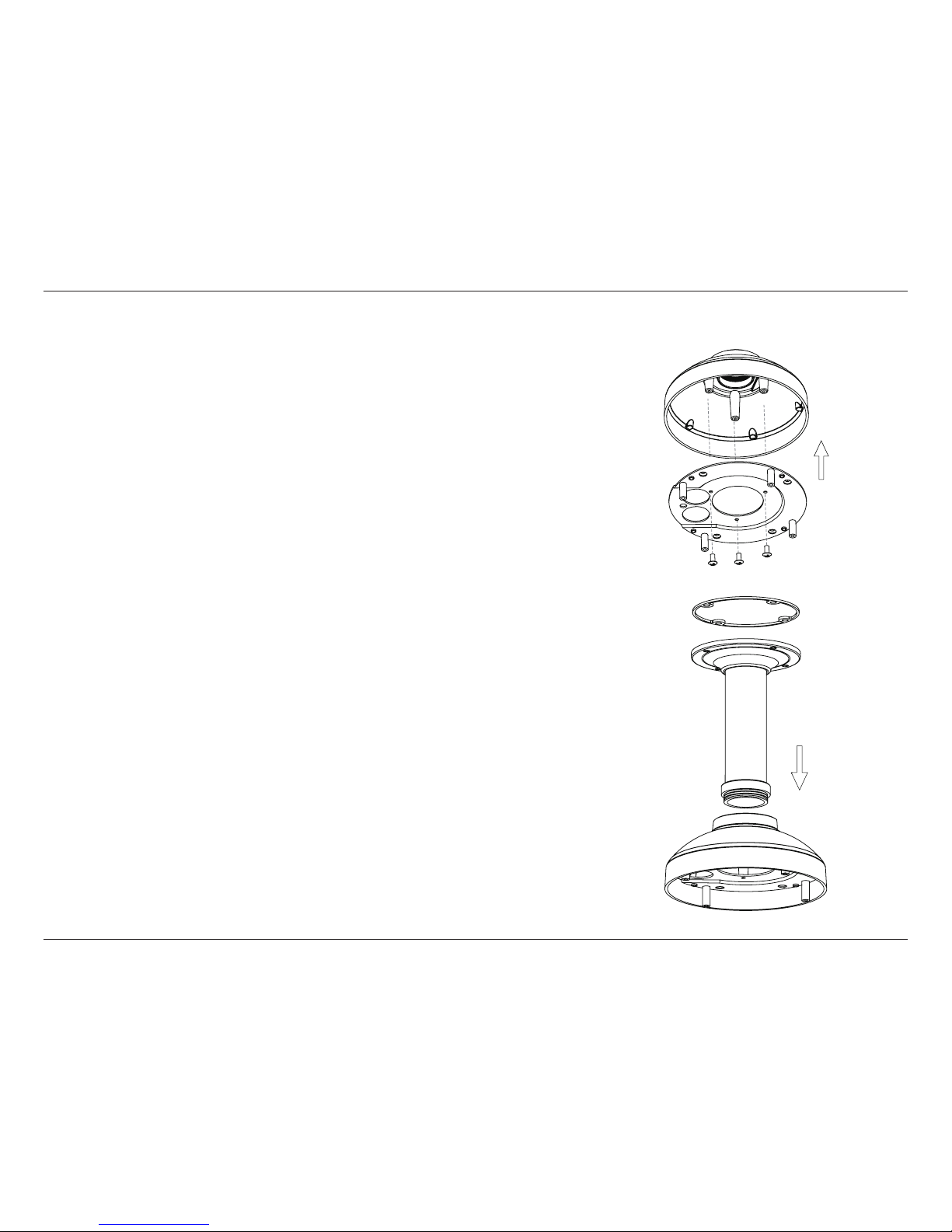

1. Connect the Ethernet cable and the power cable, then thread them through the pendant bracket.
2. Place the dome body onto the base of the camera.

19D-Link DCS-6517 User Manual
Installation
1. Attach the dome to the base of the camera using the three long screws and the provided security screw.

20D-Link DCS-6517 User Manual
Installation
Height: 253 mm (9.96 inches)
Diameter: 150 mm (5.9 inches)
Weight: 770 g (1.7 lbs)
Bent Mount (Optional)
Bracket Cap
Bent
Bracket

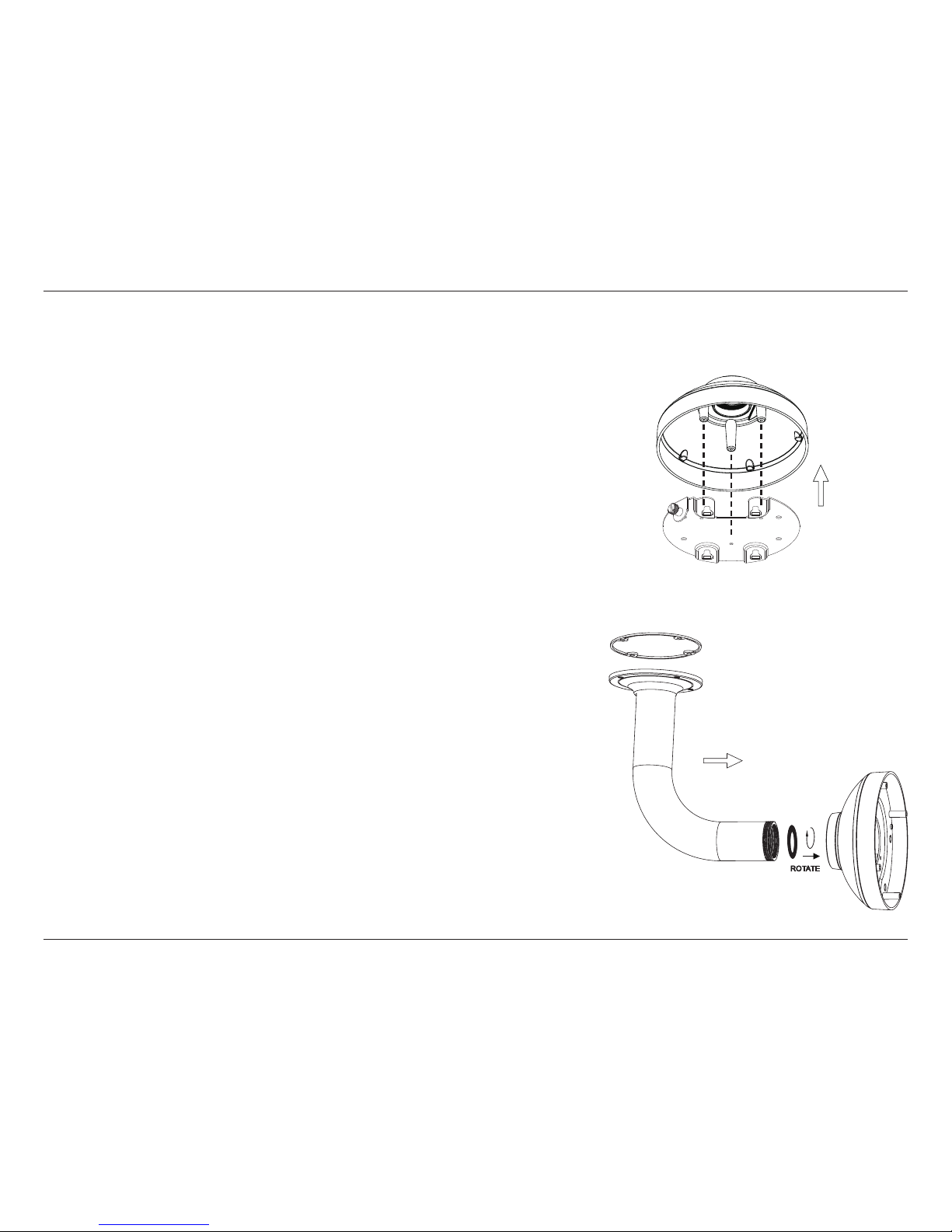

1. Attach the mounting plate to the bracket cap using the three screws.
2. Locate a suitable position on the wall for a 34 mm (+2 / –0 mm) hole to be cut. A
template is included to aid in marking the mounting hole.
3. Cut a hole in the ceiling according to the template
4. Drill four separate 6 mm holes corresponding to the holes in the mounting template
and insert the plastic anchors into these holes.
5. Place the rubber seal between the wall mount bracket and the wall to ensure a
waterproof seal between the wall and the bracket.
6. Attach the wall mount bracket to the wall using the screws provided.
7. Attach the bracket cap to the bottom of the wall mount bracket by rotating the cap
counterclockwise to tighten it into place.
8. Insert the screw into the base of the wall mount bracket at the top of the bracket cap
to secure the bracket cap into place.
9. Connect the Ethernet cable and the power cable and thread them through the wall
mount bracket.
Bracket
Cap
Mounting
Plate
