D-Link DCS-6112V User manual

USER MANUAL
DCS-6112V /6113V
VERSION 2.00

2D-Link DCS-6112V /6113V User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or
organization of such revisions or changes.
Manual Revisions
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or
other countries. All other company or product names mentioned herein are trademarks or registered trademarks of their respective
companies.
Copyright © 2013 by D-Link Corporation.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link
Corporation.
Preface
Revision Date Description
1.0 November 09, 2011 DCS-6112V/6113V Revision A1 with rmware version 1.10
1.01 February 07, 2012 DCS-6112V/6113V Revision A1 with rmware version 1.20
2.0 February 06, 2013 DCS-6112V/6113V Revision A1 with rmware version 2.00

3D-Link DCS-6112V /6113V User Manual
Table of Contents
Product Overview ........................................................ 5
Package Contents ................................................... 5
System Requirements ............................................. 6
Introduction ..............................................................7
Features ..................................................................8
Hardware Overview ................................................. 9
Hardware Installation .............................................11
Installation ..................................................................12
Hardware Installation .............................................12
Conguration with Wizard ...................................... 13
Web-based Conguration Utility ............................ 18
Adjust the viewing angle ........................................20
Attaching the Enclosure .........................................20
D-ViewCam Setup Wizard ...............................21
Conguration ............................................................. 23
Live Video ..............................................................23
Client Setup ...........................................................27
Setup .....................................................................28
Basic Setup ......................................................28
Advanced Setup .............................................. 29
System Overview ................................................... 30
Video ................................................................31
Video Settings ............................................... 31
Image Settings .............................................. 34
Audio Settings ............................................... 36
*Day and Night Settings ................................ 37
Network ............................................................38
IP Settings ..................................................... 38
Port and Access Name Settings ................... 41
Dynamic DNS ............................................... 44
HTTPS .......................................................... 45
Access List .................................................... 47
Advanced Settings ........................................ 49
Event Management ..........................................53
Motion Detection ........................................... 53
Tamper Detection ......................................... 54
DI and DO ..................................................... 55
Event Settings ............................................... 56
Recording ........................................................ 63
Recording Settings ........................................ 63
Local Storage ................................................ 65
PTZ Control .....................................................66
Digital PTZ .................................................... 66
User Customization .........................................67
Live Video Page Conguration ..................... 67
HTML Code Examples .................................. 68
System .............................................................69
User Settings ................................................ 69
Device Settings ............................................. 70
Time and Date .............................................. 71
Maintenance ................................................. 72

4D-Link DCS-6112V /6113V User Manual
Parameter List ............................................... 74
Logs .............................................................. 75
Appendix A - Technical Specications ................... 76
Technical Specications ........................................76

5D-Link DCS-6112V /6113V User Manual
Product OverviewProduct Overview
If any of the above items are missing, please contact your reseller.
DCS-6112V /6113V
Full HD Vandal-proof Fixed

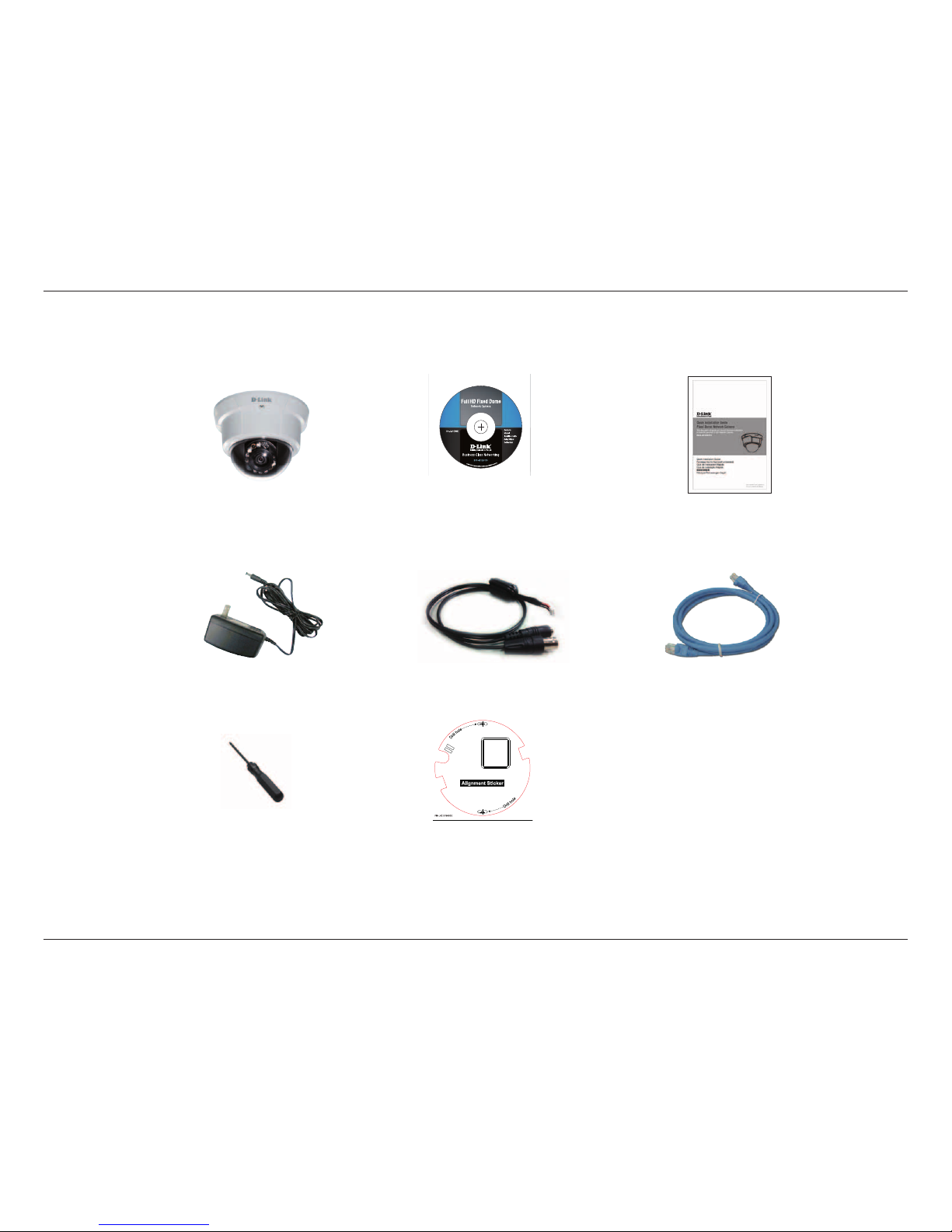

Dome Network Camera
User Manual and Software
on CD-ROM
Power Adapter CAT5 Ethernet Cable
Quick Install Guide
AV/Power Cable
Package Contents
Screw Driver Alignment Sticker

6D-Link DCS-6112V /6113V User Manual
Product Overview
System Requirements
Operating System: Microsoft Windows ®, 2000, XP, Vista, 7
Memory : At least 256MB of memory (512MB recommended)
Web Browser: Internet Explorer 6.x or higher
VGA card resolution: SVGA or XGA (1024x768 or above)
CPU: 1.7GHz or above (2.8GHz plus processor with 512MB memory and a 32MB video card is
required for multiple camera viewing and recording in IP surveillance program)
An available Ethernet connection

7D-Link DCS-6112V /6113V User Manual
Product Overview
Introduction
D-Link DCS-6112V/6113V are indoor vandal-proof xed dome camera equipped with industry-leading high denition (Full HD)
megapixel resolution and H.264 compression that enable high-quality video footage to be recorded. The DCS-6112V/6113V connects
to a network to provide high-quality live video over the Internet. The DCS-6113V is capable of capturing video in both dark and light
environments thanks to its built-in IR LEDs and IR-cut removable (ICR) lter. The ICR lter allows the camera to capture crisp color
images during the daytime and detailed grayscale images at night or in or low-light conditions.
DCS-6112V/6113V are equipped with metal housing certied by IK-10 criterion which protect the camera from damage.
The built-in MicroSD card slot can be used as a local backup by storing important events on an easily retrievable MicroSD card.
The included D-Link D-ViewCam™ is sophisticated software which allows users to manage up to 32 network cameras, set e-mail alert
notications, create recording schedules, and use motion detection to record directly to a hard drive. D-ViewCam™ also allows users to
upload a oor plan to create a realistic layout of the premises where cameras are located, further simplifying the management process.

8D-Link DCS-6112V /6113V User Manual
Product Overview
Features
Full HD Surveillance
DCS-6112V /6113V provides Full HD industral standard 16:9 wide screen video for IP surveillance. To utilize the advantage of high
resolution, the "viewing window" design can provide user a exible settings to monitor multiple ROI(Region of Interest) by a single
camera. And the "ePTZ" can also simulate wide area surveillance by digital zoom and pan, tilt control.
Flexible Connectivity
The DCS-6112V /6113V includes input and output ports for connectivity to external devices such as IR sensors, switches, and alarm
relays. The DCS-6112V /6113V also incorporates Power over Ethernet (PoE), allowing it to be easily installed in a variety of locations
without the need for supplemental power cabling.
Advanced Web User Interface
The DCS-6112V /6113V features D-Link’s latest-generation graphical user interface. This freshly-designed web interface features a
clean, compact, and professional home screen which dramatically increases usability. Menu navigation is simplied thanks to a tree
view which logically groups functions, helping users to quickly nd what they need. Likewise, intuitive graphic icons reduce the amount
text and clutter within the browser window. New users will appreciate the convenient contextual help which offers an easy way to nd
assistance with camera management tasks.
Reliable 24-Hour Surveillance
DCS-6113V is equipped infrared LED illuminators which provides a clear picture at night for dependable 24-hour surveillance.

9D-Link DCS-6112V /6113V User Manual
Product Overview
Hardware Overview

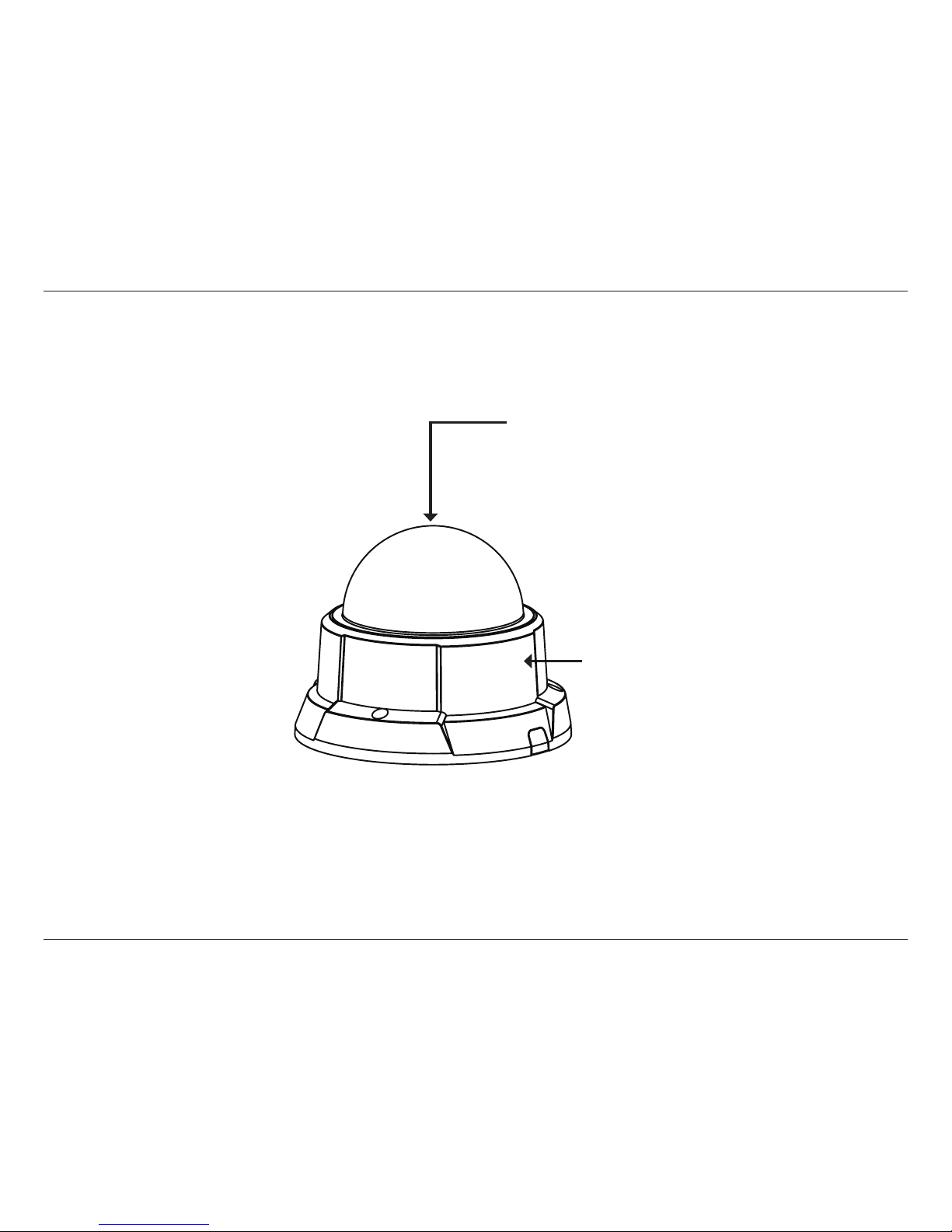

Dome Cover
Metal housing

10D-Link DCS-6112V /6113V User Manual
Product Overview

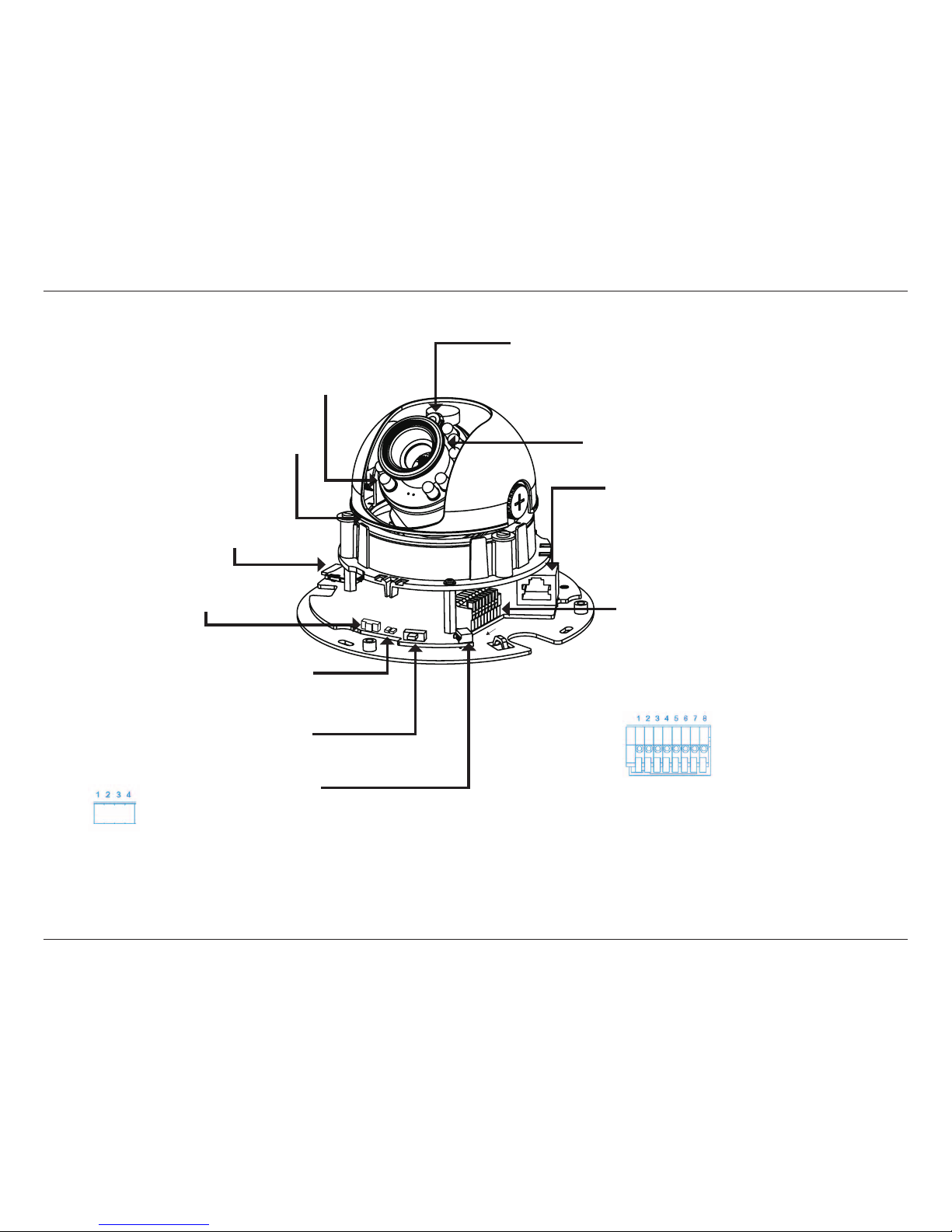

Light sensor
Judges lighting conditions and switches from
day mode to night mode accordingly (Control
IR-LED and ICR on/off) (DCS-6113V only)
Infrared LEDs
Used to illuminate the camera's eld
of view at night (DCS-6113V only)
LED
Power and
network indicator
Ethernet (PoE)
RJ-45 connector for Ethernet which can also
be used to power the camera using PoE
MicroSD Card Slot
Local MicroSD card for storing
recorded images and video
Lens
Vari focal lens (DCS-6112V) / Fixed lens (DCS-6113V)
3-Axis Mechanism
Adjust the camera’s image to
achieve the desired orientation
Audio Input / Output
Audio input/output connector for external speaker
Digital Input (DI) /Output (DO)
DI/DO connectors provide a physical interface
to send and receive digital signals to and from a
variety of external devices
Reset
Press and hold this button for 10
seconds to reset the camera
DC Input
Connects to the 12V DC power
adapter to power the camera
Video Output
Video output connector for TV/
Monitor
Audio I/O and DI/DO
1: Audio GND
2. Audio out
3. Audio GND
4. Audio input
5. GND
6. Digital input
7. Digital output
8. 12V DC
1: Ground of Video out
2: Video output
3: Ground of DC input
4: DC 12V
NTSC/PAL Switch
Switch for NTSC/PAL video format
8 1

11D-Link DCS-6112V /6113V User Manual
Product Overview
Hardware Installation

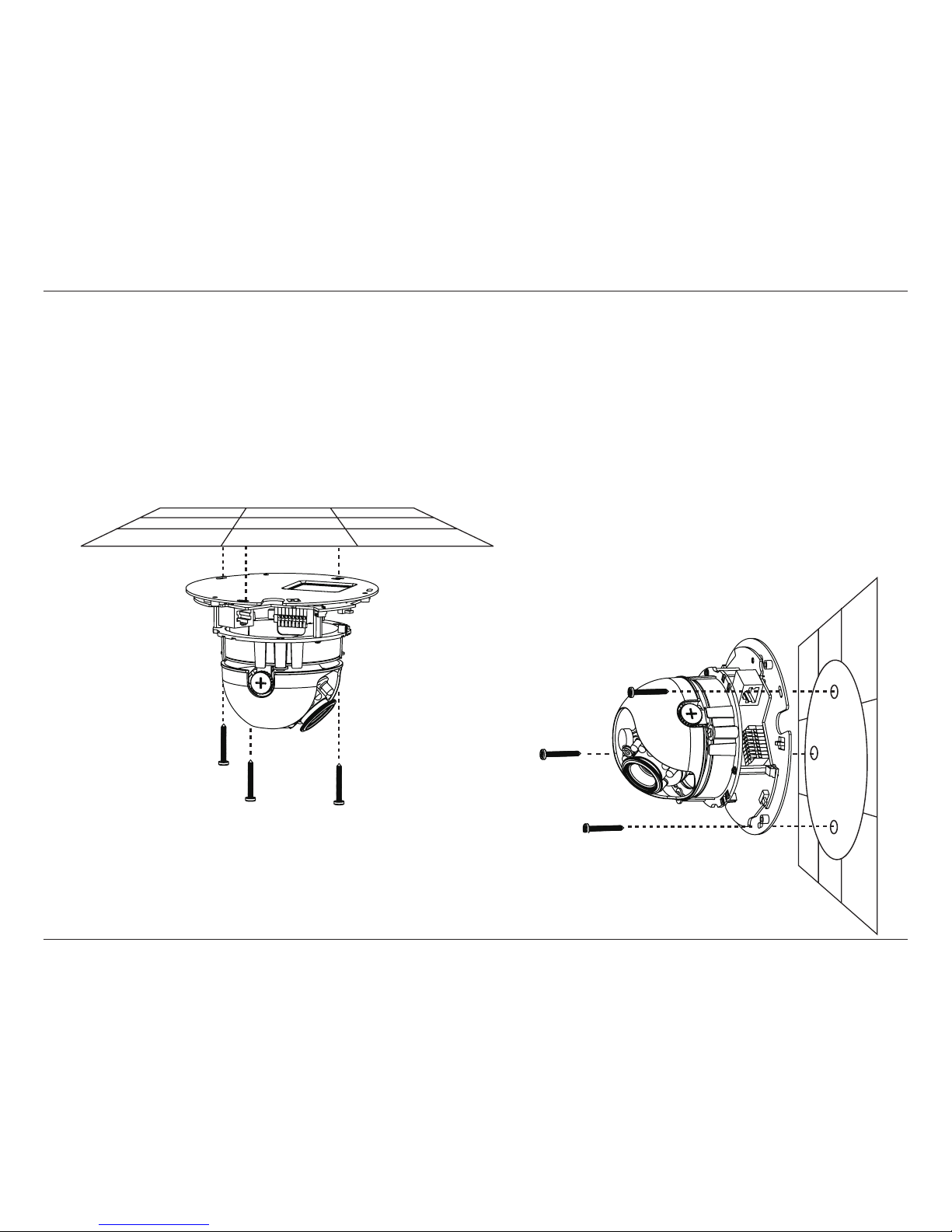

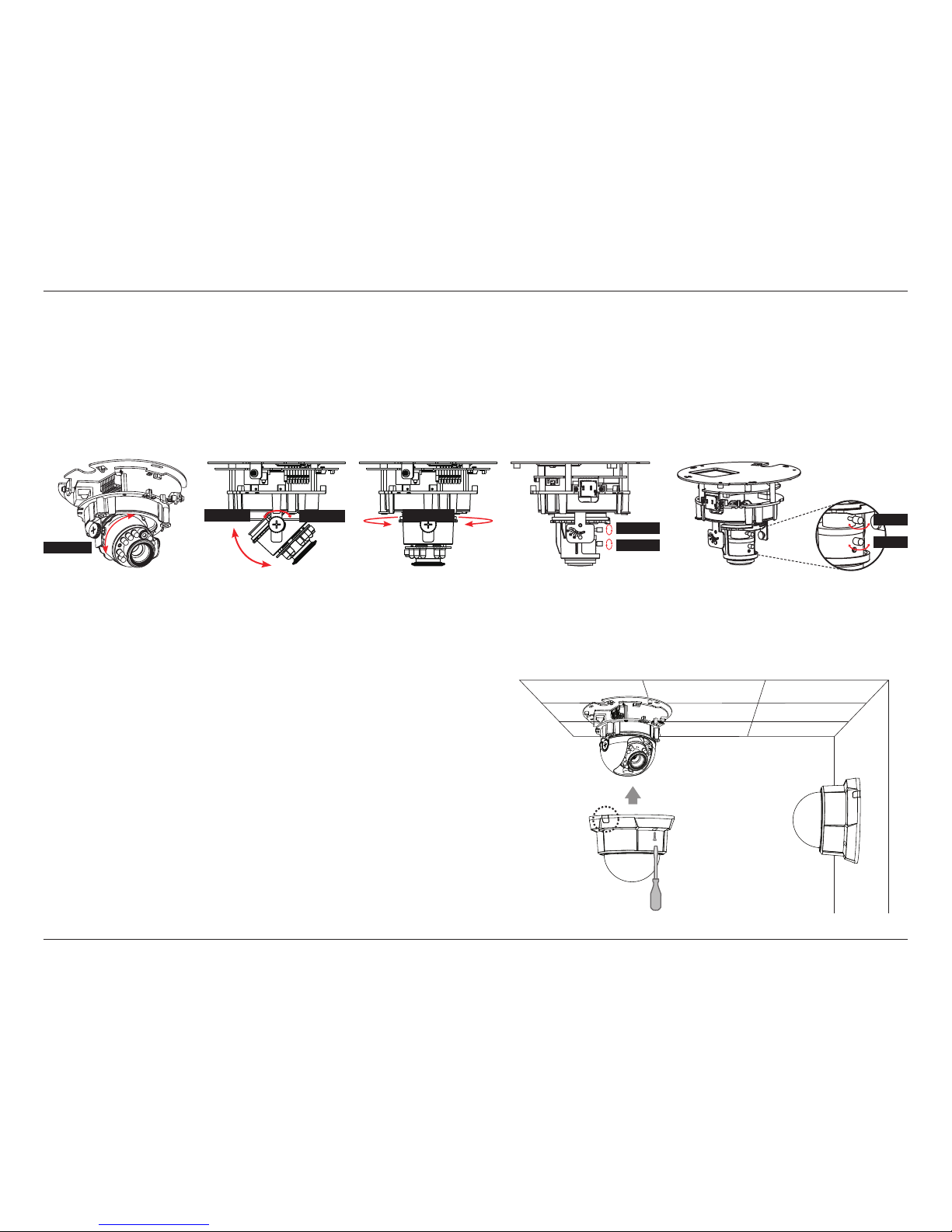

Mounting to a Ceiling or a Wall
1.Locate an area on the ceiling or wall which is capable of supporting the weight of the camera.
2.Attach the alignment sticker to the ceiling or wall.
3.Drill two pilot holes where the holes of the alignment sticker are located.
4.Insert the supplied plastic anchors into the drilled holes, and align the holes at the base of the camera with the plastic anchors.
5.The camera can be mounted with the cable routed through the ceiling, wall or from the side.
6.Insert the provided screws through the holes. Use a screwdriver to tighten and secure.

12D-Link DCS-6112V /6113V User Manual
InstallationInstallation
Hardware Installation

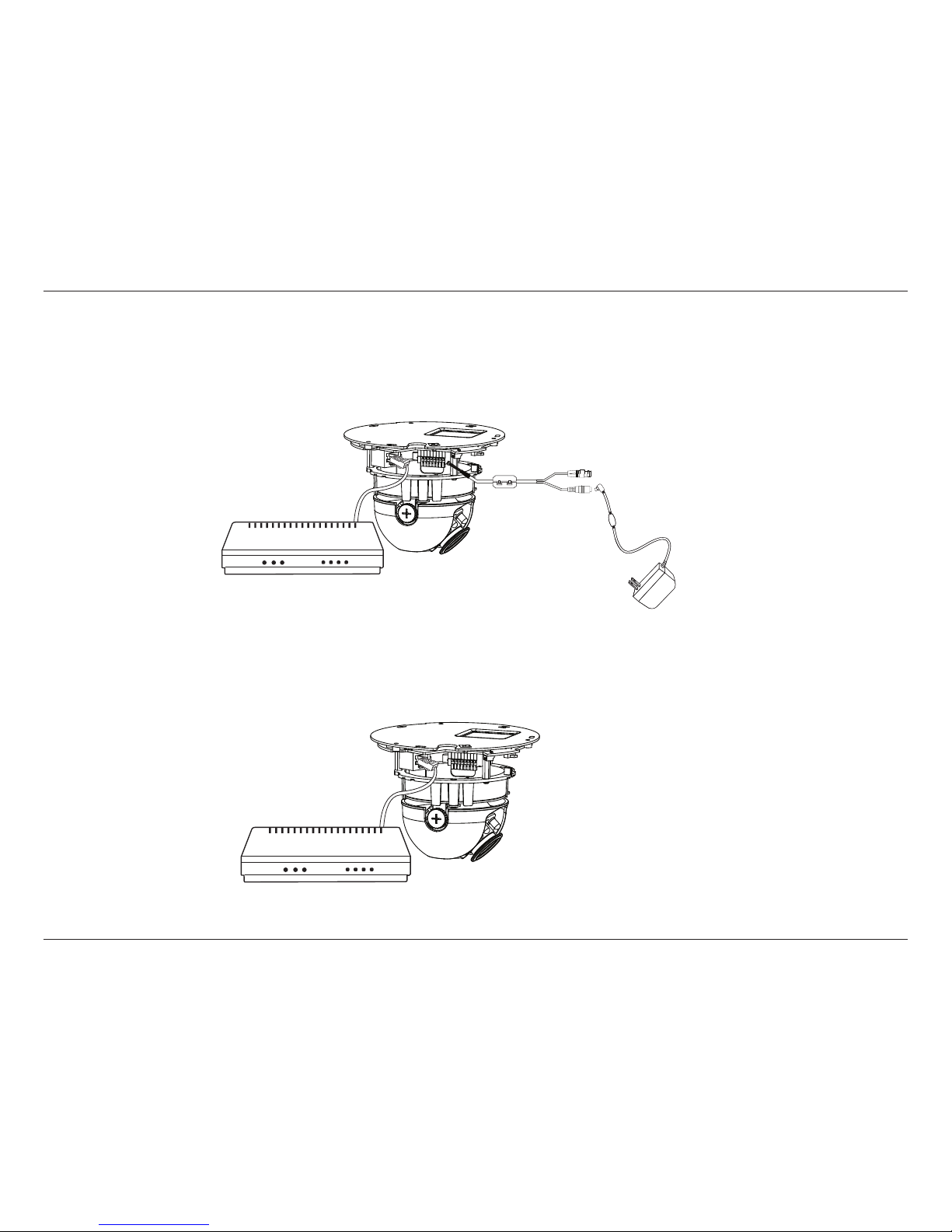

General Connection (without PoE)
Connect the network camera to a switch or router via an Ethernet cable.
Connect the supplied power cable from the camera to a power outlet.
Connection with a PoE Switch
If using a PoE switch, connect the network camera to the switch via an Ethernet cable, which will provide both power and data
transmission over a single cable.

13D-Link DCS-6112V /6113V User Manual
Installation
Conguration with Wizard

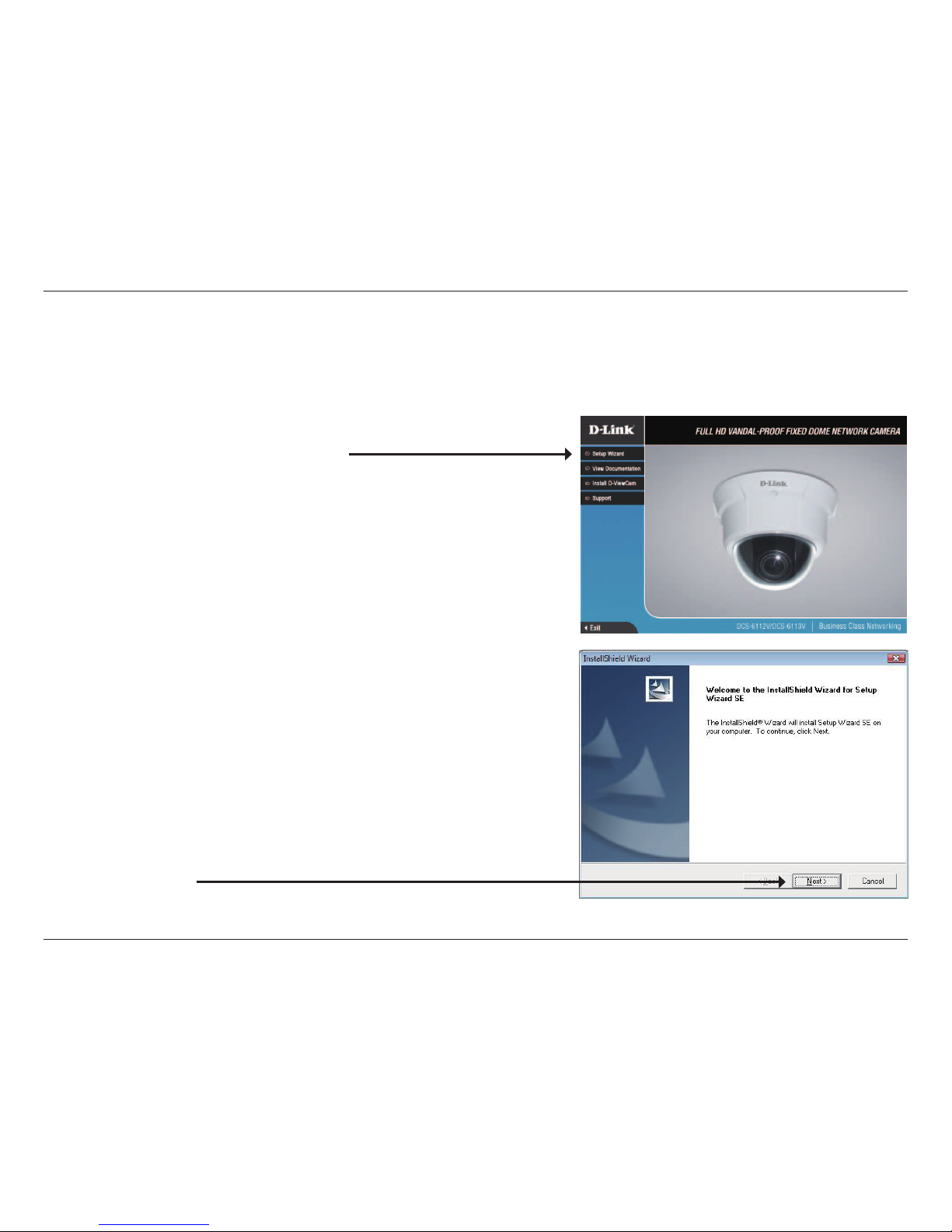

Click Setup Wizard to begin the installation.
Insert the DCS-6112V /6113V CD into your computer's CD-ROM drive to
begin the installation. If the Autorun function on your computer is disabled, or
if the D-Link Launcher fails to start automatically, click Start > Run. Type D:\
autorun.exe, where D: represents the drive letter of your CD-ROM drive.
After clicking Setup Wizard, the following window will open.
Click Next to continue.

14D-Link DCS-6112V /6113V User Manual
Installation

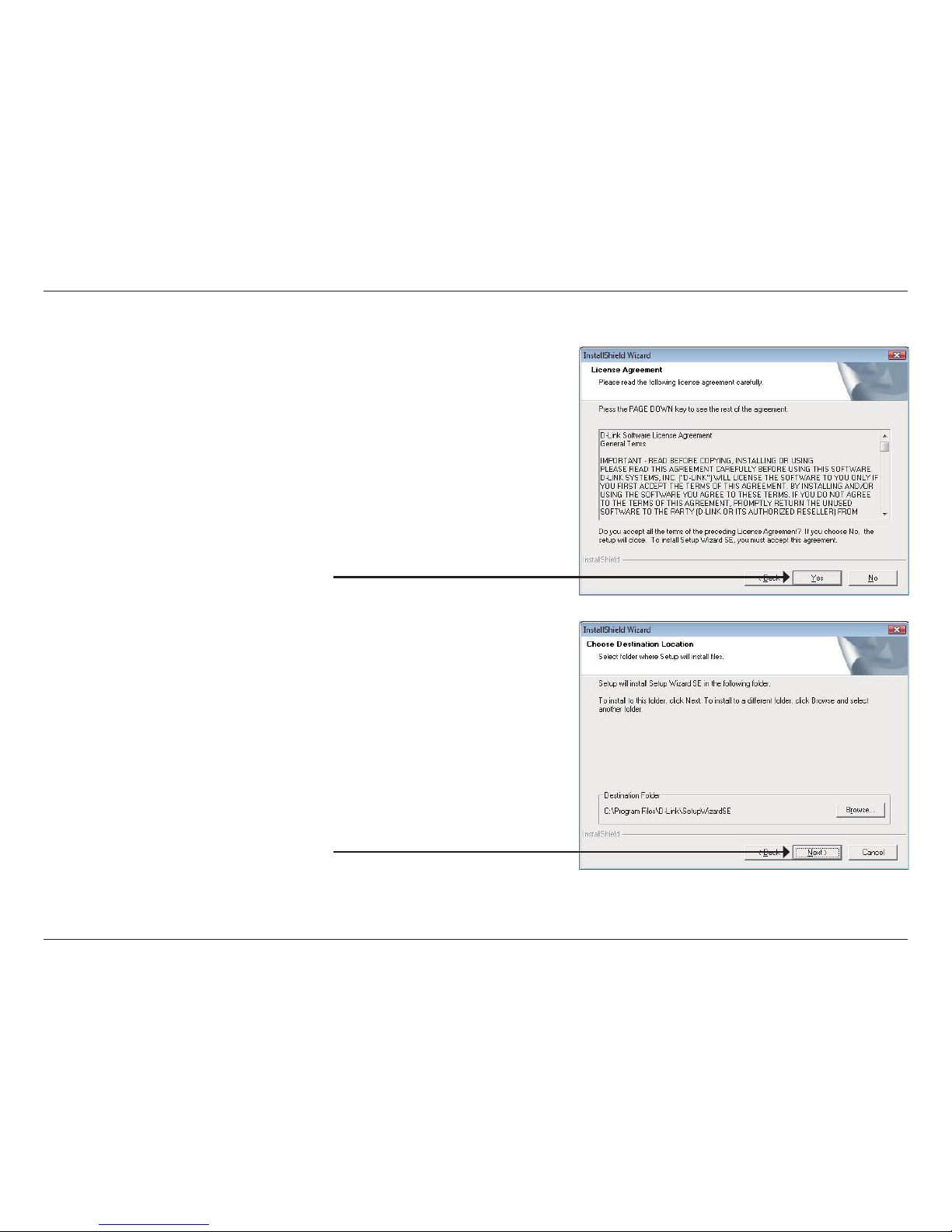

Click Yes to accept the License Agreement.
To start the installation process, click Next.
Note: The installation may take several minutes to nish.

15D-Link DCS-6112V /6113V User Manual
Installation

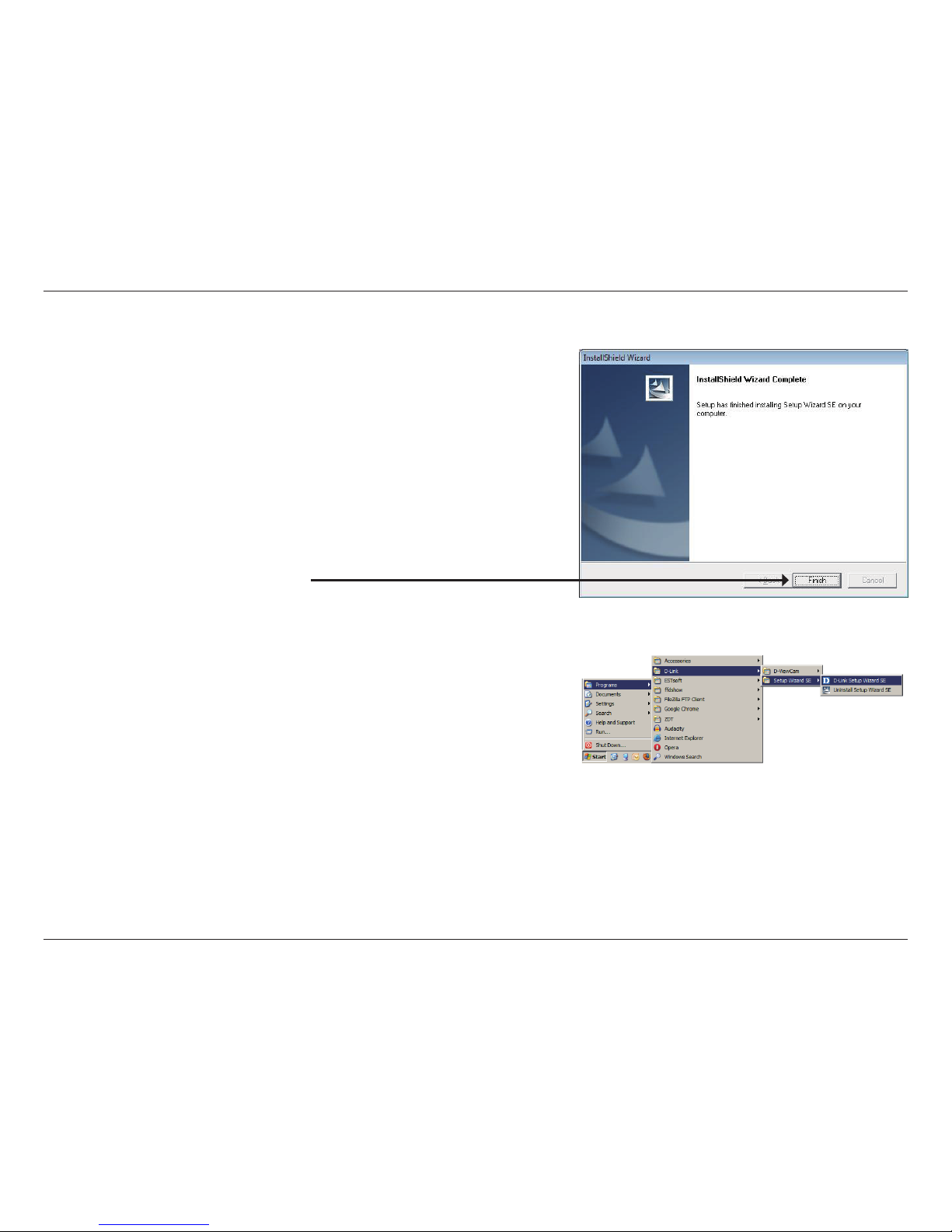

Click Finish to complete the installation.

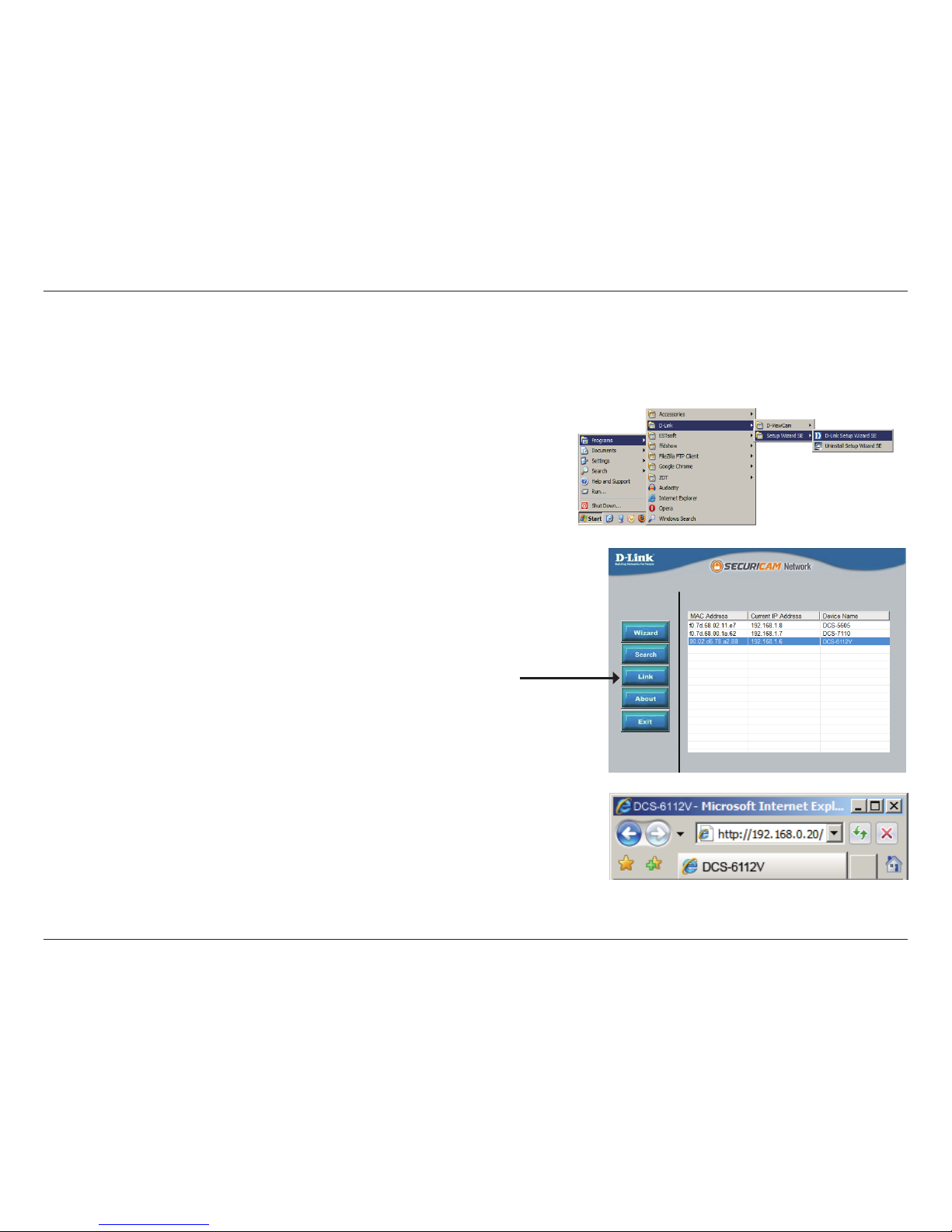

Click on the D-Link Setup Wizard SE icon that was created in your Windows
Start menu.
Start > D-Link > Setup Wizard SE

16D-Link DCS-6112V /6113V User Manual
Installation

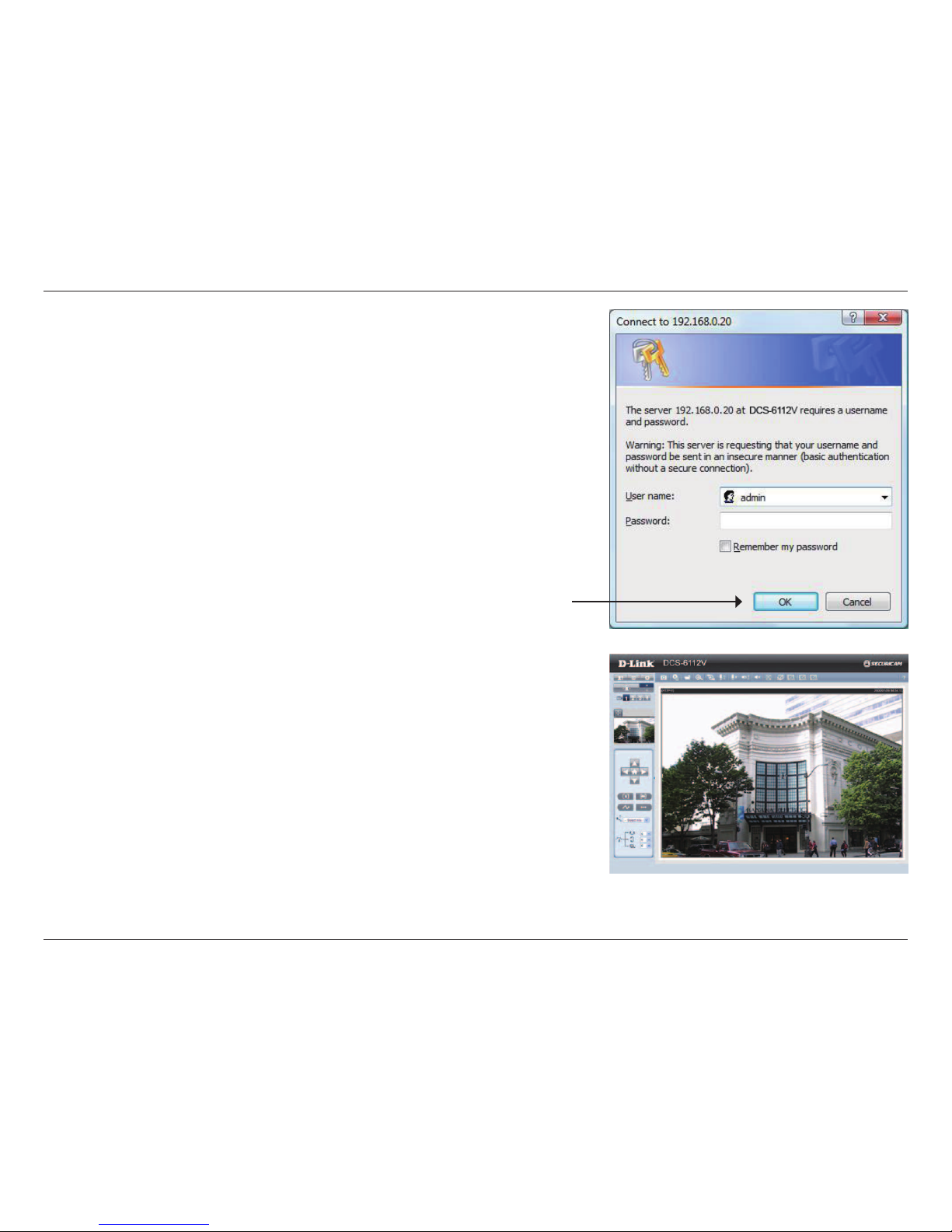

Enter the Admin ID and password. When logging in for the rst time, the
default Admin ID is admin with the password left blank.
Click Next, to proceed to the next page.

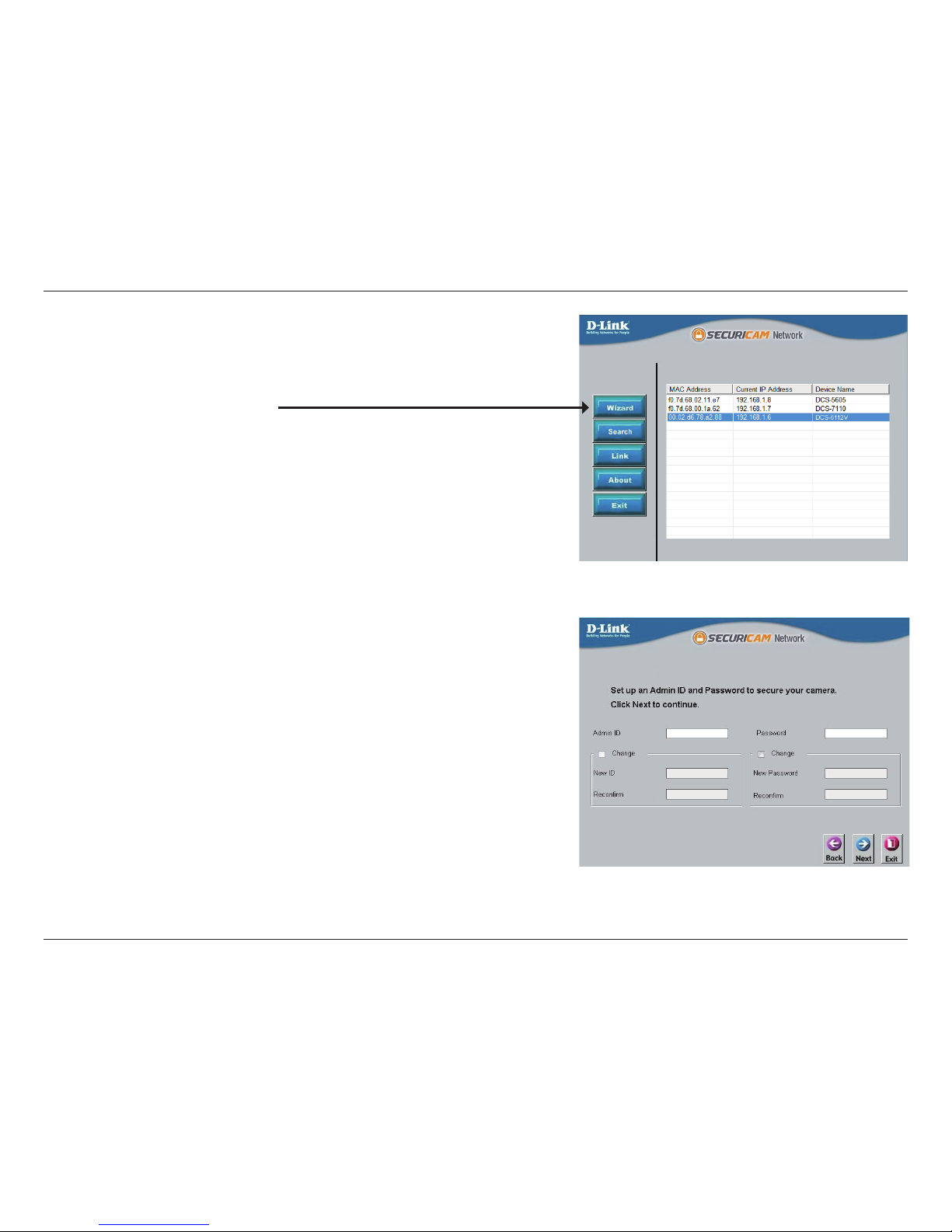

The Setup Wizard will appear and display the MAC address and IP address
of your camera(s). If you have a DHCP server on your network, a valid IP
Address will be displayed. If your network does not use a DHCP server, the
network camera's default static IP 192.168.0.20 will be displayed.
Click the Wizard button to continue.

17D-Link DCS-6112V /6113V User Manual
Installation

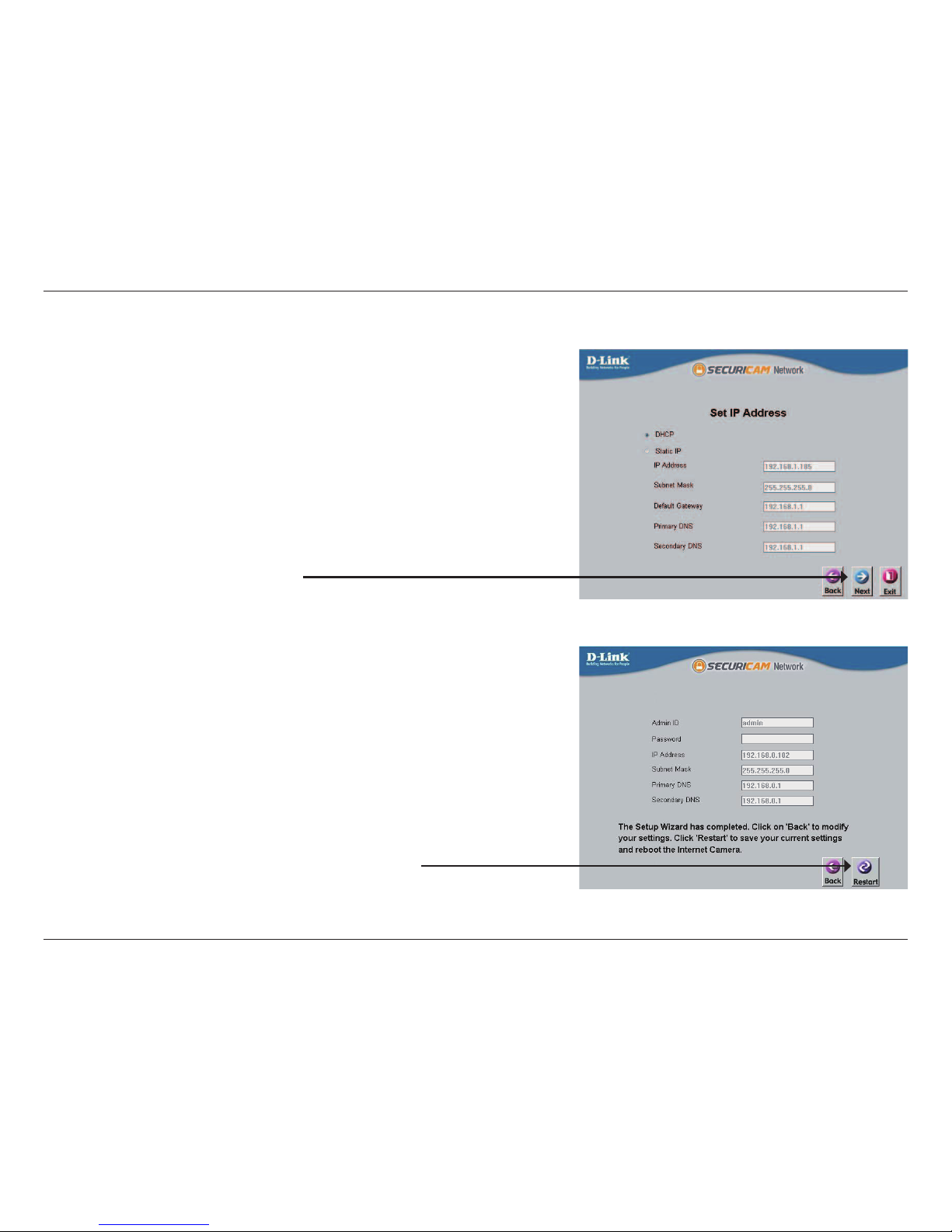

Take a moment to conrm your settings and click Restart.
Select DHCP if your camera obtains an IP address automatically when it boots
up. Select static IP if the camera will use the same IP address each time it is
started.
Click Next, to proceed to the next page.

18D-Link DCS-6112V /6113V User Manual
Installation
Click on the D-Link Setup Wizard SE icon that was created in your Windows
Start menu.
Start > D-Link > Setup Wizard SE
Web-based Conguration Utility
This section explains how to congure your new D-Link Network Camera using the Web-based Conguration Utility.
Select the camera and click the button labeled "Link" to access the web
conguration.
The Setup Wizard will automatically open your web browser to the IP address of
the camera.
Alternatively, you may manually open a browser and enter the IP address of the
camera: 192.168.0.20

19D-Link DCS-6112V /6113V User Manual
Installation
This section shows your camera’s live video. You can select your video prole and
view or operate the camera. For additional information about web conguration,
please refer to the user manual included on the CD-ROM or the D-Link website.
Enter admin as the default username and leave the password blank. Click OK to
continue.

20D-Link DCS-6112V /6113V User Manual
Installation
Adjust the viewing angle
Loosen the pan screw and turn the lens module left and right until the desired position is achieved; tighten the pan screw once completed.
Loosen the tilt screws on both sides of the camera, and turn the lens module up and down until the desired position is achieved; tighten
the tilt screws once completed.
Loosen the image adjustment screw and turn the lens to adjust the network camera’s image until the desired orientation is achieved,
tighten the image adjustment screw once completed.
Adjusting Zoom and Focus
Loosen the zoom controller and adjust the zoom factor by moving the
controller left and right until the desired range is achieved; tighten the
zoom controller once completed.
Loosen the focus controller and adjust the focus range by moving
the controller left and right until the image is clear; tighten the focus
controller once completed.
Loosen Tighten
Tilt 85°
Pan 350°
Rotate 350°
A
Focus
Zoom
Loosen
Tighten
