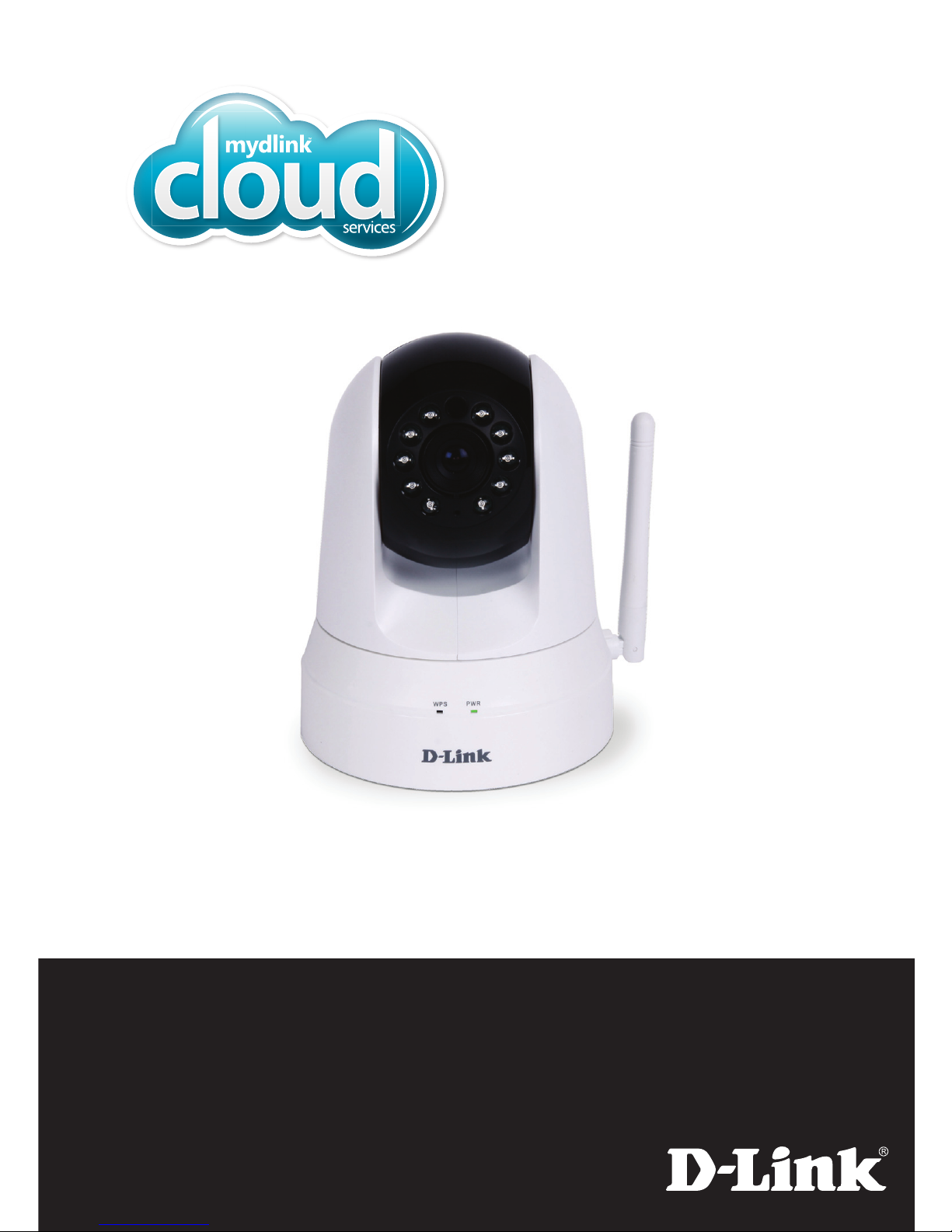

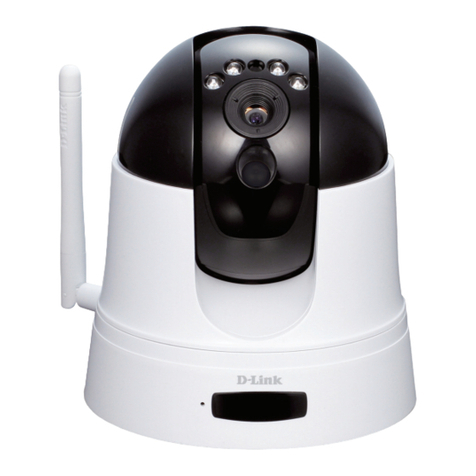

D-Link DCS-5020L User manual

DCS-5020L
Quick Install Guide
Pan & Tilt Day/Night Network Camera
Cloud Camera

If any of the above items are missing, please contact your reseller.
Minimum Requirements
DCS-5020L Pan & Tilt Day/Night Network Camera
Power Adapter
Ethernet Cable
Quick Install Guide
Package Contents
Computer with:
Web Browser
• PC with 1.3GHz or above and at least 128MB RAM
• Windows® 8, 7, Vista® or XP (32-bit or 64-bit)
• Mac OS® X 10.6 or higher
• Internet Explorer® 7, Firefox, Safari 4, or Chrome
• Installed and enabled Java and ActiveX® controls
• A router (D-Link Cloud Router is recommended)
• An Internet connection
• An e-mail account (required to create a mydlink account)
Network Device and Service
Mounting Bracket
2
ENGLISH

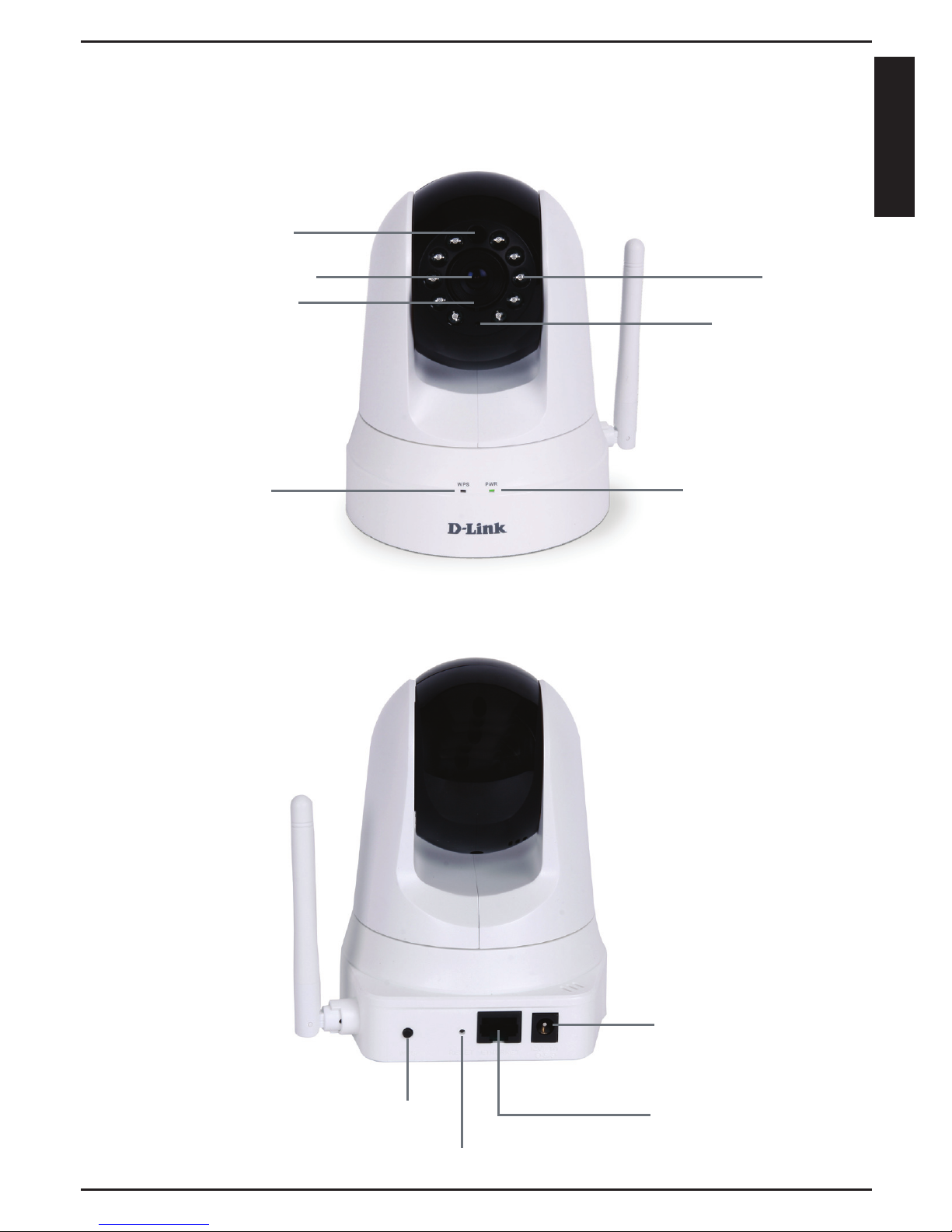

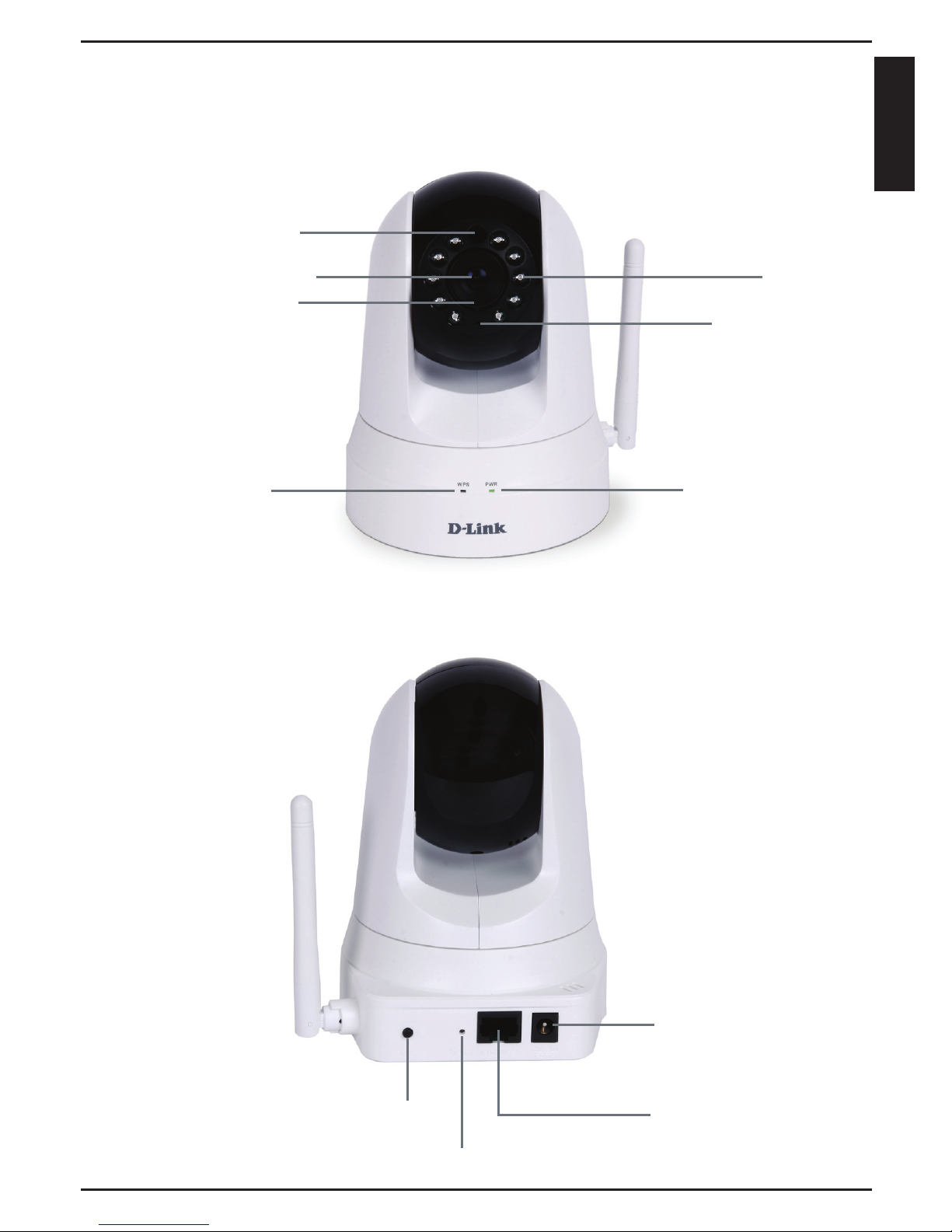

Product Overview
Camera Lens
Microphone
IR LED
Light Sensor
Power and Link LED
WPS LED
Manual Focus Bezel
Power Connector
Ethernet Port
Reset Button
WPS Button
Front
Back
3
ENGLISH

If you have a D-Link Cloud Router with an Internet connection, you can take
advantage of Zero Conguration. This feature automatically congures your
camera’s settings for you and adds it to your mydlink account automatically. If you
do not have a D-Link Cloud router, refer to the next page to install and congure
your camera.
If you wish to connect your camera to your router wirelessly, you can simply disconnect
the Ethernet cable and move the camera to its intended location after you have added
the camera to your account (step 3).

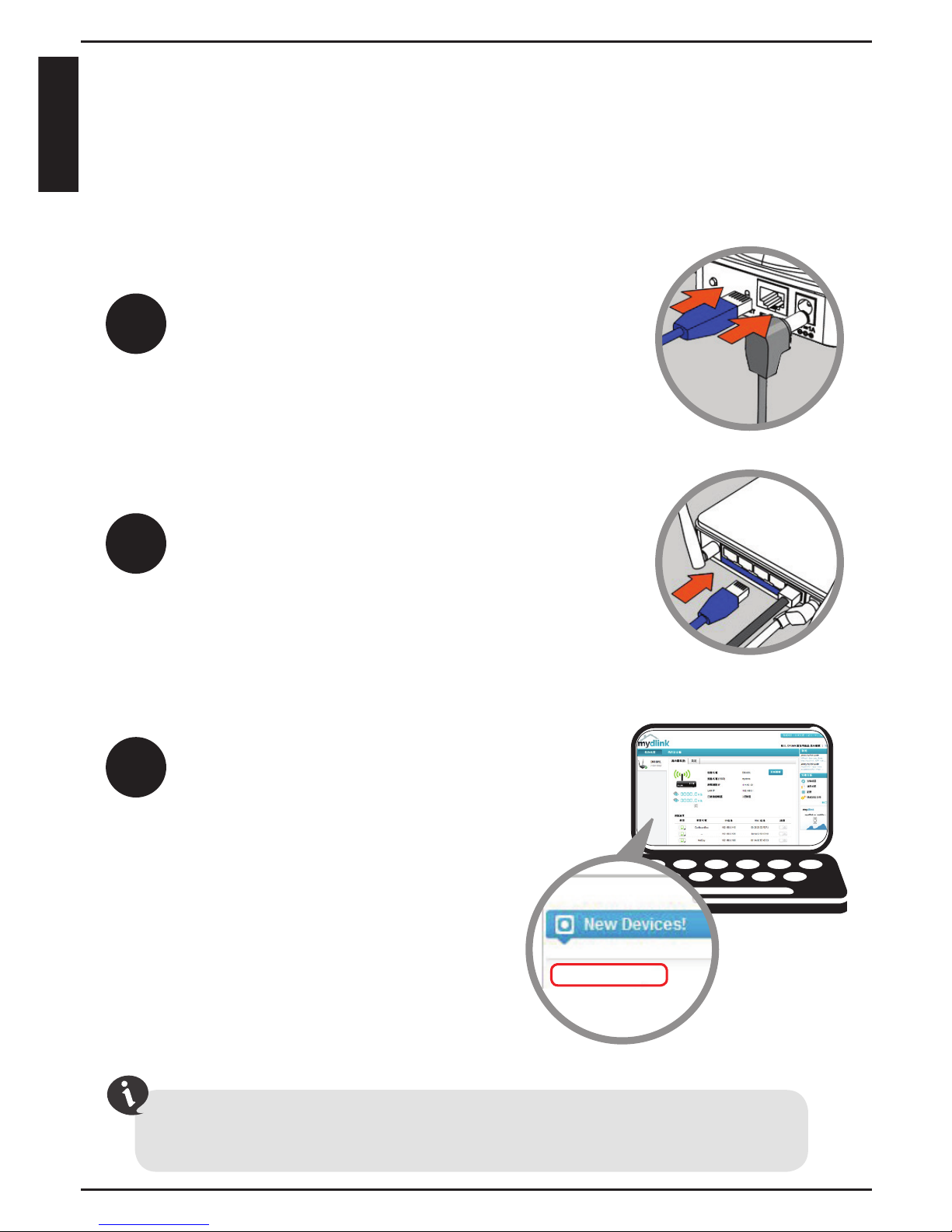

Zero Conguration Setup
1
2
From any computer, open a web browser,
go to http://www.mydlink.com and log into
your account.
Click on the device name when the notice
appears to add the camera to your account.
3
Connect the other end of the Ethernet cable to your
D-Link Cloud Router and connect the camera’s power
adapter to a power outlet.
Connect the Ethernet cable and power adapter to the
camera.
DCS-5020L
4
ENGLISH

Please download the Setup Wizard from http://www.mydlink.com/support.

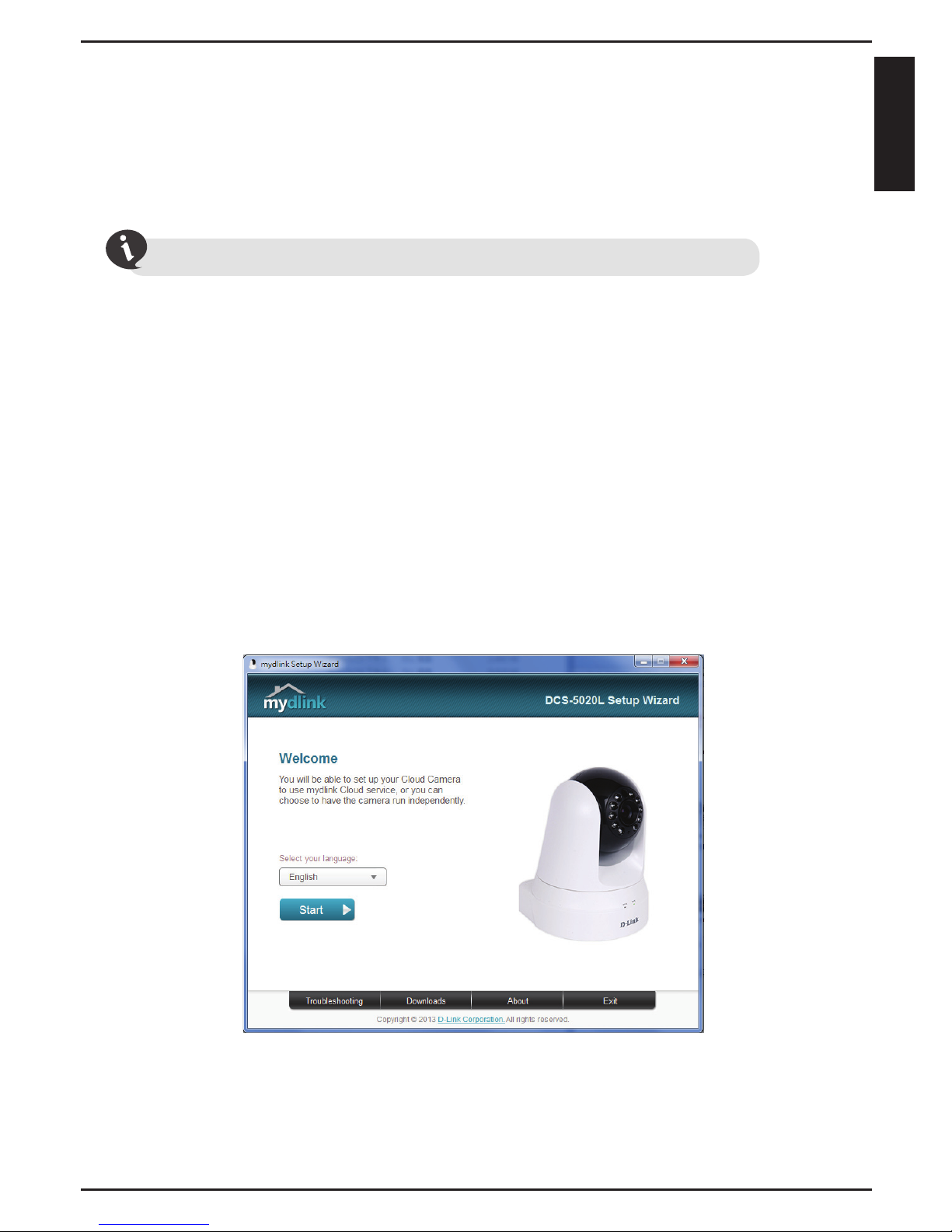

Setup Wizard
If you do not have a D-Link Cloud Router, you can use any Windows or Mac
computer to go through the Setup Wizard, which will guide you through the
installation process from connecting your hardware to conguring your camera.
After about 20-30 seconds, the Setup Wizard will open, which will guide you
step-by-step through the installation process from connecting your hardware
to conguring your camera and registering it with your mydlink account.
Windows Users - Extract (“unzip”) the les to a folder on your computer and
then double-click the autorun.exe le.
Mac Users - Download the Mac OS Setup Wizard. Open the SetupWizard le
and launch the application.
5
ENGLISH

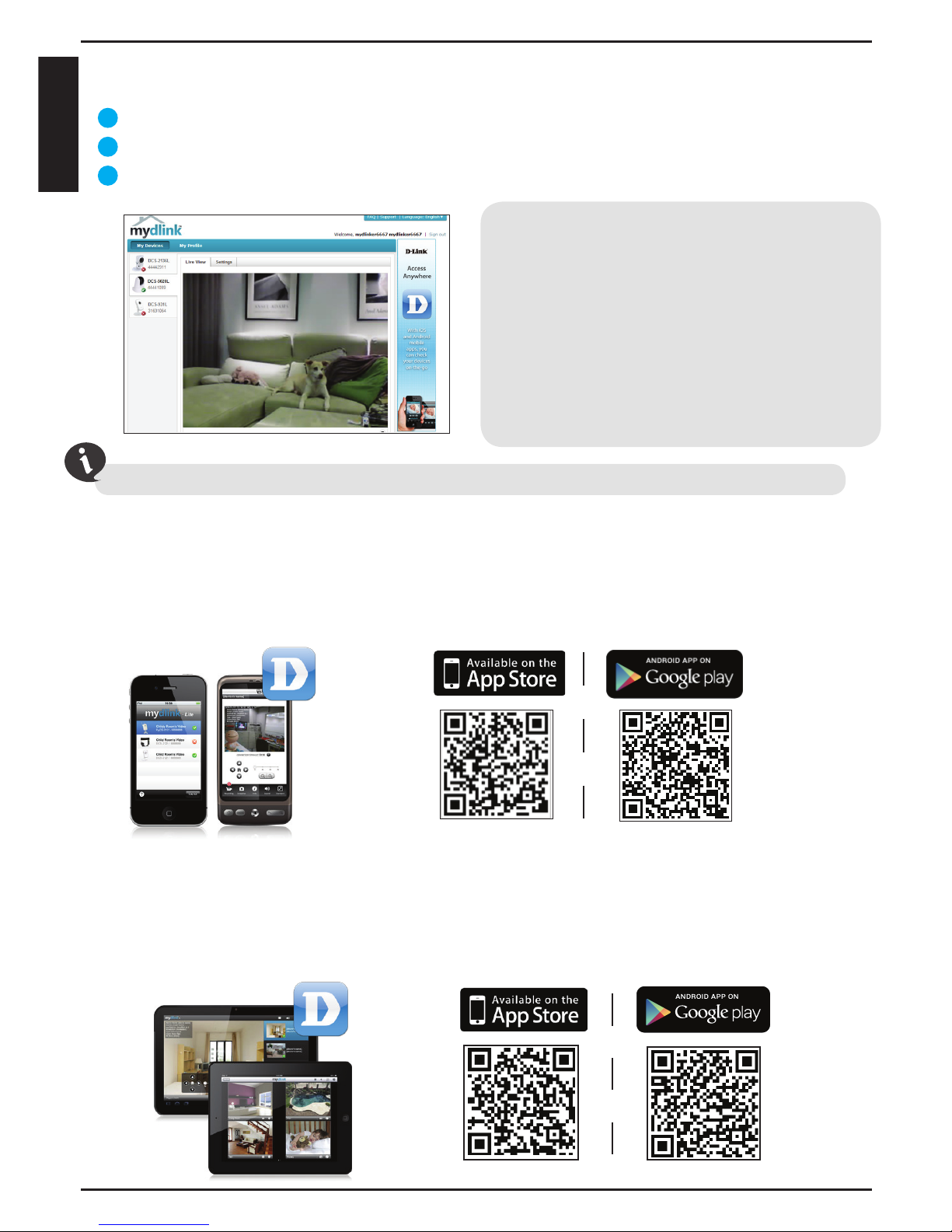

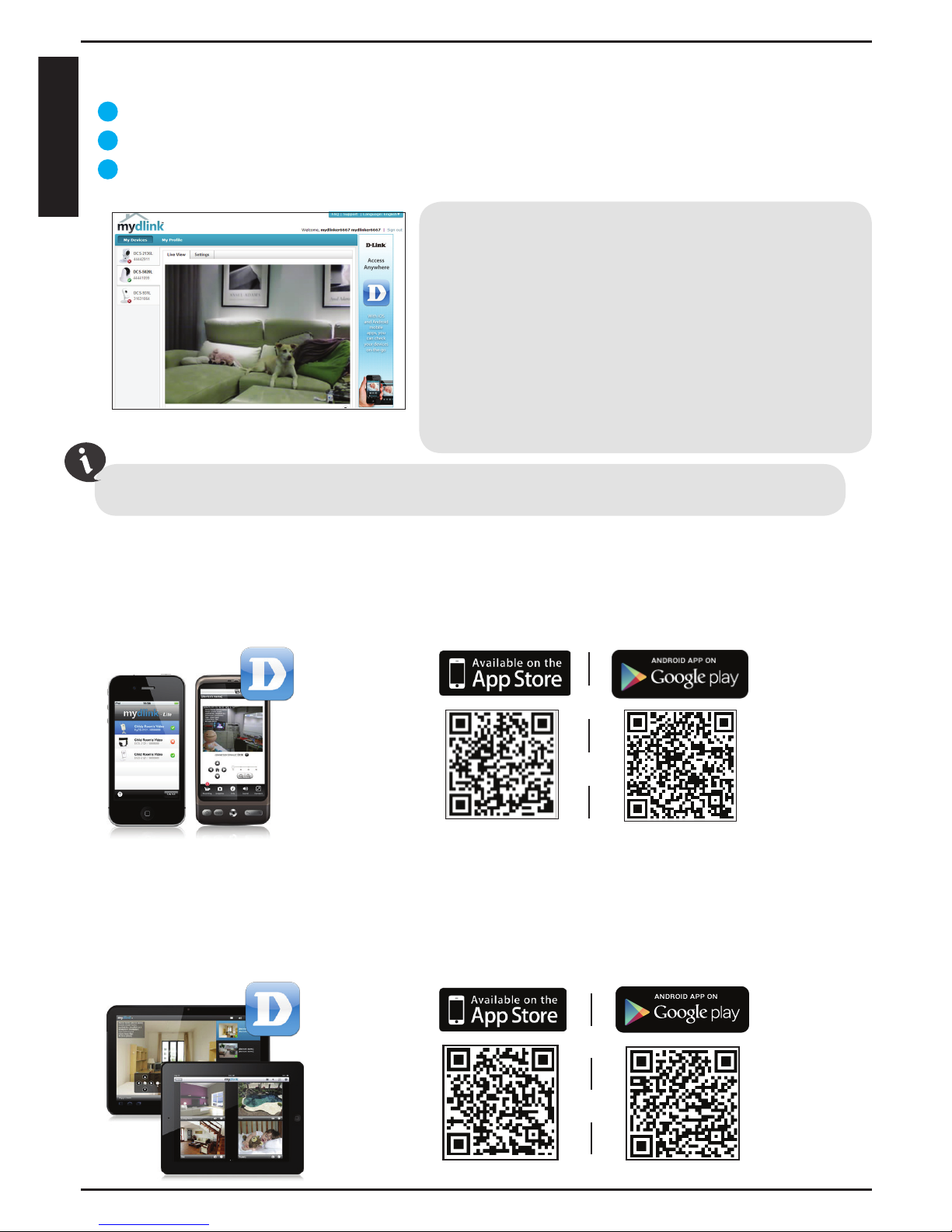

Start mydlink
Open a web browser on any computer connected to the Internet.
Enter http://www.mydlink.com in the address bar and press Enter.
Sign in with your mydlink account registered in the Setup Wizard.
1
2
3
• Windows does not have Java installed by default.
Please download it from http://www.java.com.
• In Mac OS X 10.7.x, Java applets are disabled by
default. Click the Finder > Applications > Utilities
> Java Preferences and check the Enable applet
plug-in and Web Start applications option.
• The ActiveX® controls in IE will install automatically
if needed. We suggest that you make sure that
you have enabled the related options in Tools >
Internet Options > Security > Custom Level.
mydlink Lite App (Free)
Search for “mydlink lite” to download and install the app on your smartphone or tablet
when connected to the Internet. You can also nd the app by scanning the QR code
below with a QR code scan app.
mydlink+ App (Paid - Tablet Only)
Search for the word “mydlink+” to download and install the app on your tablet when
connected to the Internet. You can also nd the app by scanning the QR code below
with a QR code scan app.
System Requirements: iOS version 4.3 or above. Android version 2.1 or above.
System Requirements: iOS version 4.3 or above. Android version 2.1 or above.
If your image is blurry, you can manually focus the camera by adjusting the focus bezel.
6
ENGLISH

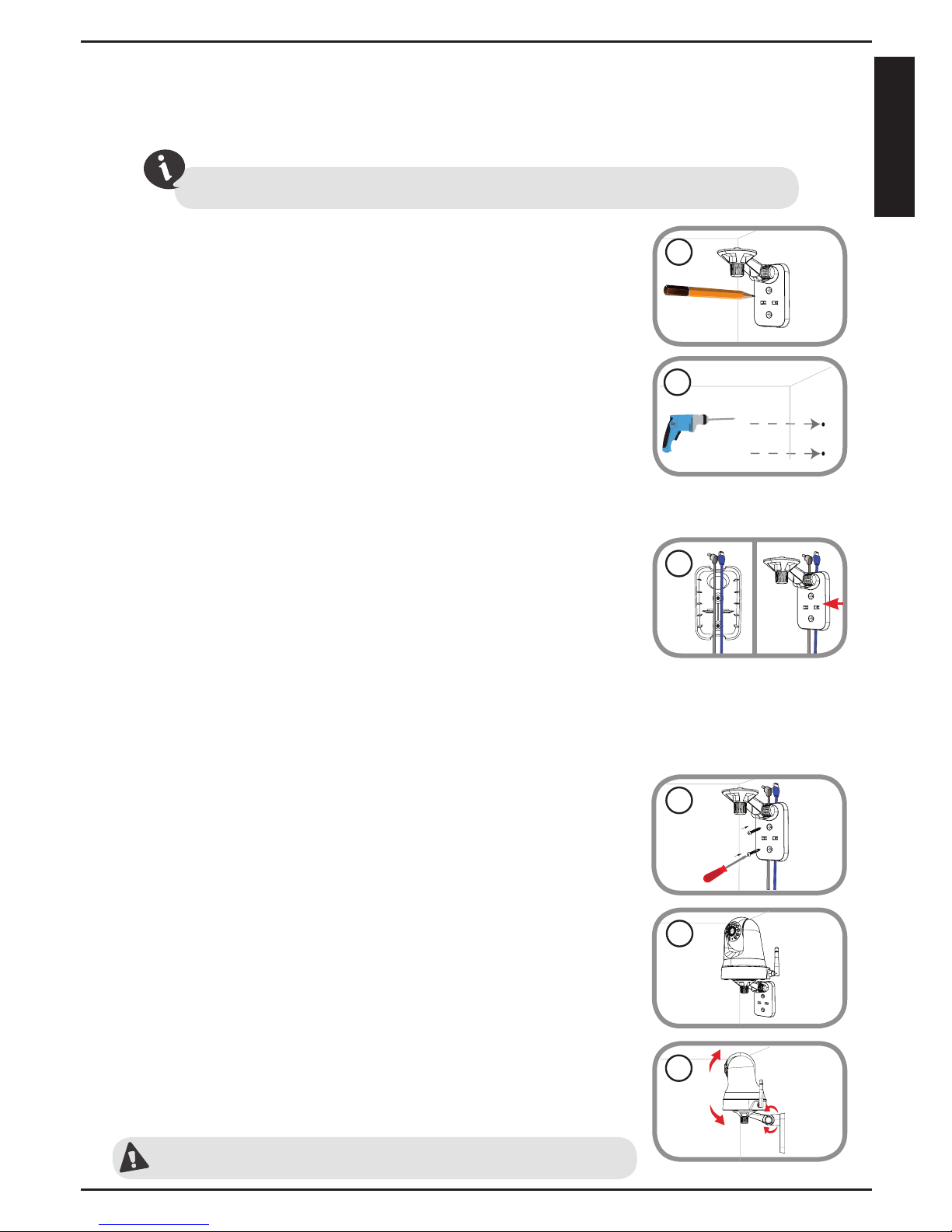

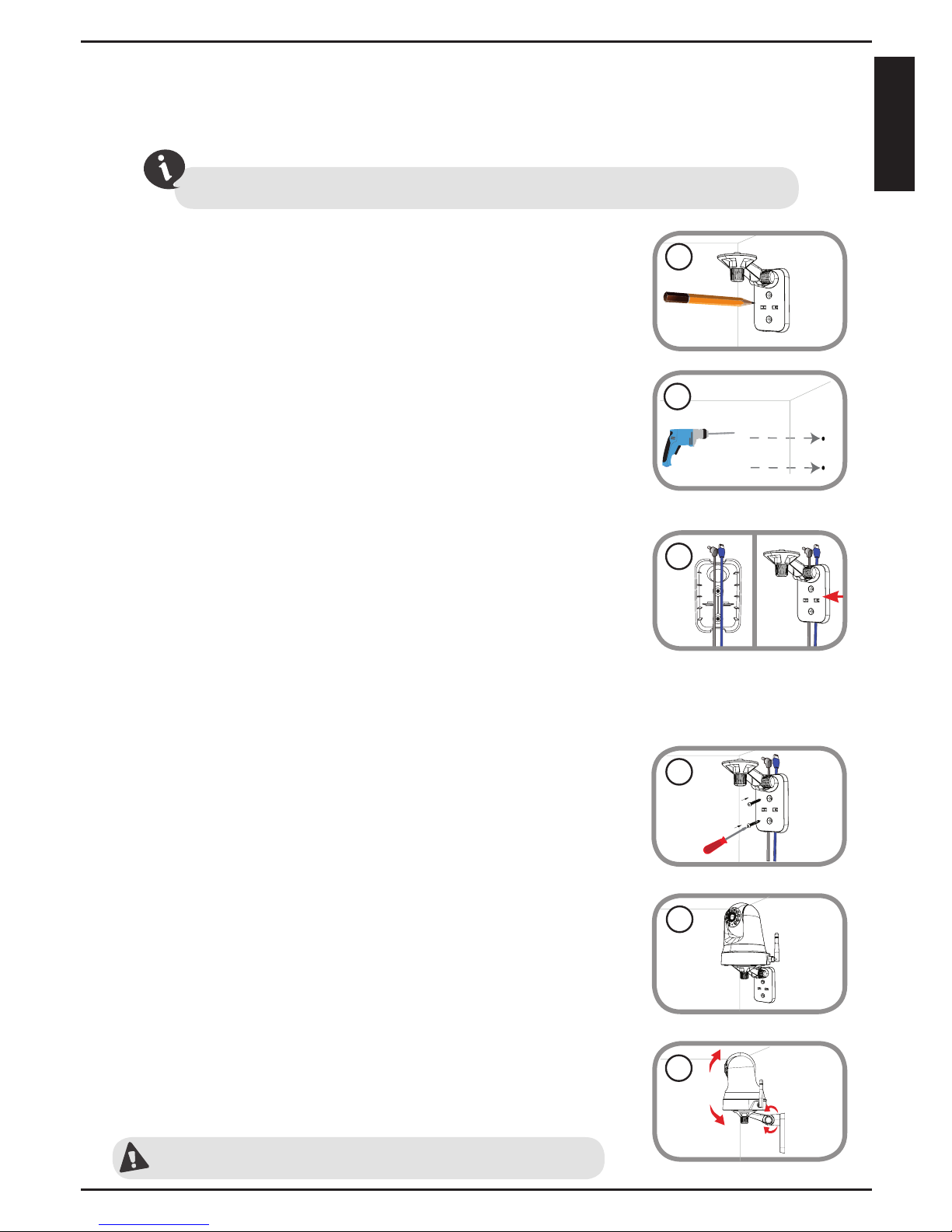

Mount the Camera
Please refer to the steps below to assist you with mounting the camera.
We suggest that you congure the camera before mounting.
Do not overtighten the screws as this may crack the bracket.
2. Depending on the material of the wall or ceiling,
use proper tools to drill two holes or screws
where you marked. If the wall is made out of
concrete, drill the holes rst, then insert the
plastic anchors to support the screws.
2
1. Place the mounting bracket where you want to
position the camera and use a pencil to mark
the holes.
1
3. The power and Ethernet cables can be
concealed behind the mounting bracket. Run
the cables through the back of the mounting
bracket, securing them with the built-in
guides. Be sure to leave enough cable length
protruding from the top to allow connection to
the camera.
3
4. Fasten the mounting bracket to the wall using
the screws provided. 4
5. Using the supplied thumbscrew, fasten the
camera to the mounting bracket. Connect the
power and Ethernet cables to the camera.
5
6. Adjust the angle of the arm on the mounting
bracket as required. Tighten the thumbscrew to
lock the arm in place.
6
7
ENGLISH

Technical Support
This guide is only for the rst time conguration. Please refer to the user manual
to learn more or visit http://www.mydlink.com for more information. Also feel free
to contact us. U.S. and Canadian customers can contact D-Link Technical Support
through our website.
http://support.dlink.com
USA
http://support.dlink.ca
Canada
Version 1.1(NA)
July 15, 2013
6DCS5020LQD2G
Copyright ©2013 All rights reserved. D-Link and the D-Link logo are registered trademarks of D-Link Corporation or its
subsidiaries. Other trademarks are the property of their respective owners. Maximum wireless signal rate derived from IEEE
Standard 802.11g and 802.11n specications. Actual data throughput will vary. Network conditions and environmental
factors, including volume of network trac, building materials and construction, and network overhead, lower actual
data throughput rate. Environmental factors will adversely aect wireless signal range. Product specications, size
and shape are subject to change without notice, and actual product appearance may dier from that depicted on the
packaging. Visit dlink.com (US) or dlink.ca (Canada) for more details.
Caméra réseau panoramique horizontal/
vertical à vision diurne et nocturne
Caméra Cloud

DCS-5020L
Guide d’installation rapide
Caméra réseau panoramique horizontal/
vertical à vision diurne et nocturne
Caméra Cloud

Contactez votre revendeur s'il manque l'un des éléments ci-dessus.
Exigences minimales
Caméra réseau panoramique horizontal/vertical à vision
diurne et nocturne DCS-5020L
Adaptateur secteur
Câble Ethernet
Guide d’installation rapide

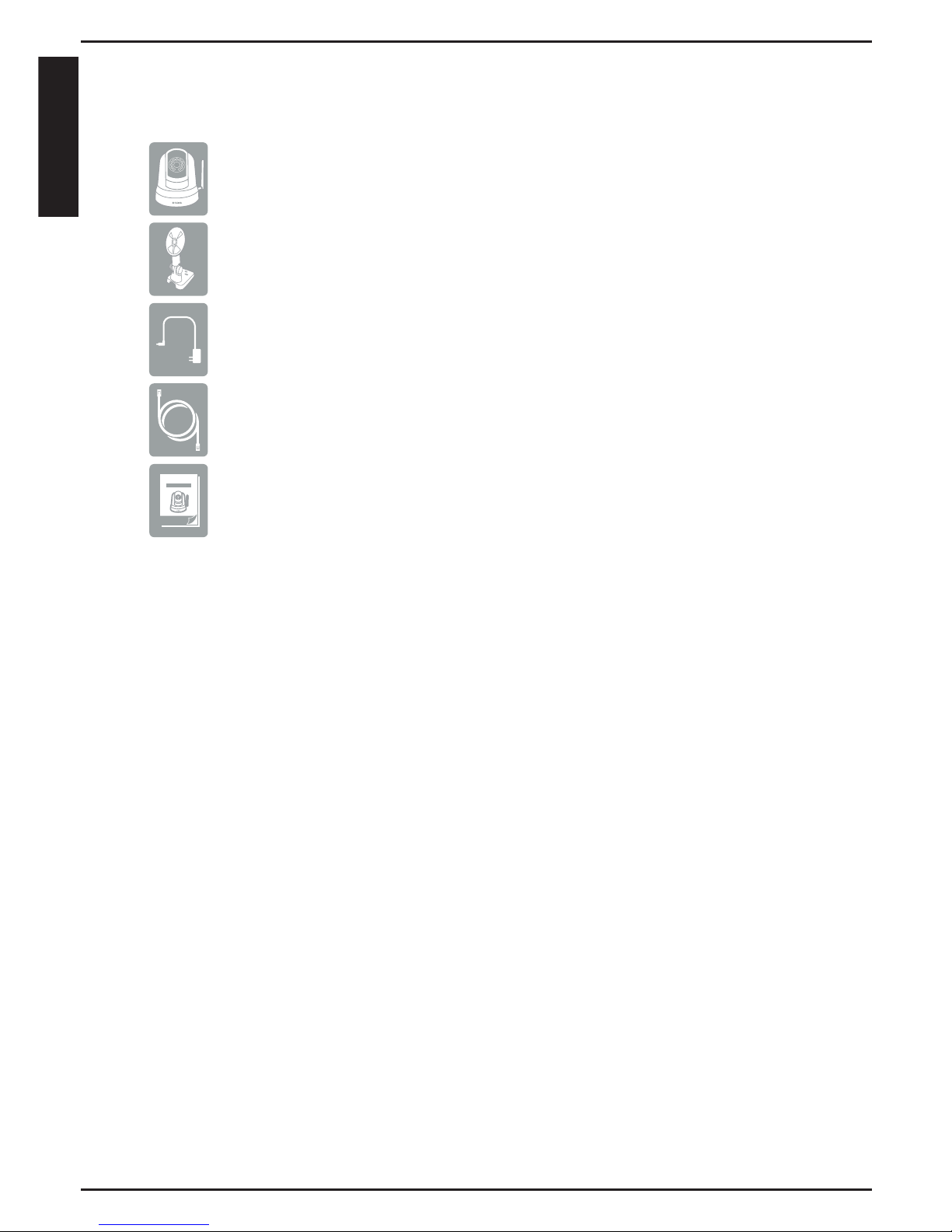

Contenu de la boîte
Ordinateur avec:
Navigateur Web
• PC de 1,3GHz ou plus et au moins 128Mo de RAM
• Windows® 8, 7, Vista® ou XP (32-bit ou 64-bit)
• Mac OS® X 10.6 ou toute version supérieure
• Internet Explorer® 7, Firefox, Safari 4, ou Chrome
• Contrôles Activex® et Java installés et activés
• Un routeur (un routeur infonuagique de D-Link est recommandé)
• Une connexion Internet
• Un compte de messagerie (requis pour créer un compte mydlink)
Périphérique réseau et service
Support de xation
2
FRANCAIS
