D-Link DCS-7010L User manual

User Manual
Version 1.2 | 04/09/2013
DCS-7010L
HD Mini Bullet Outdoor Network Camera

2D-Link DCS-7010L User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or
organization of such revisions or changes. Information in this document may become obsolete as our services and websites develop and
change. Please refer to the www.mydlink.com website for the most current information.
Manual Revisions
Revision Date Description
1.1 August 23, 2012 DCS-7010L Revision A1 with rmware version 1.00
1.2 April 09, 2013 modify mydlink function section
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other
countries. All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.
Copyright © 2013 D-Link Corporation.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Corporation.
Preface

3D-Link DCS-7010L User Manual
Table of Contents
Product Overview ......................................................................... 5
Package Contents ................................................................. 5
Introduction ............................................................................6
System Requirements ......................................................... 6
Features .................................................................................... 7
Hardware Overview ............................................................. 8
Front ...................................................................................... 8
Cable Harness..................................................................... 9
Internal ...............................................................................10
Installing an SD Card .........................................................11
Installation ....................................................................................12
Zero Conguration Setup ................................................12
Camera Installation Wizard .............................................15
Windows Users ....................................................................15
Mac Users...............................................................................16
Manual Hardware Installation ........................................17
Mounting the Camera .......................................................18
Positioning the Camera ....................................................19
mydlink ...........................................................................................21
Live Video ..............................................................................22
Playback .................................................................................23
Settings ..................................................................................24
Recording Settings .........................................................25
Advanced Settings .........................................................27
Conguration ...............................................................................28
Using the Conguration Interface ................................28
Live Video ..............................................................................29
Setup .......................................................................................31
Setup Wizard ....................................................................31
Network Setup .................................................................37
Dynamic DNS ...................................................................40
Image Setup .....................................................................41
Audio and Video ..............................................................43
Preset ...................................................................................45
Motion Detection ...........................................................47
Time and Date ..................................................................48
Event Setup .......................................................................49
SD Card ...............................................................................57
Advanced ...............................................................................58
Digital Input/Output ......................................................58
ICR and IR ...........................................................................59
HTTPS ..................................................................................60
Access List ..........................................................................61
SNMP ...................................................................................62
Maintenance .........................................................................63
Device Management .....................................................63
System ................................................................................64
Firmware Upgrade ..........................................................65
Status ......................................................................................66
Device Info ........................................................................66
Logs .....................................................................................67
Help......................................................................................68

4D-Link DCS-7010L User Manual
DI/DO Specications .................................................................69
Technical Specications ...........................................................70
Safety Statements ......................................................................73

5D-Link DCS-7010L User Manual
Section 1: Product Overview
Product Overview
Package Contents
If any of the above items are missing, please contact your reseller.
Note: Using a power supply with a dierent voltage than the one included with your
product will cause damage and void the warranty for this product.
DCS-7010L HD Mini Bullet Outdoor Network Camera
CAT5 Ethernet cable
Power adapter
CD-ROM with User Manual and software
Quick Installation Guide
Mounting Bracket and Mounting Kit

6D-Link DCS-7010L User Manual
Section 1: Product Overview
Introduction
Congratulations on your purchase of the DCS-7010L HD Mini Bullet Outdoor Network Camera. The DCS-7010L is a versatile
and unique solution for your small oce or home. Unlike a standard webcam, the DCS-7010L is a complete system with a
built-in CPU and web server that transmits high quality video images for security and outdoor surveillance. The DCS-7010L
can be accessed remotely, and controlled from any PC/Notebook over your local network or through the Internet via a web
browser. The simple installation and intuitive web-based interface oer easy integration with your Ethernet/Fast Ethernet
network. The DCS-7010L weatherproof housing and Power over Ethernet make it an ideal solution for a complete and cost-
eective surveillance solution with an easy clutter-free installation. The remote monitoring, infrared, motion detection and
event notications features enable you be truly responsive to your surveillance deployment.
• Computer with Microsoft Windows® 7/8/Vista/XP, or Mac with OS X 10.6 or higher
• PC with 1.3GHz or above; at least 128MB RAM
• Internet Explorer 7, Firefox 12, Safari 4, or Chrome 20 or higher version with Java installed and enabled
• Existing 10/100 Ethernet-based network or 802.11n wireless network
• A MicroSD memory card (optional) is required for recording to onboard storage. SDHC Class 6 or above is recommended.
• Broadband Internet connection
System Requirements

7D-Link DCS-7010L User Manual
Section 1: Product Overview
Simple to Use
The DCS-7010L is a stand-alone system with a built-in CPU, requiring no special hardware or software. The DCS-7010L supports both ActiveX mode
for Internet Explorer and Java mode for other browsers such as Firefox® and Safari®.
Supports a Variety of Platforms
Supporting TCP/IP networking, HTTP, and other Internet related protocols. The DCS-7010L can also be integrated easily into other Internet/Intranet
applications because of its standards-based features. The DCS-7010L oers Ethernet/Fast Ethernet connectivity, making the DCS-7010L easy to
integrate into your existing network environment. The DCS-7010L works with a 10Mbps Ethernet based network or 100Mbps Fast Ethernet based
network for traditional wired environments.
Web Conguration
Using a standard Web browser, administrators can congure and manage the Network Camera directly from its own Web page via Intranet or
Internet. This means you can access your DCS-7010L anytime, anywhere in the world.
Broad Range of Applications
With today’s high-speed Internet services, the Network Camera can provide the ideal solution for delivering live video images over the Intranet and
Internet for remote monitoring. The Network Camera allows remote access using a Web browser for live image viewing, and allows the administrator
to manage and control the Network Camera anytime, anywhere in the world. Many applications exist, including industrial and public monitoring
of homes, oces, banks, hospitals, child-care centers, and amusement parks.
Remote Monitoring Utility
The D-ViewCam application adds enhanced features and functionality for the Network Camera and allows administrators to congure and access
the Network Camera from a remote site via Intranet or Internet. Other features include image monitoring, recording images to a hard drive, viewing
up to 32 cameras on one screen, and taking snapshots.
IR LED for Day and Night Functionality
The built-in infrared LEDs enables night time viewing of up to 32 feet (10 meters).
IP66 Weatherproof Housing
The DCS-7010L uses an IP66 weatherproof housing, allowing you to rest assured that in the toughest of conditions, it will continue to provide
round-the-clock surveillance.
PoE (Power over Ethernet) for Flexible Installation
The DCS-7010L can draw all the power it needs from a powered Ethernet port meaning installation is simple and clutter free.
Features

8D-Link DCS-7010L User Manual
Section 1: Product Overview

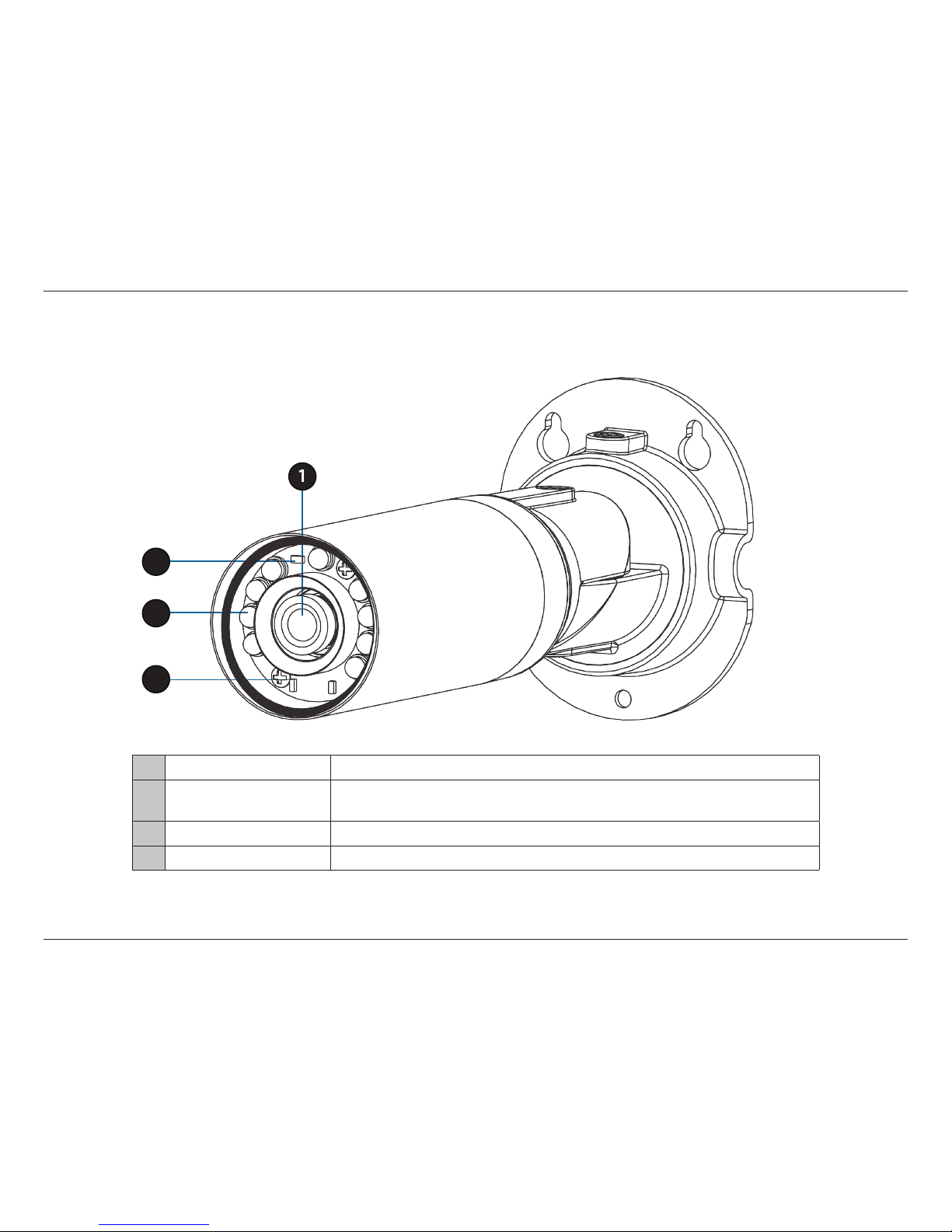

Front
Hardware Overview
1 Camera Lens Records video of the surrounding area
2 ICR Sensor The IR-Cut Removable sensor measures the lighting conditions and switches
between color and infrared accordingly
3 IR LEDs Infrared LEDs illuminate the camera's eld of view at night
4 Power/Status LED Indicates the camera's current status
4
1
2
3

9D-Link DCS-7010L User Manual
Section 1: Product Overview

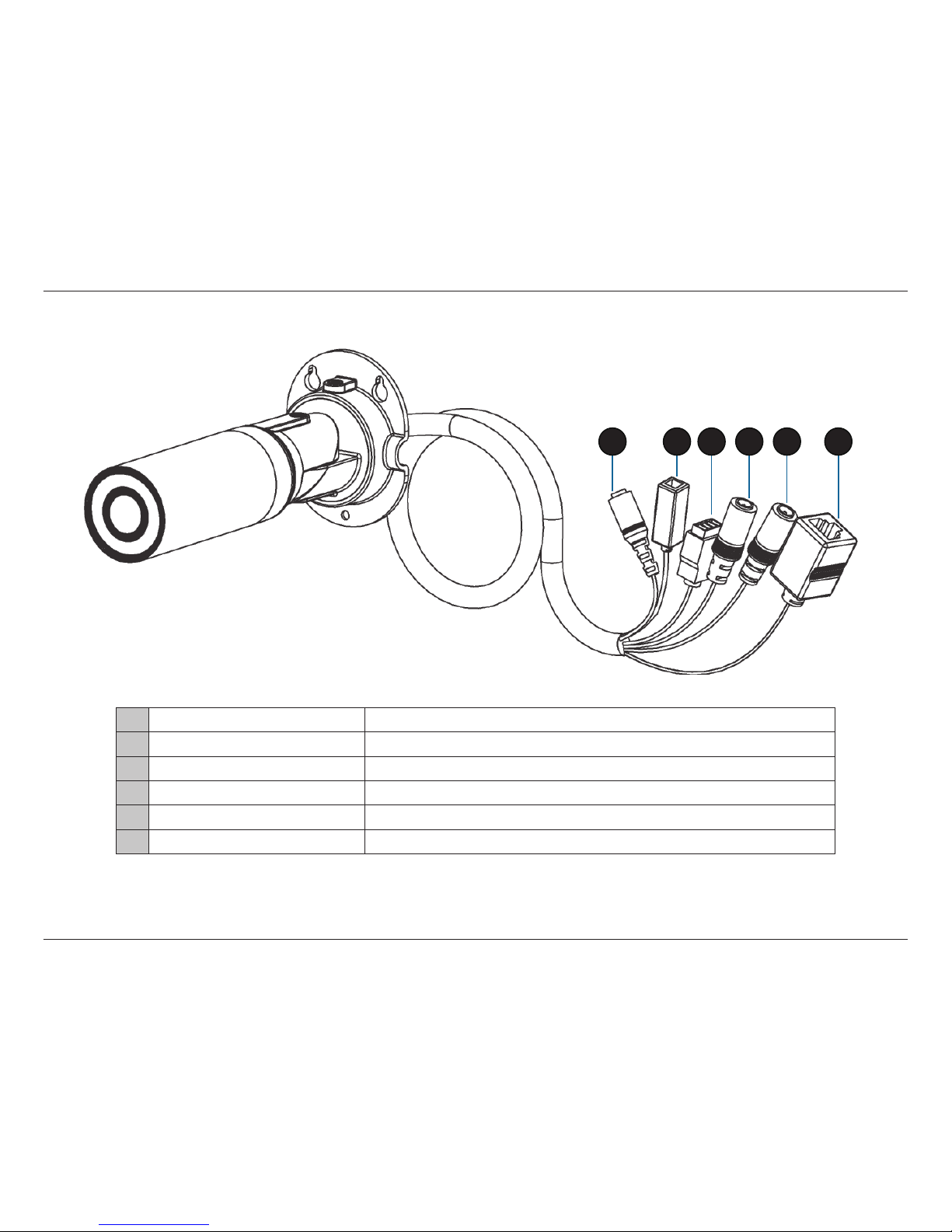

Cable Harness
1 Power Connector Power receptor for the provided power adapter
2 Reset Button Press and hold the recessed button for 10 seconds to reset the camera
3 DI/DO Connector I/O connectors for external devices
4 Audio Out (Green) Connects to a speaker
5 Audio In (Red) Connects to a microphone
6 Ethernet Port Connects to an RJ45 Ethernet cable or PoE cable to connect to your network
1 2 4 5 63

10D-Link DCS-7010L User Manual
Section 1: Product Overview

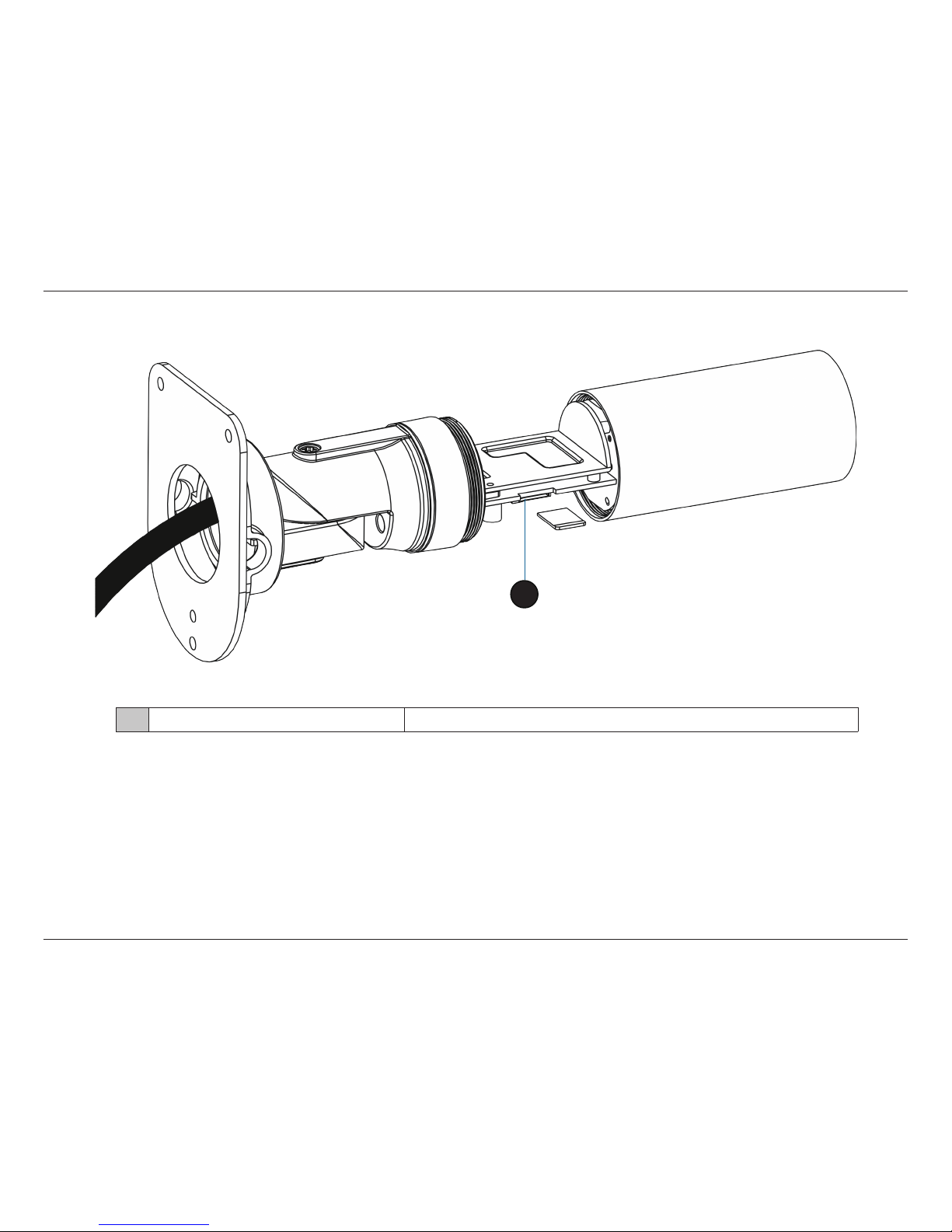

Internal
1 Micro SD Card Slot Insert a MicroSD card for Local storage for storing recorded image and video
1
Note: For step-by-step instruction on how to insert an SD card please skip to "Installing an SD Card" on page 11.

11D-Link DCS-7010L User Manual
Section 1: Product Overview

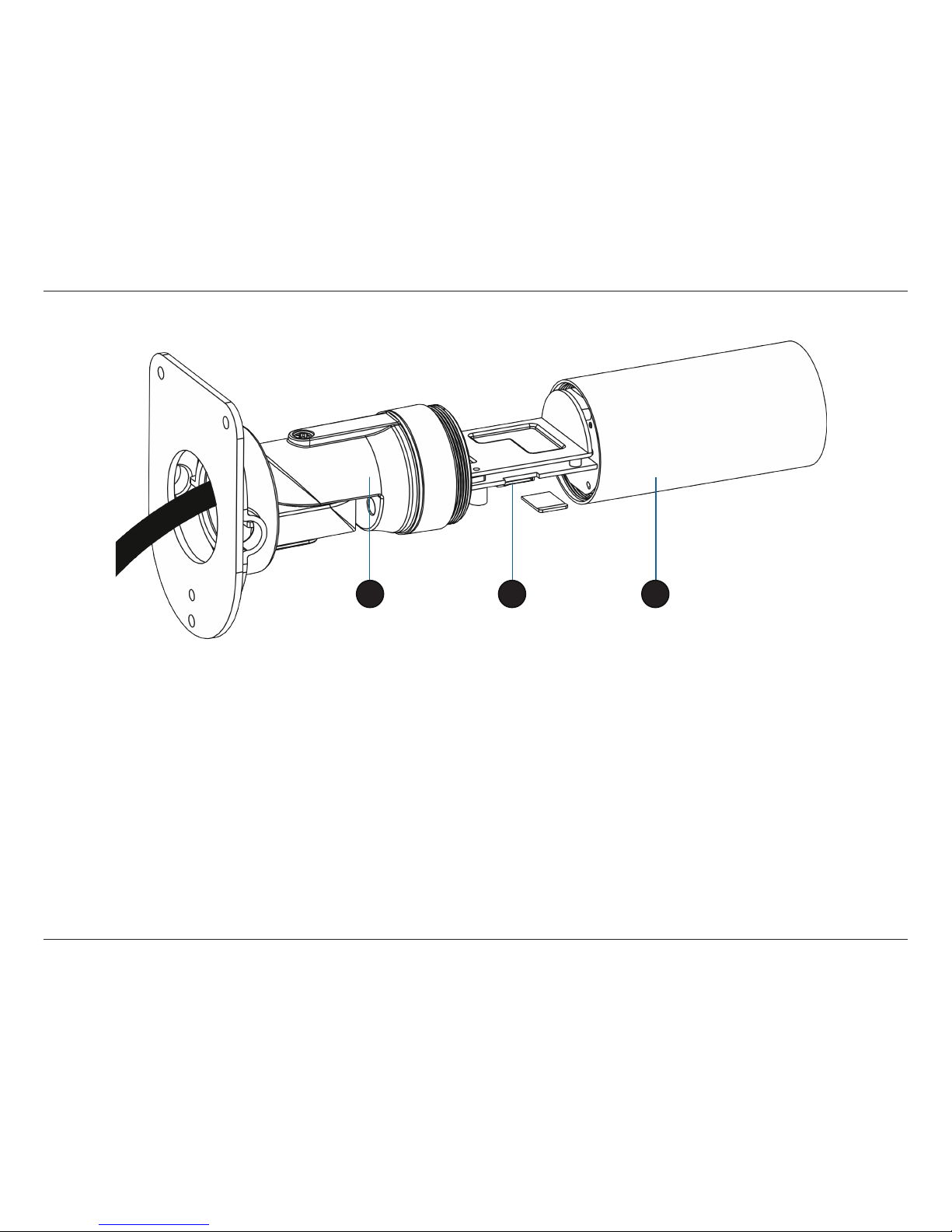

Installing an SD Card
Step 1:
Place the camera face down on a non-slip at surface.
Step 2:

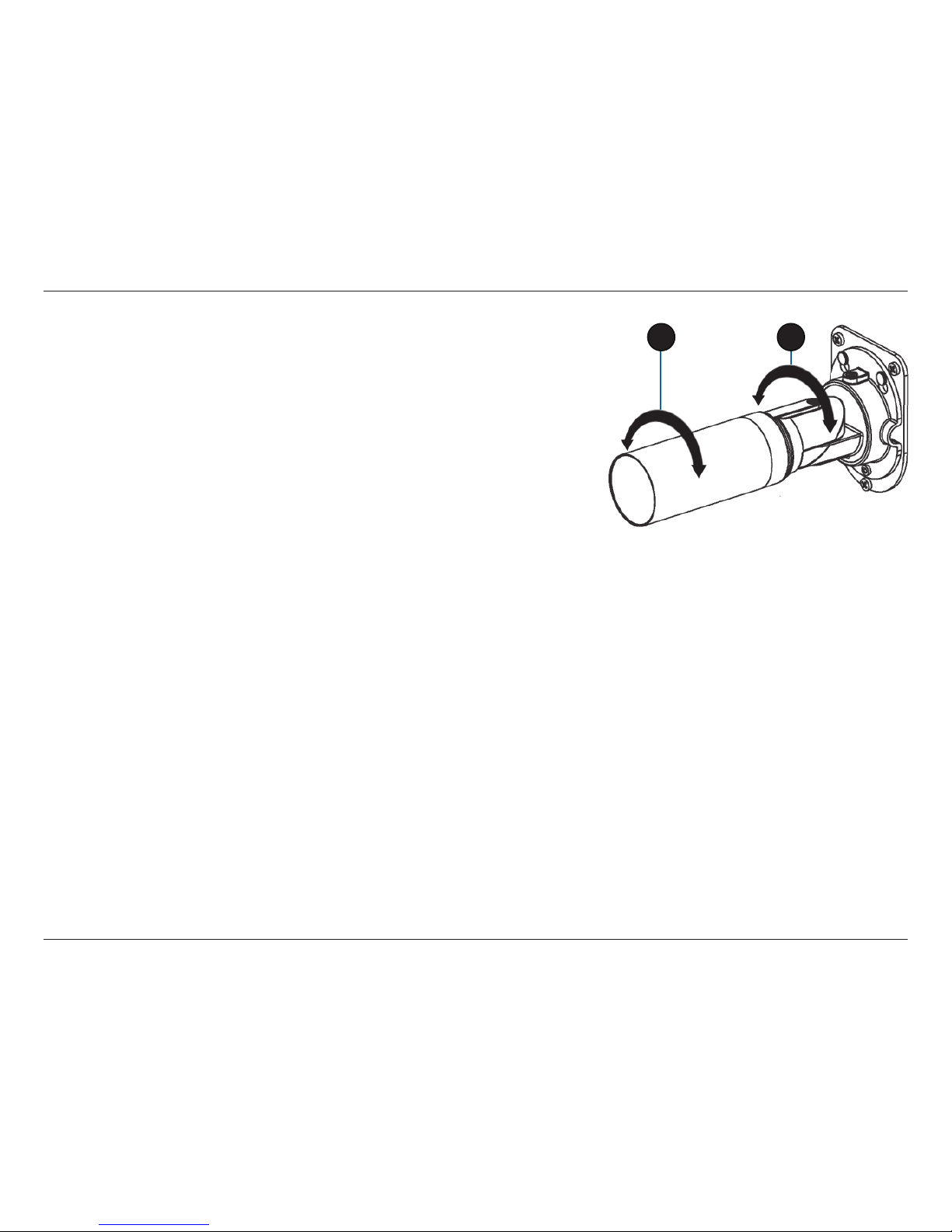

Unscrew the weatherproof sheath by holding the base of the camera rmly and rotating the barrel counter-clockwise. Exercise caution when
removing the weatherproof sheath to avoid damaging the internal components.
Step 3:
Insert your MicroSD card into the slot with the notch oriented to the rear of the camera.
Step 4:
Replace the weatherproof sheath ensuring a tight t.
Note: To ensure that the camera stays weatherproof, users are advised to ensure that the weatherproof sheath is secured rmly in place.
32 4

12D-Link DCS-7010L User Manual
Section 2: Installation
If you have a mydlink-enabled Cloud Router, you can take advantage of Zero Conguration. Zero Conguration automatically
congures your camera's settings for you, and adds it to your mydlink account automatically. This type of setup allows you to
set up your camera by simply plugging it in and connecting it to your router.
Connect your camera to your mydlink-enabled Cloud Router and Zero Conguration will automatically congure your DCS-7010L
and automatically add the camera to your mydlink account. After the short time it takes to do this you can remotely access
your camera from the www.mydlink.com website to manage and monitor your DCS-7010L.
Installation
Zero Conguration Setup

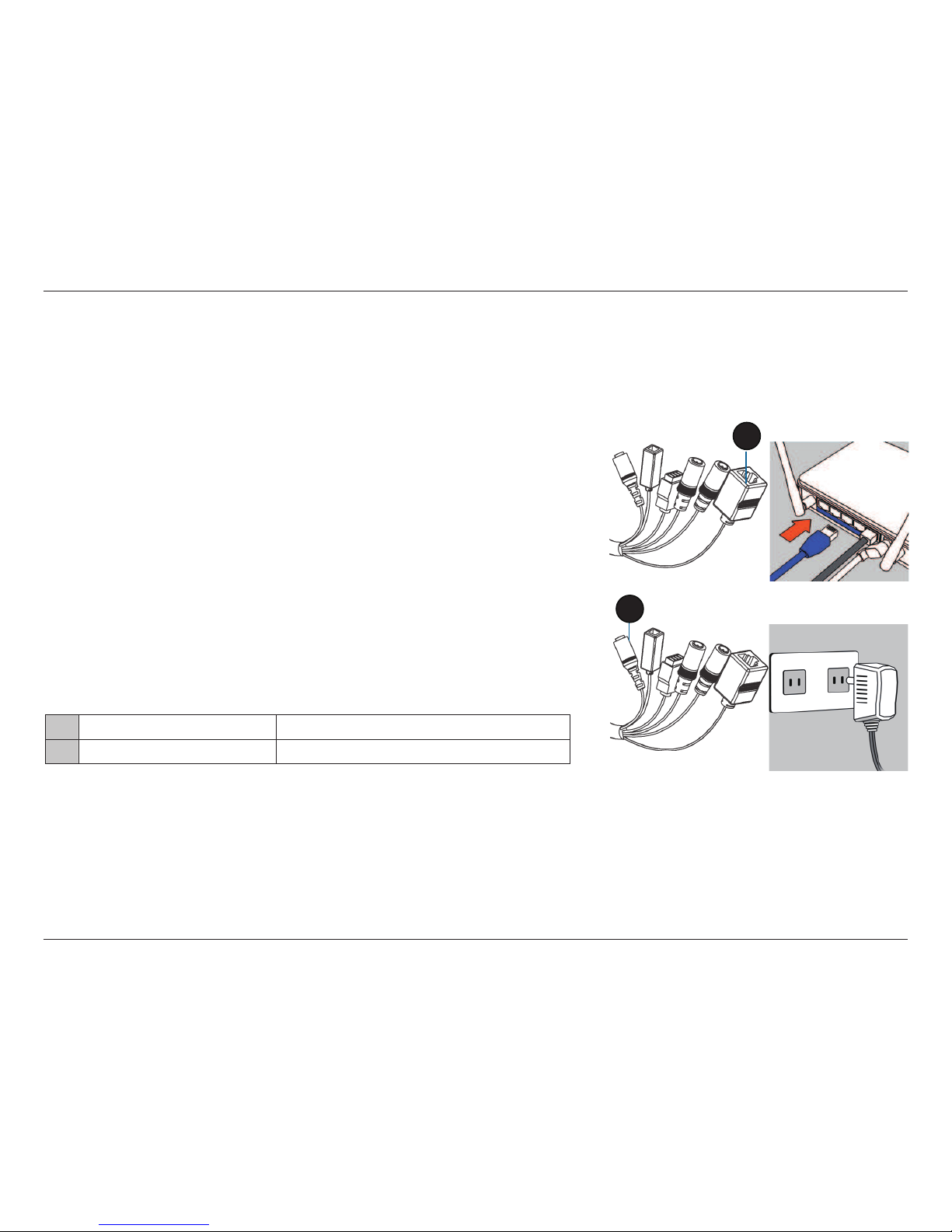

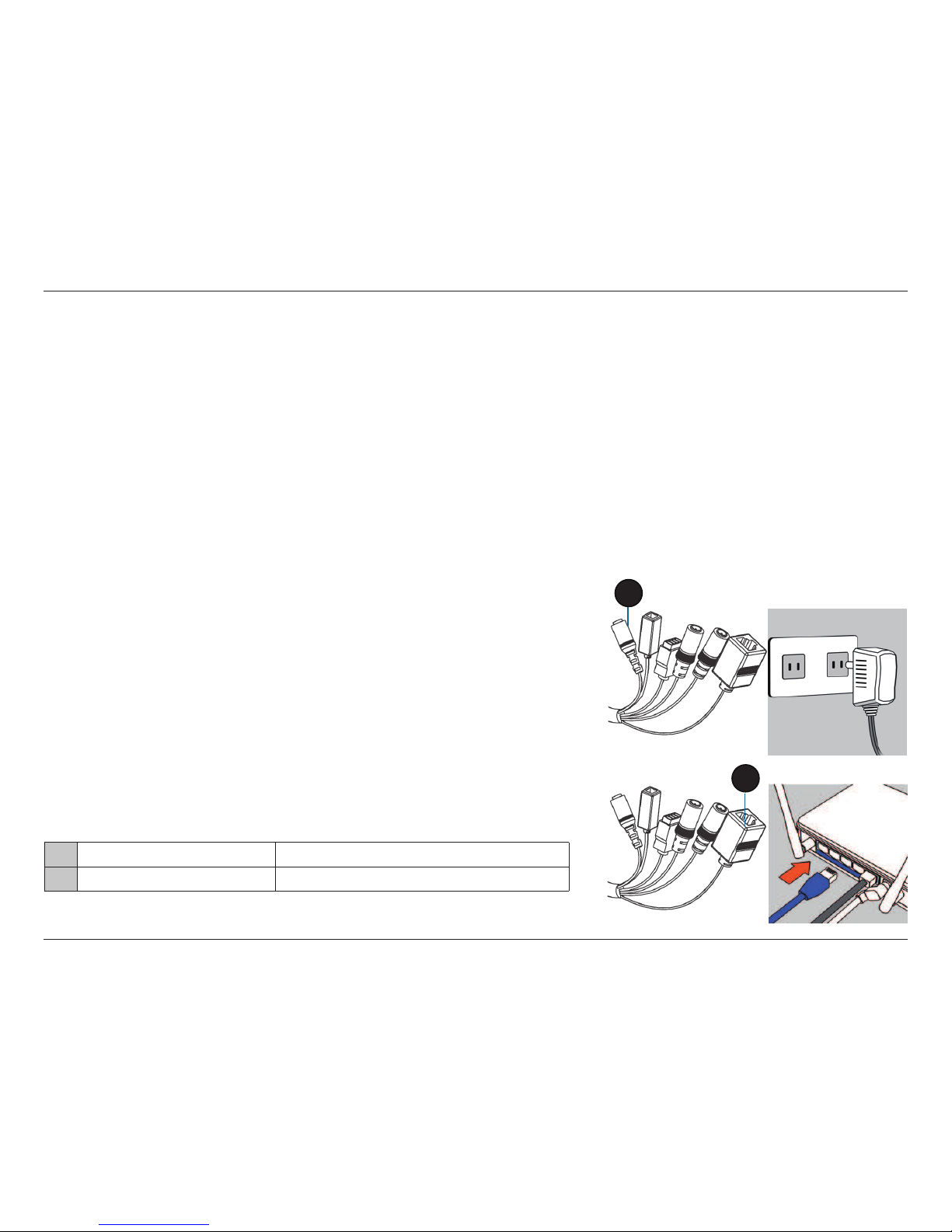

Connect the Ethernet Cable
Connect the provided Ethernet cable to the cable harness Ethernet coupler .
Connect the other end of the provided Ethernet cable to your network.
Attach the External Power Supply
Attach the external power supply to the cable harness power coupler.
Connect the adapter to a wall outlet or power strip. 2
1 Power Cable Pre attached power cable
2 Ethernet Cable Pre attached Ethernet cable
1

13D-Link DCS-7010L User Manual
Section 2: Installation

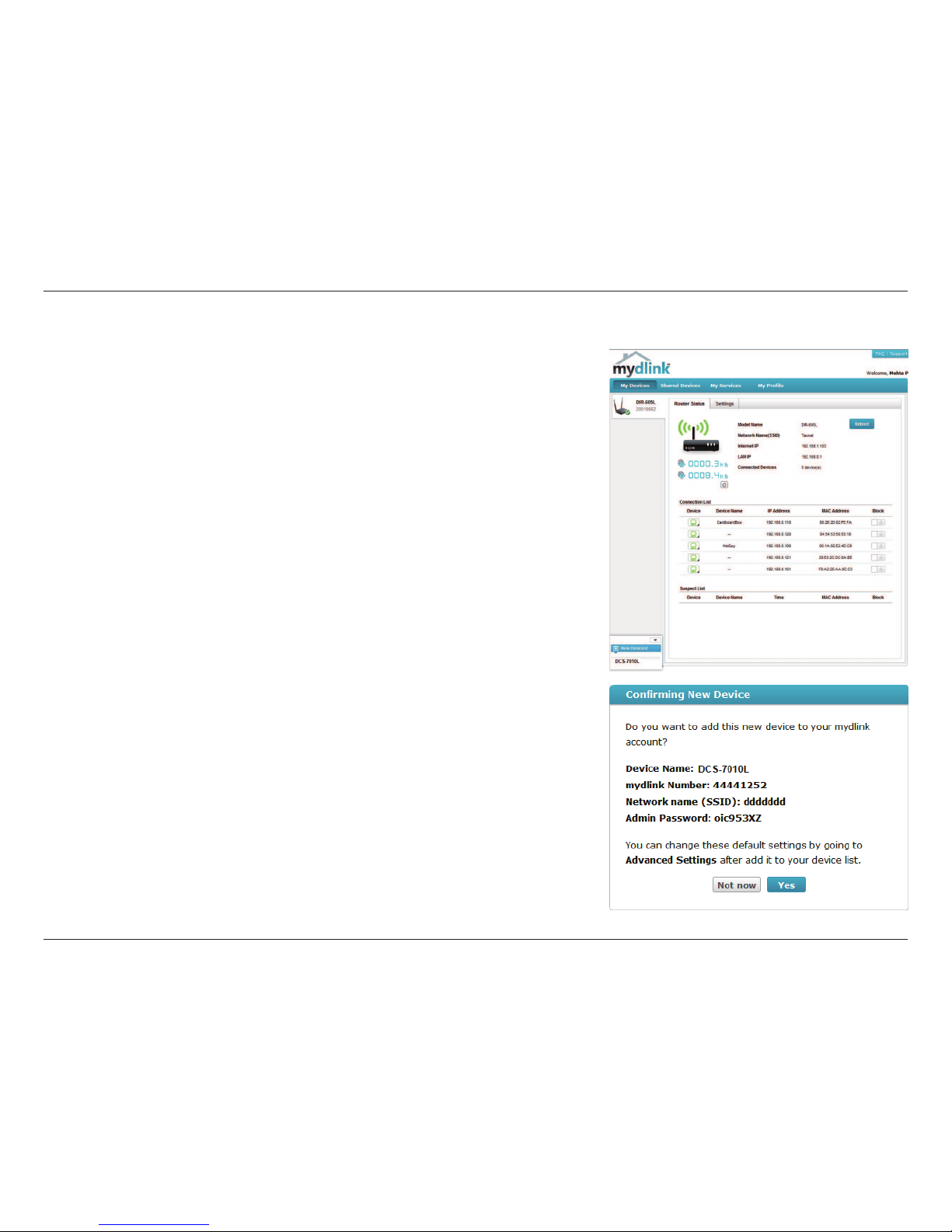

A summary and conrmation notication will appear with the automatically
congured details. Make a note of the details and click OK to add the camera to
your account.
Check Your mydlink Account
From any computer, open a web browser, go to http://www.mydlink.com and log
into your account. Once mydlink detects your camera, a New Device Found!
notice will appear in the bottom-left corner. Click on the device name to continue.

14D-Link DCS-7010L User Manual
Section 2: Installation

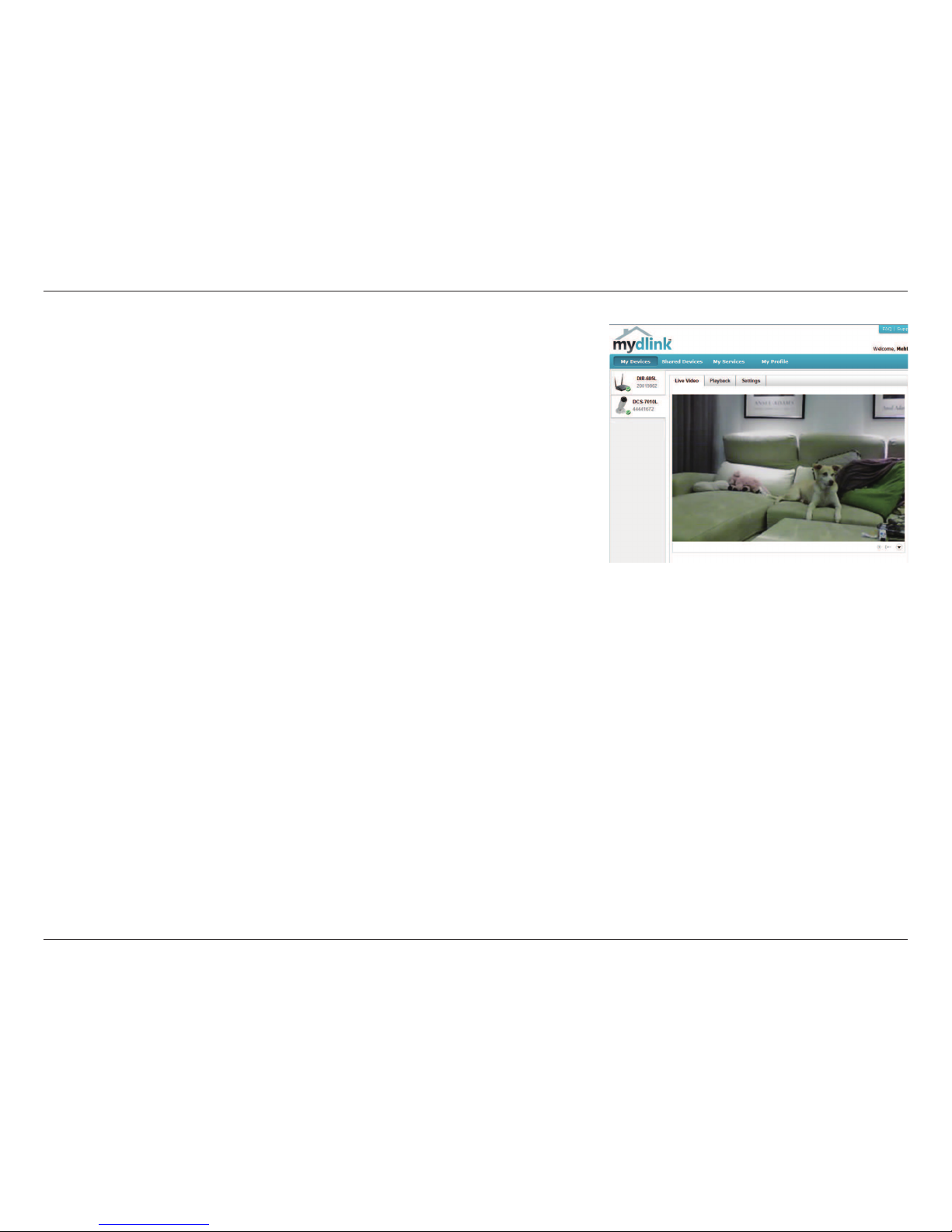

Zero Conguration is now complete and your camera has been added to your
mydlink account. You can now view your camera on the mydlink Live View tab.
Your camera is now set up, and you can skip to "mydlink" on page 21 to learn more
about the mydlink features of this camera, or to "Conguration" on page 37 for
advanced conguration of your camera.

15D-Link DCS-7010L User Manual
Section 2: Installation

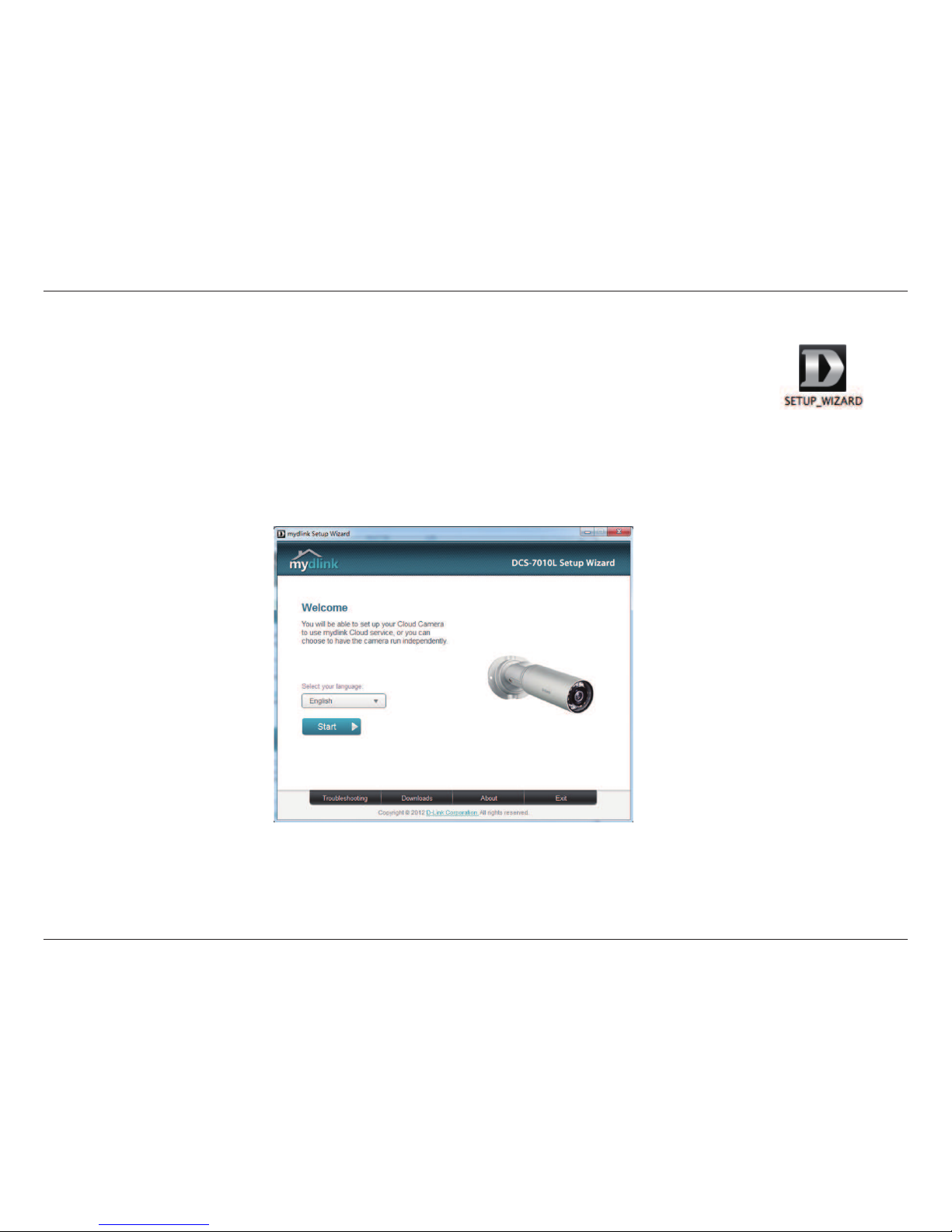

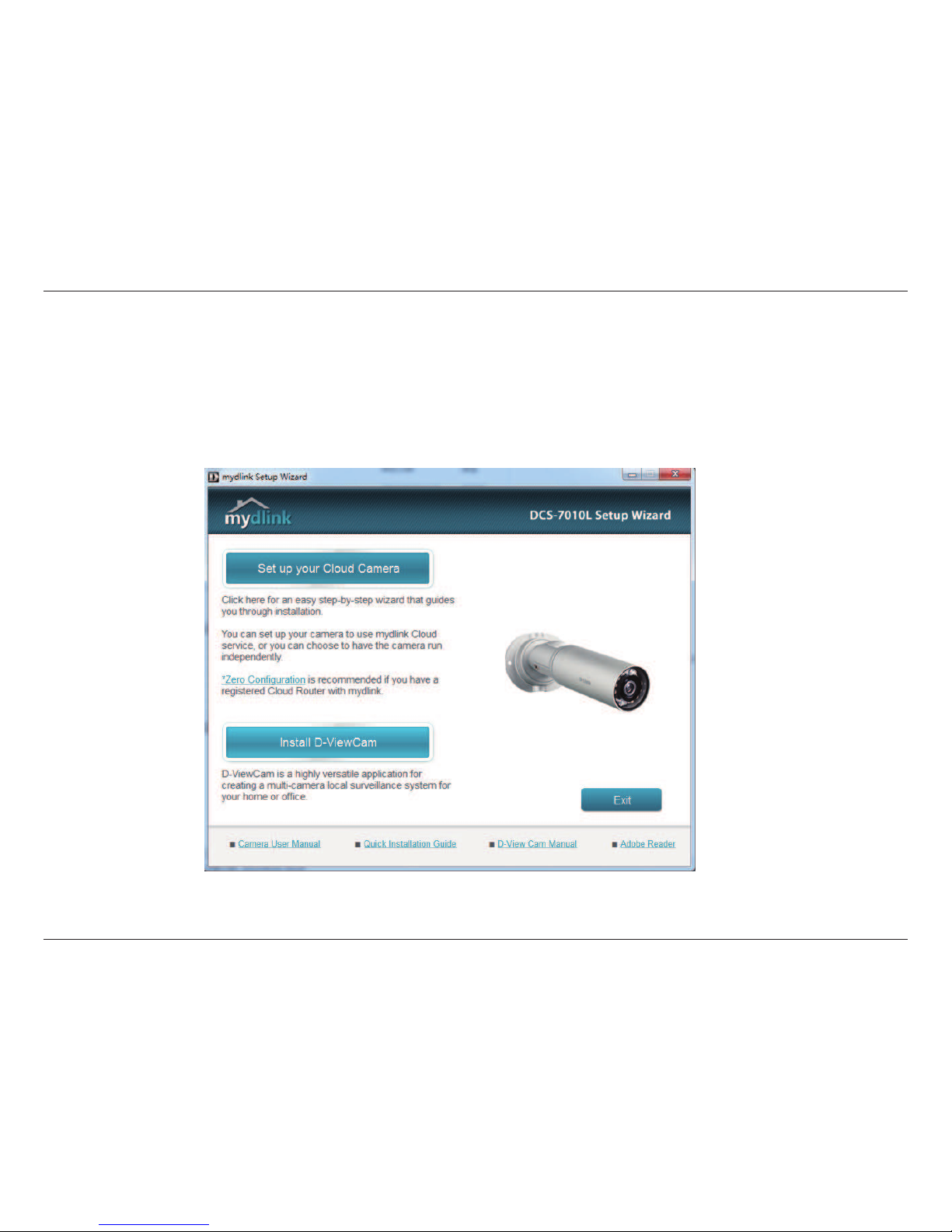

Insert the Installation CD-ROM into your computer’s optical drive to start the autorun program.
Simply click Set up your Cloud Camera to go through the Setup Wizard, which will guide you step-by-step through the installation
process from connecting your hardware to conguring your camera and registering it with your mydlink account.
Camera Installation Wizard
Windows Users
Note: If the autorun program does not open, go to My Computer, browse to your CD drive, and double-click
on the autorun.exe le.

16D-Link DCS-7010L User Manual
Section 2: Installation
Insert the Installation CD-ROM into your computer’s CD drive. On the desktop, open your CD drive and
double-click on the SetupWizard le.
Within 20-30 seconds, the Setup Wizard will open, which will guide you step-by-step through the installation process from
connecting your hardware to conguring your camera and registering it with your mydlink account.
Mac Users
Note: mydlink portal requires JavaTM to function correctly.
For more guidelines, please refer to mydlink FAQ pages at https://eu.mydlink.com/faq/mydlink

17D-Link DCS-7010L User Manual
Section 2: Installation
Manual Hardware Installation
If you wish to set up your camera without using the Camera Setup Wizard, please follow these steps.
Note: In order to use the mydlink features of this product, you will need to go through the Camera Setup Wizard.
Connect the Ethernet Cable
Connect the provided Ethernet cable to the cable harness Ethernet coupler .
Connect the other end of the provided Ethernet cable to your network.
Attach the External Power Supply
Attach the external power supply to the cable harness power coupler.
Connect the adapter to a wall outlet or power strip.
1
1 Ethernet Cable Pre attached Ethernet cable
2 Power Cable Pre attached power cable
2

18D-Link DCS-7010L User Manual
Section 2: Installation

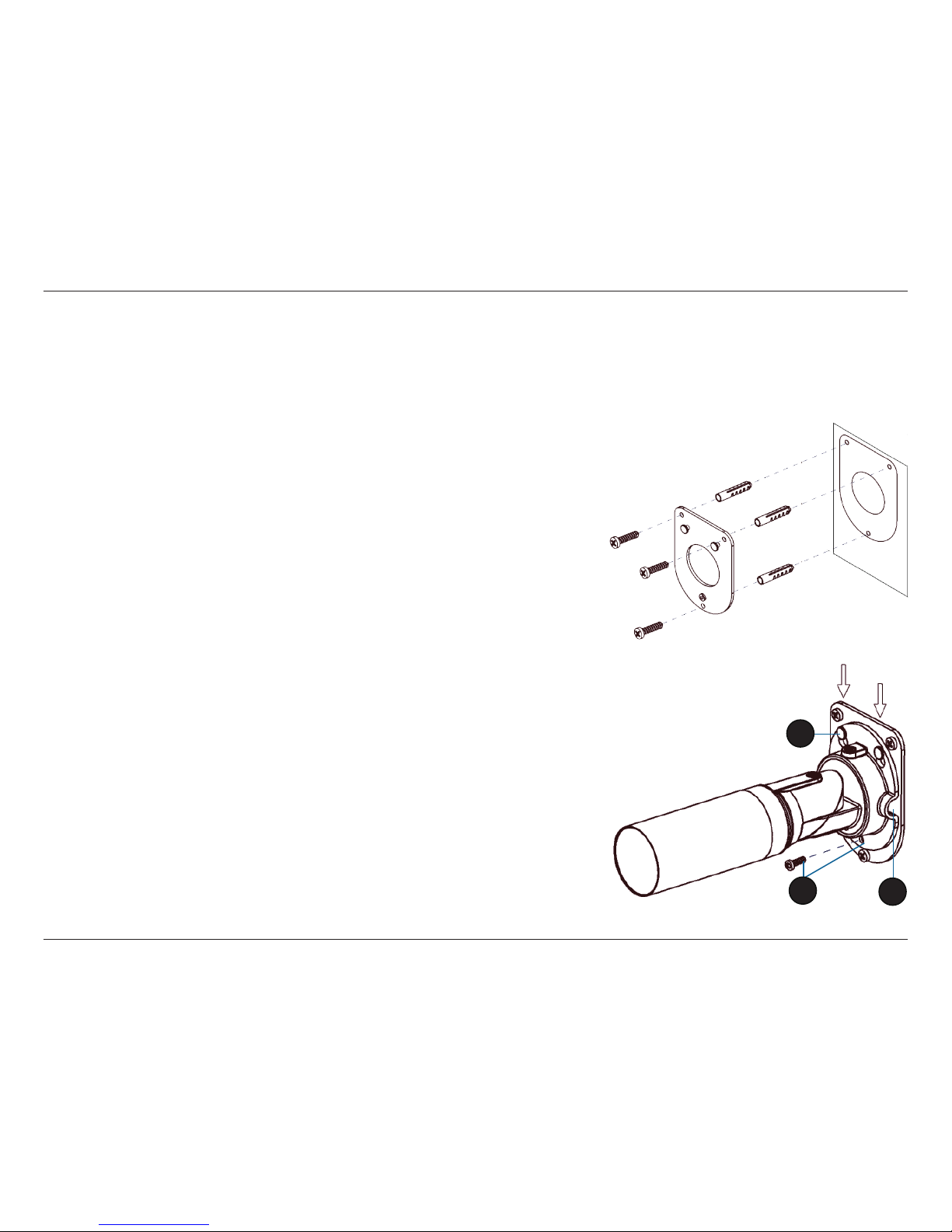

Mounting the Camera
The DCS-7010L is suitable for mounting to a wall using the bracket provided.
Note: In order to use the mydlink features of this product, you will need to go through the Camera Setup Wizard.
Step 1
Position the mounting bracket in the desired location.
Step 2
Mark the surface behind the mounting bracket with a pencil
Step 3
Use a 6mm drill bit to make required holes approximately 25mm deep.
Step 4
Insert wall anchors and ax the bracket using the screws provided.
Step 5
Ensure the cable is seated in the cable channel.
Step 6
Suspend the camera from the two protruding studs near the top of the mounting
bracket.
Step 7
Insert and tighten the remaining screw into the hole on the camera base.
5
7
6

19D-Link DCS-7010L User Manual
Section 2: Installation

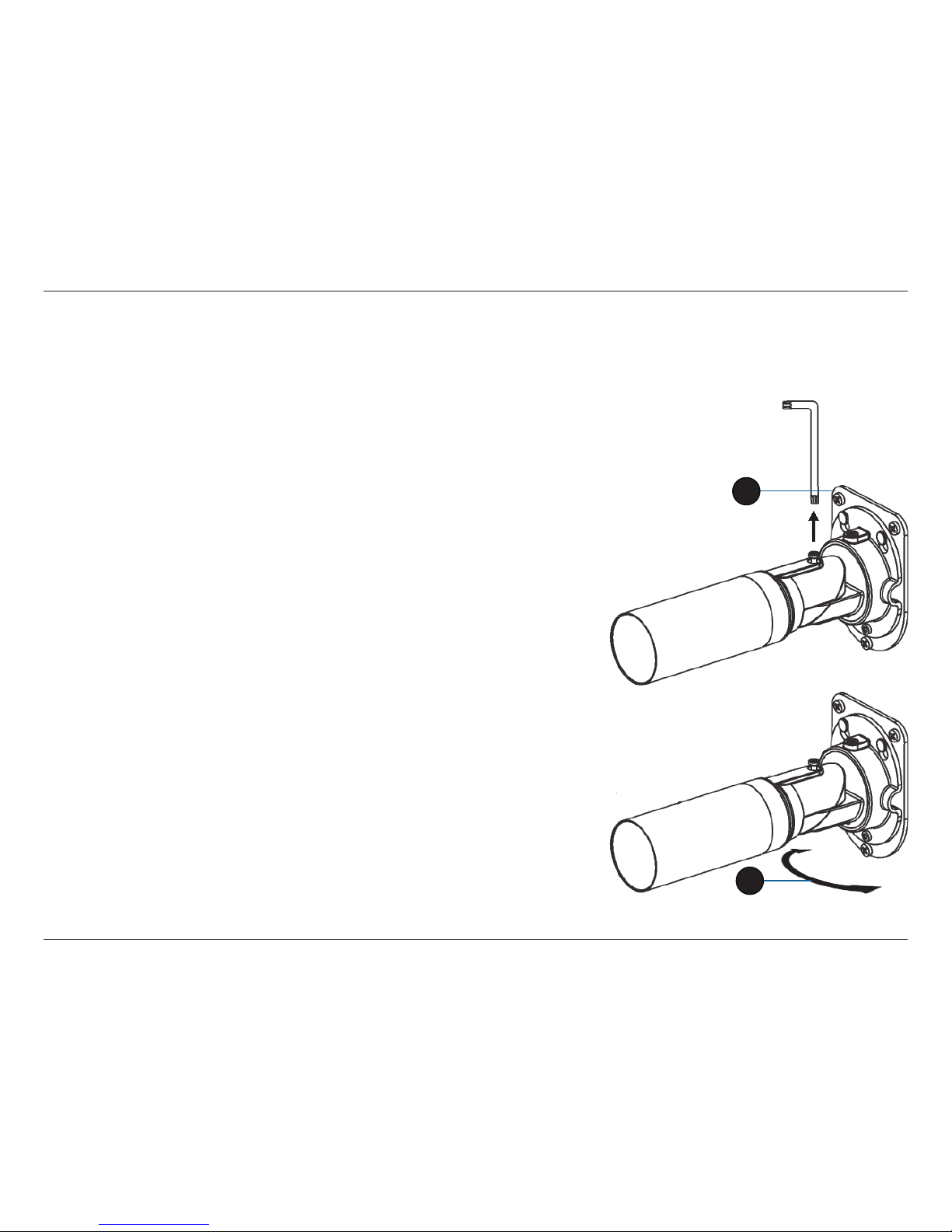

Positioning the Camera
Step 1
Using a Torx Security screwdriver, loosen the screw on the top of the camera
housing.
Step 2
Swivel the camera along it's horizontal axis until you achieve the desired angle.
Step 3
Using a Torx Security screwdriver, tighten the screw on the top of the camera
housing rmly.
1
2
The DCS-7010L can be adjusted to ensure optimal viewing when mounted by following the steps outlined..

20D-Link DCS-7010L User Manual
Section 2: Installation
Step 4
Rotate the camera around its vertical axis by adjusting the base.
Step 5
Rotate the camera to adjust for positioning by rotating the barrel.
4
5
