Preface

4D-Link DCS-3112 User Manual
Product OverviewProduct Overview
If any of the above items are missing, please contact your reseller.

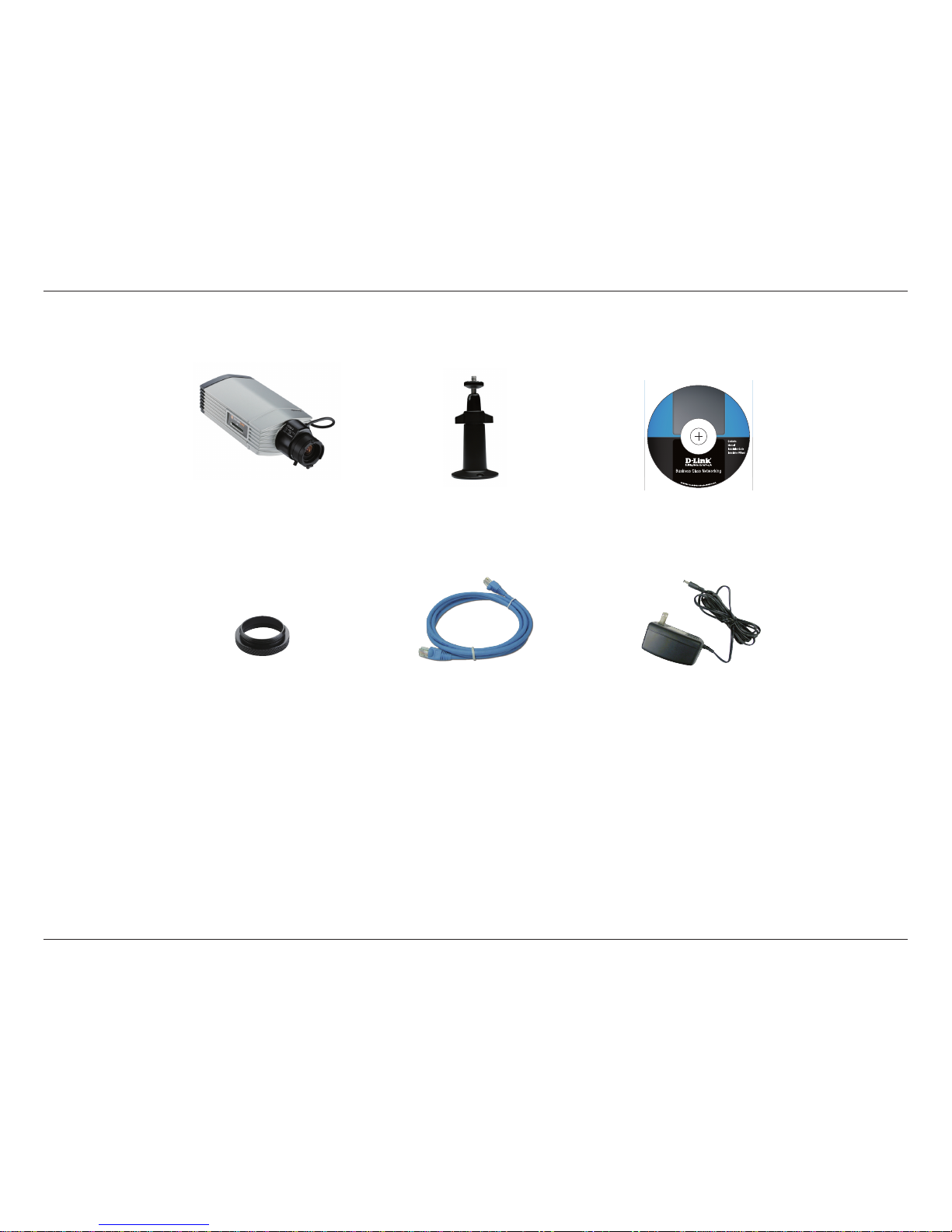

CAT5 Ethernet
Cable
DCS-3112
Network Camera
Camera Stand
Power Adapter
Manual and Wizard
on CD-ROM
Package Contents
C-CS Mount Adapter
(5mm Ring)
HD DAY & NIGHT
Network Camera
DCS-3112
Ver. 2.00 (WW)

5D-Link DCS-3112 User Manual
Hardware Overview
Hardware Overview
Hardware Overview

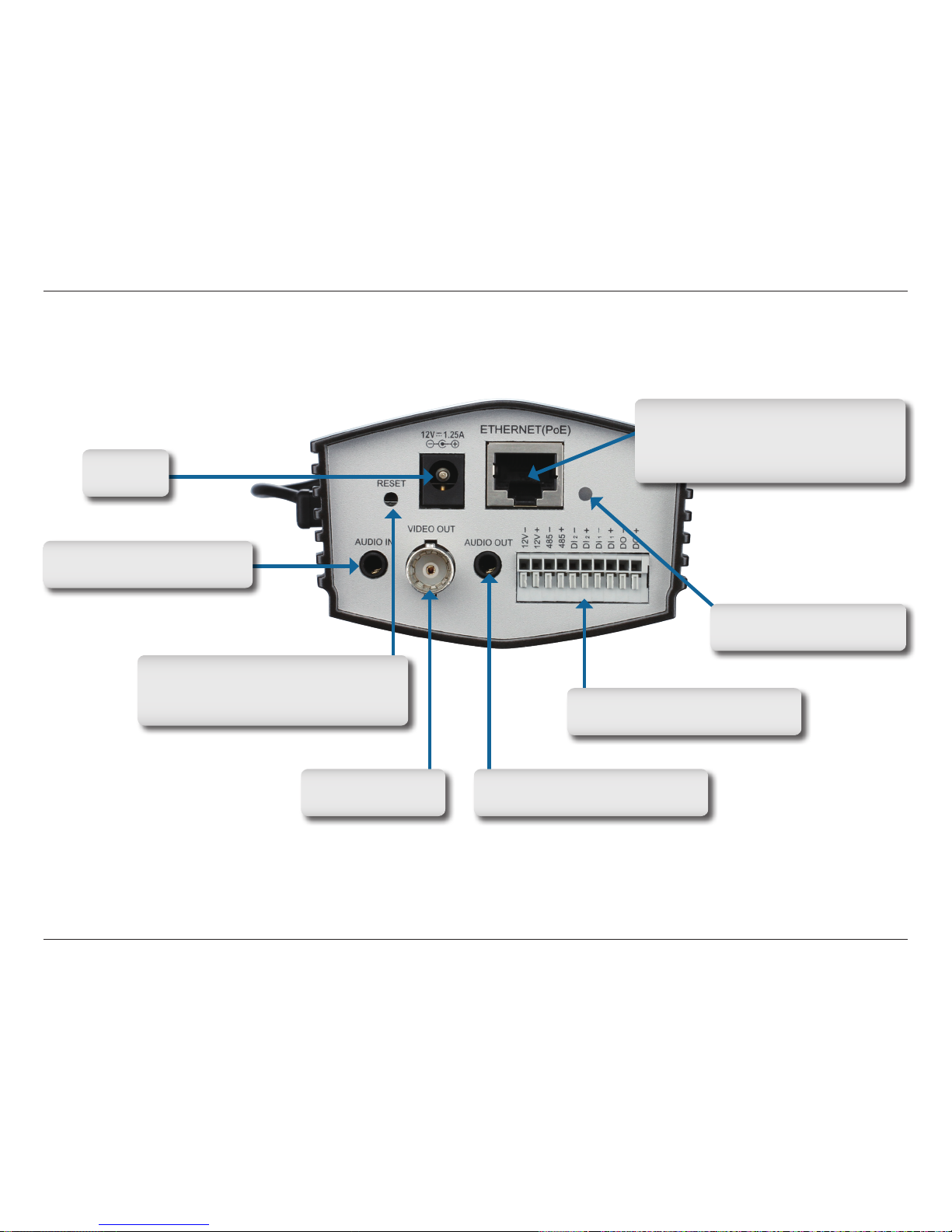

Rear
DC Power
12V DC
Audio In
External Audio Input connector
Reset
Press and hold this button for 10 seconds
to reset the camera
BNC
Video analog output
Audio Out
Audio Output for external speakers
I/O Connector
I/O connectors for external devices
LED
Power and network indicator
Ethernet (PoE)
RJ-45 connector for Ethernet which can
also be used to power the camera using
Power over Ethernet (PoE)

6D-Link DCS-3112 User Manual
Hardware Overview

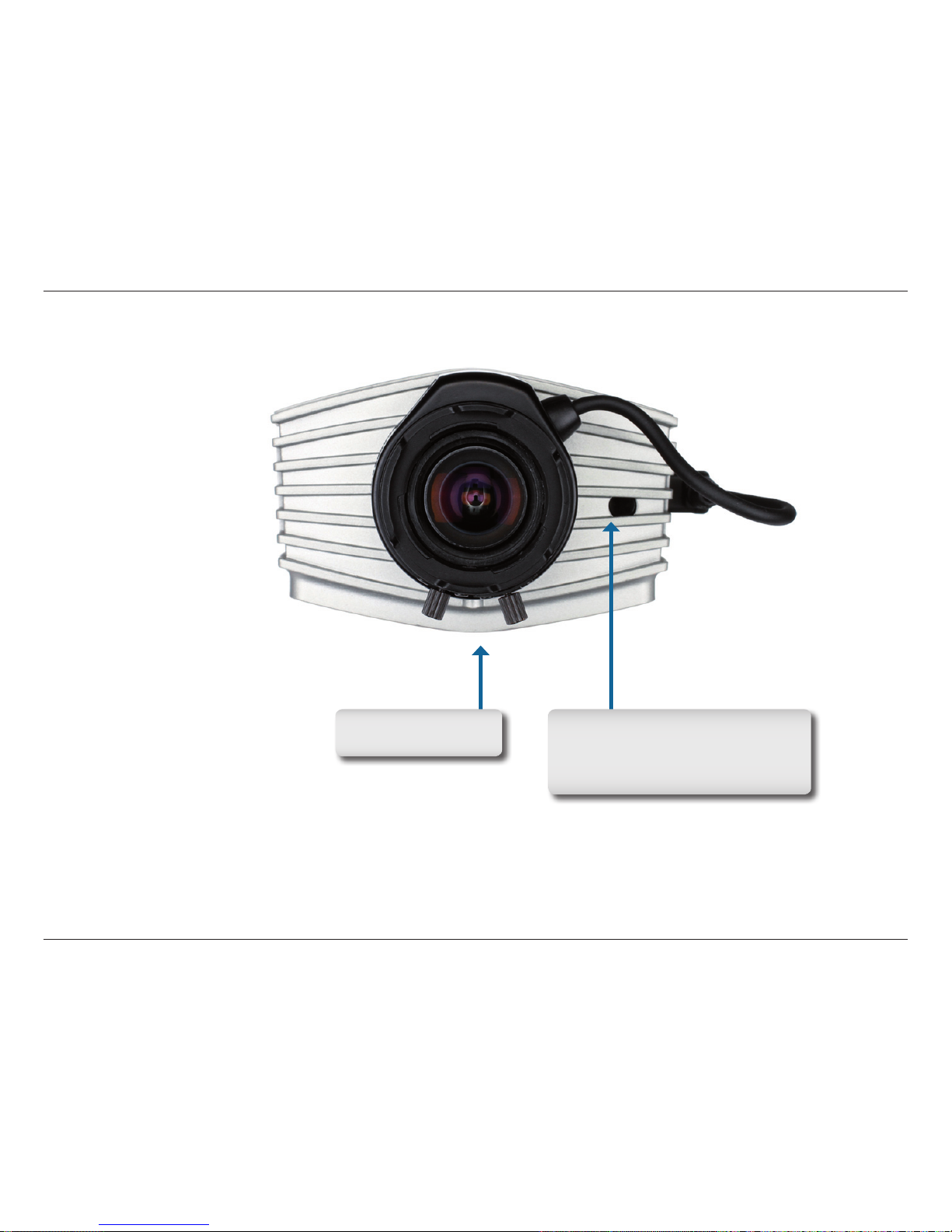

ICR Sensor
The IR-Cut Removable sensor judges
lighting conditions and switches from
color to infrared accordingly
Front
Lens Connector
Connect to a CS mount

7D-Link DCS-3112 User Manual
Hardware Overview

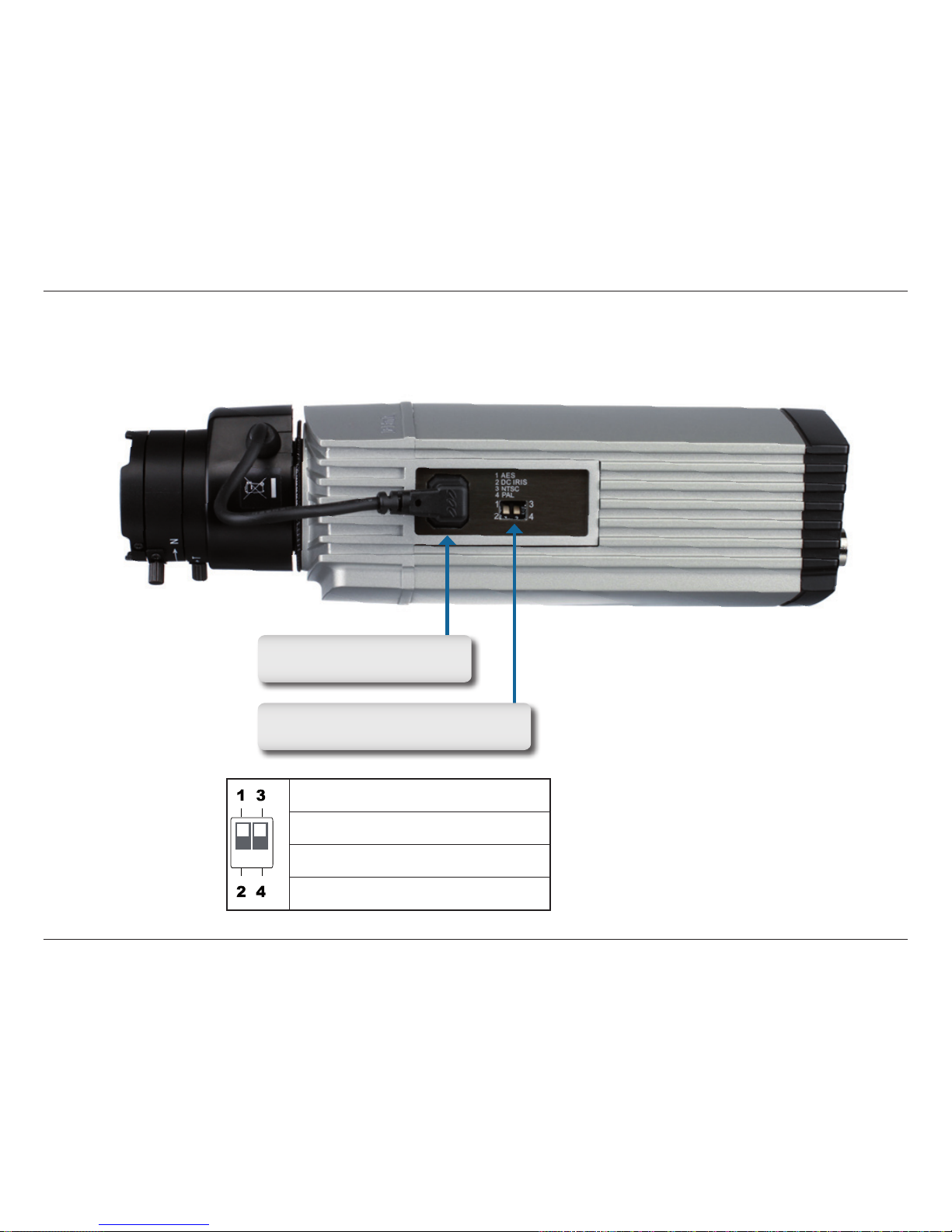

1. AES: Auto Electric Shutter
2. DC IRIS: Use an auto iris (DC drive)
3. NTSC: TV output signal selector
4. PAL: TV output signal selector
DC-Iris Connector
Connector for DC auto iris lens
DIP Switch
Toggles several different camera options

8D-Link DCS-3112 User Manual
Hardware Overview

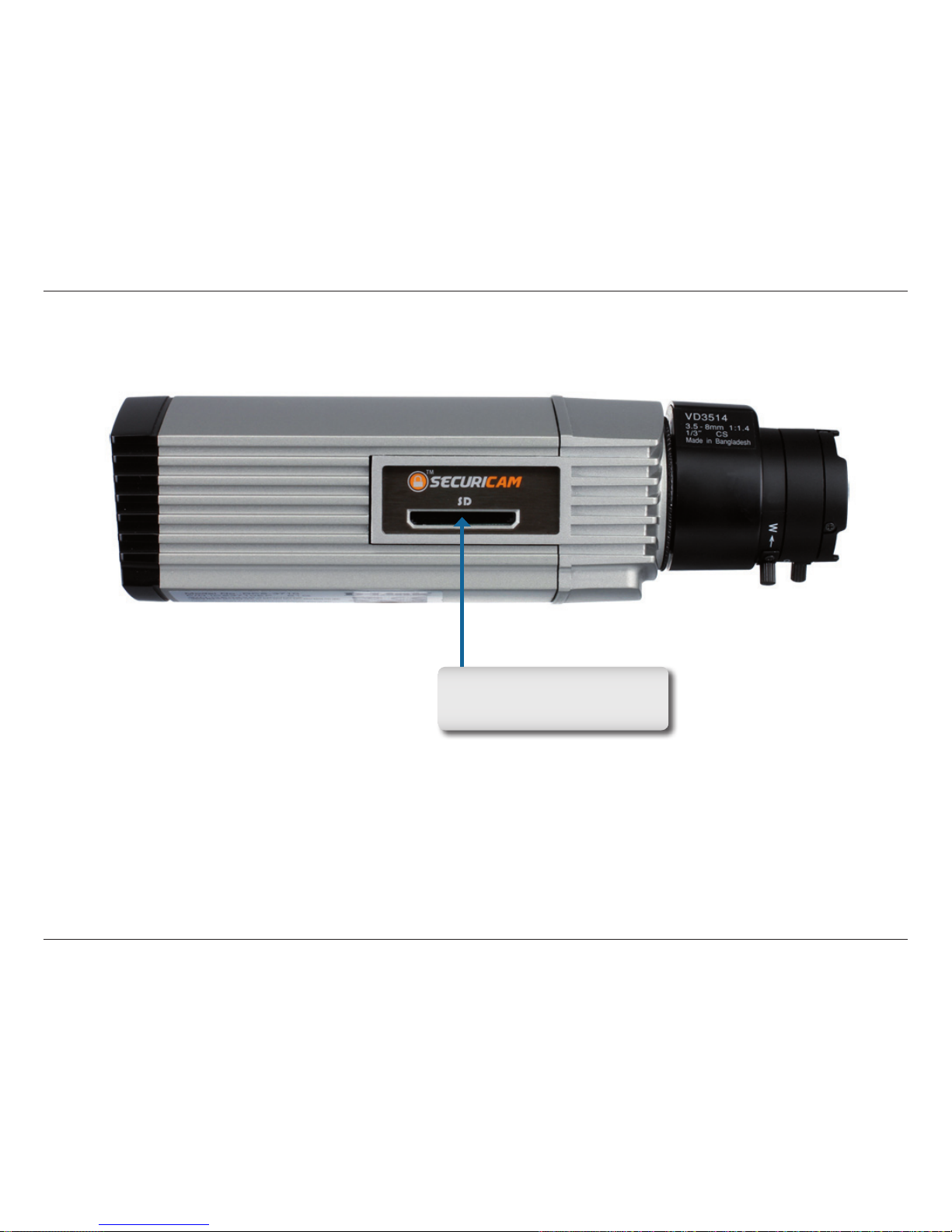

SD Card Slot
Local SD card for storing recorded
images and video

9D-Link DCS-3112 User Manual
Hardware Overview
Conguration with Wizard

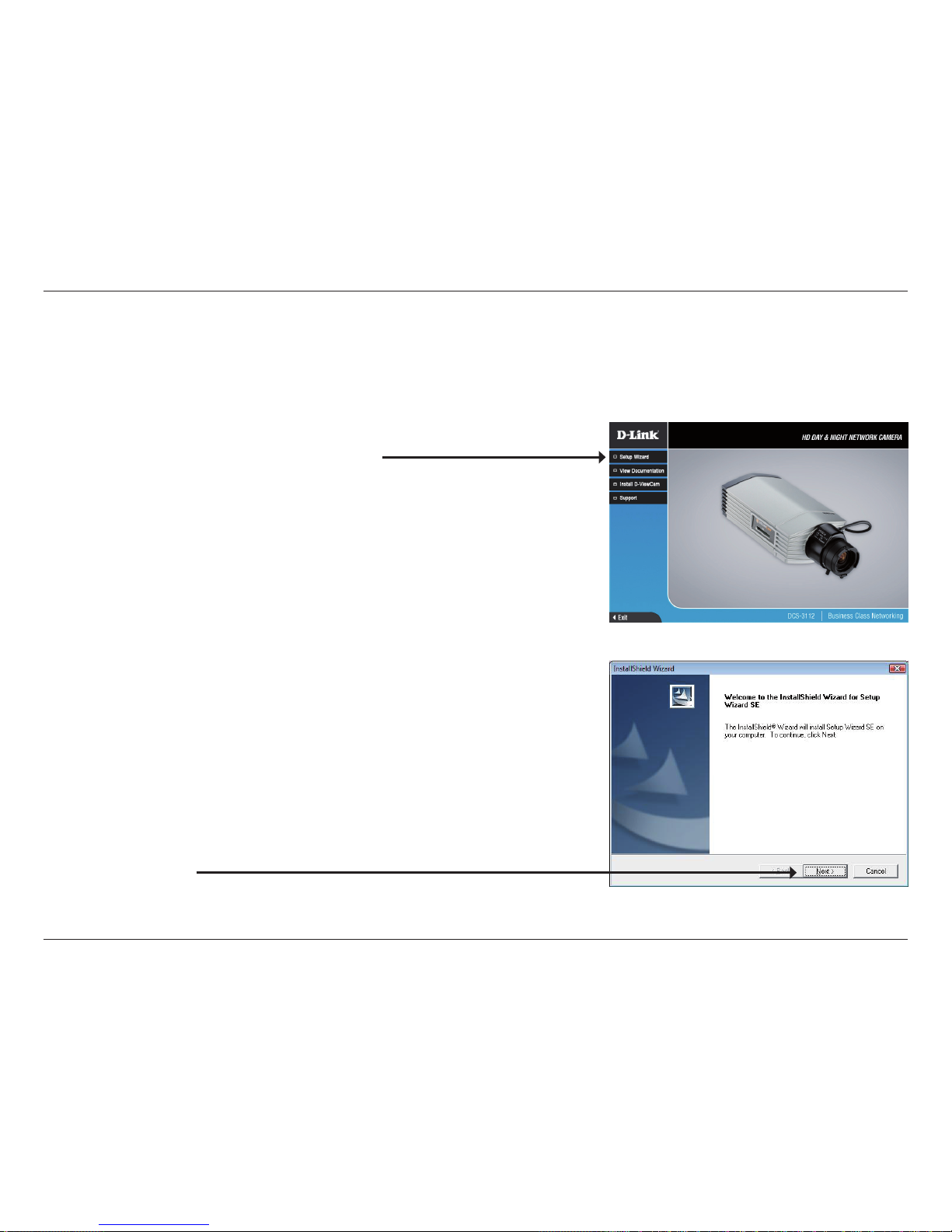

Insert the DCS-3112 CD into your computer's CD-ROM drive to begin the installation. If the Autorun function on your computer is
disabled, or if the D-Link Launcher fails to start automatically, click Start > Run. Type D:\autorun.exe, where D: represents the drive
letter of your CD-ROM drive.
Click Installation Wizard to begin the installation.
After clicking Setup Wizard, the window on the right will open.
Click Next to continue.

10D-Link DCS-3112 User Manual
Hardware Overview
Click Yes to accept the License Agreement.
To start the installation process, click Next.
Note: The installation may take several minutes to nish.

11D-Link DCS-3112 User Manual
Hardware Overview

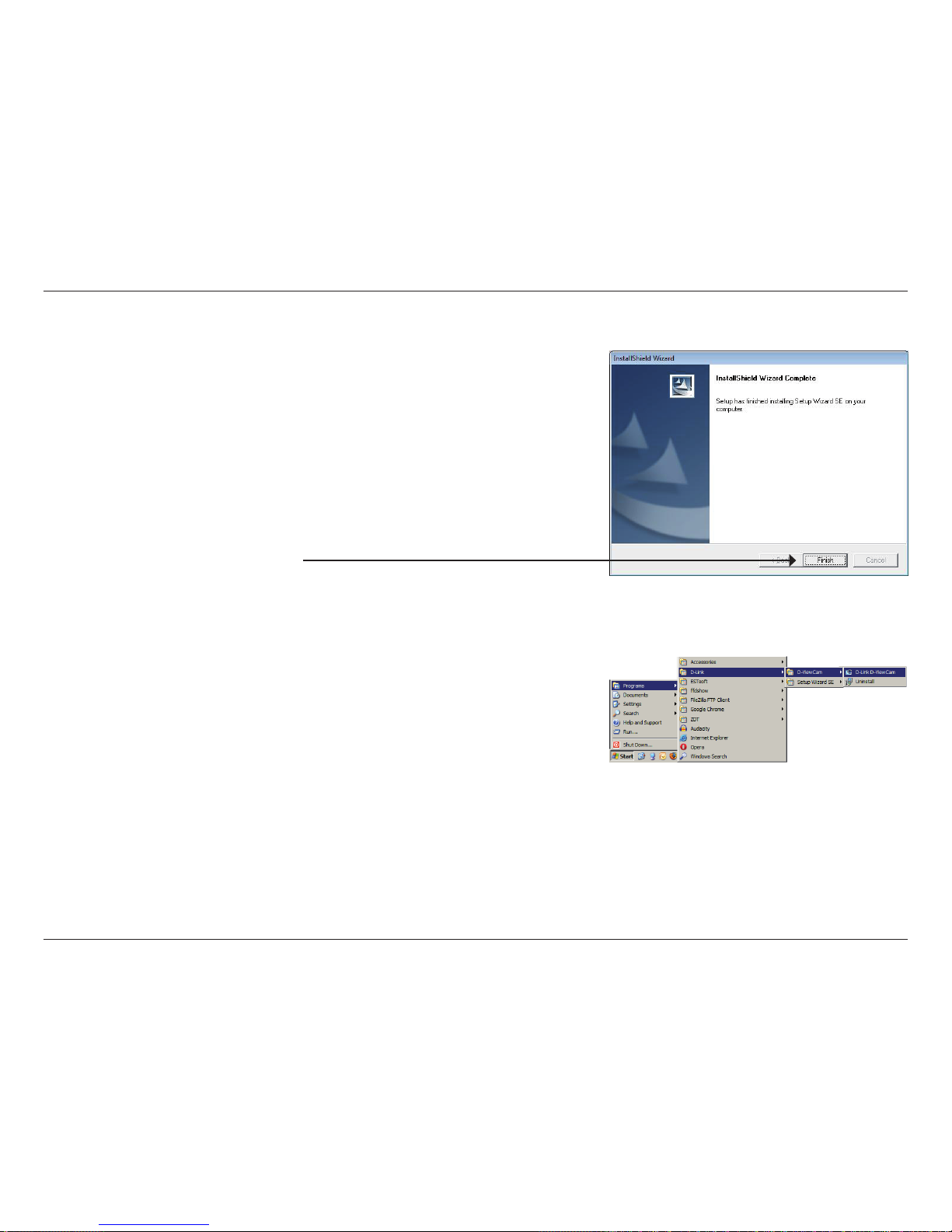

Click Finish to complete the installation.
Click on the D-Link Setup Wizard SE icon that was created in your Windows
Start menu.
Start > D-Link > Setup Wizard SE

12D-Link DCS-3112 User Manual
Hardware Overview

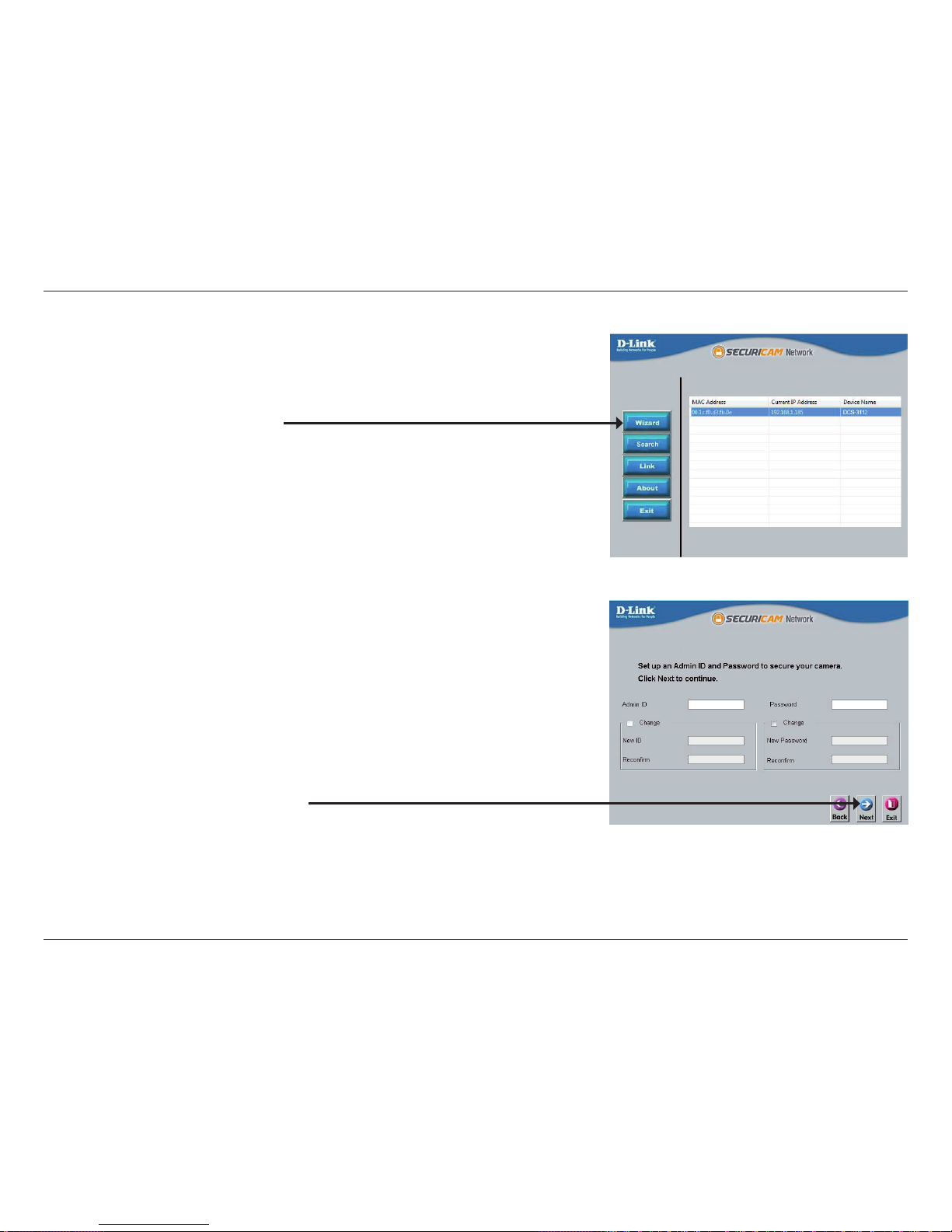

Enter the Admin ID and password. When logging in for the rst time, the default
Admin ID is admin with the password left blank.
Click Next, to proceed to the next page.
The Setup Wizard will appear and display the MAC address and IP address of
your camera(s). If you have a DHCP server on your network, a valid IP Address
will be displayed. If your network does not use a DHCP server, the network
camera's default static IP address 192.168.0.20 will be displayed.
Click the Wizard button to continue.

13D-Link DCS-3112 User Manual
Hardware Overview

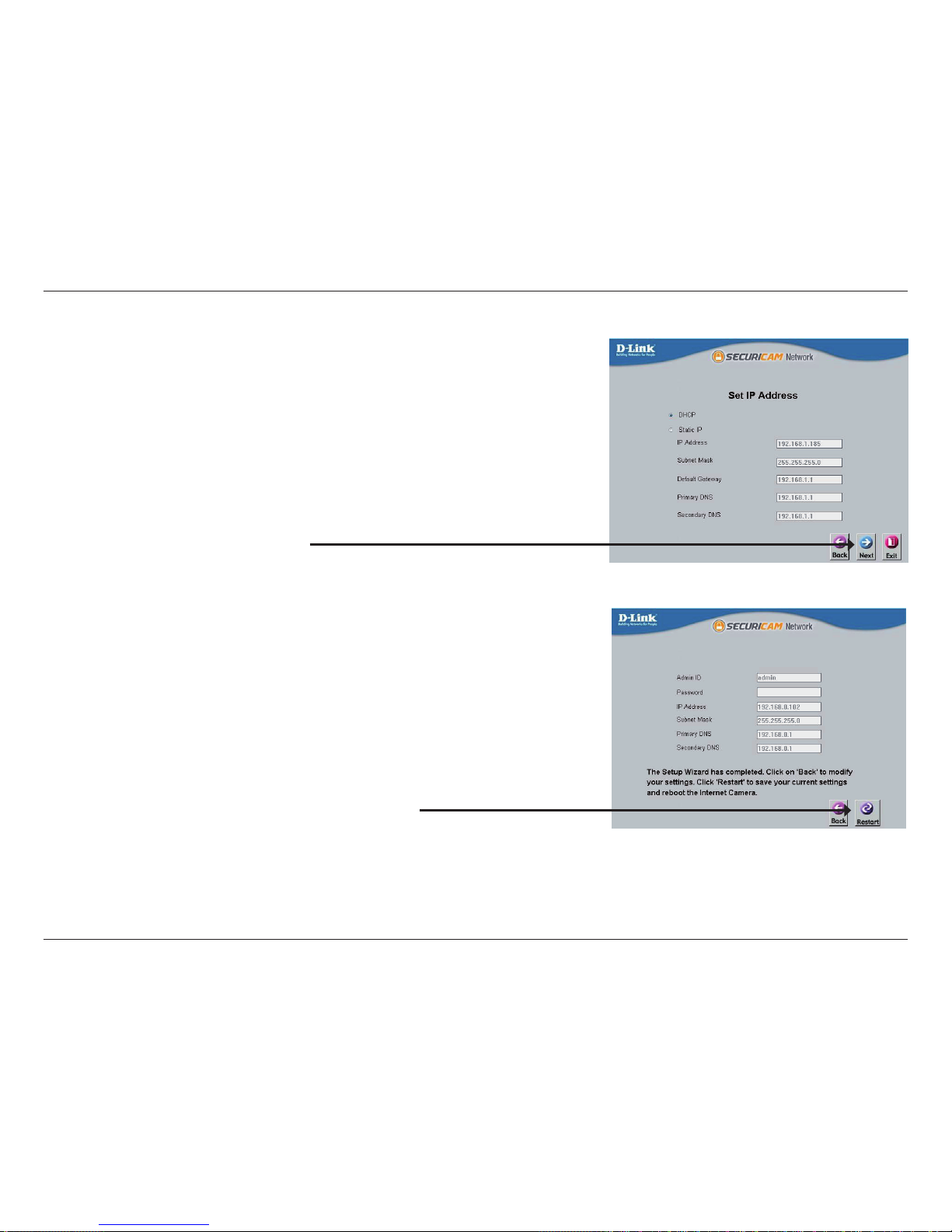

Take a moment to conrm your settings and click Restart.
Select DHCP if your camera obtains an IP address automatically when it boots up.
Select static IP if the camera will use the same IP address each time it is started.
Click Next, to proceed to the next page.

14D-Link DCS-3112 User Manual
Conguration
Web-based Conguration Utility
Conguration
This section explains how to congure your new D-Link Network Camera using the Web-based Conguration Utility.

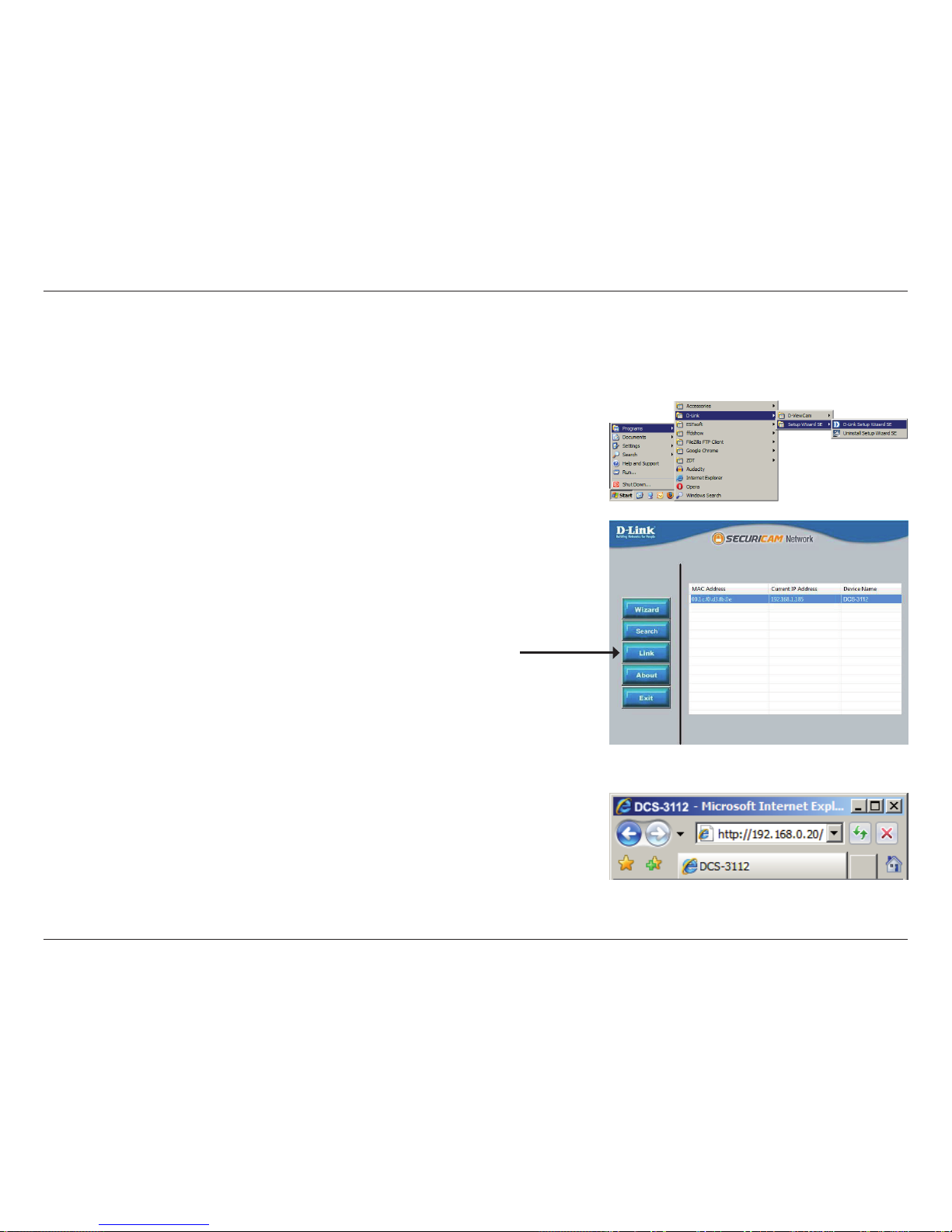

Click on the D-Link Setup Wizard SE icon that was created in your Windows
Start menu.
Start > D-Link > Setup Wizard SE
Select the camera and click the button labeled "Link" to access the web
conguration.
The Setup Wizard will automatically open your web browser to the IP address of
the camera.
Alternatively, you may manually open a browser and enter the IP address of the
camera: 192.168.0.20

15D-Link DCS-3112 User Manual
Conguration
This section shows your camera’s live video. You can select your video prole and
view or operate the camera. For additional information about web conguration,
please refer to the user manual included on the CD-ROM or the D-Link website.

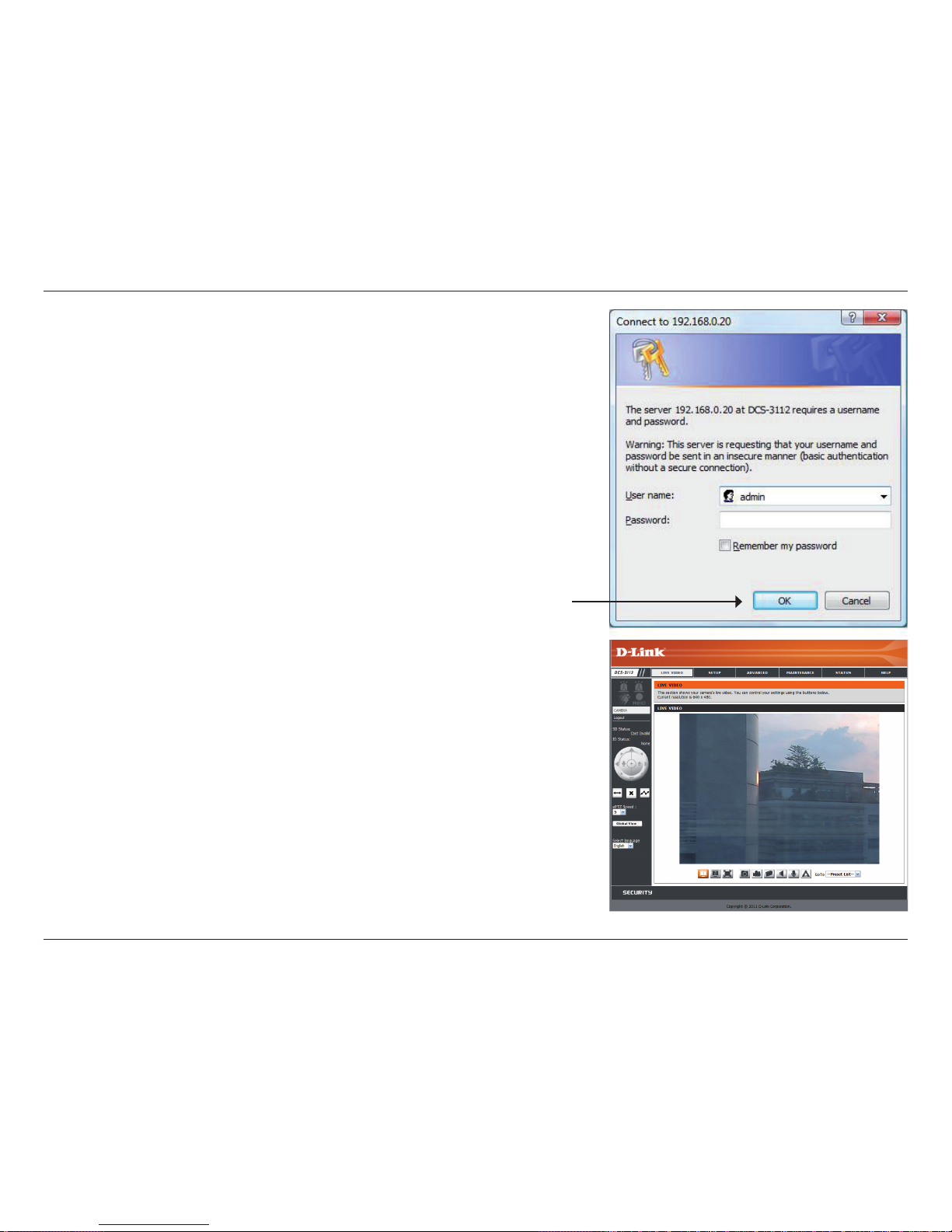

Enter admin as the default username and leave the password blank. Click OK to
continue.

16D-Link DCS-3112 User Manual
Conguration
D-ViewCam Setup Wizard
D-ViewCam software is included for the administrator to manage multiple
D-Link IP cameras remotely. You may use the software to congure all
the advanced settings for your cameras. D-ViewCam is a comprehensive
management tool for IP surveillance.

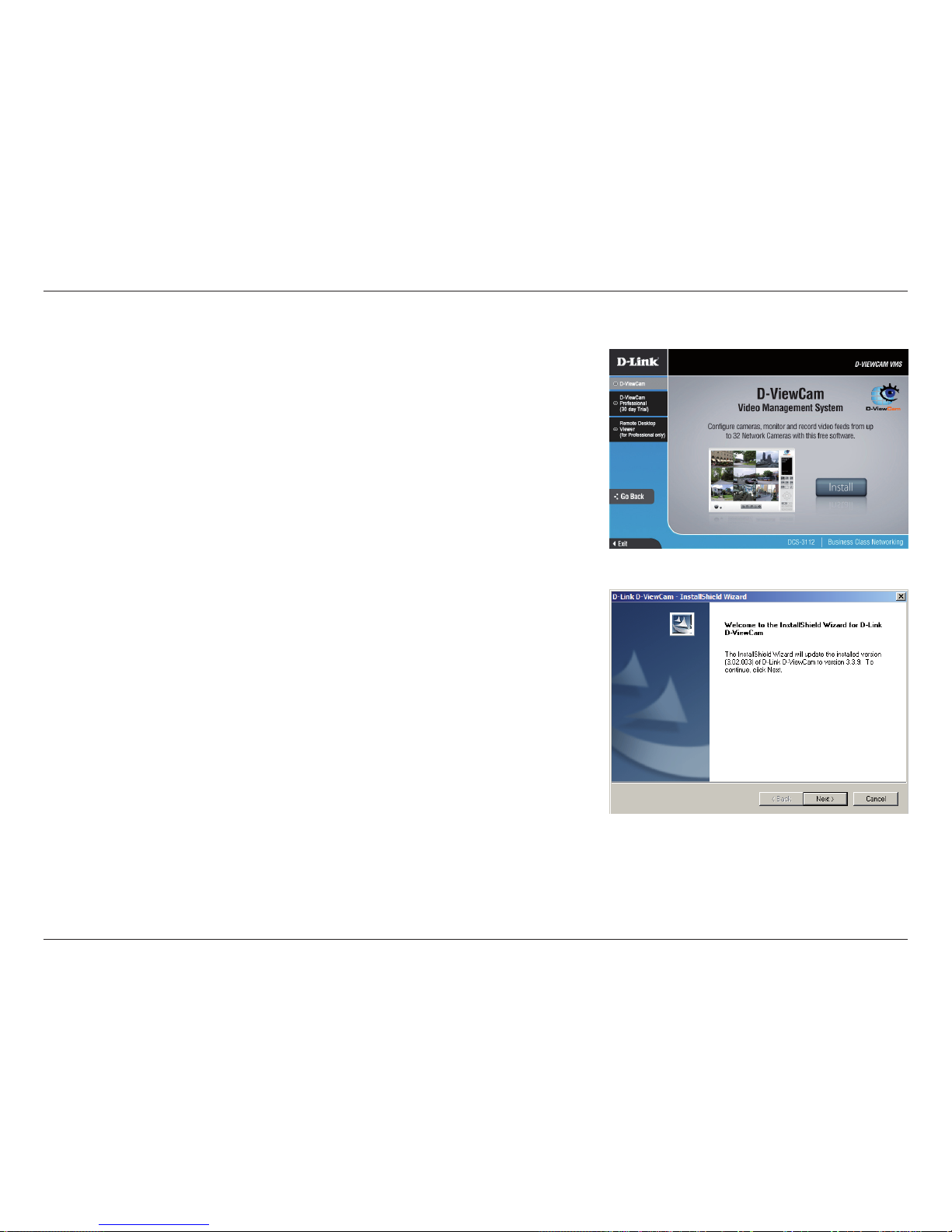

Insert the CD-ROM into the CD-ROM drive. Click "Install D-ViewCam
Software" from menu, and select "D-ViewCam" to install the VMS software.
Follow the Installation Wizard to install D-ViewCam.

17D-Link DCS-3112 User Manual
Conguration

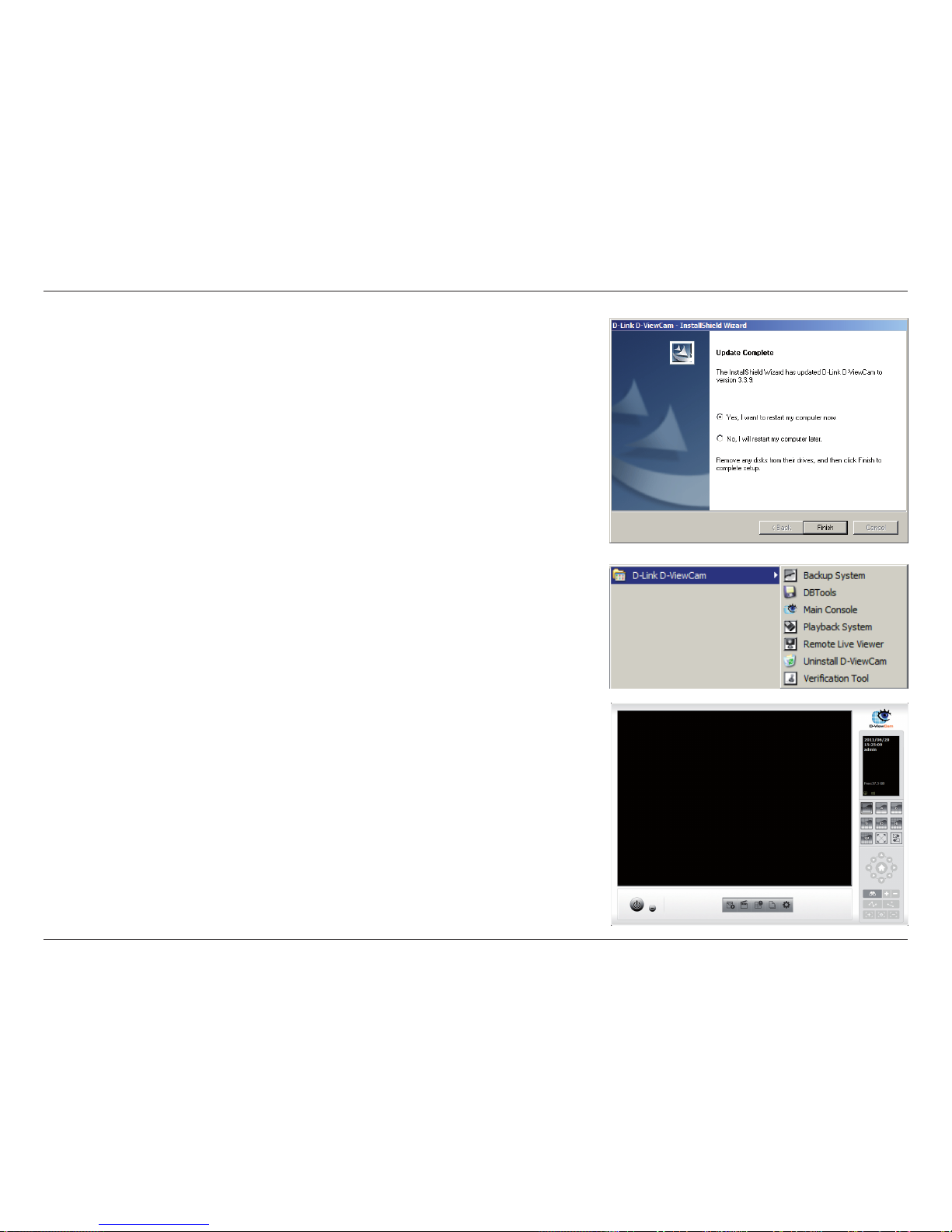

Click Finish to complete the installation.
To start D-ViewCam, select Start > All Programs > D-Link D-ViewCam >
Main Console.
For more detail operation of using D-ViewCam software, please refer to
D-ViewCam Manual.

18D-Link DCS-3112 User Manual
Conguration
Live Video

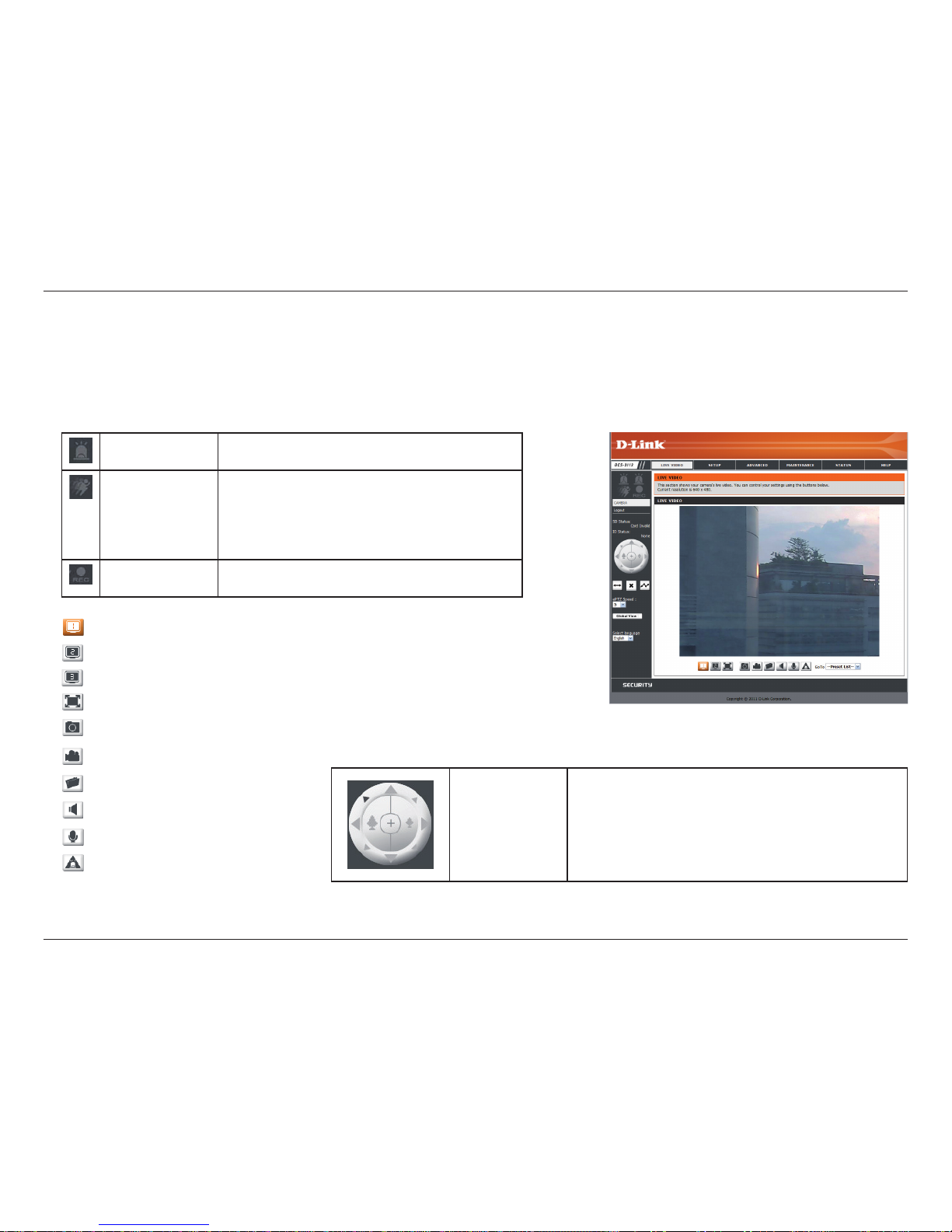

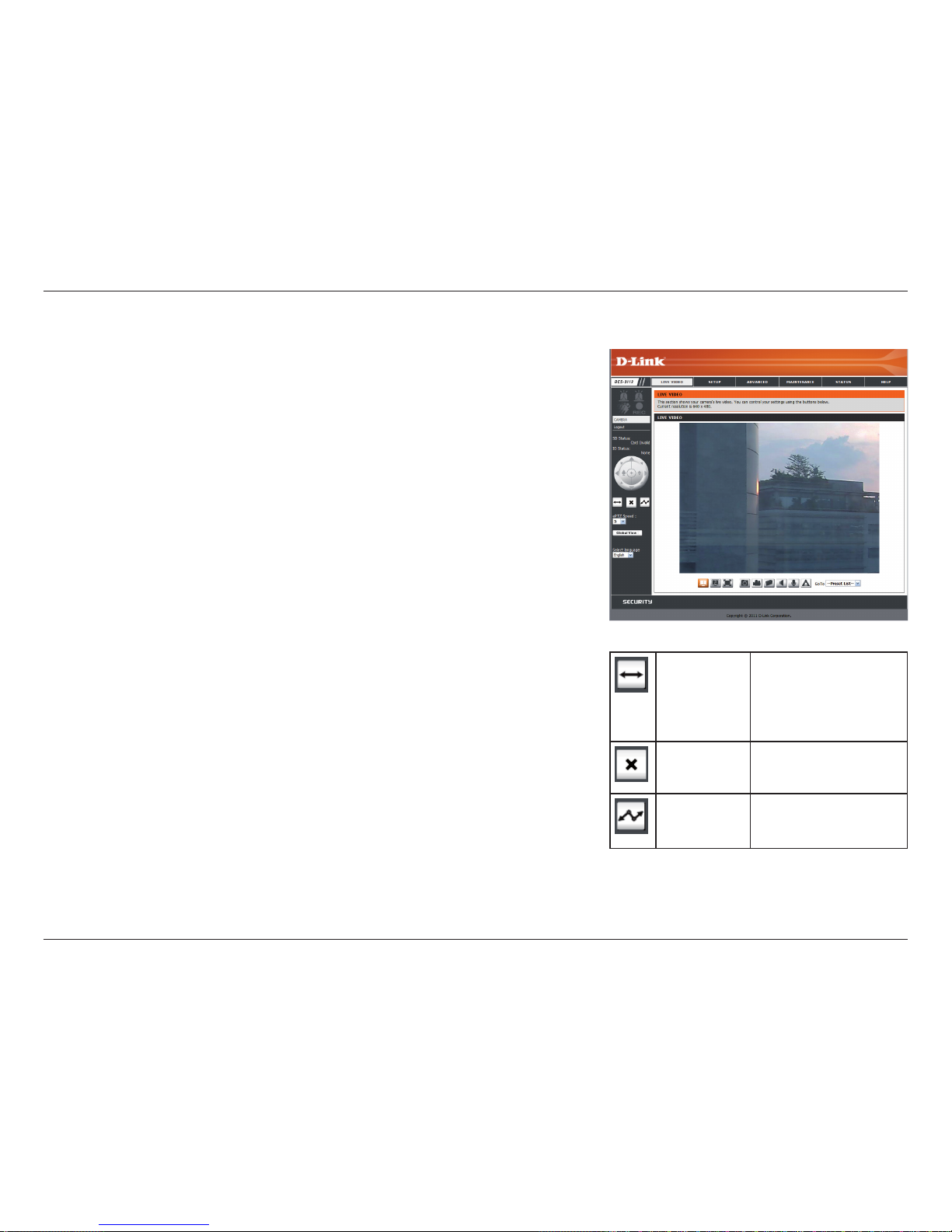

This section shows your camera’s live video. You may select any of the available icons listed below to operate the camera. You may
also select your language using the drop-down menu on the left side of the screen.
You can zoom in and out on the live video image using your mouse. Right-click to zoom out or left-click to zoom in on the image.
Digital Input
Indicator
This indicator will change color when a digital
input signal is detected.
Motion Trigger
Indicator
This indicator will change color when a trigger
event occurs.
Note: The video motion feature for your
camera must be enabled.
Recording
Indicator
When a recording is in progress, this indicator
will change color.
Video Prole 1
Video Prole 2
Video Prole 3
Full screen mode
Taking a Snapshot
Recording a Video Clip
Set a Storage Folder
Listen/Stop Listening
Talk/Stop Talking
Start/Stop Digital Output
Control Pad
This control pad can be used to pan, tilt, and zoom
within the camera's predened view area, if one
has been dened.

19D-Link DCS-3112 User Manual
Conguration
If any presets have been dened, selecting a preset from this list
will display it.
This option displays the status of the SD card. If no SD card has
been inserted, this screen will display the message "Card Invalid."
This option displays the status of your I/O device if a device has
been connected.
This camera uses electronic pan/tilt/zoom (ePTZ) to select and
view areas of interest in the eld of view. Please see page 30 for
information about setting the frame size and view window area.
You may select a value between 0 and 64. 0 is the slowest and 64
is the fastest.
This window indicates the total eld of view (FOV) of the camera.
The red box indicates the visible region of interest (ROI).
You may select the interface language using this menu. The
available options are English and Traditional Chinese.
Go To:
(Preset List)
SD Status:
IO Status:
PTZ Control:
ePTZ Speed:
Global View:
Language:
Auto Pan Starts the automatic
panning function. The
ROI will pan from back
and forth within the
FOV
Stop Stops the camera
ePTZ motion
Preset Path Starts the camera's
motion along the
predened path

20D-Link DCS-3112 User Manual
Conguration
Setup
Wizard

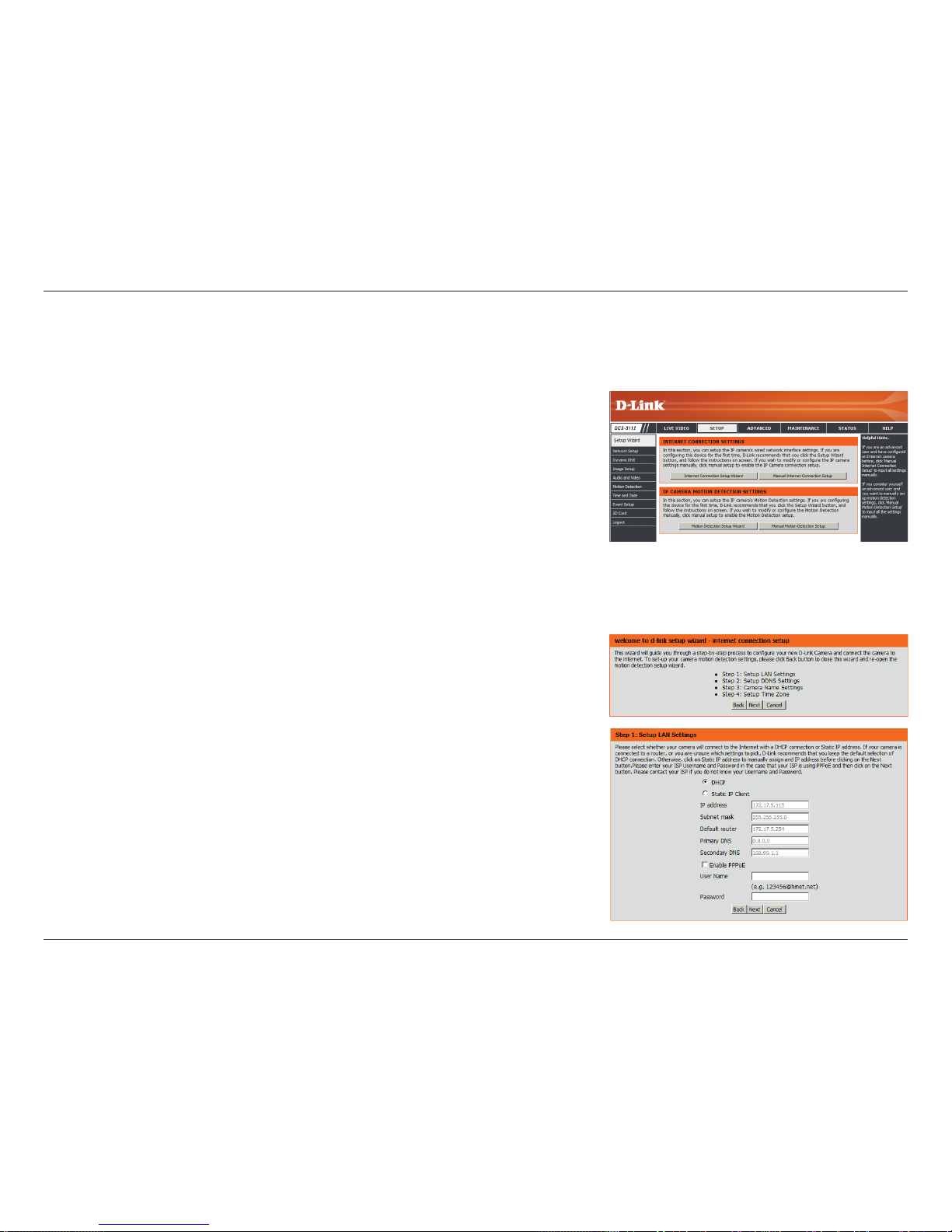

To congure your Network Camera, click Internet Connection
Setup Wizard. Alternatively, you may click Manual Internet
Connection Setup to manually congure your Network Camera and
skip to page 22.
To quickly congure your Network Camera’s motion detection
settings, click Motion Detection Setup Wizard. If you want to
enter your settings without running the wizard, click Manual Motion
Detection Setup and skip to page 27.
Internet Connection Setup Wizard
This wizard will guide you through a step-by-step process to
congure your new D-Link Camera and connect the camera to the
internet. Click Next to continue.
Note: Select DHCP if you are unsure of which settings to choose.
Click Next to continue.
