D-Link DCS-5020L User manual

DCS-5020L
Quick Install Guide
Pan & Tilt Wi-Fi Camera

If any of the above items are missing, please contact your reseller.

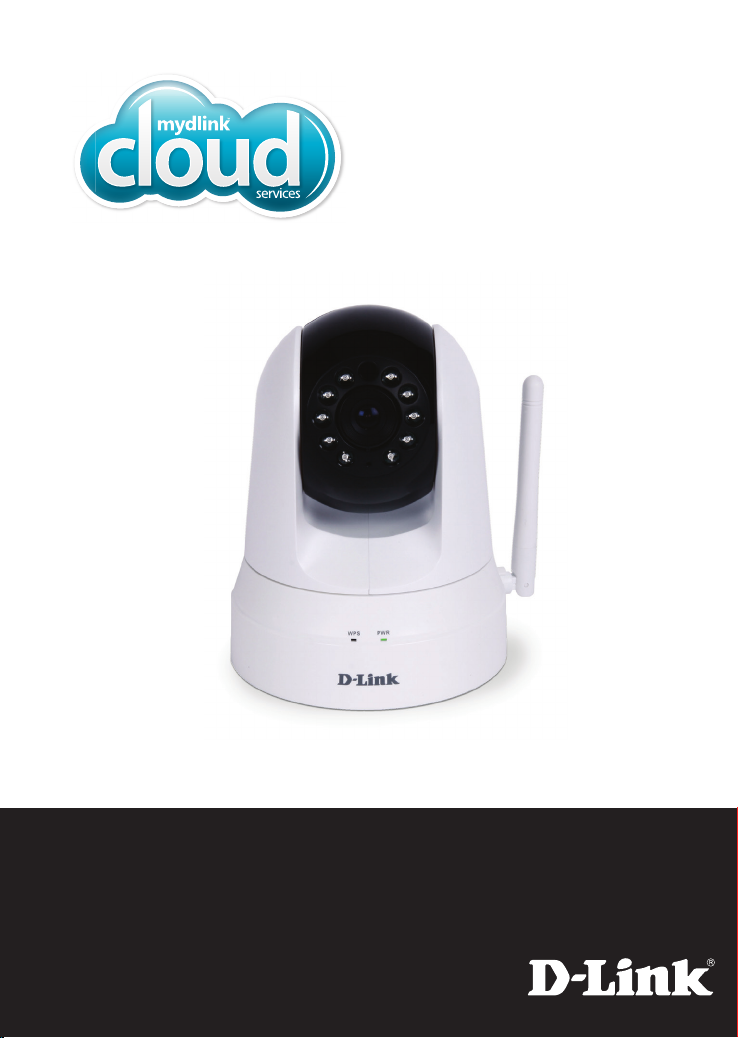

DCS-5020L Pan & Tilt Wi-Fi Camera
Power Adapter
Ethernet Cable
Quick Install Guide

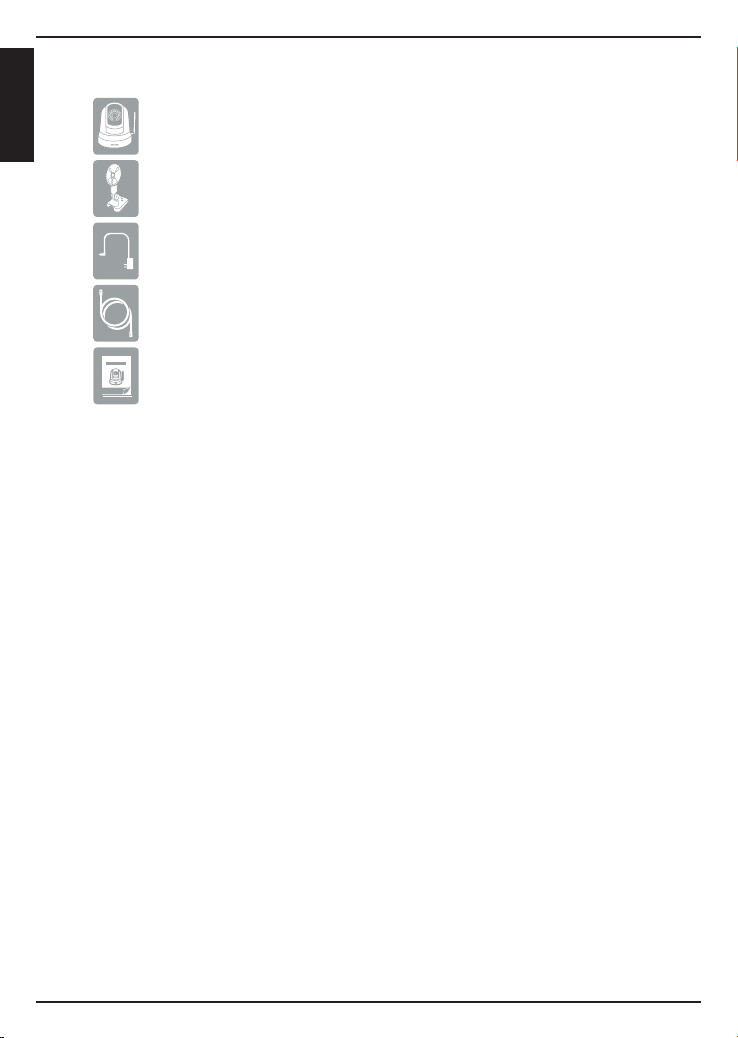

Package Contents
Mounting Bracket
Minimum Requirements
Mobile Device
• iPhone, iPad, or Android smartphone or tablet
(Refer to the mobile app’s store page to see if your device is compatible)
Network Device and Service
• A wireless router (802.11ac/n/g) with Internet service
• An e-mail account (required to create a mydlink® account)
* If you use a mobile device with the mydlink Lite app, a PC is not required for
setup. Refer to Setting up Your Camera on page 4.
2
ENGLISH

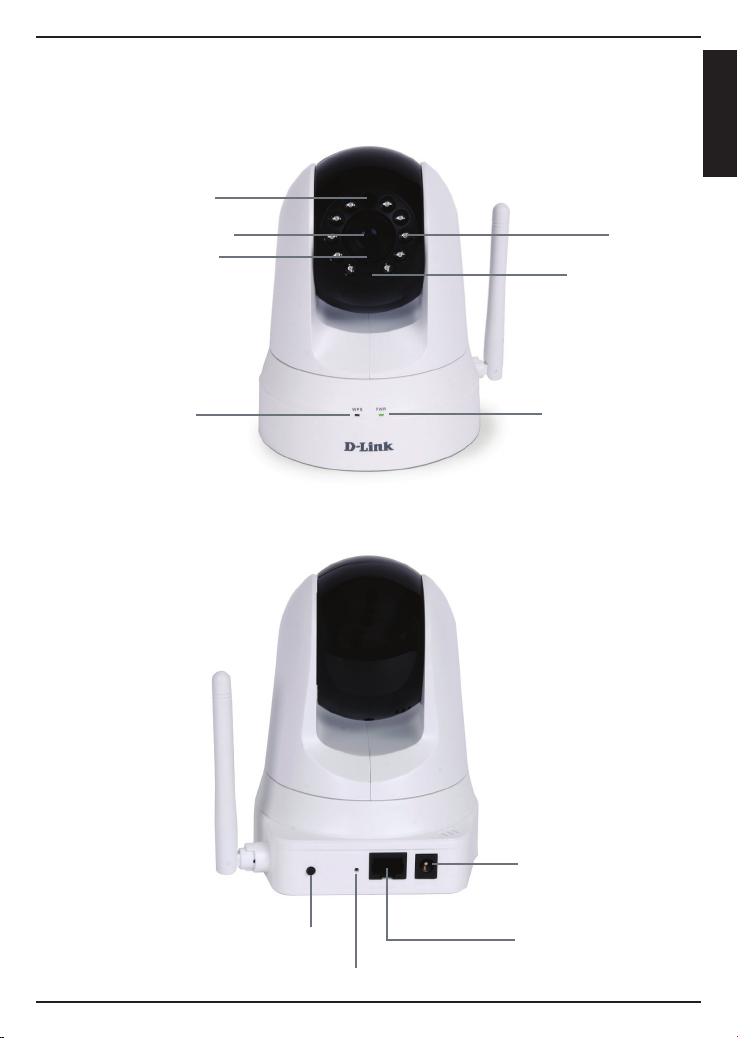

Product Overview
Camera Lens
Microphone
IR LED
Light Sensor
Power and Link LED
WPS LED
Manual Focus Bezel
Power Connector
Ethernet Port
Reset Button
WPS Button
Front
Back
3
ENGLISH

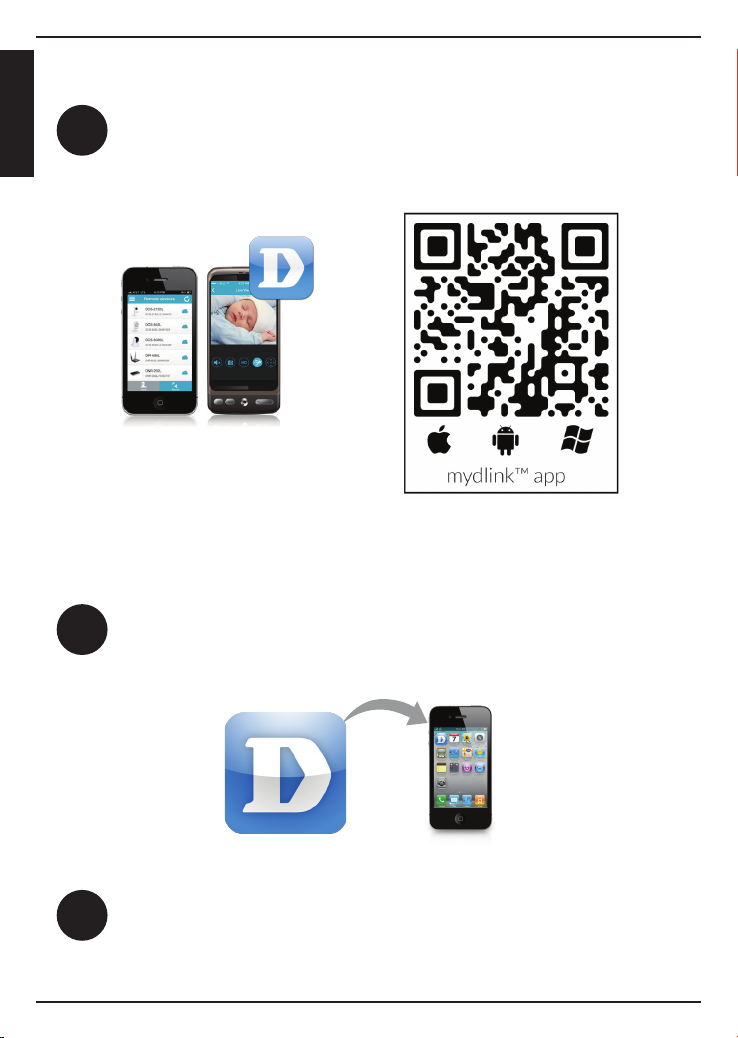

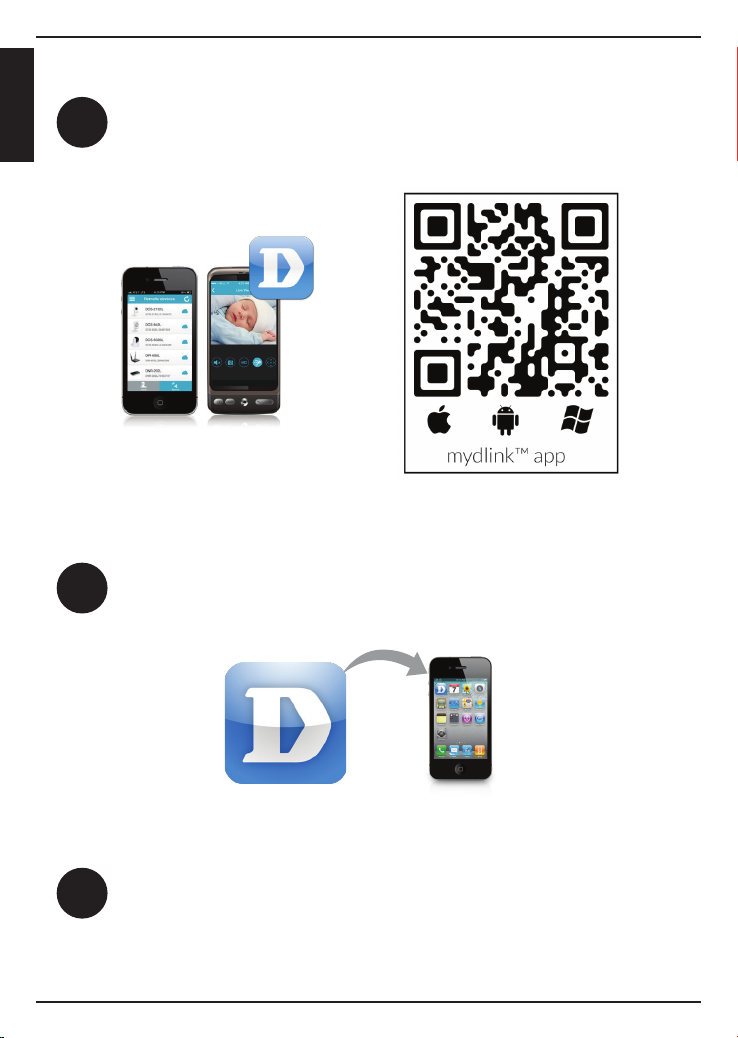

Setting Up Your Camera
System Requirements: Refer to the mydlink Lite app page on Apple App Store, Google Play or Windows Phone Store.
Download the free mydlink Lite app on your smartphone or tablet by
scanning the QR code below, or by searching for mydlink Lite in the app
store for your device.
1
2Launch the mydlink Lite app, then create a new account or log in to your
existing account.
3The app will guide you through the rest of the conguration process.
4
ENGLISH

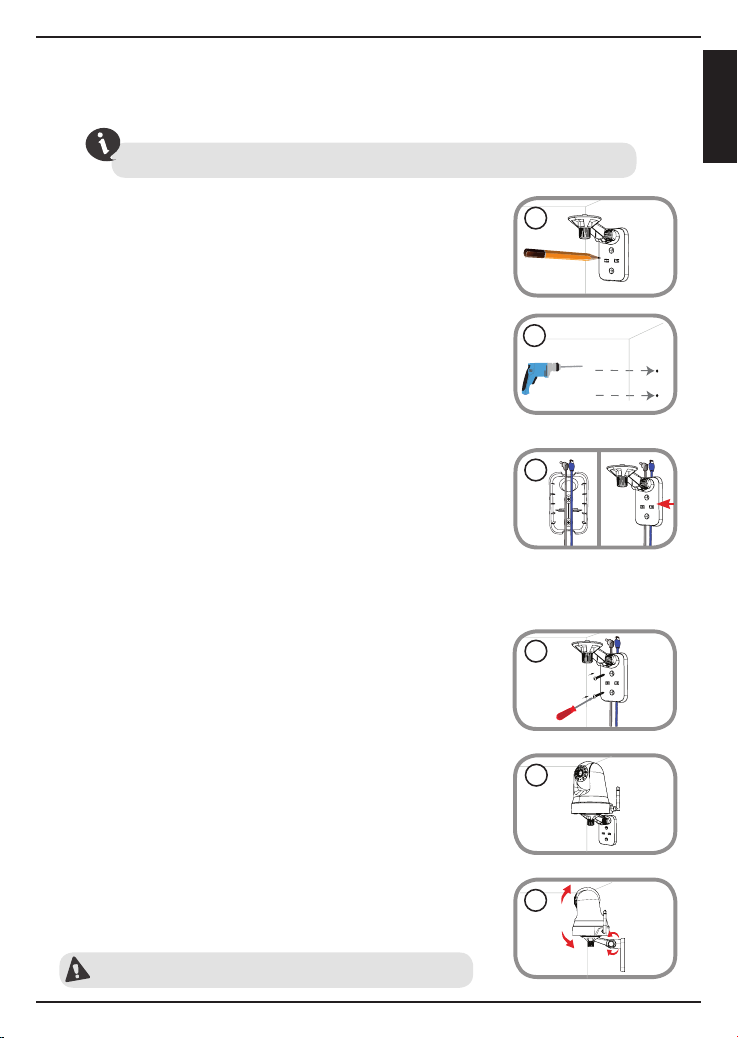

Mount the Camera
Please refer to the steps below to assist you with mounting the camera.
We suggest that you congure the camera before mounting.
Do not overtighten the screws as this may crack the bracket.
2. Depending on the material of the wall or ceiling,
use proper tools to drill two holes or screws
where you marked. If the wall is made out of
concrete, drill the holes rst, then insert the
plastic anchors to support the screws.
2
1. Place the mounting bracket where you want to
position the camera and use a pencil to mark
the holes.
1
3. The power and Ethernet cables can be
concealed behind the mounting bracket. Run
the cables through the back of the mounting
bracket, securing them with the built-in
guides. Be sure to leave enough cable length
protruding from the top to allow connection to
the camera.
3
4. Fasten the mounting bracket to the wall using
the screws provided. 4
5. Using the supplied thumbscrew, fasten the
camera to the mounting bracket. Connect the
power and Ethernet cables to the camera.
5
6. Adjust the angle of the arm on the mounting
bracket as required. Tighten the thumbscrew to
lock the arm in place.
6
5
ENGLISH

1. What is a mydlink No.? What is it used for?
Each camera has a unique eight-digit mydlink No. which will be shown on
the label on the back of your camera. This eight-digit number identies
your device, and is required to add your device to your mydlink account.
2. What can I do if my DCS-5020L is not working correctly?
• Reset the camera (see next step) and run the setup steps starting
on page 4 again.
• To make sure your hardware is installed correctly, make sure that:
- the power LED is solid green
- your Internet connection is working
- your router’s LAN & WAN connections are working
- your router supports UPnP®
- your camera is on the same network as your mobile device/PC
- both your mobile device/PC and camera have a working Internet
connection
• If your camera is still not working, check your router and make sure it
has the latest rmware.
3. What can I do if I forget my password?
FAQs

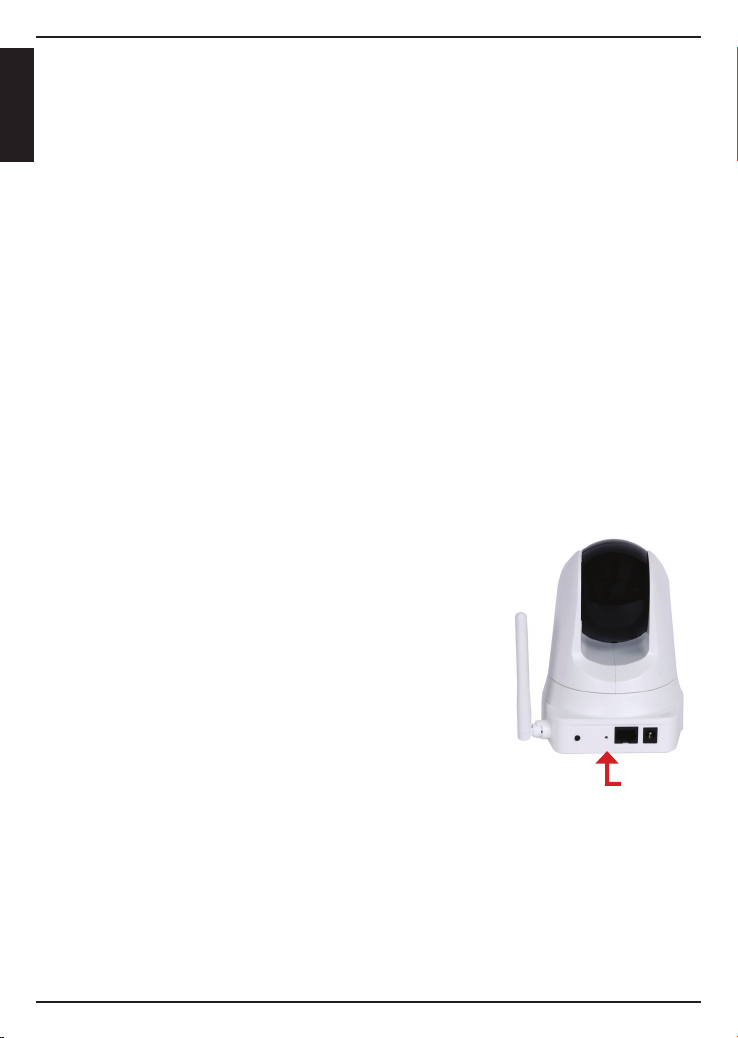

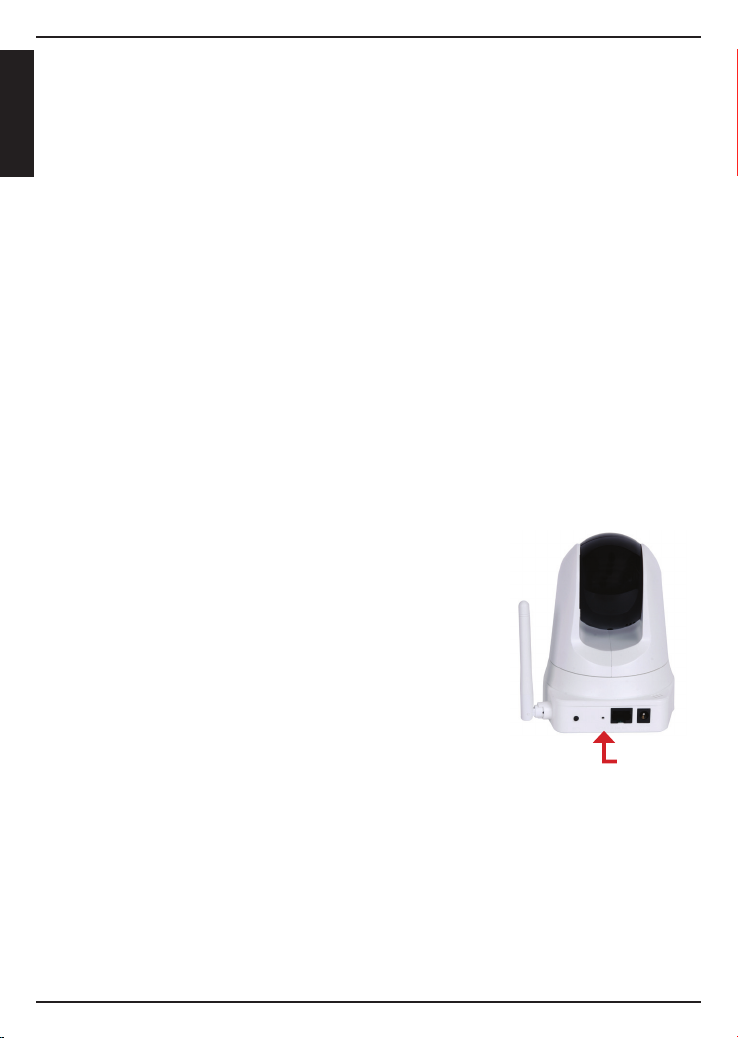

If you forget your password, you must reset the
camera. Unfortunately, this process will change
your settings back to factory default. To reset the
camera, locate the reset button on the back of
the camera. With the camera powered on, use an
unfolded paper clip to hold the button down for
10 seconds. Run the setup procedure located on
page 4 once the camera restarts.
4. Why is there a white haze when viewing in night vision mode?
When viewing in night vision mode, the IR lights on the camera may be
reecting o a nearby surface. Try repositioning the camera in order to
avoid glare from IR LEDs.
5. What can I do if the image is blurry?
You can manually adjust the focus of your camera using the focus ring
around the lens.
Reset
Button
6
ENGLISH

Notes

Technical Support
This guide is only for rst time conguration. Please refer to the user manual to learn
more or visit http://www.mydlink.com for more information. Also feel free to contact
us. U.S. and Canadian customers can contact D-Link Technical Support through our
website.
http://support.dlink.com
USA
http://support.dlink.ca
Canada
Version 1.30(NA)_130x183
March 19, 2015
6DCS5020LQD4G
Copyright ©2015 All rights reserved. D-Link and the D-Link logo are registered trademarks of D-Link Corporation or its
subsidiaries. Other trademarks are the property of their respective owners. Maximum wireless signal rate derived from IEEE
Standard 802.11g and 802.11n specications. Actual data throughput will vary. Network conditions and environmental
factors, including volume of network trac, building materials and construction, and network overhead, lower actual
data throughput rate. Environmental factors will adversely aect wireless signal range. Product specications, size
and shape are subject to change without notice, and actual product appearance may dier from that depicted on the
packaging. Visit dlink.com (US) or dlink.ca (Canada) for more details.

DCS-5020L
Guide d’installation rapide
Caméra réseau horizontal/vertical
à vision jour/nuit

Contactez votre revendeur s'il manque l'un des éléments ci-dessus.
Caméra réseau panoramique horizontal/vertical à vision
diurne et nocturne DCS-5020L
Adaptateur secteur
Câble Ethernet
Guide d’installation rapide
Contenu de la boîte
Support de xation
Exigences minimales
Appareil mobile (pour utiliser l’app mydlink Lite)
• iPhone, iPad, ou smartphone ou tablette Android
(Veuillez vous reporter à la page de l'application mobile pour vérier si
votre appareil est compatible
Périphérique réseau et service
• Un routeur sans l (802.11ac/n/g) avec service Internet
• Un compte de messagerie (requis pour créer un compte mydlink®)
*Remarque: Si vous utilisez un appareil mobile avec l'application mydlink
Lite, un PC n'est pas requis pour l'installation. (Reportez-vous à la page 4
pour la conguration app mobile.)
2
FRANÇAIS
