D-Link DCS-2210L/UPA User manual

User Manual
Full HD PoE Day/Night Network Camera
Version 1.00 | 11/11/2014
DCS-2210L/UPA

2
D-Link DCS-2210L/UPA User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or
organization of such revisions or changes. Information in this document may become obsolete as our services and websites develop and
change. Please refer to the www.mydlink.com website for the most current information.
Manual Revisions
Revision Date Description
1.0 October 21, 2014 Version A1 with rmware version 1.00
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries.
All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.
Copyright © 2014 by D-Link Corporation, Inc.
All rights reserved.This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Corporation,
Inc.
Preface

3
D-Link DCS-2210L/UPA User Manual
Table of Contents
Product Overview.............................................................. 4
Package Contents................................................................. 4
System Requirements ......................................................... 5
Introduction............................................................................ 6
Features.................................................................................... 7
Hardware Overview ............................................................. 8
Front View............................................................................ 8
Rear View ............................................................................. 9
Side View............................................................................10
Installation .......................................................................11
Zero Conguration Setup................................................11
Camera Setup Wizard........................................................14
Windows Users ....................................................................14
Mac Users...............................................................................15
Manual Hardware Installation........................................17

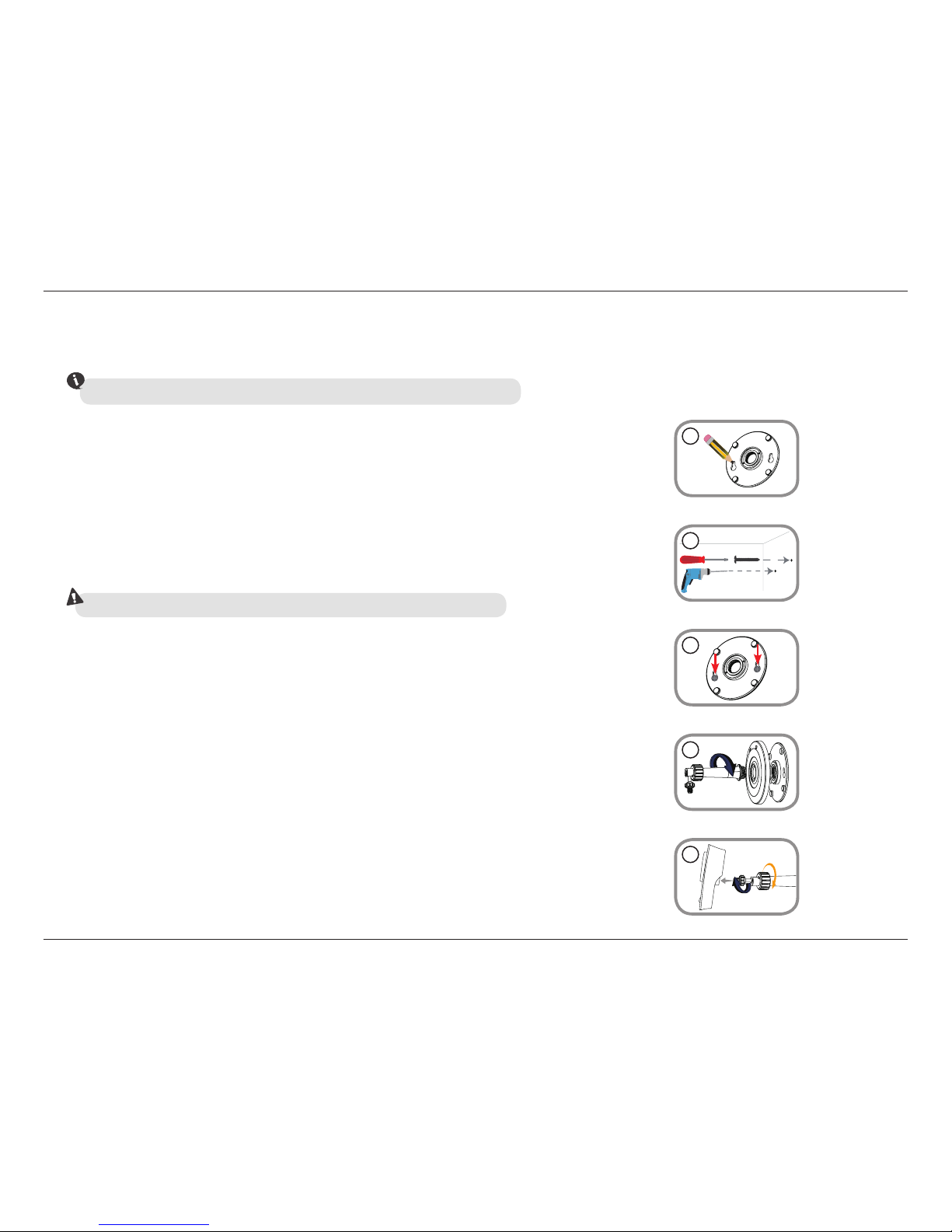

Mount the Camera .............................................................18
mydlink...........................................................................................19
Conguration...................................................................20
Using the Conguration Interface................................20
Live Video ..............................................................................21
Setup.......................................................................................23
Setup Wizard ....................................................................23
Network Setup.................................................................29
Dynamic DNS ...................................................................32
Image Setup .....................................................................33
Audio and Video..............................................................35
Preset...................................................................................37
Motion Detection ...........................................................39
Time and Date..................................................................40
Event Setup.......................................................................41
SD Card...............................................................................50
Advanced .........................................................................51
Digital Input/Output......................................................51
ICR and IR...........................................................................52
HTTPS..................................................................................53
Access List..........................................................................54
SNMP...................................................................................55
Maintenance ....................................................................56
Admin..................................................................................56
System ................................................................................57
Firmware Upgrade..........................................................58
Status................................................................................59
Device Info ........................................................................59
Logs .....................................................................................60
Help......................................................................................61
DI/DO Specications .......................................................62
Technical Specications..................................................63
Safety Statements ...........................................................66

4
D-Link DCS-2210L/UPA User Manual
Section 1: Product Overview
Product Overview

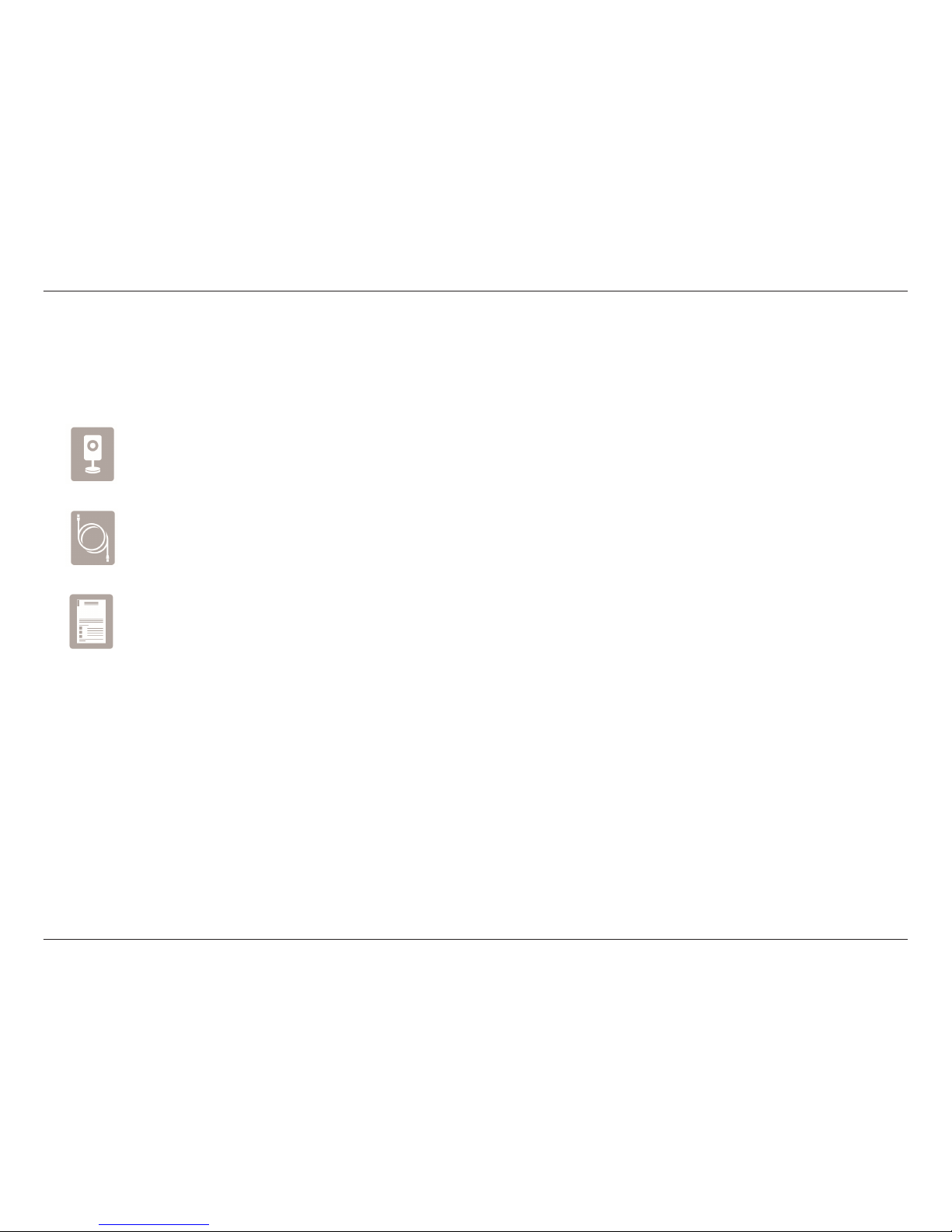

Package Contents
If any of the above items are missing, please contact your reseller.
DCS-2210L Full HD PoE Day/Night Network Camera
CAT5 Ethernet cable
Quick Installation Guide

5
D-Link DCS-2210L/UPA User Manual
Section 1: Product Overview
System Requirements
Hardware Requirements
• A microSD memory card (optional) is required for
recording to onboard storage. SDHC Class 6 or
above is recommended.
Network Requirements
• An Ethernet-based cable or DSL modem
• 10/100 Ethernet
•Broadband Internet connection
Web-based Conguration
Utility Requirements
Computer with the following:
• Windows® XP/Vista/7/8, Linux-based, or Mac with
OS X 10.6 or higher
• An installed Ethernet adapter
Browser Requirements:
• Internet Explorer 7.0 or higher
• Firefox 12 or higher
• Safari 6.0 or higher (with Java installed and enabled)
• Chrome 20 or higher
Windows®Users: Make sure you have the latest version of
Java installed. Visit www.java.com to download the latest
version.

6
D-Link DCS-2210L/UPA User Manual
Section 1: Product Overview
Introduction
Congratulations on your purchase of the DCS-2210L Full HD PoE Day/Night Network Camera. The DCS-2210L is a versatile
surveillance solution for your small oce or home. The full HD 1920 x 1080 resolution 2 megapixel progressive scan CMOS
sensor lets you capture details like never before – especially important for face recognition. A built-in IR-cut lter and IR LED
makes sure you don't miss an event no matter how bright or dark your surroundings are. To make things convenient, support
for Power over Ethernet (PoE) means you won't have to worry about available power outlets when setting up your camera on
location.
Unlike a standard webcam, the DCS-2210L is a complete system with a built-in CPU and web server that transmits high quality
video images for security and surveillance. The DCS-2210L can be accessed remotely, and controlled from any PC over your
local network or through the Internet via a web browser. It also comes with the D-Link D-ViewCam™ software bundle that
allows you to manage multiple network cameras using remote monitoring, scheduling, recording, motion detection, and
notications for a complete and cost-eective home security solution.

7
D-Link DCS-2210L/UPA User Manual
Section 1: Product Overview
Full HD Resolution
The DCS-2210L Full HD PoE Day/Night Network Camera is equipped with a 2 megapixel progressive scan CMOS sensor that provides full HD 1920x1080
resolution, the video stream captures a larger scene and provides more details than an analog CCTV camera – so you can identify criminals more
easily in critical surveillance applications.
Power over Ethernet for Convenience
The DCS-2210L supports 802.3af Power over Ethernet (PoE), which lets you power your camera with any Ethernet cable. This feature lets you set up
your camera easily without worrying about available power outlets at your location.
IR LED for Day and Night Functionality
The built-in IR-cut lter and IR LED enable night time viewing or recording in dark environments at ranges up to 16 feet (5 meters).
DI/DO for Connecting External Devices
Rounding out the exibility of the DCS-2210L, you can connect an alarm or trigger to its DI/DO port for integration into a surveillance solution.
Remote Monitoring Utility
The D-ViewCam™ application adds enhanced features and functionality for the DCS-2210L and allows administrators to congure and access the
DCS-2210L from a remote site via Intranet or Internet. Other features include image monitoring, recording images to a hard drive, viewing up to
32 cameras on one screen, and taking snapshots.
Built-in Mic and Speaker
Covering all the visual components, the DCS-2210L also has a built-in microphone and speaker, so you can transmit two-way audio easily.
mydlink Support
Embrace the power of the cloud by adding your DCS-2210L to the list of devices manageable via the free mydlink web portal.
Web Conguration
Using a standard web browser, administrators can congure and manage the DCS-2210L directly from its own web page via Intranet or Internet.
This means you can access your DCS-2210L anytime, anywhere in the world.
Broad Range of Applications
With today’s high-speed Internet services, the DCS-2210L can provide the ideal solution for delivering live video images over the Intranet and
Internet for remote monitoring. The DCS-2210L allows remote access using a web browser for live image viewing, and allows the administrator to
manage and control the DCS-2210L anytime, anywhere in the world.
Features

8
D-Link DCS-2210L/UPA User Manual
Section 1: Product Overview

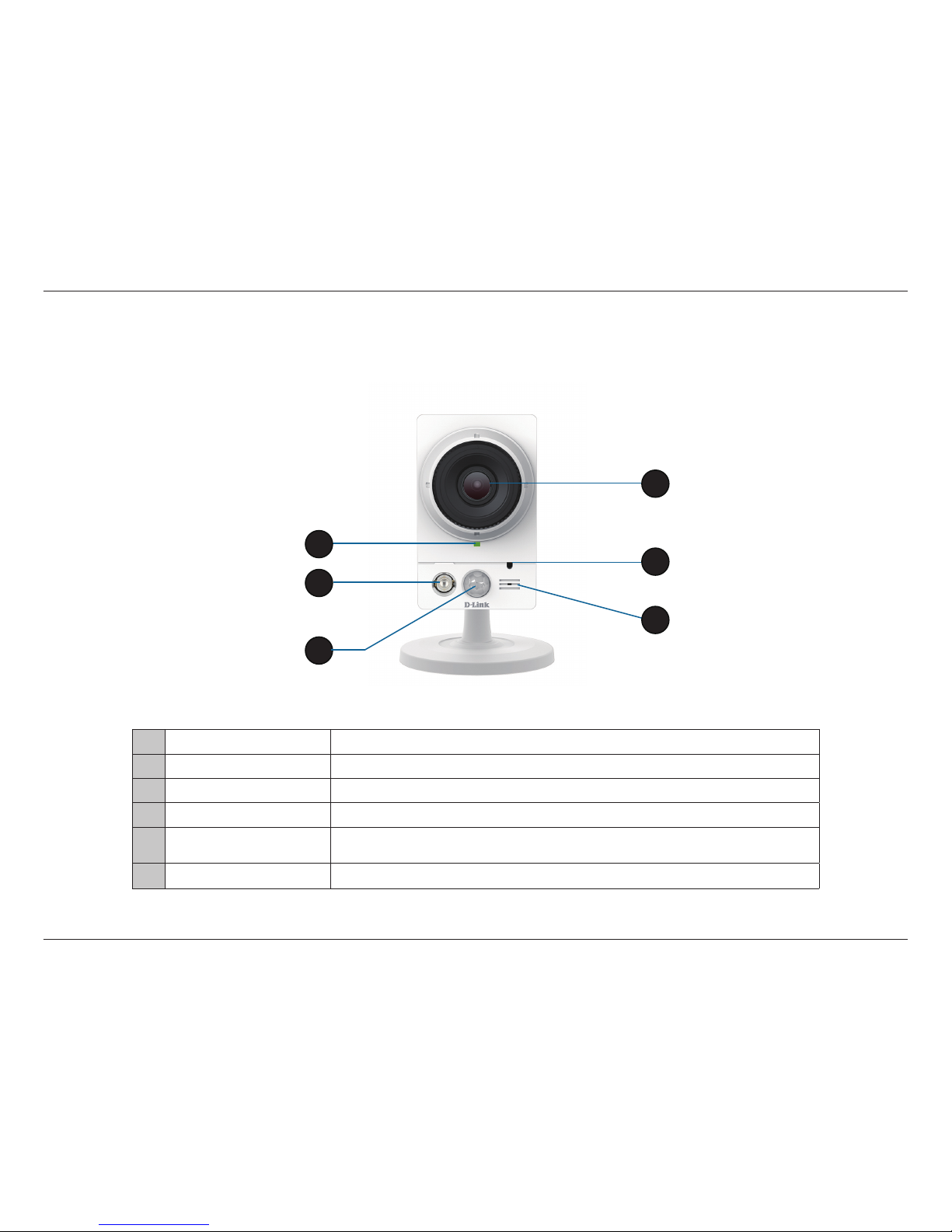

Front View
Hardware Overview
1 Status LED Indicates the camera's current status
2 Infrared LED Used to illuminate the camera's eld of view at night
3 PIR Sensor Passive Infrared sensor for motion detection
4 Camera Lens Records video of the surrounding area
5Light Sensor The light sensor helps switch the camera between day and night modes. Night
mode activates the IR LED and toggles the IR-Cut-Removable lter.
6 Microphone Records audio from the surrounding area
1
2
3
4
5
6

9
D-Link DCS-2210L/UPA User Manual
Section 1: Product Overview

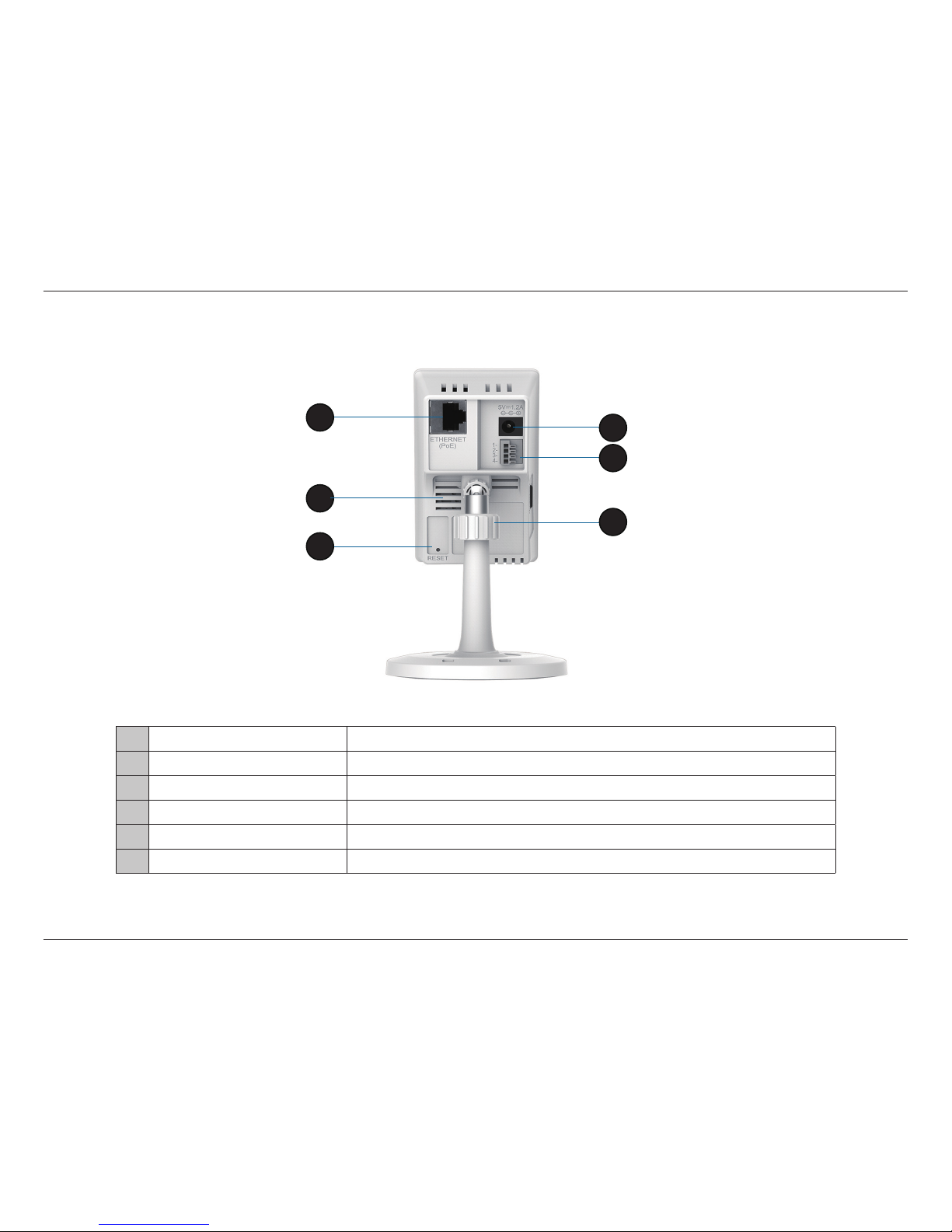

Rear View
1 Ethernet Port RJ45 connector for Ethernet
2 Speaker Audio output
3 Reset Button Press and hold this button for 10 seconds to reset the camera
4 Power Connector Connects to the DC 5 V power adapter (not included in package)
5 DI/DO Connector I/O connectors for external devices
6 Adjustment Ring Tighten or loosen the adjustment ring to adjust the camera's position
14
5
2
3
6

10
D-Link DCS-2210L/UPA User Manual
Section 1: Product Overview
Side View
1 microSD Card Slot Insert a microSD card for Local storage for storing recorded image and video
1

11
D-Link DCS-2210L/UPA User Manual
Section 2: Installation
Zero Conguration Setup
If you have a D-Link Cloud Router, you can take advantage of Zero Conguration Setup. Zero Conguration automatically
congures your camera's settings for you, and adds it to your mydlink account automatically. This type of setup allows you to
set up your camera by simply plugging it in and connecting it to your router.
Connect your camera to your mydlink-enabled Cloud Router and Zero Conguration will automatically congure your
DCS-2210L and automatically add the camera to your mydlink account. You can now remotely access your camera from the
mydlink.com website to manage and monitor your DCS-2210L.

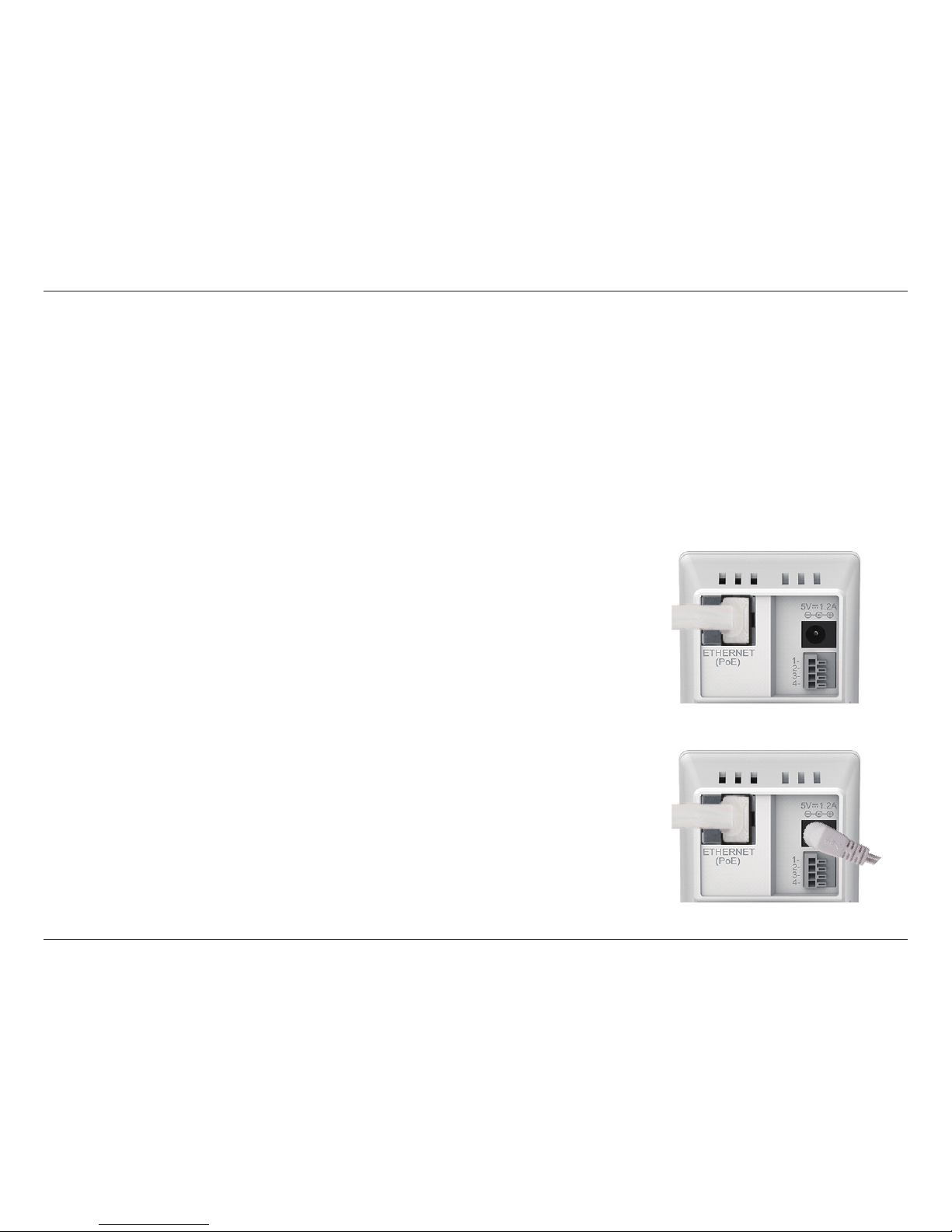

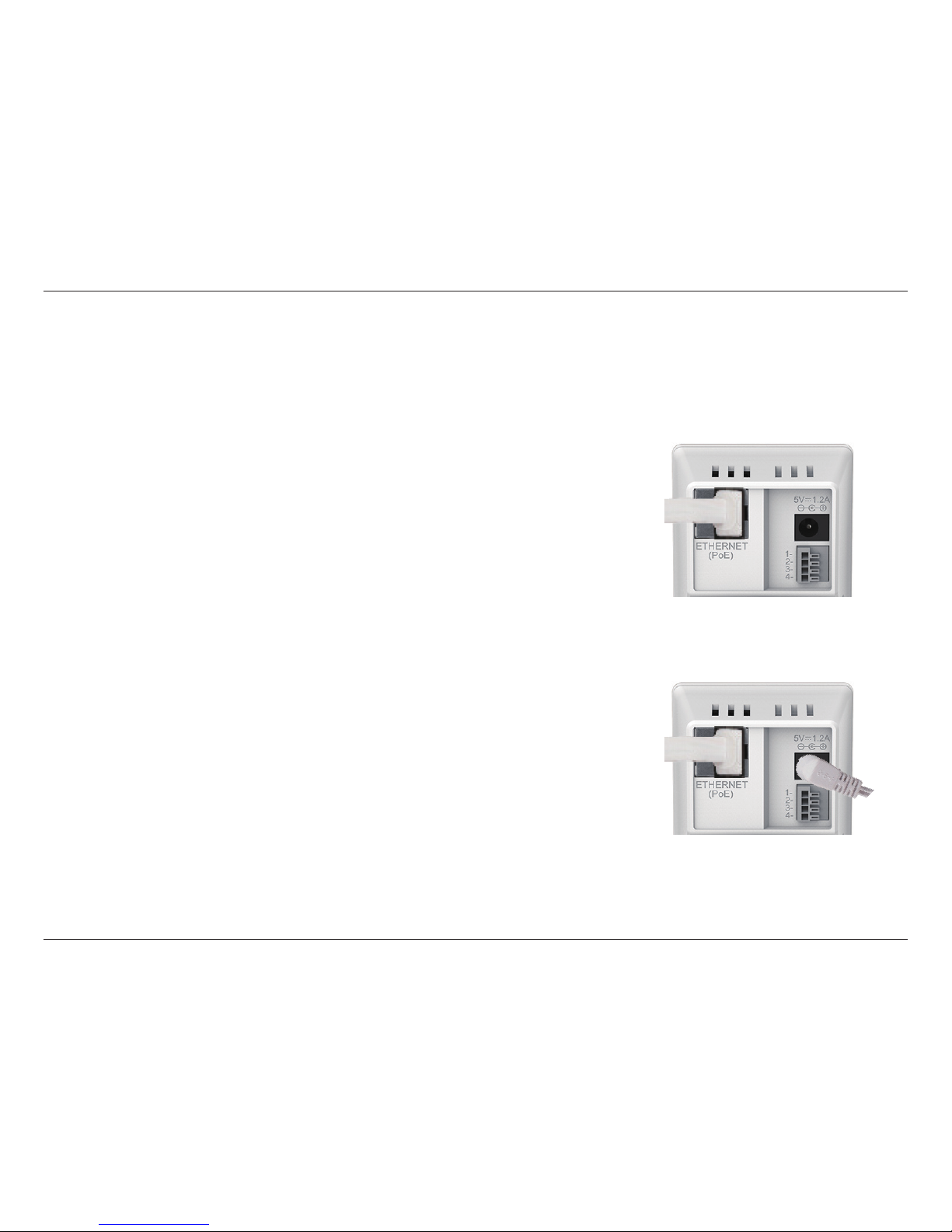

Connect the Ethernet Cable
If using a Power over Ethernet (PoE) connection: Connect the included Ethernet
cable to the Ethernet port located on the back of the DCS-2210L and connect it
to your router.
Attach the External Power Supply (optional)
Attach the external power supply to the DC Power receptor located on the rear
panel of the DCS-2210L and connect it to your wall outlet or power strip.

12
D-Link DCS-2210L/UPA User Manual
Section 2: Installation

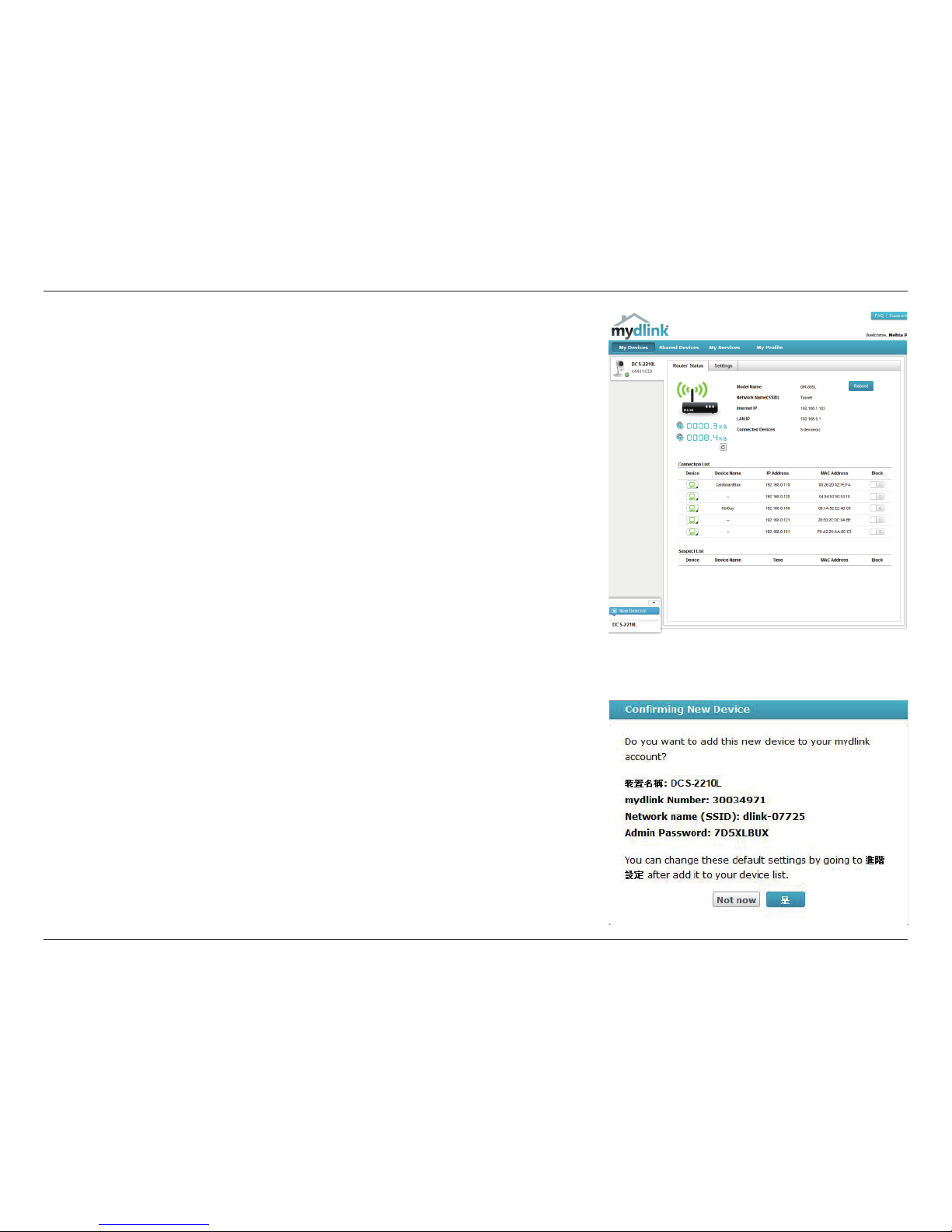

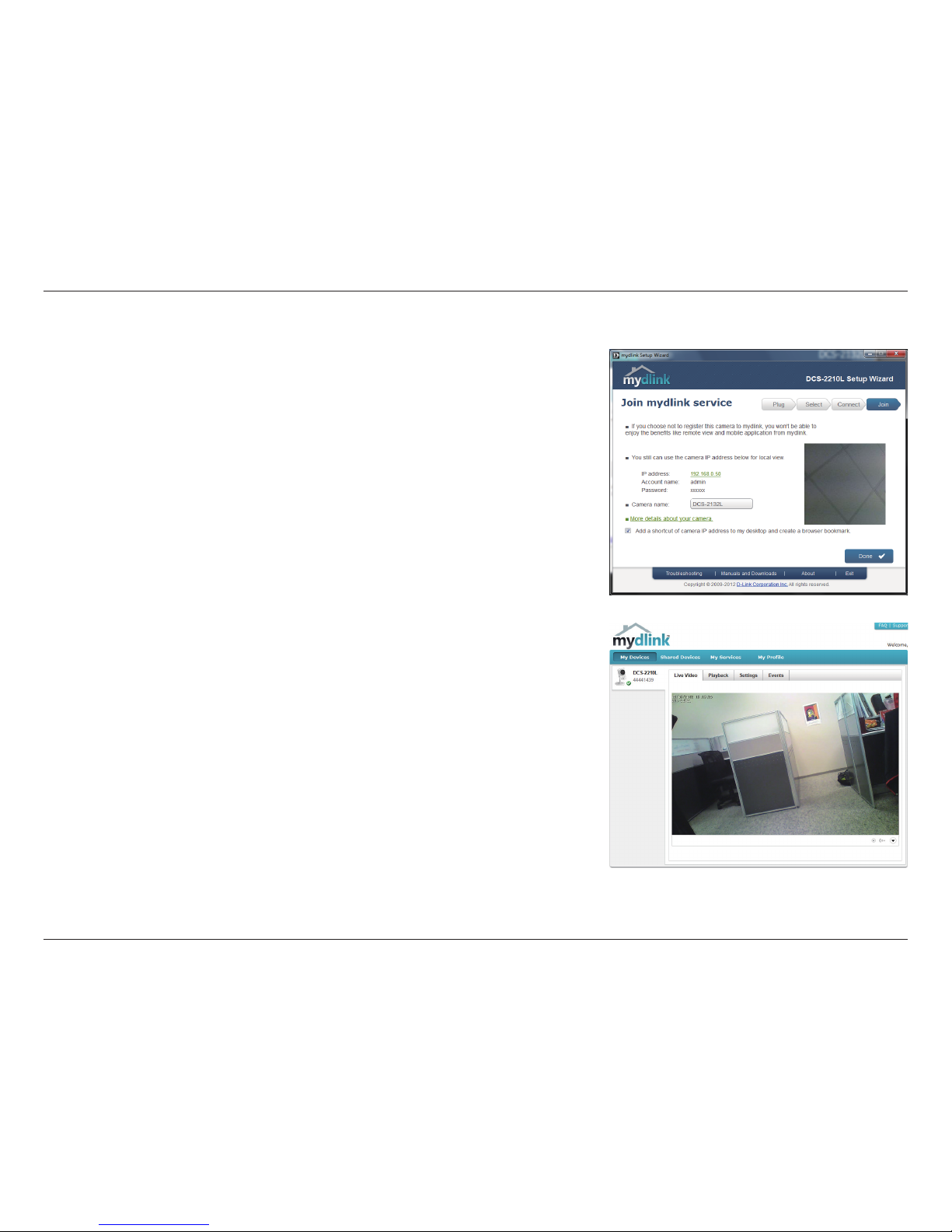

A summary and conrmation notication will appear with the automatically
congured details. Make a note of the details and click OK to add the camera to
your account.
Check Your mydlink Account
From any computer, open a web browser, go to http://www.mydlink.com and log
into your account. Once mydlink detects your camera, a New Device Found!
notice will appear in the bottom-left corner. Click on the device name to continue.

13
D-Link DCS-2210L/UPA User Manual
Section 2: Installation

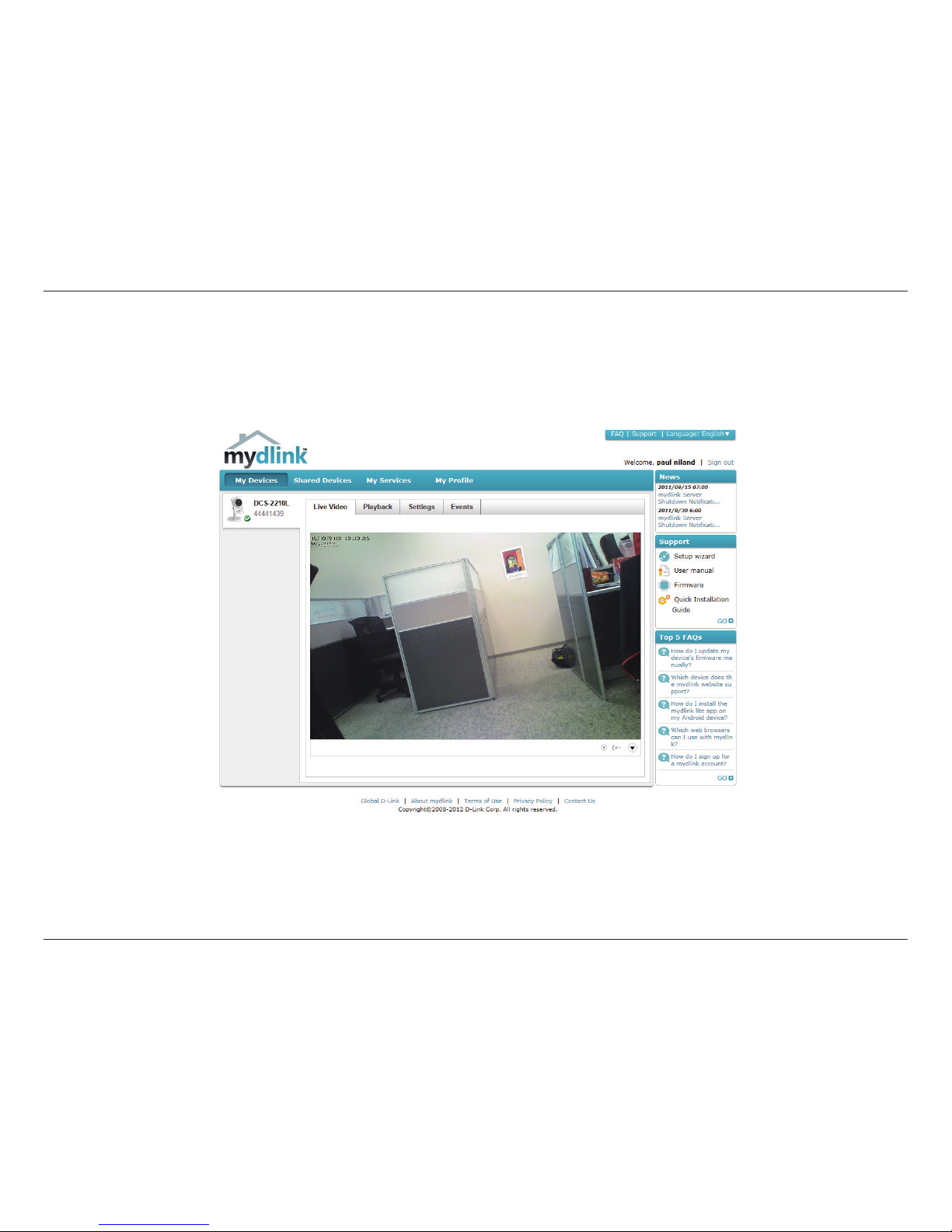

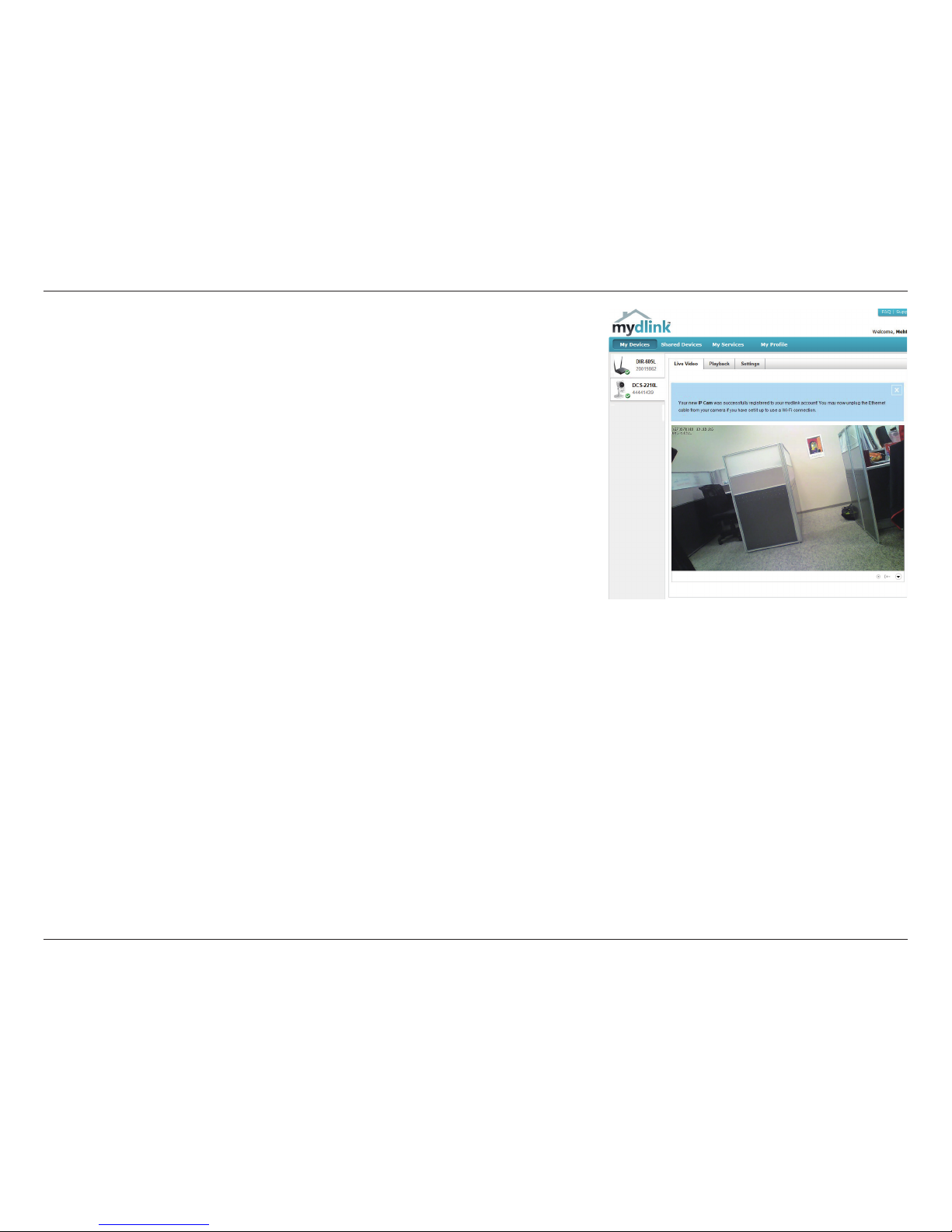

Zero Conguration is now complete and your camera has been added to your
mydlink account. You can now view your camera on the mydlink Live View tab.
Your camera is now set up, and you can skip to mydlink on page 19 to learn
more about the mydlink features of this camera, or to Conguration on page
20 for advanced conguration of your camera.

14
D-Link DCS-2210L/UPA User Manual
Section 2: Installation

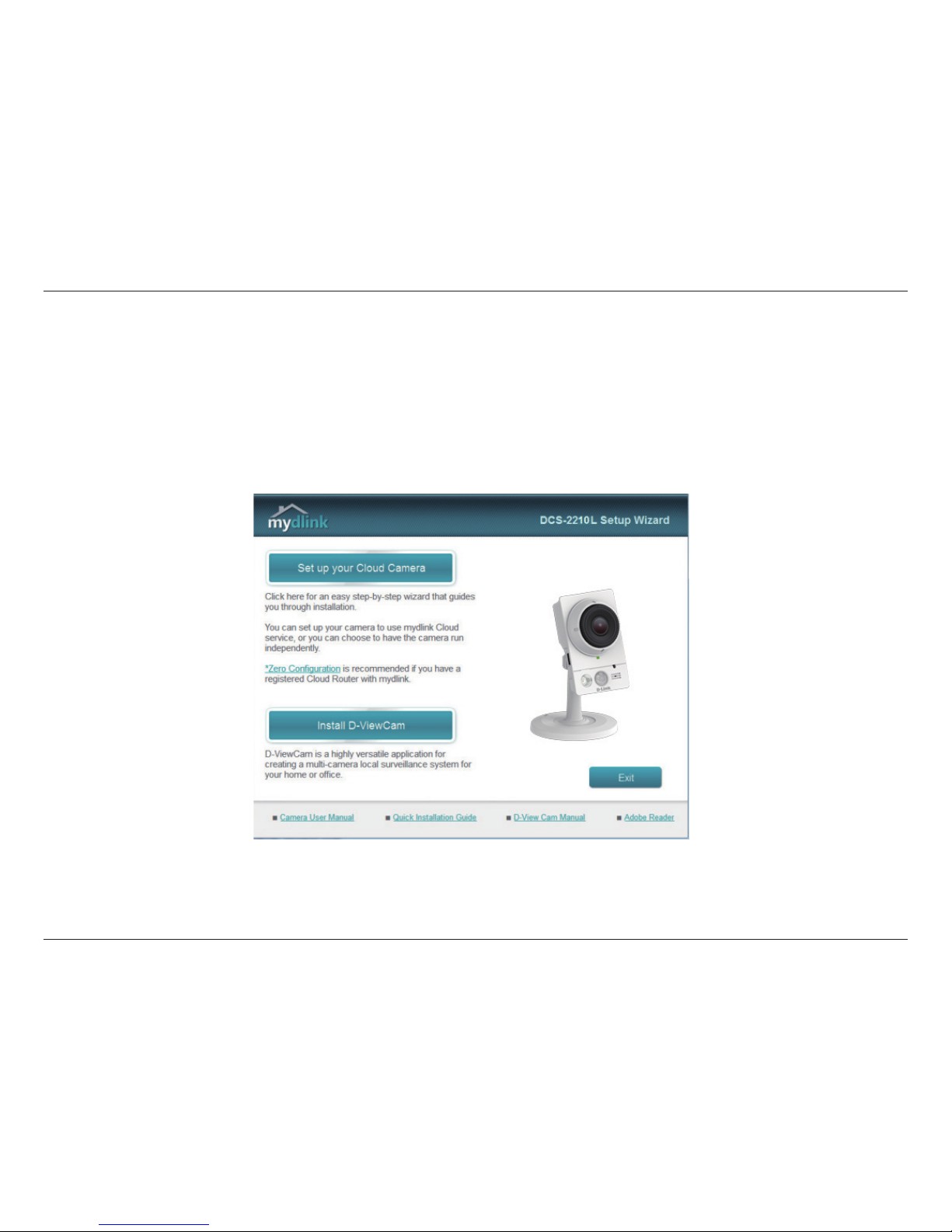

Insert the Installation CD-ROM into your computer’s optical drive to start the autorun program.
Simply click Set up your Cloud Camera to go through the Setup Wizard, which will guide you step-by-step through the
installation process from connecting your hardware to conguring your camera and registering it with your mydlink account.
Camera Setup Wizard
Windows Users
Note: If the autorun program does not open, go to My Computer, browse to your CD drive, and double-click
on the autorun.exe le.

15
D-Link DCS-2210L/UPA User Manual
Section 2: Installation

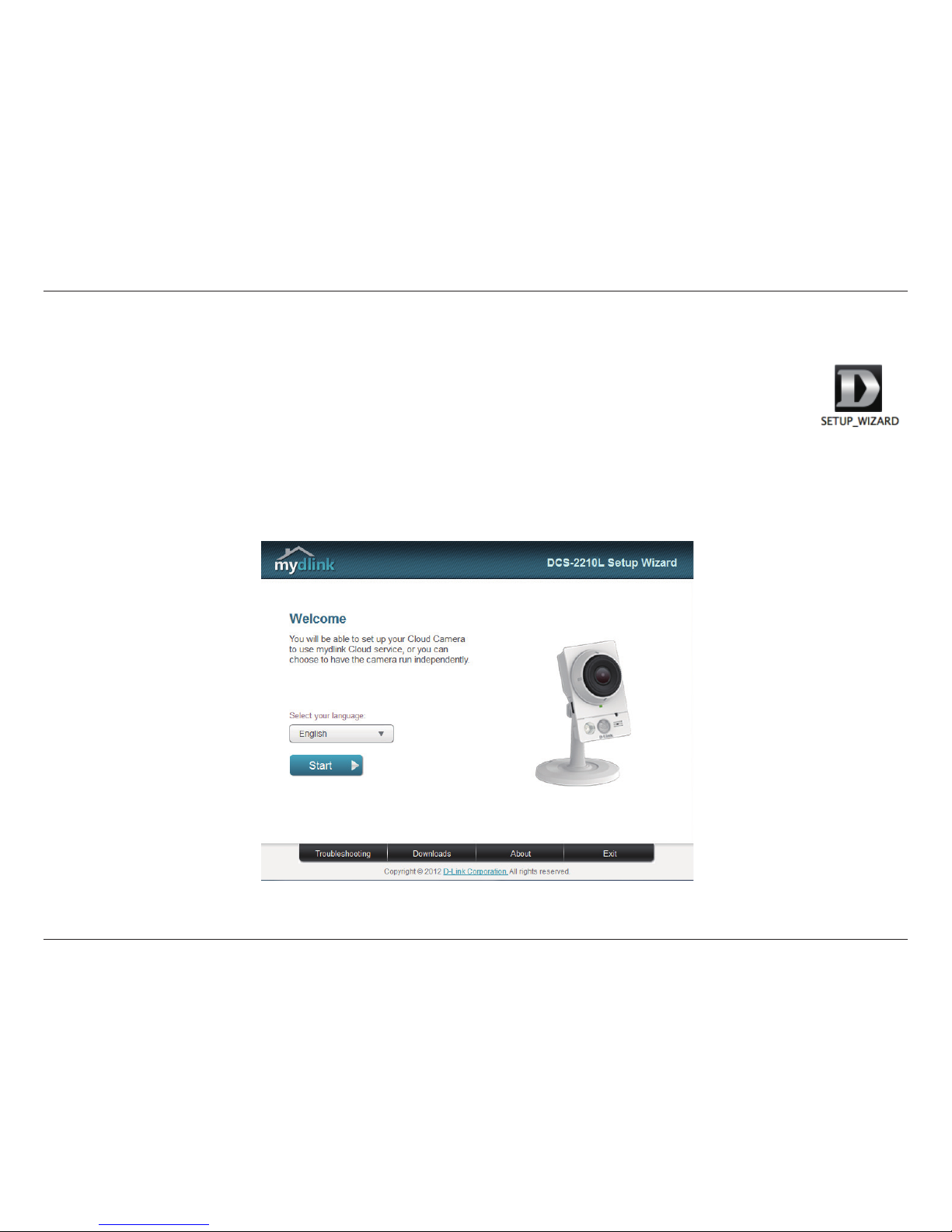

Insert the Installation CD-ROM into your computer’s CD drive. On the desktop, open your CD drive and
double-click on the SetupWizard le.
Within 20-30 seconds, the Setup Wizard will open, which will guide you step-by-step through the installation
process from connecting your hardware to conguring your camera and registering it with your mydlink
account.
Mac Users

16
D-Link DCS-2210L/UPA User Manual
Section 2: Installation
Conrm your camera login details and IP address details and click Done.
Your DCS-2210L camera is now set up. Log on to your mydlink account and
explore the exciting benets available to you.
Your camera is now set up, and you can skip to mydlink on page 19 to learn
more about the mydlink features of this camera, or go to Conguration on page
20 for advanced conguration of your camera.

17
D-Link DCS-2210L/UPA User Manual
Section 2: Installation
Manual Hardware Installation
If you wish to set up your camera without using the Camera Setup Wizard, please follow these steps.
Note: In order to use the mydlink features of this product, you will need to go through the Camera Setup Wizard.
Connect the Ethernet Cable
If using a Power over Ethernet (PoE) connection: Connect the included Ethernet
cable to the Ethernet port located on the back of the DCS-2210L and connect it
to your router.
Attach the External Power Supply (optional)
Attach the external power supply to the DC Power receptor located on the rear
panel of the DCS-2210L and connect it to your wall outlet or power strip.

18
D-Link DCS-2210L/UPA User Manual
Section 2: Installation
1.Place the mounting base where you want to position the camera and use a pencil
to mark the holes.
4.Place the base cover on the base and screw the camera stem clockwise into the
mounting base.
2.Depending on the material of the wall or ceiling, use proper tools to drill two
holes or screws where you marked. If the wall is made out of concrete, drill the
holes rst, insert the plastic anchors and then the screws.
3.Place the mounting base over the screw that is mounted on the wall. Make sure
to t the screw-heads over the big holes and slide it downward to lock rmly.
Lightly pull the base forward to make sure that it is locked.
Please refer to the steps below to assist you with mounting the camera.
The space between the camera and the screwheads should be 3mm.
We suggest that you congure the camera before mounting.
1
2
3
4
5.Adjust the angle of the camera as desired, then tighten the collar on the camera
stem to lock it in place.
5
Mount the Camera

19
D-Link DCS-2210L/UPA User Manual
Section 3: mydlink
mydlink
After registering your DCS-2210L camera with a mydlink account in the Camera InstallationWizard.You will be able to remotely
access your camera from the www.mydlink.com website. After signing in to your mydlink account, you will see a screen similar
to the following:
For more details on using your camera with mydlink, go to the Support section of the mydlink website and check the User
Manual section for your product to nd the latest instruction guide for your camera's mydlink features.

20
D-Link DCS-2210L/UPA User Manual
Section 4: Conguration
Conguration
Using the Conguration Interface

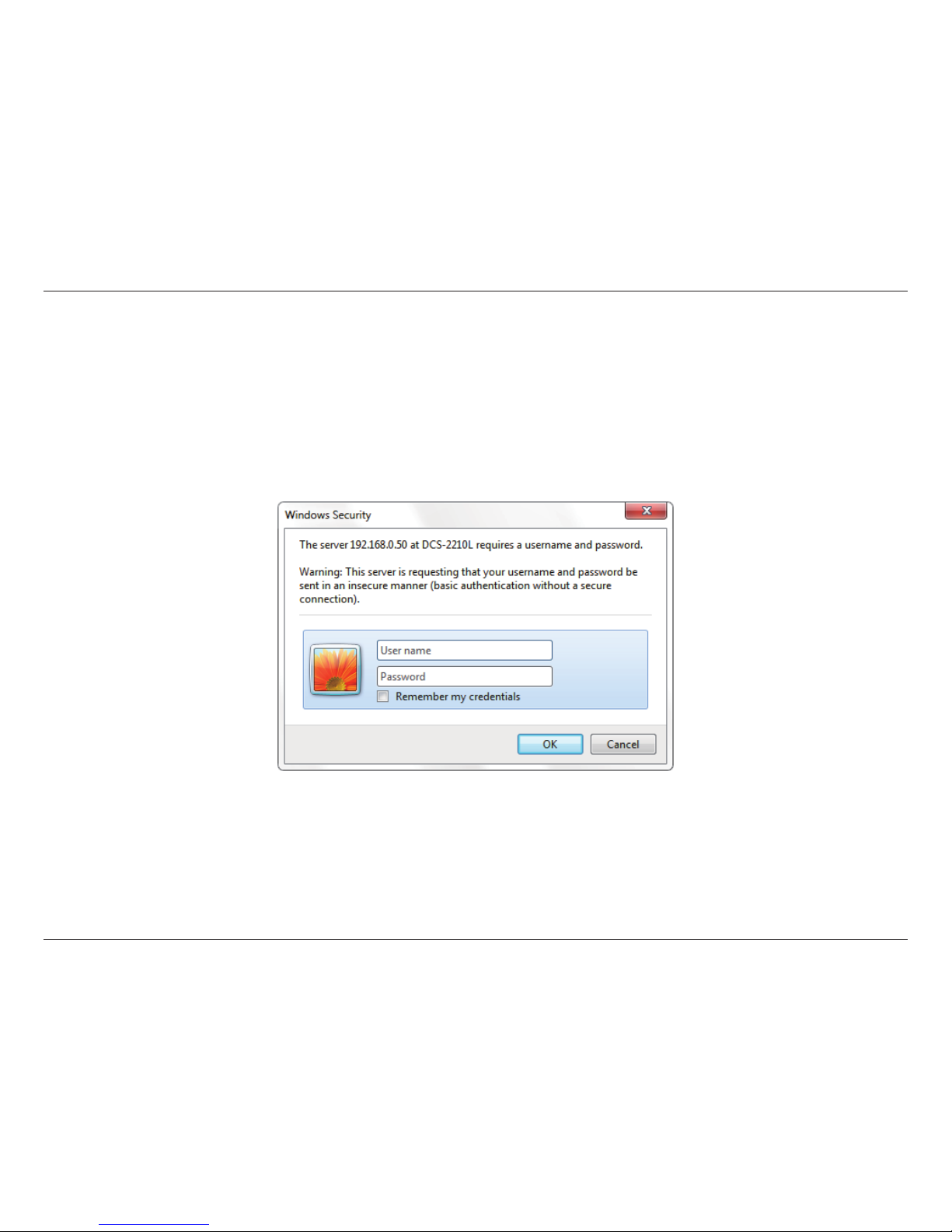

After completing the Camera Installation Wizard, you are ready to use your camera. The camera’s built-in web conguration utility is designed to
allow you to easily access and congure your DCS-2210L. At the end of the wizard, enter the IP address of your camera into a web browser, such as
Mozilla Firefox. To log in, use the username admin and the password you created in the Installation Wizard. If you did not create a password, the
default password is blank. After entering your password, click OK.
