Before Your Begin
This Quick Installation Guide gives step-by-step instructions for setting up the D-Link
DES-1008F, DES-1008FL/PRO and DES-1008FR/PRO 10/100M Fast Ethernet
Switches. The model you have purchased may appear slightly different from those
shown in the illustrations.
Check Your Package Contents
These are the items included with your DES-1008F, DES-1008FL/PRO,
DES-1008FR/PRO purchase:
If any of the above items are missing, please contact your reseller.
©2003 D-Link Systems, Inc. All rights reserved. Trademarks or registered trademarks are the property of their respective
holders. Software and specifications subject to change without notice.
• DES-1008F, DES-1008FL/PRO,
DES-1008FR/PRO
10/100M Fast Ethernet Switch
• Quick Installation Guide
• 7.5V DC, 1A Power Adapter
Using a powe
r
supply with a
different voltage rating
will damage and void
the warranty for this
product.
DES-1008F
DES-1008FL/PRO
DES-1008FR/PRO
10/100M Fast Ethernet Switch

2
Setup The DES-1008F,
DES-1008FL/PRO, DES-1008FR/PRO
10/100M Fast Ethernet Switch
The setup of the Switch can be performed using the following steps:
A. Install the DES-1008F, DES-1008FL/PRO, DES-1008FR/PRO in a fairly
cool and dry place. See Technical Specification for the acceptable
operation temperature and humidity ranges.
B. Install the Switch in a site free from strong electromagnetic source, vibration,
dust, and direct sunlight.
C. Leave at least 10cm of space at the left and right hand side of the Switch
for ventilation.
D. Visually inspect the DC power jack and make sure that it is fully secured to
the power adapter.

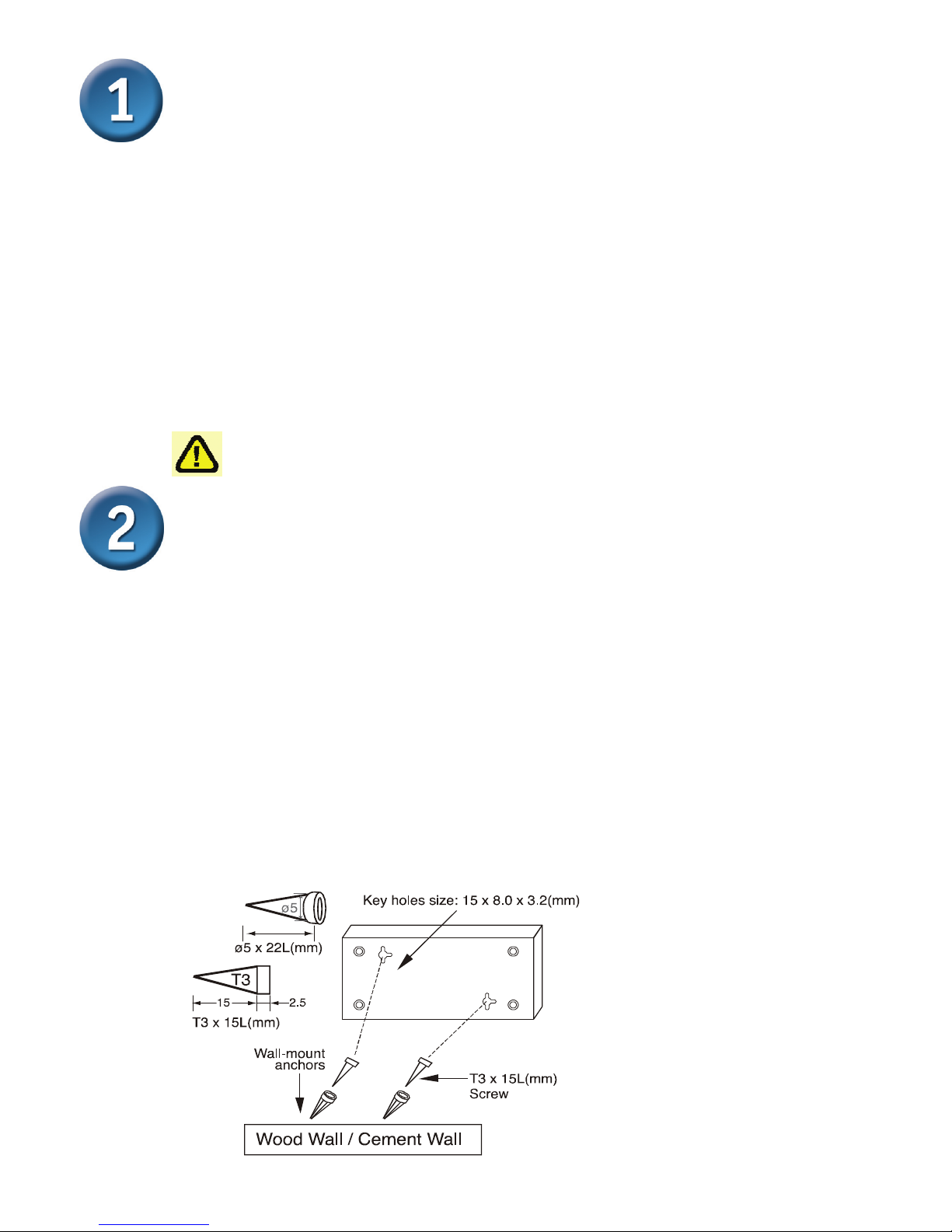

Mounting the Switch on a Wall
The DES-1008F, DES-1008FL/PRO, DES-1008FR/PRO can also be mounted
on a wall. Two mounting slots are provided on the bottom of the switch for this
purpose. Please make sure that the front panel is exposed in order to view the
LEDs. Please refer to the illustration below:
A. Mounting on a cement wall
1. Mount the Nylon screw anchors into a cement wall.
2. Drive the T3 x 15L screws into the Nylon screw anchors.
3. Hook the mounting holes of the switch back on the screws; you have
completed the wall-mount.
B. Mounting on a wood wall
1. Drive the T3 x 15 L screws into the wood wall.
2. Hook the mounting holes of the switch back on the screws; you have
completed the wall-mount.
(1) 3/4 inch minimum
for wood wall
(2) 3 inch minimum
for cement wall.
Do not stack any device on the Switch.

3

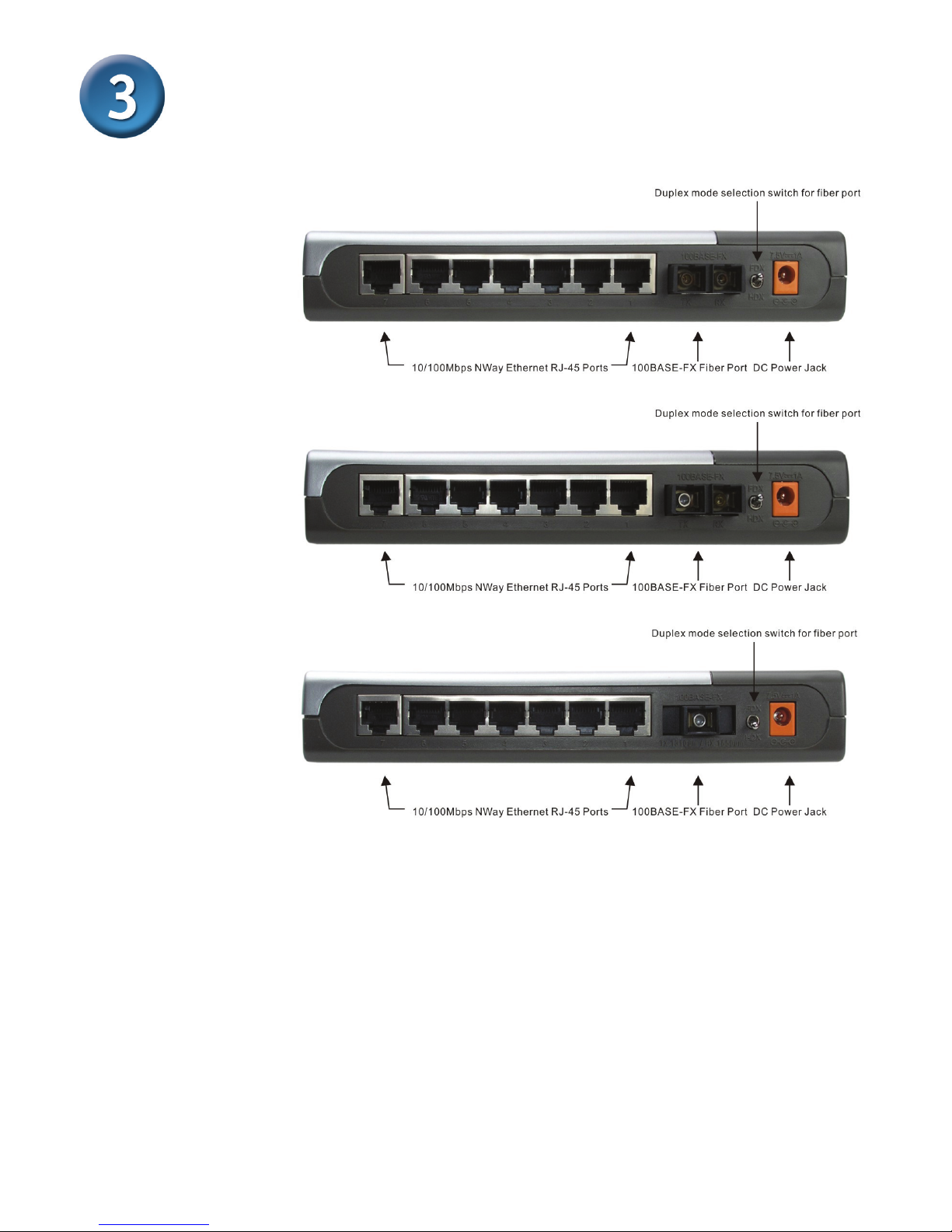

Connecting The DES-1008F,
DES-1008FL/PRO, DES-1008FR/PRO
To Your Network
DC Power Jack: Power is supplied through an external AC power adapter.
Since the switch does not include a power switch, plugging its power adapter
into a power outlet will immediately power it on.
Auto-MDI-X Function ports: Use these jacks (port1 ~ port-7) for DES-1008F,
DES-1008FL/PRO, DES-1008FR/PRO to connect stations to the hub. An Auto-
MDI-X function will automatically detect if a crossover is required and make the
swap of TX pair and Rx pair internally. With this function, straight-through cable
can be used for any connection. MDI to MDI-X connection rule is not necessary
anymore. In the switches, all TX ports are equipped with this function. You can
use just straight-through type cables for all your connections.
DES-1008F
DES-1008FL/PRO
DES-1008FR/PRO

4
100BASE-FX Fiber Port: The DES-1008F Fiber port supports a 100BASE-FX
Duplex SC connector for a 1310 nm Multi-mode fiber link of up to 2 km. The
DES-1008FL/PRO Fiber port supports a 100BASE-FX Duplex SC connector for
a 1310 nm Single- mode fiber link of up to 15 km. The DES-1008FR/PRO
Fiber port supports a 100BASE-FX Single SC connector for a TX1310
nm/RX1550nm Single-mode fiber link of up to 20 km.
Duplex Mode Switch: The switch is to select the operation mode either to run
in full or half duplex mode for 100BASE-FX. When turning the switch to FDX,
the fiber port will run at full duplex or turn to HDX, the fiber will run at half
duplex.

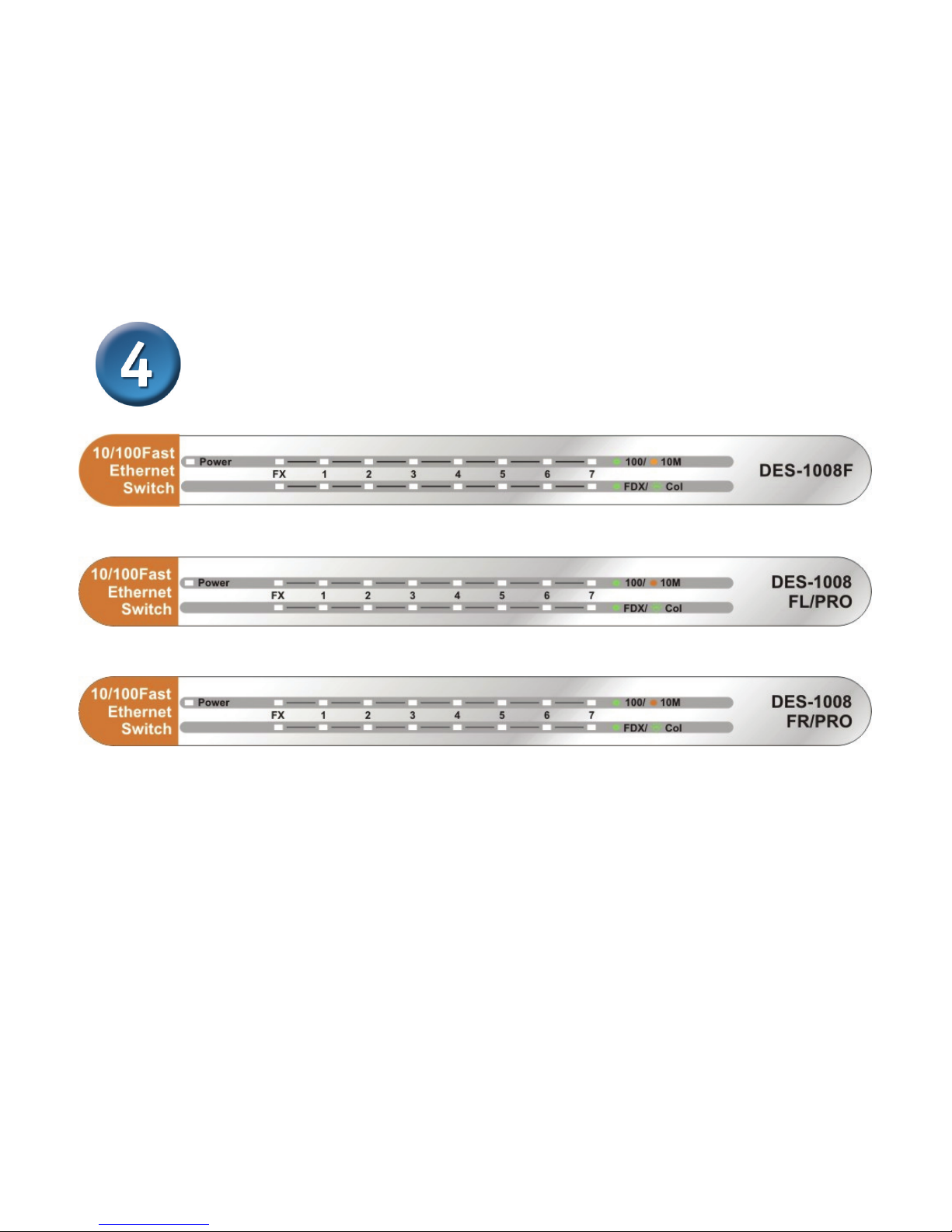

LED Indicators
Power
This LED indicator lights green when the switch is receiving power,
otherwise, it is off.
FDX/Col (Full-Duplex/Collision)
This LED indicator lights green when a respective port is in full duplex
(FDX) mode. Otherwise, it is blinking when collisions are occurring on the
respective port.
100M LINK/ACT(green), 10M LINK/ACT(amber)
This LED indicator lights green when the port is connected to a 100Mbps
Fast Ethernet station, if the indicator blinking green will be transmission or
received data on the 100Mbps network. Otherwise, if the indicator lights
amber when the port is connected to a 10Mbps Ethernet station, if the
indicator blinking amber will be transmission or received data on the
10Mbps network.

5
