D-Link 48-Port 10/100Mbps Web-Smart Switch with 4-Port 10/100/1000Base-T and 2-Port Combo SFP... User manual

DES-1228P
24-Port 10/100Mbps PoE Web Smart Switch
with 4-Port 10/100/1000Base-T
and 2-Port Combo SFP
User Manual
V1.20

i
i
TABLE OF CONTENTS
About This Guide.................................................................................1
Purpose ............................................................................................1
Terms/Usage....................................................................................1
Introduction..........................................................................................2
Gigabit Ethernet Technology...........................................................2
Fast Ethernet Technology ................................................................3
Switching Technology .....................................................................4
Power over Ethernet (PoE) ..............................................................4
Features............................................................................................5
Technical Specifications..................................................................6
Unpacking and Installation ................................................................11
Unpacking......................................................................................11
Installation .....................................................................................11
Rack Mounting...........................................................................12
Connecting Network Cables ......................................................13
AC Power...................................................................................14
Identifying External Components......................................................15
Front Panel.....................................................................................15
Rear Panel......................................................................................17
Understanding LED Indicators ......................................................17
Power and System LEDs ...............................................................18
Configuration.....................................................................................22
Supported web browsers................................................................22

i
ii i
Installing the SmartConsole Utility................................................22
SmartConsole Utility Features.......................................................23
Menu Toolbar.............................................................................23
Discovery List............................................................................25
Monitor List...............................................................................26
Device Setting............................................................................28
Web-based Utility..........................................................................30
Login..........................................................................................30
Tool Menu..................................................................................32
Setup Menu....................................................................................33
System > System Setting ...........................................................34
System > Trap Setting................................................................35
System > Port Setting.................................................................37
System > SNMP Setting ............................................................38
System > Password Access Control...........................................40
Configuration > 802.1Q VLAN.................................................40
Configuration > Trunking..........................................................43
Configuration > IGMP Snooping...............................................43
Configuration > 802.1D Spanning Tree.....................................47
Configuration > Port Mirroring..................................................49
Configuration > LLDP...............................................................50
Power over Ethernet (PoE) > PoE Port Setting..........................50
Power over Ethernet (PoE) > PoE System Setting.....................52
QoS > 802.1p Default Priority...................................................52
Security > Safeguard Engine......................................................53

i
ii ii i
Security > Broadcast Storm Control..........................................54
Security > 802.1X Setting..........................................................54
Security > Mac Address Table > Static Mac .............................56
Security > Mac Address Table > Dynamic Forwarding Table ..57
Monitoring > Statistics...............................................................58

1
1
ABOUT THIS GUIDE
Thank you and congratulations on your purchase of the DES-1228P
24-Port 10/100Mbps Fast Ethernet + 4 10/100/1000Base-T Ports and
2 Combo SFP PoE Web-Smart Switch. This device integrates
1000Mbps Gigabit Ethernet, 100Mbps Fast Ethernet and 10Mbps
Ethernet network capabilities in a highly flexible package. Since Ports
1~24 of this Switch are Power over Ethernet (PoE) ports, it will
automatically detect the presence of IEEE 802.3af compliant devices
and will provide power through these PoE ports. The Switch provides
up to 15.4Watts per port and can be connected to WLAN access
points, IP phones, video cameras, and other PD devices. The Switch
will automatically detect the network appliance's requirements, and
the Switch will supply the required power current to each appliance.
Purpose
This guide will show you how to install and use the configuration
functions of the DES-1228P Web-Smart Switch step-by-step.
Terms/Usage
In this guide, the term “Switch” (first letter capitalized) refers to the
DES-1228P Smart Switch, and “switch” (first letter lower case) refers
to other Ethernet switches. Some technologies refer to terms “switch”,
“bridge” and “switching hubs” interchangeably, and both are
commonly accepted for Ethernet switches.

2
2
INTRODUCTION
This chapter will describe the features of the DES-1228P and provide
some background information about Ethernet/Fast Ethernet/Gigabit
Ethernet switching technology.
Gigabit Ethernet Technology
Gigabit Ethernet is an extension of IEEE 802.3 Ethernet utilizing the
same packet structure, format, and support for CSMA/CD protocol,
full duplex, and management objects, but with a tenfold increase in
theoretical throughput of over 100-Mbps Fast Ethernet and a
hundredfold increase over 10-Mbps Ethernet. Since it is compatible
with all 10-Mbps and 100-Mbps Ethernet environments, Gigabit
Ethernet provides a straightforward upgrade without wasting existing
investments in hardware, software, or trained personnel.
The increased speed and extra bandwidth offered by Gigabit Ethernet
is essential to help solving network bottlenecks that frequently
develop as more advanced computer users and newer applications
continue to demand greater network resources. Upgrading key
components, such as backbone connections and servers to Gigabit
Ethernet technology can greatly improve network response times as
well as significantly speed up the traffic between subnets.
Gigabit Ethernet enables fast optical fiber connections to support
video conferencing, complex imaging, and similar data-intensive
applications. Likewise, since data transfers occur 10 times faster than
Fast Ethernet, servers outfitted with Gigabit Ethernet NIC’s are able to
perform 10 times the number of operations in the same amount of time.

3
3
In addition, the phenomenal bandwidth delivered by Gigabit Ethernet
is the most cost-effective method to take advantage of today and
tomorrow’s rapidly improving switching and routing internetworking
technologies. And with expected advances in the coming years in
silicon technology and digital signal processing that will enable
Gigabit Ethernet to eventually operate over unshielded twisted-pair
(UTP) cabling, outfitting your network with a powerful 1000-Mbps-
capable backbone/server connection which will create a flexible
foundation for the next generation of network technology products.
Fast Ethernet Technology
The growing importance of LANs and the increasing complexity of
desktop computing applications are fueling the need for high
performance networks. A number of high-speed LAN technologies
have been proposed to provide greater bandwidth and improve
client/server response times. Among them, 100BASE-T (Fast
Ethernet) provides a non-disruptive, smooth evolution from the
current 10BASE-T technology. The non-disruptive and smooth
evolution nature, and the dominating potential market base, virtually
guarantees cost-effective and high performance Fast Ethernet
solutions.
100Mbps Fast Ethernet is a standard specified by the IEEE 802.3
LAN committee. It is an extension of the 10Mbps Ethernet standard
with the ability to transmit and receive data at 100Mbps, while
maintaining the CSMA/CD Ethernet protocol. Since the 100Mbps
Fast Ethernet is compatible with all other 10Mbps Ethernet
environments, it provides a straightforward upgrade and utilizes
existing investments in hardware, software, and personnel training.

4
4
Switching Technology
Another approach to push beyond the limits of Ethernet technology is
the development of switching technology. A switch bridges Ethernet
packets at the MAC address level of the Ethernet protocol transmitting
among connected Ethernet or Fast Ethernet LAN segments.
Switching is a cost-effective way of increasing the total network
capacity available to users on a local area network. A switch increases
capacity and decreases network loading by dividing a local area
network into different segments, which won’t compete with each other
for network transmission capacity.
The switch acts as a high-speed selective bridge between the
individual segments. The switch, without interfering with any other
segments, automatically forwards traffic that needs to go from one
segment to another. By doing this the total network capacity is
multiplied, while still maintaining the same network cabling and
adapter cards.

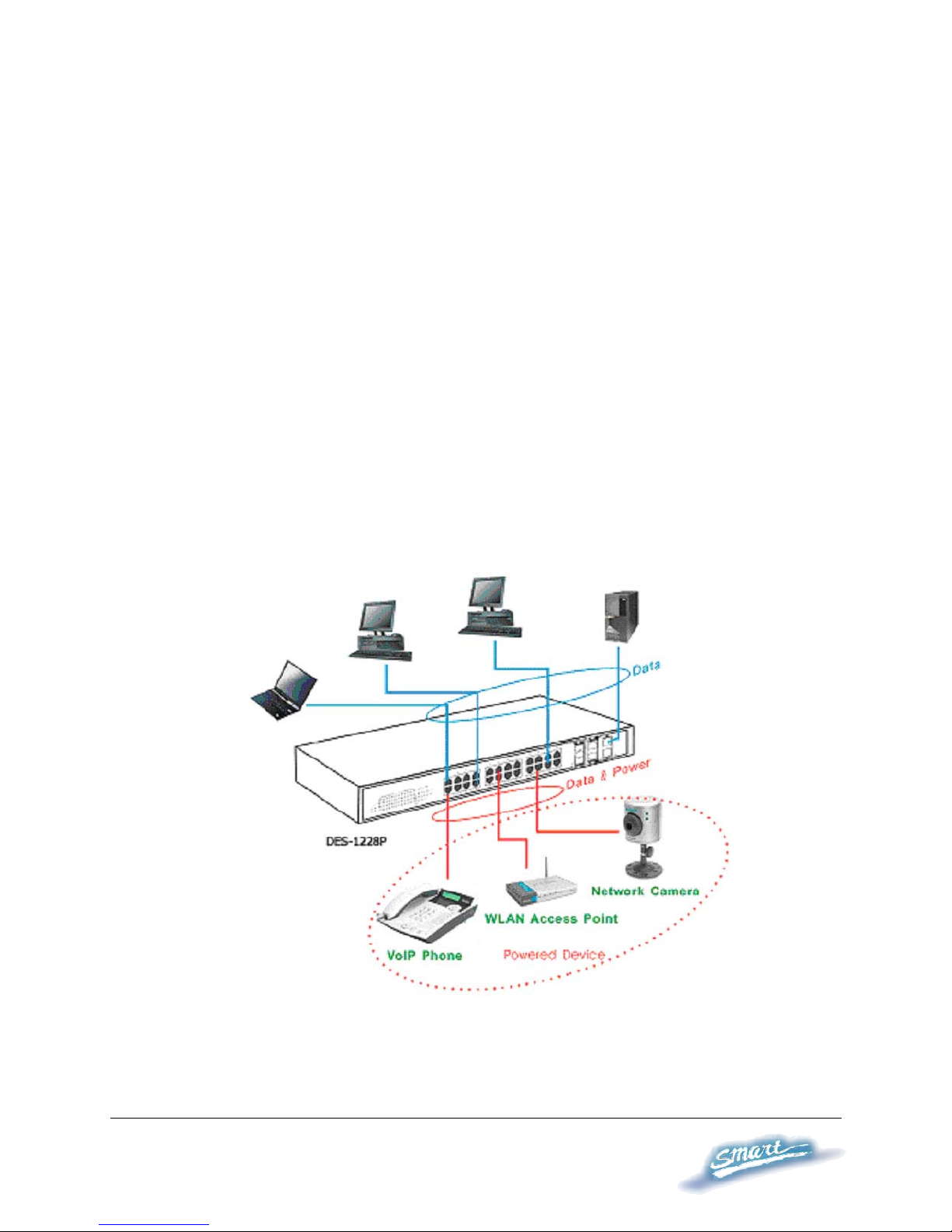

Power over Ethernet (PoE)
Power over Ethernet (PoE) integrates power and data onto one single
cabling infrastructure, eliminating the need to have AC power
available at all locations.
Power and Data are integrated onto the same cable. Supporting
category 5/5e up to 100 Meters, PoE will provide power to PoE
compatible devices, such as IP telephones, wireless LAN access
points, and IP security cameras.

5
5
PoE is already widely adopted in the market, saving up to 50% of
overall installation costs by eliminating the need to install separate
electrical wiring and power outlets.
Features
♦Address Table: Supports up to 8K MAC address per device
♦Supports a packet buffer of up to 128K Bytes
♦1-24 10/100M ports support up to 15.4W power which complies
the IEEE802.3af Power over Ethernet standard.
♦IGMP Snooping support
♦IEEE802.1D Spanning Tree
♦Support static Port Trunk
♦IEEE802.3x flow control in full duplex mode
♦Port Mirroring support
♦IEEE802.1Q VLAN
♦IEEE802.1p Priority Queues
♦IEEE802.1x Port-based Access Control
♦Supports Broadcast Storm Control
♦Supports Static MAC setting
♦D-Link Safeguard Engine support
♦Supports Simple Network Management Protocol(SNMP)
♦MIB support for: RFC1213 MIB II, Private MIB
♦Supports DHCP client
♦Supports Port setting for Speed, Duplex Mode

6
6
♦Easy configuration via Web Browser
♦Easy setting via SmartConsole Utility
♦Firmware backup and upload via Web GUI
♦System reboot via Web GUI
♦Provides parallel LED display for port status such as link/act,
speed, etc.
♦Reset configuration (hardware and Web GUI)
Technical Specifications
Key Components / Performance
Switching Capacity 12.8Gbps
Max. Forwarding Rate 10M: 14,880 pps 100M: 148,809 pps
1G: 1,488,095 pps
Forwarding Mode Store and Forward
Packet Buffer memory 128K Bytes
SDRAM for CPU 8M Bytes
Flash Memory Prom 2M Bytes
Port Functions
LAN - 24 x 10/100BaseT ports - Compliant with the following standards:
IEEE 802.3 compliance

7
7
1. IEEE 802.3u compliance
2. Supports Full-Duplex operations at
10/100Mbps, and 1000Mbps only on
SFP ports
Combo ports in the
front panel
- 2 Combo 1000Base-T/SFP ports
-1000Base-T ports compliant to the
following standards:
1. IEEE 802.3 compliance
2. IEEE 802.3u compliance
3. IEEE 802.3ab compliance
4. Support Full-Duplex operations
- SFP Transceivers Supported:
1. DEM-310GT (1000BASE-LX)
2. DEM-311GT (1000BASE-SX)
3. DEM-314GT (1000BASE-LH)
4. DEM-315GT (1000BASE-ZX)
5. DEM-312GT2 (1000BASE-SX), up to
2km
6. DEM-210 (100BASE-FX), up to 2km,
Multi-Mode
7. DEM-211 (100BASE-FX), up to 15km,
Single-Mode
-WDM Transceivers Supported:
1. DEM-330T (TX-1550/RX-1310nm), up
to 10km, Single-Mode
2. DEM-330R (TX-1310/RX-1550nm), up
to 10km, Single-Mode
3. DEM-331T (TX-1550/RX-1310nm), up
to 40km, Single-Mode

8
8
4. DEM-331R (TX-1310/RX-1550nm), up
to 40km, Single-Mode
- Compliant to following standards:
1. IEEE 802.3z compliance
2. IEEE 802.3u compliance
1000Mbps Copper
ports in the front
panel
2 1000Base-T ports
1000Base-T ports compliant to following
standards:
1. IEEE 802.3 compliance
2. IEEE 802.3u compliance
3. IEEE 802.3ab compliance
4. Support Full-Duplex operations
Power over Ethernet
PoE Capable Ports Port 1-24
PoE Specification
1. Supplies power to PD device up to 15.4W
per port, meeting IEEE802.3af standards and
more sufficiently is able to provide power to PD
devices
2. Power Budget: 170W max
3. Auto discovery feature, automatically
recognize the connection of PD device and
immediately sends power to it
4. Auto disable port if the port current is over
350mA while other ports remain active
5. Active circuit protection, automatically
disables the port if there is a short while other
ports remain active

9
9
6. Provide the power following the
classification below
Class Usage Minimum power
levels at output of
PSE
0 Default 15.4W
1 Optional 4.0W
2 Optional 7.0W
3 Optional 15.4W
4 Reserved 15.4W
7. DES-1228P follow the PSE pinout standard
of Alternative A which is sending out power
over number 1,2,3,6 pins of 8 wires of CAT5
UTP cable
Chassis
Dimensions 19-inch, 1U Rack-mount size
440mm x 210mm x 44mm
Reset button on the
front panel A factory reset button x 1
Physical & Environment
AC input
100~240 VAC, 50/60Hz Internal universal power supply
Operation
Temperature 0~40°C
Storage Temperature -10~70°C

1
10 0
Humidity Operation: 10%~90% RH
Storage: 5%~90% RH
Power consumption 222 watts
Heat Dissipation 750.2 btu/hr
MTBF 149,676 (hours)
Emission (EMI) and Safety Certifications
EMI-EMC Compliance: FCC class A, CE Class A, VCCI Class A
Safety Compliance: cUL, UL

1
11 1
UNPACKING AND INSTALLATION
This chapter provides unpacking and installation information for the
Web-Smart Switch.
Unpacking
Carefully unpack the contents of the Web-Smart Switch from the box
and locate the following items:
One DES-1228P Web-Smart Switch
One AC power cord, suitable for the local electrical power voltage
requirements
Four rubber feet to be used for shock cushioning
Screws and two mounting brackets
CD-Rom with the SmartConsole Utility application, which includes
the full User’s Guide
Quick Installation Guide
If any item is found missing or damaged, please contact the reseller
for replacement.
Installation
The site chosen for installation greatly affects the Web-Smart
Switch’s performance. When installing, consider the following points:
Install the Switch in a fairly cool and dry place. Technical
Specifications such as operating temperatures and other important
information can be found on page 8 of this manual.

1
12 2
Install the Switch in a site free from strong electromagnetic field
generators (such as motors), vibration, dust, and direct exposure to
sunlight.
Leave at least 10cm (about 4 inches) of space to the front and rear
of the Switch for ventilation.
Install the Switch on a sturdy, level surface that can support its
weight, or in an EIA standard-size equipment rack. For information
on rack installation, see the next section, Rack Mounting.
When installing the Switch on a level surface, attach the rubber
pads (feet) to the bottom. The rubber feet cushion the switch and
helps protect the case from scratches.

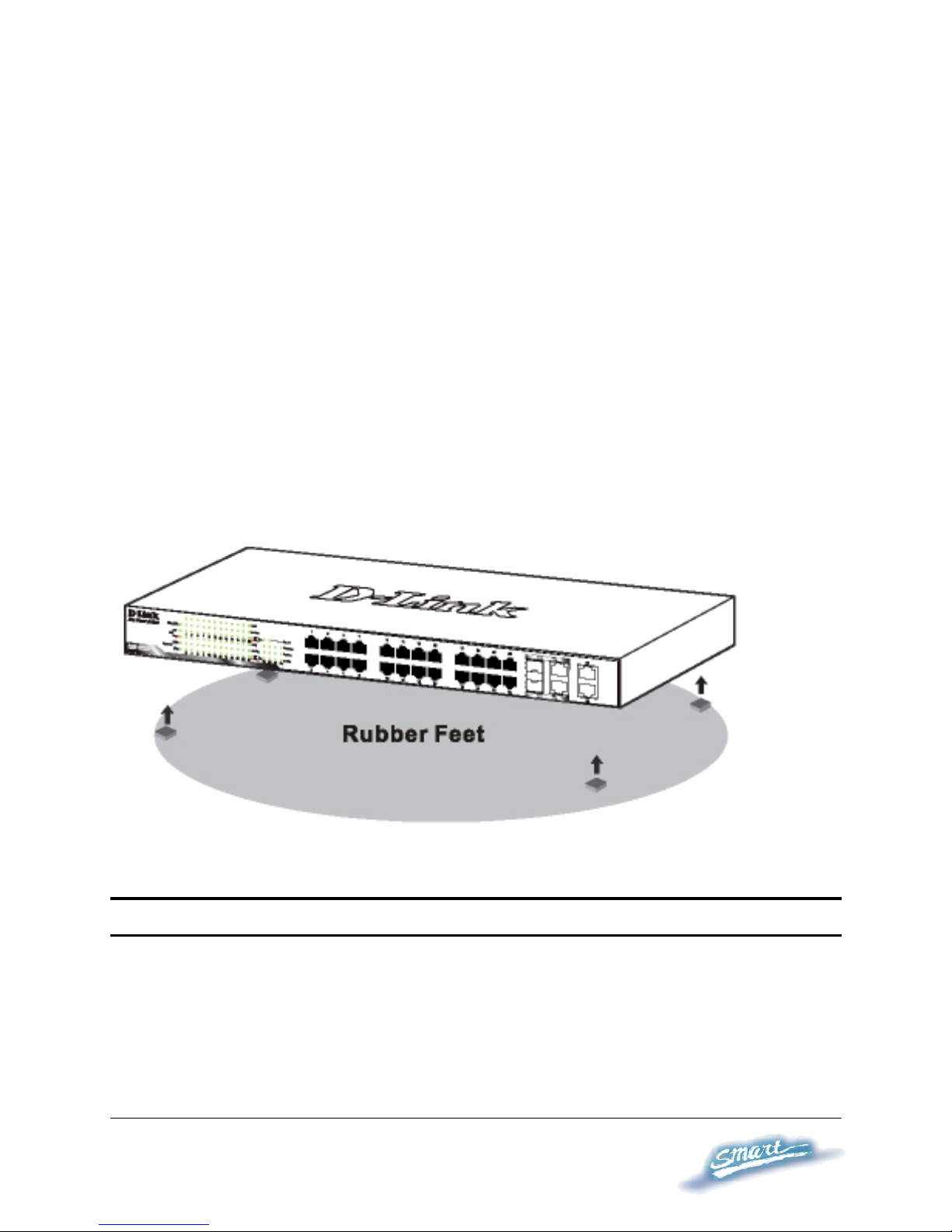

Figure 1 – Attach the adhesive rubber pads to the bottom
Rack Mounting
The Switch can be mounted in an EIA standard-size, 19-inch rack or
chassis, which can be placed in a wiring closet with other equipment.
Attach the mounting brackets to both sides of the Switch (one on each
side), and secure them with the provided screws.

1
13 3

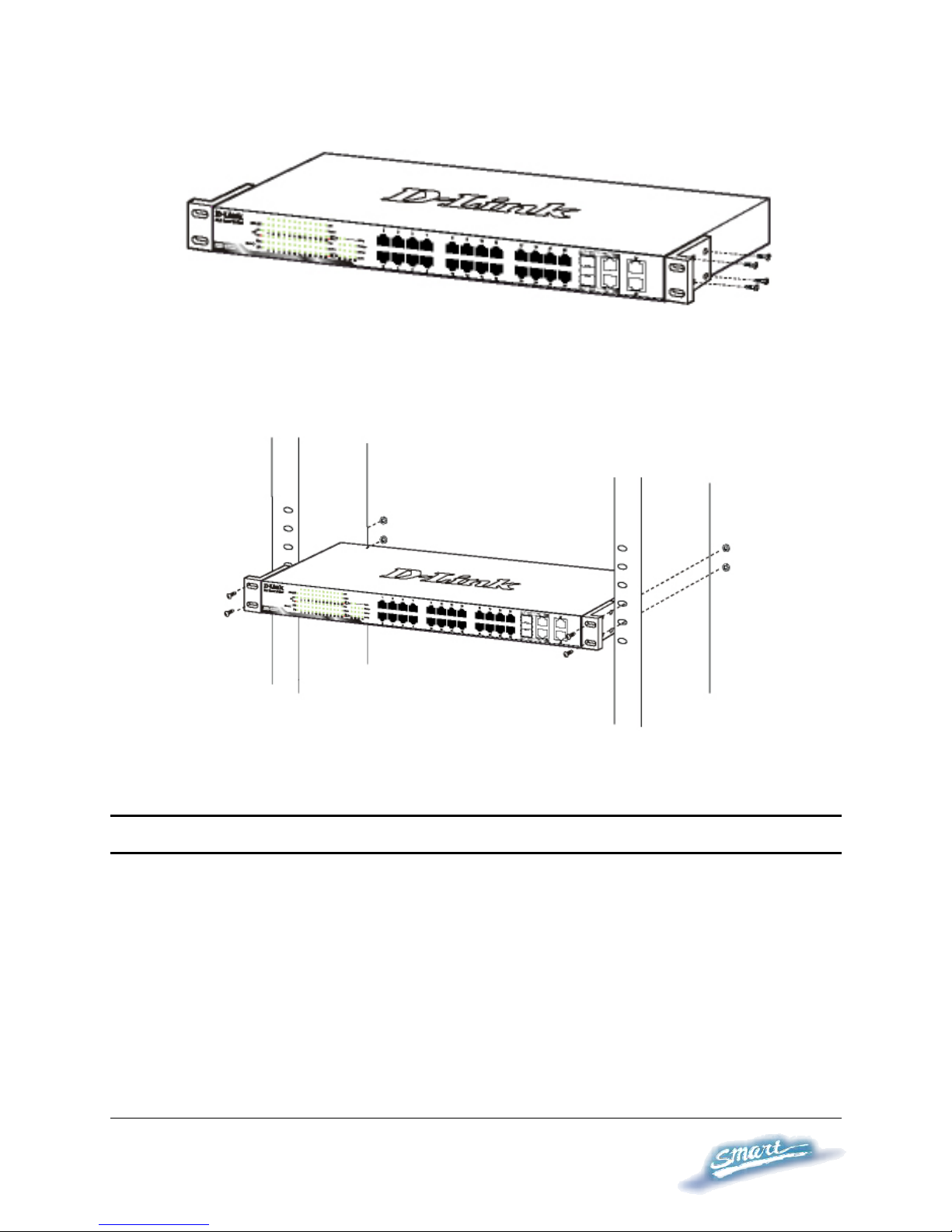

Figure 2 – Attach the mounting brackets to the Switch
Use the screws provided with the equipment rack or chassis to mount
the Switch in the rack.
Figure 3 – Mount the Switch in the rack or chassis
Connecting Network Cables
The DES-1228P has 24 ports that support 10/100Mbps Fast
Ethernet; it also has 4 10/100/1000Base-T Ports and 2 Combo
SFPs. Each port on the DES-1228P supports Auto-MDI/MDI-X.
Auto-MDI/MDI-X is a feature that enables the switch to auto sense
what kind of cable is used on a port (straight or crossover). This
allows any type of cables to be used with the switch regardless of
what device is being connected.

1
14 4
AC Power
The Switch utilizes an AC power supply 100~240V AC, 50~60Hz.
The power switch is located at the rear of the unit adjacent to the AC
power connector and the system fan.
The switch’s power supply will adjust to the local power source
automatically and may be turned on without having any or all LAN
segment cables connected.

1
15 5
IDENTIFYING EXTERNAL COMPONENTS
This chapter describes the front panel, rear panel, and LED indicators
of the Switch.
Front Panel
The figure below shows the front panel of the Switch.

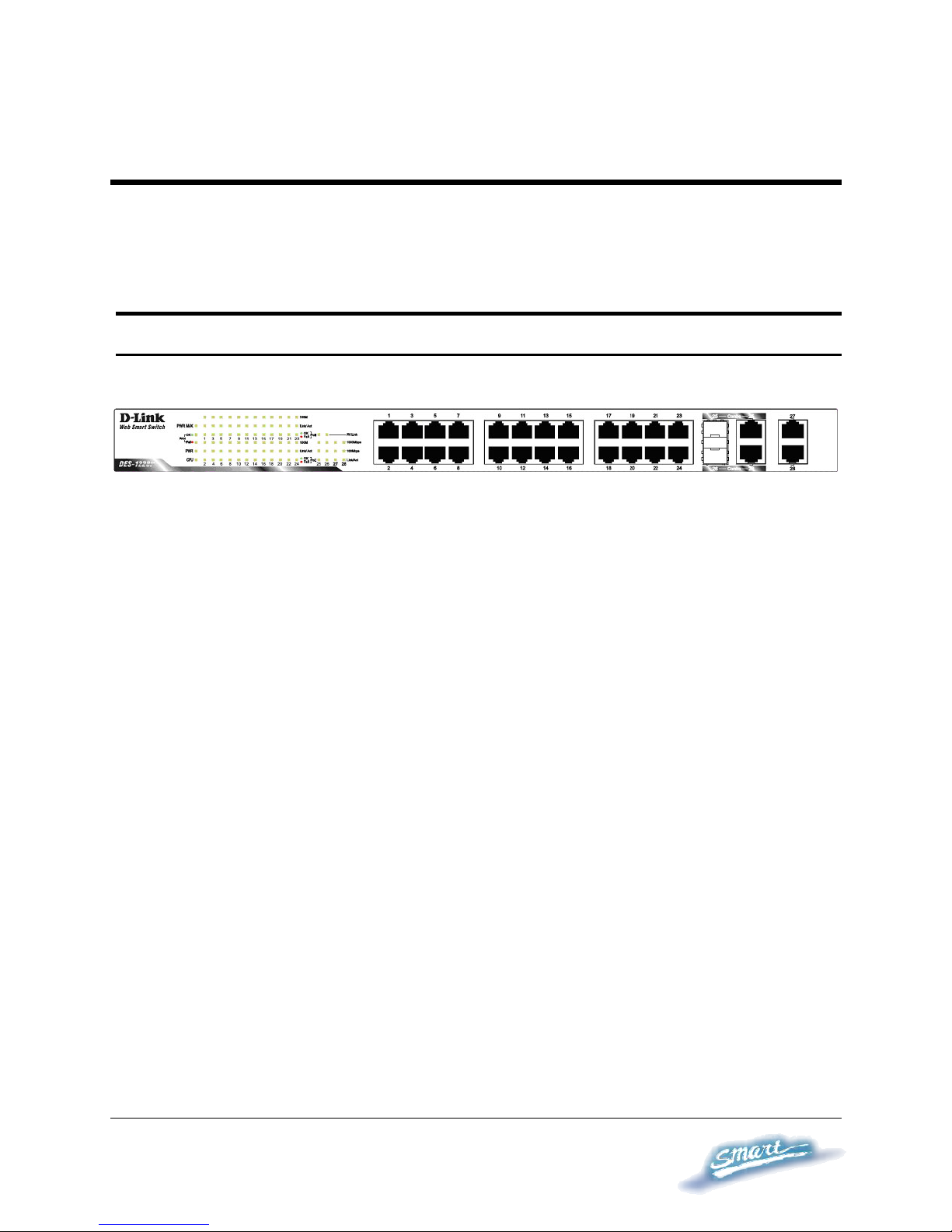

Figure 4 – Front panel of the 28-port Web-Smart Switch
LED Indicator:
Comprehensive LED indicators display the status of the switch and
the network (see the Understanding LED Indicators section).
10/100 BASE-TX Twisted Pair Ports (Port 1~24)
The DES-1228P is equipped with 24 Fast Ethernet twisted pair ports
that are auto-negotiable 10/100Mbps and also support auto
MDI/MDIX crossover detection. All these 24 ports can operate in
half- and full- duplex modes, and will be automatically activated
when a compatible terminal is identified. The Switch will provide the
power needed through the PoE port to the connected PD.
For Legacy devices that are not yet compatible, the PoE port will not
offer the power to these devices. This feature allows users to freely
and safely mix legacy and Power over Ethernet compatible devices
on their network.

1
16 6
10/100/1000 BASE-T / Mini GBIC Combo Ports (Option Port
25~26)
The Switch is also equipped with two combo 10/100/1000 Base-T /
Mini GBIC ports, supporting optional 100BASE-FX or 1000BASE-
SX/LX Mini GBIC modules for fiber uplinks.
10/100/1000 BASE-T Twisted Pair Ports (Port 27~28)
Finally there are 2 Gigabit twisted pair ports that are auto negotiable
10/100/1000Mbps with auto MDI/MDIX crossover detection support
that can also operate in half- and full- duplex modes.
Note: When a port is set to “Forced Mode”, the Auto MDI/MDIX is
disabled.
