D-Link DES-1005E User manual

ENGLISH
2
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization
of such revisions or changes.
Manual Revisions
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries.
All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.
Copyright Statement
No part of this publication or documentation accompanying this product may be reproduced in any form or by any means or used to make any
derivative such as translation, transformation, or adaptation without permission from D-Link Corporation/D-Link Systems, Inc., as stipulated by the
United States Copyright Act of 1976 and any amendments thereto. Contents are subject to change without prior notice.
Copyright ©2010 by D-Link Corporation/D-Link Systems, Inc. All rights reserved.
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with this user’s guide, may cause
harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his own expense.
Revision Date Description
1.0 February 16, 2010 DES-1005E - Hardware revision A1
1.1 May 18, 2010 Added Windows® 7 Support
Preface

ENGLISH
3
Table of Contents
Preface..................................................................................................... 2
Manual Revisions........................................................................................2
Trademarks ...................................................................................................2
Copyright Statement ................................................................................2
FCC Statement.............................................................................................2
Safety Instructions ................................................................................ 4
Safety Cautions ...........................................................................................4
Protecting Against Electrostatic Discharge ......................................6
Product Overview.................................................................................. 7
Package Contents ......................................................................................7
Setup...............................................................................................................7
Introduction .................................................................................................7
Features .........................................................................................................9
Hardware Overview................................................................................ 10
Top Panel (LEDs) ............................................................................. 10
Rear Panel (Connections) ............................................................ 11
Installation............................................................................................ 12
Before You Connect to the Network................................................. 12

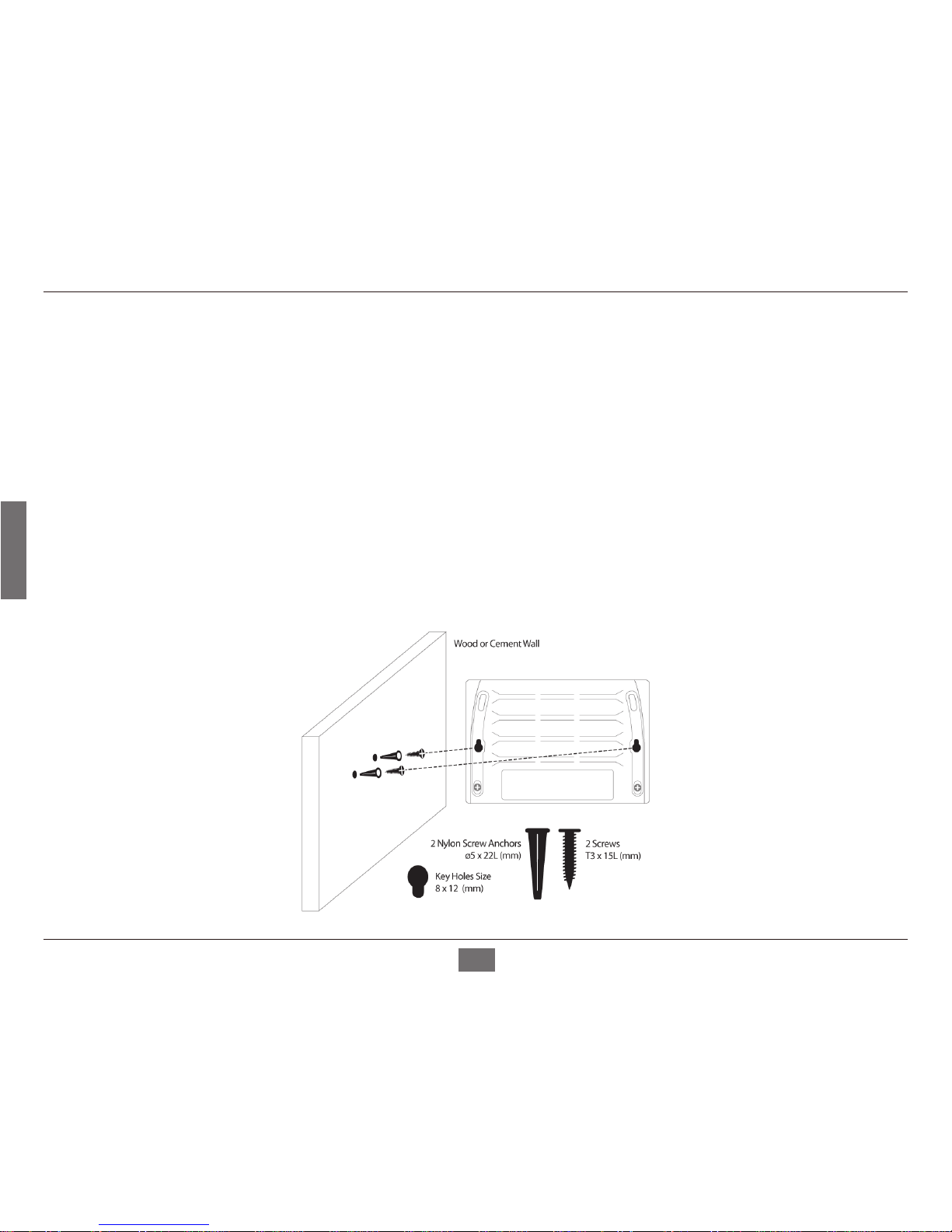

Mounting the Switch on the Wall...................................................... 13
Mounting on a cement wall....................................................... 13
Mounting on a wood wall........................................................... 13
Connecting the Switch.......................................................................... 14
PC to Switch..................................................................................... 14
Hub/Switch to DES-1005E........................................................... 14
DES-1005E to Other Devices...................................................... 14
Troubleshooting .................................................................................. 15
Networking Basics............................................................................... 16

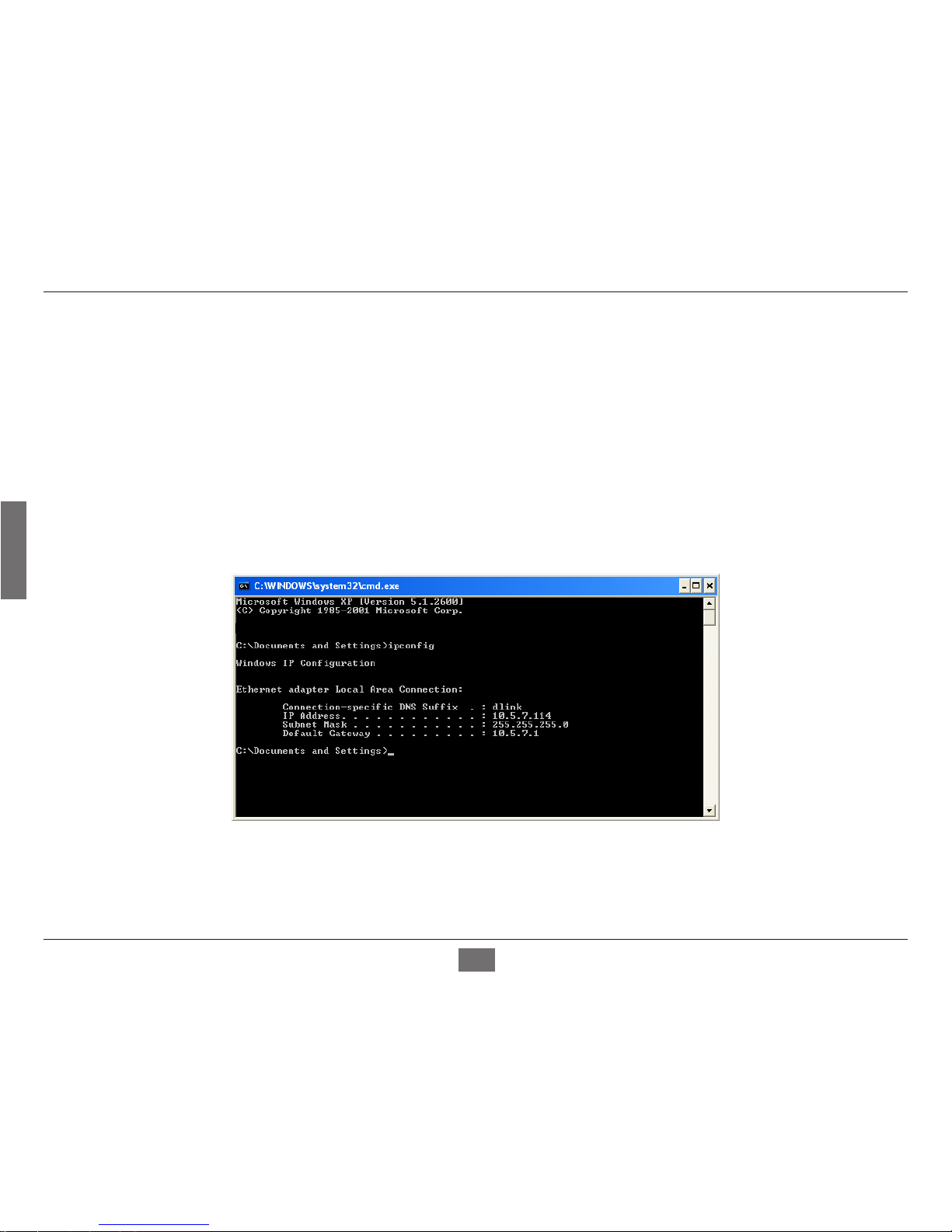

Check your IP address............................................................................ 16
Statically Assign an IP address............................................................ 17
Glossary................................................................................................. 18
Technical Specications ..................................................................... 23
Contacting Technical Support........................................................... 25
Registration .......................................................................................... 26

ENGLISH
4
To reduce the risk of bodily injury, electrical shock, re, and damage to the equipment, observe the following precautions.
Observe and follow service markings. Do not service any product except as explained in your system documentation. Opening or removing covers
that are marked with the triangular symbol with a lightning bolt may expose you to an electrical shock. Only a trained service technician should
service components inside these compartments.
If any of the following conditions occur, unplug the product from the electrical outlet and replace the part or contact your trained service
provider:
– The power cable, extension cable, or plug is damaged.
– An object has fallen into the product.
– The product has been exposed to water.
– The product has been dropped or damaged.
– The product does not operate correctly when you follow the operating instructions.
• Keepyoursystemawayfromradiatorsandheatsources.Also,donotblockcoolingvents.
• Donotspillfoodorliquidsonyoursystemcomponents,andneveroperatetheproductinawetenvironment.Ifthesystemgets
wet, see the appropriate section in your troubleshooting guide or contact your trained service provider.
•Donotpushanyobjectsintotheopeningsofyoursystem.Doingsocancauseareoranelectricshockbyshortingoutinterior
components.
•Usetheproductonlywithapprovedequipment.
• Allowtheproducttocoolbeforeremovingcoversortouchinginternalcomponents.
• Operatetheproductonlyfromthetypeofexternalpowersourceindicatedontheelectricalratingslabel.Ifyouarenotsureof
the type of power source required, consult your service provider or local power company.
Safety Instructions
Safety Cautions
Use the following safety guidelines to ensure your own personal safety and to help protect your system from potential damage.

ENGLISH
5
• Tohelpavoiddamagingyoursystem,besurethevoltageselectionswitch(ifprovided)onthepowersupplyissettomatchthe
power available at your location:
– 115volts(V)/60hertz(Hz)inmostofNorthandSouthAmericaandsomeFarEasterncountriessuchasSouthKoreaandTaiwan.
– 100 V/50 Hz in eastern Japan and 100 V/60 Hz in western Japan.
– 230 V/50 Hz in most of Europe, the Middle East, and the Far East.
• Alsobesurethatattacheddevicesareelectricallyratedtooperatewiththepoweravailableinyourlocation.
• Useonlyapprovedpowercable(s).IfyouhavenotbeenprovidedwithapowercableforyoursystemorforanyAC-poweredoption
intended for your system, purchase a power cable that is approved for use in your country. The power cable must be rated for the
product and for the voltage and current marked on the product’s electrical ratings label. The voltage and current rating of the
cable should be greater than the ratings marked on the product.
• Tohelppreventanelectricshock,plugthesystemandperipheralpowercablesintoproperlygroundedelectricaloutlets.These
cables are equipped with three-prong plugs to help ensure proper grounding. Do not use adapter plugs or remove the grounding
prong from a cable. If you must use an extension cable, use a 3-wire cable with properly grounded plugs.
• Observeextensioncableandpowerstripratings.Makesurethatthetotalampereratingofallproductspluggedintotheextension
cable or power strip does not exceed 80 percent of the ampere ratings limit for the extension cable or power strip.
• Tohelp protect yoursystemfromsudden,transientincreasesand decreases inelectrical power, use a surgesuppressor,line
conditioner, or uninterruptible power supply (UPS).
• Positionsystemcablesandpowercablescarefully;routecablessothattheycannotbesteppedonortrippedover.Besurethat
nothing rests on any cables.
• Donotmodifypowercablesorplugs.Consultalicensedelectricianoryourpowercompanyforsitemodications.Alwaysfollow
your local/national wiring rules.
• Whenconnectingordisconnectingpowertohot-pluggablepowersupplies,ifoeredwithyoursystem,observethefollowing
guidelines:
– Install the power supply before connecting the power cable to the power supply.
– Unplug the power cable before removing the power supply.
– If the system has multiple sources of power, disconnect power from the system by unplugging all power cables from the power
supplies.

ENGLISH
6
Static electricity can harm delicate components inside your system. To prevent static damage, discharge static electricity from your body before
you touch any of the electronic components, such as the microprocessor. You can do so by periodically touching an unpainted metal surface on
the chassis.
You can also take the following steps to prevent damage from electrostatic discharge (ESD):
1. When unpacking a static-sensitive component from its shipping carton, do not remove the component from the antistatic packing
material until you are ready to install the component in your system. Just before unwrapping the antistatic packaging, be sure to
discharge static electricity from your body.
2. When transporting a sensitive component, rst place it in an antistatic container or packaging.
3. Handle all sensitive components in a static-safe area. If possible, use antistatic oor pads, workbench pads, and an antistatic
grounding strap.
Protecting Against Electrostatic Discharge

ENGLISH
7
Product Overview
Setup
The setup of the DES-1005E can be performed using the following steps:
• Thepoweroutletshouldbewithin1.82meters(6feet)oftheSwitch.
• VisuallyinspecttheDCpowerjackandmakesurethatitisfullysecuredtothepoweradapter.
• DonotcovertheventilationholesonthesidesoftheSwitch,andmakesurethereisadequateventilationaroundit.
• Donotplaceheavyobjectsontheswitch.
Package Contents
Introduction
Fast Ethernet Technology
The growing importance of LANs and the increasing complexity of desktop computing applications are fueling the need for high performance
networks.100BASE-TX (FastEthernet) providesacost-eectiveand high-performancesolutionforsmall workgroups,SMBs(Smallto Medium
Businesses), and any network supporting bandwidth-intensive applications. Fast Ethernet technology operates at 10 times the speed of traditional
Ethernet,oeringmaximumperformanceandenhancedcapabilityforexistingEthernet-basednetworks.
100Mbps Fast Ethernet is a standard specied by the IEEE 802.3 LAN committee. It is an extension of the 10Mbps Ethernet standard with the ability
to transmit and receive data at 100Mbps, while maintaining the CSMA/CD Ethernet protocol. Since the 100Mbps Fast Ethernet is compatible with all
other 10Mbps Ethernet environments, it provides a straightforward upgrade and takes advantage of the existing investment in hardware, software,
and personnel training.
WallMountKit
D-Link DES-1005E 5-port Desktop Switch
Power Adapter
Warranty Card
Quick Install Guide

ENGLISH
8
Switching Technology
Switches provide full-line speed and dedicated bandwidth for all connections. This is in contrast to hubs, which use the traditional shared
networking topology, where the connected nodes contend for the same network bandwidth. When two switching nodes are communicating, they
are connected with a dedicated channel between them, so there is no contention for network bandwidth with other nodes. As a result, the switch
reduces considerably, the likelihood of trac congestion.
ForEthernetnetworks,aswitchisaneectivewayofeliminatingtheproblemofchaininghubsbeyondthe“two-repeaterlimit.”Aswitchcanbe
usedtosplitpartsofthenetworkintodierentcollisiondomains,makingitpossibletoexpandyourEthernetnetworkbeyondthe205-meter
network diameter limit for 100BASE-TX networks. Switches supporting both 10Mbps Ethernet and 100Mbps Fast Ethernet are also ideal for bridging
between existing 10Mbps networks and newer 100Mbps networks.
Switching LAN technology is a marked improvement over the previous generation of network hubs and bridges, which were characterized by
higher latencies. Routers have also been used to segment local area networks, but the cost of a router, the setup and maintenance required, make
routers relatively impractical. Today switches are an ideal solution to most kinds of local area network congestion problems.

ENGLISH
9
Features
• TheDES-1005Eisahighperformanceswitchdesignedspecicallyforenvironmentswheretraconthenetworkandthenumberofusers
increase continuously.
• TheDES-1005E,withitssmall,compactsize,wasspecicallydesignedforsmalltomid-sizedworkgroups.TheDES-1005Ecanbeinstalled
wherespace is limited;moreover,itprovides immediateaccessto arapidlygrowingnetwork throughawiderangeof user-reliable
functions.
• TheDES-1005Eisidealfordeploymentwithmultiplehigh-speedserversfor10Mbpsor100Mbpssharedbandwidthworkgroups.With
the highest bandwidth at 200Mbps (100Mbps full-duplex mode), any port can provide workstations with a congestion-free data pipe for
simultaneous access to the server.
• TheDES-1005Eisscalable,allowingtwoormoreDES-1005Eswitchestobecascadedtogether.Sinceallportssupport200Mbps,anyone
of its ve ports may be used to cascade to an additional switch to open a Full-Duplex Fast Ethernet pipe.
• TheDES-1005EistheperfectchoiceforadepartmentoroceplanningtoupgradetoFastEthernet.TheDES-1005Ecanaccommodate
10Mbps or 100Mbps devices, providing a exible solution for existing (10Mbps) Ethernet workgroups.
• TheDES-1005Ecombinesdynamicmemoryallocationwithstore-and-forwardswitchingtoensurethatthebueriseectivelyallocated
foreachport;anditcontrolsthedataowbetweenthetransmitandreceivenodestoguaranteeagainstpossiblepacketloss.
• TheDES-1005Eisanunmanaged10/100MbpsFastEthernetswitchthatoerssolutionsfortheacceleratingbandwidthneedsofsmall
Ethernet workgroups.
Other key features include:
• Store-and-forwardswitchingschemecapability.Astheresultofcompleteframecheckinganderrorframeltering,thisschemeprevents
error packages from transmitting among segments.
• Auto-MDI/MDI-XfunctionsupportsautomaticMDI/MDI-Xcrossoverdetection,givingtrue‘plugandplay’capability—CrossoverorStraight-
Through CAT5 cables can be plugged into any port.
• NwayAuto-negotiationforanyport.Thisallowsforauto-sensingofspeed(10/100Mbps),providinganautomaticandexiblesolutionfor
the network.
• Flowcontrolforanyport.Thisminimizesdroppedpacketsbysendingoutcollisionsignalswhentheport’sreceivingbuerisfull.
• Datalteringrateeliminatesallerrorpackets,runts,etc.,perportatwire-speedfor100Mbpsoperationand10Mbpsoperation.

ENGLISH
10
Power Indicator
ThisgreenindicatorlightisonwhentheDES-1005Eisreceivingpower;otherwise,itiso.
Link/Act
This LED indicator light is green when the port is connected to an Ethernet device and will blink as Ethernet data is transmitted or received.
Hardware Overview

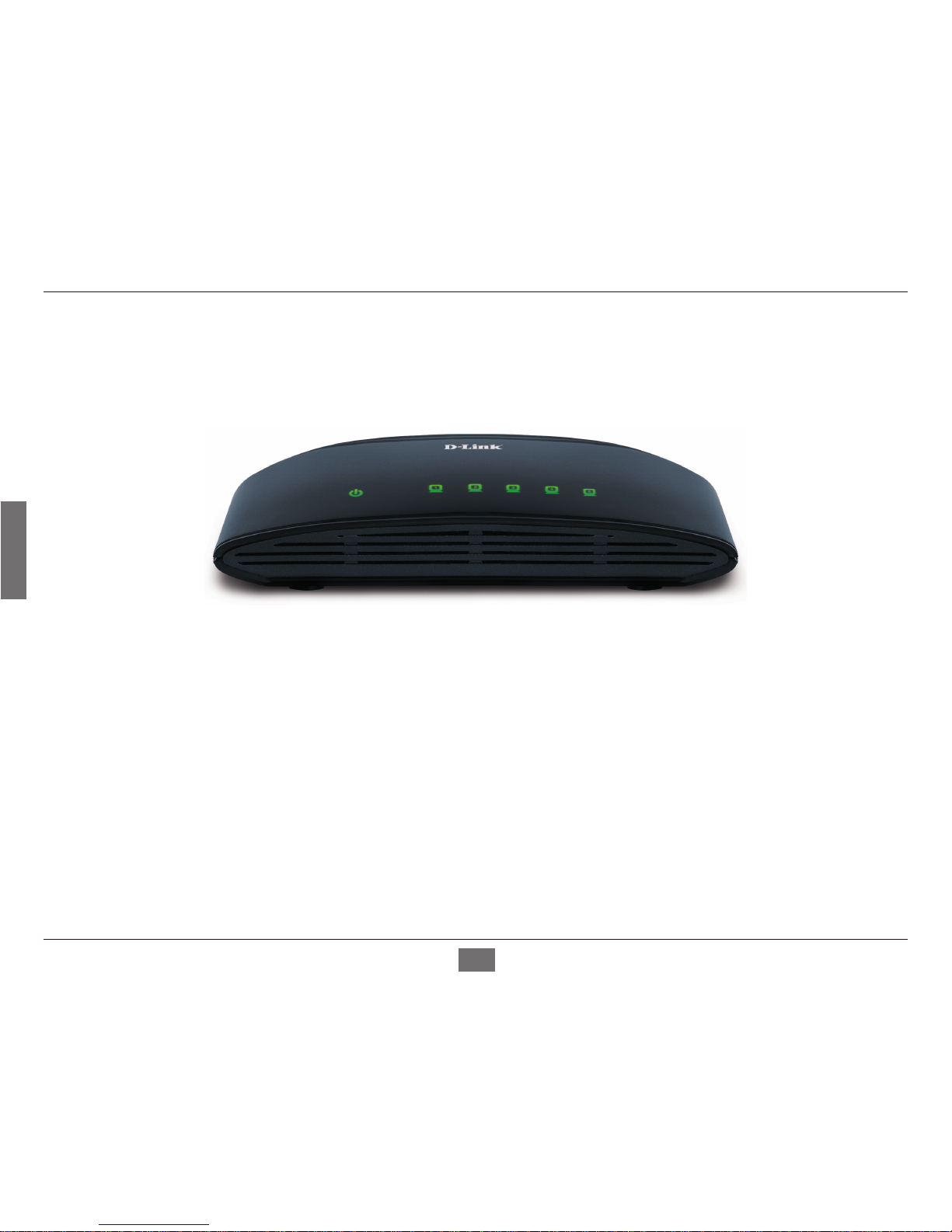

Top Panel (LEDs)

ENGLISH
11
Auto MDI/MDI-X Ports:
AllportssupportautomaticMDI/MDI-Xcrossoverdetection.TheAutoMDI/MDI-Xfunctionmakesitsimpletoconnecttotheswitch—justplug
either a Crossover or Straight-Through CAT5 cable into any port.
Power Jack:
Power is supplied through an external DC power adapter. Check the technical specication section for information about the DC power input
voltage.
Since the DES-1005E does not require a power button, plugging its power adapter into a power outlet will immediately power it on.

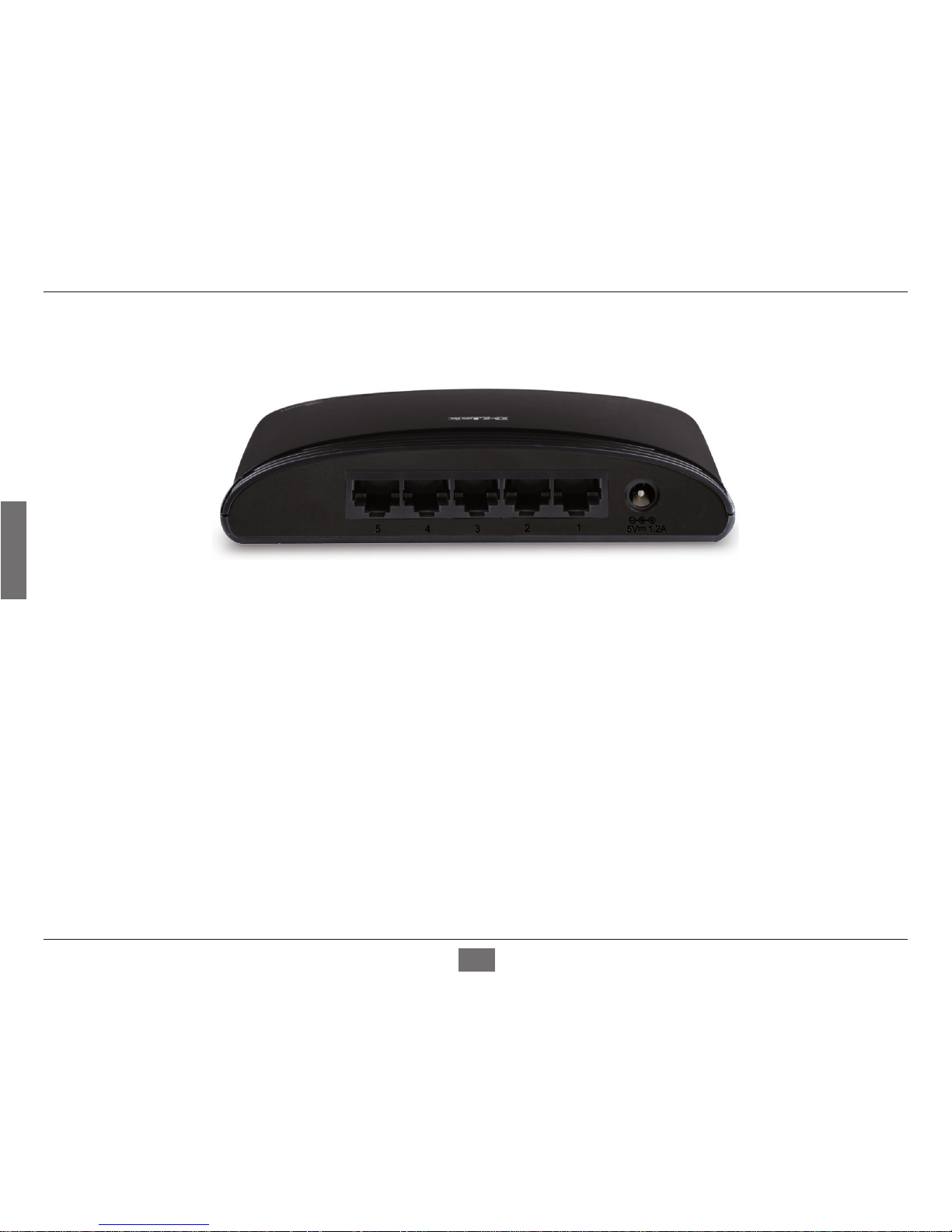

Rear Panel (Connections)

ENGLISH
12
Installation
This section will explain how to connect Ethernet devices to your new D-Link switch and how to mount the switch.
Before You Connect to the Network
ThesitewhereyouinstalltheSwitchmaygreatlyaectitsperformance.PleasefollowtheseguidelinesforsettinguptheSwitch.
• InstalltheSwitchonasturdy,levelsurfacethatcansupportatleast3kg(6.6lbs.)ofweight.Donotplaceheavyobjectsonthe
Switch.
• Thepoweroutletshouldbewithin1.82meters(6feet)oftheSwitch.
• VisuallyinspectthepowercordandseethatitisfullysecuredtotheACpowerport.
• MakesurethatthereisadequatespaceforproperheatdissipationfromandadequateventilationaroundtheSwitch.Leaveat
least 10 cm (4 inches) of space at the front and rear of the Switch for ventilation.
• InstalltheSwitchinafairlycoolanddryplacefortheacceptabletemperatureandhumidityoperatingranges.
• InstalltheSwitchinasitefreefromstrongelectromagneticeldgenerators(suchasmotors),vibration,dust,anddirectexposure
to sunlight.
• WheninstallingtheSwitchonalevelsurface,attachtherubberfeettothebottomofthedevice.Therubberfeetcushionthe
Switch, protect the casing from scratches, and prevent it from scratching other surfaces.

ENGLISH
13
Mounting the Switch on the Wall
The DES-1005E can also be mounted on a wall. Two mounting slots are provided on the bottom of the switch for this purpose. Please make sure
that the front panel is exposed in order to view the LEDs. Please refer to the illustration below:
1. Mount the Nylon screw anchors into a cement wall.
2. Drive the T3 x 15L screws into the Nylon screw anchors.
3. Hook the mounting holes of the switch back on the screws.
1. Drive the T3 x 15 L screws into the wood wall.
2. Hook the mounting holes of the switch back on the screws.
(1) 3/4 inch minimum for wood wall
(2) 3 inch minimum for cement wall.
Mounting on a cement wall
Mounting on a wood wall

ENGLISH
14
Connecting the Switch
PC to Switch
A computer can be connected to the DES-1005E via a two-pair Category 3, 4, 5 UTP/STP Straight-Through or Crossover cable. A computer
equipped with a RJ-45 10/100Mbps port can be connected to any of the ve DES-1005E ports.
The LED indicators for the PC connection depend on the capability of the computer’s Ethernet card. If the LED indicators are not lit after making
a proper connection, check the computer’s Ethernet card, the cable, and the DES-1005E’s conditions and connections.
Hub/Switch to DES-1005E
A hub (10 or 100BASE-TX) can be connected to the DES-1005E via a two-pair Category 3, 4, or 5 UTP/STP Straight Through or Crossover cable. For
100Mbps operation a Category 5 cable must be used. The connection is accomplished from any port of the hub to any port of the DES-1005E.
DES-1005E to Other Devices
The DES-1005E can be connected to another switch or other devices (routers, bridges, etc.) via a two-pair Category 3, 4, 5 UTP/STP
Straight-Through or Crossover cable. A Category 5 (or higher) cable must be used for 100Mbps operation. The connection can be accomplished
from any (MDI-X) port on the DES-1005E to any of the 10Mbps or 100Mbps (MDI-X) ports on another switch or other devices.

ENGLISH
15
Troubleshooting
1. Why can´t I share my Internet connection to multiple computers when using my D-Link DES-1005E switch?
IfyouareconnectingdirectlytoaCableorDSLmodem,youwillneedarouterto“share”yourInternetconnectionoracomputerusingICS
(Internet Connection Sharing) or Proxy. Switches and hubs do not allow you to share a single IP address to multiple computers.
Another alternative is to contact your ISP and purchase extra IP addresses for each additional computer.
2. Does the DES-1005E switch have an uplink port?
The DES-1005E has Auto-MDI ports which automatically sense the type of cable being used (e.g. Crossover or Straight-through) and adjust
themselves accordingly to pass data over the network.
3. What is the maximum length of Category 3, 4 or 5 twisted pair cable that can be used between the DES-1005E and other devices such as
routers, switches, computers, etc.?
The maximum length of Category 3, 4 or 5 twisted pair cable that can be used between computers and other devices on a network is 100
metersorabout328feet.Keepinmindthatthisisatheoreticallimit.Usually,youwillwanttokeepthedistancebetweendeviceswell
below the limit.

ENGLISH
16
Networking Basics
Check your IP address
After you install your new D-Link adapter or if you already have an Ethernet adapter installed on your computer, by default, the TCP/IP settings
should be set to obtain an IP address from a DHCP server (i.e. router) automatically. To verify your IP address, please follow the steps below.
• ClickonStart > Run. In the run box type cmd and click OK. (Windows® 7 and Vista® users type cmd in the Start Search box.)
• Attheprompt,typeipcong and press Enter.
• ThiswilldisplaytheIPaddress,subnetmask,andthedefaultgatewayofyouradapter.

ENGLISH
17
Statically Assign an IP address
If you are not using a DHCP capable gateway/router, or you need to assign a static IP address, please follow the steps below:
Step 1
Windows® 7 - Click on Start > Control Panel > Network and Internet > Network and Sharing Center > Change Adapter Setting.
Windows Vista® - Click on Start > Control Panel > Network and Internet > Network and Sharing Center > Manage Network Connections.
Windows® XP - Click on Start > Control Panel > Network Connections.
Windows® 2000 - From the desktop, right-click My Network Places and select Properties.
Step 2
Right-click on the Local Area Connection which represents your network adapter and select
Properties.
Step 3
Highlight Internet Protocol (TCP/IP) and click Properties.
Step 4
Click Use the following IP address and enter an IP address that is on the same subnet as
your network or the LAN IP address on your router.
Example: If the router´s LAN IP address is 192.168.0.1, make your IP address 192.168.0.X where
X is a number between 2 and 99. Make sure that the number you choose is not in use on the
network. Set Default Gateway the same as the LAN IP address of your router (192.168.0.1).
Set Primary DNS the same as the LAN IP address of your router (192.168.0.1). The Secondary
DNS is not needed or you may enter a DNS server from your ISP.
Step 5
Click OK twice to save your settings.

ENGLISH
18
Glossary
1000BASE-LX
A short laser wavelength on multimode ber optic cable for a maximum length of 550 meters.
1000BASE-SX
Alongwavelengthfora“longhaul”beropticcableforamaximumlengthof10kilometers.
100BASE-FX
100Mbps Ethernet implementation over ber.
100BASE-TX
100Mbps Ethernet implementation over Category 5 and Type 1 Twisted Pair cabling.
10BASE-T
The IEEE 802.3 specication for Ethernet over Unshielded Twisted Pair (UTP) cabling.
Aging
The automatic removal of dynamic entries from the Switch Database which have timed-out and are no longer valid.
ATM
AsynchronousTransfer Mode. A connection oriented transmission protocol based on xed length cells (packets). ATM is designed to carry a complete
range of user trac, including voice, data, and video signals.
Auto-Negotiation
A feature on a port, which allows it to advertise its capabilities for speed, duplex, and ow control. When connected to an end station that also
supports auto-negotiation, the link can self-detect its optimum operating setup.
Backbone Port
A port that does not learn device addresses, and that receives all frames with an unknown address. Backbone ports are normally used to connect
the Switch to the backbone of your network. Note that backbone ports were formerly known as designated downlink ports.
Backbone
The part of a network used as the primary path for transporting trac between network segments.

ENGLISH
19
Bandwidth
Information capacity, measured in bits per second, that a channel can transmit. The bandwidth of Ethernet is 10Mbps, the bandwidth of Fast
Ethernet is 100Mbps.
Baud Rate
The switching speed of a line. Also known as line speed.
BOOTP
The BOOTP protocol allows you to automatically map an IP address to a given MAC address each time a device is started. In addition, the protocol
can assign the subnet mask and default gateway to a device.
Bridge
A device that interconnects local or remote networks no matter what higher level protocols are involved. Bridges form a single logical network,
centralizing network administration.
Broadcast
A message sent to all destination devices on the network.
Broadcast Storm
Multiple simultaneous broadcasts that typically absorb available network bandwidth and can cause network failure.
Console Port
The port on the Switch accepting a terminal or modem connector. It changes the parallel arrangement of data within computers to the serial form
used on data transmission links. This port is most often used for dedicated local management.
CSMA/CD
Channel access method used by Ethernet and IEEE 802.3 standards, in which devices transmit only after nding the data channel clear for some
period of time. When two devices transmit simultaneously, a collision occurs and the colliding devices delay their retransmissions for a random
amount of time.
Data Center Switching
The point of aggregation within a corporate network where a switch provides high performance access to server farms, a high-speed backbone
connection, and a control point for network management and security.
Ethernet
A LAN specication developed jointly by Xerox, Intel, and Digital Equipment Corporation. Ethernet networks operate at 10Mbps using CSMA/CD
to run over cabling.

ENGLISH
20
Fast Ethernet
100Mbps technology based on the Ethernet/CD network access method.
Flow Control – (IEEE 802.3x)
A means of holding packets back at the transmit port of the connected end station. Prevents packet loss at a congested switch port.
Forwarding
The process of sending a packet toward its destination by an internetworking device.
Full Duplex
Asystemthatallowspacketstobetransmittedandreceivedatthesametimeand,ineect,doublesthepotentialthroughputofalink.
Half Duplex
A system that allows packets to be transmitted and received, but not at the same time. Contrast with full duplex.
IP Address
Internet Protocol address. A unique identier for a device attached to a network using TCP/IP. The address is written as four octets separated with
full-stops (periods), and is made up of a network section, an optional subnet section and a host section.
IPX
Internetwork Packet Exchange. A protocol allowing communication in a NetWare network.
LAN
Local Area Network. A network of connected computing resources (such as PCs, printers, servers) covering a relatively small geographic area (usually
not larger than a oor or building). Characterized by high data rates and low error rates.
Latency
The delay between the time a device receives a packet and the time the packet is forwarded out of the destination port.
Line Speed
See baud rate.
Main Port
The port in a resilient link that carries data trac in normal operating conditions.
MDI
Medium Dependent Interface. An Ethernet port connection where the transmitter of one device is connected to the receiver of another device.
