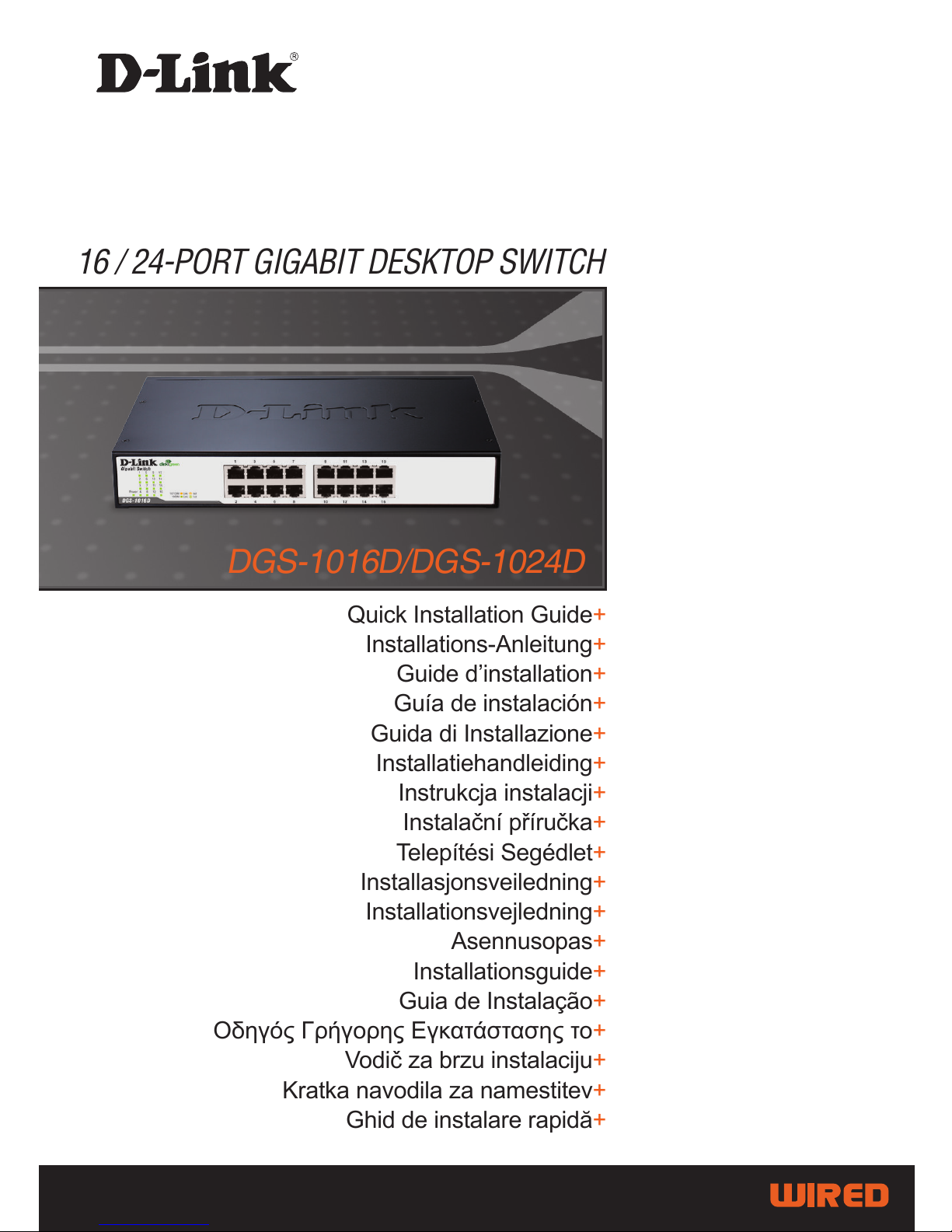

16 / 24-PORT GIGABIT DESKTOP SWITCH
DGS-1016D/DGS-1024D
Quick Installation Guide+
Installations-Anleitung+
Guide d’installation+
Guía de instalación+
Guida di Installazione+
Installatiehandleiding+
Instrukcja instalacji+
Instalační příručka+
Telepítési Segédlet+
Installasjonsveiledning+
Installationsvejledning+
Asennusopas+
Installationsguide+
Guia de Instalação+
Οδηγός Γρήγορης Εγκατάστασης το+
Vodič za brzu instalaciju+
Kratka navodila za namestitev+
Ghid de instalare rapidă+

1
Quick Installation Guide
DGS-1016D / DGS-1024D
16 / 24-Port Gigabit Desktop Switch

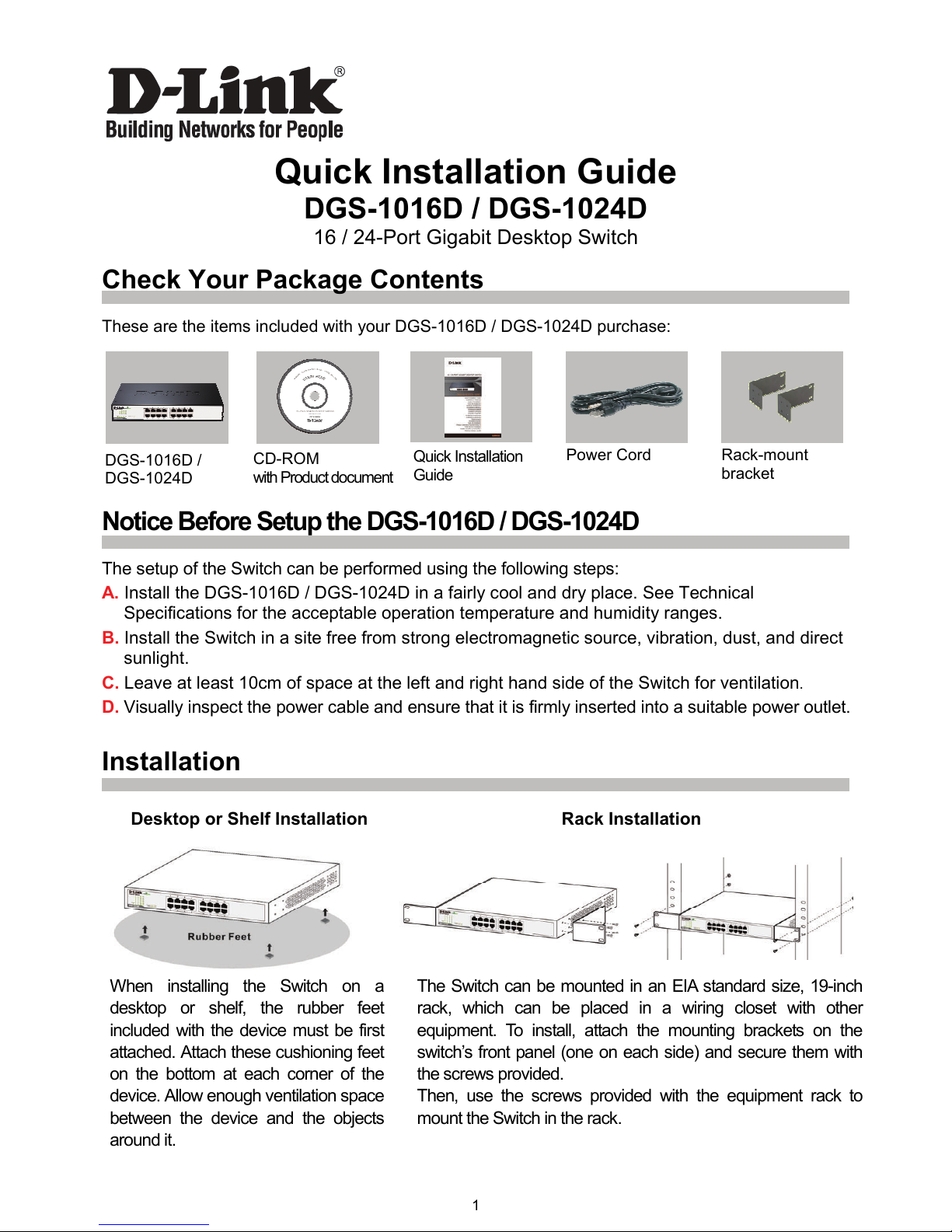

Check Your Package Contents
These are the items included with your DGS-1016D / DGS-1024D purchase:
Notice Before Setup the DGS-1016D / DGS-1024D
The setup of the Switch can be performed using the following steps:
A. Install the DGS-1016D / DGS-1024D in a fairly cool and dry place. See Technical
Specifications for the acceptable operation temperature and humidity ranges.
B. Install the Switch in a site free from strong electromagnetic source, vibration, dust, and direct
sunlight.
C. Leave at least 10cm of space at the left and right hand side of the Switch for ventilation.
D. Visually inspect the power cable and ensure that it is firmly inserted into a suitable power outlet.
Installation
Desktop or Shelf Installation Rack Installation
When installing the Switch on a
desktop or shelf, the rubber feet
included with the device must be first
attached. Attach these cushioning feet
on the bottom at each corner of the
device. Allow enough ventilation space
between the device and the objects
around it.
The Switch can be mounted in an EIA standard size, 19-inch
rack, which can be placed in a wiring closet with other
equipment. To install, attach the mounting brackets on the
switch’s front panel (one on each side) and secure them with
the screws provided.
Then, use the screws provided with the equipment rack to
mount the Switch in the rack.
DGS-1016D /
DGS-1024D
Quick Installation
Guide
CD-ROM
with Product document
Power Cord Rack-mount
bracket

2

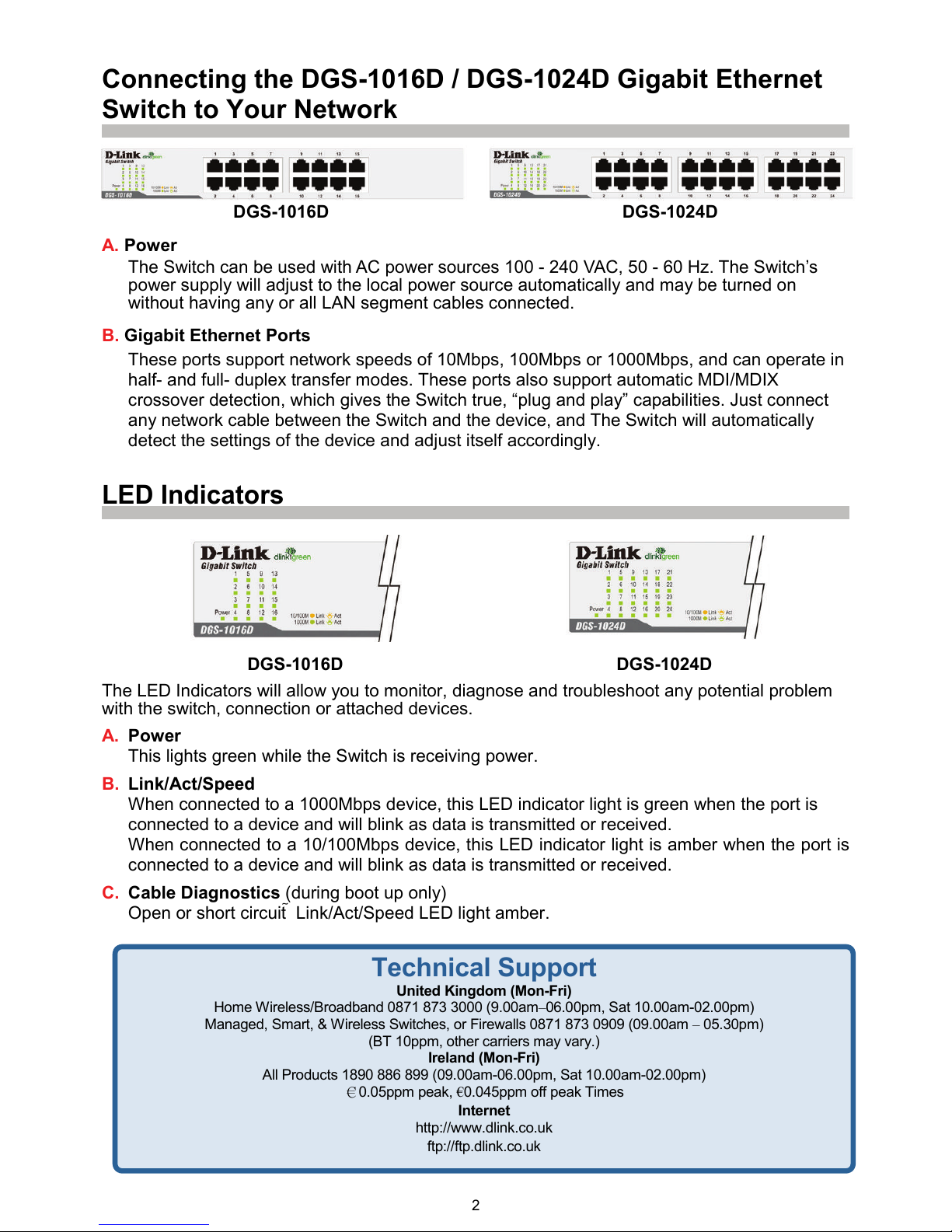

Connecting the DGS-1016D / DGS-1024D Gigabit Ethernet
Switch to Your Network
DGS-1016D DGS-1024D
A. Power
The Switch can be used with AC power sources 100 - 240 VAC, 50 - 60 Hz. The Switch’s
power supply will adjust to the local power source automatically and may be turned on
without having any or all LAN segment cables connected.
B. Gigabit Ethernet Ports
These ports support network speeds of 10Mbps, 100Mbps or 1000Mbps, and can operate in
half- and full- duplex transfer modes. These ports also support automatic MDI/MDIX
crossover detection, which gives the Switch true, “plug and play” capabilities. Just connect
any network cable between the Switch and the device, and The Switch will automatically
detect the settings of the device and adjust itself accordingly.
LED Indicators
DGS-1016D DGS-1024D
The LED Indicators will allow you to monitor, diagnose and troubleshoot any potential problem
with the switch, connection or attached devices.
A. Power
This lights green while the Switch is receiving power.
B. Link/Act/Speed
When connected to a 1000Mbps device, this LED indicator light is green when the port is
connected to a device and will blink as data is transmitted or received.
When connected to a 10/100Mbps device, this LED indicator light is amber when the port is
connected to a device and will blink as data is transmitted or received.
C. Cable Diagnostics (during boot up only)
Open or short circuit Link/Act/Speed LED light amber.
Technical Support
United Kingdom (Mon-Fri)
Home Wireless/Broadband 0871 873 3000 (9.00am–06.00pm, Sat 10.00am-02.00pm)
Managed, Smart, & Wireless Switches, or Firewalls 0871 873 0909 (09.00am –05.30pm)
(BT 10ppm, other carriers may vary.)
Ireland (Mon-Fri)
All Products 1890 886 899 (09.00am-06.00pm, Sat 10.00am-02.00pm)
€0.05ppm peak, €0.045ppm off peak Times
Internet
http://www.dlink.co.uk
ftp://ftp.dlink.co.uk
