D-Link DAP-2230 User manual

iD-Link DAP-2230 User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any
person or organization of such revisions or changes.
Manual Revisions
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United
States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of
their respective companies.
Copyright © 2015 by D-Link Corporation, Inc.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission
from D-Link Corporation, Inc.
Revision Date Description
1.00 June 30, 2015 • Initial release for revision A1
Preface

iiD-Link DAP-2230 User Manual
Table of Contents
Preface................................................................................. i
Product Overview..............................................................1
Package Contents.........................................................................1
System Requirements.................................................................2
Introduction ...................................................................................3
Features............................................................................................4
Hardware Overview..................................................................... 5

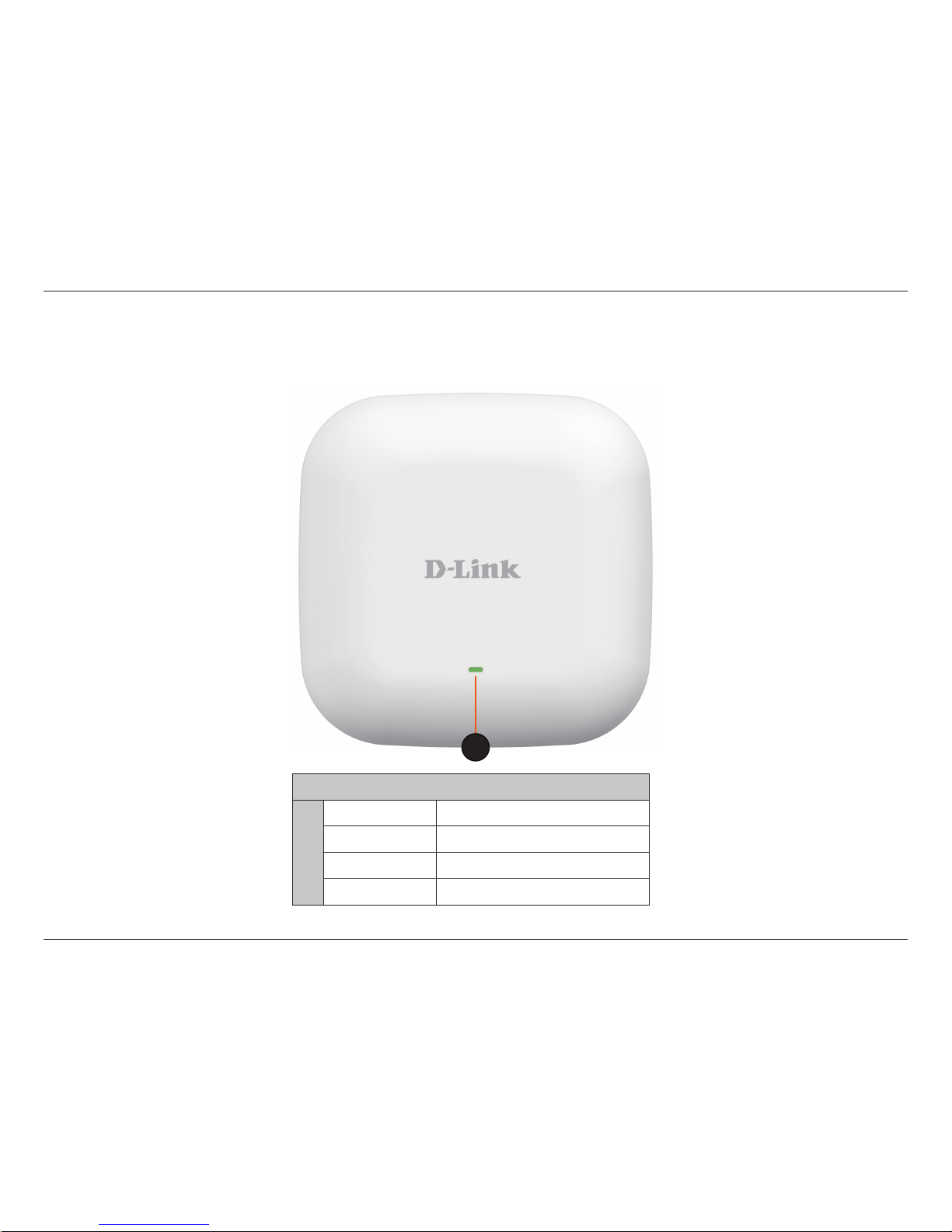

Top Panel .................................................................................5
Hardware Overview..................................................................... 6

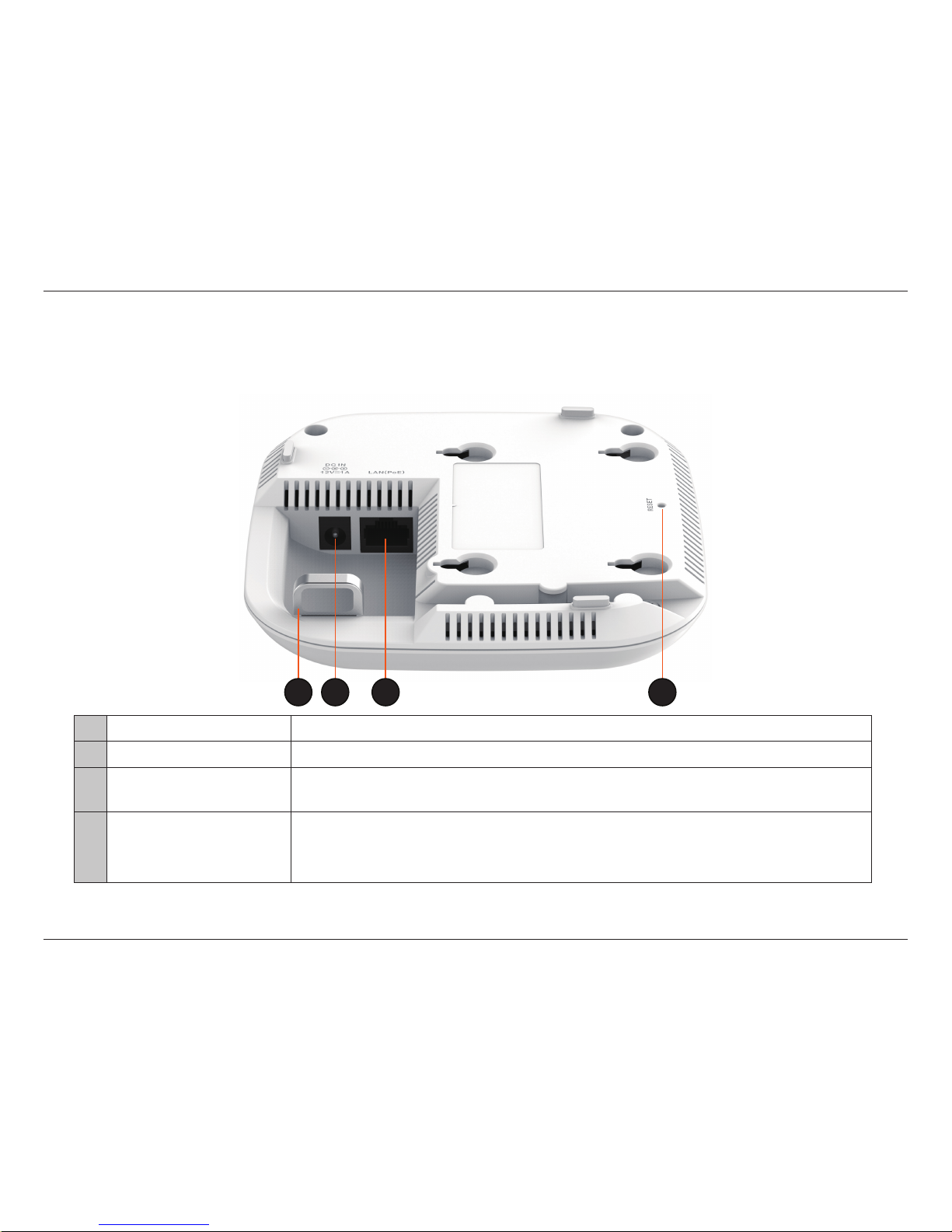

Bottom Panel..........................................................................6
Physical Installation ..........................................................7
Before You Begin...................................................................7
Connect to your Network.......................................................... 8

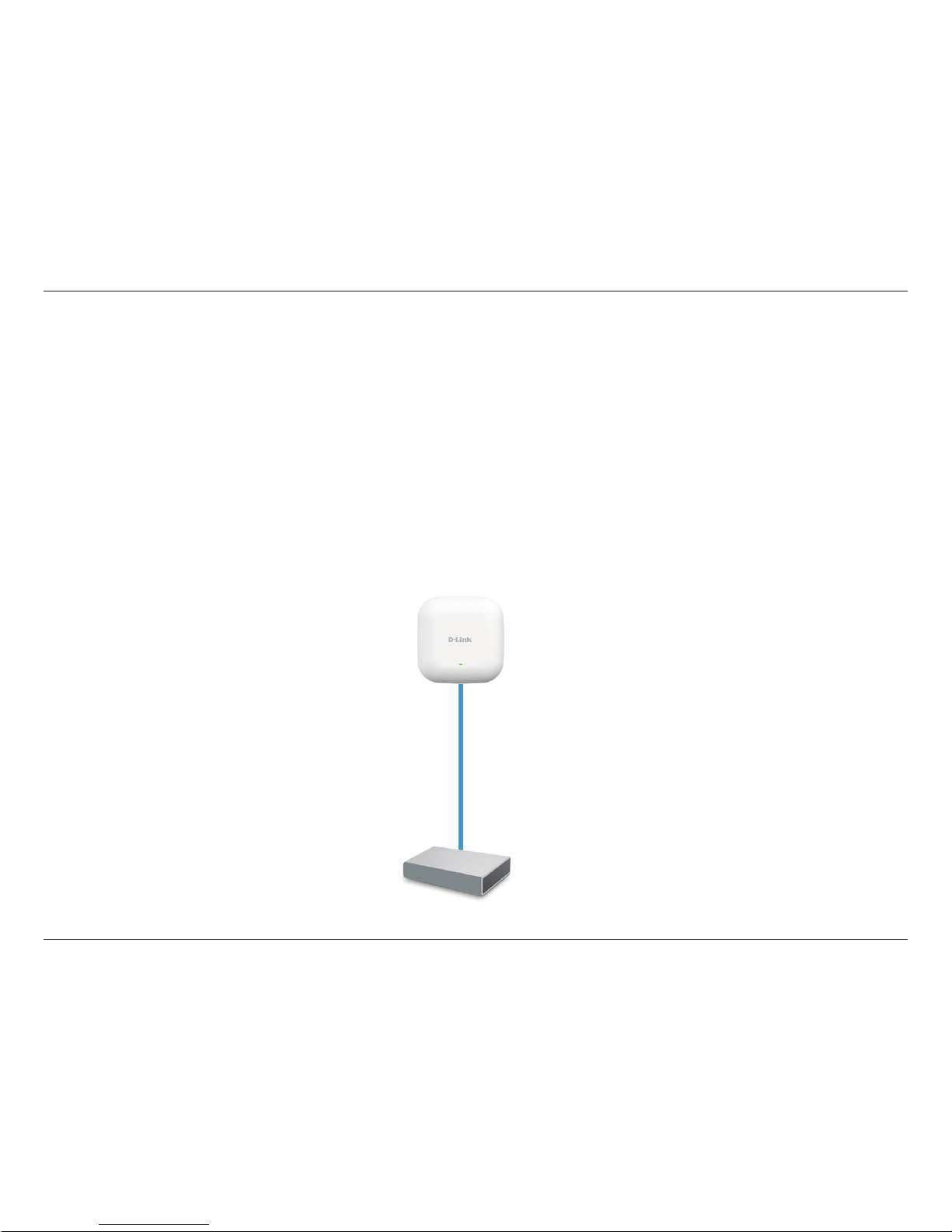

Method 1 - Powered by PoE Switch...............................8

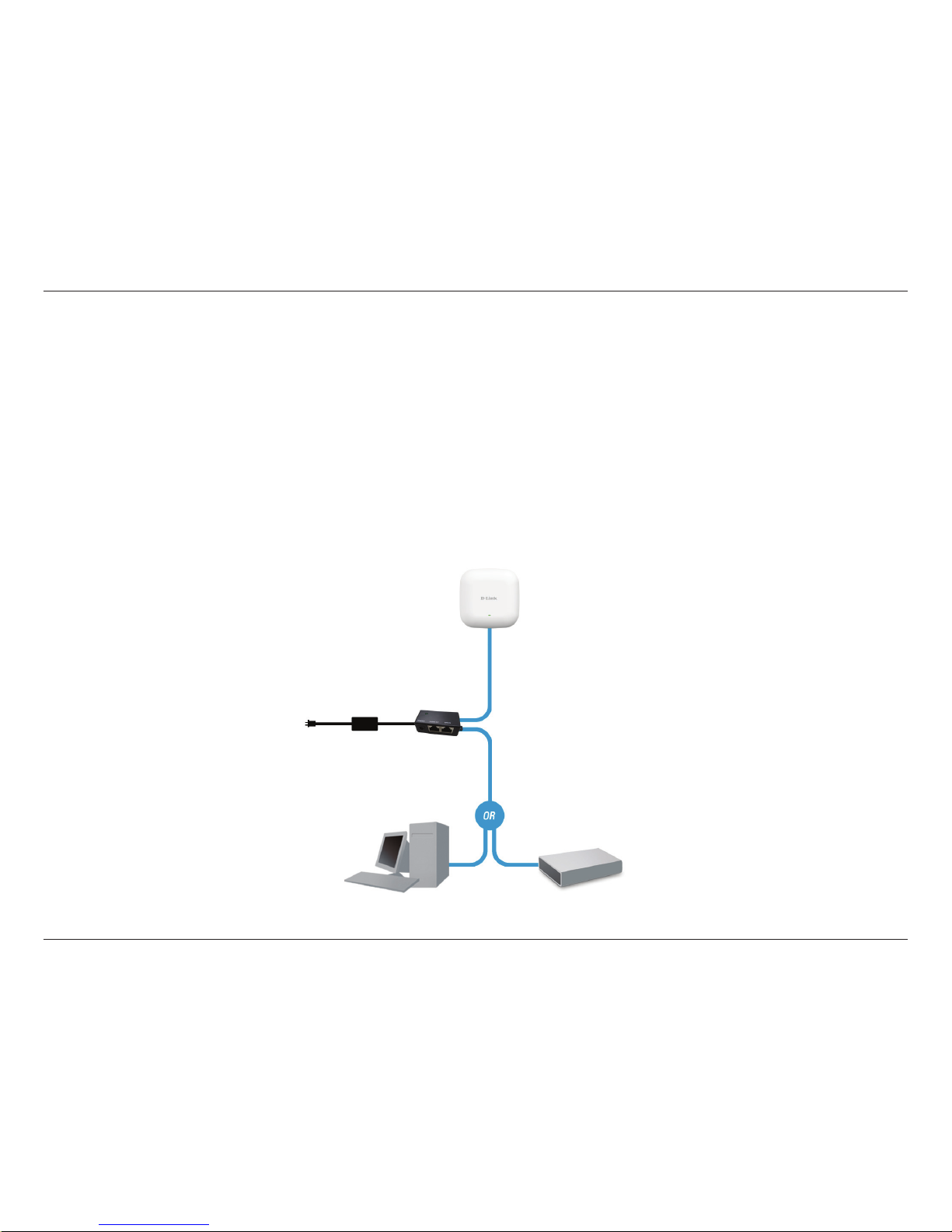

Method 2 - Powered by PoE Injector ............................. 9

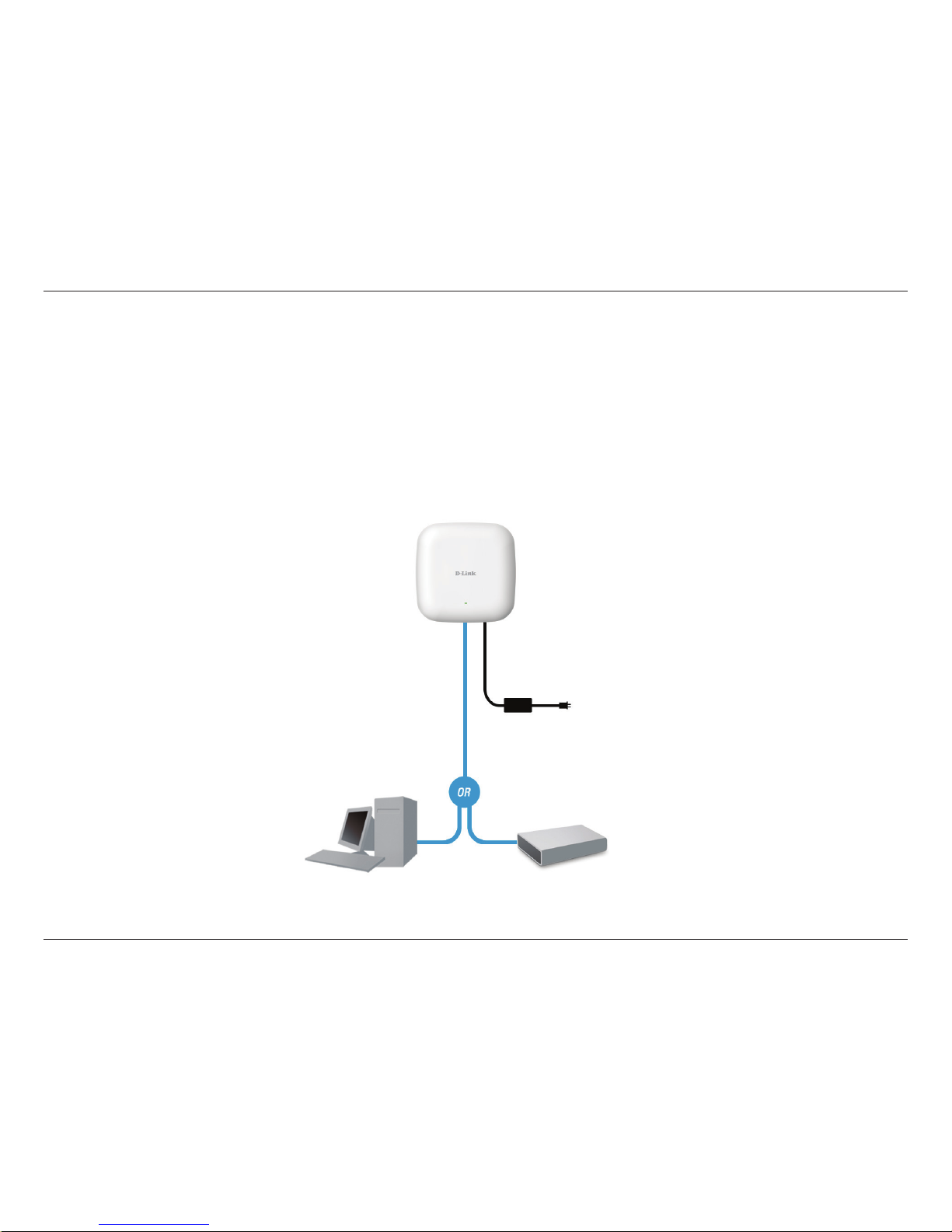

Method 3 - DC Adapter.....................................................10

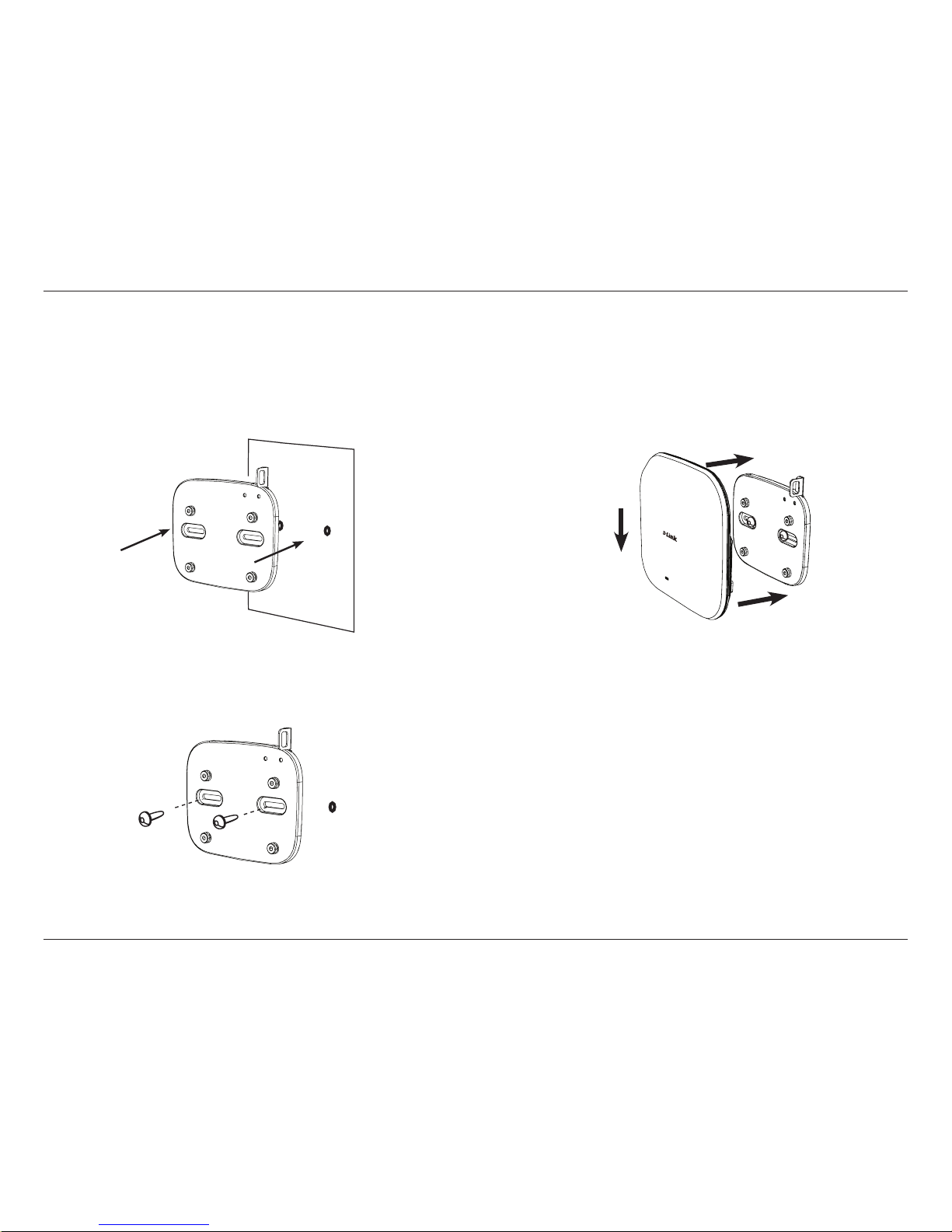

Mounting the AP ........................................................................11
Wireless Installation Considerations....................................12
Four Operational Modes .................................................13
Conguration...................................................................14
Web-based Conguration Utility..........................................14

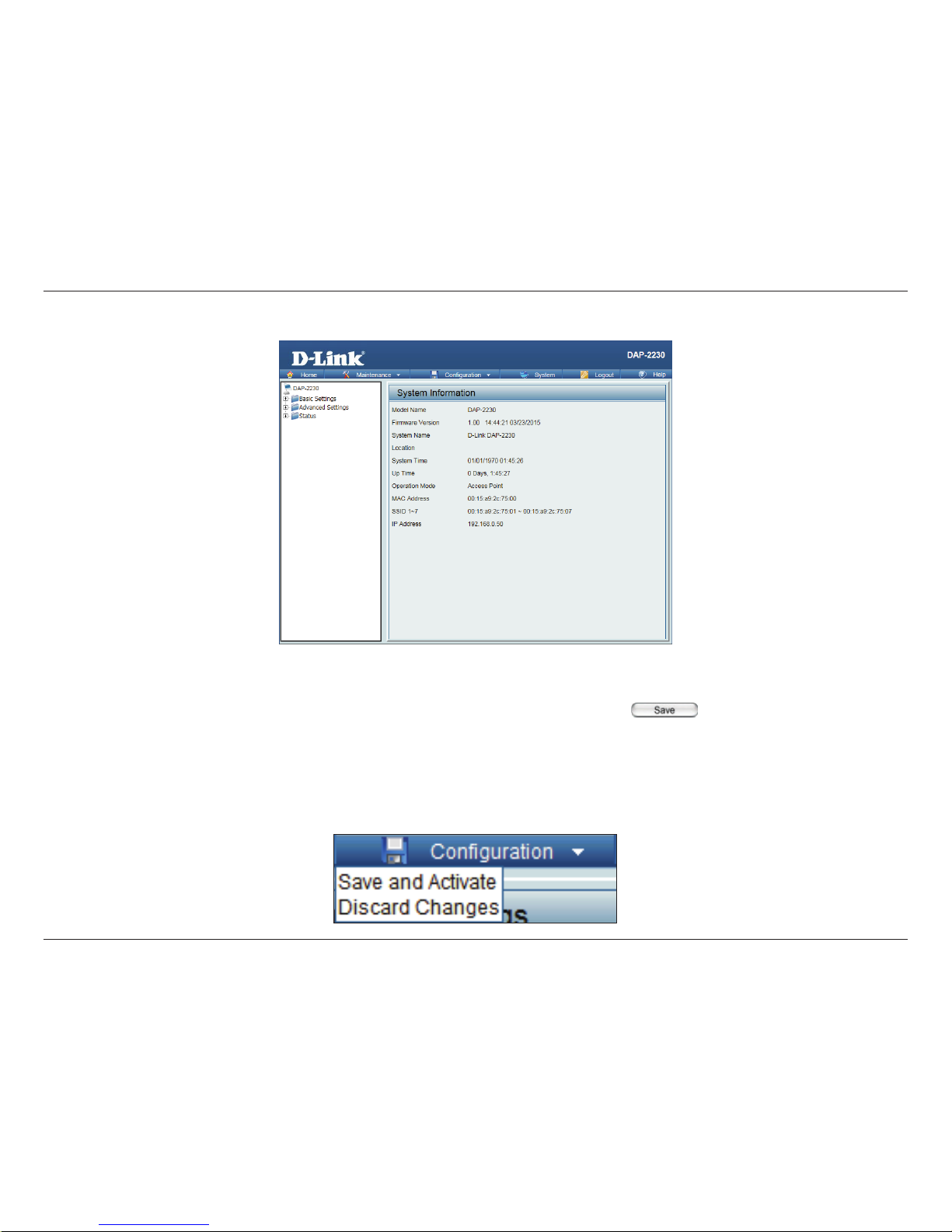

Save and Activate Settings......................................................15
Basic Settings...............................................................................16
Wireless .................................................................................16
Access Point mode ........................................................16
WDS with AP mode ......................................................18
WDS mode .......................................................................20
Wireless Client mode....................................................22
Authentication Types ........................................................24
Open System/Shared Key Authentication ...........24
WPA/WPA2-Personal Authentication......................25
WPA/WPA2-Enterprise Authentication ..................26
802.1x Authentication..................................................27
LAN .........................................................................................28
IPv6 ..........................................................................................29
Advanced Settings.....................................................................30
Performance.........................................................................30
Wireless Resource Control.......................................................32
Multi-SSID..............................................................................34
VLAN........................................................................................35
VLAN List...........................................................................35
Port List..............................................................................36
Add/Edit VLAN ................................................................37
PVID Setting.....................................................................38
Intrusion.................................................................................39
Schedule ................................................................................40
Internal RADIUS Server.....................................................41
ARP Spoong Prevention Settings...............................42
Bandwidth Optimization .................................................43
AP Array..................................................................................45
Table of Contents

iiiD-Link DAP-2230 User Manual
Table of Contents
AP Array Scan..................................................................45
Conguration Settings.................................................46
Auto-RF..............................................................................47
Load Balance ...................................................................48
Captive Portal Authentication........................................49
Web Redirection Only ..................................................49
Username/Password.....................................................50
Username/Password.....................................................50
Passcode ...........................................................................51
Remote Radius................................................................52
LDAP...................................................................................53
POP3...................................................................................55
Login Page Upload.............................................................56
Login Page Upload.............................................................56
IP Filter....................................................................................57
MAC Bypass...........................................................................58
DHCP Server ........................................................................59
Dynamic Pool Settings.................................................59
Static Pool Setting .........................................................60
Current IP Mapping List...............................................61
Filters.......................................................................................62
Wireless MAC ACL..........................................................62
WLAN Partition ...............................................................63
Trac Control.......................................................................64
Uplink/Downlink Settings ..........................................64
QoS......................................................................................65
Trac Manager...............................................................66
Status .............................................................................................67
Device Information ............................................................67
Client Information ..............................................................68
WDS Information ................................................................69
Channel Analyze .................................................................70
Statistics.................................................................................71
Ethernet.............................................................................71
WLAN Trac ....................................................................72
Log ...........................................................................................73
View Log............................................................................73
Log Settings.....................................................................74
Maintenance ...............................................................................76
Administration Settings ...................................................76
Limit Administrator.......................................................77
System Name Settings.................................................78
Login Settings.................................................................79
Console Settings ............................................................80
SNMP Settings ................................................................81
Status:.................................................................................82
Ping Control.....................................................................82
Central WiFiManager Settings...................................83
Firmware and SSL Certication Upload..............................84
Conguration File Upload.......................................................85
Time and Date .............................................................................86
System ....................................................................................87
System Settings..............................................................87
Help .................................................................................................88
Wireless Security .............................................................89
What is WEP? ................................................................................90
Congure WEP.............................................................................91

ivD-Link DAP-2230 User Manual
Table of Contents
What is WPA?................................................................................92
Congure WPA/WPA2 Personal .............................................93
Congure WPA/WPA2 Enterprise..........................................94
Connect to a Wireless Network.......................................95
Using Windows®XP ....................................................................95
Congure WPA-PSK....................................................................96
Using Windows Vista®...............................................................98
Congure WPA-PSK................................................................. 100
Using Windows®7.................................................................... 101
Troubleshooting............................................................104
Wireless Basics...............................................................108
What is Wireless?...................................................................... 109
Tips................................................................................................ 111
Wireless Modes......................................................................... 112
Networking Basics.........................................................113
Check your IP address............................................................ 113
Statically Assign an IP address............................................ 114
Technical Specications................................................115
Antenna Pattern ............................................................117
Regulatory Information ................................................118

1D-Link DAP-2230 User Manual
Section 1 - Product Overview
Note: Using a power supply with a dierent voltage rating will cause damage and void the warranty for this product.

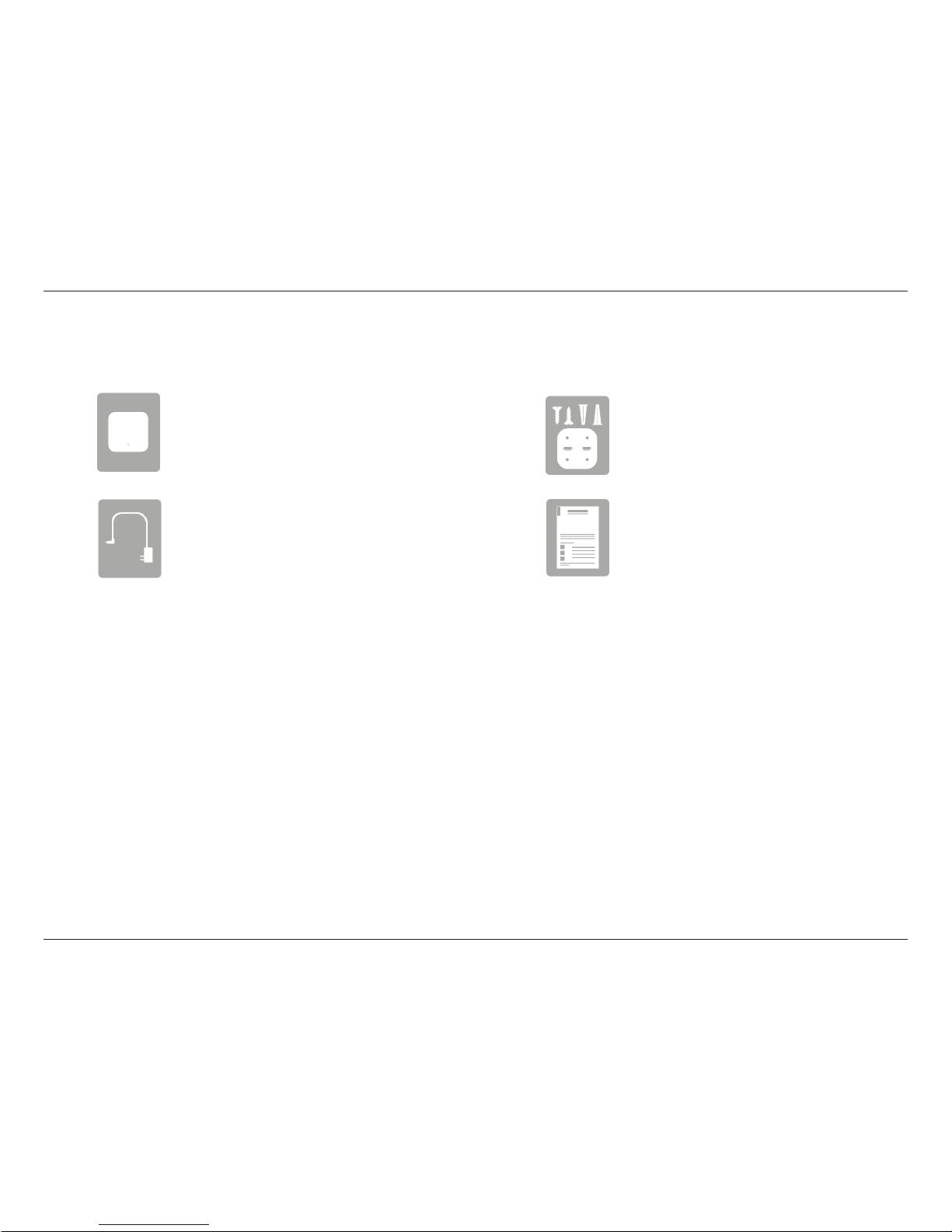

Package Contents
DAP-2230 Wireless N PoE Access Point
Quick Installation Guide
12 V DC, 1 A Power Adapter (included with
some models)
Wall mounting bracket with
mounting kit
If any of the above items are missing, please contact your reseller.

2D-Link DAP-2230 User Manual
Section 1 - Product Overview
System Requirements
Network Requirements
• An Ethernet-based Network
• IEEE 802.11n/g wireless clients (AP Mode)
• IEEE 802.11n/g wireless network (AP Mode)
Web-based Conguration
Utility Requirements
Computer with the following:
• Windows®, Macintosh, or Linux-based operating system
• An installed Ethernet adapter
Browser Requirements:
• Microsoft Internet Explorer® 7, Mozilla® Firefox® 12.0,
Google® Chrome 20.0, or Safari® 4 or higher
Windows®Users: Make sure you have the latest version of Java installed.
Visit www.java.com to download the latest version.

3D-Link DAP-2230 User Manual
Section 1 - Product Overview
Introduction
The D-Link DAP-2230 Wireless N PoE Access Point is an 802.11n compliant device that delivers real world performance of up to
300 Mbps*while still maintaining backwards compatibility with slower 802.11g and 802.11b devices. The DAP-2230 increases
productivity by allowing you to work faster and more eciently. With the DAP-2230, bandwidth-intensive applications like
graphics or multimedia will benet signicantly because large les are now able to move across the network more quickly.
Create a secure wireless network to share photos, les, music, video, printers, and network storage outside of your normal
internal networking environment. Built to withstand harsh environments, the DAP-2230 also excels in connecting separate
networks that cannot be joined physically using a traditional medium. The built-in omni-directional 3 dBi antenna is designed
to deliver high performance, ensuring that wireless coverage will cover even hard to reach locations.The DAP-2230 is an ideal
solution for quickly creating and extending a wireless local area network (WLAN) in oces or other workplaces, hotels, resorts,
trade shows, and special events.
The DAP-2230 features four dierent operation modes: Access Point, Wireless Distribution System (WDS), WDS with AP, and
Wireless Client mode, allowing it to adapt to many situations. As a standard wireless Access Point (AP) the DAP-2230 can connect
to a wide range of devices that are 802.11 n/g/b compliant. In WDS mode it can expand current wireless coverage without the
need for a wired backbone link. As a wireless client it can connect to an existing AP, and expand the network physically with
the built-in 10/100 Ethernet port.
The DAP-2230 supports 64/128-bit WEP data encryption andWPA/WPA2 security functions. In addition, it provides MAC Address
Filtering to control user access, and the Disable SSID Broadcast function to limit unauthorized access to the internal network.
Network administrators have multiple options for managing the DAP-2230, including Web (HTTP) or Secured Web (HTTPS).
For advanced network management, administrators can use SNMP v1, v2c, v3 to congure and manage access points.
*Maximum wireless signal rate derived from IEEE Standard 802.11n and 802.11g specications. Actual data throughput may vary. Network conditions
and environmental factors, including volume of network trac, building materials and construction, and network overhead can lower actual data
throughout rate.

4D-Link DAP-2230 User Manual
Section 1 - Product Overview
• Faster Wireless Networking - The DAP-2230 provides an up to 300 Mbps* wireless connection with other 802.11n
wireless clients. This capability allows users to participate in real-time activities online, such as video streaming, online
gaming, and real-time audio.
• Compatible with IEEE802.11g Devices - The DAP-2230 is still fully compatible with the 802.11g standards, so it can
connect with existing 802.11g adapters.
• Four dierent operation modes - Capable of operating in one of four dierent operation modes to meet your wireless
networking needs: Access Point, WDS with AP, WDS, and Wireless Client.
• Power over Ethernet - The DAP-2230 supports IEEE 802.3af PoE (Power over Ethernet) which enables it to be supplied
with power over an Ethernet cable or IEEE 802.3af PoE switch.
• ComprehensiveWeb-Interface - Fine tune network settings using the DAP-2230’s robust network-based conguration
software.
• Central WiFiManager management software compatibility - The real-time display of the network’s topology and
AP’s information makes network conguration and management of multiple devices quick and simple.
• SNMP for management - The DAP-2230 supports SNMP v1, v2c, and v3 for better network management. Superior
wireless AP manager software is bundled with the DAP-2230 for network conguration and rmware upgrade.
Systems administrators can also set up the DAP-2230 easily with the Web-based conguration utility.
• Convenient Installation - The DAP-2230 features a wall mount in the rear for easy setup on walls.
Features

5D-Link DAP-2230 User Manual
Section 1 - Product Overview
Hardware Overview
Top Panel
Power/Status LED
1
Static Green Ready/Working Properly
Flashing Green Transmitting/Receiving data
Flashing Red Malfunction during boot
Solid Red Boot failure
1

6D-Link DAP-2230 User Manual
Section 1 - Product Overview
Hardware Overview
Bottom Panel
1Security Lock Physically secure your device with this lock.
2Power Connector Connector for a power adapter.
310/100 LAN (PoE)Port Connect an Ethernet cable to this device and your network. Power may be supplied
to this port via a LAN cable that is connected to a PoE injector or PoE switch.
4Reset Button
Press and hold the reset button with a paperclip for at least 5 seconds to reset the
device back to the factory default settings. The LED will turn on for 2 seconds and
then begin the reboot process.
1 2 3 4

7D-Link DAP-2230 User Manual
Section 2 - Installation
This chapter describes safety precautions and product information that you must know and check before installing this product.
Physical Installation
Before You Begin
Professional Installation Required
1. Please seek assistance from a professional installer who is well trained in RF installation and knowledgeable about local
regulations.
2. This product is distributed through distributors and system installers with professional technicians and is not to be sold
directly through retail stores.

8D-Link DAP-2230 User Manual
Section 2 - Installation
Connect to your Network
Method 1 - Powered by PoE Switch
To power the access point, you can use one of the following 3 methods:
Method 1 - Powered by PoE Switch
Method 2 - Powered by PoE Injector
Method 3 - Powered by DC Adapter
1. Connect one end of an Ethernet cable into the LAN (PoE) port on the DAP-2230 and then connect the other end to a PoE
switch.
DAP-2230
PoE Switch

9D-Link DAP-2230 User Manual
Section 2 - Installation
Method 2 - Powered by PoE Injector
If you wish to power the DAP-2230 without a PoE switch, we suggest you use a PoE injector, such as a DPE-101GI.
1. Connect one end of an Ethernet cable into the DATA IN port on the PoE injector and the other end into a port on a switch,
router, or computer.
2. Connect one end of a dierent Ethernet cable into the P+DATA OUT port on the PoE injector and the other end into the LAN
(PoE) port on the DAP-2230 access point.
3. Connect the supplied power adapter to the POWER IN connector on the PoE Injector.
4. Plug the power adapter into a power outlet.
DAP-2230
PC Switch
Power
adapter PoE Base
Unit

10D-Link DAP-2230 User Manual
Section 2 - Installation
A power adapter is included with some DAP-2230 models.
1. Connect an Ethernet cable from your network device to the LAN(PoE) port on the DAP-2230.
2. Connect the supplied power adapter to the DC IN connector on the DAP-2230.
3. Plug the power adapter into a power outlet.
Method 3 - DC Adapter
DAP-2230
Switch or Router
PC
Power Adapter

11D-Link DAP-2230 User Manual
Section 2 - Installation
Mounting the AP
Place the mounting bracket on a wall or ceiling and mark holes
where you will insert the screws with a marker. Drill holes in the
marked points and insert the plastic wall anchors.
Use the supplied screws to attach the mounting plate to the wall.
Reattach the DAP-2230 to the mounting bracket.

12D-Link DAP-2230 User Manual
Section 2 - Installation
Wireless Installation Considerations
The D-Link DAP-2230 Wireless N PoE Access Point lets you access your network using a wireless connection from virtually
anywhere within the operating range of your wireless network. Keep in mind, however, that the number, thickness and location
of walls, ceilings, or other objects that the wireless signals must pass through, may limit the range.Typical ranges vary depending
on the types of materials and background RF (radio frequency) noise in your home or business.The key to maximizing wireless
range is to follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link access point and other network devices to a minimum.
Each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters). Position your devices so that
the number of walls or ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a 45-degree
angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick!
Position devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for better
reception.
3. Building materials make a dierence. A solid metal door or aluminum studs may have a negative eect on
range. Try to position access points, wireless access points, and computers so that the signal passes through
drywall or open doorways. Materials and objects such as glass, steel, metal, walls with insulation, water (sh
tanks), mirrors, le cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF
noise.
5. If you are using 2.4 Ghz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home security
systems), your wireless connection may degrade dramatically or drop completely. Make sure your 2.4 Hz phone
base is as far away from your wireless devices as possible. The base transmits a signal even if the phone is not
in use.

13D-Link DAP-2230 User Manual
Section 2 - Installation
Four Operational Modes
Operation Mode
(Only supports 1 mode at a time)
Function
Access Point (AP) Create a wireless LAN
WDS with AP Wirelessly connect multiple networks
while still functioning as a wireless AP
WDS Wirelessly connect multiple networks
Wireless Client AP acts as a wireless network adapter for
your Ethernet-enabled device

14D-Link DAP-2230 User Manual
Section 3 - Conguration
Conguration
This section will show you how to congure your new D-Link Wireless N PoE Access Point using the web-based conguration
utility.
Web-based Conguration Utility
If you wish to change the default settings or optimise the
performance of the DAP-2230, you may use the web-
based conguration utility.

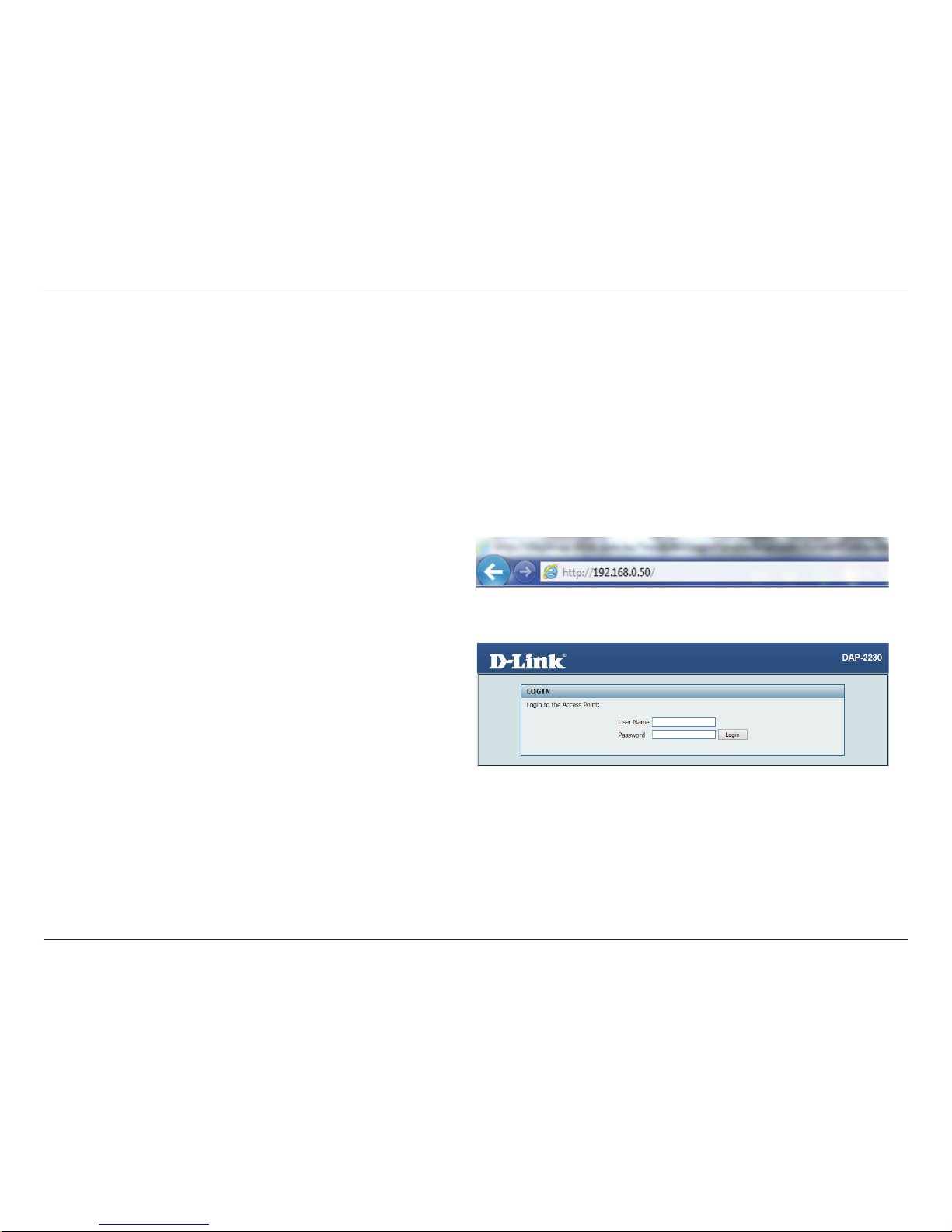

To access the conguration utility, open a web browser
such as Internet Explorer and enter http://192.168.0.50
Type admin and then enter your password. Leave the
password blank by default.
If you get a Page Cannot be Displayed error, please refer
to“Troubleshooting”on page 104 for assistance.

15D-Link DAP-2230 User Manual
Section 3 - Conguration
After successfully logging into the DAP-2230, the following screen will appear:
When making changes on most of the conguration screens in this section, use the button at the bottom of each
screen to save (not activate) your conguration changes.
You may change settings to multiple pages before activating. Once you are nished, click the Conguration button located
at the top of the page and then click Save and Activate.
Save and Activate Settings
