D-Link Rangebooster N 650 Access Point DAP-1353 User manual

2D-Link DAP-1353 User Manual
Table of Contents
Product Overview ........................................................ 4
Package Contents ................................................... 4
System Requirements ............................................. 4
Introduction..............................................................5
Features .................................................................. 6
Hardware Overview ................................................. 7
Connections....................................................... 7
LEDs ..................................................................8
Installation.................................................................... 9
Wireless Installation Considerations...................... 10
Conguration............................................................. 11
Web-based Conguration Utility ............................ 11
Setup Wizard ................................................... 13
Wireless Setup................................................. 18
Wireless Settings ......................................... 19
LAN Setup ....................................................... 20
LAN Settings ................................................ 21
Advanced...............................................................22
Performance .................................................... 22
Advanced Wireless Settings ........................ 23
Filter.................................................................24
Wireless Access Settings.............................25
WLAN Partition ................................................ 26
DHCP SERVER..................................................... 27
DHCP Server Settings..................................... 28
Multi-SSID .............................................................29
Multi-SSID Settings ......................................... 30
User Limit ..............................................................31
User Limit Setting ............................................ 32
Maintenance .......................................................... 33
Device Administration ...................................... 34
System.............................................................35
Firmware.......................................................... 36
MISC................................................................37
Time.................................................................38
Status .................................................................... 39
Device Info............................................................. 40
Statistics ..........................................................41
Log................................................................... 42
Client Info......................................................... 44
Support ............................................................45
Wireless Security....................................................... 46
What is WEP? ............................................................. 46
Congure WEP............................................................ 47
What is WPA? .......................................................49
Congure WPA-Personal ...................................... 50
Congure WPA (Enterprise) .................................. 51
Table of Contents

3D-Link DAP-1353 User Manual
Table of Contents
Connect to a Wireless Network................................ 52
Using Windows®XP............................................... 52
Congure WEP...................................................... 53
Congure WPA-Personal ...................................... 55
Troubleshooting ........................................................ 57
Wireless Basics .........................................................59
What is Wireless?.................................................. 60
Tips........................................................................ 62
Wireless Modes ..................................................... 63
Networking Basics .................................................... 64
Check your IP address .......................................... 64
Statically Assign an IP address ............................. 65
Technical Specications........................................... 66

4D-Link DAP-1353 User Manual
Section 1 - Product Overview
• D-Link DAP-1353 RangeBooster N 650 Access Point
• 3 Detachable Antennas
• Power Adapter
• CAT5 Ethernet Cable
• CD-ROM with Product Documentation
• Quick Install Guide
System Requirements
• Computers with Windows®, Macintosh®, or Linux-based operating systems with an installed Ethernet
Adapter
• Internet Explorer Version 6.0 and Firefox 1.5 or above ( for conguration)
Product Overview
Package Contents
Note:1.Using a power supply with a different voltage rating than the one included
with the DAP-1353 will cause damage and void the warranty for this
product.
2.The power supply shall instruct the user not to remove
the plug and plug into a wall outlet by itself; always attach
the plug to the power supply rst before insert.

5D-Link DAP-1353 User Manual
Section 1 - Product Overview
Introduction
TOTAL PERFORMANCE
Combines award winning access point features and draft 802.11n wireless technology to provide the best wireless
performance.
TOTAL COVERAGE
Provides greater wireless signal rates even at further distances for best-in-class coverage.
ULTIMATE PERFORMANCE
The D-Link RangeBooster N 650 Access Point (DAP-1353) is a draft 802.11n compliant device that delivers real world
perfomance of up to 650% faster than an 802.11g wireless connection (also faster than a 100Mbps wired Ethernet
connection). Create a secure wireless network to share photos, les, music, video, printers and network storage.
EXTENDED WHOLE HOME COVERAGE
Powered by RangeBooster N 650 technology, this high performance access point provides superior Whole Home
Coverage while reducing wireless dead spots. The RangeBooster N 650 Access Point is designed for use in bigger
homes and for users who demand higher performance networking. Add a RangeBooster N 650 notebook or desktop
wireless adapter and stay connected to your network from virutally anywhere in your home.
TOTAL NETWORK SECURITY
The RangeBooster N 650 Access Point supports all of the latest wireless security features to prevent unauthorized
access. Support for WPA and WEP encryption standards ensure that you’ll be able to use the best possible encryption
method, regardless of your wireless client devices.
* Maximum wireless signal rate derived from IEEE Standard 802.11g and draft 802.11n specications. Actual data throughput will vary. Network conditions
and environmental factors, including volume of network trafc, building materials and construction, and network overhead, lower actual data throughput
rate. Environmental conditions will adversely affect wireless signal range.

6D-Link DAP-1353 User Manual
Section 1 - Product Overview
• Faster Wireless Networking - The DAP-1353 provides up to 300Mbps* wireless connection with other
draft 802.11n wireless clients. This capability allows users to participate in real-time activities online, such
as video streaming, online gaming, and real-time audio. The performance of this draft 802.11n wireless
access point gives you the freedom of wireless networking at speeds 650% faster than 802.11g.
• Compatible with 802.11b and 802.11g Devices - The DAP-1353 is still fully compatible with the IEEE
802.11b standard, so it can connect with existing 802.11b PCI, USB and Cardbus adapters.
• MAC Address Filtering - Allow or deny wireless clients access to the network based on their MAC
address.
• User-friendly Setup Wizard - Through its easy-to-use Web-based user interface, the DAP-1353 lets
you control what information is accessible to those on the wireless network, whether from the Internet or
from your company’s server. Congure your access point to your specic settings within minutes.
* Maximum wireless signal rate derived from IEEE Standard 802.11g and draft 802.11n specications. Actual data throughput will vary. Network
conditions and environmental factors, including volume of network trafc, building materials and construction, and network overhead, lower actual
data throughput rate. Environmental conditions will adversely affect wireless signal range.
Features

7D-Link DAP-1353 User Manual
Section 1 - Product Overview

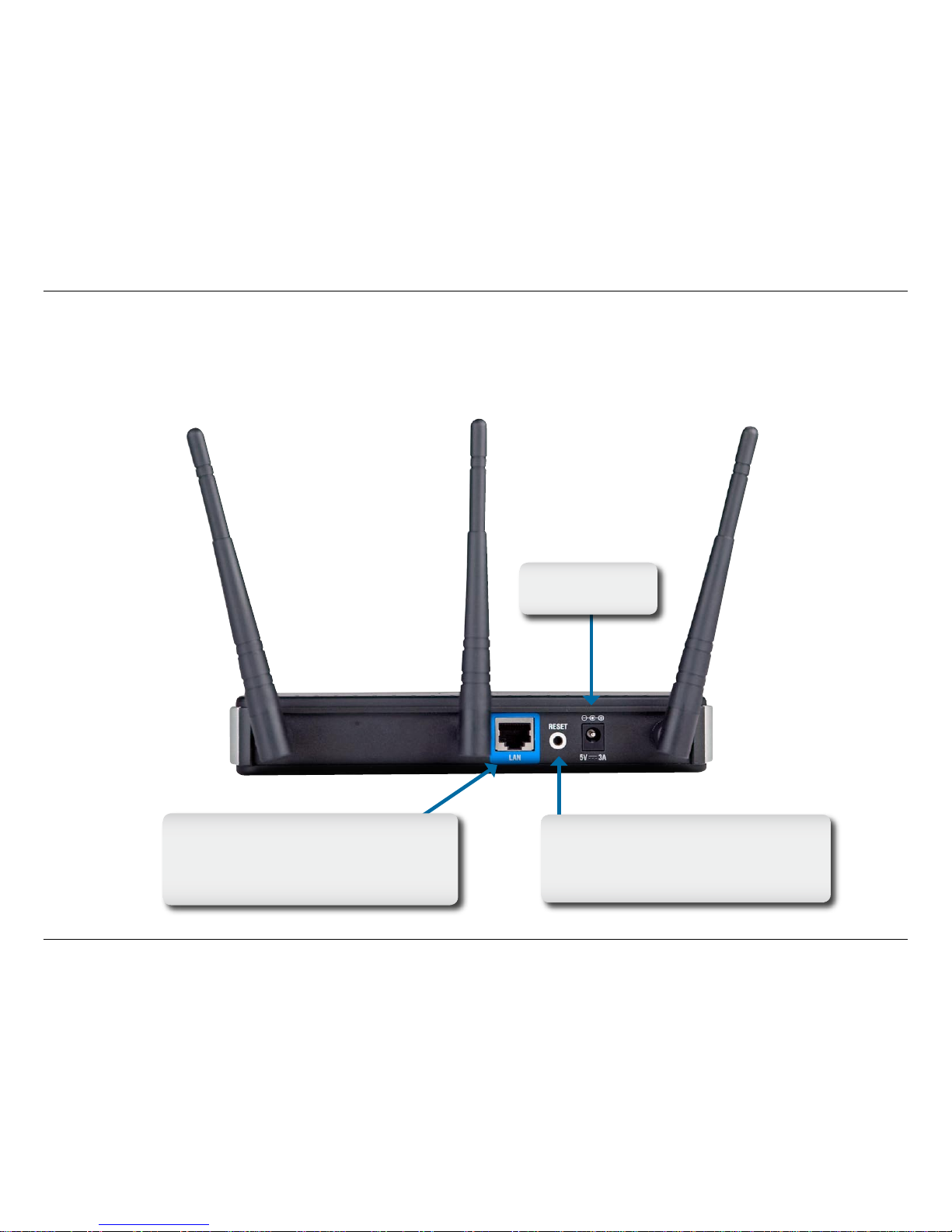

Hardware Overview
Connections
Pressing the Reset Button restores
the access point to its original
factory default settings.
Receptor for the
Power Adapter.
LAN Port
Connect Ethernet devices such as
computers, switches, and hubs.

8D-Link DAP-1353 User Manual
Section 1 - Product Overview
Hardware Overview

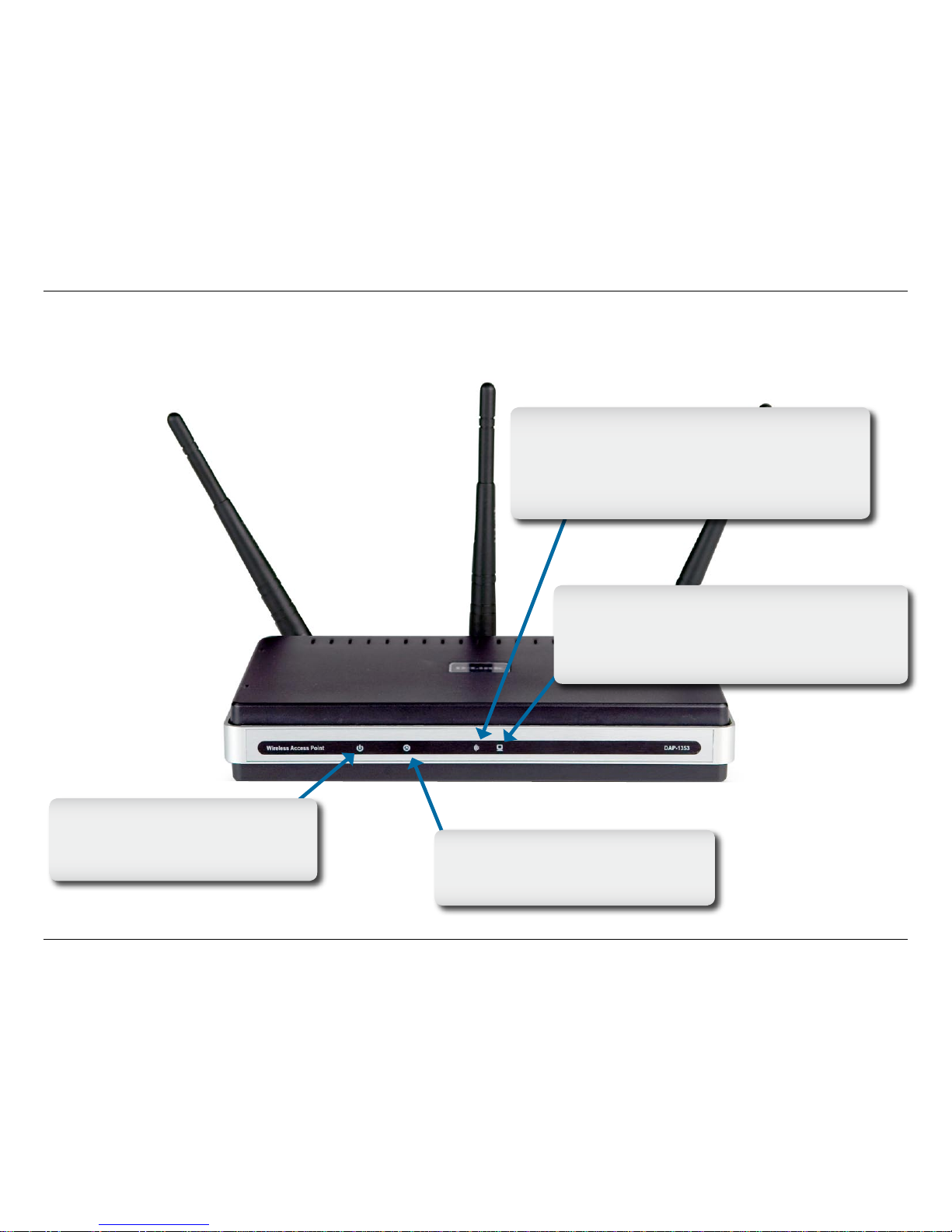

LEDs
WLAN LED
A solid light indicates that the wireless
segment is ready. This LED blinks during
wireless data transmission.
LAN LED
A solid light indicates a connection to an
Ethernet-enabled device. This LED blinks
during data transmission.
Status LED
A blinking light indicates that the
DAP-1353 is ready.
Power LED
A solid light indicates a proper
connection to the power supply.

9D-Link DAP-1353 User Manual
Section 2 - Installation
Installation
This section will walk you through the installation process. Placement of the access point is very important. Do not
place the access point in an enclosed area such as a closet, cabinet, or in the attic or garage.

10D-Link DAP-1353 User Manual
Section 2 - Installation
Wireless Installation Considerations
The D-Link RangeBooster N 650 wireless access point lets you access your network using a wireless connection
from virtually anywhere within the operating range of your wireless network. Keep in mind, however, that the number,
thickness and location of walls, ceilings, or other objects that the wireless signals must pass through, may limit the
range. Typical ranges vary depending on the types of materials and background RF (radio frequency) noise in your
home or business. The key to maximizing wireless range is to follow these basic guidelines:
1. Keep the number of walls and ceilings between the access point and other network devices to a minimum
- each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your devices
so that the number of walls or ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a
45-degree angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet
(14 meters) thick! Position devices so that the signal will travel straight through a wall or ceiling (instead
of at an angle) for better reception.
3. Building Materials make a difference. A solid metal door or aluminum studs may have a negative effect on
range. Try to position access points, wireless routers, and computers so that the signal passes through
drywall or open doorways. Materials and objects such as glass, steel, metal, walls with insulation, water
(sh tanks), mirrors, le cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that
generate RF noise.
5. If you are using 2.4GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and
home security systems), your wireless connection may degrade dramatically or drop completely. Make
sure your 2.4GHz phone base is as far away from your wireless devices as possible. The base transmits
a signal even if the phone in not in use.

11D-Link DAP-1353 User Manual
Section 3 - Configuration
Configuration
This section will show you how to congure your new D-Link wireless access point using the web-based conguration
utility.
Web-based Configuration Utility

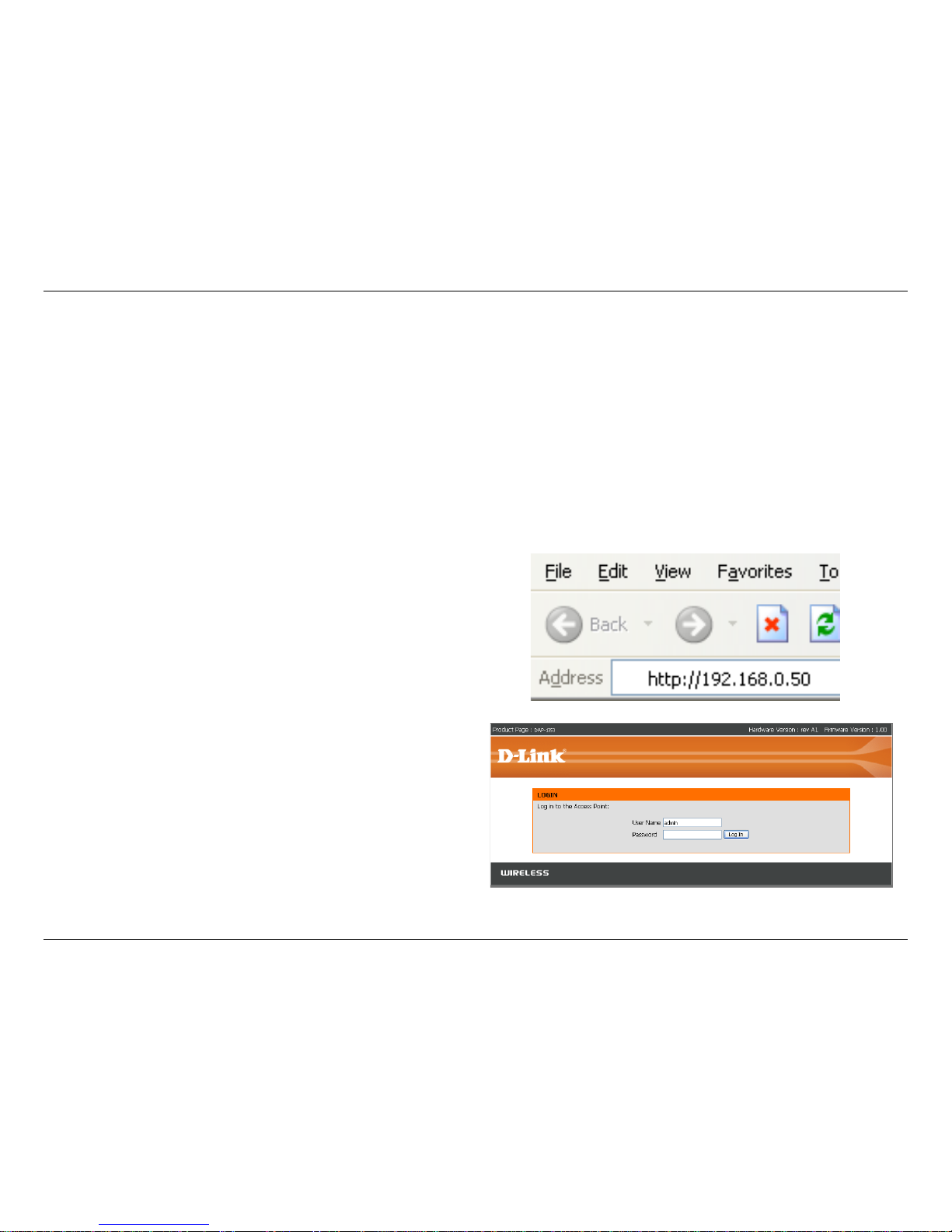

To access the conguration utility, open a web-browser
such as Internet Explorer and enter the IP address of
the access point (192.168.0.50).
Enter the user name (admin) and your password. Leave
the password blank by default.
If you get a “Page Cannot be Displayed” error, please
refer to the Troubleshooting section for assistance.

12D-Link DAP-1353 User Manual
Section 3 - Configuration

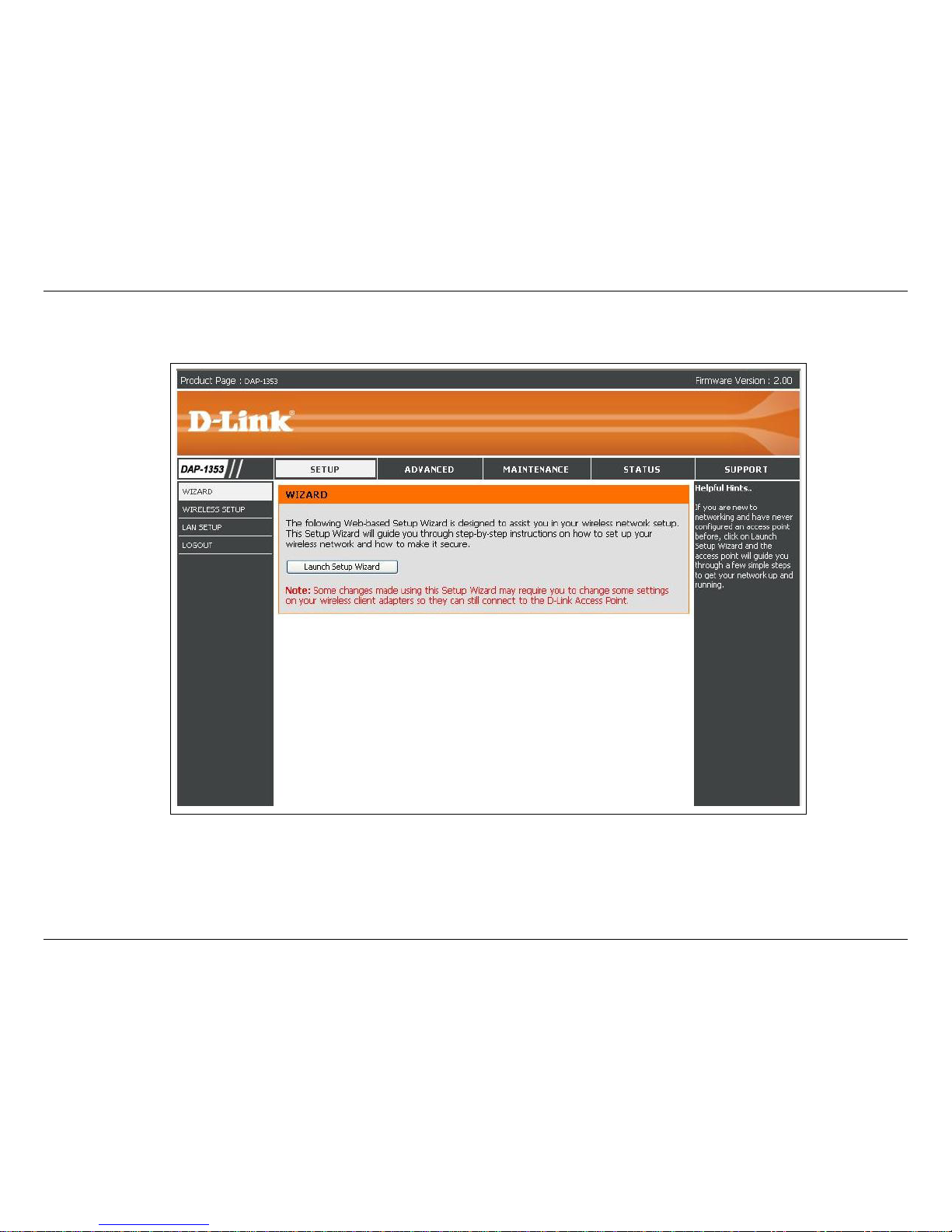

After logging in the Setup > Wizard page will be displayed:

13D-Link DAP-1353 User Manual
Section 3 - Configuration

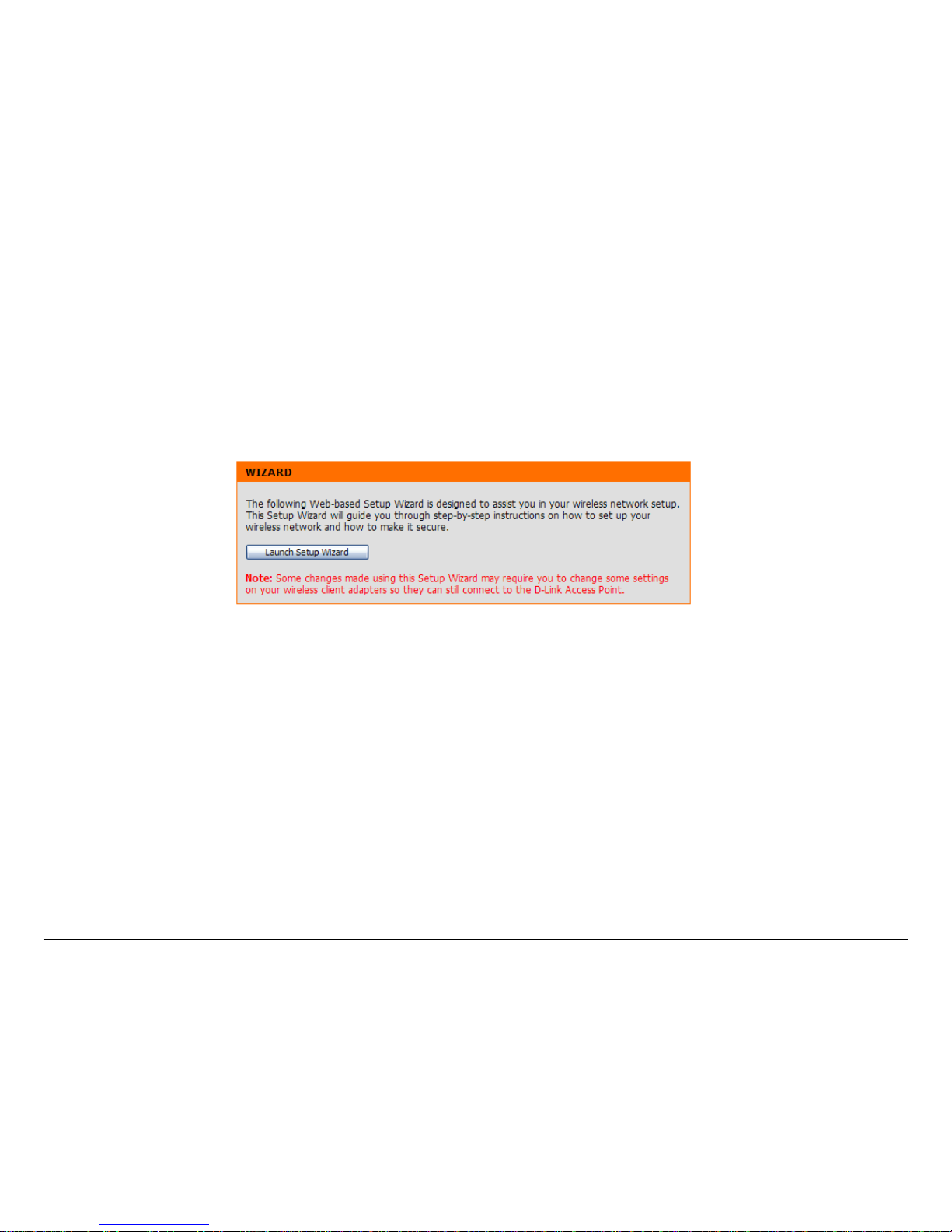

Setup Wizard
A Setup Wizard is available to quickly and easily congure access point wireless security settings.
Click Launch Setup Wizard.

14D-Link DAP-1353 User Manual
Section 3 - Configuration

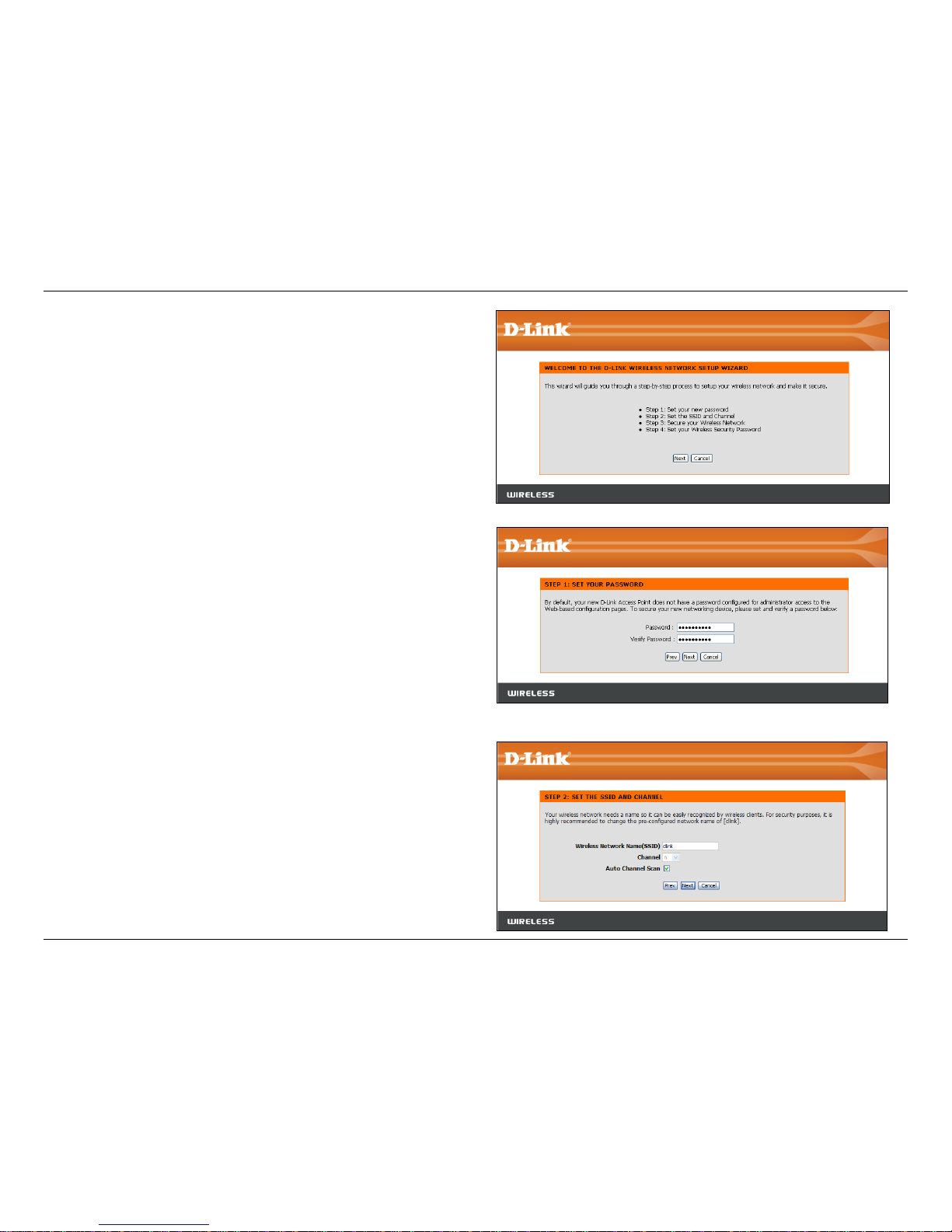

The wizard welcome screen will appear. Click Next to
continue.
Create a new password and then click Next to continue.
Enter your wireless network name (SSID). Auto Channel
Scan is enabled by default. Uncheck the option to select a
channel. Click Next to continue.

15D-Link DAP-1353 User Manual
Section 3 - Configuration
Select the type of wireless security you want to use:
• Best - WPA2 Authentication
• Better - WPA Authentication
• Good - WEP Encryption
• None - No Security
Click Next to continue.
If you selected Good (WEP) security, select a Key Type,
Key Size, and enter a Wireless Security Password:
Click Next to continue.

16D-Link DAP-1353 User Manual
Section 3 - Configuration

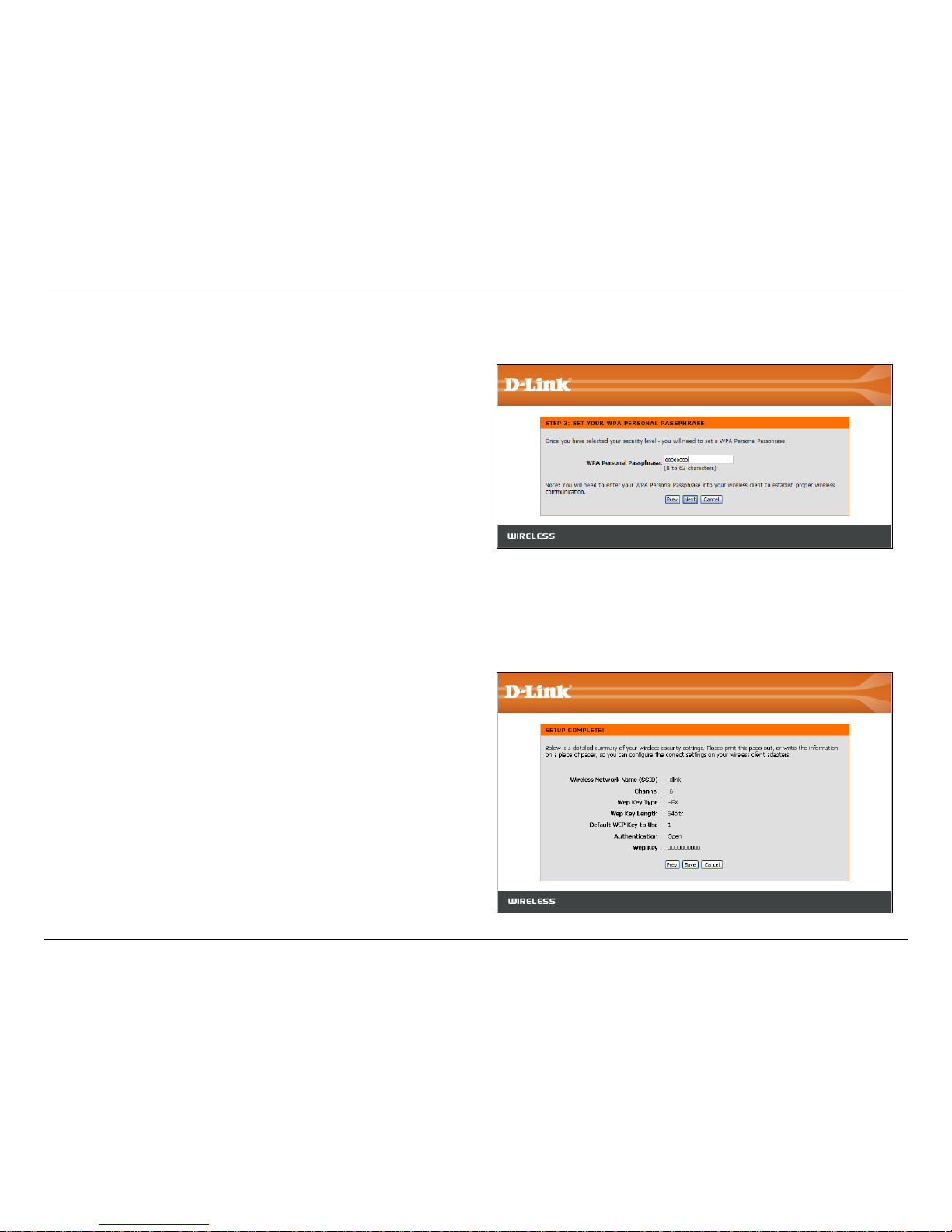

At the Setup Complete screen, if you selected Good
security, the following screen will show your WEP key. This
key should be used by wireless clients connecting to the
wireless network:
Click Save.
If you selected Better/Best security, enter a Wireless
Security Password between 8-63 characters:
Click Next to continue.

17D-Link DAP-1353 User Manual
Section 3 - Configuration

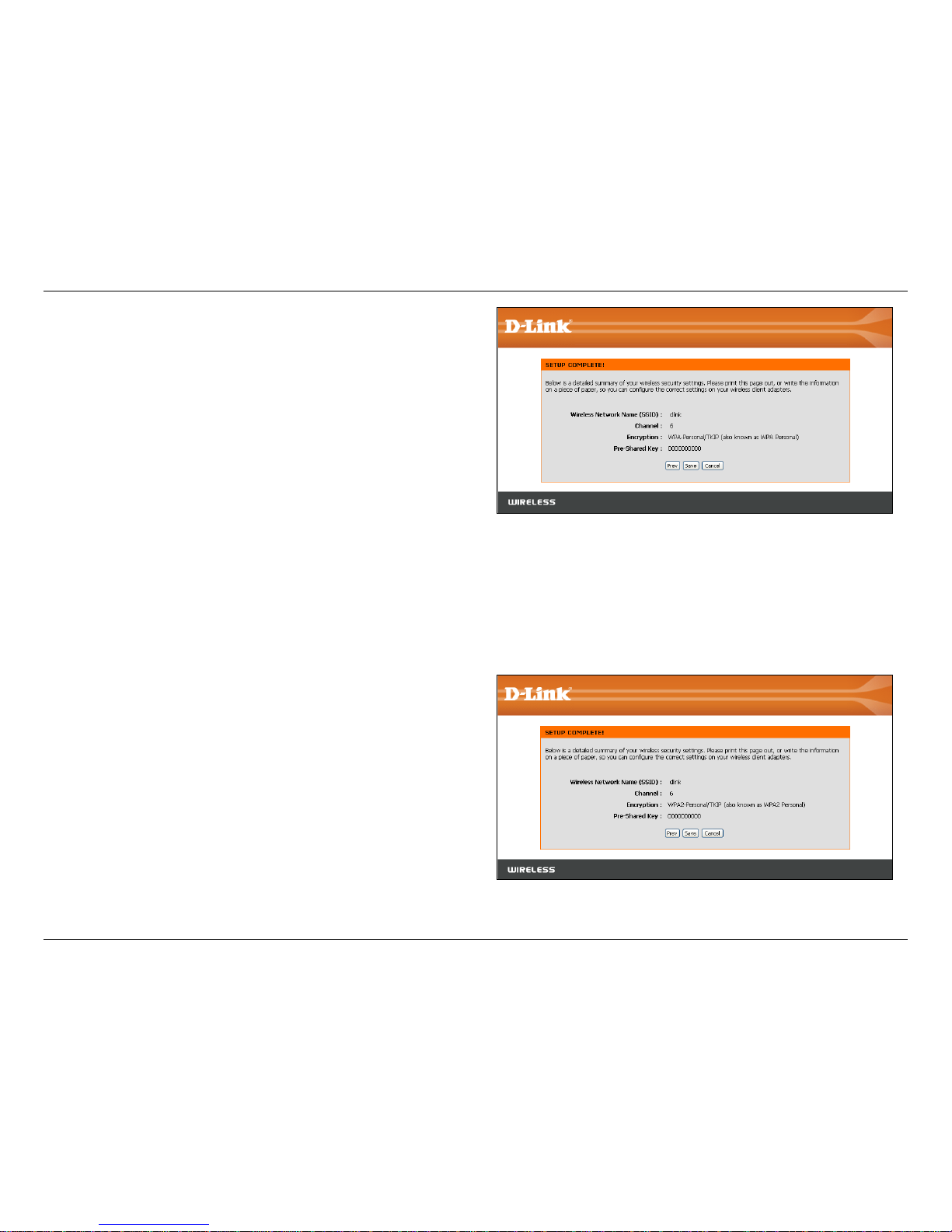

IfyouselectedBestsecurity,thefollowingscreenwillshowyour
Pre-Shared Key. This key should be used by wireless
clients connecting to the wireless network:
Click Save.
If you selected Better security, the following screen will
show your Pre-Shared Key. This key should be used by
wireless clients connecting to the wireless network.
Click Save.

18D-Link DAP-1353 User Manual
Section 3 - Configuration

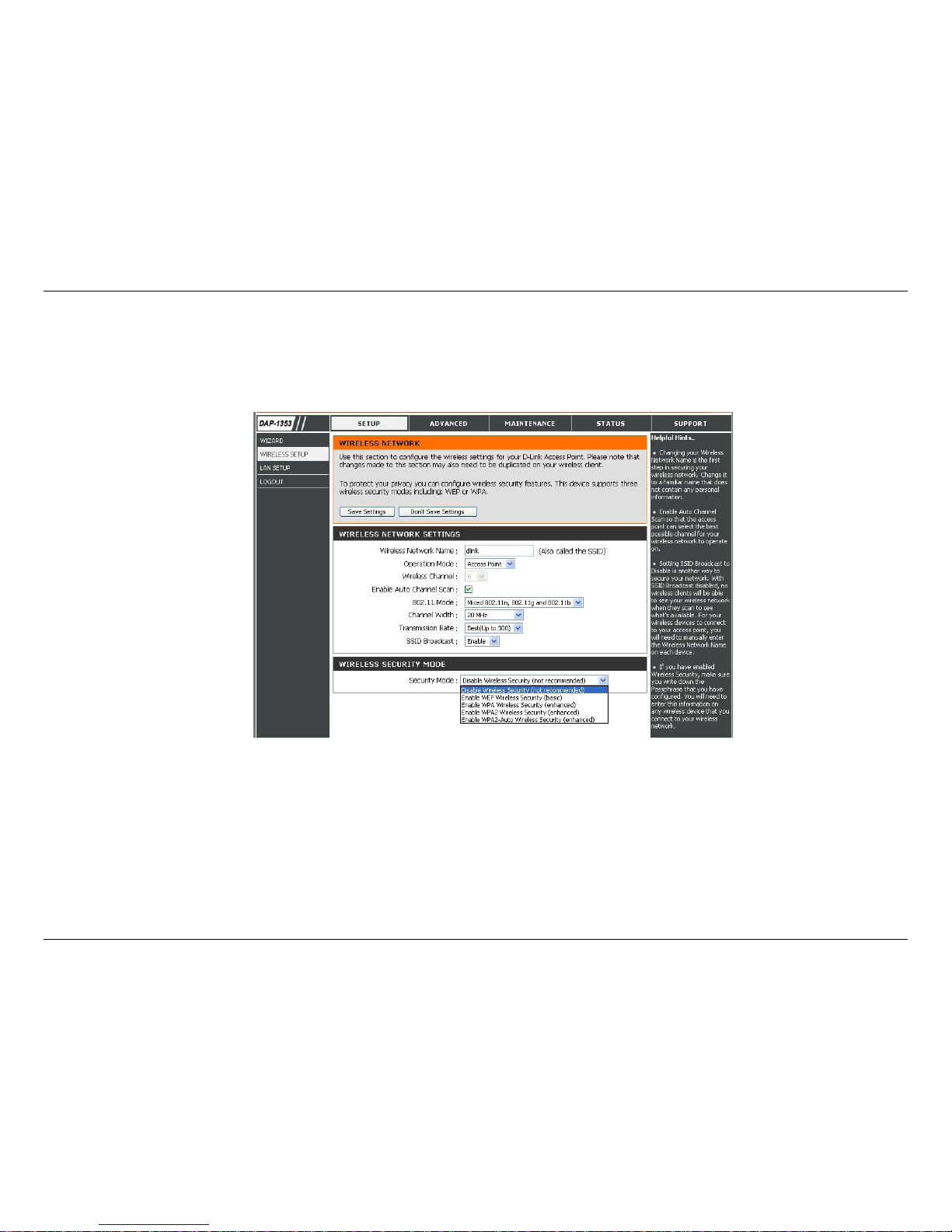

Wireless Setup
The Wireless Setup page is used to congure the wireless settings for the access point. Wireless security settings are
also congured on this page.

19D-Link DAP-1353 User Manual
Section 3 - Configuration

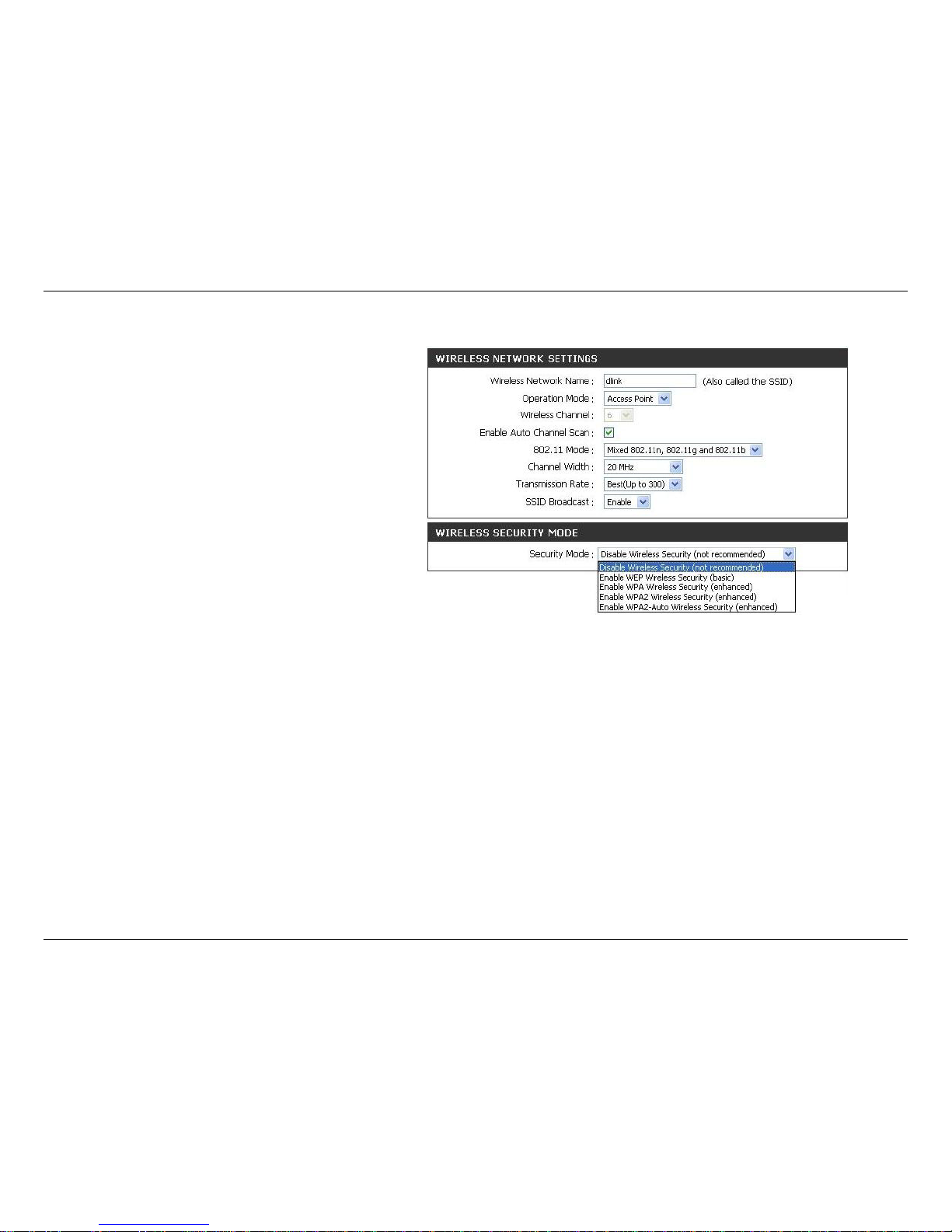

Wireless
Channel:
Wireless Network
Name:
802.11 Mode:
SSID Broadcast:
Wireless Settings
Service Set Identier (SSID) is the name
of your wireless network. Create a name
using up to 32 characters. The SSID is case-
sensitive, and set to dlink by default.
Indicates the channel setting for the DAP-
1353. The Channel can be changed to t the
channel setting for an existing wireless network
or to customize the wireless network.
Select the appropriate 802.11 mode based on the wireless clients in your network. The drop-down menu options are 802.11g
Only, Mixed 802.11b/g, 802.11b Only, 802.11n Only, or Mixed 802.11b/g/n.
Select Disable if you do not want the SSID to be broadcast by the DAP-1353. This prevents the SSID from being seen
by Site Survey utilities, so any wireless clients will have to be pre-congured with the SSID of the DAP-1353 in order to
connect to it.
Wireless
Security Mode:
Select a wireless security setting. Options are None, WEP, WPA, WPA2 or WPA2-Auto. See p. 46 for a detailed explanation
of the wireless security options.
Enable Auto
Chanel Scan:
Enabled by default, allows the
DAP-1353 to select the channel with the least
amount of interference.
Channel Width: Select the appropriate channel width between 20MHz or Auto 20/40MHz from the pull-down menu.
Transmission
Rate:
Select the transmission rate. It is strongly suggested to use the Best setting for optimal performance.
Operation
Mode :
Select Access Point mode,WDS mode,WDS
with AP mode,AP Repeater mode or AP
Client mode.

20D-Link DAP-1353 User Manual
Section 3 - Configuration

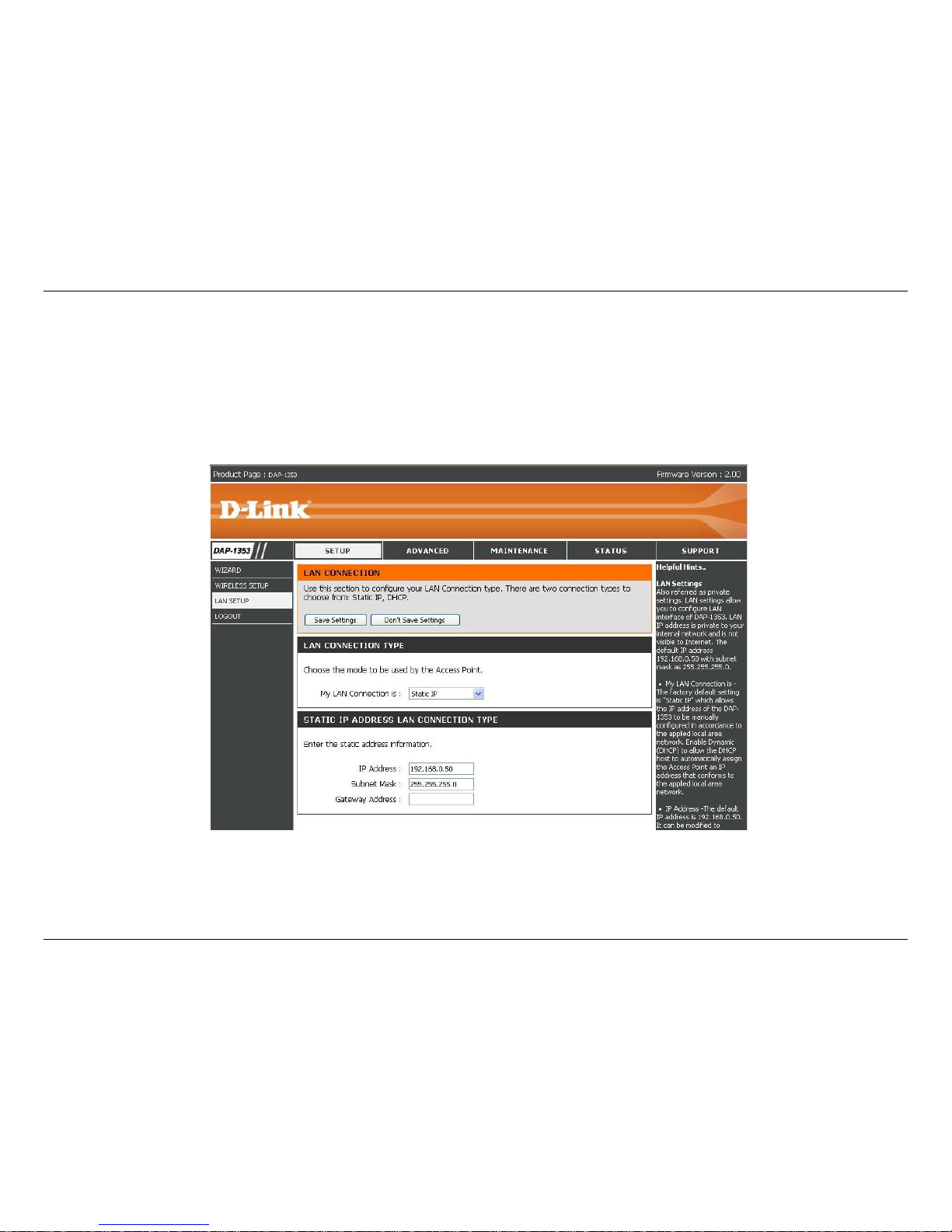

LAN Setup
The LAN, or Local Area Network, is your private, internal network. This page allows you to congure the IP settings
of the LAN interface for the DAP-1353. The IP address can be changed to your current network IP range. This IP
address cannot be seen from the Internet.
