DWL-3200AP Install GuideSystem Requirements
D-Link Air PremierTM DWL-3200AP
Managed Wireless Access Point
Using a power adapter with a different
voltage rating will damage and void the
warranty of this product.

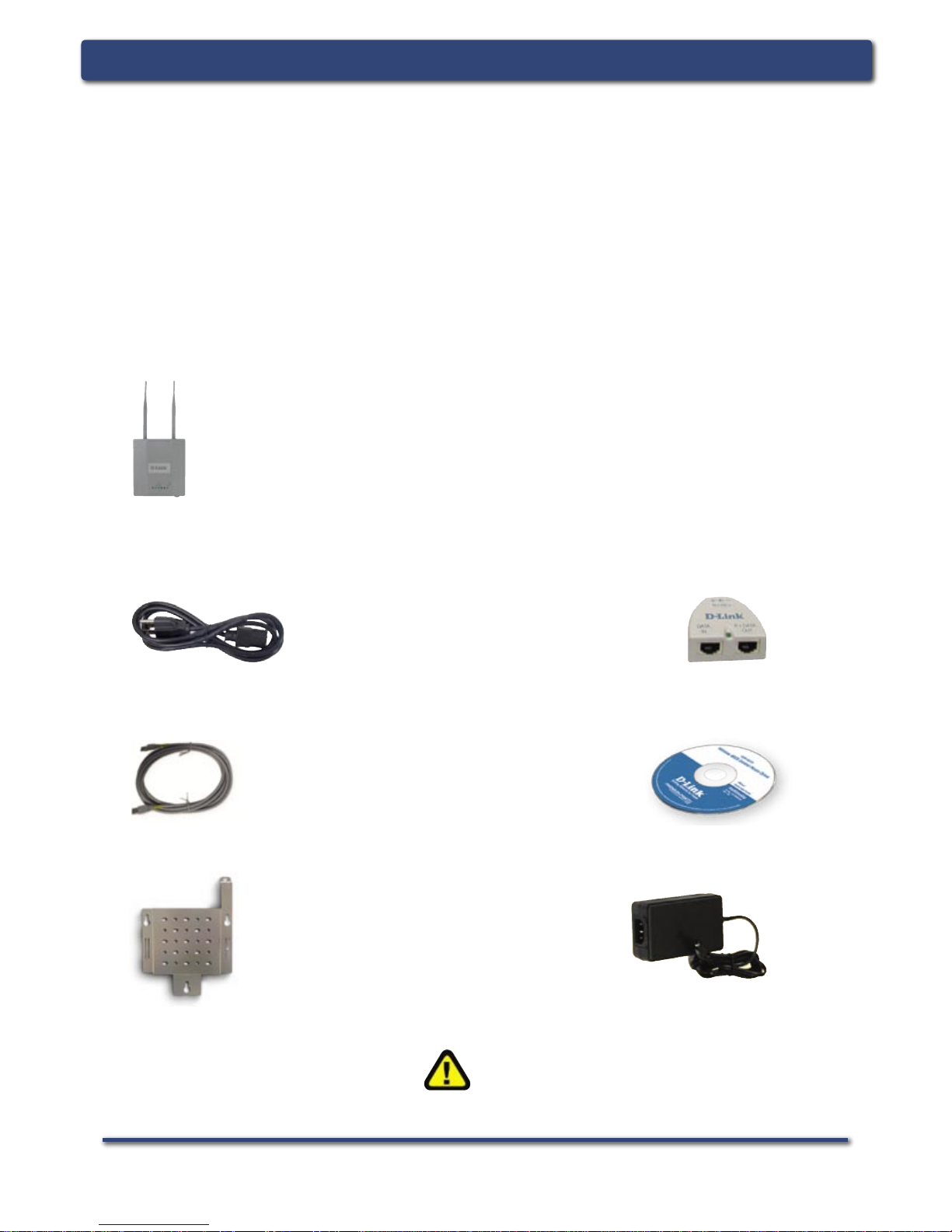

Power Cord Power over Ethernet base unit
Ethernet Cable
Power Adapter-DC 48V, 0.4A
Mounting Plate
CD-ROM with Manual
System Requirements
Minimum System Requirements:
• CD-ROM Drive
• Computers with Windows®, Macintosh®, or Linux-based
operating systems
• Installed Ethernet Adapter Internet Explorer version 6.0 or
Netscape Navigator™ version 7.0 and above
Package Contents

D-Link Systems, Inc. 3
DWL-3200AP Install Guide Installing the Hardware
Installing the Hardware
Step 1
Step 2

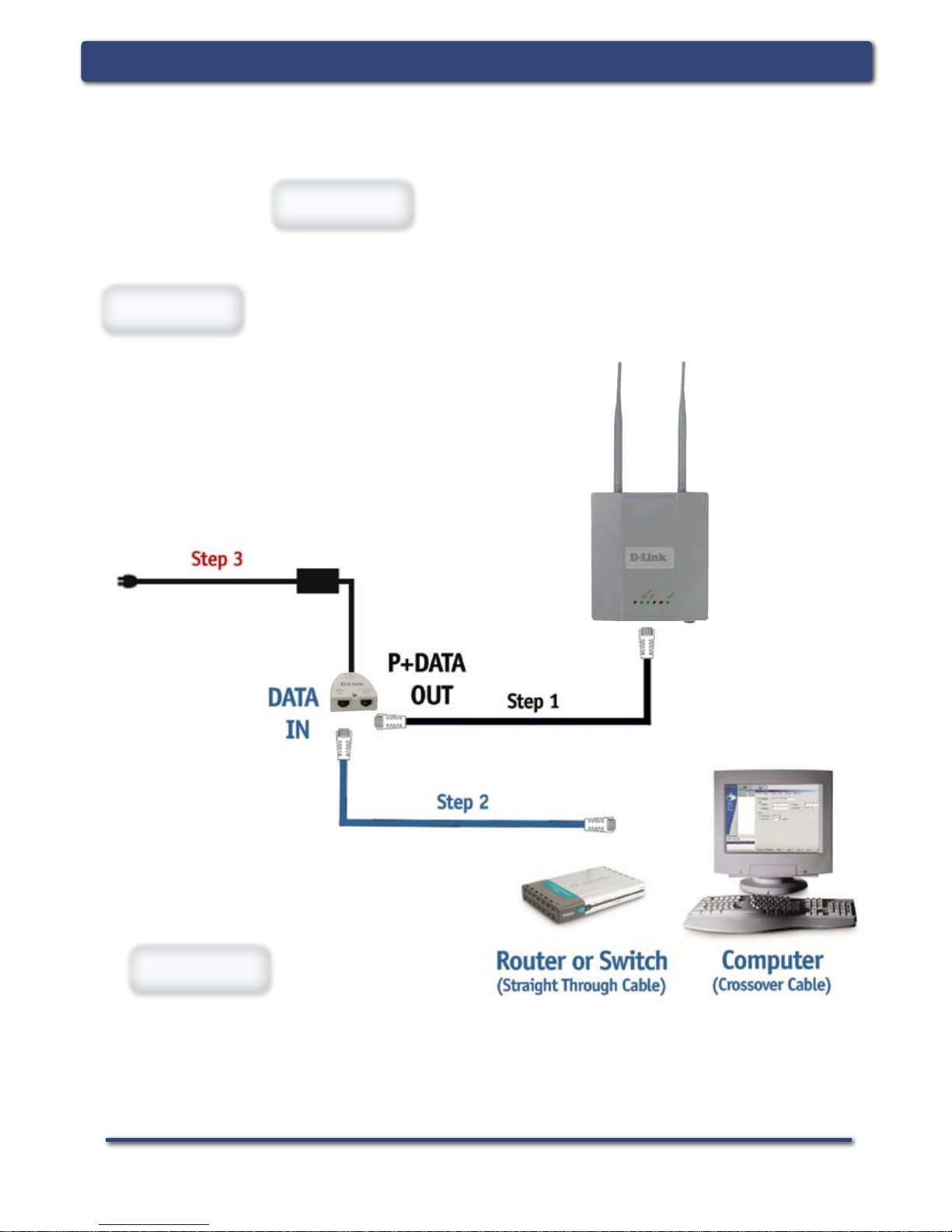

Connect one end of an Ethernet
cable (included with your package)
to the LAN port on the DWL-3200AP
and the other end of the Ethernet cable
to the port labeled P+DATA OUT on
the PoE base unit.
Connect another Ethernet cable
from the DATA IN port on the PoE
base unit to your router/switch or
to a PC.
Attach the power adapter to the connector labeled POWER IN on the
PoE base unit. Attach the power cord to the power adapter and into an
electrical outlet.
Step 3

4 D-Link Systems, Inc.
DWL-3200AP Install GuideThe Setup Wizard

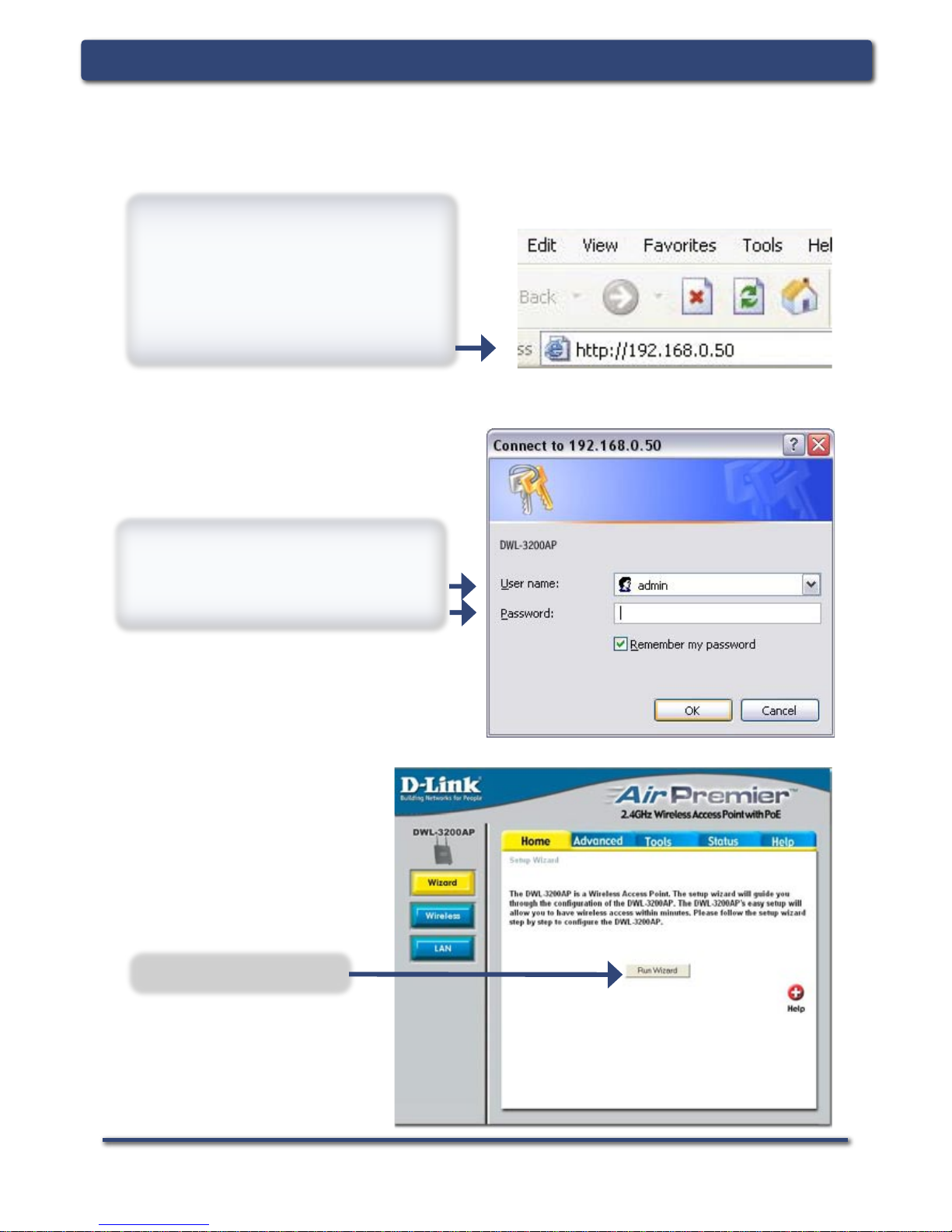

Open your Web browser
and type http://192.168.0.50
into the URL address box.
Then press the Enter or
Return key.
Click Run Wizard
The logon pop-up screen will
appear.
Type admin
for the username and leave
the password field blank.
Once you have logged in, the
Home screen will appear.
Using the Setup Wizard

D-Link Systems, Inc. 5
DWL-3200AP Install Guide The Setup Wizard

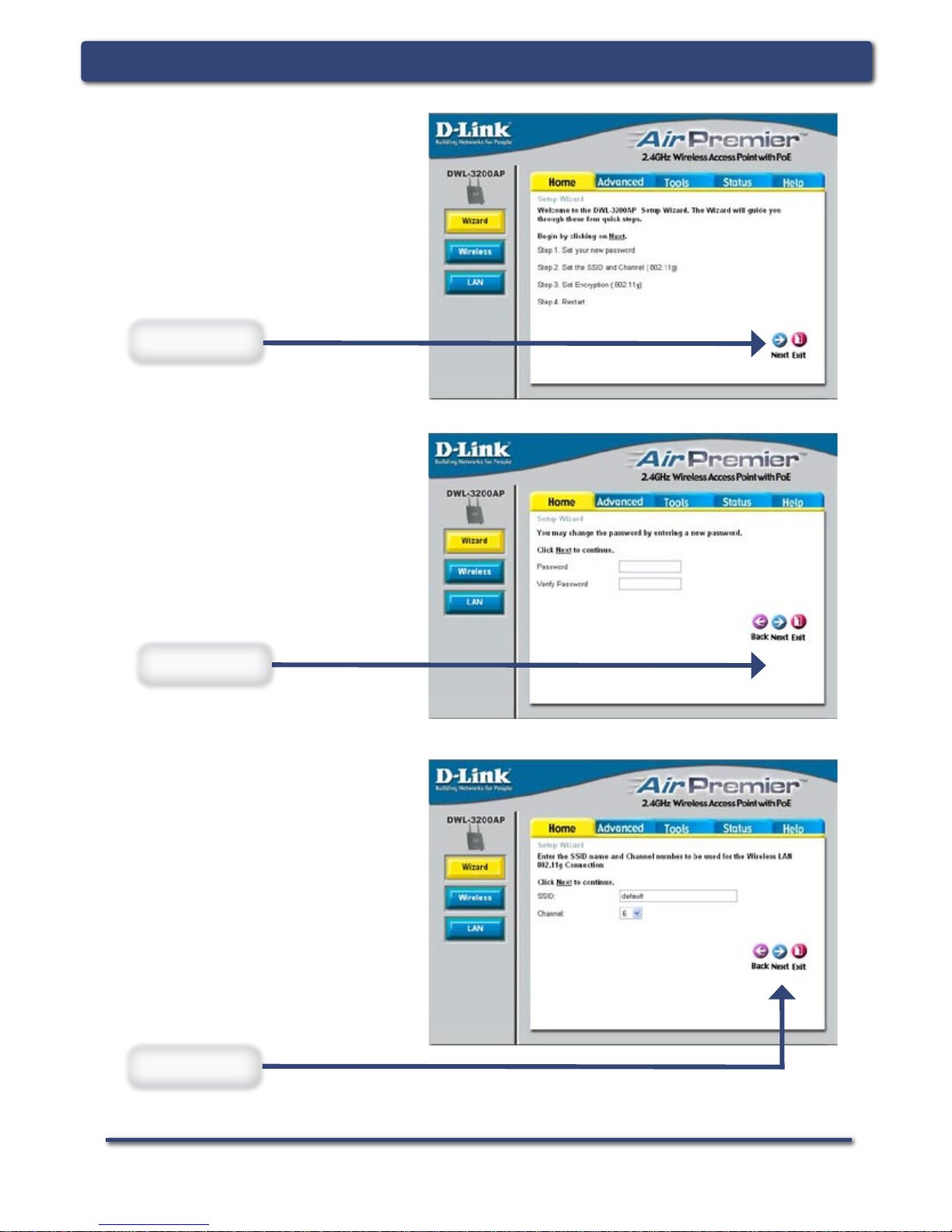

You will see the following
screens.
Click Next
Step 1 - Setup your new
password. You have the
option to establish a password.
Step 2 - Set Wireless LAN
Connection.
By default the DWL-3200AP
SSID is set to default with
a Channel setting of 6.
For 802.11g networks please
do the following:
Click Next
Click Next

6 D-Link Systems, Inc.
DWL-3200AP Install GuideThe Setup Wizard
For 802.11g networks please
continue as follows:

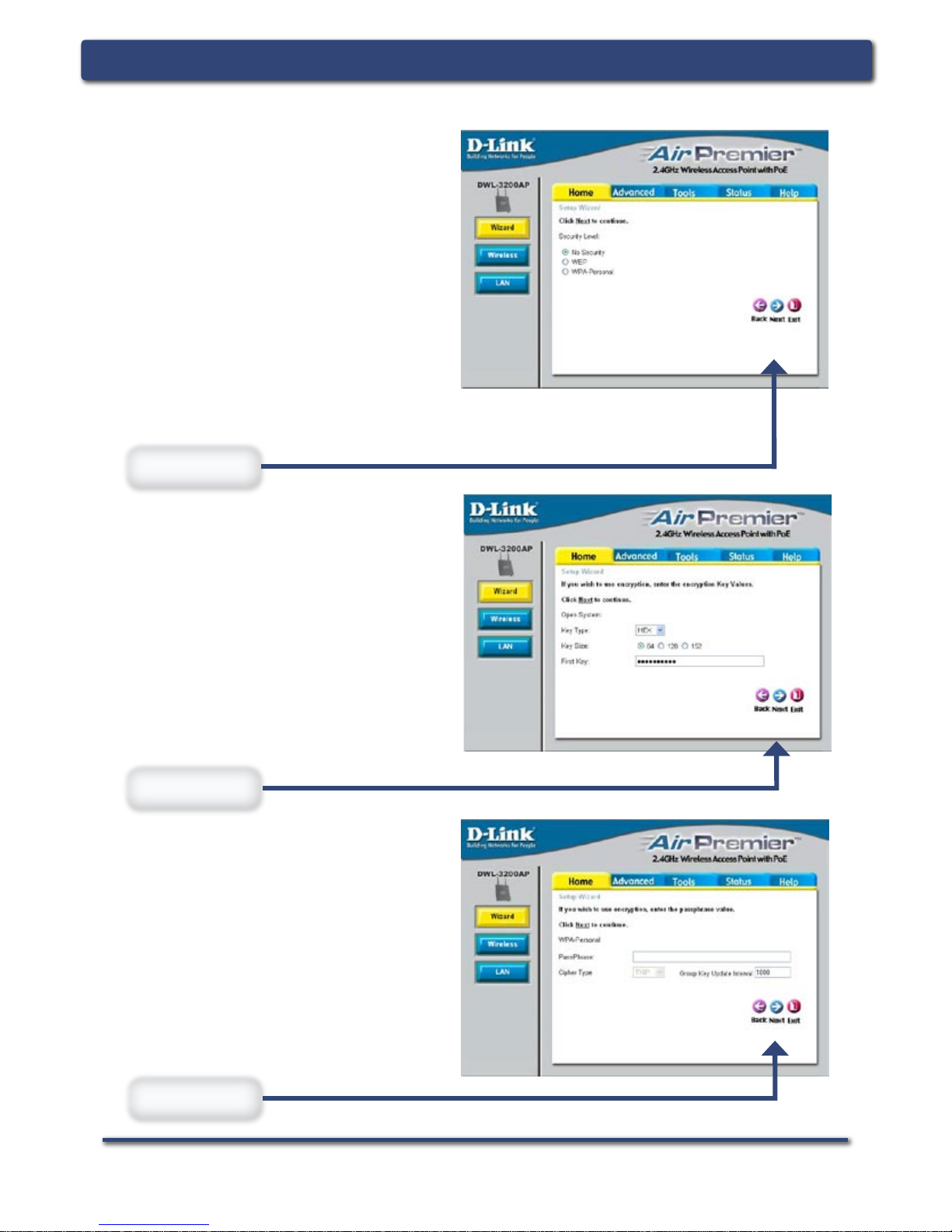

Step 3 - Security Level
The DWL-3200AP is capable
of three levels of wireless
encryption: No Security, WEP,
and WPA-Personal.
By default encryption is disabled.
You can change the encryption
settings for more secure wireless
communication.
Click Next
Click Next
Click Next
If you choose WEP, you can
use Hexadecimal or ASCII
Key type and select 64, 128,
or 152 bits.
You can only set the First Key
in the wizard.
If you choose WPA-Personal,
enter the passphrase here.
1800 for Group Key Update
Interval is recommended.

D-Link Systems, Inc. 7
DWL-3200AP Install Guide The Setup Wizard

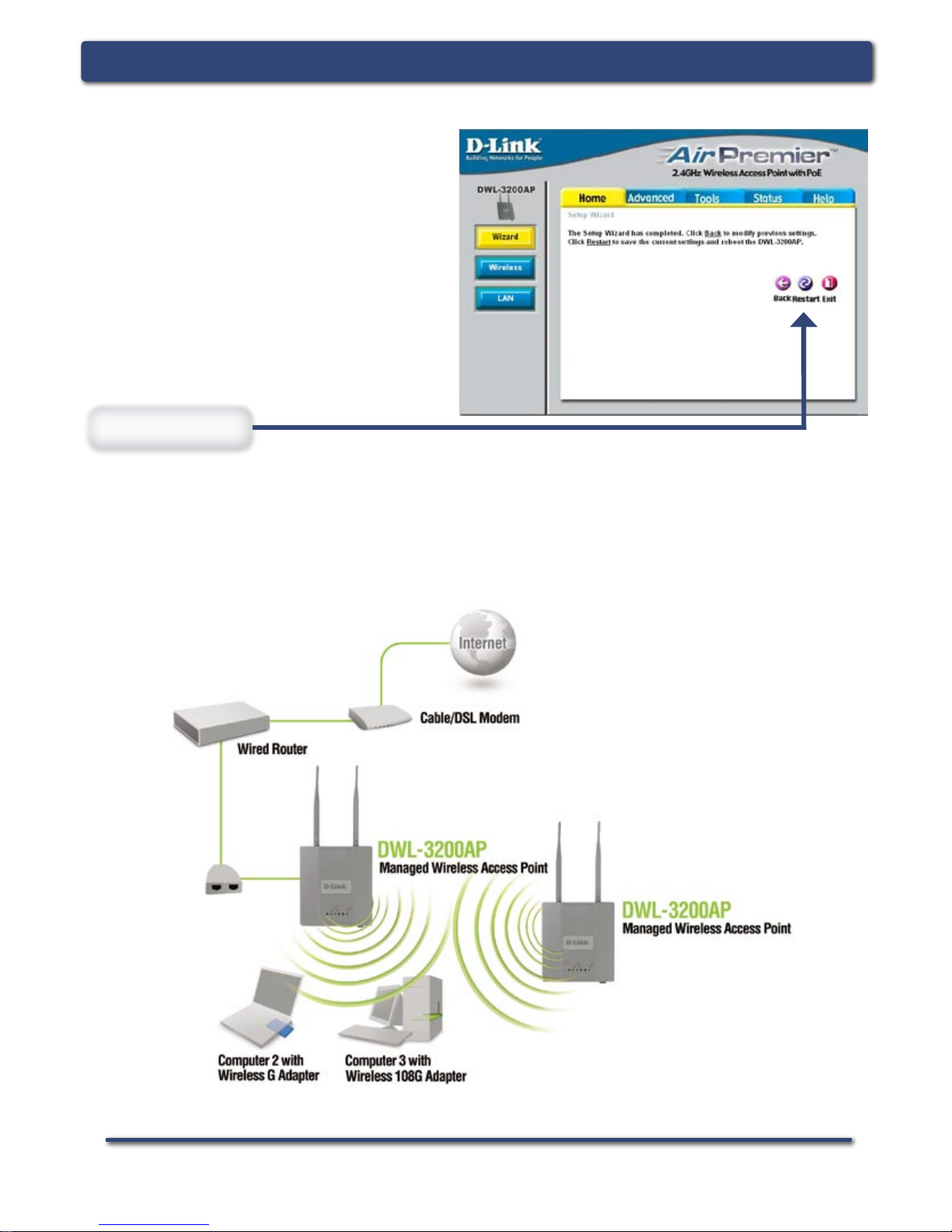

Click Restart
Your Setup is Complete!
When you have completed the steps in this Quick Installation Guide, your
connected network should look similar to this:

Technical Support
D-Link’s website contains the latest user documentation and software updates
for D-Link products.
D-Link provides free technical support for customers within the United States
and Canada for the duration of the product’s warranty period.
U.S. and Canadian customers can contact D-Link Technical Support through
our website or by phone.
United States
Telephone
[phone]
Monday through Friday, 8:00am to 5:00pm PST.
World Wide Web
http://support.dlink.com
E-mail
suppor[email protected]
Canada
Telephone
[phone]
Monday through Friday, 7:30am to 9:00pm EST.
World Wide Web
http://support.dlink.ca
E-mail
suppor[email protected]
Version 1.03
