D-Link D DWL-8200AP DWL-8200AP User manual

D-Link DWL-8200AP User Manual 1

D-Link DWL-8200AP User Manual 2
Table of Contents
Product Overview ........................................................4
Package Contents....................................................4
Minimum System Requirements..............................4
Introduction..............................................................5
Features & Benefits .................................................7
Wireless Basics ....................................................... 8
Standards-based Technology ..................................9
Installation Considerations.....................................10
Three Operational Modes......................................11
Installation..................................................................12

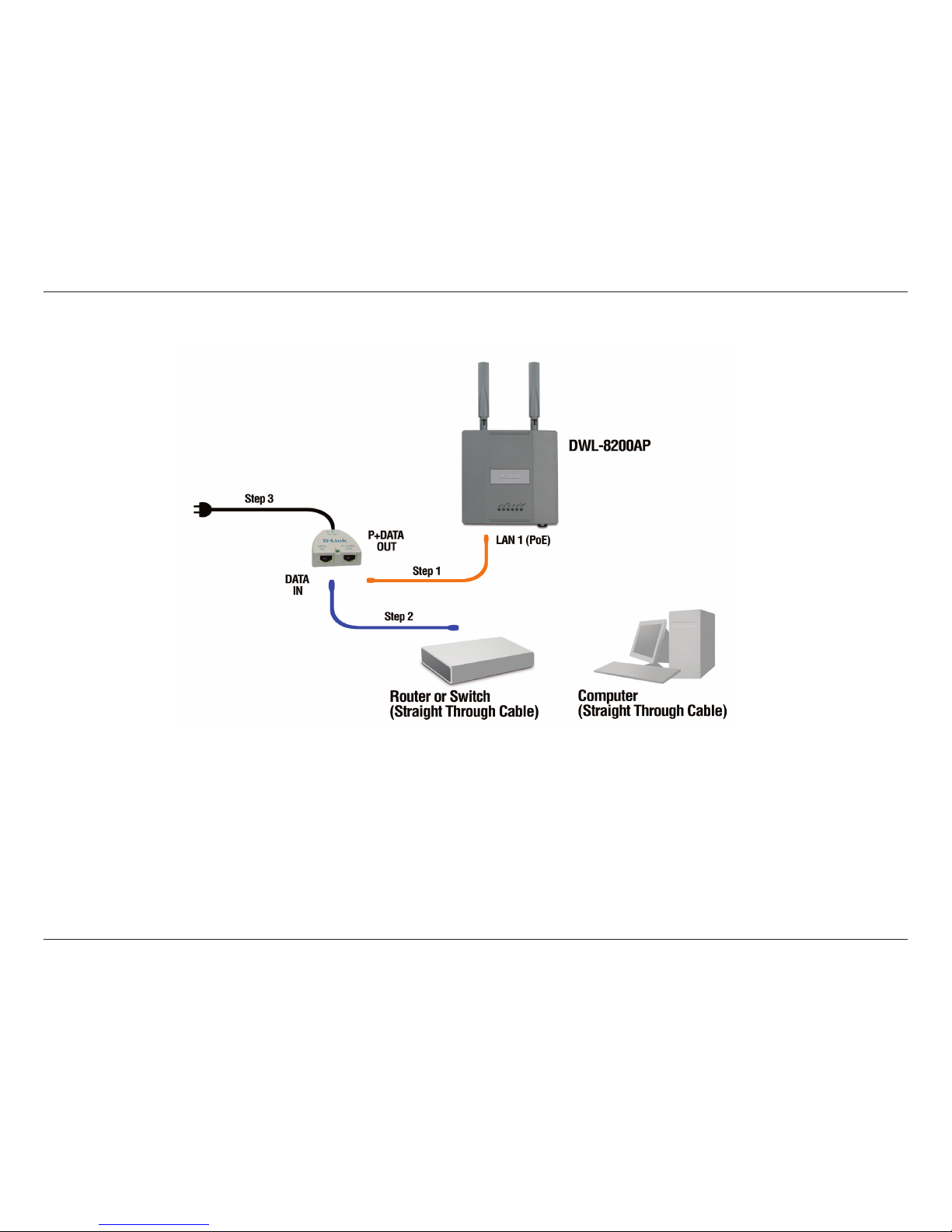

Connecting PoE (Power over Ethernet) .................14

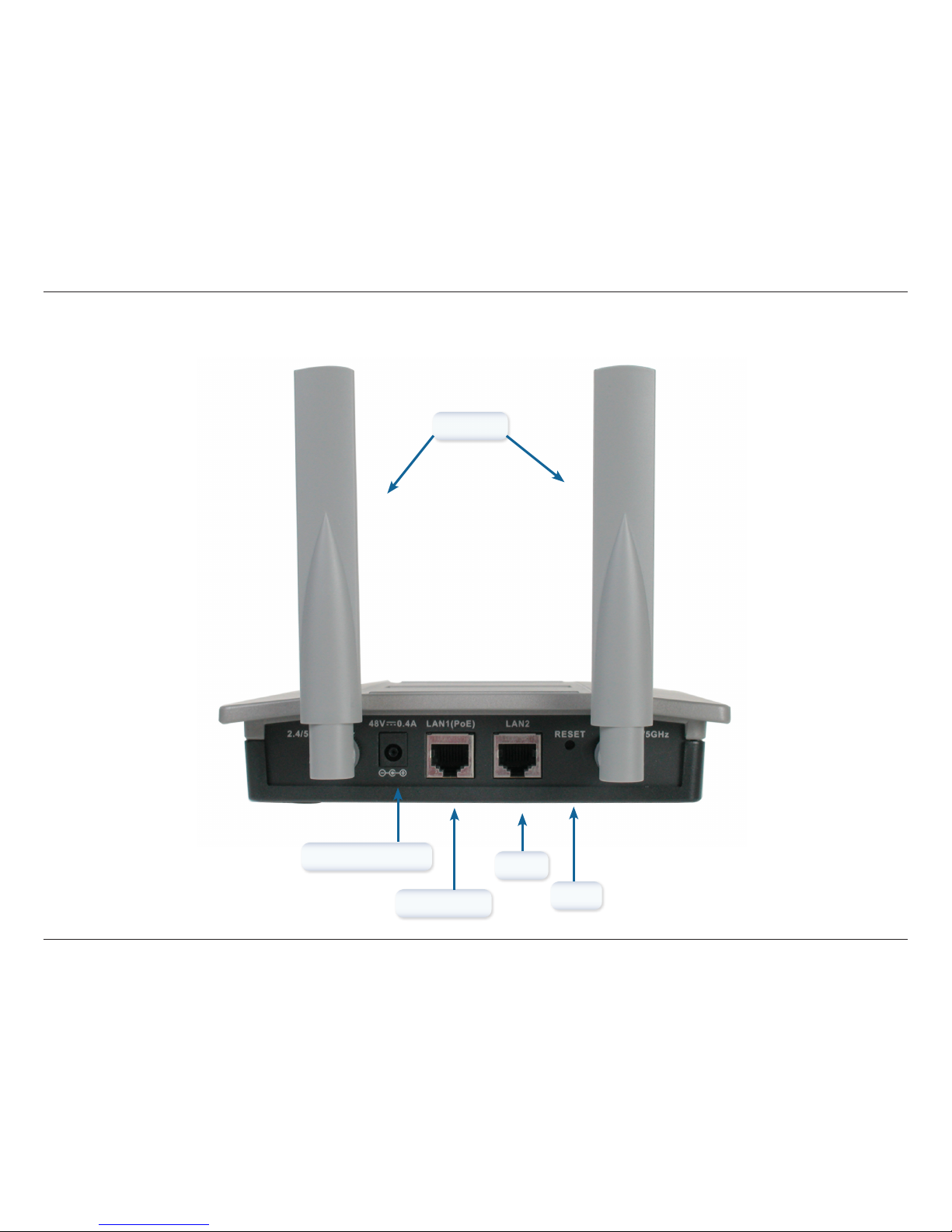

Hardware Overview ...............................................15
Configuration............................................................. 16

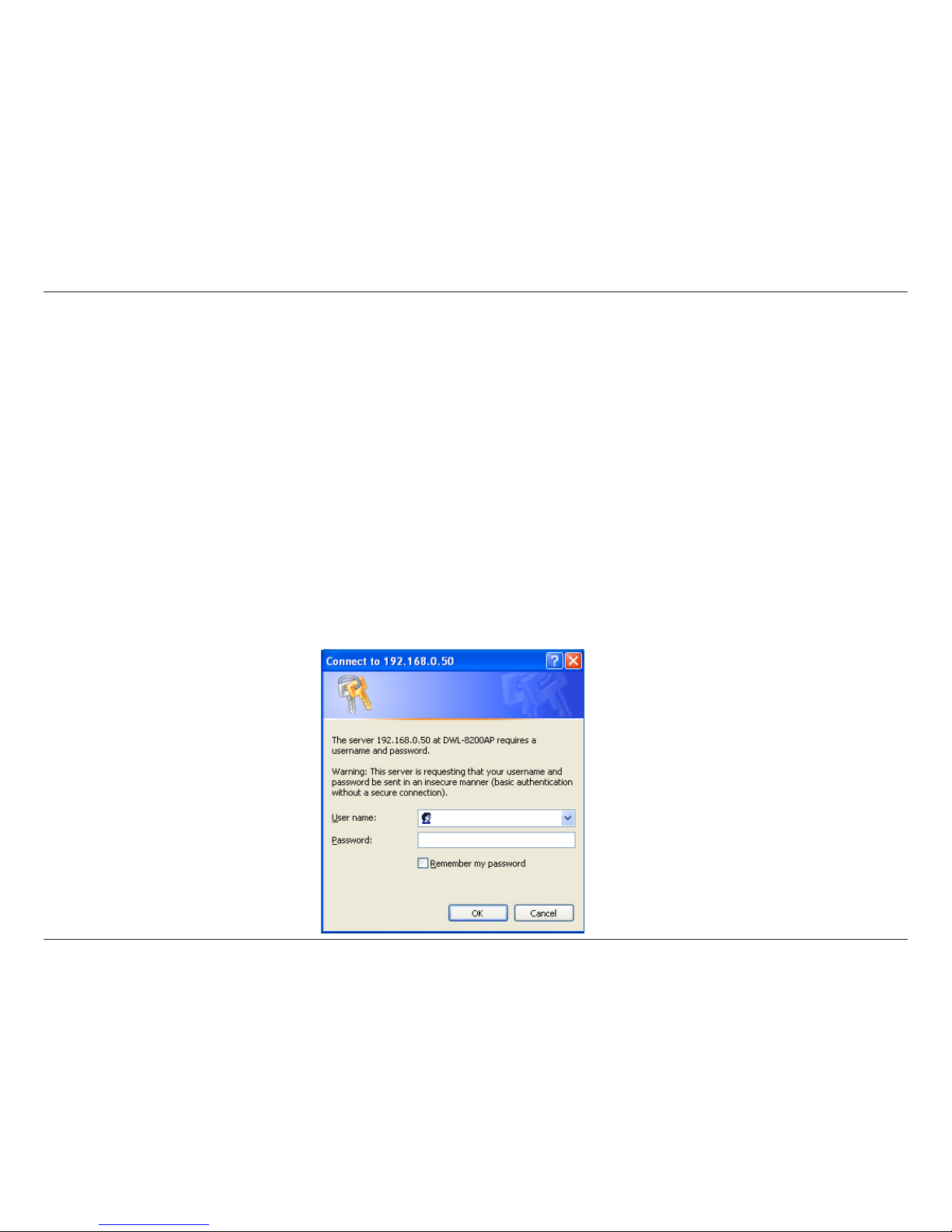

Logging In..............................................................16

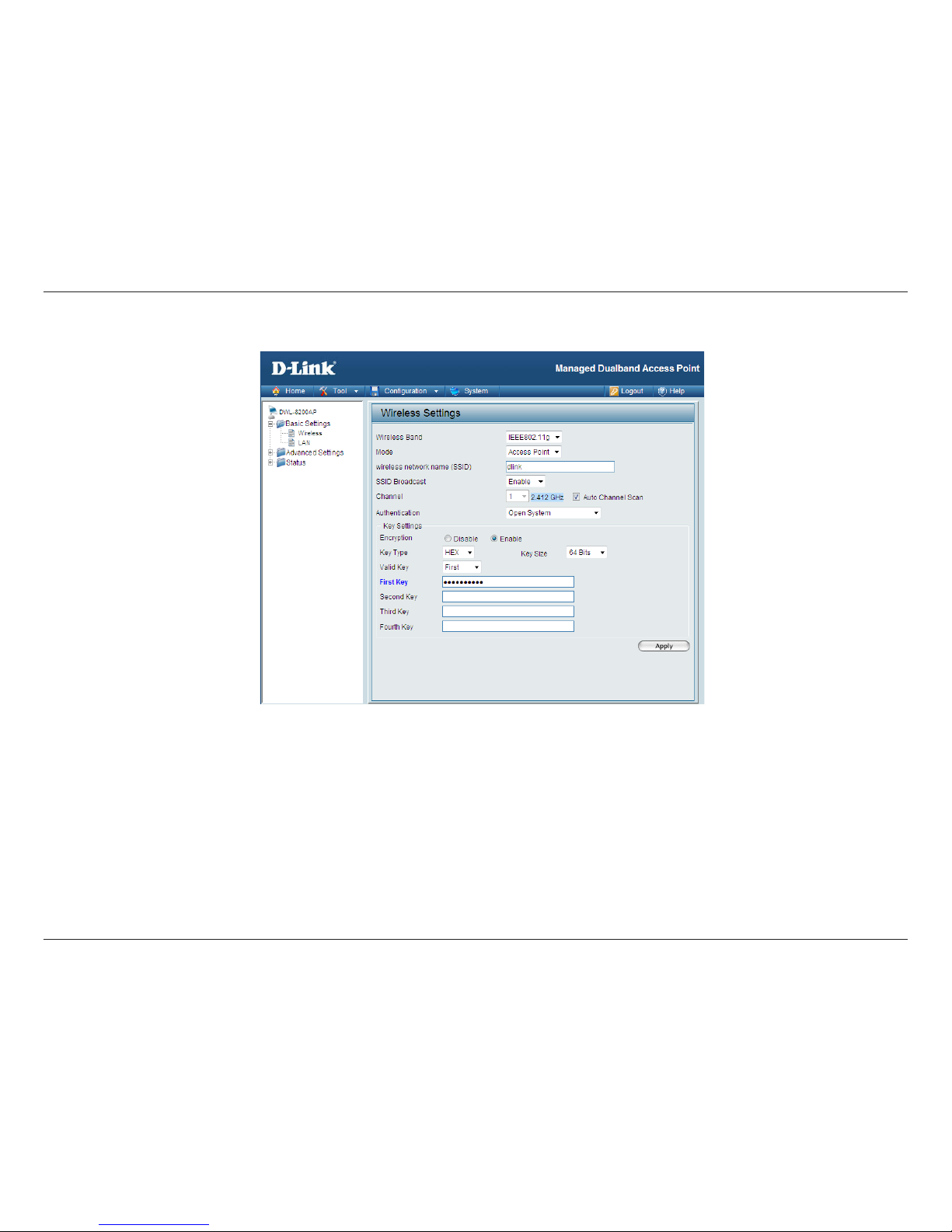

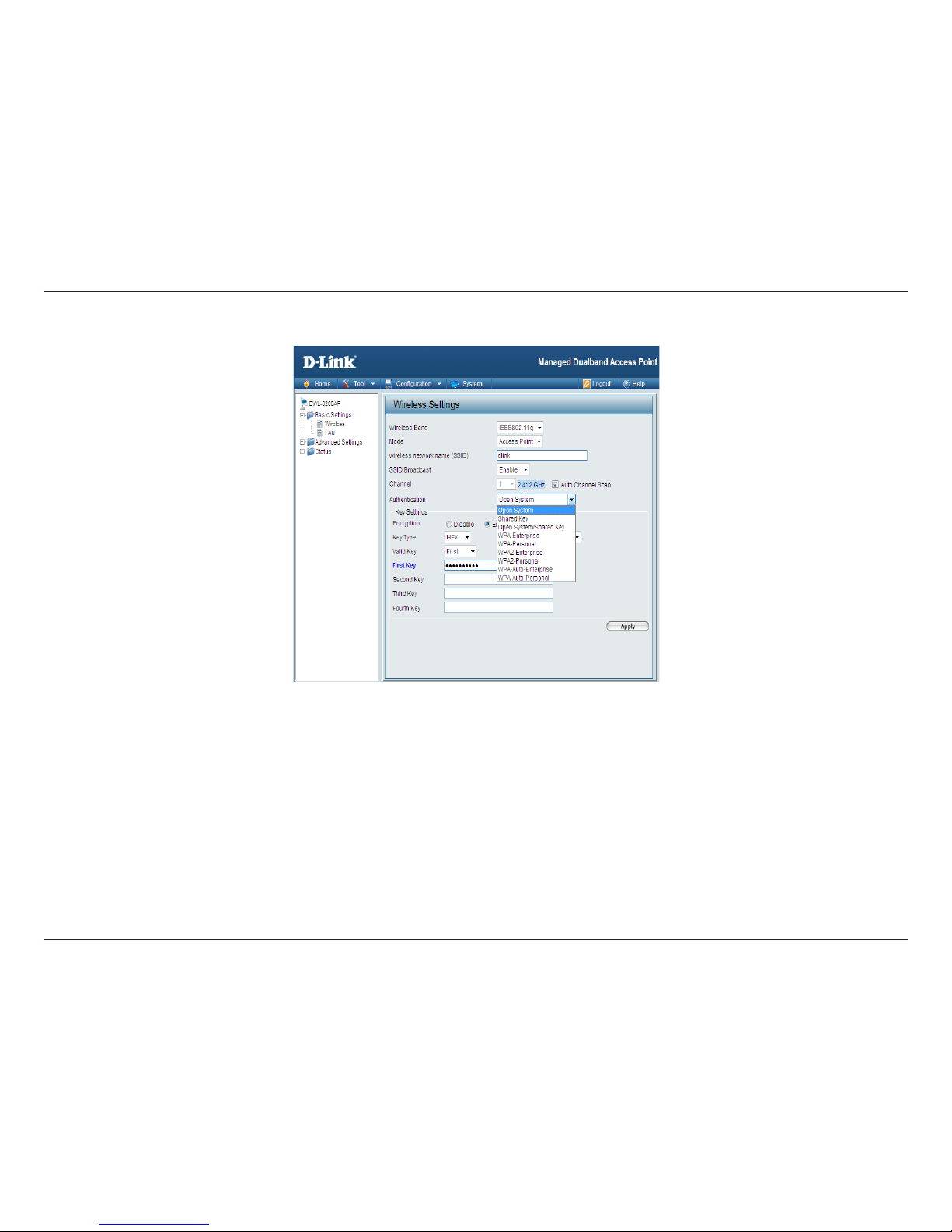

Home > Basic Settings > Wireless ........................18
AP Mode > WEP Encryption..................................20
AP Mode > WPA-Enterprise, WPA2-Enterprise &
WPA-Auto Enterprise .......................................21
AP Mode > WPA-Personal, WPA2-Personal &
WPA-Auto Personal..........................................22
WDS with AP Mode .............................................23
WDS with AP Mode > WEP Encryption ..........25
WDS with AP Mode > WPA-Personal, WPA2-
Personal, WPA-Auto Personal.......................... 26
WDS Mode ............................................................ 27
WDS Mode > WEP Encryption .......................29
WDS Mode > WPA-Personal, WPA2-Personal, WPA-
Auto Personal................................................... 30
Home > Basic Settings > LAN ........................32
Home > Advanced Settings > Performance...........33
Home > Advanced Settings > Grouping ..........36
Home > Advanced Settings > Multi-SSID ........ 37
Home > Advanced Settings > Rogue AP.........40
DHCP Server > Dynamic Pool Settings .......... 41
DHCP Server > Static Pool Settings ............... 43
DHCP Server > Current IP List ....................... 44
Filters >Wireless MAC ACL .............................46
Filters > WLAN Partition...................................47
Home > Status > Device Information..................... 48
Client Information............................................49
WDS Information............................................. 50
Stats > WLAN 802.11a Statistics .................... 51
Ethernet Traffic Statistics ................................. 52
Stats > WLAN 802.11g Statistics ..................... 53
Log > View Log ............................................... 55
Log > Log Settings.......................................... 56
Tool Menu ..............................................................57
Administrator Settings..................................... 58
Firmware and SSL Certification Upload.......... 60
Configuration File Upload and Download .......61
Configuration File > Upload .............................62
Tool > SNTP..................................................... 63
System > System Settings.....................................64

D-Link DWL-8200AP User Manual 3
Help .......................................................................65
AP Manager II.............................................................66
Networking Basics .................................................... 67
Troubleshooting......................................................... 83
Technical Specifications...........................................89
Contacting Technical Support..................................91
Warranty .....................................................................92
Registration................................................................97

D-Link DWL-8200AP User Manual 4
D-Link Air Premier®DWL-8200AP
Managed Dualband Access Point
• Power over Ethernet base unit
• Power Adapter-DC 48V, 0.4A
• Power Cord
• Manual and Warranty on CD
• Install Guide
• Ethernet Cable
• Mounting Plate
Note: Using a power supply with a different voltage than the one included with the DWL-8200AP will cause damage and void the warranty
for this product.
If any of the above items are missing, please contact your reseller.
• Computers with Windows®, Mac®, or Linux-based operating systems with an installed Ethernet Adapter
• Internet Explorer version 7.0 or Firefox 3.0 and above
• At least 128MB of memory and a 500MHz processor
Package Contents
Minimum System Requirements
Product Overview

D-Link DWL-8200AP User Manual 5
At up to fifteen times the speed of previous wireless devices (maximum wireless signal rate of up to 108Mbps* in Super A and Super G
mode), you can work faster and more efficiently, increasing productivity. With the DWL-8200AP, bandwidth-intensive applications like
graphics or multimedia will benefit significantly because large files are able to move across the network quickly.
Inclusion of all three standards (802.11a; 802.11b; 802.11g) means that the DWL-8200AP is versatile enough to allow connection
to almost any 802.11 network or device.
The DWL-8200AP is capable of operating in one of 3 different modes to meet your wireless networking needs. The DWL-8200AP can
operate as an access point, or in WDS (Wireless Distribution System) with AP , or in WDS mode.
Use less wiring, enjoy increased flexibility, save time and money with PoE (Power over Ethernet). With PoE, the DWL-8200AP shares
power and data over the CAT5 cable, making the setup of your network less expensive and more convenient.
An ideal solution for quickly creating and extending a wireless local area network (WLAN) in offices or other workplaces, trade shows and
special events, the DWL-8200AP provides data transfers at up to 108Mbps* in Super A and Super G mode when used with other D-Link Air
Premier®or Air Premier AG® products (The 802.11g standard is backwards compatible with 802.11b devices).
WPA is offered in two flavors: Enterprise (used for corporations), and Personal (used for home users).
WPA-Personal andWPA2-Personal is directed at home users who do not have the server based equipment required for user authentication.
The method of authentication is similar to WEP because you define a “Pre-Shared Key” on the wireless router/AP. Once the pre-shared
key is confirmed and satisfied on both the client and access point, then access is granted. The encryption method used is referred to as
the Temporal Key Integrity Protocol (TKIP), which offers per-packet dynamic hashing. It also includes an integrity checking feature which
ensures that the packets were not tampered with during wireless transmission. WPA2-Personal is far superior to WPA-Personal, because
the encryption of data is upgraded with the Advanced Encryption Standard (AES).
Introduction
*Maximum wireless signal rate derived from IEEE Standard 802.11a and 802.11g specifications.Actual data throughput will vary. Network conditions and environmental
factors, including volume of network traffic, building materials and construction, and network overhead lower actual data throughput rate.

D-Link DWL-8200AP User Manual 6
WPA-Enterprise andWPA2-Enterprise is ideal for businesses that have existing security infrastructures in place.Management and security
implementation can now be centralized on a server participating on the network. Utilizing 802.1x with a RADIUS (Remote Authentication
Dial-in User Service) server, a network administrator can define a list of authorized users who can access the wireless LAN. When
attempting to access a wireless LAN with either WPA-Enterprise or WPA2-Enterprise configured, the new client will be challenged with
a username and password. If the new client is authorized by the administration, and enters the correct username and password, then
access is granted. In a scenario where an employee leaves the company, the network administrator can remove the employee from the
authorized list and not have to worry about the network being compromised by a former employee. WPA2-Enterprise is far superior to
WPA-Enterprise, because the encryption of data is upgraded with the Advanced Encryption Standard (AES).
802.1x: Authentication which is a first line of defense against intrusion. In the authentication process, the Authentication Server verifies
the identity of the client attempting to connect to the network. Unfamiliar clients would be denied access.

D-Link DWL-8200AP User Manual 7
•3 Different Operation modes - Capable of operating in one of three different operation modes to meet your wireless networking
requirements: Access Point; WDS with AP; or WDS.
•Easy Installation with PoE (Power over Ethernet).
• Faster wireless networking speeds up to 108Mbps* in Super A and Super G mode.
•Compatible with 802.11a, 802.11b and 802.11g Devices that is fully compatible with the IEEE 802.11a, 802.11b and 802.11g
standards, the DWL-8200AP can connect with existing 802.11b-, 802.11g- or 802.11a-compliant wireless network adapter cards.
•Compatible with the 802.11b standard to provide a wireless data rate of up to 11Mbps - that means you can migrate your system
to the 802.11g standard on your own schedule without sacrificing connectivity.
•Better security with WPA - The DWL-8200AP can securely connect wireless clients on the network using WPA (Wi-Fi Protected
Access) providing a much higher level of security for your data and communications than has previously been available.
• SNMP for Management - The DWL-8200AP is not just fast but it also supports SNMP v.3 for a better network management.
Superior wireless AP manager software is bundled with the DWL-8200AP for network configuration and firmware
upgrade. Systems administrators can also setup the DWL-8200AP easily with the Web-based configuration. A D-Link
D-View module will be downloadable for network administration and real-time network traffic monitoring with D-Link
D-View software.
•Utilizes OFDM technology (Orthogonal Frequency Division Multiplexing).
•Operates in the 2.4GHz frequency range for an 802.11b/g network, and in the 5GHz frequency range for an 802.11a network.
•Web-based interface for managing and configuring.
Features & Benefits
*Maximum wireless signal rate derived from IEEE Standard 802.11a and 802.11g specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network
traffic, building materials and construction, and network overhead lower actual data throughput rate.

D-Link DWL-8200AP User Manual 8
D-Link wireless products are based on industry standards to provide easy-to-use and compatible high-speed wireless connectivity within
your home, business or public access wireless networks. D-Link wireless products will allow you to access the data you want, when and
where you want it. You will be able to enjoy the freedom that wireless networking brings.
A Wireless Local Area Network (WLAN) is a computer network that transmits and receives data with radio signals instead of wires. WLANs
are used increasingly in both home and office environments, and public areas such as airports, coffee shops and universities. Innovative
ways to utilize WLAN technology are helping people to work and communicate more efficiently. Increased mobility and the absence of
cabling and other fixed infrastructure have proven to be beneficial for many users.
People use WLAN technology for many different purposes:
Mobility - Productivity increases when people have access to data in any location within the operating range of the WLAN. Management
decisions based on real-time information can significantly improve worker efficiency.
Low Implementation Costs - WLANs are easy to set up, manage, change and relocate. Networks that frequently change can benefit from
WLANs ease of implementation. WLANs can operate in locations where installation of wiring may be impractical.
Installation and Network Expansion - Installing a WLAN system can be fast and easy and can eliminate the need to pull cable through
walls and ceilings. Wireless technology allows the network to go where wires cannot go - even outside the home or office.
Inexpensive Solution - Wireless network devices are as competitively priced as conventional Ethernet network devices.The DWL-8200AP
saves money by providing multi-functionality, configurable in one of three different modes.
Scalability - WLANs can be configured in a variety of ways to meet the needs of specific applications and installations. Configurations are
easily changed and range from Peer-to-Peer networks suitable for a small number of users to larger Infrastructure networks to accommodate
hundreds or thousands of users, depending on the number of wireless devices deployed.
Wireless Basics

D-Link DWL-8200AP User Manual 9
The DWL-8200AP Wireless Access Point utilizes the 802.11a, 802.11b and the 802.11g standards.
The IEEE 802.11g standard is an extension of the 802.11b standard. It increases the maximum wireless signal rate of up to 54Mbps*
(maximum wireless signal rate of up to 108Mbps* in Super G mode) within the 2.4GHz band, utilizing OFDM technology.
This means that in most environments, within the specified range of this device, you will be able to transfer large files quickly or even
watch a movie in MPEG format over your network without noticeable delays.This technology works by transmitting high-speed digital data
over a radio wave utilizing OFDM (Orthogonal Frequency Division Multiplexing) technology. OFDM works by splitting the radio signal into
multiple smaller sub-signals that are then transmitted simultaneously at different frequencies to the receiver. OFDM reduces the amount
of crosstalk (interference) in signal transmissions.
The D-Link DWL-8200AP will automatically sense the best possible connection speed to ensure the greatest speed and range possible.
The DWL-8200AP offers the most advanced network security features available today, including WPA and WPA2.
In addition to its compatibility with 802.11g and 802.11a devices, the DWL-8200AP is compatible with 802.11b devices. This means that
if you have an existing 802.11b network, or a network with a mixture of 802.11g, 802.11a and 802.11b, the devices in that network will be
compatible with the DWL-8200AP.
*Maximum wireless signal rate derived from IEEE Standard 802.11a and 802.11g specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network
traffic, building materials and construction, and network overhead lower actual data throughput rate.
Standards-based Technology

D-Link DWL-8200AP User Manual 10
The D-Link Air Premier®DWL-8200AP lets you access your network, using a wireless connection, from virtually anywhere within its operating
range. Keep in mind, however, that the number, thickness and location of walls, ceilings, or other objects that the wireless signals must
pass through, may limit the range. Typical ranges vary depending on the types of materials and background RF (radio frequency) noise in
your home or business. The key to maximizing wireless range is to follow these basic guidelines:
1. Keep the number of walls and ceilings between the DWL-8200AP and other network devices to a minimum - each wall or ceiling
can reduce your DWL-8200AP’s range from 3-90 feet (1-30 meters.) Position your devices so that the number of walls or ceilings
is minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a 45-degree angle appears to be
almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick! Position devices so that the signal will
travel straight through a wall or ceiling (instead of at an angle) for better reception.
3. Building materials can impede the wireless signal - a solid metal door or aluminum studs may have a negative effect on range. Try
to position wireless devices and computers with wireless adapters so that the signal passes through drywall or open doorways and
not other materials.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF noise.
Installation Considerations

D-Link DWL-8200AP User Manual 11
Three Operational Modes
Operation Mode Function
Access Point (AP) Create a wireless LAN (WLAN)
WDS with AP Wirelessly connect multiple networks while still
functioning as an access point.
WDS Wirelessly connect multiple networks.

D-Link DWL-8200AP User Manual 12
Installation

D-Link DWL-8200AP User Manual 13
1. You will need broadband Internet access.
2. Consult with your Cable or DSL provider for proper installation of the modem.
3. Connect the Cable or DSL modem to a Router.
(See the printed Quick Installation Guide included with your router.)
4. Connect the Ethernet Broadband Router to the PoE base unit.
(See the printed Quick Installation Guide included with the DWL-8200AP.)
5. Connect the DWL-8200AP to the PoE base unit.
(See the printed Quick Installation Guide included with the DWL-8200AP.)
6. If you are connecting a desktop computer to your network, install the D-Link DWL-AG530 wireless PCI adapter into an
available PCI slot on your desktop computer.
(See the printed Quick Installation Guide included with the DWL-AG530.)
7. Install the drivers for the D-Link DWL-AG660 wireless Cardbus adapter into a laptop computer.
(See the printed Quick Installation Guide included with the DWL-AG660.)

D-Link DWL-8200AP User Manual 14
Connecting PoE (Power over Ethernet)
Connect one end of an Ethernet cable (included with your package) to the LAN port on the DWL-8200AP and the other
end of the Ethernet cable to the port labeled P+DATA OUT on the PoE base unit.
Connect another Ethernet cable from the DATA IN port on the PoE base unit to your router/switch or to a PC.
Attach the power adapter to the connector on the PoE base unit. Attach the power cord to the power adapter and into
an electrical outlet.
Step 1
Step 2
Step 3

D-Link DWL-8200AP User Manual 15
Antennas
Power Cord socket
LAN 1 (PoE)
LAN 2
Reset
Hardware Overview

D-Link DWL-8200AP User Manual 16

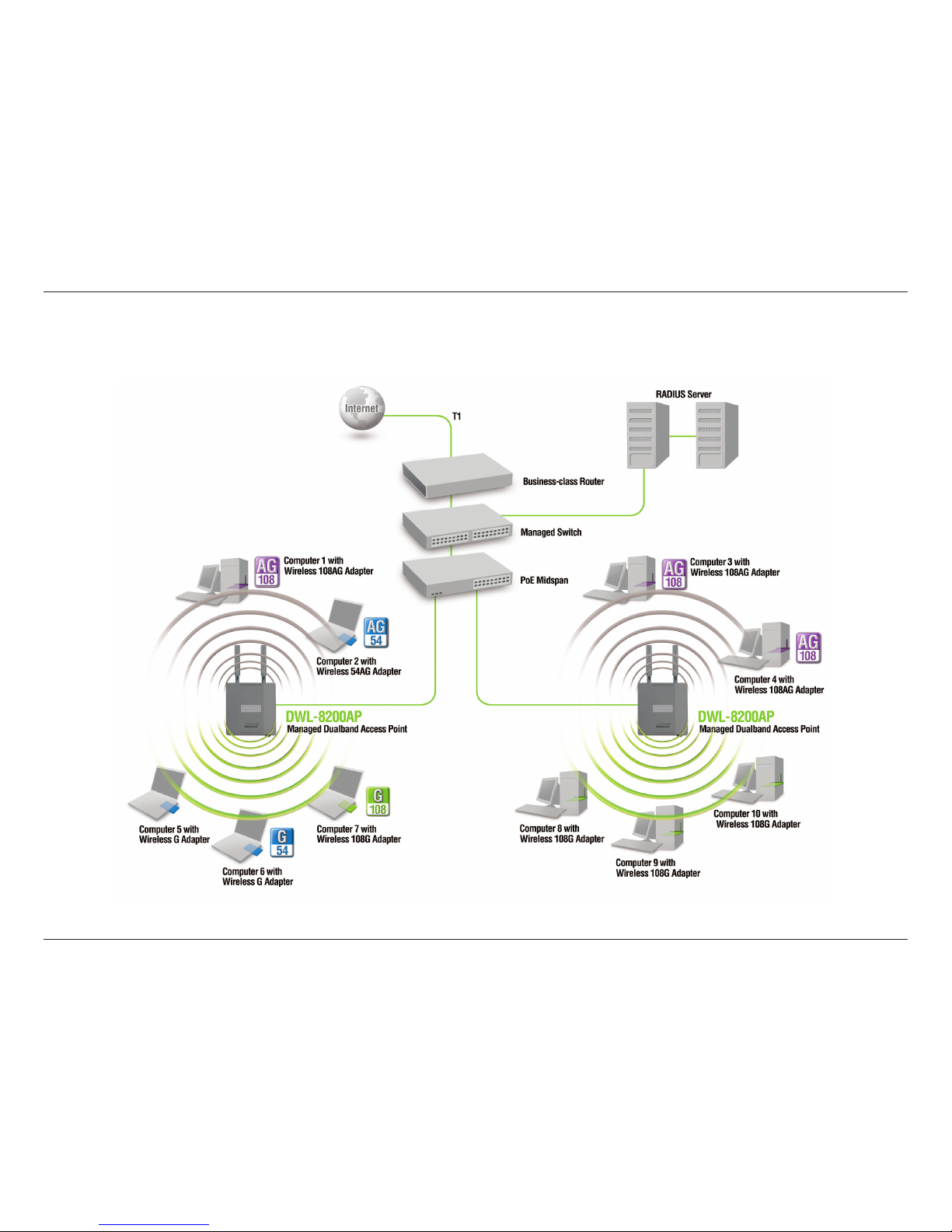

To configure the DWL-8200AP, use a computer which is connected to the DWL-8200AP with an Ethernet cable (see the Network Layout
diagram).
First, disable the Access the Internet using a proxy server function. To disable this function, go to Control Panel > Internet Options >
Connections > LAN Settings and un-check the enable box.
Configuration
Logging In
Start your web browser program (Internet Explorer, Firefox).
Type the IP address of the DWL-8200AP in the address field (http://192.168.0.50) and press Enter. Make sure that the IP addresses of
the DWL-8200AP and your computer are in the same subnet. DWL-8200AP also supports HTTPS Browsing by using the Secure Socket
Layer (SSL) Protocol. Just change your Browser’s address line from “http://...” to “https://...” and log into the AP again.
After the connection is established, you will see the user identification window as shown.
Note: If you have changed the default IP address assigned to the DWL-8200AP, make sure to enter the correct IP address.

D-Link DWL-8200AP User Manual 17
When making changes on most of the configuration screens in this section, use the Apply button at the bottom of each screen to save
your configuration changes.
Click to Apply configuration changes.

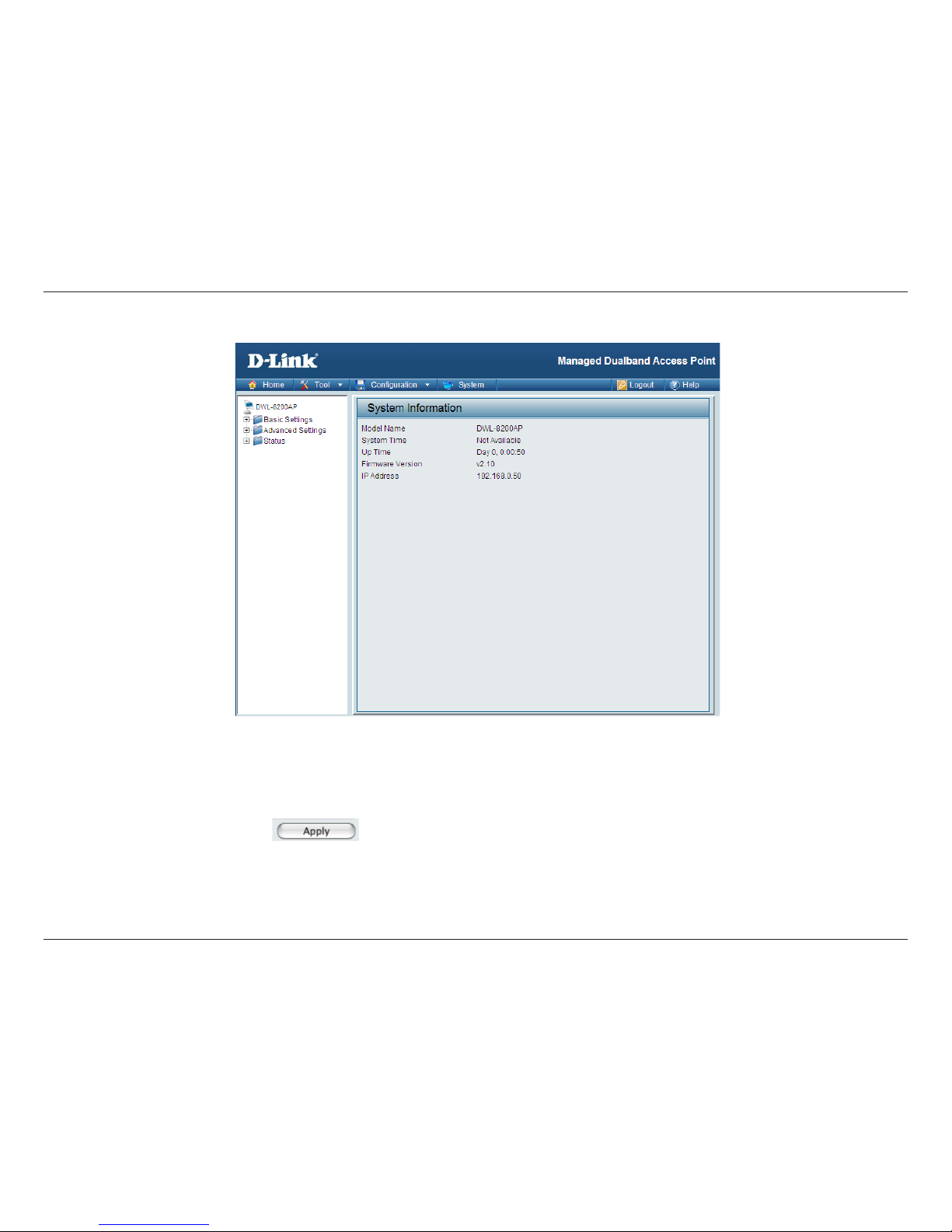

After successfully logging into the DWL-8200AP the following screen appears:

D-Link DWL-8200AP User Manual 18
Select either IEEE 802.11a or IEEE 802.11g
Access Point is selected from the pull-down menu.
Service Set Identifier (SSID) is the name designated for a specific wireless local area network (WLAN). The SSID’s
factory default setting is dlink. The SSID can be easily changed to connect to an existing wireless network or to
establish a new wireless network.
Enable or Disable SSID broadcast. Enabling this feature broadcasts the SSID across the network.
Displays the default channel for the wireless network. All devices on the network must share the same channel.
The channel of an 802.11a network may not be set manually in certain regions (e.g. Europe and USA) in order to
comply with DFS (Dynamic Frequency Selection).
Wireless Band:
Mode:
SSID:
SSID Broadcast:
Channel:
Home > Basic Settings > Wireless

D-Link DWL-8200AP User Manual 19
Select Enable or Disable. Enable this feature to auto-select the channel for best wireless performance. To comply with
DFS (Dynamic Frequency Selection), this function is not available to use in certain regions (e.g. Europe).
Select Open System to communicate the key across the network.
Select Shared Key to limit communication to only those devices that share the same WEP settings.
Select Open System/Shared Key to allow either form of data encryption.
Select WPA-Enterprise to secure your network with the inclusion of a RADIUS server.
Select WPA-Personal to secure your network using a password and dynamic key changes. (No RADIUS server
required.)
Select WPA2-Enterprise to secure your network with the inclusion of a RADIUS server and upgrade the encryption
of data with the Advanced Encryption Standard (AES).
Select WPA2-Personal to secure your network using a password and dynamic key changes. No RADIUS server
required and encryption of data is upgraded with the Advanced Encryption Standard (AES).
Select WPA-Auto-Enterprise to allow the client to either use WPA-Enterprise or WPA2-Enterprise.
Select WPA-Auto-Enterprise to allow the client to either use WPA-Personal or WPA2-Personal.
Select On or Off. Selecting Off will turn off all wireless functions.
Auto Channel
Scan:
Authentication:
Radio:
Note: The wireless adapters will automatically scan and match the wireless setting.

D-Link DWL-8200AP User Manual 20
Select Disabled or Enabled.
Select HEX or ASCII.
Select 64-bit, 128-bit, or 152 bits.
Select the 1st through the 4th key to be the active key.
Input up to four keys for encryption. You will select one of these keys in the valid key field.
Encryption:
Key Type:
Key Size:
Valid Key:
First through
Fourth keys:
* Hexadecimal digits consist of the numbers 0-9 and the letters A-F.
ASCII (American Standard Code for Information Interchange) is a code for representing English letters as numbers 0-127.
AP Mode > WEP Encryption
