D-Link DWL-2100AP - AirPlus Xtreme G User manual

Manual
V2.10
Building Networks for People

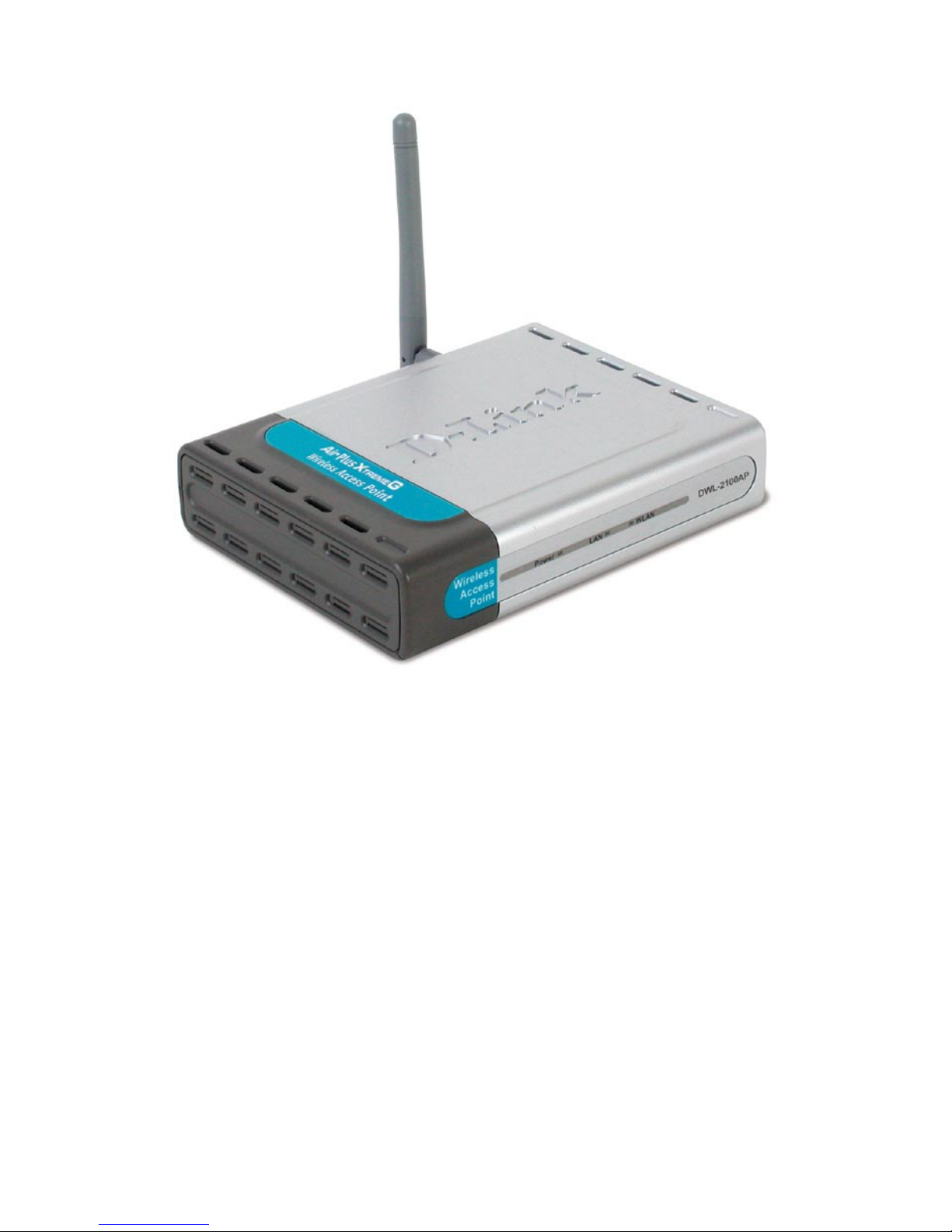

D-Link AirPlus Xtreme G
DWL-2100AP
802.11g Wireless
108Mbps Access Point
®

2
Contents
Package Contents ................................................................................ 3
Introduction ........................................................................................... 4
Connections ......................................................................................... 5
Features and Benefits .......................................................................... 7
Wireless Basics .................................................................................... 8
Getting Started ....................................................................................11
Using the Configuration Menu ............................................................ 13
Using the AP Manager ........................................................................ 43
Networking Basics .............................................................................. 63
Troubleshooting .................................................................................. 78
Technical Specifications ..................................................................... 85
Contacting Technical Support ............................................................. 88
Warranty ............................................................................................. 89

3
Contents of Package:
D-Link AirPlus Xtreme G DWL-2100AP
802.11g Wireless 108Mbps Access Point
Power Adapter-DC 5V, 2.0A
Manual and Warranty on CD
Quick Installation Guide
Ethernet Cable
Internet Explorer Version 6.0 or Netscape Navigator Version
6.0 and Above
Computers with Windows, Macintosh, or Linux-based
operating systems with an installed Ethernet adapter
Package Contents
Note: Using a power supply with a different voltage rating than the one included with
the DWL-2100AP will cause damage and void the warranty for this product.
If any of the above items are missing, please contact your reseller.
System Requirements for Configuration:






®

4
Introduction
For home users that will not incorporate a RADIUS server in their network, the security
for the DWL-2100AP, used in conjunction with other WPA-compatible 802.11 products,
will still be much stronger than ever before. Utilizing the Pre-Shared Key mode of WPA,
the DWL-2100AP will obtain a new security key every time it connects to the 802.11
network. You only need to input your encryption information once in the configuration
menu. No longer will you have to manually input a new WEP key frequently to ensure
security. With the DWL-2100AP, you will automatically receive a new key every time
you connect, vastly increasing the safety of your communication.
The DWL-2100AP is capable of operating in one of 5 different modes to meet your
wireless networking needs. The DWL-2100AP can operate as an access point, access
point-to-multi-point bridging mode with AP function, access point-to-multi-point bridging
mode without ap function, repeater, or wireless client mode.
The DWL-2100AP is an ideal solution for quickly creating and extending a wireless local
area network (WLAN) in offices or other workplaces, trade shows and special events.
Unlike most access points, the DWL-2100AP provides data transfers at up to 108
Mbps in Super G mode when used with other D-Link AirPlus Xtreme G products. The
802.11g standard is backwards compatible with 802.11b devices.
The DWL-2100AP has the newest, strongest, most advanced security features available
today. When used with other 802.11g WPA (WiFi Protected Access) compatible products
in a network with a RADIUS server, the security features include:
WPA: Wi-Fi Protected Access which authorizes and identifies users based
on a secret key that changes automatically at regular intervals. WPA
uses TKIP (Temporal Key Integrity Protocol) to change the temporal
key every 10,000 packets (a packet is a kind of message transmitted
over a network.) This insures much greater security than the standard
WEP security. (By contrast, the previous WEP encryption implementation
required the keys to be changed manually.)
At up to fifteen times the maximum wireless signal rate of previous wireless devices (up
to 108Mbps* in Super G mode), you can work faster and more efficiently, increasing
productivity. With the DWL-2100AP, bandwidth-intensive applications like graphics or
multimedia will benefit significantly because large files are able to move across the
network quickly.
*Maximum wireless signal rate derived from IEEE Standard 802.11g specifications.
Actual data throughput will vary. Network conditions and environmental factors lower
actual data throughput rate.
®

5

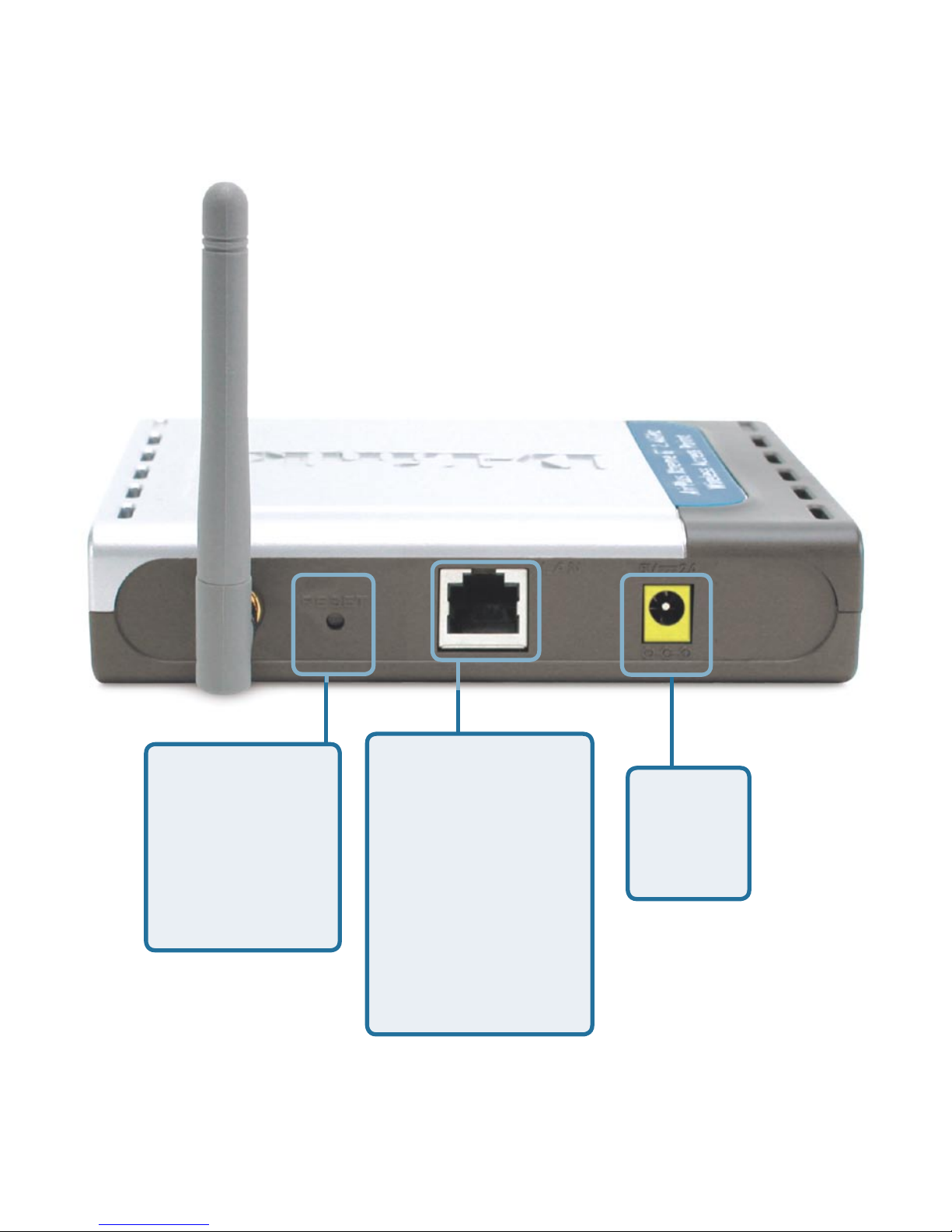

Connections
Receptor
for the
Power
Adapter.
Pressing the
Reset Button
restores the
DWL-2100AP
to its original
factory default
settings.
The LAN Port is
Auto-MDI/MDIX.
You can insert
either a straight-
through or a
crossover Ethernet
cable in this port in
order to connect the
DWL-2100AP to the
local network.

6

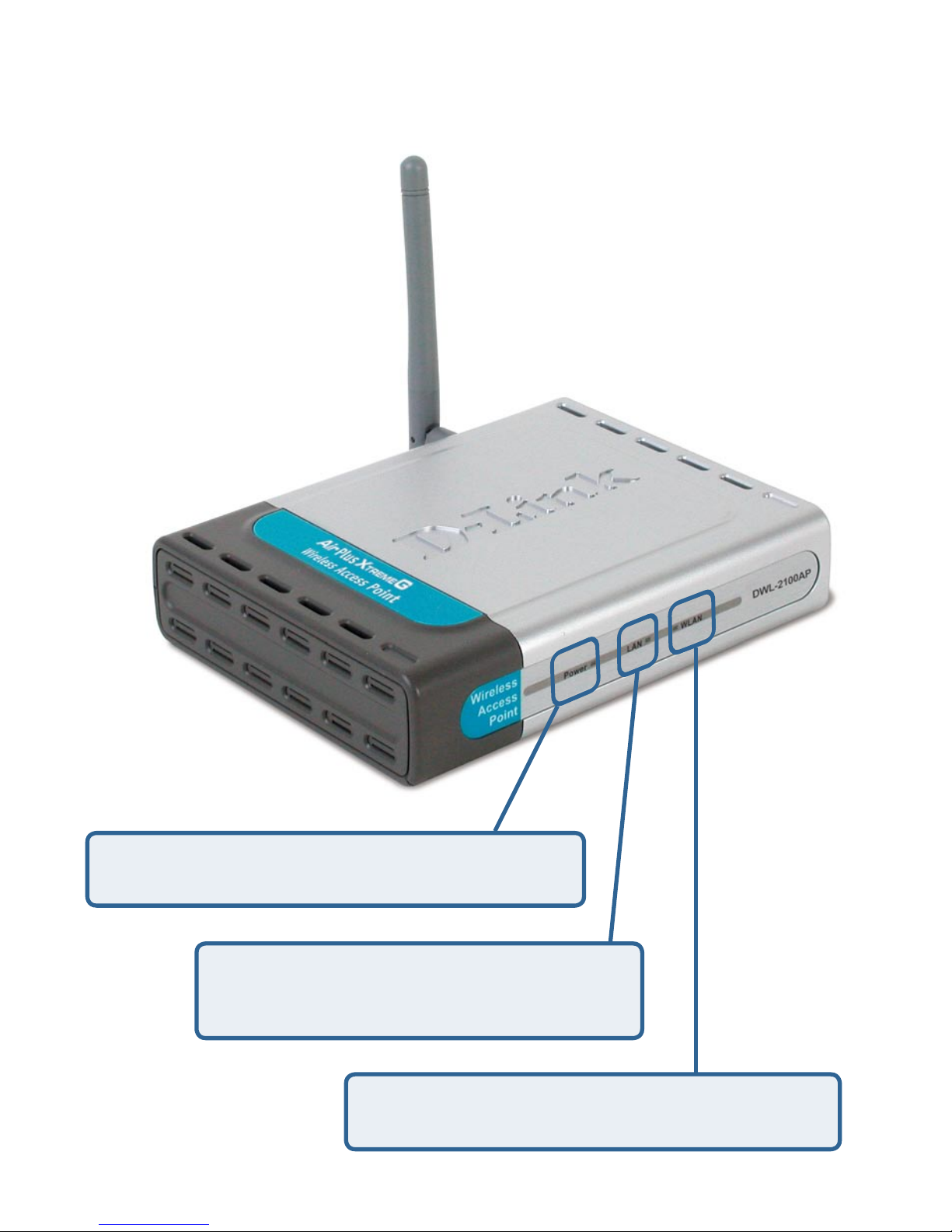

LEDs
LED stands for Light-Emitting Diode. The DWL-2100AP Wireless Access Point has 3
LEDs as shown below:
Power: Solid green light indicates connection.
LAN:
Blinking green light indicates activ-
ity on the Ethernet Port; solid green
light indicates connection.
WLAN: Blinking green light indicates wireless
activity; solid green light indicates connection.

7
Features
5 Different Operation modes - Capable of operating in one of five different
operation modes to meet your wireless networking requirements: Access Point,
AP-to-multipoint bridge with AP function, AP-to-Multipoint Bridging without AP
function , Repeater, or Wireless Client.

Better security with WPA. The DWL-2100AP can securely connect to wireless
clients on the network using WPA (Wi-Fi Protected Access) providing a much
higher level of security for your data and communications than has previously
been available. AES is also supported by the DWL-2100AP to maximize the
network security with data encryption.

Compatible with the 802.11b standard to provide a wireless data rate of up
to 11Mbps - that means you can migrate your system to the 802.11g standard
on your own schedule without sacrificing connectivity.

Faster wireless networking with the 802.11g standard to provide a wireless
data rate of up to 54Mbps (108Mbps in Super G mode).


AP Manager Setup Wizard -The new Setup Wizard makes networks con-
figuration quick and simple.
SNMP for Management - The DWL-2100AP is not just fast but it also
supports SNMP v.3 for a better network management. Superior wireless
AP manager software is bundled with the DWL-2100AP for network
configuration and firmware upgrade. Systems administrators can also setup
the DWL-2100AP easily with the Web-based configuration. A D-Link D-
View module will be downloadable for network administration and real-time
network traffic monitoring with D-Link D-View software.
Utilizes OFDM technology (Orthogonal Frequency Division Multiplexing).
Operates in the 2.4GHz frequency range.
Web-based interface for managing and configuring.





8
Wireless Basics
Wireless users can use the same applications they use on a wired network. Wireless
adapter cards used on laptop and desktop systems support the same protocols as
Ethernet adapter cards.
D-Link wireless products are based on industry standards to provide easy-to-use and
compatible high-speed wireless connectivity within your home, business or public
access wireless networks. D-Link wireless products will allow you access to the data
you want, when and where you want it. You will be able to enjoy the freedom that
wireless networking brings.
A Wireless Local Area Network (WLAN) is a computer network that transmits and
receives data with radio signals instead of wires. WLANs are used increasingly in both
home and office environments, and public areas such as airports, coffee shops and
universities. Innovative ways to utilize WLAN technology are helping people to work
and communicate more efficiently. Increased mobility and the absence of cabling and
other fixed infrastructure have proven to be beneficial for many users.
People use WLAN technology for many different purposes:
Mobility - Productivity increases when people have access to data in any location
within the operating range of the WLAN. Management decisions based on real-time
information can significantly improve worker efficiency.
Low Implementation Costs - WLANs are easy to set up, manage, change
and relocate. Networks that frequently change can benefit from WLANs ease of
implementation. WLANs can operate in locations where installation of wiring may be
impractical.
Installation and Network Expansion - Installing a WLAN system can be fast and
easy and can eliminate the need to pull cable through walls and ceilings. Wireless
technology allows the network to go where wires cannot go - even outside the home
or office.
Inexpensive Solution - Wireless network devices are as competitively priced as
conventional Ethernet network devices.
Scalability - WLANs can be configured in a variety of ways to meet the needs of
specific applications and installations. Configurations are easily changed and range
from Peer-to-Peer networks suitable for a small number of users to larger Infrastructure
networks to accommodate hundreds or thousands of users, depending on the number
of wireless devices deployed.

9
Wireless Basics (continued)
Standards-Based Technology
The DWL-2100AP Wireless Access Point utilizes the 802.11b and the 802.11g
standards.
The IEEE 802.11g standard is an extension of the 802.11b standard. It increases the
data rate up to 54 Mbps (108Mbps in Super G mode) within the 2.4GHz band, utilizing
OFDM technology.
This means that in most environments, within the specified range of this device, you
will be able to transfer large files quickly or even watch a movie in MPEG format over
your network without noticeable delays. This technology works by transmitting high-
speed digital data over a radio wave utilizing OFDM (Orthogonal Frequency Division
Multiplexing) technology. OFDM works by splitting the radio signal into multiple smaller
sub-signals that are then transmitted simultaneously at different frequencies to the
receiver. OFDM reduces the amount of crosstalk (interference) in signal transmissions.
The D-Link DWL-2100AP will automatically sense the best possible connection speed
to ensure the greatest speed and range possible.
802.11g offers the most advanced network security features available today, including:
WPA , TKIP, AES and Pre-Shared Key mode.
The DWL-2100AP is compatible, in default mode, with the following wireless products:
D-Link AirPlus Xtreme GTM DWL-G650
Wireless Cardbus Adapters used with laptop computers
D-Link AirPlus XtremeTM G DWL-G520
Wireless PCI cards used with desktop computers
The DWL-2100AP is also interoperable with other 802.11g and 802.11b
standards-compliant devices.




10
Wireless Basics (continued)
Installation Considerations
The D-Link AirPlus Xtreme GTM DWL-2100AP lets you access your network, using a
wireless connection, from virtually anywhere within its operating range. Keep in mind,
however, that the number, thickness and location of walls, ceilings, or other objects
that the wireless signals must pass through, may limit the range. Typical ranges vary
depending on the types of materials and background RF (radio frequency) noise in
your home or business. The key to maximizing wireless range is to follow these basic
guidelines:
Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or
appliances that generate RF noise.
4
Keep the number of walls and ceilings between the DWL-2100AP and other network
devices to a minimum - each wall or ceiling can reduce your DWL-2100AP’s range
from 3-90 feet (1-30 meters.) Position your devices so that the number of walls or
ceilings is minimized.
1
Be aware of the direct line between network devices. A wall that is 1.5 feet thick
(.5 meters), at a 45-degree angle appears to be almost 3 feet (1 meter) thick. At a
2-degree angle it looks over 42 feet (14 meters) thick! Position devices so that the
signal will travel straight through a wall or ceiling (instead of at an angle) for better
reception.
2
Building materials can impede the wireless signal - a solid metal door or aluminum
studs may have a negative effect on range. Try to position wireless devices and
computers with wireless adapters so that the signal passes through drywall or open
doorways and not other materials.
3

11
Getting Started

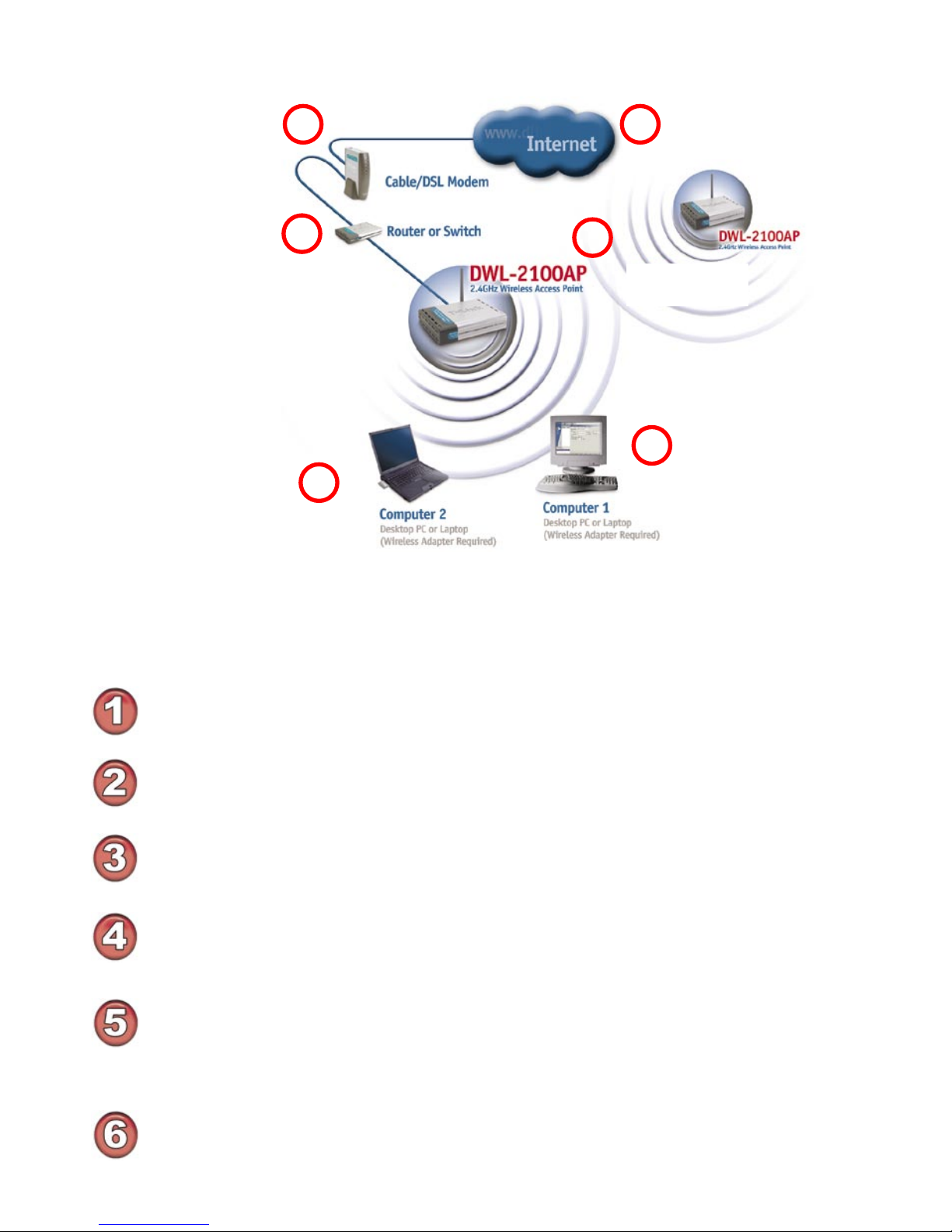

On the following pages we will show you an example of an Infrastructure Network
incorporating the DWL-2100AP.
An Infrastructure network contains an access point or a wireless router. The
Infrastructure Network example shown on the following page contains the following
D-Link network devices (your existing network may be comprised of other devices):
A laptop computer with a wireless adapter -
D-Link AirPlus XtremeTM G DWL-G650
A desktop computer with a wireless adapter -
D-Link AirPlus Xtreme GTM DWL-G520
A cable modem - D-Link DCM-201




A wireless router - D-Link AirPlus Xtreme GTM DI-624
A wireless access point -
D-Link AirPlus Xtreme GTM DWL-2100AP


12
Please remember that D-Link AirPlus XtremeTM G wireless devices are pre-configured
to connect together, right out of the box, with their default settings.
You will need broadband Internet access (a Cable or DSL-subscriber line into
your home or office).
Consult with your Cable or DSL provider for proper installation of the modem.
Connect the Cable or DSL modem to the DI-624 Router (see the printed
Quick Installation Guide included with your router.)
If you are connecting a desktop computer to your network, install the D-Link
AirPlus XtremeTM G DWL-G520 wireless PCI adapter into an available PCI
slot on your desktop computer.
(See the printed Quick Installation Guide included with the network adapter.)
Install the drivers for the D-Link DWL-G650 wireless Cardbus adapter into a
laptop computer.
(See the printed Quick Installation Guide included with the DWL-G650.)
Getting Started (continued)
For a typical wireless setup at home (as shown above), please do the
following:
Setting up
a Wireless
Infrastructure
Network
1
2
34
Connect the Ethernet Broadband Router to the DWL-2100AP (See the printed
Quick Installation Guide included with the DWL-2100AP.)
6
5

13

Note: if you have changed the default IP address assigned to the DWL-2100AP, make sure to
enter the correct IP address.
Using the Configuration Menu
Home > Wizard
The Home>Wizard
screen will appear.
Please refer to the
Quick Installation
Guide for more infor-
mation regarding the
Setup Wizard.

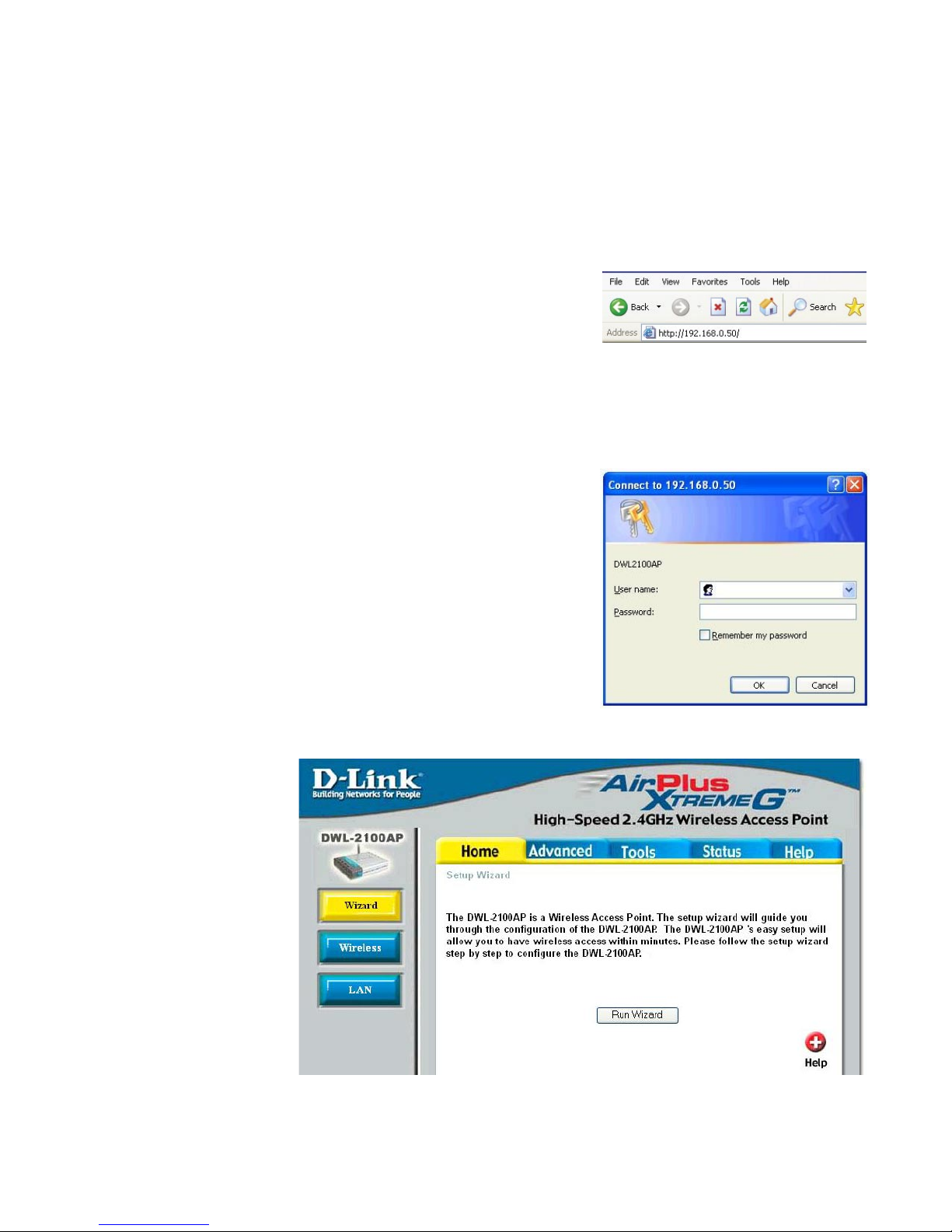

After you have completed the Setup Wizard (please see the Quick Installation Guide that
came with the product) you can access the Configuration menu at any time by opening
the Web browser and typing in the IP address of the DWL-2100AP. The DWL-2100AP
default IP address is shown below:
 Open the Web browser
 Type in the IP address of the
DWL-2100AP


Type admin in the User Name field
Leave the Password blank.
(However, if you have changed the
password, please enter the correct
password.)
Click OK
admin

14
Using the Configuration Menu (continued)

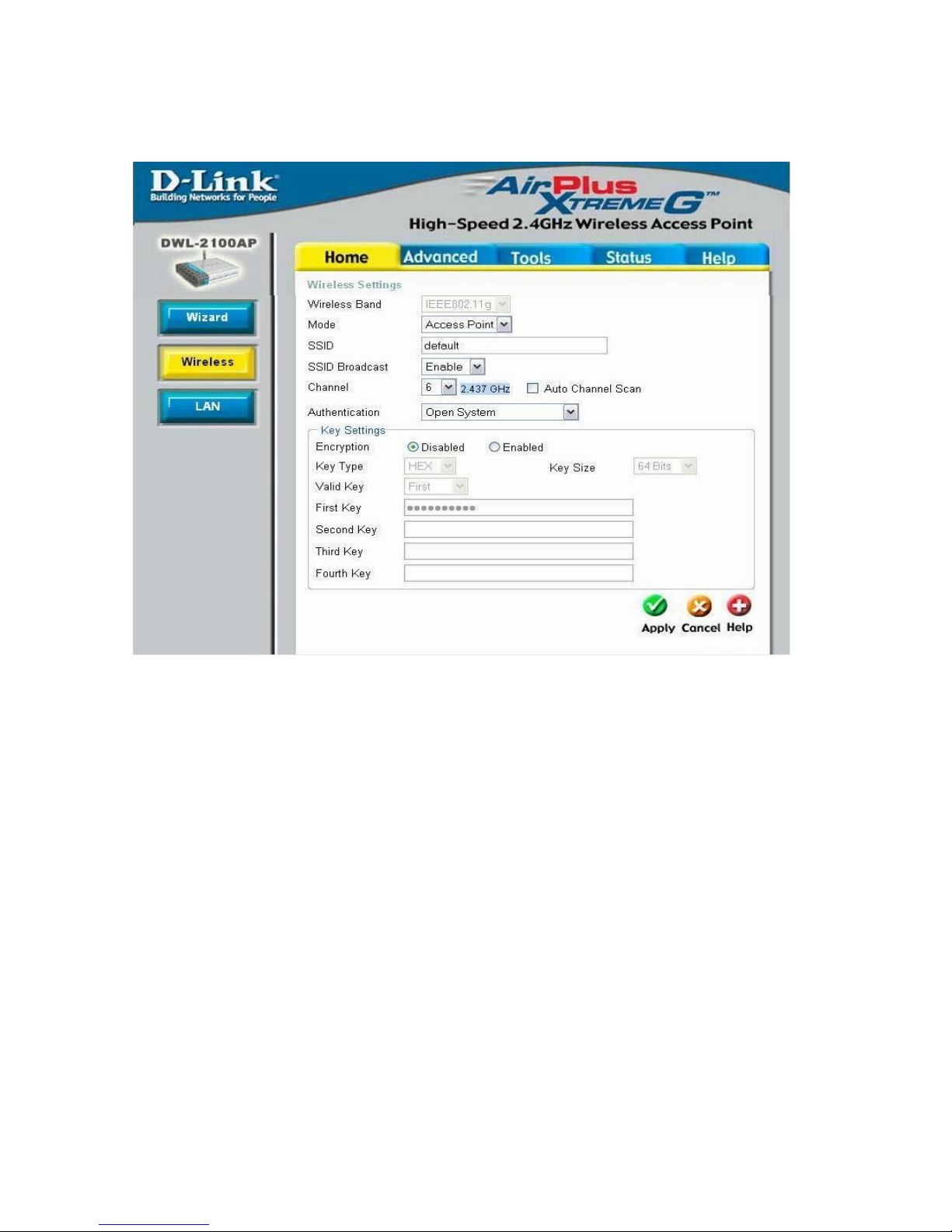

Home > Wireless >AP Mode
Channel- 6 is the default channel. All devices on the network must share the
same channel.
Wireless
Band- IEEE 802.11g.
Mode Access Point is selected from the pull down menu..
SSID
Broadcast-
Enable or Disable SSID Broadcast. Enabling this feature broadcasts
the SSID across the network.
Auto Channel
Scan
Select Enable or Disable.(Enable this feature to auto-select the chan-
nel for best wireless performance.)
Service Set Identifier(SSID)is the name designated for a specific
wireless local area network(WLAN).The SSID factpru default setting
is default.The SSID can be easily changed to connect to an existing
network or to establish a new wireless network.
SSID

15
Using the Configuration Menu (continued)
Home > Wireless>AP Mode(continued)
Authentication:Open System
Shared Key
Open System/Shared Key
WPA-EAP
WPA-PSK
Select Open System to communicate the key across the network.
Select Shared Key to limit communication to only those devices that share the same
WEP settings.
Select Open System/Shared Key to allow either form of data encryption.
Select WPA-EAP to secure your network with the inclusion of a RADIUS server.
Select WPA-PSK to secure your network using a password and dynamic key changes.
(No RADIUS server required).
Valid Key:
First through
Fourth keys:
Encryption: Select Disabled or Enabled. (Disabled is selected here).
Key Type*:
Key Size:
Input up to four keys for encryption. You will select one of these
keys in the valid key field.
*Hexadecimal digits consist of the numbers 0-9 and the letters A-F
ASCII (American Standard Code for Information Interchange) is a code for
representing English letters as numbers from 0-127
Select HEX or ASCII.
Select 64-, 128-, 152-bits.
Select the 1st through the 4th key to be the active key.
Home > Wireless>AP Mode>WEP Encryption

16
Cipher Type:
Group Key
Update Interval:
When you select WPA-EAP, you must select AES, AUTO or TKIP
from the pull down menu.
Select the interval during which the group key will be valid.
1800 is the recommended value. A lower interval may reduce data
transfer rate.
Radius Server: Enter the IP address of the Radius server.
Radius Port: Enter the Radius port.
Radius Secret: Enter the the Radius secret.

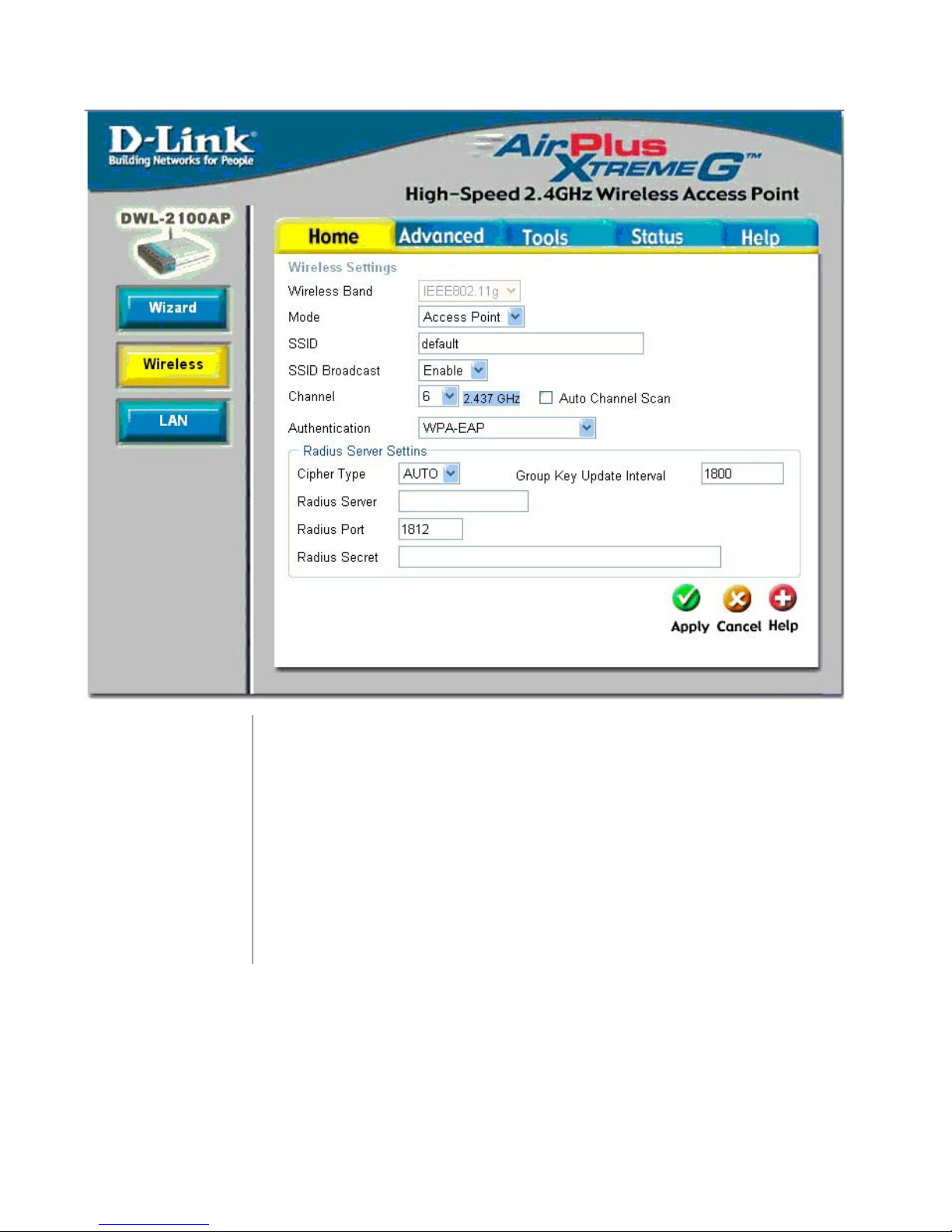

Home > Wireless>AP Mode>WPA-EAP

17
Cipher
Type:
Group Key
Update Interval:
Select the interval during which the group key wll be valid. The
default value of 1800 is recommended.
When you select WPA-PSK, please select AES, AUTO or TKIP
from the pull down menu.
Pass-
Phrase:
When you select WPA-PSK, please enter a PassPhrase in the
corresponding field.

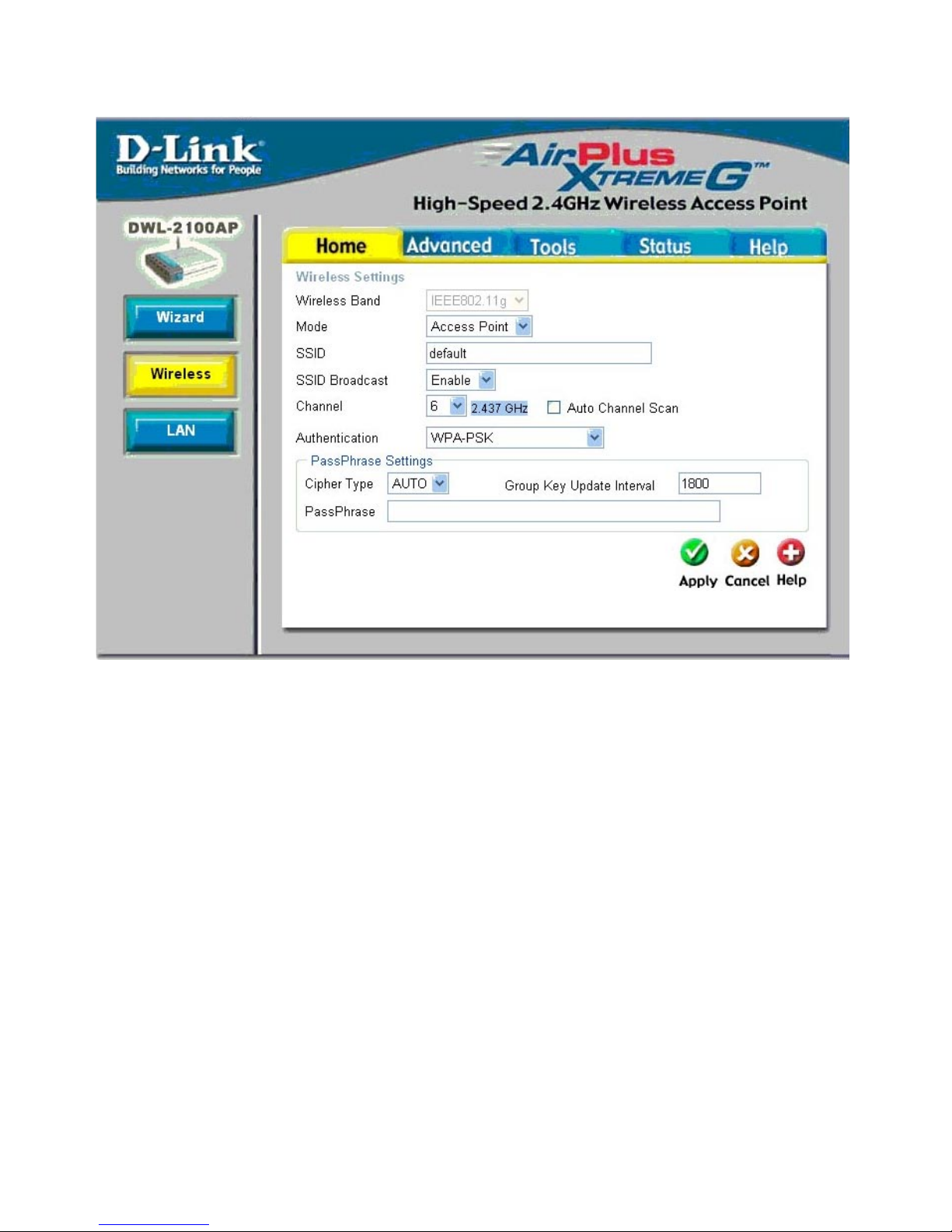

Home > Wireless>AP Mode>WPA-PSK

18
Using the Configuration Menu (continued)

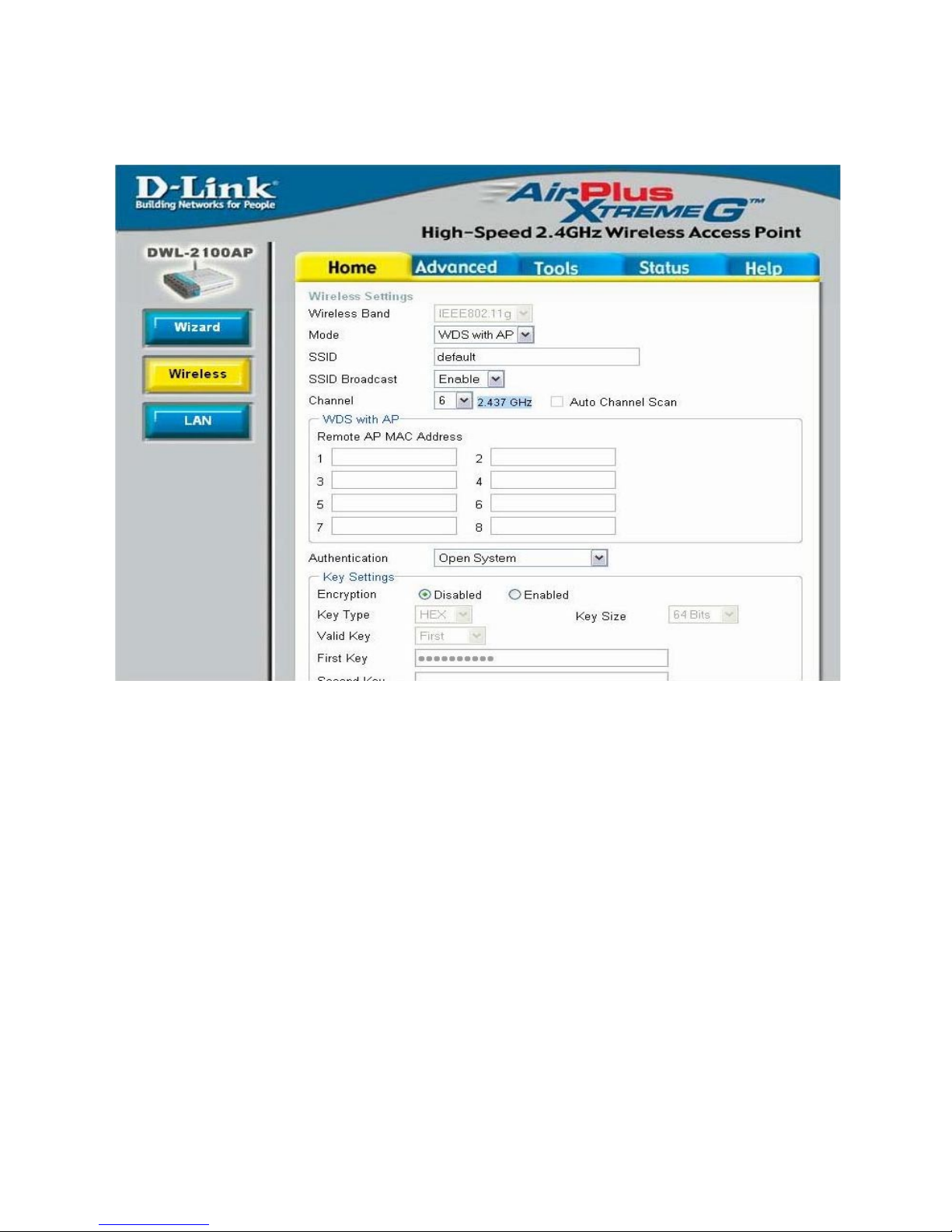

Home > Wireless >WDS with AP Mode
Channel- 6 is the default channel. All devices on the network must share the
same channel.
Wireless
Band- IEEE 802.11g.
Mode WDS with AP mode is selected from the pull-down menu.
SSID
Broadcast-
Enable or Disable SSID Broadcast. Enabling this feature broadcasts
the SSID across the network.
Auto Channel
Scan
Select Enable or Disable.(Enable this feature to auto-select the chan-
nel for best wireless performance.)
Service Set Identifier(SSID)is the name designated for a specific
wireless local area network(WLAN).The SSID factpru default setting
is default.The SSID can be easily changed to connect to an existing
network or to establish a new wireless network.
SSID

19
Using the Configuration Menu (continued)
Home > Wireless>WDS with AP Mode(continued)
Enter the MAC address of the APs in your network that will
serve as bridges to wirelessly connect multiple networks.
Authentica-
tion-
Select Shared Key to limit communication to only those devices
that share the same WEP settings.
Select Shared Key to limit communication to only those devices
that share the same WEP settings.
Select Open System/Shared Key to allow either form of data
encryption.
Open System- When Open System is selected , the following field will be configurable.
other methods of authentication will have different configuration fields.
Encryption- Select Disable or Enable(Disable is selected here .
Key Type- Select HEX or ACII.
Key Size- Select 64-,128-,152- bits.
Valid Key- Select the 1st through the 4th key to be the active key.
Remote AP
MAC Address-

20
Using the Configuration Menu (continued)

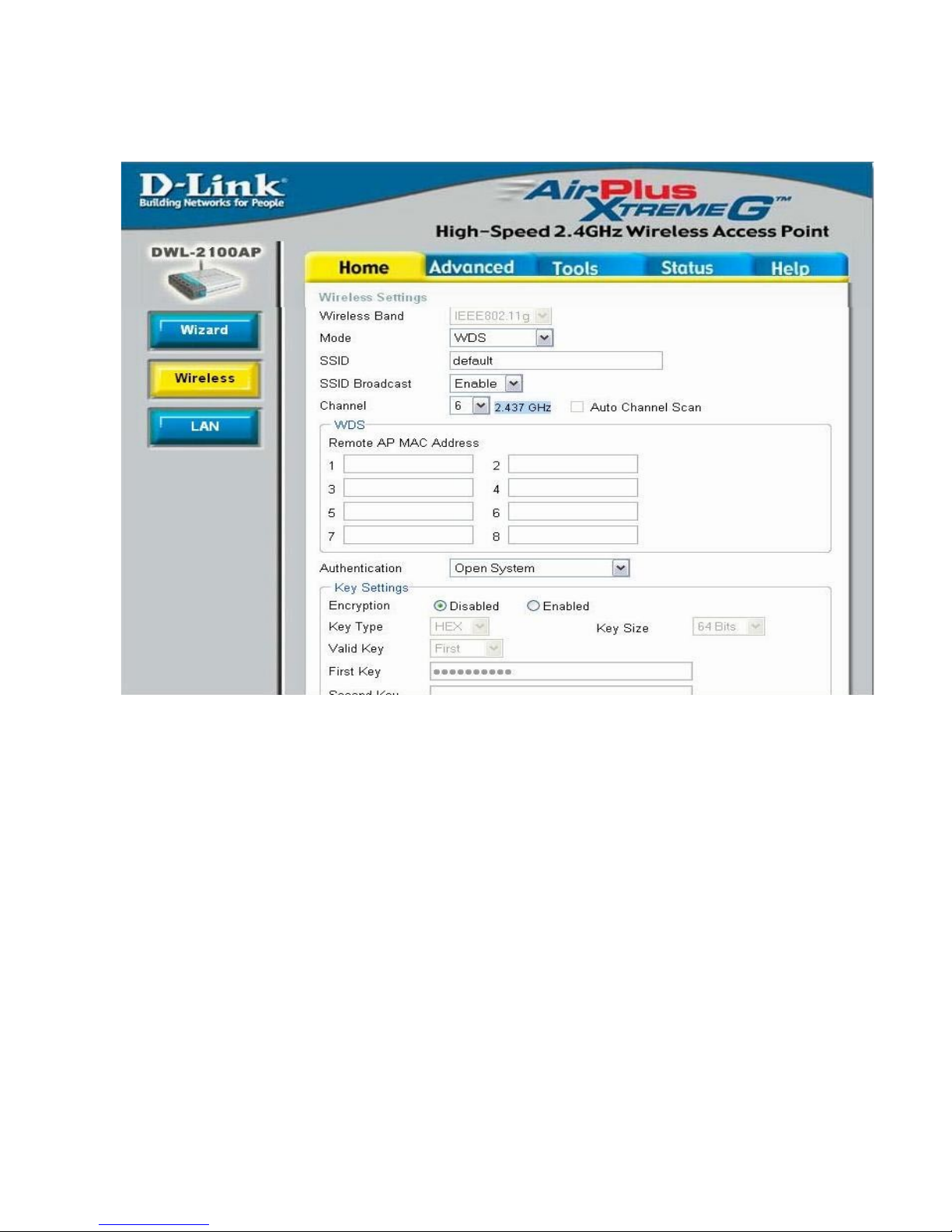

Home > Wireless >WDS Mode
Channel- 6 is the default channel. All devices on the network must share the
same channel.
Wireless
Band- IEEE 802.11g.
Mode WDS is selected from the pull-down menu.
SSID
Broadcast-
Enable or Disable SSID Broadcast. Enabling this feature broadcasts
the SSID across the network.
Auto Channel
Scan
Select Enable or Disable.(Enable this feature to auto-select the channel
for best wireless performance.)
Service Set Identifier(SSID)is the name designated for a specific
wireless local area network(WLAN).The SSID factpru default setting
is default.The SSID can be easily changed to connect to an existing
network or to establish a new wireless network.
SSID
