2 DWL-8200AP Install Guide
Minimum System Requirements:
• CD-ROM Drive
• Computers with Windows®, Macintosh®, or Linux-based operating systems
• Installed Ethernet Adapter
• Internet Explorer version 6.0 or Firefox 1.5 and above
System Requirements

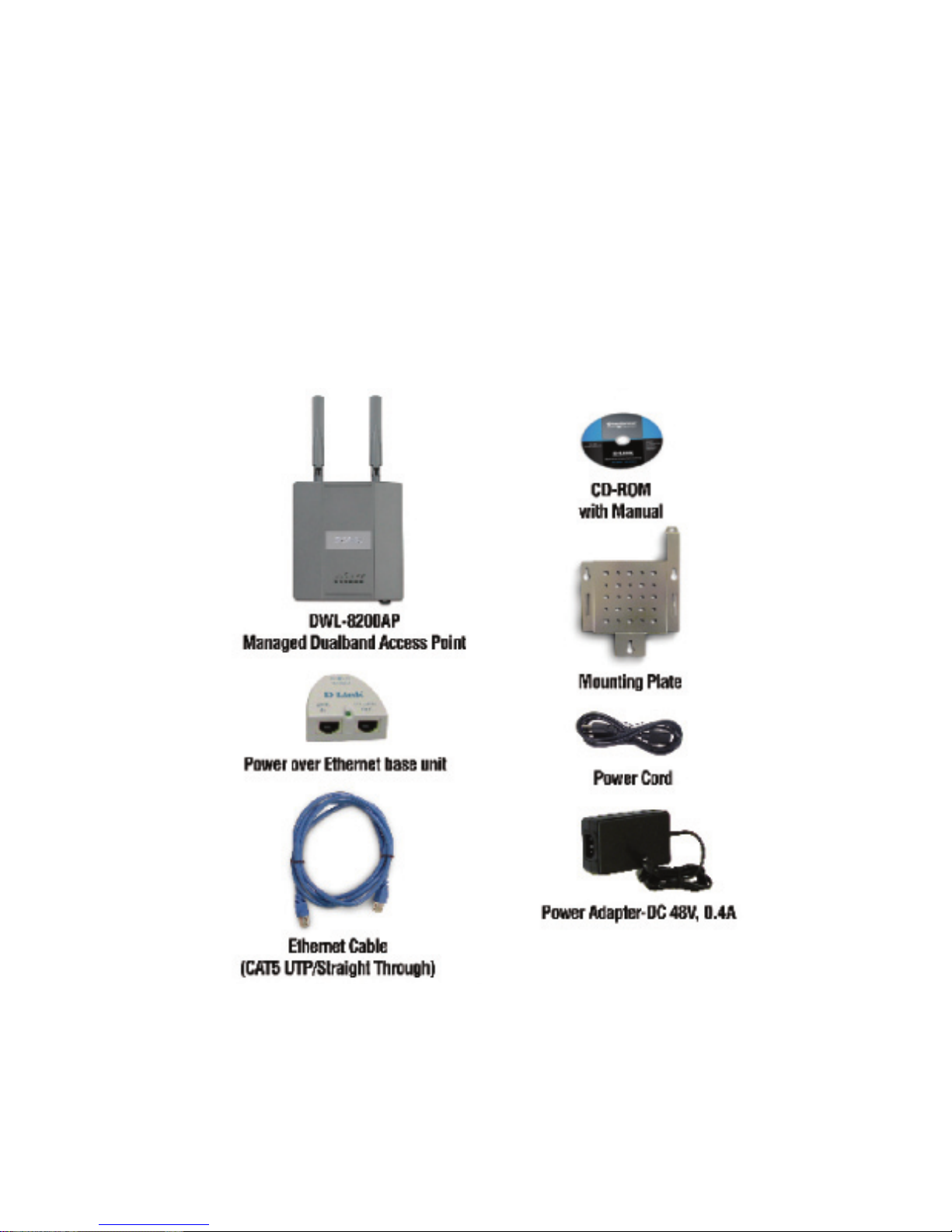

Package Contents
Note: Using a power supply with a different voltage than the one included with the
DWL-8200AP will cause damage and void the warranty for this product.
If any of the above items are missing, please contact your reseller.

DWL-8200AP Install Guide 3

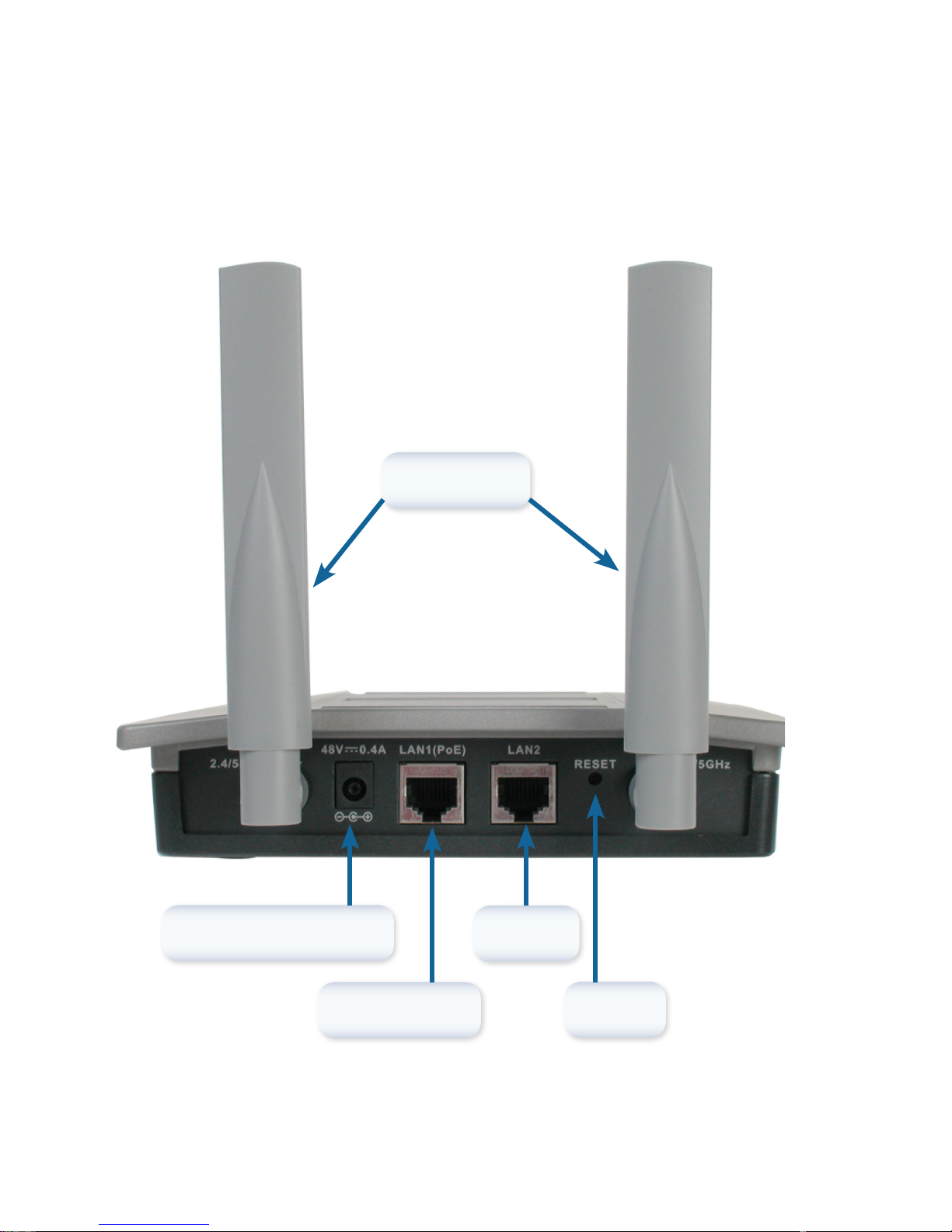

Installing the Hardware
Power Cord socket
LAN 1 (PoE)
Antennas
LAN 2
Reset

4 DWL-8200AP Install Guide

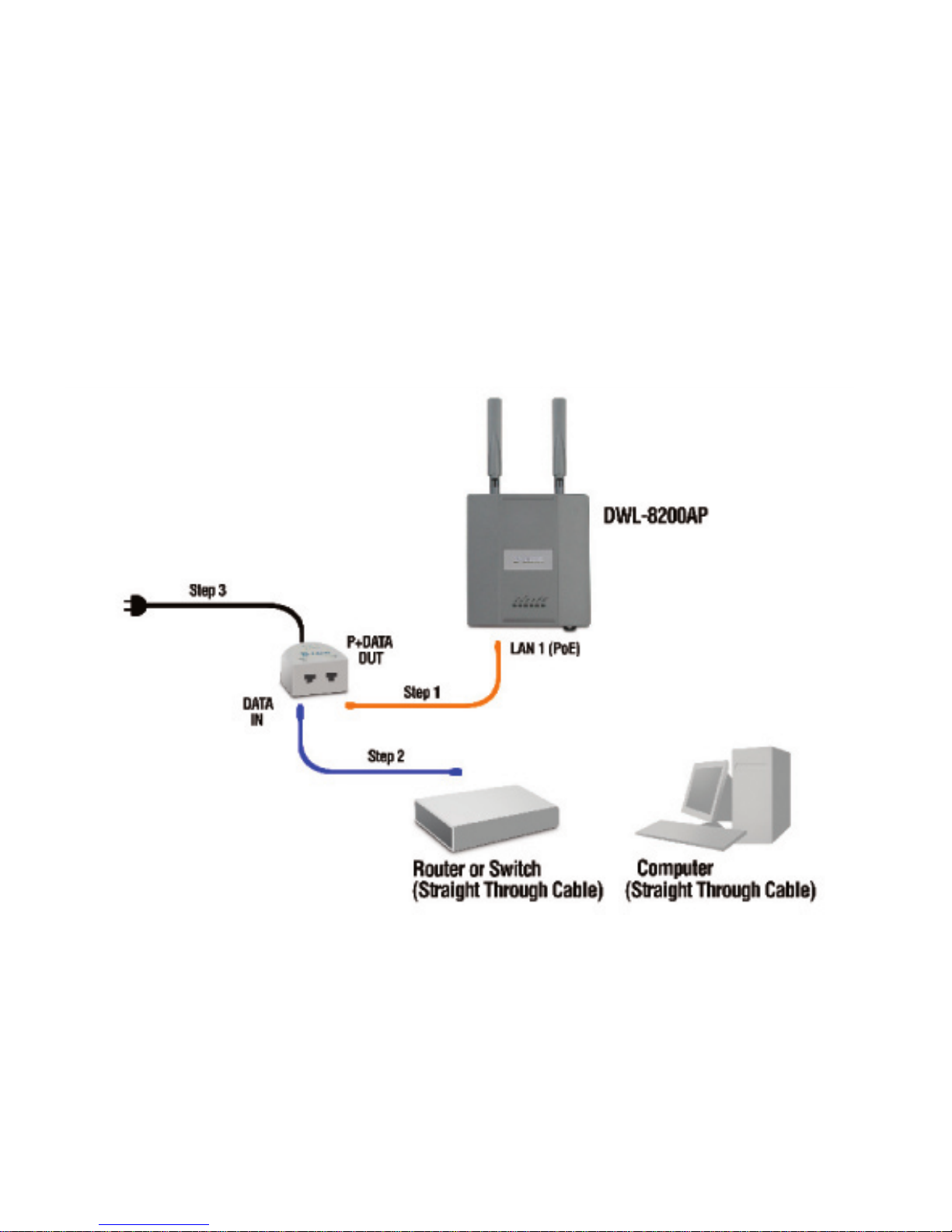

Step 1
Connect one end of an Ethernet cable (included with your package) to the
LAN 1 (PoE) port on the DWL-8200AP, and the other end of the Ethernet
cable to the port labeled P+DATA OUT on the PoE base unit.
Step 2
Connect another Ethernet cable from the DATA IN port on the PoE base
unit to your router/switch or to a PC.
Step 3
Attach the power adapter to the connector labeled POWER IN on the PoE
base unit. Attach the power cord to the power adapter and into an electrical
outlet.

DWL-8200AP Install Guide 5

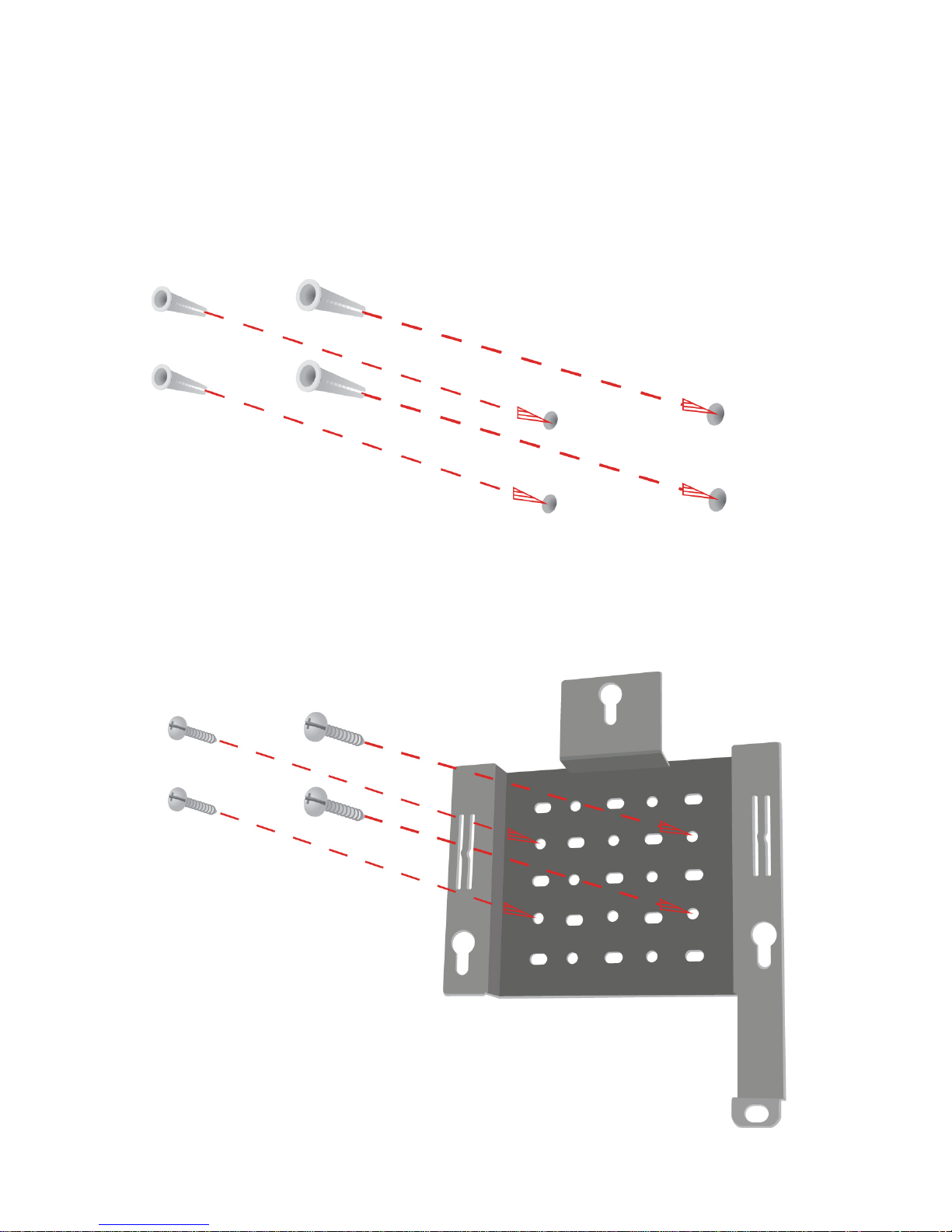

Step 1: Insert provided wall anchors in the wall where the mounting plate will
be attached.
Mounting Plate Assembly
Step 2: Use the provided screws to secure the mounting plate on the wall.

6 DWL-8200AP Install Guide

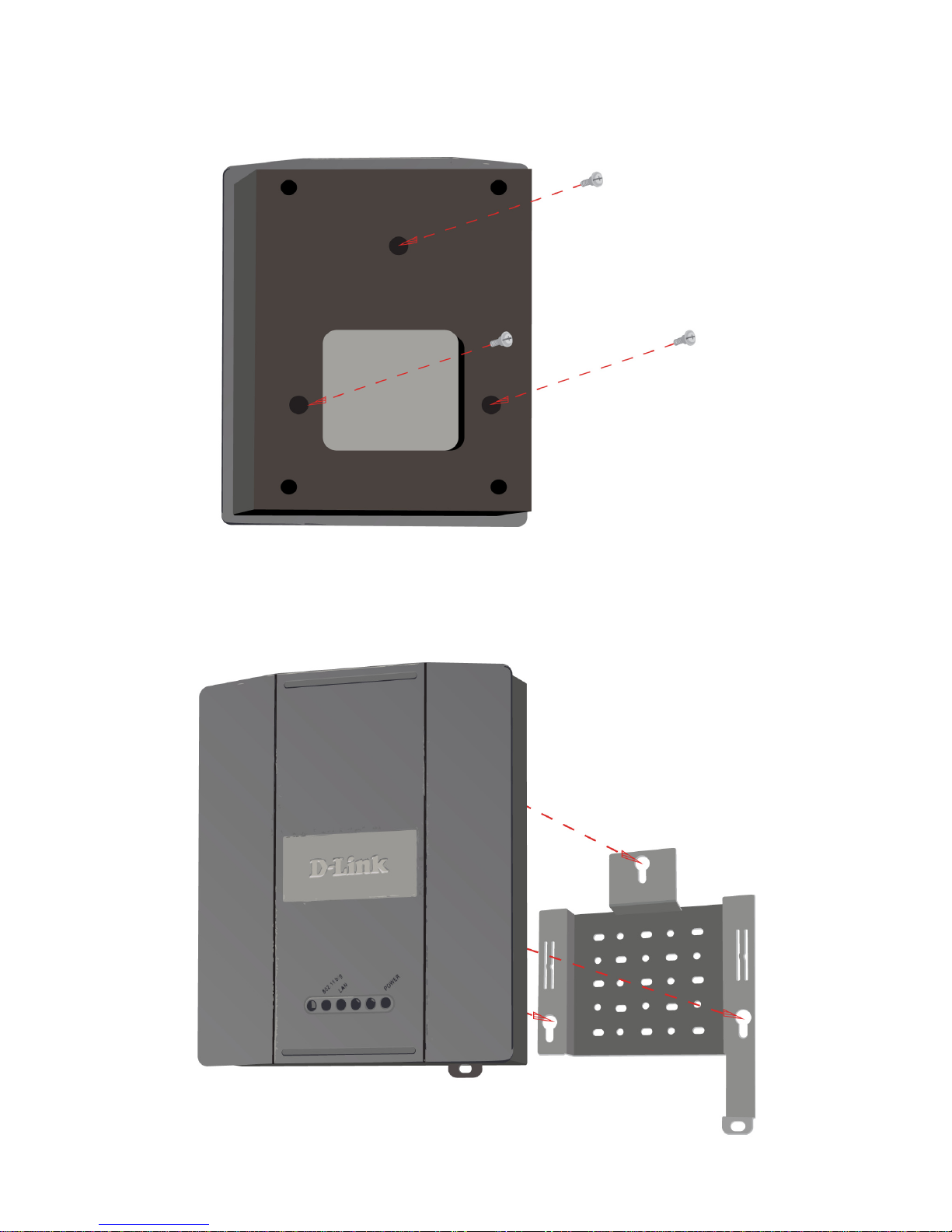

Step 3: Attach the remaining screws securely to the back of the
DWL-8200AP.
Step 4: Attach the DWL-8200AP to the mounting plate.

DWL-8200AP Install Guide 7

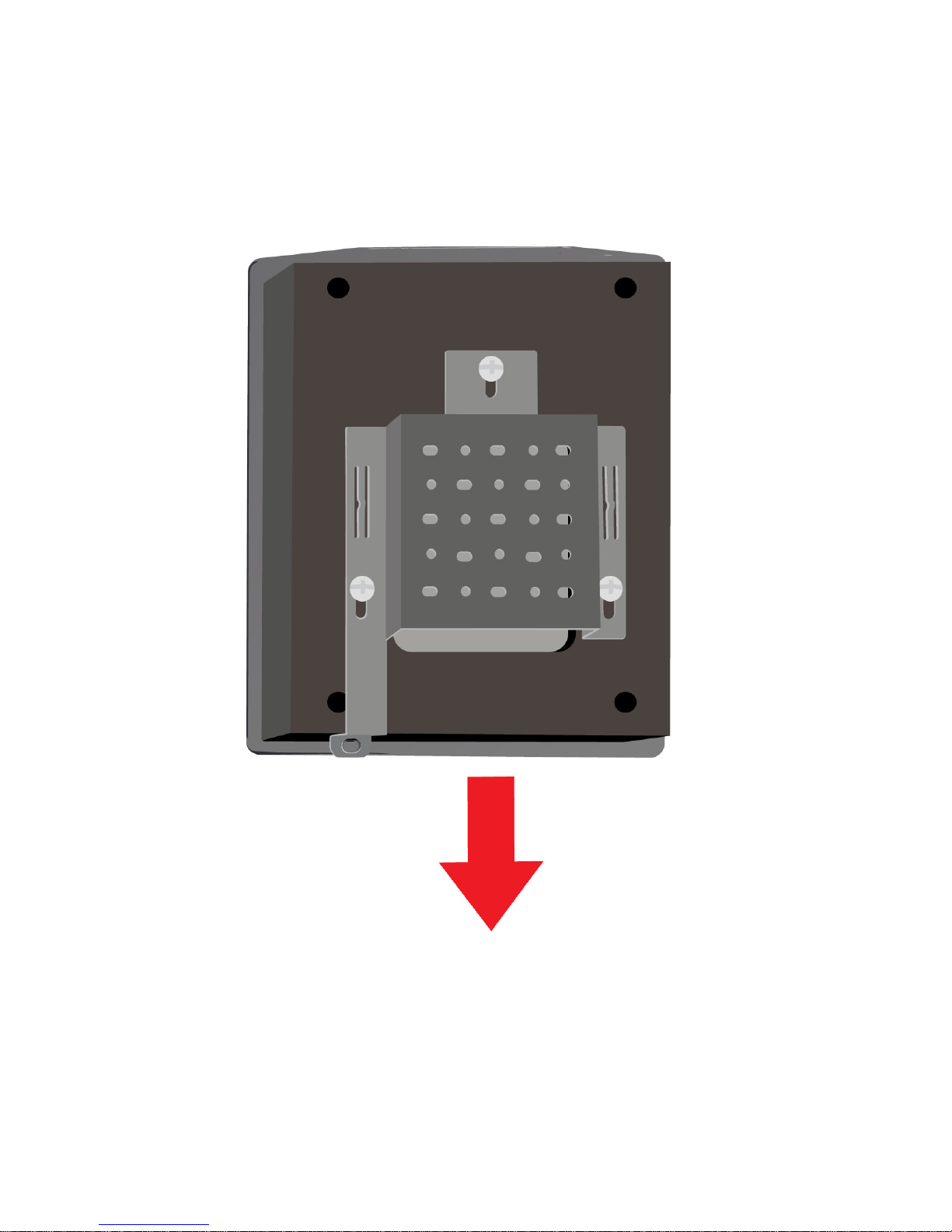

Step 5: Slide the DWL-8200AP down into the grooves on the mounting plate to
secure it to the plate.

8 DWL-8200AP Install Guide

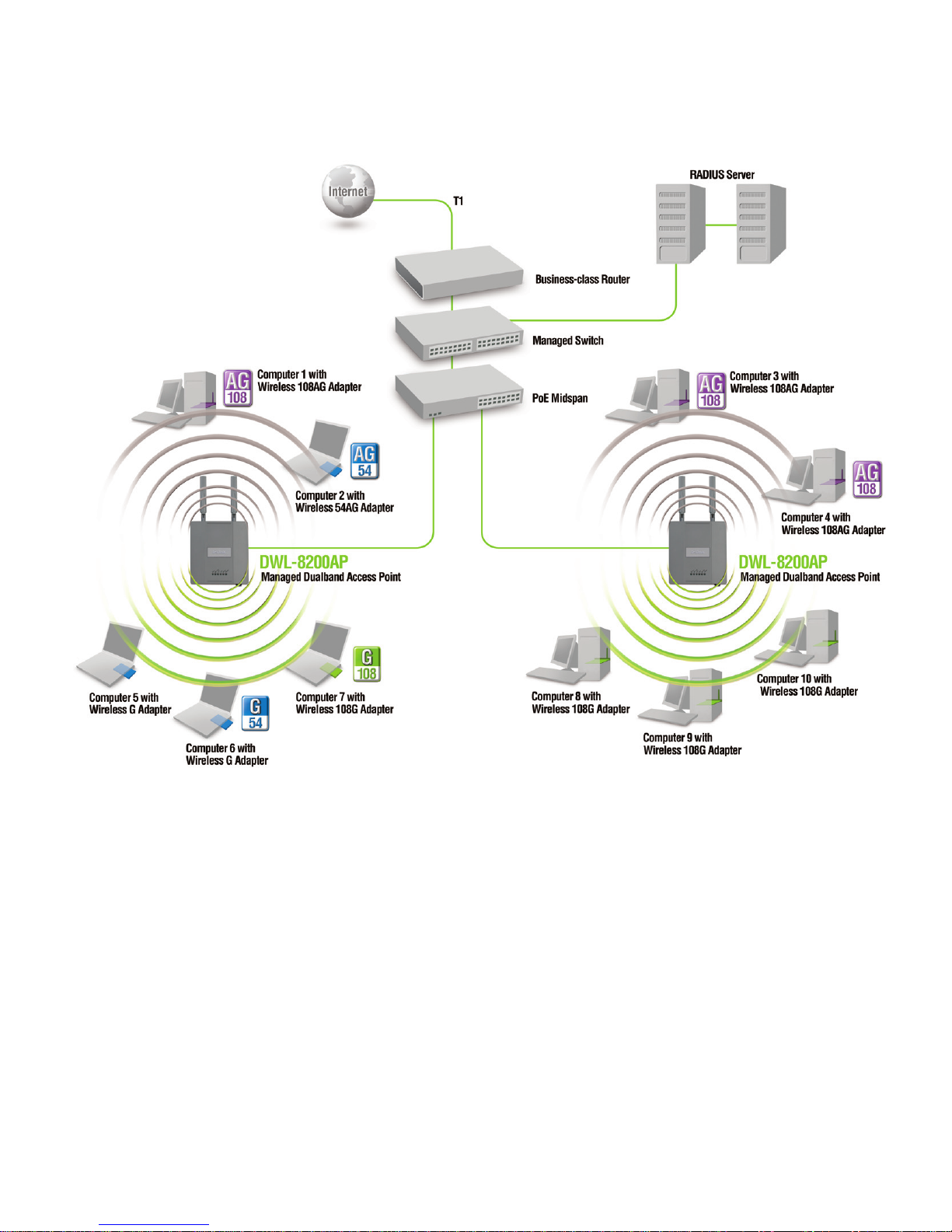

When you have completed the steps in this Installation Guide and configured
your for your network, your network should look similar to this:
Your Setup is Complete
* Maximum Wireless signal rate derived from IEEE Standard 802.11a and 802.11g specifications.
Actual data throughput will vary. Network conditions and environmental factors, including volume
of network traffic, building materials and construction, and network overhead lower actual data
throughput rate.

DWL-8200AP Install Guide 9
Configuration
To configure the DWL-8200AP, use a computer which is connected to the
DWL-8200AP with an Ethernet cable (see the Network Layout diagram).
Disable the Access the Internet using a proxy server function. To disable
this function, go to Control Panel > Internet Options > Connections > LAN
Settings and un-check the enable box.
Start your web browser program (Internet Explorer) and type the IP address
of the DWL-8200AP in the address field (http://192.168.0.50) and press Enter.
Make sure that the IP addresses of the DWL-8200AP and your computer are
in the same subnet. DWL-8200AP also supports HTTPS Browsing by using
the Secure Socket Layer (SSL) Protocol. Just change your Browser’s address
line from “http://...” to “https://...” and log into the AP again.
After the connection is established, you will see the user identification window
as shown on the next page.
Note: If you have changed the default IP address assigned to the
DWL-8200AP, make sure to enter the correct IP address.

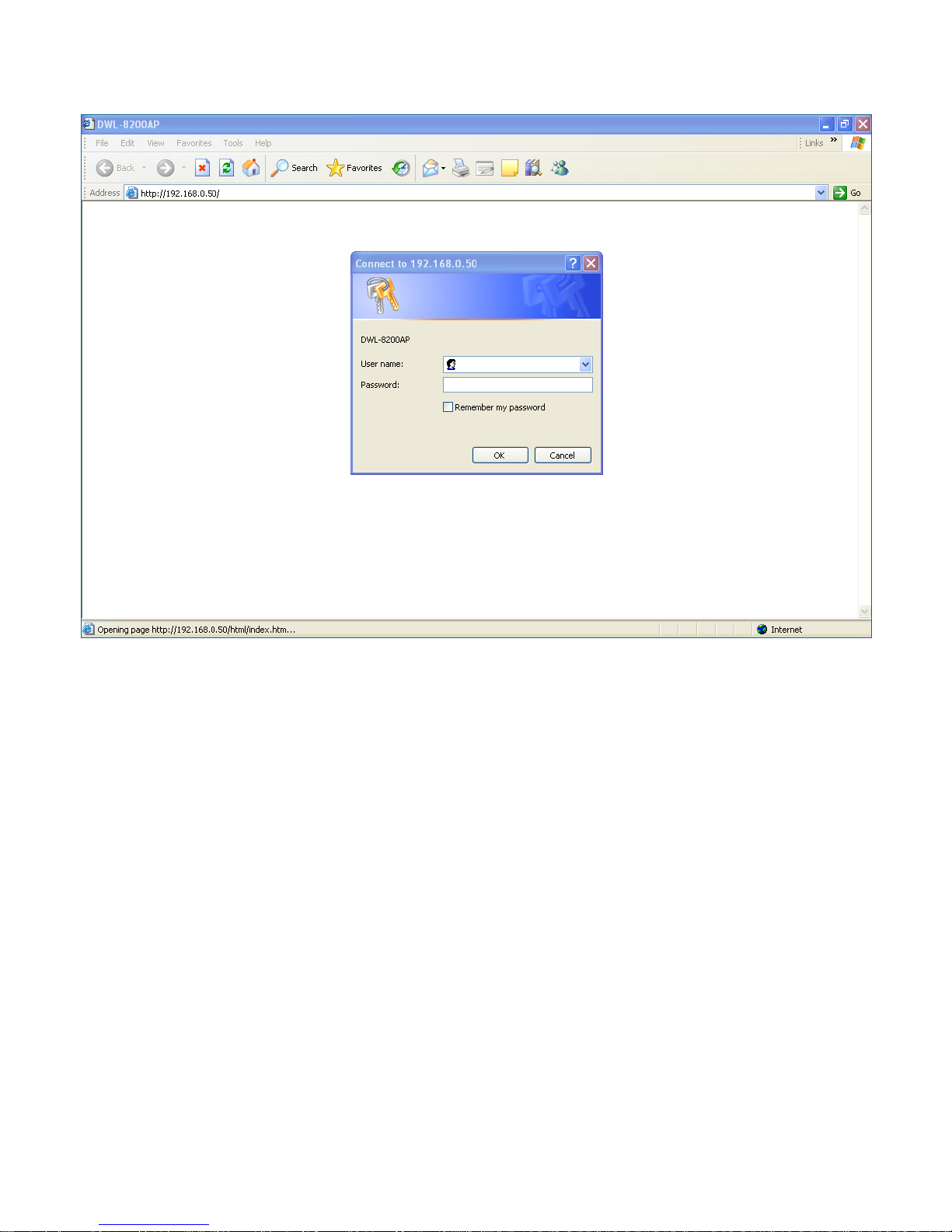

Logging In

10 DWL-8200AP Install Guide
• Type admin in the User Name field
• Leave the Password field blank
• Click OK
Please refer to the manual for configuration help.

DWL-8200AP Install Guide 11
Notes

Technical Support
D-Link’s website contains the latest user documentation and software
updates for D-Link products.
U.S. and Canadian customers can contact D-Link Technical Support through
our website or by phone.
United States
Telephone
[phone]
World Wide Web
http://support.dlink.com
Canada
Telephone
[phone]
World Wide Web
http://support.dlink.com
Version 2.1
April 21, 2008
