D-Link DWL-2100AP - AirPlus Xtreme G User manual

D-Link, the industry pioneer in wireless networking,
introduces a performance breakthrough in wireless
connectivity – D-Link AirPlus Xtreme GTM series
of high-speed devices now capable of delivering transfer
rates up to 15x faster than the standard 802.11b with
the new D-Link 108G. With the new AirPlus Xtreme G
DWL-2100AP Wireless Access Point, D-Link sets
a new standard for wireless access points.
With the D-Link 108G enhancement, the DWL-2100AP
can achieve wireless speeds up to 15x in a pure D-Link
108G environment through the use of new wireless
technologies such as Packet Bursting, Fast Frame,
Compression & Encryption, and Turbo mode.These
technologies enable a throughput high enough to handle
video/audio streaming and future bandwidth-intense
applications. The DWL-2100AP also supports
SNMP v.3 for better network management with the
provided Wireless AP Manager software that manages
network confi guration and fi rmware upgrades. For
Enterprise networks, the DWL-2100AP supports
network administration and real-time network
traffi c monitoring via D-Link’s D-View Network
Management software.
108Mbps1 Wireless Networking
Up to 108Mbps1 with
D-Link 108G Products
Improved Wireless Security
with WPA and 802.1X
Authentication
SNMP Management
Software Included
More Mobility with
WDS and Five
Operational Modes
The DWL-2100AP features WDS (Wireless Distribution
System) that can be confi gured to perform in any one
of fi ve modes: a Wireless Access Point, a Point-to-Point
(PtP) bridge with another DWL-2100AP, a
Point-to-Multipoint (PtMP) bridge, a Repeater for
range extension, or as a Wireless Client. The WDS
feature makes the DWL-2100AP an ideal solution
for quickly creating and extending a wireless local
area network (WLAN) in offi ces or other workplaces,
or even at hotspots.
Wireless security is addressed as the DWL-2100AP
uses WPA (Wi-Fi Protected Access) and 802.1X
authentication to provide a higher level of security
for data communication amongst wireless clients.
The DWL-2100AP is also fully compatible with the
IEEE 802.11b and 802.11g standards. With great
manageability, versatile operation modes, solid
security enhancement, the cost-effective D-Link
AirPlus Xtreme G DWL-2100AP Wireless Access
Point provides the ultra-fast wireless signal rates and
everything else a network professional dreams of.

1
D-Link Systems, Inc. 17595 Mt. Herrmann Street Fountain Valley CA 92708 www.dlink.com
©2004 D-Link Corporation/D-Link Systems, Inc. All rights reserved. D-Link, the D-Link logo and AirPlus Xtreme G are registered
trademarks of D-Link Corporation or its subsidiaries in the United States and other countries. Other trademarks are the property
of their respective owners. All references to speed are for comparison purposes only. Product specifi cations, size and shape
are subject to change without notice, and actual product appearance may differ from that depicted herein.
Visit www.dlink.com for more details.

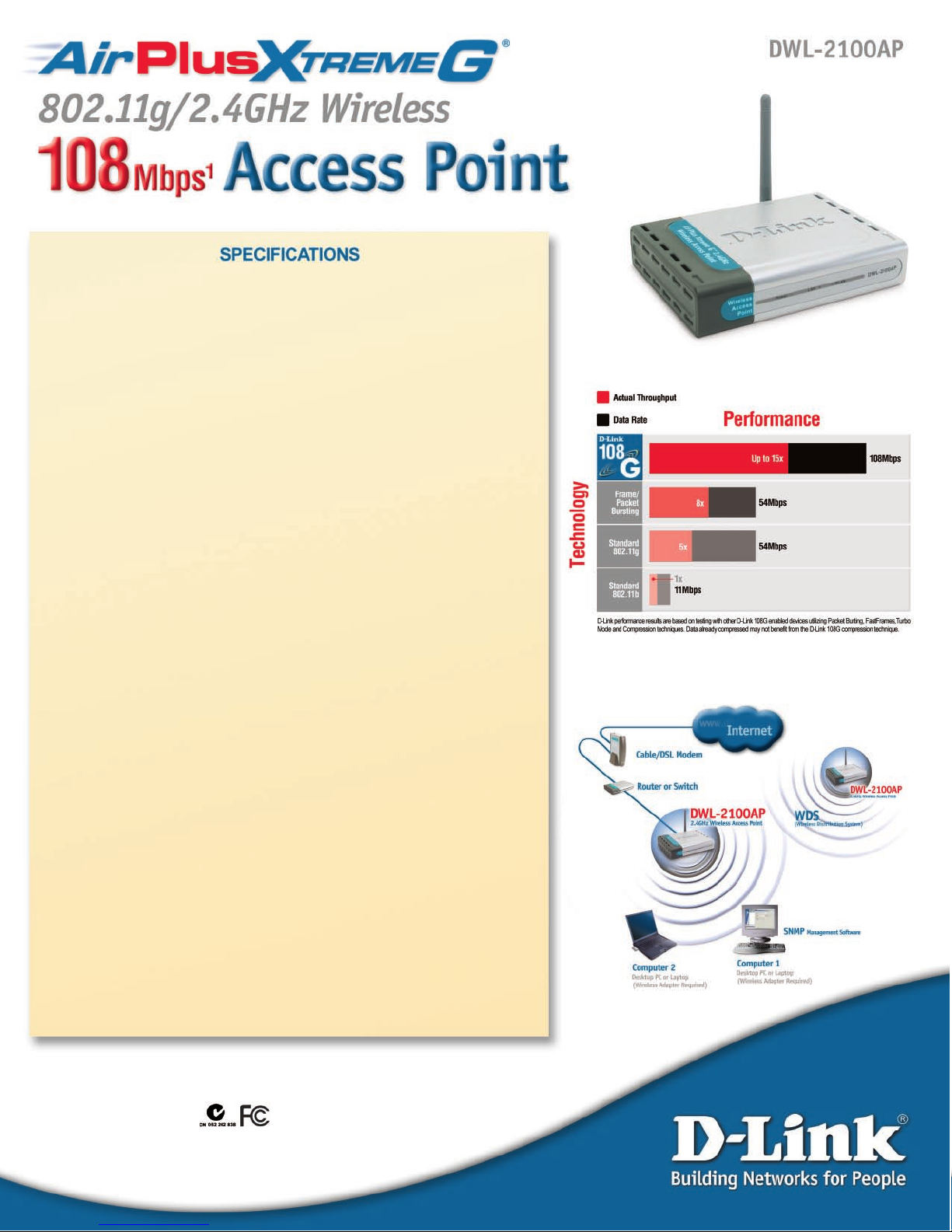

Standards
• IEEE 802.11g
• IEEE 802.11b
• IEEE 802.11
• IEEE 802.3
• IEEE 802.3u
Device Management
• Web-Based – Internet Explorer v6
or later; Netscape Navigator v6 or
later; or other Java- enabled browsers.
• SNMP v.3
Wireless Distribution System
• AP Client
• PtP Bridge
• PtMP Bridge
• Repeater
Security
• 64-, 128 152-bit WEP
• 802.1X (EAP-MD5, EAP-TLS,
EAP-TTLS and EAP-PEAP)
• WPA —Wi-Fi Protected Access
• MAC Address Access Control
(WPA-TKIP and WPA-AES)
Media Access Control
CSMA/CA with ACK
Wireless Frequency Range
2.4GHz to 2.4835GHz
Wireless Operating Range2
Indoors: Up to 328 ft (100 meters)
Outdoors: Up to 1312 ft (400 meters)
Modulation Technology
• Orthogonal Frequency
Division Multiplexing (OFDM)
• Complementary Code Keying (CCK)
• DQPSK
• DBPSK
Wireless Transmit Power
15dBm (32mW) ± 2dB
(Control TX power level from full, 50%,
25%, 125% and min.)
Receiver Sensitivity
• 54Mbps OFDM, 10% PER,-66dBm)
• 48Mbps OFDM, 10% PER,-71dBm)
• 36Mbps OFDM, 10% PER,-76dBm)
• 24Mbps OFDM, 10% PER,-80dBm)
• 18Mbps OFDM, 10% PER,-83dBm)
• 12Mbps OFDM, 10% PER,-85dBm)
• 11Mbps CCK, 8% PER,-83dBm)
• 9Mbps OFDM, 10% PER,-86dBm)
• 6Mbps OFDM, 10% PER,-87dBm)
• 2Mbps QPSK, 8% PER,-89dBm)
External Antenna Type
1.0dB Dipole with reverse SMA connector
LEDs
• Power
• LAN (10/100)
• WLAN (Wireless Connection)
Temperature
• Operating: 32°F to 140°F (0°C to 40°C)
• Storing: 4°F to 149°F (-20°C to 65°C)
Humidity
95% maximum (non-condensing)
Power Input
Ext. Power Supply DC 5V, 2.0A
Safety & Emissions
• FCC • UL • VCCI • CSA • EN
Dimensions
• L = 5.6 inches (142mm)
• W = 4.3 inches (109mm)
• H = 1.2 inches (31mm)
Weight
0.44 lbs (200g)
Warranty
3 Year
1 Maximum wireless signal rate derived from IEEE Standard 802.11g
specifi cations. Actual data throughput will vary. Network conditions and
environmental factors, including volume of network traffi c, building
materials and construction, and network overhead lower actual data
throughput rate.
2 Environmental conditions may adversely affect wireless signal range.
