D-Link NUCLIAS CONNECT DIS-3650AP User manual

NUCLIAS CONNECT
DIS-3650AP User Guide
V 1.00
2022 | Business Class Networking

2
Table of Contents
Nuclias Connect .......................................................................................... 4
Introduction ...................................................................................................... 4
Nuclias Connect Key Features .................................................................... 5
Package Contents ........................................................................................... 6
System Requirements.................................................................................... 6
Hardware Overview ................................................................................... 7
LED Indicators................................................................................................... 7
Interface Connectors ................................................................................. 8
Top ........................................................................................................................ 8
Back...................................................................................................................... 8
Installation................................................................................................... 9
Using Power over Ethernet (PoE)...................................................... 9
Conguration .............................................................................................. 9
Using Nuclias Connect ......................................................................... 9
Nuclias Connect App Conguration ............................................... 9
Manual Conguration ........................................................................10
Mounting ...................................................................................................11

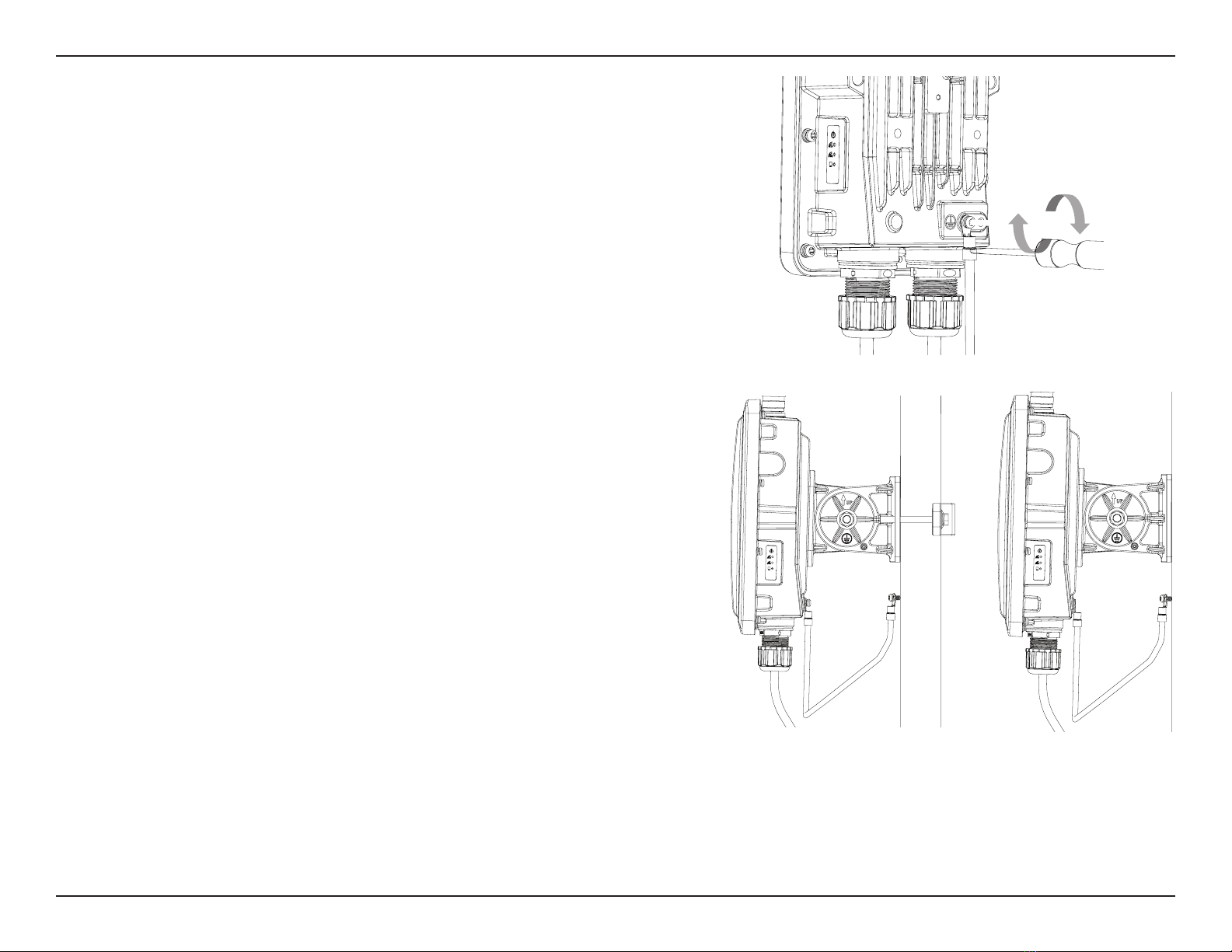

LAN Port Waterproof Enclosure ......................................................11
Install Enclosure Onto The Articulation Pole..............................11

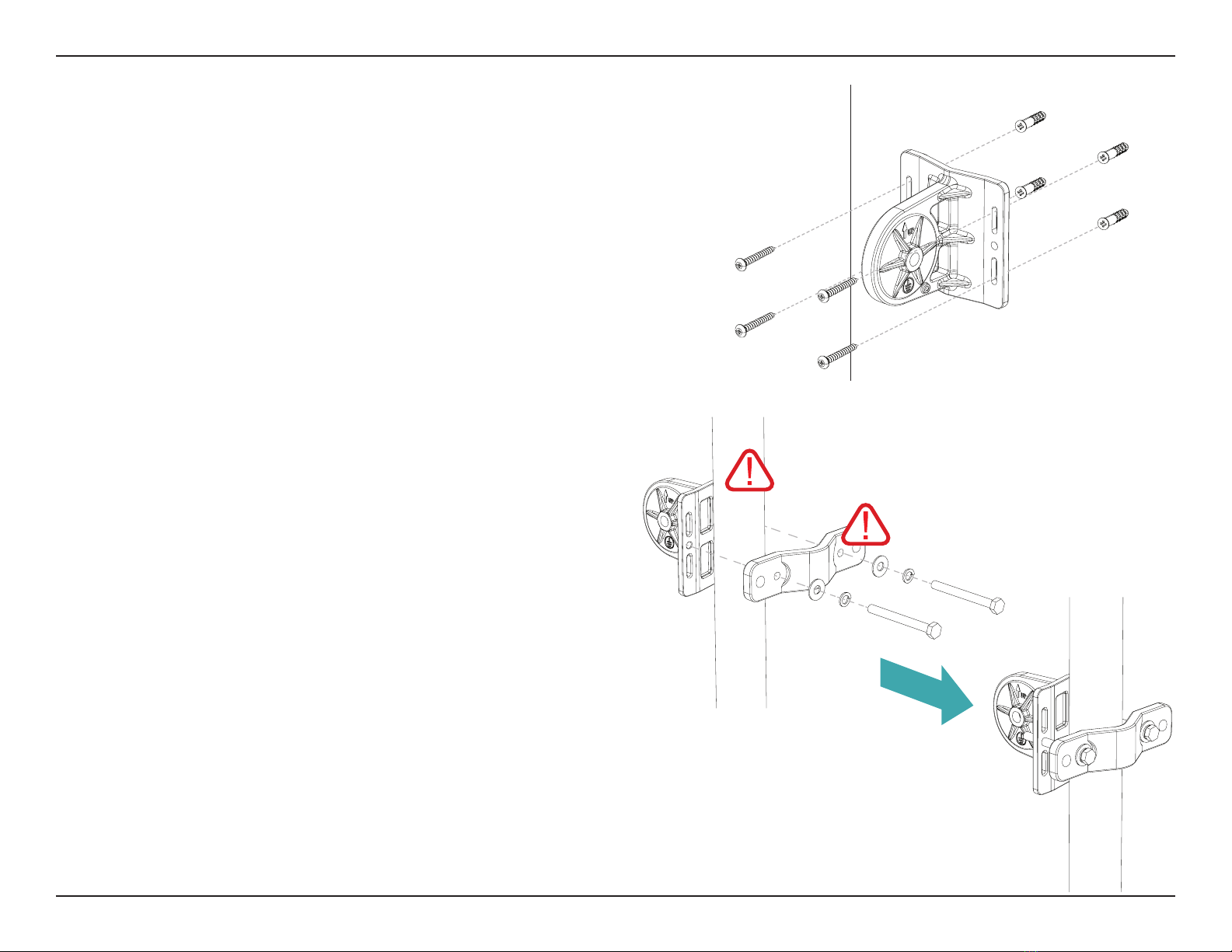

Installation for Wall..............................................................................12

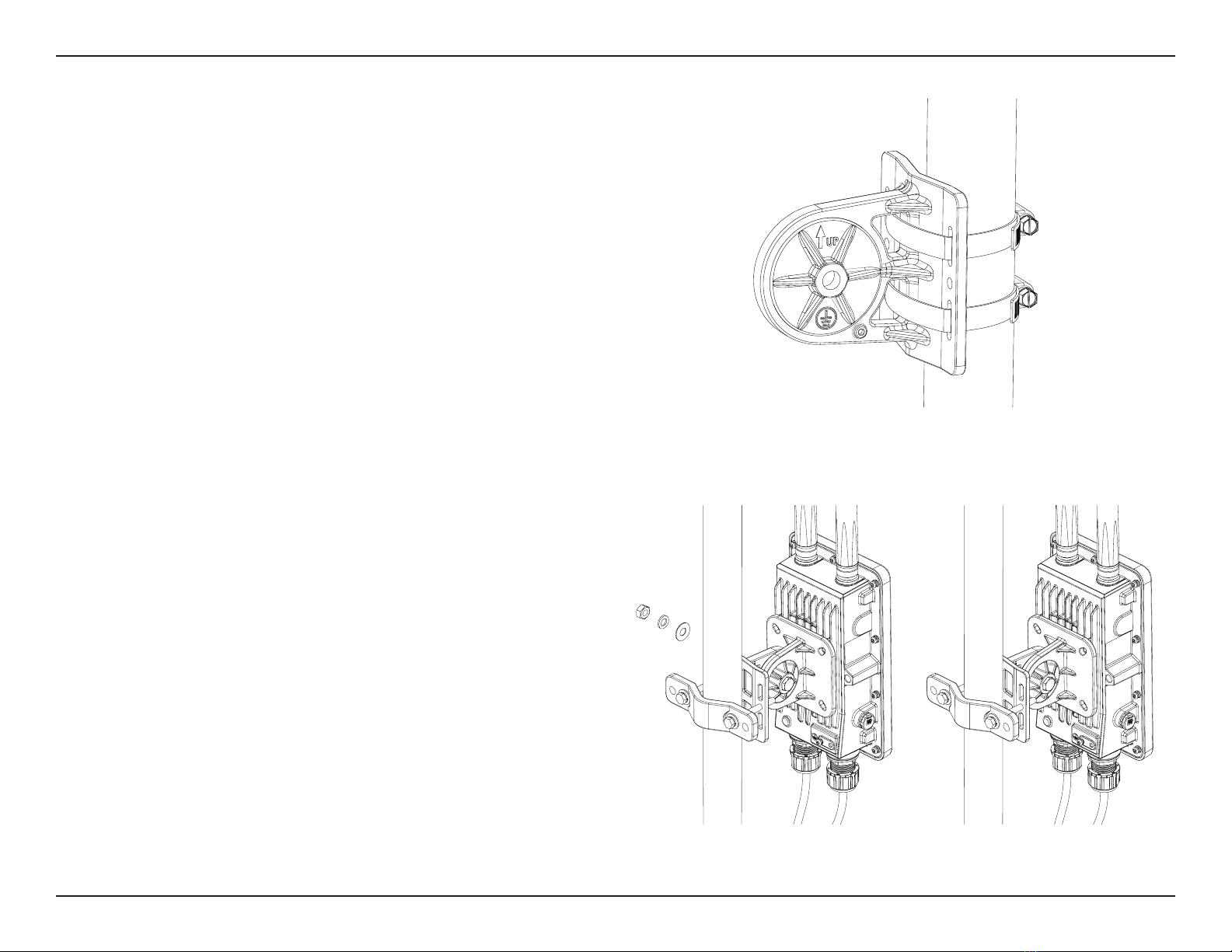

Installation for Pole..............................................................................12
Mounting for Pole 1~ 3” (25.4~76.2mm) ..................................13
Install Articulation Pole with The T-formed Bracket ................13
Installation for DIN Rail ....................................................................14

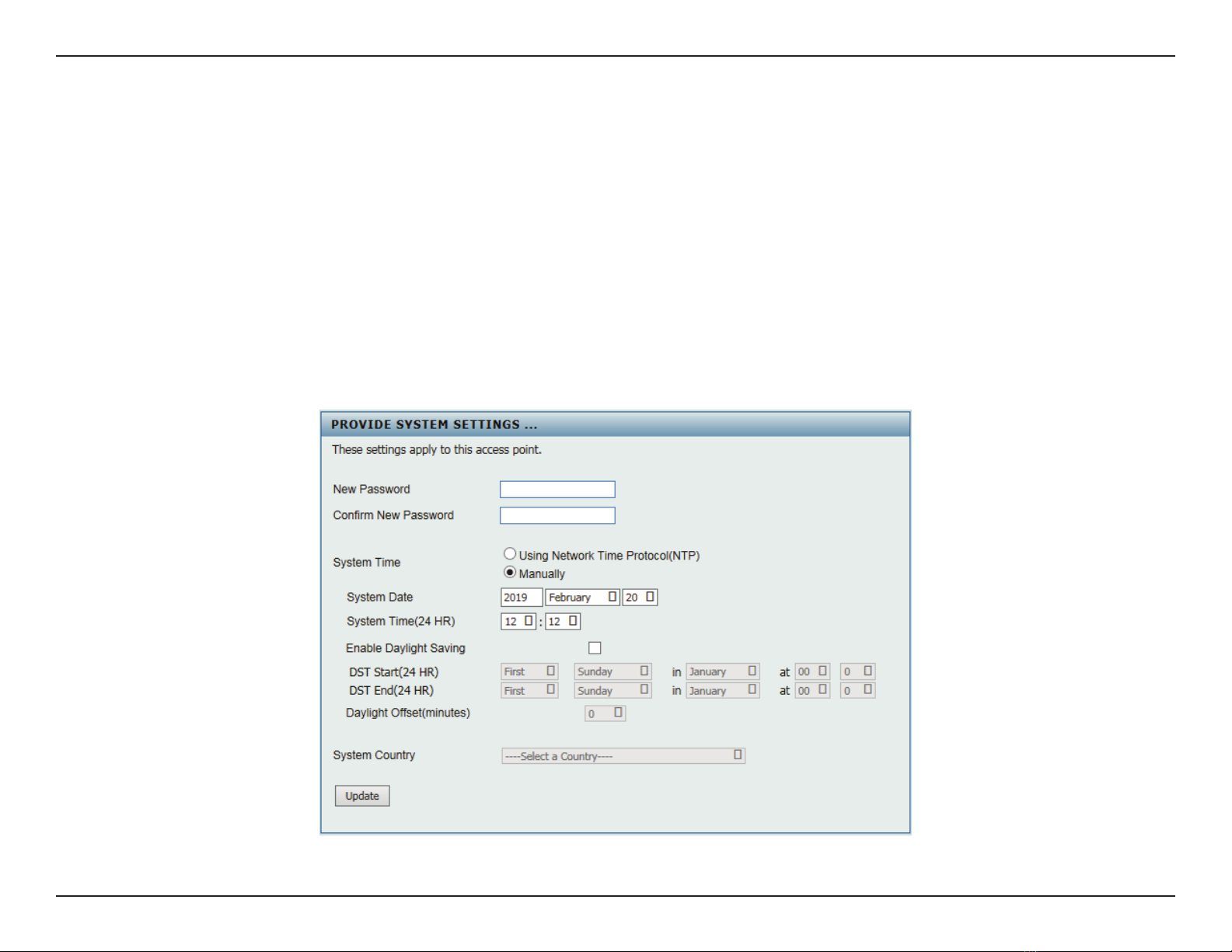

Setup Wizard .............................................................................................16

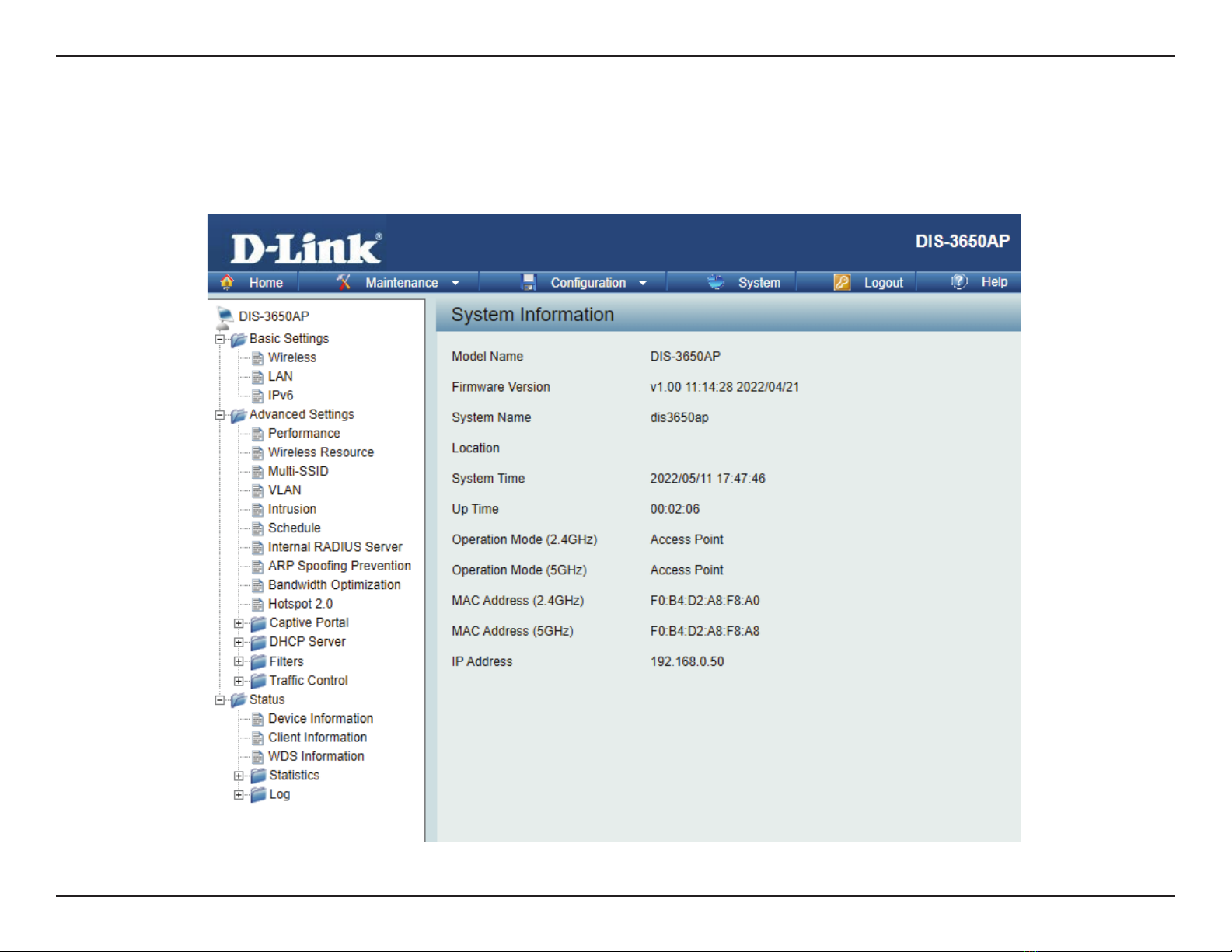

Web User Interface...................................................................................17
Wireless.............................................................................................................18
Access Point Mode...............................................................................18

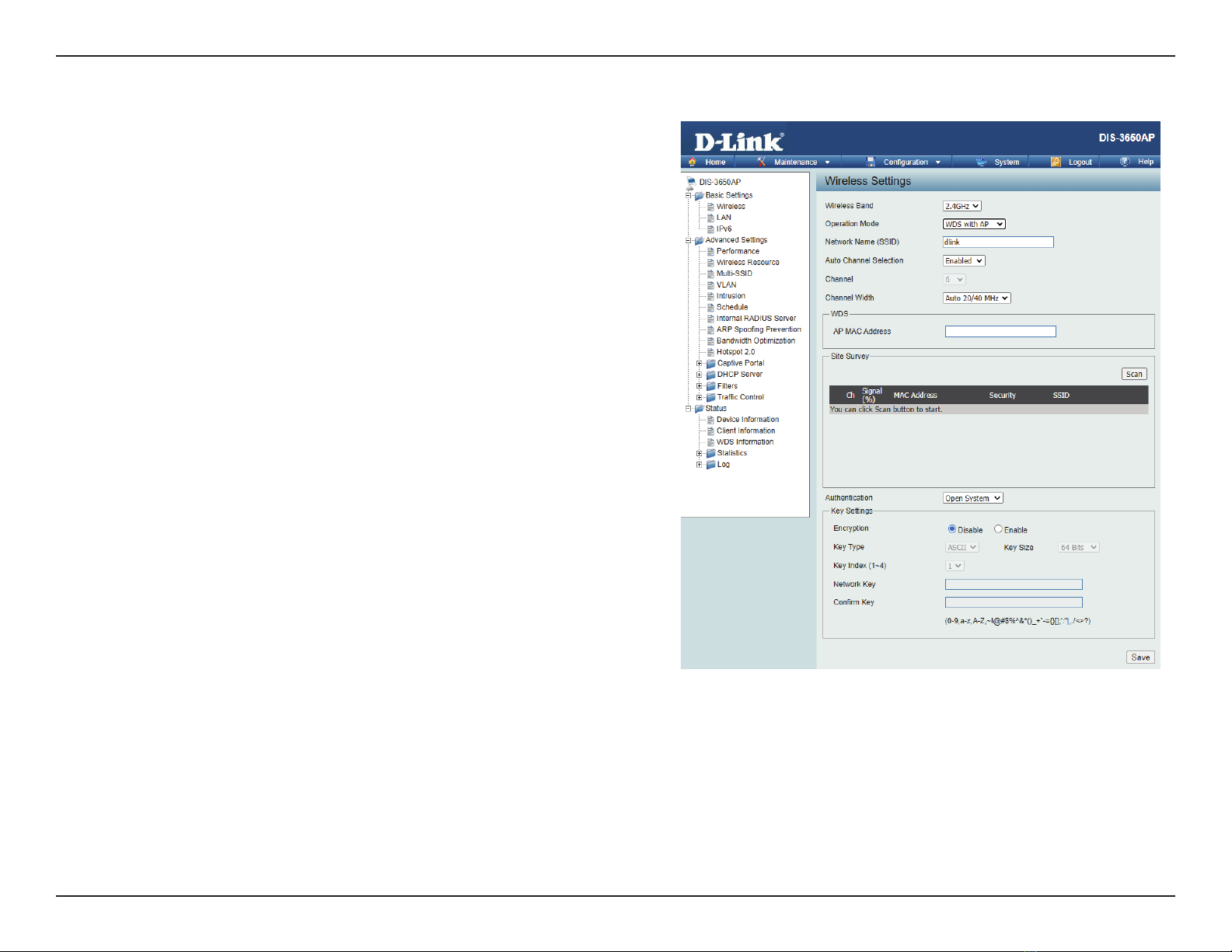

WDS with AP Mode .............................................................................20
WDS Mode..............................................................................................22
Wireless Client Mode ..........................................................................24
Wireless Security ..................................................................................25
Wired Equivalent Privacy (WEP)...............................................25
Wi-Fi Protected Access (WPA/WPA2/WPA3) ........................26
LAN............................................................................................................28
IPv6............................................................................................................29
Advanced Settings........................................................................................30
Performance ..........................................................................................31
Wireless Resource Control..........................................................................33
Multi-SSID ...............................................................................................35
VLAN .........................................................................................................37
VLAN List ..........................................................................................37
Port List .............................................................................................38
Add/Edit VLAN................................................................................39
PVID Settings ..................................................................................40
Intrusion ..................................................................................................41
Schedule..................................................................................................42
Internal RADIUS Server ......................................................................43
ARP Spoong Prevention..................................................................44
Bandwidth Optimization...................................................................45
Hotspot 2.0.............................................................................................47
Hotspot .............................................................................................47
Interworking ...................................................................................48
WAN Metrics....................................................................................49
LIST .....................................................................................................50
OSU.....................................................................................................51
Captive Portal ........................................................................................53

3
Authentication Settings-Web Redirection Only.................53
Authentication Settings- Username/Password..................55
Authentication Settings- Passcode.........................................57
Authentication Settings- Remote RADIUS...........................59
Authentication Settings- LDAP ................................................61
Authentication Settings- POP3 ................................................63
Login Page Upload .......................................................................65
MAC Bypass.....................................................................................66
DHCP Server...........................................................................................67
Dynamic Pool Settings ................................................................67
Static Pool Setting.........................................................................68
Current IP Mapping List ..............................................................69
Filters ........................................................................................................70
Wireless MAC ACL .........................................................................70
IP Filter Settings .............................................................................71
WLAN Partition...............................................................................72
Trac Control .................................................................................................73
Uplink/Downlink Setting...................................................................73
QoS............................................................................................................74
Trac Manager .....................................................................................75
Status.................................................................................................................76
Device Information..............................................................................77
Client Information................................................................................78
WDS Information Page.......................................................................79
Statistics............................................................................................................80
Ethernet Trac Statistics ...................................................................80
WLAN Trac Statistics........................................................................81
Log......................................................................................................................82
View Log..................................................................................................82
Log Settings ...........................................................................................83
Maintenance Section...................................................................................84
Administration ...............................................................................................85
Limit Administrator .............................................................................85
System Name Settings .......................................................................86
Login Settings .......................................................................................86
Console Settings...................................................................................87
Ping Control Settings..........................................................................87
LED Settings...........................................................................................87
Country Settings...................................................................................87
DDP Settings..........................................................................................88
Nuclias Connect Settings ..................................................................88
Firmware and SSL Upload.................................................................89
Conguration File Upload.................................................................90
Time and Date Settings......................................................................91
Conguration and System .........................................................................92
System Settings .............................................................................................93
Help....................................................................................................................94
Knowledge Base .......................................................................................95
Wireless Basics................................................................................................95
Wireless Installation Considerations ......................................................96
Troubleshooting .......................................................................................97
Why can’t I access the web-based conguration utility?.......97
What can I do if I forgot my password?........................................97
How to check your IP address?........................................................98
How to statically assign an IP address? ........................................99
Technical Specications ........................................................................100
Antenna Patterns ...................................................................................101

Nuclias Connect
4
Nuclias Connect
Introduction
Nuclias Connect is D-Link’s centralized management solution for Small-to-Medium-Sized Business (SMB) networks. Nuclias Connect makes it easier
to analyze, automate, congure, optimize, scale, and secure your network — delivering the convenience of an Enterprise-wide management
solution, at an SMB price. Nuclias Connect gives you the nancial and technical exibility to expand from a small network to a larger one (up
to 1,000 APs), while retaining a robust and centralized management system. And with its intuitive Graphical User Interface (GUI), a wealth of
enhanced AP features, and a setup wizard that supports 11 languages, Nuclias Connect minimizes the hassle of deployment, conguration,
and administration tasks.
Deployable on Windows server (or Linux via Docker), PC, or Smartphone (via lite management app) the Nuclias Connect free-to-download
software is capable of managing up to 1,000 Access Points (APs) without licensing charges, coupled with an inexpensive optional
hardware controller (The Hub) suitable for remote locations. Through software-based monitoring and remote management of all wireless Access
Points (APs) on your network, Nuclias Connect oers tremendous exibility compared to traditional hardware-based unied
management systems. Conguration can be done remotely. Network trac analytics are available at a glance (in whole or in part). Load Balancing,
Airtime Fairness, and Localized Throttling are enabled.
Nuclias Connect supports multi-tenancy, so network admins can grant localized management authority for local networks. In addition, because
APs can support 8 SSIDs per radio (16 SSIDs per dual band APs), administrators have the option of using one SSID to create a guest network for
visitors.
Nuclias Connect provides direct AP discovery and provisioning when it shares the same Layer-2/Layer-3 network with a given AP, allowing
users to nd APs and import proles with minimum eort, which can be applied as needed to groups or individual APs for even more eective
conguration.
Since Nuclias Connect’s software operates transparently on the network, an AP can be deployed anywhere in an NAT environment. Admins can
provide & manage a variety of distributed deployments, including setting & admin account conguration for each deployment.
Nuclias Connect allows for multiple user authentications while enabling specic access control congurations for each SSID, giving admins the
option of conguring separate internal networks for dierent subnets, while enabling more advanced Value-Added Services, such as Captive
Portal or Wi-Fi Hotspot.

Nuclias Connect
5
Nuclias Connect Key Features
• Free-to-Download Management Software
• Searchable Event Log and Change Log
• License-Free Access Points
• Trac Reporting & Analytics
• Authentication via Customizable Captive Portal, 802.1x and RADIUS Server, POP3, LDAP, AD
• Remote Cong. & Batch Cong.
• Multilingual Support
• Intuitive Interface
• Multi-Tenant & Role-Based Administration
• Payment Gateway (Paypal) Integration and Front-Desk Ticket Management
For more information on how to use Nuclias Connect with DIS-3650AP, please refer to the Nuclias Connect User Guide.

Nuclias Connect
6
Package Contents
• DIS-3650AP Access Point
• Quick Start Guide
• Mounting kit (Wall/Pole/DIN Rail Mount)
- Articulation Pole x 1
- T-form Bracket x 1
- M8x40 Screw Bolts x 1
- M6 Screw x 4
- M8 Nut x 1
- Washer (M8 x 1 ; M6 x 4)
- Spring Washer (M8 x 1 ; M6 x 4)
- Stainless Hose Clamp x 2
- Anchors plastic screws x 4
- Stainless screws x 4
- DIN Rail mounting kit
System Requirements
yComputers with Windows®, Macintosh®, or Linux-based operating systems with an Ethernet Adapter
yInternet Explorer 11, Safari 7, Firefox 28, or Google Chrome 33 and above (for web-based conguration)

Hardware Overview
7
Hardware Overview

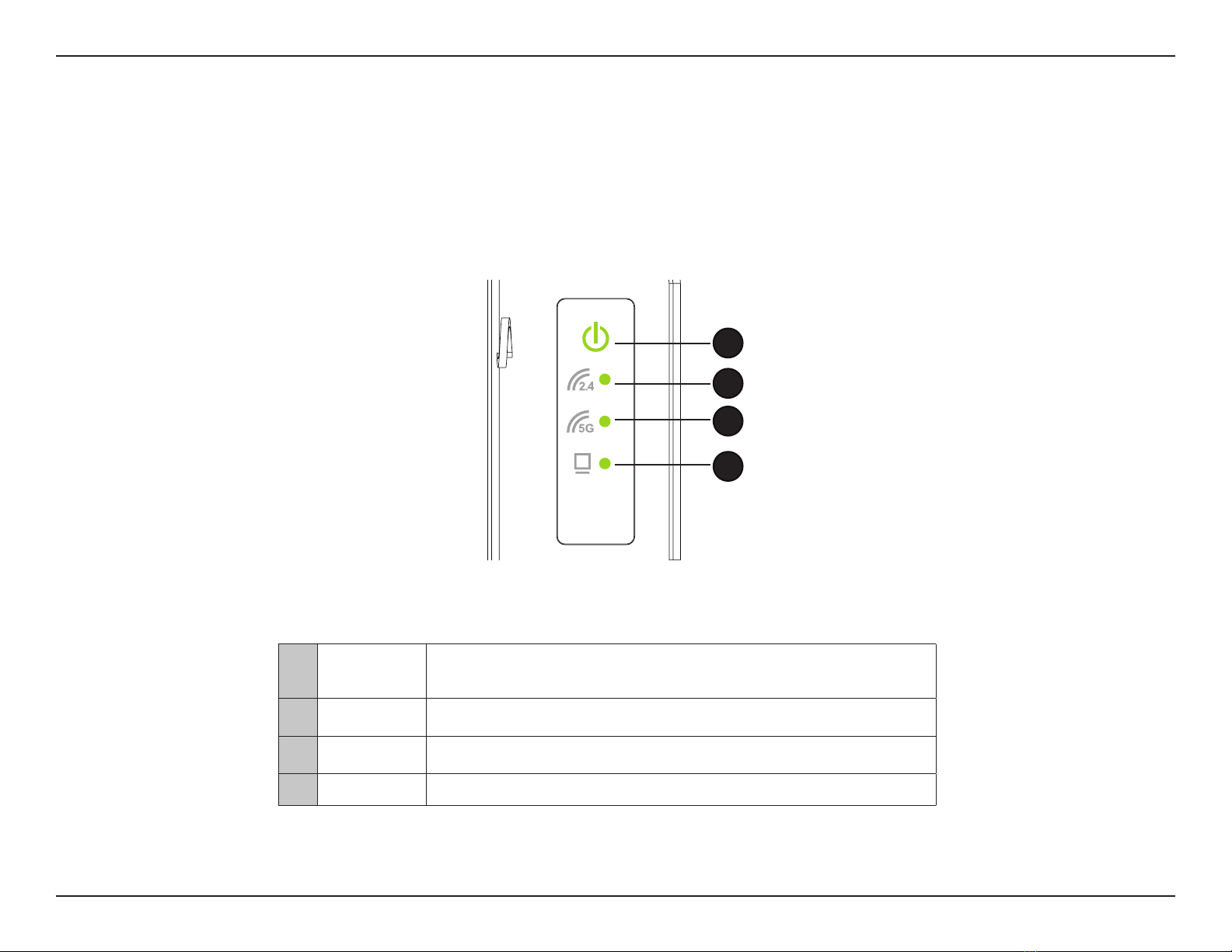

LED Indicators
1Power/Status
Green (Solid) - Device operational
Red (Flashing) - Device booting up/Device malfunctioned
Red (Solid) - Device boot up has failed
22.4 Solid green - 2.4GHz is enabled
Blinking green - data transmission
35G Solid green - 5GHz is enabled
Blinking green - data transmission
4LAN (PoE) Indicates whether a device is connected to LAN and receiving power on the PoE port.
1
2
3
4

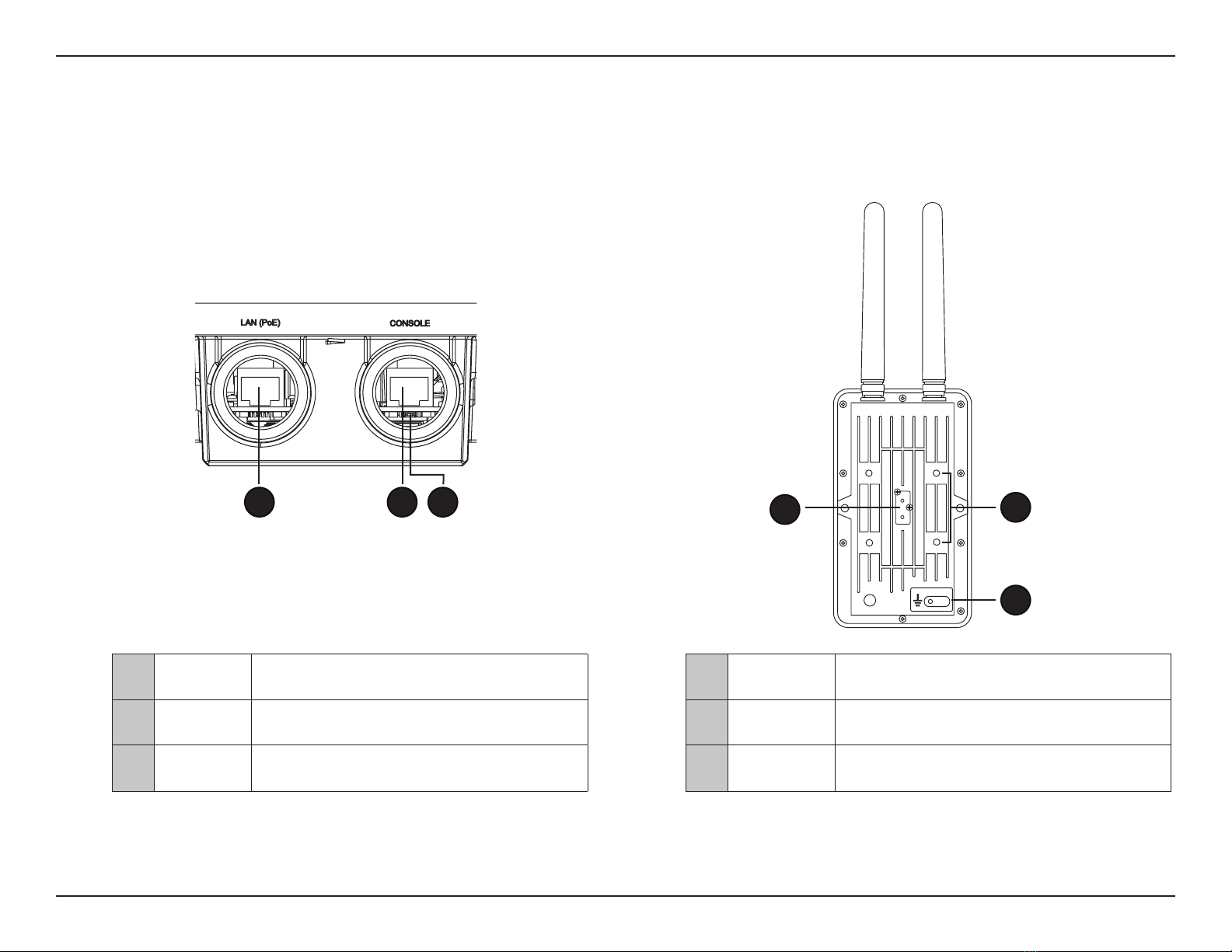

Interface Connectors
8
Interface Connectors
1LAN(PoE) Gigabit RJ-45 port for data and Power over Ethernet
(PoE) power.
2CONSOLE Connect an RJ-45 Ethernet console for CLI control
(Option)
3Reset Press and hold for 10 seconds to
factory reset the device
Top
1 2 3
1DIN rail Adapter Connect DIN rail kit to mount it on DIN-Rail.
2Wall/Pole Mount Mount to connect to the mounting plate on a wall or a
pole.
3Grounding Wire Connector for the grounding wire.
Back
12
3

Installation
9
Installation
Using Power over Ethernet (PoE)
Use a standard Ethernet cable to connect the LAN(PoE) port on the DIS-3650AP to a PoE power source device such as an 802.3at PoE switch or PoE
injector.
Conguration
Using Nuclias Connect
The DIS-3650AP is designed to be managed through Nuclias Connect. Refer to the Nuclias Connect Manual for detailed conguration instructions.
Note: D-Link recommends manually conguring the device before mounting it.
Nuclias Connect App Conguration
1. Download the free Nuclias Connect app from the App Store or Google Play by searching for Nuclias
Connect or by scanning the QR code below.
2. Open the Nuclias Connect app and follow the onscreen instructions to discover and set up your
device.

Conguration
10
Manual Conguration
Note: The management computer, DHCP server and DIS-3650AP must be in the same subnet.
Use one of the following methods to access the web user interface:
Connecting through Ethernet
1. Use an Ethernet cable to connect the DIS-3650AP to the switch or router the management computer is connected to.
2. Manage the access point from a computer. Enter dis3650ap.local. in the address eld of your browser.
3. Log in to the administration user interface. The default login information is
Username: admin
Password: admin
Connecting Wirelessly
1. Connect the management computer to the default SSID of the DIS-3650AP, “dlink”.
2. Manage the access point from a computer. Enter dis3650ap.local. in the address eld of your browser.
3. Log in to the administration user interface. The default login information is
Username: admin
Password: admin

Mounting
11
Mounting

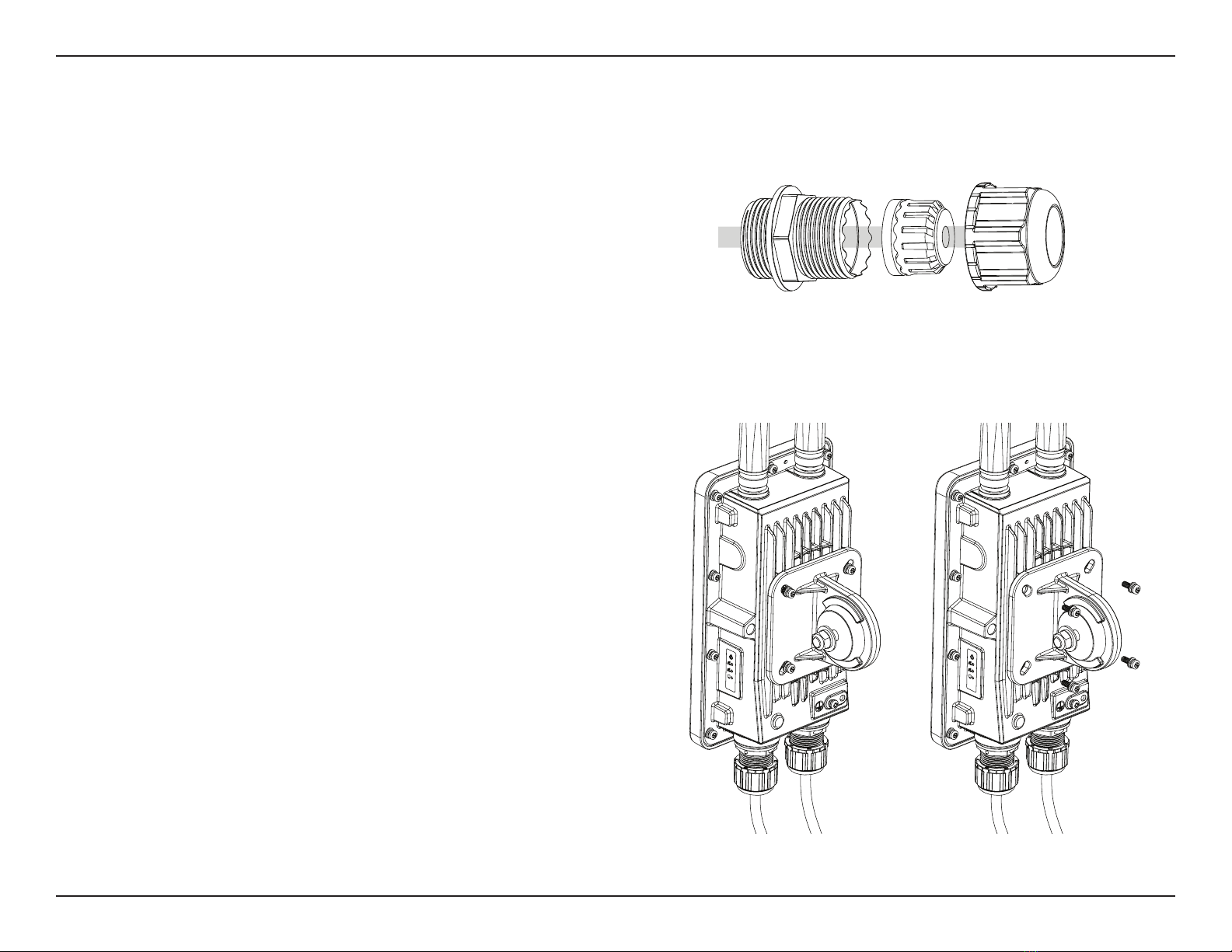

LAN Port Waterproof Enclosure
Connect an Ethernet Cable to the LAN(PoE) port on the DIS-3650AP. Use
the LAN Port Waterproof Enclosures to seal the ports.
Install Enclosure Onto The Articulation Pole
Attach the articulation pole to back of AC using M5x16 screws & washers.

Installation for Pole
Mounting for Recommended Pole Dia.: 1.5~2”(38.1~50.8mm)
(A) The diameter of the Pole is too large Will result in the failure to install
smoothly, the diameter is too small and the clamping force is insucient.
* Pole diameter Max.: 2.1”(53.3mm)
Min.: 1.0”(25.4mm)
(B) To minimize bolts crosstalk, the bolts should gradually increasing load
and parallel tighten.
(A)
(B)
Mounting
12
Installation for Wall
Fix the T-from Bracket to the wall by using the wood / gyprock screws.

Mounting
13
Mounting for Pole 1~ 3” (25.4~76.2mm)
Fix the T-from Bracket to the pole by using the stainless hose clamp.
Install Articulation Pole with The T-formed Bracket
After nishing the previous two steps, x the articulation pole to the
T-formed bracket by using M8x40 bolts, nut, spring washer and washer.

Mounting
14

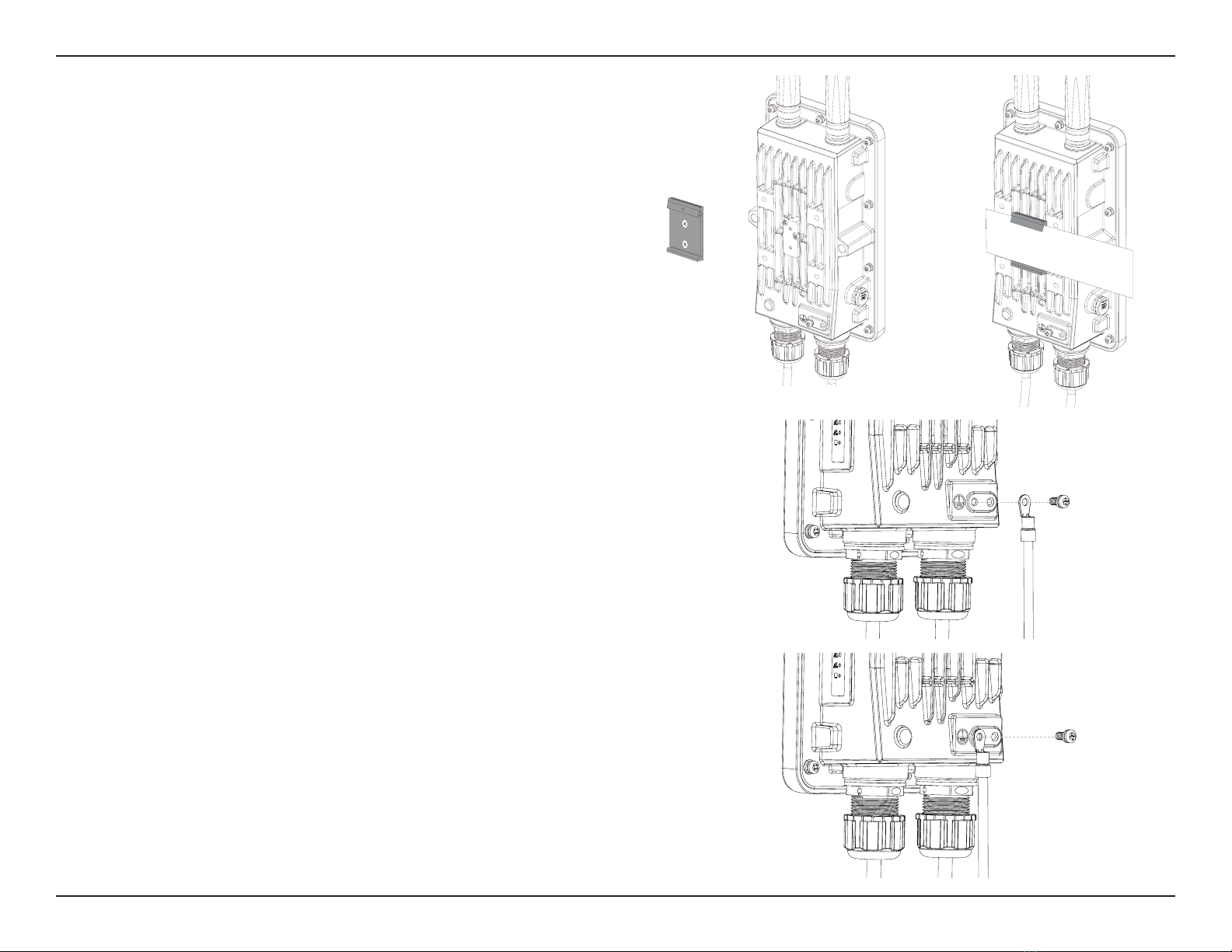

Installation for DIN Rail
The DIS-3650AP can be mounted on a standard DIN rail using the included
DIN mounting kit.
Use the following instructions to install the DIS-3650AP on a rail:
1. Install a Din rail kit on enclosure. Check that the DIN rail kit is installed
properly using two screws on each end.
2. Position the DIS-3650AP against the rail, then tilt it upwards and hook
the DIN rail clip on the back of the device against the rail. Snap the
device into place to complete the installation.

Mounting
15
3. A grounding wire is to protect your device from lightning strikes and
the buildup of static electricity. Attach the grounding wire to the
DIS-3650AP using the included screw(M3.9 * 7.8 mm).
4. Tighten the grounding wire (green-and-yellow, 18AWG) to the DIS-3650AP until
it is securely attached.
5. Attach the other end of the grounding wire to either the wall or pole mount.
Ensure that the wall or pole mount is connected to an electrical ground.

Setup Wizard
16
Setup Wizard
The rst login instance displays the System Settings window which requires a change in password. Additional settings include the System Time
and System Country functions.
After logging in to the user interface, ll in the New Password and Conrm New Password elds.
In the System Time function, select Using Network Time Protocol (NTP) or Manually to dene the system time. If required, click the Daylight Sav-
ing Oset drop-down menu and select the value (minutes).
ySetting NTP System Time: Before trying to congure NTP check, perform a ping test with the NTP server. In the NTP Server eld, enter the NTP
server to use. Then click the Time Zone drop-down menu and select the appropriate time zone.
ySetting System Time Manually: From the System Date drop-down menu, select the Year, Month, and Day along with the Hour and Minutes ap-
propriate for the AP.
yEnable Daylight Saving: Click the radio button to enable the daylight savings time (DST) function. Set the DST start (24 hours) and end (24
hours) time by clicking on the drop-down menus and setting the Month, Week, Day, Hour, and Minute of the DST starting days.
Once the settings are congured, click Update button to accept the conguration and proceed to the main interface menu page.

Web User Interface
17
Web User Interface
The DIS-3650AP supports an elaborate web user interface where the user can congure and monitor the device. Launch a web browser, type
in http://dis2650ap.local and then press Enter to login. The default username and password is: admin Most of the congurable settings are
located in the menu on the left side of the web GUI which contains sections called Basic Settings,Advanced Settings and Status.

Web User Interface
18

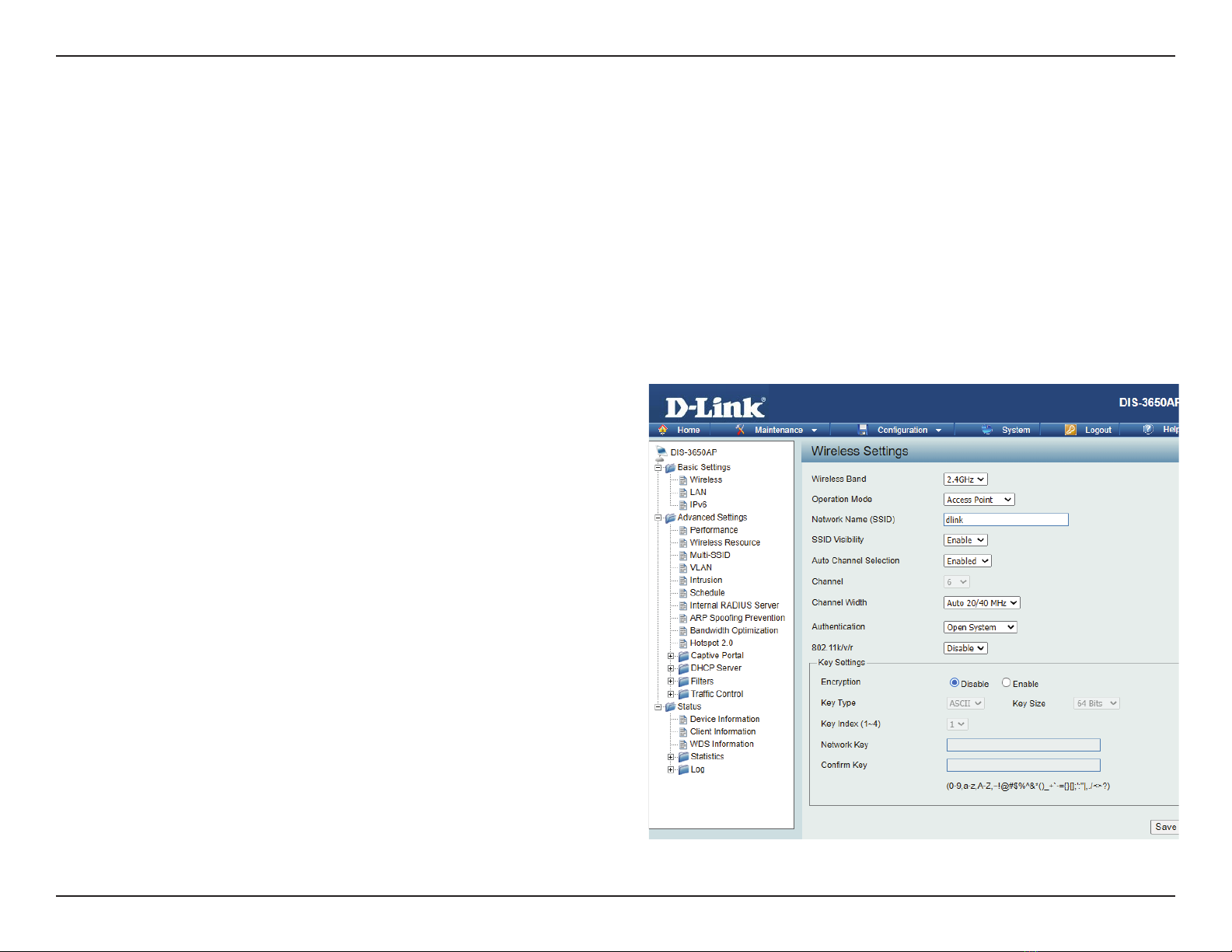

Wireless
On the wireless settings page, you can setup the basic wireless conguration for the access point. The user can choose from 4 dierent wireless
modes:
• Access Point - Used to create a wireless LAN
• WDS with AP - Used to connect multiple wireless networks while still functioning as a wireless access point
• WDS - Used to connect multiple wireless networks
• Wireless Client - Used when the access point needs to act as a wireless network adapter for an Ethernet enabled device
Wireless Band:
Mode:
Network Name (SSID):
SSID Visibility:
Auto Channel Selection:
Select either 2.4 GHz or 5 GHz from the drop-down
menu.
Select Access Point from the drop-down menu.
Service Set Identier (SSID) is the name designated
for a specic wireless local area network (WLAN).
The SSID’s factory default setting is dlink. The SSID
can be easily changed to connect to an existing
wireless network or to establish a new wireless
network. The SSID can be up to 32 characters and
is case-sensitive.
Select Enable to broadcast the SSID across the
network, thus making it visible to all network users.
Select Disable to hide the SSID from the network.
This feature when enabled automatically selects
the channel that provides the best wireless
performance. The channel selection process only
occurs when the AP is booting up. To manually
select a channel, set this option to Disable and
select a channel from the drop-down menu.
Access Point Mode

Web User Interface
19
Channel:
Channel Width:
Authentication:
802.11k/v/r:
To change the channel, rst toggle the Auto Channel Selection setting to Disable, and then use the drop-down menu to make
the desired selection.
Note: The wireless adapters will automatically scan and match the wireless settings.
Allows you to select the channel width you would like to operate in. Select 20 MHz if you are not using any 802.11n wireless
clients. Auto 20/40 MHz allows you to connect to both 802.11n and 802.11b/g or 802.11a wireless devices on your network.
Use the drop-down menu to choose Open System, Shared Key, WPA-Personal, WPA-Enterprise, or 802.1x.
• Select Open System to communicate the key across the network (WEP).
• Select Shared Key to limit communication to only those devices that share the same WEP settings. If multi-SSID is
enabled, this option is not available.
• Select WPA-Personal to secure your network using a password and dynamic key. No RADIUS server is required.
• Select WPA-Enterprise to secure your network with the inclusion of a RADIUS server.
• Select 802.1X if your network is using port-based Network Access Control.
• Select Enhance Open to secure your network by using Opportunistic Wireless Encryption technology.
Use the drop-down menu to choose to enable or disable 802.11k/v/r

Web User Interface
20
Wireless Band:
Mode:
Network Name (SSID):
SSID Visibility:
Auto Channel Selection:
Channel:
Channel Width:
Select either 2.4GHz or 5GHz from the drop-down
menu.
WDS with AP mode is selected from the drop-down
menu.
Service Set Identier (SSID) is the name designated
for a specic wireless local area network (WLAN).
The SSID’s factory default setting is dlink. The SSID
can be easily changed to connect to an existing
wireless network or to establish a new wireless
network.
Enable or Disable SSID visibility. Enabling this
feature broadcasts the SSID across the network,
thus making it visible to all network users.
Enabling this feature automatically selects
the channel that will provide the best wireless
performance. This feature is not supported in WDS
with AP mode. The channel selection process only
occurs when the AP is booting up.
All devices on the network must share the same
channel.To change the channel, use the drop-down
menu to make the desired selection. (Note: The
wireless adapters will automatically scan and match
the wireless settings.)
Allows you to select the channel width you would
like to operate in. Select 20 MHz if you are not using
any 802.11n wireless clients. Auto 20/40 MHz allows
you to connect to both 802.11n and 802.11b/g or
802.11a wireless devices on your network.
WDS with AP Mode
