D-Link DAP-1155 User manual

User Manual
DAP-1155
Wireless N 150 Access Point & Router
November 2012

DAP-1155 Wireless N 150 Access Point & Router
User Manual
Contents
Chapter 1. Introduction..........................................6
Contents and Audience.......................................................6
Conventions.................................................................6
Document Structure..........................................................6
Chapter 2. Overview..............................................7
General Information.........................................................7
Specifications..............................................................
Product Appearance.........................................................11

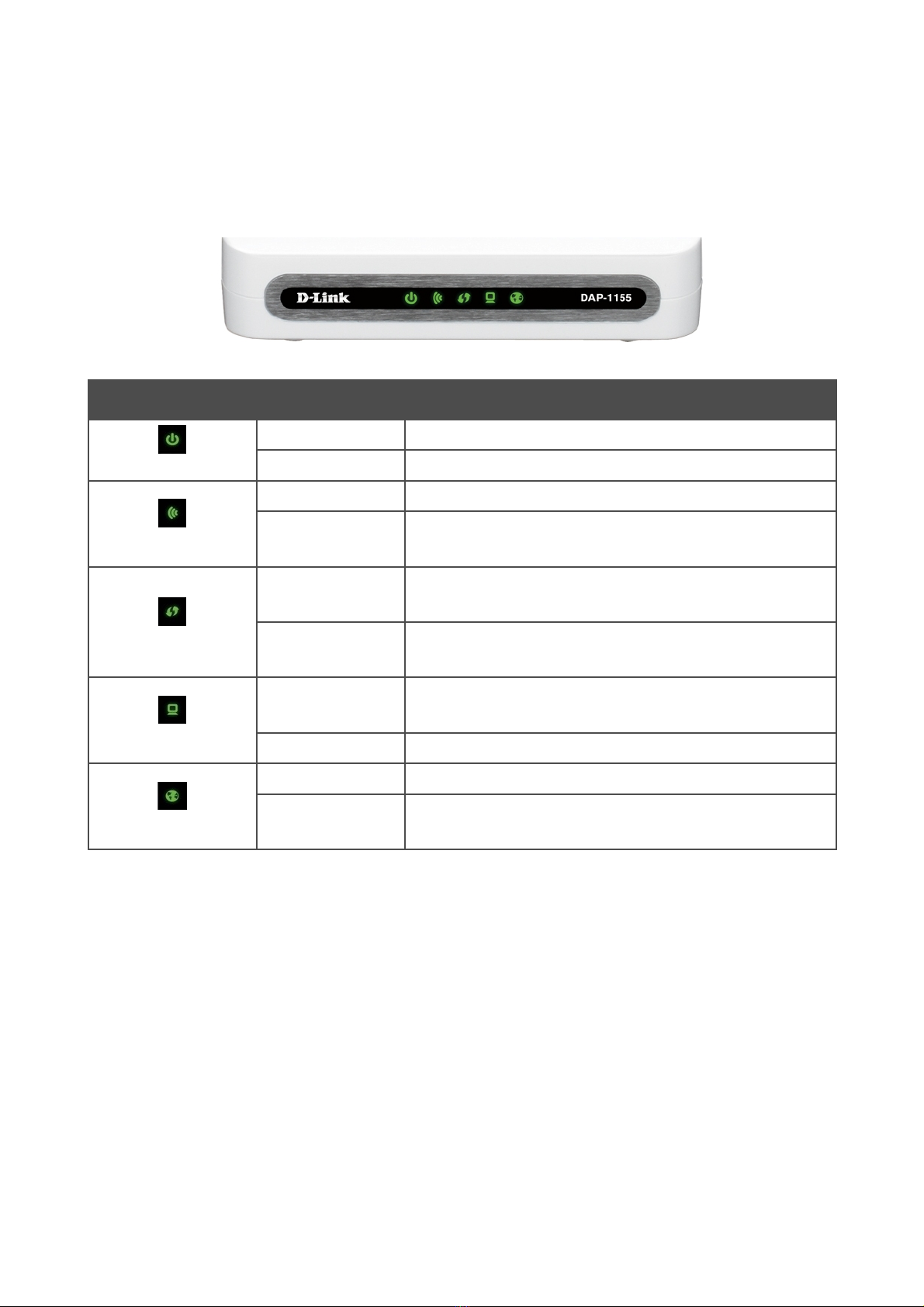

Front Panel..............................................................11

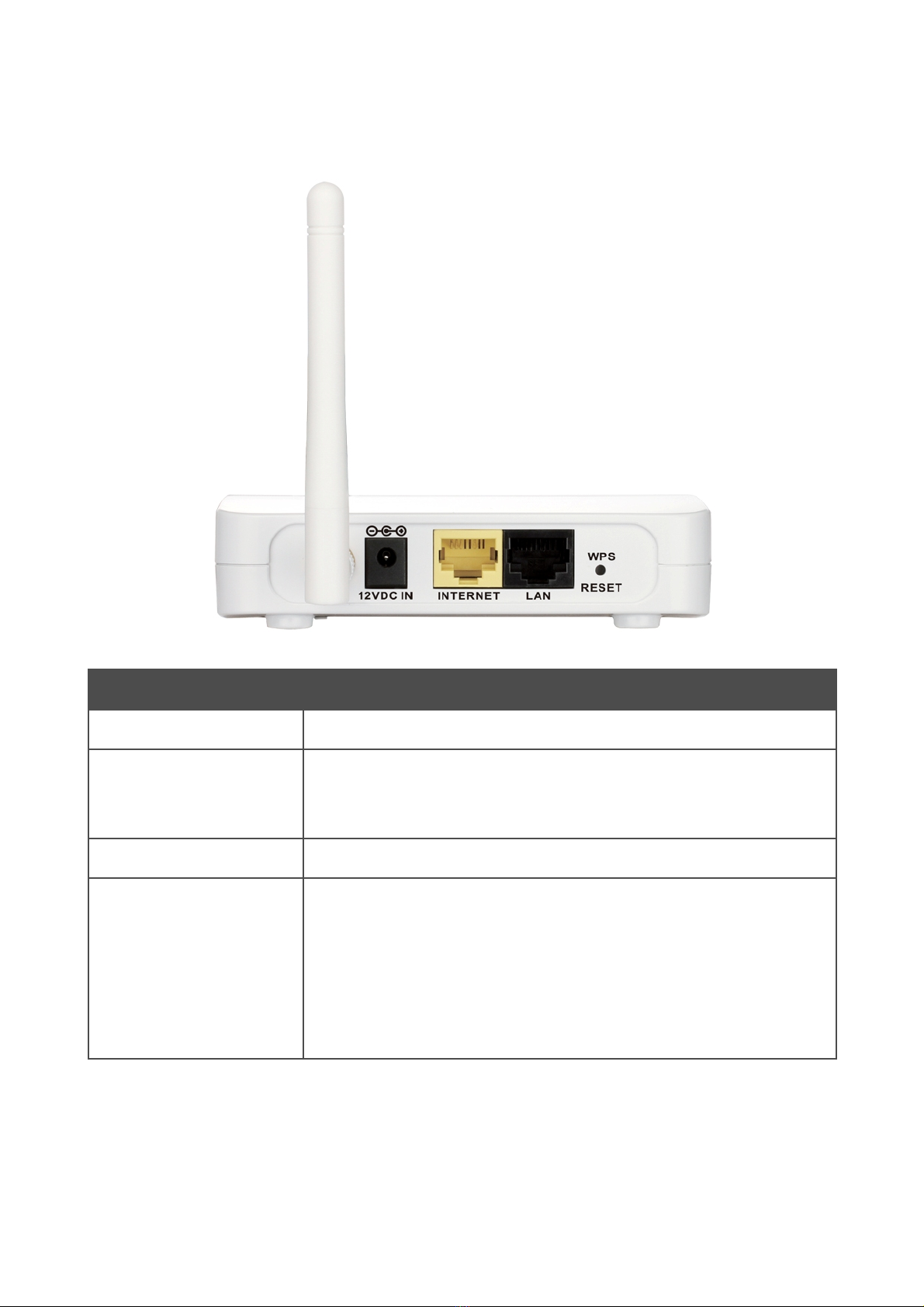

Back Panel...............................................................12
Delivery Package...........................................................13
Chapter 3. Installation and Connection..........................14
Before You Begin...........................................................14
Connecting to PC...........................................................15
PC with Ethernet Adapter.................................................15

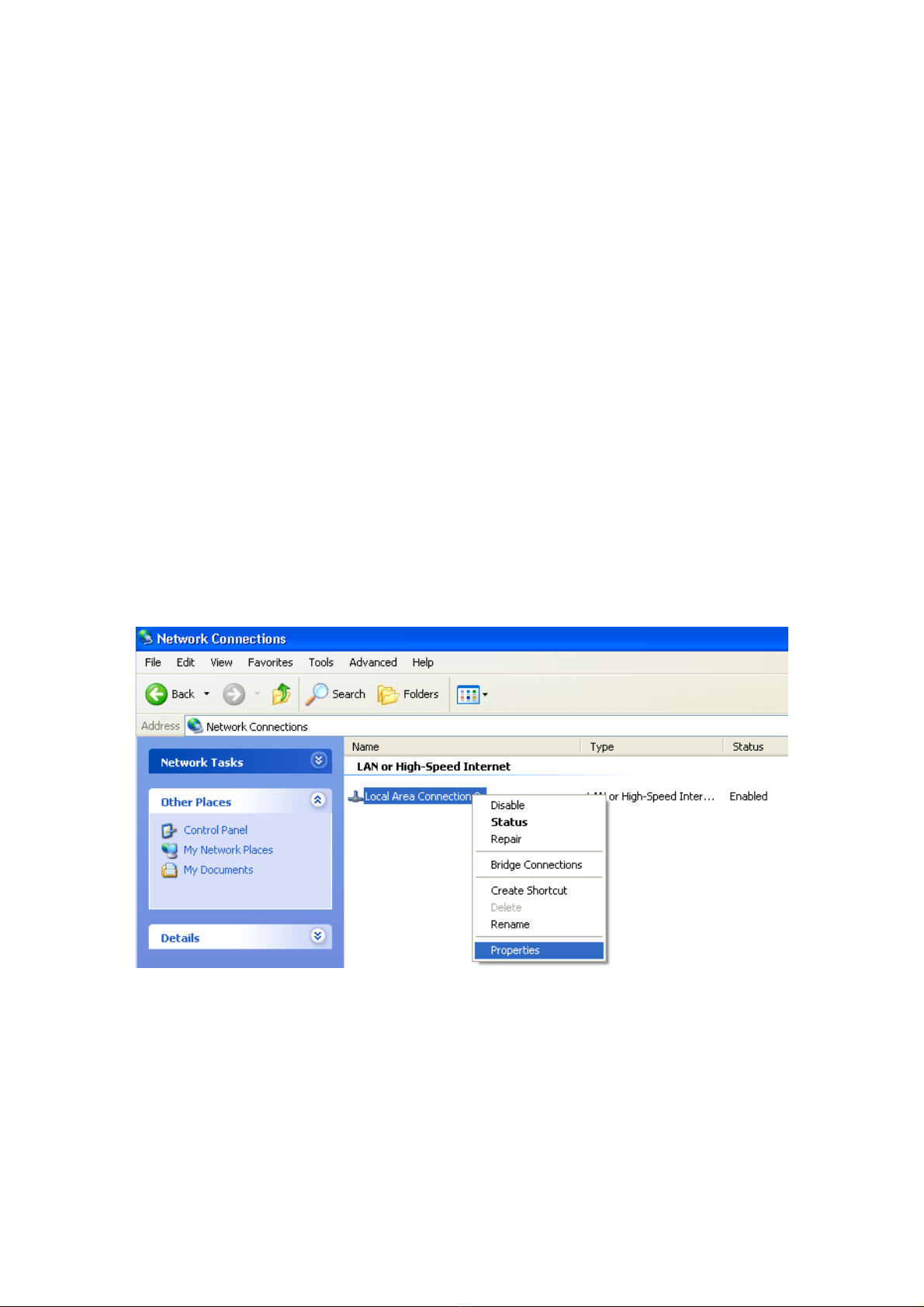

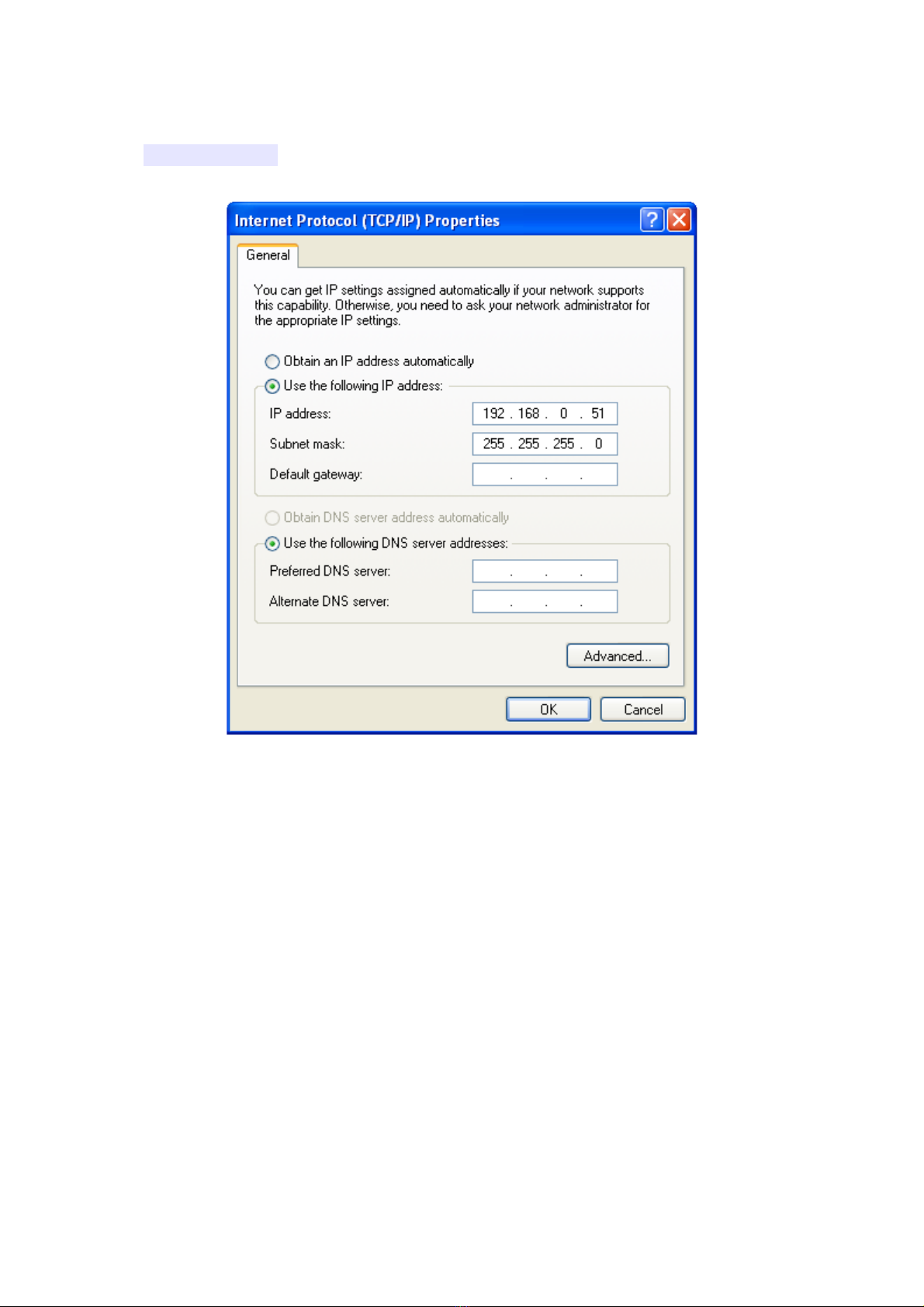

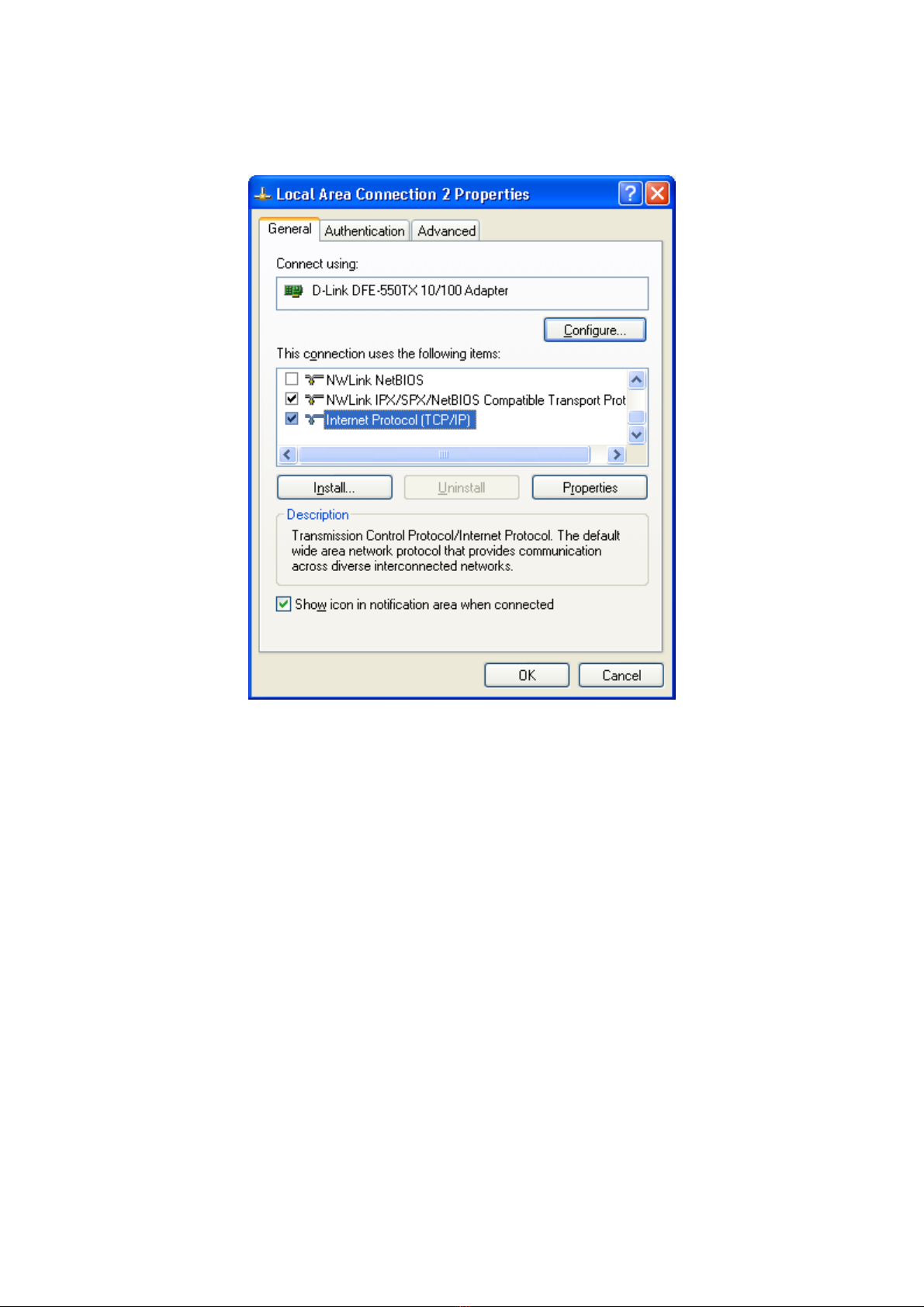

Configuring IP Address in O Windows XP..................................15

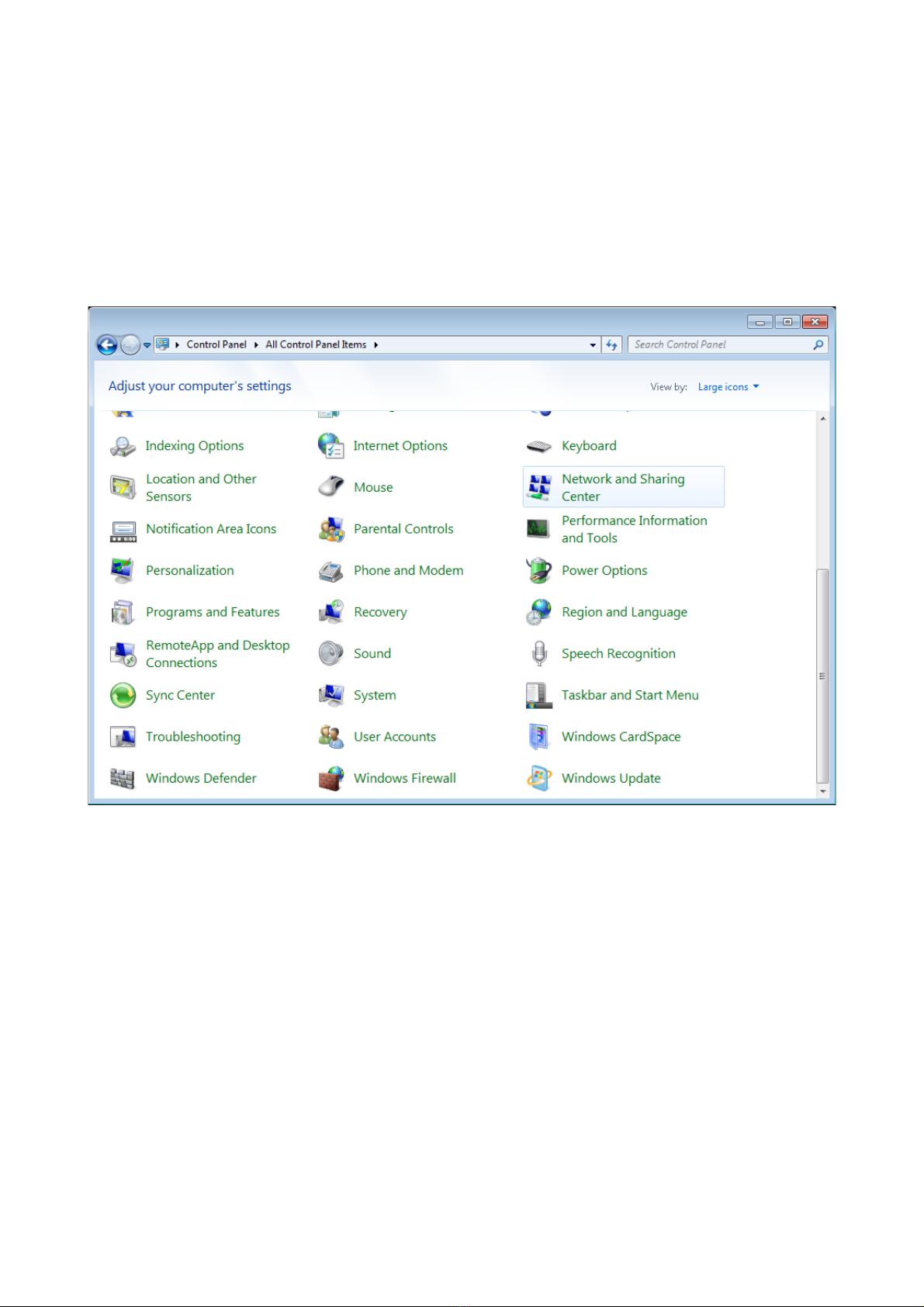

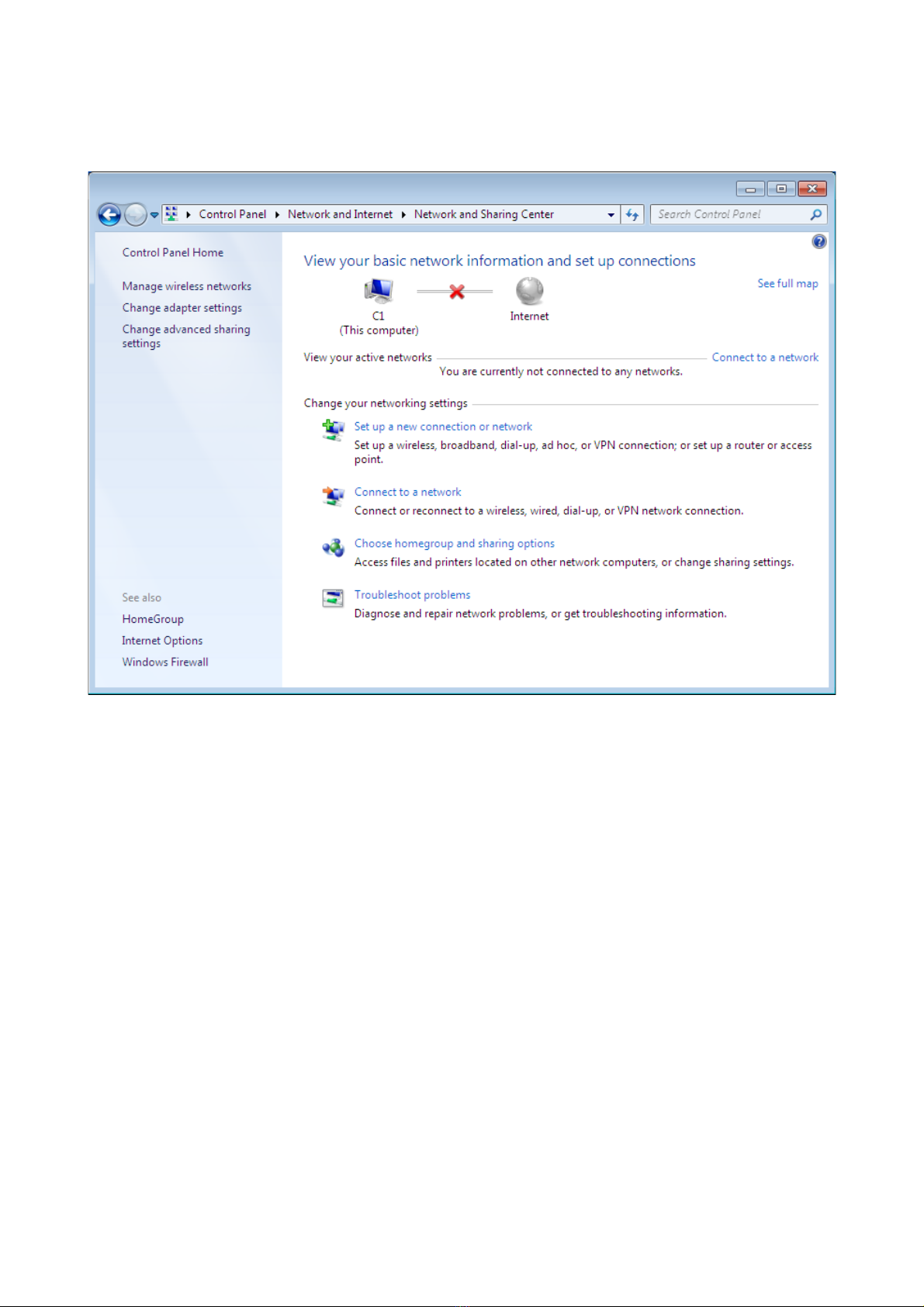

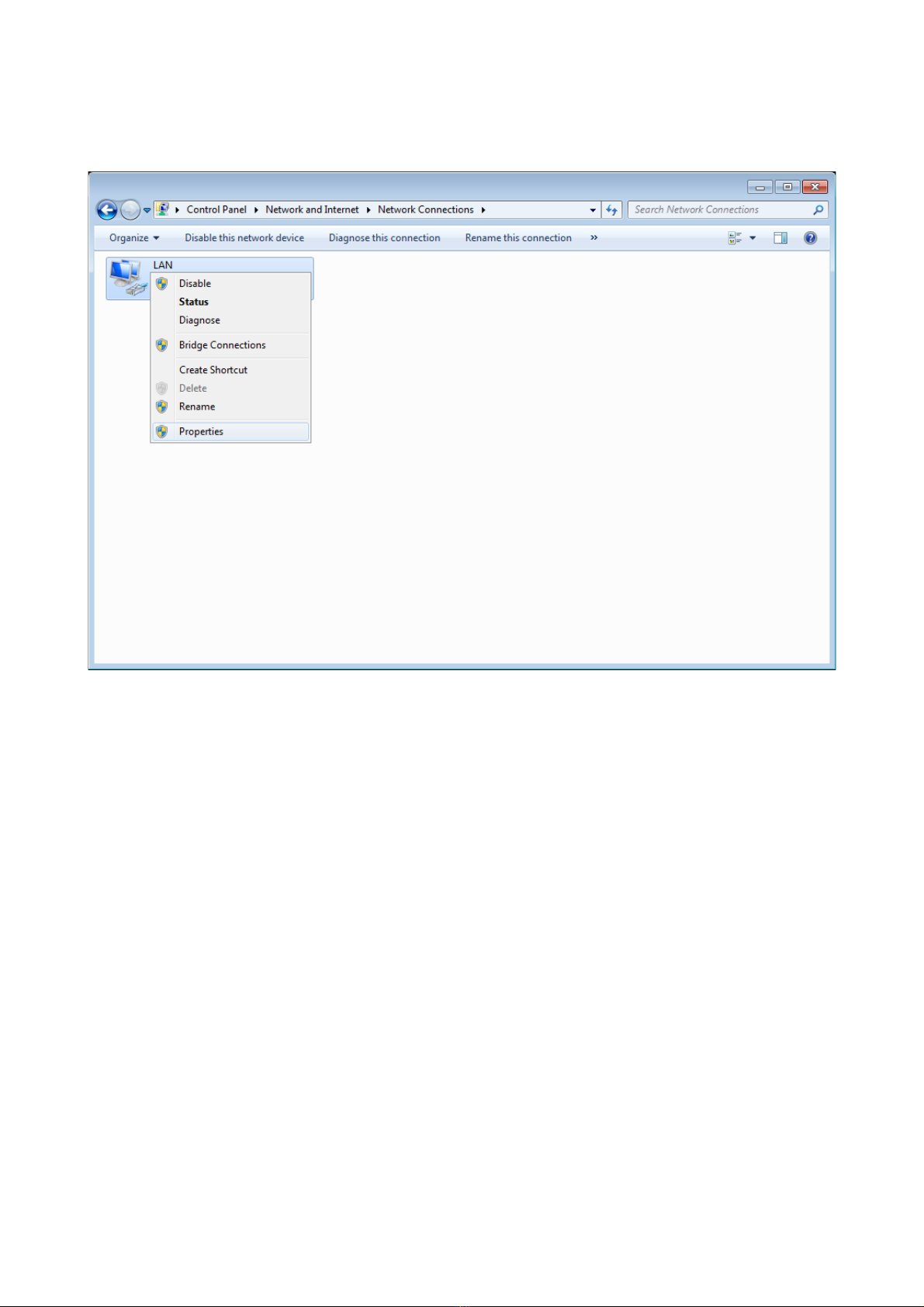

Configuring IP Address in O Windows 7...................................18
PC with Wi-Fi Adapter....................................................23
Configuring Wi-Fi Adapter in O Windows XP...............................24
Configuring Wi-Fi Adapter in O Windows 7................................26
Connecting to Web-based Interface..........................................29
Web-based Interface Structure..............................................31
Access Point Mode........................................................33
Router Mode..............................................................35
Saving and Restoring Settings..............................................37
Device Operation Modes.....................................................39
Access Point Mode........................................................39
Router Mode..............................................................39
Chapter 4. Configuring Device (Access Point Mode)...............40
Wireless Network Settings Wizard...........................................40
Status.....................................................................46
Network tatistics.......................................................46
DHCP.....................................................................47
LAN Clients..............................................................48
Net........................................................................49
LAN......................................................................49
Page 2 of 215

DAP-1155 Wireless N 150 Access Point & Router
User Manual
Wi-Fi......................................................................52
Common settings..........................................................52
Basic ettings...........................................................53
ecurity ettings........................................................55
MAC Filter...............................................................59
tation List.............................................................61
WP ......................................................................62
Using WPS Function via Web-based Interface.............................64
Using WPS Function without Web-based Interface.........................64
WD ......................................................................66
Additional ettings......................................................68
WMM......................................................................70
Client...................................................................72
Firewall...................................................................75
MAC Filter...............................................................75
System.....................................................................77
Administrator Password...................................................78
Configuration............................................................79
ystem Log...............................................................81
Firmware Upgrade.........................................................83
Ping.....................................................................85
Telnet...................................................................86
Device mode..............................................................87
Chapter 5. Configuring Device (Router Mode).....................
Click'n'Connect............................................................
Creating WAN Connection..................................................90
PPPoE Connection.......................................................9
Static IP Connection...................................................95
Dynamic IP Connection..................................................99
PPTP + Static IP or L2TP + Static IP Connection.......................1 3
PPTP + Dynamic IP or L2TP + Dynamic IP Connection.....................111
Checking Internet Availability..........................................118
Configuring Wireless Connection.........................................119
Wireless Network Settings Wizard..........................................120
Virtual Server Settings Wizard............................................126
Status....................................................................127
Network tatistics......................................................127
DHCP....................................................................128
Routing Table...........................................................129
LAN Clients.............................................................130
Page 3 of 215

DAP-1155 Wireless N 150 Access Point & Router
User Manual
Net.......................................................................131
WAN.....................................................................131
Creating PPPoE WAN Connection.........................................132
Creating Static IP WAN Connection.....................................136
Creating Dynamic IP WAN Connection....................................139
Creating PPTP + Static IP or L2TP + Static IP WAN Connection..........142
Creating PPTP + Dynamic IP or L2TP + Dynamic IP WAN Connection........147
LAN.....................................................................152
Wi-Fi.....................................................................155
Common settings.........................................................155
Basic ettings..........................................................156
ecurity ettings.......................................................158
MAC Filter..............................................................162
tation List............................................................164
WP .....................................................................165
Using WPS Function via Web-based Interface............................167
Using WPS Function without Web-based Interface........................167
WD .....................................................................169
Additional ettings.....................................................171
WMM.....................................................................173
Client..................................................................175
Advanced..................................................................17
UPnP....................................................................179
DDN ....................................................................180
DN .....................................................................182
Routing.................................................................183
Remote Access...........................................................185
IGMP....................................................................187
Firewall..................................................................1
IP Filters..............................................................188
Virtual ervers.........................................................191
DMZ.....................................................................194
MAC Filter..............................................................195
Control...................................................................197
URL Filter..............................................................197
System....................................................................200
Administrator Password..................................................201
Configuration...........................................................202
ystem Log..............................................................204
Firmware Upgrade........................................................206
NTP Client..............................................................208
Ping....................................................................209
Traceroute..............................................................210
Telnet..................................................................211
Device mode.............................................................212
Page 4 of 215

DAP-1155 Wireless N 150 Access Point & Router
User Manual
Chapter 6. Operation Guidelines................................213
Safety Instructions.......................................................213
Wireless Installation Considerations......................................213
Chapter 7. Abbreviations and Acronyms..........................214
Page 5 of 215

DAP-1155 Wireless N 150 Access Point & Router
User Manual Introduction
C APTER 1. INTRODUCTION
Contents and Audience
This manual describes the access point DAP-1155 and explains how to configure and operate it.
This manual is intended for users familiar with basic networking concepts, who create an in-home
local area network, and s stem administrators, who install and configure networks in offices.
Conventions
Example Description
text The bod text of the manual.
Before You Begin A reference to a chapter or section of this manual.
“Quick Installation
Guide” A reference to a document.
Change A name of a menu, menu item, control (field, checkbox, drop-down
list, button, etc.).
192.16 .0.51 Data that ou should enter in the specified field.
!Information An important note.
Document Structure
Chapter 1 describes the purpose and structure of the document.
Chapter 2 gives an overview of the device's hardware and software features, describes its
appearance and the package contents.
Chapter 3 explains how to install the DAP-1155 device and configure a PC in order to access its
web-based interface.
Chapter 4 describes all pages of the web-based interface for the device in the access point mode.
Chapter 5 describes all pages of the web-based interface for the device in the router mode.
Chapter includes safet instructions and tips for networking.
Chapter 7 introduces abbreviations and acron ms used in this manual.
Page 6 of 215

DAP-1155 Wireless N 150 Access Point & Router
User Manual Overview
C APTER 2. OVERVIEW
General Information
The DAP-1155 device is a wireless access point supporting the router mode. It is an affordable
solution for creating wireless networks at home or in an office.
Using DAP-1155, ou are able to quickl create a wireless network and let our relatives or
emplo ees connect to it virtuall an where (within the operational range of our wireless network).
The access point can operate as a base station for connecting wireless devices of the standards
802.11b, 802.11g, and 802.11n (at the rate up to 150Mbps).
The device supports multiple functions for the wireless interface: several securit standards (WEP,
WPA/WPA2), MAC address filtering, different operation modes (access point, router, client), WPS,
WDS, WMM.
You are able to connect the wireless access point DAP-1155 switched to the router mode to a cable
or DSL modem or to a private Ethernet line and use a high-speed Internet connection to
successfull fulfill a wide range of professional tasks.
In the router mode, the DAP-1155 device includes a built-in firewall. The advanced securit
functions minimize threats of hacker attacks, prevent unwanted intrusions to our network, and
block access to unwanted websites for users of our LAN.
You can configure and manage the settings of the DAP-1155 device via the user-friendl web-based
interface (the interface is available in several languages).
Page 7 of 215

DAP-1155 Wireless N 150 Access Point & Router
User Manual Overview
Specifications*
WAN Interface:
•1 10/100BASE-TX Ethernet port for cable or DSL modem or private Ethernet line.
LAN Interface:
•1 10/100BASE-TX Ethernet port.
WLAN Interface:
•IEEE 802.11n (up to 150Mbps)
•IEEE 802.11b/g.
Operation Modes:
•Access point mode
•Router mode.
Network Functions:
•WAN connection t pes:
◦PPPoE
◦Static IP
◦D namic IP
◦PPTP/L2TP + Static IP
◦PPTP/L2TP + D namic IP
•DHCP server and client
•DNS rela
•VPN pass-through (PPTP/L2TP)
•D namic DNS
•Static IP routing
•Remote management
•Network statistics for each interface
•IGMP Prox
•RIP
•UPnP
•WAN ping respond.
* The device features are subject to change without notice. For the latest versions of the firmware and relevant
documentation, visit www.dlink.ru.
Page 8 of 215

DAP-1155 Wireless N 150 Access Point & Router
User Manual Overview
Wireless Connection:
•WLAN splitting (up to 4 SSIDs)
•Supported securit settings:
◦WEP
◦WPA/WPA2 Personal
•MAC filter
•Managing connected stations
•PIN and PBC methods of WPS
•WMM (Wi-Fi QoS)
•Advanced settings
•WDS
•“Client” function (access point mode):
◦Wireless network client
◦Wireless network repeater
•“Client” function (router mode):
◦WISP repeater.
Firewall Functions:
•Network Address Translation (NAT)
•Stateful Packet Inspection (SPI)
•IP filters
•URL filter
•MAC filter
•DMZ
•Prevention of ARP and DDoS attacks
•Virtual servers.
Page 9 of 215

DAP-1155 Wireless N 150 Access Point & Router
User Manual Overview
Configuration and Management:
•Multilingual web-based interface for configuration and management
•Access via TELNET
•Firmware update via web-based interface
•Saving/restoring configuration to/from file
•Support of remote logging
•Automatic s nchronization of s stem time with NTP server (router mode)
•Ping function
•Traceroute utilit (router mode).
LEDs:
•Power
•WLAN
•WPS
•LAN
•Internet.
ower:
•External power adapter DC 12V
•Reset to Factor Defaults button
•WPS button.
Operating Temperature:
•from 0 to 40 0C (from 32 to 104 0F).
Storage Temperature:
•from -20 to 65 0С (from -4 to 149 0F).
Operating Humidity:
•from 10% to 90% non-condensing.
Storage Humidity:
•from 5% to 95% non-condensing.
Page 10 of 215

DAP-1155 Wireless N 150 Access Point & Router
User Manual Overview
Product Appearance
Front Panel
Figure 1. Front panel view.
LED Mode Description
Power
Solid green The device is powered on.
No light The device is powered off.
WLAN
Solid green The device's WLAN is on.
Blinking green The WLAN interface is active (upstream or
downstream traffic).
WPS
Solid green The wireless device is connected to the access point's
WLAN (lights for several minutes).
Blinking green Attempting to add a wireless device via the WPS
function.
LAN
Solid green A device (computer) is connected to the relevant port,
the connection is on.
Blinking green The port is active (upstream or downstream traffic).
Internet
Solid green The Internet connection is on.
Blinking green The WAN interface is active (upstream or downstream
traffic).
Page 11 of 215

DAP-1155 Wireless N 150 Access Point & Router
User Manual Overview
Back Panel
Figure 2. Back panel view.
Port Description
12 VDC IN Power connector.
INTERNET
A port to connect to a cable or DSL modem or to a private Ethernet
line (it is recommended to use the cable included in the deliver
package).
LAN An Ethernet port to connect to a computer.
WPS
RESET
A button to restore the factor default settings and to quickl add
wireless devices to the access point's WLAN (the WPS function).
To use the WPS function: with the device turned on, push the button
and immediatel release it.
To restore the factor defaults: with the device turned on, push the
button, hold it for 3 seconds, then release it.
The device is equipped with a detachable antenna (Reverse SMA).
Page 12 of 215

DAP-1155 Wireless N 150 Access Point & Router
User Manual Overview
Delivery Package
The following should be included:
•Access point DAP-1155
•Power adapter DC 12V
•Ethernet cable (CAT 5E)
•“Quick Installation Guide” (brochure).
The “User Manual” and “Quick Installation Guide” documents in Russian and English are
available on D-Link website (see ftp.dlink.ru/pub/Wireless/DAP-1155/Description/Rev.B/).
!Using a power suppl with a different voltage rating than the one included will cause
damage and void the warrant for this product.
Page 13 of 215

DAP-1155 Wireless N 150 Access Point & Router
User Manual Installation and Connection
C APTER 3. INSTALLATION AND CONNECTION
Before You Begin
Please, read this manual prior to installing the device. Make sure that ou have all the necessar
information and equipment.
Operating System
Configuration of the access point DAP-1155 supporting the router mode (hereinafter referred to as
“the access point”) is performed via the built-in web-based interface. The web-based interface is
available from an operating s stem that supports a web browser.
Web Browser
The following web browsers are recommended: Windows Internet Explorer, Mozilla Firefox, or
Opera.
For successful operation, JavaScript should be enabled on the web browser. Make sure that
JavaScript has not been disabled b other software (such as virus protection or web user securit
packages) running on our computer.
Wired or Wireless NIC (Ethernet or Wi-Fi Adapter)
An computer that uses the access point should be equipped with an Ethernet or Wi-Fi adapter
(NIC). If our computer is not equipped with such a device, install an Ethernet or Wi-Fi adapter
prior to using the access point.
Wireless Connection
Wireless workstations from our network should be equipped with a wireless 802.11b, g or n NIC
(Wi-Fi adapter). In addition, ou should specif the values of SSID, channel number and securit
settings defined in the web-based interface of the access point for all these wireless workstations.
Page 14 of 215

DAP-1155 Wireless N 150 Access Point & Router
User Manual Installation and Connection
Connecting to PC
PC with Ethernet Adapter
1. Make sure that our PC is powered off.
2. Connect an Ethernet cable between the LAN port located on the back panel of the access
point and the Ethernet port of our PC.
3. Connect the power cord to the power connector port on the back panel of the access point,
then plug the power adapter into an electrical outlet or power strip.
4. Turn on our PC and wait until our operating s stem is completel loaded.
Now ou need to configure an IP address for the Ethernet adapter of our PC.
Configuring IP Address in OS Windows XP
1. Click the Start button and proceed to the Control Panel > Network and Internet
Connections > Network Connections window.
2. In the Network Connections window, right-click the relevant Local Area Connection
icon and select the Properties line in the menu displa ed.
Figure 3. The Net ork Connections window.
Page 15 of 215

DAP-1155 Wireless N 150 Access Point & Router
User Manual Installation and Connection
3. In the Local Area Connection Properties window, on the General tab, select the
Internet Protocol (TCP/IP) line. Click the Properties button.
Figure 4. The Local Area Connection Properties window.
Page 16 of 215

DAP-1155 Wireless N 150 Access Point & Router
User Manual Installation and Connection
4. Select the Use the following IP address radio button and enter the value
19 .16 .0.51 in the IP address field. The Subnet mask field will be filled in
automaticall . Click the OK button.
Figure 5. The Internet Protocol (TCP/IP) Properties window.
5. Click the ОК button in the connection properties window.
Now ou can connect to the web-based interface of DAP-1155 for configuring all needed
parameters. To gain access to an external network (to the Internet), ou also need to specif the
default gatewa and the addresses of DNS servers.
Page 17 of 215

DAP-1155 Wireless N 150 Access Point & Router
User Manual Installation and Connection
Configuring IP Address in OS Windows 7
1. Click the Start button and proceed to the Control Panel window.
2. Select the Network and Sharing Center section. (If the Control Panel has the categor
view (the Category value is selected from the View by drop-down list in the top right
corner of the window), choose the View network status and tasks line under the
Network and Internet section.)
Figure 6. The Control Panel window.
Page 18 of 215

DAP-1155 Wireless N 150 Access Point & Router
User Manual Installation and Connection
3. In the menu located on the left part of the window, select the Change adapter settings
line.
Figure 7. The Net ork and Sharing Center window.
Page 19 of 215

DAP-1155 Wireless N 150 Access Point & Router
User Manual Installation and Connection
4. In the opened window, right-click the relevant Local Area Connection icon and select
the Properties line in the menu displa ed.
Figure . The Net ork Connections window.
Page 20 of 215
