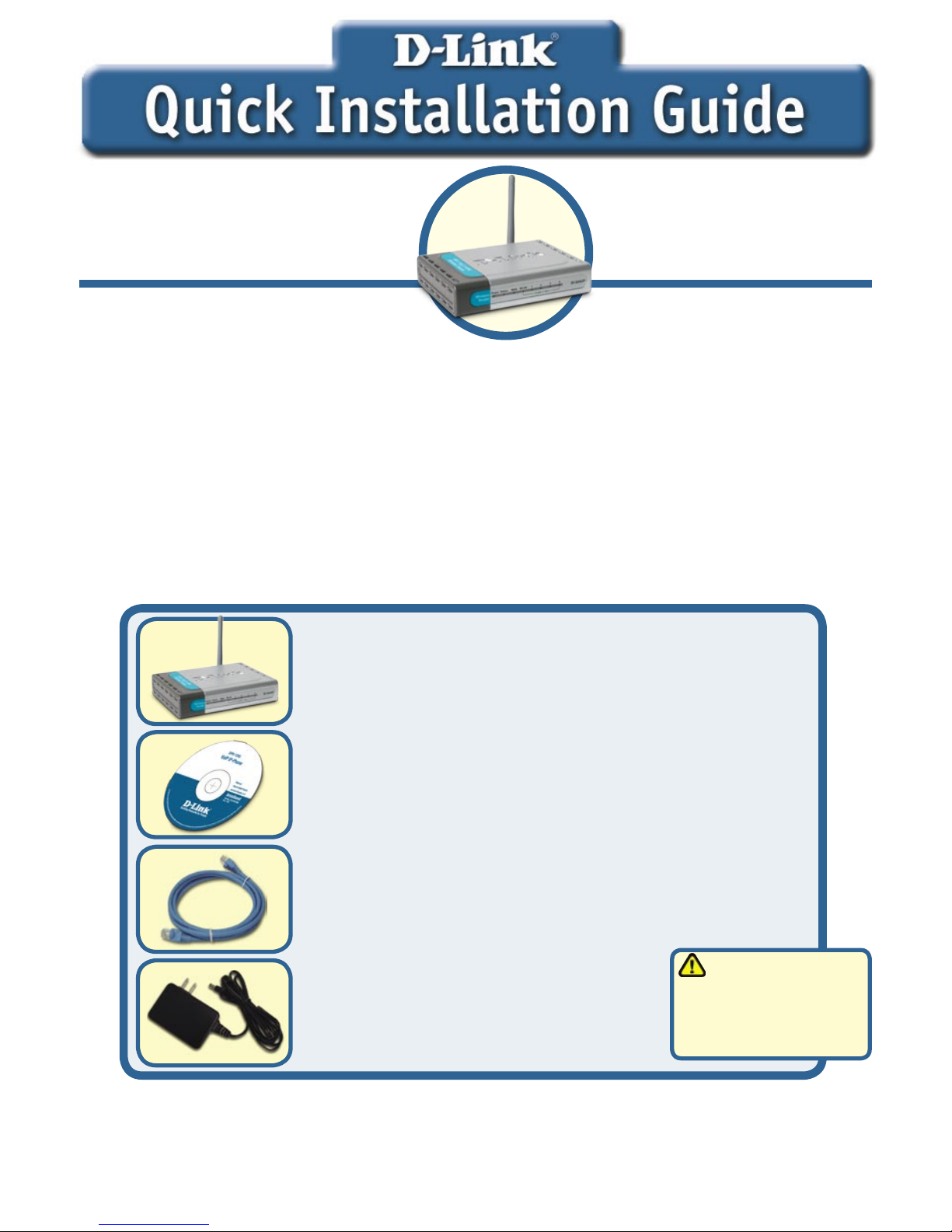

D-Link DI-524UP Mounting instructions

1
This product can be set up using
any current web browser:
Internet Explorer 6 or Netscape
Navigator 7
DI-524UP
AirPlus G
Wireless Router
and USB Print Server
5V 2A DC Power Adapter
©2004, 2005 D-Link Systems, Inc. All rights reserved. Trademarks or registered trademarks are the property of their
respective holders. Software and specifications subject to change without notice.
Before You Begin
1. If you purchased this router to share your high-speed Internet connection with
other computers, you must have either an Ethernet-based Cable or DSL modem
with an established Internet account from an Internet Service Provider (ISP).
2. It’s best to use the same computer that is connected to your modem for configuring
the DI-524UP AirPlus G Wireless Router. The DI-524UP acts as a DHCP server and
will assign all the necessary IP address information on your network. See Appendix
at the end of this Quick Installation Guide or the Manual on the CD-ROM for
setting each network adapter to automatically obtain an IP address.
Check Your Package Contents
DI-524UP AirPlus G 802.11g/2.4GHz Wireless
Router
CD-ROM (containing Manual and Warranty)
Ethernet (CAT5 UTP/Straight Through) Cable
Using a power
supply with a different
voltage rating will
damage and void the
warranty of this product.
If any of the above items are missing, please contact your reseller.

2

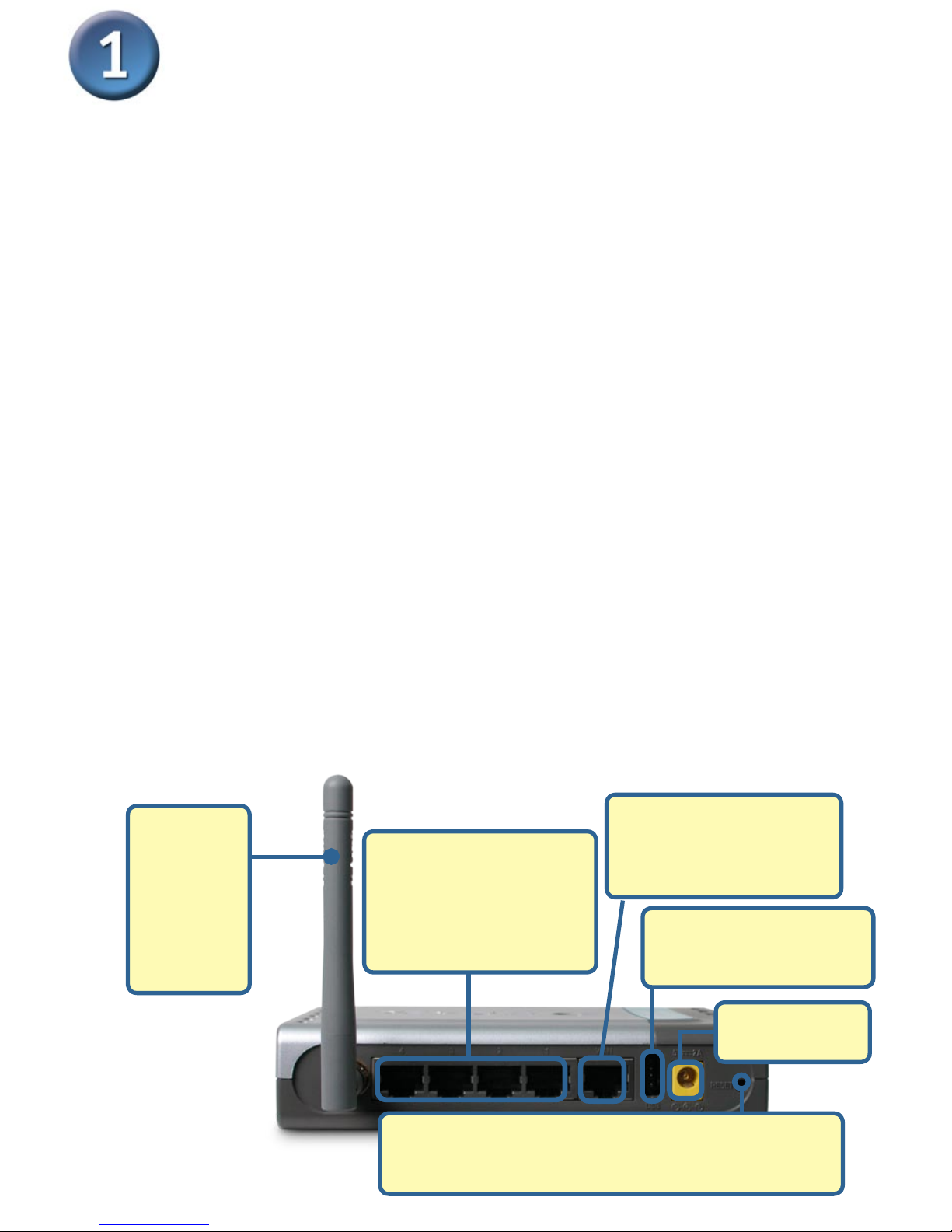

Connecting The DI-524UP Wireless
Router To Your Network
A. Receptor for
Power Adapter.
Reset Button
Pressing this button restores the Router to its original
factory default settings.
A. First, connect the power adapter to the receptor at the back panel of the
DI-524UP and then plug the other end of the power adapter to a wall outlet or power strip.
The Power LED lights up indicating proper operation.
B. 1. Power off your Cable or DSL modem; devices that do not have a on/off switch and will
require you to unplug the power adapter. Now, the DI-524UP should be powered on and the
Cable / DSL modem should be turned off.
Cable / DSL modem (Power Off) – DI-524UP (Power On)
2. Connect an Ethernet cable to the Ethernet jack located on the Cable / DSL modem. After
the Ethernet cable is securely connected, power on the Cable / DSL modem by turning on
the unit or plugging in the power adapter.
Cable / DSL modem (Power On) – DI-524UP (Power On)
3. Insert the other end of the Ethernet cable to the WAN PORT on the back panel of the
DI-524UP. The WAN LED light will illuminate to indicate proper connection. If the WAN LED is
not illuminated, please go back to step B1 and repeat the steps.
C. Insert an Ethernet cable to LAN Port 1 on the back panel of the DI-524UP and an available
Ethernet port on the network adapter in the computer you are using to configure the DI-
524UP. The LED light for LAN Port 1 illuminates to indicate proper connection. (Note: The
LAN Ports on the DI-524UP are Auto-MDI/MDI-X. Meaning you can use a straight-through or
crossover-Ethernet cable in the LAN Ports.)
D. Computers equipped with 802.11g wireless adapters will be able to connect to the DI-524UP.
The DWL-G630 AirPlus G Wireless Cardbus Adapter and the DWL-G510 AirPlus G Wireless
PCI Adapter will be able to connect out of the box with the router using their default wireless
settings.
E. The USB port on the DI-524UP is used to connect printers only. Connect one end of the
printer cable to your printer and the other end to the DI-524UP.
B. WAN PORT
This is for the connection
of an Ethernet cable to the
Cable or DSL modem.
D. Antenna
Used to
wirelessly
connect to
802.11g or
802.11b
adapters.
C. LAN PORTS
These are the
connections for Ethernet
cables to Ethernet
enabled computers.
E. USB Printer Port
Used to connect to a
Printer.

3

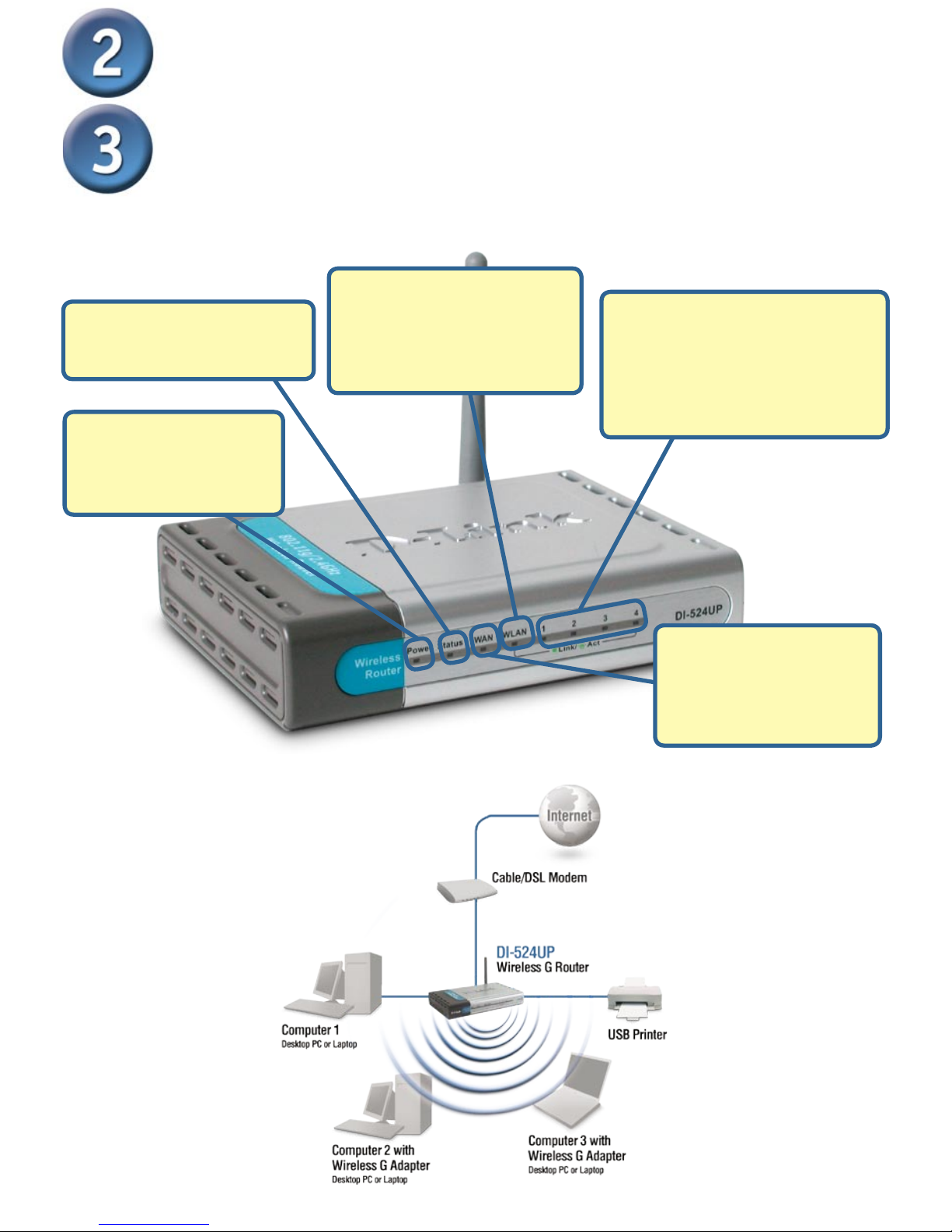

Restart Your Computer
Connecting Additional Computers
To The DI-524UP
LOCAL NETWORK LEDs – a
solid light on the port indicates
a connection to an Ethernet
enabled computer on ports 1-4.
This LED blinks during data
transmission.
Power LED – a solid
light indicates a proper
connection to the power
supply.
Status LED – a blinking light
indicates that the DI-524UP
is functioning properly.
Using additional Ethernet (CAT5 UTP) cables, connect your Ethernet-equipped
computers to the remaining Ethernet LAN ports on the back panel of the DI-524UP.
WAN LED – a solid light
indicates connection
on the WAN port. This
LED blinks during data
transmission.
WLAN LED – a solid light
indicates that the wireless
segment is ready. This LED
blinks during wireless data
transmission.
When you have completed the steps in this Quick Installation Guide, your connected
network should look similar to this:

4

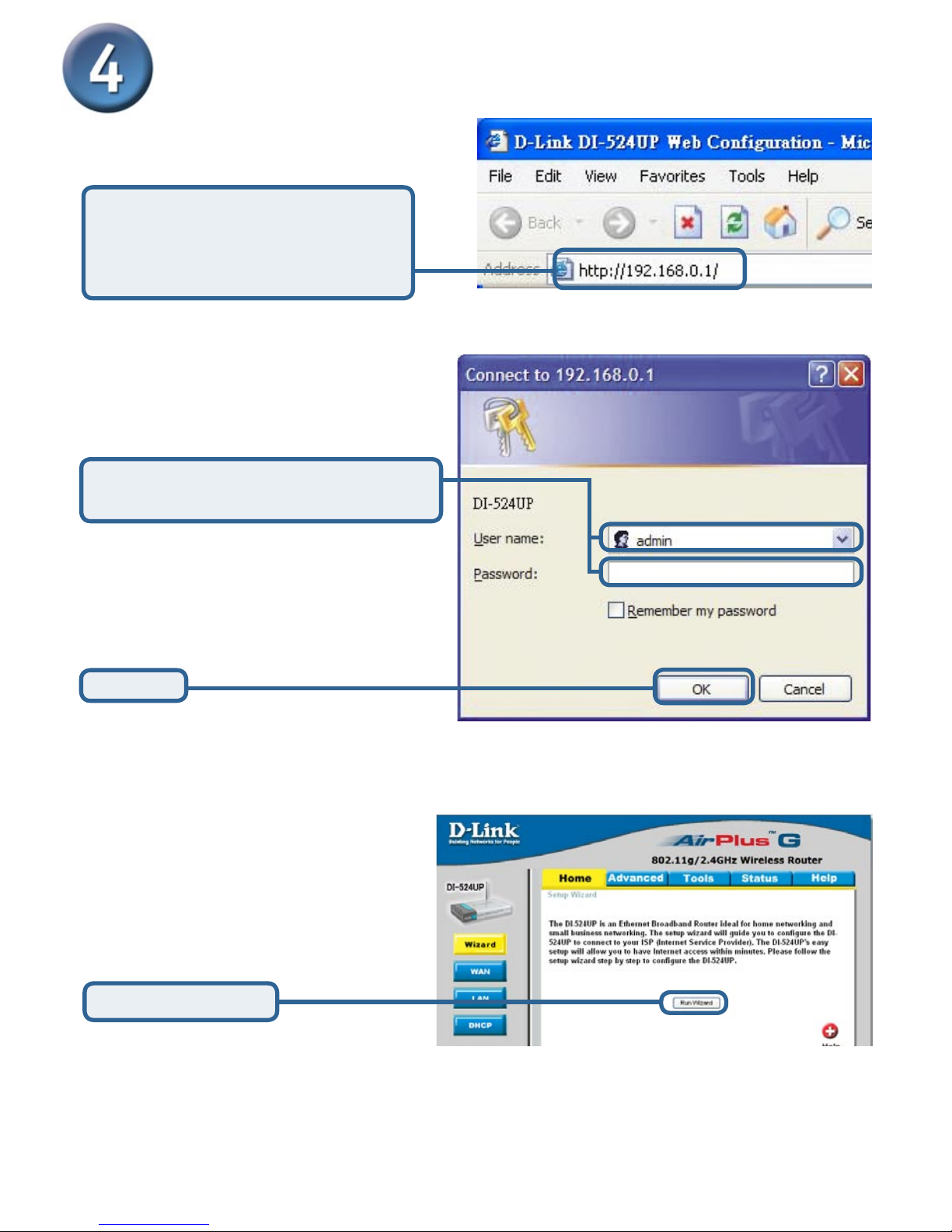

Once you have logged in, the
Home screen will appear.
Click Run Wizard
Using The Setup Wizard
The logon pop-up screen will appear.
Open your Web browser and
type “http://192.168.0.1” into the
URL address box. Then press the
Enter or Return key.
Type “admin” for the username and
leave the password field blank.
Click OK

5

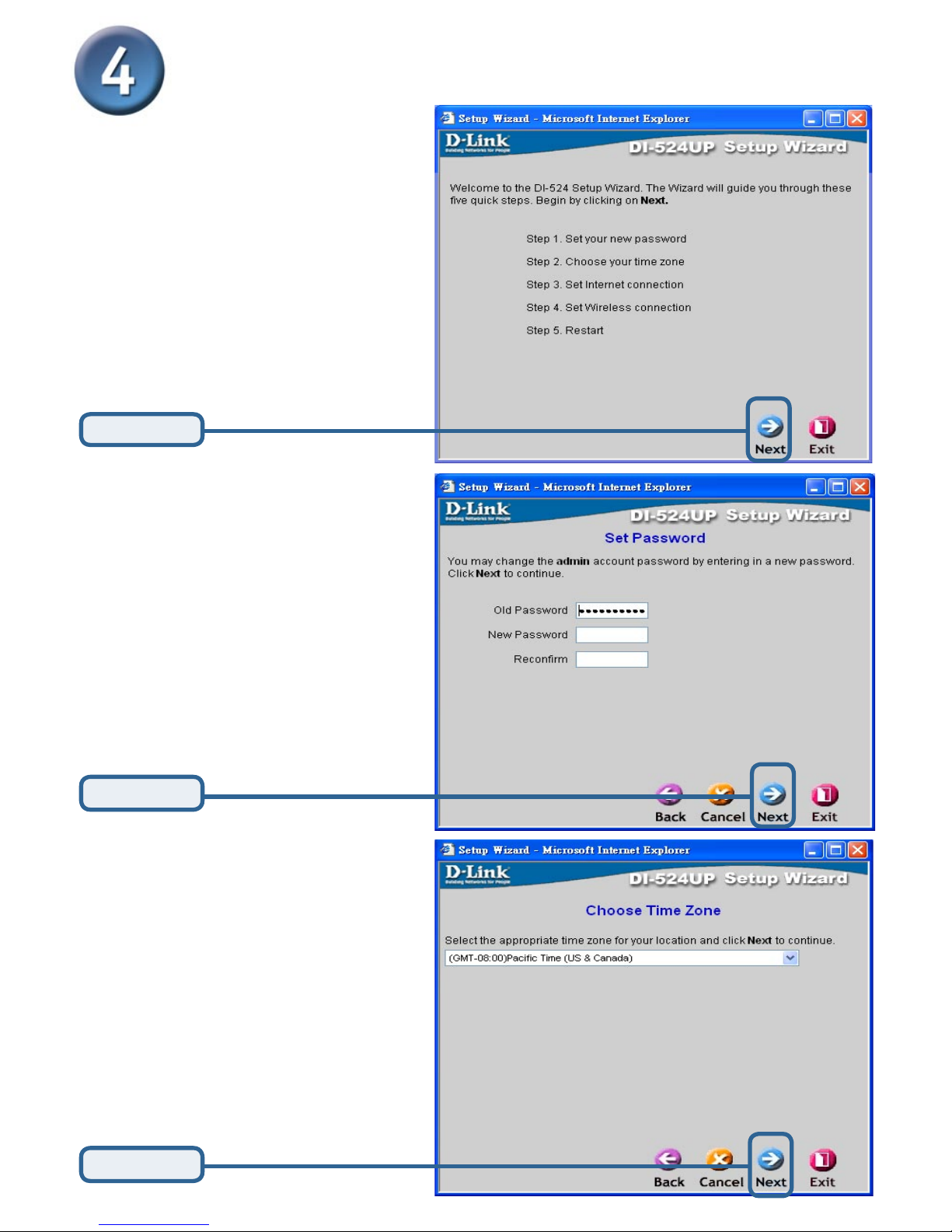

The Setup Wizard (continued)
You will see the following screens:
Set up your new password.
You have the option to establish
a password.
Click Next
Choose your time zone from
the drop down list.
Click Next
Click Next

6

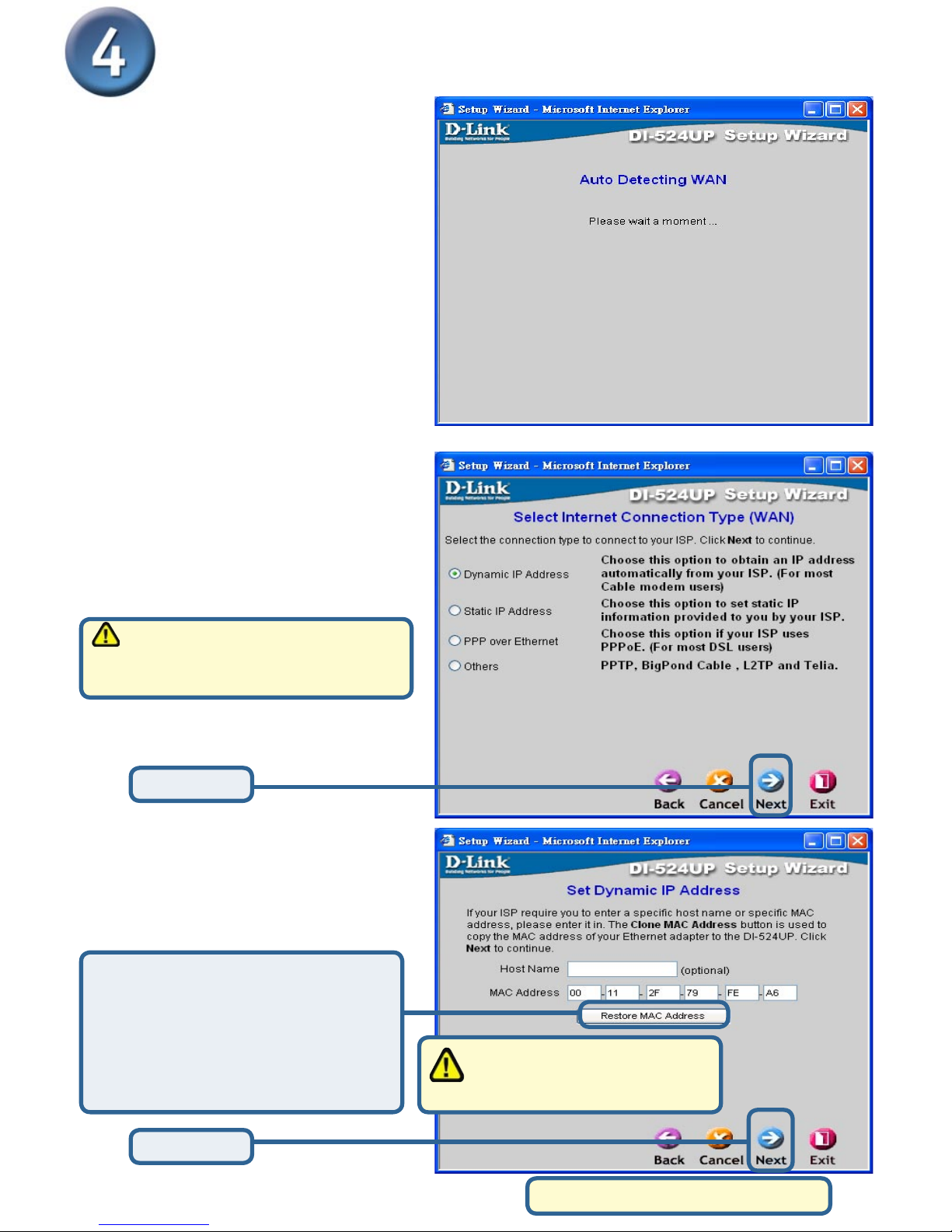

If you selected Dynamic IP
Address, this screen will appear:
(Used mainly for Cable Internet
service.)
Click the “Clone MAC Address”
button to automatically copy the
MAC address of the network
adapter in your computer. You
can also manually type in the
MAC address.
The Setup Wizard (continued)
Select your Internet Connection.
You will be prompted to select the
type of Internet connection for your
router.
If you are unsure of which setting
to select, please contact your Internet
Service Provider.
Click Next
Click Next
This setup should be done on
the computer that is registered
on the ISP’s network.
Please continue to Wireless Setup.
A this point, the setup wizard will try to
auto-detect your Internet connection
type. If you have a Dynamic or
PPPoE connection, you will be
brought to the corresponding page.
Otherwise, you will see the following screen:

7
The Setup Wizard (continued)

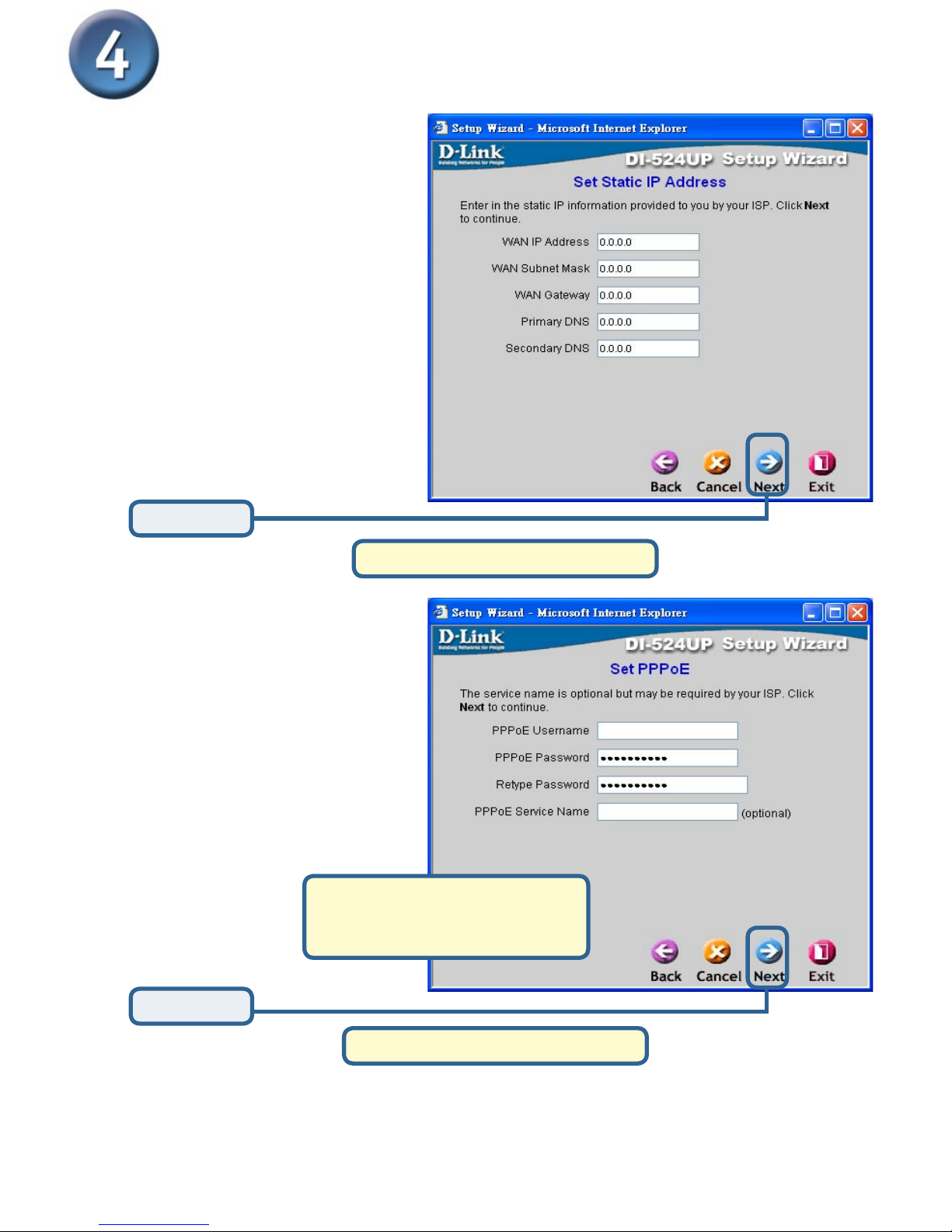

If your ISP requires a Static IP
Address, and this option is selected,
then this screen will appear:
Enter the IP address information
originally provided to you by your
ISP. You will need to complete all
the required fields.
Click Next
Please continue to Wireless Setup.
If your ISP uses PPPoE (Point-to-
Point Protocol over Ethernet), and
this option is selected, then this
screen will appear: (Used mainly
for DSL Internet service.)
Please be sure to remove any
existing PPPoE client software
installed on your computers.
Enter in the username and password
provided to you by your ISP.
Please continue to Wireless Setup.
Click Next

8

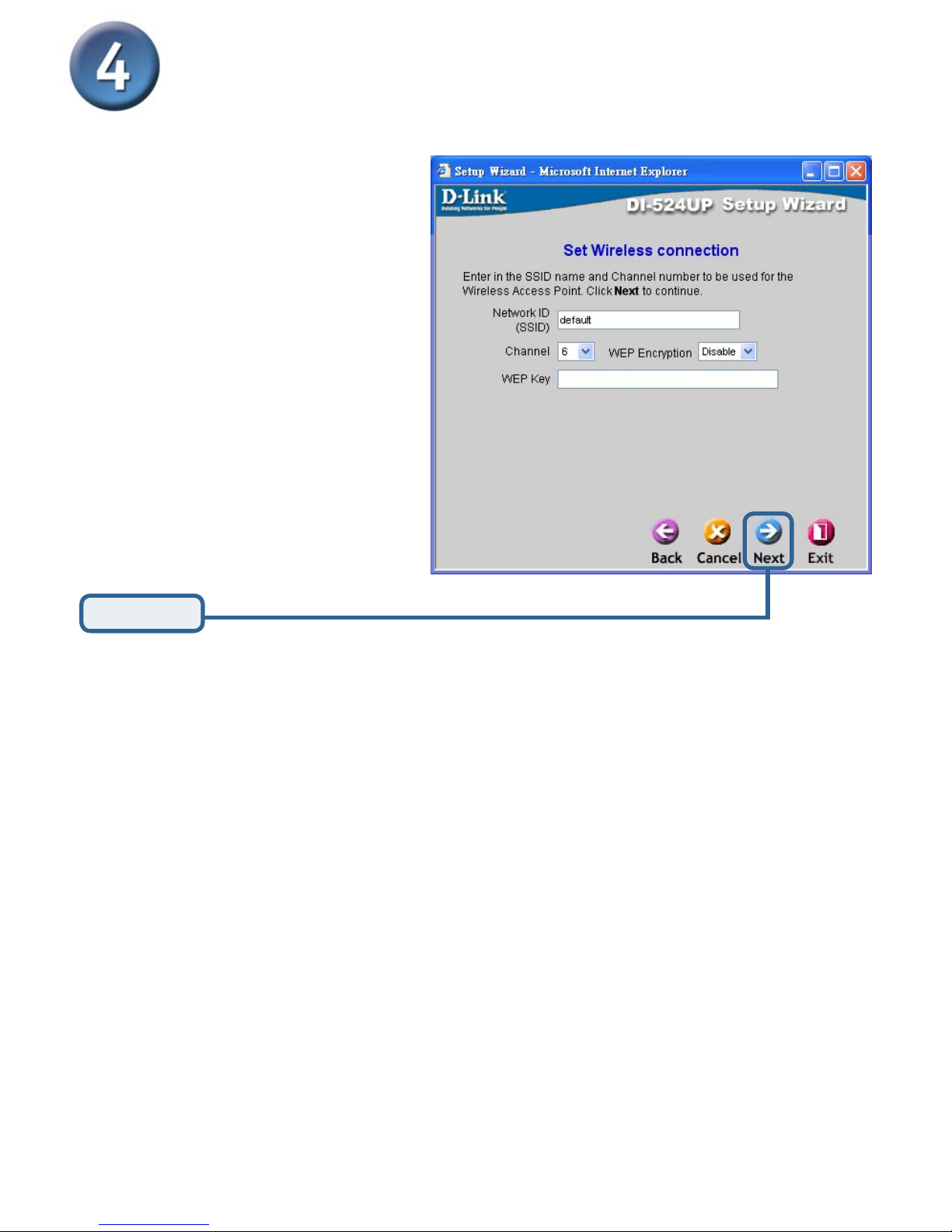

If you wish to use encryption
for your 802.11g network, the
DI-524UP is capable of two
levels of wireless encryption
- 64-bit and 128-bit. By default
the encryption is disabled.
You can change the encryption
settings for more secure wireless
communication.
The Setup Wizard (continued)
The default wireless settings for
your 802.11g wireless network are:
SSID = default
Channel = 6
You can change these settings to
match an existing wireless network.
Click Next
Wireless Setup

9

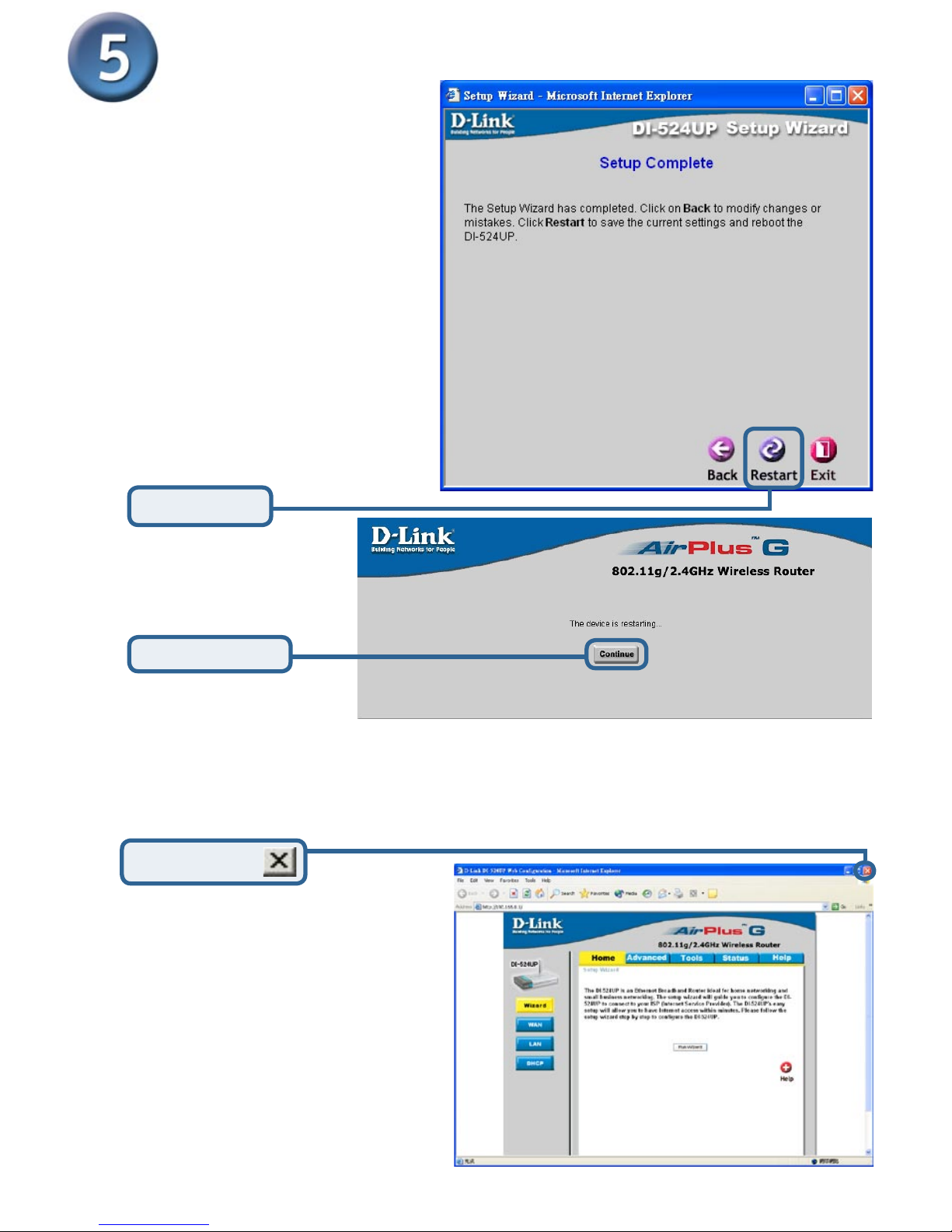

Your Setup is Complete!
Click Continue
Test Internet Connection
You will be returned to the Home tab.
For additional settings or information,
refer to the Advanced, Tools, or
Status tabs on the web-management
interface; or to the Manual located on
the CD.
Then relaunch your Web browser
(i.e., Internet Explorer or Netscape
Navigator), to link to your favorite Web
site to test your Internet connection.
Click to Exit
Click Restart

10

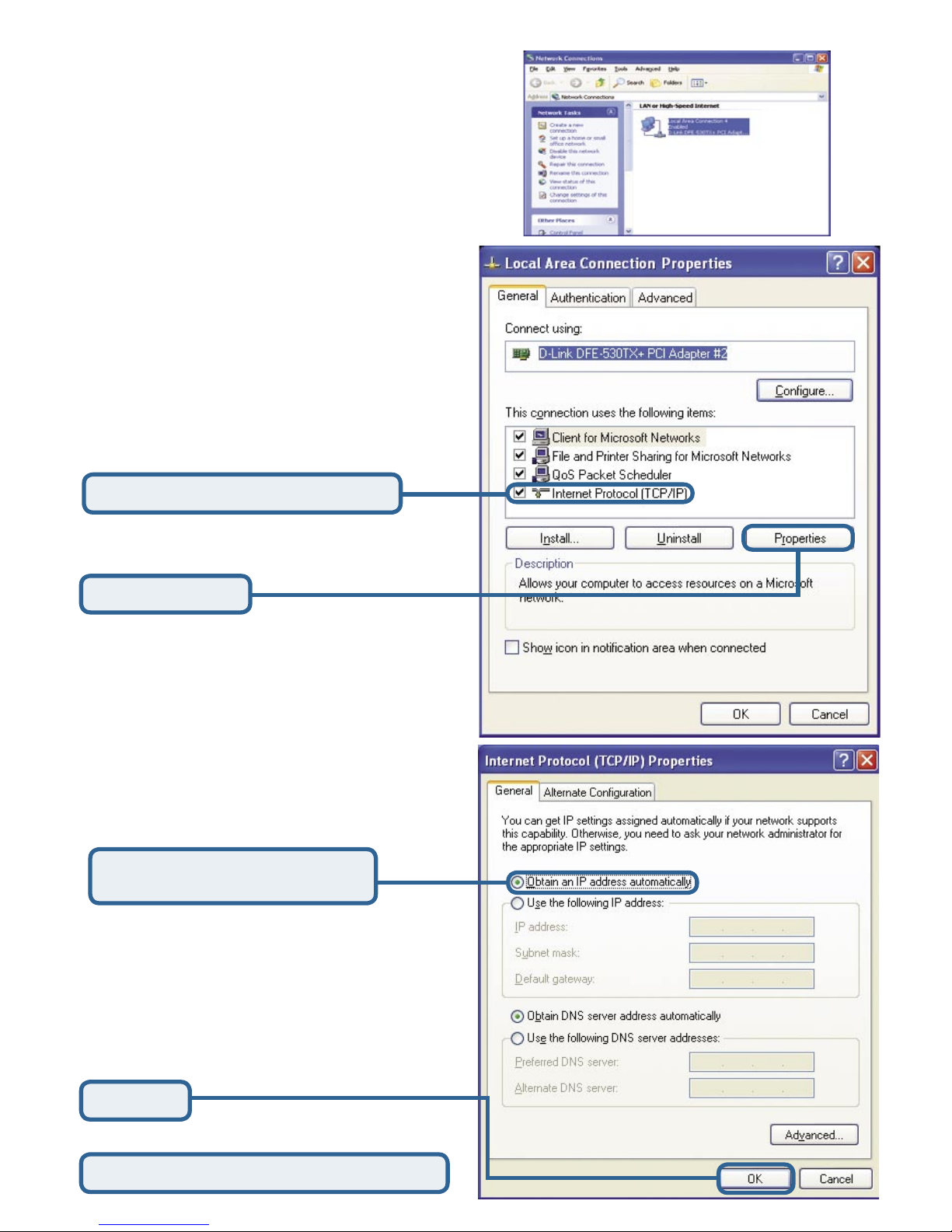

To connect to the network, make sure the
network adapter in your computer is configured
properly. Here’s how to configure the network
adapter to obtain an IP address automatically
for the DI-524 Wireless Broadband Router.
APPENDIX
Restart your computer (if necessary)
Click OK
Select Obtain an IP address
automatically
Click Internet Protocol (TCP/IP)
Click Properties
For Microsoft Windows XP:
right click on My Network Places icon
on the desktop > select Properties >
Double-click on the Network Connection
associated with the Ethernet adapter (i.e.,
D-Link DFE-530TX+).

11

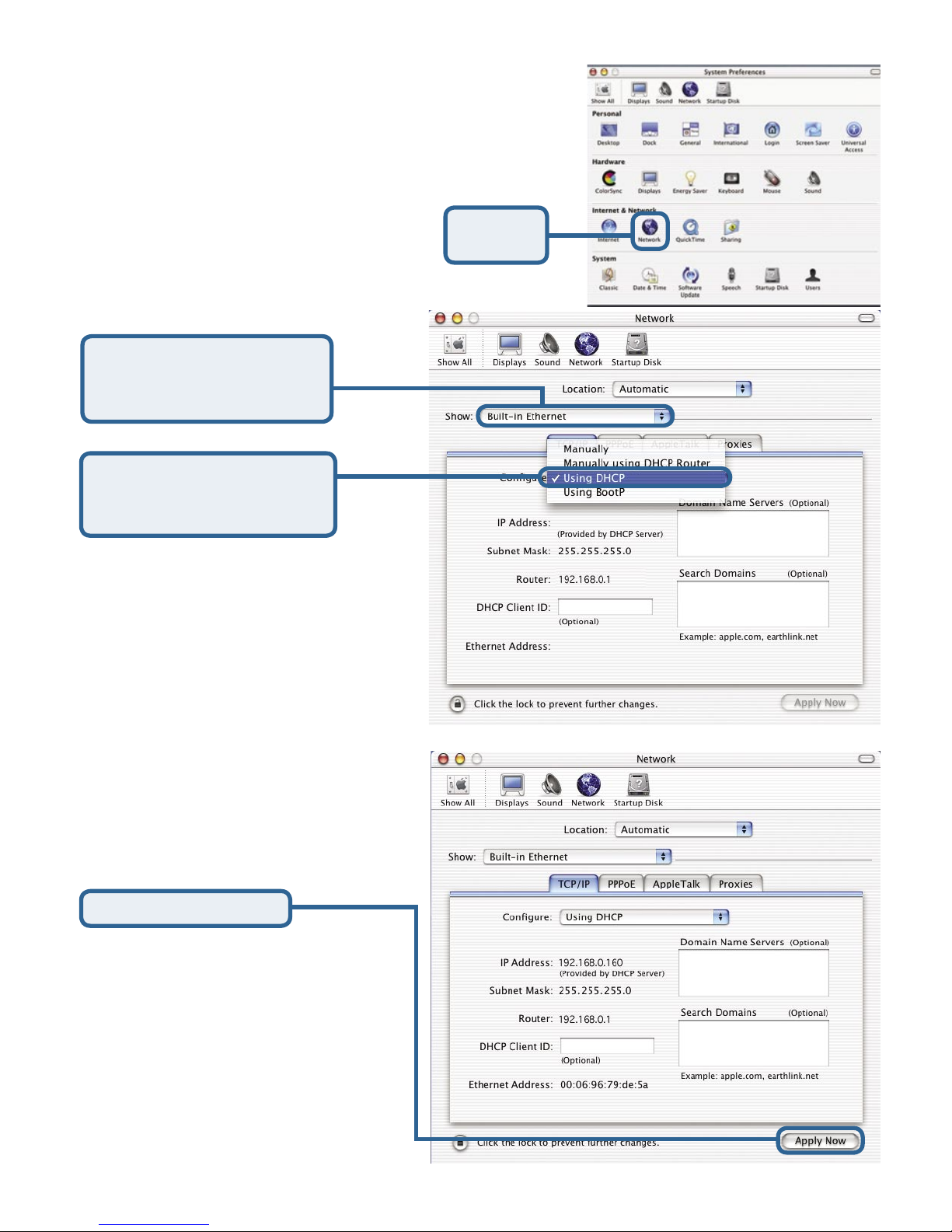

For Apple Macintosh OS X:
The IP address information,
the Subnet Mask, the Router’s
IP address and the Ethernet
adapter address will appear.
Select Built-in Ethernet
in the Show pull down
menu
Click on
Network
Click on Apply Now
Select Using DHCP in
the Configure pull down
menu
Go to the Apple Menu Click on System
Preferences and Select Network.

12
Technical Support
You can find software updates and user documentation on the D-Link websites.
D-Link provides free technical support for customers within Canada,
the United Kingdom, and Ireland.
Customers can contact D-Link technical support through our websites,
or by phone.
For Customers within
The United Kingdom & Ireland:
D-Link UK & Ireland Technical Support over the Telephone:
(08456 12 0003 (United Kingdom)
[phone] (Ireland)
Monday to Friday 8:00 am to 10:00 pm GMT
Sat & Sun 10.00 am to 7.00 pm GMT
D-Link UK & Ireland Technical Support over the Internet:
http://www.dlink.co.uk
ftp://ftp.dlink.co.uk
For Customers within Canada:
D-Link Canada Technical Support over the Telephone:
1-800-361-5265 (Canada)
Monday to Friday 7:30 am to 12:00 am EST
D-Link Canada Technical Support over the Internet:
http://support.dlink.ca
email: [email protected]
