Dacor DTG30P875N Series User manual

User Manual
Gas Cooktop
DTG30P875N*
DTG36P875N*
DTG36P875N_DG68-01285A-00_EN+MES+CFR.indb 1 2020-05-27 �� 10:57:00

2 English
Regulatory Notice
1. FCC Notice
CAUTION
FCC CAUTION: Any changes or modications not expressly approved
by the party responsible for compliance could void the user’s
authority to operate the equipment.
This device complies with Part 15 of FCC Rules. Operation is Subject
to following two conditions:
1) This device may not cause harmful interference, and
2) This device must accept any interference received including
interference that cause undesired operation.
For products sold in the US and Canadian markets, only channels
1~11 are available. You cannot select any other channels.
WARNING: If the information in this manual is not followed exactly,
a re or explosion may result causing property damage, personal
injury, or death.
• DO NOT store or use gasoline or other ammable vapors and
liquids in the vicinity of this or any other appliance.
• WHAT TO DO IF YOU SMELL GAS:
- DO NOT try to light any appliance.
- DO NOT touch any electrical switch.
- DO NOT use any phone in your building.
- Immediately call your gas supplier from a neighbor’s phone.
Follow the gas supplier’s instructions.
- If you cannot reach your gas supplier, call the re department.
• Installation and service must be performed by a qualied
installer, service agency, or the gas supplier.
DTG36P875N_DG68-01285A-00_EN+MES+CFR.indb 2 2020-05-27 �� 10:57:00

English 3
FCC RADIATION EXPOSURE STATEMENT:
This equipment complies with FCC radiation exposure limits set
forth for an uncontrolled environment. This equipment should be
installed and operated so there is at least 8 inches (20 cm) between
the radiator and your body. This device and its antenna(s) must not
be co-located or operated in conjunction with any other antenna or
transmitter.
2. IC Notice
The term “IC” before the radio certication number only signies
that Industry Canada technical specications were met. Operation
is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference,
including interference that may cause undesired operation of the
device.
This Class B digital apparatus complies with Canadian ICES-003.
For products sold in the US and Canadian markets, only channels
1~11 are available. You cannot select any other channels.
FCC STATEMENT:
This equipment has been tested and found to comply within the
limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
• Reorienting or relocating the receiving antenna
• Increasing the separation between the equipment and receiver
• Connecting the equipment to an outlet that is on a different circuit
than the radio or TV
• Consulting the dealer or an experienced radio/TV technician for
help.
DTG36P875N_DG68-01285A-00_EN+MES+CFR.indb 3 2020-05-27 �� 10:57:00

4 English
General safety instructions
This unit has been tested and found to comply with the limits for
a class B digital device, pursuant to Part 18 of the FCC rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This unit generates, uses and
can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to
radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this unit does cause harmful interference to
radio or television reception, which can be determined by turning
the unit off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorienting or relocating the receiving antennae.
• Increasing the distance between the unit and receiver.
• Connecting the equipment to an outlet that is on a different circuit
than the radio or TV.
IC RADIATION EXPOSURE STATEMENT:
This equipment complies with IC RSS-102 radiation exposure limits
set forth for an uncontrolled environment. This equipment should be
installed and operated so there is at least 8 inches (20 cm) between
the radiator and your body. This device and its antenna(s) must not
be co-located or operated in conjunction with any other antenna or
transmitter.
Regulatory Notice
DTG36P875N_DG68-01285A-00_EN+MES+CFR.indb 4 2020-05-27 �� 10:57:00

Contents
English 5
Care and cleaning of the cooktop 19
Cooktop surface 19
Porcelain enamel surfaces (on some models) 19
Stainless steel surfaces (on some models) 19
Control knobs 20
Burner grates and components 20
Burner caps and heads 21
Burner bases 21
Electrodes 22
Grates and wok ring 22
Cast-iron griddle 22
Burner head and cap replacement 23
Burner cap 24
Troubleshooting 25
Checkpoints 25
Warranty 26
Appendix 27
Open Source Announcement 27
Model name & serial number 27
Contents
Important safety information 6
Overview 11
Layout 11
What’s included 12
Using the cooktop burners 12

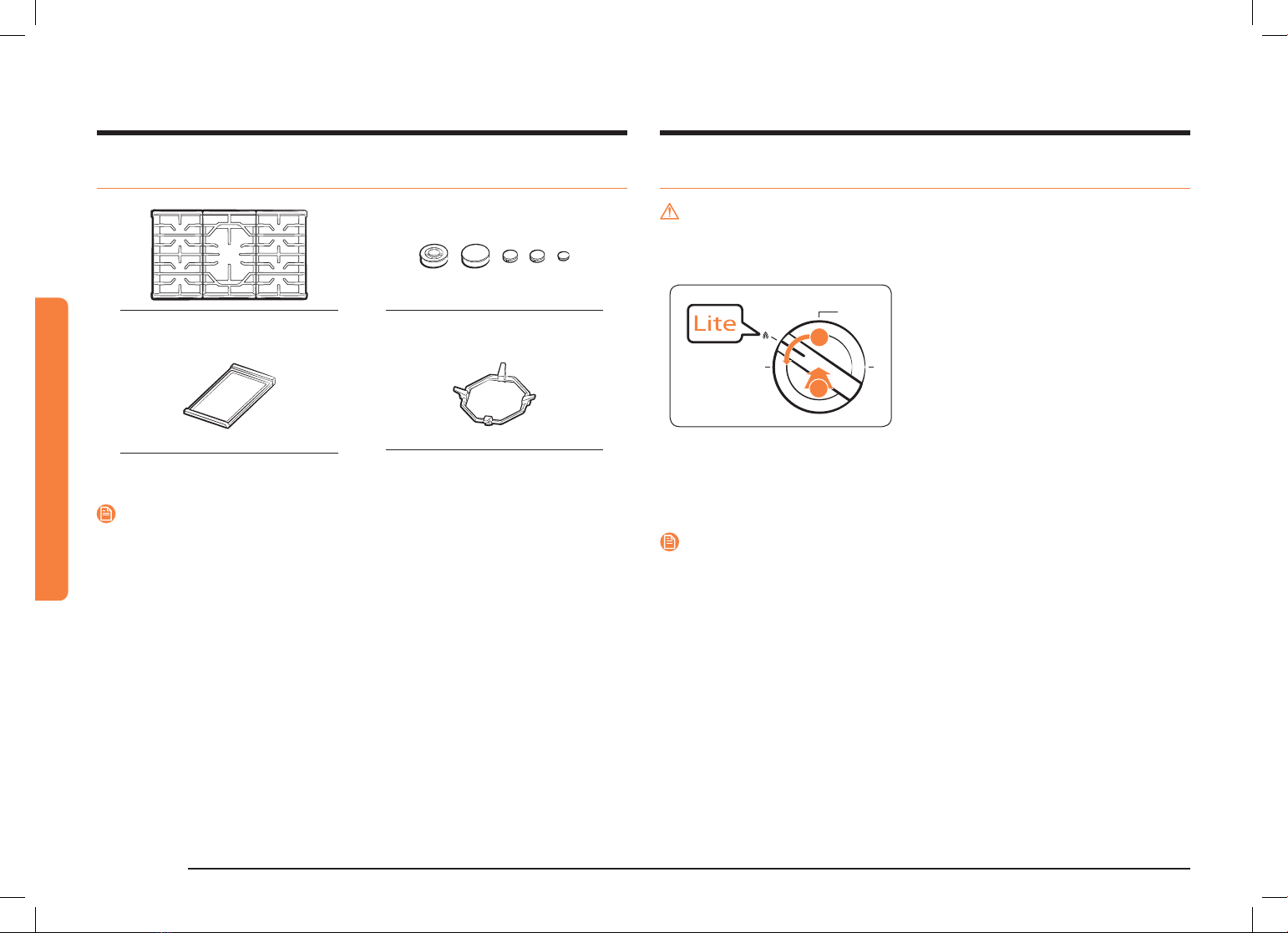

Ignition 12
Cookware 13
Install the grates. 14
Wok ring 15
Griddle 15
Using the iQ Connect feature 16
Using the hood control feature 18
DTG36P875N_DG68-01285A-00_EN+MES+CFR.indb 5 2020-05-27 �� 10:57:00

6 English
Important safety information
California Proposition 65 Warning
WARNING
Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Commonwealth of Massachusetts
• This product must be installed by a licensed plumber or gas tter qualied or
licensed by the State of Massachusetts. When using ball-type gas shut-off valves,
you must use the T-handle type. Multiple exible gas lines must not be connected
in series.
Important safety information
Read all instructions before using this appliance
• All electrical and gas equipment with moving parts can be dangerous. Please
read the important safety instructions for this appliance in this manual. The
instructions must be followed to minimize the risk of injury, death, or property
damage.
• Save this manual. Please Do Not Discard.
Symbols used in this manual
WARNING
Hazards or unsafe practices that may result in severe personal injury or death.
CAUTION
Hazards or unsafe practices that may result in electric shock, personal injury, or
property damage.
NOTE
Useful tips and instructions
These warning icons and symbols are here to prevent injury to you and others.
Please follow them explicitly. After reading this section, keep it in a safe place for
future reference.
DTG36P875N_DG68-01285A-00_EN+MES+CFR.indb 6 2020-05-27 �� 10:57:00

English 7
Important safety information
• Do not lean on the cooktop as you may turn the control knobs inattentively.
• Do not stand on top of the appliance or place objects (such as laundry, an oven
cover, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on
the appliance.
-Items, such as a cloth, may get caught in the door.
-This may result in electric shock, re, problems with the product, or injury.
Fire safety
WARNING
To reduce the risk of re, electric shock, personal injuries, and/or death, observe
the following precautions.
• Do not store, place, or use ammable or combustible materials such as paper,
plastic, pot holders, linens, curtains, gasoline or other ammable vapors or liquids
near the cooktop.
• Do not wear loose tting or hanging garments while using the cooktop.
• To avoid grease buildup, regularly clean the vents.
• Do not let pot holders or other ammable materials touch a heating element. Do
not use a towel or other bulky items made out of cloth in place of a pot holder.
• Do not use water on a grease re. To put out a grease re, turn off the heat
source and smother the re with a tight-tting lid or use a multipurpose dry
chemical or foam-type re extinguisher.
• Do not heat unopened food containers. The buildup of pressure may cause the
container to burst and result in injury.
• Always check if the burners are combusting normally. Overheating may cause a
re, and incomplete combustion may cause carbon-monoxide poisoning.
General safety
WARNING
To reduce the risk of re, electric shock, personal injuries, and/or death, observe
the following precautions.
• Do not touch any part of the cooktop, including but not limited to cooktop
burners during or immediately after cooking.
• Know the location of the gas shut-off valve and how to shut it off.
• Make sure the hold down brackets are properly installed on the cooktop. See the
installation instructions for more information.
• Do not let children near the cooktop. Do not let children go onto the cooktop. Do
not let children play with the cooktop or any part(s) of the cooktop. Do not leave
children unattended in an area where the cooktop is in use.
• Remove all packaging materials from the cooktop before operating to prevent
ignition of these materials. Keep all packaging materials out of children’s reach.
Properly dispose the packaging materials after the cooktop is unpacked.
• Do not store any object of interest to children on the cooktop or backguard of
the cooktop. Children climbing on the cooktop to reach items could be killed or
seriously injured.
• Do not operate the cooktop if the cooktop or any part of the cooktop is damaged,
malfunctioning, or missing parts.
• Do not use the cooktop as a space heater. Use the cooktop for cooking only.
• Use only dry pot holders.
• Do not use the cooktop to heat unopened food containers.
• Unplug or disconnect the power cord before servicing.
• Never store combustible materials (dishtowels, paper products, etc.) or packaged
or canned food under the cooktop in a way that would let them come in contact
with the underside of the cooktop. The combustible material could catch re and
the packaged or canned food could explode.
• Make sure the gas line is not compressed or bent by heavy objects. Otherwise,
gas leaks or incomplete combustion may occur.
DTG36P875N_DG68-01285A-00_EN+MES+CFR.indb 7 2020-05-27 �� 10:57:00

8 English
Important safety information
Important safety information
Electrical and grounding safety
WARNING
To reduce the risk of re, electric shock, personal injuries, and/or death, observe
the following precautions.
• Plug the power cord into a grounded 3-prong outlet.
• Do not remove the grounding prong.
• Do not use an adapter or an extension cord.
• Do not use a damaged power plug, power cord, or loose power outlet.
• Do not modify the power plug, power cord, or power outlet in any way.
• Do not put a fuse in a neutral or ground circuit.
• Use a dedicated 120-volt, 60-Hz, 20-amp, AC, fused electrical circuit for this
cooktop. A time-delay fuse or circuit breaker is recommended. Do not plug more
than one appliance into this circuit.
• Do not connect the ground wire to plastic plumbing lines, gas lines, or hot water
pipes.
• This cooktop must be Earth grounded. In the event of a malfunction or
breakdown, grounding will reduce the risk of electrical shock by providing a path
for the electric current. This cooktop is equipped with a cord having a grounding
plug. The plug must be rmly plugged into an outlet that is properly installed and
grounded in accordance with the local codes and ordinances. If you are unsure
whether your electrical outlet is properly grounded, have it checked by a licensed
electrician.
• The cooktop is supplied with a 3-pronged grounded plug. This cord must be
plugged into a matching, grounded 3-prong outlet that meets all local codes and
ordinances. If codes permit the use of a separate ground wire, we recommend
that a qualied electrician determine the proper path for this ground wire.
• Electrical service to the cooktop must conform to local codes. Barring local codes,
it should meet the latest ANSI/NFPA No. 70 – Latest Revision (for the U.S.) or the
Canadian Electrical Code CSA C22.1 – Latest Revisions.
• It is the personal responsibility of the cooktop owner to provide the correct
electrical service for this cooktop.
Gas safety
WARNING
To reduce the risk of re, electric shock, personal injuries, and/or death, observe
the following precautions.
Checking for gas leaks
• Leak testing of the appliance must be conducted according to the manufacturer’s
instructions. Do not use a ame to check for gas leaks. Use a brush to spread a
soapy water mixture around the area you are checking. If there is a gas leak, you
will see small bubbles in the soapy water mixture at the leak point.
If you smell gas:
• Close the valve and do not use the cooktop.
• Do not light a match, candle, or cigarette.
• Do not turn on any gas or electric appliances.
• Do not touch any electrical switches or plug a power cord into an outlet.
• Do not use any phone in your building.
• Evacuate the room, building, or area of all occupants.
• Immediately call your gas supplier from a neighbor’s phone. Follow the gas
supplier’s instructions.
• If you cannot reach your gas supplier, call the re department.
DTG36P875N_DG68-01285A-00_EN+MES+CFR.indb 8 2020-05-27 �� 10:57:01

English 9
Important safety information
• Make sure the middle valve has adequate capacity and is not clogged.
• This cooktop must be installed by a qualied technician. Otherwise, gas leaks,
re, or defective ignition may occur.
Location safety
WARNING
To reduce the risk of re, electric shock, personal injuries, and/or death, observe
the following precautions.
• This cooktop is for indoor, household use only. Do not install the cooktop in areas
exposed to the weather and/or water.
• Do not install the cooktop in a place which is exposed to a strong draft.
• Select a location where a grounded, 3- prong outlet is easily accessible.
• If the cooktop is located near a window, do not hang long curtains or paper
blinds on that window.
• For the cooktop to ventilate properly, there must be enough clearance at the top,
back and sides of the cooktop, and underneath the cooktop. The vents allow the
necessary exhaust for the cooktop to operate properly with correct combustion.
• Make sure the wall coverings around the cooktop can withstand heat up to
194 °F (90 °C).
• Cabinet storage above the surface of the cooktop should be avoided. If cabinet
storage above the cooktop is necessary: allow a minimum clearance of 30 inches
(76.2 cm) between the cooking surface and the bottom of the cabinets.
Installation safety
WARNING
To reduce the risk of re, electric shock, personal injuries, and/or death, observe
the following precautions.
• Have your cooktop installed and properly grounded by a qualied installer, in
accordance with the installation instructions. Any adjustment and service should
be performed only by qualied gas cooktop installers or service technicians.
• Do not attempt to service, modify, or replace your cooktop or any part of your
cooktop unless it is specically recommended in this manual. All other service
should be referred to a qualied technician.
• Always use new exible connectors when installing a gas appliance. Do not use
old exible connectors.
• Make sure the hold down brackets are properly installed on the cooktop. See the
installation instructions for more information.
• Remove all tape and packaging materials.
• Remove all accessories from the cooktop, Grates and griddles are heavy. Use
caution when handling them.
• Make sure no parts came loose during shipping.
• Make sure your cooktop is correctly installed and adjusted by a qualied service
technician or installer for the type of gas (natural or LP) you will use. For
your cooktop to utilize LP gas, the installer must replace the 5 surface burner
orices with the provided LP orice set, and reverse the GPR adapter. These
adjustments must be made by a qualied service technician in accordance with
the manufacturer’s instructions and all codes and requirements of the authority
having jurisdiction. The qualied agency performing this work assumes the gas
conversion responsibility.
• Installation of this cooktop must conform with local codes or, in the absence
of local codes, with the National Fuel Gas Code, ANSI Z223.1/NFPA.54, latest
edition. In Canada, installation must conform with the current Natural Gas
Installation Code, CAN/CGA-B149.1, or the current Propane Installation Code,
CAN/CGA-B149.2, and with local codes where applicable. This cooktop has been
design-certied by ETL according to ANSI Z21.1, latest edition, and Canadian Gas
Association according to CAN/CGA-1.1, latest edition.
DTG36P875N_DG68-01285A-00_EN+MES+CFR.indb 9 2020-05-27 �� 10:57:01

10 English
Important safety information
Important safety information
• Always heat frying oils slowly, and watch as they heat. If you are frying foods at
high heat, carefully watch during the cooking process. If a combination of fats or
oils is to be used during frying, mix them together before heating.
• Use a deep-fryer thermometer whenever possible. This prevents overheating the
fryer beyond the smoking point.
• Use a minimum amount of oil when shallow pan-frying or deep-frying. Avoid
cooking unthawed food or food with excessive amounts of ice.
• Before moving cookware full of fats or oils, make sure it has completely cooled.
• To prevent delayed eruptive boiling, always allow heated liquids to stand at least
20 seconds after you have turned off the burner so that the temperature in the
liquid can stabilize. In the event of scalding, follow these rst aid instructions:
1. Immerse the scalded area in cool or lukewarm water for at least 10 minutes.
2. Do not apply any creams, oils, or lotions.
3. Cover with a clean, dry cloth.
• If a power failure occurs or the electric ignition fails to operate, do not use
matches or lighters to ignite the burners. This may cause a re or physical burns.
• Do not place and use electric-powered cooking devices such as IH rice cookers
or desktop cooking heaters on top of your cooktop. Electromagnetic forces from
these appliances may cause the cooktop to malfunction.
CAUTION
If the cooktop is installed above an oven, do not use the cooktop while the oven’s
self-cleaning function is on.
Cooktop safety
WARNING
To reduce the risk of re, electric shock, personal injuries, and/or death, observe
the following precautions.
• Select cookware that is designed for range top cooking. Use cookware that is
large enough to cover the burner grates. Adjust the burner ames so that the
ames do not extend beyond the bottom of the cookware.
• Make sure all burners are off when not in use.
• Do not use aluminium foil to line the grates or any part of the cooktop.
• Do not leave burners unattended on medium or high heat settings.
• Before igniting, make sure all burner caps are properly in place and all burners
are level.
• Always use the LITE position when igniting the burners and make sure the
burners have ignited. If ignition fails, turn the knob to OFF and wait until the gas
has dissipated.
• When you set a burner to simmer, do not turn the knob quickly. Make sure the
ame stays on.
• Do not place any objects other than cookware on the cooktop.
• This cooktop is designed to cook with a wok or wok ring attachment. If foods are
amed, they should only be amed under a ventilation hood that is on.
• Before removing or changing cookware, turn off the burners.
• Remove food and cookware immediately after cooking.
• Before removing any parts of the burner for cleaning, make sure the cooktop is
off and completely cool.
• After cleaning the burner spreader, make sure it is completely dry before re-
assembling.
• To avoid carbon monoxide poisoning, do not pour water into the cooktop well
while cleaning.
• To avoid cookware discoloration, deformity, and/or carbon monoxide poisoning,
do not use cookware that is substantially larger than the grate.
• Make sure cookware handles are turned to the side or rear of the cooktop and
not over other surface burners.
• Stand away from the cooktop while frying.
DTG36P875N_DG68-01285A-00_EN+MES+CFR.indb 10 2020-05-27 �� 10:57:01

English 11
Overview
Overview
Layout
30" Model: DTG30P875N*
03
06
07
04
05
02
01
08
09
LR RR
LF RF
Center
36" Model: DTG36P875N*
03
06
07
04
05
02
01
08
09
LR RR
LF RF
Center
01 Left Front/Left Rear
Semi rapid burners 9,500BTU
02 Center
Power burner
19,000 BTU
03 Right Rear
Simmer burner
5,000 BTU
04 Right Front
Rapid burner
13,000 BTU
05 Wi-Fi module 06 Grate (3)
07 Surface burner knobs (5 pcs) 08 Wi-Fi button (below knob)
09 Bluetooth button (below knob)
Each burner has a corresponding knob that lets you to set the ame level from
LO to HI. In addition, each burner knob has a Lite setting. Turning a knob to Lite
ignites the corresponding burner. The burner indicators are located above each
knob and show which burner the knob controls. Each burner is designed for
specic cooking purposes. See the table below.
Burner Purpose Food type Characteristics
Semi rapid
(LF, LR)
General heating/
Low simmering
General food, casseroles General-purpose
cooking
Power
(Center)
Power heating/
Low simmering
Boiling food,
tomato sauce
Maximum output
Simmer
(RR)
Low simmering Chocolate, casseroles,
sauces
Delicate food that
requires low heat for
a long time
Rapid (RF) Quick heating General General-purpose
cooking
DTG36P875N_DG68-01285A-00_EN+MES+CFR.indb 11 2020-05-27 �� 10:57:01

12 English
Using the cooktop burners
Using the cooktop burners
Ignition
CAUTION
The knob LED indicates if a burner knob has been turned on.
It does not indicate if the burner ame is on.
Check for an actual ame, whether the knob LED is on or off.
HI LO
OFF
2
1
Make sure all cooktop burners are properly
installed. To light a burner:
1. Push in the control knob, and then turn it
to the Lite position. The knob LED turns
on and you will hear a “clicking” sound
indicating the electronic ignition system
is working properly.
2. After the cooktop burner lights, turn
the control knob to shift it out of the
Lite position and turn off the electronic
ignition system.
3. Turn the control knob to adjust the ame
level.
NOTE
The dual valve located to the center controls the inner/outer ame of the dual
burner [Center].
When the inner / outer ame is on the HI position, the ame size gets smaller from
the outside when turning the knob from HI to LO. To control the inner ame, push
and turn the knob once again at the position where it starts to control inner ame.
Manual ignition
If there is a power failure, you can ignite the burner manually. Use caution when
doing this.
1. Hold a long gas grill lighter to the cooktop burner you want to light.
2. Push in the control knob for that burner, and then turn it to the Lite position.
Turn on the grill lighter to ignite the burner.
3. After the burner is lit, turn the control knob to adjust the ame level.
What’s included
Surface burner grates (3) * Surface burners and caps (5) *
Cast-iron griddle (1) * Wok ring (1) *
NOTE
If you need an accessory marked with an asterisk (*), you can buy it from the
Dacor Contact Center 833-35-ELITE (833-353-5483).
DTG36P875N_DG68-01285A-00_EN+MES+CFR.indb 12 2020-05-27 �� 10:57:02

English 13
Using the cooktop burners
Flame level
The ames on the burners should always stay under the cookware, and should not
extend beyond the cookware bottom at any time.
WARNING
• Flames larger than the cookware bottom may result in a re or physical injury.
• When you set a burner to simmer, do not turn the burner knob quickly. Watch the
ame to make sure it stays on.
• After turning on a surface burner, make sure that the burner has ignited even if
the knob LED is on. Adjust the level of the ame by turning the burner knob.
• Always turn off the surface burner controls before removing cookware. All
surface burner controls should be turned OFF when you are not cooking.
• Always turn the burners off before you go to sleep or go out.
• If you smell gas, turn off the gas to the cooktop and call a qualied service
technician. NEVER use an open ame to locate a leak.
• If the LED on the control knob doesn't go on when the surface burner has ignited,
call a qualied service technician.
• If the knob LED illuminates, but the surface burner does not ignite, turn off the
control knob immediately.
• Do not operate the burner for an extended period of time without cookware on
the grate. The nish on the grate may chip without cookware to absorb the heat.
• Be sure the burners and grates are cool before you place your hand, a pot holder,
cleaning cloths or other materials on them.
Cookware
Requirements
• Flat bottom and straight sides
• Tight-tting lid
• Well-balanced with the handle weighing less than the main portion of the pot or
pan.
Material characteristics
• Aluminum: An excellent heat conductor. Some types of food may cause the
aluminum to darken. However, anodized aluminum cookware resists staining and
pitting.
• Copper: An excellent heat conductor but discolors easily.
• Stainless steel: A slow heat conductor with uneven cooking performance but is
durable, easy to clean, and resists staining.
• Cast-Iron: A poor conductor but retains heat very well.
• Enamelware: Heating characteristics depend on the base material.
• Glass: A slow heat conductor. Use only glass cookware that is specied for
cooktop cooking or oven use.
• Heatproof Glass-Ceramic: Can be used for either surface or oven cooking. It
conducts heat very slowly and cools very slowly. Check cookware manufacturer's
directions to be sure it can be used on a gas cooktop.
Size limitations
10 inches
or more
10 inches
or more
CAUTION
• Do not place a pan or pot with a bottom
diameter of about 10 inches or more on
the RF or LF burner.
DTG36P875N_DG68-01285A-00_EN+MES+CFR.indb 13 2020-05-27 �� 10:57:03

14 English
Using the cooktop burners
Using the cooktop burners
To replace the grates correctly, follow these steps:
1. Locate the notch on the back of the right grate.
2. Orient the right grate so that it is on the right side of the cooktop with the notch
in the back.
3. Gently lower the legs of the right grate into the corresponding dimples on the
cooktop.
4. Gently lower the legs of the remaining two grates into the corresponding
dimples on the cooktop as shown in the illustration.
Back of left grate
Back of center grate
Back of right grate
6 inches or less CAUTION
• Do not place a pan or pot with a bottom
diameter of about 6 inches or less on the
center grate. This cookware may tip over.
Use the rear burners for this small-sized
cookware.
• Always make sure cookware handles are turned to the side or rear of the cooktop
and not over other surface burners. This will minimize the chance of burns,
spillovers, and the ignition of ammable materials that can occur if pots or pans
are bumped accidently.
• If using glass cookware, make sure it is designed for cooktop cooking.
• Never leave plastic items on the cooktop. They can melt or ignite. Heating a
sealed plastic container can cause a building up of dangerous pressure which can
cause the container to explode.
• Make sure you hold the handle of a wok or a small one-handled pot while
cooking.
Install the grates.
NOTE
Install the grates as instructed below for longest life. When installed properly, the
openings in the grates are centered over the burners.
The three cooktop grates are designed to t in specic positions on the cooktop.
For maximum stability, these grates should only be used in their proper positions.
• Please place the grate marked with the letter ‘L’ on the left side, and the one with
the letter ‘R’ on the right side.
• The middle grate must be installed with the lled-in section, marked ‘BACK’,
oriented towards the back of the cooktop.
The back of the right grate is notched to help you orient the grates correctly. See
the illustration below.
DTG36P875N_DG68-01285A-00_EN+MES+CFR.indb 14 2020-05-27 �� 10:57:03

English 15
Using the cooktop burners
Griddle
The removable coated griddle provides an extra cooking surface. This is useful
especially when cooking meat, pancakes, or other foods requiring a large cooking
area.
The griddle can be used only with the left
rear and front burners on the left grate. Use
caution when putting the griddle on the left
grate.
In most cases, you should preheat the griddle before cooking. See the table below.
Type of Food Preheating Time Preheat setting Cook setting
Pancakes 5-10 min. MED MED-LO
Hamburgers 5-10 min. MED MED
Fried Eggs 5-10 min. MED MED
Bacon 5-10 min. MED MED
Breakfast Sausages 5-10 min. MED MED
CAUTION
• You must turn on the LF and LR burners when you use the griddle.
• Do not remove the griddle until the cooktop grates, surfaces, and griddle itself
cool down.
• If you leave the griddle on the cooktop, it may become very hot when you use
the cooktop. Use oven gloves when placing or removing the griddle.
• Do not set the burners to HI when you use the griddle. This can damage the
coating of the griddle and burn the food you are cooking.
• Do not use metal utensils that can damage the griddle surface.
• Do not use the griddle for other purposes, for example, as a cutting board or a
storage shelf.
• Do not cook excessively greasy foods. The grease may spill over.
Wok ring
Woks are often used for stir frying, pan frying, deep frying, and poaching. The
provided wok ring supports 12” to 14” woks.
1. Turn off all burners, and wait until the
grates completely cool down.
2. Place the wok ring on the center or right
front grate.
3. Put a wok on the wok ring. Make sure
the wok settles on the wok ring.
4. Turn on the burner, and adjust the ame
level as appropriate.
Hot CAUTION
• Do not remove the wok ring until the
cooktop grates, surfaces, and wok ring
completely cool down.
• When you use the wok with the cooktop
or when the oven is on, the wok ring on
the cooktop may become very hot. Use
oven gloves when placing or removing
the wok ring.
• Do not use pans with a at bottom or
woks with a diameter less than the wok
ring diameter. The pan or wok may tip
over.
• Do not use an oversized pan. The burner
ames may spread out, causing damage
nearby.
• Do not use the wok ring and the griddle
at the same time.
• This cooktop is not designed to ame
foods. If foods are amed, they should
only be amed under a ventilation hood
that is on.
DTG36P875N_DG68-01285A-00_EN+MES+CFR.indb 15 2020-05-27 �� 10:57:04

16 English
Using the cooktop burners
Using the cooktop burners
Using the iQ Connect feature
The cooktop has built in a Wi-Fi module that you can use to sync the cooktop with
the SmartThings app. On the SmartThings app, you can:
• monitor the operating status and the power level settings of the cooktop
elements.
• check and change the timer settings.
Functions that can be operated from the SmartThings app may not work
smoothly if communication conditions are poor or the product is installed in a
place with a weak Wi-Fi signal.
How to connect the cooktop
Before you can use the remote features of your DACOR oven or cooktop, you must
pair it to the SmartThings App.
1. Download and open the SmartThings app on your smart device.
2. Follow the app's on-screen instructions, and then press the iQ Connect button
for 3 seconds to connect your cooktop.
3. Once the process is complete, the iQ Connect LED indicator stops blinking and
turns solid. The cooktop is connected successfully.
4. If the iQ Connect LED indicator does not turn in, follow the instruction on the
app to reconnect.
• The griddle is quite heavy because it is made of cast iron. Use both hands when
placing or removing the griddle.
NOTE
• You may need to adjust heat settings for the griddle over time.
• The griddle may discolor over time as it becomes seasoned with use.
• Do not let rust remain on the griddle. If rust appears on the griddle, remove it as
soon as possible.
• Do not clean the griddle in a self-cleaning oven.
DTG36P875N_DG68-01285A-00_EN+MES+CFR.indb 16 2020-05-27 �� 10:57:04

English 17
Using the cooktop burners
To monitor the cooktop remotely
1. Make sure the iQ Connect LED indicator turns on. If the iQ Connect LED
indicator does not turn on, press the iQ Connect button. The cooktop can now be
monitored remotely with a connected remote device.
2. Select the cooktop icon on the SmartThings app to open the cooktop monitor
app.
iQ Connect on/off
If you set the iQ Connect to Off, mobile devices cannot connect to the cooktop. To
turn iQ Connect on, follow these steps:
1. Pull the RF control knob straight up to remove it.
2. Press the iQ Connect button.
NOTE
The iQ Connect LED indicator is on when iQ Connect is enable. The iQ Connect LED
indicator is off when iQ Connect is not enabled.
3. Put in the RF control knob.
NOTE
• The cooktop continues operating even if the Wi-Fi connection is lost.
• SmartThings Application will not work properly if the Wi-Fi Connection is
unstable.
• See the SmartThings app manual for detailed information.
• For further instructions, refer to the SmartThings app web manual at
www.Dacor.com
NOTE
The iQ Connect button is below the RF control knob. If you need to press the
iQ Connect button, remove the RF control knob by grasping it and then pulling it
straight up.
iQ Connect button
iQ Connect LED indicator
DTG36P875N_DG68-01285A-00_EN+MES+CFR.indb 17 2020-05-27 �� 10:57:05

18 English
Using the cooktop burners
Using the cooktop burners
NOTE
The Bluetooth button is below the LF control knob. If you need to press the
Bluetooth button, remove the LF control knob by grasping it and then pulling it
straight up.
Bluetooth button
Bluetooth on/off
1. Press the Bluetooth icon on the hood control panel.
NOTE
• The Bluetooth icon LED on the hood is on when Bluetooth is enabled.
The Bluetooth icon LED on the hood is off when Bluetooth is not enabled.
• If the iQ Connect connection is not successful, you cannot use the SmartThings
app to monitor and control the hood.
• Without a iQ Connect connection to the cooktop, you can use a Bluetooth
connection to pair the cooktop with the hood and sync them. To do this, follow
the Bluetooth connection steps on the left.
• Bluetooth will not work properly if the Bluetooth connection is unstable.
• See the SmartThings App manual for detailed information.
Using the hood control feature
NOTE
This product features a Bluetooth device that you can use to connect the cooktop
to Dacor hood control models. Through the Bluetooth connection, you can use the
hood control function on the SmartThings app.
For matching hood control-enabled cooktops and hoods, refer to the below table.
Gas cooktop Hood
Model DTG30P875N*
DTG36P875N*
DHD30M967W*
DHD36M987W*
DHD48M987W*
DHD36M967I*
DHD48M967I*
DHD36M867W*
DHD30M867W*
To connect to a hood control model and a hood:
1. Download and run the SmartThings App on your smartphone. Then, complete
the iQ Connect procedure to connect to the cooktop.
2. Follow the Bluetooth instructions of the hood control model and activate the
Bluetooth connection.
3. Press the Bluetooth icon on the hood control panel. The Bluetooth icon LED
blinks.
4. Press the Bluetooth button on the cooktop. Paring begins.
5. When Bluetooth pairing is nished, the Bluetooth icon LED stops blinking and
glows steadily.
6. Follow the instructions in the user manual of the hood control model and the
App guide to use the hood control.
DTG36P875N_DG68-01285A-00_EN+MES+CFR.indb 18 2020-05-27 �� 10:57:05

English 19
Care and cleaning of the cooktop
Care and cleaning of the cooktop
WARNING
Be sure electrical power is off and all surfaces are cool before cleaning any part of
the cooktop.
Cooktop surface
We recommend that you remove food spills immediately after they take place.
1. Turn off all surface burners.
2. Wait until all burner grates cool down,
and then remove them.
3. Clean the cooktop surface using a soft
cloth. If food spills run into gaps of the
burner components, remove the burner
cap and the head, and wipe up the spills.
4. When you are done cleaning, reinsert
the burner components, and then put the
burner grates back into position.
Porcelain enamel surfaces (on some models)
The porcelain enamel nish is sturdy but breakable if misused. This nish is acid-
resistant. However, any acidic foods with high sugar content (such as fruit, juices,
tomatoes, or vinegar) should not be permitted to remain on the nish.
If an acidic food spills on the cooktop while it is hot, turn off all burners, and then
use a dry paper towel or cloth to wipe the spill up right away. When the surface
has cooled, wash it with an all-purpose cleaner and water. Rinse well. For other
spills, such as fat spatterings, wash the cooktop with soap and water or an all-
purpose cleaner after the surface has cooled. Rinse well. Polish with a dry cloth.
Stainless steel surfaces (on some models)
1. Remove any spills, spots, and grease stains using a soft, wet cloth.
2. Apply an apporoved stainless steel cleanser to a cloth or paper towel.
3. Clean one small area at a time, rubbing with the grain of the stainless steel if
applicable.
4. when done, dry the surface using a soft, dry cloth.
5. Repeat steps 2 through 4 as many times as necessary.
CAUTION
• Do not use a steel-wool pad or abrasive cleaner, which can scratch or damage the
surface.
• Do not remove the cooktop surface to clean it. The gas lines leading to the burner
manifolds can be damaged, resulting in a re or system failure.
• Do not pour water into the cooktop well while cleaning the cooktop. This could
leak down into the cooktop gas and electrical systems creating a risk of electrical
shock or high levels of Carbon Monoxide due to corrosion of the gas valves or
ports.
• Do not spray any type of cleanser into the manifold holes. The ignition system is
located in those holes and must be kept free of moisture.
• Do clean the cooktop or stainless steel parts with:
• Caustic lye (sodium hydroxide) or cleaners containing this chemical
• Hard or steel wool pads
• Abrasive materials or chemicals.
DTG36P875N_DG68-01285A-00_EN+MES+CFR.indb 19 2020-05-27 �� 10:57:06

20 English
Care and cleaning of the cooktop
Care and cleaning of the cooktop
Burner grates and components
Turn off all surface burners and make sure they have all cooled down.
3
2
1
1. Remove the burner grates.
2. Remove the burner caps from the burner
heads.
3. Remove the burner heads from the
valve manifolds to reveal the starter
electrodes.
4. Clean all removable grates and burner
components in warm, soapy water. Do
not use steel-wool pads or abrasive
cleaners.
5. Rinse and dry grates and burner
components thoroughly.
6
78
6. Return the burner heads to their
positions on top of the manifold valves.
Make sure a starter electrode is inserted
through the hole in each burner head.
NOTE
See pages 22, 23, and 24 for detailed
burner component re-assembly instructions.
7. Return the burner caps to their positions
on top of the burner heads. To ensure
proper and safe operation, make sure the
burner caps lie at on top of the burner
heads.
8. Re-install the burner grates in their
respective positions.
9. Turn on each burner and check if it
operates properly. After verifying that a
burner operates normally, turn it off.
Control knobs
Make sure all surface burner knobs are in the OFF position.
01
02
01 Grasp each knob and pull straight
up to remove.
02 Spill protector. Do not remove.
1. Pull knobs off the control valve stems
2. Clean the knobs in warm, soapy water.
Then rinse and dry them thoroughly.
3. Clean the stainless steel surfaces using
stainless steel cleaner.
4. Re-attach the knobs in the OFF position
to the control valve stems.
CAUTION
• Do not clean the control knobs in a dish
washer.
• Do not spray cleansers directly onto
the control panel. Moisture entering the
electric circuits may cause electric shock
or product damage.
DTG36P875N_DG68-01285A-00_EN+MES+CFR.indb 20 2020-05-27 �� 10:57:06
