Dacor ERV Series Technical manual

PLANNING
GUIDE
www.Dacor.com Phone: [phone]
All specications subject to change without notice.
Install all appliances according to accompanying installation instructions. CI.12
Stiffener
Cabinet face
Countertop
Floor
3/8” Min. (10 mm) space
behind raised vent
chassis to clear stiffener
3/8” Min. (10 mm)
flat countertop overhang
required behind cutout
ERV or PRV series raised
vent: Check raised vent
dimensions/specifications
to determine proper fit

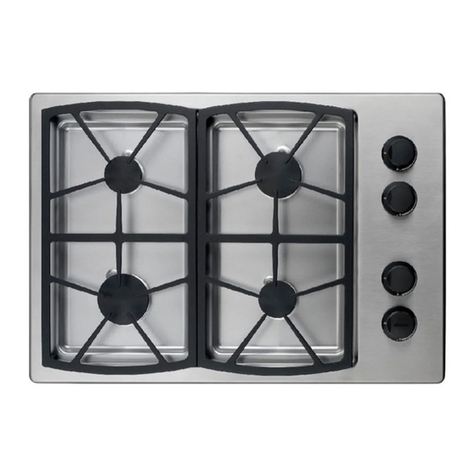

SGM Series Cooktop

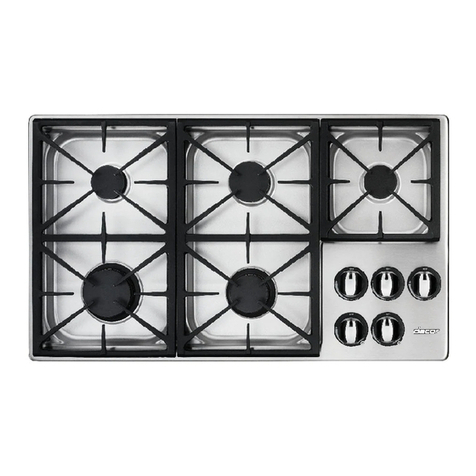

RGC/SGM Series Drop-In Gas Cooktop
with ERV/PRV Series Raised Vent
COMBINATION INSTALLATIONS
Document # PGCI-008 Revised 05/07/09 Page 1/2
WARNING
Observe all governing codes and ordinances during• planning and installation. Contact your local building
department for further information.
All appliances must be installed in accordance with the• accompanying installation instructions.
All tolerances +1/16” -0 (+1.6 mm, 0) unless otherwise noted
Cutout Dimensions
Side View - RGC/SGM Series Cooktop with
ERV/PRV Series Raised Vent
IMPORTANT: Be careful to use the correct cutout diagram (on page 2/2) to determine the countertop dimensions. Carefully double check
all dimensions against the table below and the correct diagram before cutting the countertop.
* Total cutout depth, accommodates both the cooktop and raised vent
** IMPORTANT: Notch depth is included in total cutout depth (D). DO NOT add notch depth to total cutout depth (D).
RGC or SGM series cooktop
Countertop Dimensions
Installation Type Cutout
Diagram C (minimum) D E F G H

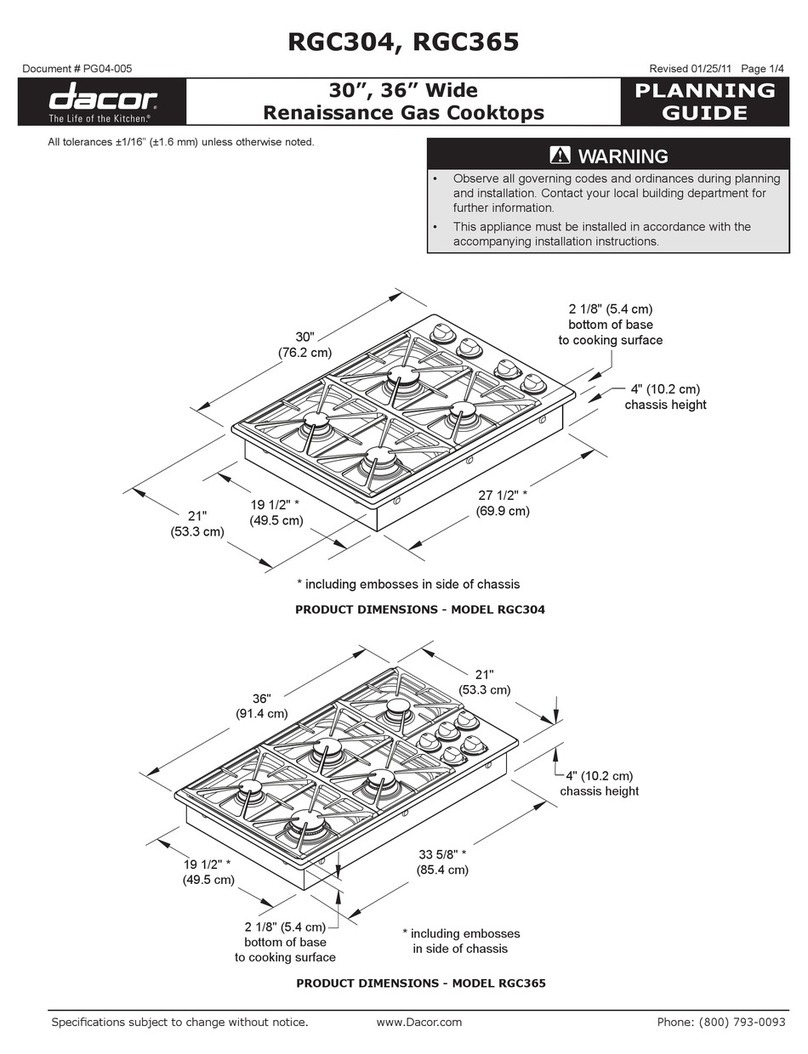

RGC/SGM304 with
ERV30 or PRV30 Figure 1 (Square) 3/8” (10 mm) 22 1/2” * (572 mm) 27 3/4” (686 mm) NA NA NA
RGC/SGM365 with
ERV36 or PRV36 Figure 1 (Square) 3/8” (10 mm) 22 1/2” * (572 mm) 33 5/8” (854 mm) NA NA NA
RGC/SGM466 with
PRV46 Figure 2 (Notched) 3/8” (10 mm) 22 1/2” * (572 mm) 44 3/4” (1137 mm) 43 1/2” (1105 mm) 5/8” (16 mm) 2 5/8” ** (67 mm)

PLANNING
GUIDE
www.Dacor.com Phone: [phone]
All specications subject to change without notice.
Install all appliances according to accompanying installation instructions. CI.13
RGC/SGM Series Drop-In Gas Cooktop
with ERV/PRV Series Raised Vent
COMBINATION INSTALLATIONS
All tolerances: +1/16”, -0, (+1.6mm, -0) unless otherwise stated
4 1/4" (108 mm) Min.
from mounting surface to
combustibles below
cooktop chassis
E
C
D
7 1/2" (191 mm) Min.
to combustible
side wall above
countertop
(both sides)
Vertical
combustible
surface
Rear
wall
1 7/8" Min.
(48 mm)
E
C
D
H
H
GF7 1/2" (191 mm) Min.
to combustible
side wall above
countertop
(both sides)
Vertical
combustible
surface
Rear
wall
1 7/8" Min.
(48 mm)
4 1/4" (108 mm) Min. from
mounting surface to combustibles
below cooktop chassis
Figure 1 - Square Countertop Cutout Diagram
Figure 2 - Notched Countertop Cutout Diagram
(SGM466 only)
Document # PGCI-008 Revised 05/07/09 Page 2/2
