Dacor DTG36M955F User manual

Installation Instructions
Part No. 112167 Rev B
Modernist Gas Cooktop
DTG30M954F/DTG36M955F

English2
Contents
Before you begin 3
About this manual 3
Important note to the installer 3
Important note to the consumer 3
Important note to the servicer 3
Customer-service information 4
4
If You Need Help...
Important safety instructions 5
Read all instructions before using this appliance 5
Symbols used in this manual 5
State of California Proposition 65 warning (US only) 5
Commonwealth of Massachusetts 5
Safety and warning information 6
6
7
7
8
8
9
10
General safety
Fire safety
Gas safety
Electrical and grounding safety
Location safety
Installation safety
Cooktop safety
Gas cooktop components 11
What’s in the box 11
Installation requirements 13
Pre-installation checklist 13
Location requirements 13
Gas supply requirements 17
Special gas requirements (gas models sold in Massachusetts) 17
Electrical requirements 18
Installation instructions 19
Installing your gas cooktop 19
LP (Propane) conversion instruction 28
Supplied parts 29
Converting the pressure regulator 32
Converting the cooktop burners 33
Adjusting low flame setting on cooktop burners 34

English 3
Before you begin
About this manual
READ THESE INSTRUCTIONS COMPLETELY AND CAREFULLY.
Important note to the installer
• Read all instructions in these installation instructions before installing the cooktop.
• Remove all packing materials from the cooktop compartments before connecting the
electric and gas supply to the cooktop.
• Observe all governing codes and ordinances.
• Be sure to leave these instructions with the consumer.
• Installation of this appliance requires basic mechanical skills.
• Proper installation is the responsibility of the installer.
• Product failure due to improper installation is not covered under the Warranty.
Important note to the consumer
Keep these instructions with your user manual for reference.
•As when using any heat-generating appliance, certain precautions must be followed.
•Be sure your cooktop is installed and grounded properly by a qualified installer.
•Adjacent wall coverings must be able to withstand heat created by the cooktop.
•Cabinet storage above the cooktop burners should be a minimum of 30 in (76.2 cm).
Important note to the servicer
The electrical diagram is attached inside the burner box.

4English
Customer-service information
If You Need Help...
If you have installation issues, contact your Dacor dealer or the Dacor Customer
Assurance Team. Before you call, have available the cooktop's model/serial numbers,
which are on the rating label (front-left side of the cooktop chassis).
Dacor Customer Assurance
Phone: [phone] x2813 (USA, Canada)
Hours of Operation: Mon – Fri 5:00 a.m. to 5:00 p.m. Pacific Time
Website: www.dacor.com/customer-care/contact-us

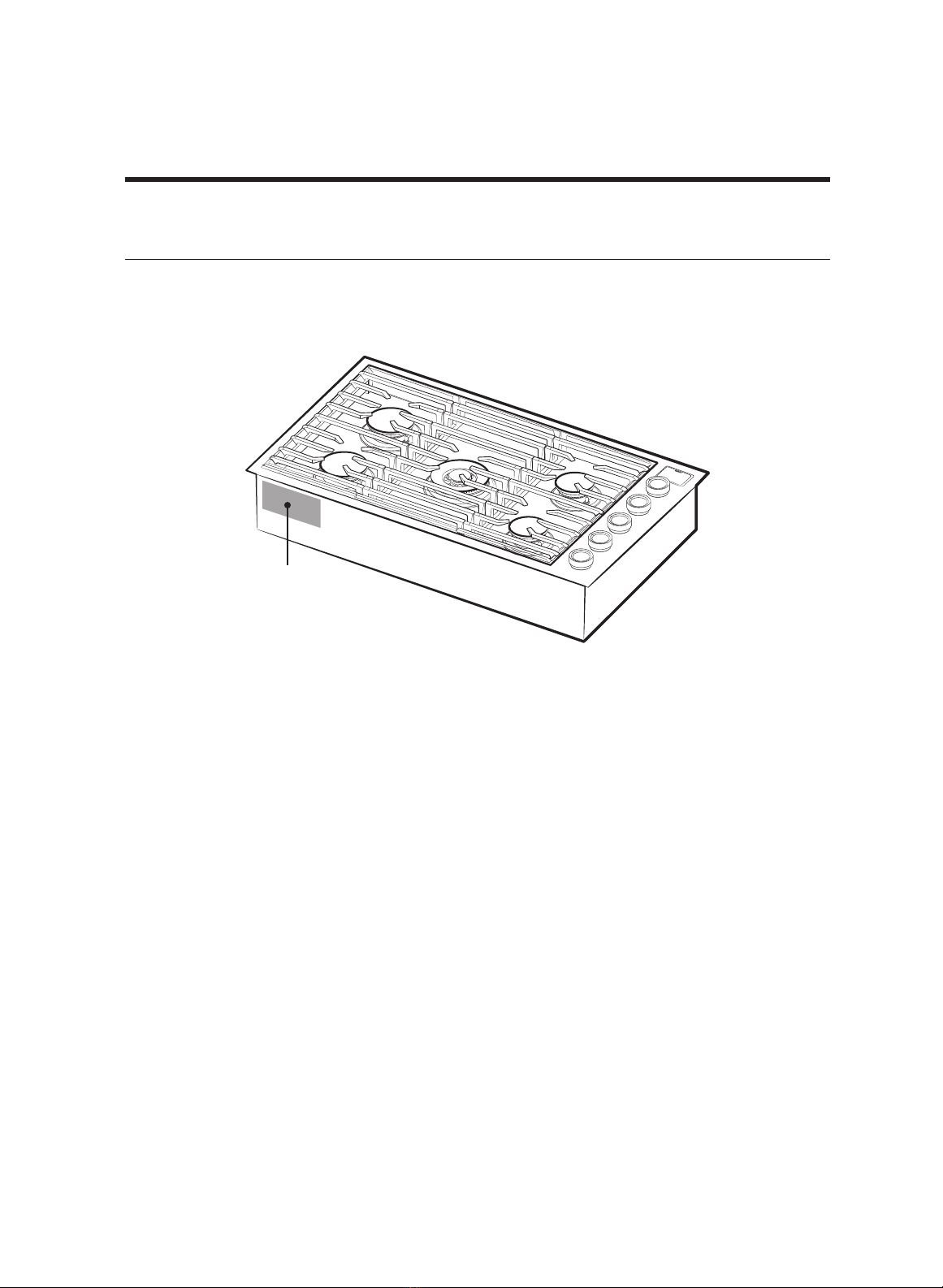

Rating Label

English 5
Important safety instructions
READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE
•Electrical and gas equipment with moving parts can be dangerous. The important
safety instructions in this manual are intended to minimize the risk of property
damage, personal injury, and death. Be sure to read them.
•Keep this manual in a handy place so you can refer to it as needed.
Symbols used in this manual
WARNING
Hazards or unsafe practices that may result in severe personal injury or death.
CAUTION
Hazards or unsafe practices that may result in electric shock, personal injury, or property
damage.
NOTE
Useful tips and instructions.
These warning icons and symbols are intended to prevent property damage and personal
injury. Follow them explicitly.
State of California Proposition 65 warning (US only)
WARNING : This product contains chemicals known to the State of California to cause
cancer and birth defects or other reproductive harm.
Gas appliances can cause low-level exposure to Proposition 65 listed substances (including
benzene, carbon monoxide, formaldehyde, and soot) resulting from the incomplete
combustion of LP or natural gas.
Commonwealth of Massachusetts
This product must be installed by a licensed plumber or gas fitter qualified or licensed by
the State of Massachusetts. When using ball-type gas shut-off valves, you must use the
T-handle type. Multiple flexible gas lines must not be connected in series.

6English
Safety and warning information
General safety
WARNING
To reduce risk of fire, electric shock, personal injury, or death, observe these precautions:

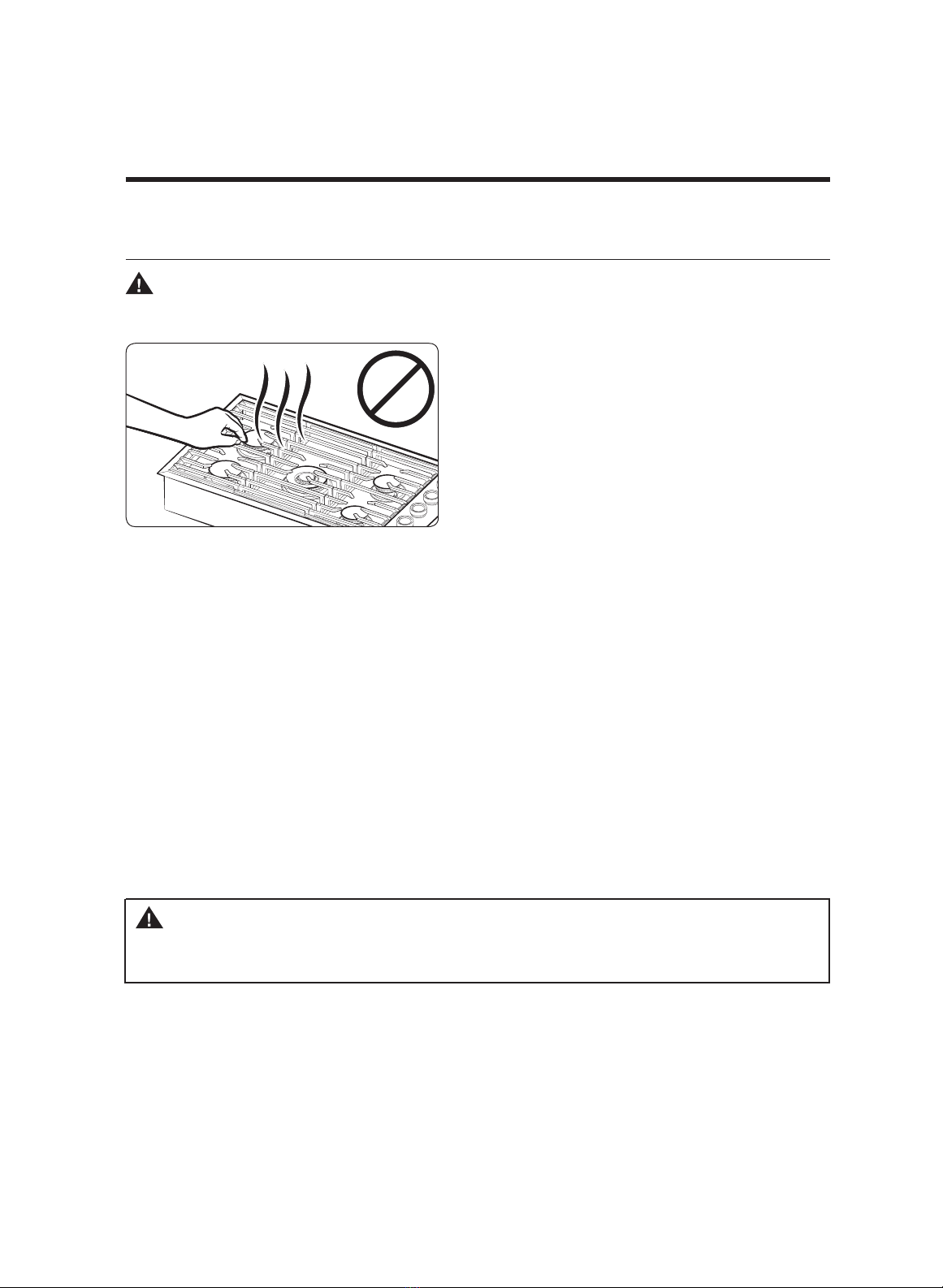

•Do not touch any part of the cooktop
during or immediately after cooking.
•Learn where and how to shut off the
valve that feeds gas to the cooktop.
•Make sure the cooktop's hold-down brackets are properly installed. (See pg. 26.)
•Do not let children sit/stand on the cooktop or play with any of its parts. Do not leave
children unattended in the kitchen when the cooktop is in use.
•Remove all packaging before operating the cooktop. Keep all packaging away from
children. Properly dispose of packaging as soon as the cooktop is unpacked.
•Do not keep objects of interest to children on or around the cooktop.
•Do not install the cooktop if it is damaged, malfunctions, or is missing parts.
•Use only dry pot holders.
•Do not use the cooktop to heat sealed food containers.
•Unplug the cooktop before service/maintenance.
•An air curtain or other overhead range hood that blows down on a range shall not be
used with a gas range unless both appliances were designed and tested according to
the Standard for Domestic Gas Ranges, ANSI Z21.1 • CSA1.1, and listed by an
independent testing laboratory for combination use.
WARNING
NEVER use the cooktop as a space heater. Doing so may overheat the oven and
result in carbon monoxide poisoning.

English 7
Fire safety
WARNING
To reduce risk of fire, electric shock, personal injury, or death, observe these precautions:
• Do not store/place/use combustible
material (e.g., paper, plastic, pot holders,
linens, alcohol) near the cooktop.
• Do not wear loose fitting or hanging
clothing while using the cooktop.
• Do not let flammable material touch a
heating element. Do not use a towel or
othe r bulky cloth as a pot holder.
•Regularly clean the vents to remove grease buildup.
•Do not douse a grease fire with water, but turn off the burner, and smother the fire
with a tight-fitting lid, or use a multi-purpose, dry-chemical or foam extinguisher.
•Do not heat sealed food containers; pressure may burst container and cause injury.
Gas safety
WARNING
To reduce risk of fire, electric shock, personal injury, or death, observe these precautions:
If you smell gas:
•Close the valve and do not use the cooktop.
•Do not light a match, candle, or cigarette.
•Do not turn on any gas or electric appliances.
•Do not touch an electrical switch or plug in a power cord.
•Do not use any phone in your building.
•Evacuate the building.
•From a neighbor's phone, immediately call the gas supplier, and follow their
directions. (If you cannot reach your gas supplier, call the fire department.)
Checking for gas leaks
Leak-testing the cooktop must be done per manufacturer directions. Do not use a flame
to check for gas leaks. Use a brush to spread a soap-and-water solution around the test
area. If there is a gas leak, small bubbles will appear in the solution.

Electrical and grounding safety
WARNING
To reduce risk of fire, electric shock, personal injury, or death, observe these precautions:

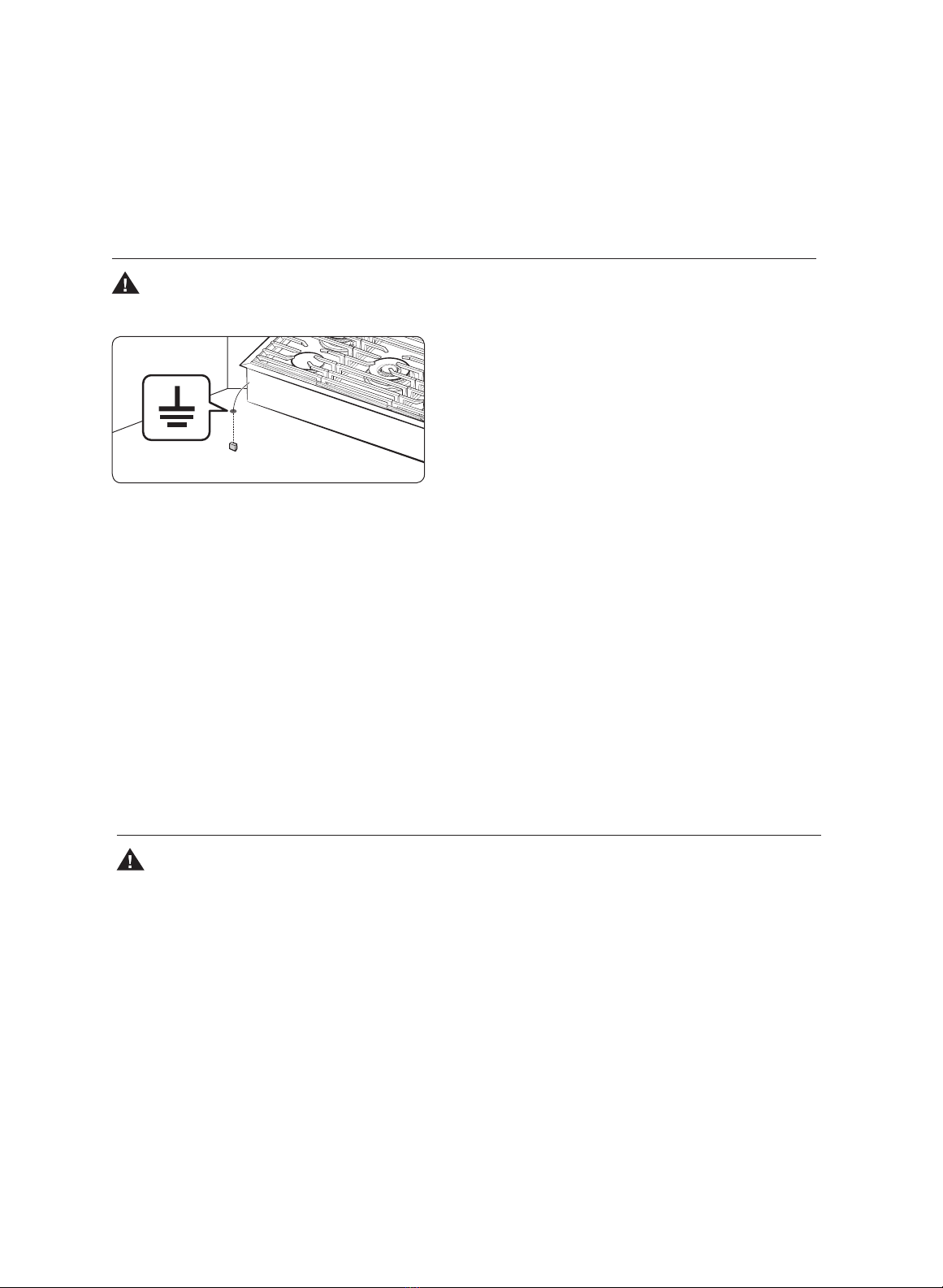

•Plug into a grounded, 3-prong outlet.
•Do not remove the ground prong.
•Do not use an adapter or extension cord.
•Do not use a damaged power plug, cord,
or loose power outlet.
•Do not modify the plug, cord, or outlet.
•Do not put a fuse in a neutral or ground circuit.
•Use a dedicated 120-volt, 60-Hz, 15-amp, AC, fused electrical circuit. A time-delay fuse
or circuit breaker is recommended. Plug only the cooktop into this circuit.
• Do not con nect the ground wire to plastic plumbing lines, gas lines, or hot-water pipes.
•This cooktop must be grounded. In case of malfunction or breakdown, grounding
provides the current a safe path.
• If unsure your electrical outlet is properly grounded, have a licensed electrician check it.
•If codes allow a separate ground wire, have a qualified electrician determine its path.
•Electrical service to the cooktop must conform to local codes, or in the absence of
local codes, to the National Electrical code/NFPA No. 70 – Latest Revision (for the U.S.)
or the Canadian Electrical Code CSA C22.1 or Latest Revisions.
•The owner shall ensure the cooktop is provided proper electrical service.
Location safety
WARNING
To reduce risk of fire, electric shock, personal injury, or death, observe these precautions:
•The cooktop is for indoor household use only. Do not install the cooktop outside or
anywhere that it will be exposed to weather, water, wind, or strong drafts.
•On windows near the cooktop, do not hang paper blinds or long curtains that could be
blown over the cooktop.
•The cooktop must be installed within easy reach of a grounded, 3-prong outlet.
• For proper ventilation, the cooktop needs sufficient space below, all around the chassis.
Vents in the chassis exhaust heat and fumes so the cooktop can operate properly.
• Wall coverings around the cooktop must be able to withstand heat up to 194 °F (90 °C).
•Do not store items above the cooktop. If cabinet storage above the cooktop is needed,
allow at least 30 in. (76.2 cm) between the cooking surface and the cabinet bottom.
8English

Safety and warning information
Installation safety
WARNING
To reduce risk of fire, electric shock, personal injury, or death, observe these precautions:
•The cooktop should be installed and properly grounded by a qualified installer, as
specified in this manual. Adjustments and service should be performed only by
qualified installer or service technician.
•Do not service/modify/replace the cooktop or any part of it unless directed in this
manual. All other service should be performed by a qualified technician.
•Use only new, flexible connectors when installing the cooktop.
•Ensure the cooktop's hold-down brackets are properly installed. (See pg. 26.)
•Remove all tape and packaging materials.
•After unpacking the cooktop, remove all accessories from inside and around it.
(Cautiously handle the heavy grates.)
•Verify that nothing came loose during shipping.
•Ensure the cooktop is correctly installed/adjusted by a qualified service technician or
installer for the type of gas (natural or LP) you will use. For the cooktop to use
LP gas, a qualified installer/technician must replace every burner orifice with the
provided LP orifice set, and reverse the GPR adapter. The qualified agency performing
this work shall be responsible for the conversion.
•Installation must conform to local codes or in their absence, to the National Fuel Gas
Code, ANSI Z223.1/NFPA.54, latest edition. In Canada, installation must conform with
the current Natural Gas and Propane Installation Code, CAN/CGA-B149.1, or the
current Propane Installation Code, CAN/CGA-B149.2, and with local codes where
applicable. This cooktop has been design-certified by ETL according to ANSI Z21.1,
latest edition, and Canadian Gas Association according to CAN/CGA-1.1, latest edition.
English 9

10 English
Safety and warning information
Cooktop safety
WARNING
To reduce risk of fire, electric shock, personal injury, or death, observe these precautions:
•Turn off all burners that are not in use.
•Do not line the grates or any part of the cooktop with aluminum foil.
•Do not leave burners unattended on medium or high heat settings.
•Before igniting, ensure the burner components are properly seated.
•Use the LITE (flame icon) position to ignite a burner, then ensure the burner ignites. If
ignition fails, turn the knob OFF, and wait a few minutes for the gas to dissipate.
• Wh en setting a burner to simmer, turn the knob slowly, and ensure the flame stays on.
•Place only cookware on the cooktop.
•Turn off a burner before removing the cookware.
•Ensure all cooktop burners are off and all surfaces are cool to the touch before
removing the grates and disassembling the burners.
•After cleaning the burner head, dry it completely before reassembly.
•Do not pour liquids into the cooktop during cleaning.
•Select cookware that is designed for cooktops and that is large enough to cover the
grates. Burner flames should not extend beyond the bottom of the cookware.
•Do not use cookware that is considerably larger than the grate.
•Turn cookware handles away from active burners or the front edge of the cooktop.
•Stand at a safe distance while frying.
•Heat frying oil slowly, and monitor the oil as it heats. For high-heat frying, monitor
the oil throughout the cooking process.
•If combining fats or oils, do so before heating.
•If possible, use a deep-fry thermometer so you can adjust the heat to keep the oil
below its smoke point. (Know the smoke point of your oil.)
•Use minimal oil when frying.
•Thaw food before frying; do not fry overly cold food or that is clumped with ice.
•Let hot oil/fat cool to room temperature before moving the cookware.
•In case of scalding:
– Immerse the scalded area in cool water for at least 10 minutes.
– Do not apply creams/oils/lotions.
– Cover the scalded area with a clean, dry cloth.

Gas cooktop components
What’s in the box
Parts supplied
Common
Manual Screw (6)
(M4 L10 2 ea, M4 L16 2 ea, 24 3/16 UNC
L145 nut toggle 2 ea)
Regulator (1) *
Hold down brackets (2) *
30” : DTG30M954F*
Cooktop burner grates (2) Surface burners,brass
caps (4)
Porcelain caps (4)
36” : DTG36M955F*
Cooktop burner grates (3) Surface burners,brass
caps (5)
Porcelain caps (5)
NOTE
•Before installation, verify all of the parts above are present.
•If your cooktop was damaged during shipping or some specified parts are missing,
contact your local retailer. Do not install a damaged or incomplete cooktop.
•If you need an accessory marked with an asterisk, contact the DACOR Call Center at
the phone number on page 3, or visit our online parts website: www.dacor.com.
English 11

Parts needed
Gas line shut-off
valve
Flexible metal
appliance connector
½ in (ID) x 5 ft
Flare union adapter ¾
in or ½ in (NPT) x ½
in (ID)
Flare union adapter ½
in (NPT) x ½ in (ID)
135-degree elbow
(optional)
90-degree elbow
(optional)
Tools needed
Flat-blade
screwdriver
Phillips screwdriver Open-end or
adjustable wrench
Pipe wrench (2)
¼" Nut driver Pencil and ruler Level Pipe joint compound
Utility knife Soapy water solution Pliers Saber saw
12English

Installation requirements
Pre-installation checklist
1. Before preparing the countertop opening, verify there will be no conflict between the
cooktop chassis and anything in the cabinet below.
2. Remove packing material, grate boxes, regulator with literature, and literature
package, verify that all items are present before beginning the installation.
Location requirements
Before installing the cooktop, see the information and graphic below. These dimensions
must be met for safe cooktop operation. Location of the electrical outlet and gas piping
may be adjusted to meet the specified parameters.
CAUTION
The cooktop complies with the maximum allowable wood-cabinet temperature of 194 °F
(90 °C). The wall covering, countertops, and surrounding cabinets must also withstand
this temperature.

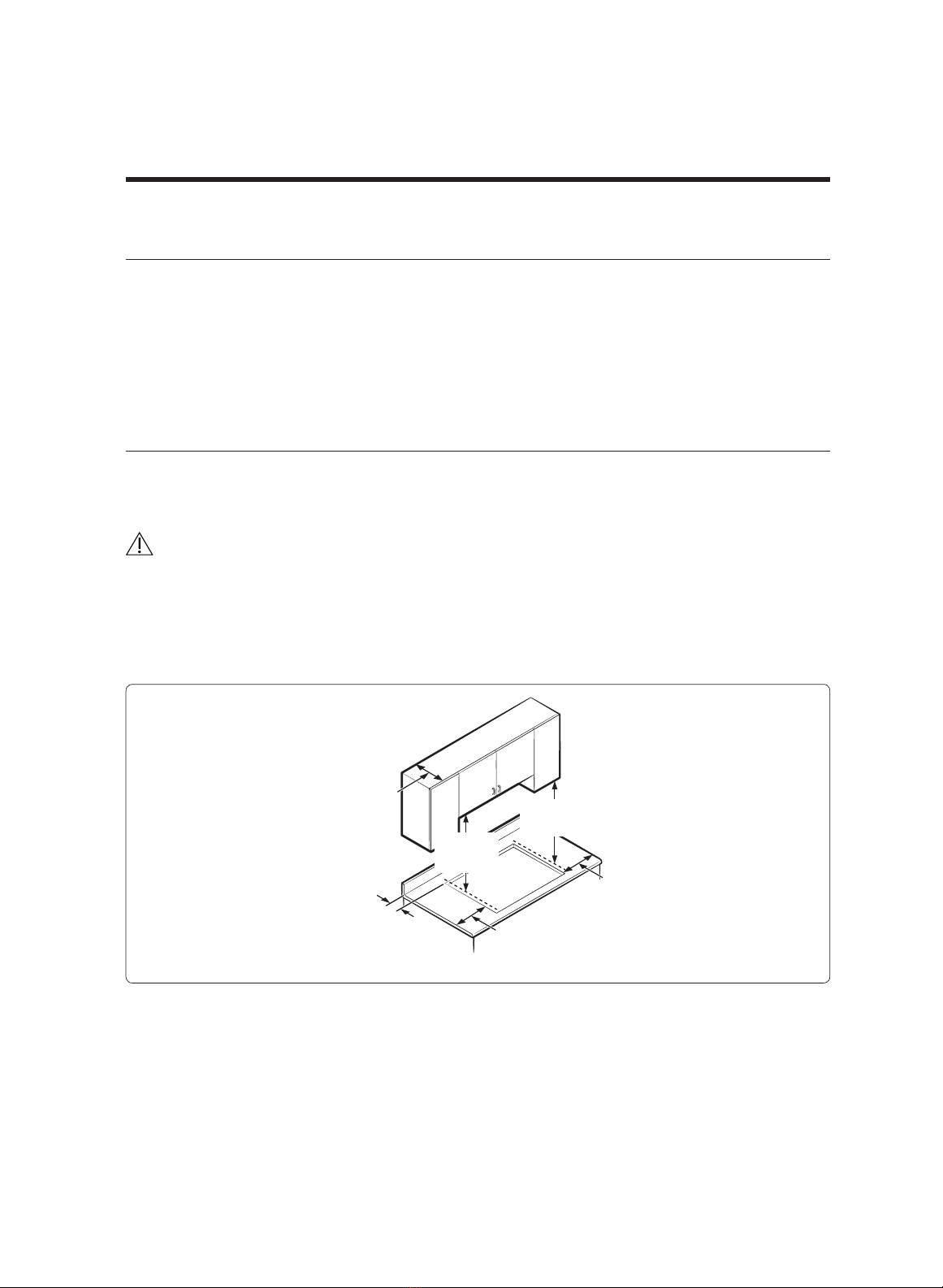

Maintain these minimum clearance dimensions:
30” MIN.
(762 mm)
12” MIN.
(304.8 mm)
12” MIN.
(304.8 mm)
18” MIN.
(457 mm)
27/8” MIN.
(72.0 mm)
13” MAX.
(330 mm)
English 13

Overall cooktop dimensions
DTG30M954F*
⅓" (8 mm)
countertop to grate
surface
6" (152.4 mm)
chassis Height
A
BD
C
DTG36M955F*
⅓" (.8 cm)
countertop to grate
surface
6" (15.2 cm)
chassis height
A
B
D
C
Model A B C D
DTG30M954 30” (76.2 cm) 28½” (72.3 cm) 21” (53.3 cm) 19½” (49.5 cm)
DTG36M955 36” (91.4 cm) 34½” (87.5 cm)
14English

Installation requirements
Cutout dimensions of countertop
Vertical
combustible
surface
EG
H
H
F
Rear wall
Minimum distance to combustible side
wall above countertop (both sides)
Model (E) Min. (F) Min. (G) Min. (H) Min.
DTG30M954 (no downdraft)2⅞” (7.2 cm) 19¾” (50.1 cm) 2811/16”
(72.7 cm)
DTG30M954 with MRV3015M/S ⅜” (0.9 cm) 22½” (57.1 cm) 7½” (19.0 cm)
DTG36M955 (no downdraft)2⅞” (7.2 cm) 19¾” (50.1 cm)
3411/16”
(87.9 cm)
12” (30.4 cm)
DTG36M955 with MRV3615M/S ⅜” (0.9 cm) 22½” (57.1 cm) 7½”(19.0 cm)
CAUTION
Cutout dimensions should
be strictly observed.
English 15
12” (30.4 cm)

Countertop
23 ⅜" (59.4 cm)
MRV Series Downdraft:
check downdraft
specifications to
determine correct fit
⅜" min. (1.0 cm) space
behind downdraft to
clear stiffener
⅜" min. (1.0 cm)
required for downdraft
cap clearance
Cabiner face
Stiffener
Cooktop with Downdraft: MRV Series
Utility locations and dimensions
Front of unit
Power cord 393/8”
(100.0 cm) long
3/8”-18 NPT
male gas inlet
* Gas inlet protrudes 14/7(4.0 cm) from
bottom.
Front of cooktop
Chassis
1¾"
(4.5 cm)
3¾"
(9.6 cm)
16English

Installation requirements
Gas supply requirements
Provide adequate gas supply
Be sure to supply your cooktop with the gas for which it is designed. Do not try to convert
the cooktop to receive a different type of gas without consulting the gas supplier.
This cooktop converts to natural or propane gas. For LP gas, conversion must be made b y a
qualified installer before operating the cooktop. For proper natural-gas operation, the
pressure supplied to the regulator must be 5 – 13 in. (13 – 33 cm) of water column. For LP
gas, the pressure must be 10 – 13 in. (25 – 33 cm) of water column.
When checking proper regulator operation, the inlet pressure must be at least 1 in. (2.5
cm) greater than the operating (manifold) pressure as given. The pressure regulator (at
the inlet of the cooktop manifold) must remain in the supply line whether or not natural
or LP gas is used.
NOTE
•The cooktop has its own regulator. Use only the provided regulator, which must be
installed in the gas line that runs from the cooktop gas inlet to the gas shut-off valve.
•An external manual shut-off valve must be installed between the gas inlet and the
cooktop for turning on/off gas to the appliance.
•Be sure the connectors are installed when you need coupling by a qualified installer.
•On a new cooktop, never install used connectors, which can leak gas and cause
personal injury.
Special gas requirements (gas models sold in Massachusetts)
COMMONWEALTH OF MASSACHUSETTS REQUIREMENTS:
WARNING
•Gas may leak in your system, creating a dangerous situation.
-Gas leaks may not be detected by smell alone.
-Gas suppliers recommend installing a UL-approved gas detector.
•The cooktop must be installed by a plumber or gas fitter certified by the State of
Massachusetts.
• A T-handle manual gas valve MUST be installed in the gas supply line to your cooktop.
•If a flexible gas connector is used to install your cooktop, multiple flexible gas lines
must not be connected in series.
English 17

Electrical requirements
WARNING
•The owner shall ensure the electrical service meets electrical requirements and that
the electrical outlet is properly installed by a licensed electrician.
•To reduce risk of fire, electric shock, or personal injury:
-Do not use an extension cord or adapter plug with this cooktop.
-The power cord has an equipment-grounding conductor and a grounding plug.
-Ensure a properly grounded outlet is installed by a qualified electrician.
-All wiring and grounding must comply with local codes, or, in their absence, with
the National Electrical Code, ANSI/NFPA No. 70 – Latest Revision (US), or the
Canadian Electrical Code CSA C22.1 – Latest Revisions and local codes.
-The wiring diagram is inside the burner box.
-The cooktop ignition system only operates if the outlet is properly polarized.
-The cooktop requires a 120 V, 60-Hz, AC, approved electrical service with 20-amp
circuit breaker or time-delay fuse.
NOTE
Re-ignition may malfunction if the voltage between Neutral and Ground is over 20 VAC.
Make sure the voltage is under 20 VAC.
•The plug must be firmly inserted in a properly installed, three-prong outlet per local
codes. After a malfunction or breakdown, grounding decreases the risk of electrical
shock by providing the current a safe path.
•Do not use a damaged power plug or loose wall outlet.
•Do not remove the plug's grounding (third) prong. If the plug and outlet do not match
or you have any doubt, have a qualified electrician check the outletand circuit to
ensure the receptacle is properly grounded, and install the proper outlet if needed.
•NEVER connect ground wire to plastic plumbing lines, gas lines, or water pipes.
Additional installation requirements for mobile homes
Installation of appliances designed for mobile-home use must comply with the
Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280 (formerly
the Federal Standard for Mobile Home Construction and Safety, Title 24, HUD, Part 280)
or, when such standard does not apply, the Standard for Manufactured Home
Installations, latest edition (Manufactured Home Sites, Communities and Set-Ups), ANSI
A225.1, latest edition, or with local codes. In Canada, mobile home installation must
comply with the current CAN/CSA Z240/MH Mobile Home Installation Code.
18English

Installation instructions
Installing your gas cooktop
IMPORTANT:
Carefully read these instructions and the Important Safety Instructions section at the
front of this manual BEFORE installing/operating the cooktop. Improper installation,
adjustment, service, or maintenance can lead to personal injury and property damage.
NOTE
To ensure proper installation, you should hire a qualified professional.
Unpacking the cooktop
1. Remove all packaging material.
2. Inventory all included parts against supplied components on pg. 16.
3. Check for and report any damage and missing parts to your retailer.
Installing the cooktop
1. If a downdraft vent will accompany the cooktop, first install the downdraft.
2. Lower the cooktop into the cutout and center it.
3. Secure the cooktop to the countertop with the hold-down brackets as shown below.

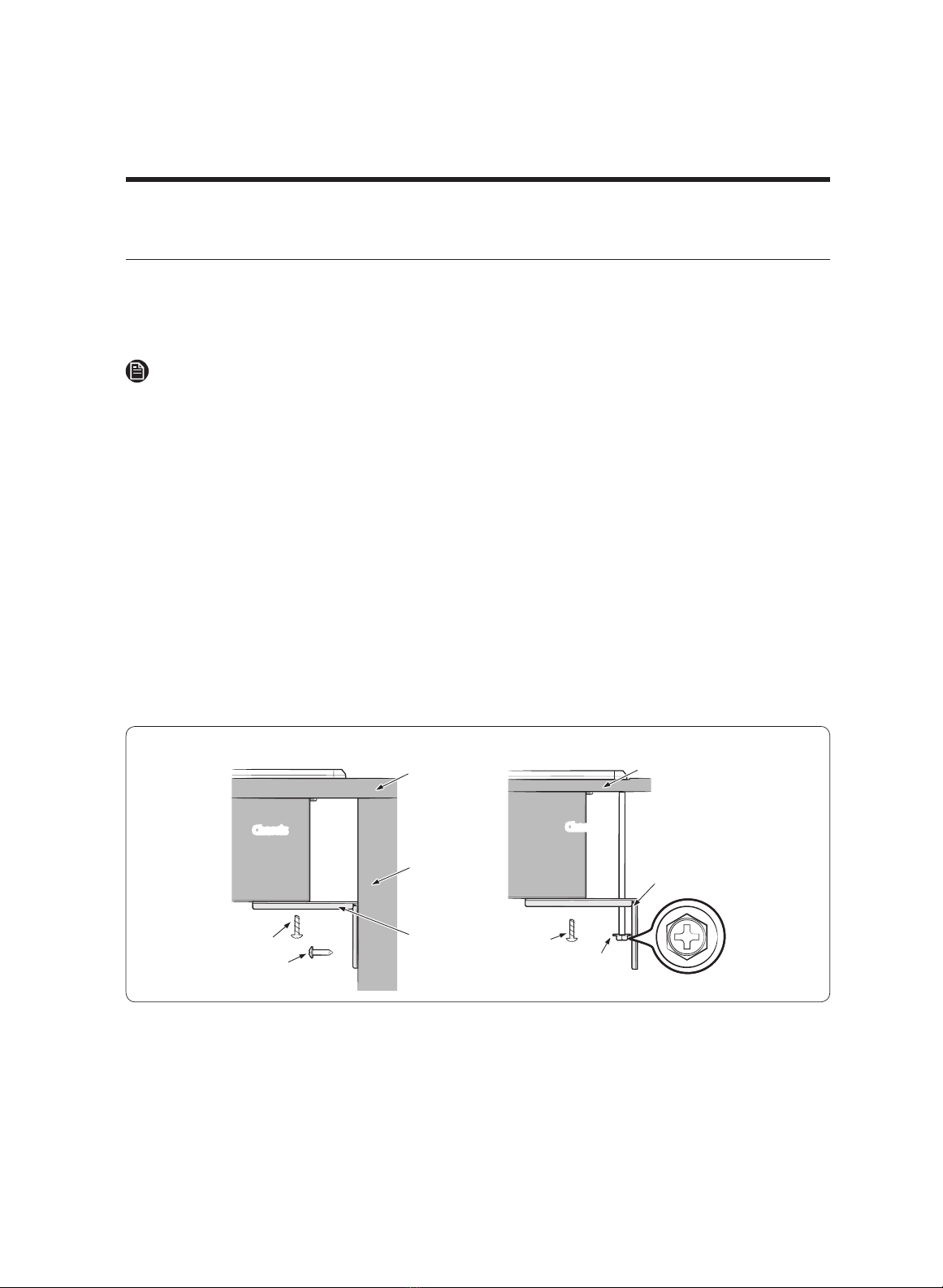

Attaching the hold-down brackets
M4 L10 screw
M4 L16 screw
Case 1.
Countertop
Side wall of
undercounter
cabinet
Hold down
bracket
Chassis
243/16 UNC L145
nut toggle
Case 2.
Countertop
Chassis
Hold down
bracket
M4 L10 screw
English 19

Connecting the gas supply
1. Shut off the main gas-supply valve before disconnecting the old cooktop.
2. Complete the gas hookup.
3. Open the gas valve, and relight the burners on any other gas appliances.
NOTE
Because hard piping restricts movement of the cooktop, use a CSA International-certified
flexible metal appliance connector unless local codes require hard piping.
WARNING
Follow the information in this manual exactly to avoid a fire or explosion, which may
cause property damage and personal injury or death.
•Do not store/use flammable liquids near the cooktop.
•IF YOU SMELL GAS:
-DO NOT light a match, candle, or cigarette.
-DO NOT try to light any appliance.
-DO NOT touch any electrical switch.
-DO NOT use any phone in your building.
-Evacuate the building.
-Immediately, from a neighbor’s phone, call the gas supplier, and follow their
directions. (If you cannot reach the supplier, call the fire department.)
•Installation and service must be performed by a qualified installer, service agency,
or gas supplier.
•Install the provided gas regulator. Do not use the cooktop without it.
•Ensure the regulator arrow points toward the cooktop.
•Do not overtighten gas connections and fittings.
•Before use, test the gas lines for leaks as instructed. Do not test with a flame.
20 English
